Lochinvar Knight XL KBN601 Boiler Instruction Manual
Lochinvar Knight XL KBN601 Boiler
Lochinvar Knight XL KBN601 Boiler
Lochinvar Knight XL KBN601 Boiler
Lochinvar Knight XL KBN601 Boiler
Lochinvar Knight XL KBN601 Instructions
Here we offer the Lochinvar Knight XL KBN601 Boiler manual completely free and in English. We have cataloged this manual in the Boilers section on Manualverse, and it has been rated by 1 users with an average rating of 5. If you have any specific questions about Lochinvar Knight XL KBN601 Boiler, we suggest checking the Frequently Asked Questions (FAQs) section of this manual.

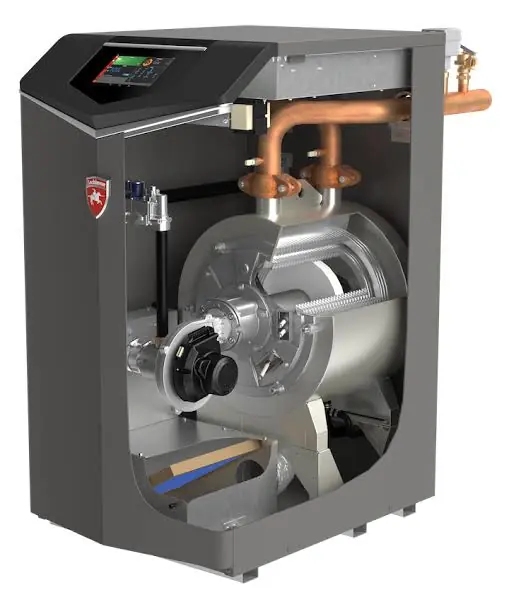

Product Images
Lochinvar Knight XL KBN601 Boiler Specifications
| Specification | Value |
|---|---|
| Model Number | KBN601 |
| Input MBH Gross | 600 |
| AHRI Boiler Output MBH | 564 |
| Net AHRI Rating MBH | 490 |
| Water Content | 4.2 Gallons |
| Water Connections | 2" NPT |
| Gas Connection Pipe | 1" |
| Air Intake Size | 4" |
| Vent Size | 4" |
| Relief Valve Setting | 50 PSI |
| Fuel Type | Natural Gas (LP Convertible) |
| Boiler Type | High Efficiency, Fully Condensing |
| Standard Operating Altitude | Sea level to 4,500 feet (de-rates 4% per 1,000 feet above sea level) |
| Minimum Operating Pressure | 12 psi (83 kPa) |
| Natural Gas Supply Pressure (Min/Max) | 4-14 inches w.c. |
| Propane Supply Pressure (Min/Max) | 8-14 inches w.c. |
Lochinvar Knight XL KBN601 Boiler Details
The Lochinvar Knight XL KBN601 Boiler is engineered for advanced heating performance, leveraging a stainless steel heat exchanger with specially designed coils that maximize heat transfer while resisting flue gas corrosion. This allows for fully condensing operation, significantly boosting efficiency. The robust construction includes a metal fiber and stainless steel burner, ensuring reliable combustion across a wide firing range.
At the heart of the system is the SMART SYSTEM Control Module, an advanced electronic interface that allows precise management of operating conditions. Users can adjust target temperatures, set night setbacks, and monitor various parameters through an intuitive LCD display with a navigation dial. This control module is pivotal for tailoring the boiler's performance to specific demand requirements.
Safety is paramount, with multiple integrated features protecting both the boiler and the system. These include a flue gas sensor, boiler outlet and inlet temperature sensors, and high-limit sensors. An over-temp switch and a burner door temperature switch provide additional safeguards against extreme conditions, ensuring reliable and safe operation.
The KBN601 boasts a versatile venting system, supporting pressurized direct vent installations. Approved materials such as PVC, CPVC, polypropylene, or stainless steel can be used for both sidewall and vertical terminations, offering flexibility in installation. The manual emphasizes adherence to strict piping lengths and sealing requirements to prevent combustion air contamination and ensure system integrity.
For system longevity, proper water quality is critical. The manual recommends thorough system flushing prior to operation, avoiding petroleum-based compounds, and using only inhibited propylene glycol for freeze protection. The control module also features a built-in freeze protection mode, activating pumps and the burner if inlet temperatures drop too low, though it's not a substitute for proper system design.
The boiler's modulation capability ranges from 20% to 100%, allowing it to precisely match heating loads and enhance efficiency. This is complemented by features like anti-cycling, which prevents frequent burner cycles, and adjustable ramp delays to manage firing rate increases at startup or during demand changes.
Advanced control options extend to outdoor reset operation, which automatically adjusts set points based on external temperatures, and a boost function for sustained heating demands. For larger installations, the KBN601 can be integrated into a cascade system, managing up to eight boilers with lead/lag or efficiency optimization methods, ensuring balanced run times and optimized performance.
Diagnostic capabilities are comprehensive, with error logging storing the last ten lockouts and blockings. Service reminders can be programmed based on time, running hours, or cycles, providing proactive maintenance notifications. Front access to internal components simplifies inspection and cleaning of the burner and heat exchanger, underscoring the boiler's user-friendly design and long-term serviceability.
