Lexin G16 Intercom Instructions
Here we offer the Lexin G16 Intercom manual completely free and in English. We have cataloged this manual in the Intercoms section on Manualverse, and it has been rated by 1 users with an average rating of 5. If you have any specific questions about Lexin G16 Intercom, we suggest checking the Frequently Asked Questions (FAQs) section of this manual.

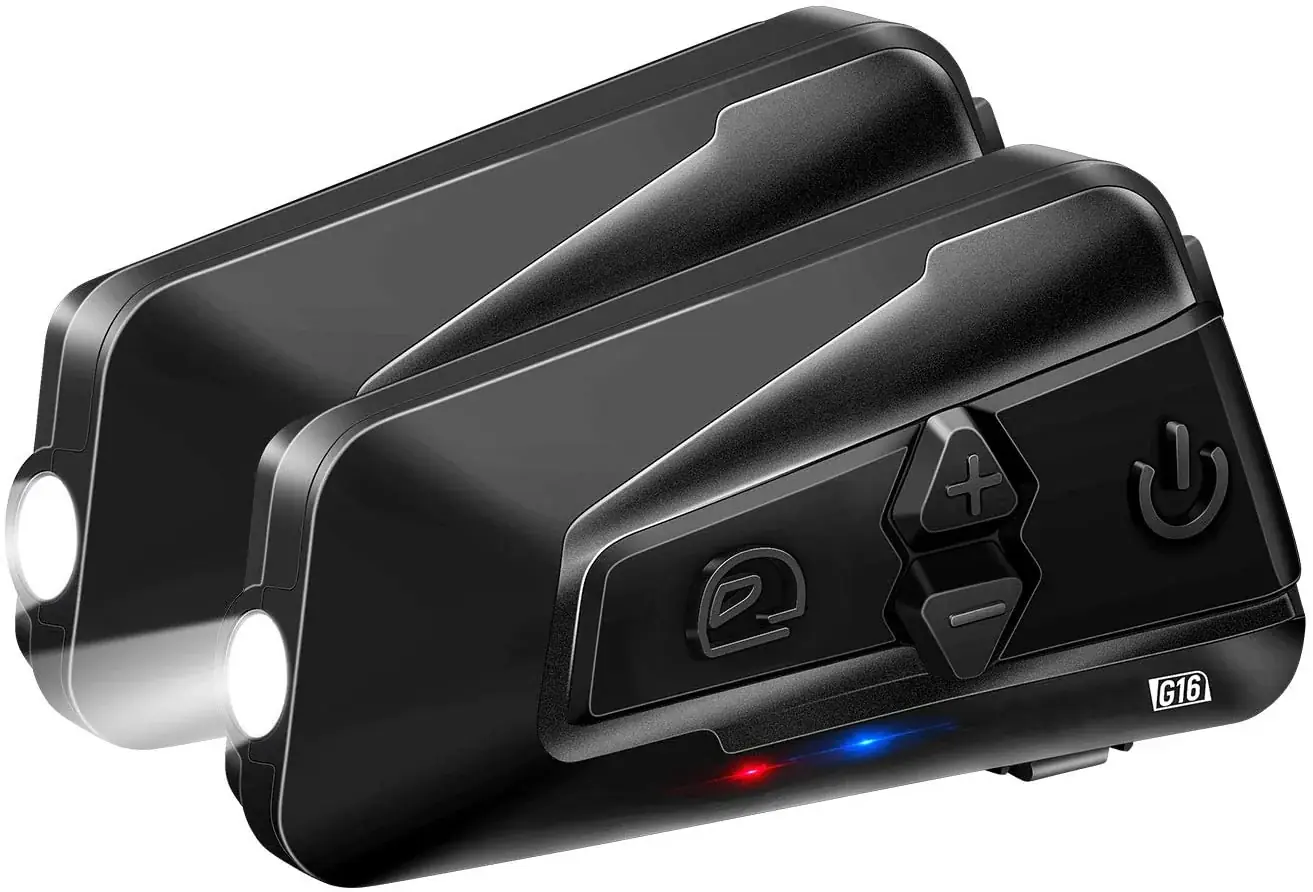

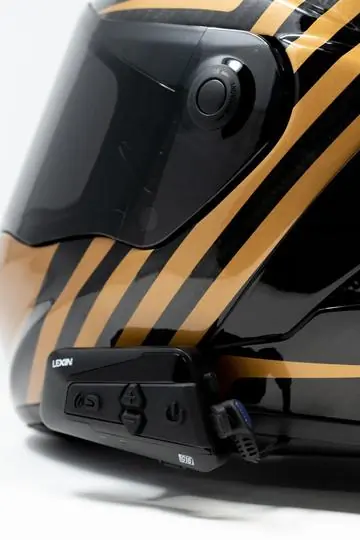

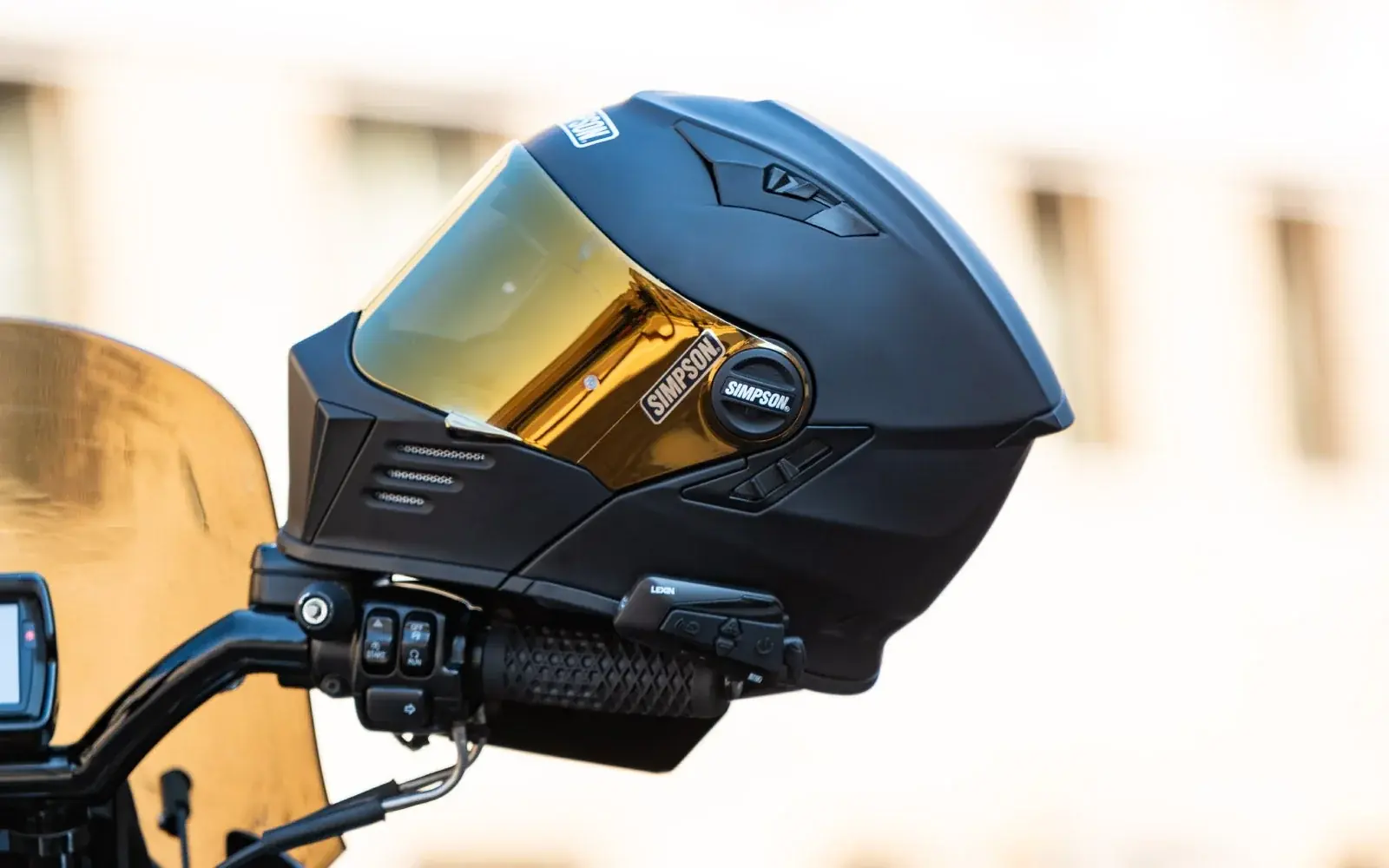

Product Images

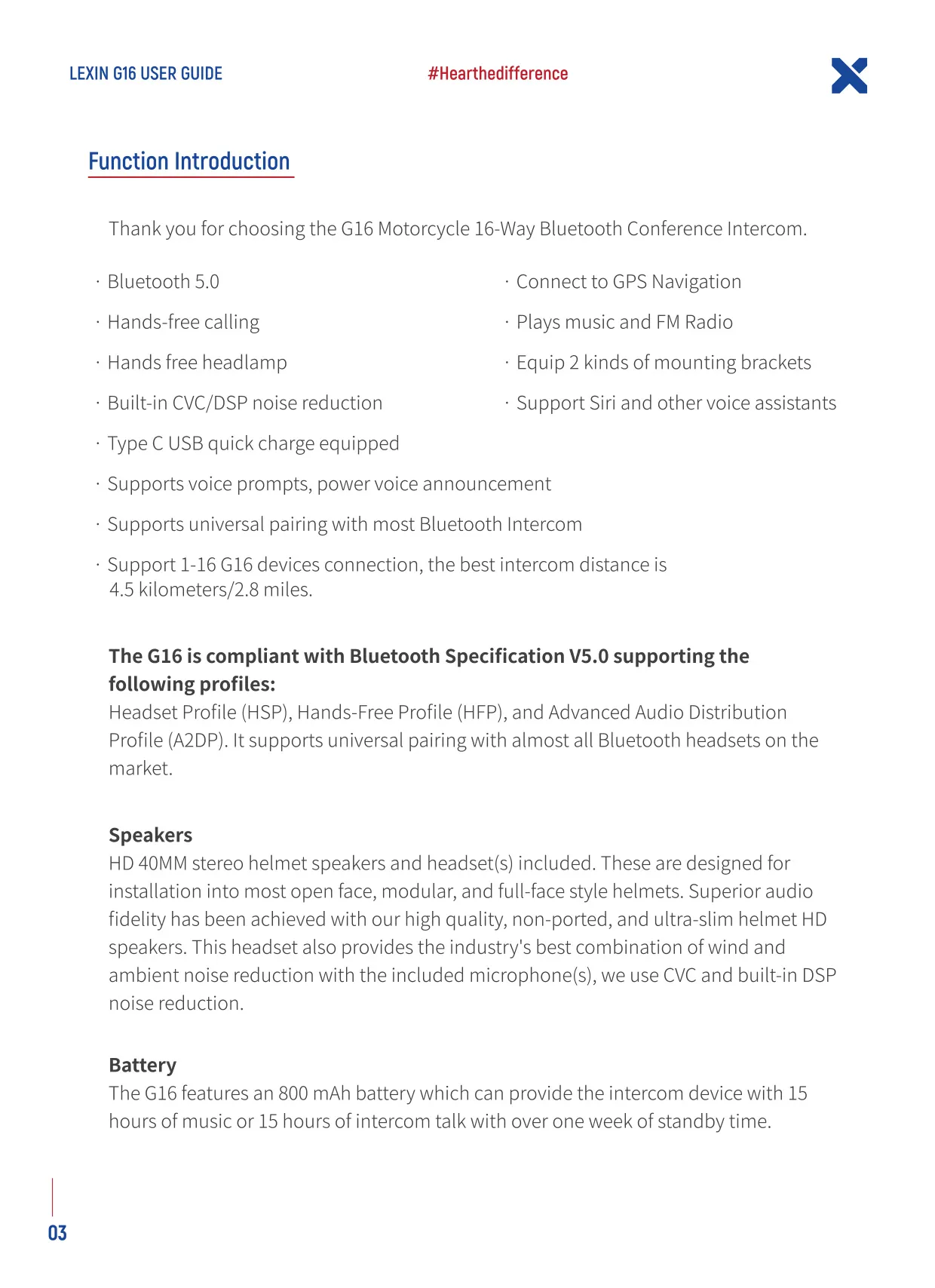

Lexin G16 Intercom Specifications
| Feature | Specification |
|---|---|
| Product Type | Motorcycle 16-Way Bluetooth Conference Intercom |
| Bluetooth Version | Bluetooth 5.0 |
| Supported Profiles | HSP (Headset Profile), HFP (Hands-Free Profile), A2DP (Advanced Audio Distribution Profile) |
| Maximum Intercom Riders | 1 to 16 G16 devices |
| Best Intercom Distance | 4.5 km / 2.8 miles |
| Intercom Type | Full-duplex Bluetooth intercom |
| Intercom Modes | 4-way intercom mode (default) and multi-way intercom mode (up to 16 riders) |
| G16-to-G16 Links per Unit | 2 G16 devices at the same time (chained in series) |
| Simultaneous Bluetooth Device Connections | Up to 3 devices |
| Battery Capacity | 800 mAh |
| Music Playback Time | Up to 15 hours |
| Intercom Talk Time | Up to 15 hours |
| Standby Time | Over one week |
| Charging Time | About 3 hours |
| Charging Input | DC 5V |
| Charging Port | USB Type-C (quick charge) |
| Headset Port | USB Type-C |
| Speakers | 40 mm HD ultra-slim stereo, non-ported |
| Microphones | Boom microphone and button microphone (interchangeable) |
| Noise Reduction | CVC and built-in DSP |
| FM Radio Presets | Up to 6 stations |
| Auto Answer Delay | Within 12 seconds |
| Low Battery Alert | Below 30%, voice alert every 5 minutes (about 1 to 1.5 h of use remaining) |
| Automatic Shutdown | Battery below 20% |
| Battery Level Report | 100%, 80%, 50%, 30%, LOW |
| Bluetooth Pairing Name | LX-G16 |
| Default PIN | 0000 |
| Lighting | Built-in headlamp with Emergency SOS strobe |
| Voice Assistant Support | Siri, S-Voice and other voice assistants |
| Mounting Options | Clamp plate bracket with screws, 3M adhesive tape bracket |
| Buttons | Power, Intercom, Up, Down, Light |
| Regulatory Compliance | FCC Part 15 Class B, ISED Canada licence-exempt RSS |
| Warranty | One year limited warranty (manual text); back cover states 2-Year Warranty |
Lexin G16 Intercom Details
The Lexin G16 handles audio sources in a fixed order of priority. Mobile phone calls come first, then intercom talk, then music, FM radio and GPS audio. A higher-priority function always interrupts a lower one. For example, an intercom call interrupts stereo music, and an incoming phone call interrupts intercom talk. Riders therefore never miss an important call while listening to music or talking in a group.
The box includes everything needed for installation: the main unit, 40 mm speakers, boom and button microphones, a microphone holder, a clamp plate with rubber pads, an add-on mounting pad, a 3M tape bracket, speaker pads, a Type C cable, an Allen wrench with four screws and a dismounting stick. The clamp bracket sits between the helmet padding and shell. Extra rubber pads and longer screws fit thicker shells. The adhesive option needs 15 seconds of pressure and 24 hours to cure. LEXIN recommends the screw bracket over the 3M tape.
The main unit slides down onto the bracket until it clicks. You remove it by pushing it up with the dismounting stick. The speaker with the shorter wire goes on the left ear and the longer one on the right, which also improves FM reception. Spacers help with deep ear pockets. The button microphone suits full-face helmets and the boom microphone suits open-face helmets. Point the triangular mark on the boom microphone toward your mouth.

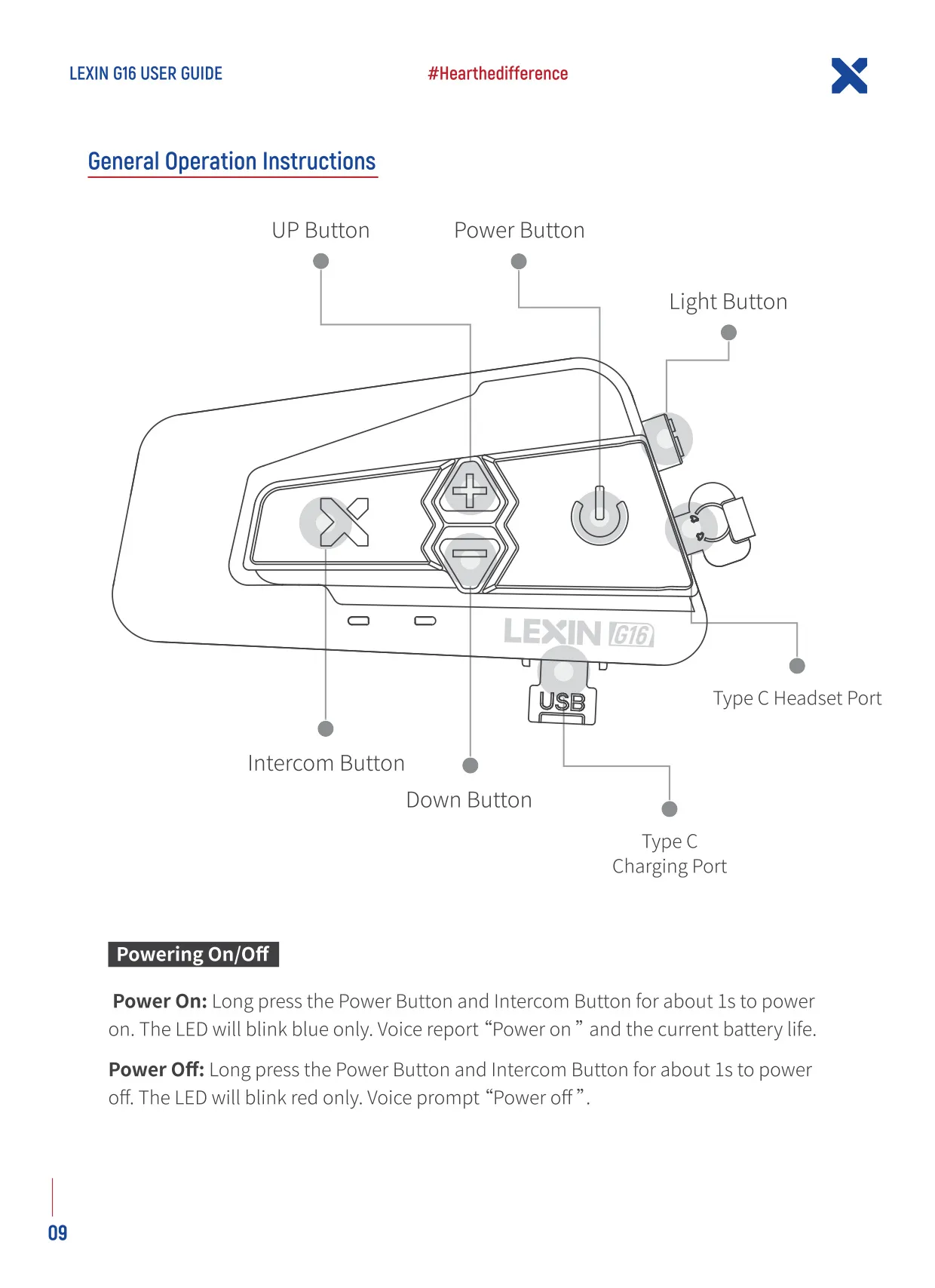

Controls are simple. To power on or off, hold the Power and Intercom buttons together for about one second. A voice prompt then announces the power state and the battery level. You can also hold the Down button during standby to hear the battery level. To pair a phone, hold Power for about five seconds while the unit is off, until the LED flashes red and blue. The same process pairs a Bluetooth GPS navigator for voice turn-by-turn directions.
Music and phone functions use short click combinations. Double-clicking Up or Down skips tracks. Double-clicking Up in standby redials the last number, and double-clicking Down opens the voice assistant. Music sharing lets one G16 stream its current music to a second unit after both double-click the Power button. Holding Up for five seconds turns auto-answer on or off, confirmed by a blue or red flash.

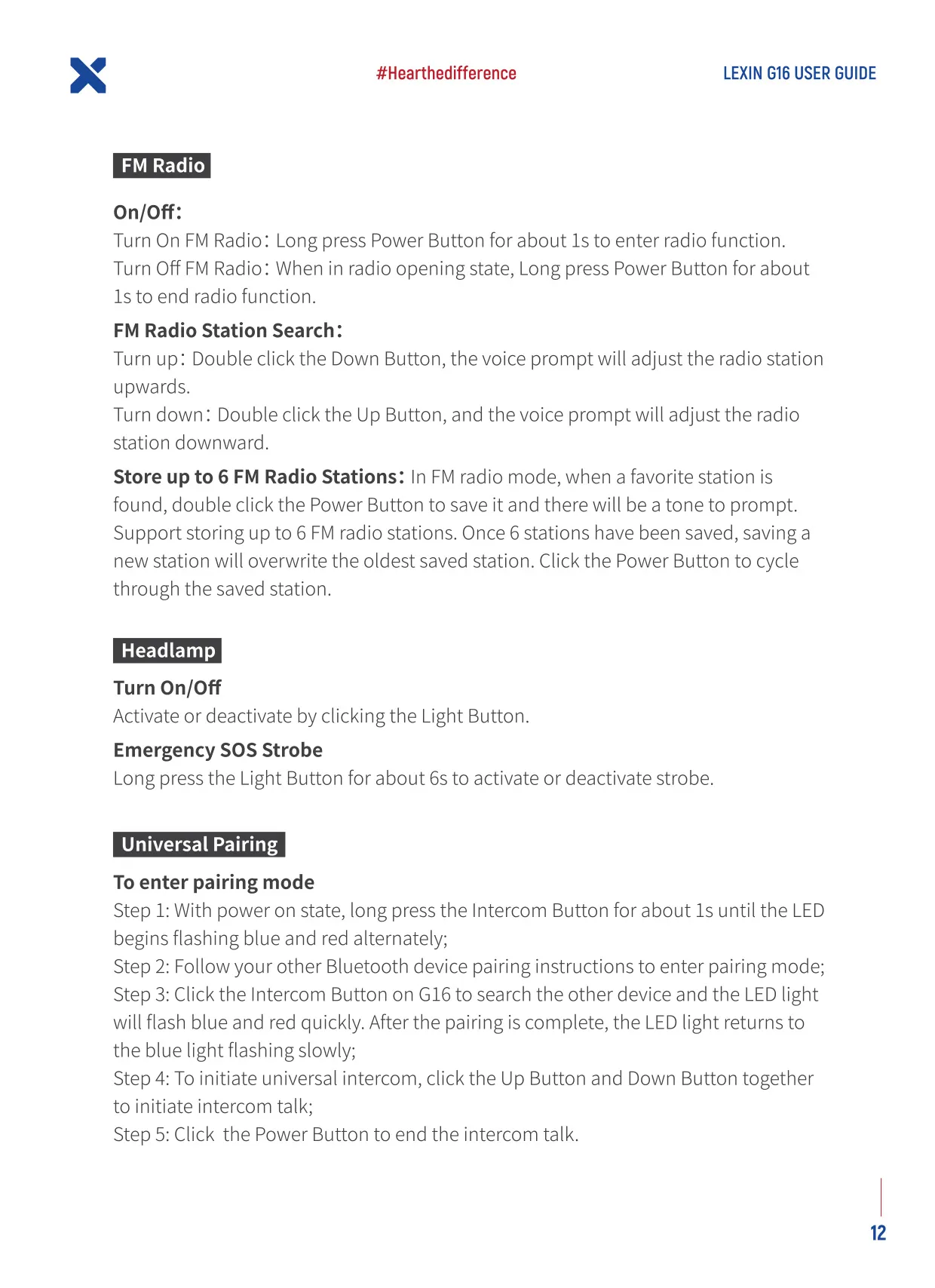

To turn the FM radio on or off, hold Power for about one second. Double-click Up or Down to search stations, and double-click Power to save a favorite. When all presets are full, a new save overwrites the oldest one. A single click on the Light button turns the headlamp on or off. Holding it for six seconds starts or stops the SOS strobe.

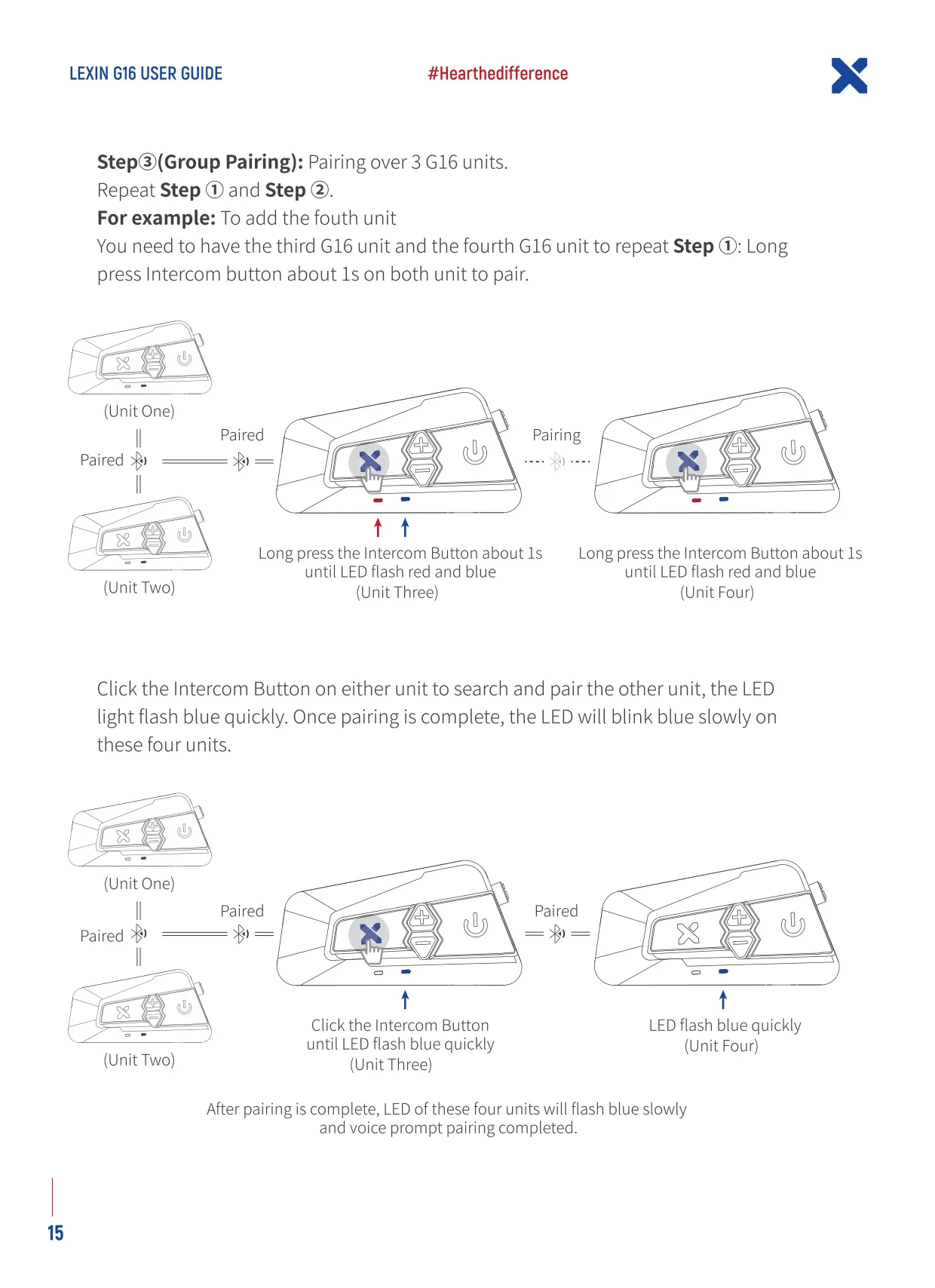

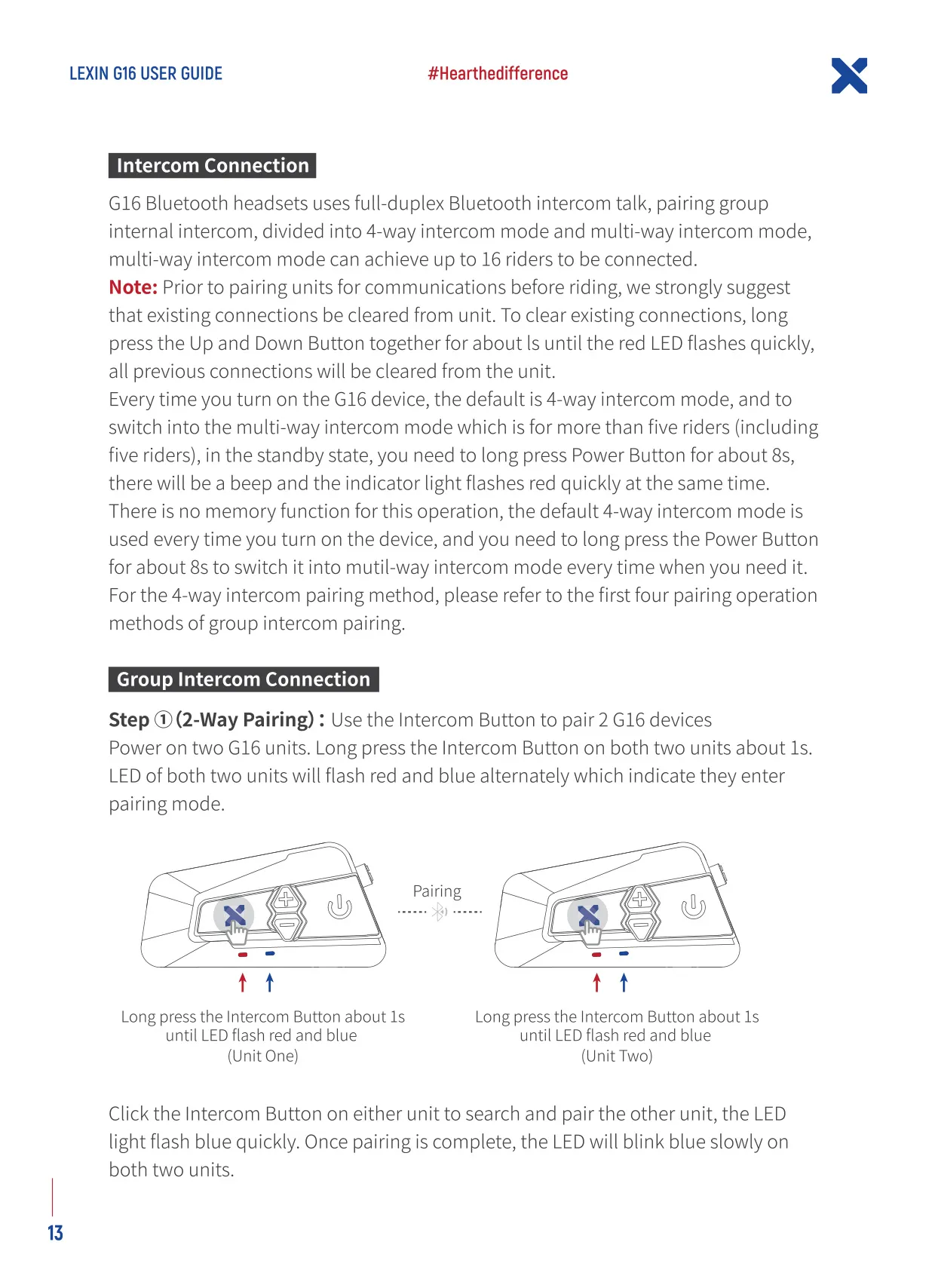

For group riding, you pair units one after another in a chain. You alternate between the Intercom button alone and the Intercom plus Down combination. Each unit starts in 4-way mode when powered on. For five or more riders, hold Power for eight seconds each time you power on, because this setting is not saved. If a middle unit disconnects, the group splits into two separate groups. Universal pairing also lets the G16 talk to intercoms from other brands.
For maintenance, avoid dust, extreme heat, cold, drops, harsh chemicals and paint, and never open the case. The warranty covers only the original buyer and excludes misuse, neglect and third-party equipment. To make a claim, you need proof of purchase and must prepay shipping.
