Goodman GM9S96 Furnace Instructions
Here we offer the Goodman GM9S96 Furnace manual completely free and in English. We have cataloged this manual in the Furnaces section on Manualverse, and it has been rated by 1 users with an average rating of 5. If you have any specific questions about Goodman GM9S96 Furnace, we suggest checking the Frequently Asked Questions (FAQs) section of this manual.

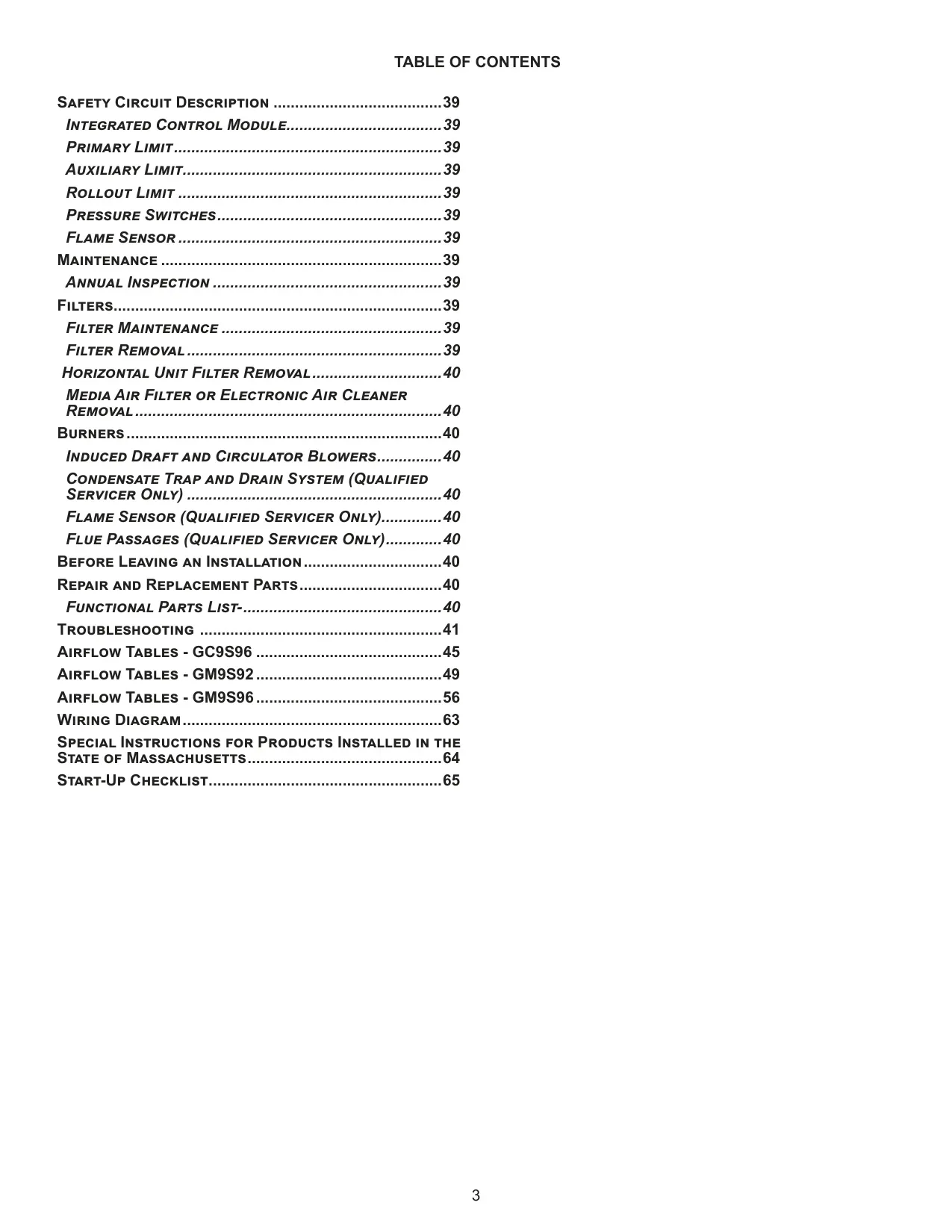

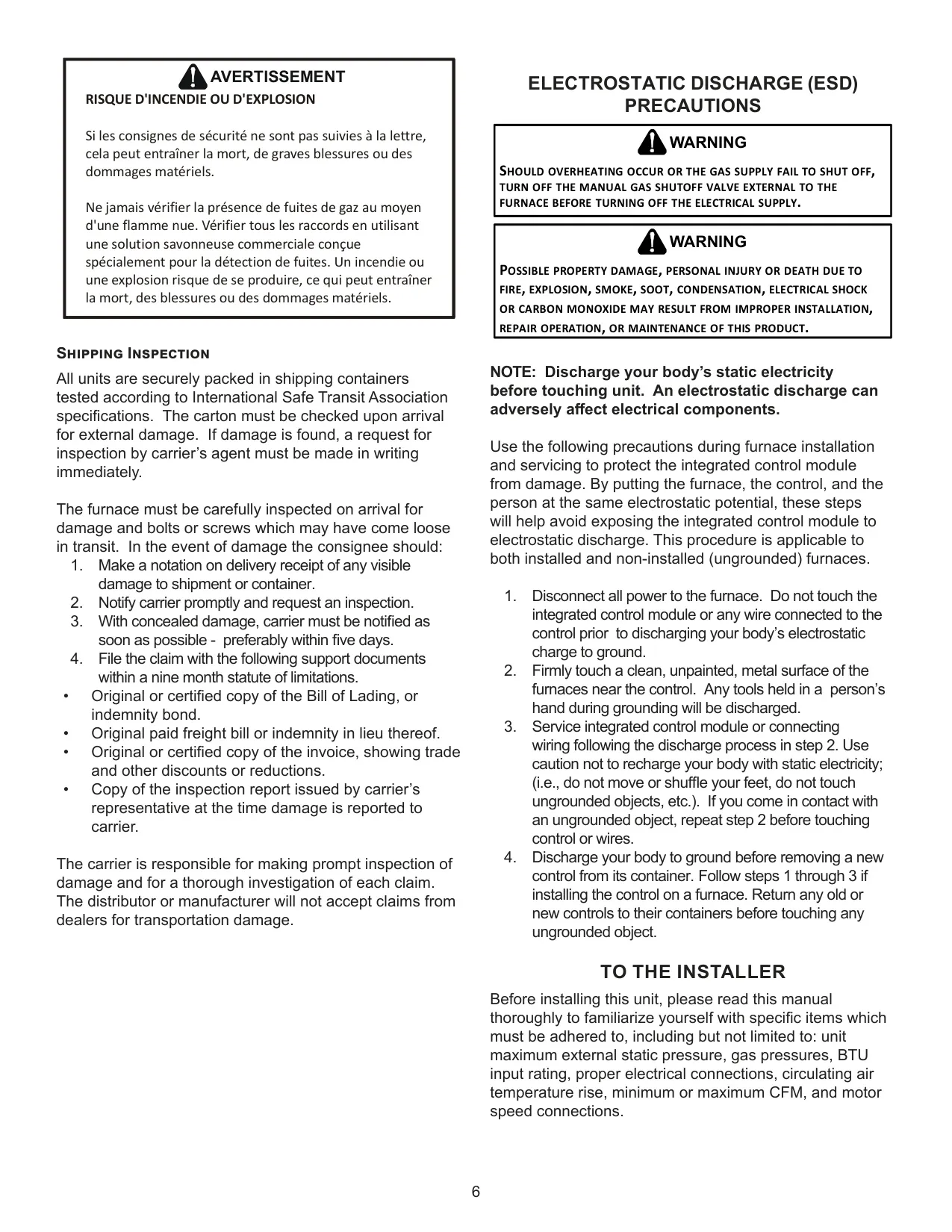

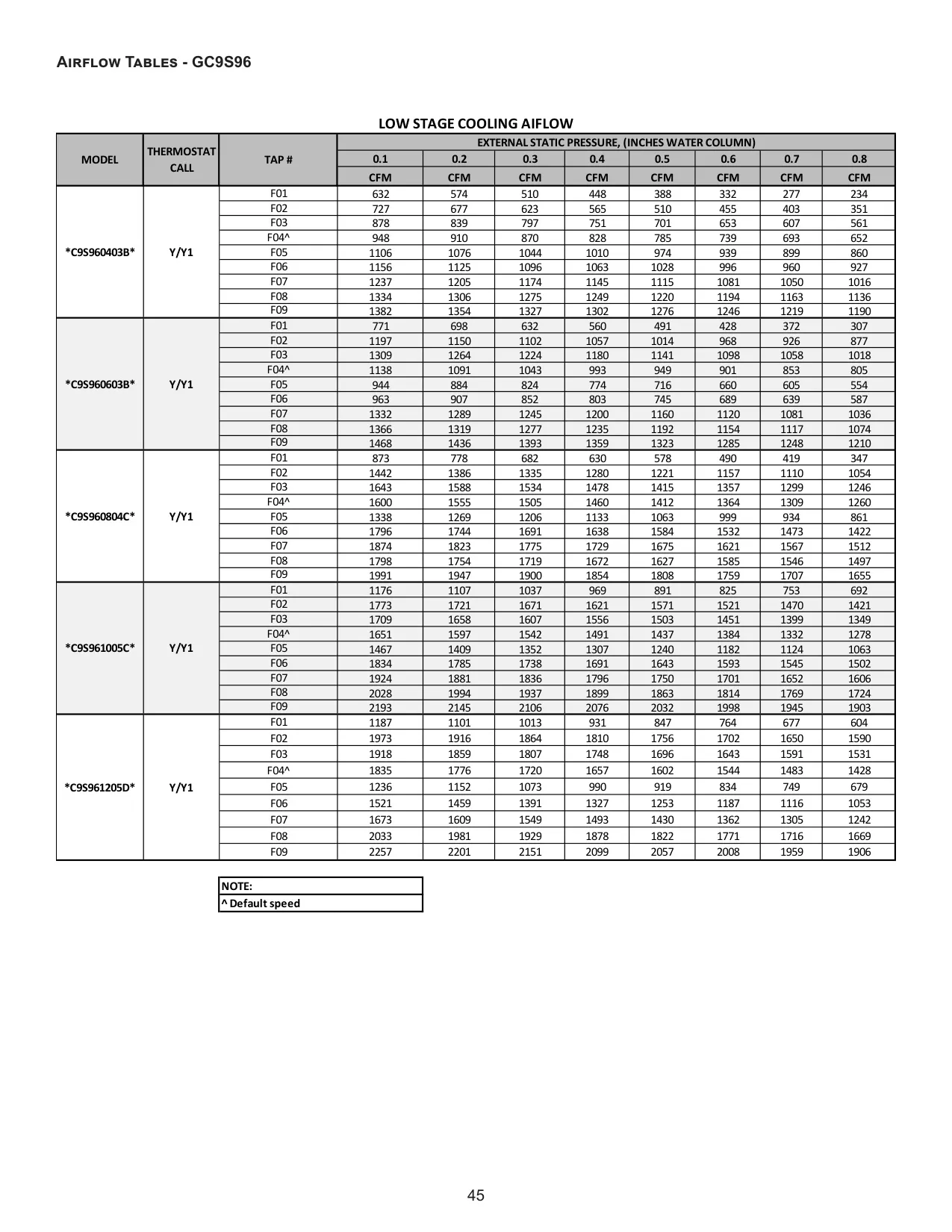

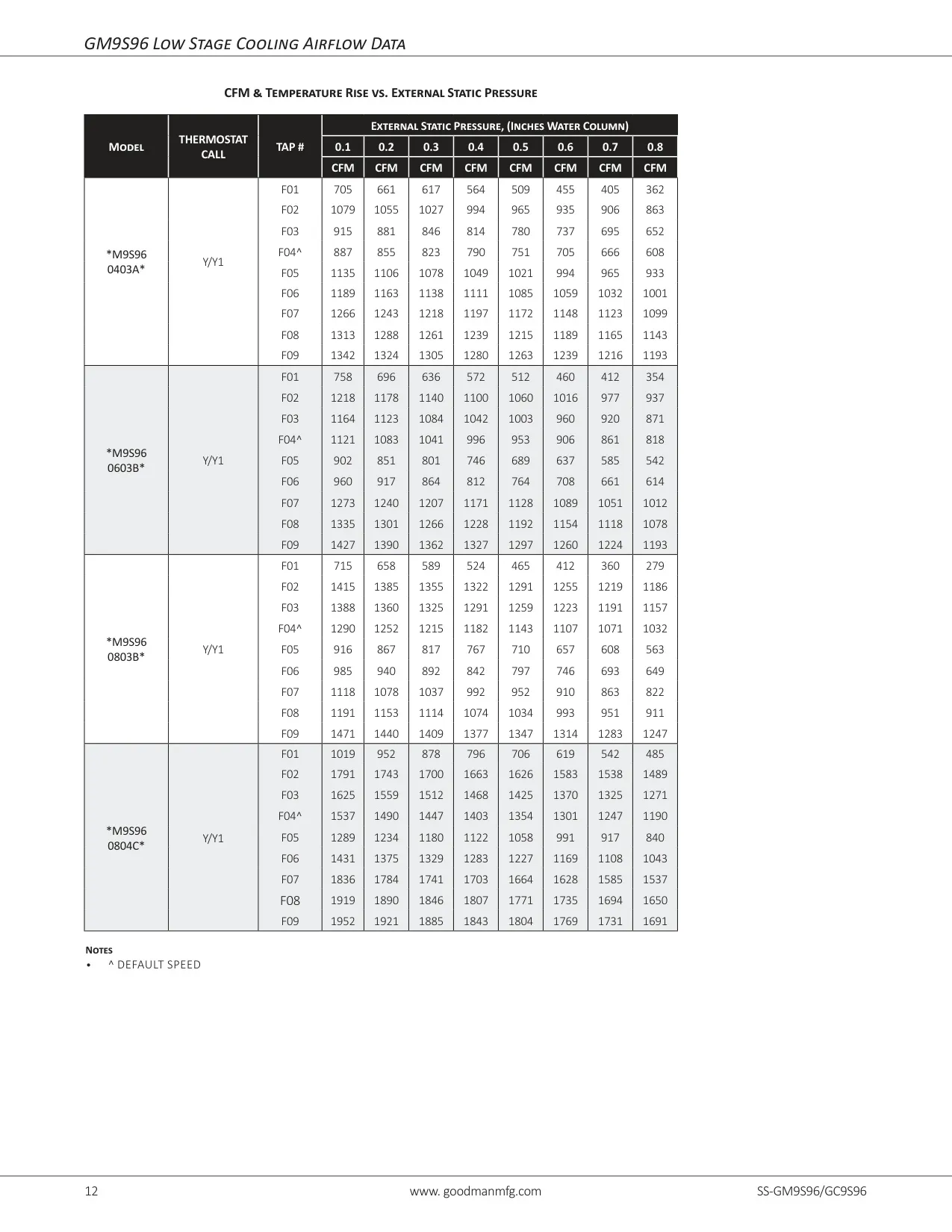

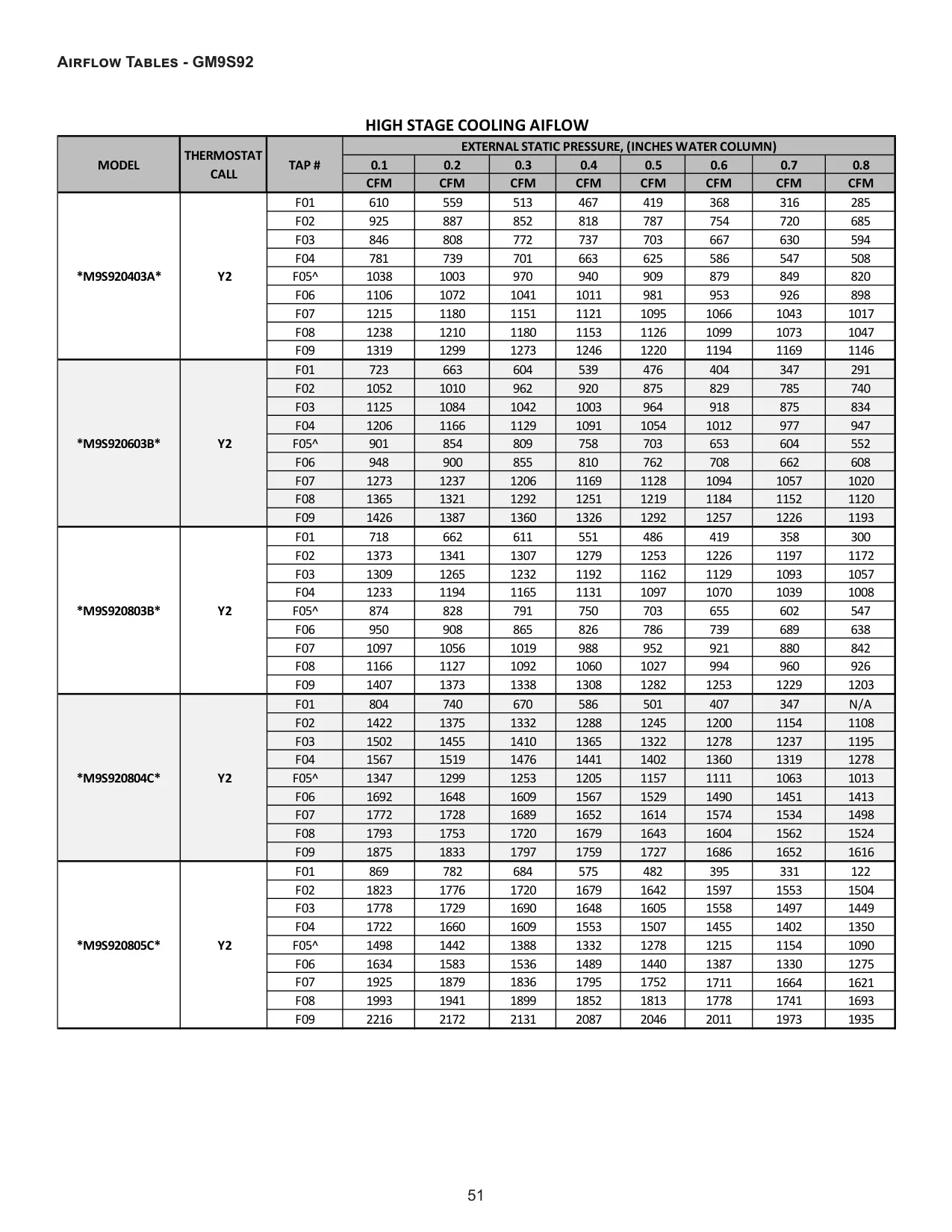

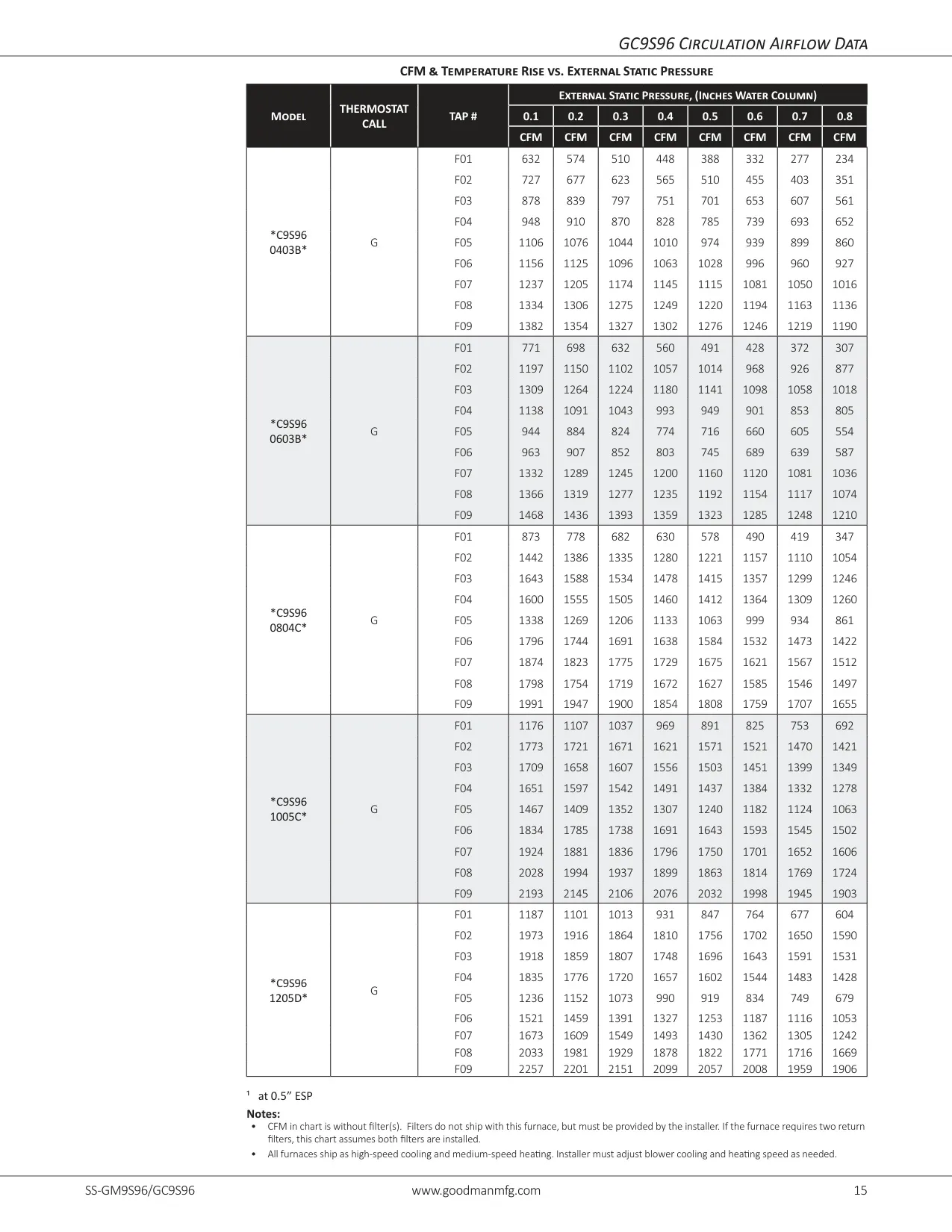

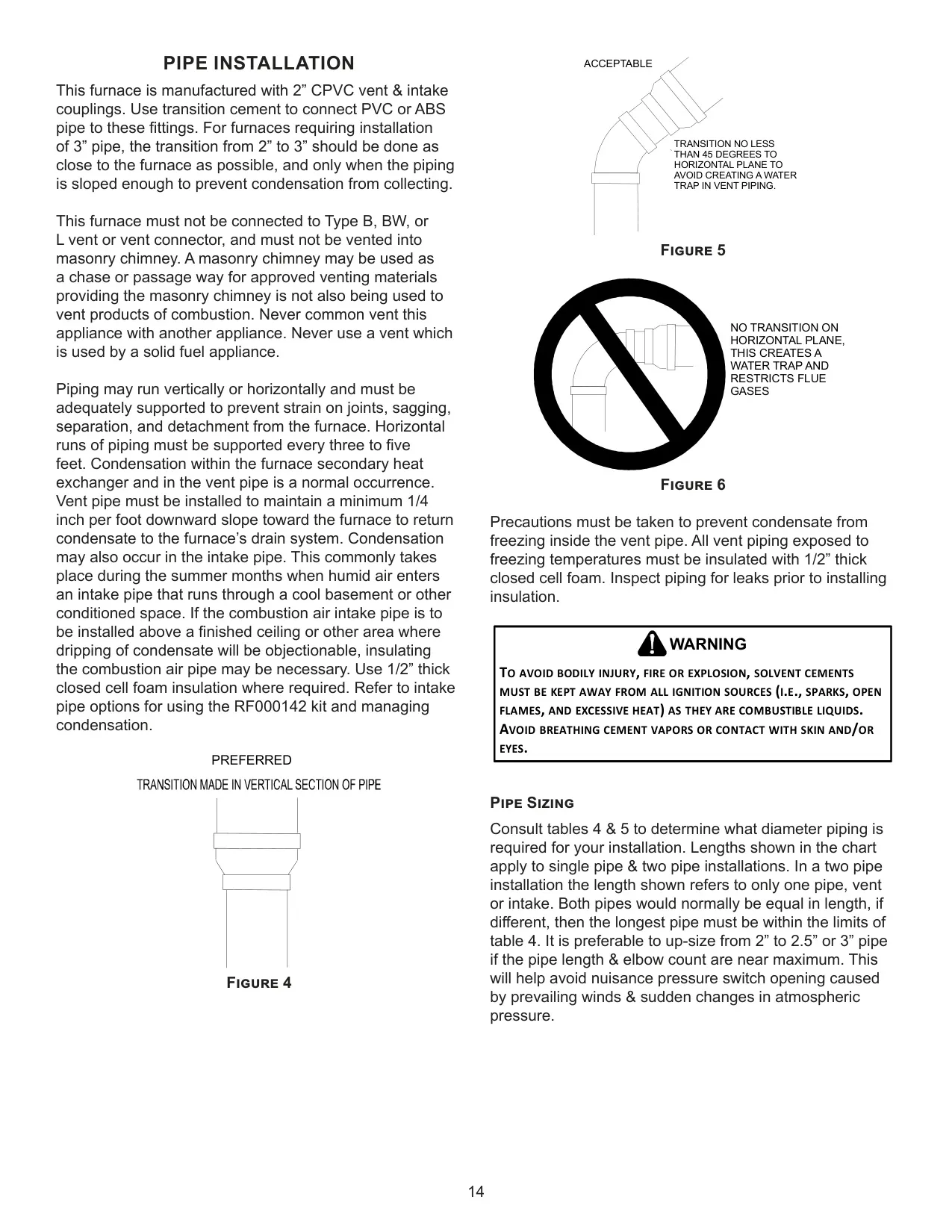

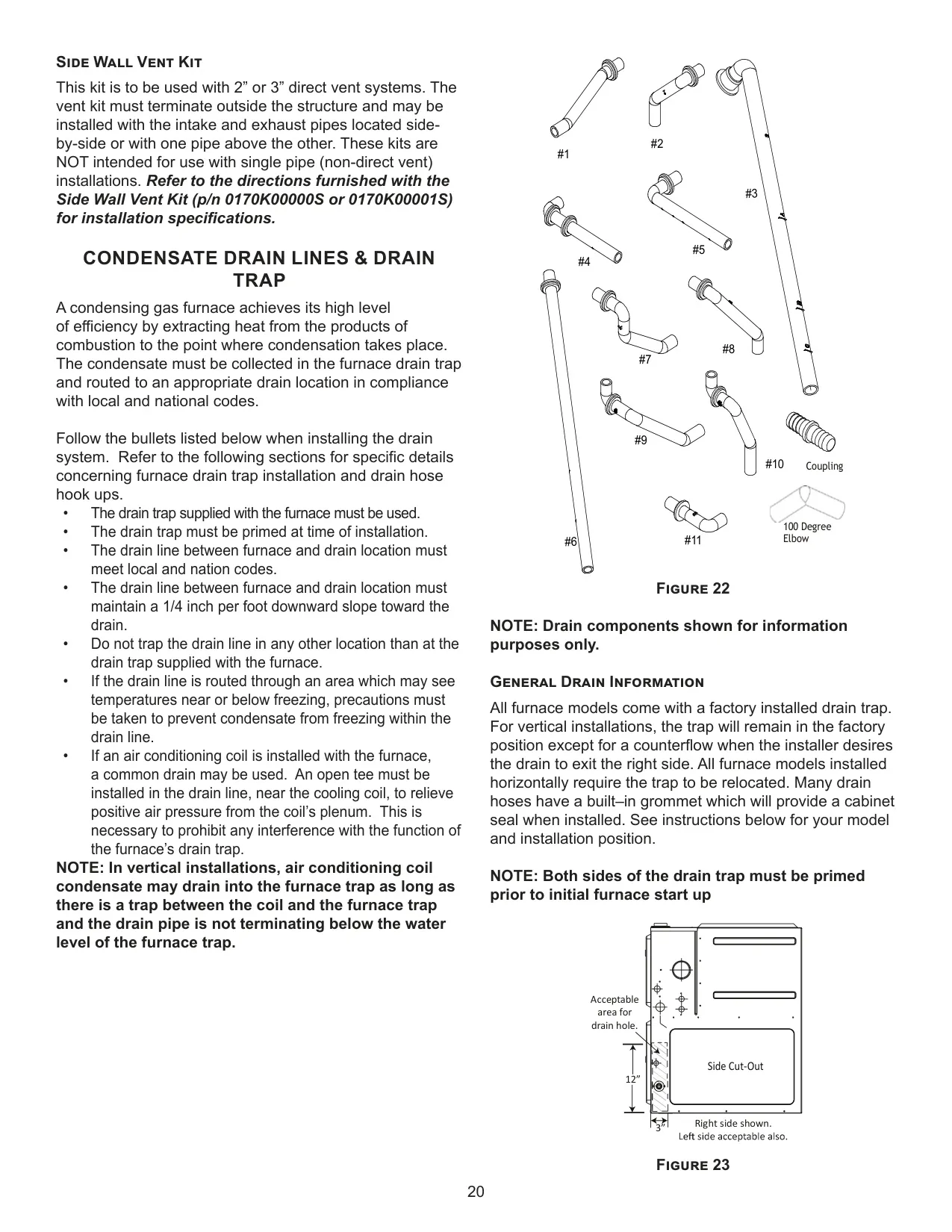

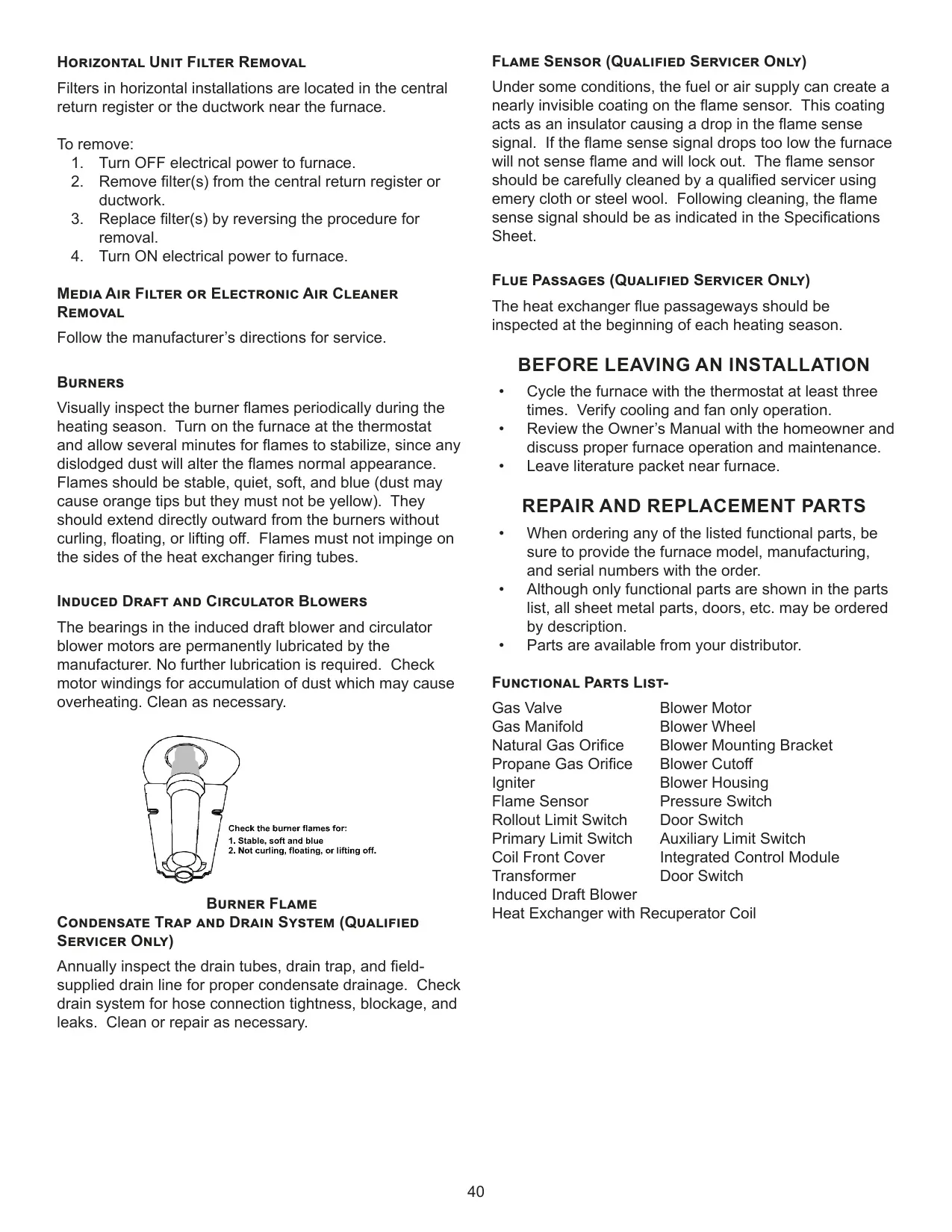

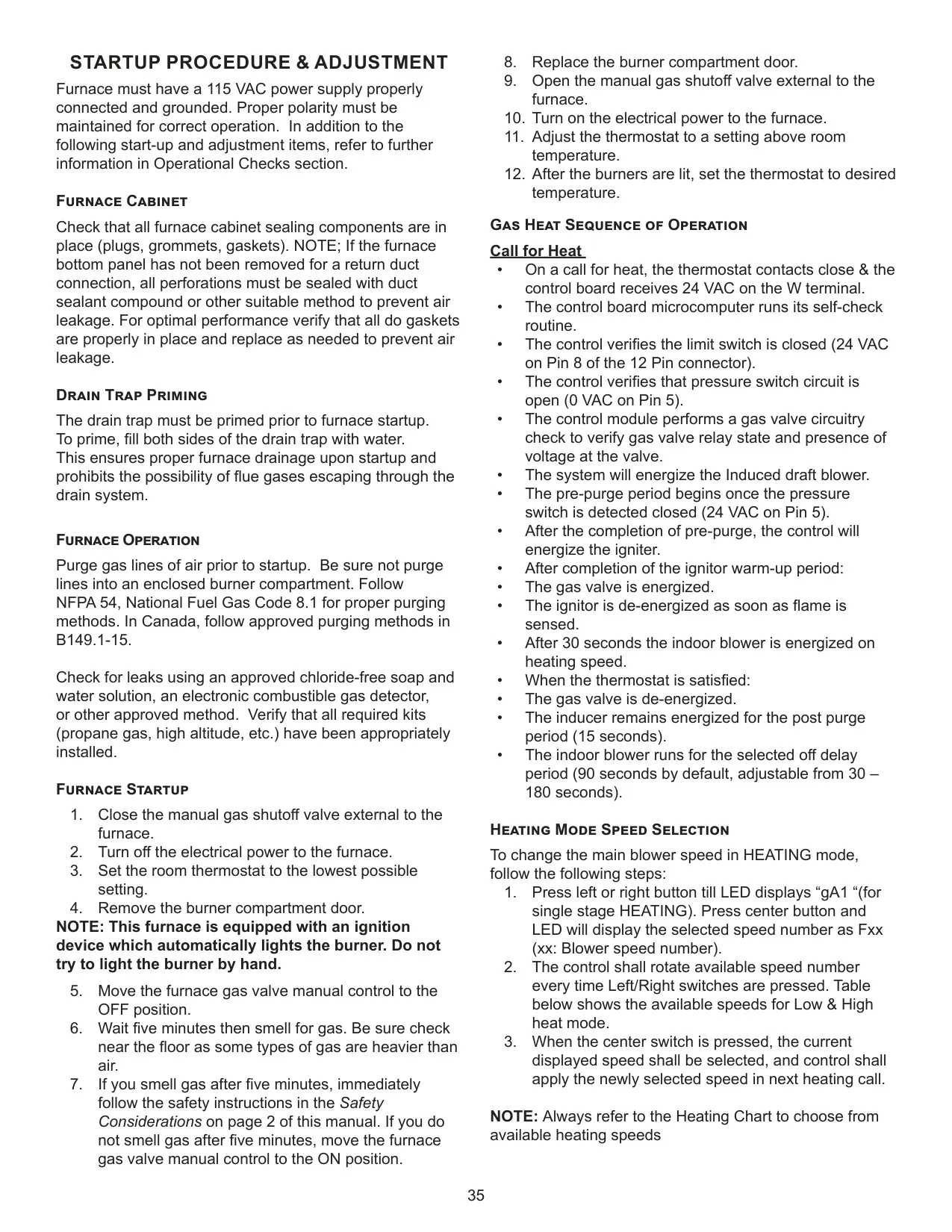

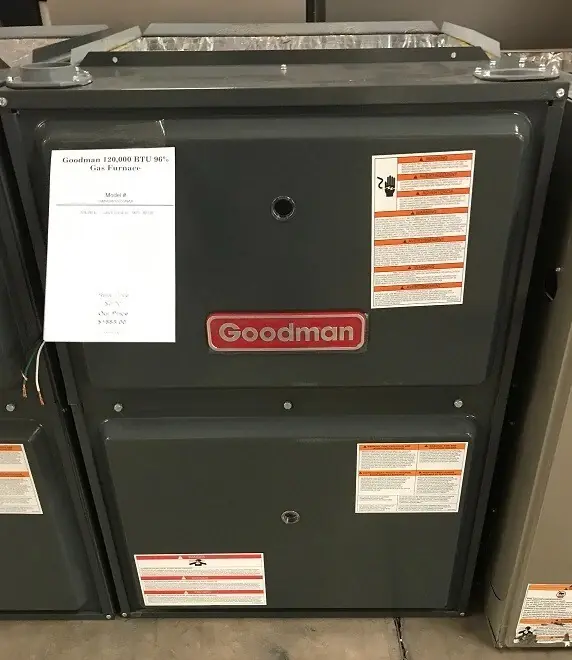

Product Images

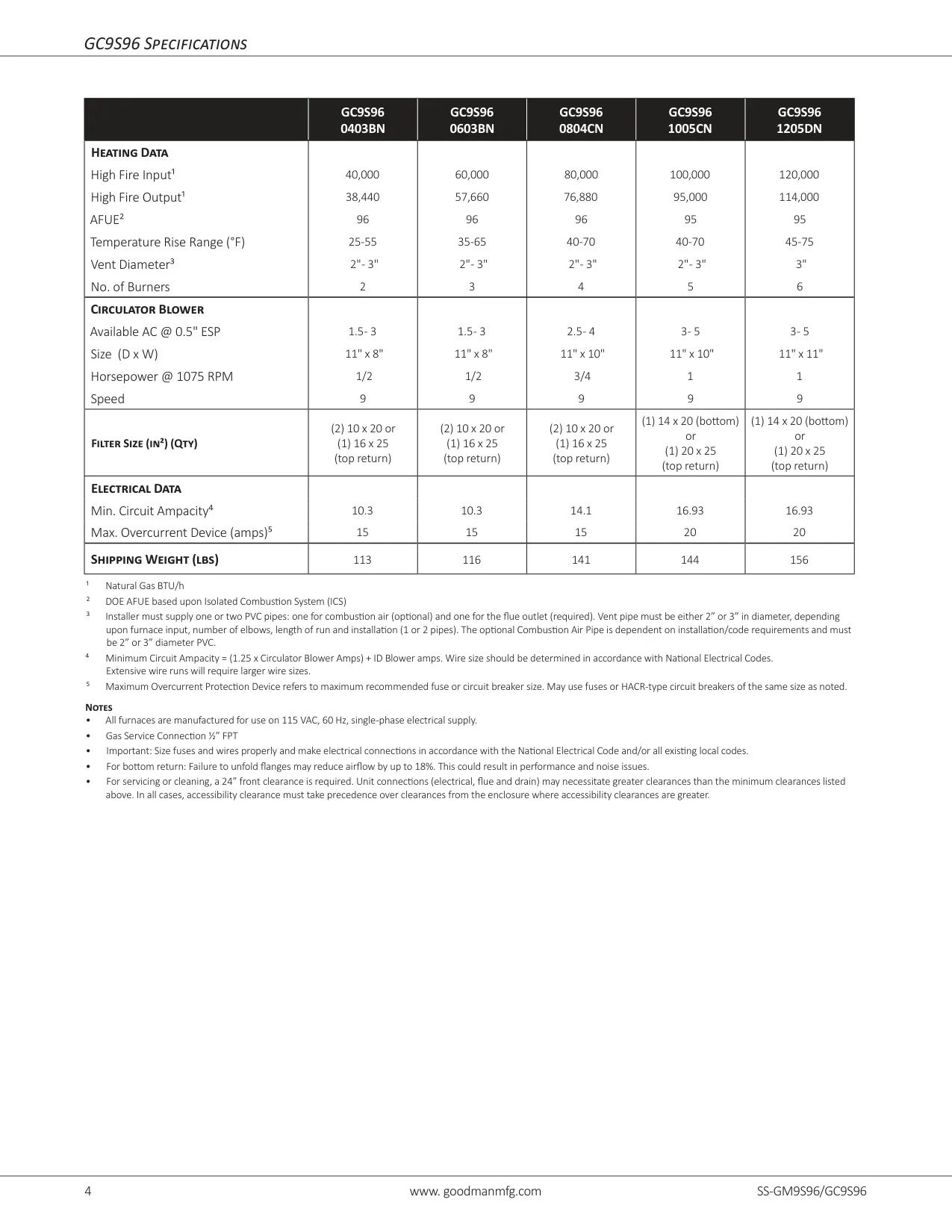

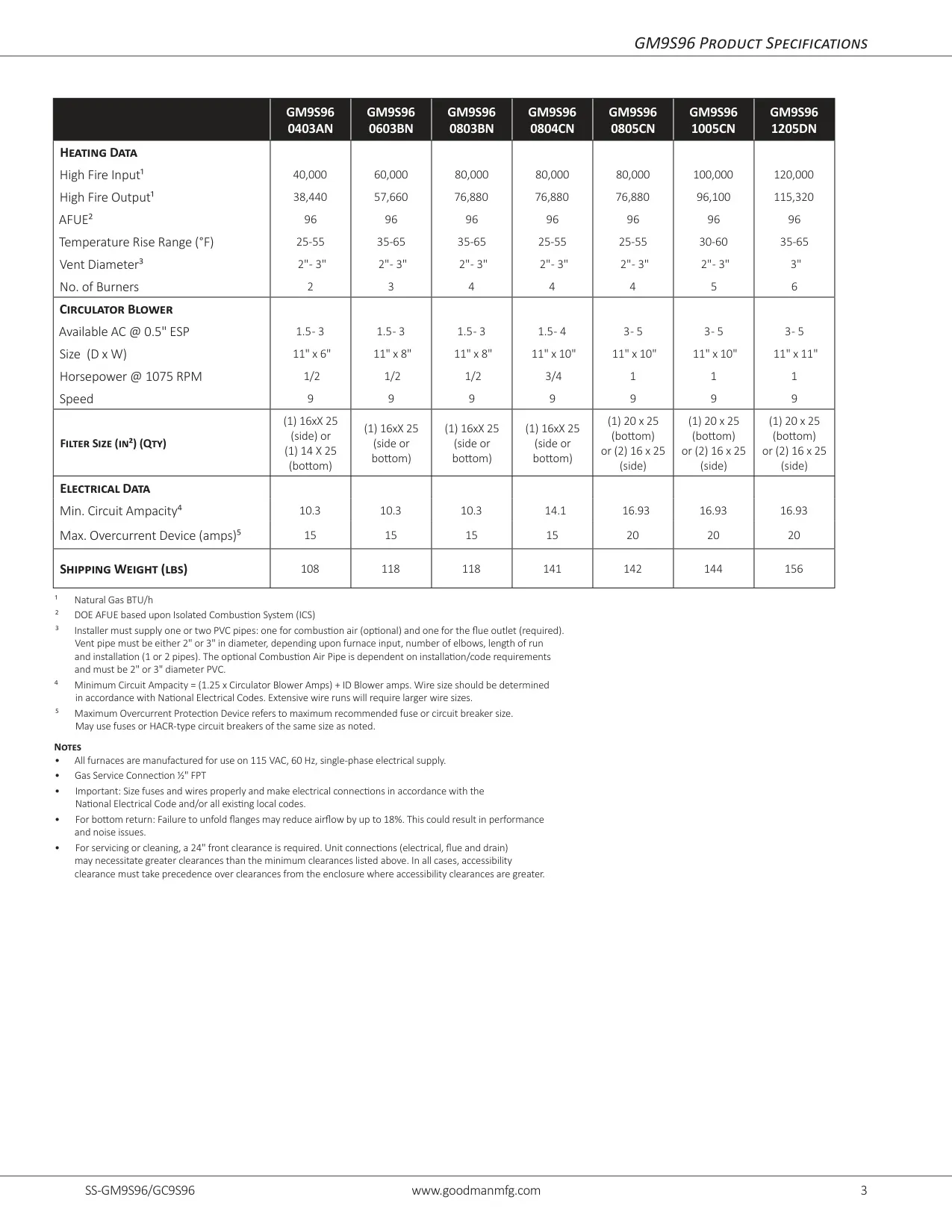

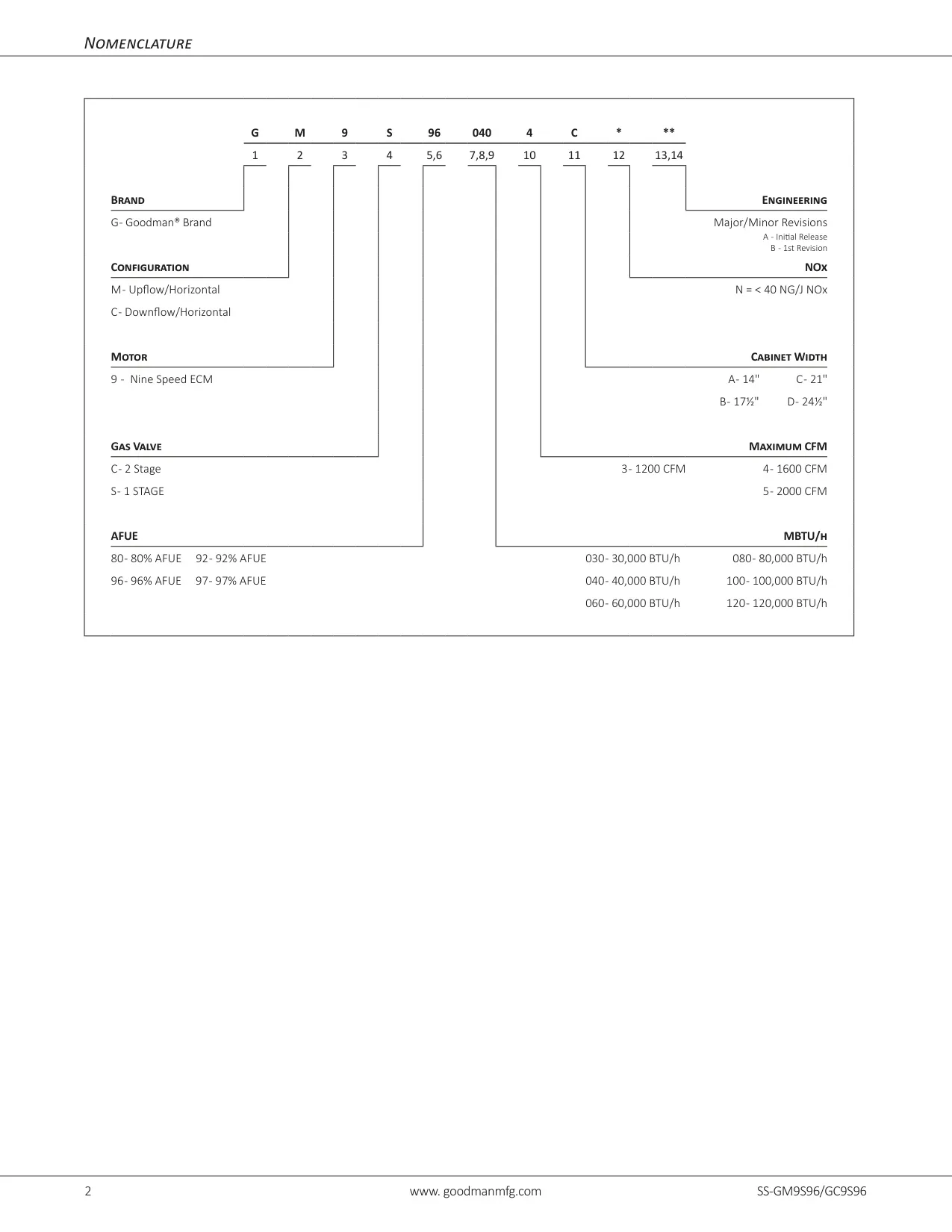

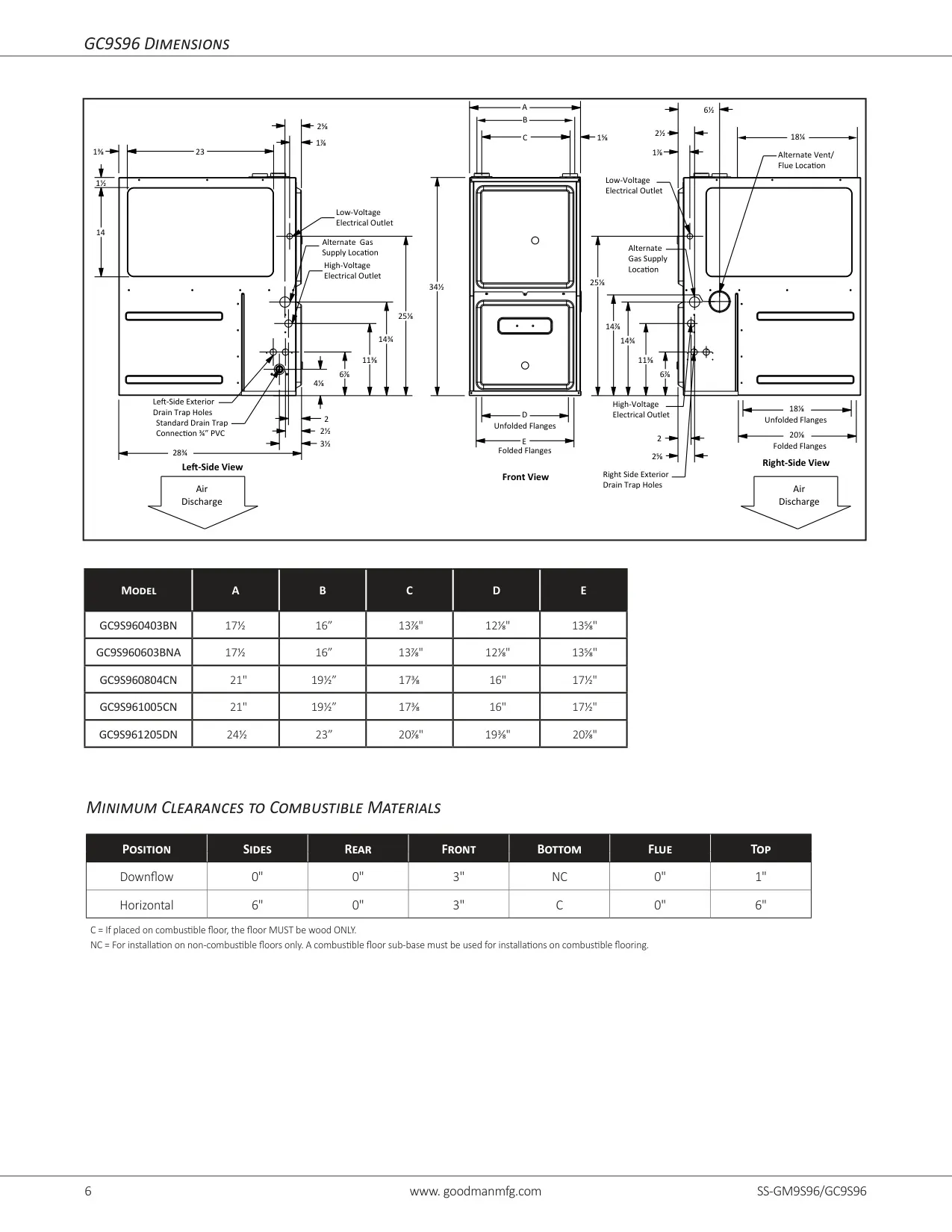

Goodman GM9S96 Furnace Specifications
| Feature | Specification |
|---|---|
| Heating Data | |
| High Fire Input Range | 40,000 – 120,000 BTU/h |
| High Fire Output Range | 38,440 – 115,320 BTU/h |
| AFUE | 96% |

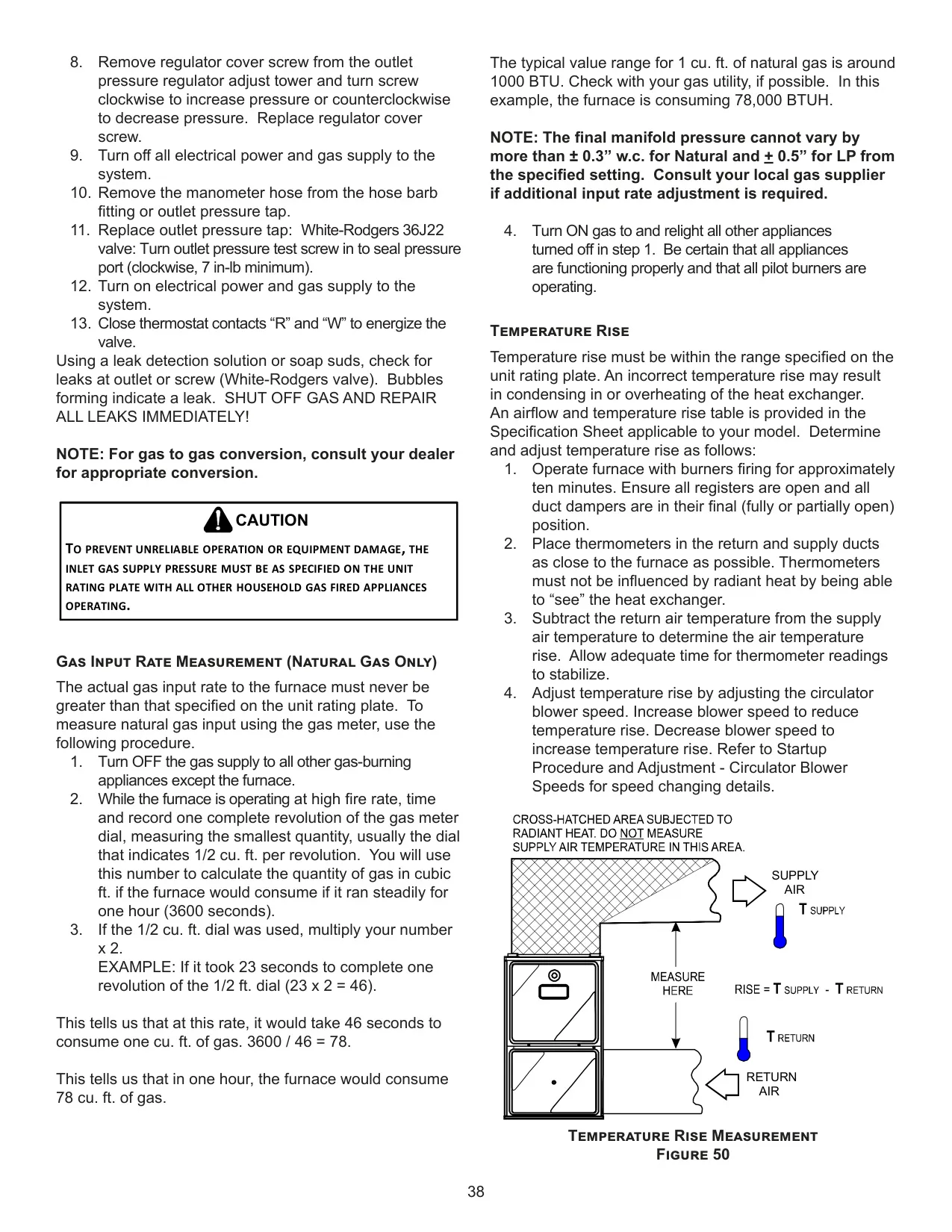

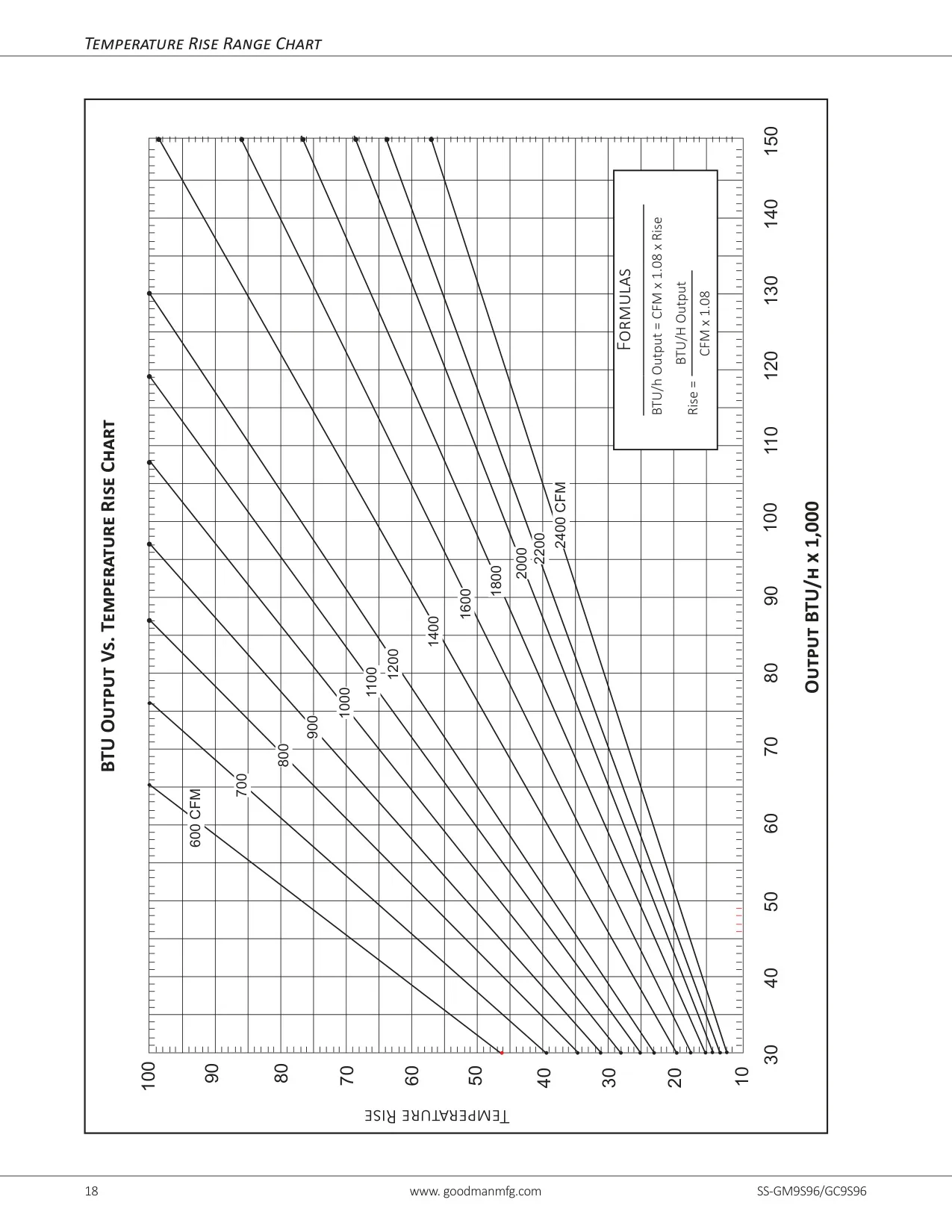

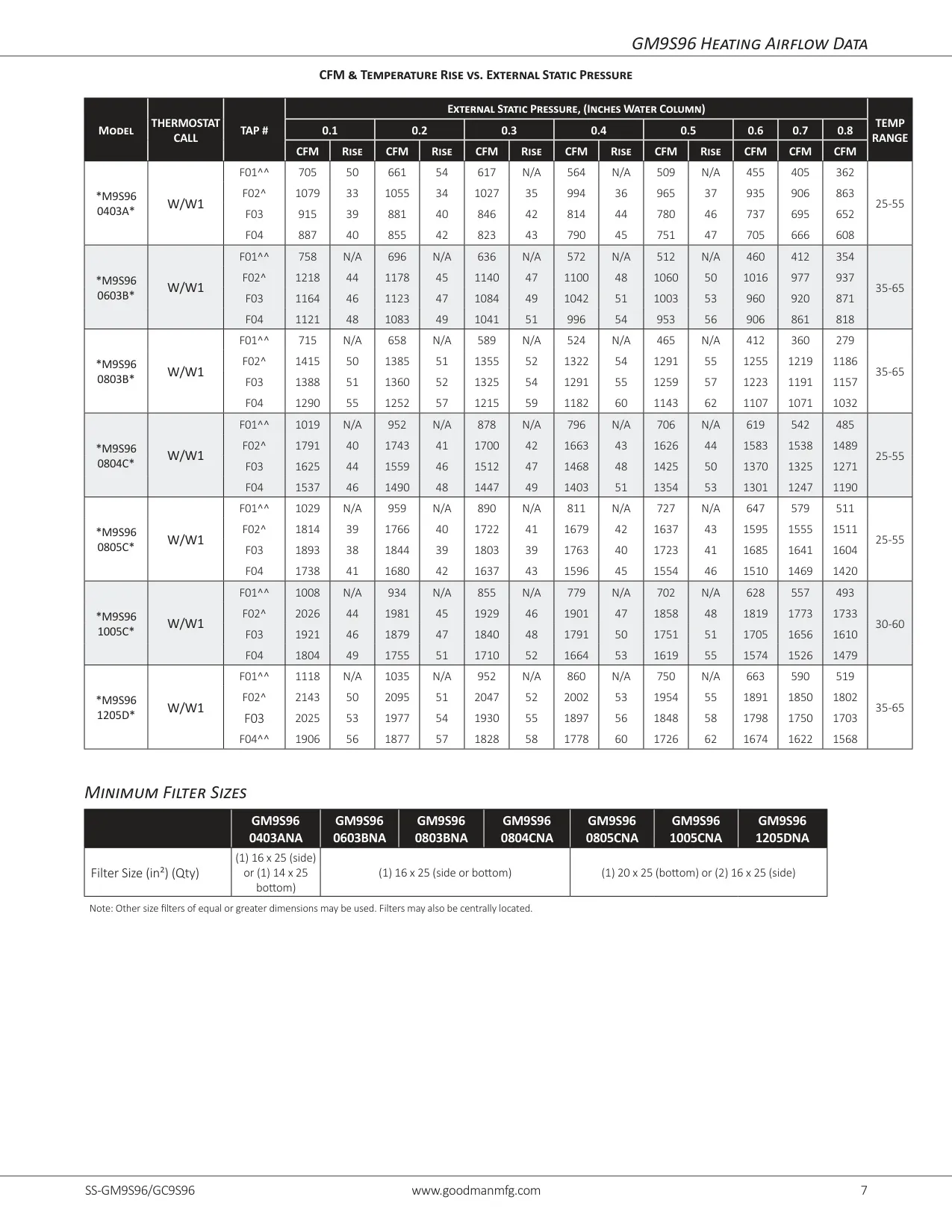

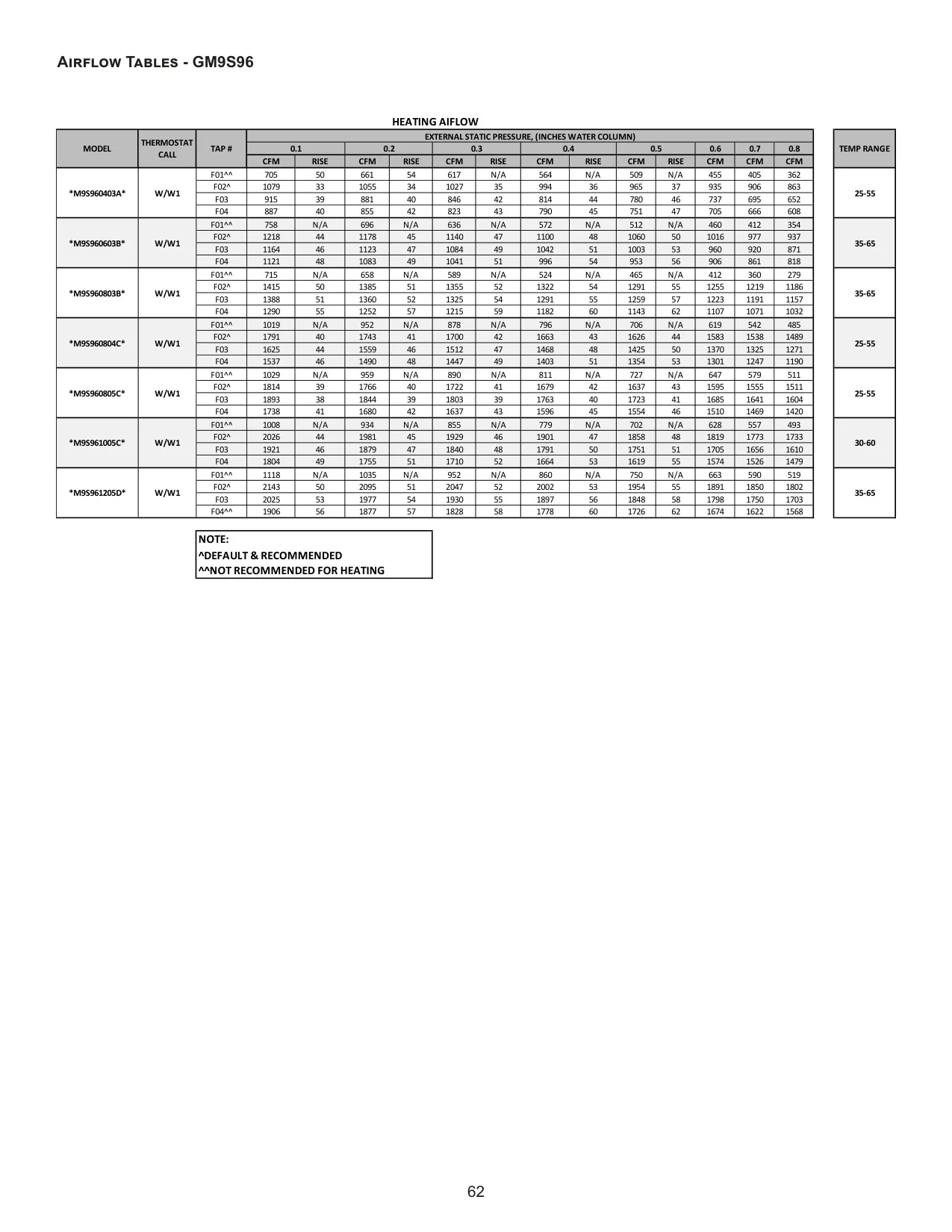

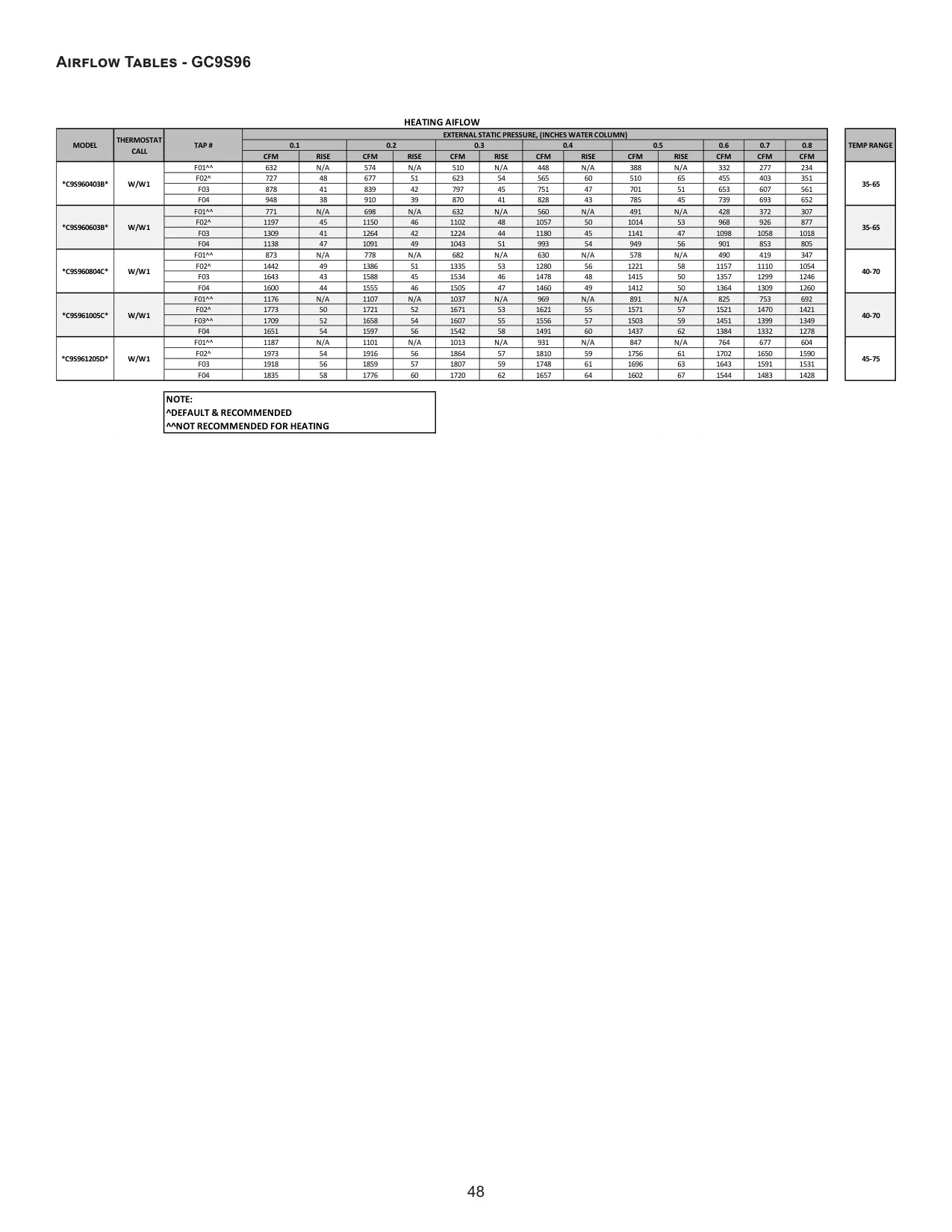

| Temperature Rise Range | 25 – 65°F |

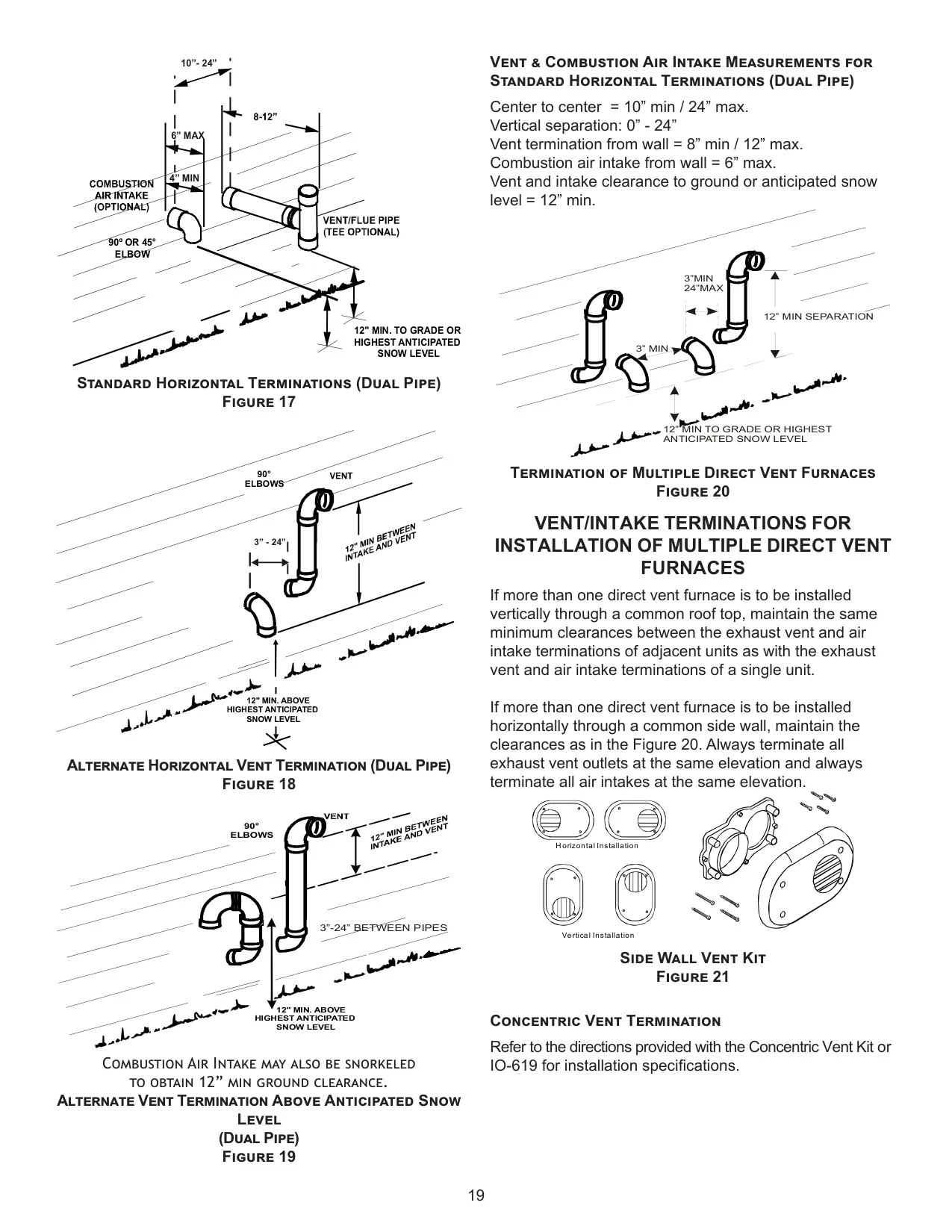

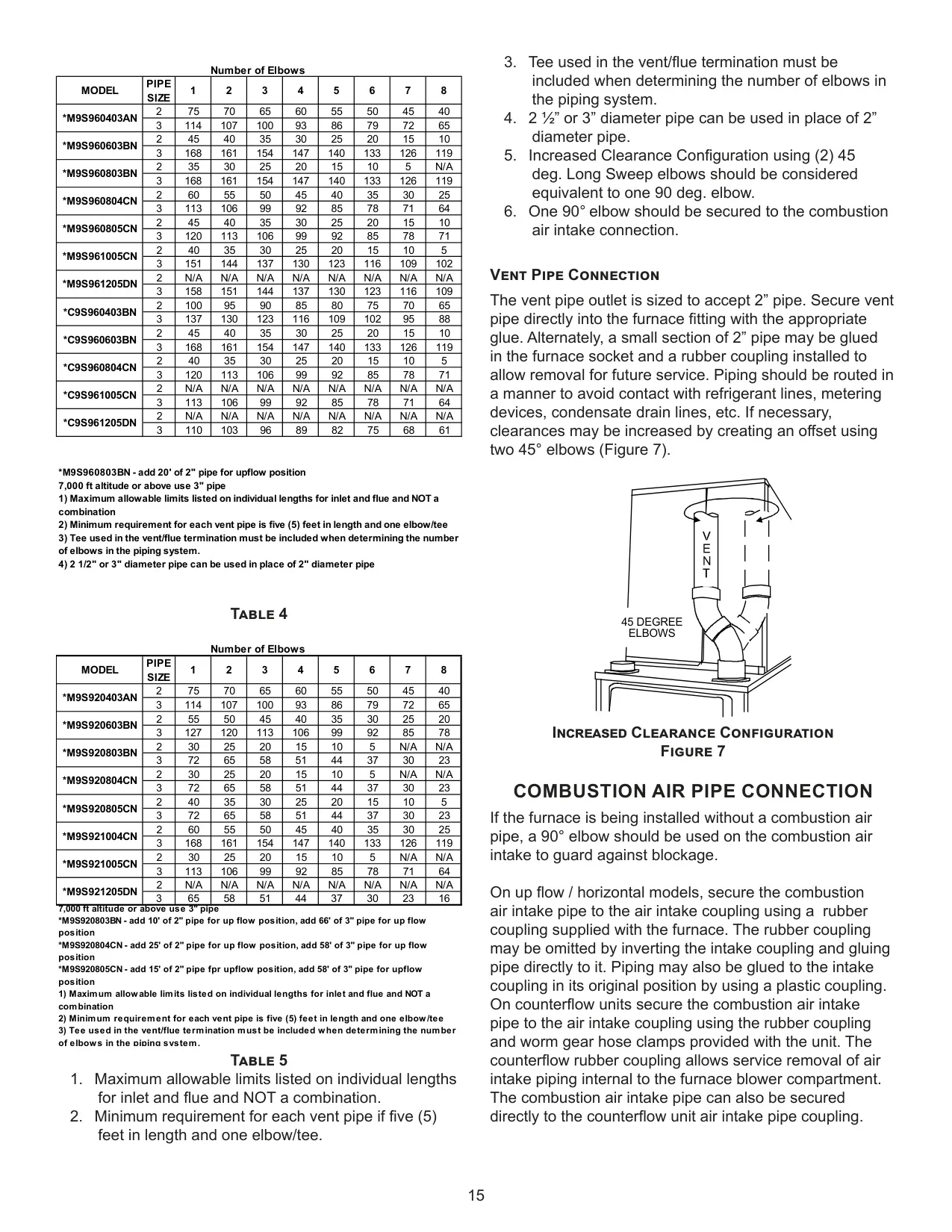

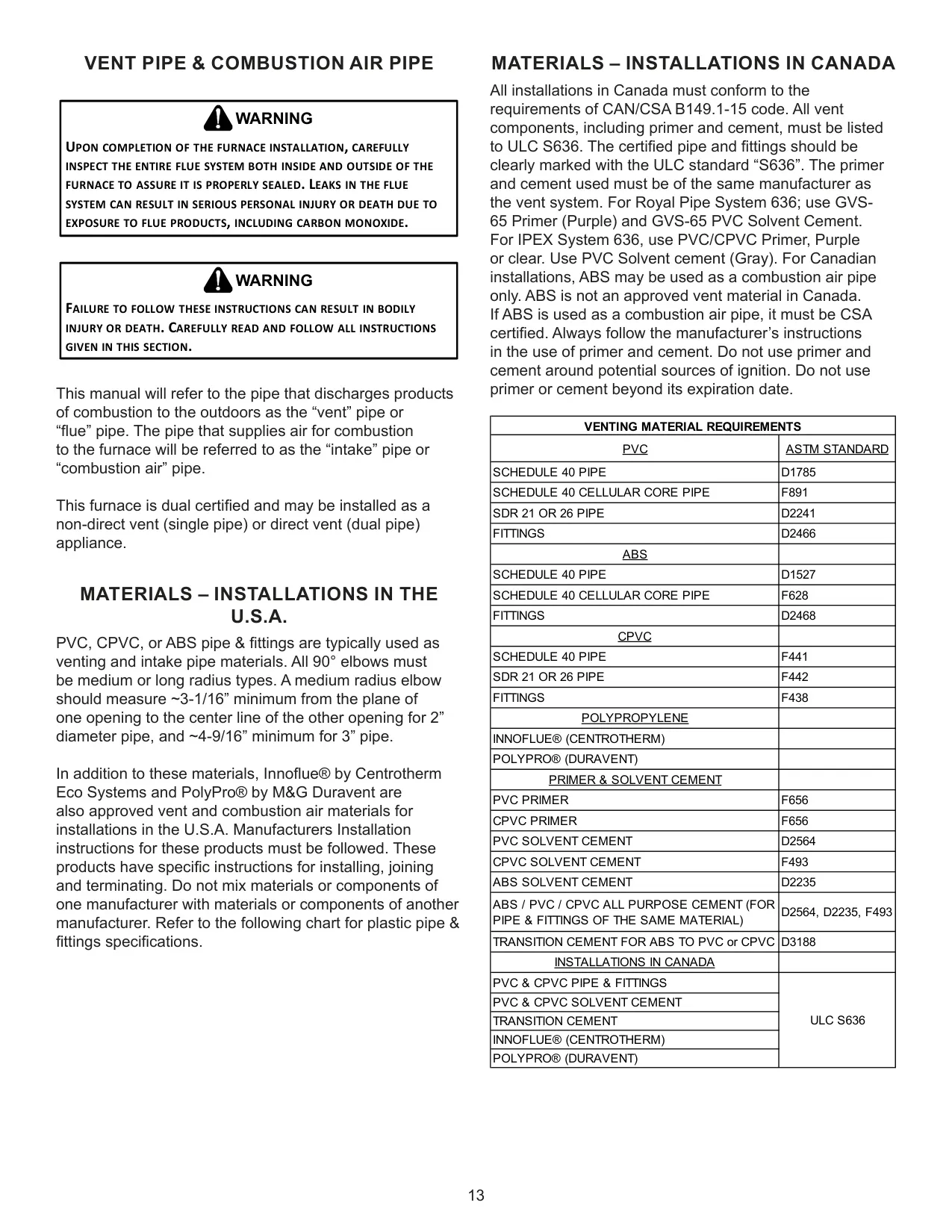

| Vent Diameter Options | 2" – 3" PVC, CPVC, or ABS (materials vary by region) |
| Number of Burners | 2 – 6 |

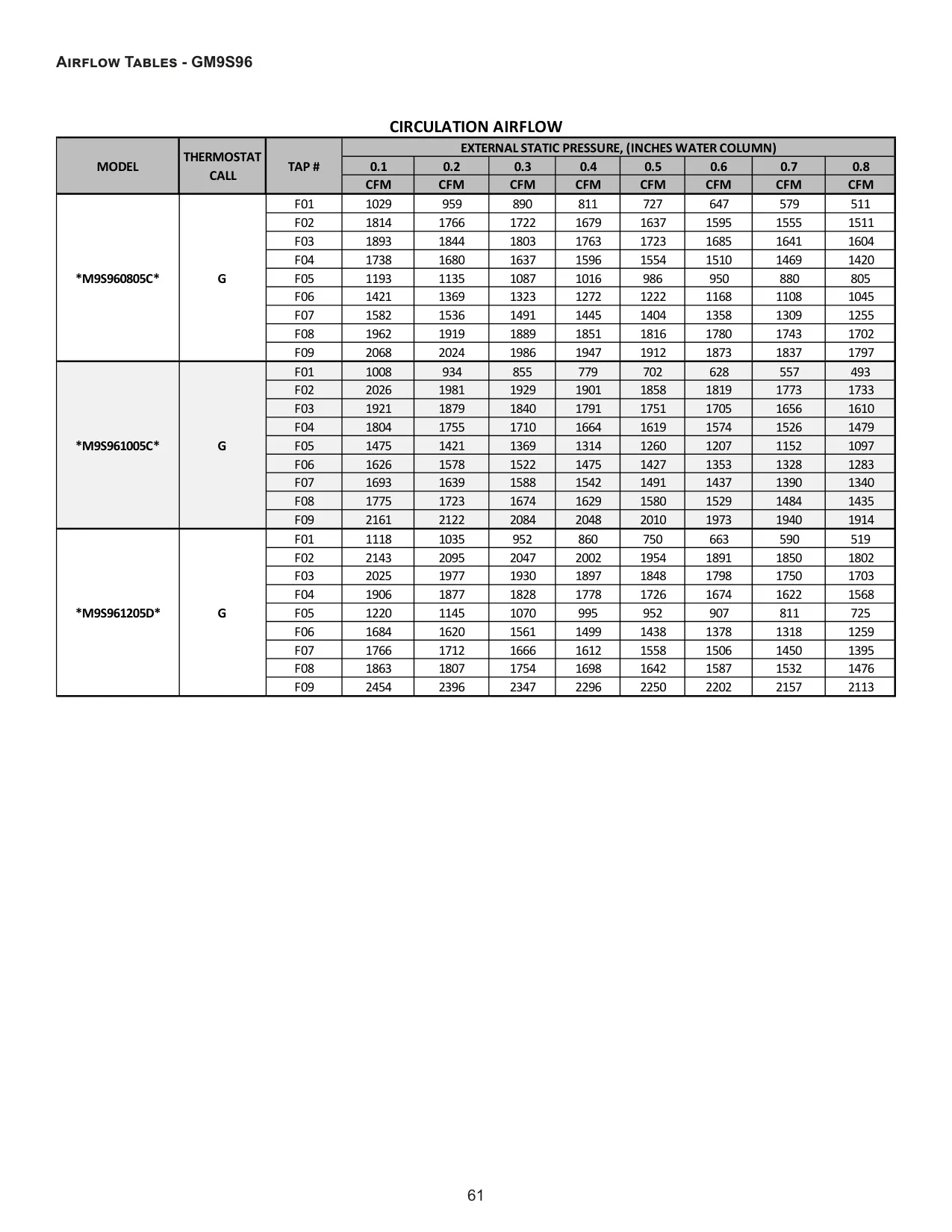

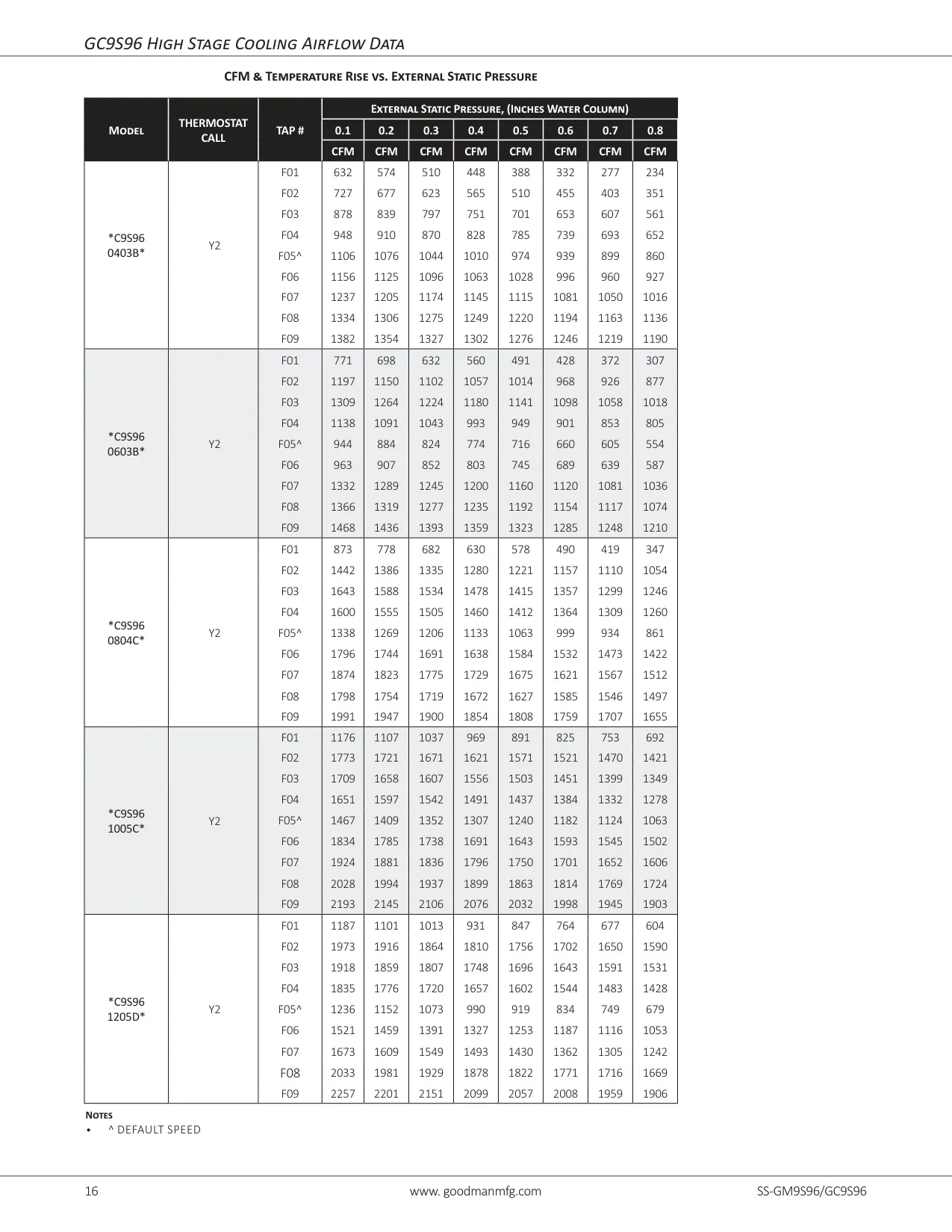

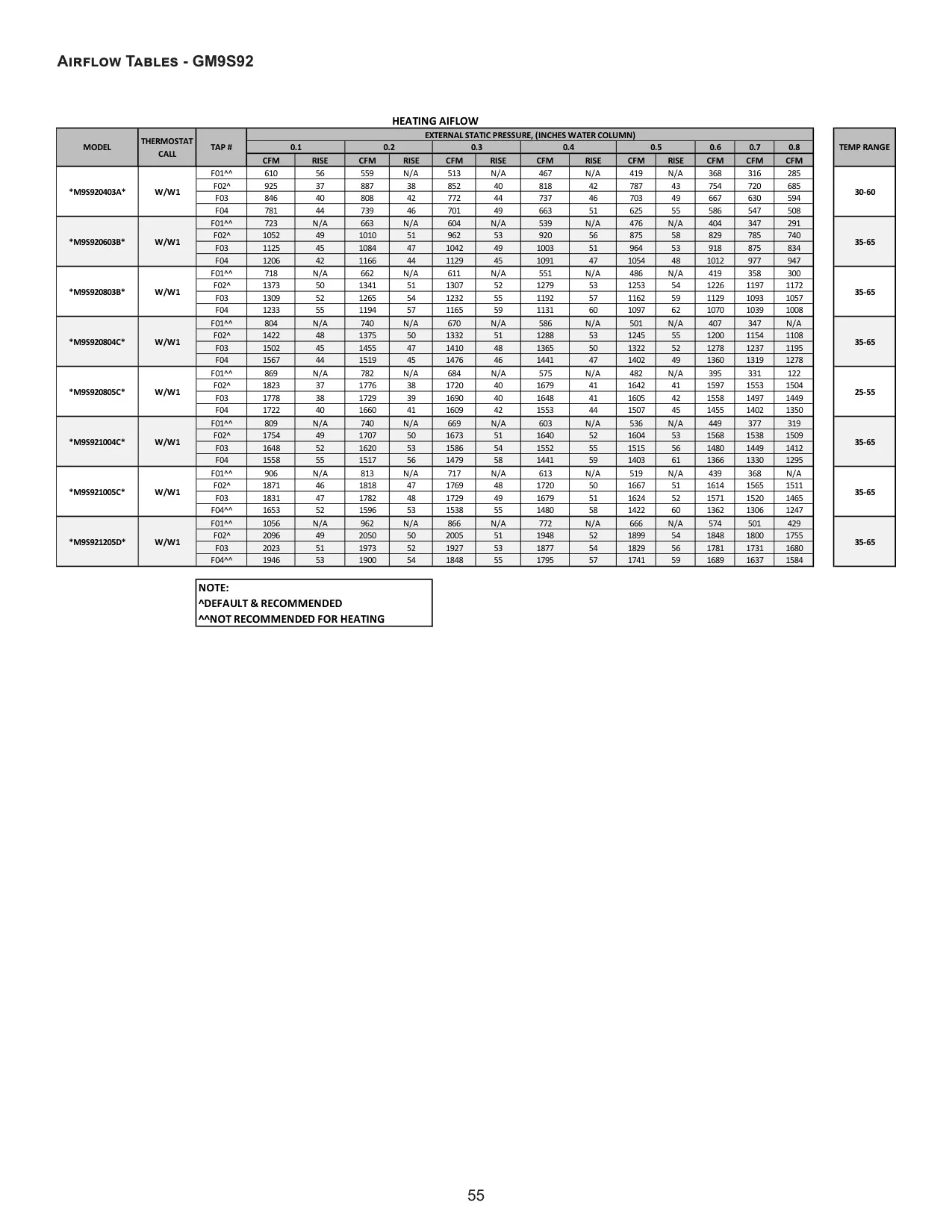

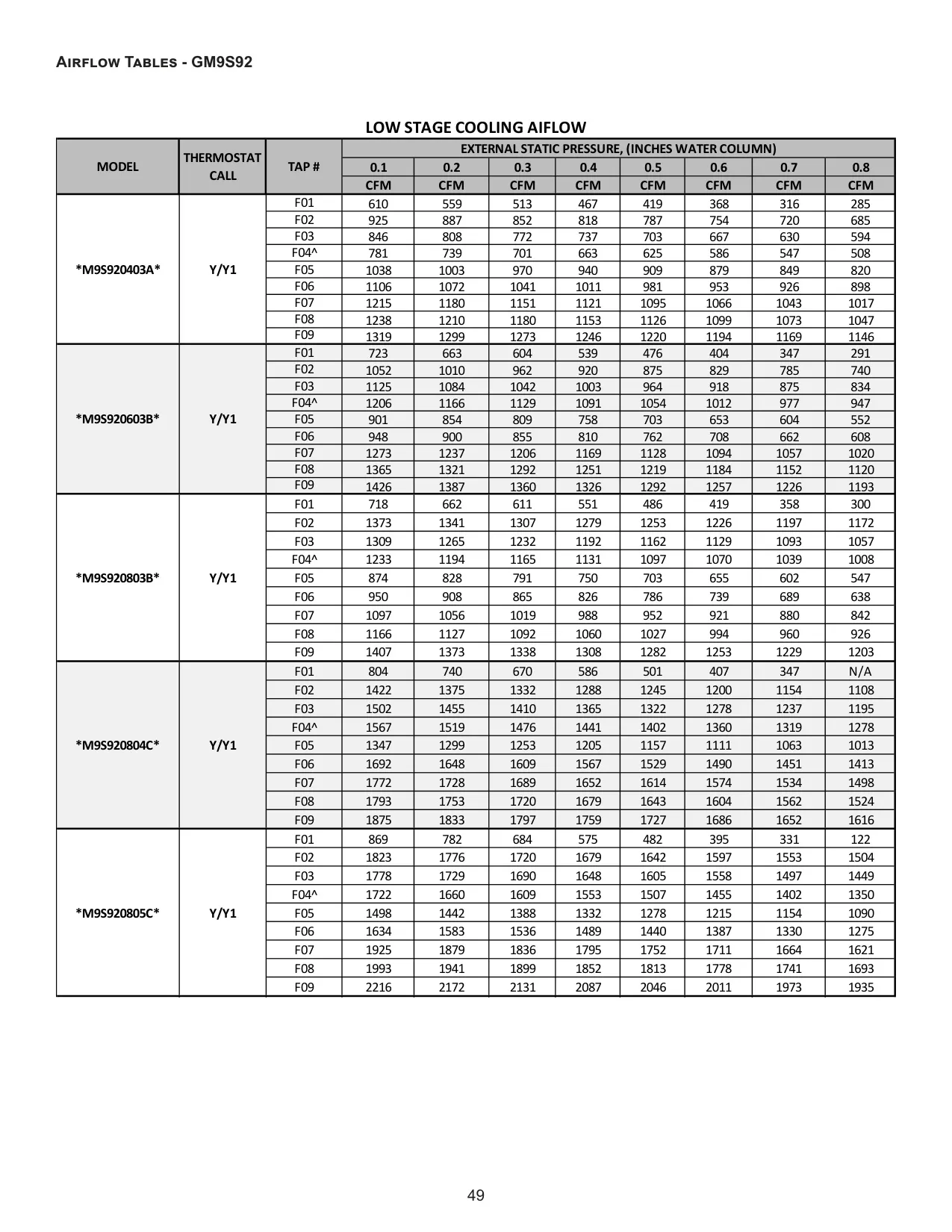

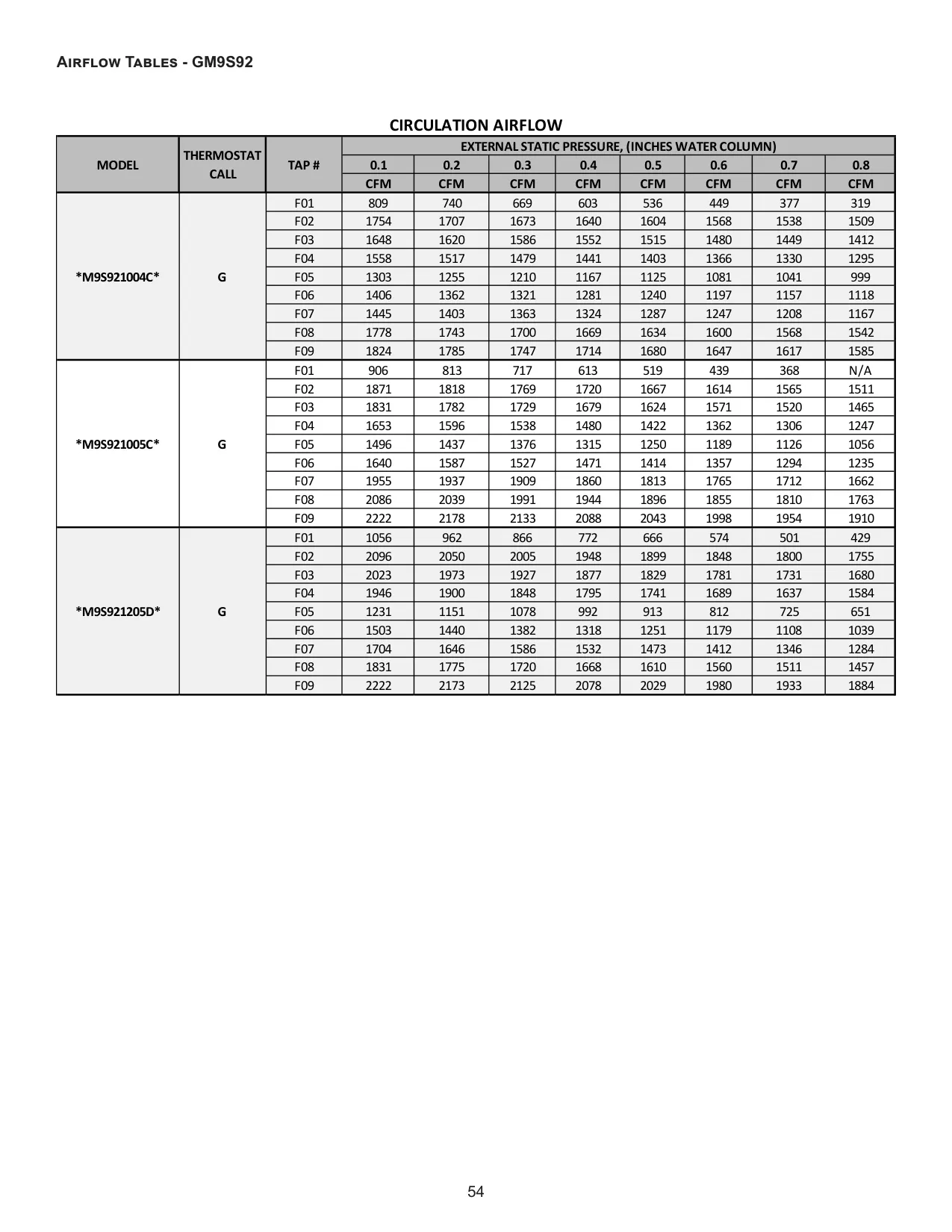

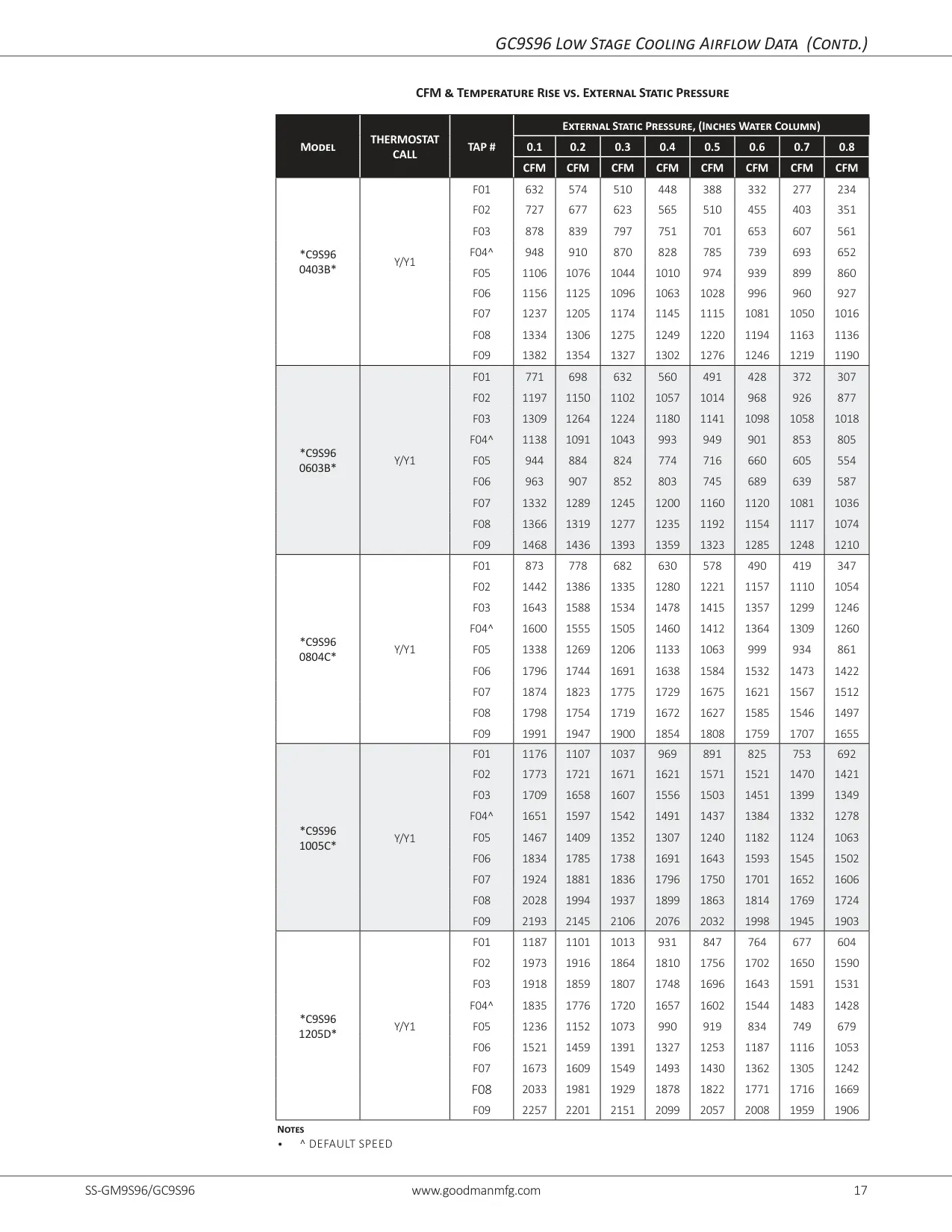

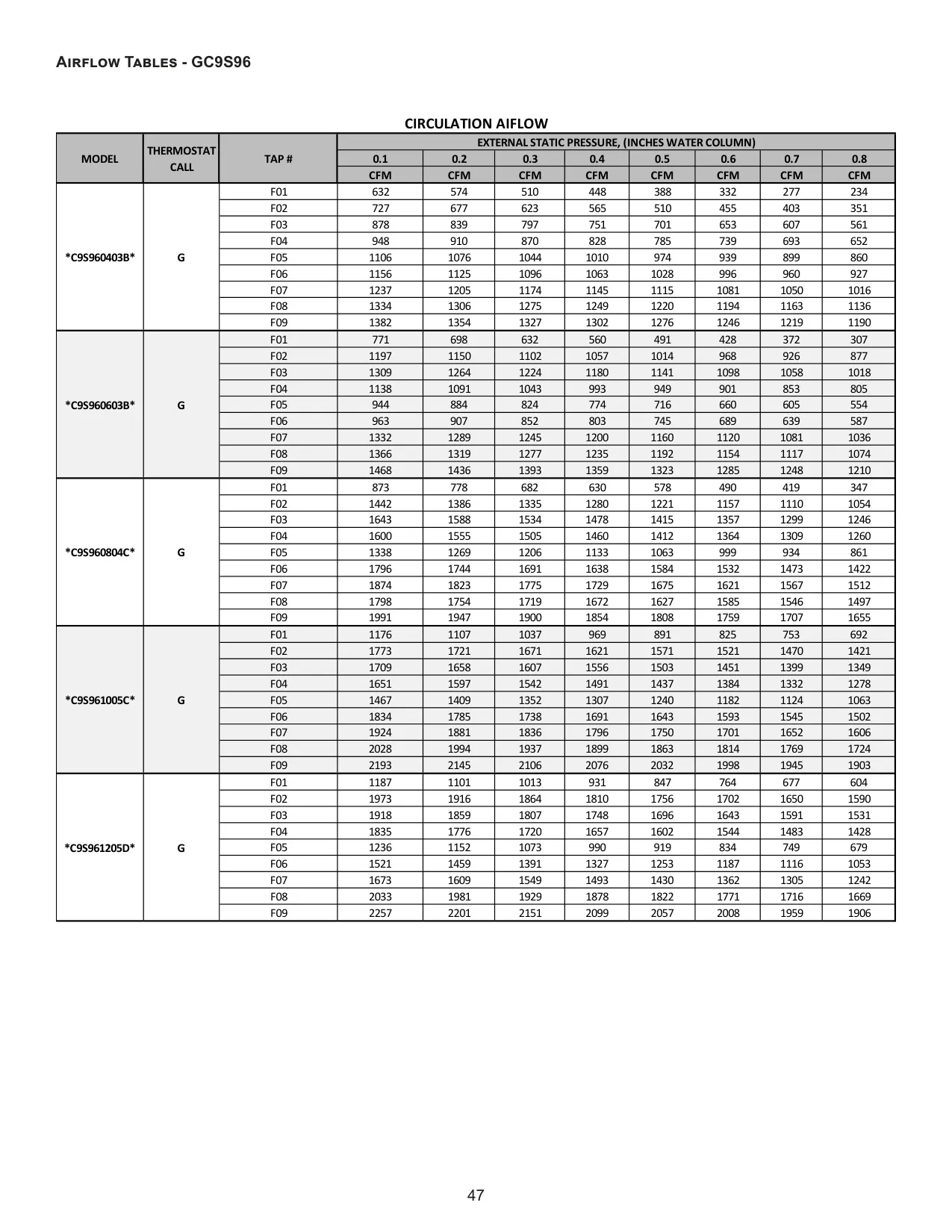

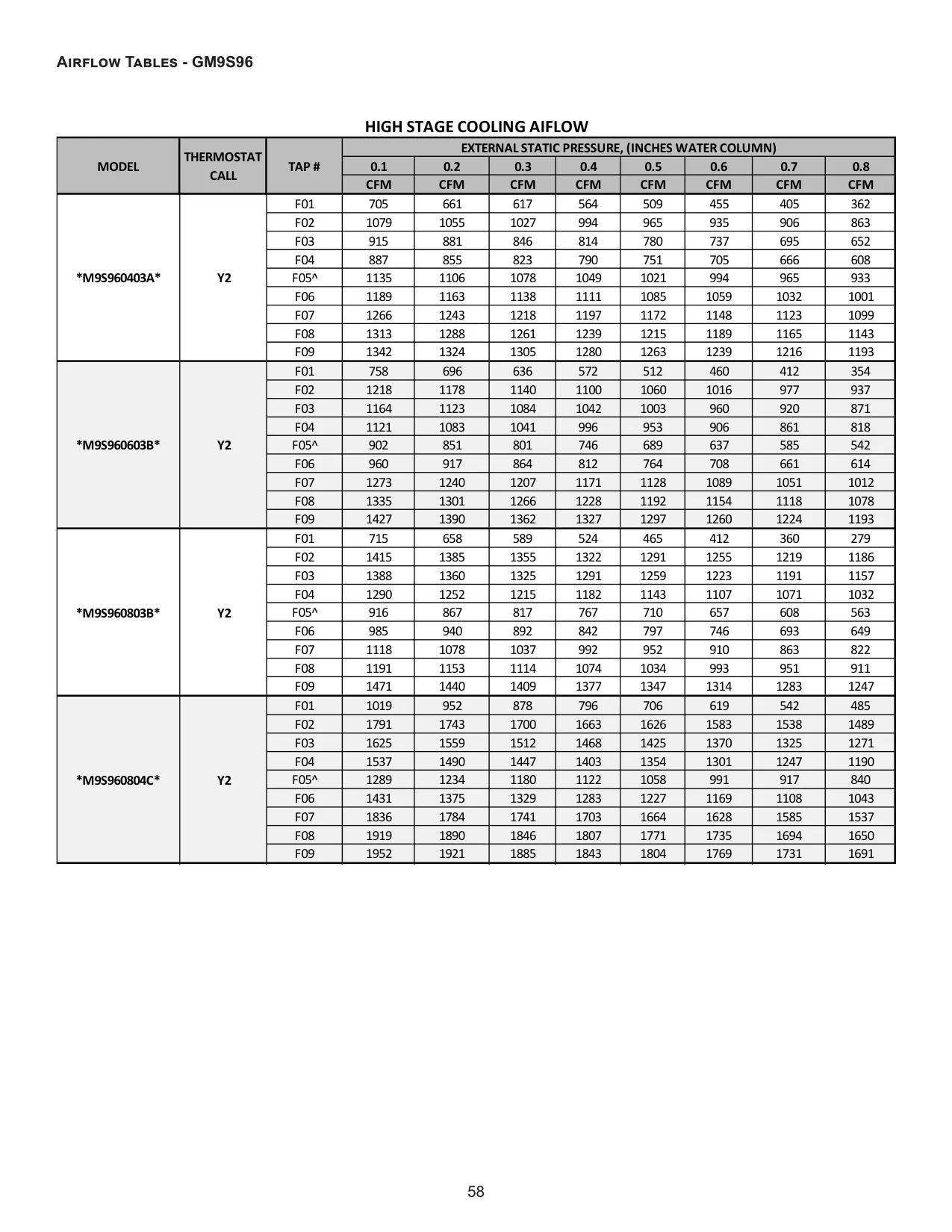

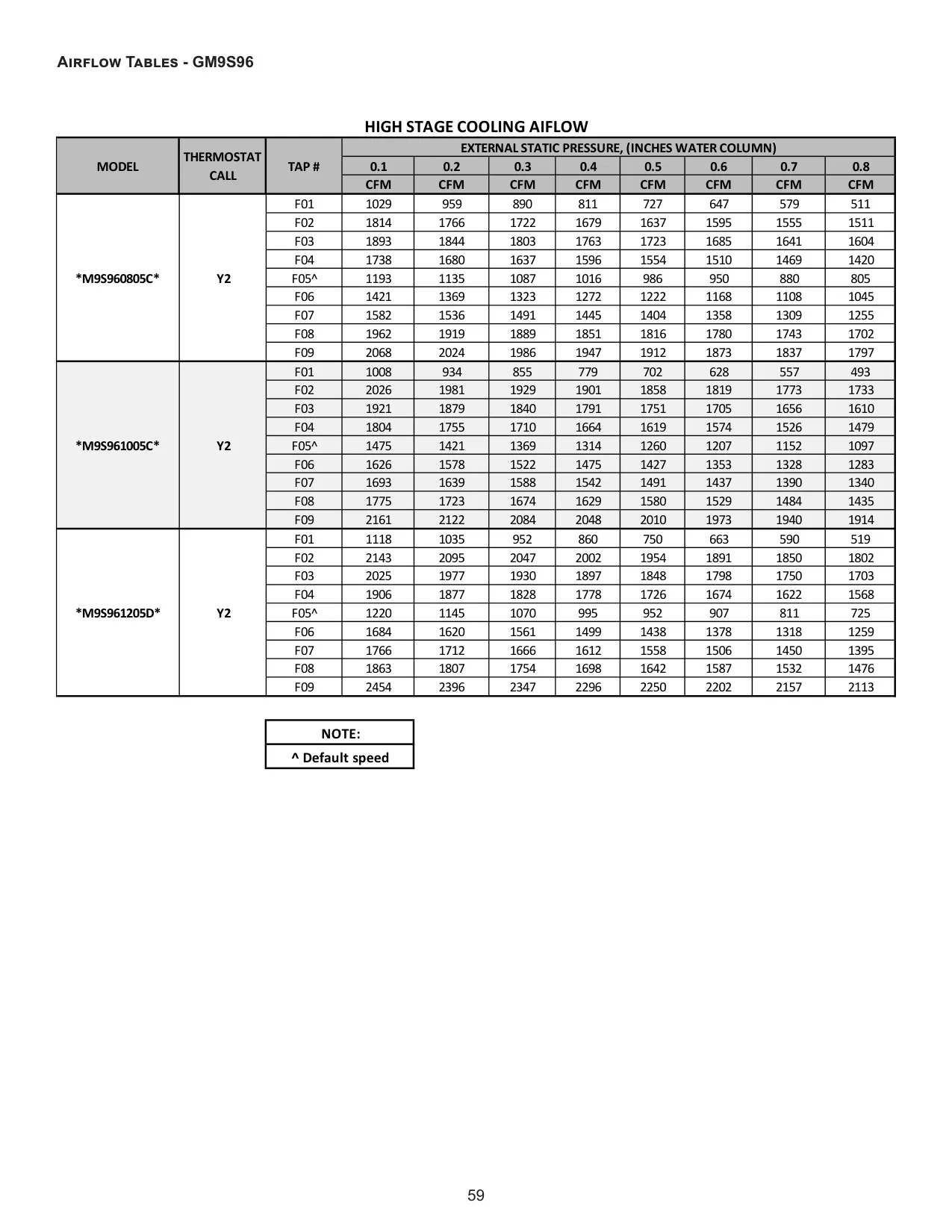

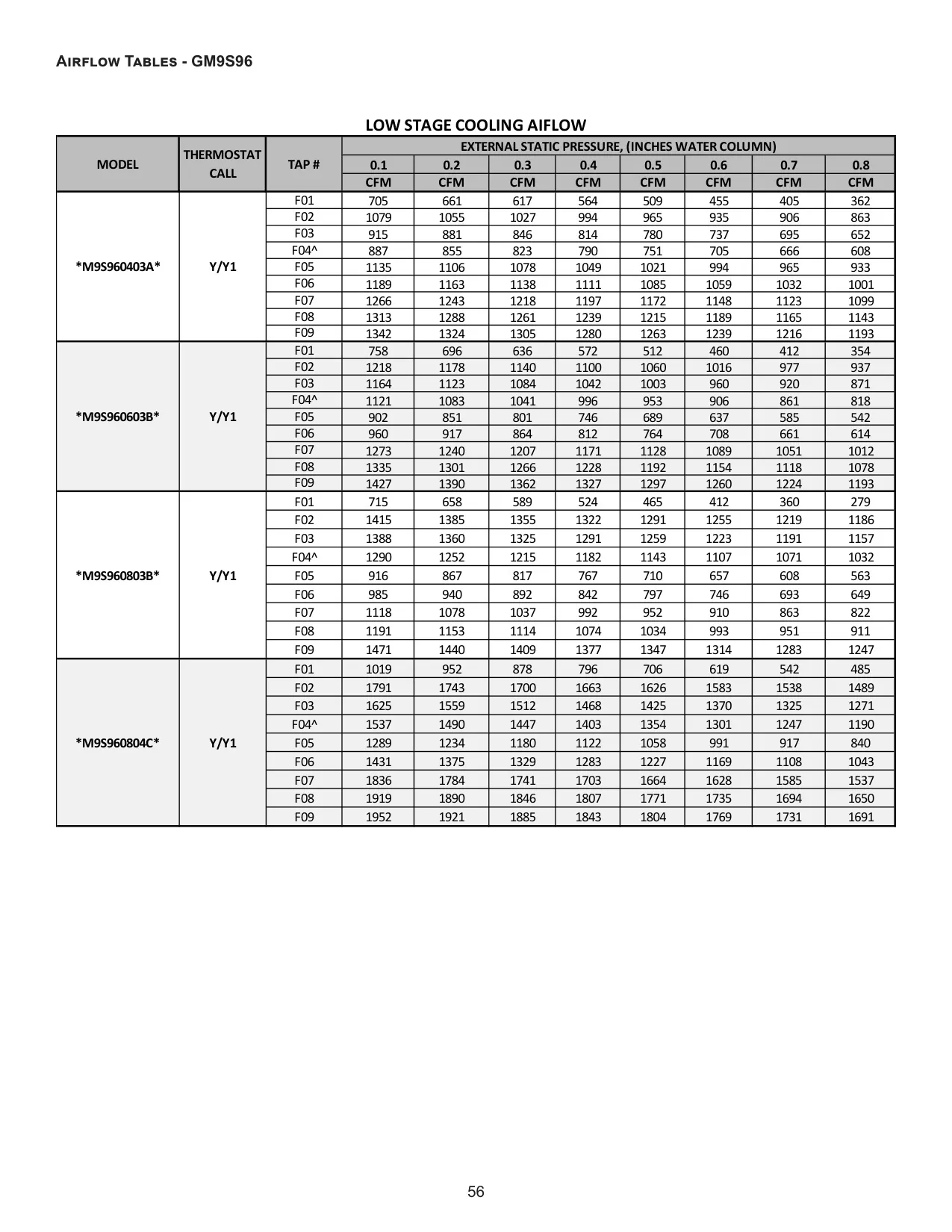

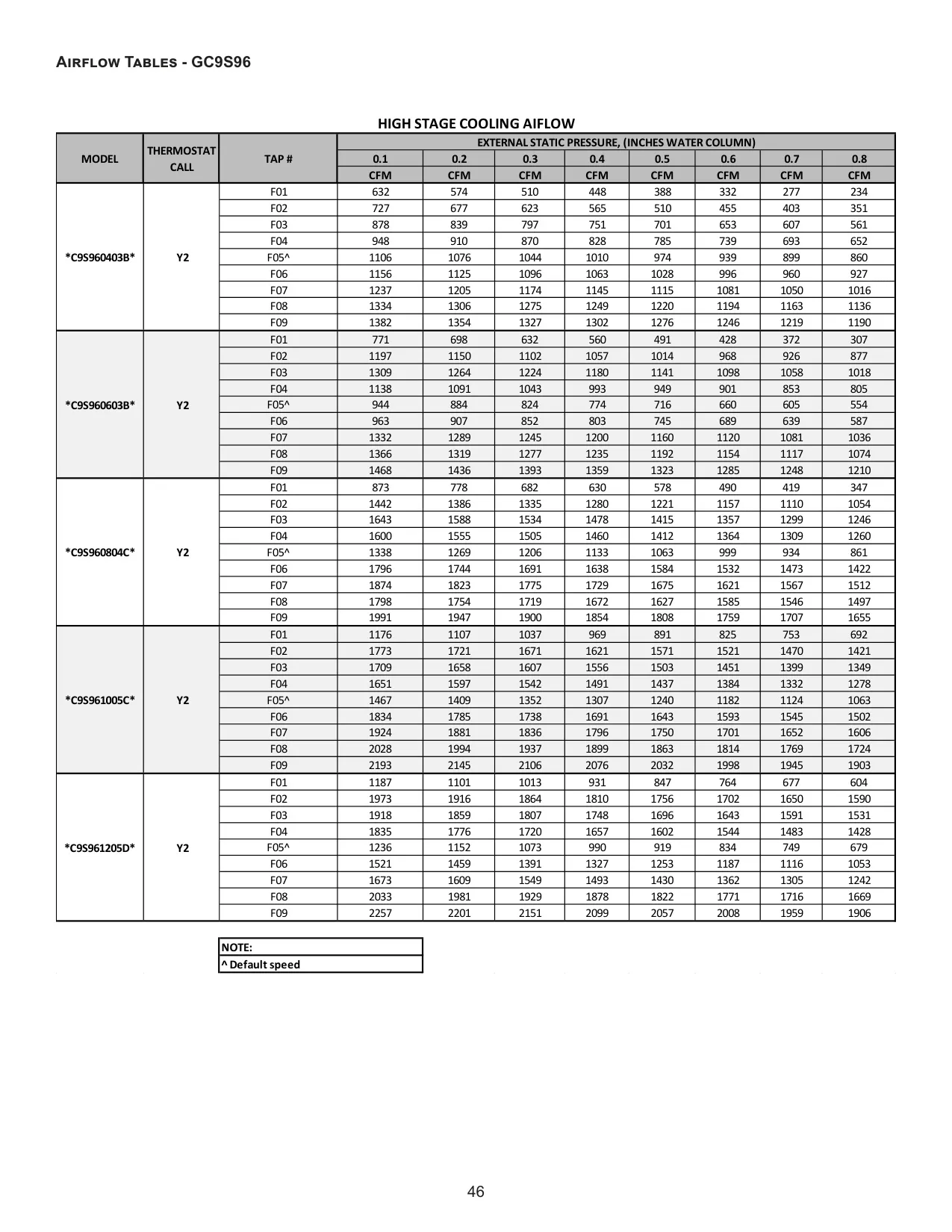

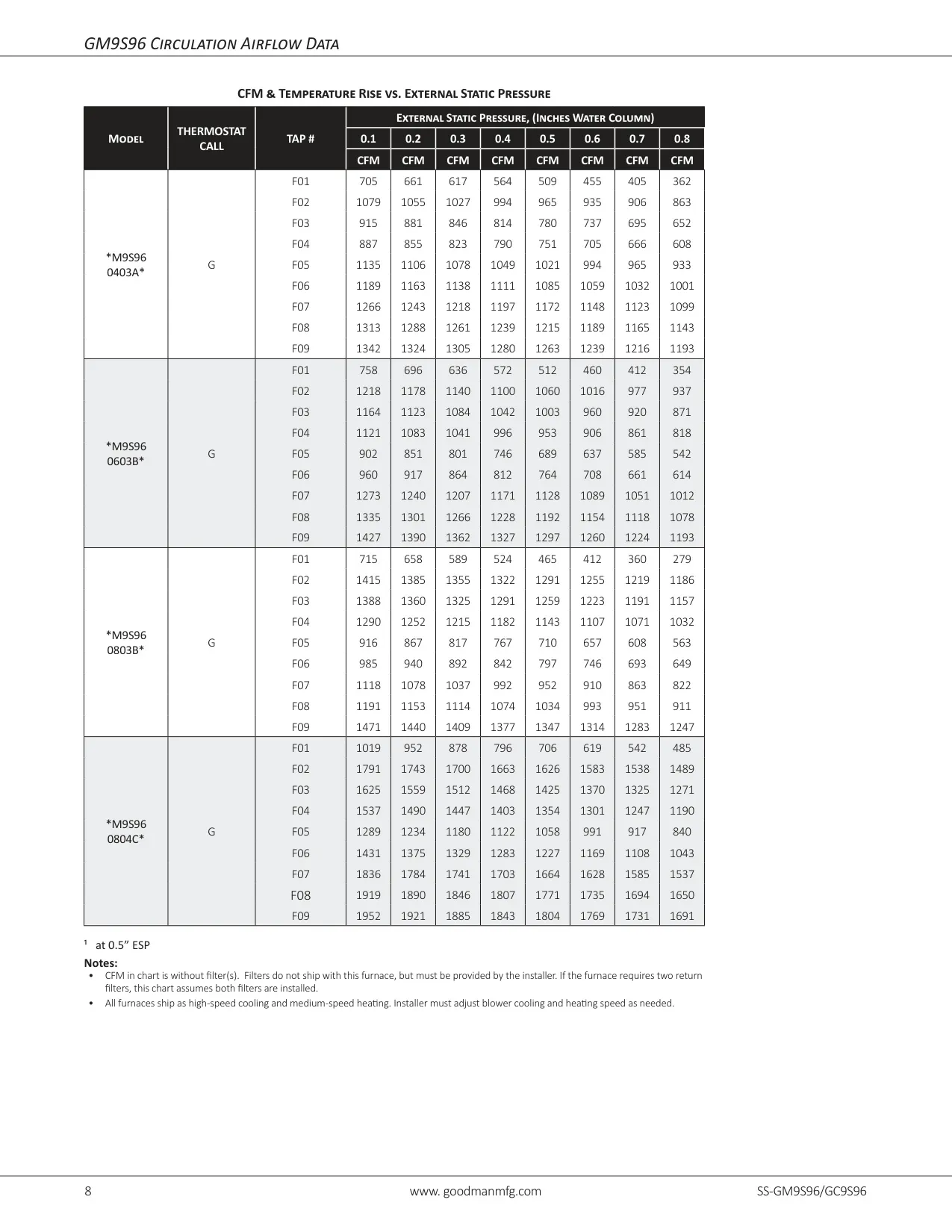

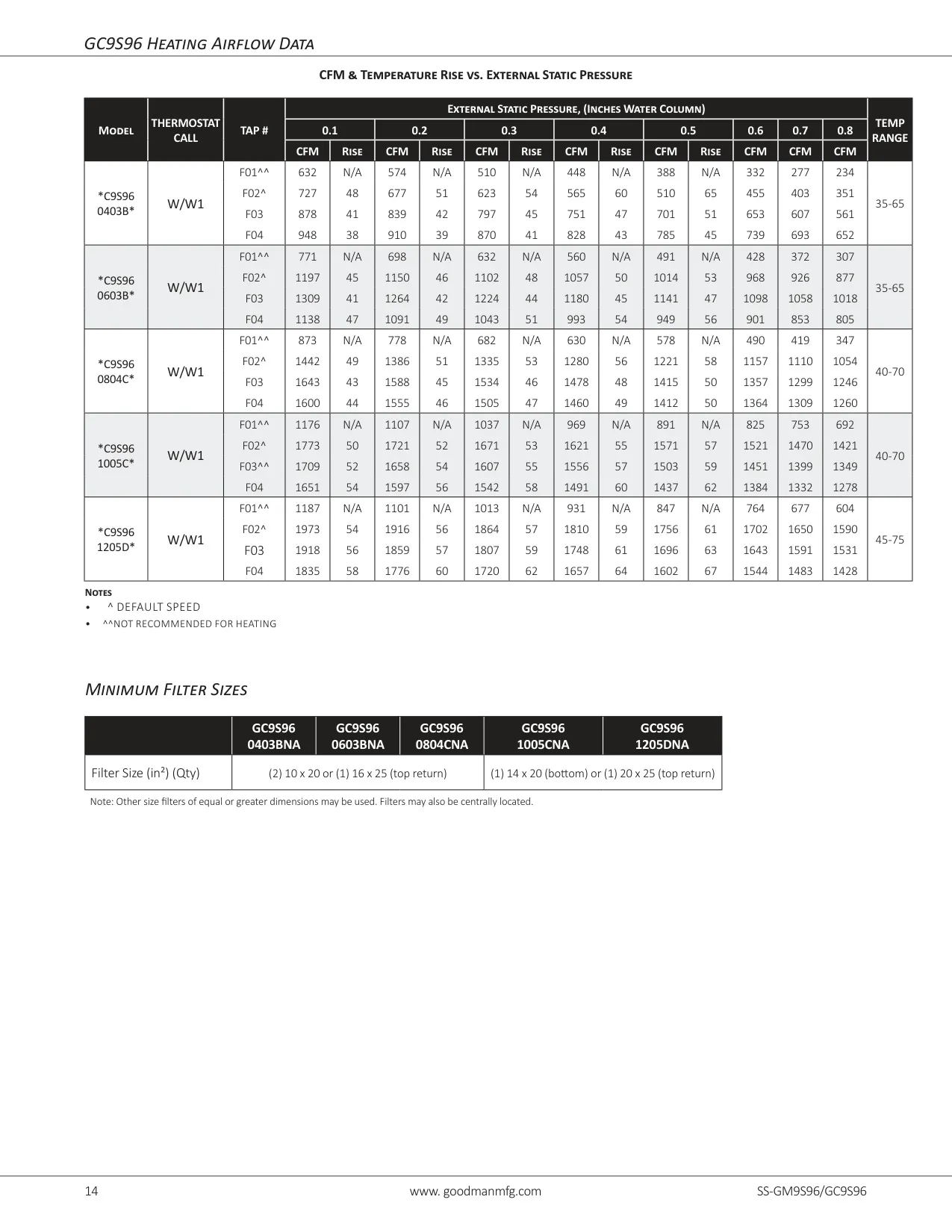

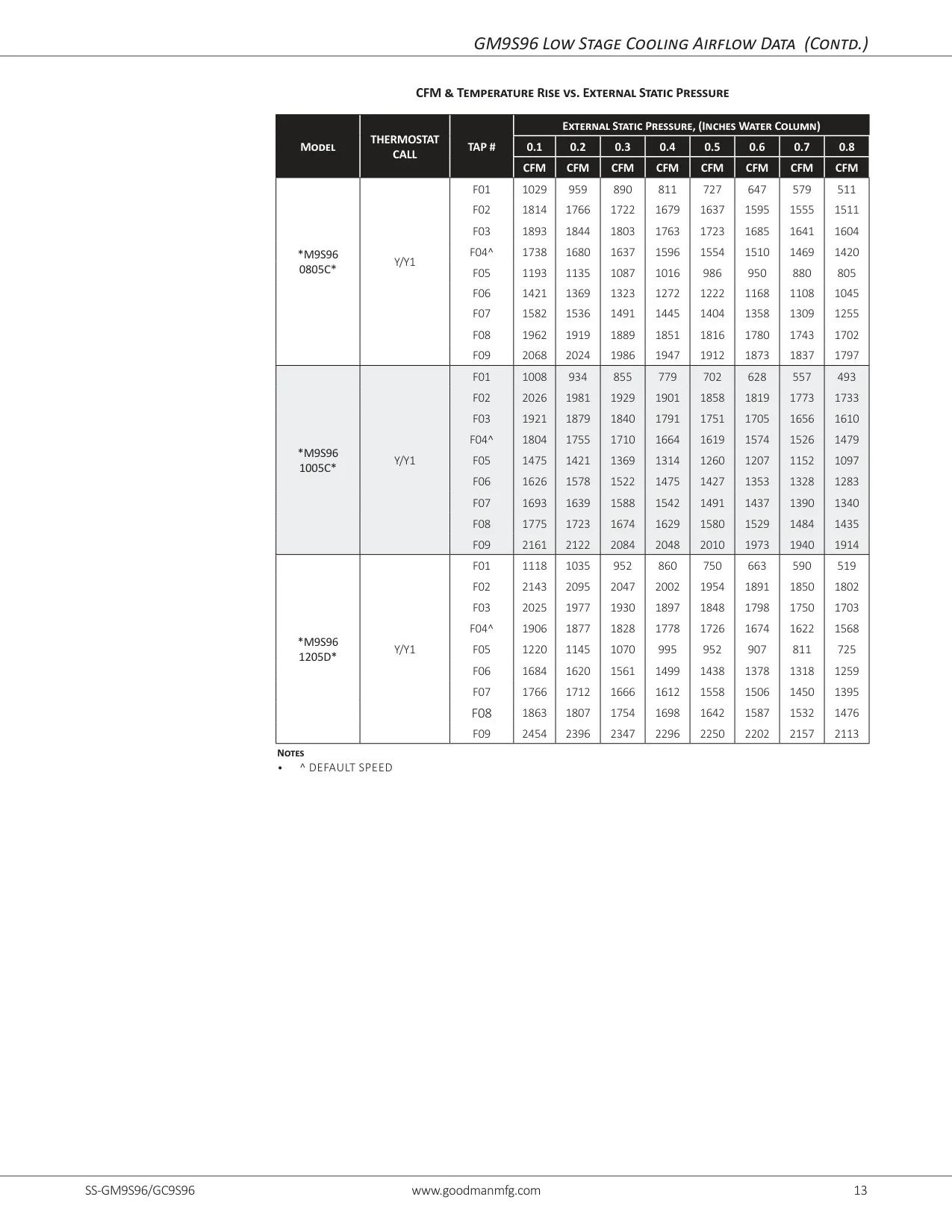

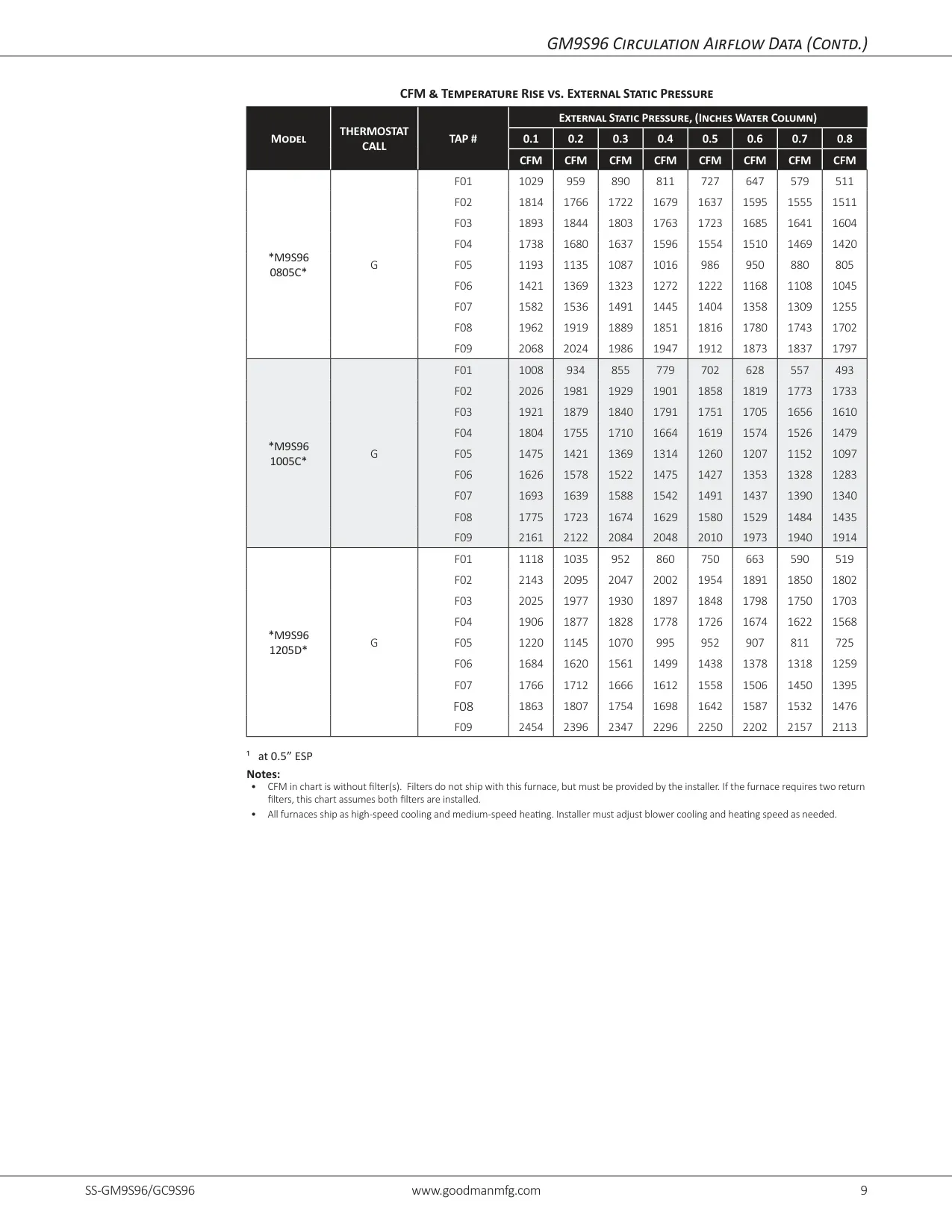

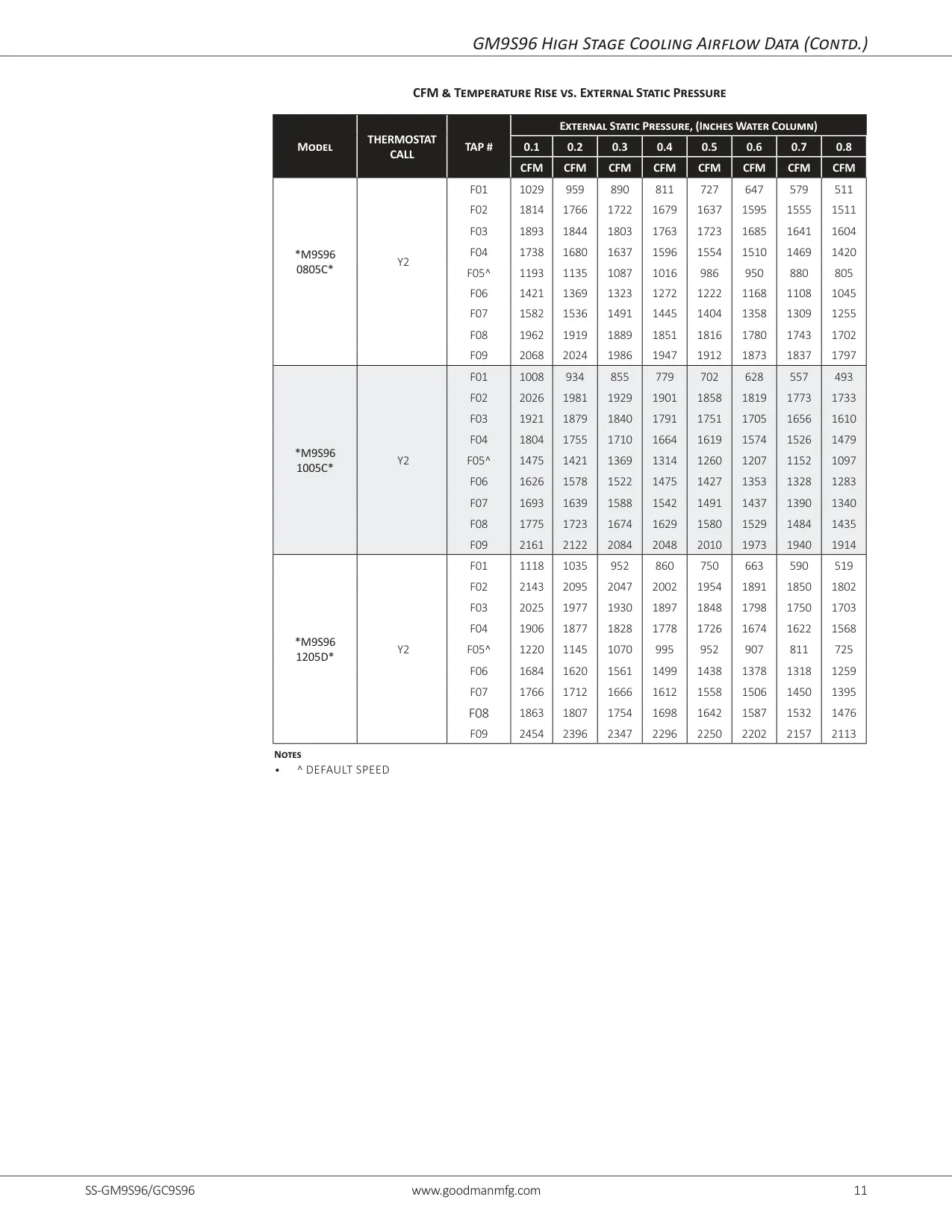

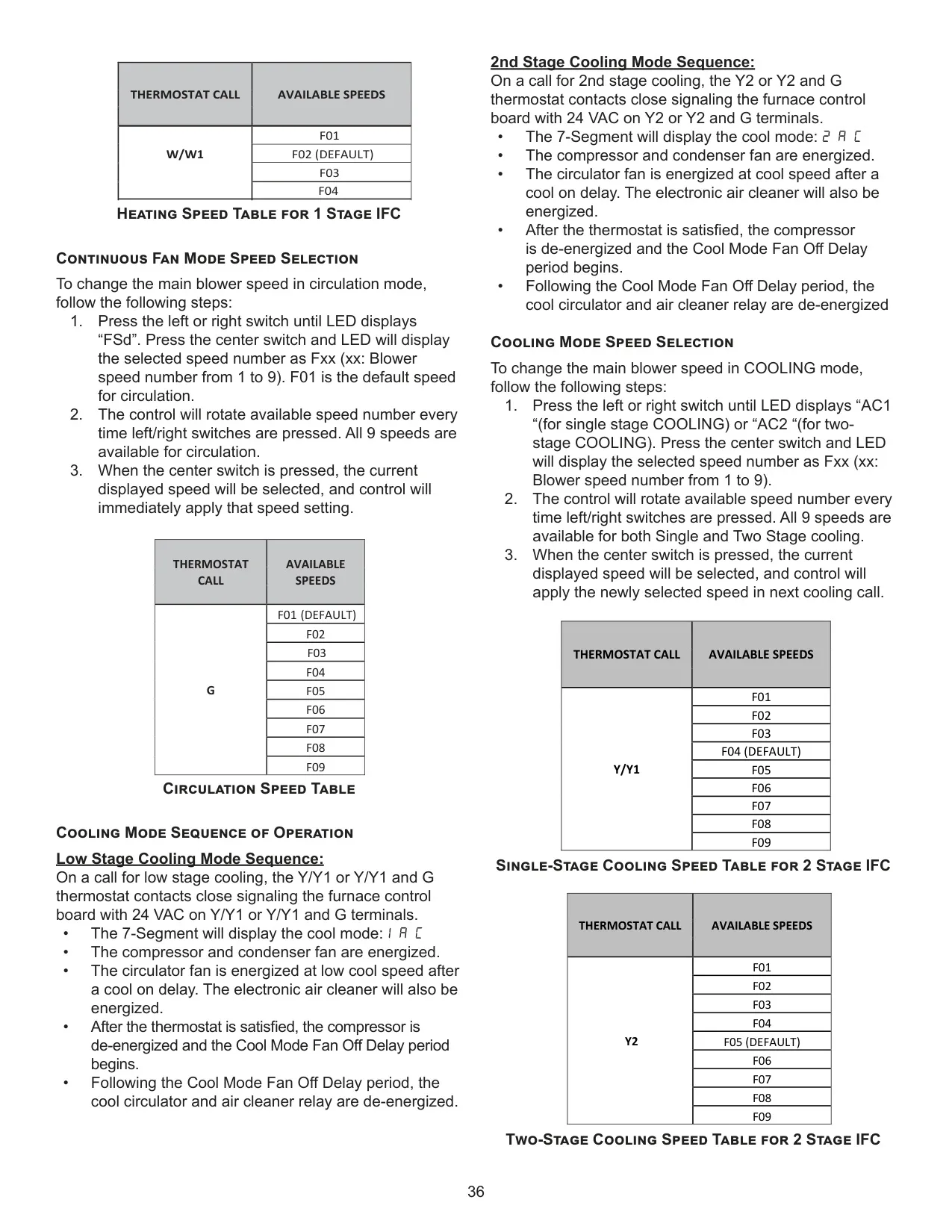

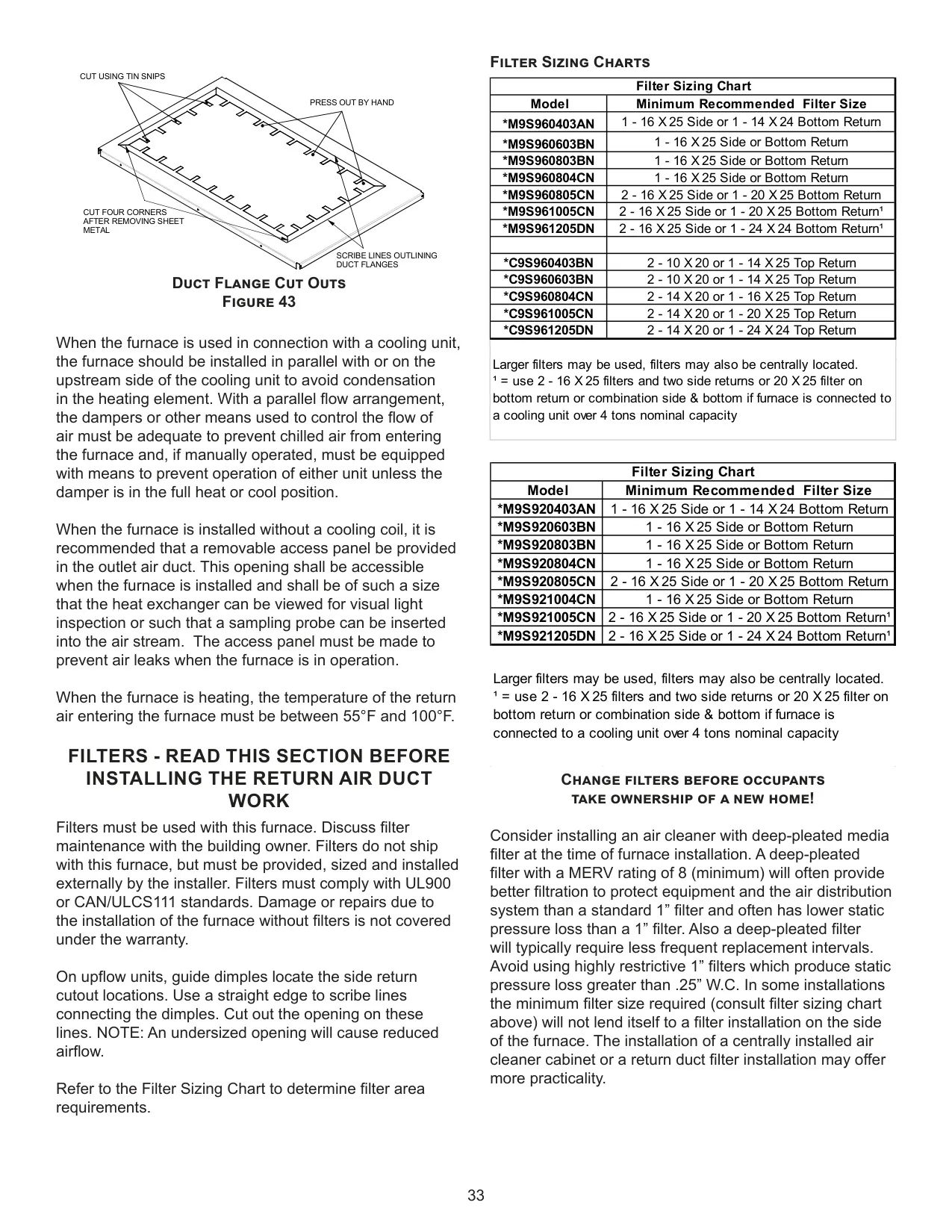

| Circulator Blower | |
| Available AC @ 0.5" ESP (Tons) | 1.5 – 5 |
| Horsepower @ 1075 RPM | 1/2 – 1 HP |
| Speed Settings | 9 |
| Filter Size (Minimum Recommended) | |
| Filter Size Options | (1) 16"x25" (side/bottom) up to (1) 20"x25" (bottom) or (2) 16"x25" (side) |
| Electrical Data | |
| Minimum Circuit Ampacity | 10.3 – 16.93 A |
| Maximum Overcurrent Device | 15 – 20 A |
| General | |
| Shipping Weight | 108 – 156 lbs |

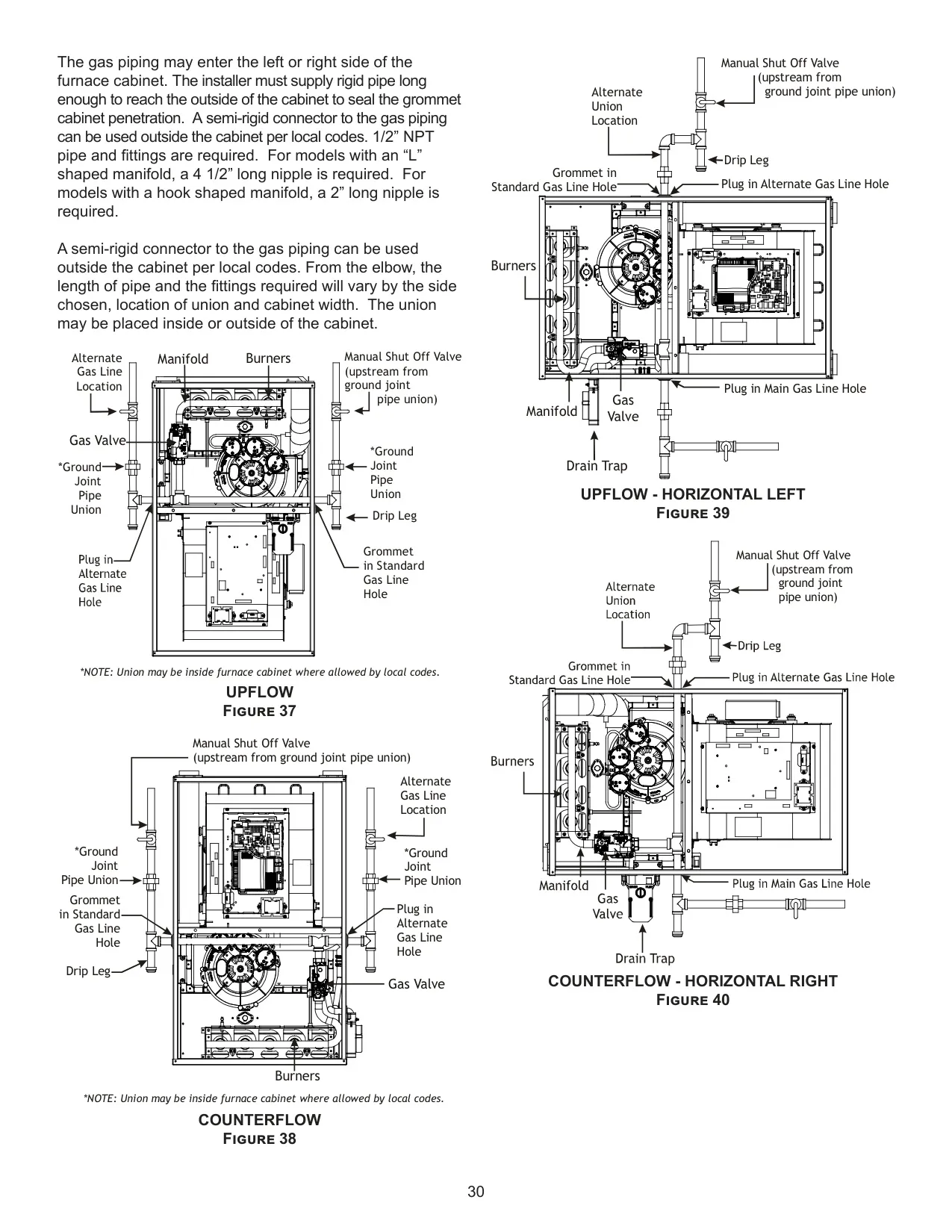

| Gas Service Connection | 1/2" FPT |
| NOx Emissions | < 40 NG/J (California compliant) |
| Electrical Supply | 115 VAC, 60 Hz, Single-Phase |
Goodman GM9S96 Furnace Details

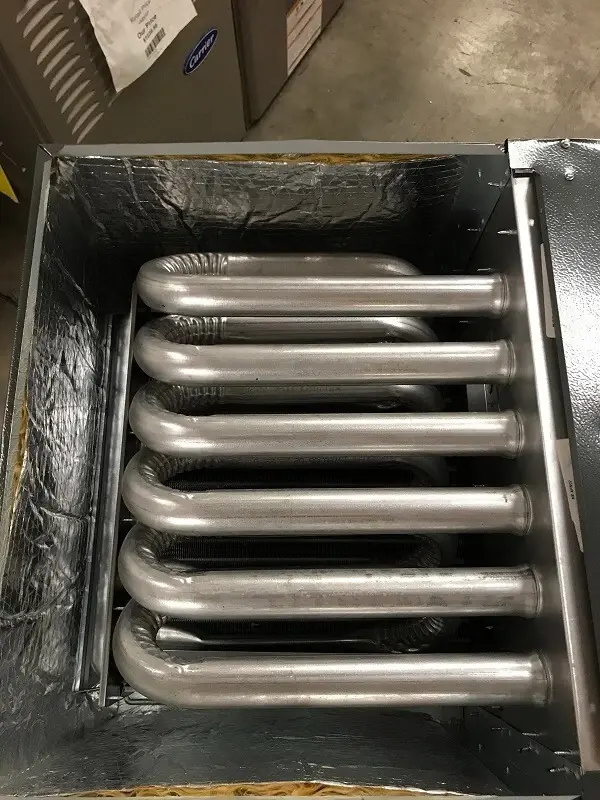

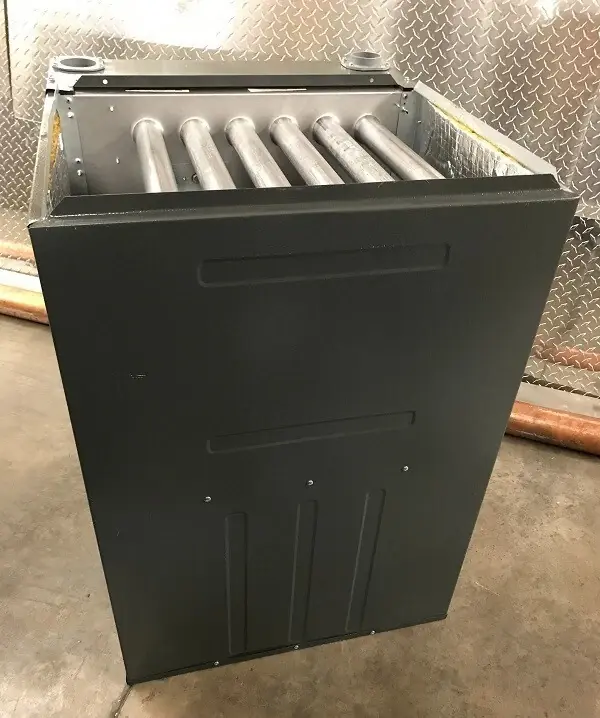

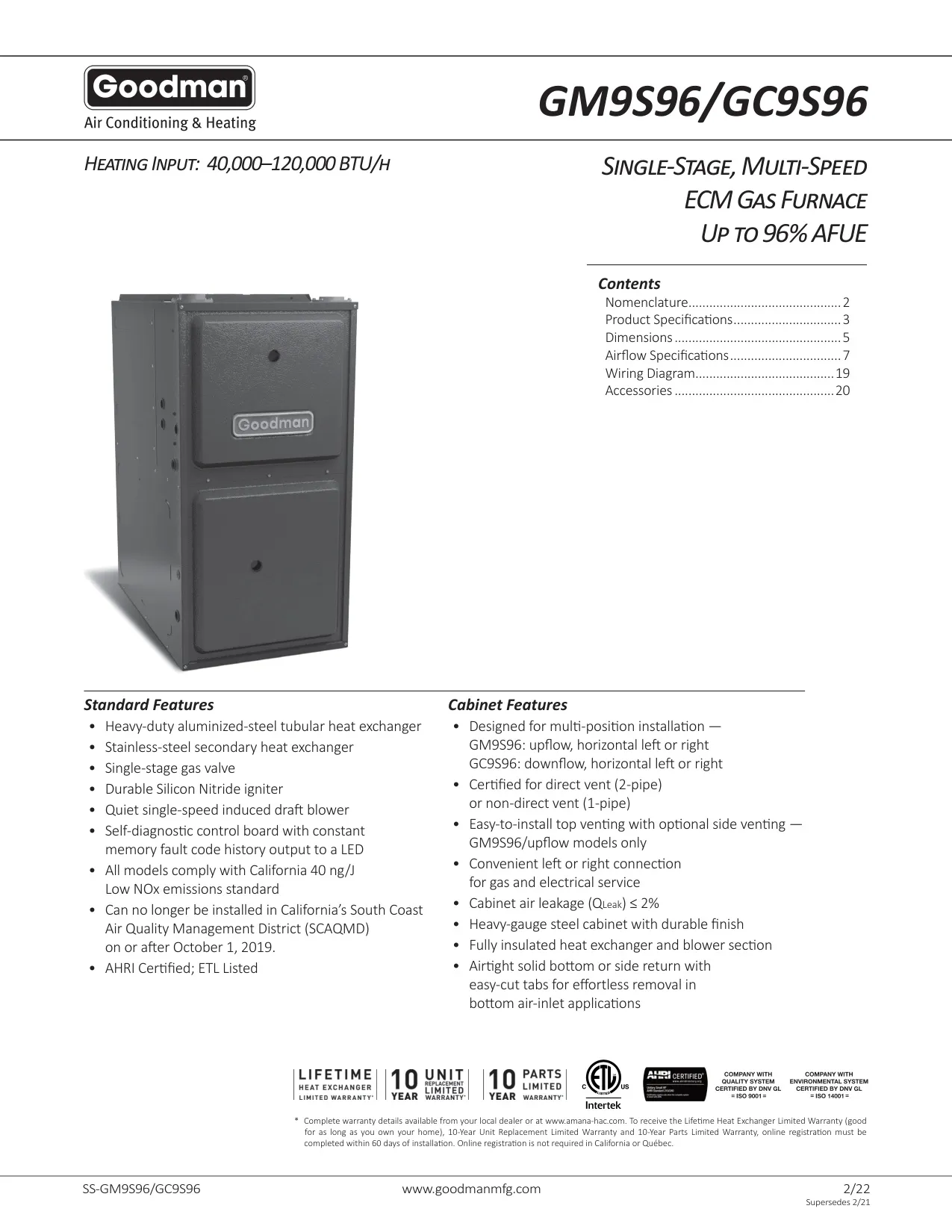

The Goodman GM9S96 furnace is engineered for superior residential heating. It incorporates a heavy-duty aluminized-steel tubular primary heat exchanger, complemented by a durable stainless-steel secondary heat exchanger. This robust construction ensures long-term reliability and highly efficient heat transfer, contributing to its impressive 96% AFUE rating.
For consistent performance, the furnace utilizes a durable Silicon Nitride igniter for reliable startup and a quiet, single-speed induced draft blower. This combination ensures efficient combustion and a steady delivery of warmth while maintaining a peaceful home environment.

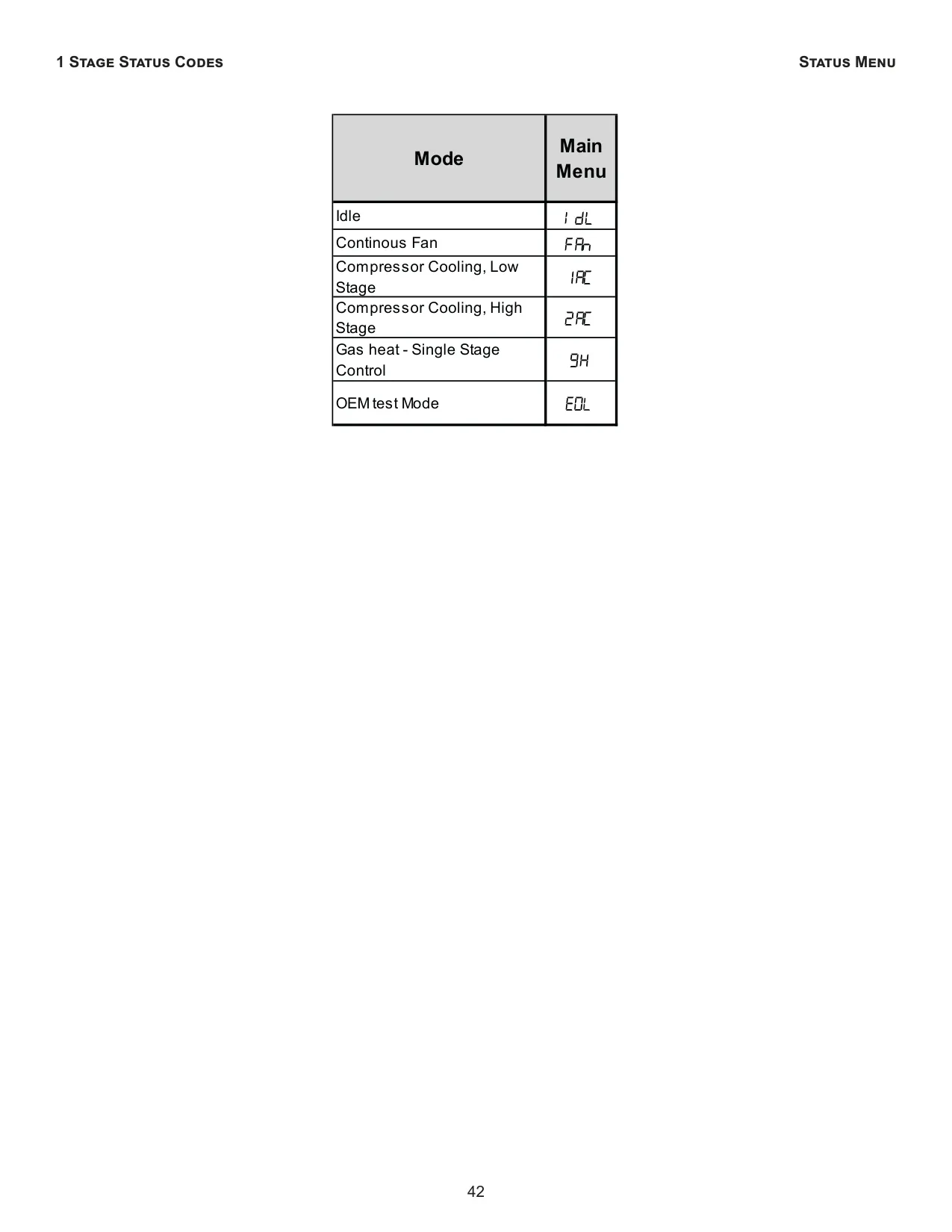

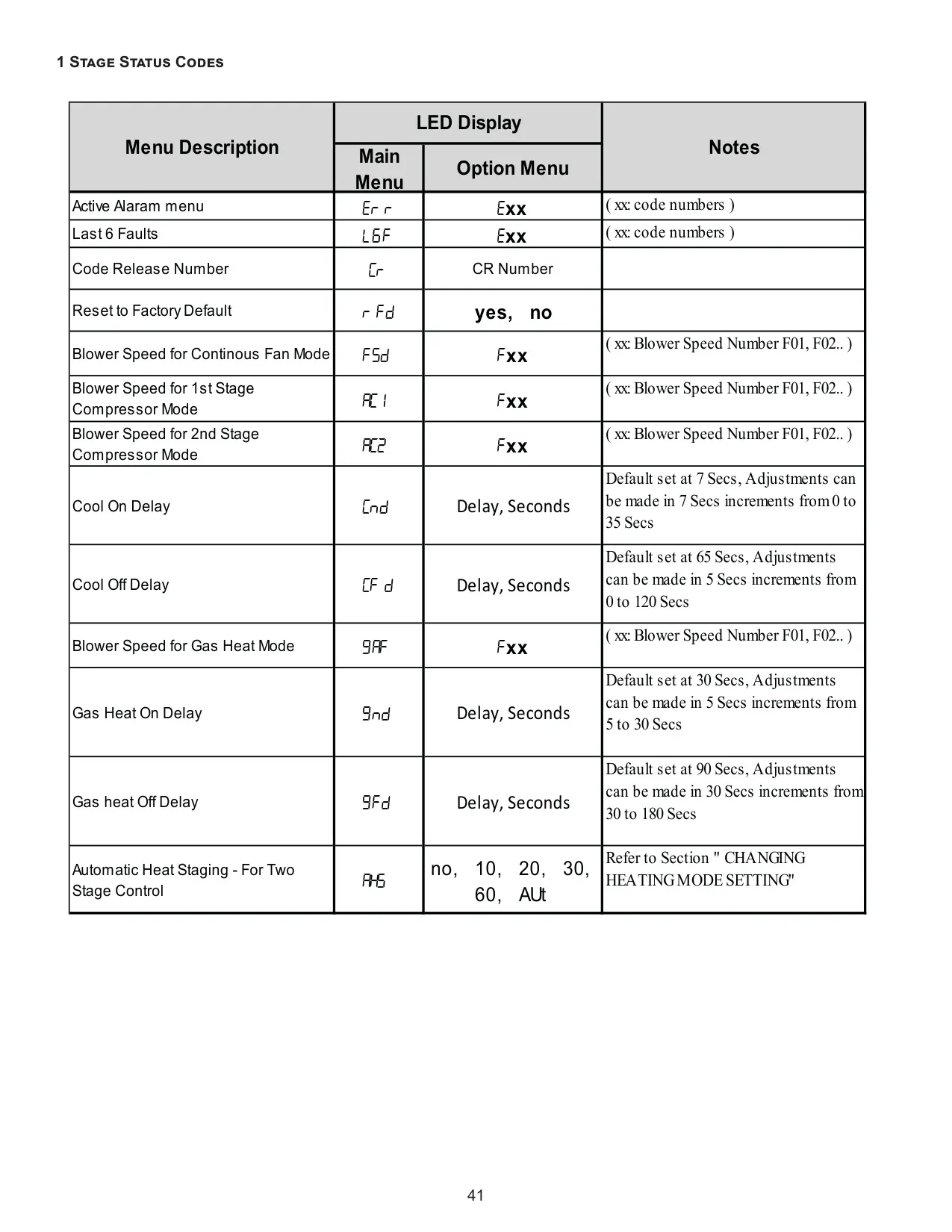

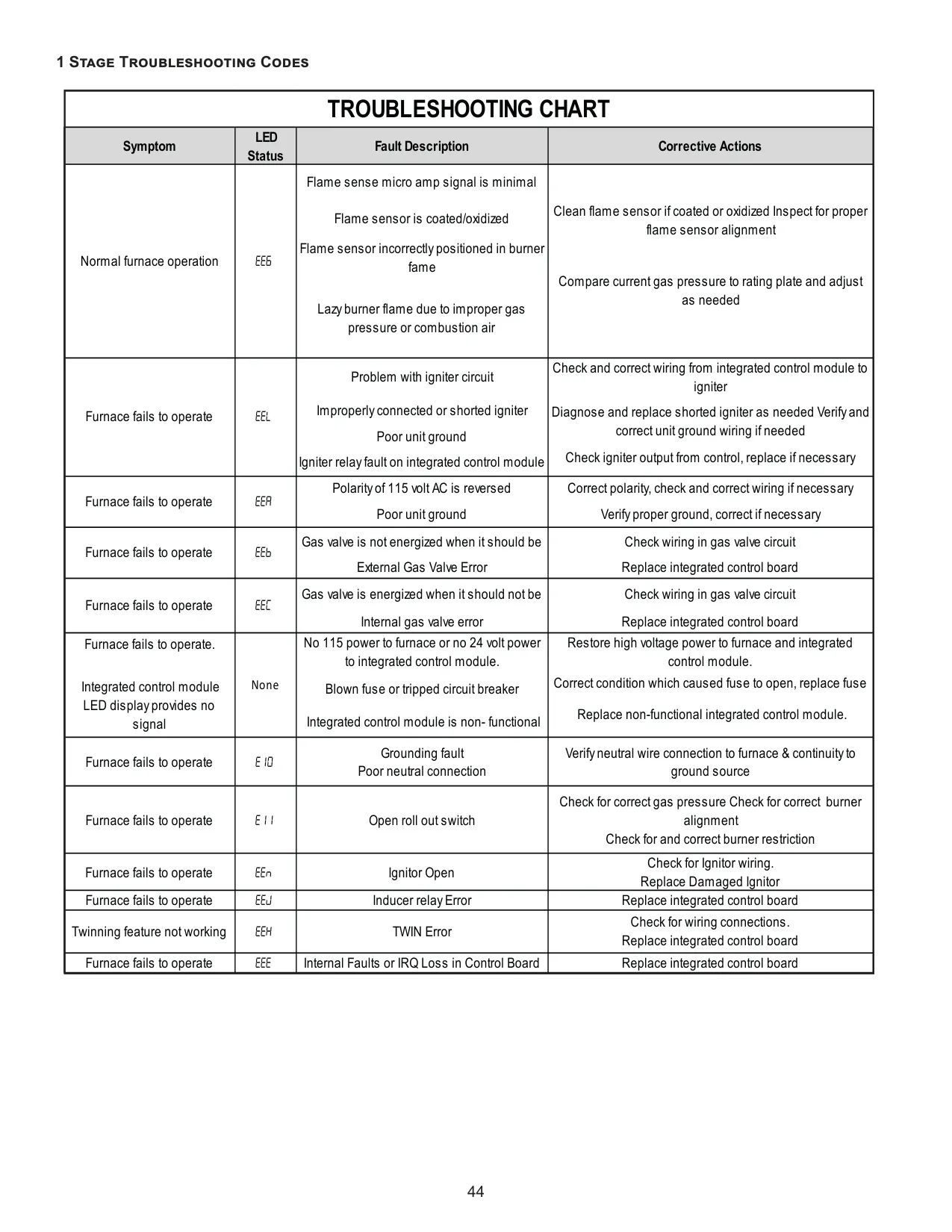

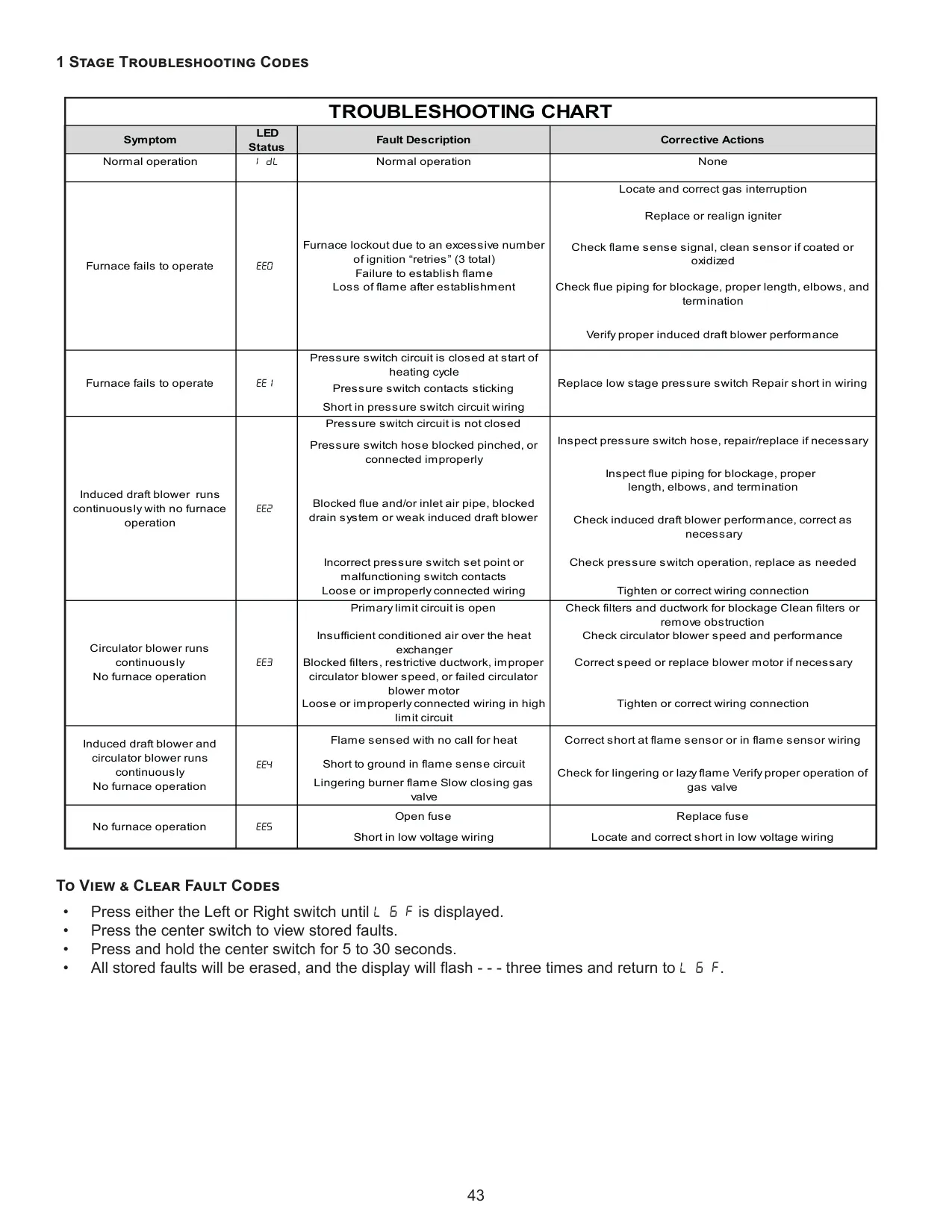

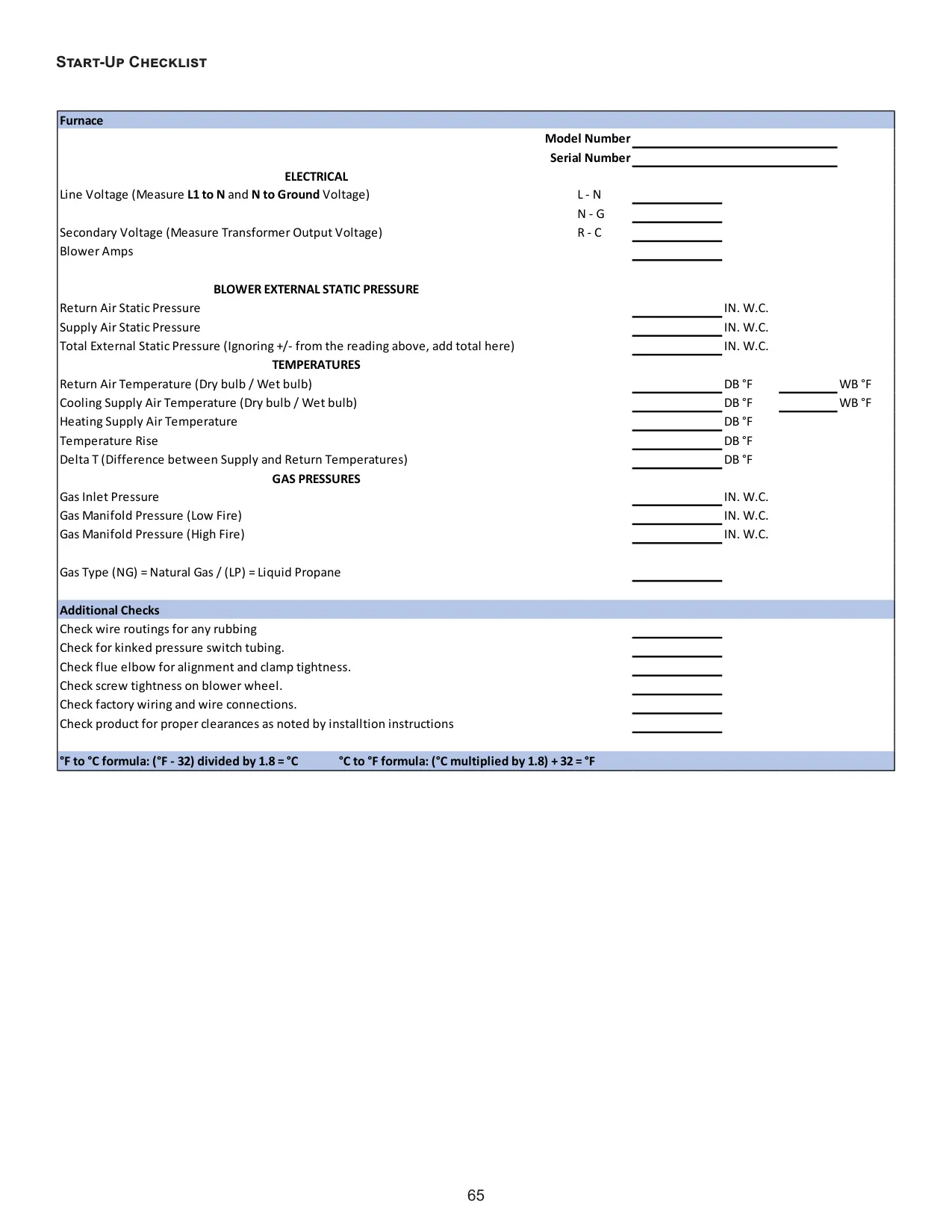

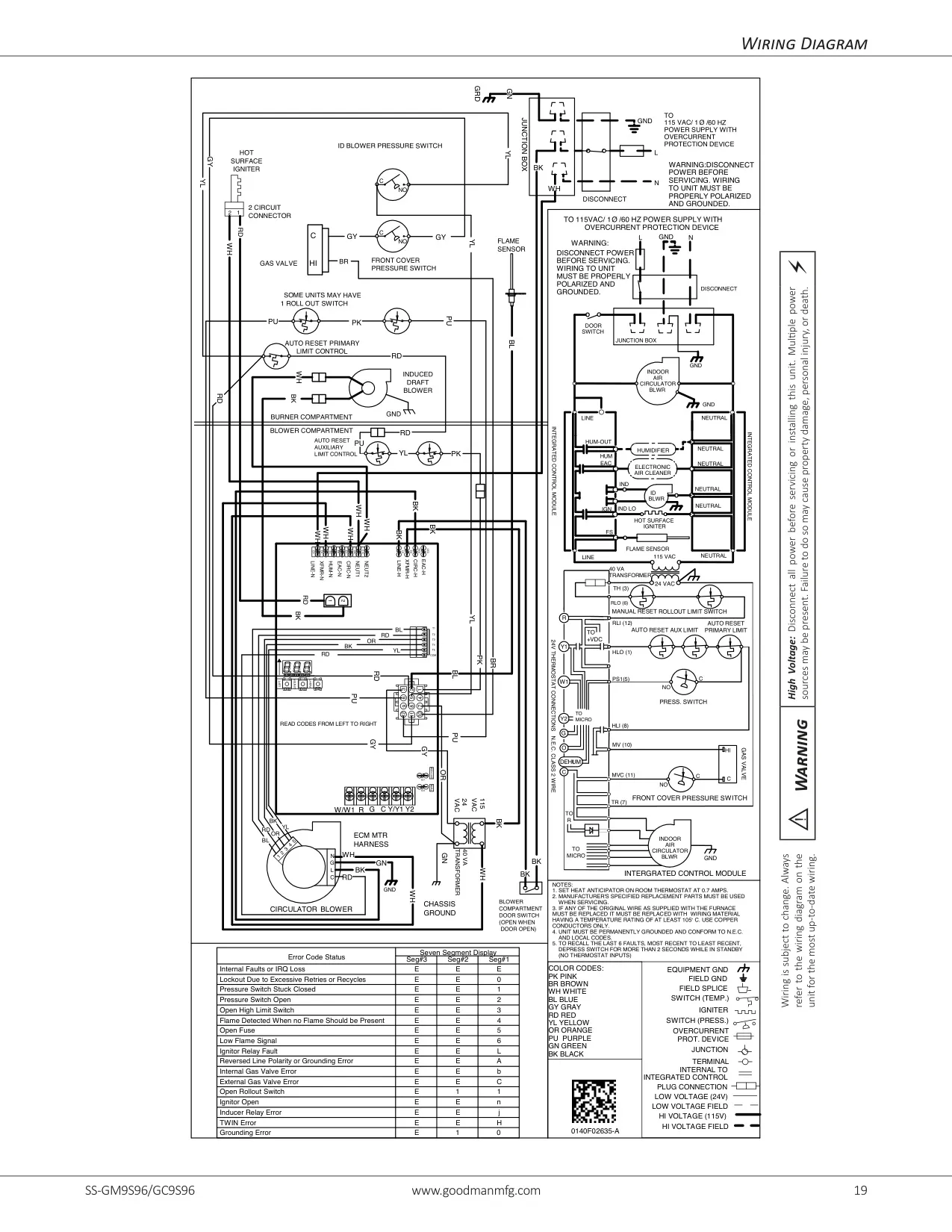

Troubleshooting is simplified with the self-diagnostic control board, which stores a constant memory of fault code history. These codes are displayed on an LED, allowing for quick identification and resolution of any operational issues, minimizing downtime and maintenance complexity.
Emissions compliance is a key feature, as all GM9S96 models meet California’s stringent 40 ng/J Low NOx standard. This ensures the furnace operates with reduced environmental impact, adhering to modern clean air regulations.

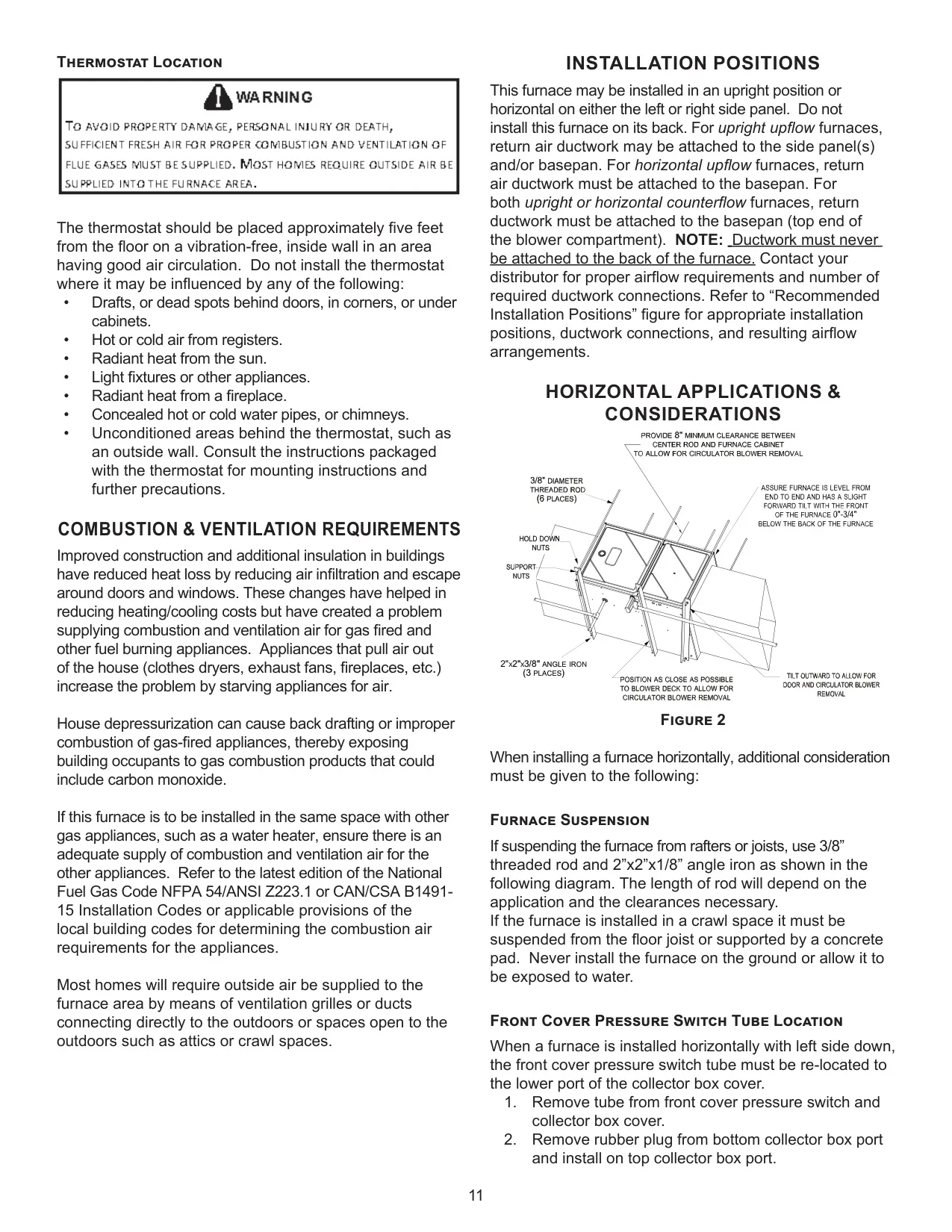

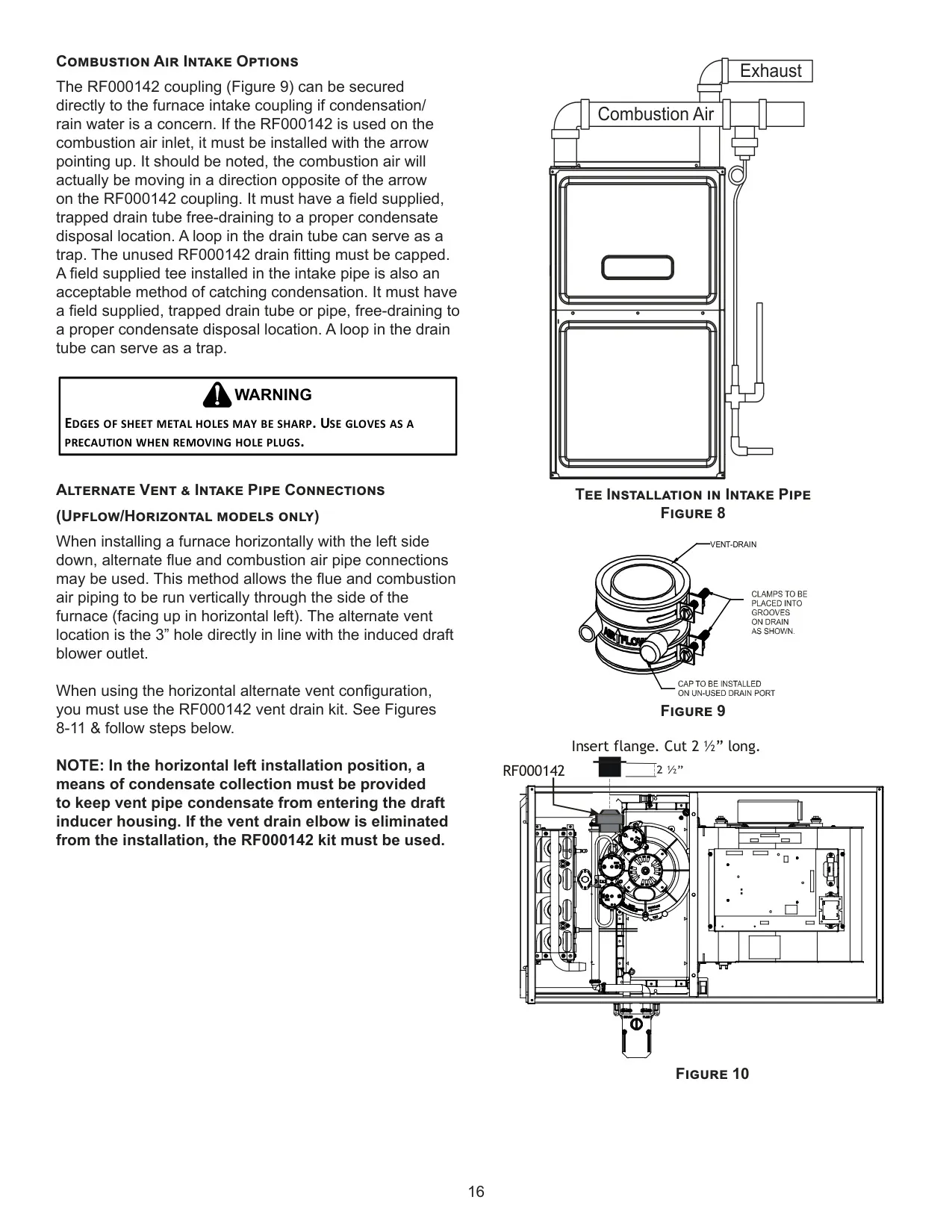

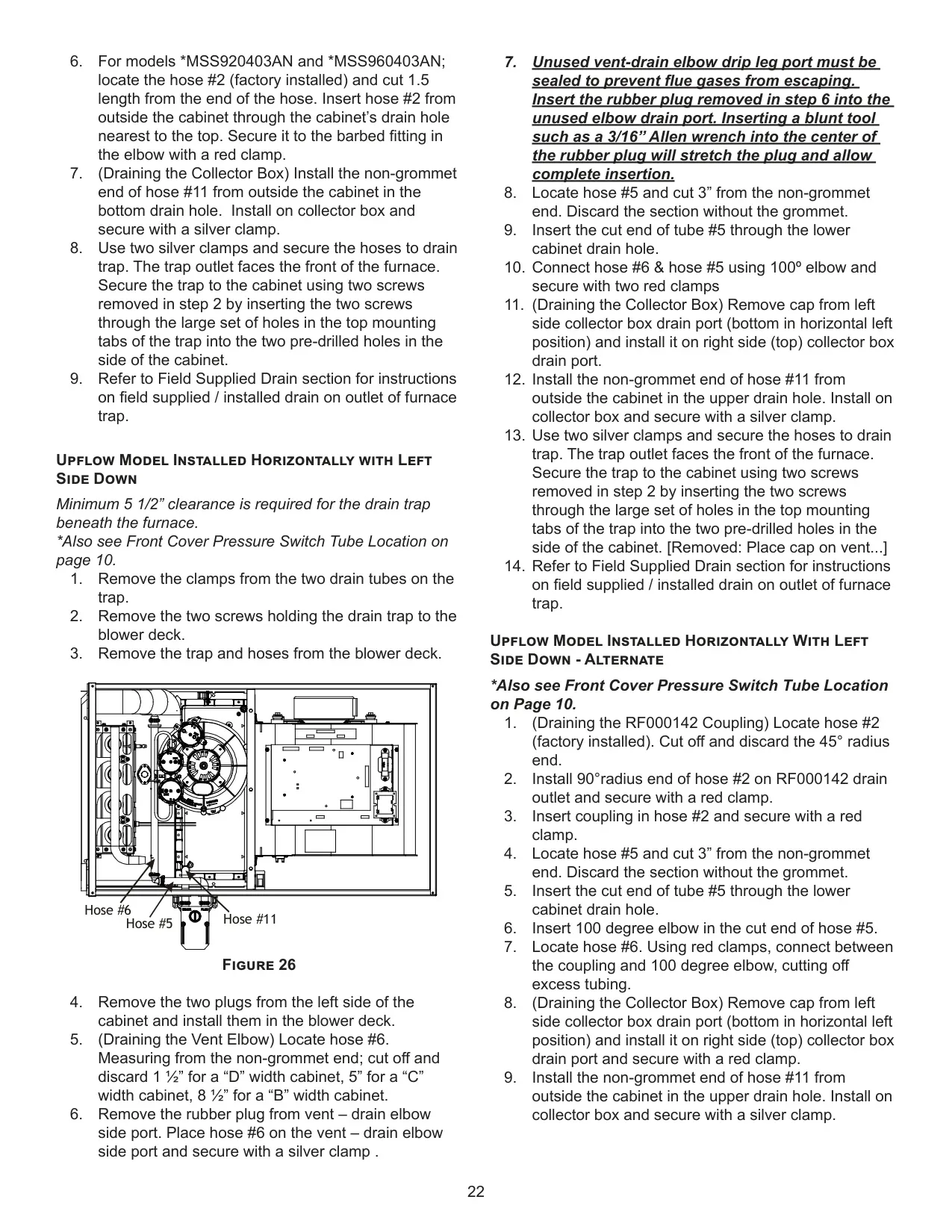

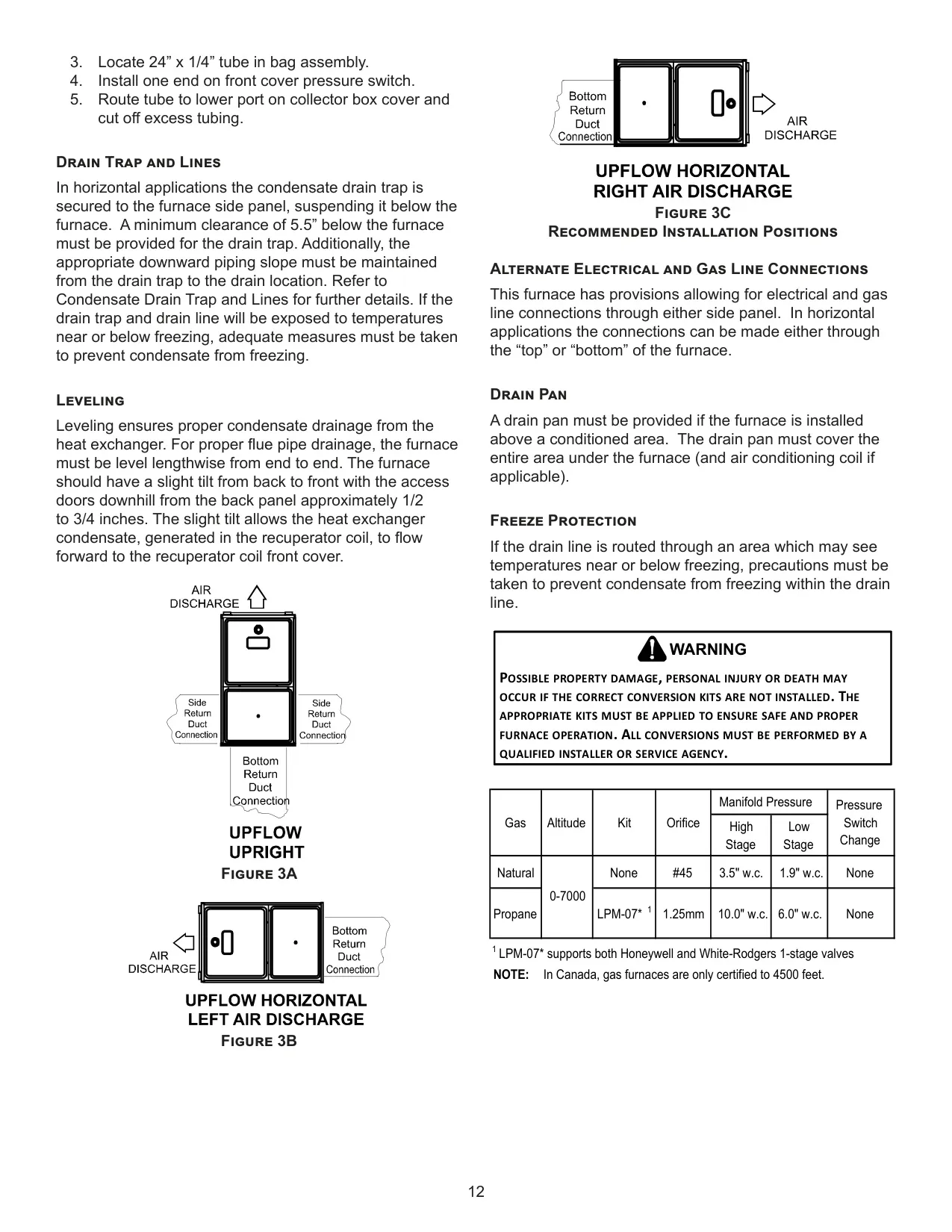

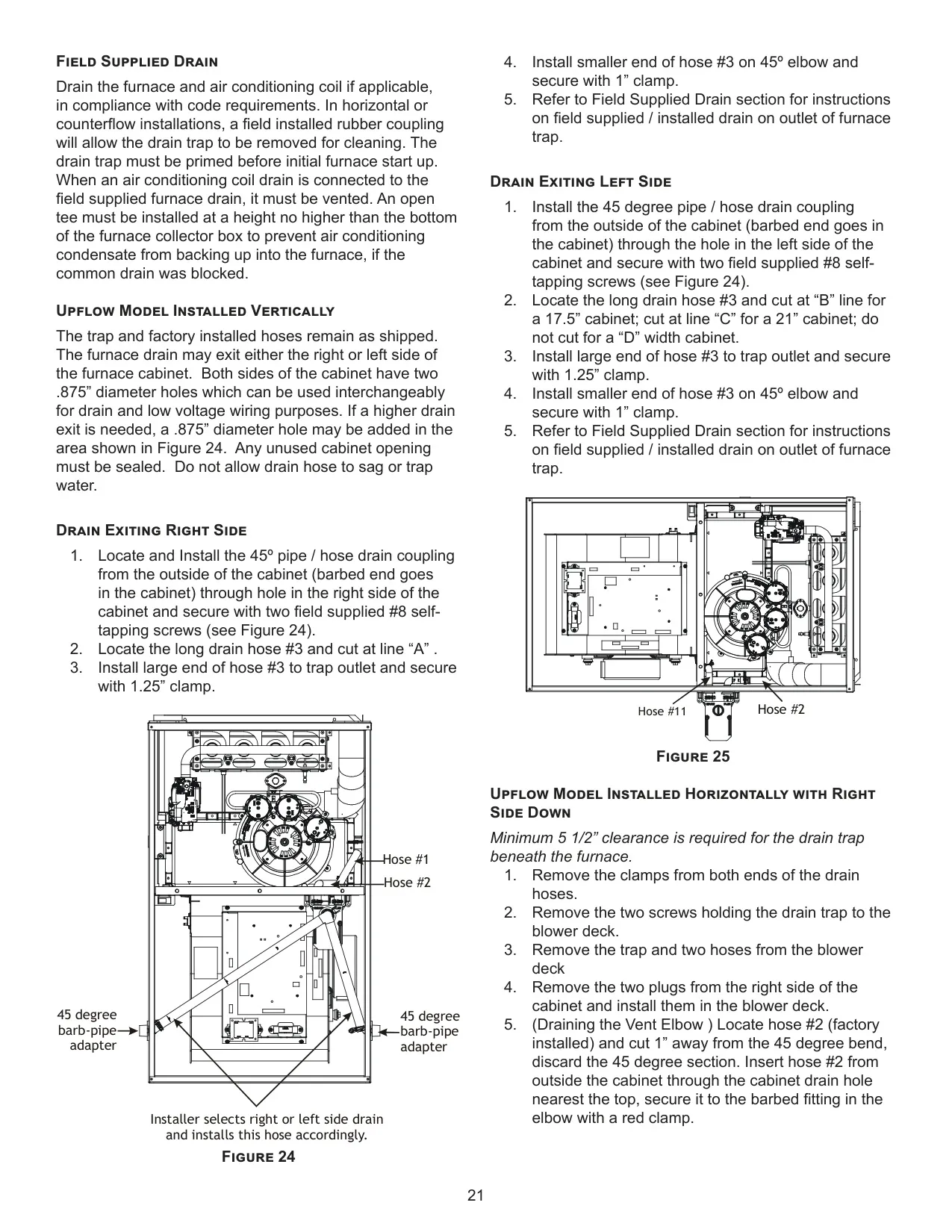

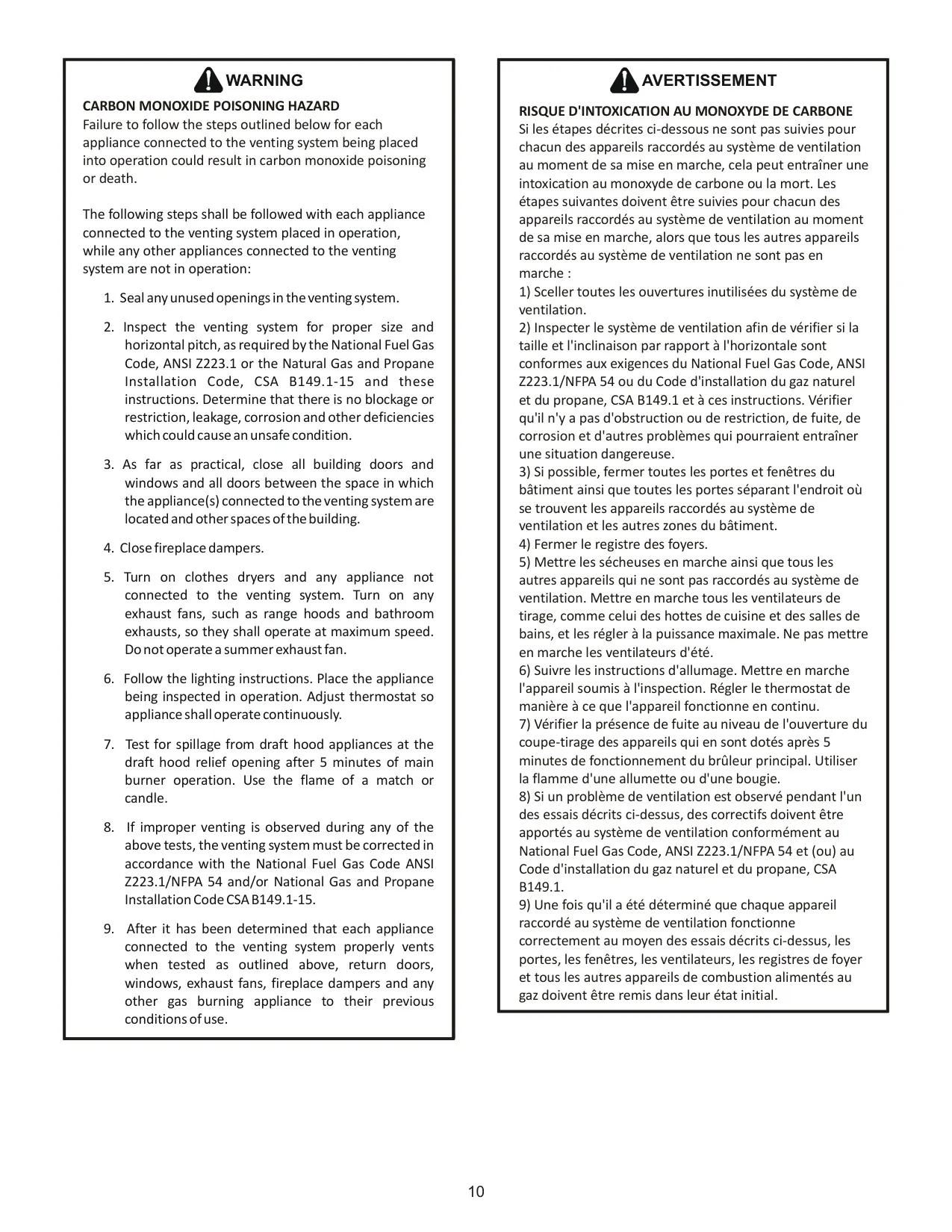

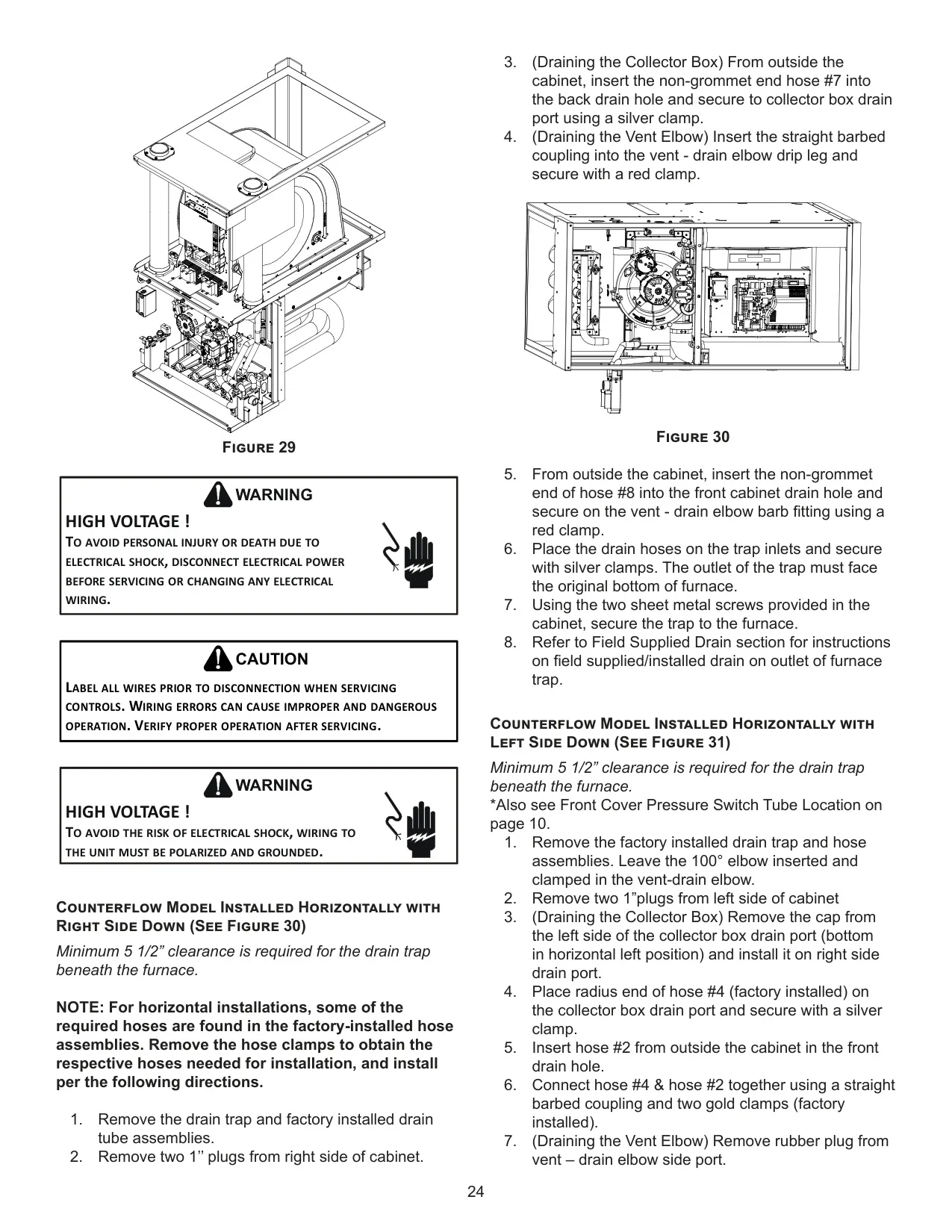

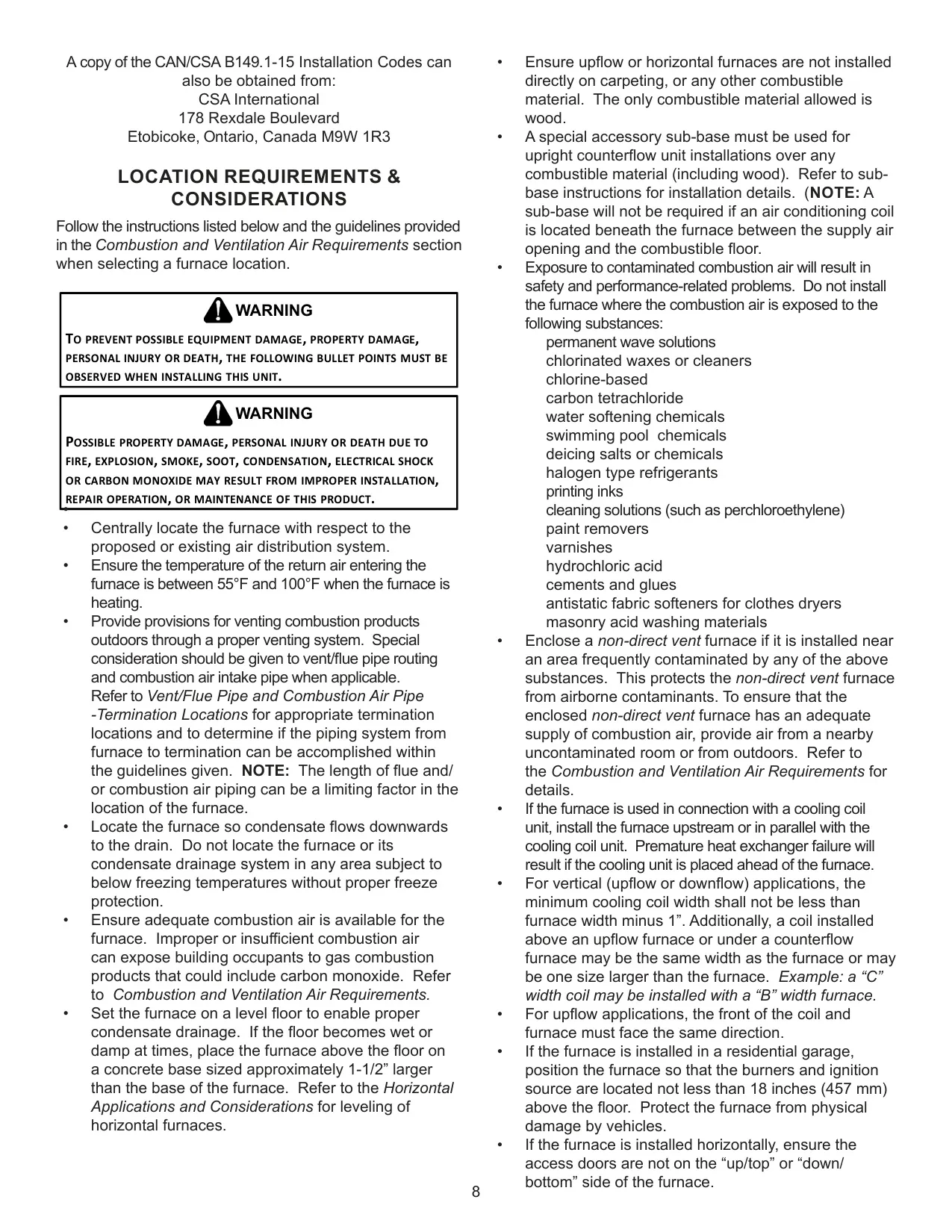

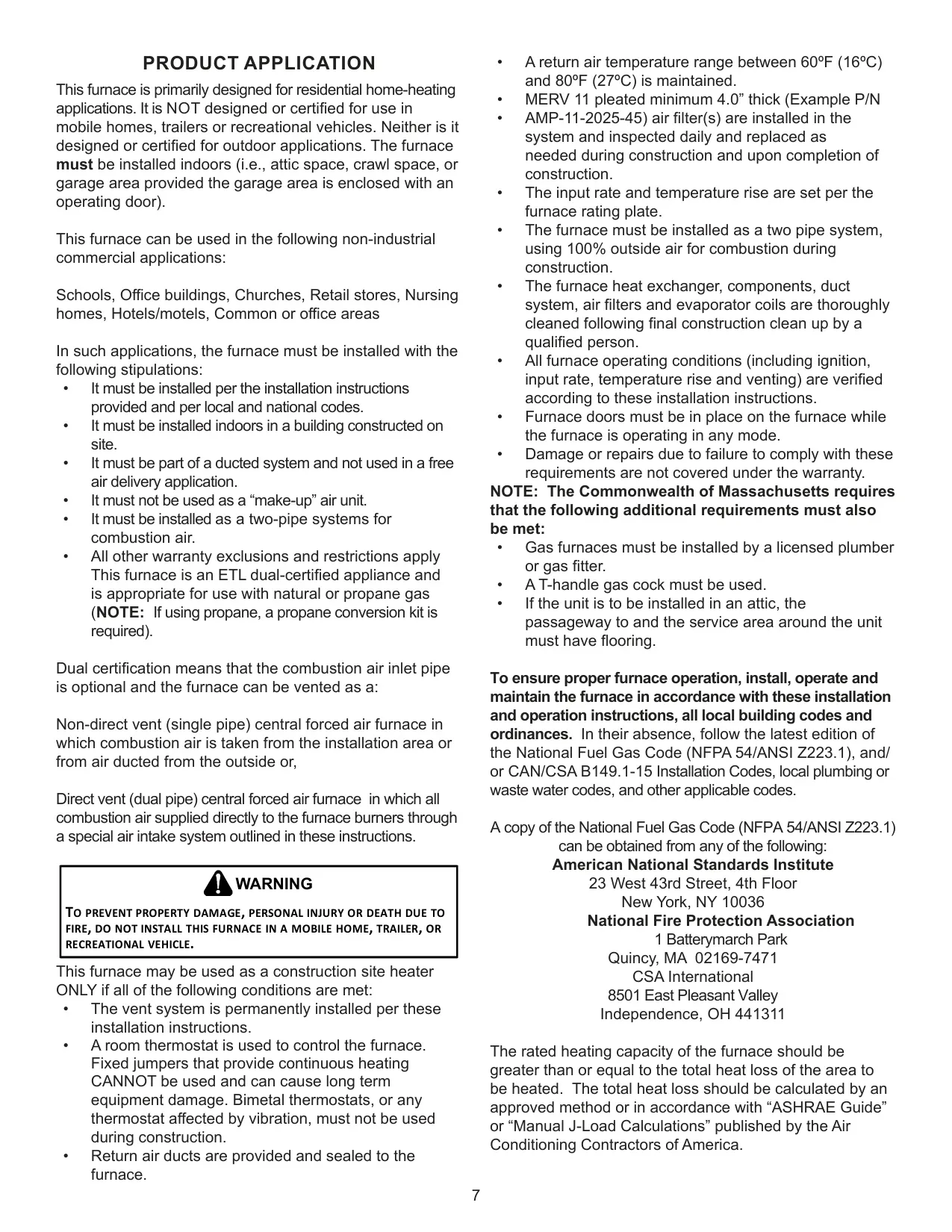

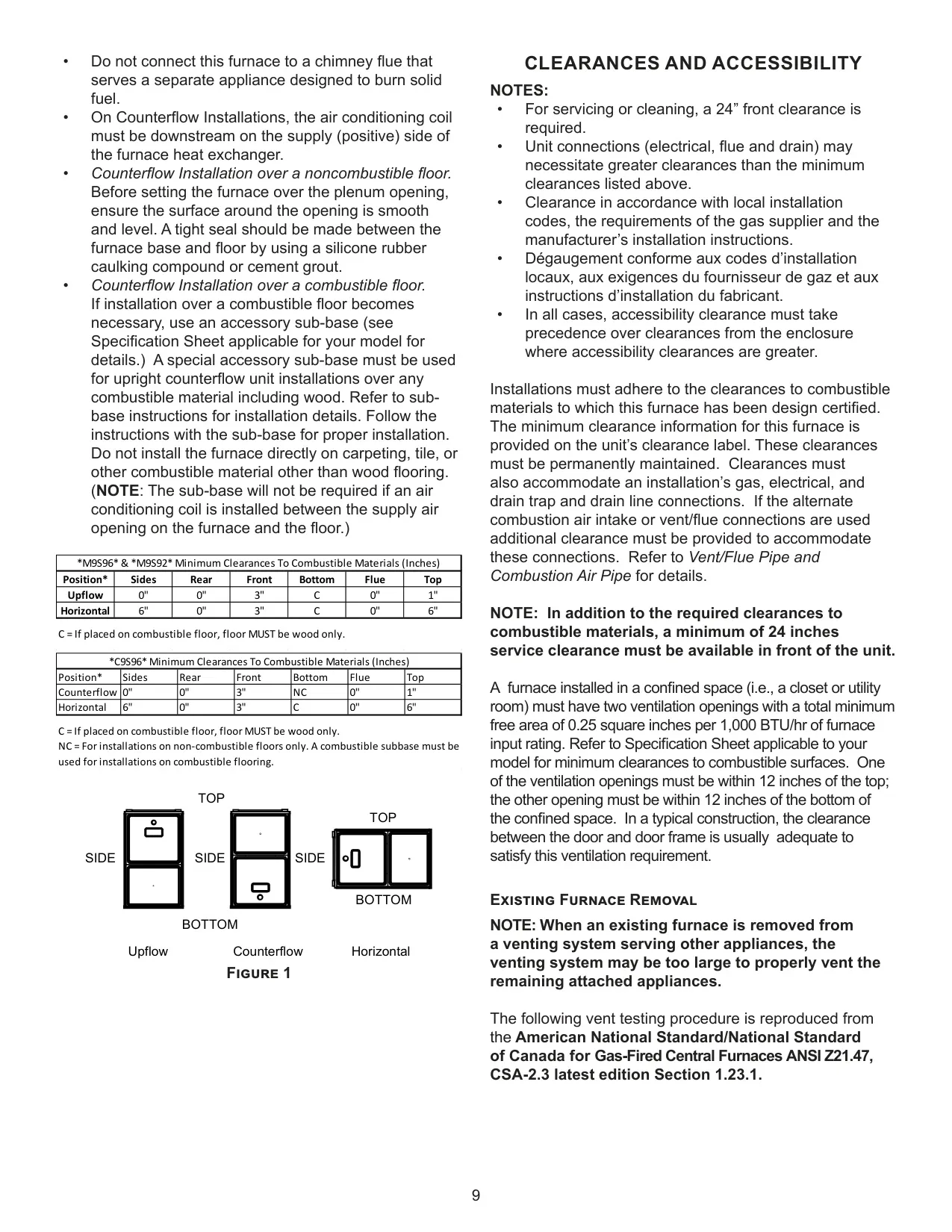

Designed for installation versatility, the GM9S96 supports multiple configurations including upflow, horizontal left, or horizontal right. It is also dual-certified for both direct vent (two-pipe) and non-direct vent (one-pipe) applications, offering flexibility for various home layouts and code requirements.

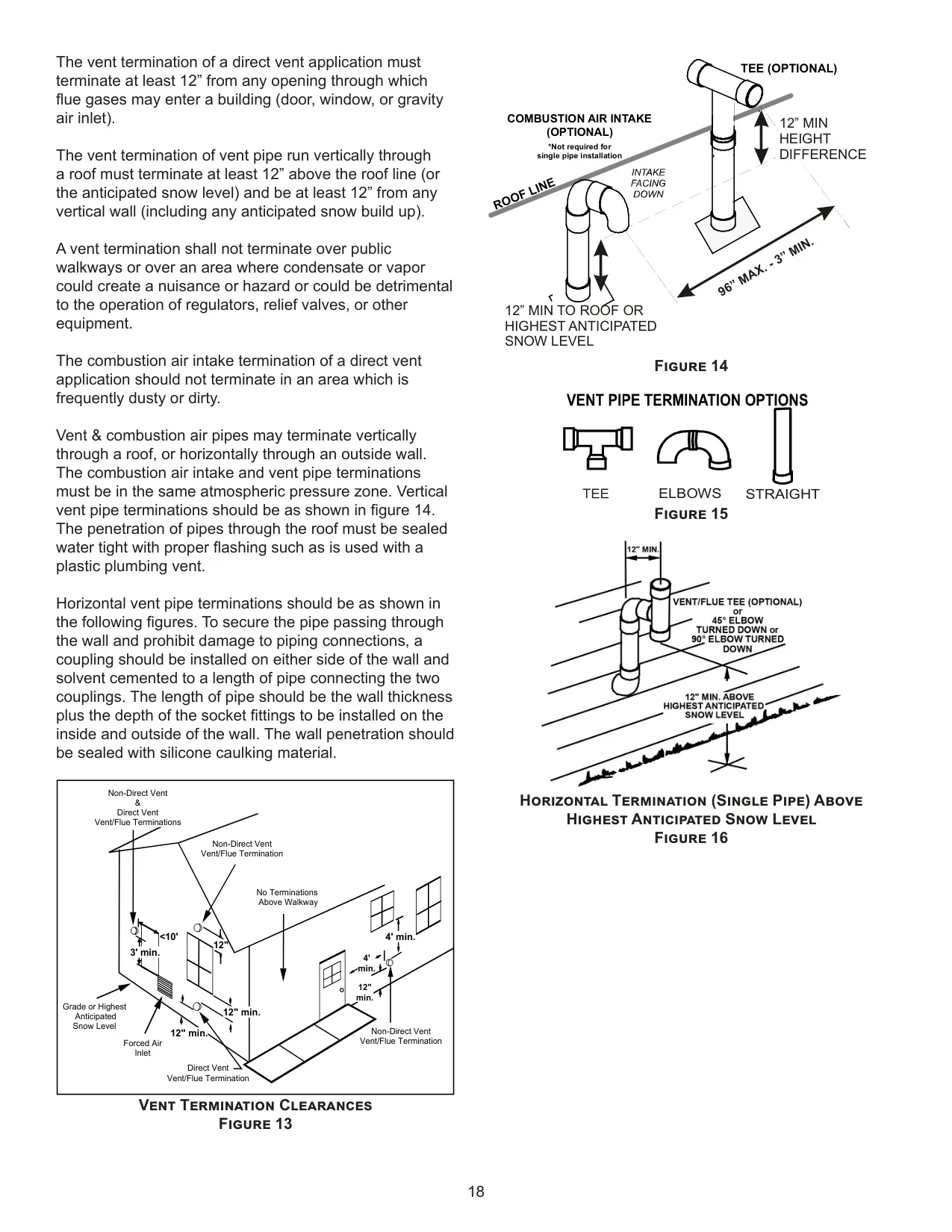

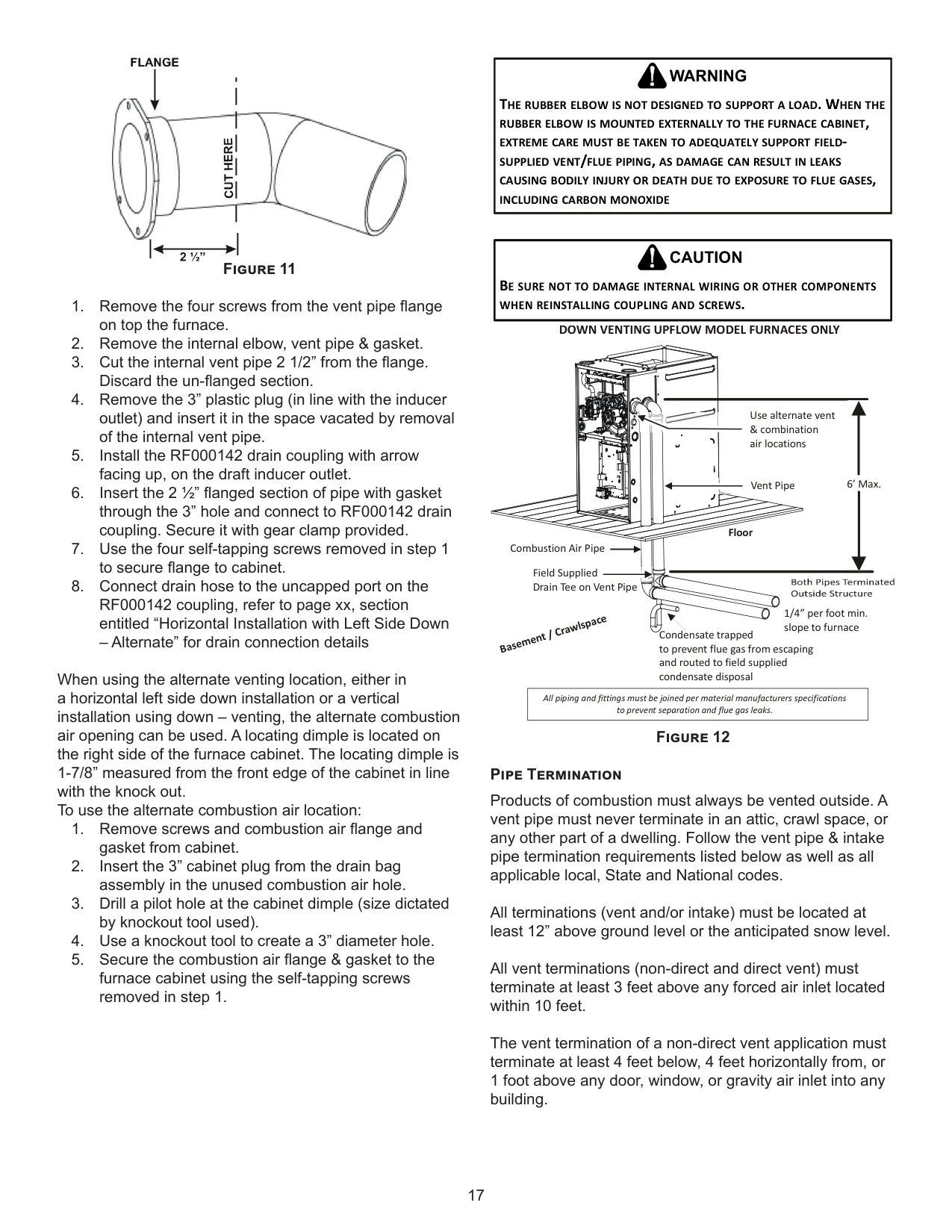

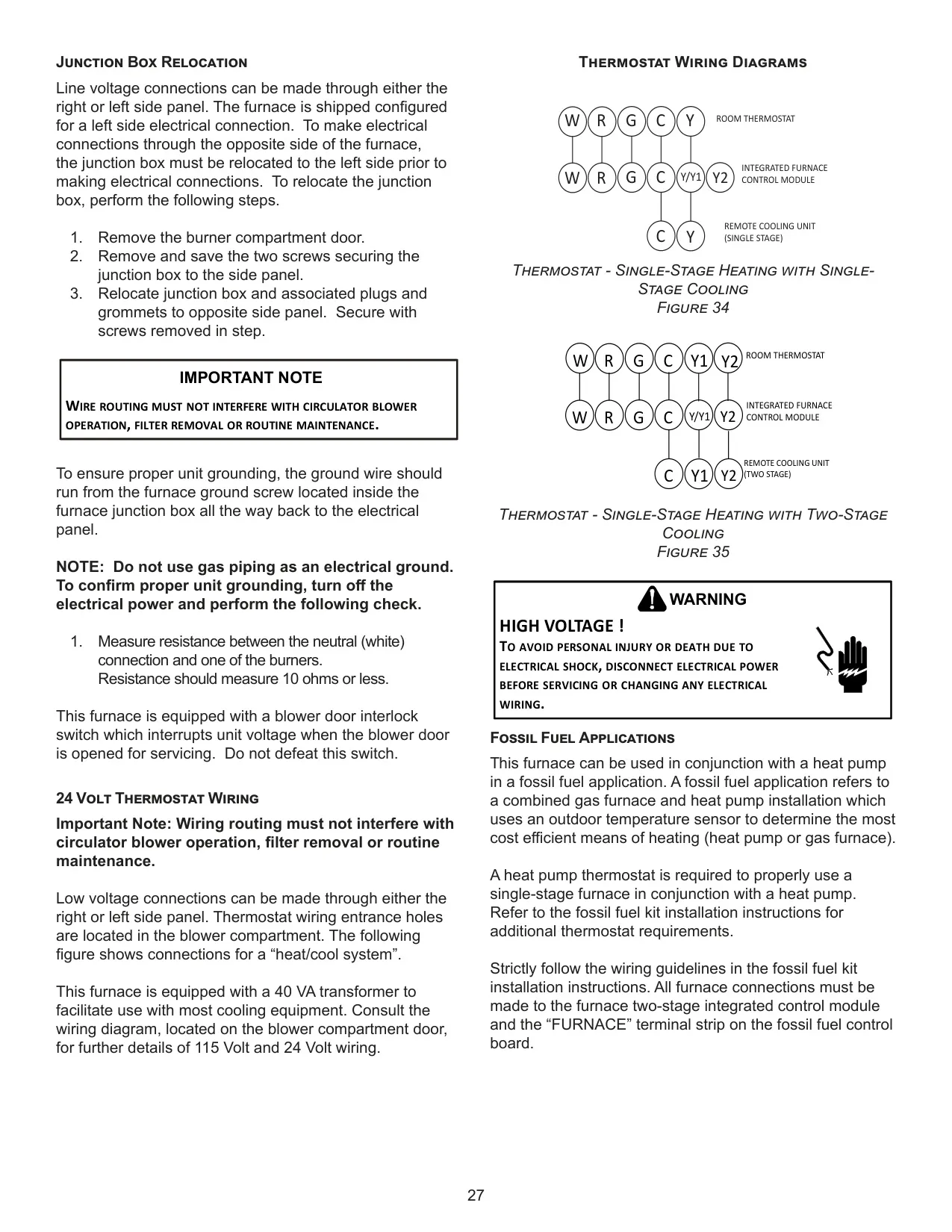

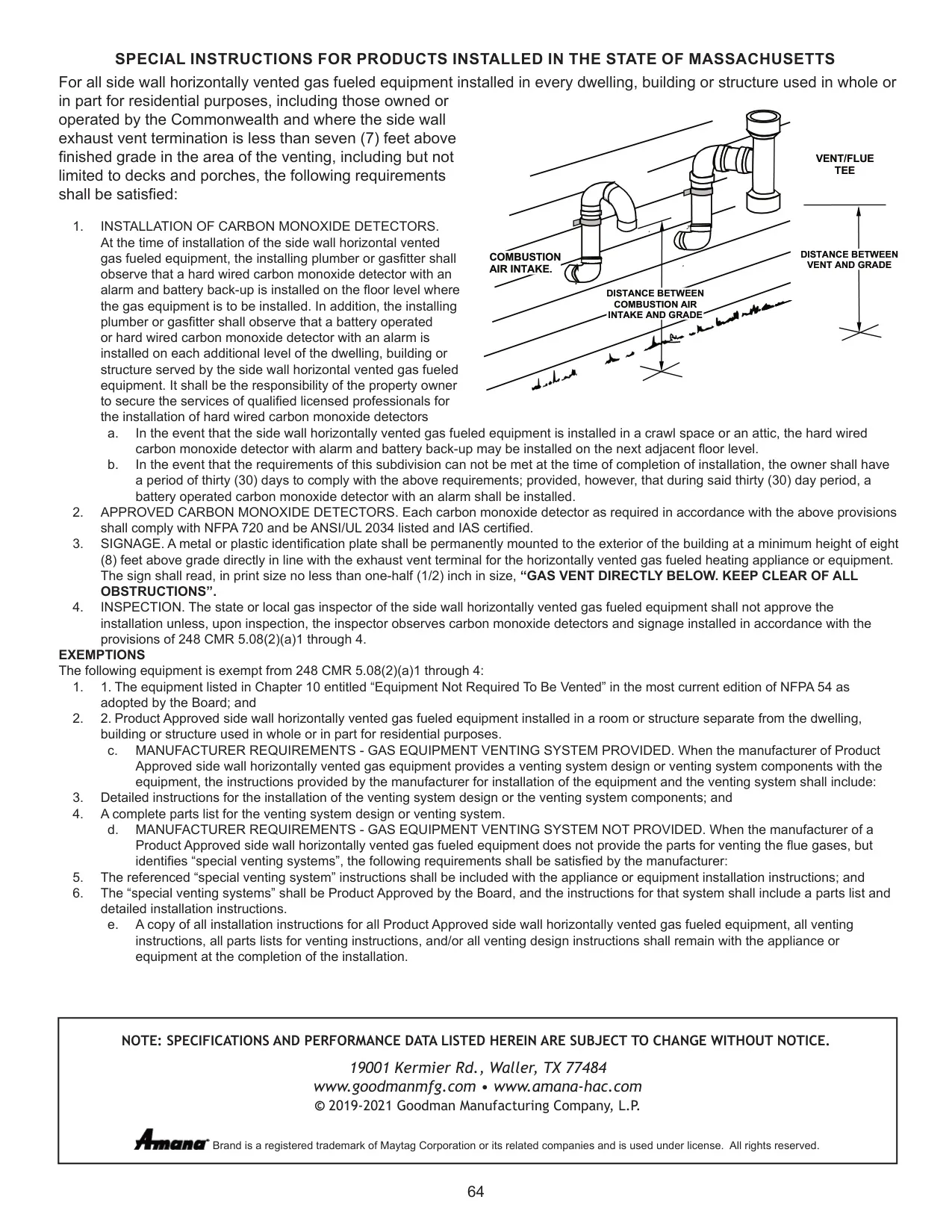

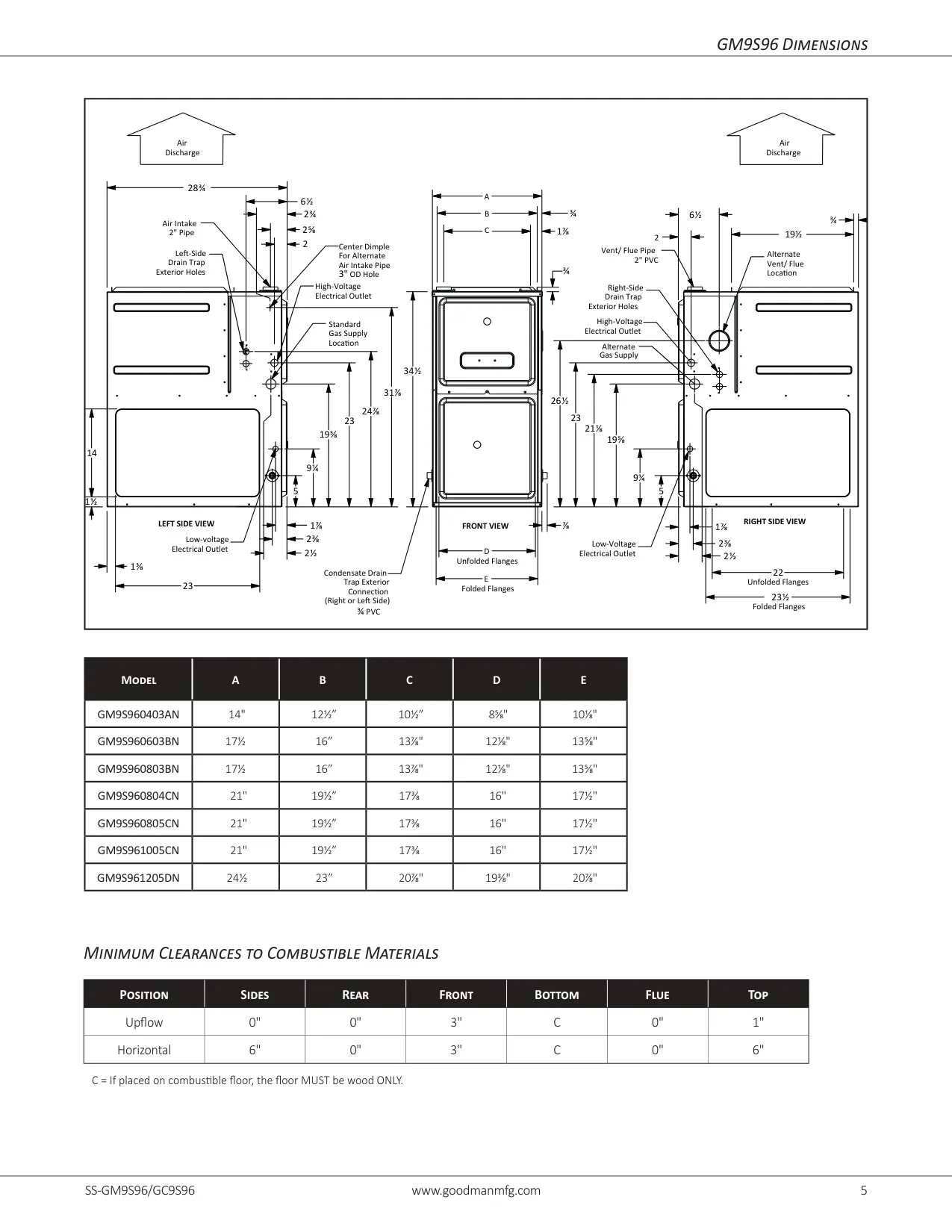

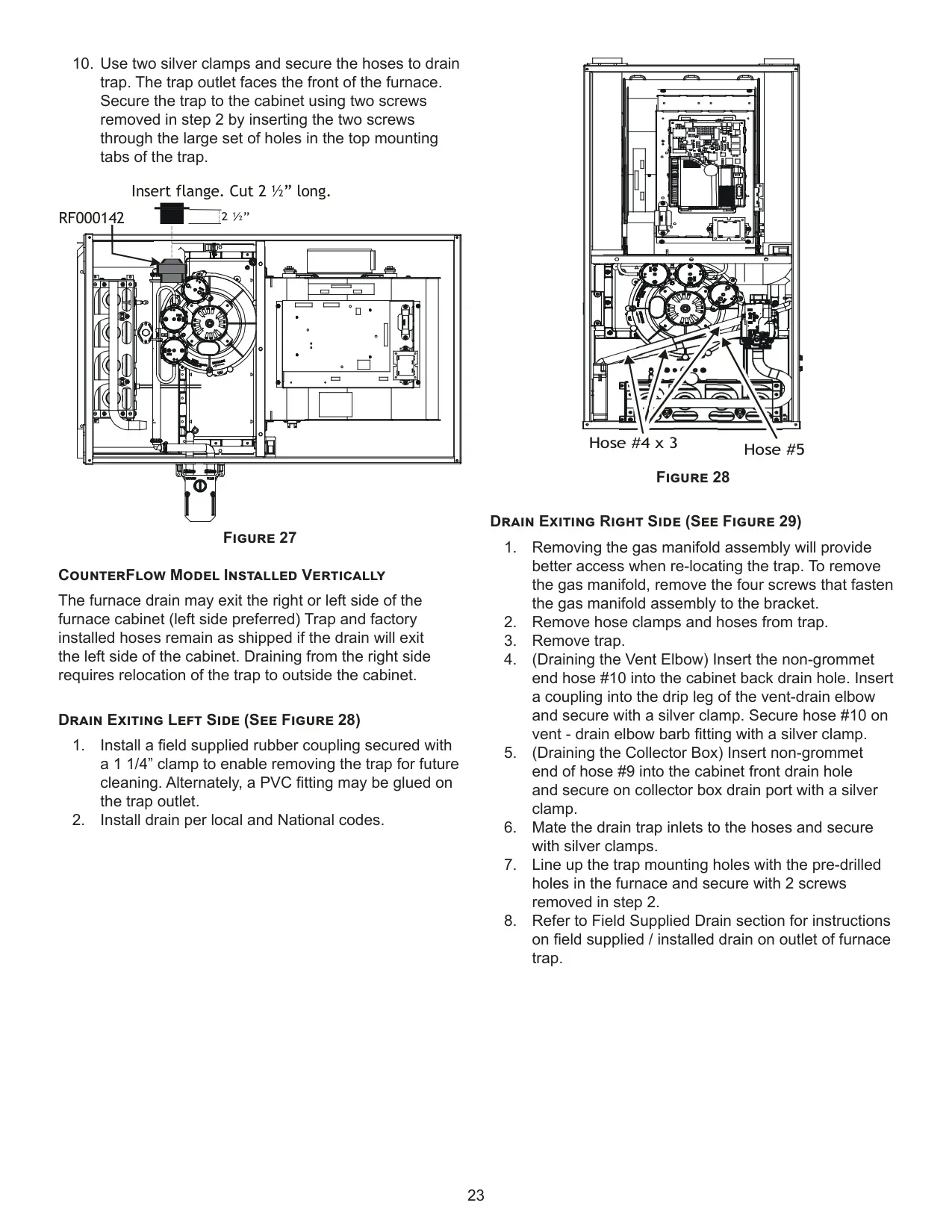

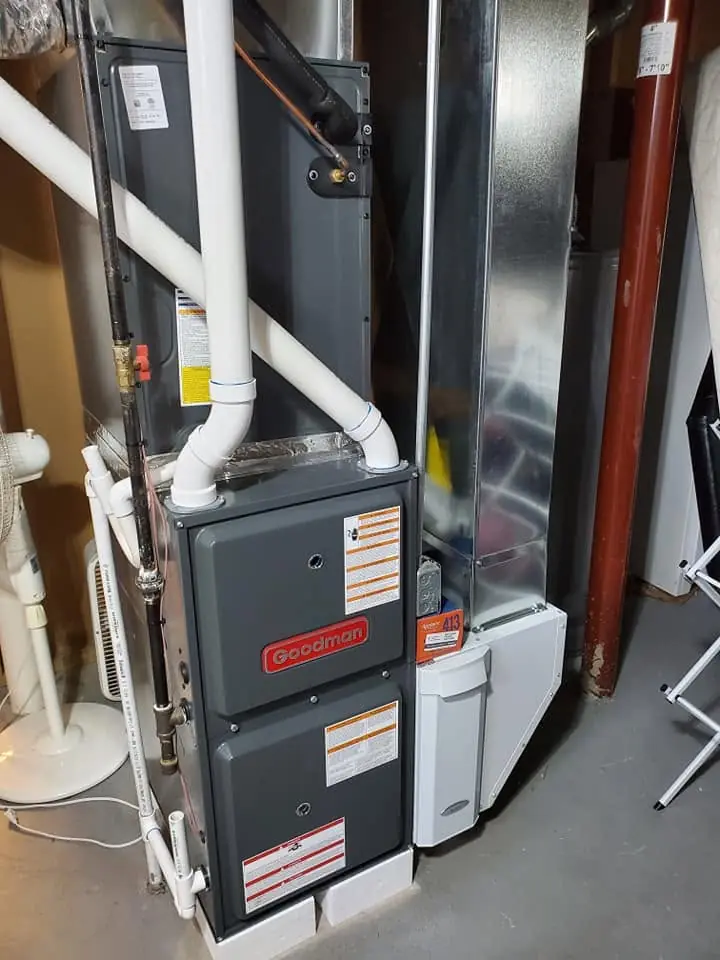

Installation is further streamlined with easy-to-install top venting and an optional side venting capability for upflow models. Gas and electrical services can be connected conveniently from either the left or right side, adapting to specific site conditions with ease.
The furnace cabinet is built from heavy-gauge steel with a durable finish, designed for longevity and minimal air leakage (QLeak ≤ 2%). It features fully insulated heat exchanger and blower sections, enhancing both thermal performance and quiet operation.

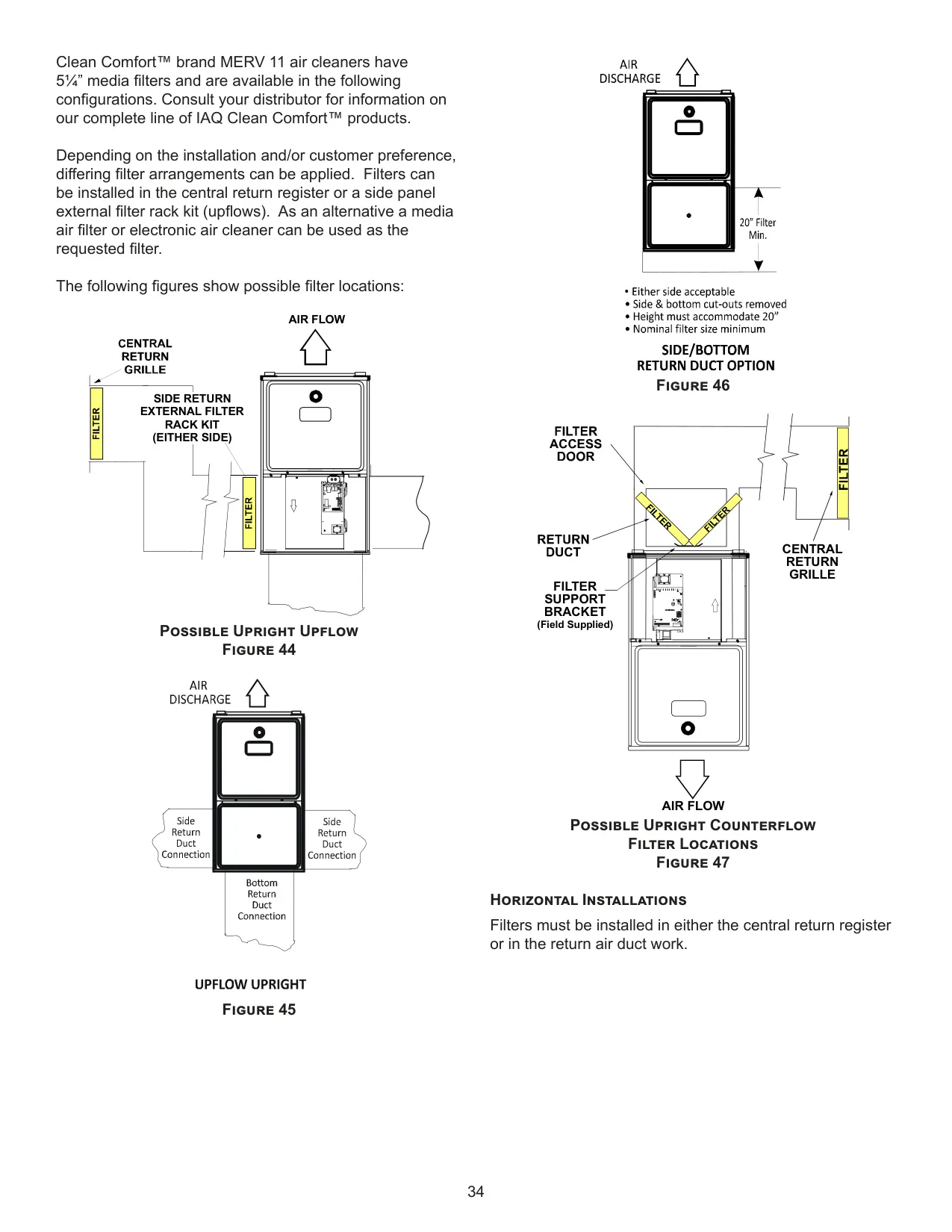

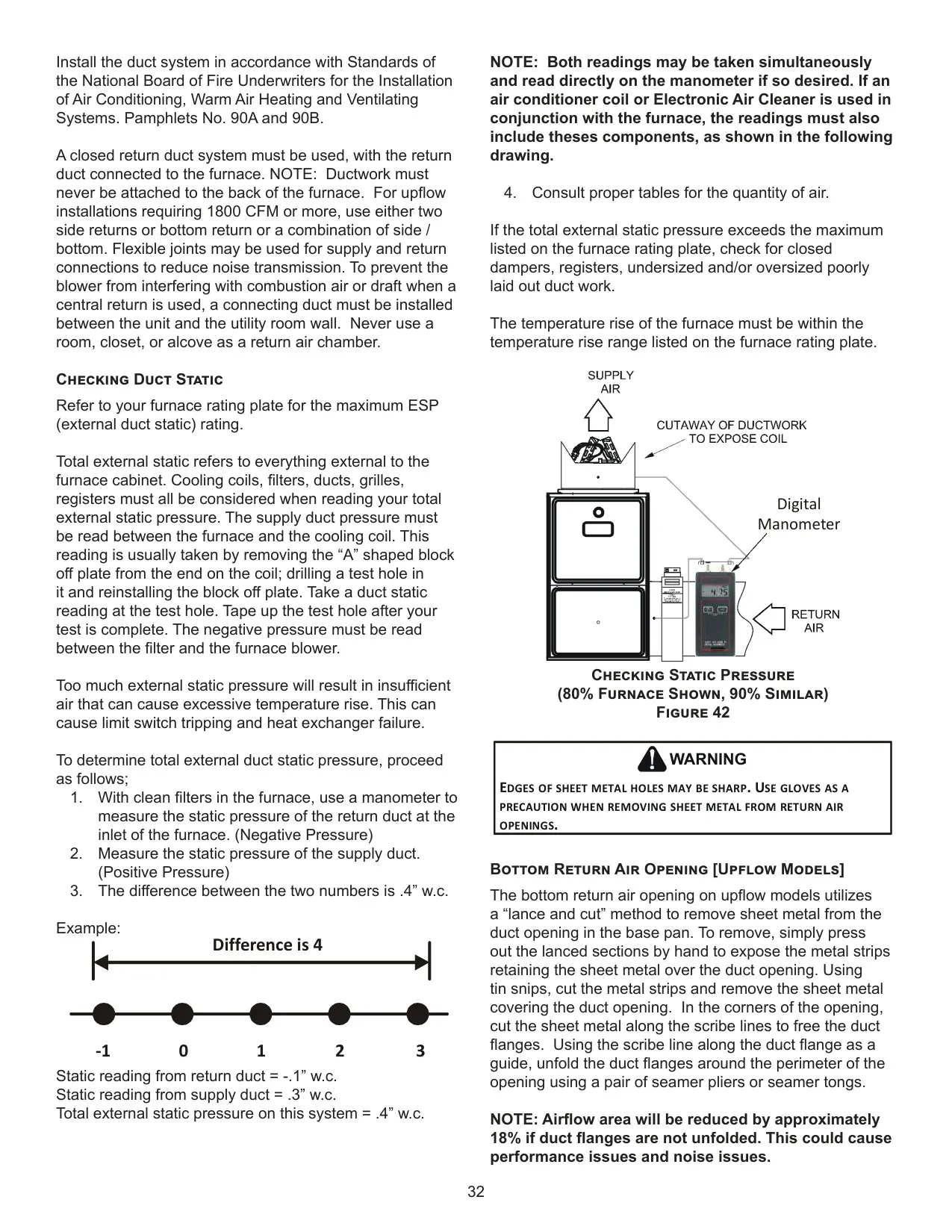

Air return options are flexible, with an airtight solid bottom or side return. Easy-cut tabs simplify the removal process for bottom air-inlet applications, making installation and routine maintenance tasks straightforward for technicians.

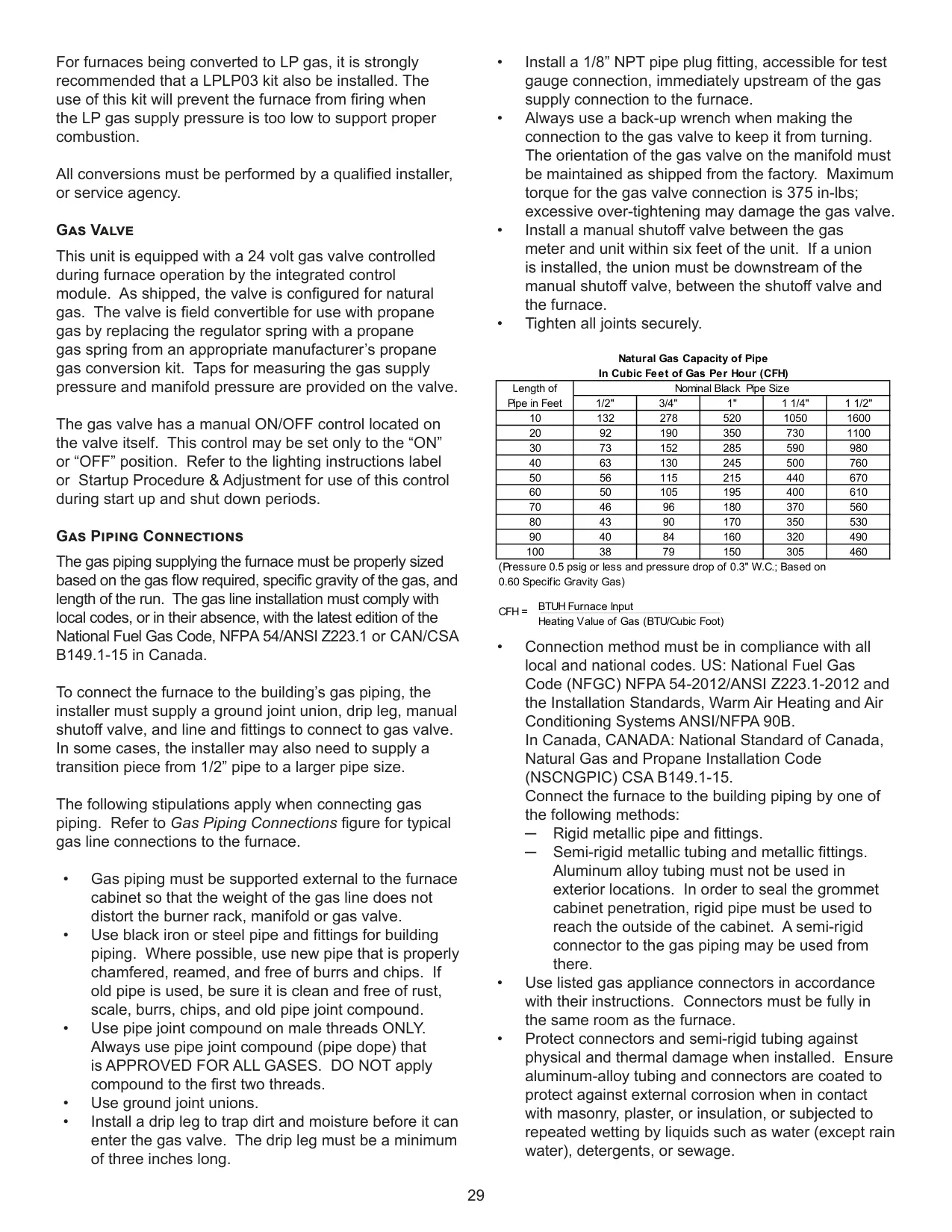

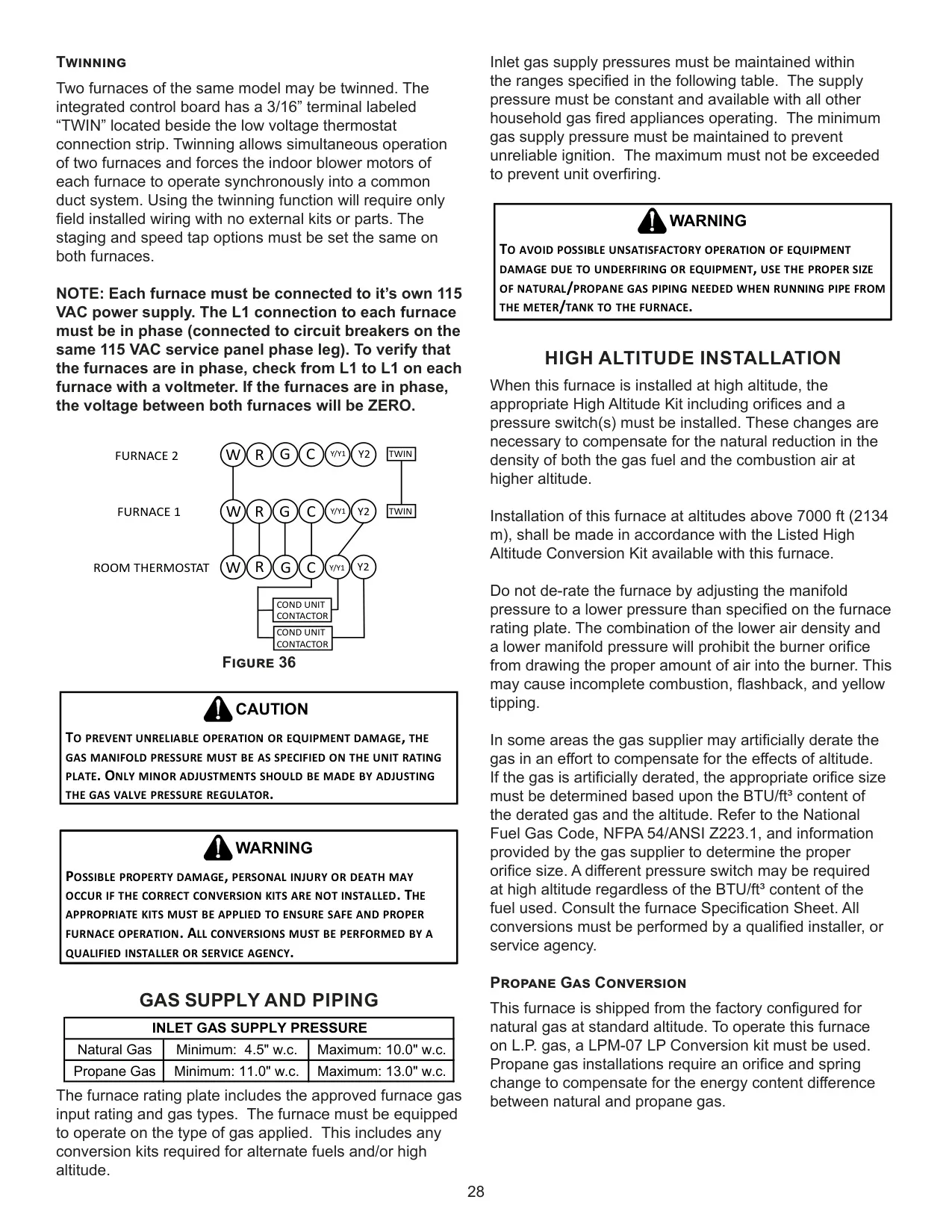

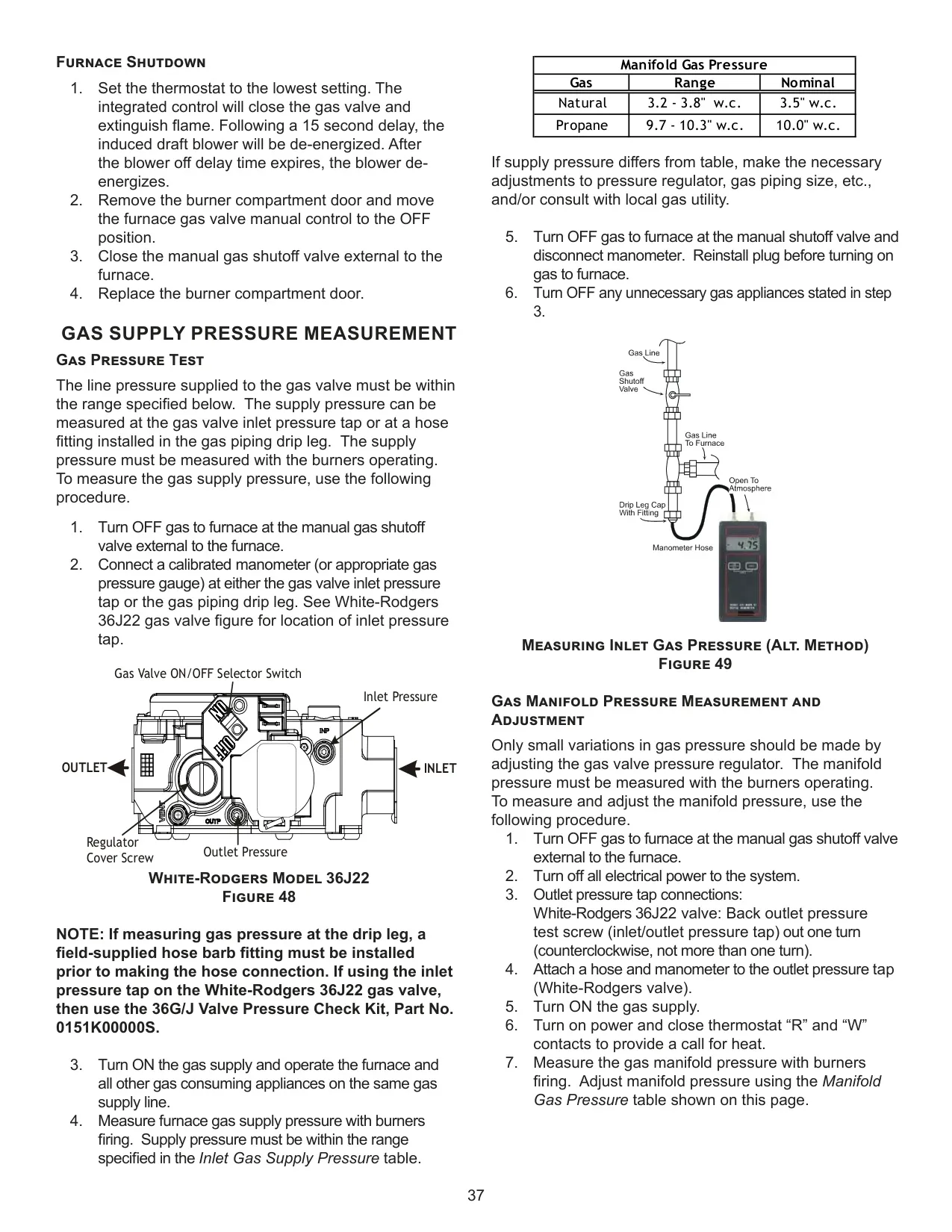

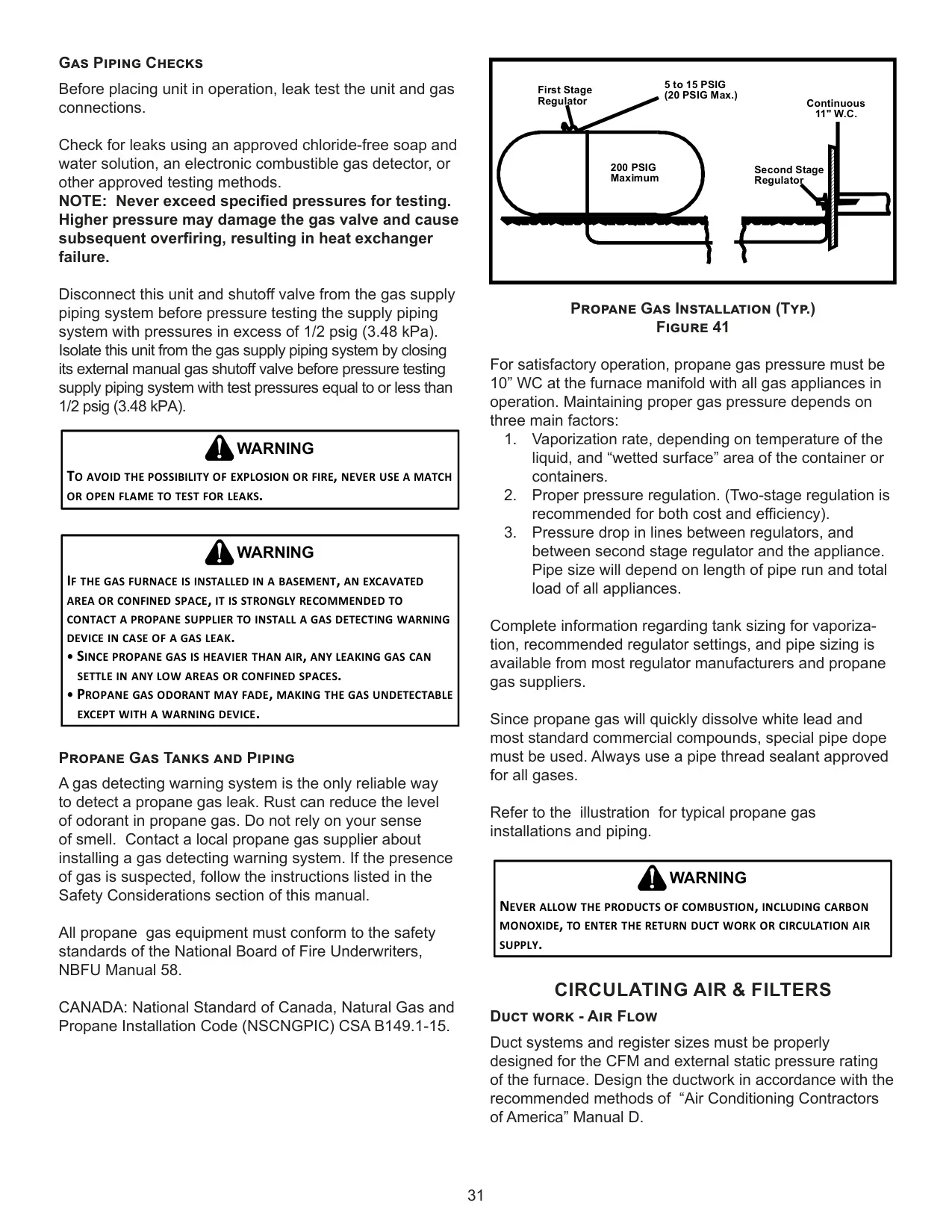

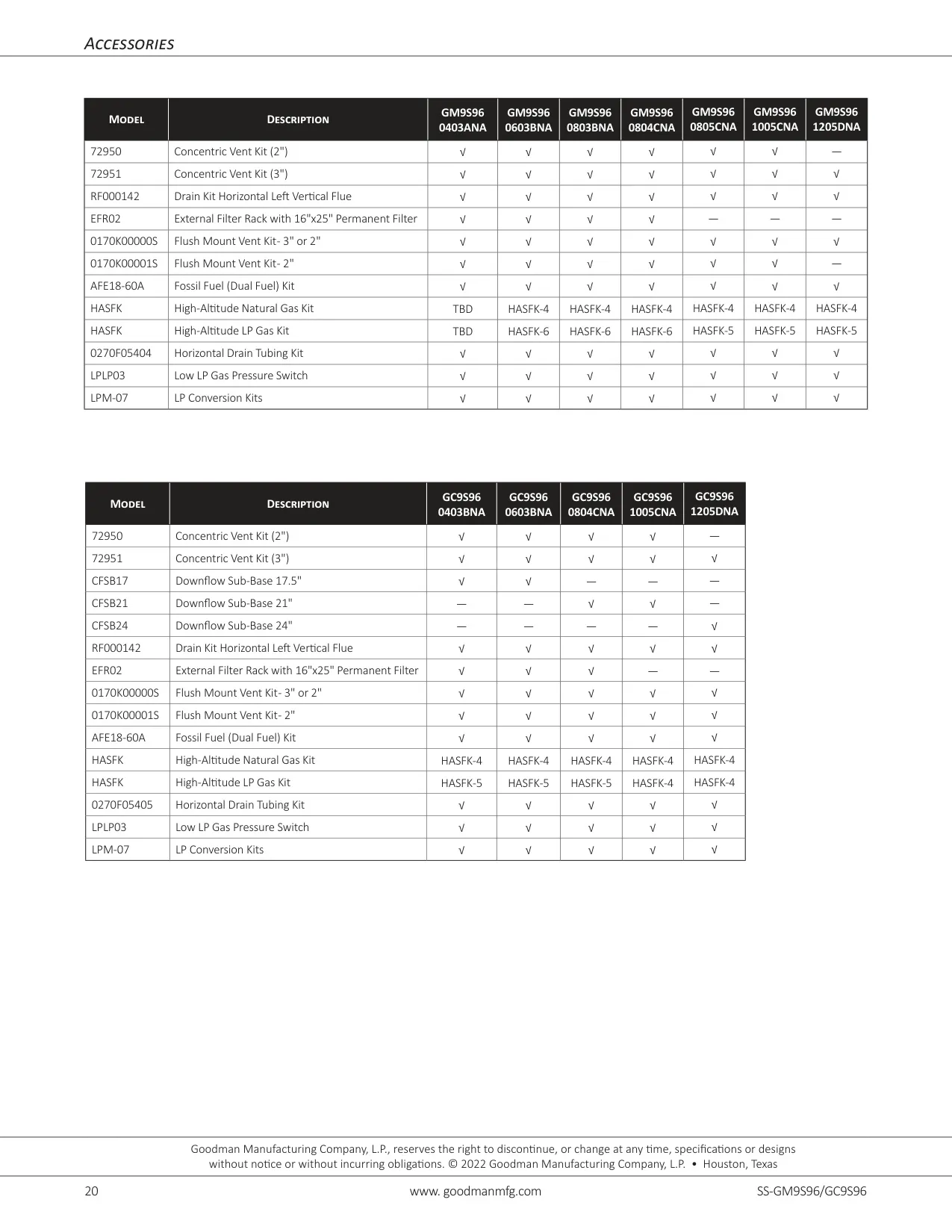

The GM9S96 offers fuel versatility, operating on either natural gas or LP gas, provided an appropriate LP conversion kit is installed for propane use. Additionally, it supports "twinning" functionality, allowing two identical furnaces to work together synchronously into a common duct system for larger heating demands.

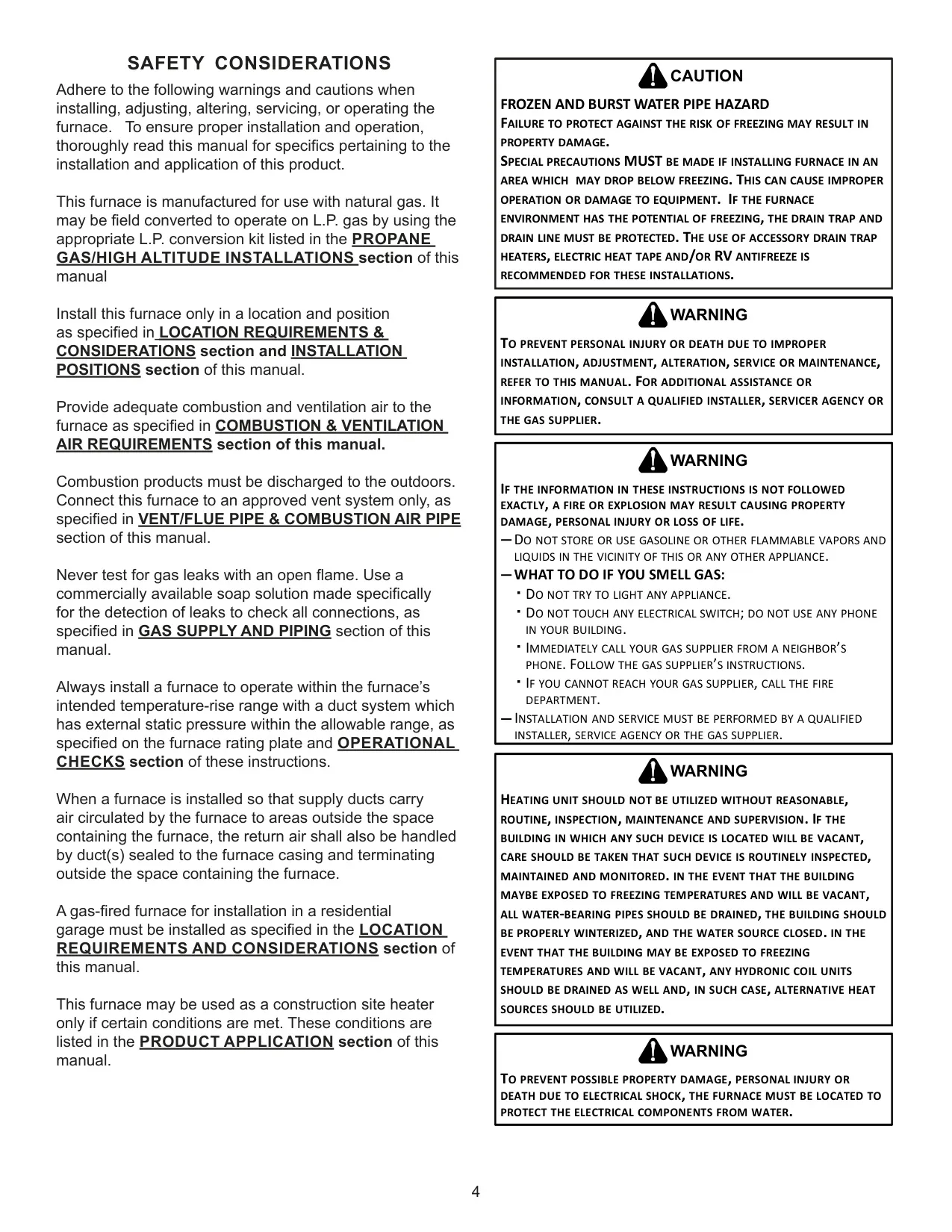

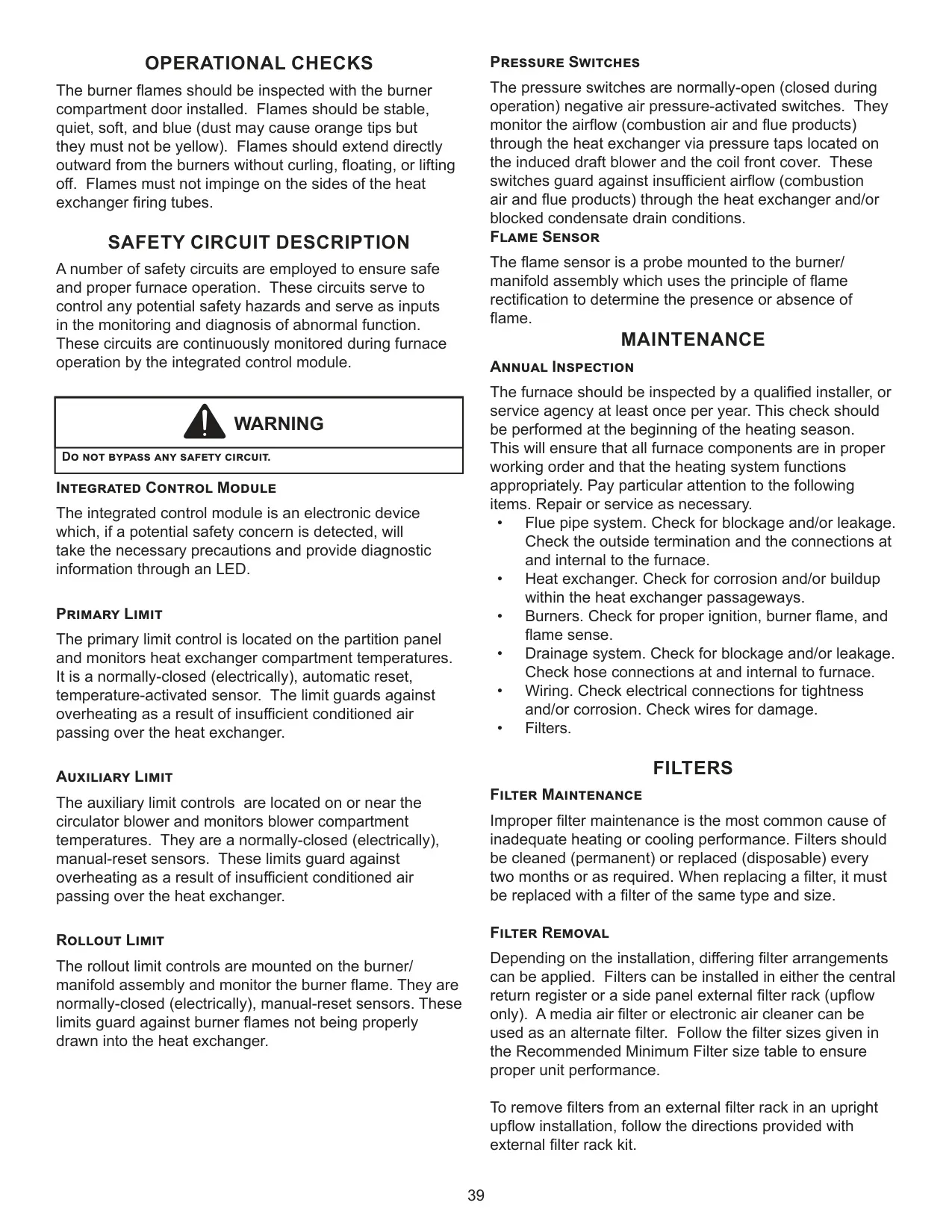

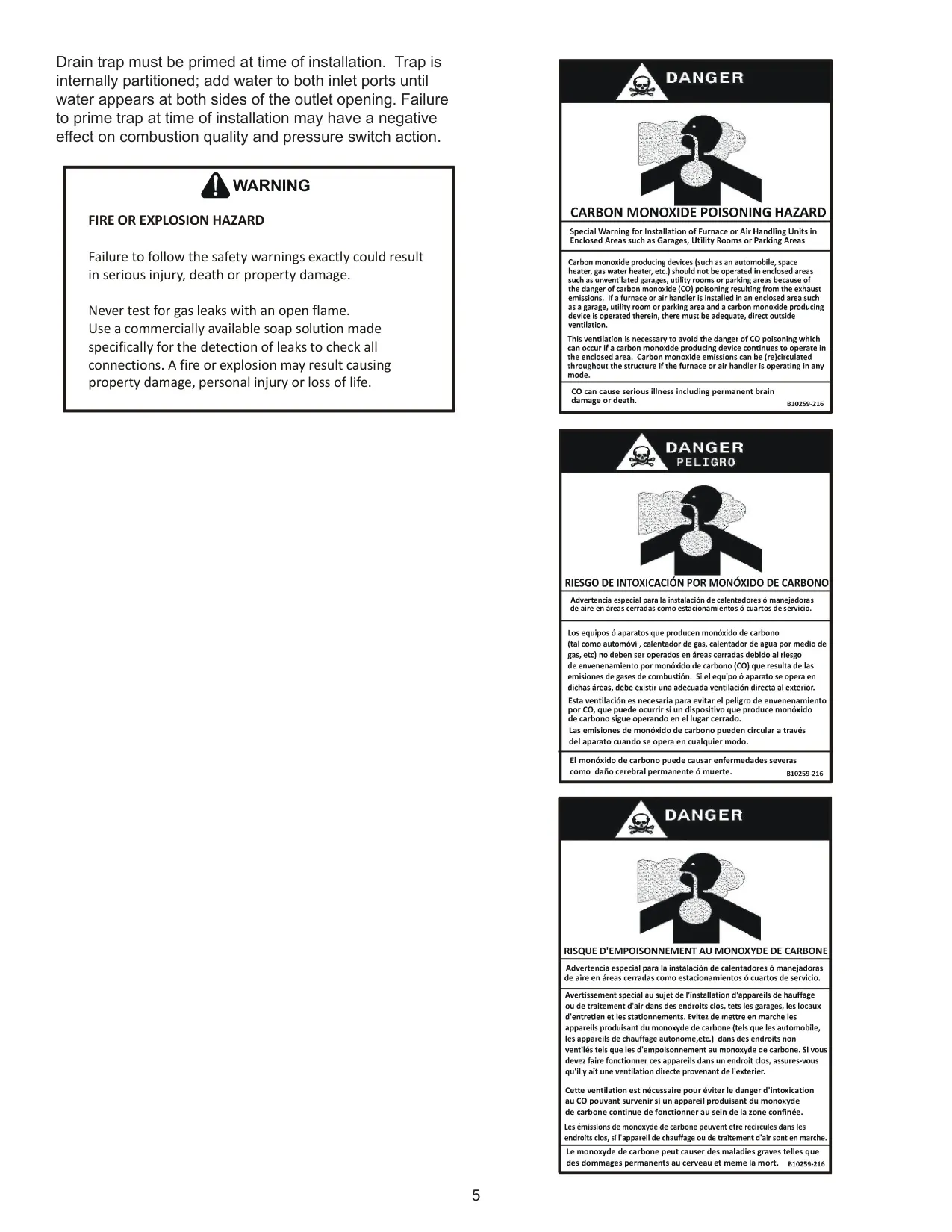

Comprehensive safety features are integrated to ensure reliable operation. These include primary, auxiliary, and rollout limit switches, pressure switches, and a flame sensor. These components continuously monitor the furnace, preventing overheating, improper combustion, and other potential hazards.

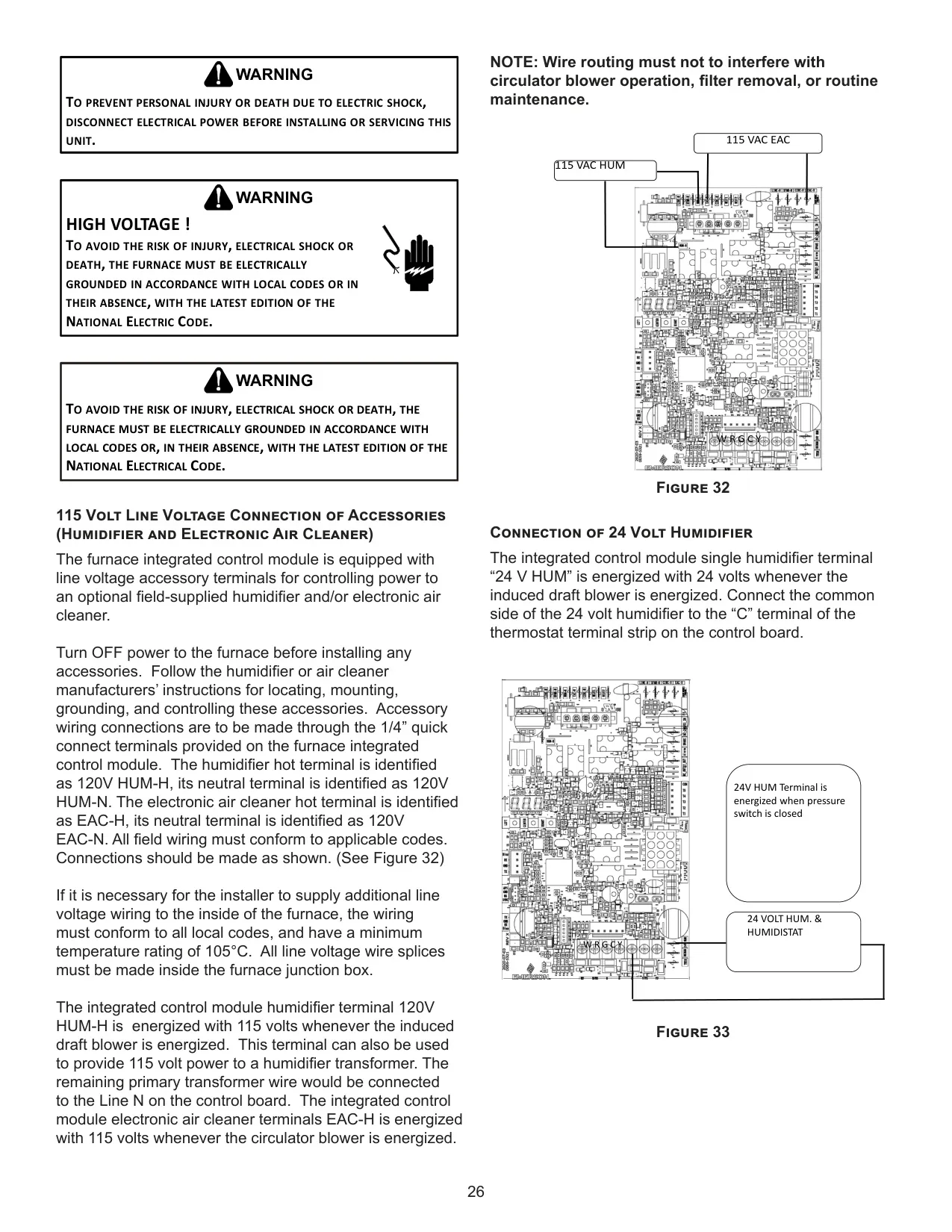

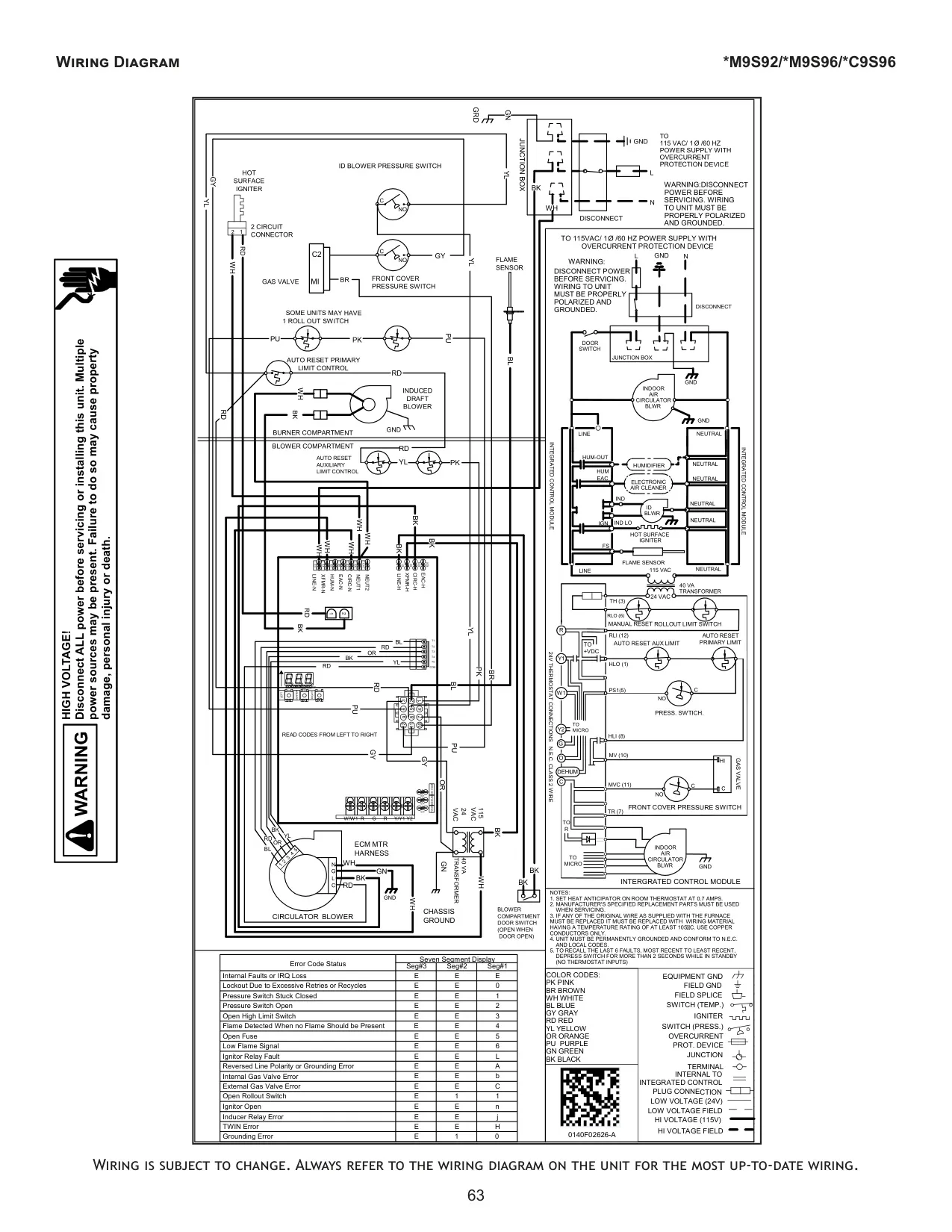

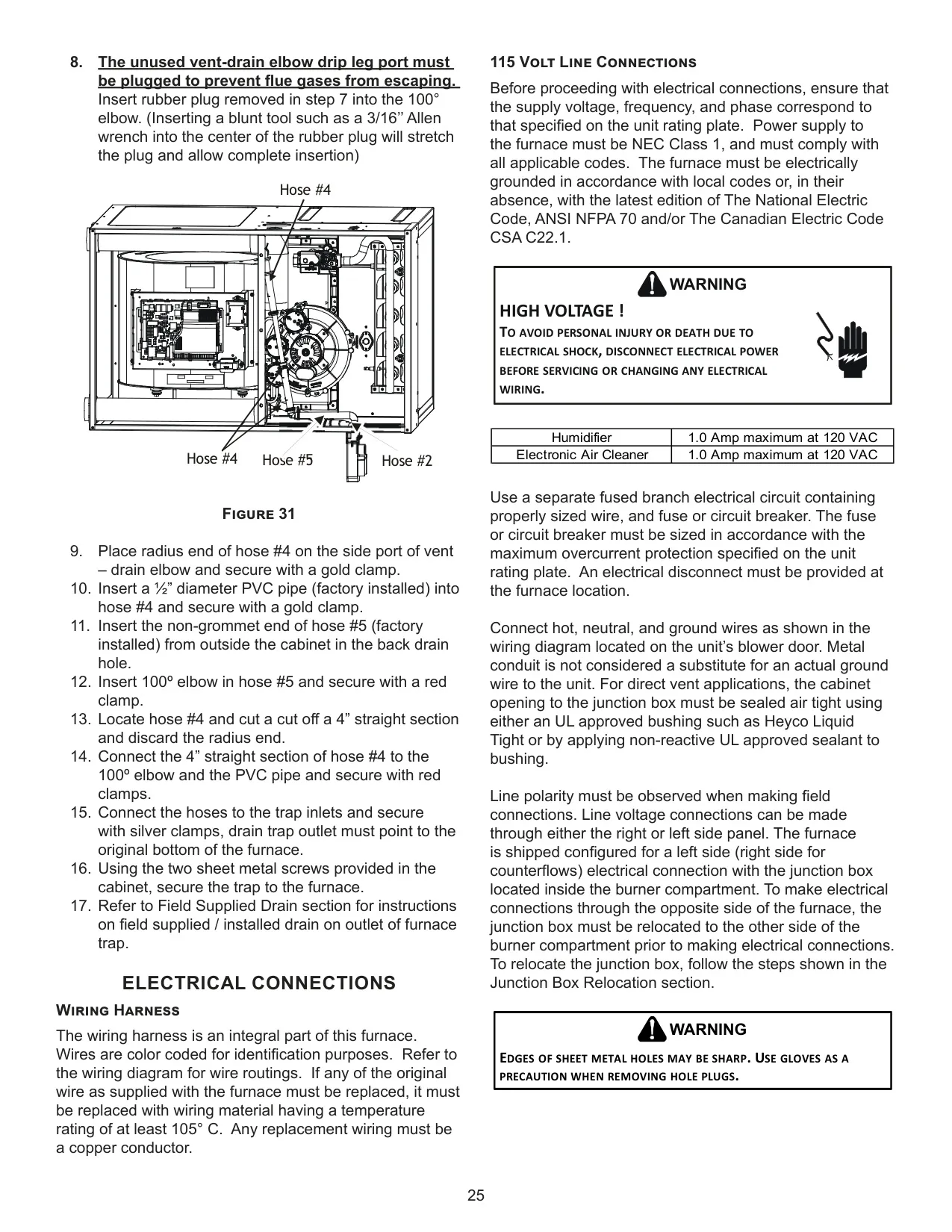

For enhanced home comfort, the integrated control module provides line voltage accessory terminals. These allow for the seamless connection and control of optional, field-supplied humidifiers and electronic air cleaners, providing tailored indoor air quality solutions.
Maintenance requirements are reduced thanks to permanently lubricated induced draft and circulator blower motors, which require no further lubrication. Regular filter maintenance remains important to ensure optimal airflow and sustained furnace efficiency.
