RIBU1C Enclosed Relay 10Amp Instruction Manual
RIBU1C Enclosed Relay 10Amp
RIBU1C Enclosed Relay 10Amp
RIBU1C Enclosed Relay 10Amp Instructions
Here we offer the RIBU1C Enclosed Relay 10Amp manual completely free and in English. We have cataloged this manual in the Enclosed Relays section on Manualverse, and it has been rated by 1 users with an average rating of 5. If you have any specific questions about RIBU1C Enclosed Relay 10Amp, we suggest checking the Frequently Asked Questions (FAQs) section of this manual.
Product Images
RIBU1C Enclosed Relay 10Amp Specifications
| Feature | Specification |
|---|---|
| Manufacturer | Functional Devices, Inc. |
| Model | RIBU1C (10 Amp Pilot Control Relay, enclosed) |
| Number of Relays and Contact Type | One (1) SPDT, Continuous Duty Coil |
| Coil Voltage Input | 10-30 Vac/dc; 120 Vac; 50-60 Hz |
| Pull In Voltage | 9 Vac / 10 Vdc |
| Drop Out Voltage | 2.1 Vac / 2.8 Vdc |
| Contact Rating (Resistive, AC) | 10 Amp Resistive @ 120-277 Vac |
| Contact Rating (Resistive, DC) | 10 Amp Resistive @ 28 Vdc |
| Pilot Duty Rating | 480 VA Pilot Duty @ 240-277 Vac |
| Ballast Rating | 480 VA Ballast @ 277 Vac (not rated for electronic ballast) |
| Tungsten Rating | 600 Watt @ 120 Vac (N/O); 240 Watt @ 120 Vac (N/C) |
| Motor Rating @ 120-240 Vac | 1/3 HP (N/O); 1/6 HP (N/C) |
| Motor Rating @ 277 Vac | 1/4 HP (N/O); 1/8 HP (N/C) |
| Coil Current @ 10 V | 30 mA @ 10 Vac; 12 mA @ 10 Vdc |
| Coil Current @ 12 V | 32 mA @ 12 Vac; 14 mA @ 12 Vdc |
| Coil Current @ 24 V | 42 mA @ 24 Vac; 16 mA @ 24 Vdc |
| Coil Current @ 30 V | 50 mA @ 30 Vac; 18 mA @ 30 Vdc |
| Coil Current @ 120 Vac | 25 mA |
| Expected Relay Life | 10 million cycles minimum mechanical |
| Operate Time | 20 ms |
| Relay Status Indicator | LED On = Activated |
| Operating Temperature | -30 to 140 °F |
| Humidity Range | 5 to 95% (non-condensing) |
| Dimensions | 1.70" H x 2.80" W x 1.50" D with 0.50" NPT hub/nipple |
| Lead Wires | 16", 600 V rated |
| Gold Flash Contacts | Yes |
| Manual Override Switch | No |
| Housing Rating | Accepted for use in Plenum, NEMA 1 (Grey) |
| Approvals | UL Listed, UL916, UL864, C-UL Canada, California State Fire Marshal, CE, RoHS |
| Origin | Made of US and non-US parts |
| Warranty | 10 years |
RIBU1C Enclosed Relay 10Amp Details

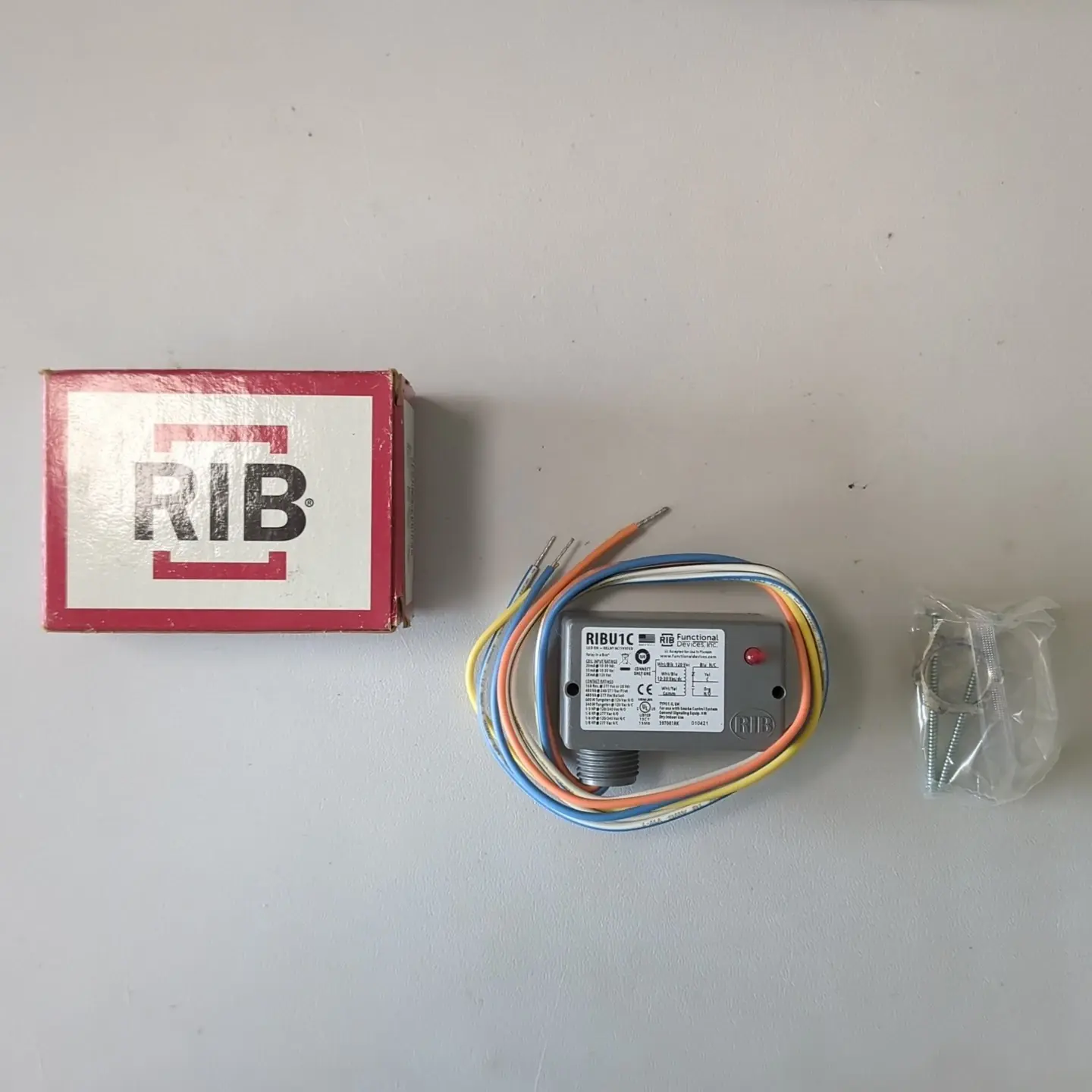

The RIBU1C from Functional Devices, Inc. is a compact, pre-wired pilot relay. It lets a controller, thermostat, building automation output or other low-power device switch a separate load. It is supplied in a closed housing with a threaded hub, so it can be mounted directly to a junction box, panel knockout or fixture. This avoids building a separate relay panel and makes it practical for HVAC, lighting and general building control retrofits where space and installation time are limited.

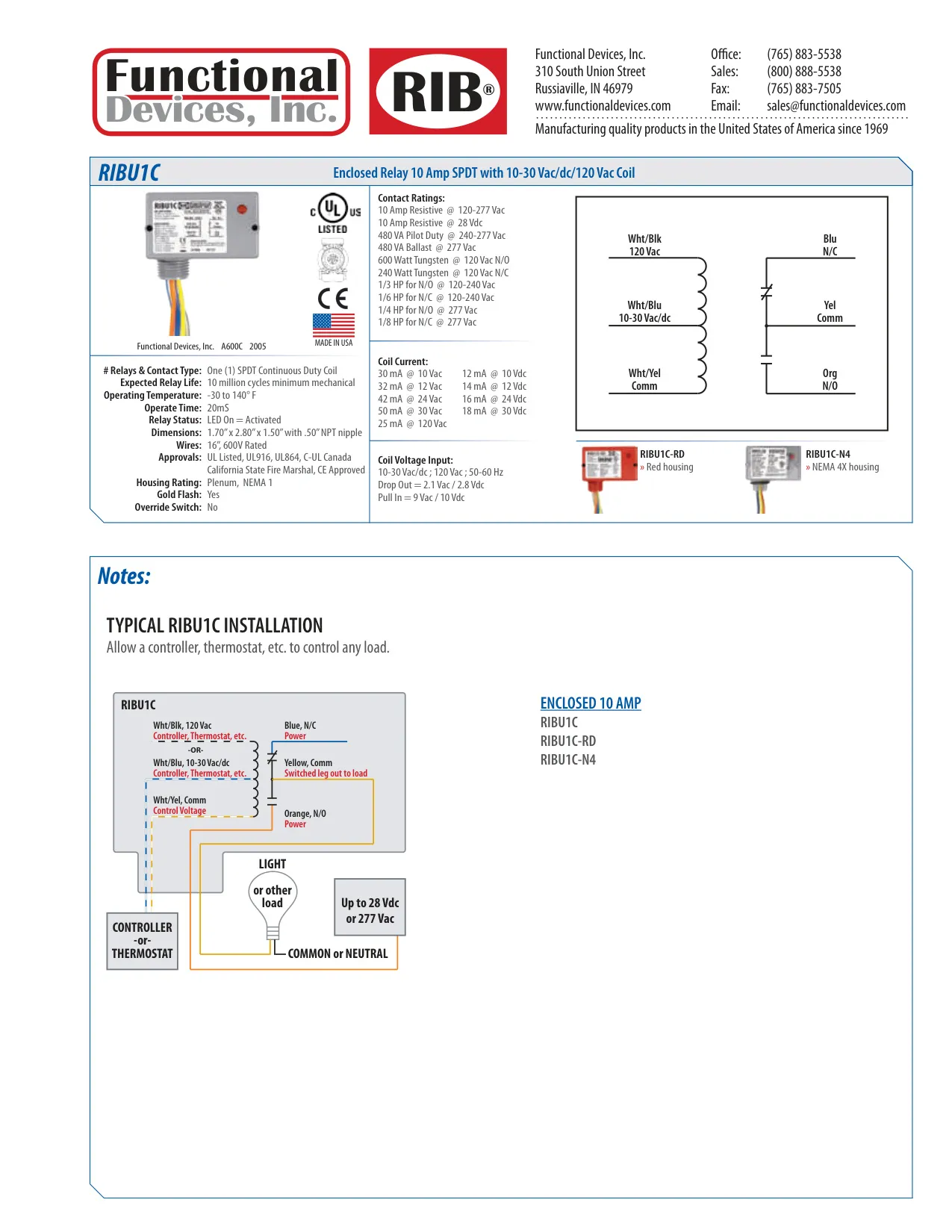

The relay has two coil inputs, so one part number covers both low-voltage and line-voltage control signals. The White/Blue lead is the 10-30 Vac/dc coil input, and the White/Black lead is the 120 Vac coil input. The White/Yellow lead is the shared coil common. The installer connects only the input that matches the control signal and returns it to the common or neutral of the controller or thermostat. Because the same relay works with 24 Vac thermostats, 12 Vdc controllers and 120 Vac signals, stocking it is simpler for contractors.
On the load side, the relay contacts are color-coded too. Yellow is the contact common, Orange is normally open (N/O) and Blue is normally closed (N/C). In a typical installation, line power connects to the Yellow common, and the Orange lead becomes the switched leg to a light or other load. That load can run at up to 28 Vdc or 277 Vac. The Blue N/C contact can be used when the load must stay on until the coil is energized, such as for fail-safe or alternate-circuit logic.
The RIBU1C comes in several versions. The standard RIBU1C has a grey NEMA 1 housing listed to UL916. The RIBU1C-RD has a red NEMA 1 housing and carries UL864 and California State Fire Marshal approval, which helps identify it in fire and life-safety circuits. The RIBU1C-N4 has a clear housing for wet or washdown locations. The selection guide rates it NEMA 4 to UL508, while the installation guide lists it as NEMA 4X. All versions are accepted for use in plenum spaces.
For larger projects, the grey standard model is also sold in multi-packs: RIBU1C-10PACK, RIBU1C-25PACK, RIBU1C-100PACK and the bulk RIBU1C-3K with 3,000 units per SKU. All of them carry the same UL Listed, C-UL, UL916, CE and RoHS approvals. The ballast rating does not cover electronic ballasts, so check lighting loads before you install. The relay has no manual override, so testing must be done by energizing the coil.
Functional Devices is based in Indiana and has been building products since 1969. It backs the RIBU1C with a 10-year limited warranty against defects in material and workmanship from the date of purchase. The warranty does not cover units that have been opened, misused, or damaged by lightning, water or condensation. For warranty service, get a Return Authorization number from the factory. Ship the unit freight prepaid with the purchase receipt and a description of the defect.
Under the seller's terms, non-custom products in salable condition may be returned for credit within 90 days of shipment with prior approval. A restocking fee of up to 25% may apply. Shortage or non-conformance claims must be made within 10 days of receipt.
