Pentax ME Super Camera Instruction Manual
Pentax ME Super Camera
Pentax ME Super Camera Instructions
Here we offer the Pentax ME Super Camera manual completely free and in English. We have cataloged this manual in the SLR Cameras section on Manualverse, and it has been rated by 1 users with an average rating of 5. If you have any specific questions about Pentax ME Super Camera, we suggest checking the Frequently Asked Questions (FAQs) section of this manual.

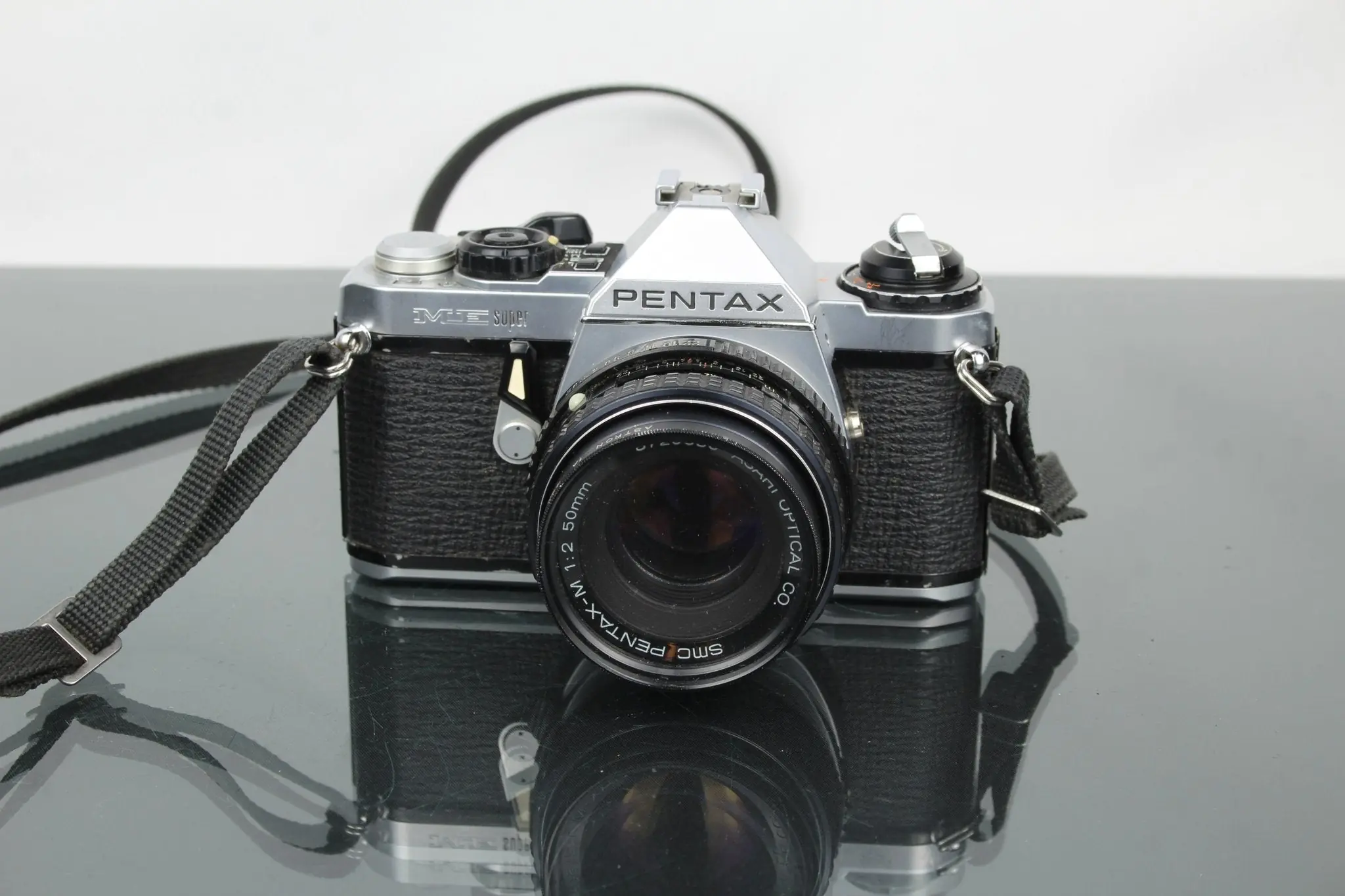

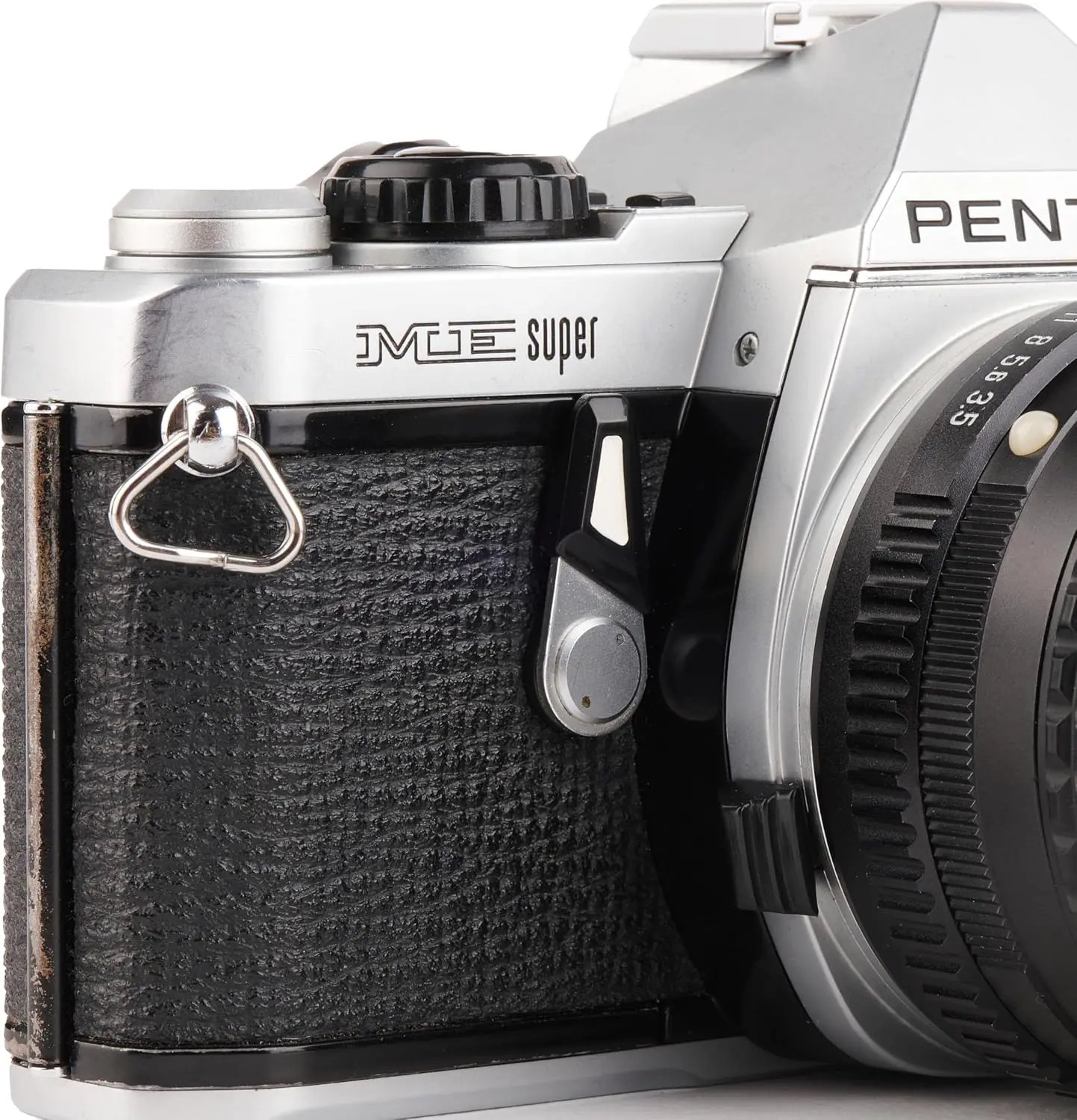

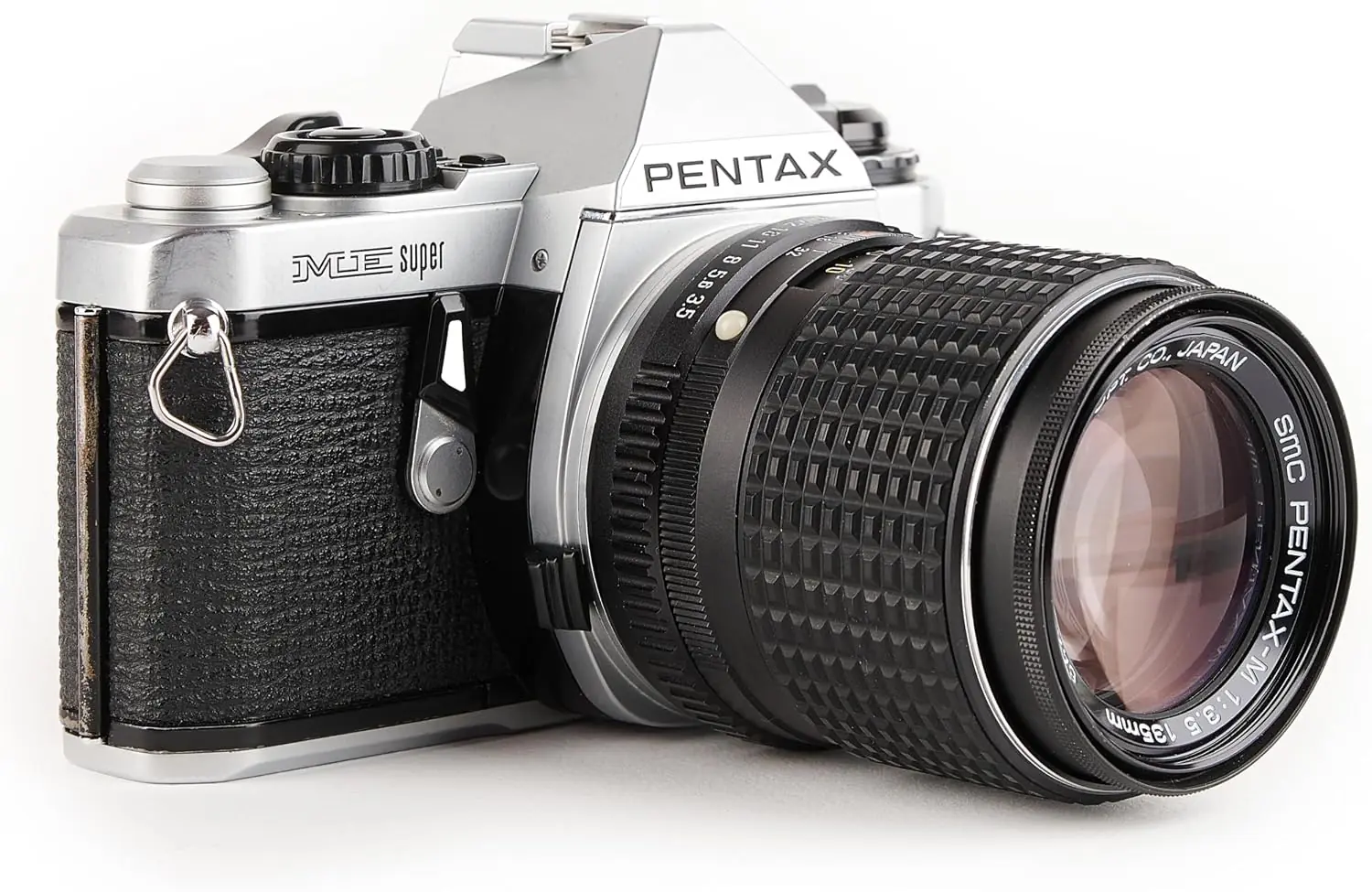

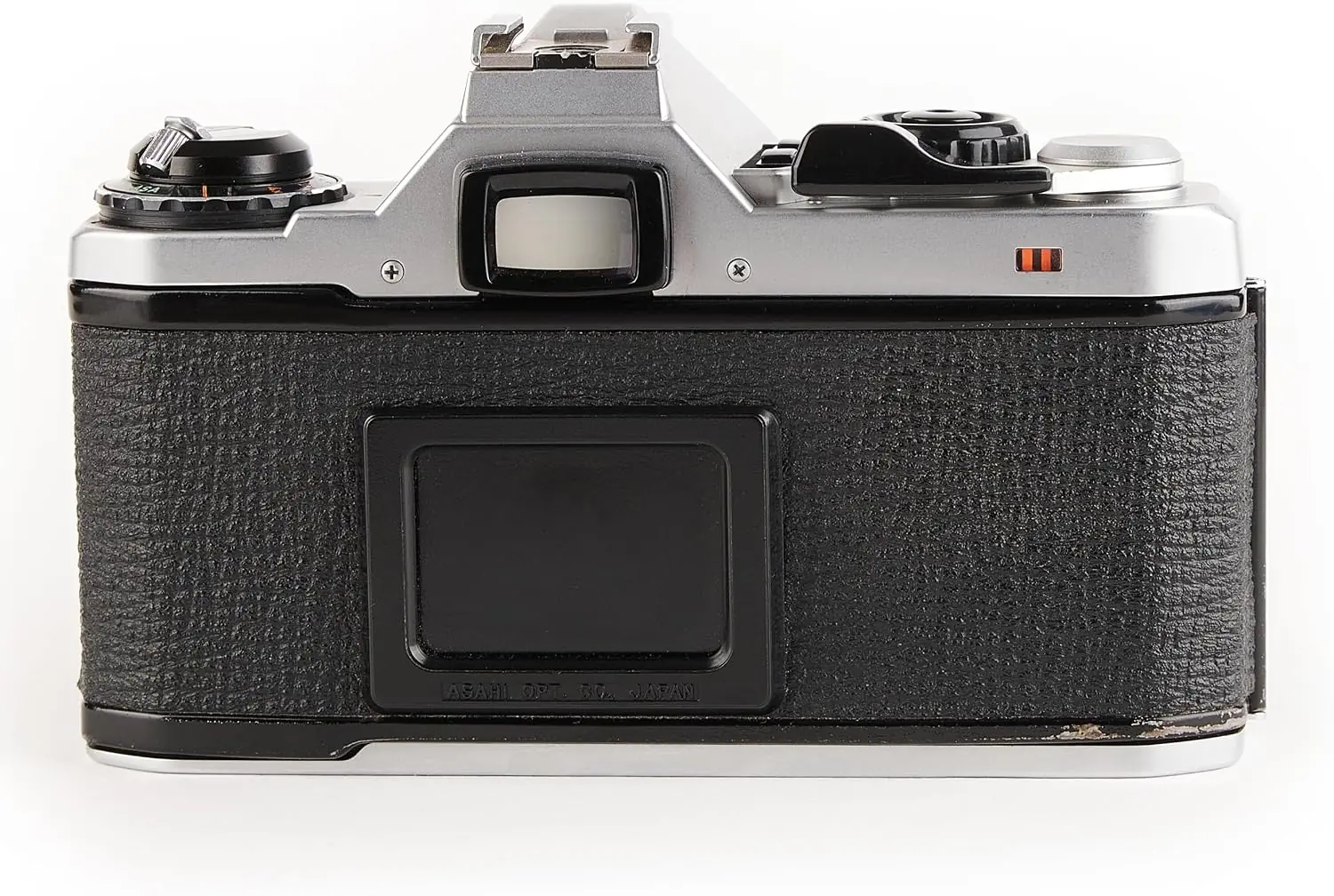

Product Images
Pentax ME Super Camera Specifications
| Feature | Specification |
|---|---|
| Type | 35mm SLR camera with aperture-preferred automatic exposure |
| Lens Mount | Pentax Bayonet Mount with fully automatic diaphragm linkage |
| Shutter Type | Seiko MFC-E2 vertical-run metal focal plane shutter |
| Auto Shutter Speed | Electronically controlled, stepless variation between 4 sec. and 1/2000 sec. |
| Manual Shutter Speeds | 14 viewfinder settings (pushbutton controlled), plus mechanical "125X" and "B" (operates without batteries) |
| Flash Synchronization | Automatic with Pentax AF 2005/AF 160 at 1/125 sec. (hotshoe); Manual X-synch via hotshoe or cord at 1/125 sec. ("125X" mode) |
| Self-Timer | Delay of 4-10 seconds |
| Exposure Metering | Open aperture, center-weighted through-the-lens (TTL) by GPD cells |
| Exposure Range | EV 1 - EV 19 (ASA 100 with 50mm f/1.4 lens) |
| Film Speed Range | ASA 12 - 1600 |
| Viewfinder Coverage | 92% of picture area, 0.95X magnification (with 50mm lens at infinity) |
| Exposure Compensation | Dial with x2EV range (1/4X, 1/2X, 2X, 4X) |
| Film Loading | Magic-needle quick/sure loading |
| Film Advance | Single-stroke rapid wind lever (135° throw, 30° standoff angle) |

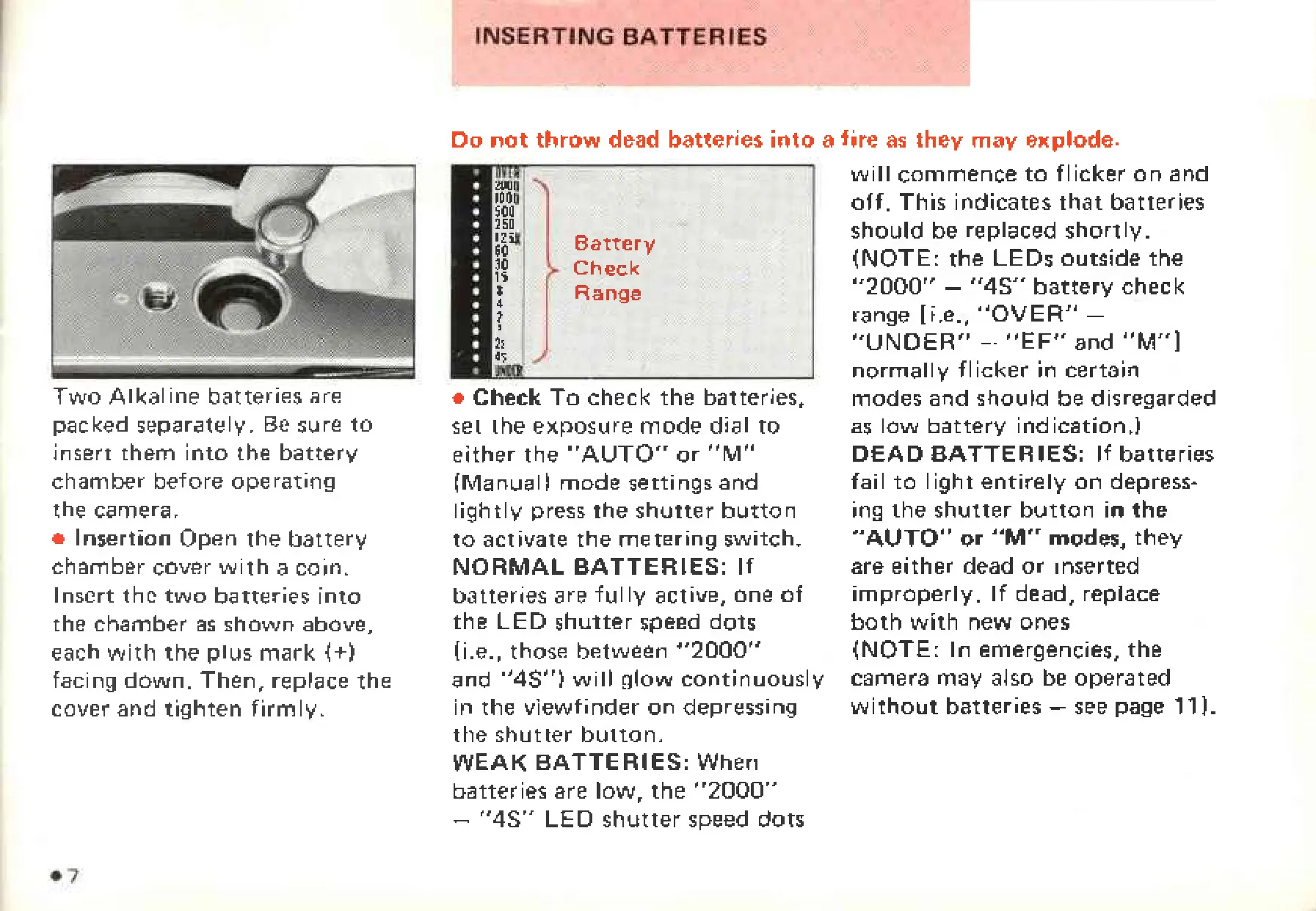

| Batteries | Two 1.5V Alkaline (LR44) or Silver-oxide (G13) for electronic systems |
| Body Size | 131.5 x 83 x 49.5mm (5.13 x 3.24 x 1.93 in.) |
| Body Weight | 445 grams (15.7 oz) |
Pentax ME Super Camera Details

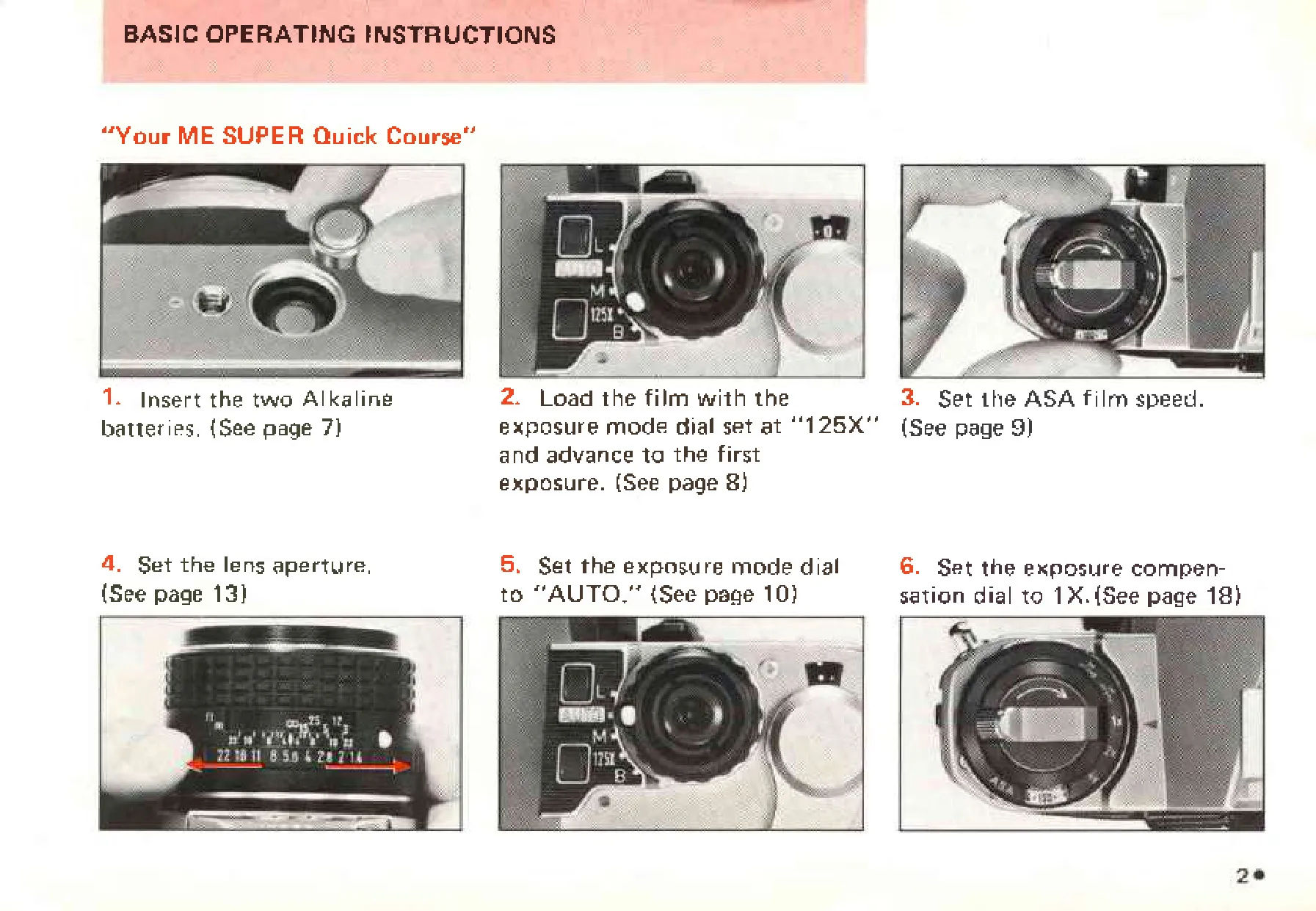

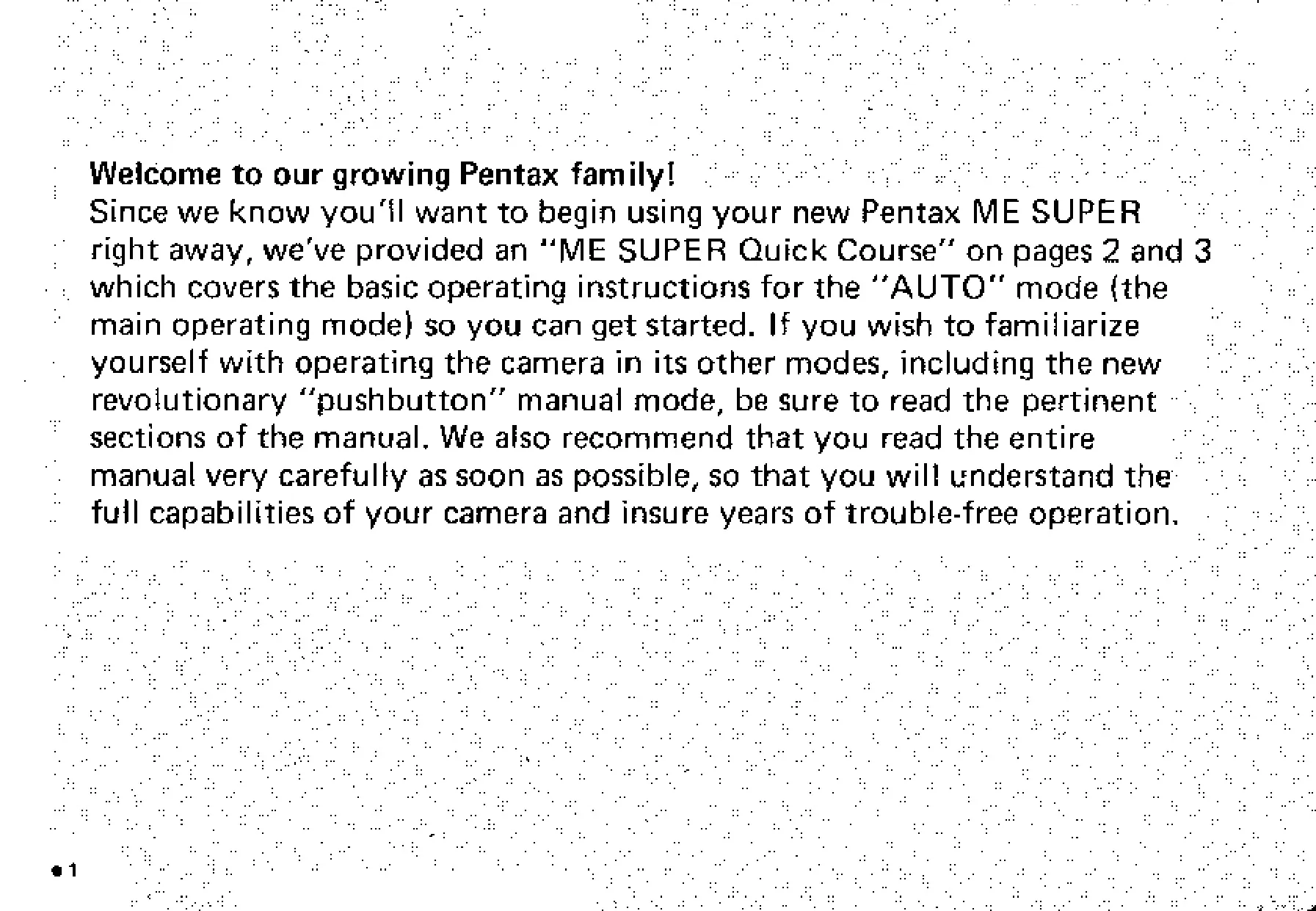

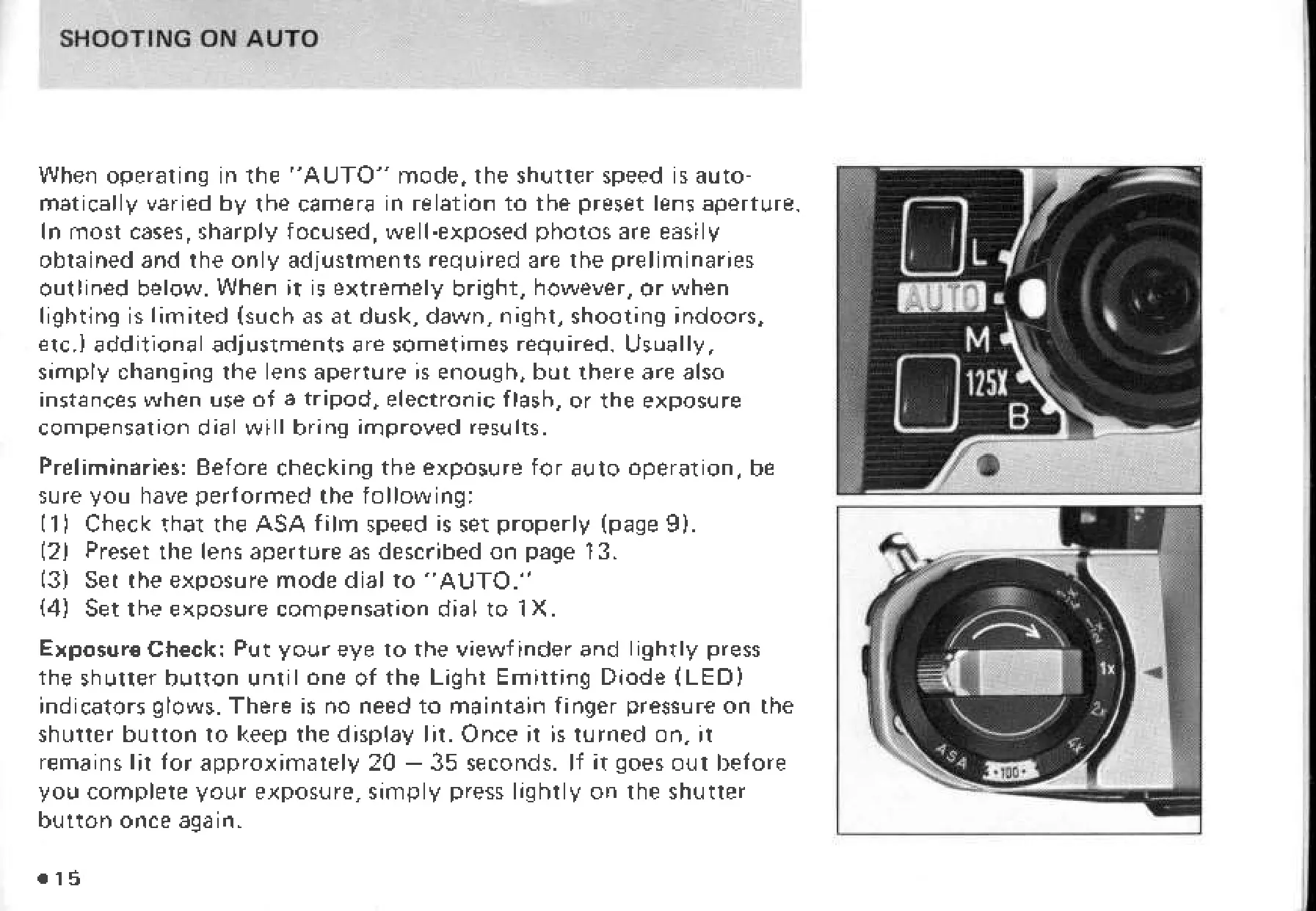

The Pentax ME Super camera, while featuring robust specifications, truly shines in its intuitive design and versatile operational modes, allowing photographers to seamlessly transition between ease of use and creative control. A standout feature is the simplified "Quick Course" on pages 2-3 of its manual, guiding users to quickly get started in the primary "AUTO" mode by covering essential steps from battery insertion and film loading to setting ASA, aperture, and exposure compensation. This rapid onboarding ensures that even novices can capture moments without delay.

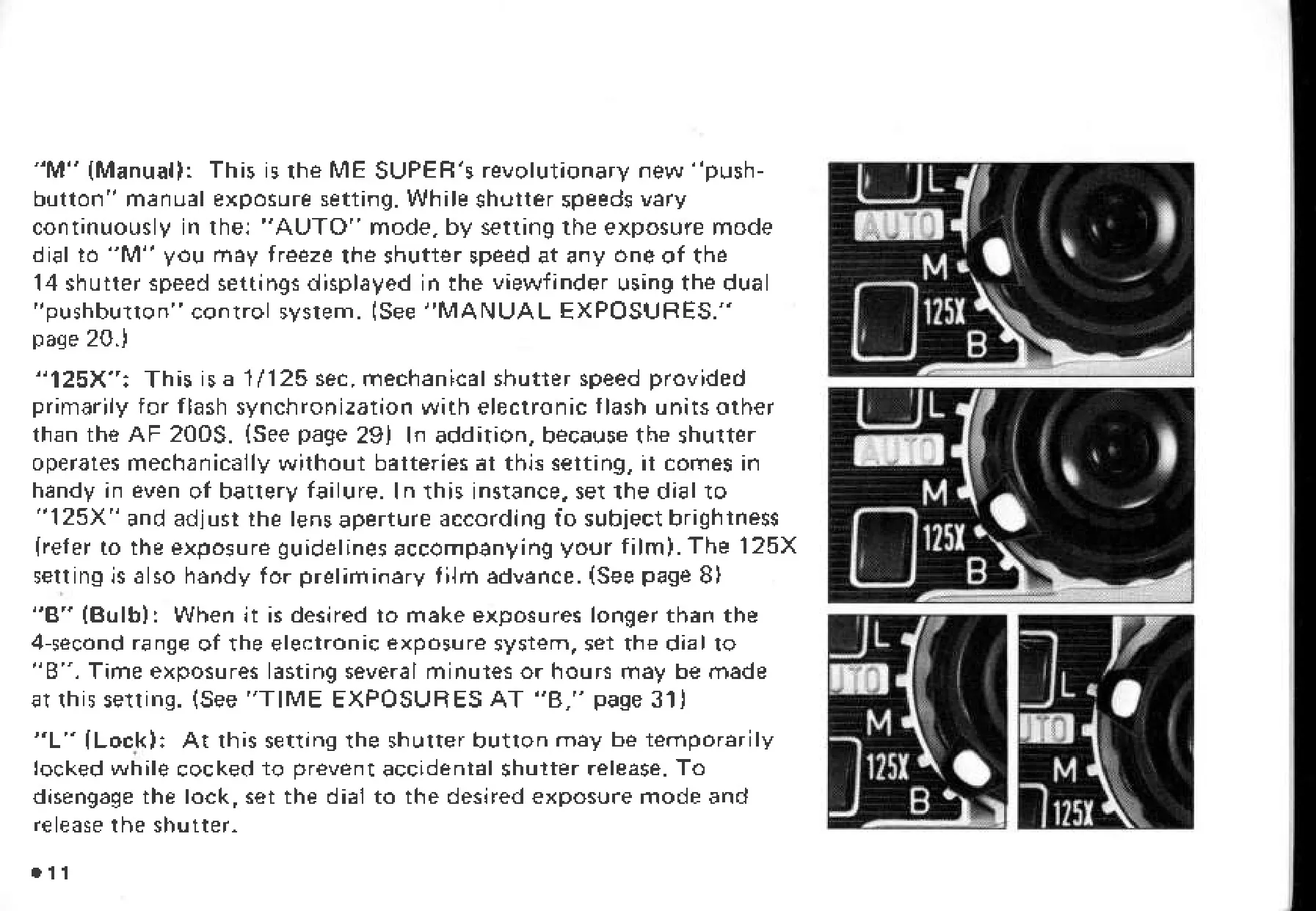

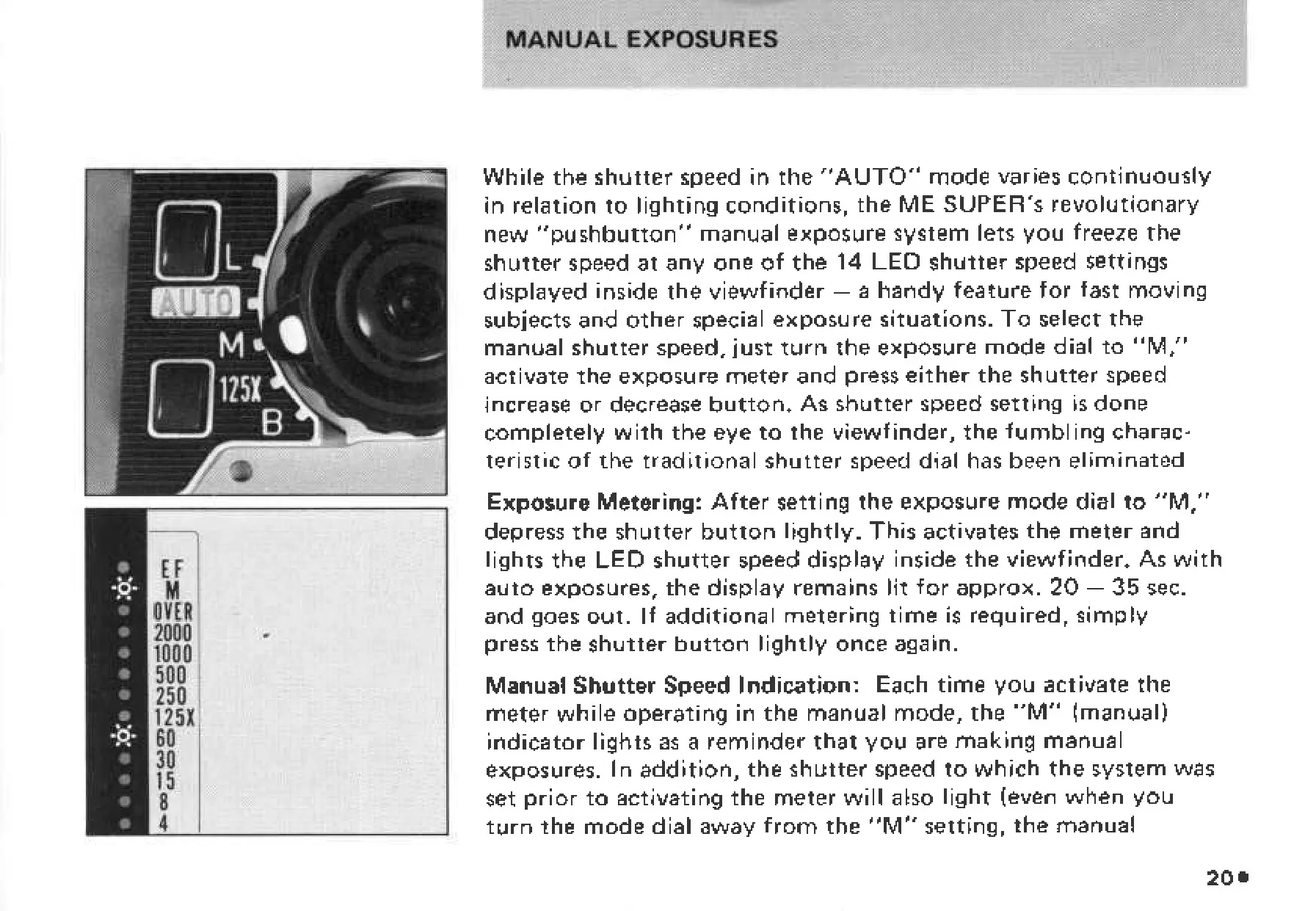

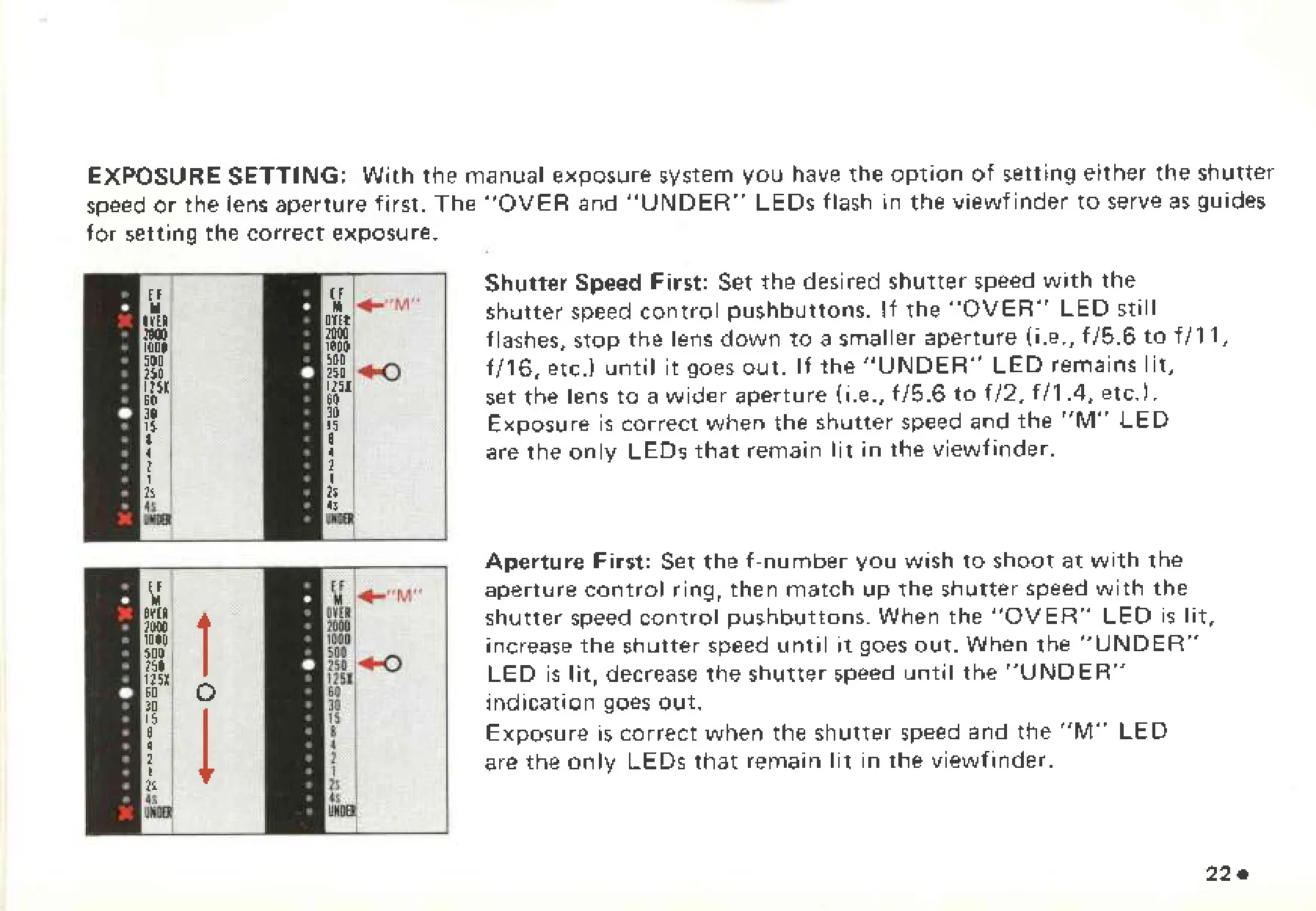

Beyond the basics, the ME Super introduces a revolutionary "pushbutton" manual exposure system. Unlike traditional shutter speed dials, this model employs two dedicated buttons to incrementally increase or decrease shutter speeds, with real-time feedback provided via LEDs in the viewfinder. This allows for precise, eyes-on adjustment, eliminating the need to look away from the subject, a significant advantage for fast-moving scenes or critical manual control.

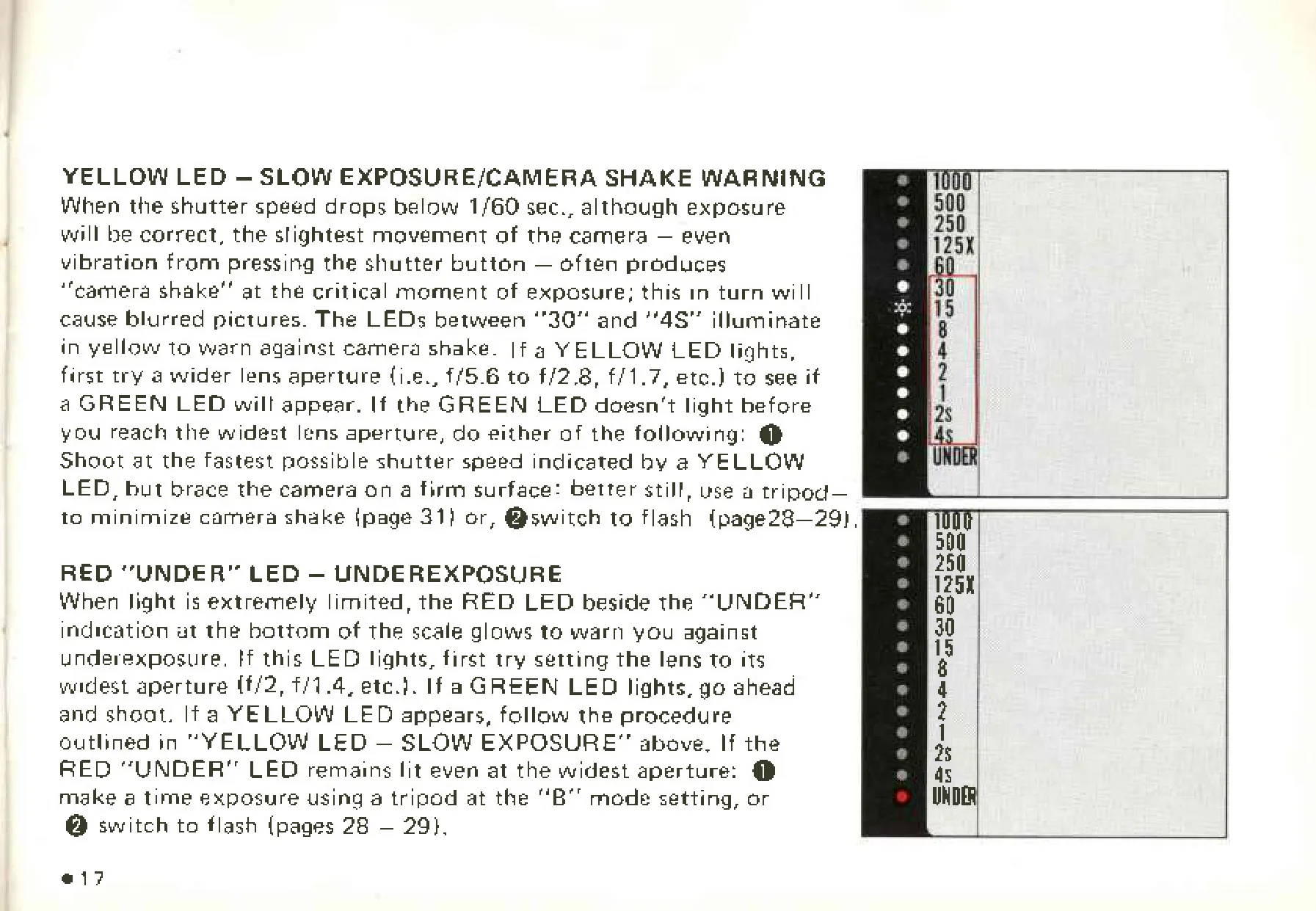

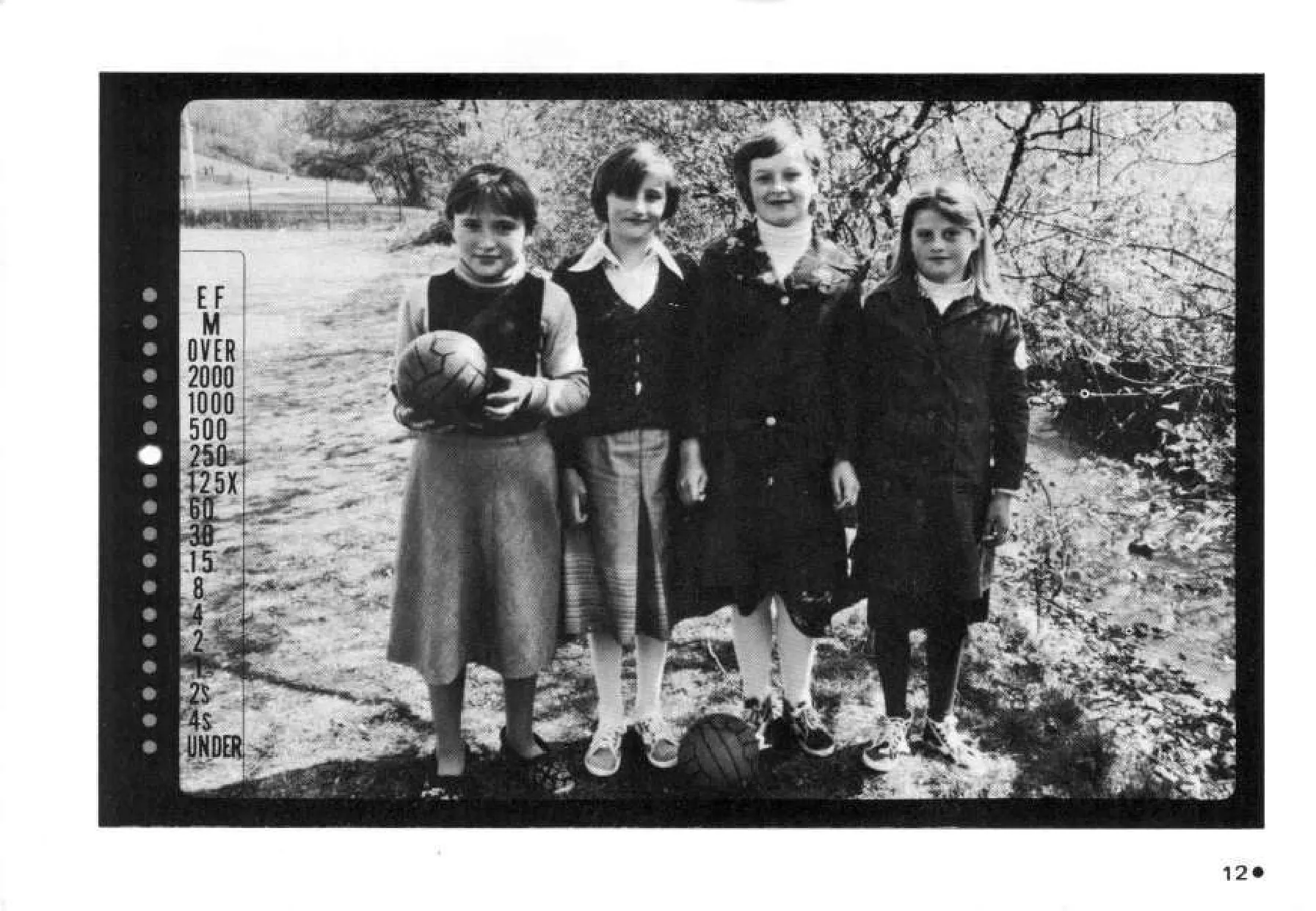

The camera's viewfinder offers a sophisticated, color-coded LED display that provides crucial exposure information. Green LEDs signify correct exposure and adequate speed for handheld shooting, while yellow LEDs serve as a valuable "camera shake" warning for slower shutter speeds. Red LEDs indicate severe over or underexposure, prompting aperture adjustments. Additionally, "EF" (Exposure Factor) and "M" (Manual) LEDs provide constant reminders of active compensation or manual mode engagement.

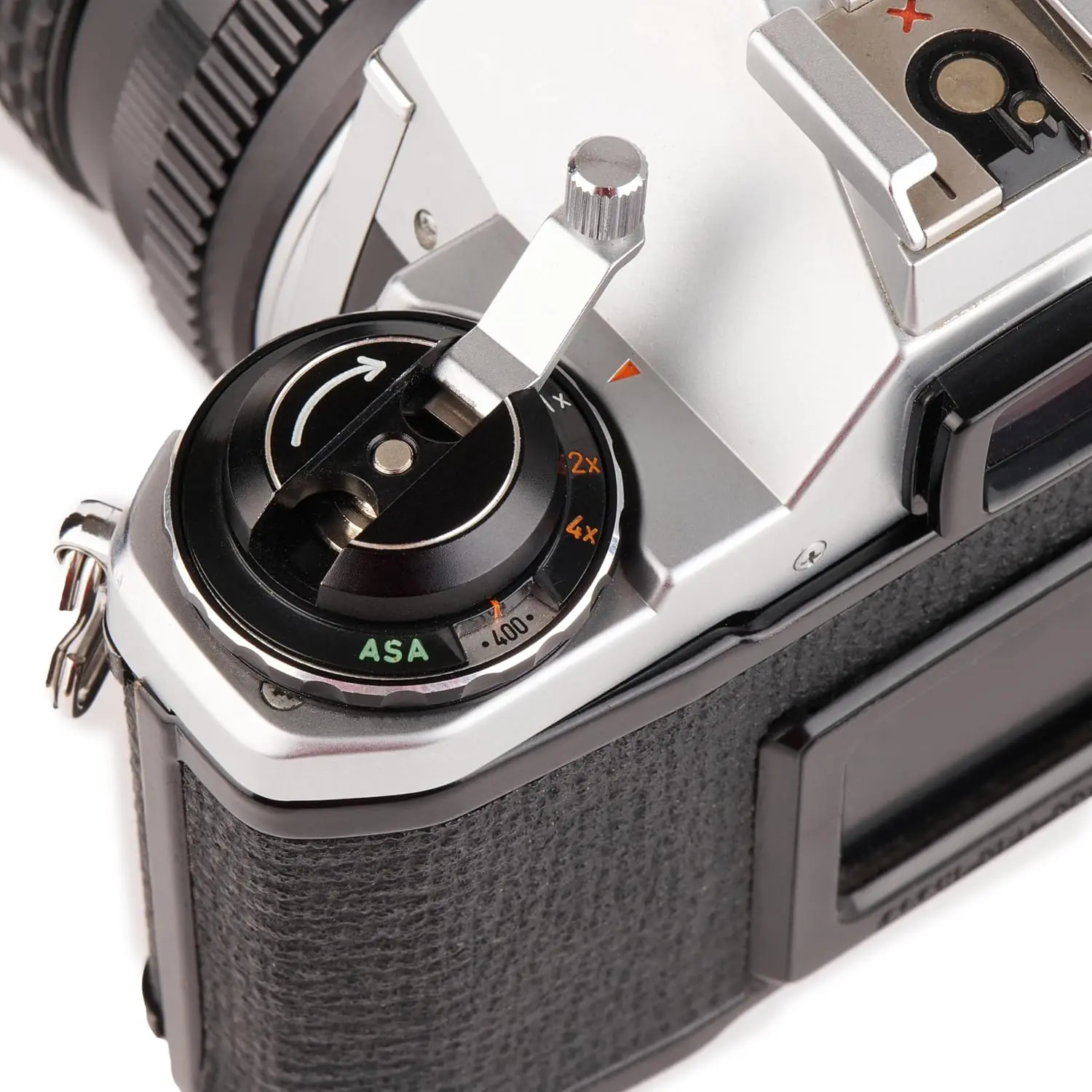

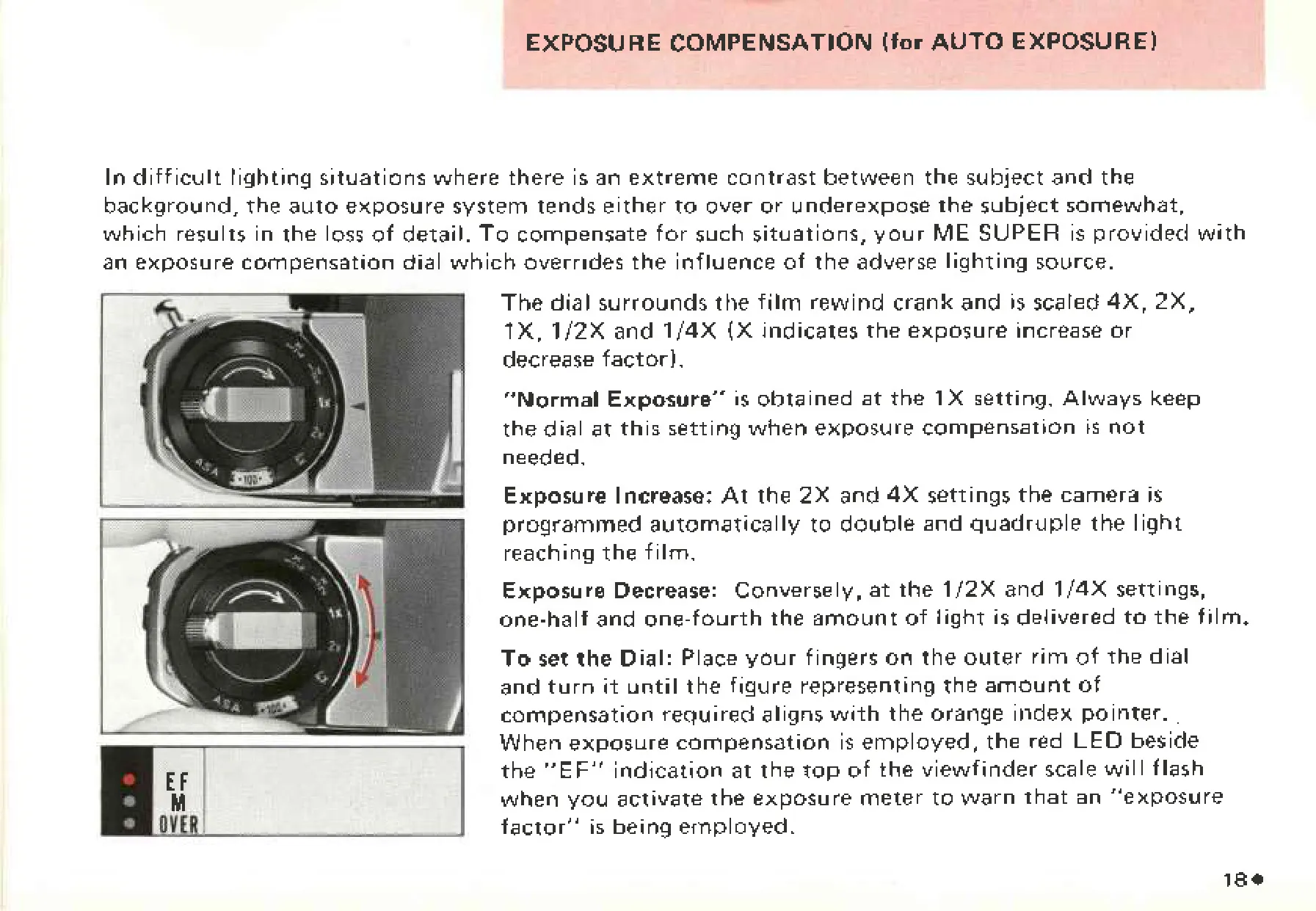

For challenging lighting situations, the ME Super provides a dedicated exposure compensation dial, offering adjustments from 1/4X to 4X. This allows photographers to override the auto-exposure system's tendencies in high-contrast scenarios, ensuring details are not lost in backlit or spotlighted subjects. The "EF" LED flashes as a reminder that compensation is active, preventing accidental misexposures.

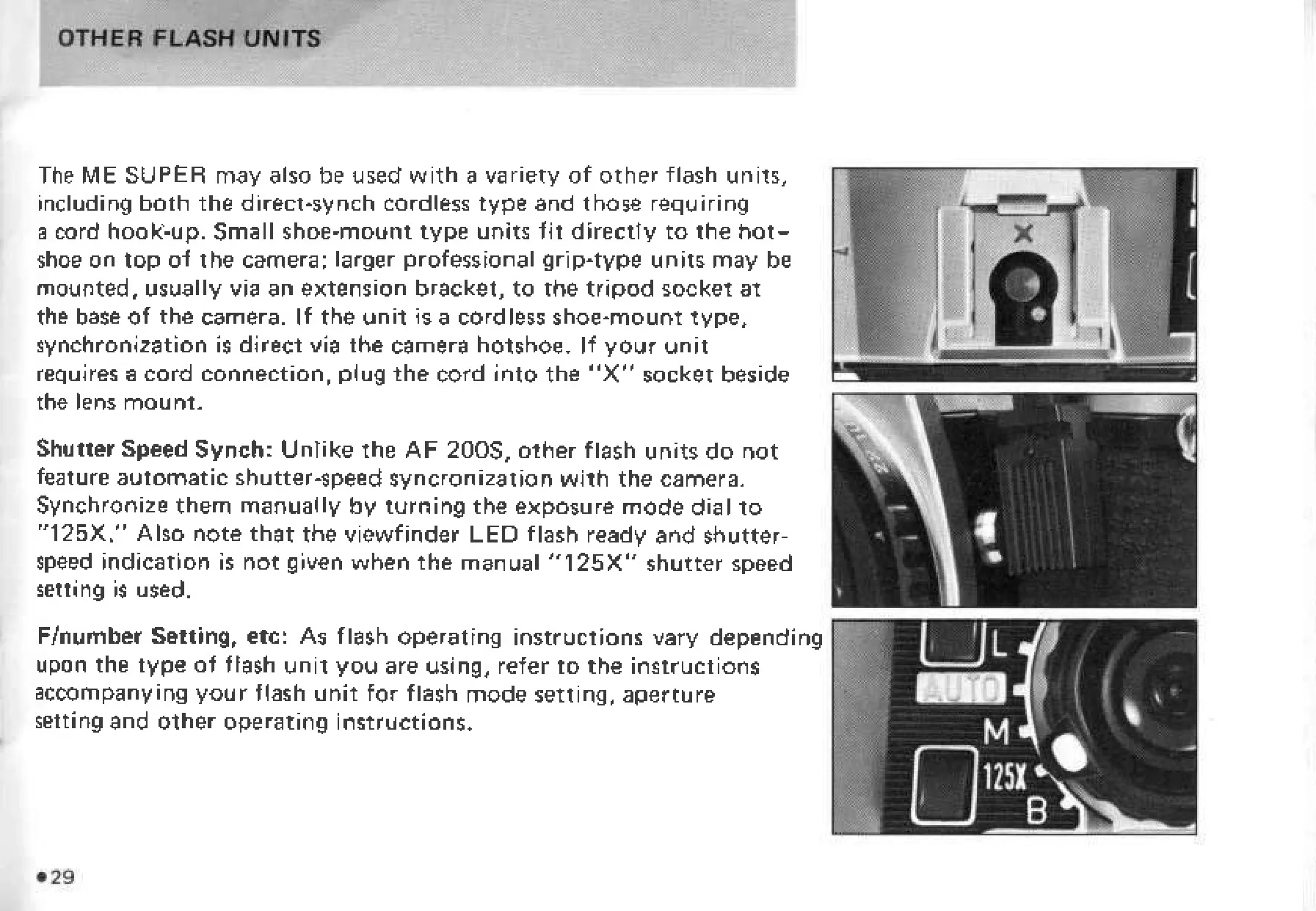

Flash photography is made remarkably convenient with automatic synchronization for Pentax AF 2005 and AF 160 Auto Flash units. When these are attached, the camera automatically sets the shutter speed to 1/125 sec. and a green "M" LED flashes in the viewfinder to confirm the flash is ready. For other flash units, a manual "125X" setting on the exposure mode dial ensures proper synchronization, demonstrating the camera's adaptability.

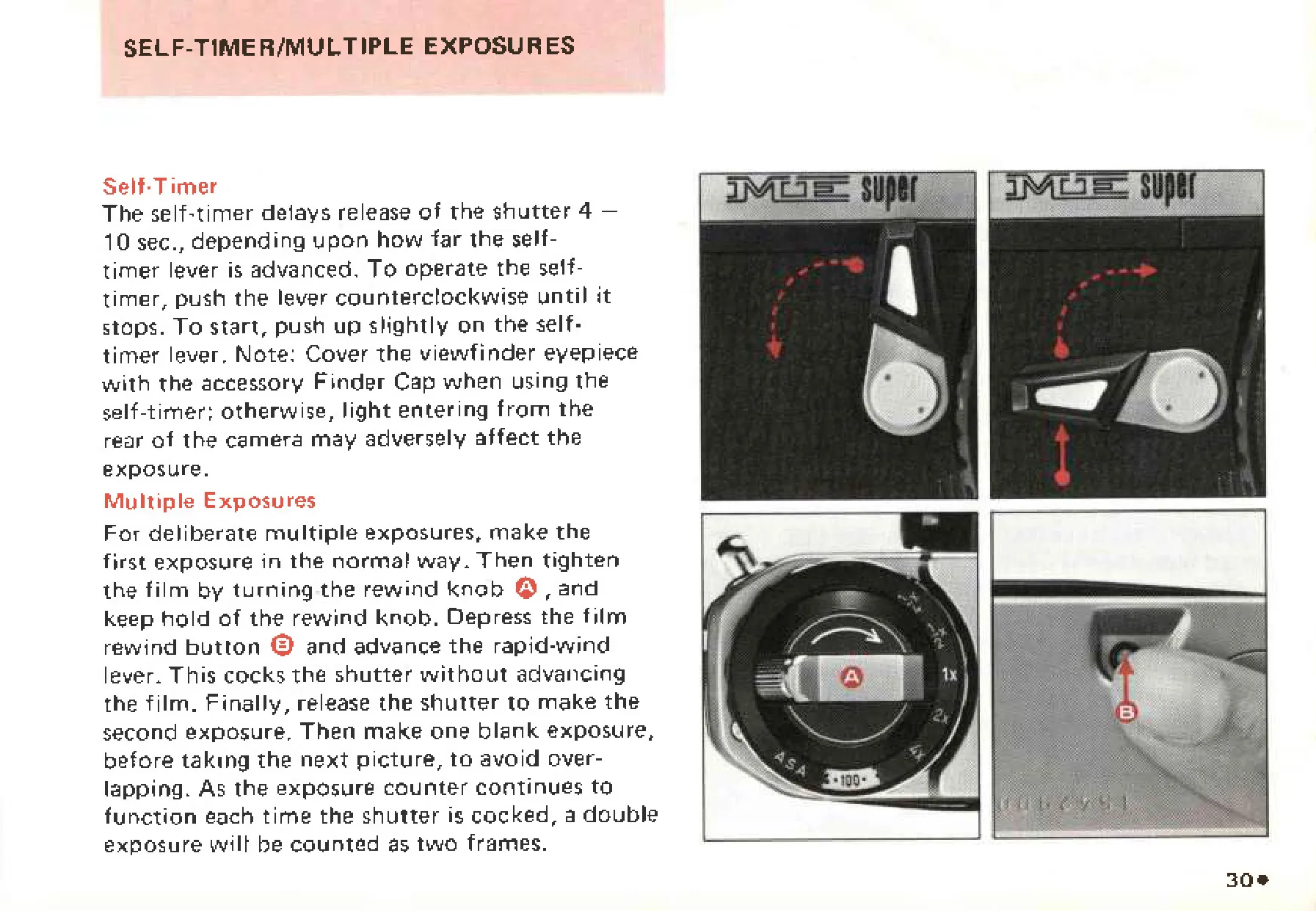

Creative tools like a self-timer (4-10 second delay) and easy multiple exposure capabilities further enhance the ME Super's appeal. Multiple exposures are achieved by holding the film rewind knob, pressing the rewind button, and advancing the rapid-wind lever to recock the shutter without advancing film. The manual also emphasizes critical maintenance practices, including gentle cleaning techniques, protection from moisture, and proper storage to ensure years of trouble-free operation.
Frequently Asked Questions (FAQs)
Can't find the answer you need? Here are some frequently asked questions about the Pentax ME Super Camera, and we answer them below.
GREEN LEDs: Indicate correct exposure and a shutter speed fast enough for handheld shooting (1/60 to 1/2000 sec).
YELLOW LEDs: Serve as a "camera shake" warning for slower shutter speeds (4 sec. to 1/30 sec.), suggesting the use of a tripod or flash.
RED "OVER/UNDER" LEDs: Warn of over or underexposure, prompting aperture or shutter speed adjustments.
"EF" RED LED: Flashes to indicate that exposure compensation is currently applied.
"M" GREEN LED: Glows continuously to indicate manual exposure mode, or flashes to show the AF 2005/AF 160 flash is ready.
