Pentax K1000 SLR Camera Instruction Manual
Pentax K1000 SLR Camera
Pentax K1000 SLR Camera Instructions
Here we offer the Pentax K1000 SLR Camera manual completely free and in English. We have cataloged this manual in the SLR Cameras section on Manualverse, and it has been rated by 1 users with an average rating of 5. If you have any specific questions about Pentax K1000 SLR Camera, we suggest checking the Frequently Asked Questions (FAQs) section of this manual.

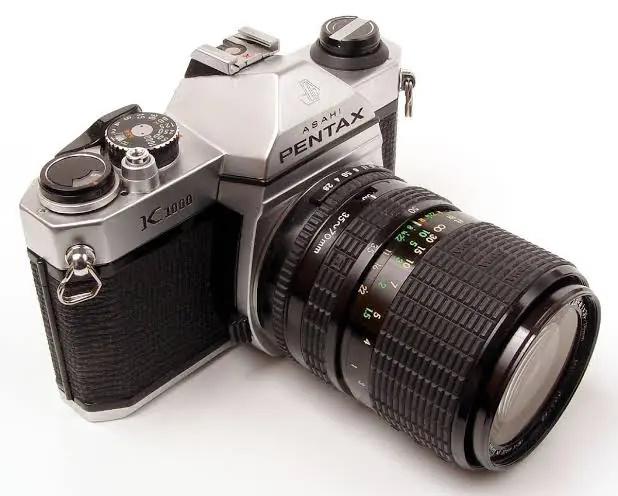

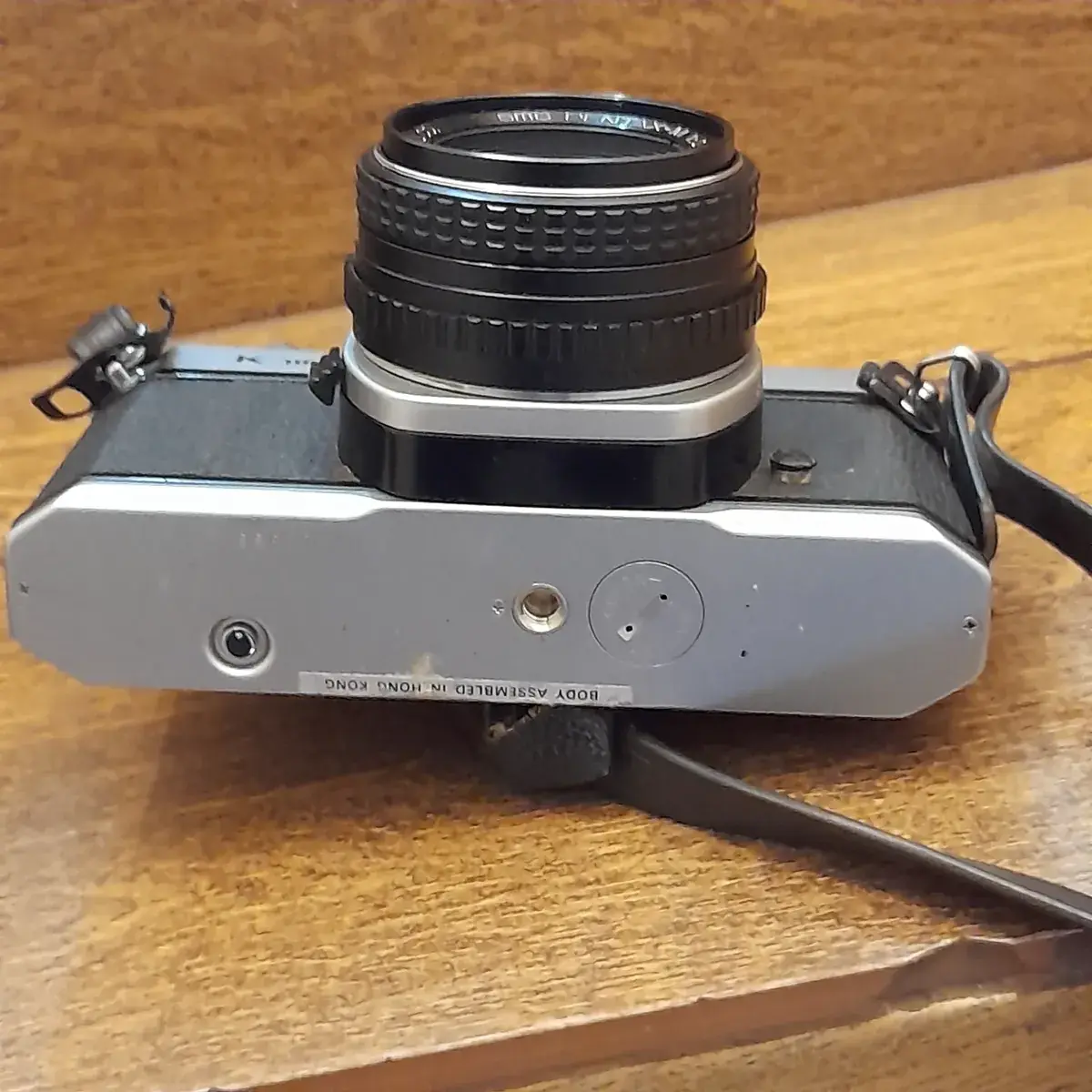

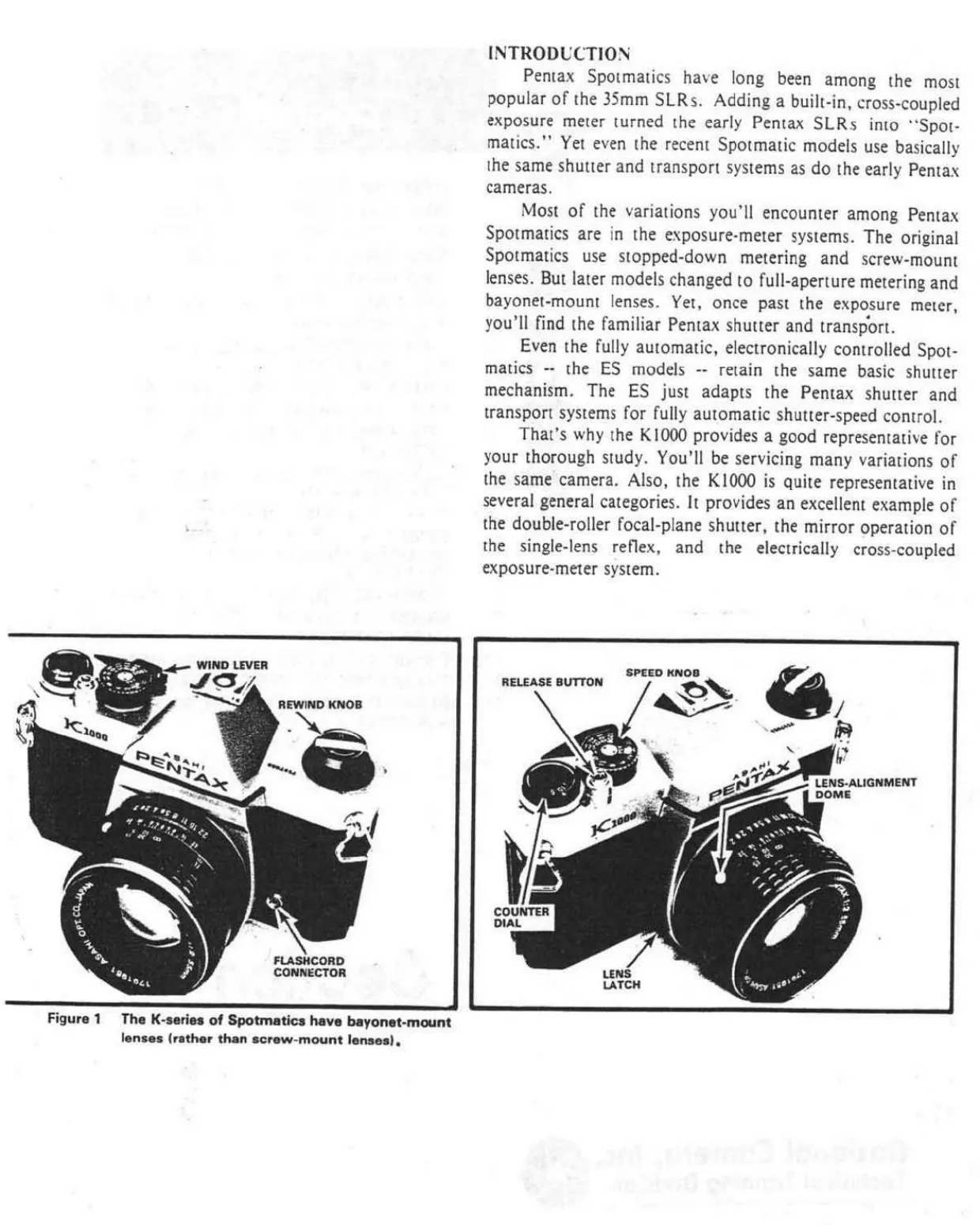

Product Images
Pentax K1000 SLR Camera Specifications
| Component/System | Service Specification/Procedure |
|---|---|

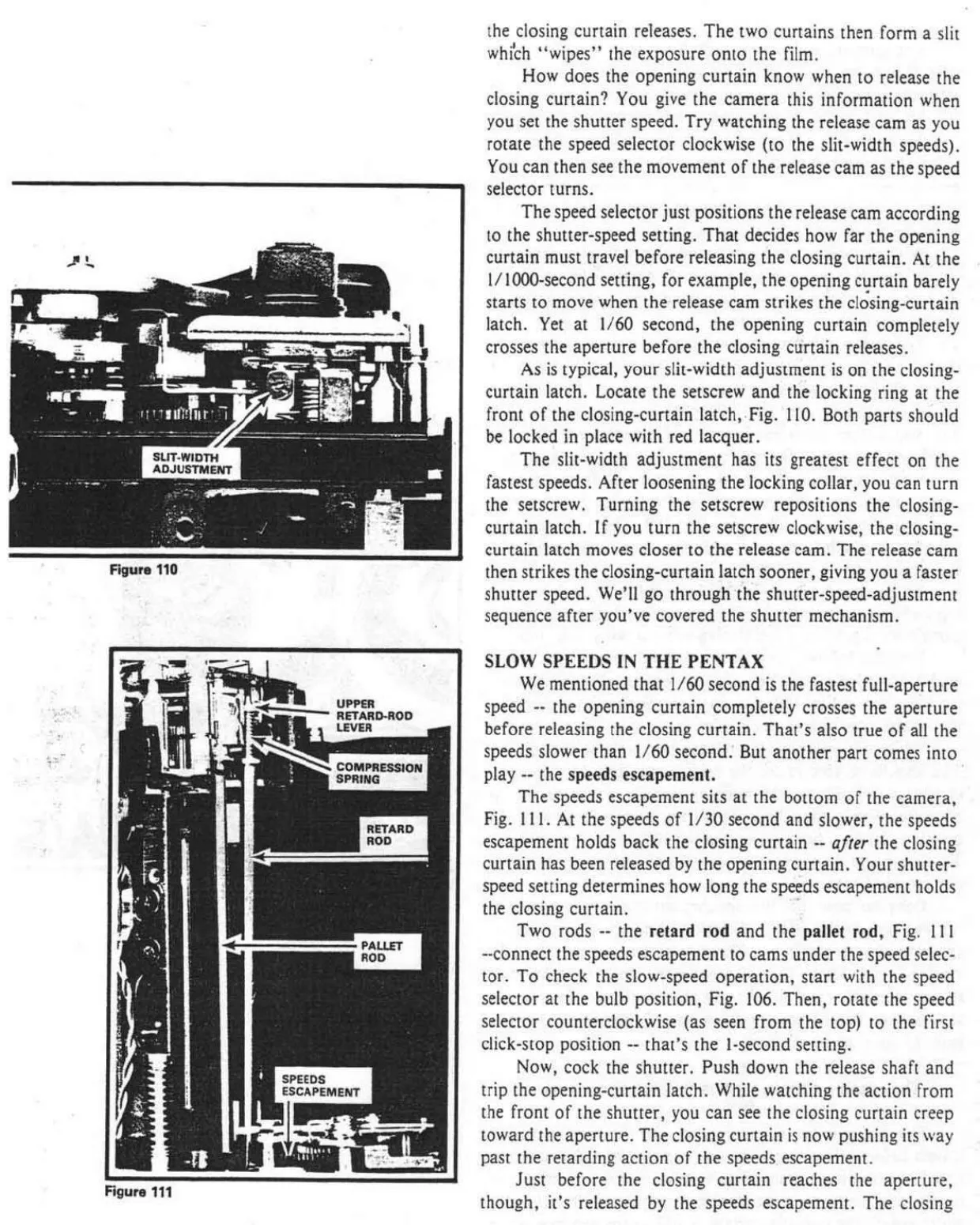

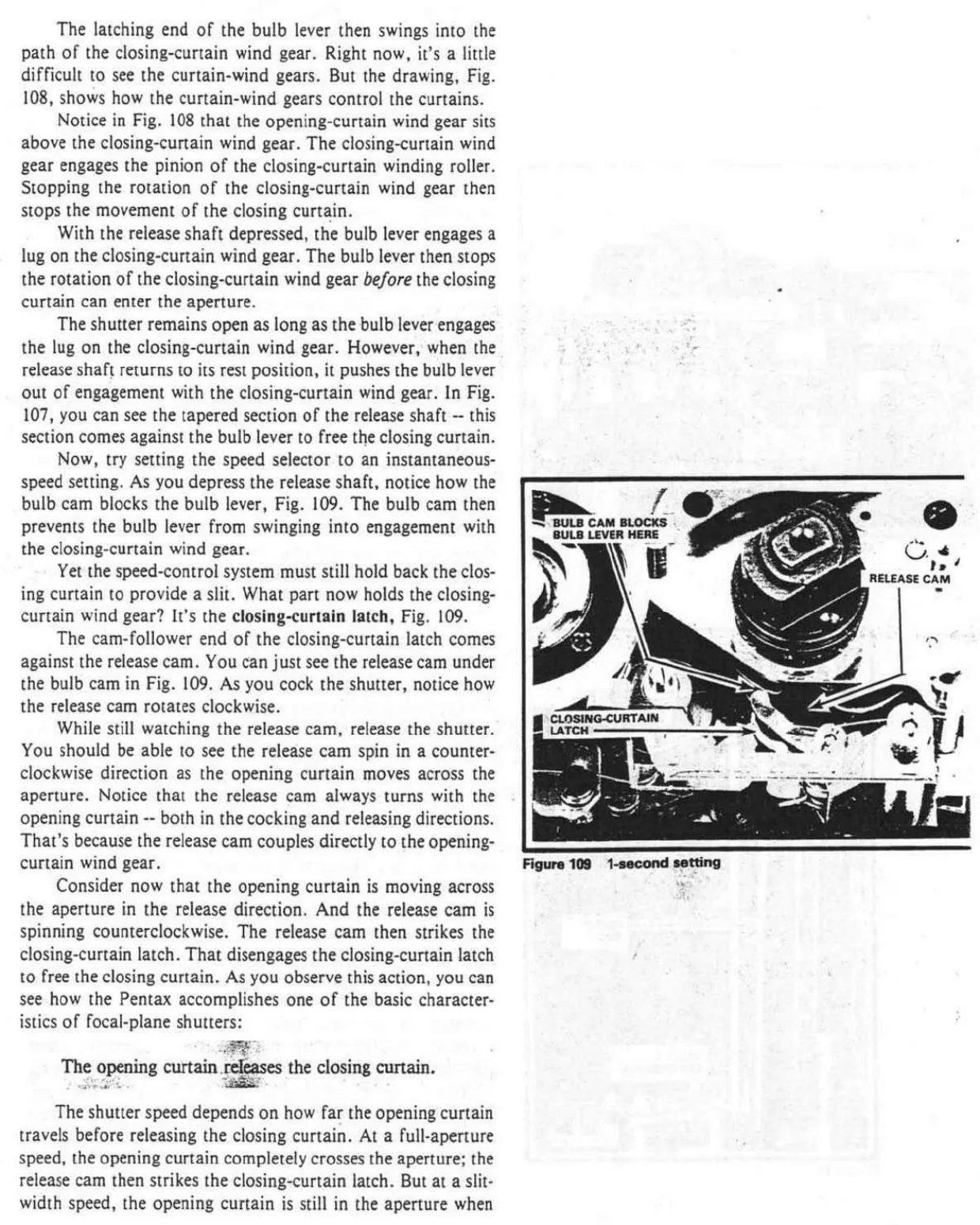

| Speed Control System | Detailed procedures for adjustment and servicing, including slow speeds. |
| Shutter Pallet Mechanism | Specific instructions for adjusting pallet-disengaging action. |
| Speed Escapement | Procedures for removal and thorough cleaning. |

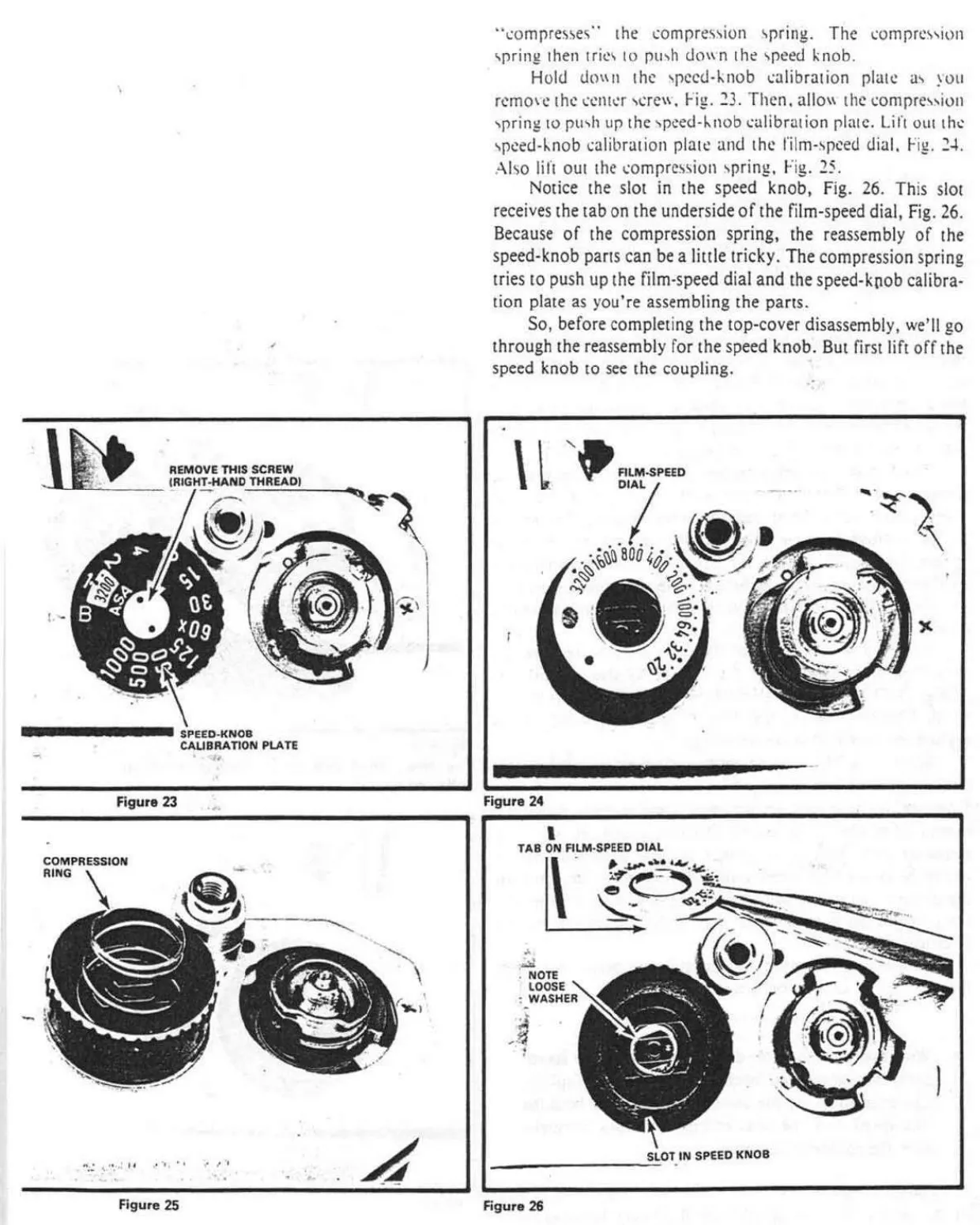

| Speed Selector Assembly | Guidance on removal and replacement. |

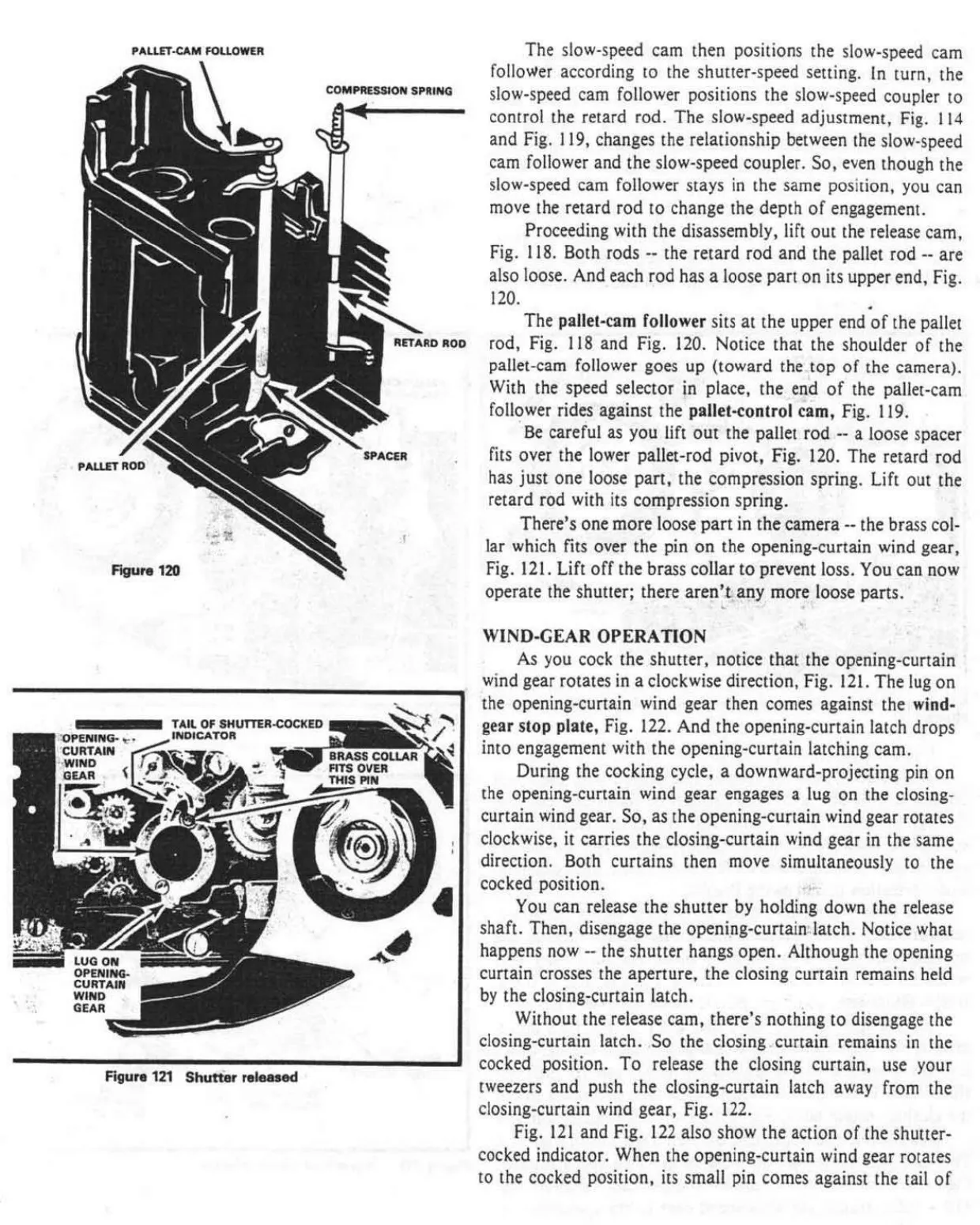

| Wind-Gear Operation | Detailed insights into the camera's film winding mechanism. |

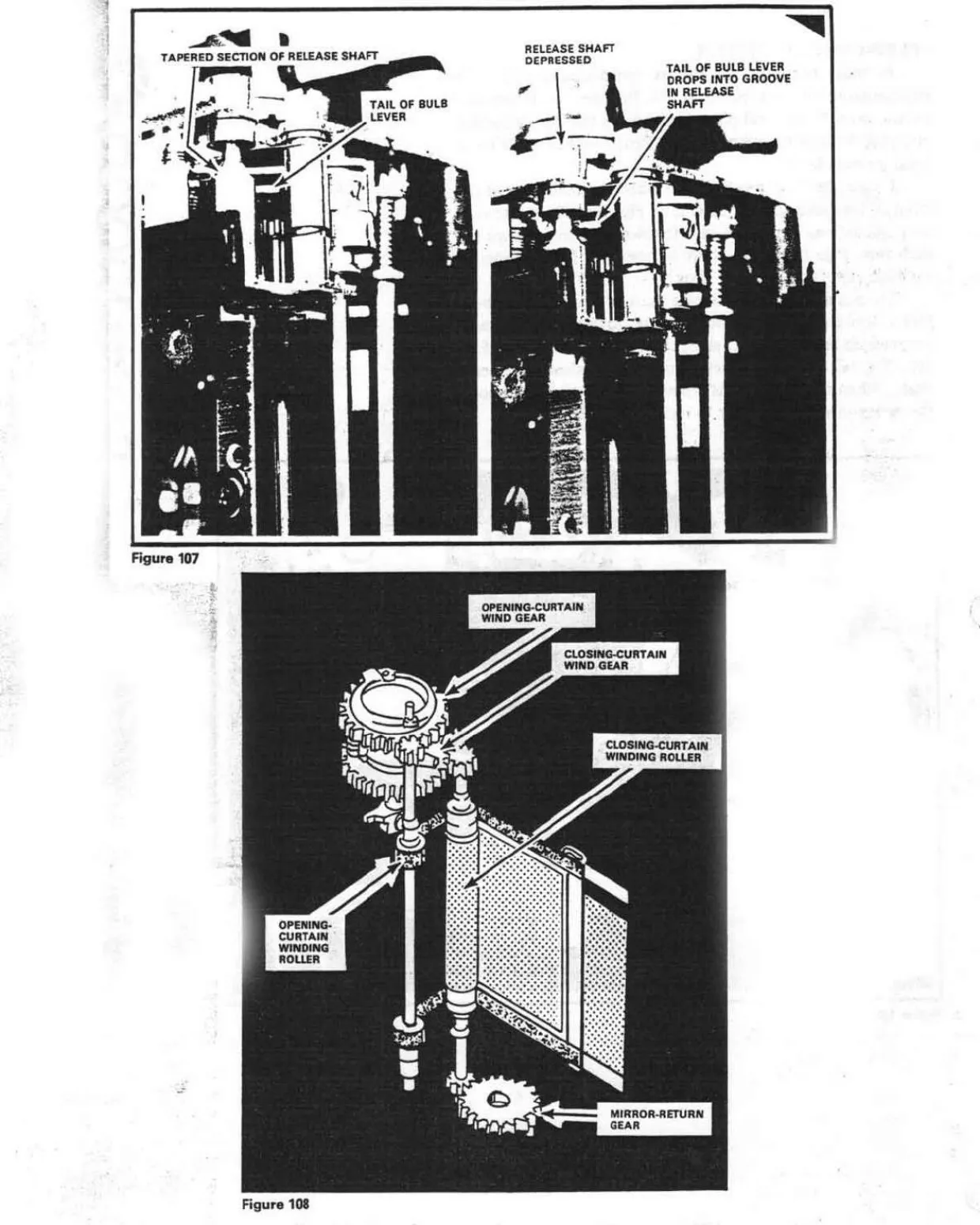

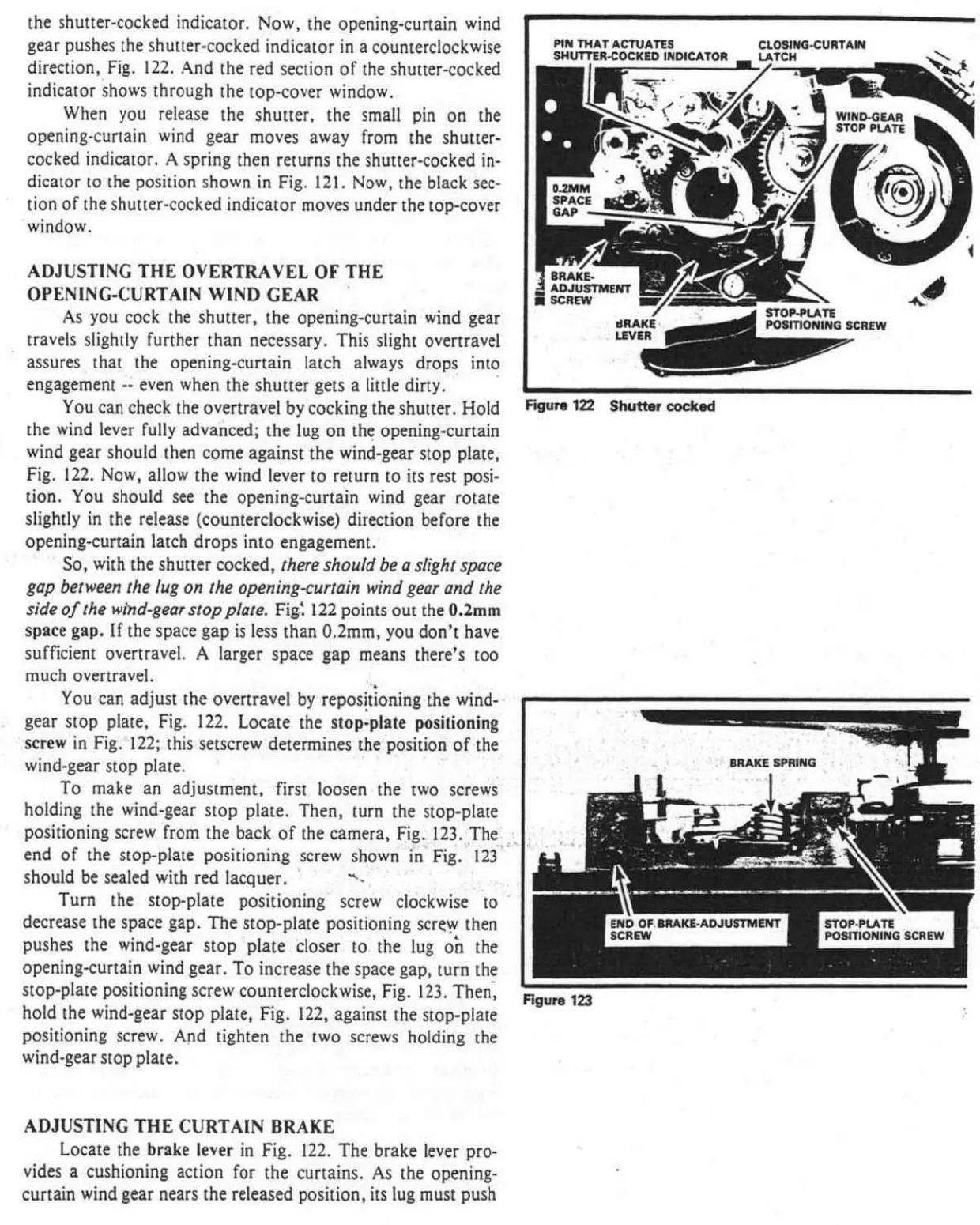

| Opening-Curtain Wind Gear | Adjustment for overtravel to ensure precise shutter function. |

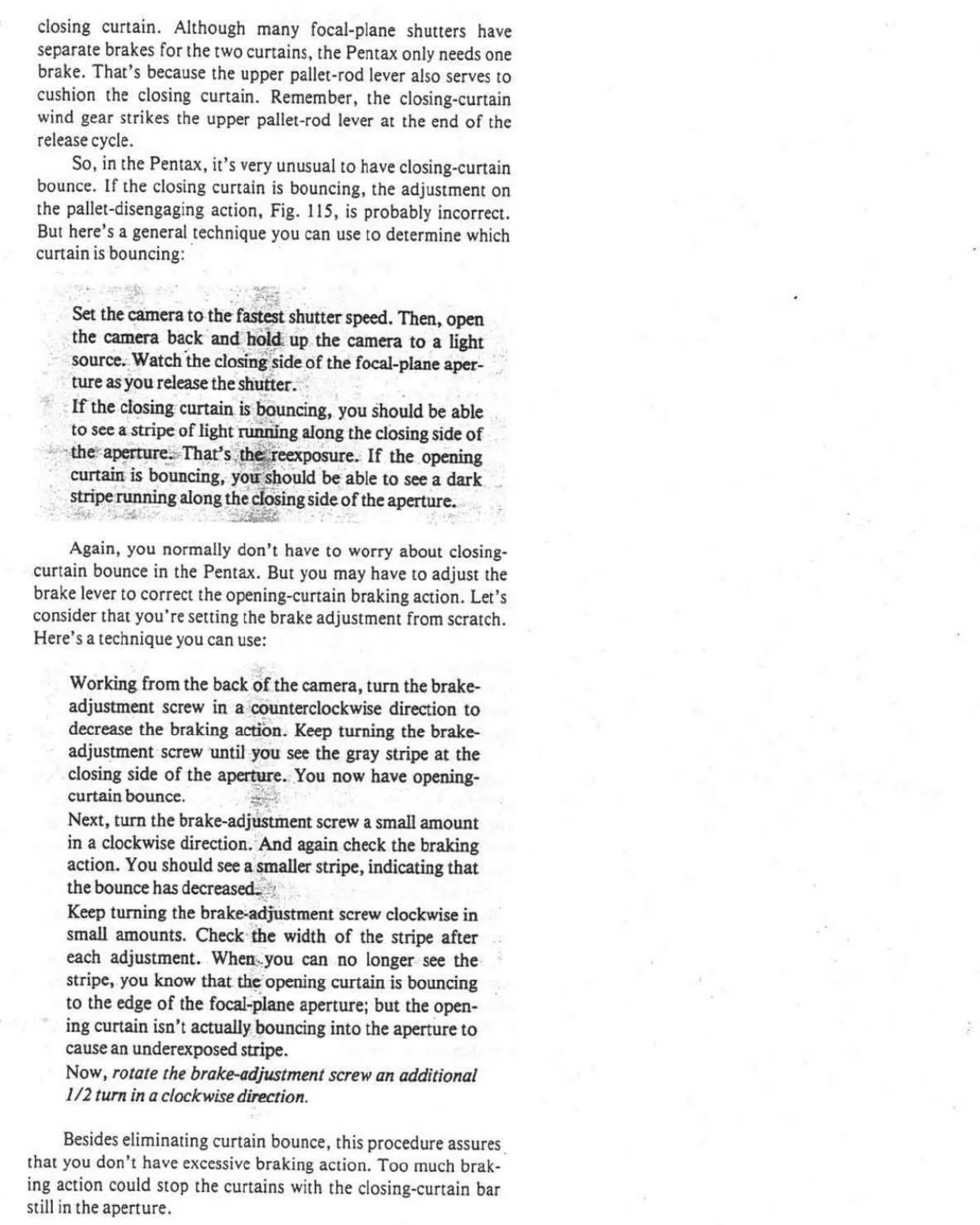

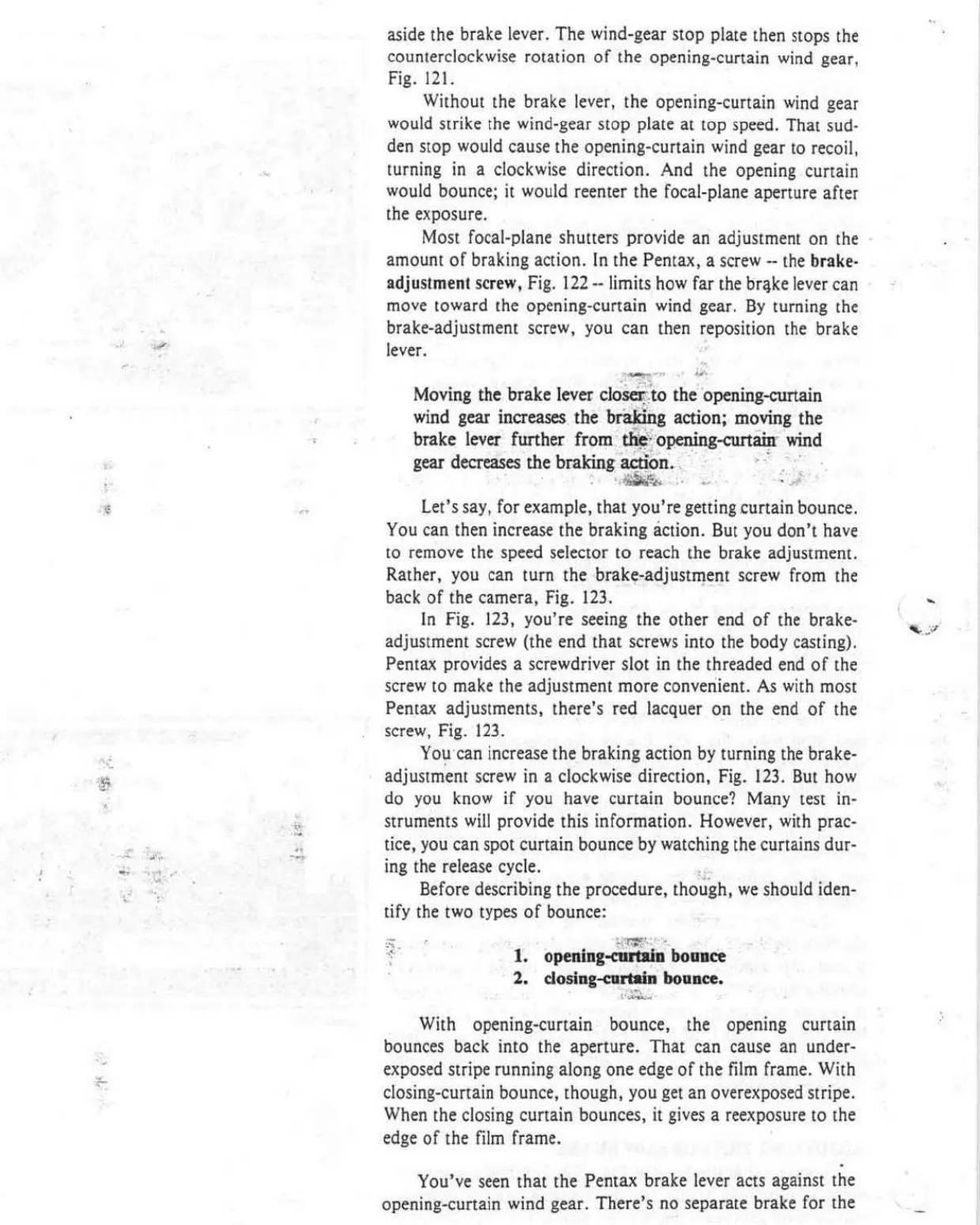

| Curtain Brake | Procedures for adjustment. |

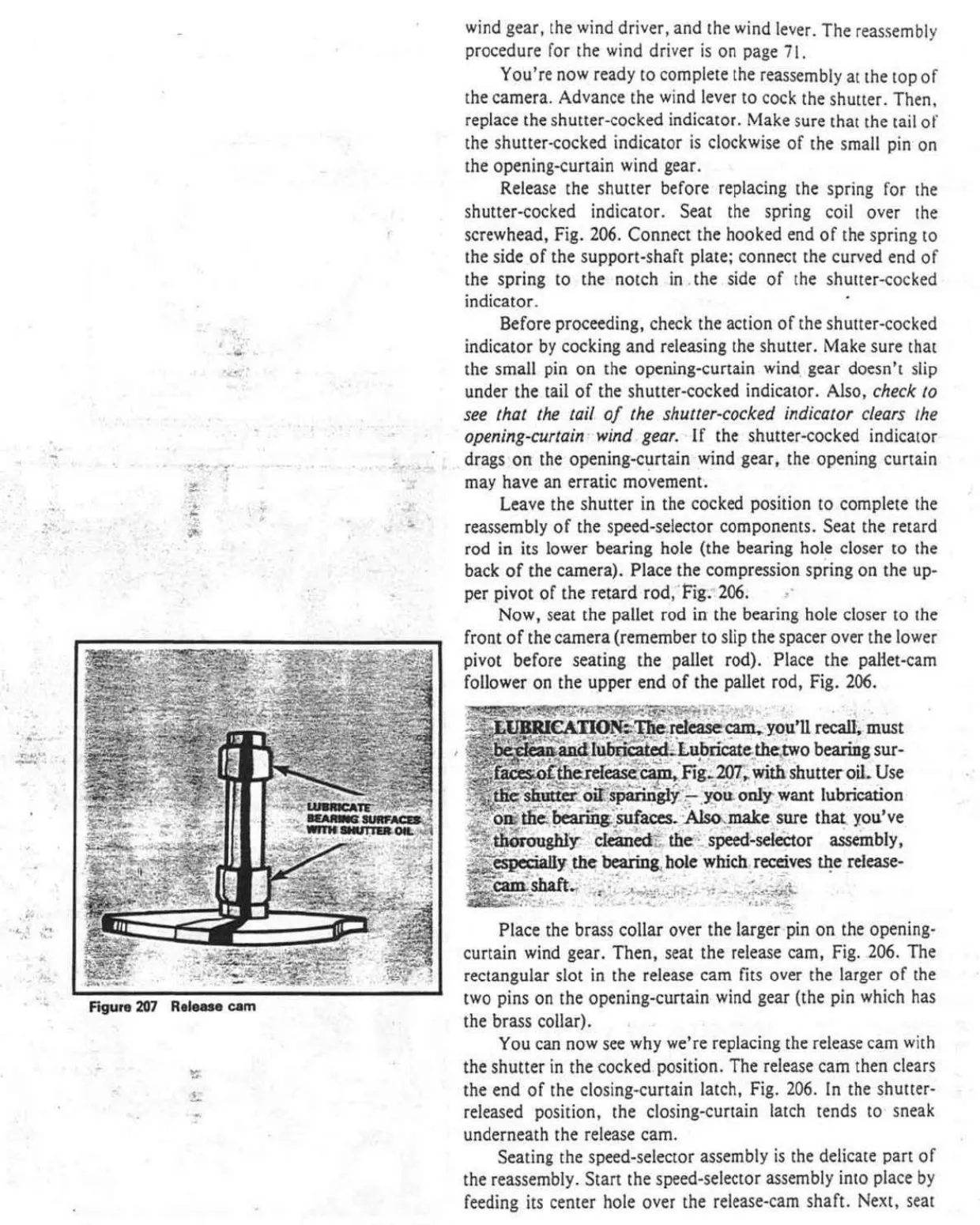

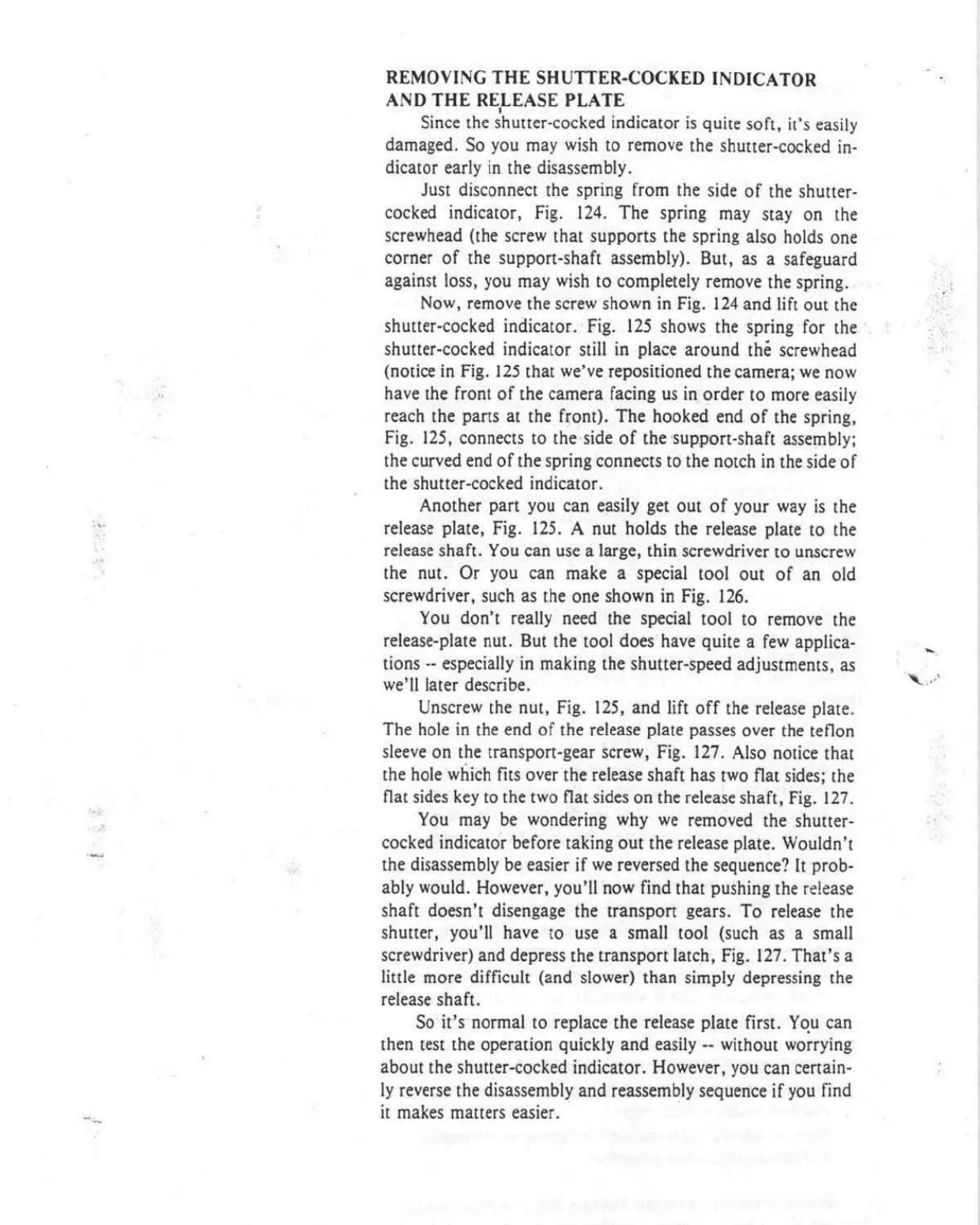

| Shutter-Cocked Indicator | Removal instructions for indicator and release plate. |

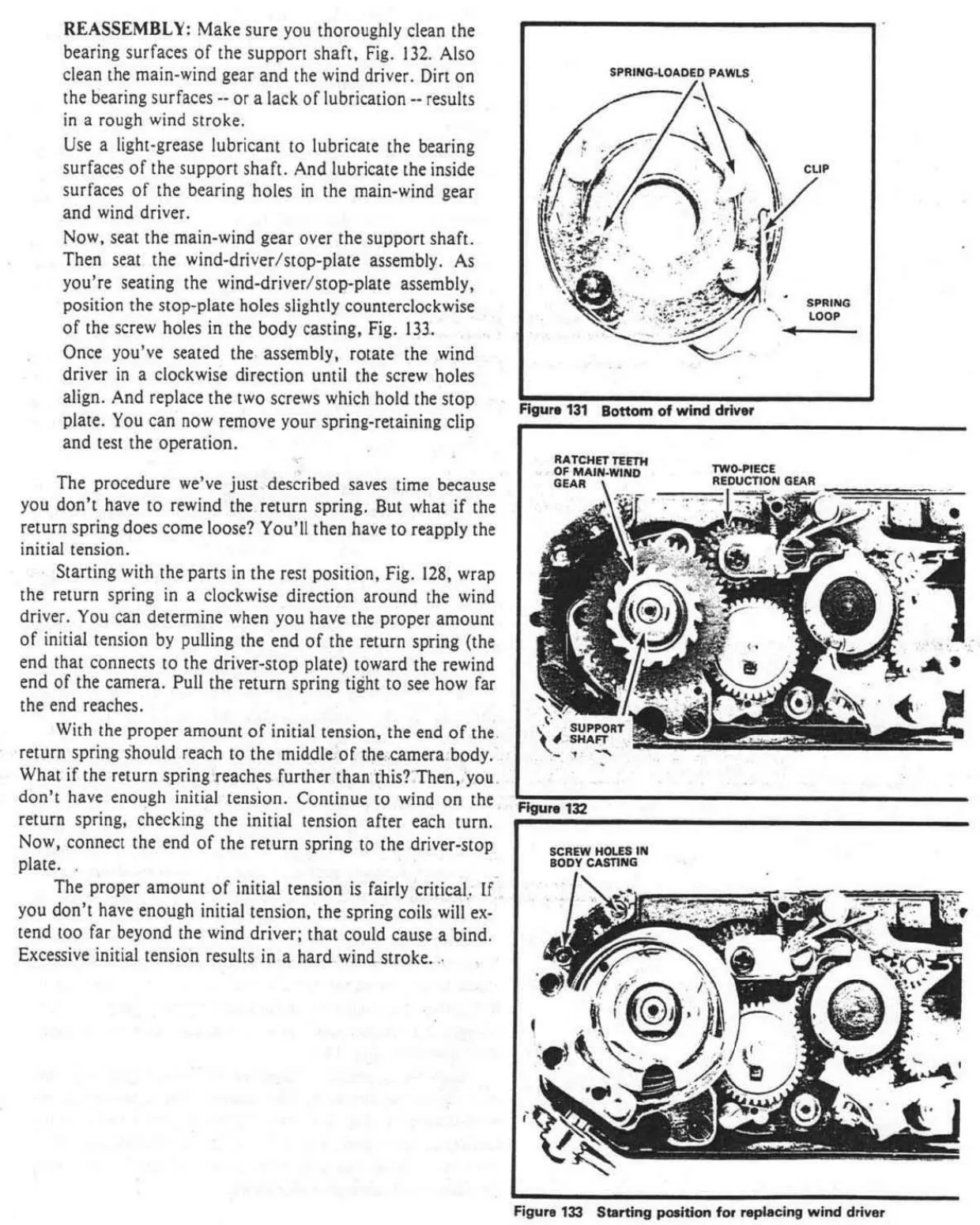

| Wind Driver & Support-Shaft | Specific removal processes for these critical winding components. |

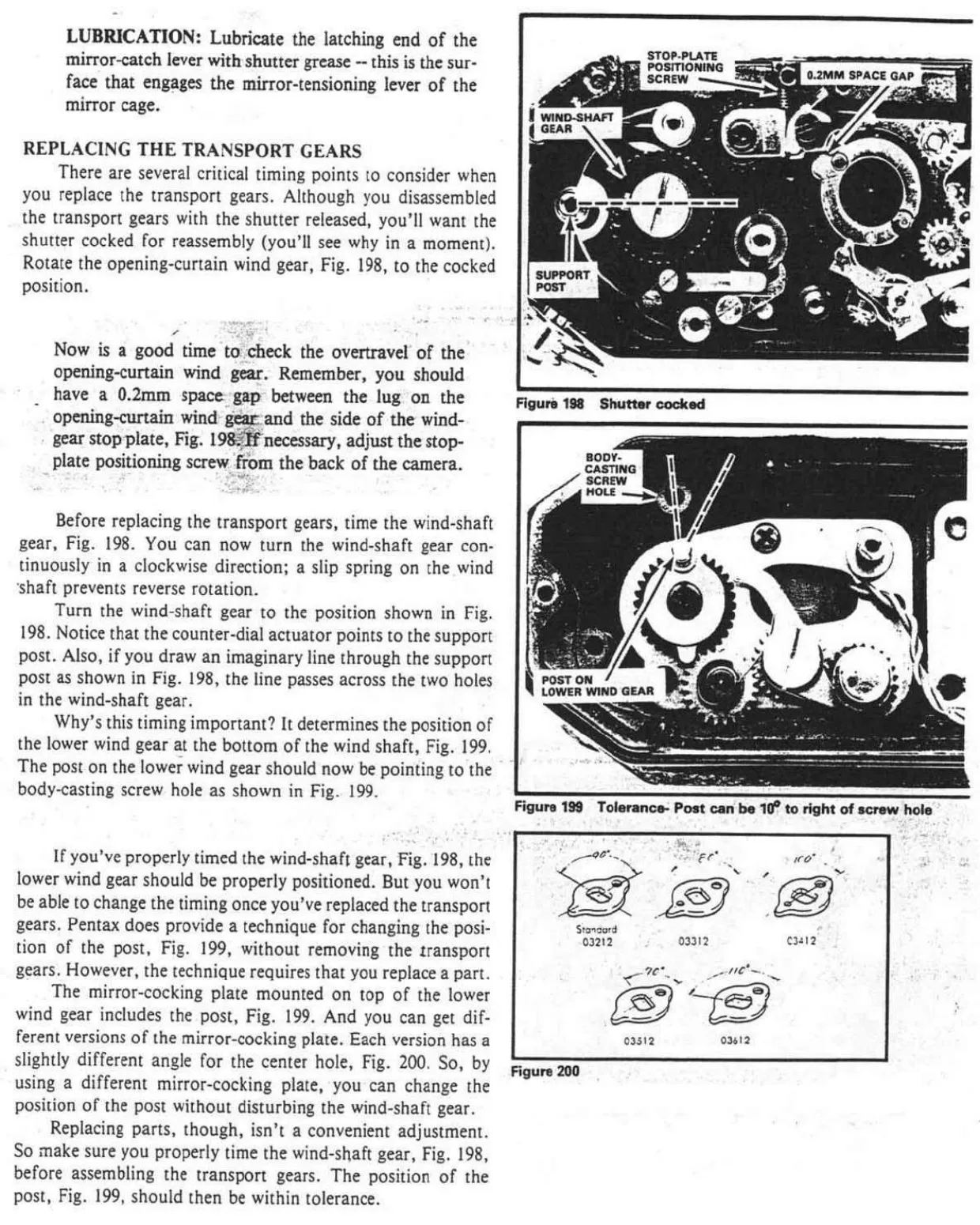

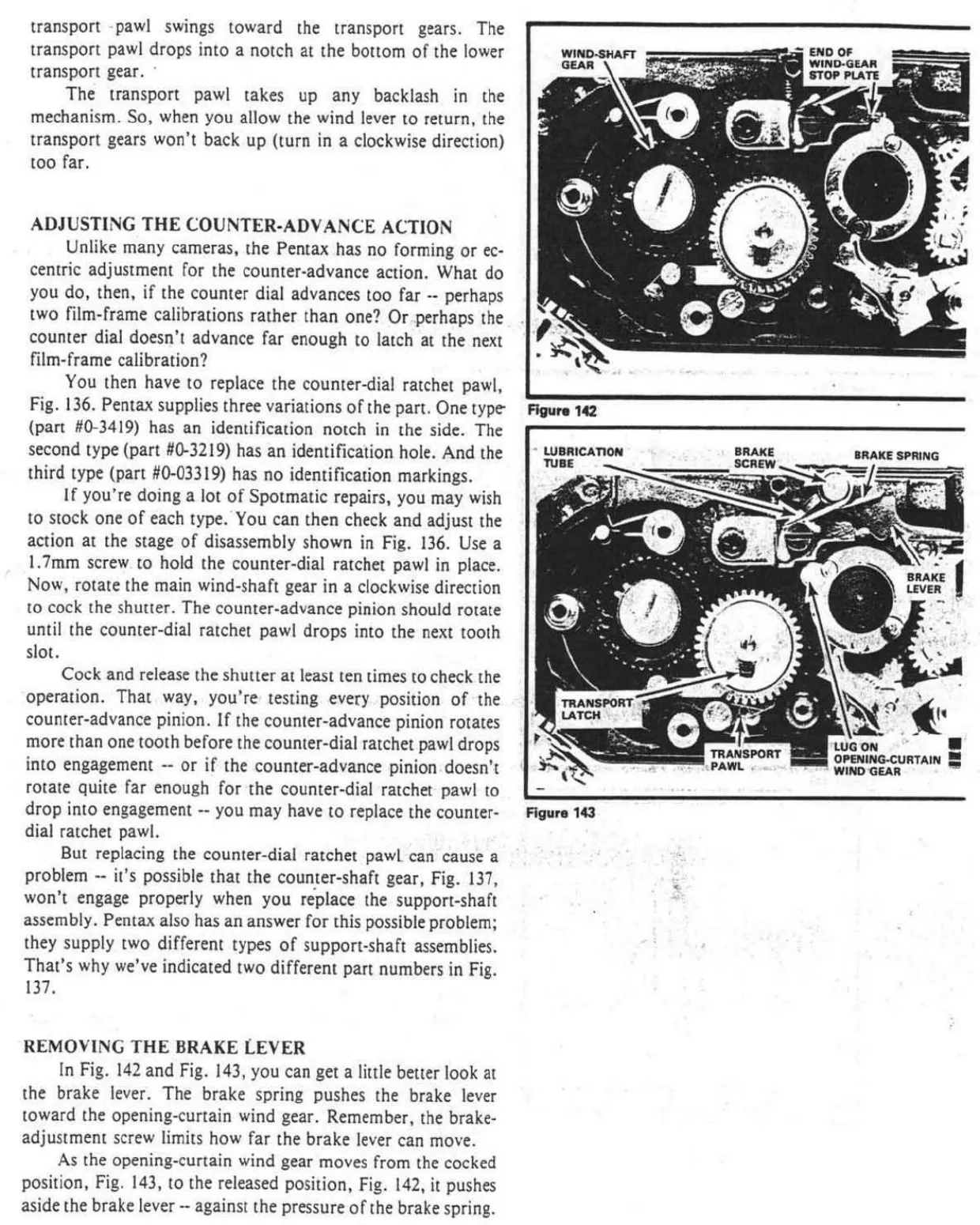

| Transport Gears | Comprehensive instructions for removal and replacement. |

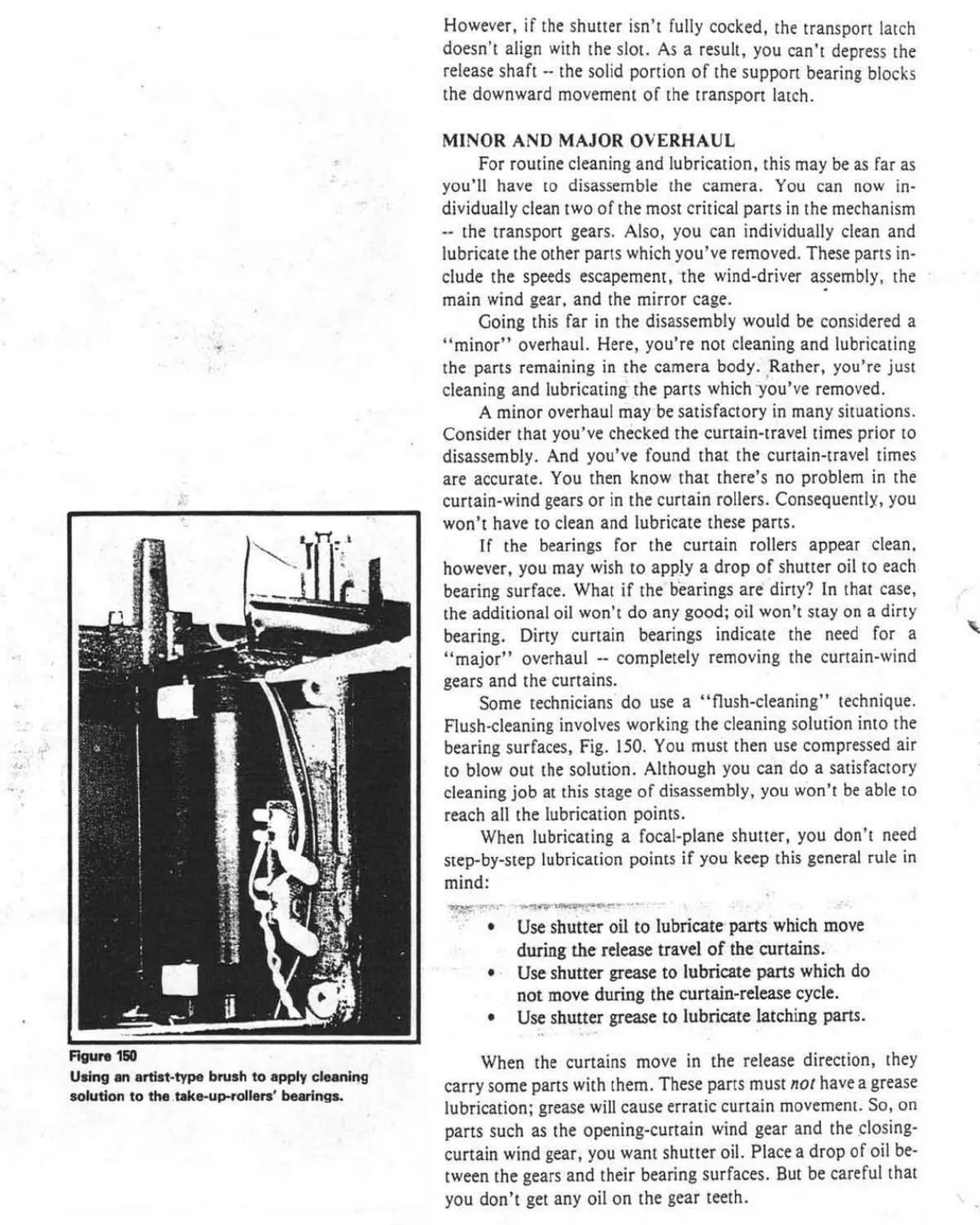

| Overhaul Procedures | Outline for both minor and major overhauls. |

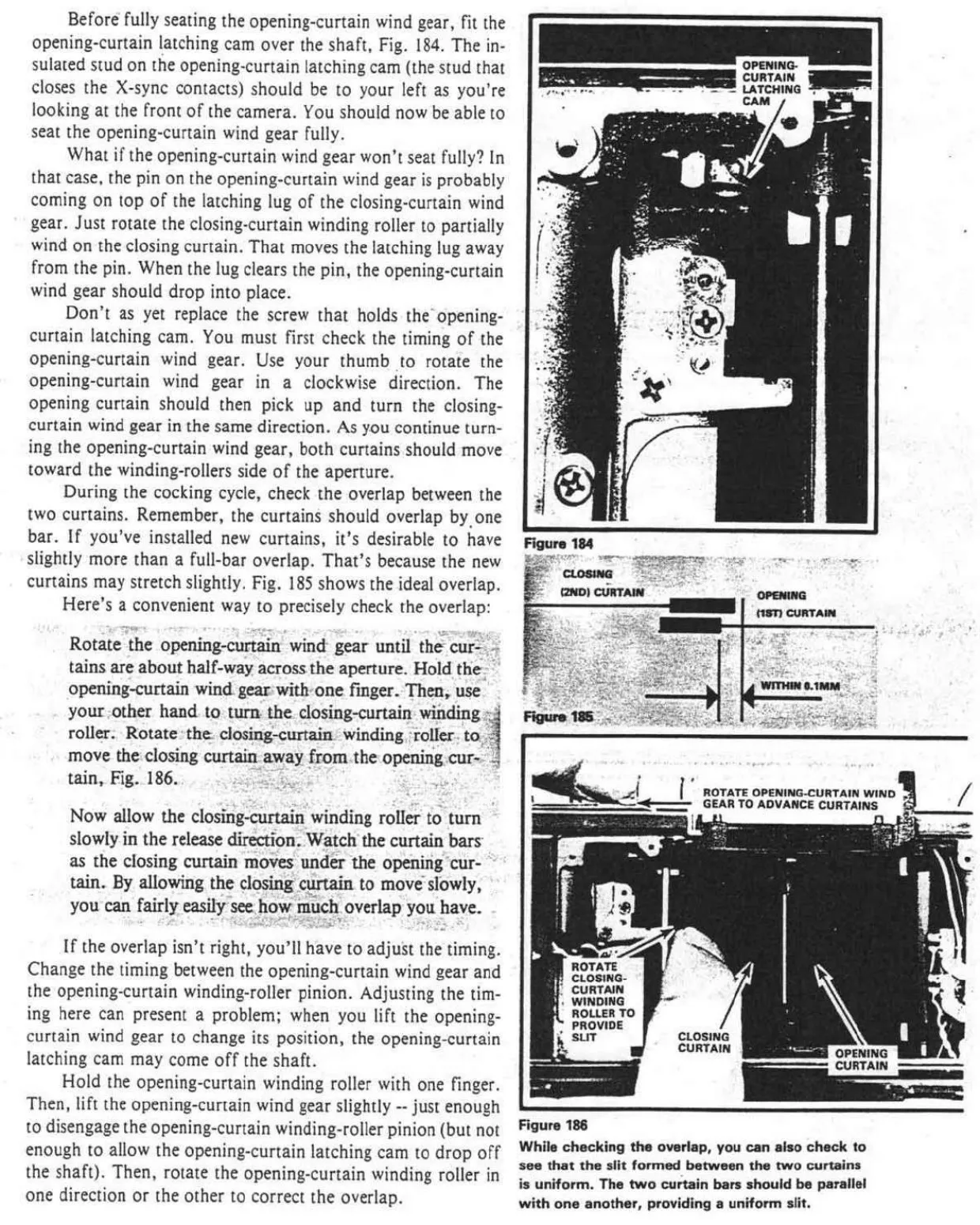

| Curtain Timing | Methods for checking and precise timing adjustments. |

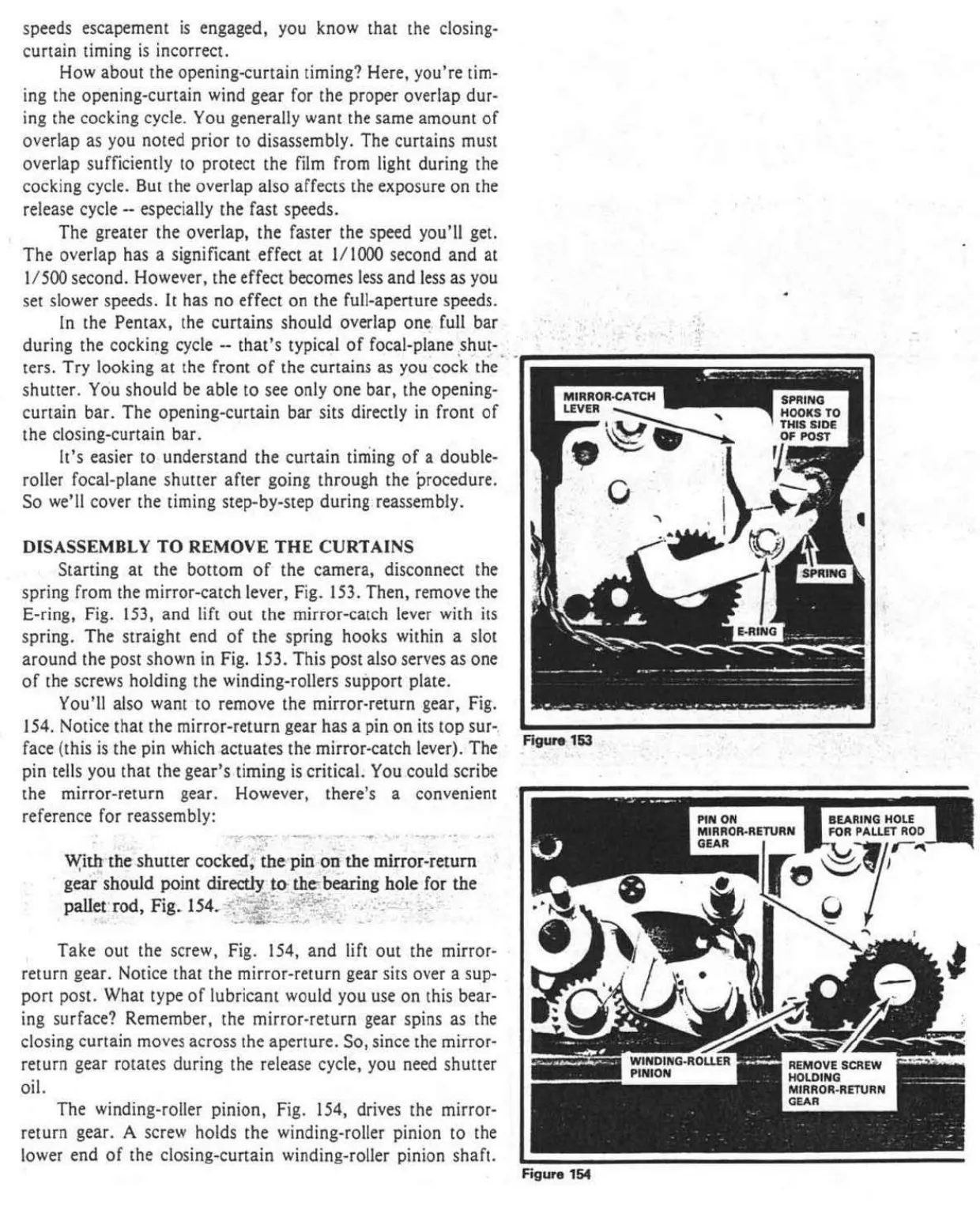

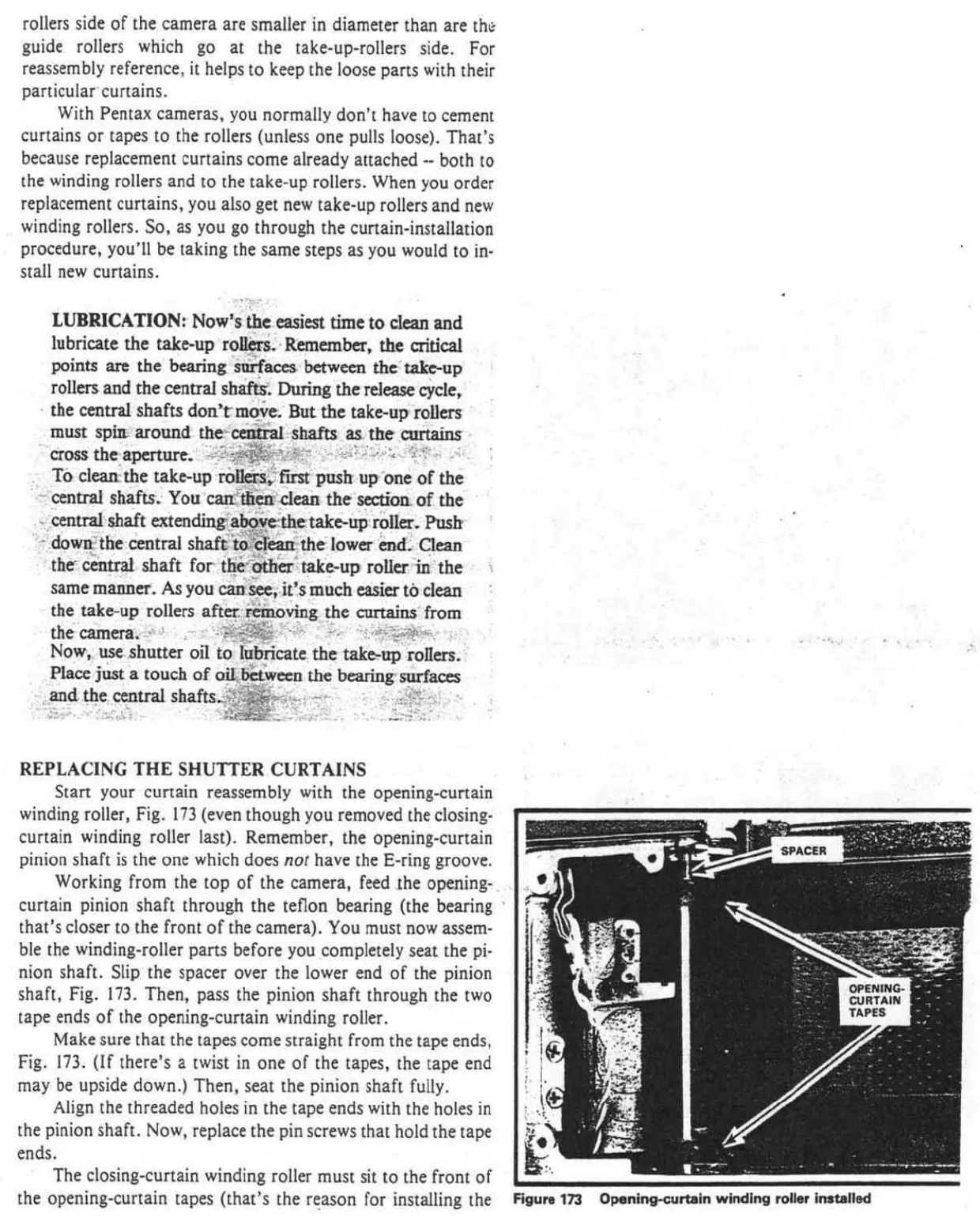

| Shutter Curtains | Disassembly steps for removal, and detailed guidance for replacement, including initial tension application and timing. |

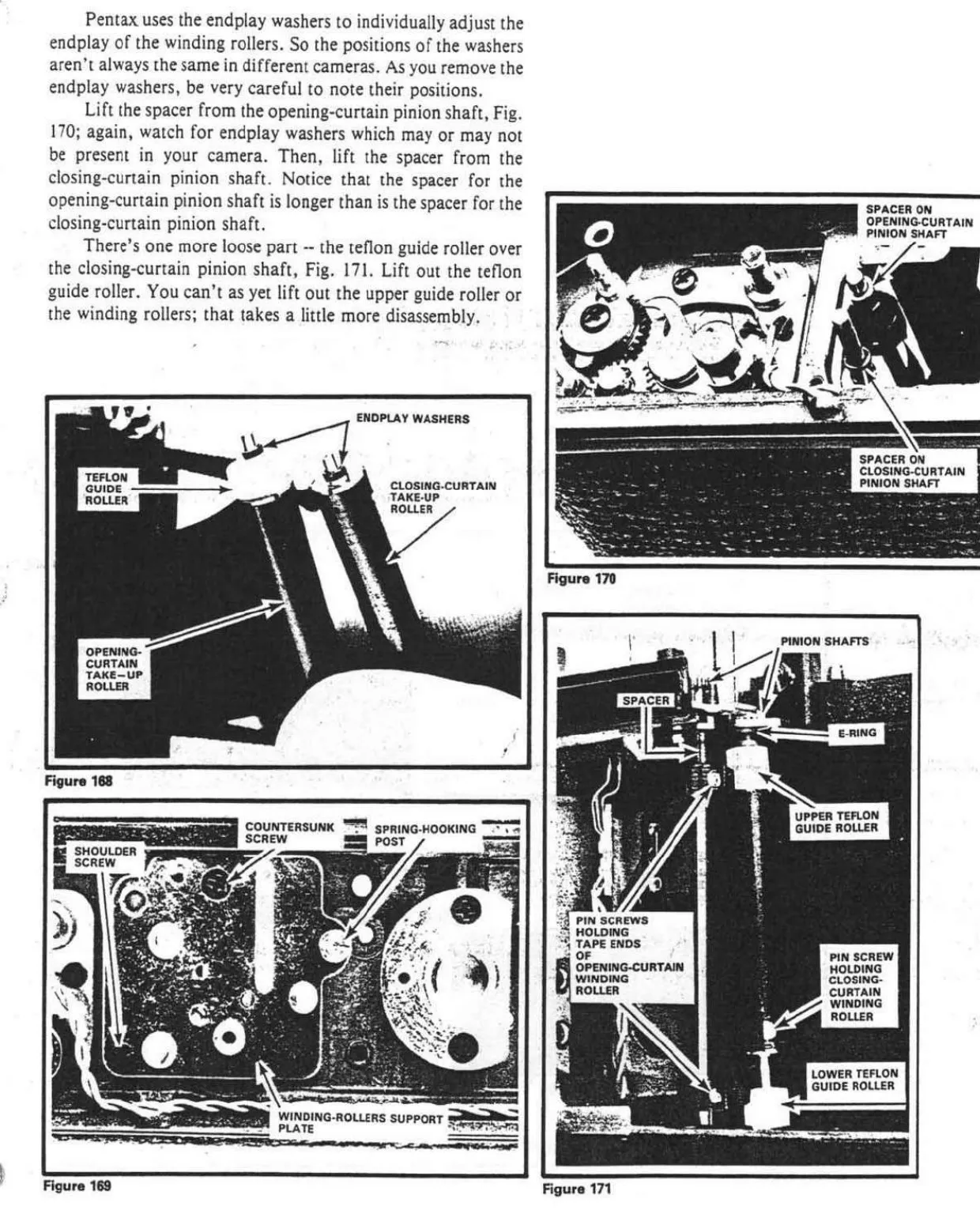

| Take-Up & Winding Rollers | Removal procedures. |

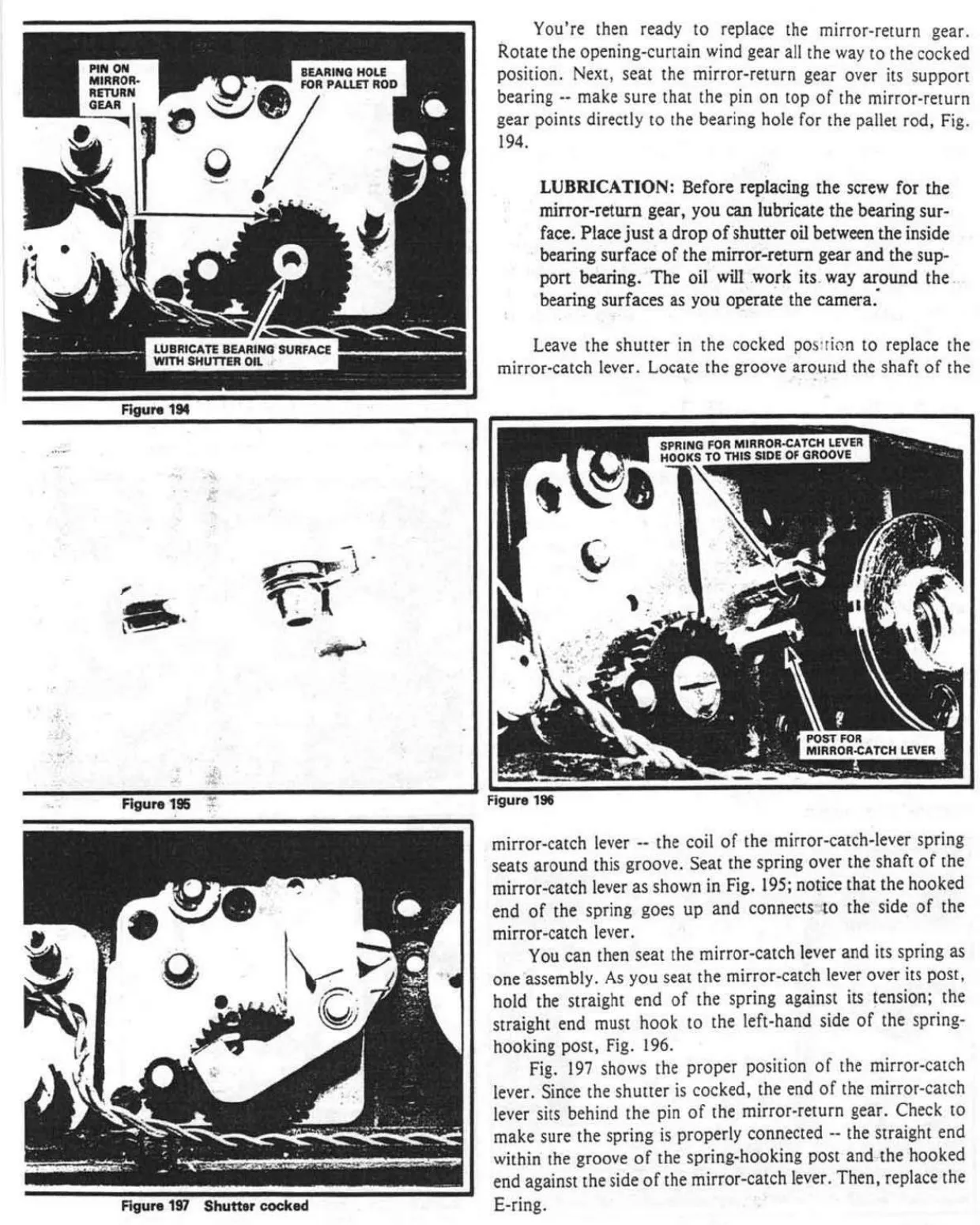

| Mirror-Return Gear | Replacement instructions. |

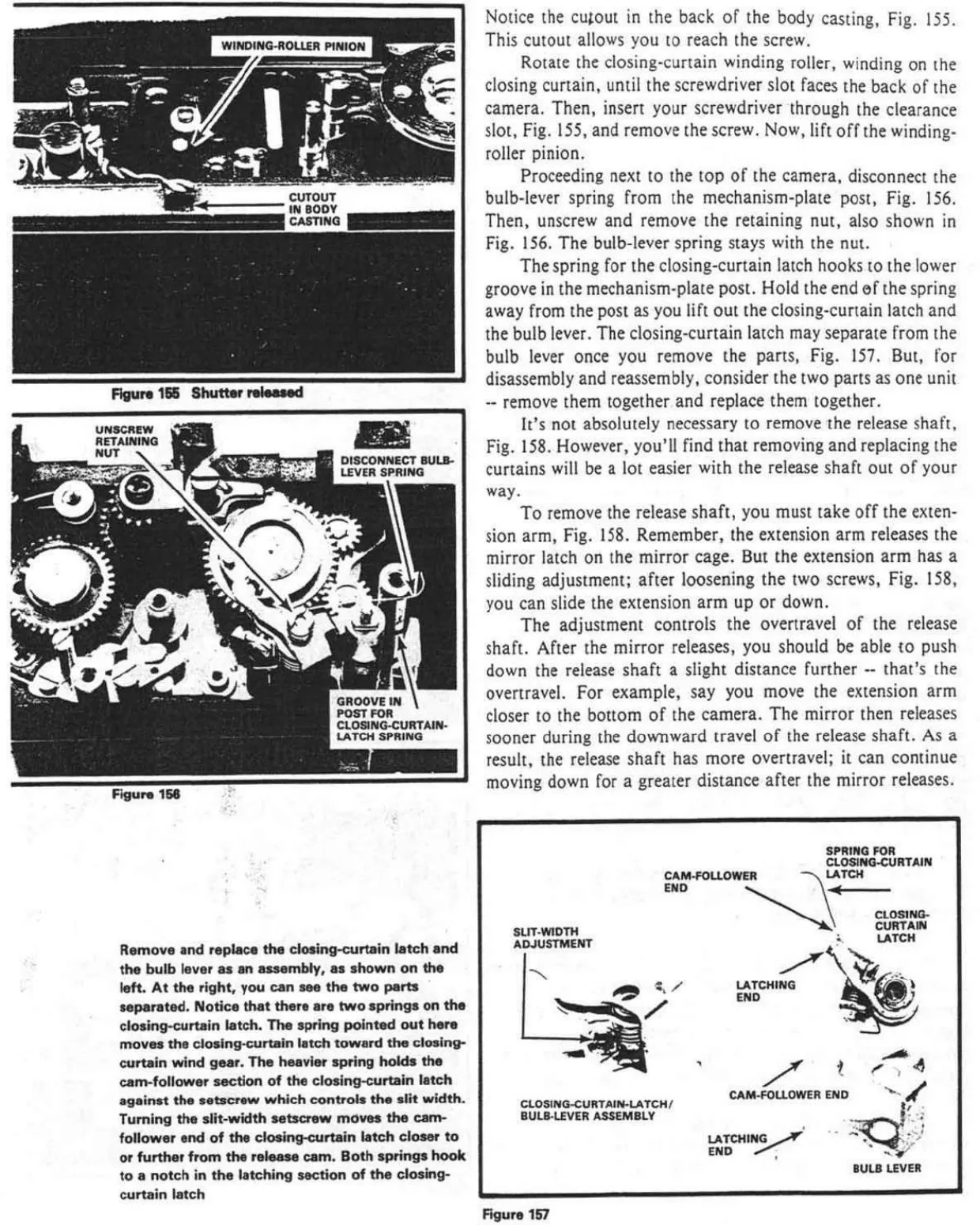

| Winding-Roller Pinion | Replacement instructions. |
| Sprocket (K1000 specific) | Detailed procedure for replacement. |

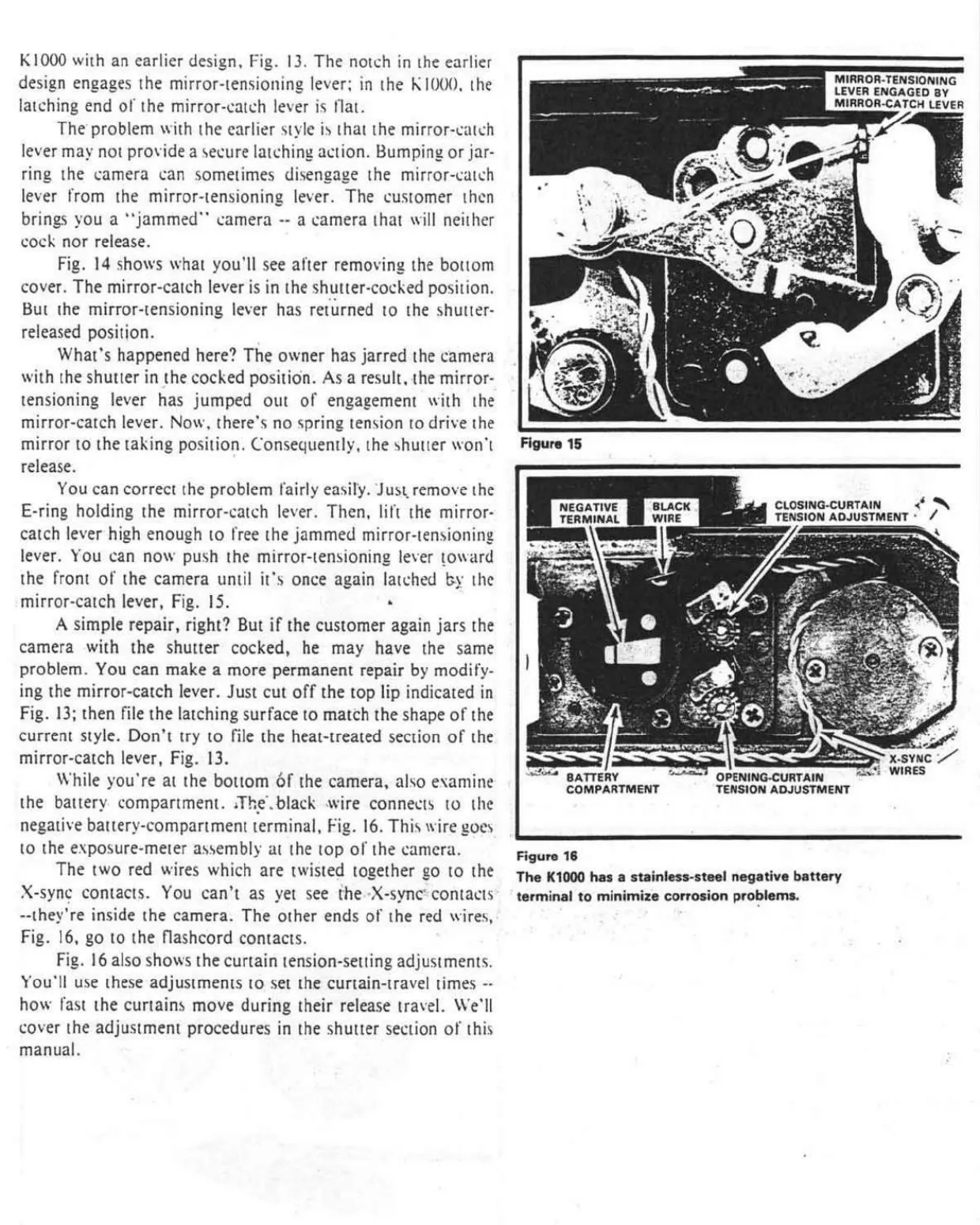

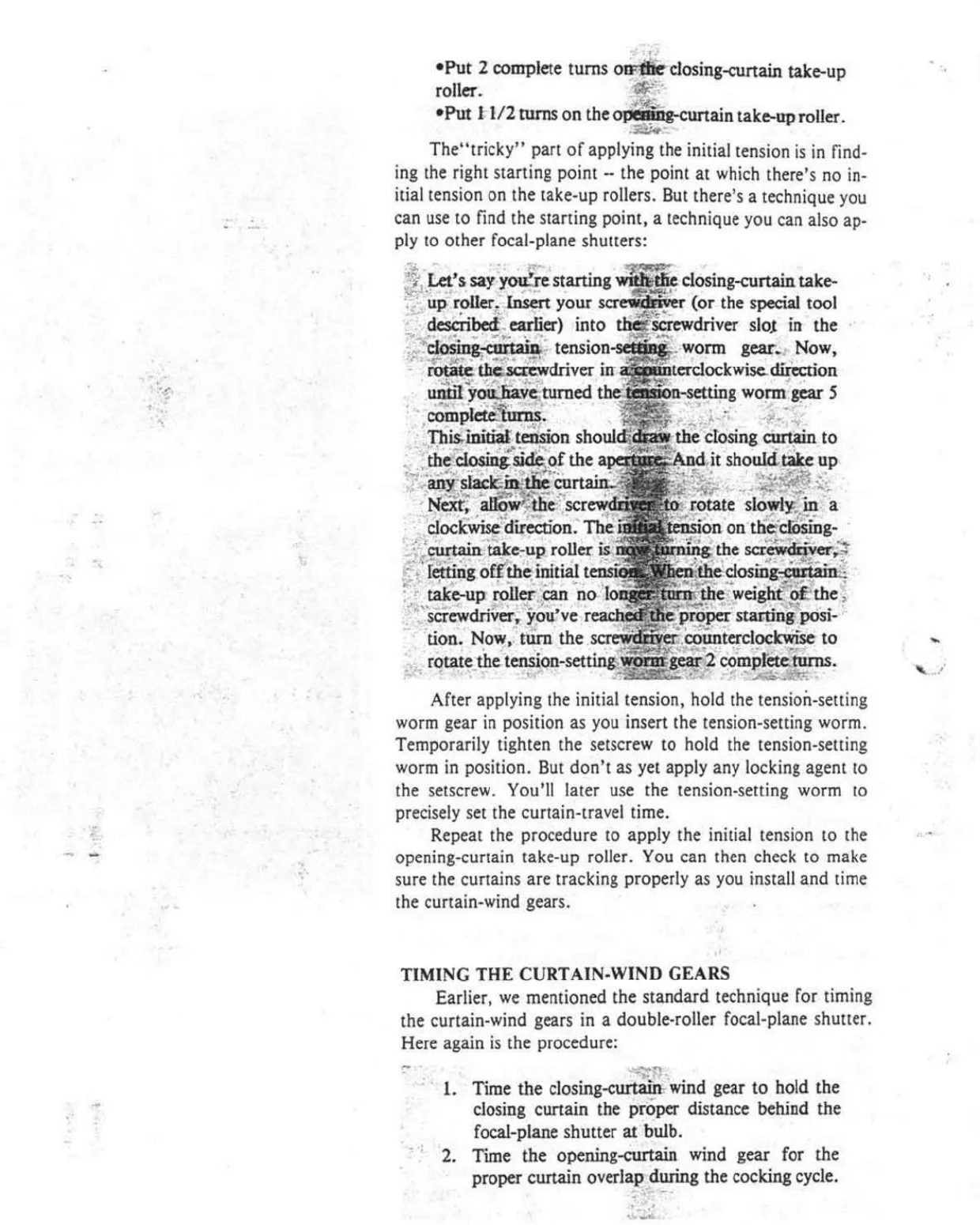

| Curtain Tensions | Specific settings and adjustment methods. |
Pentax K1000 SLR Camera Details
The Pentax K1000 service manual provides an in-depth look into the camera's robust mechanical design, emphasizing its serviceability and longevity. Unlike user manuals, it meticulously details the internal mechanisms, offering a rare glimpse into the engineering that made the K1000 a legendary workhorse.
Central to its operation is a fully mechanical shutter system, which the manual extensively covers. This includes procedures for adjusting the speed escapement, setting curtain tensions, and timing the curtain-wind gears. Such detailed instructions highlight the precision required for its consistent performance across various shutter speeds.
The film transport system is another key area of focus, with comprehensive guides for removing and replacing crucial components like the wind driver, support-shaft assembly, and transport gears. This underscores the camera's reputation for reliability, as technicians can meticulously maintain or repair its winding mechanism.

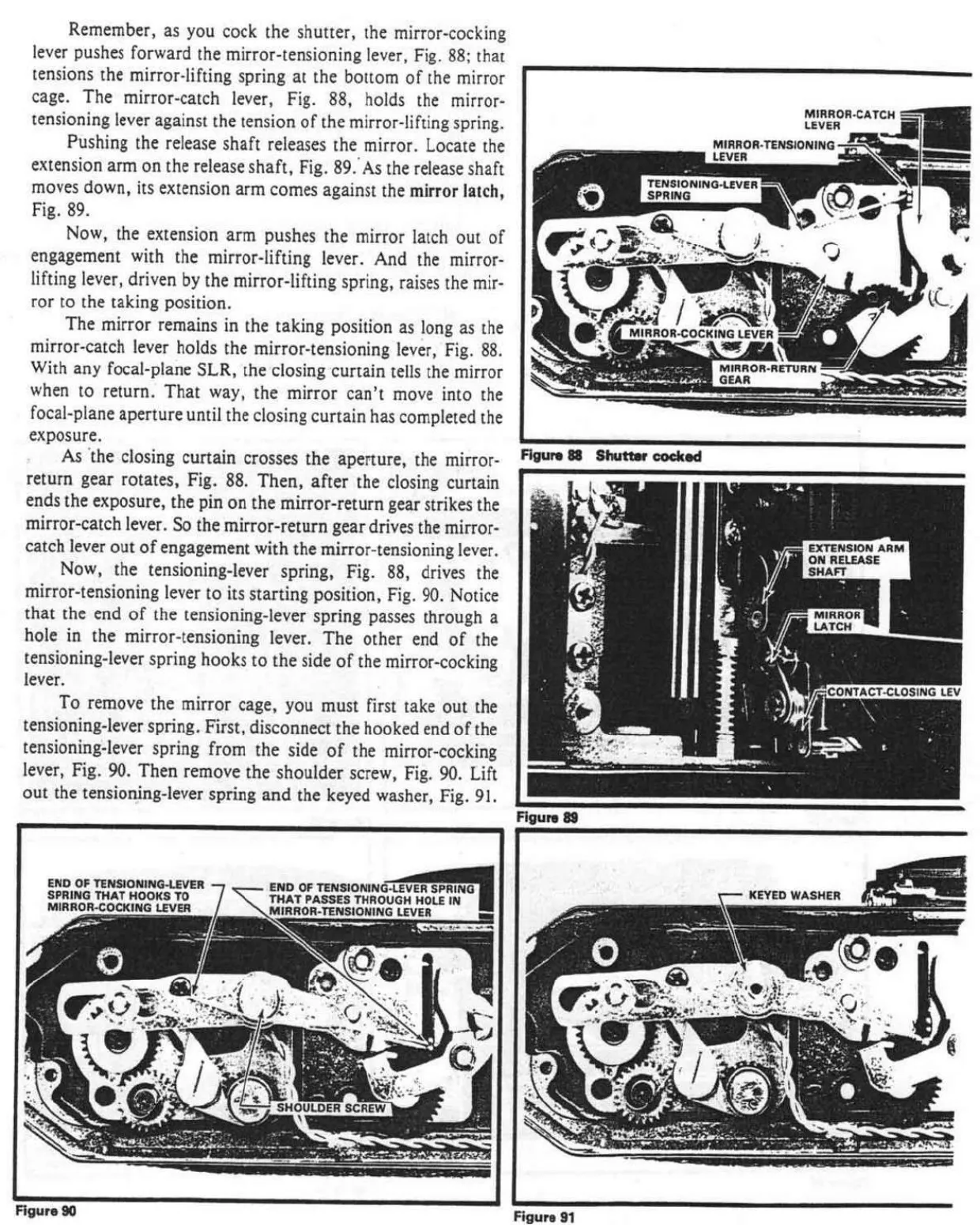

The mirror-return mechanism also receives significant attention, with specific instructions for replacing the mirror-return gear. This indicates the K1000's design allows for direct intervention on parts critical for accurate viewing and exposure, ensuring the viewfinder remains crisp and responsive.
Overall, the manual reveals the Pentax K1000 as a meticulously engineered camera, designed not only for photographers but also for easy and precise service. Its detailed repair guidelines ensure that, with proper maintenance, this classic SLR can continue to function reliably for generations.
Frequently Asked Questions (FAQs)
Can't find the answer you need? Here are some frequently asked questions about the Pentax K1000 SLR Camera, and we answer them below.
