Osburn Matrix 2700 Chimney Instruction Manual
Osburn Matrix 2700 Chimney
Osburn Matrix 2700 Chimney Instructions
Here we offer the Osburn Matrix 2700 Chimney manual completely free and in English. We have cataloged this manual in the Chimneys section on Manualverse, and it has been rated by 1 users with an average rating of 5. If you have any specific questions about Osburn Matrix 2700 Chimney, we suggest checking the Frequently Asked Questions (FAQs) section of this manual.
Product Images

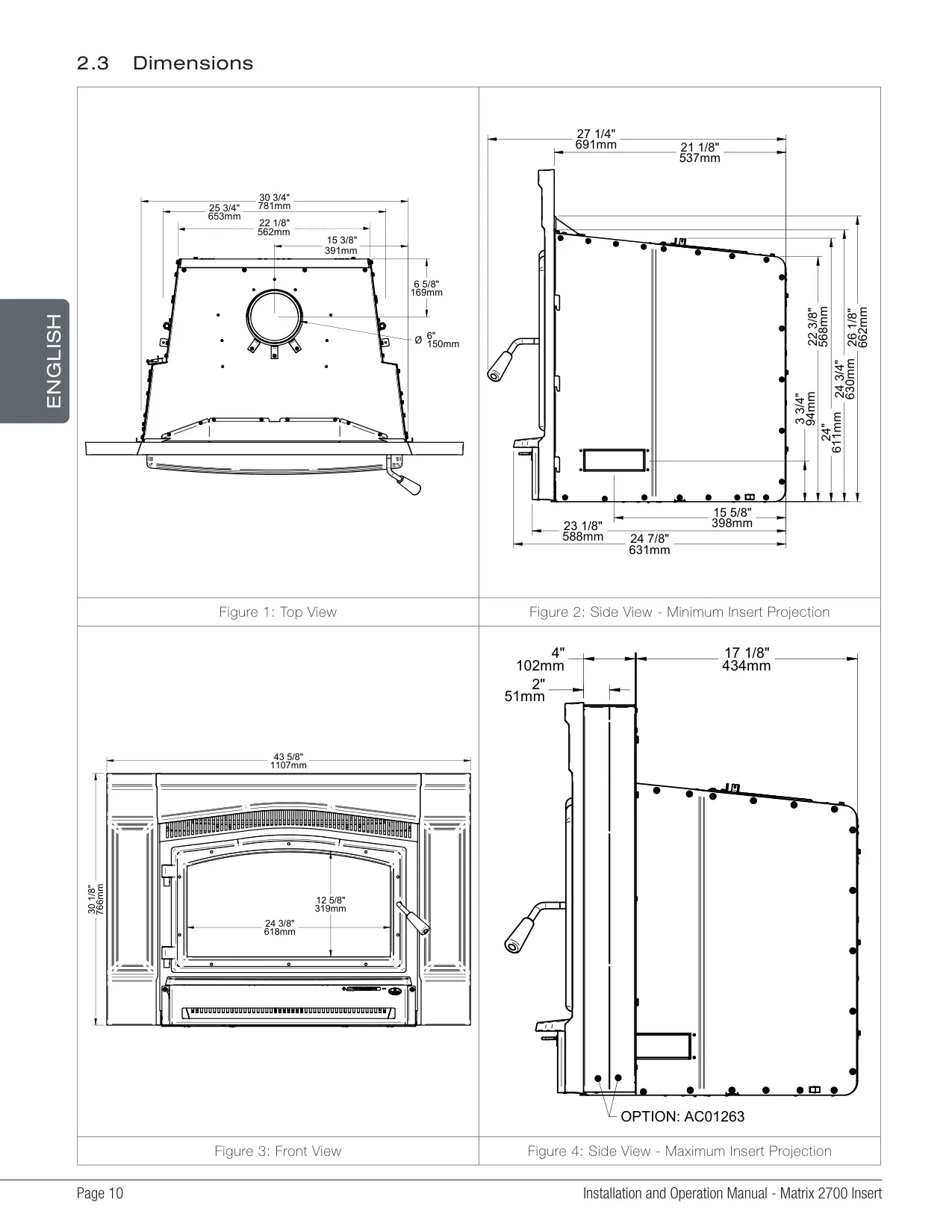

Osburn Matrix 2700 Chimney Specifications

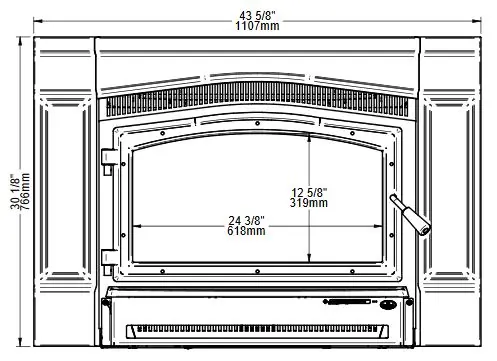

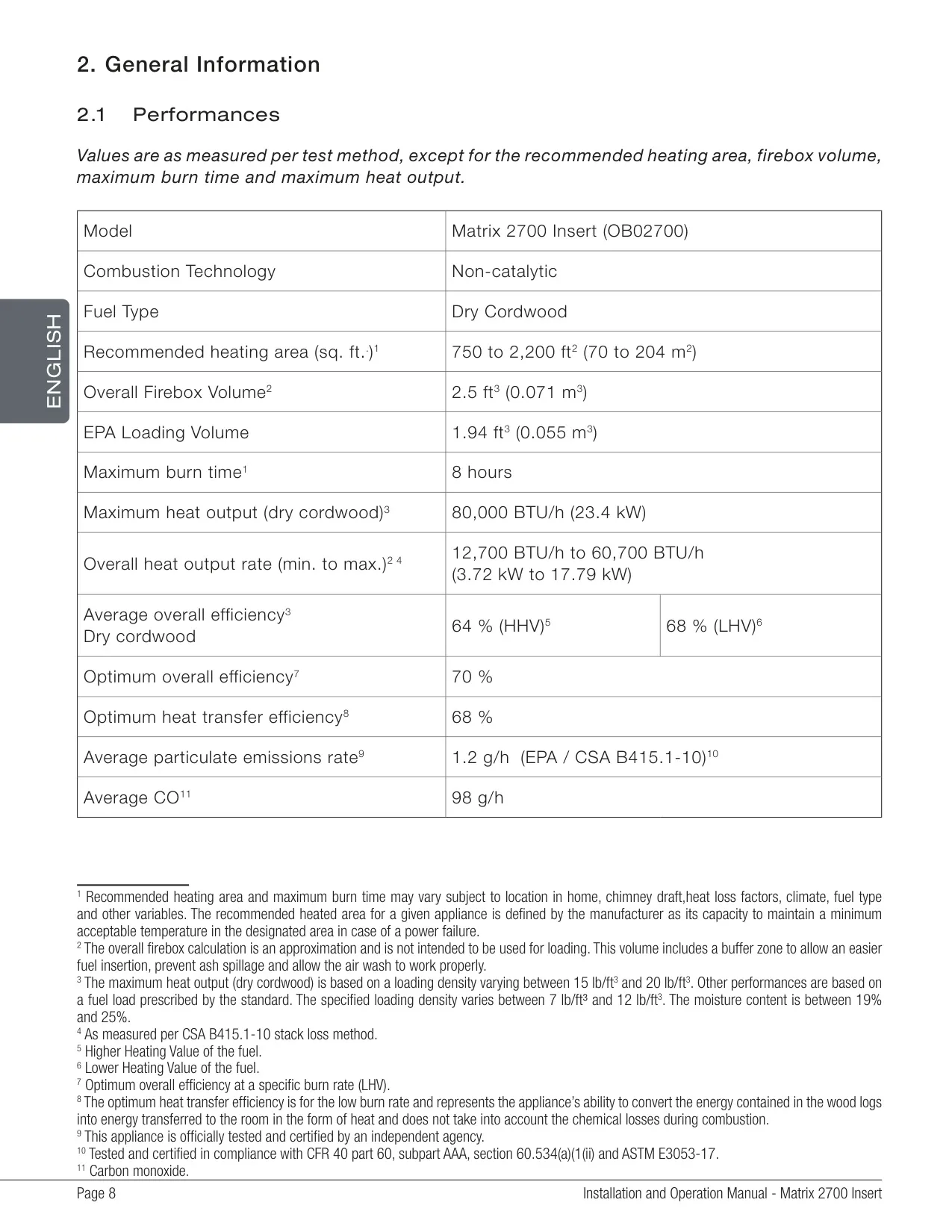

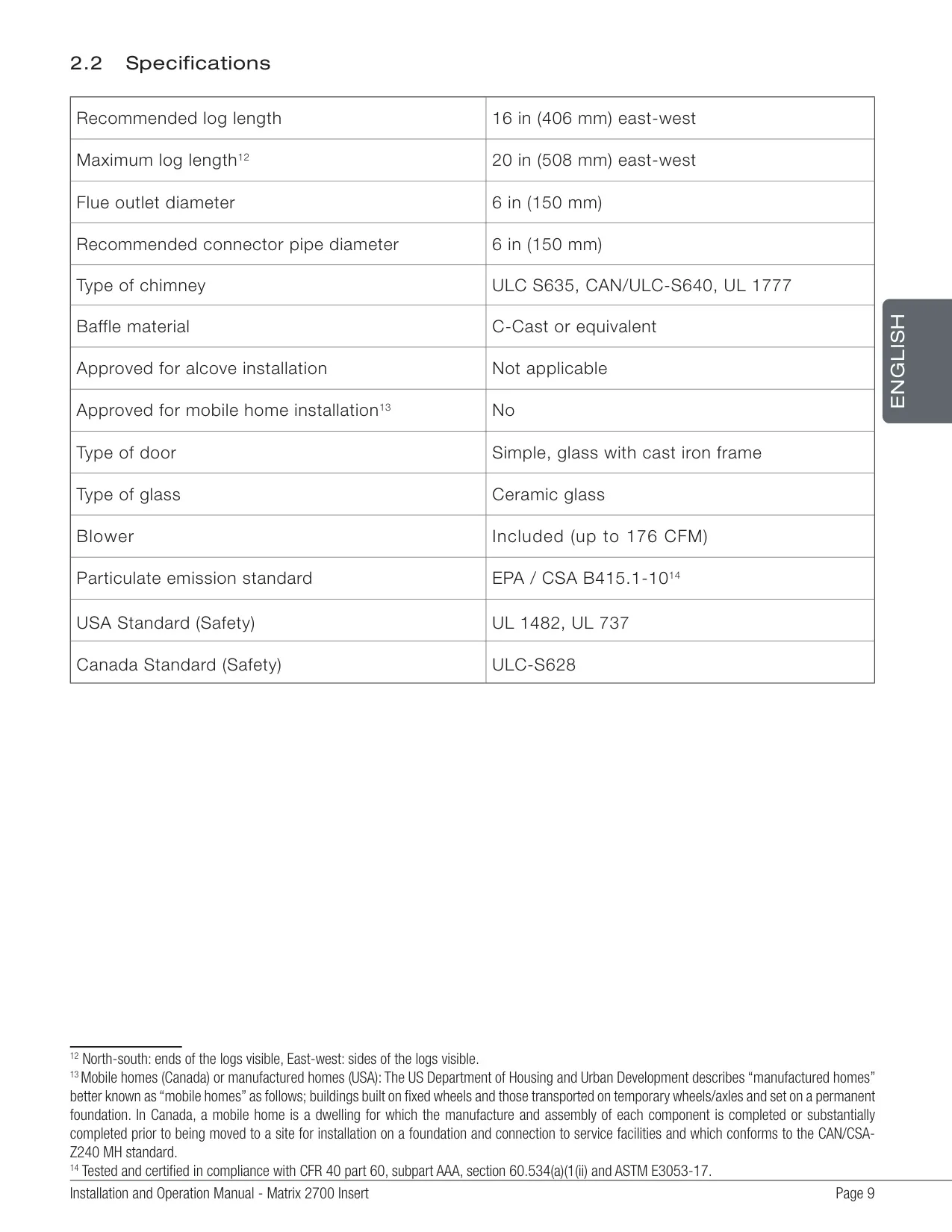

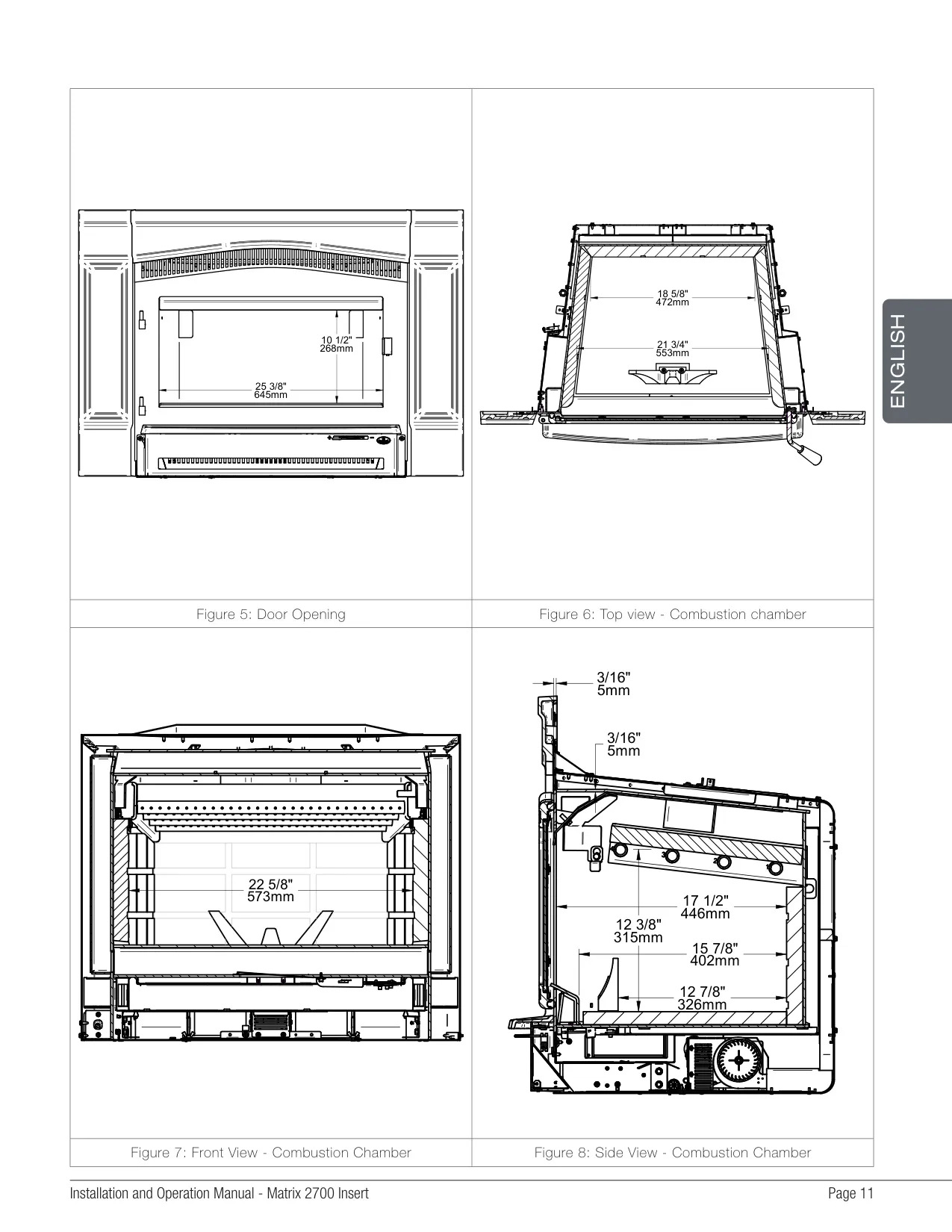

| Feature | Specification |
|---|---|
| Model | Matrix 2700 Insert (OB02700) |
| Combustion Technology | Non-catalytic |
| Fuel Type | Dry Cordwood |
| Recommended Heating Area | 750 to 2,200 sq. ft. (70 to 204 m²) |
| Overall Firebox Volume | 2.5 ft³ (0.071 m³) |
| EPA Loading Volume | 1.94 ft³ (0.055 m³) |
| Maximum Burn Time | 8 hours |
| Maximum Heat Output (dry cordwood) | 80,000 BTU/h (23.4 kW) |
| Overall Heat Output Rate (min. to max.) | 12,700 BTU/h to 60,700 BTU/h (3.72 kW to 17.79 kW) |
| Average Overall Efficiency (Dry cordwood) | 64% (HHV) / 68% (LHV) |
| Optimum Overall Efficiency | 70% |
| Optimum Heat Transfer Efficiency | 68% |
| Average Particulate Emissions Rate | 1.2 g/h (EPA / CSA B415.1-10) |
| Average CO | 98 g/h |
| Recommended Log Length | 16 in (406 mm) east-west |
| Maximum Log Length | 20 in (508 mm) east-west |
| Flue Outlet Diameter | 6 in (150 mm) |
| Recommended Connector Pipe Diameter | 6 in (150 mm) |
| Type of Chimney | ULC S635, CAN/ULC-S640, UL 1777 |
| Baffle Material | C-Cast or equivalent |
| Approved for Alcove Installation | Not applicable |
| Approved for Mobile Home Installation | No |
| Type of Door | Simple, glass with cast iron frame |
| Type of Glass | Ceramic glass (5/32" or 4mm thick) |
| Blower | Included (up to 176 CFM) |
| Particulate Emission Standard | EPA / CSA B415.1-10 |
| USA Safety Standard | UL 1482, UL 737 |
| Canada Safety Standard | ULC-S628 |
Osburn Matrix 2700 Chimney Details

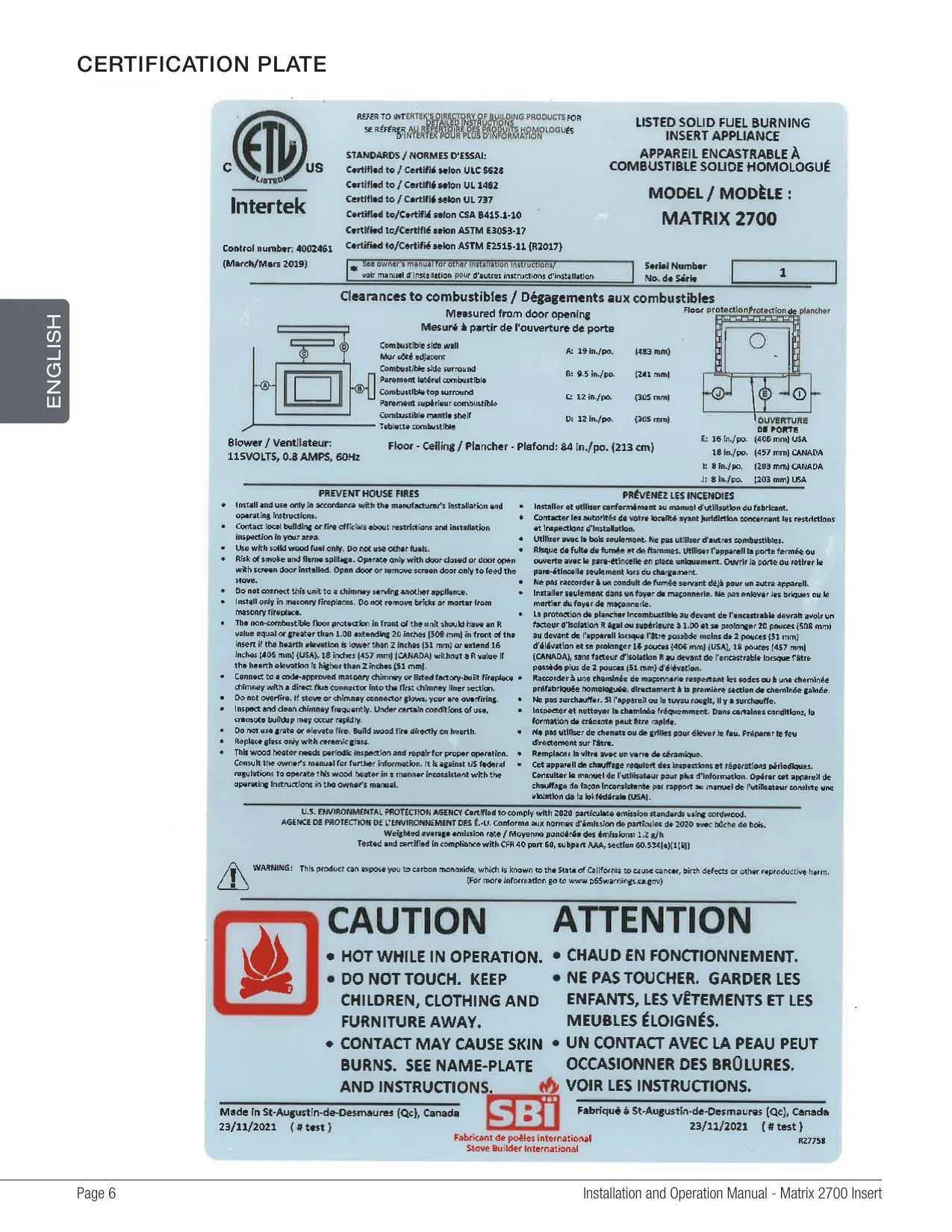

The Osburn Matrix 2700 Insert is a highly certified wood-burning appliance, meeting stringent safety standards including ULC S628, UL 1482, and UL 737. It is also a US Environmental Protection Agency (EPA) Phase II certified wood insert, compliant with the 2020 cord wood standard, reflecting its commitment to reduced emissions.

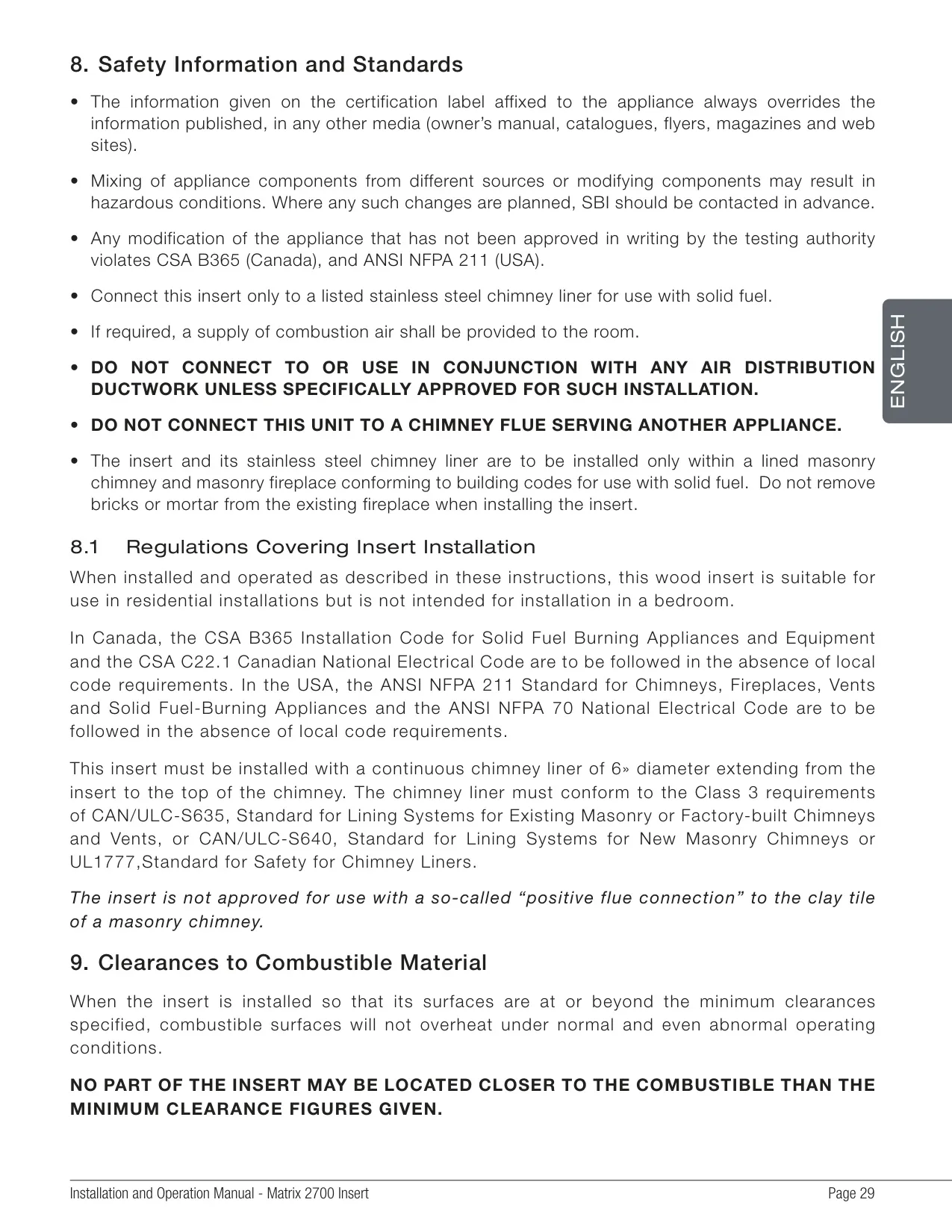

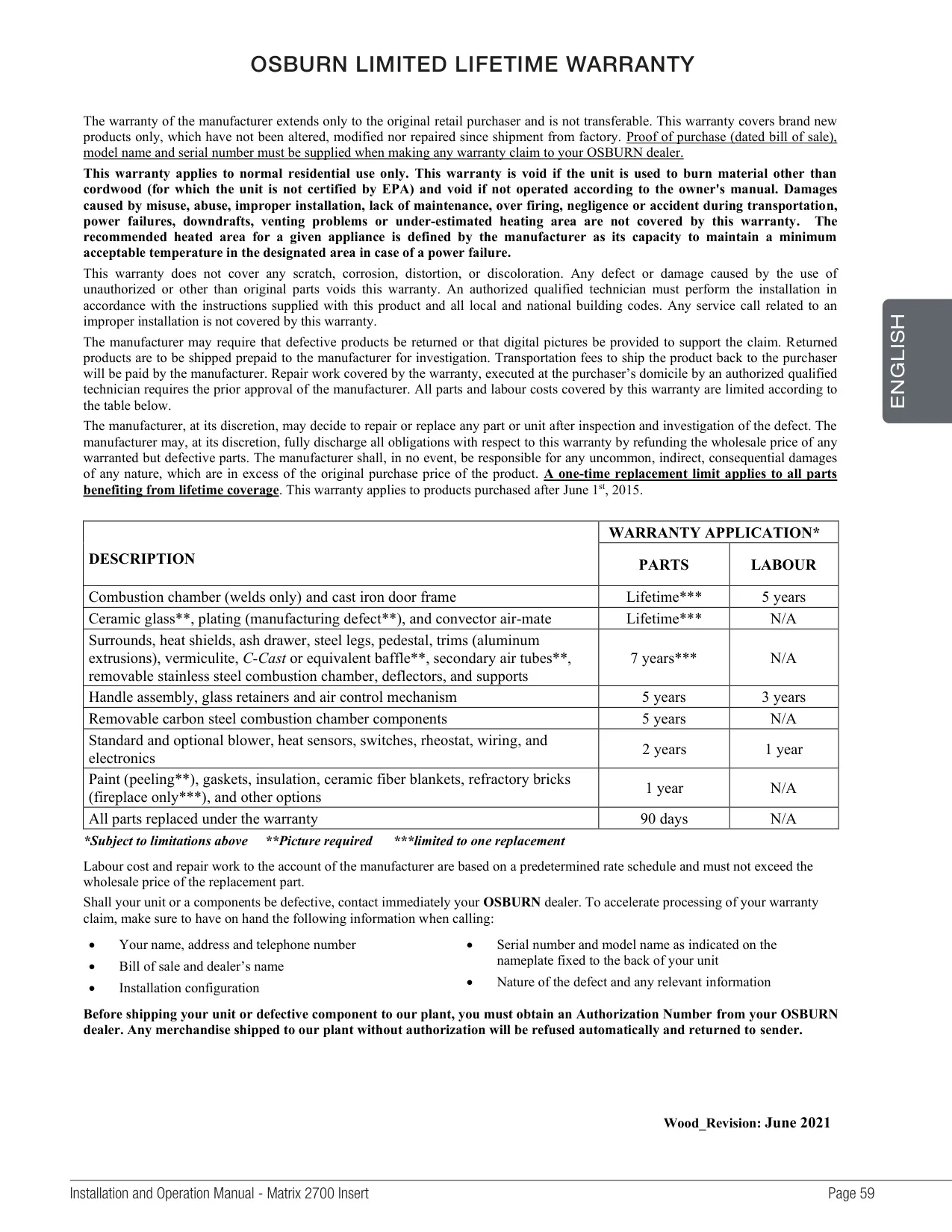

Manufactured by Stove Builder International (SBI), a reputable North American company, this insert is designed for quality and performance. Installation by NFI, CSIA (USA), or WETT, APC (Canada/Quebec) certified professionals is strongly recommended to ensure safety and compliance with local building codes, which may include obtaining permits.

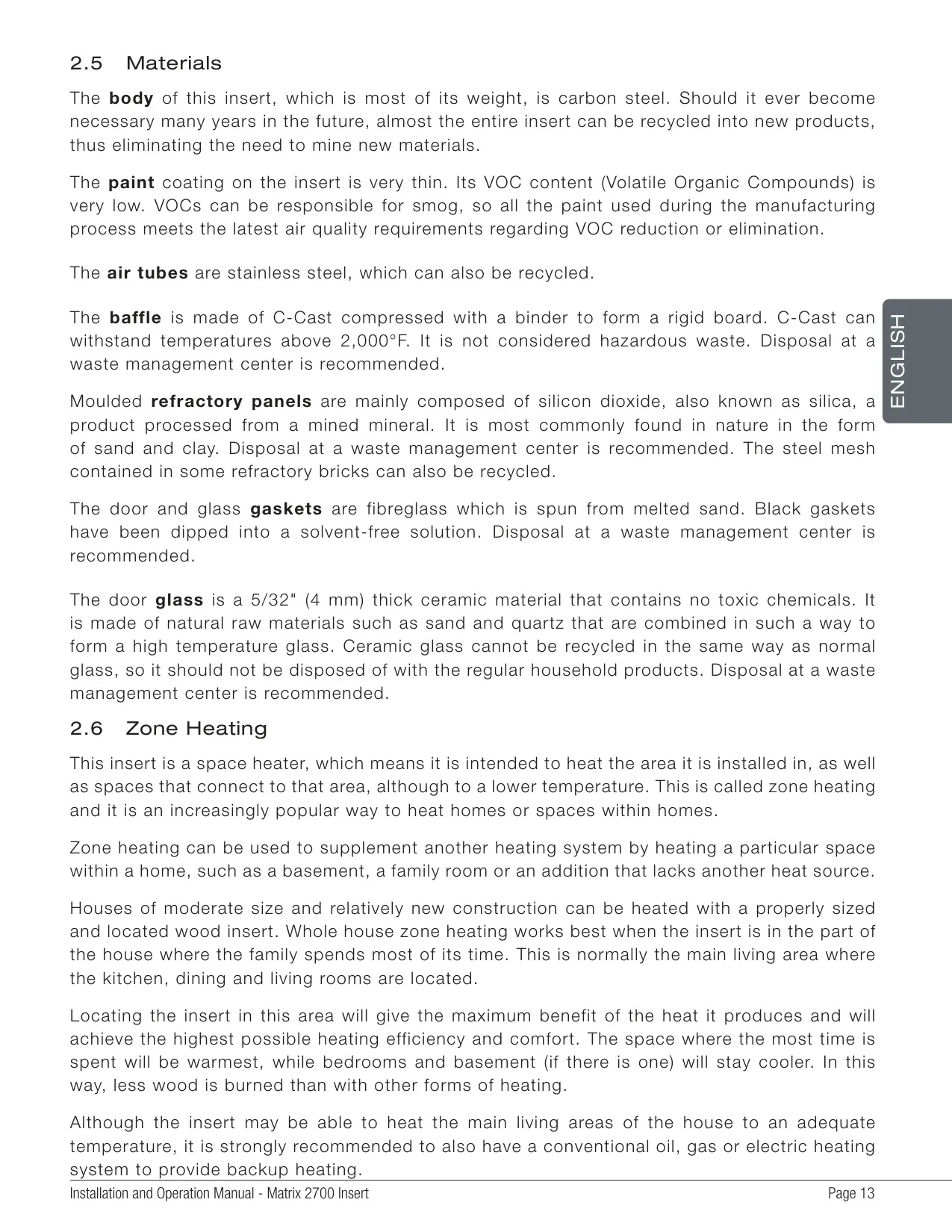

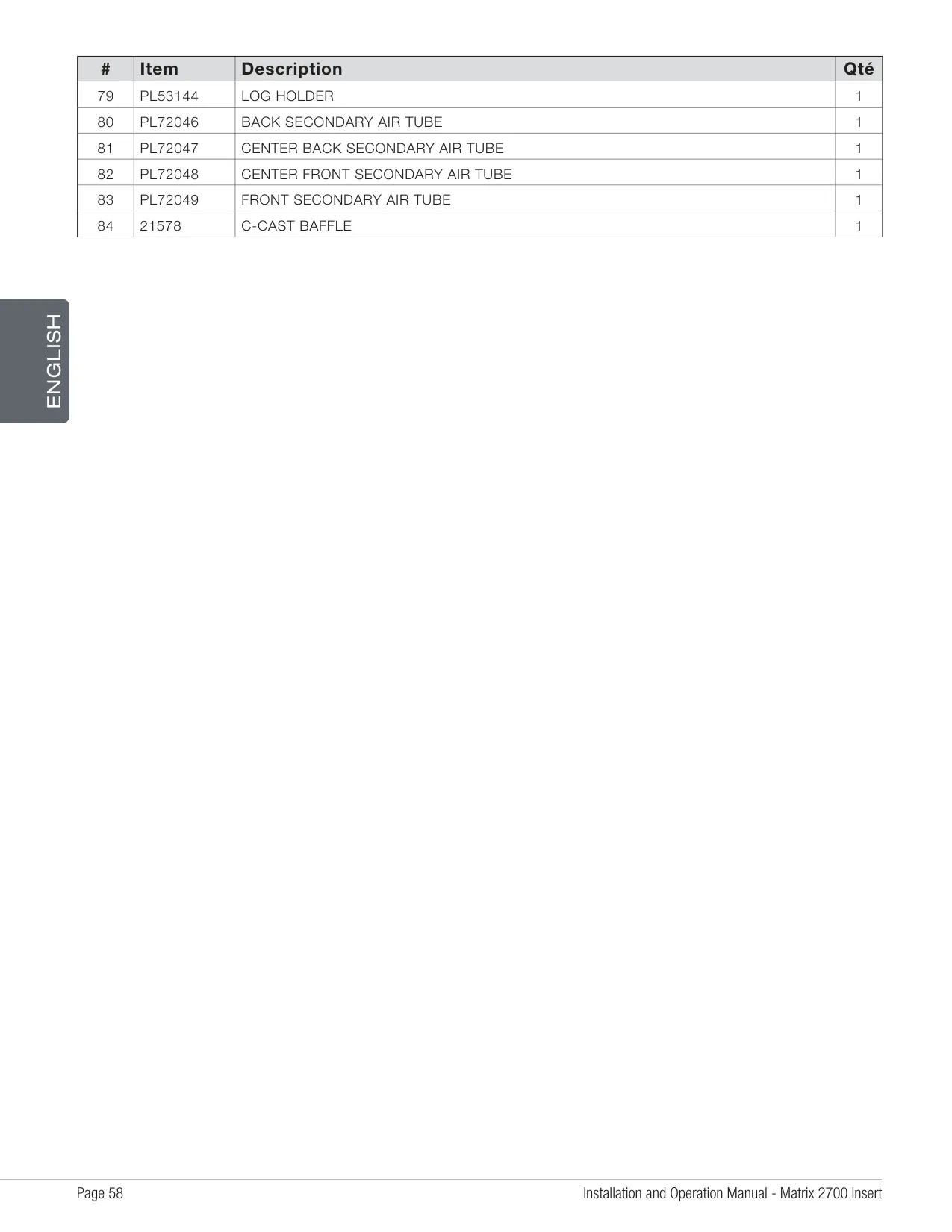

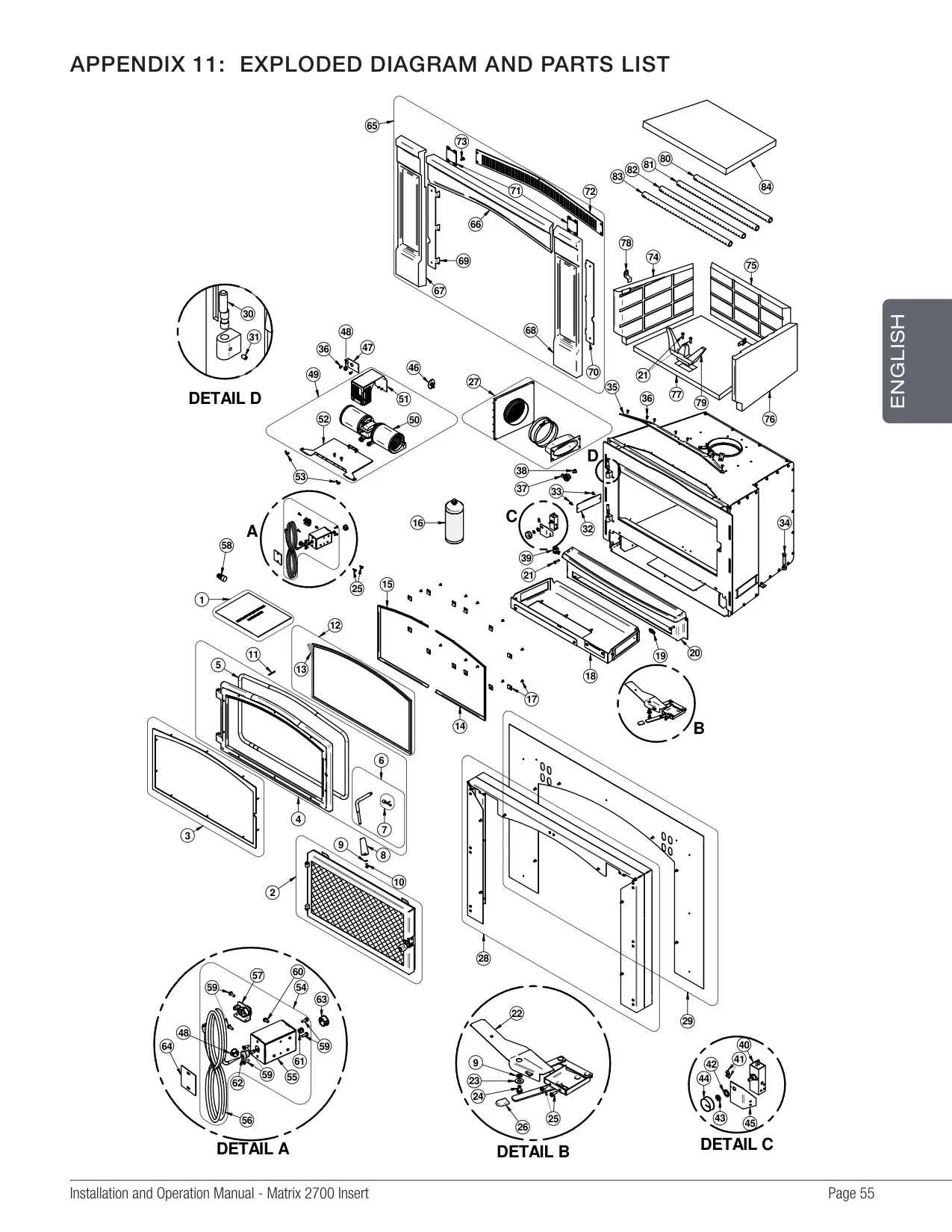

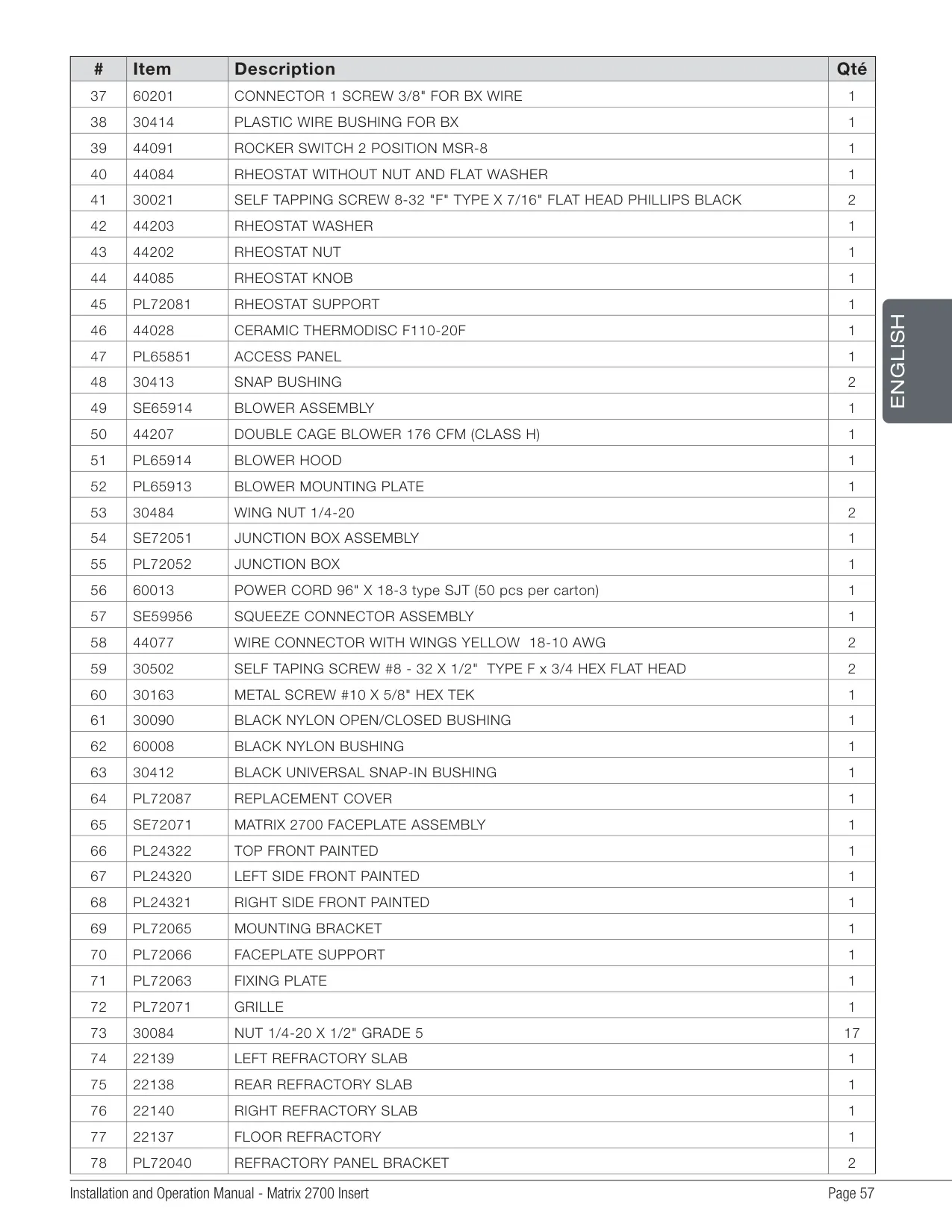

The unit features a robust construction, primarily from recyclable carbon steel, with stainless steel air tubes and a C-Cast baffle. Its low VOC paint minimizes environmental impact during manufacturing. The ceramic glass door is 5/32" thick, designed to withstand high temperatures, though it cannot be recycled with standard household glass.
Designed for 'zone heating,' the Matrix 2700 efficiently warms the area it's installed in and adjacent spaces. This method allows homeowners to maintain comfortable temperatures in active areas while potentially keeping other rooms cooler, thus optimizing wood consumption. It's important to remember this unit is intended as a supplementary heat source, with a primary alternative available.

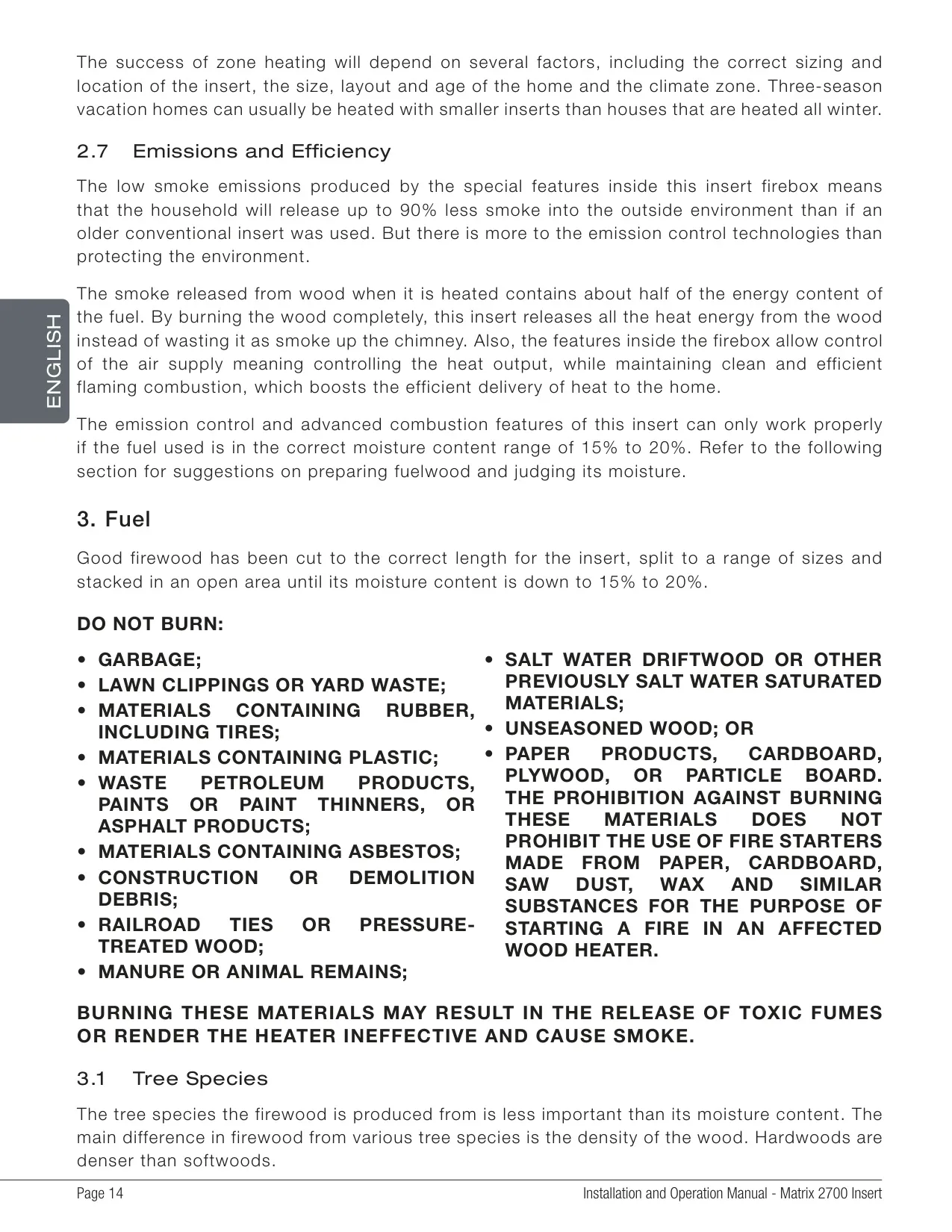

This wood insert is engineered for high efficiency, achieving complete wood combustion that releases maximum heat energy while producing significantly less smoke compared to older models. Achieving optimal efficiency and low emissions largely depends on using dry, seasoned firewood with a moisture content between 15% and 20%.

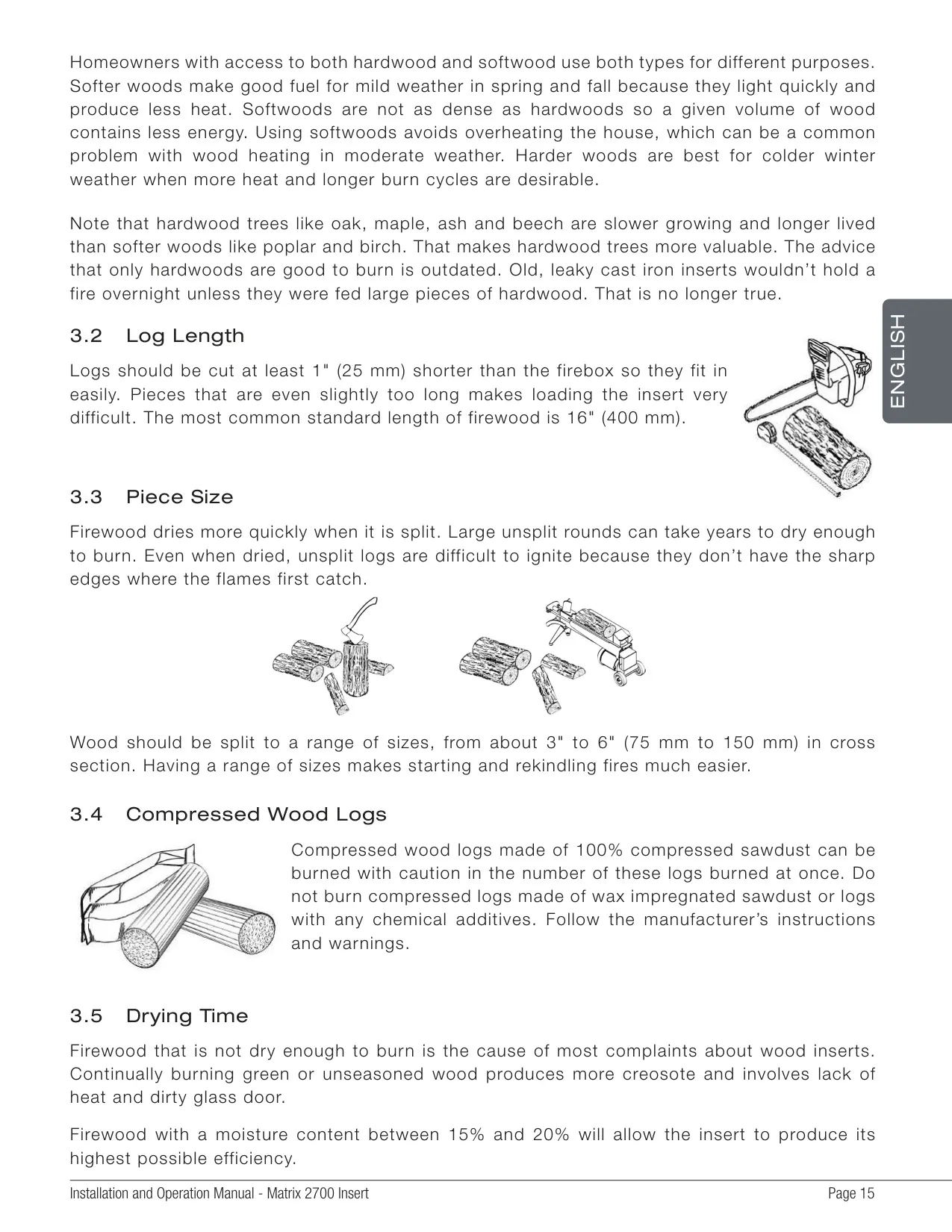

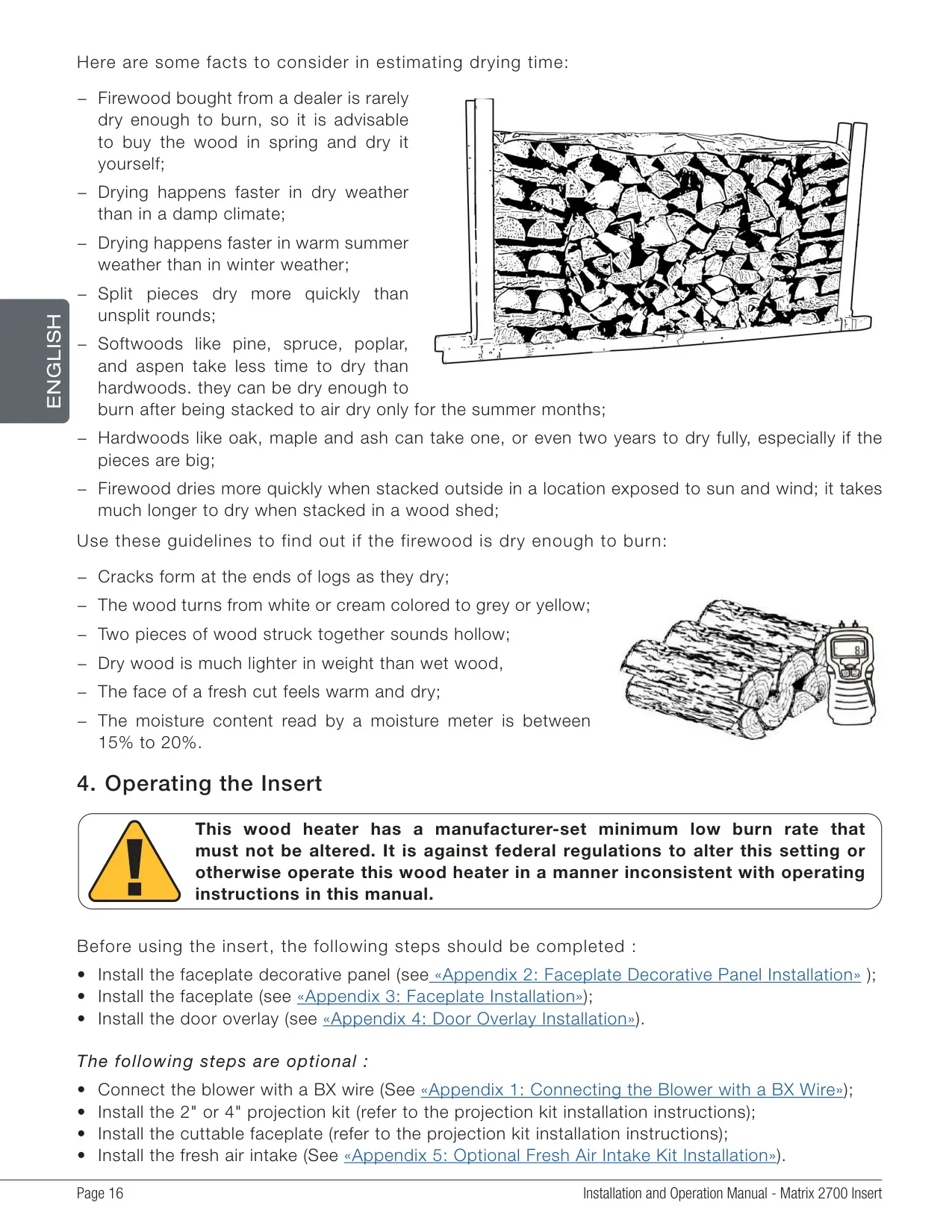

The manual strictly prohibits burning various materials, including garbage, plastics, treated wood, and accelerants, as these can release toxic fumes or damage the unit. Proper fuel preparation, including splitting logs to various sizes, is emphasized for quicker drying and ignition. Dry wood can be identified by cracks, color changes, a hollow sound, and reduced weight.

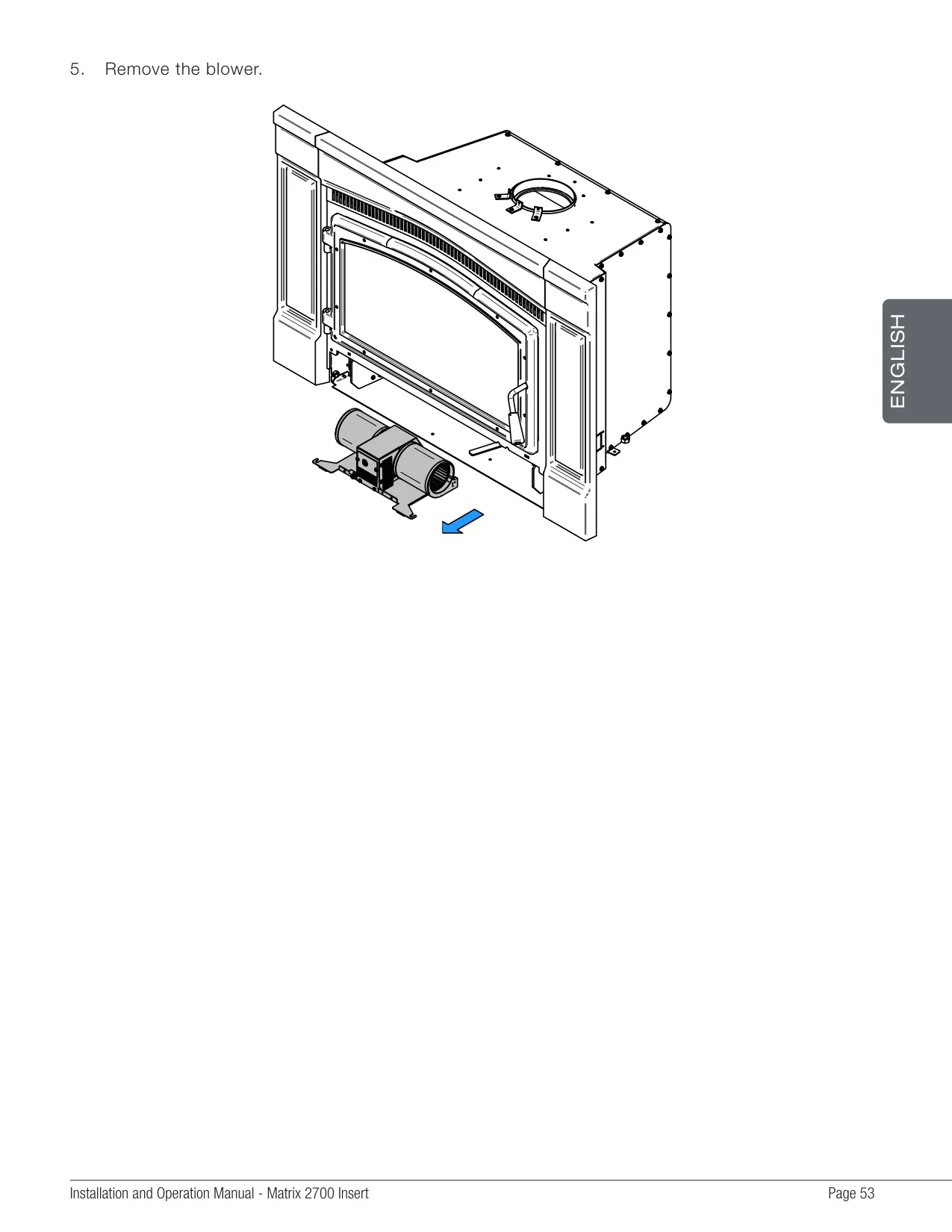

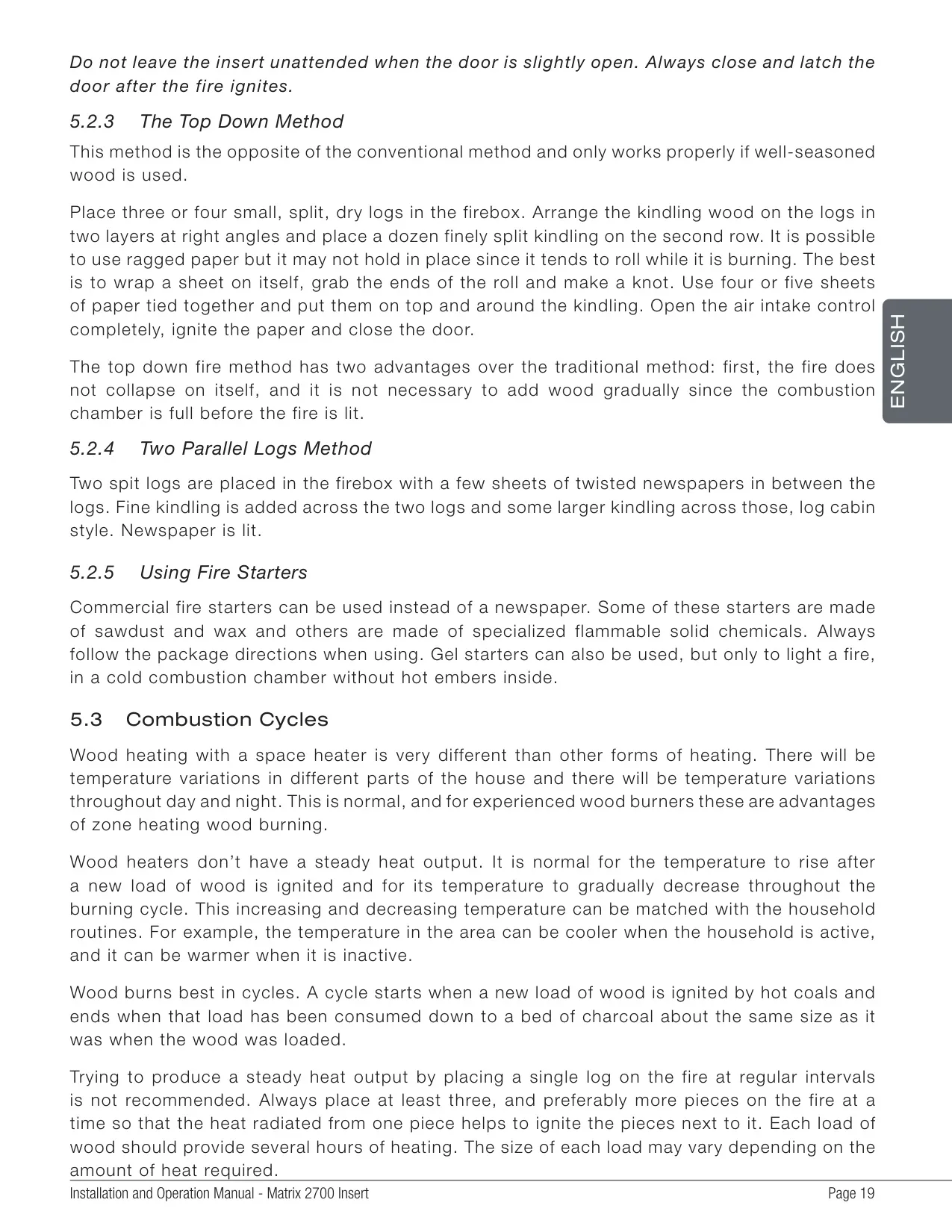

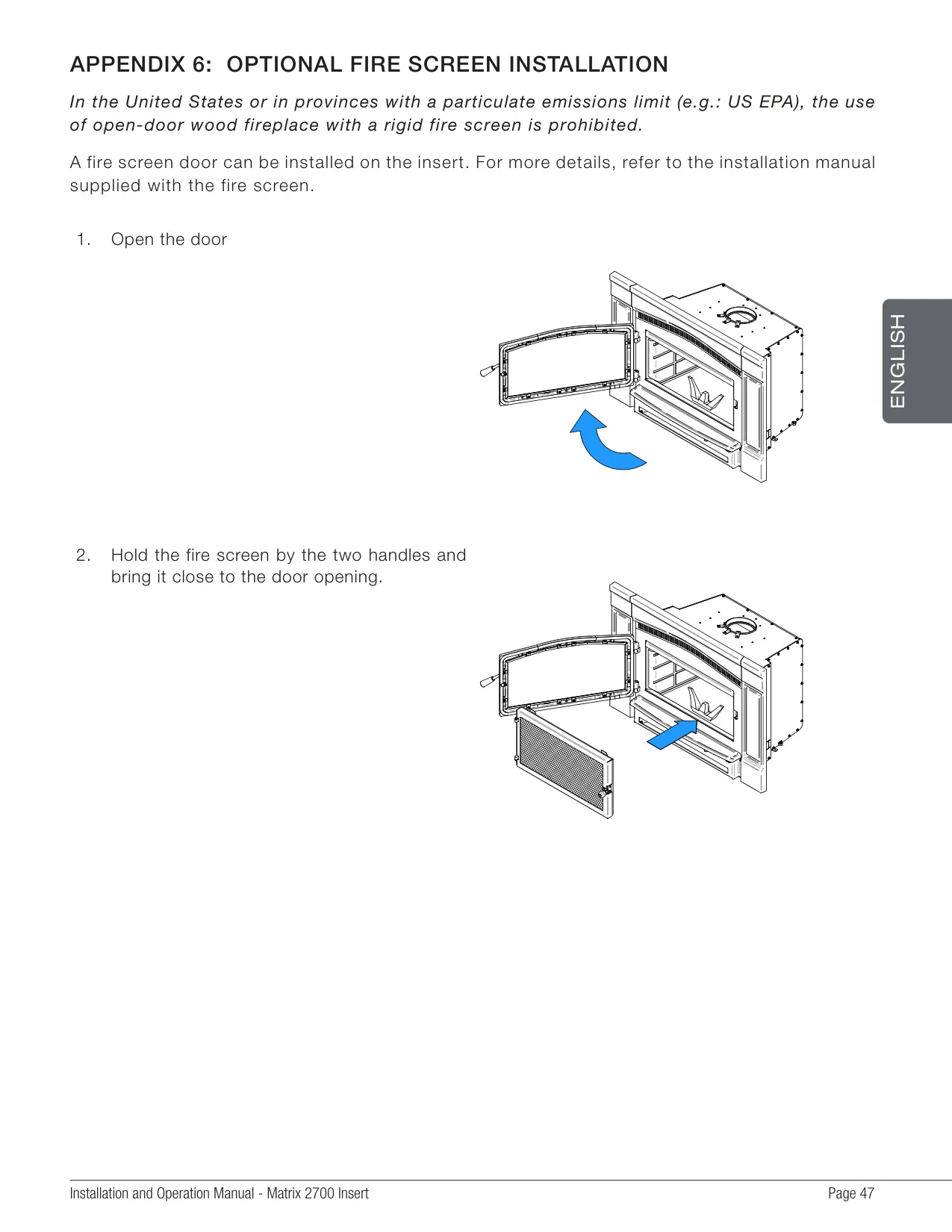

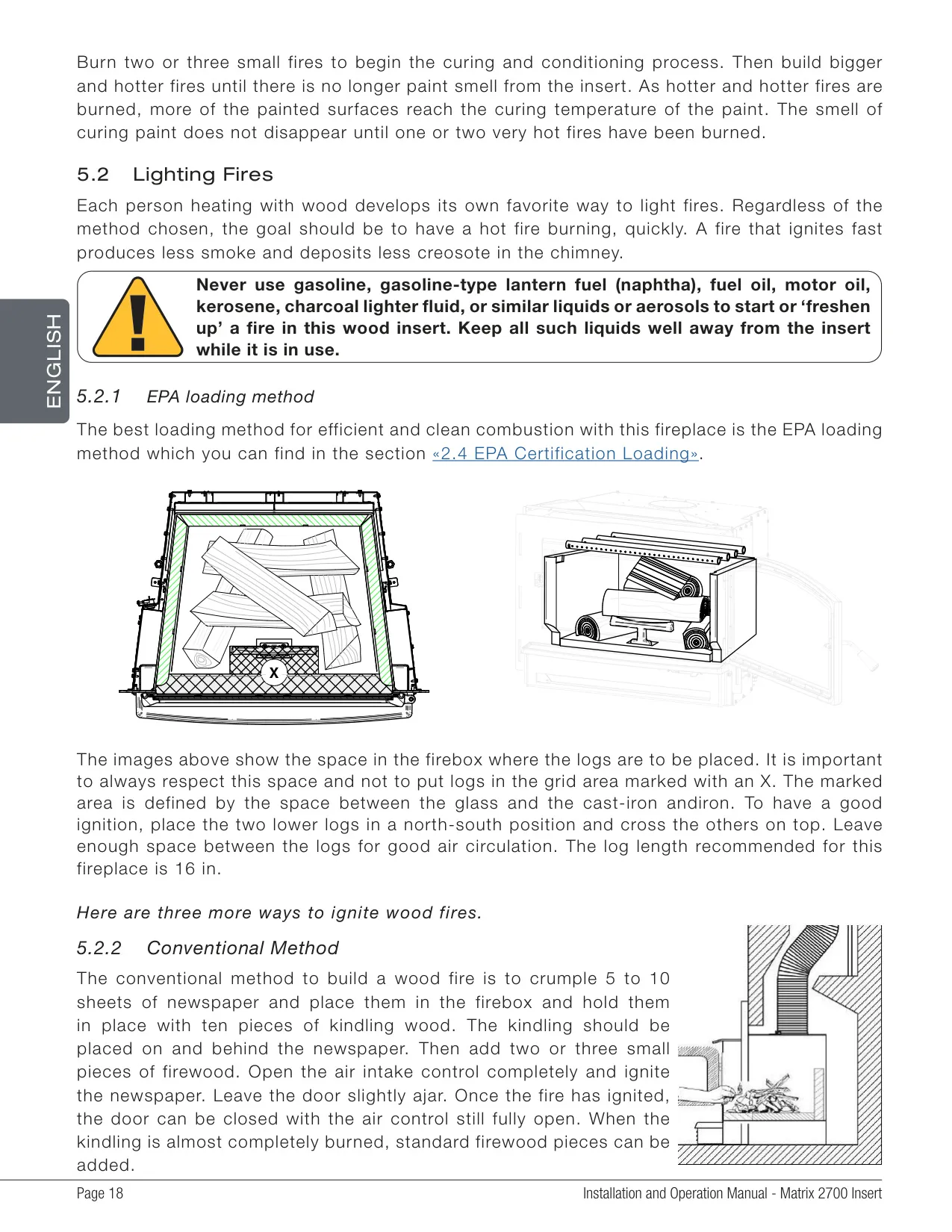

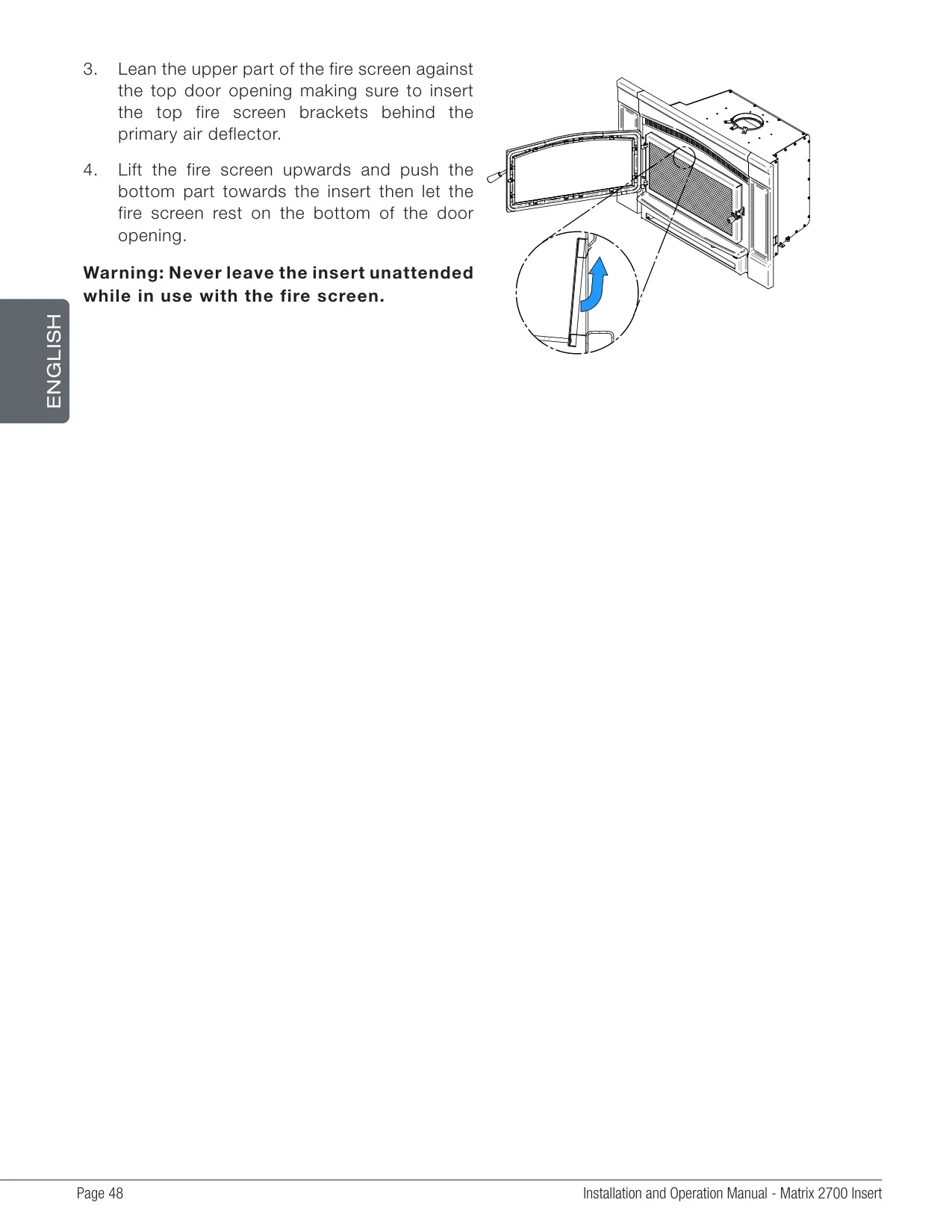

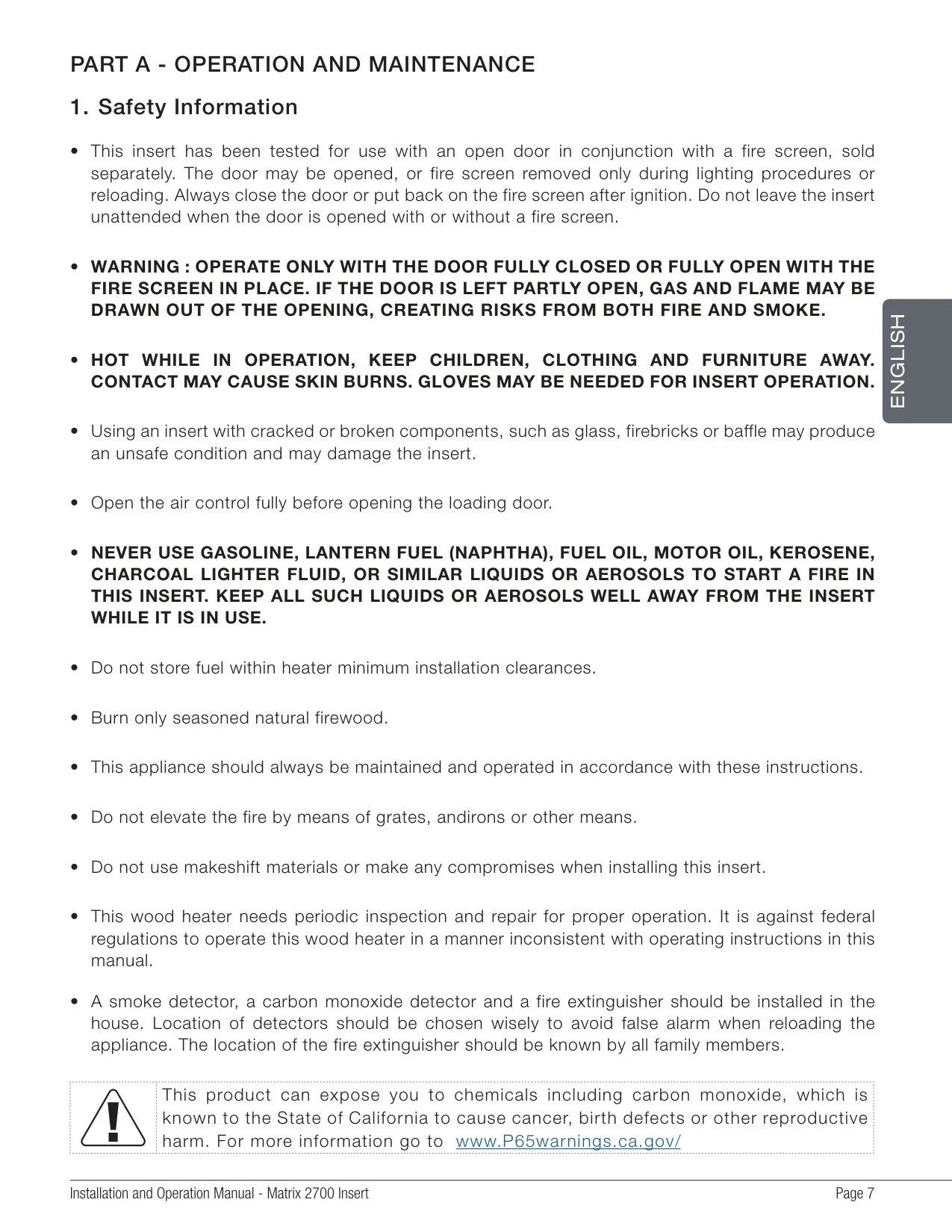

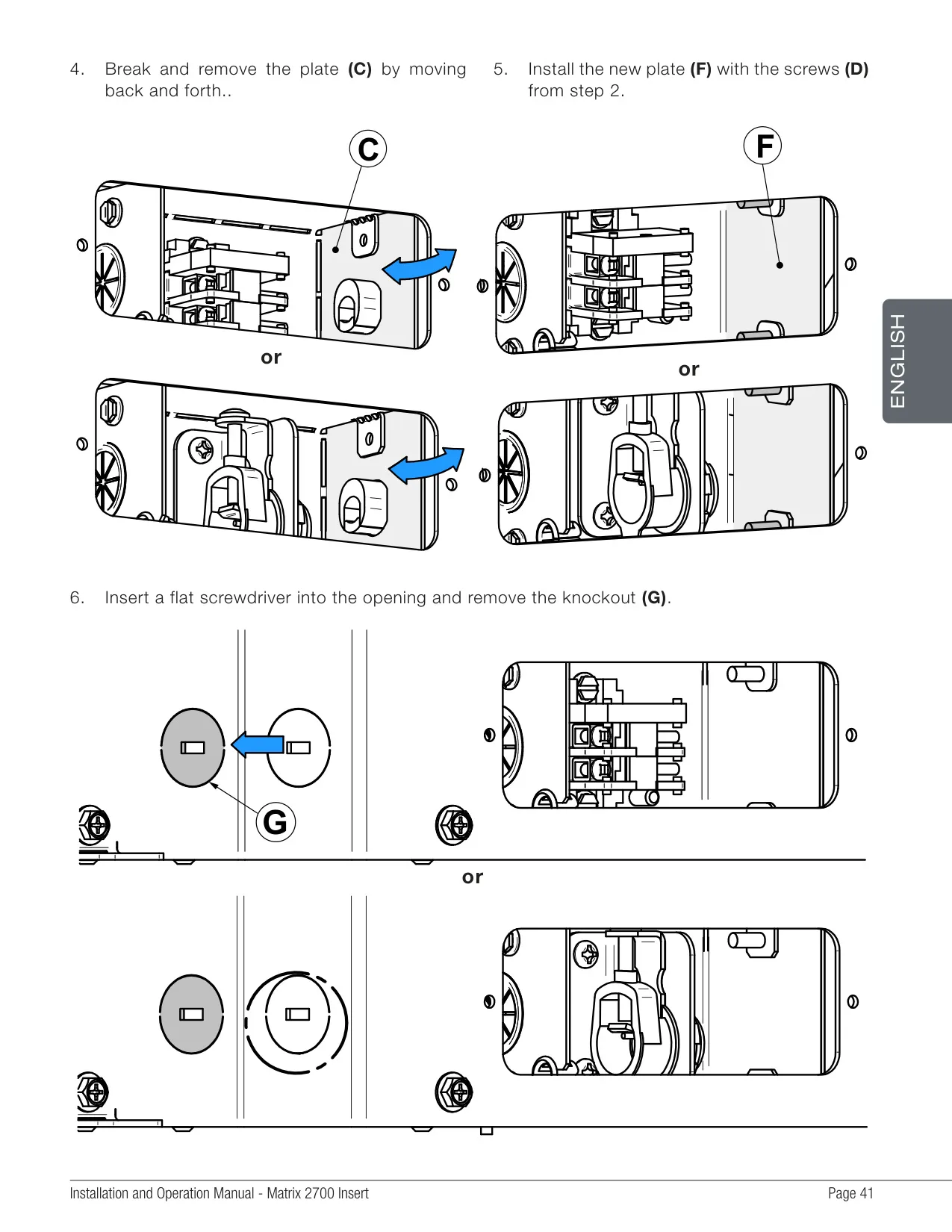

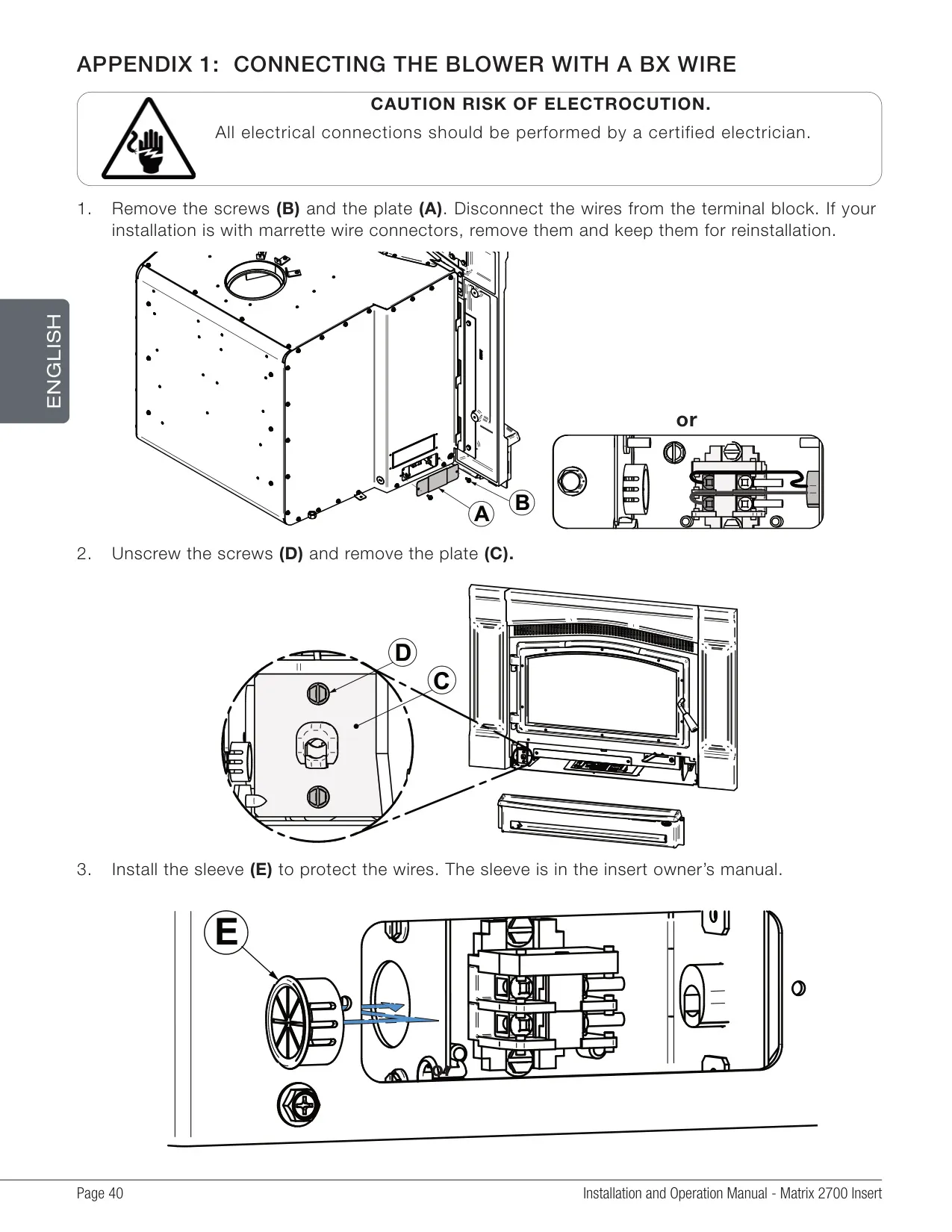

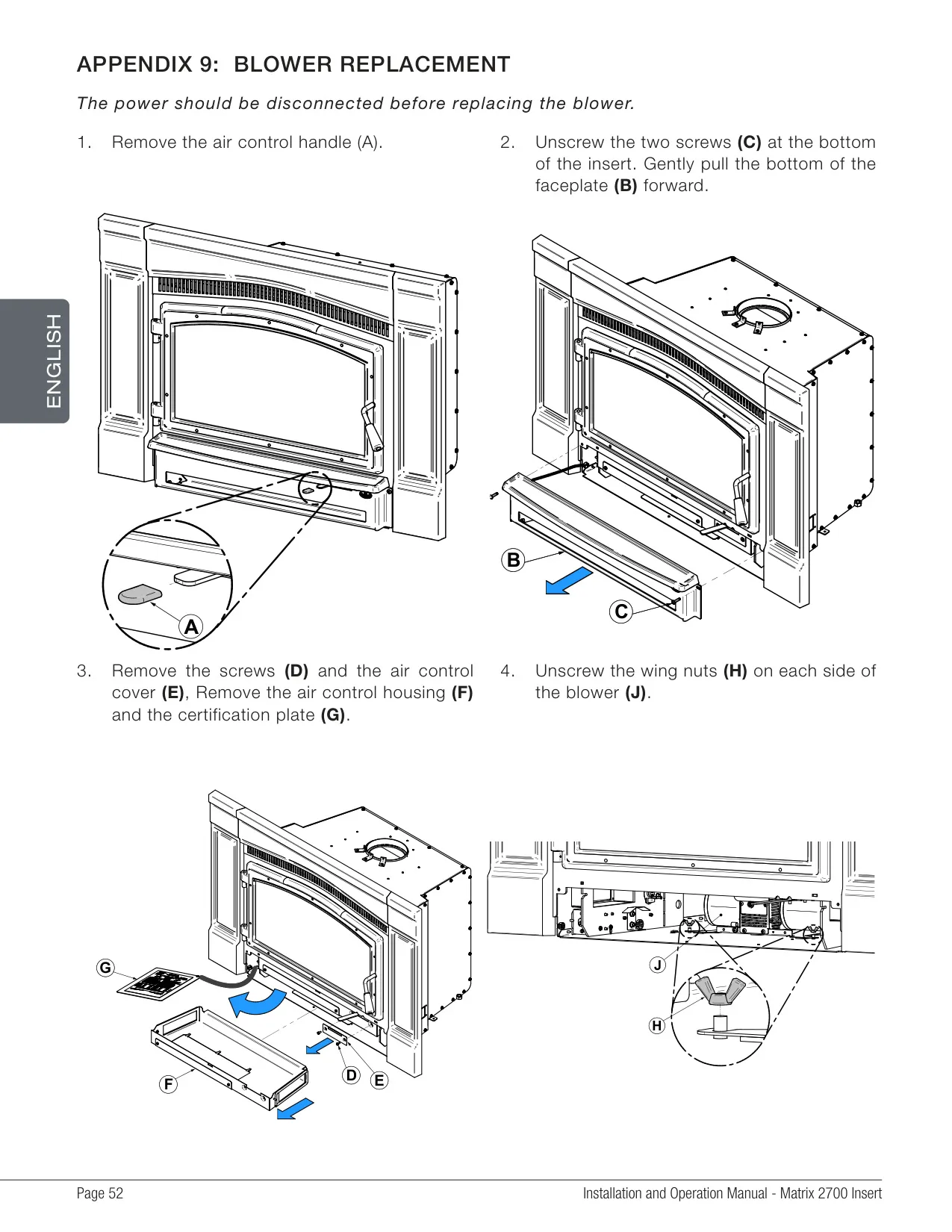

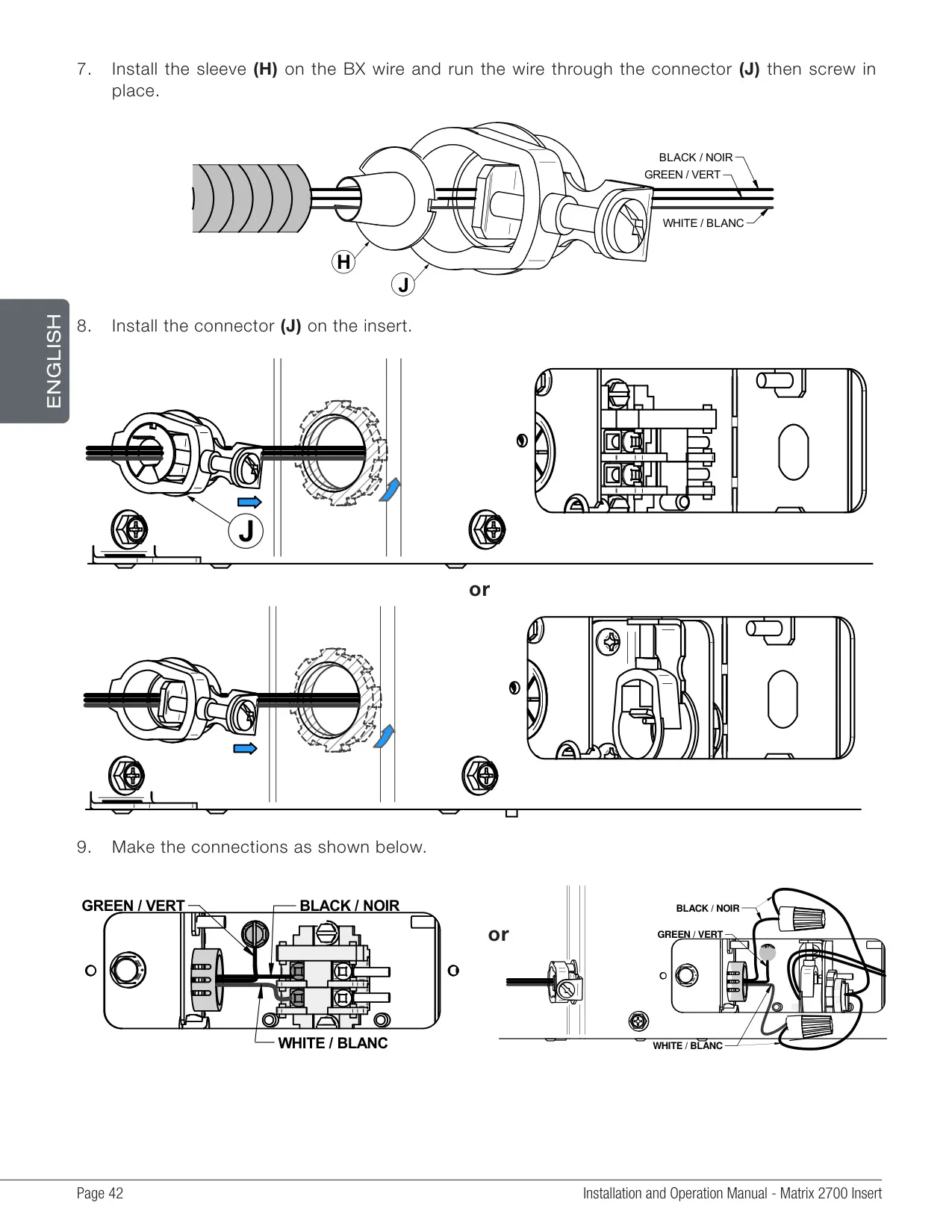

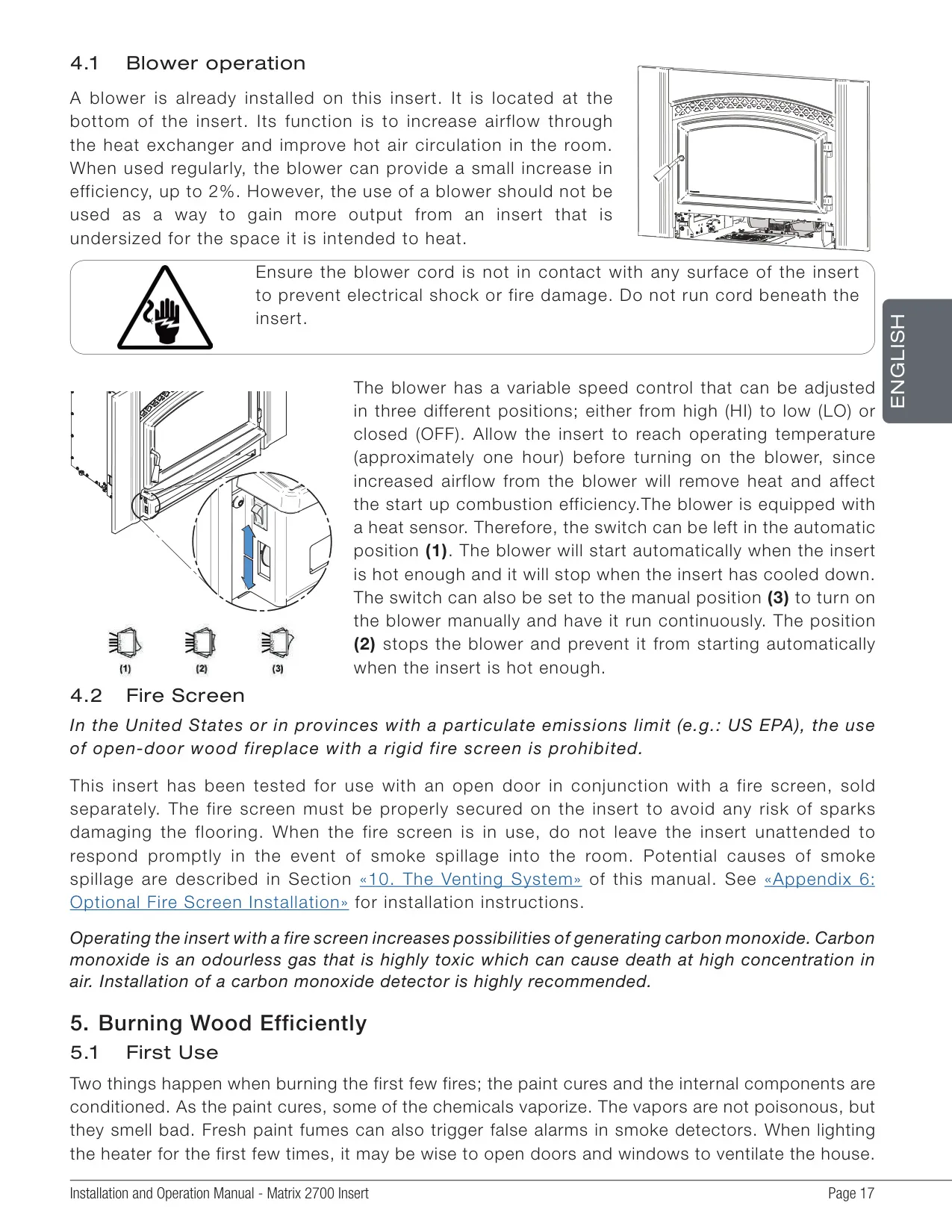

Operating the insert involves specific lighting methods to establish a hot fire quickly, minimizing smoke and creosote buildup. The included blower enhances heat circulation and can be operated manually or automatically via a heat sensor. For safety, the door must be fully closed during operation, or a fire screen (sold separately) used if regulations permit open-door burning.

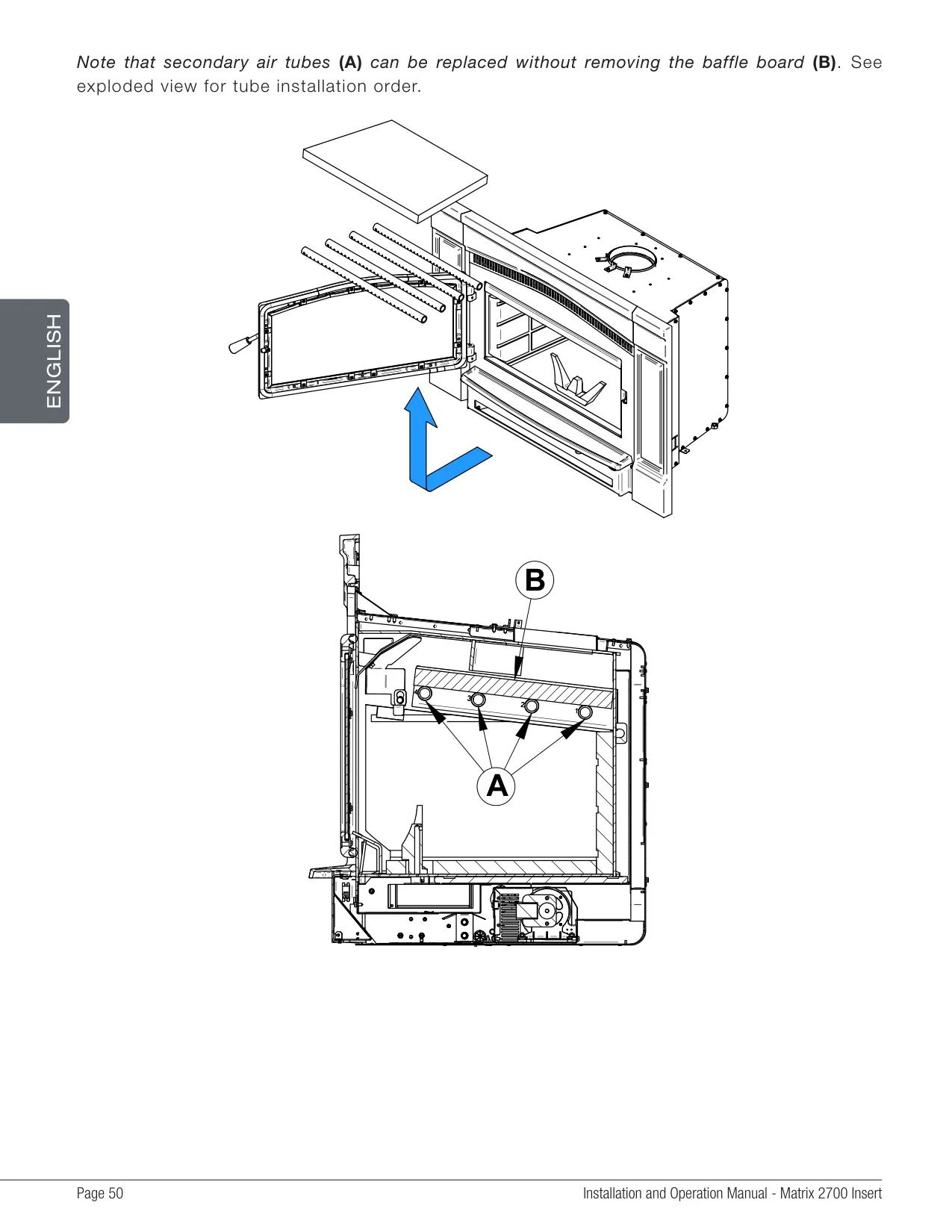

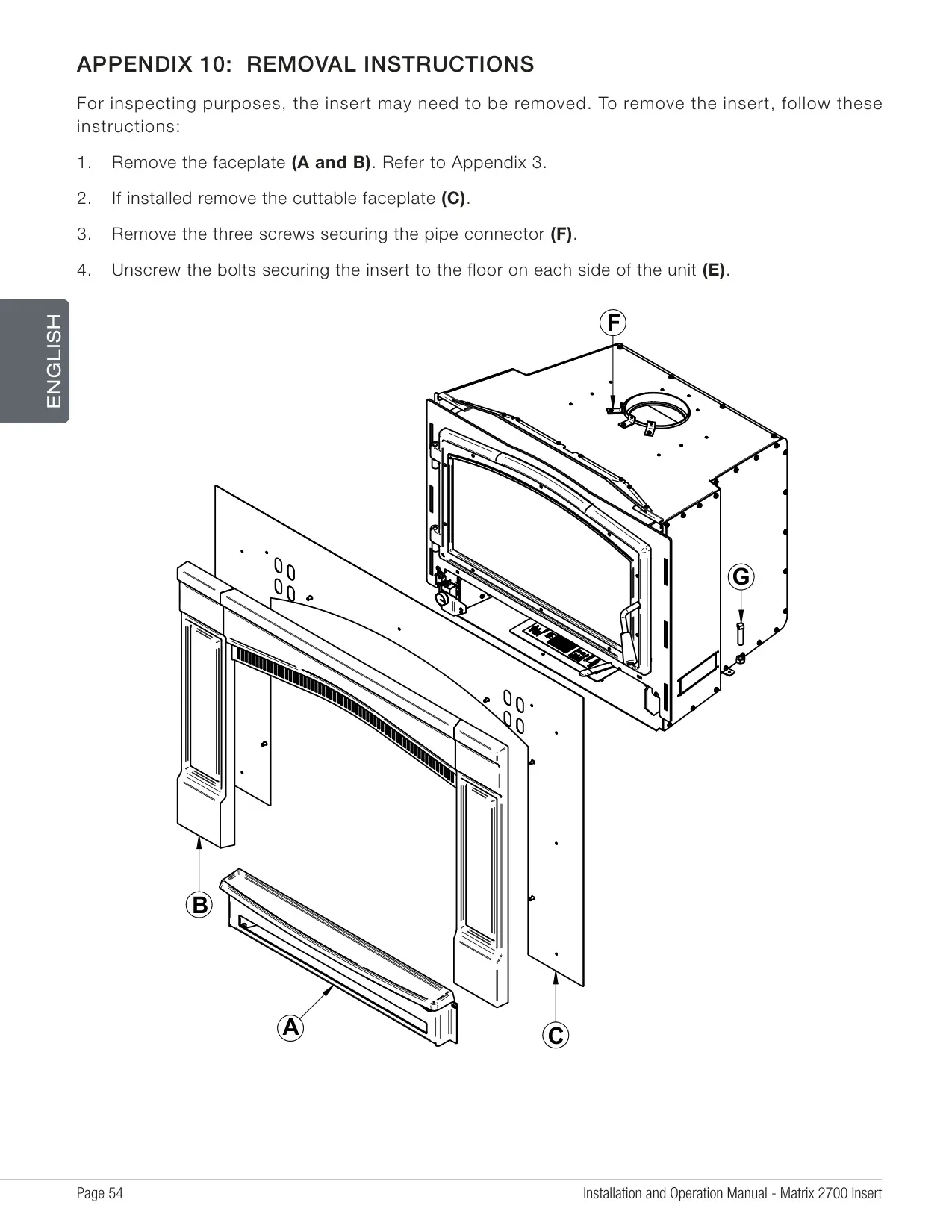

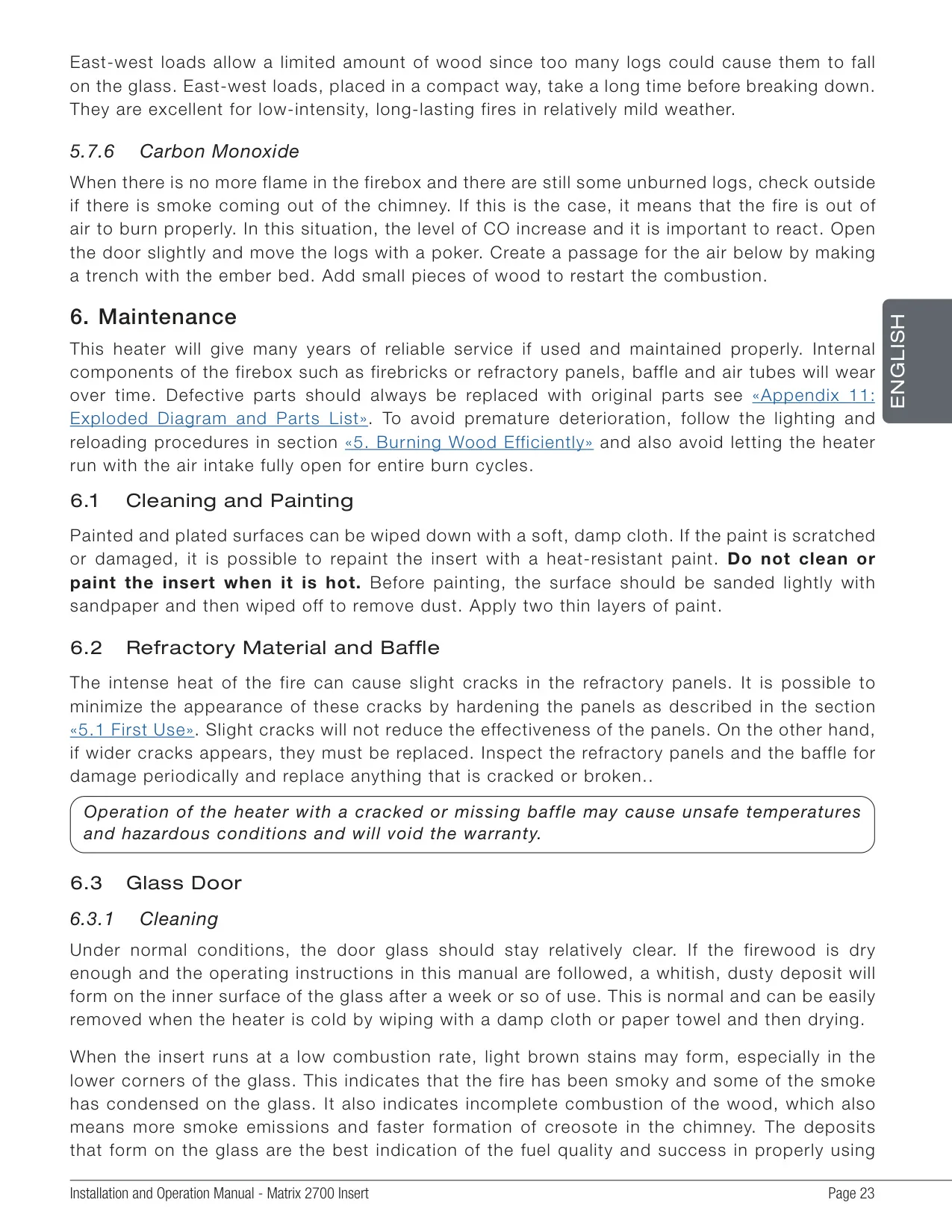

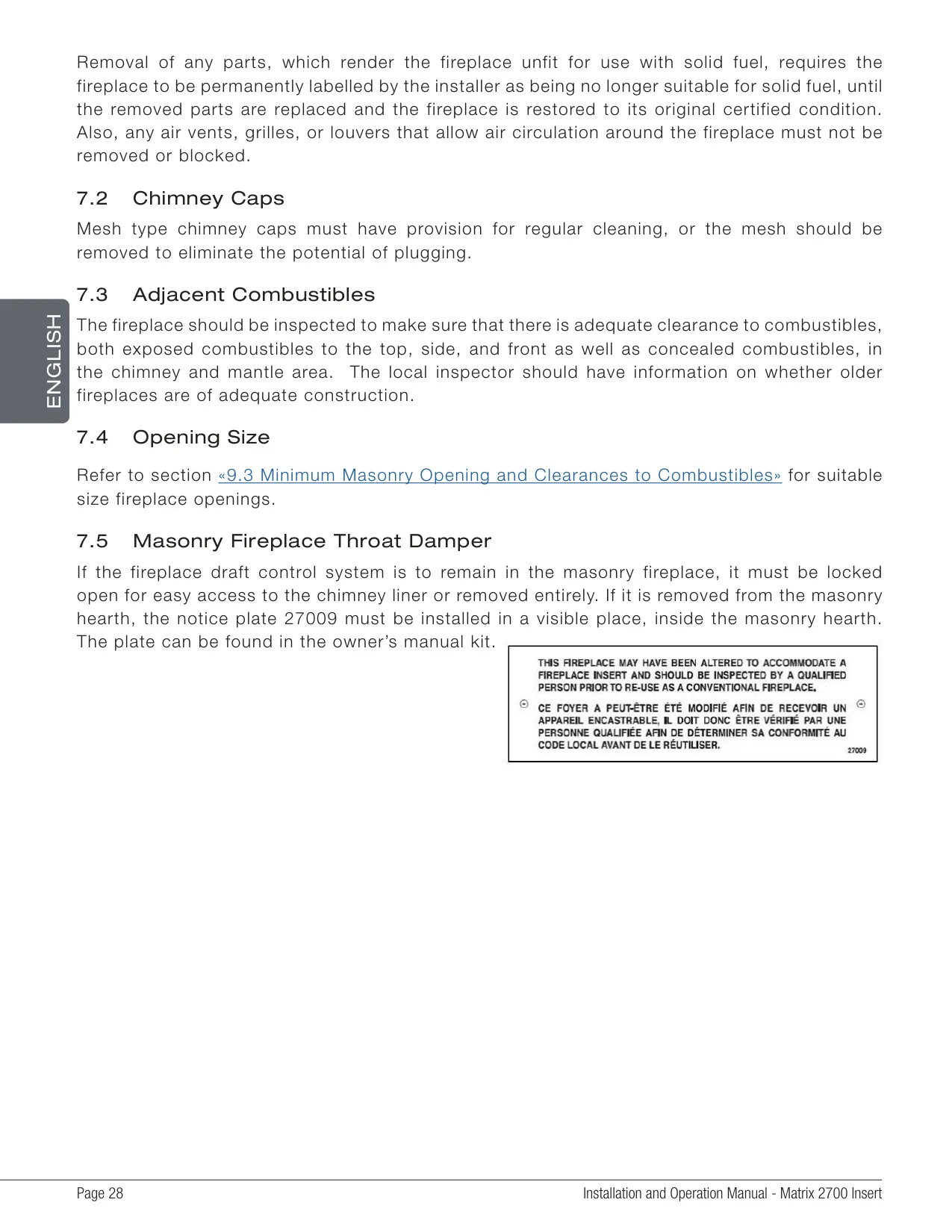

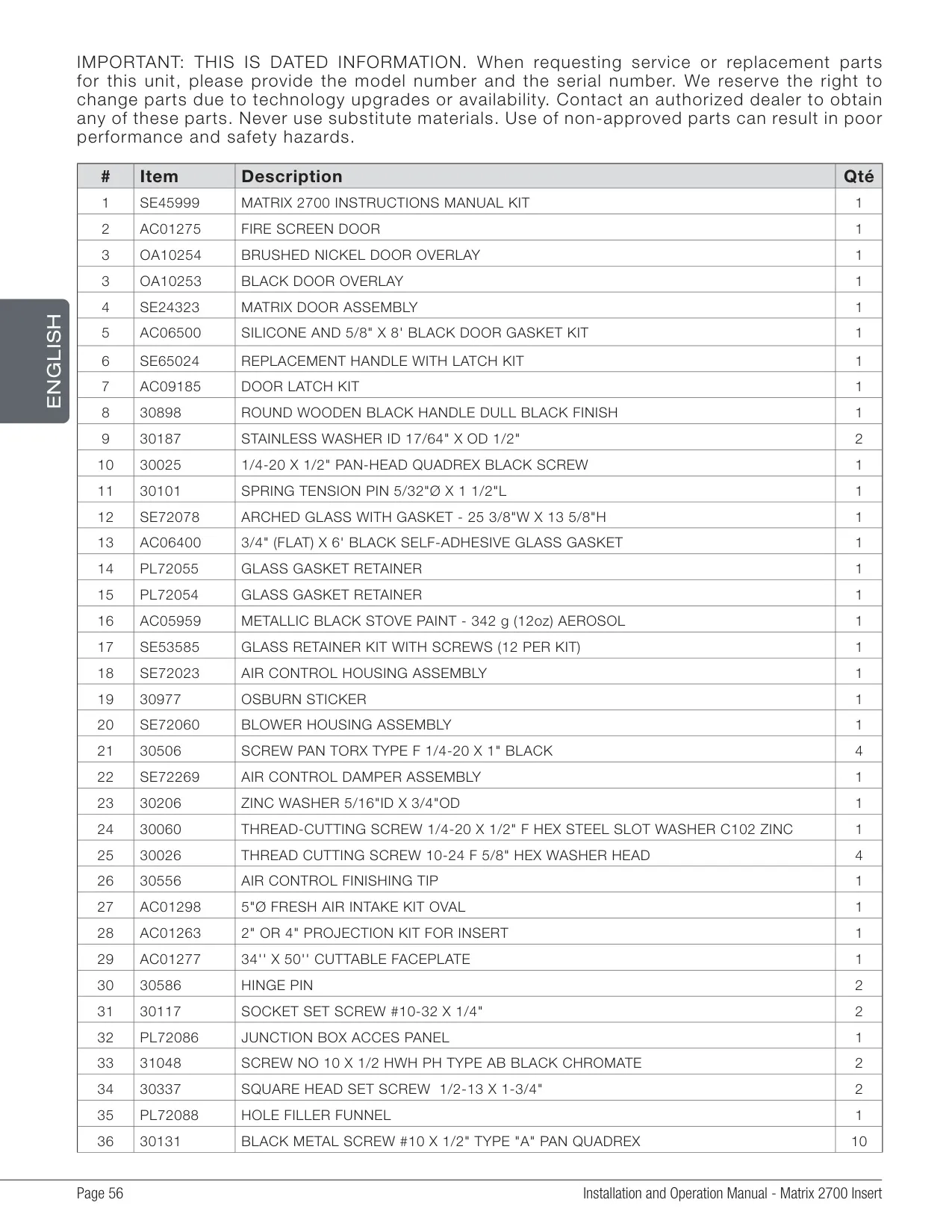

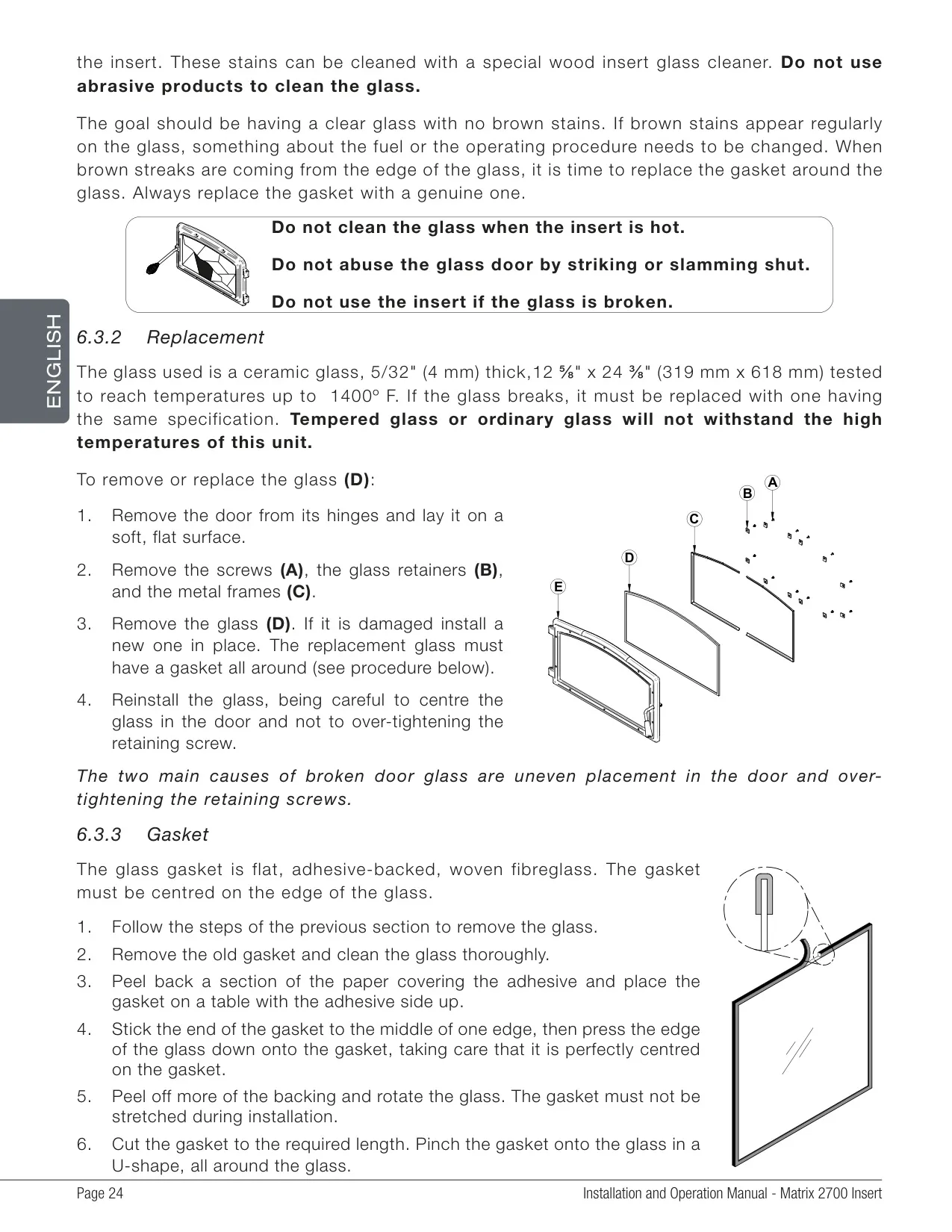

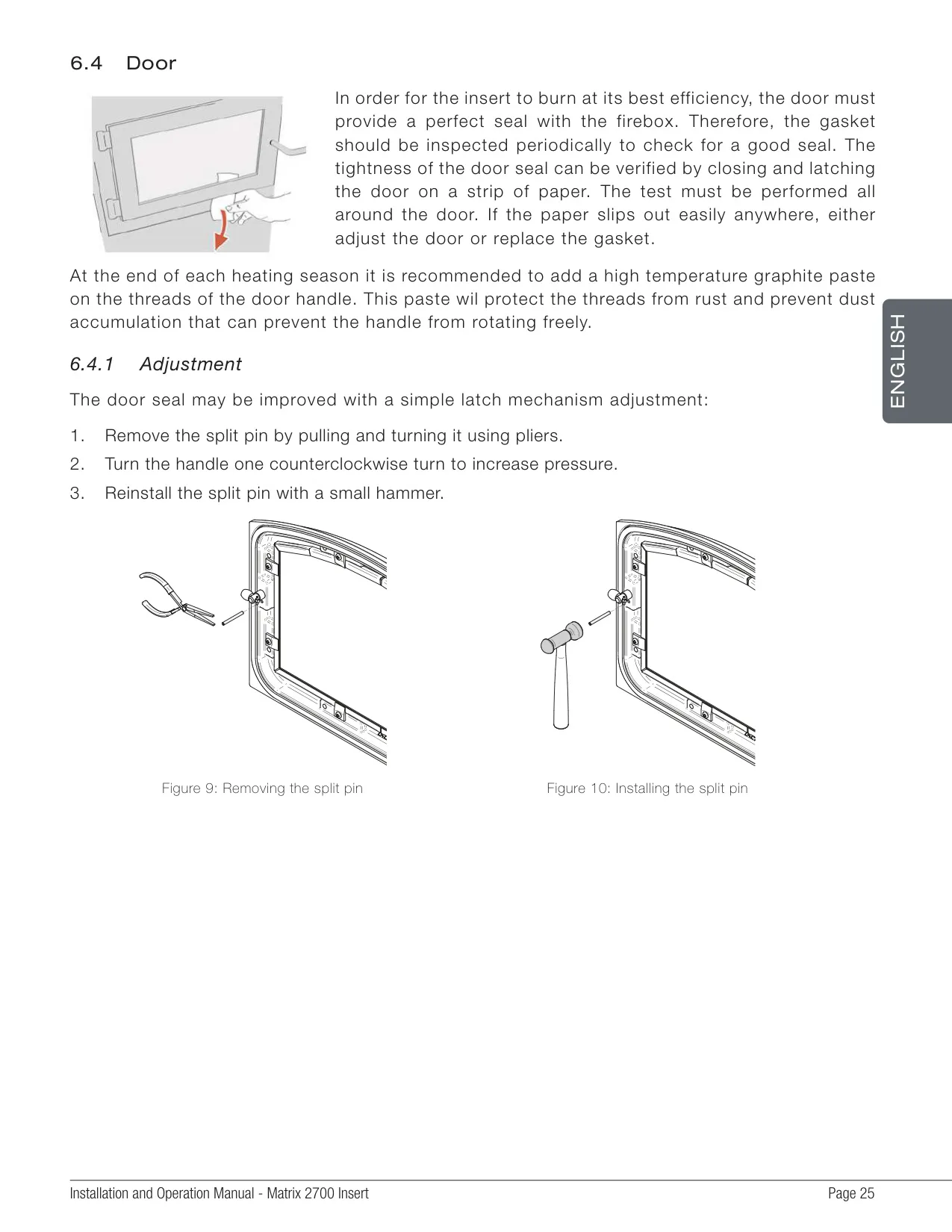

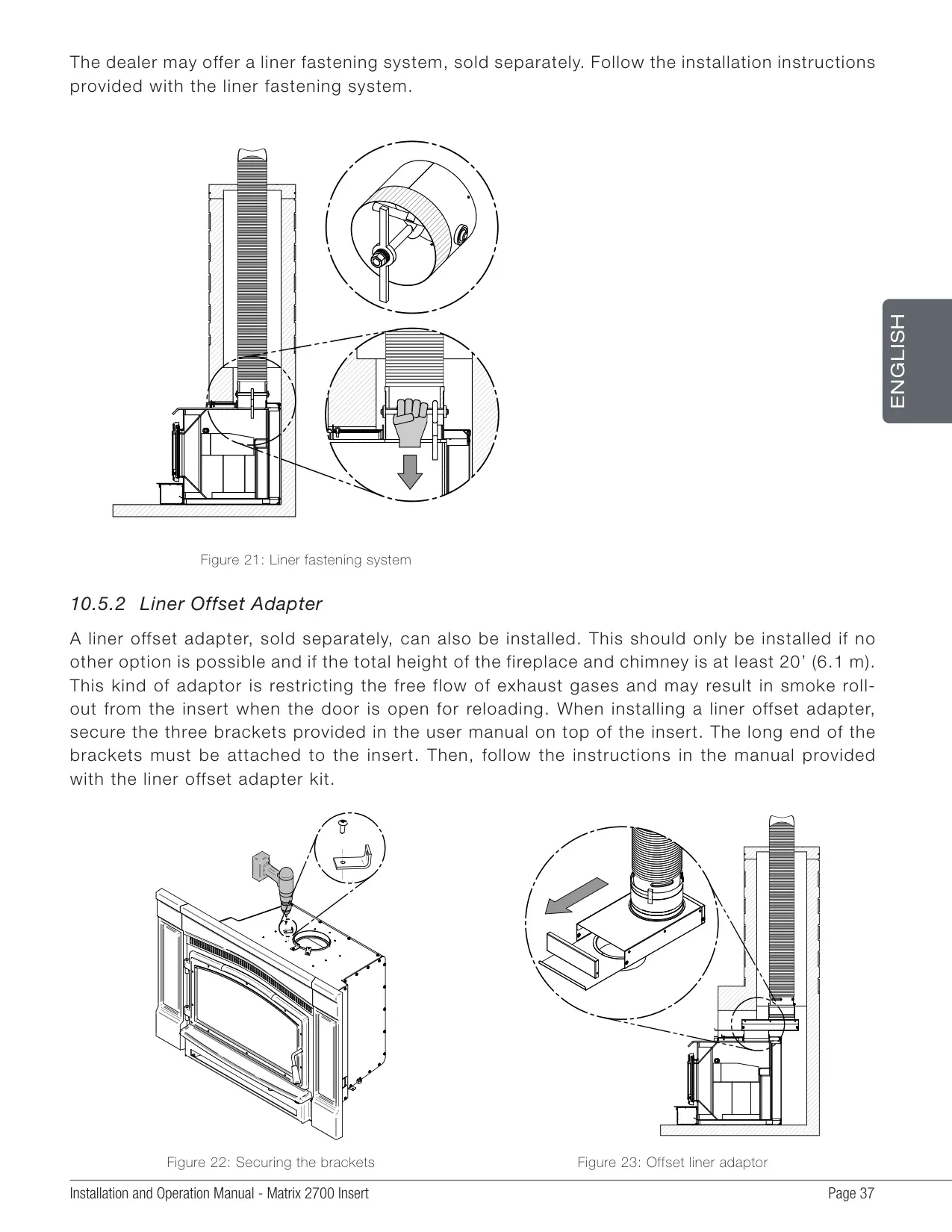

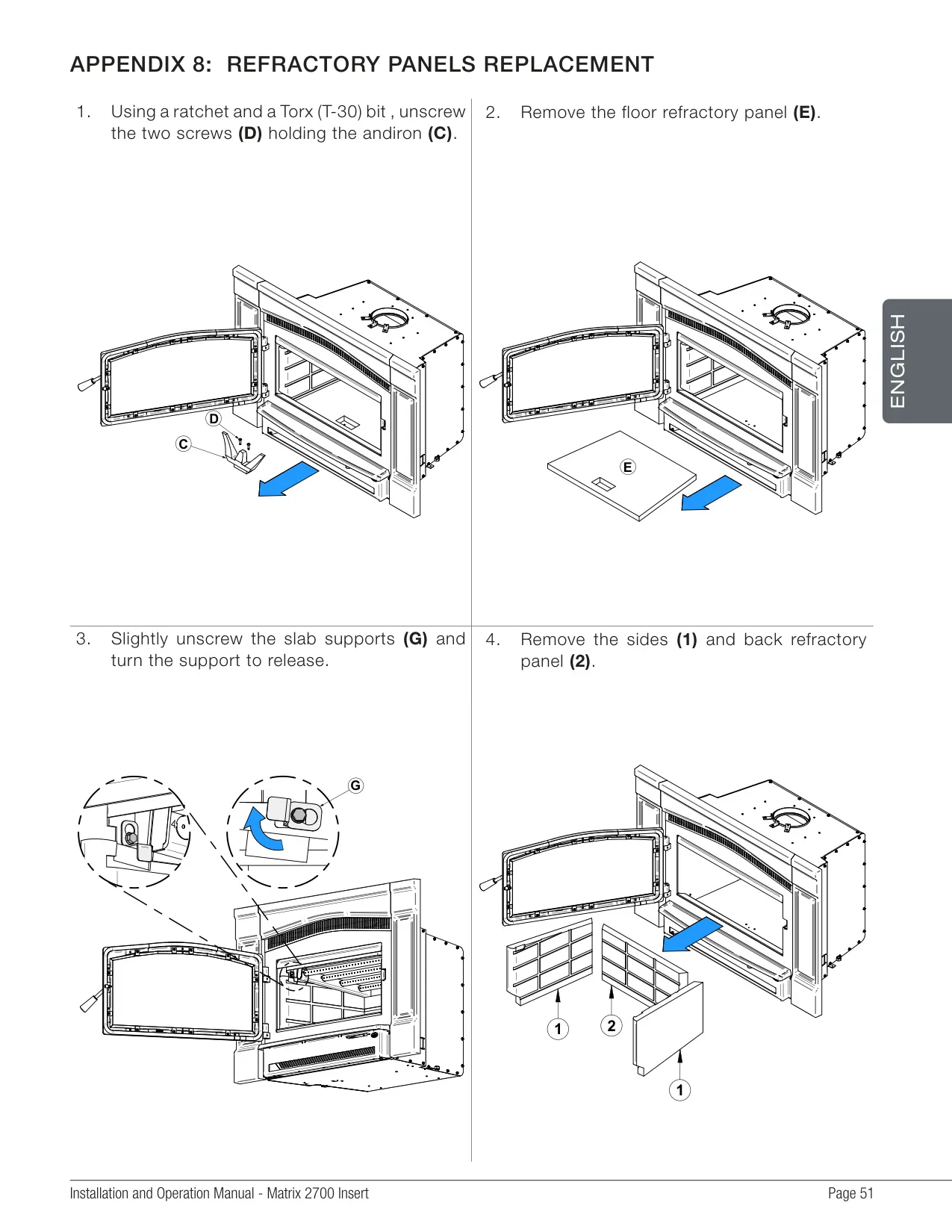

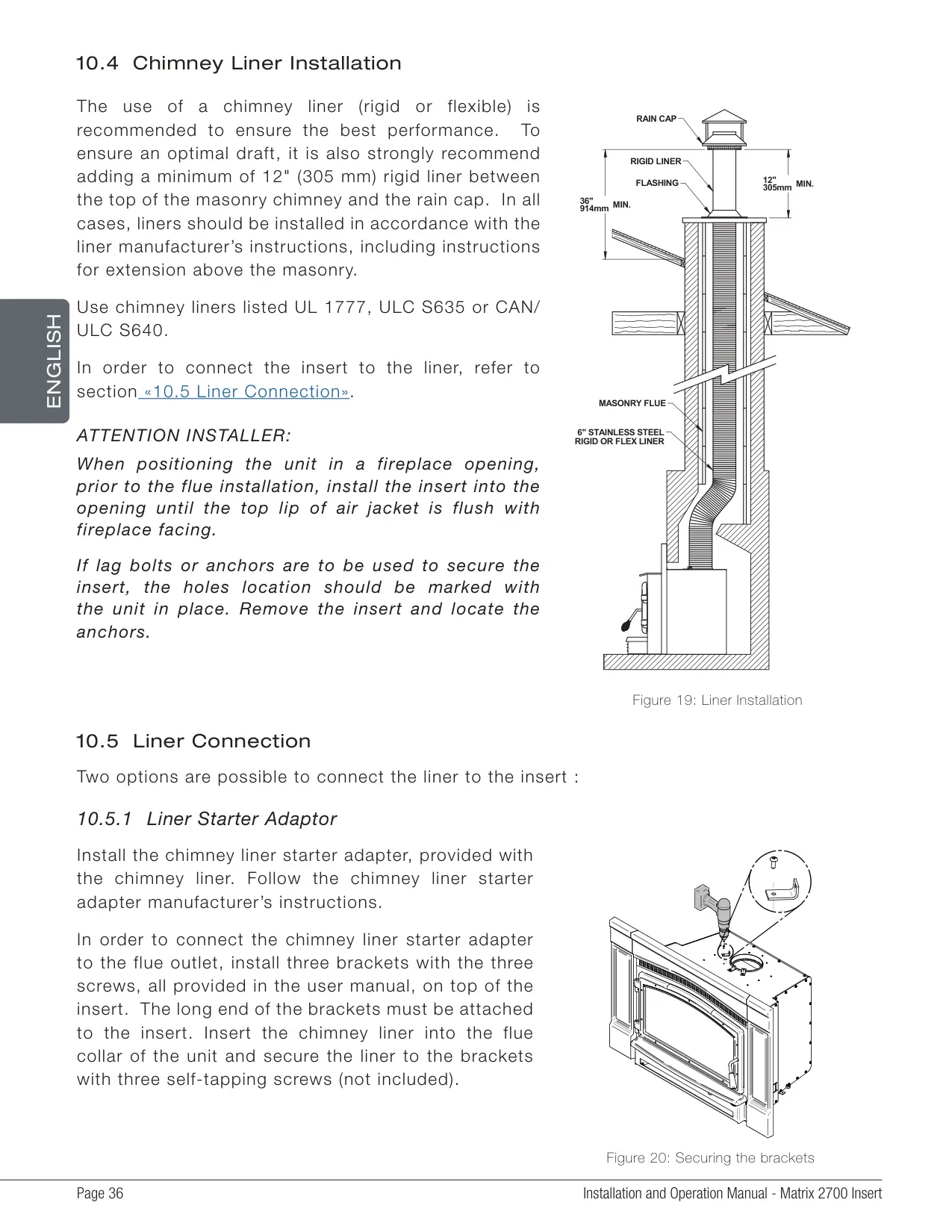

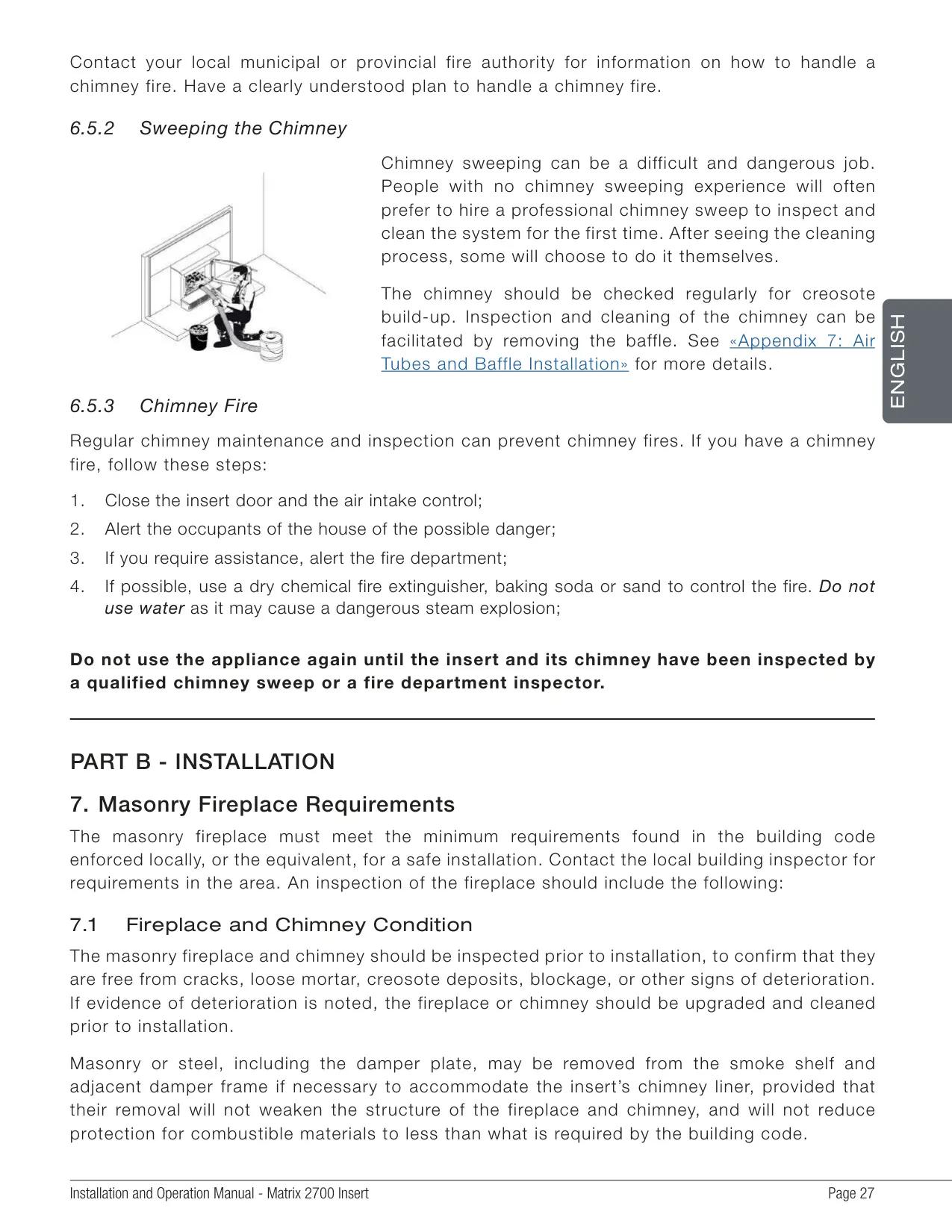

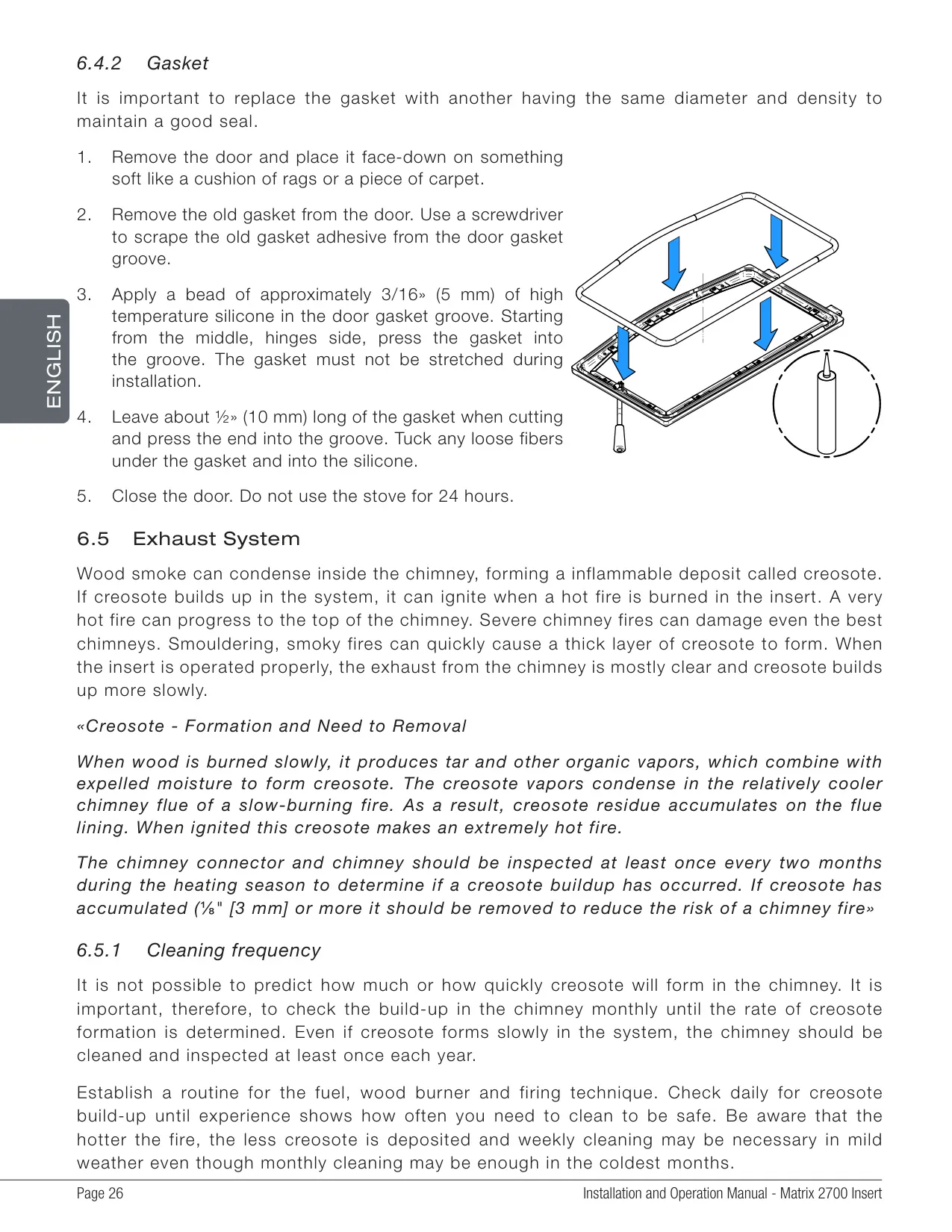

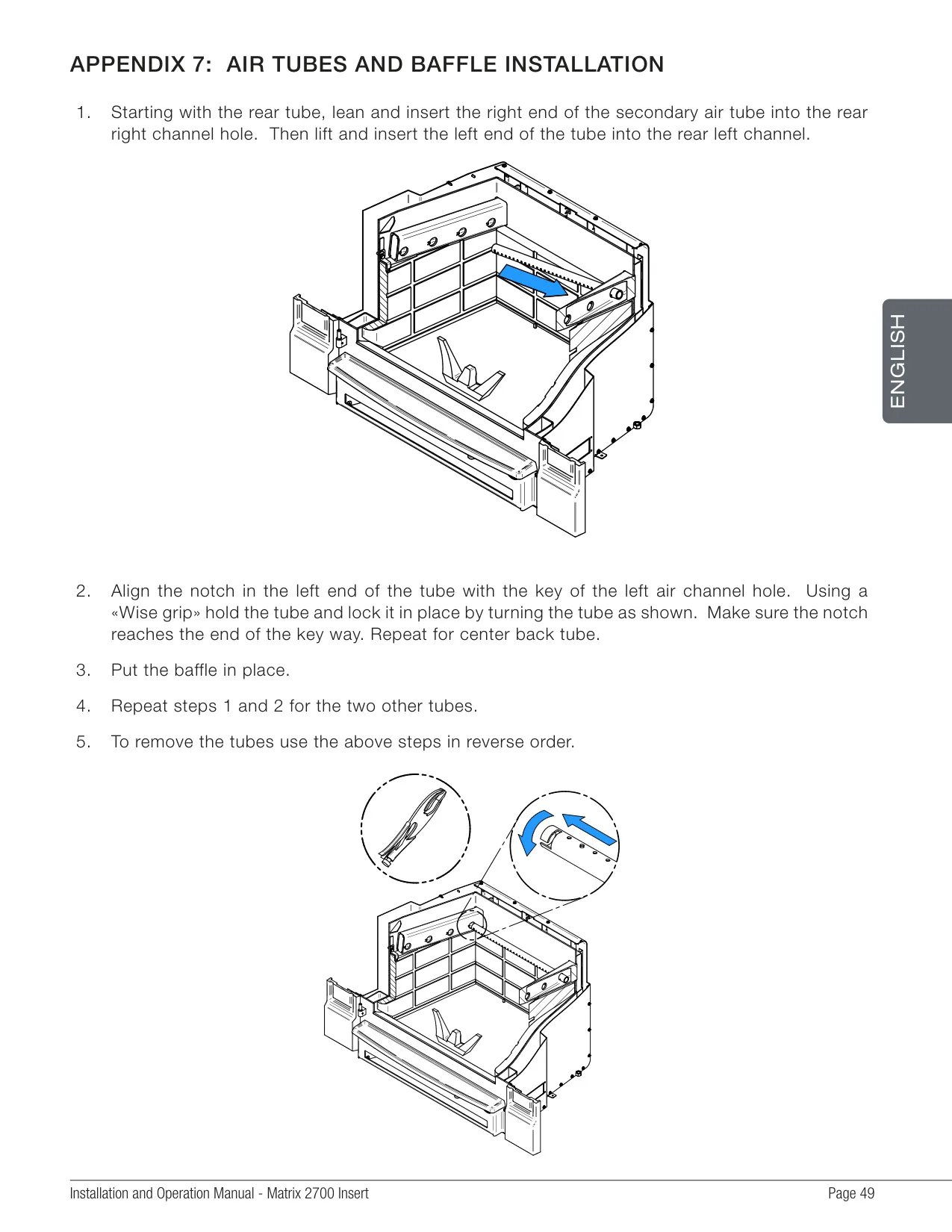

Regular maintenance is crucial for longevity and safe operation. This includes periodic inspection of refractory panels, baffle, and air tubes, as well as cleaning the ceramic glass. The chimney system also requires regular inspection and cleaning to prevent creosote accumulation, which can lead to dangerous chimney fires. A continuous 6-inch stainless steel liner is mandatory.

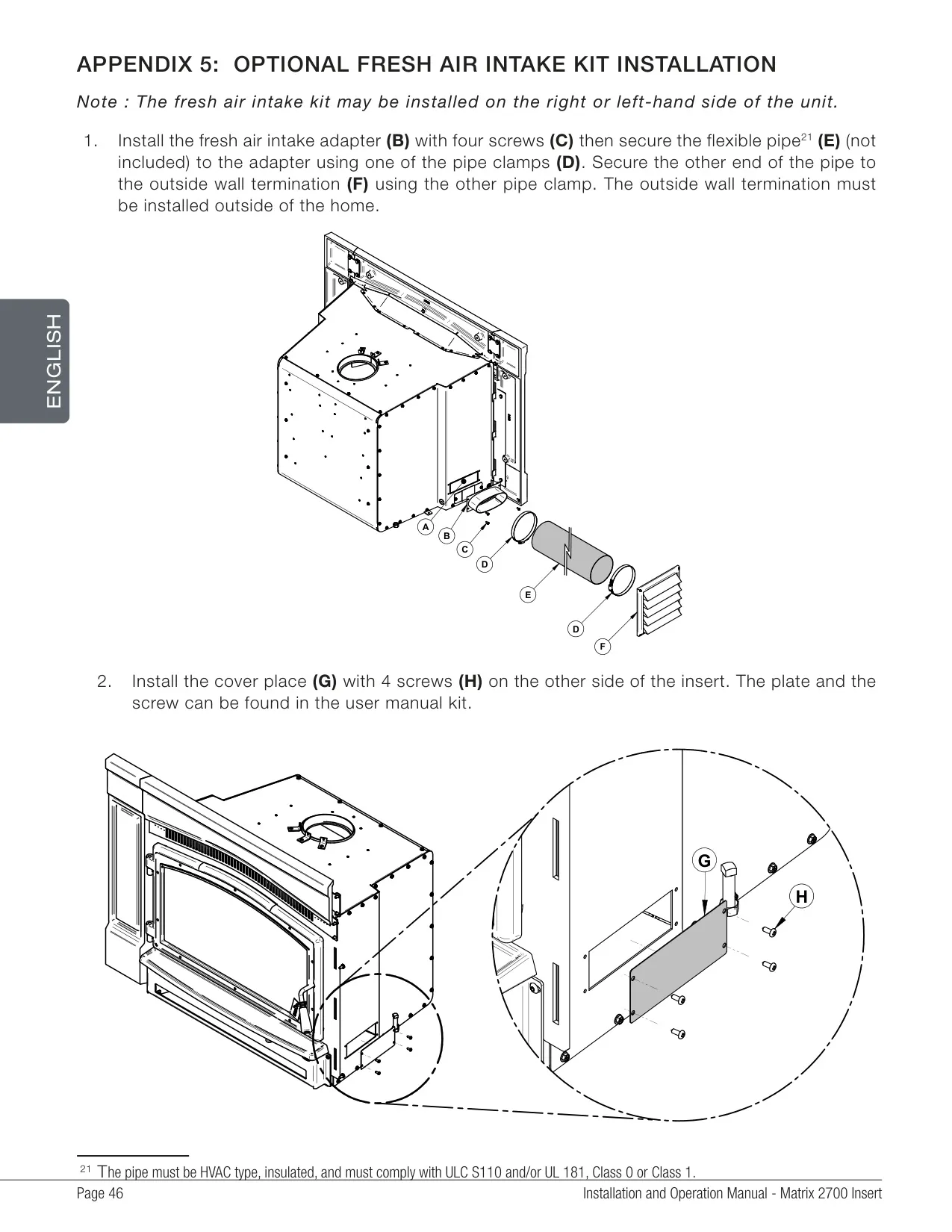

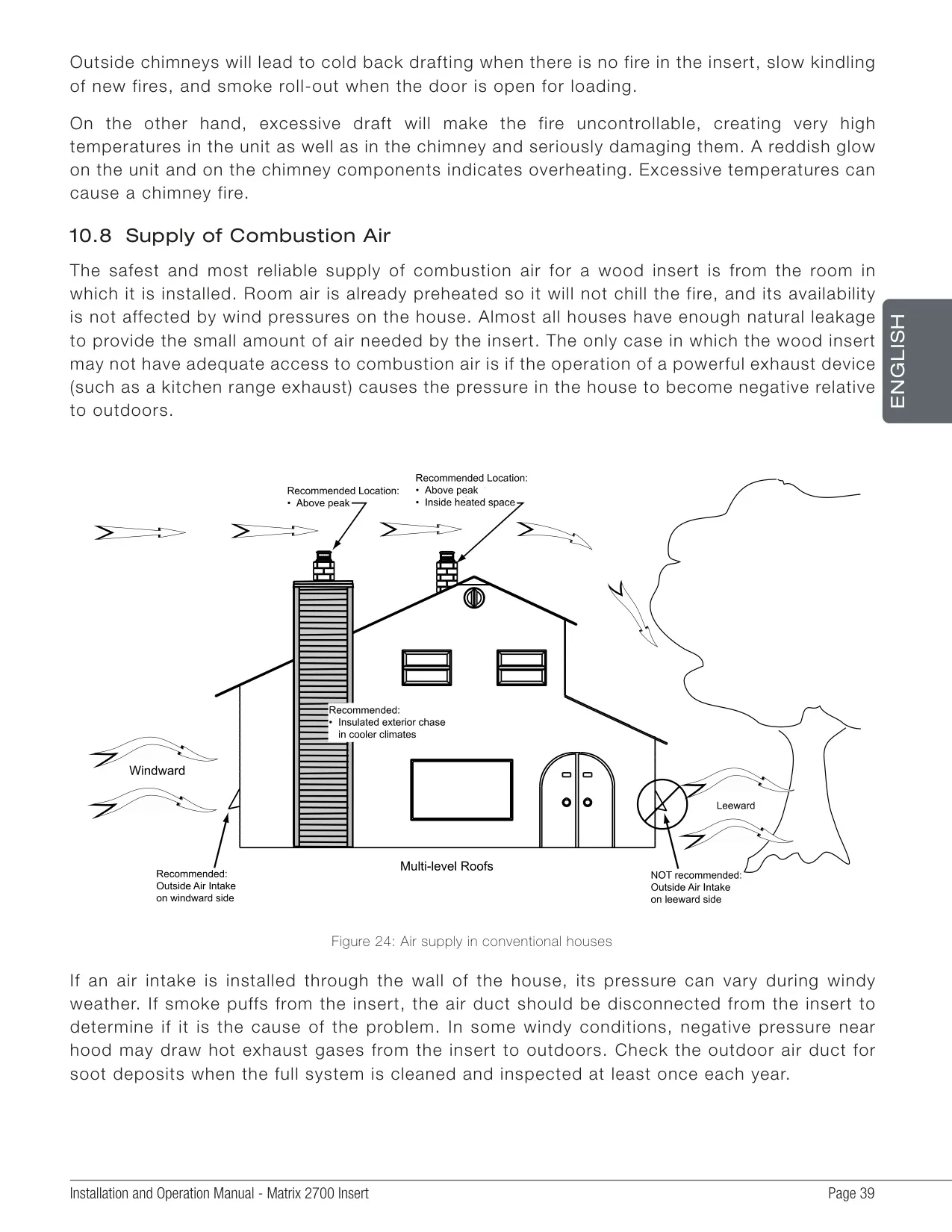

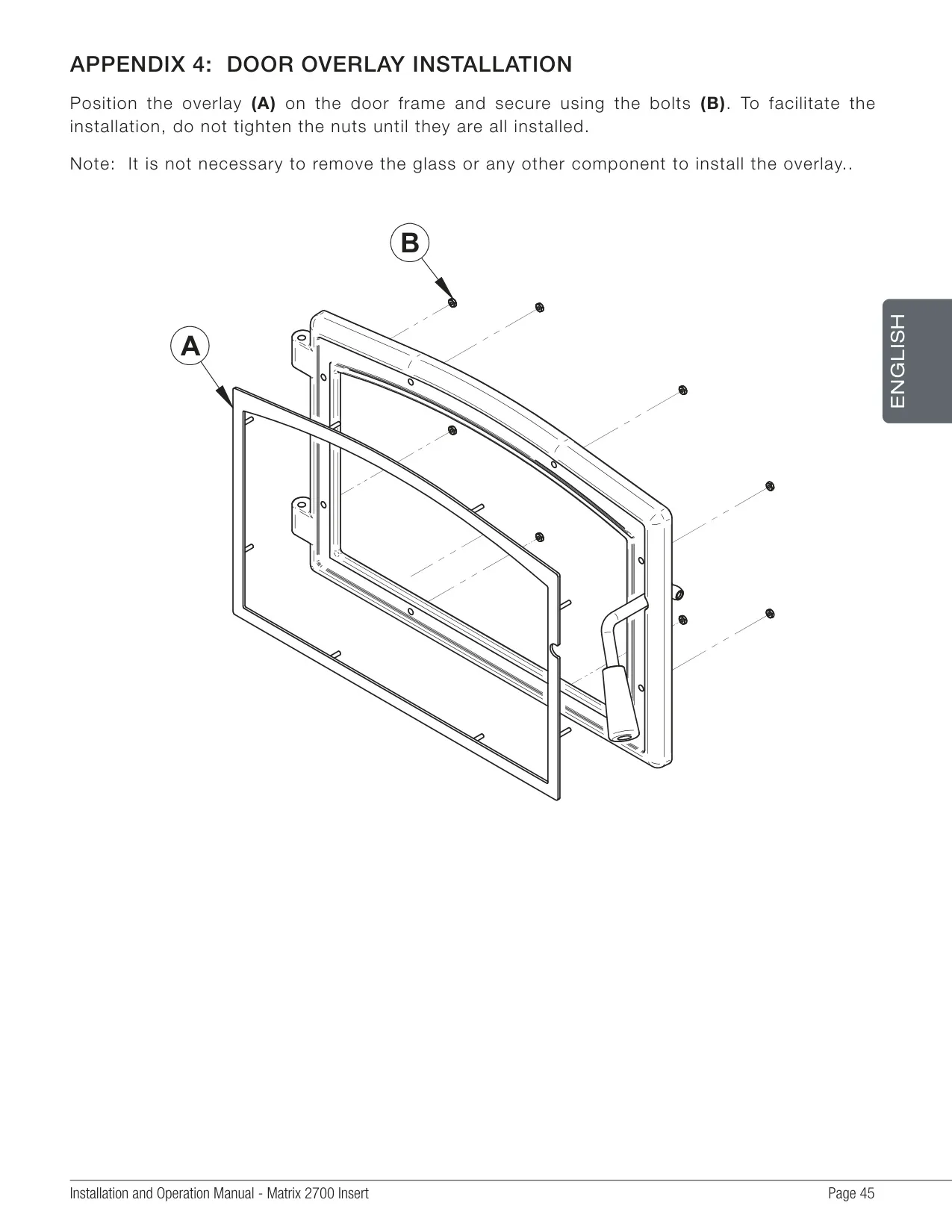

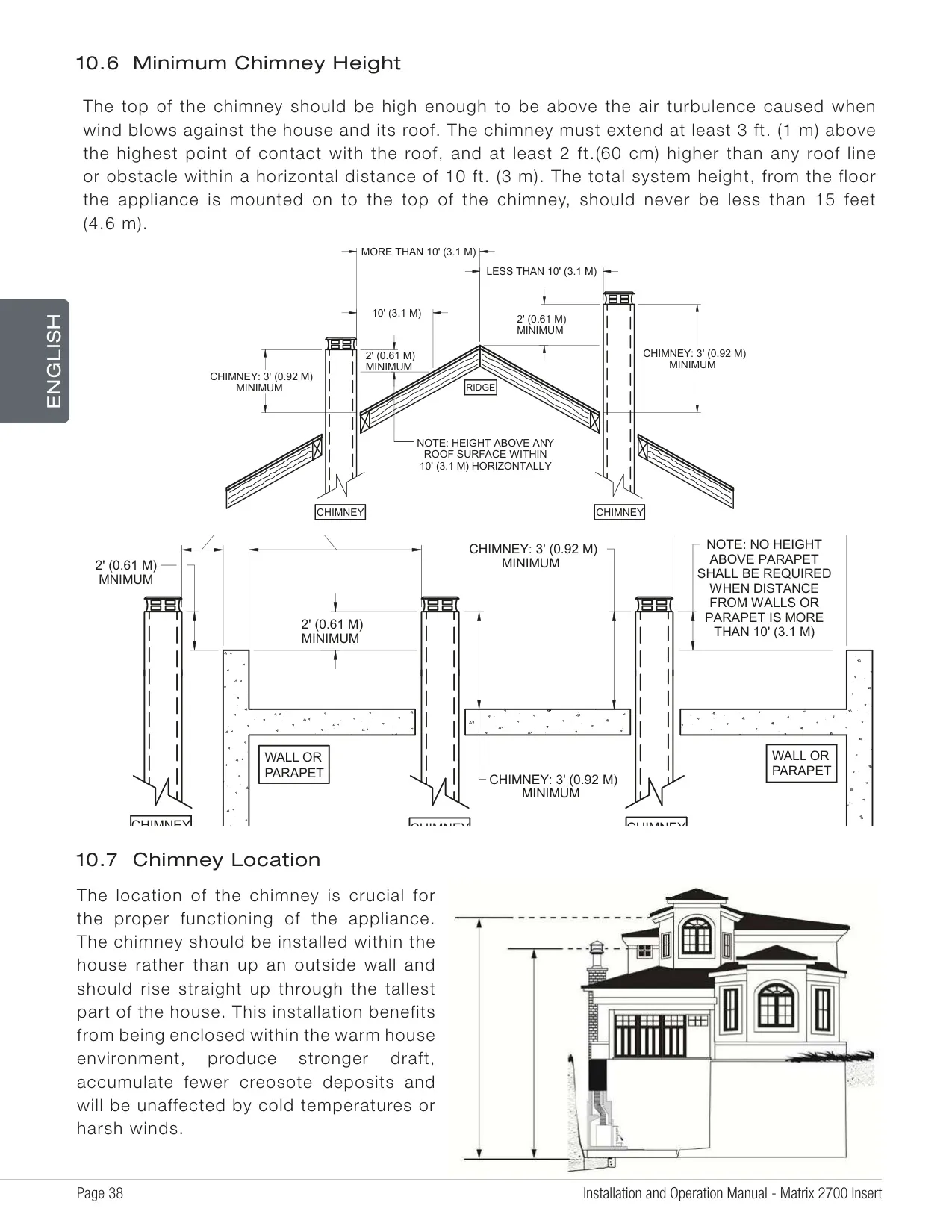

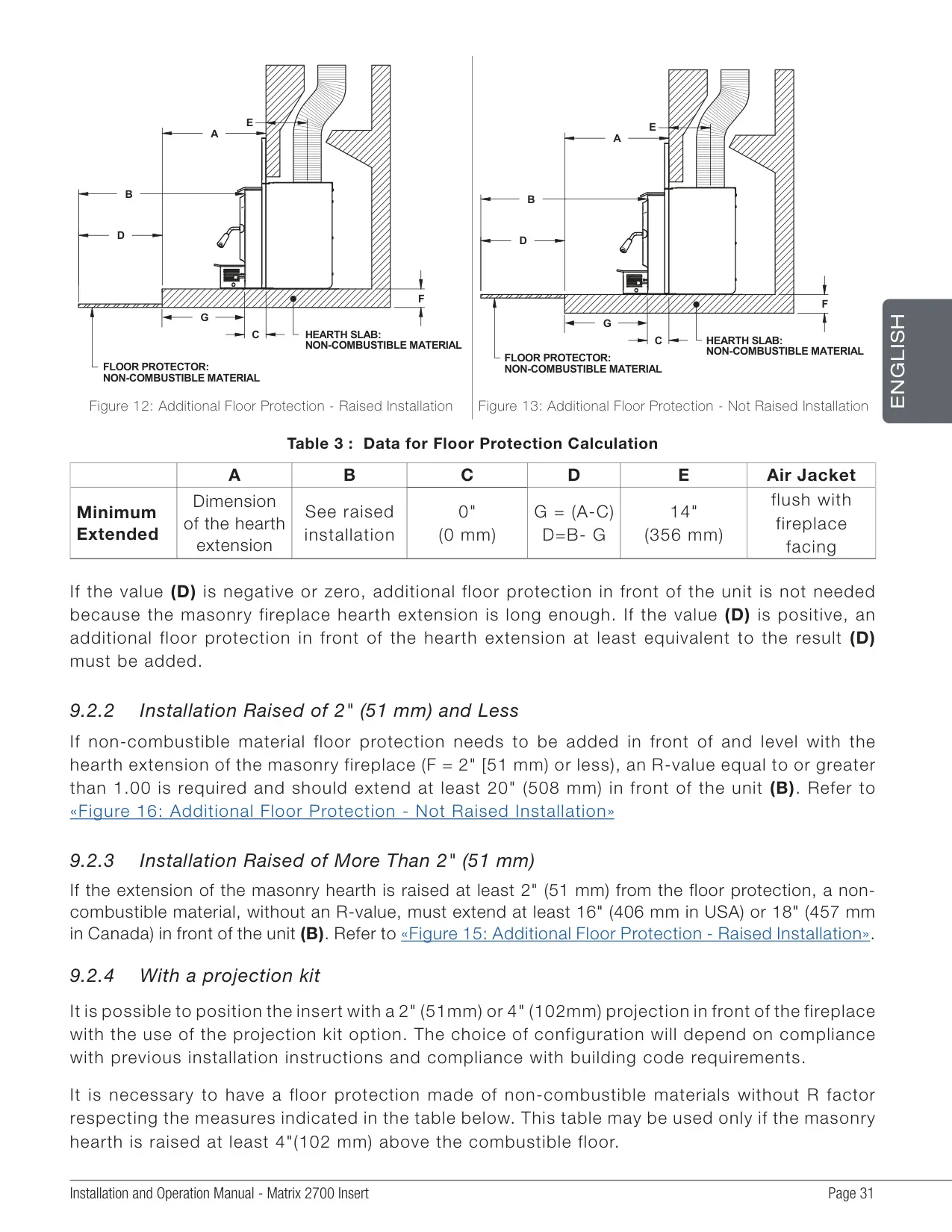

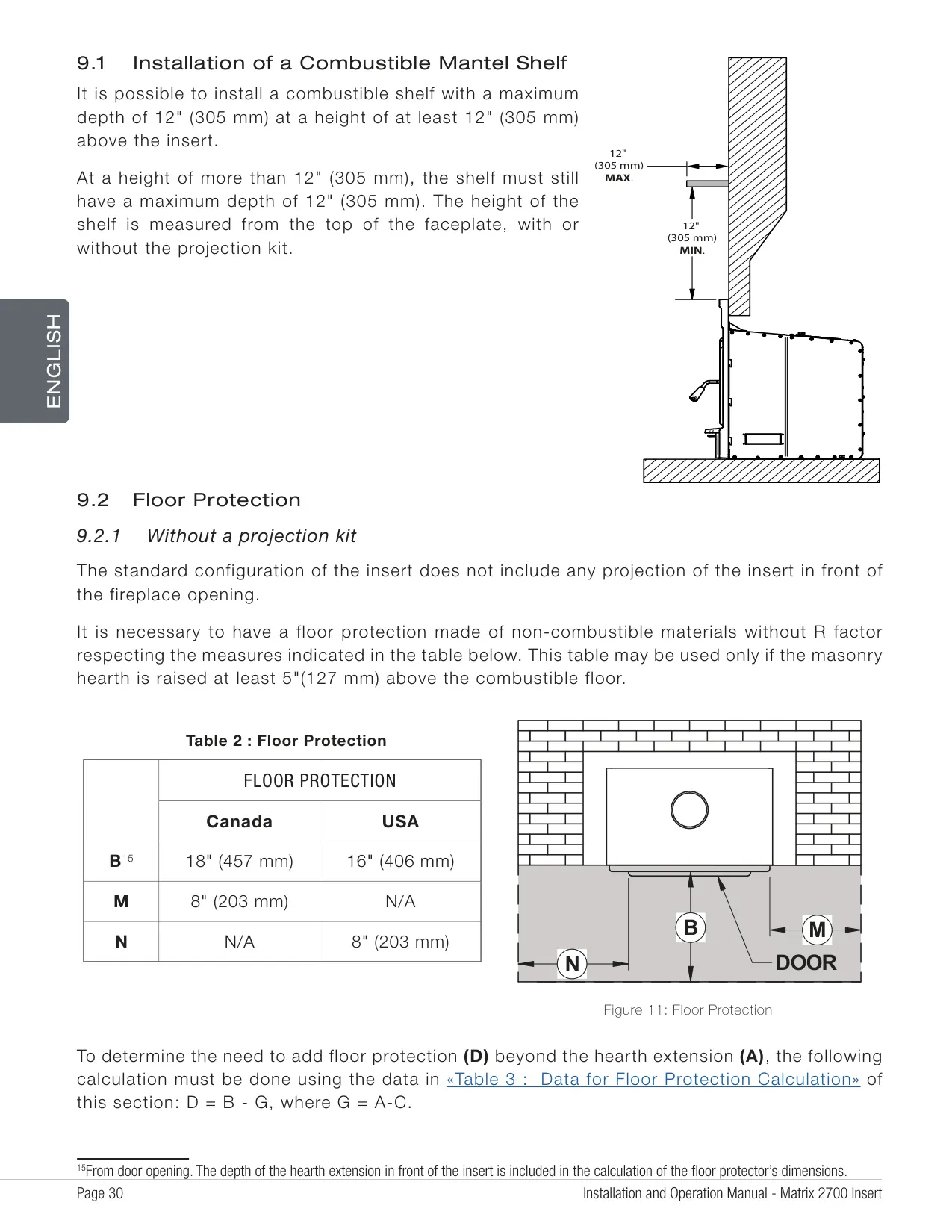

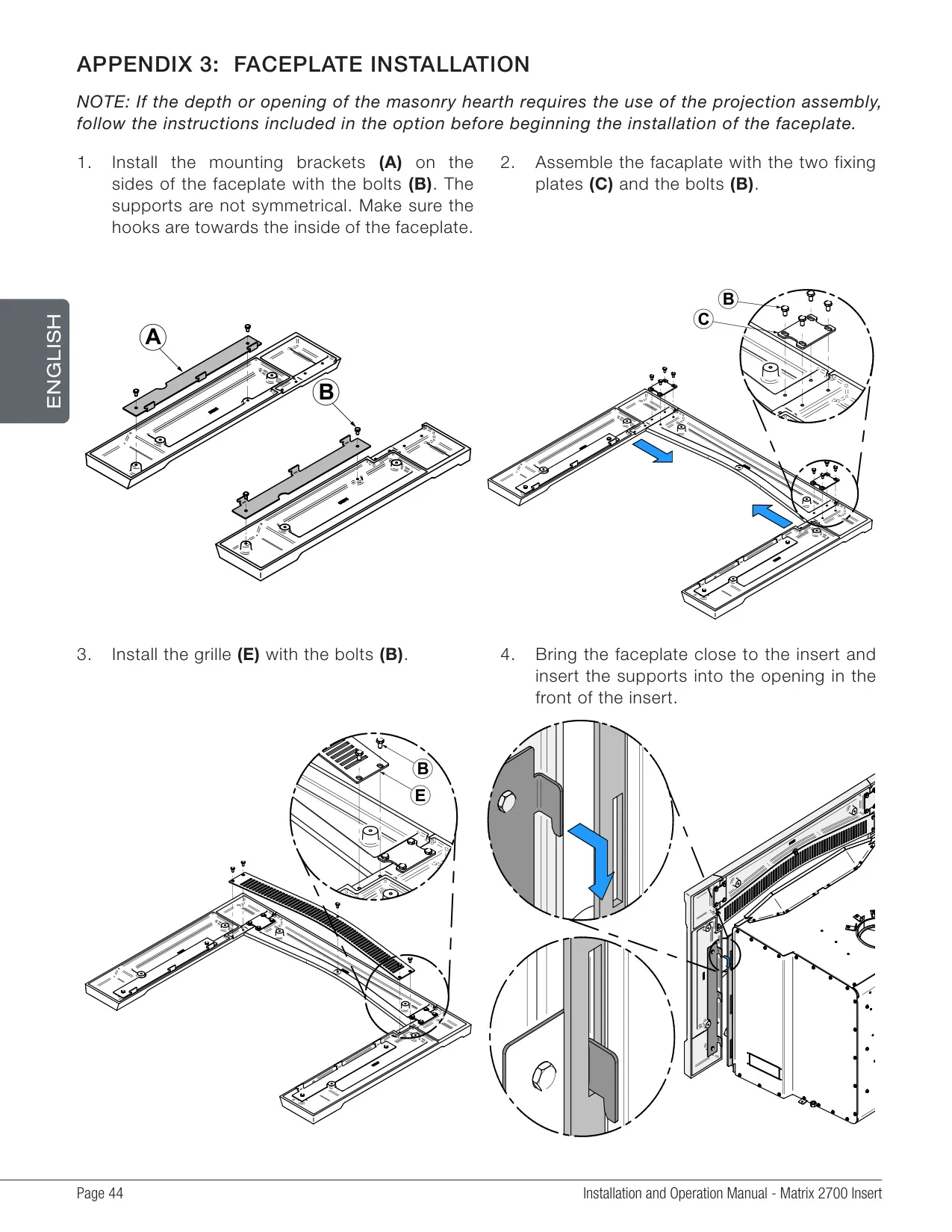

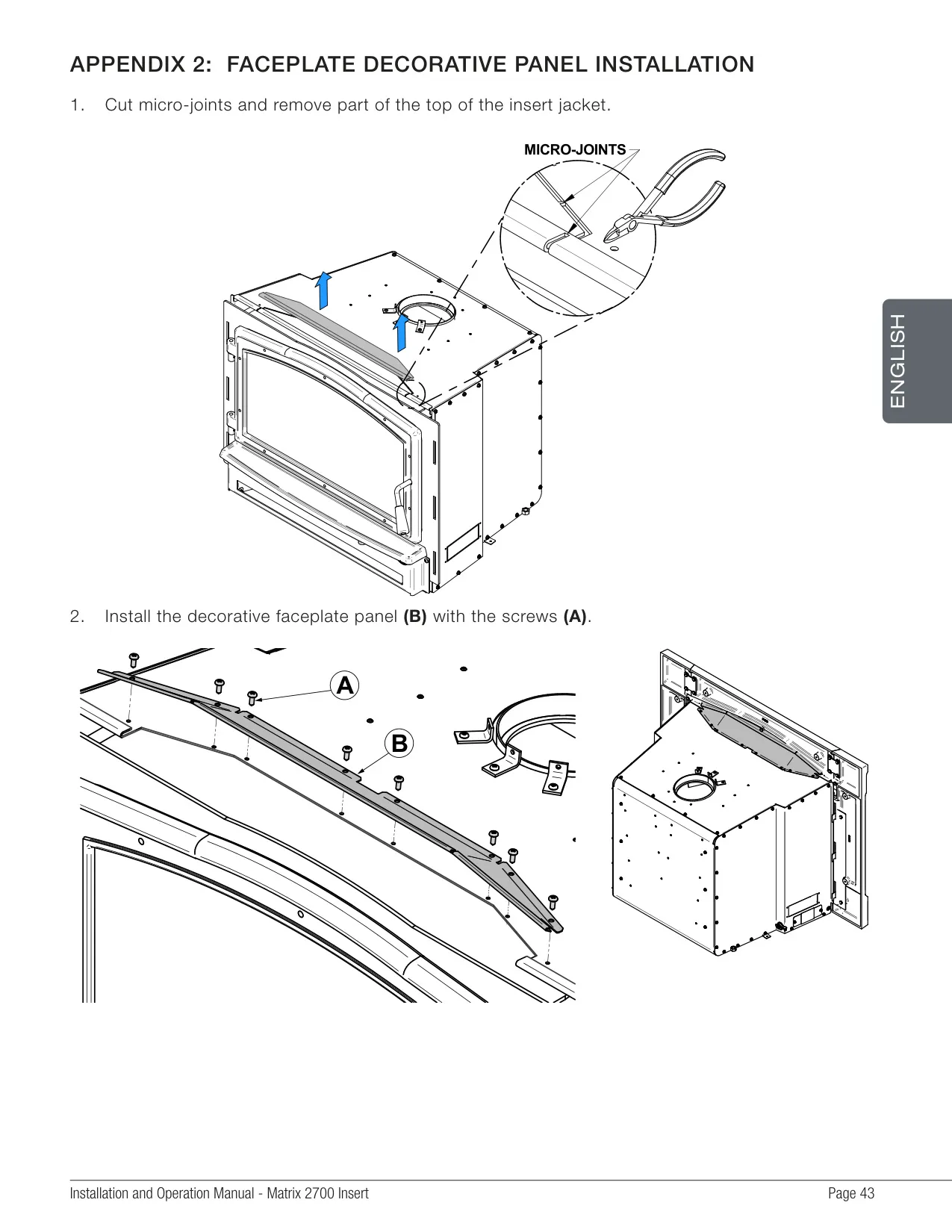

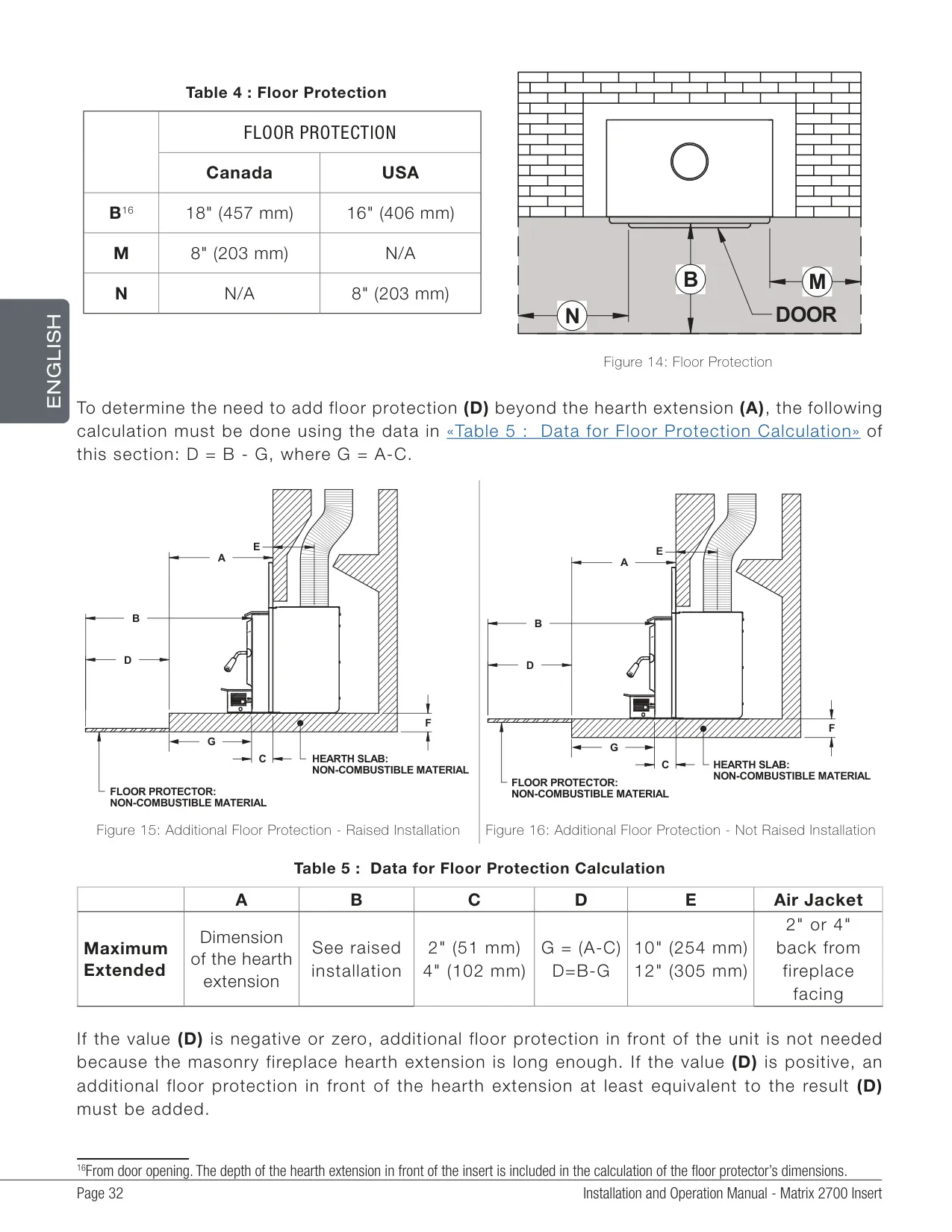

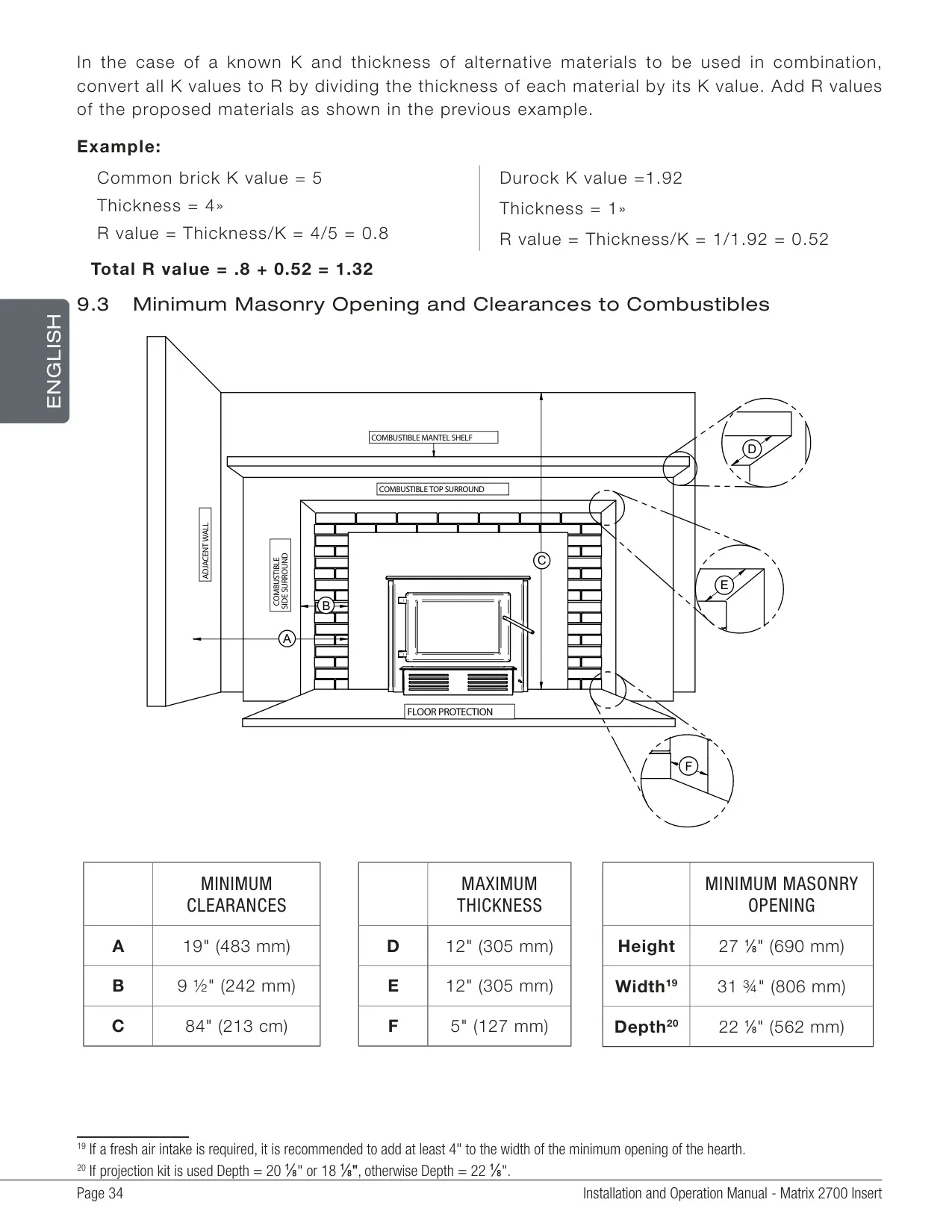

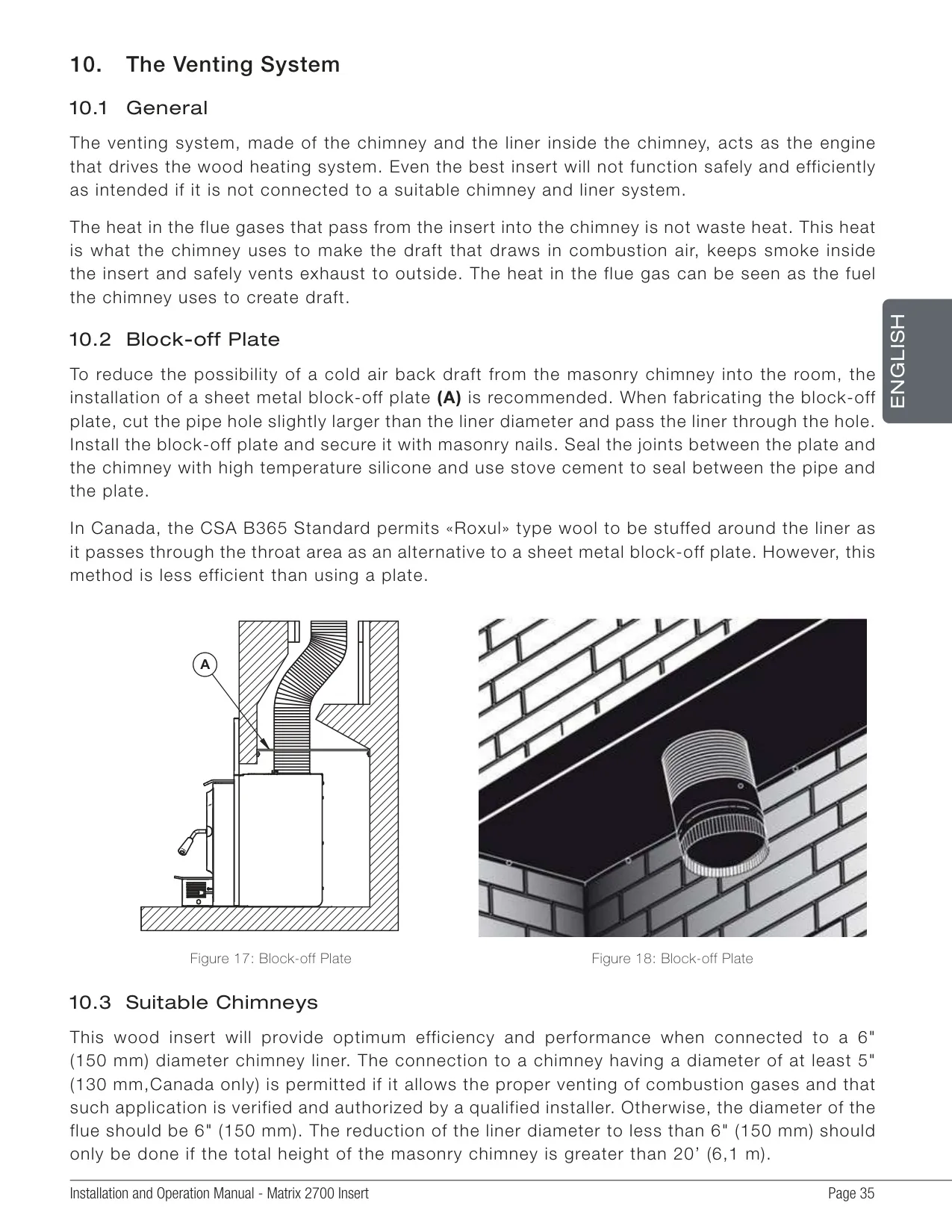

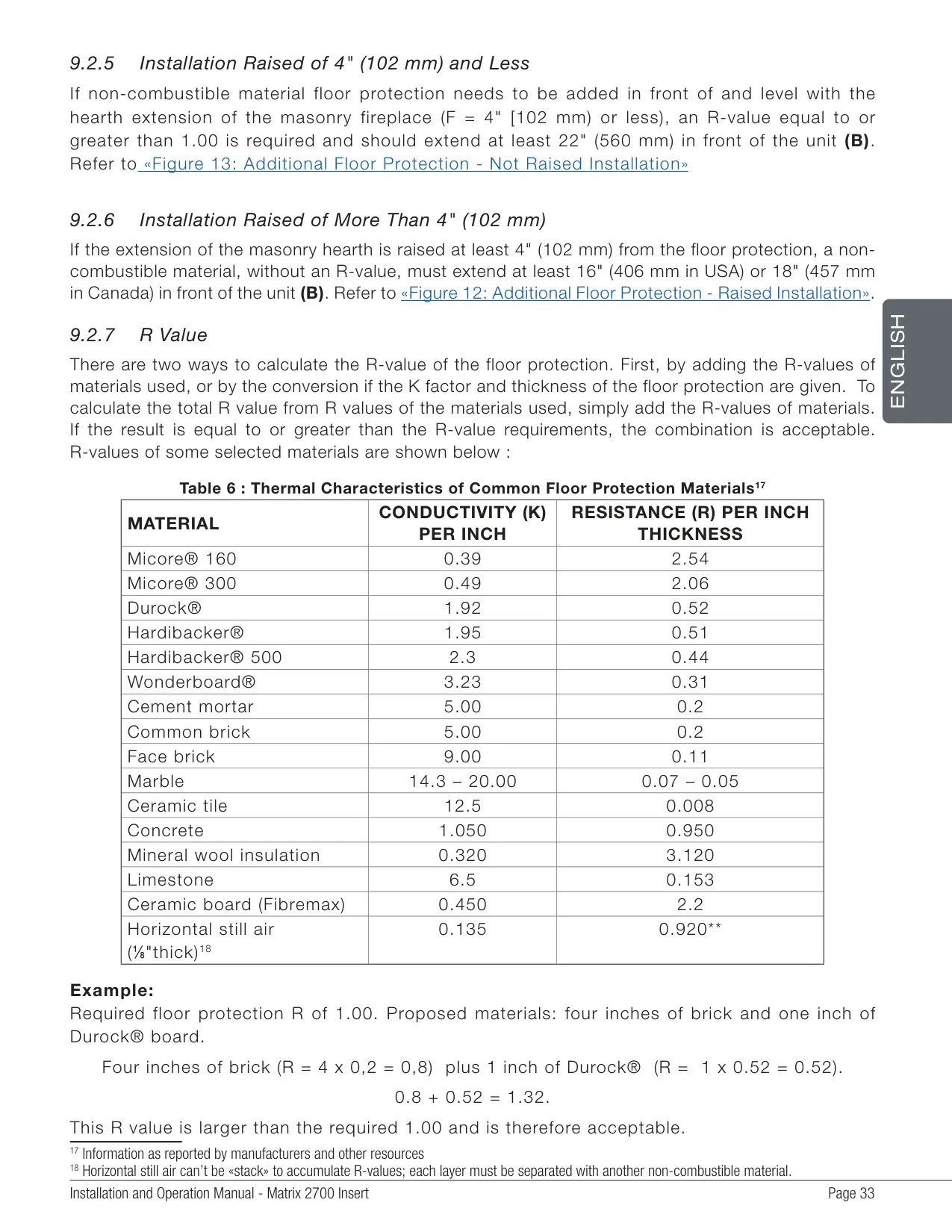

The design accommodates customizable installation options, including a 2-inch or 4-inch projection kit and various faceplate styles. Clearances to combustible materials, including mantel shelves and floor protection, are detailed to ensure safety. The chimney's height and indoor location are important for optimal draft and efficient operation, minimizing issues like cold back-drafting.

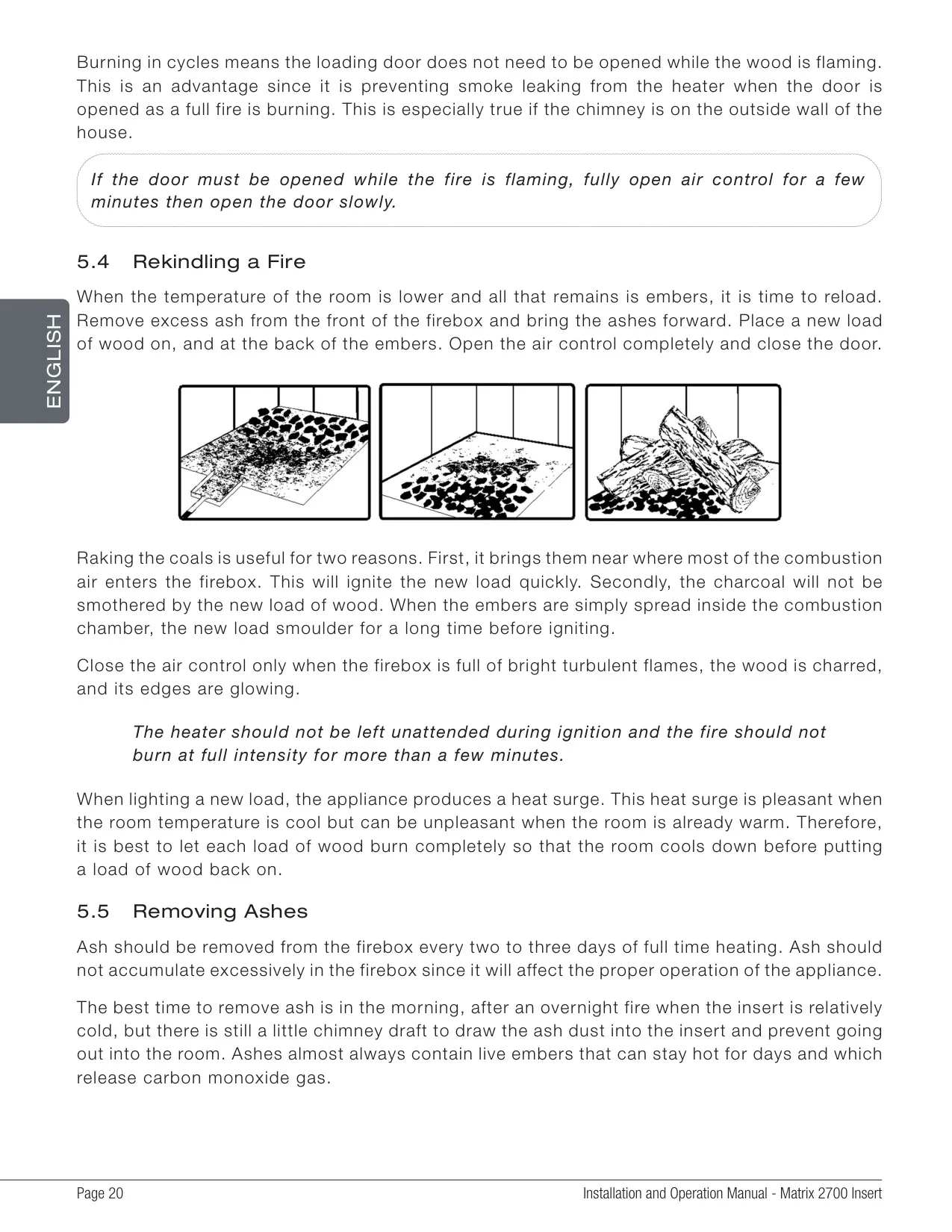

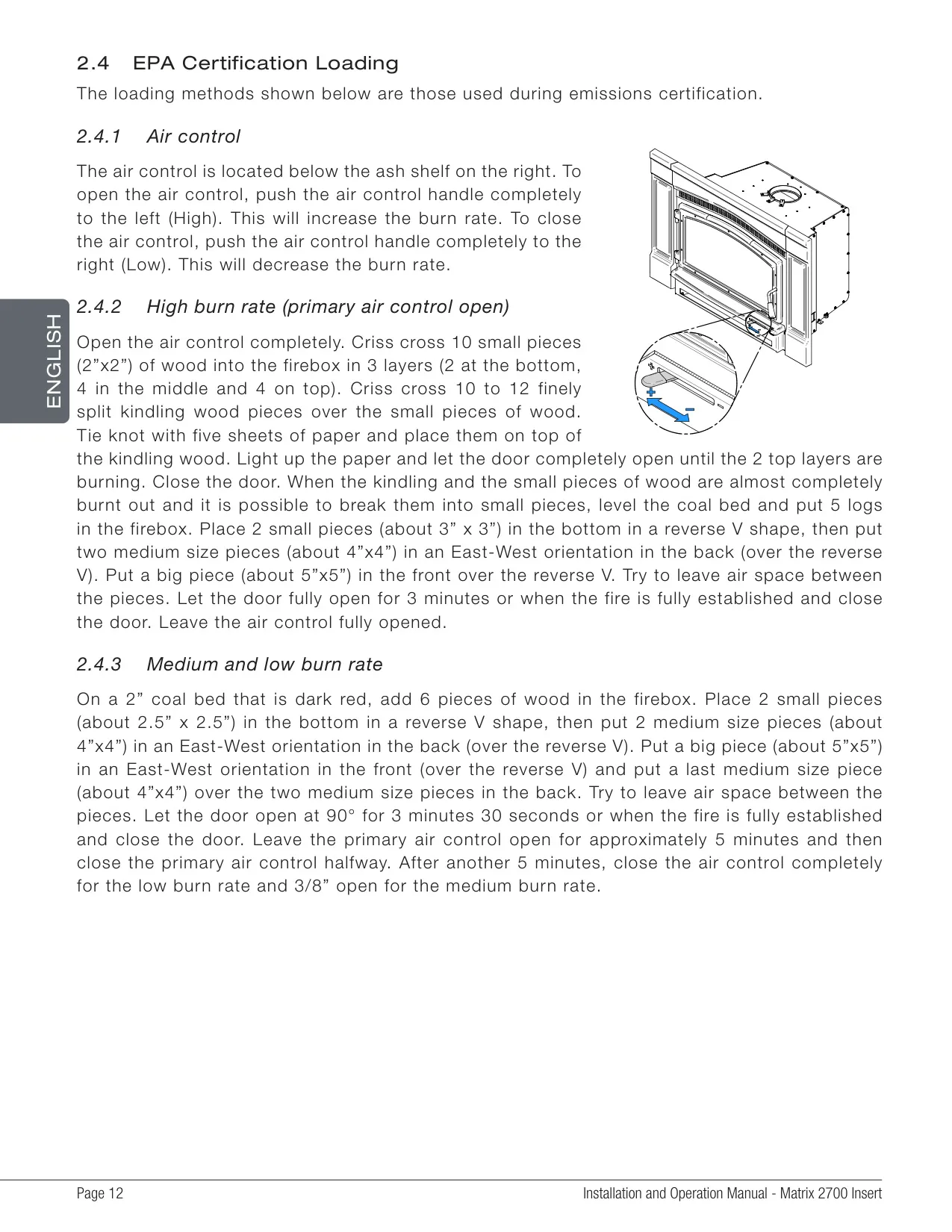

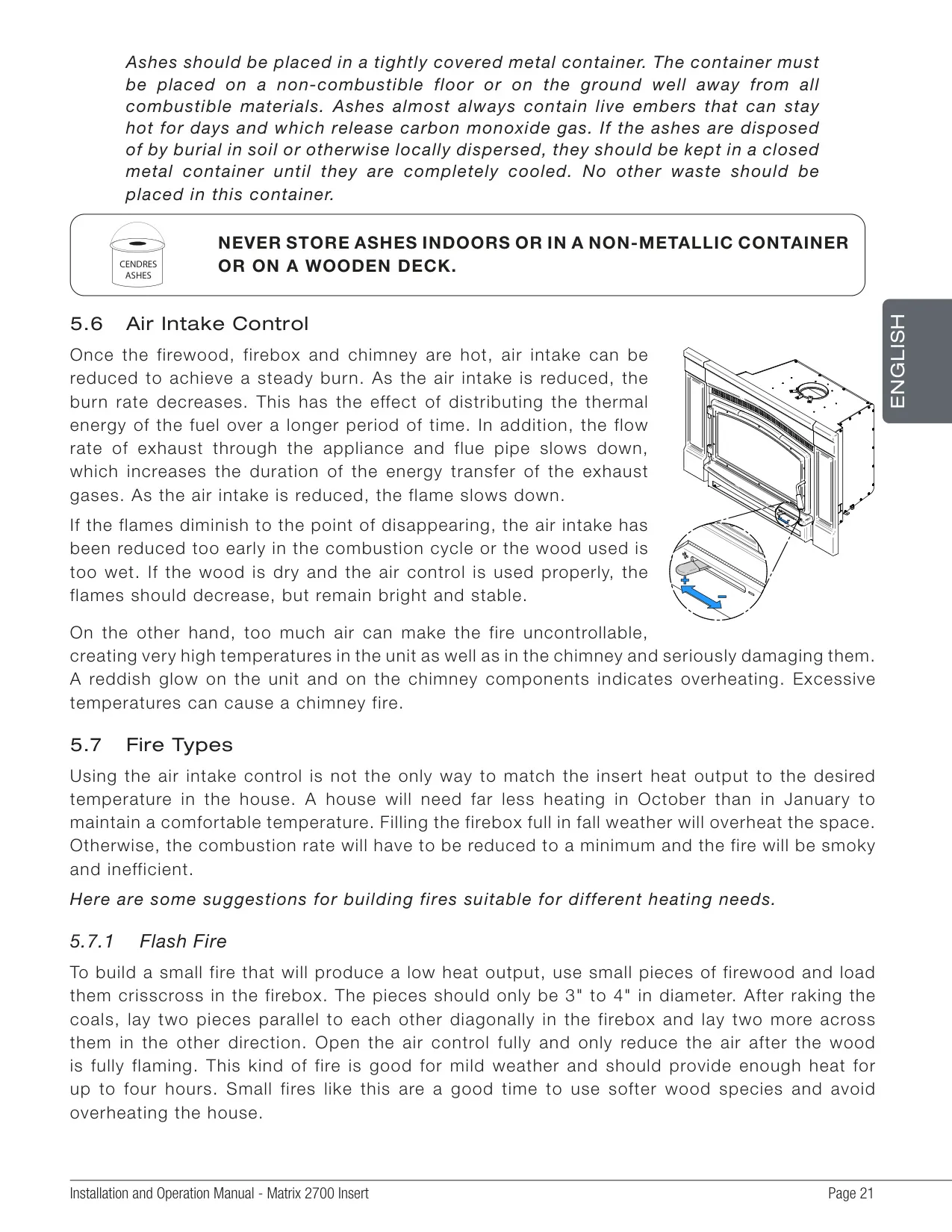

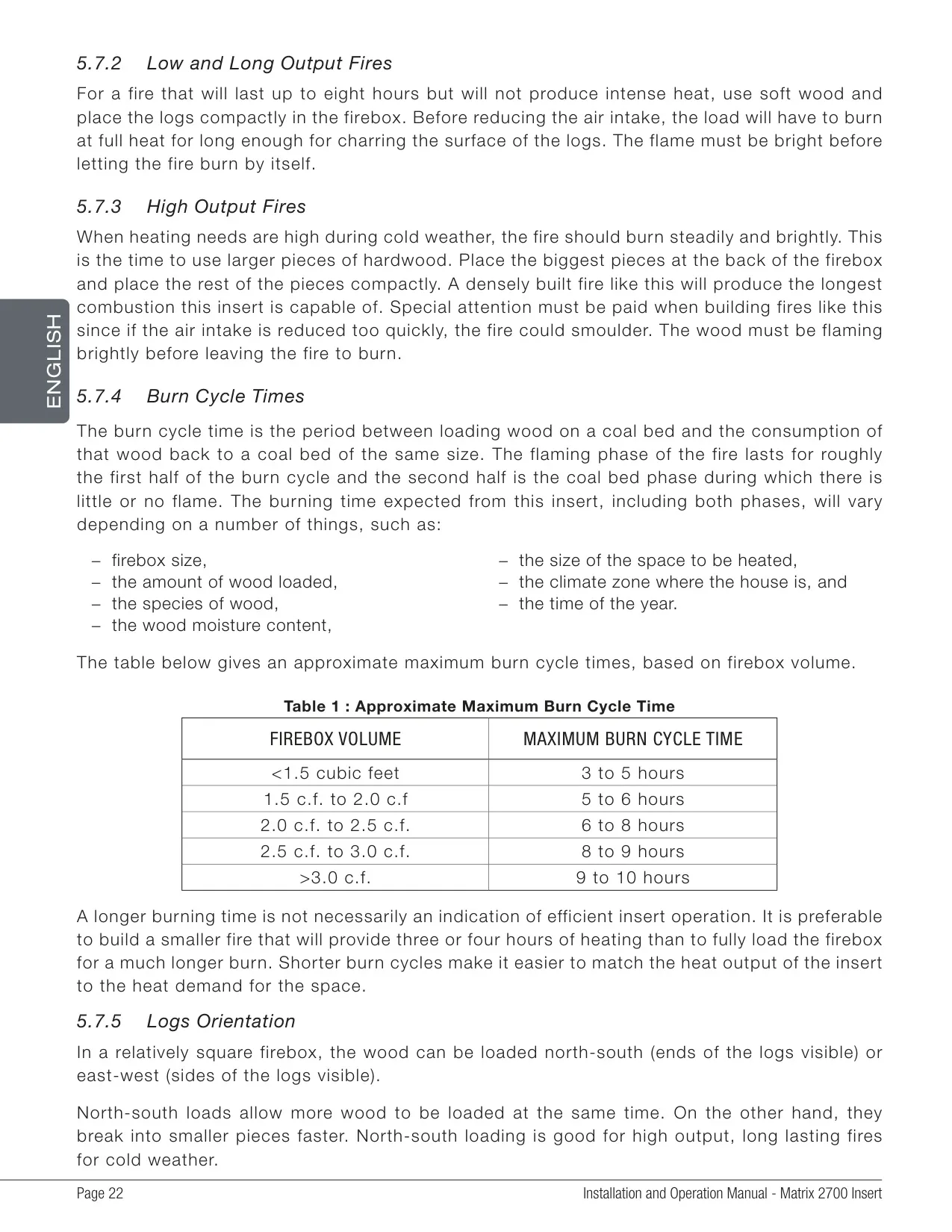

The Osburn Matrix 2700 features an adjustable air intake control, allowing users to regulate the burn rate and heat output. Understanding burning cycles and appropriate log orientation helps tailor heat delivery to specific needs, from flash fires for mild weather to long-output fires for colder conditions. These controls ensure efficient performance and user comfort.
