Navien NHB-110 Boiler Instructions
Here we offer the Navien NHB-110 Boiler manual completely free and in English. We have cataloged this manual in the Boilers section on Manualverse, and it has been rated by 1 users with an average rating of 5. If you have any specific questions about Navien NHB-110 Boiler, we suggest checking the Frequently Asked Questions (FAQs) section of this manual.

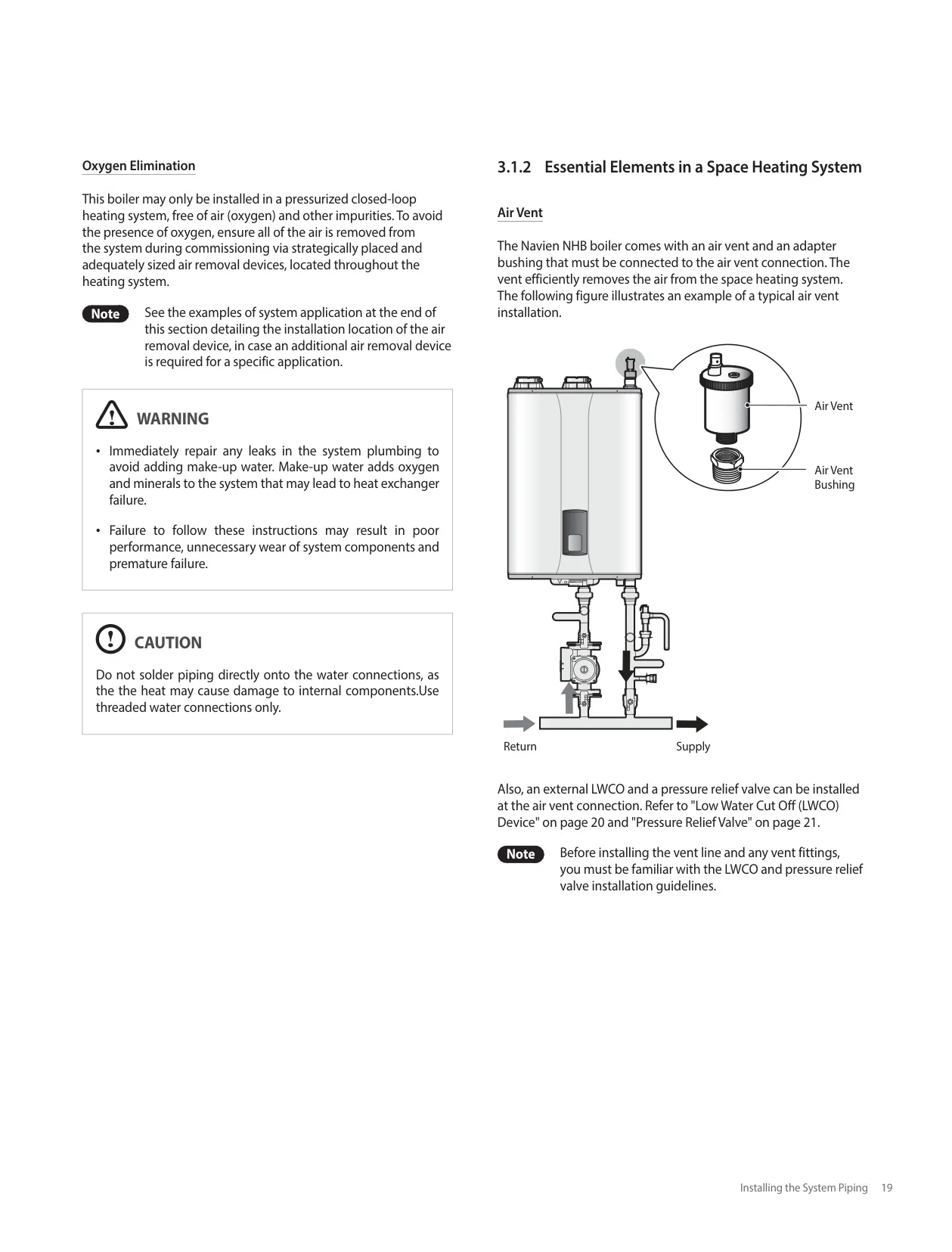

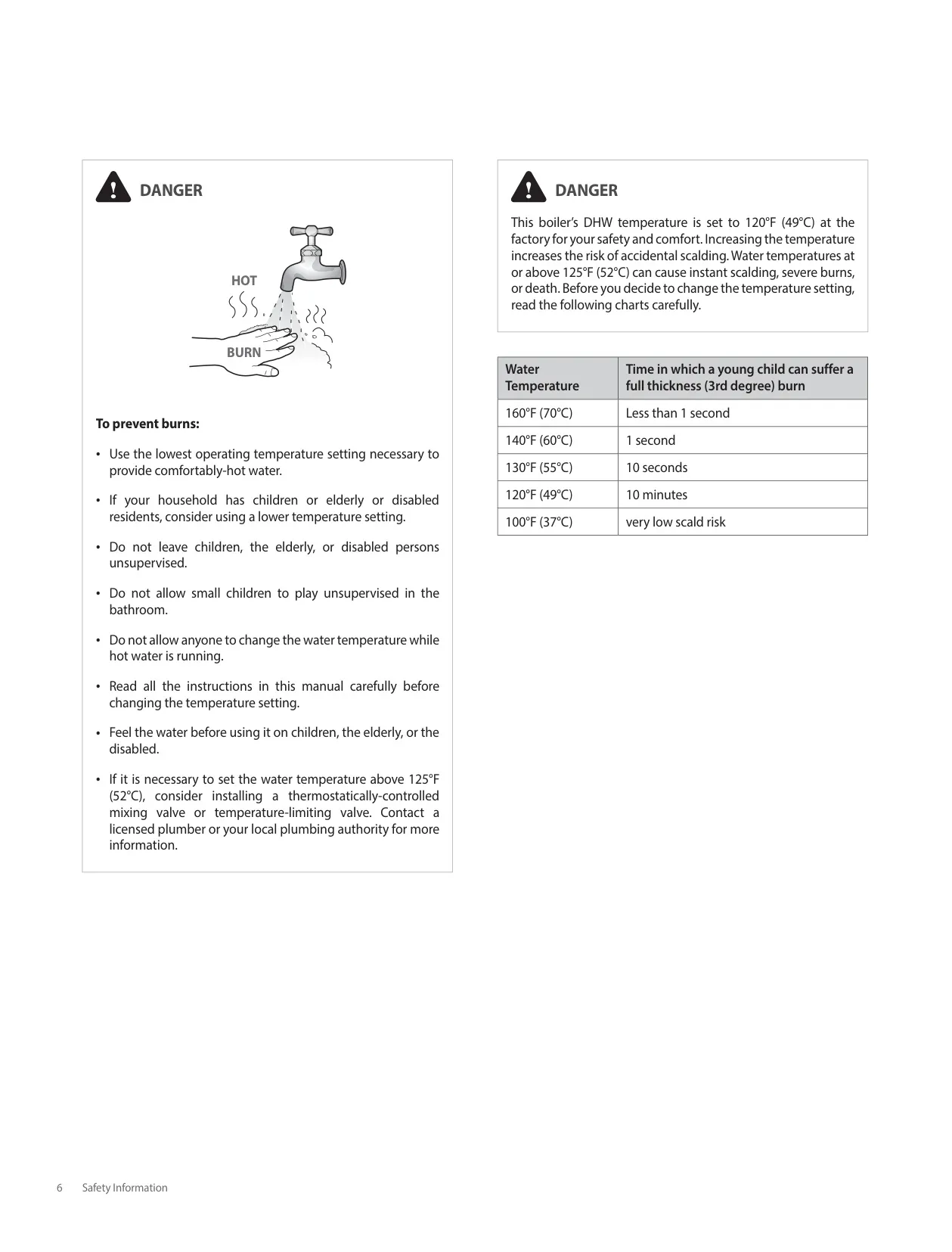

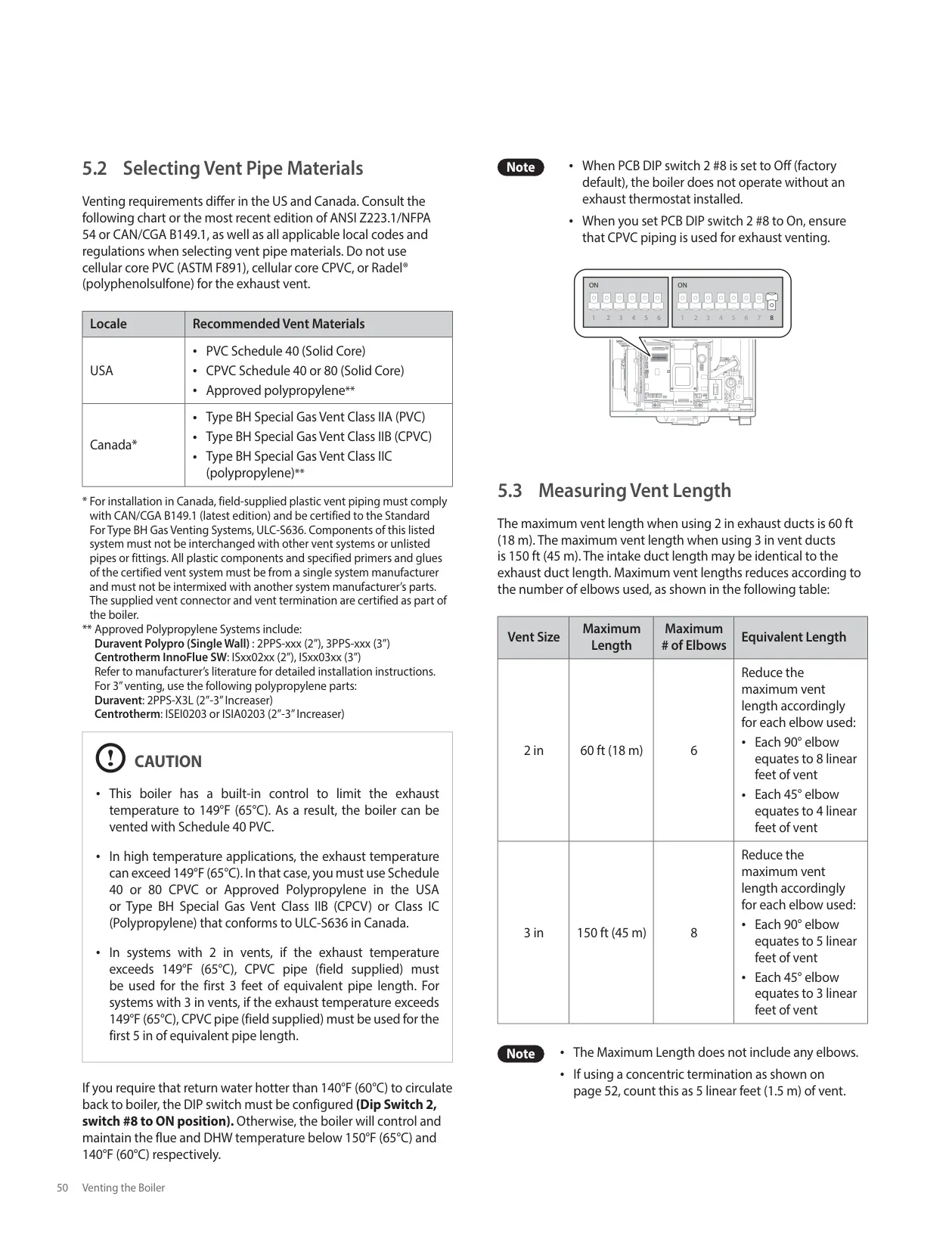

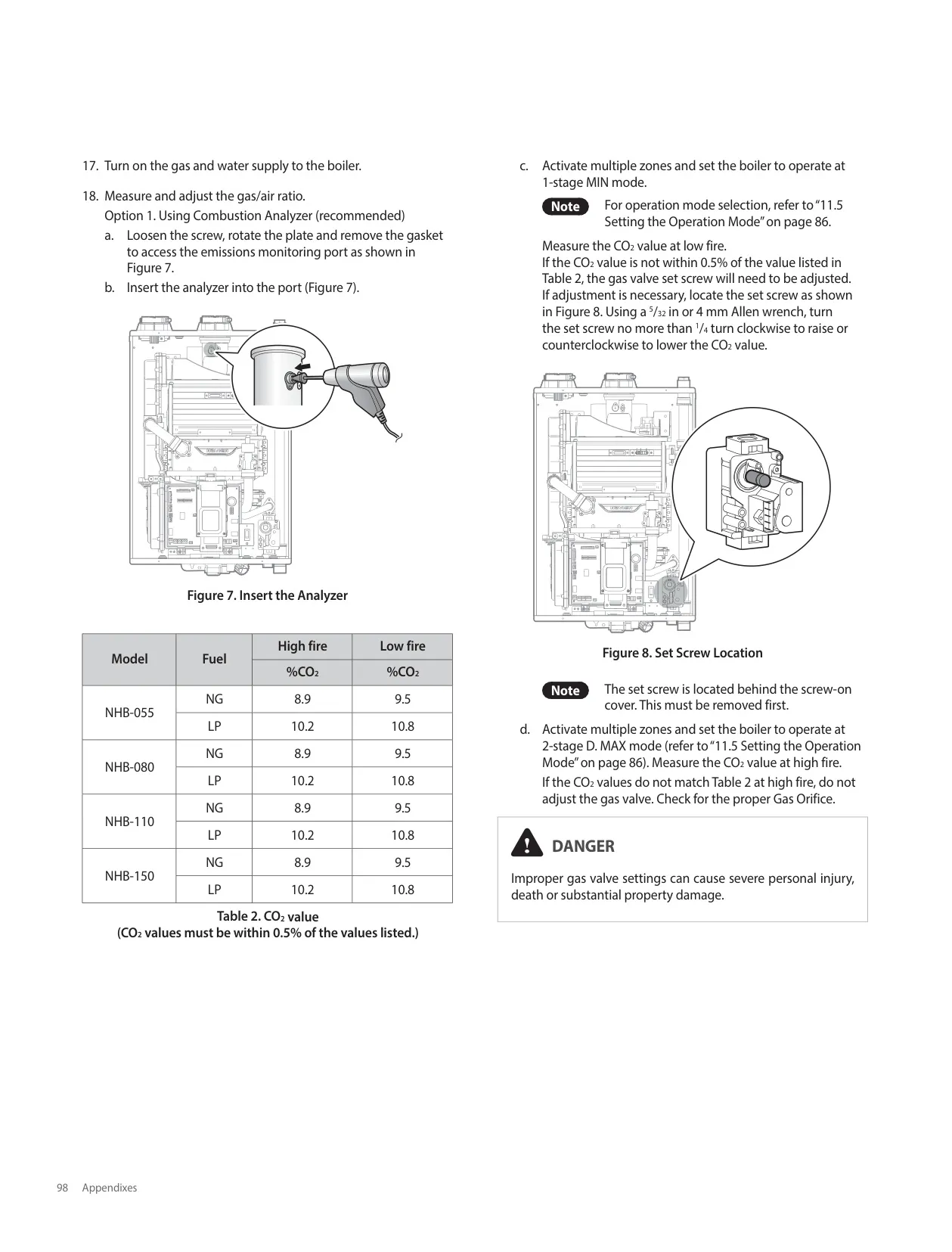

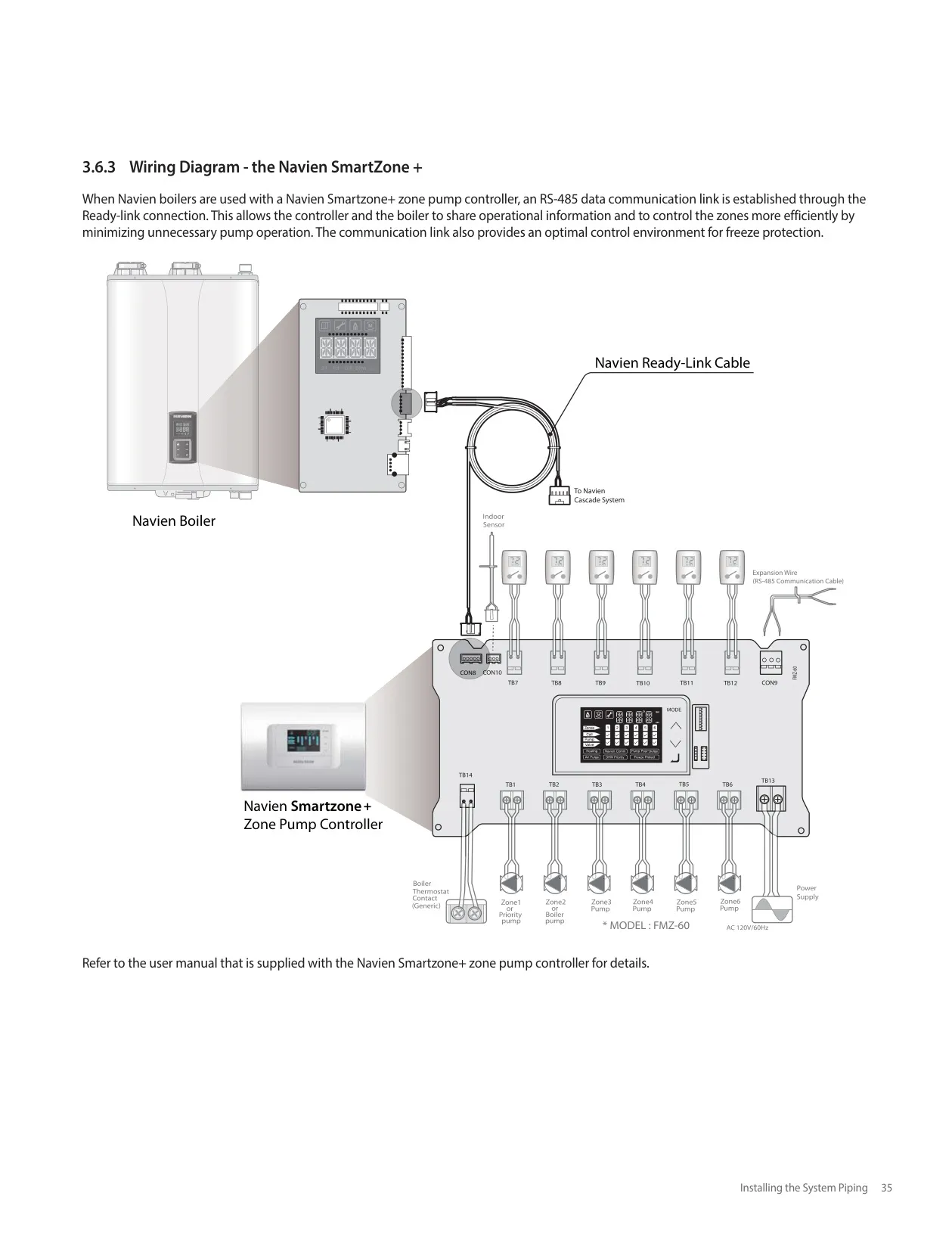

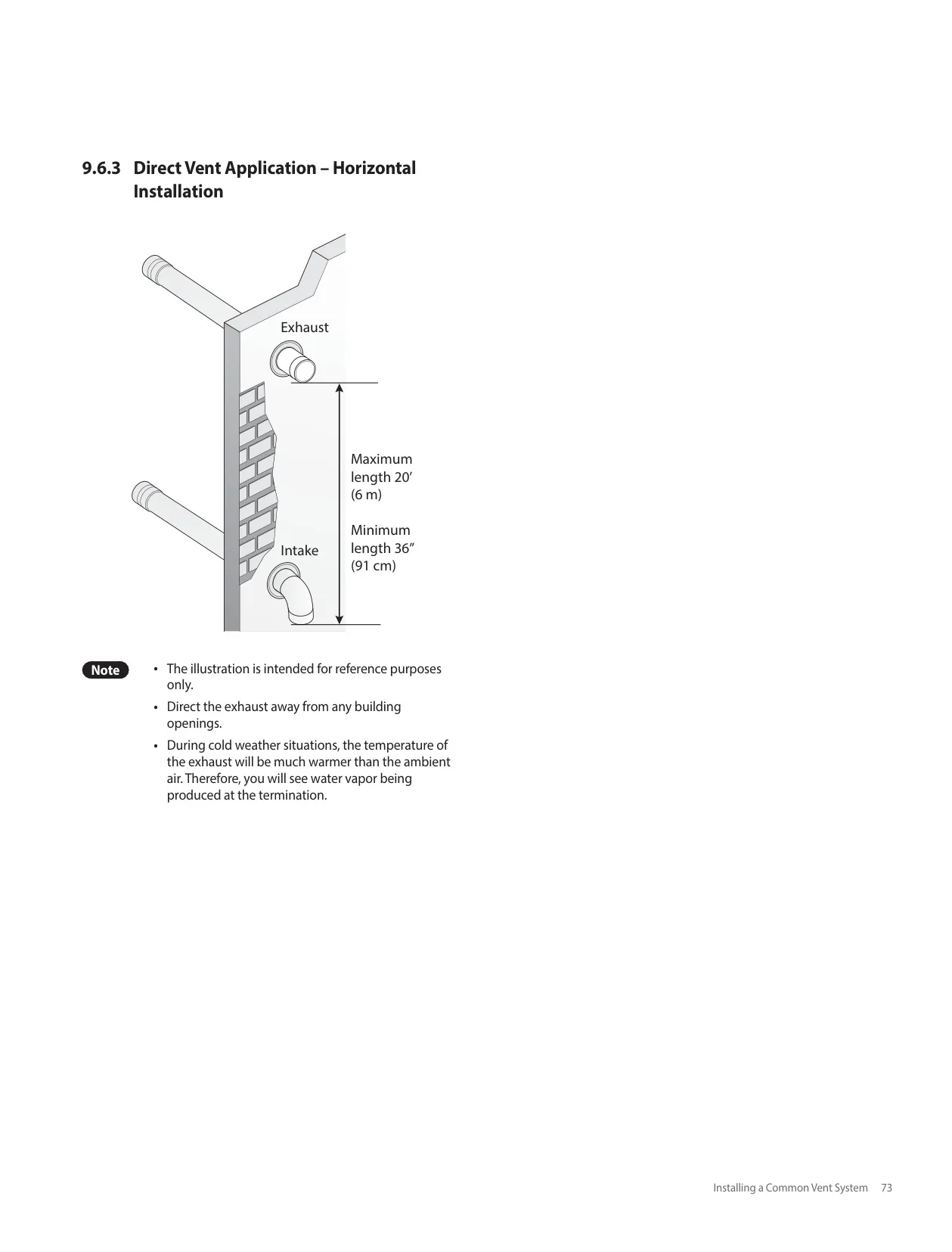

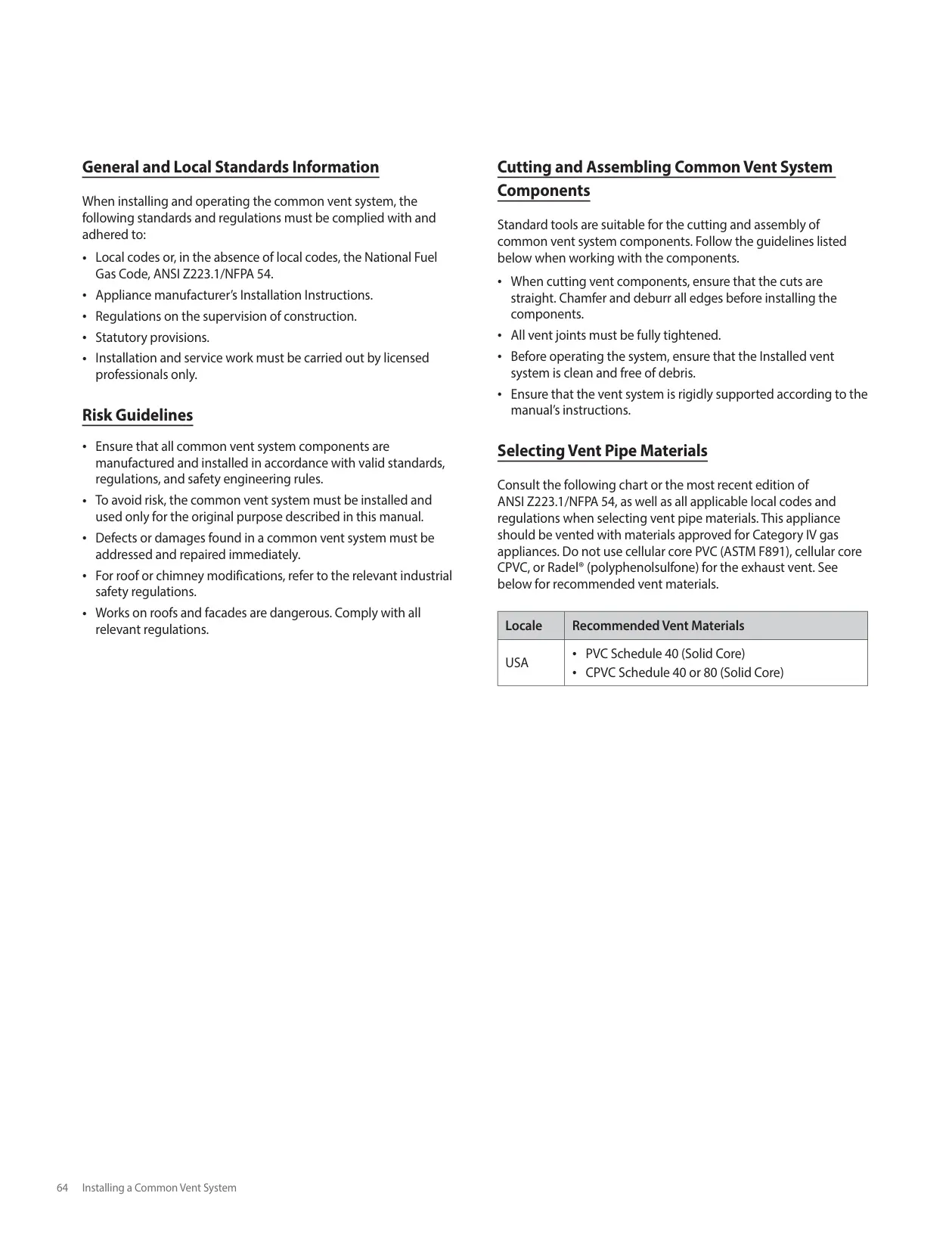

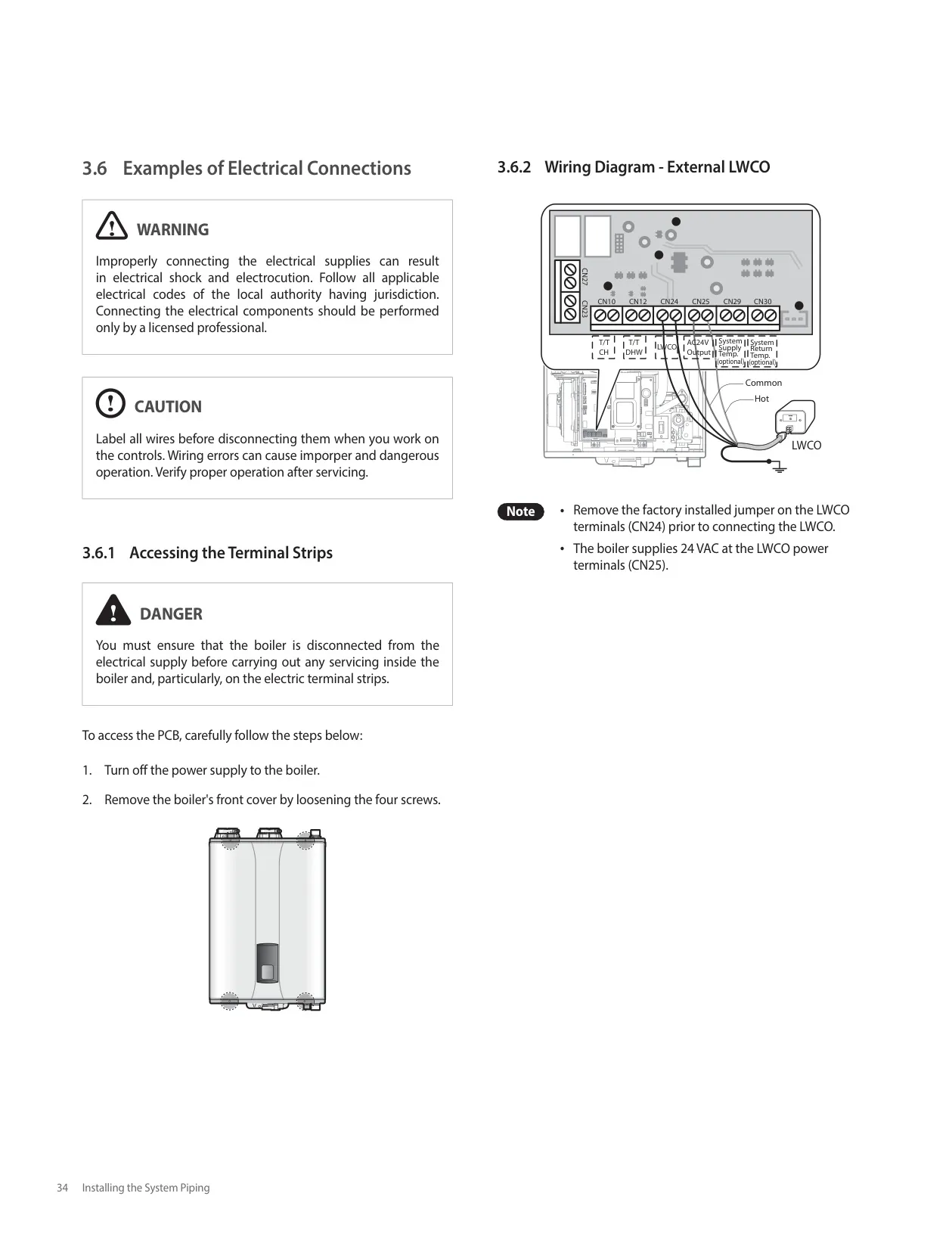

Product Images

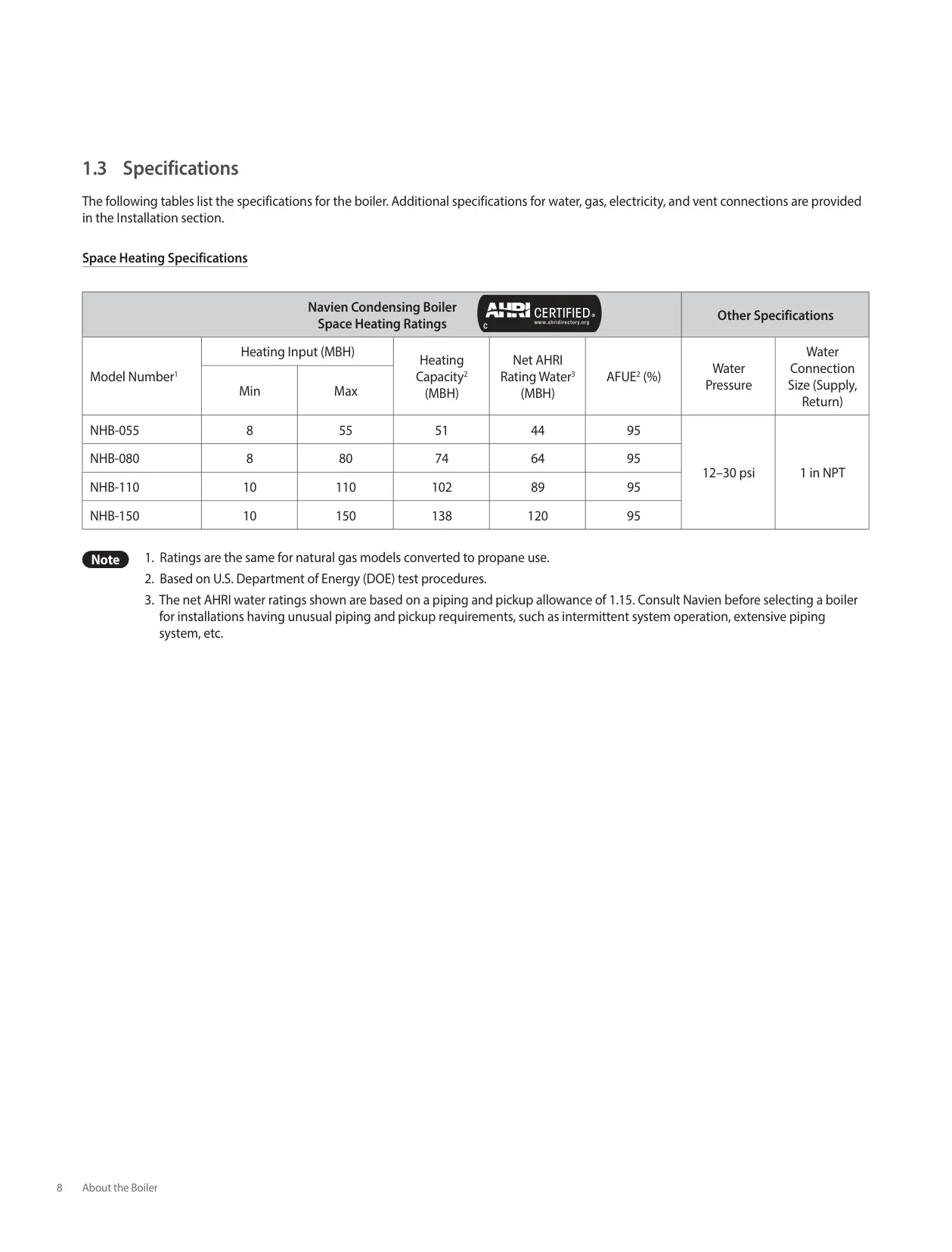

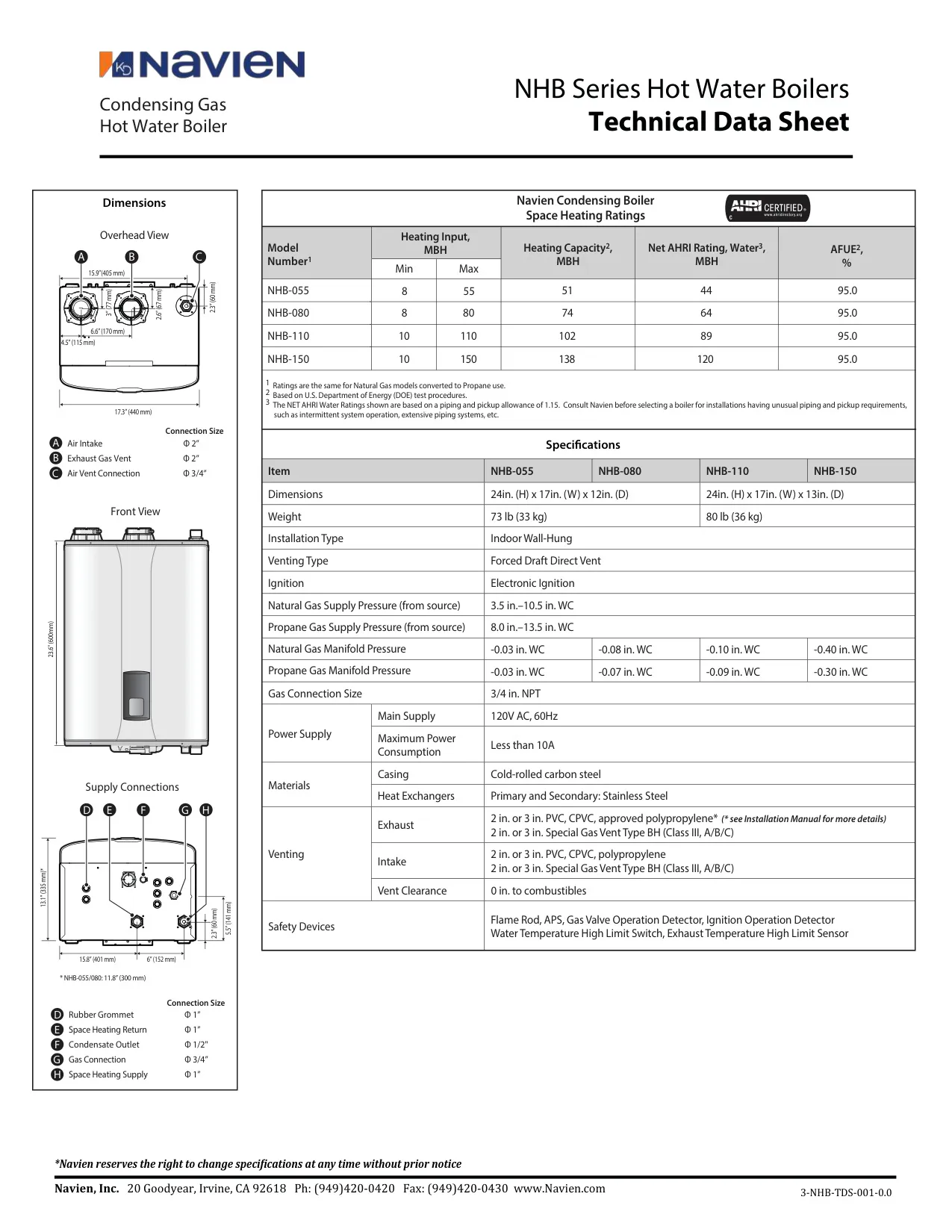

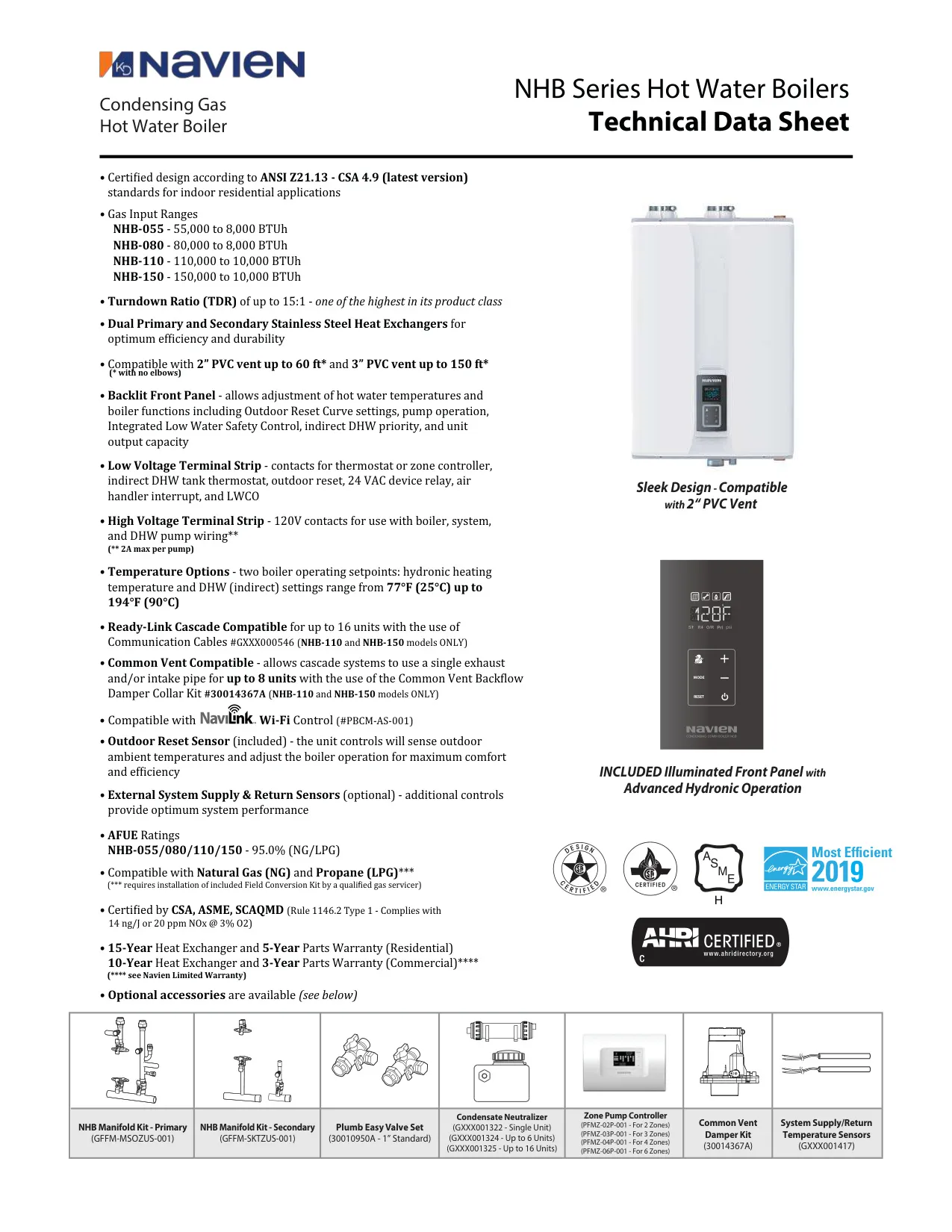

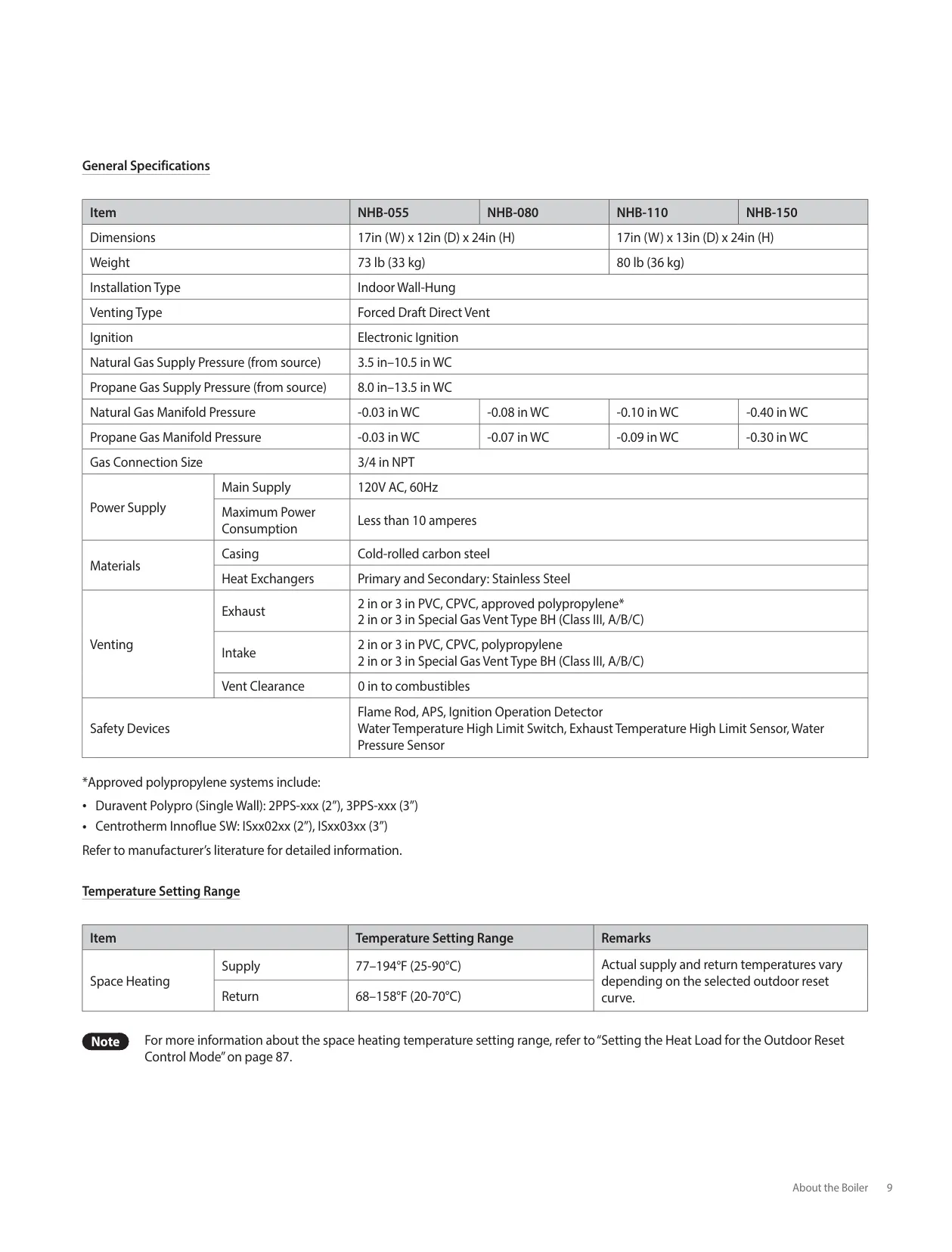

Navien NHB-110 Boiler Specifications
| Feature | Specification |
|---|---|
| Model Series | Navien NHB Condensing Boilers (055, 080, 110, 150) |

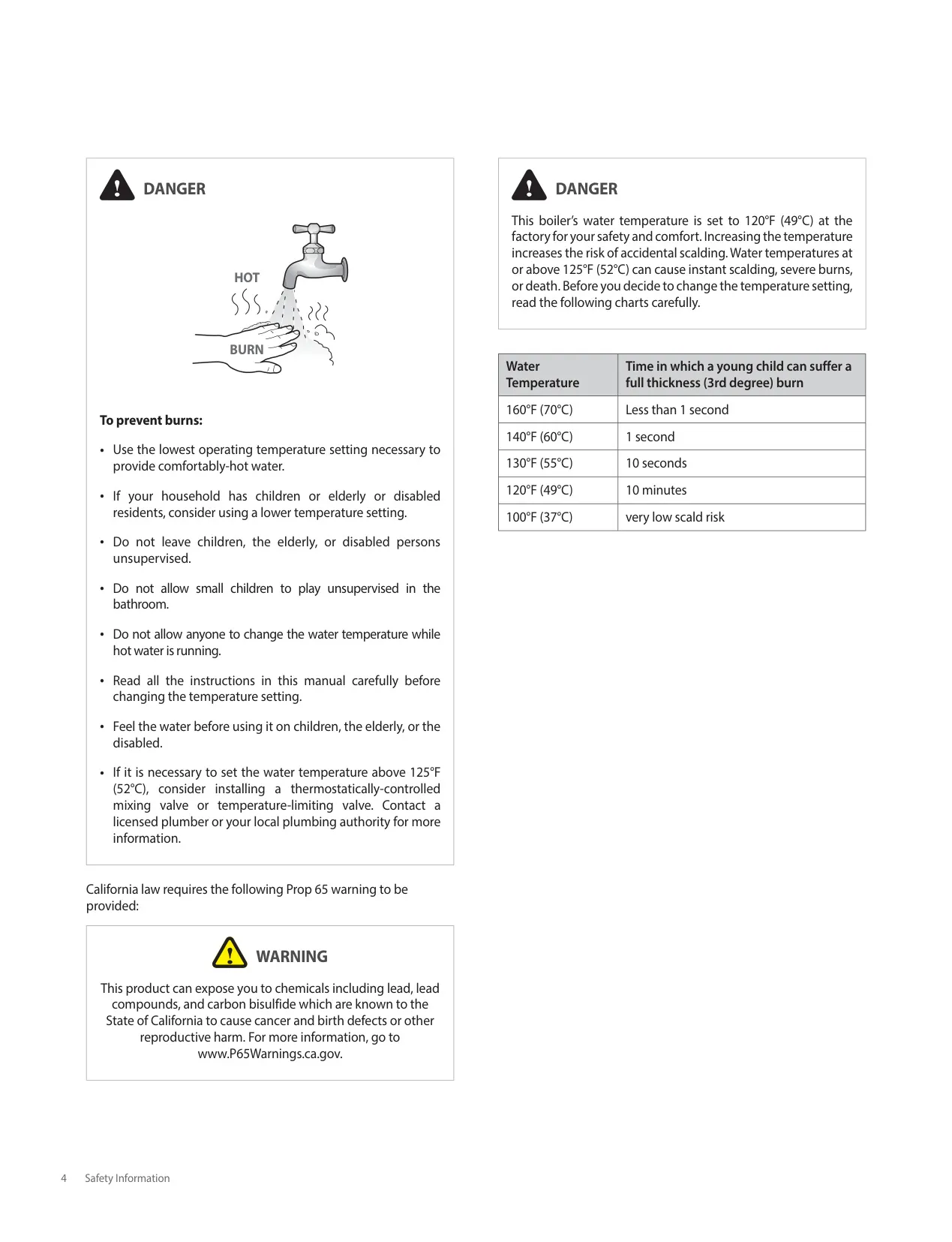

| Factory Water Temperature Setting | 120°F (49°C) |
| Space Heating Supply Water Temp. Range | 104°F (40°C) to 180°F (82°C) |
| Space Heating Return Water Temp. Range | 86°F (30°C) to 149°F (65°C) |
| DHW Indirect Supply Water Temp. Range | 104°F (40°C) to 180°F (82°C) |

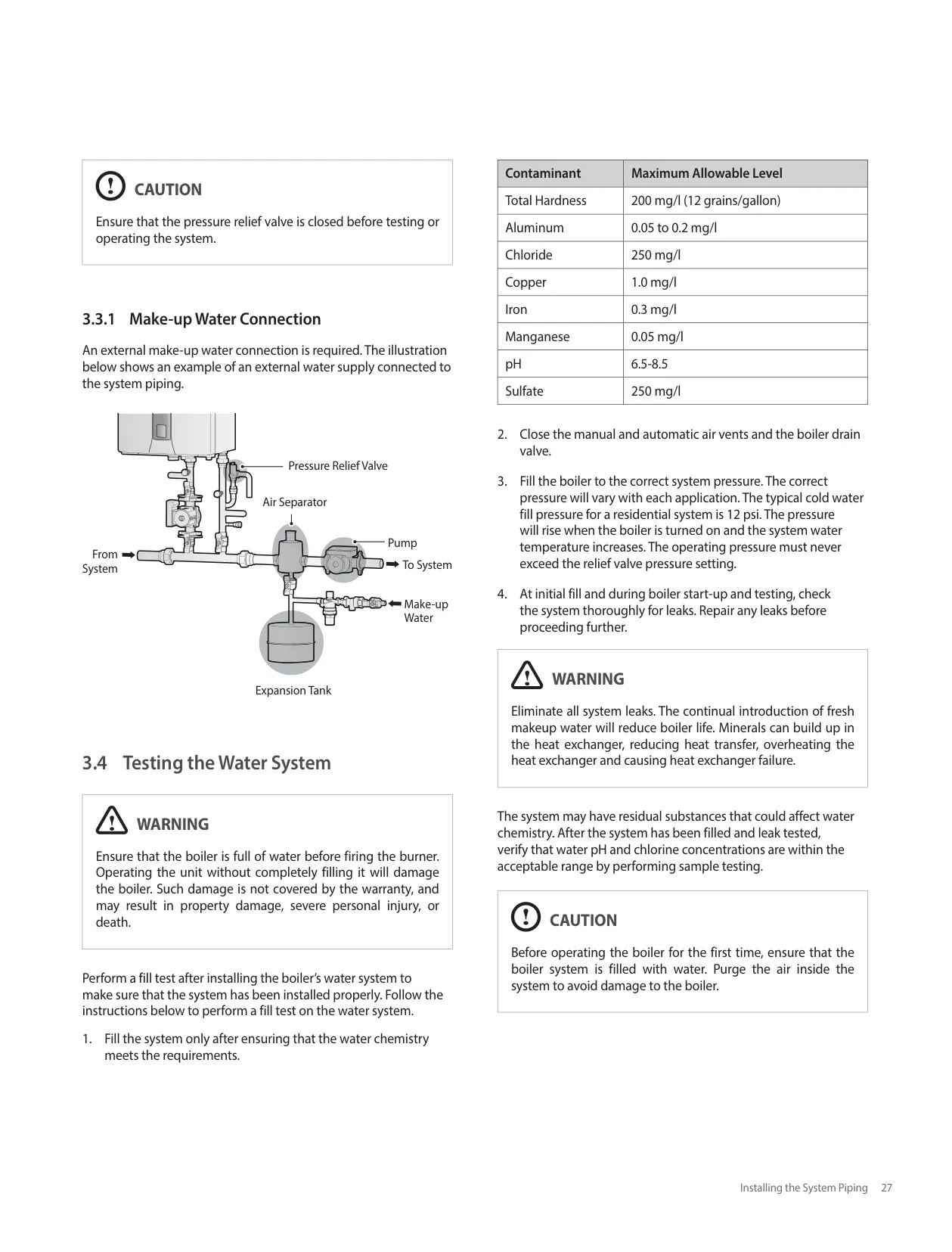

| Minimum System Cold Fill Pressure | 12 psi |
| Residential Warranty - Labor | 1 Year |
| Residential Warranty - Parts | 5 Years |
| Residential Warranty - Heat Exchanger | 10 Years (pro-rated up to 15 years) |
| Commercial Warranty - Labor | 1 Year |
| Commercial Warranty - Parts | 3 Years |
| Commercial Warranty - Heat Exchanger | 7 Years (pro-rated up to 10 years) |
| Approved Usage | USA and Canada only |
Navien NHB-110 Boiler Details
The Navien NHB-110 is a model within the NHB series of high-efficiency condensing boilers, designed for reliable space heating. This user-friendly appliance emphasizes safety and straightforward operation, making it suitable for both residential and commercial applications. Users are strongly advised to keep the manual readily accessible for future reference, particularly for maintenance and service needs.

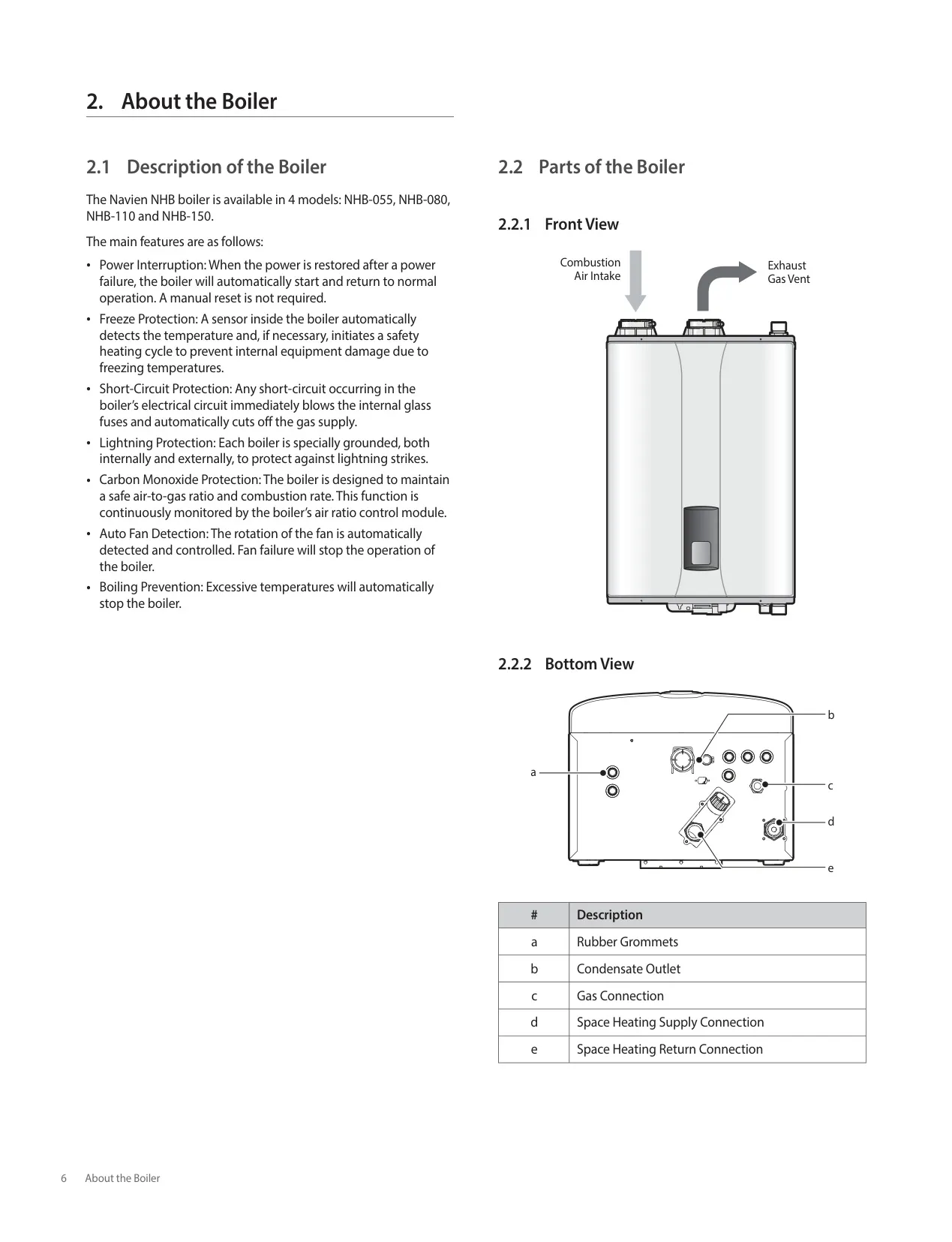

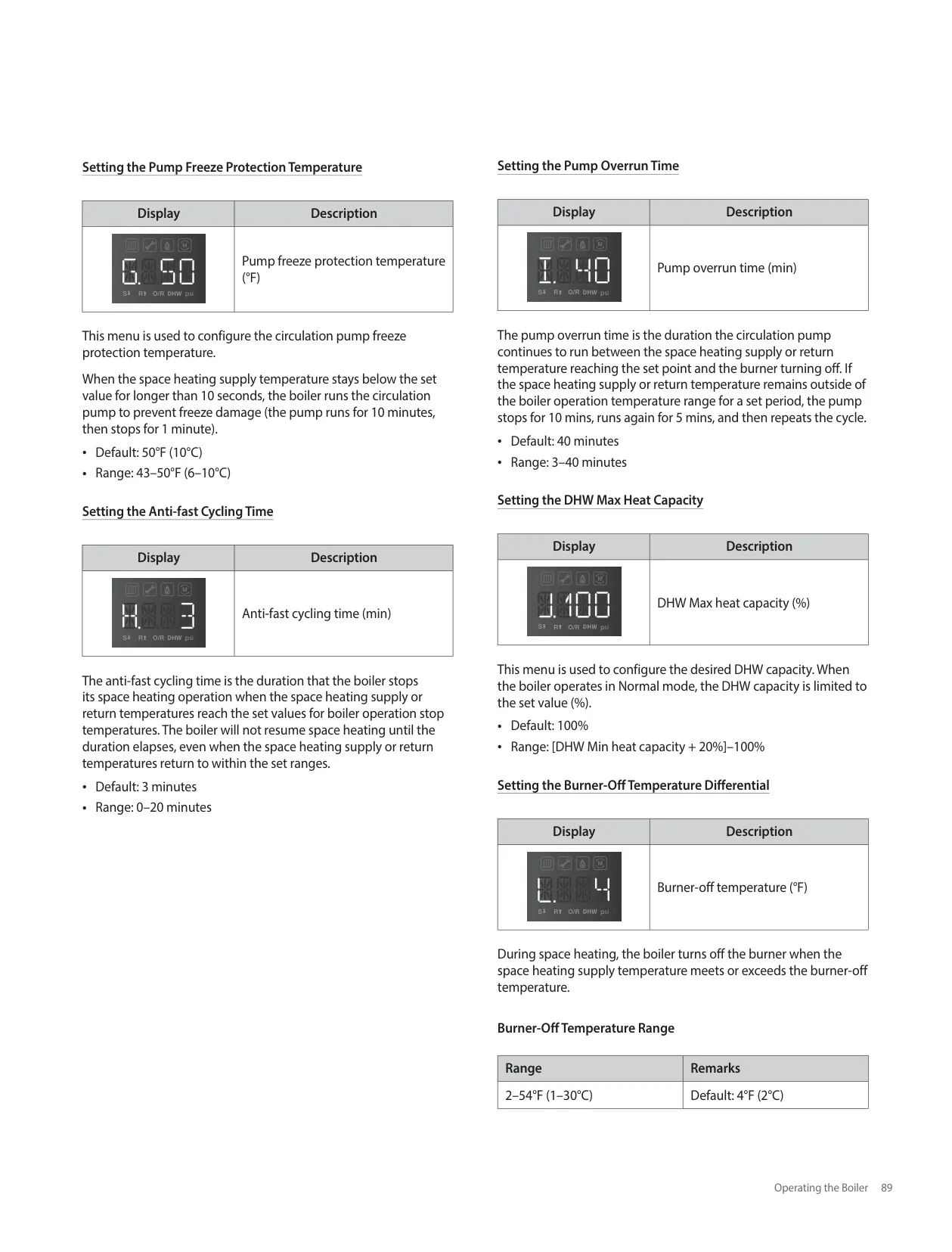

Integrated safety features provide peace of mind. The boiler offers Power Interruption Protection, automatically resuming operation after outages. It includes Freeze Protection, initiating a heating cycle to prevent internal damage in cold conditions. Furthermore, there's Short-Circuit Protection via internal fuses, built-in Lightning Protection through grounding, and continuous monitoring for Carbon Monoxide safety.
Operational intelligence extends to fan performance and temperature management. The boiler features Auto Fan Detection, which stops operation if fan failure occurs, and Boiling Prevention to automatically cease functioning if excessive temperatures are detected. These safeguards work in concert to ensure the boiler runs safely and efficiently.

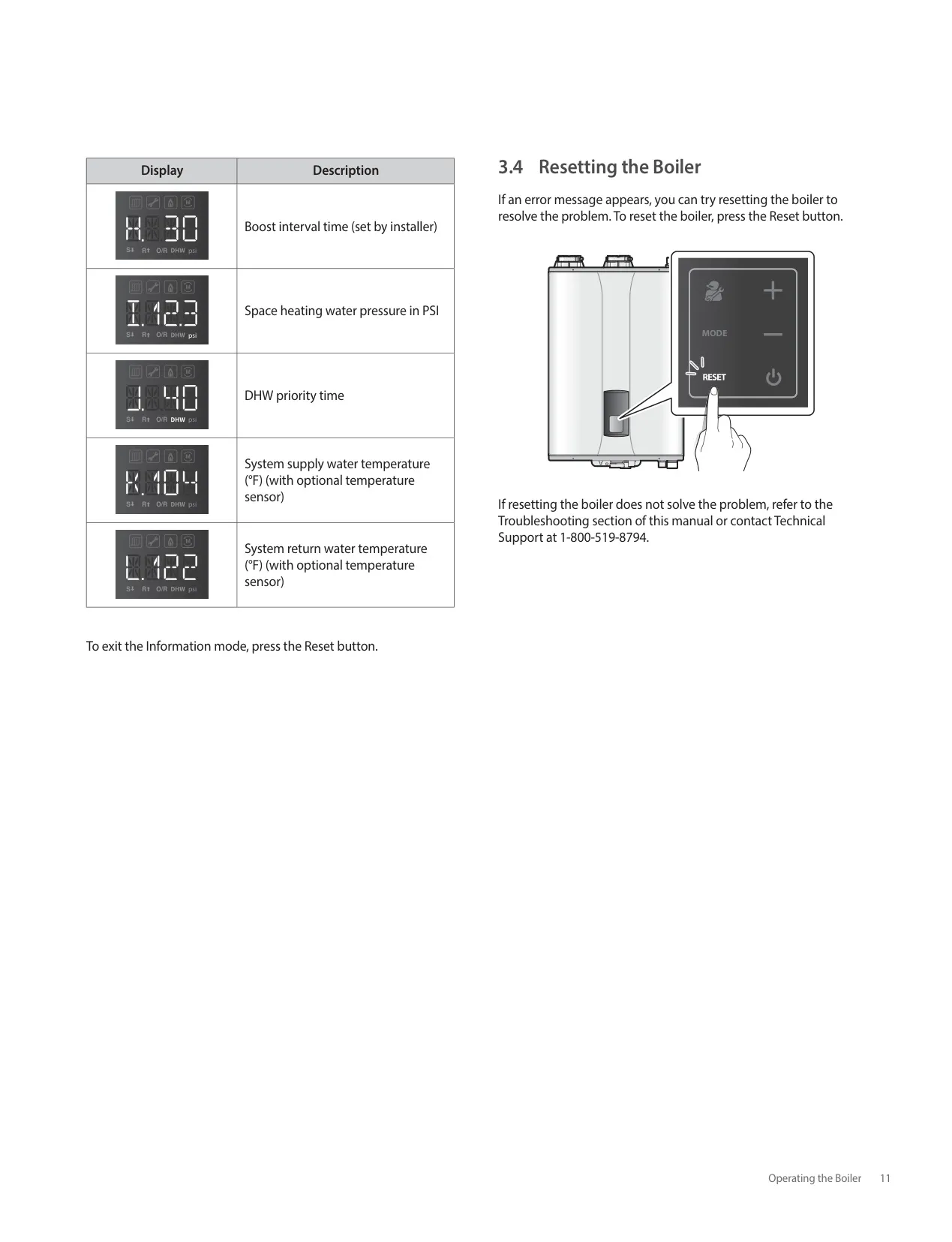

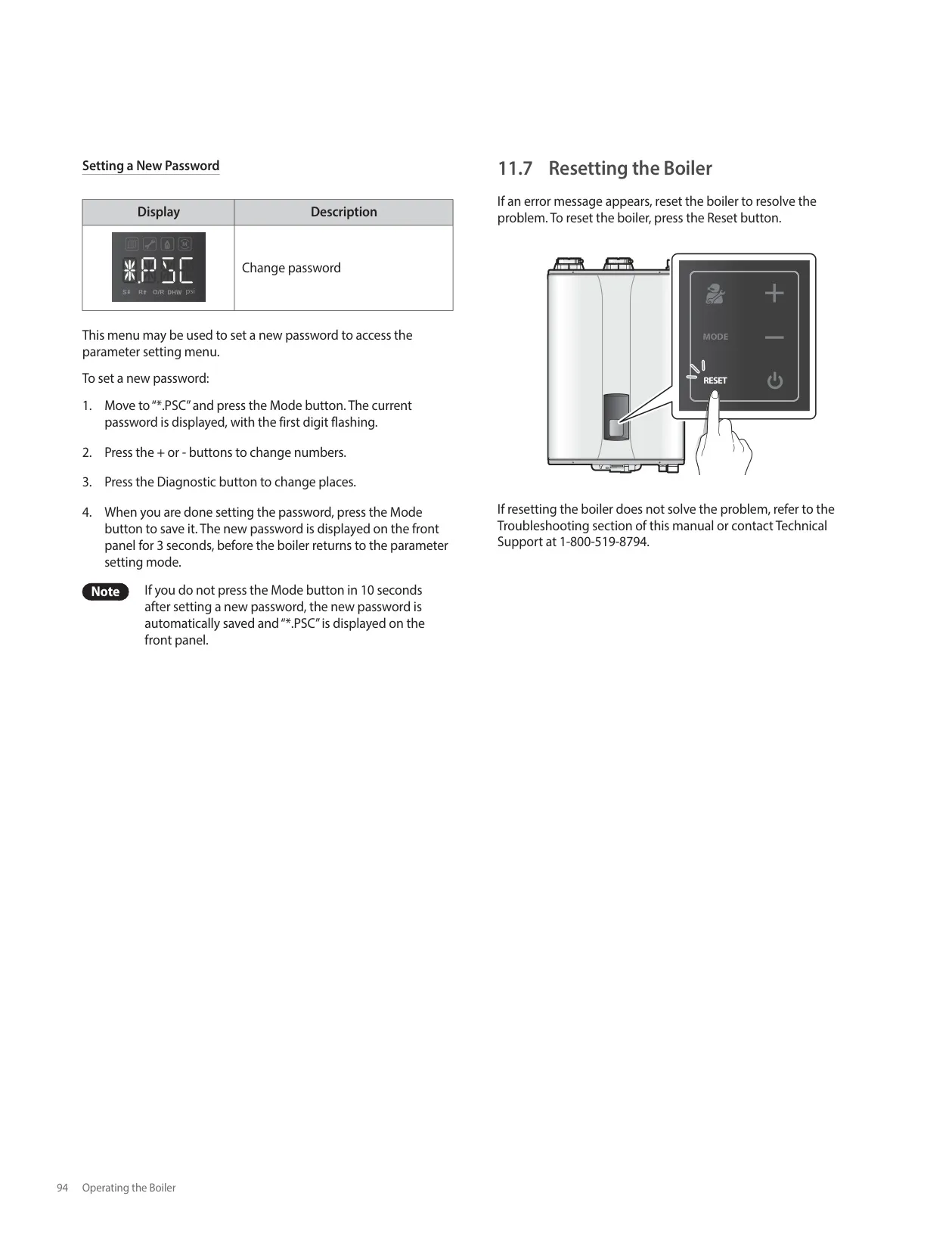

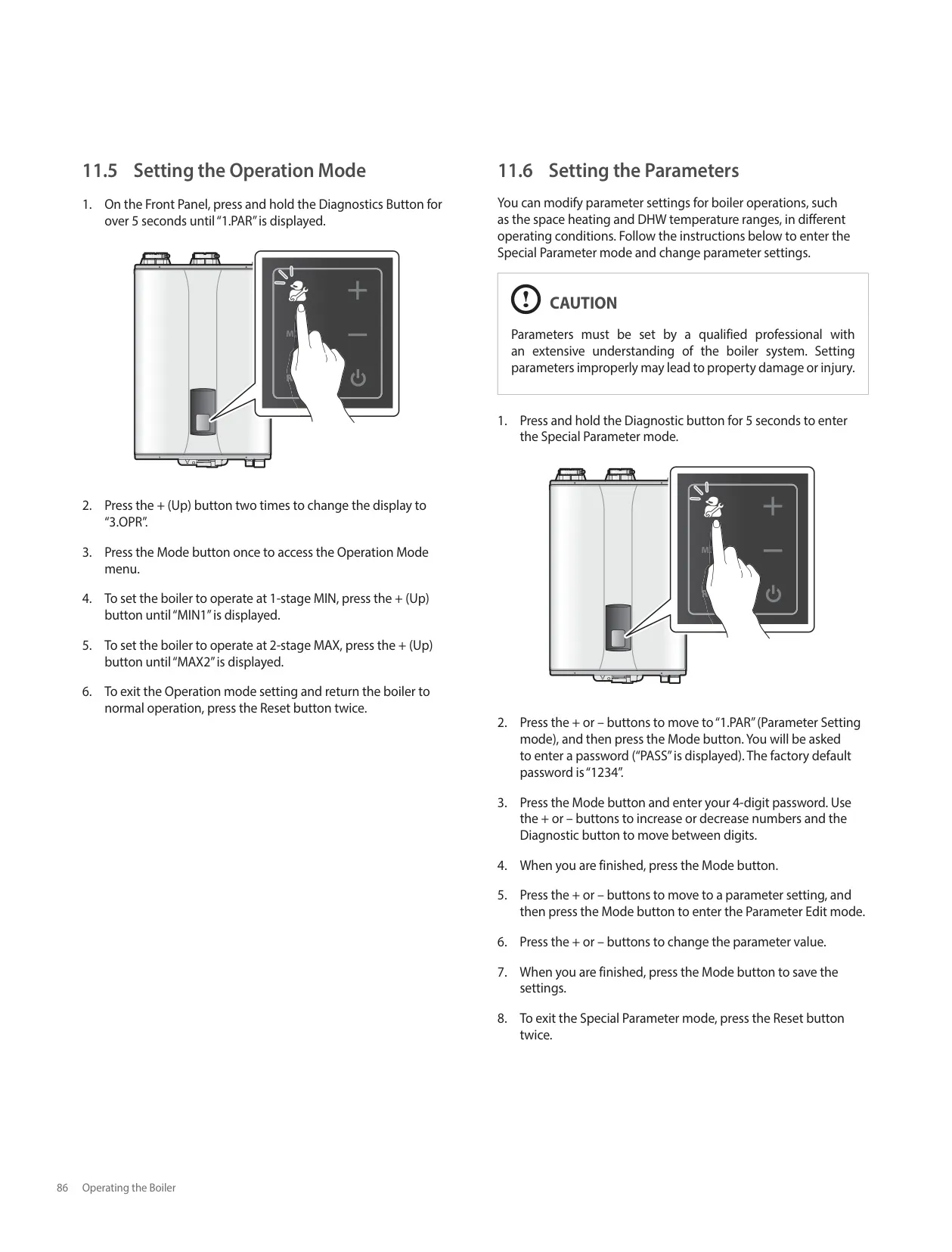

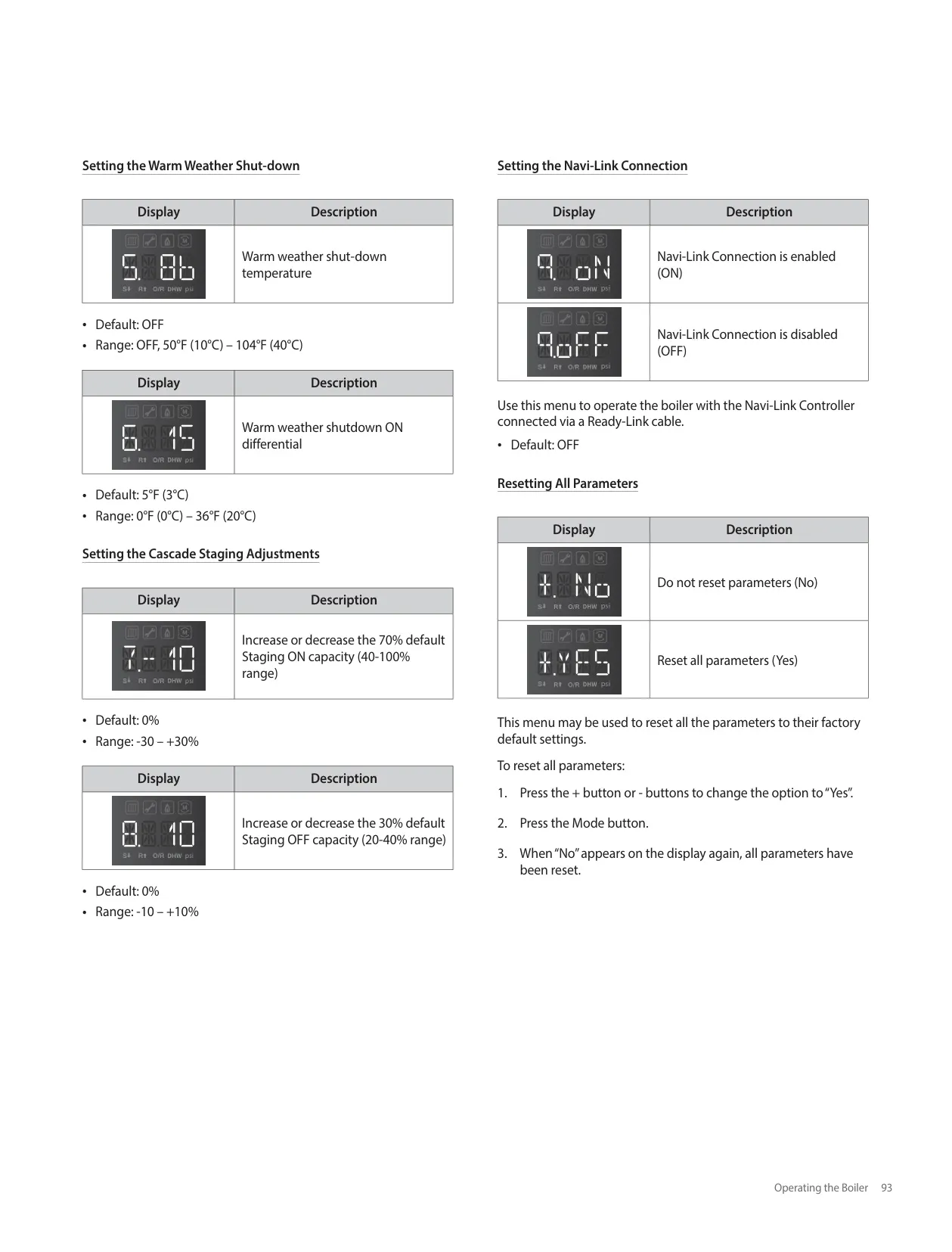

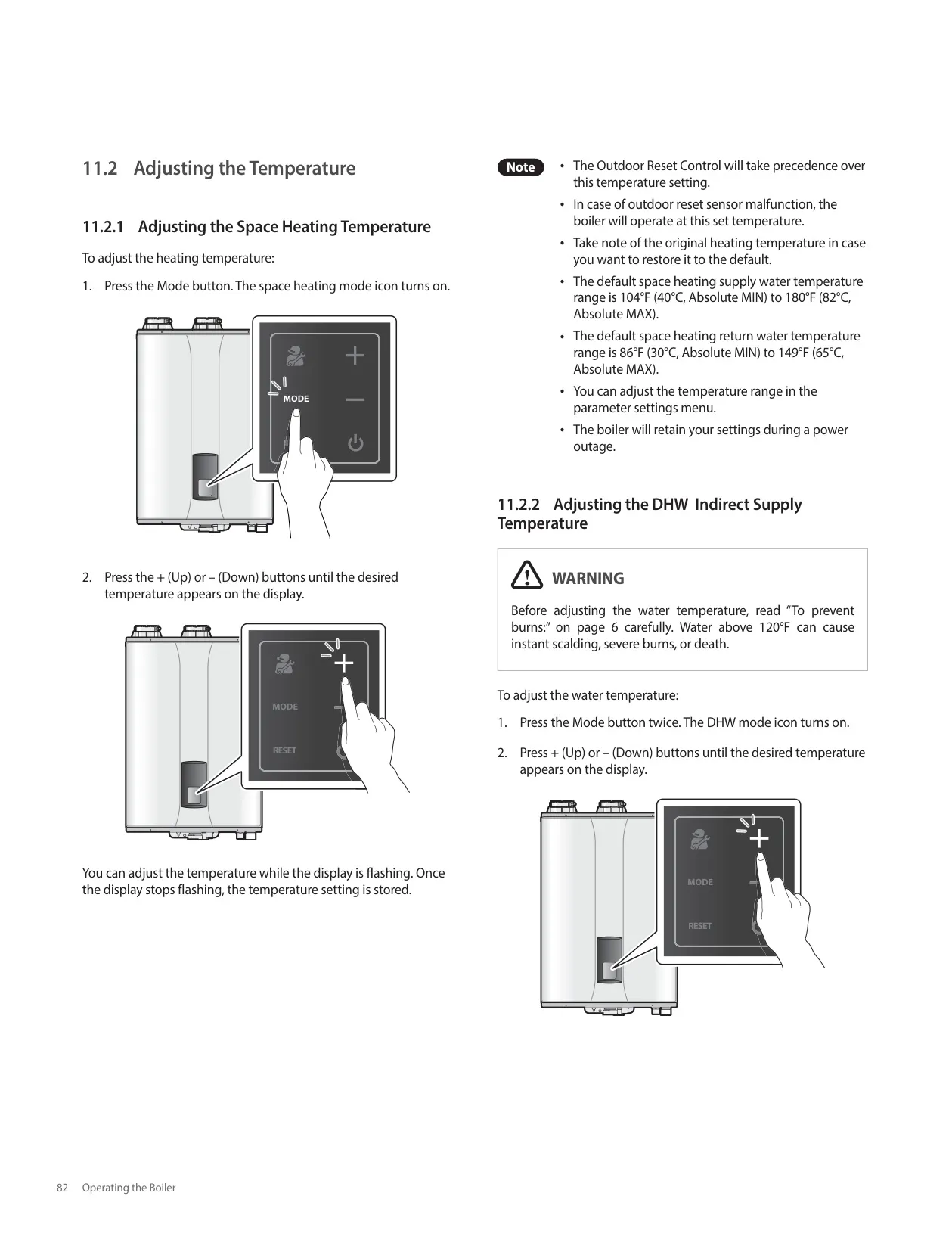

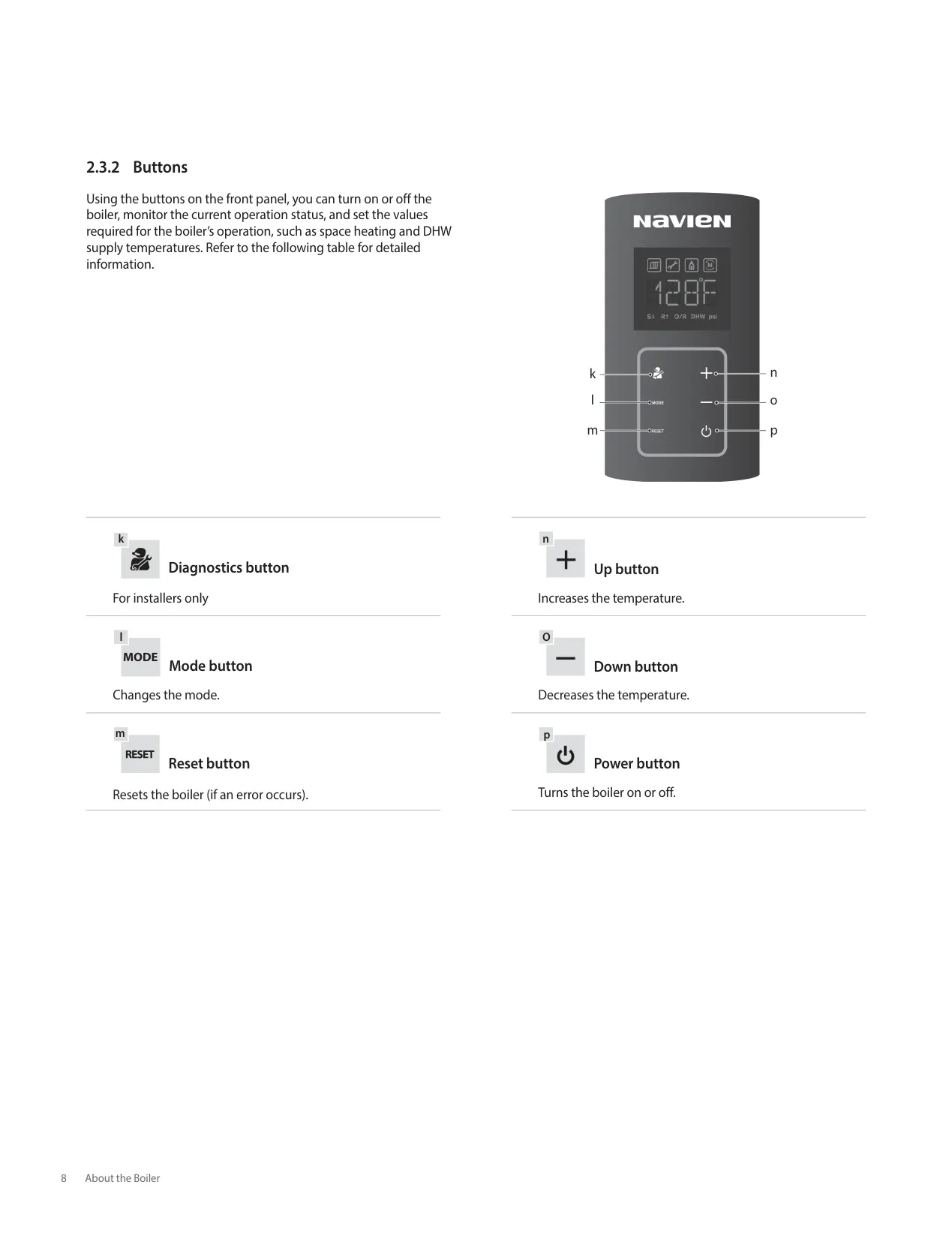

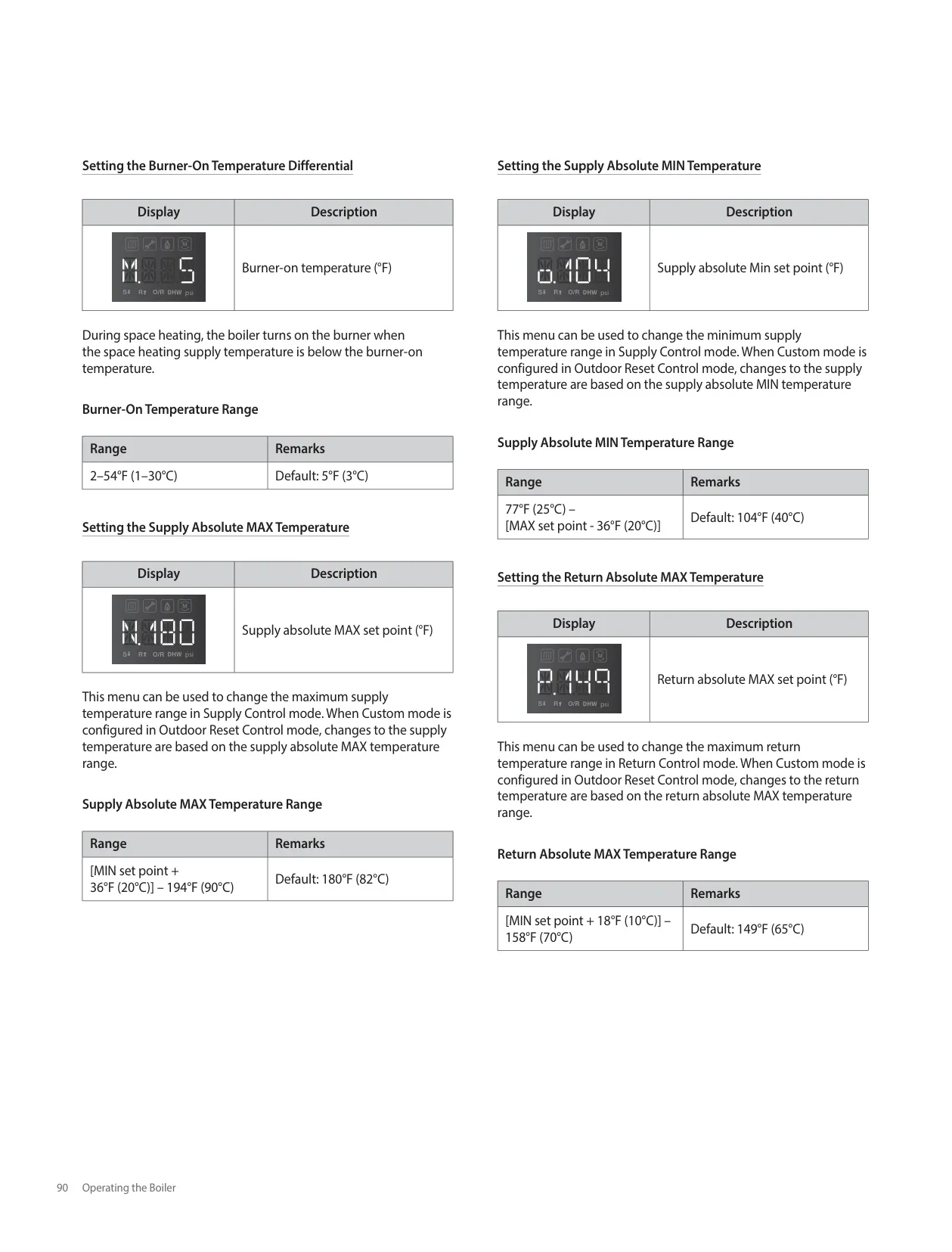

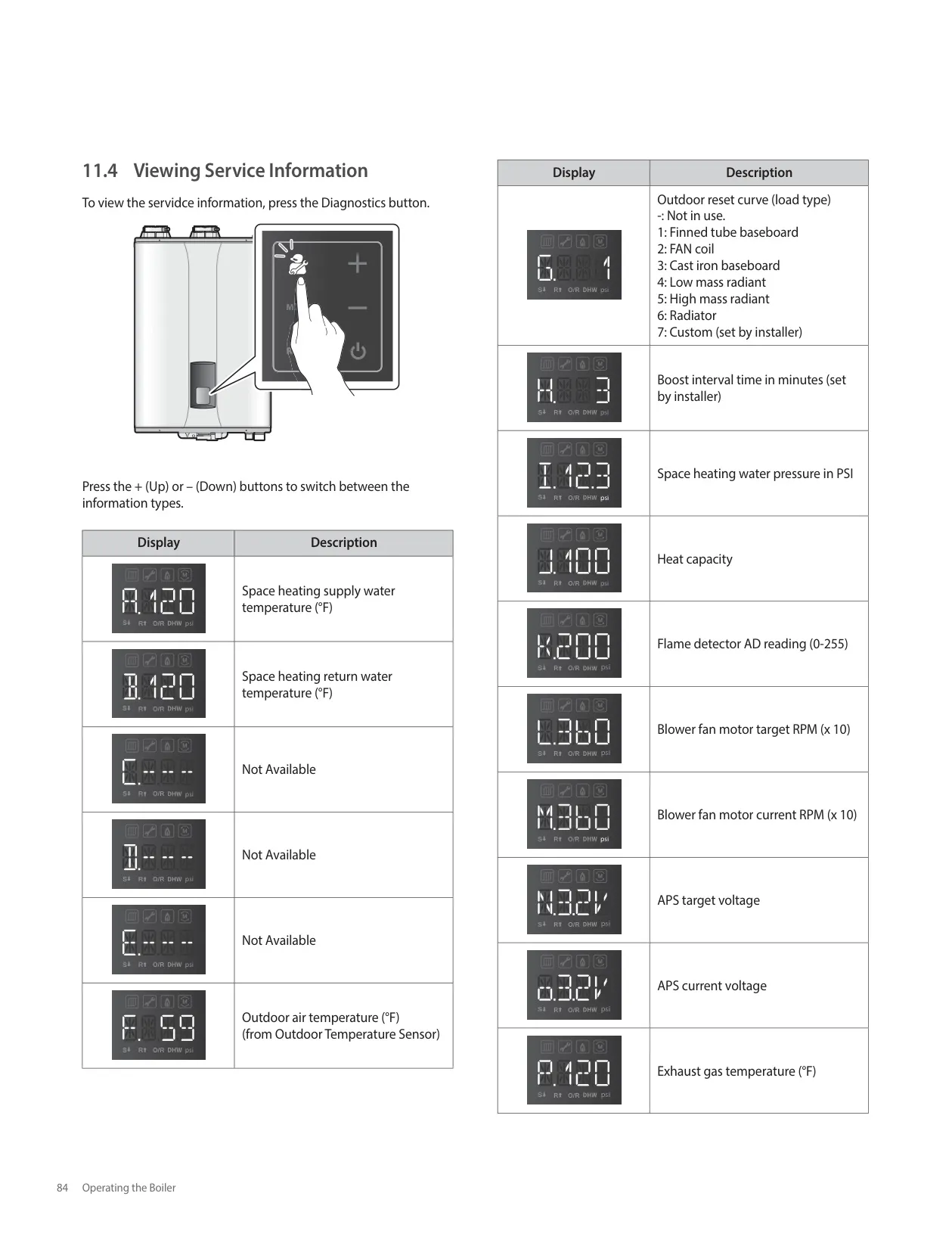

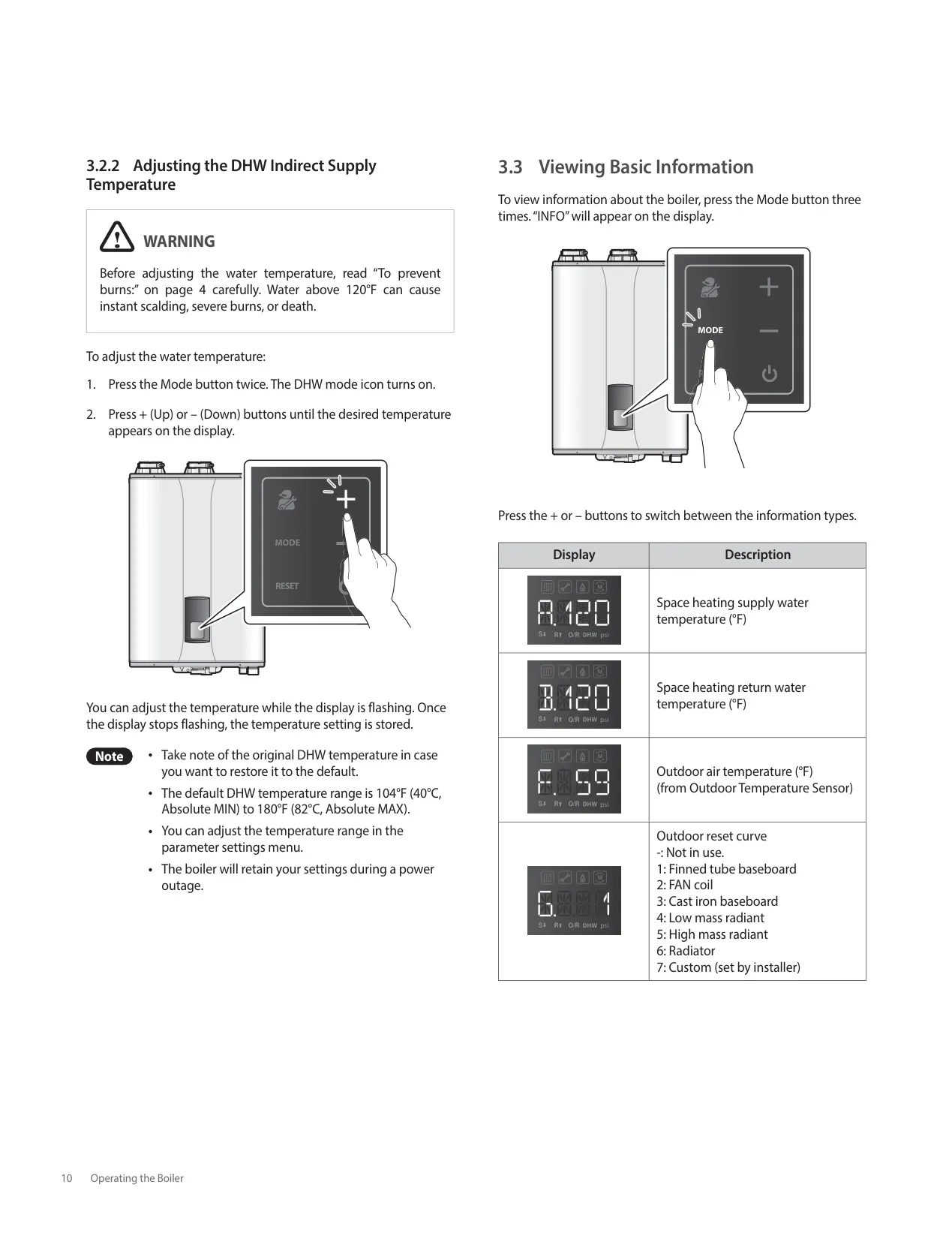

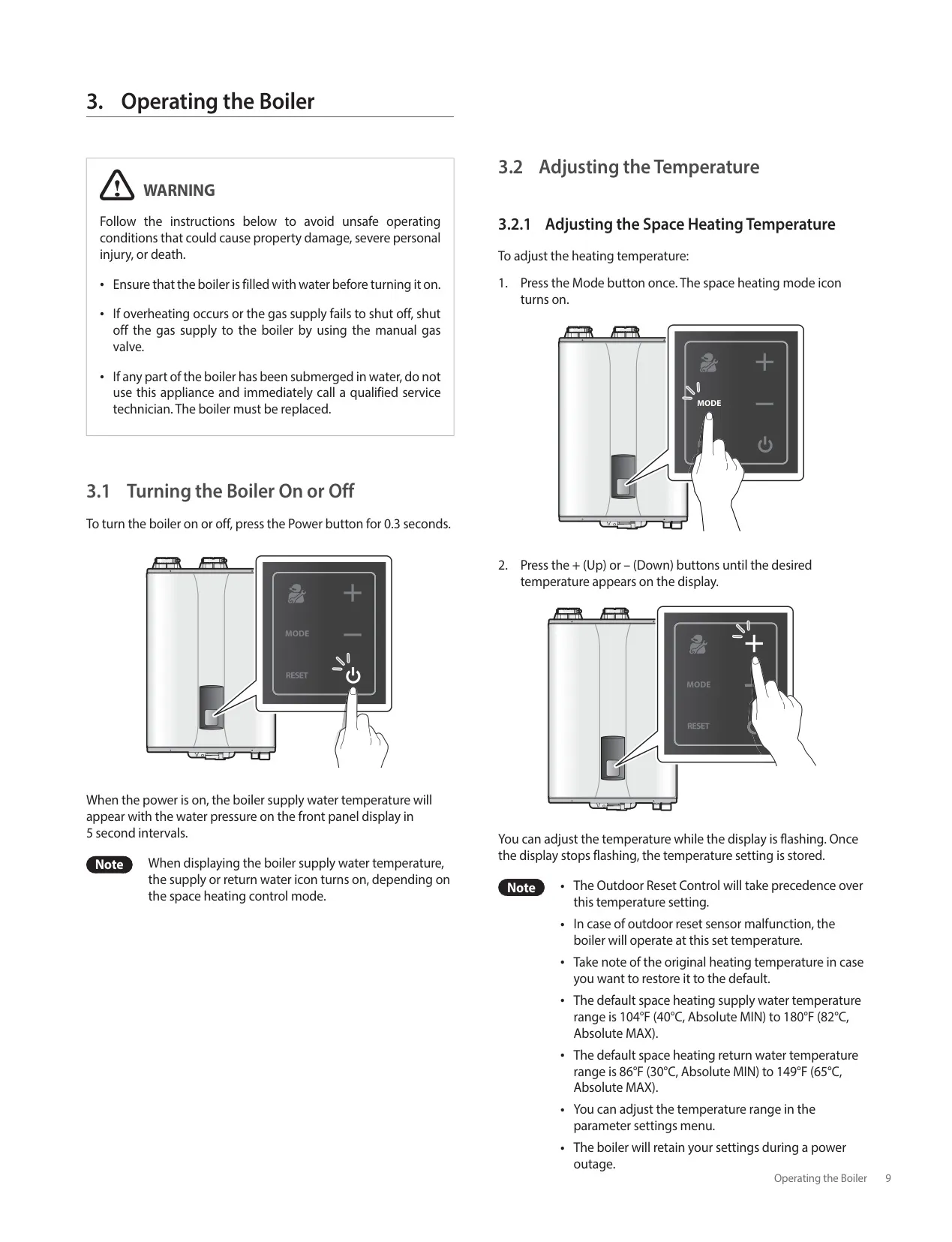

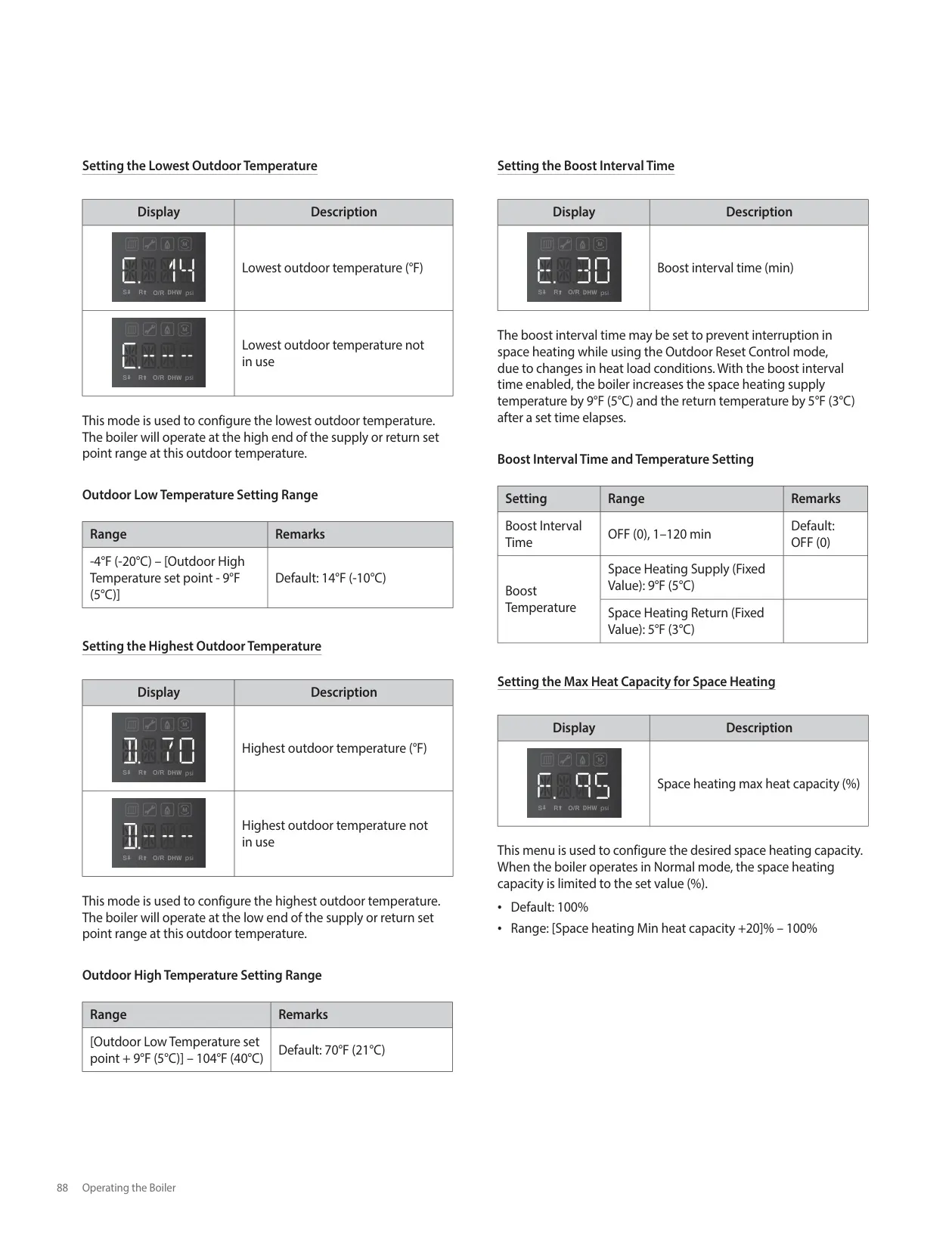

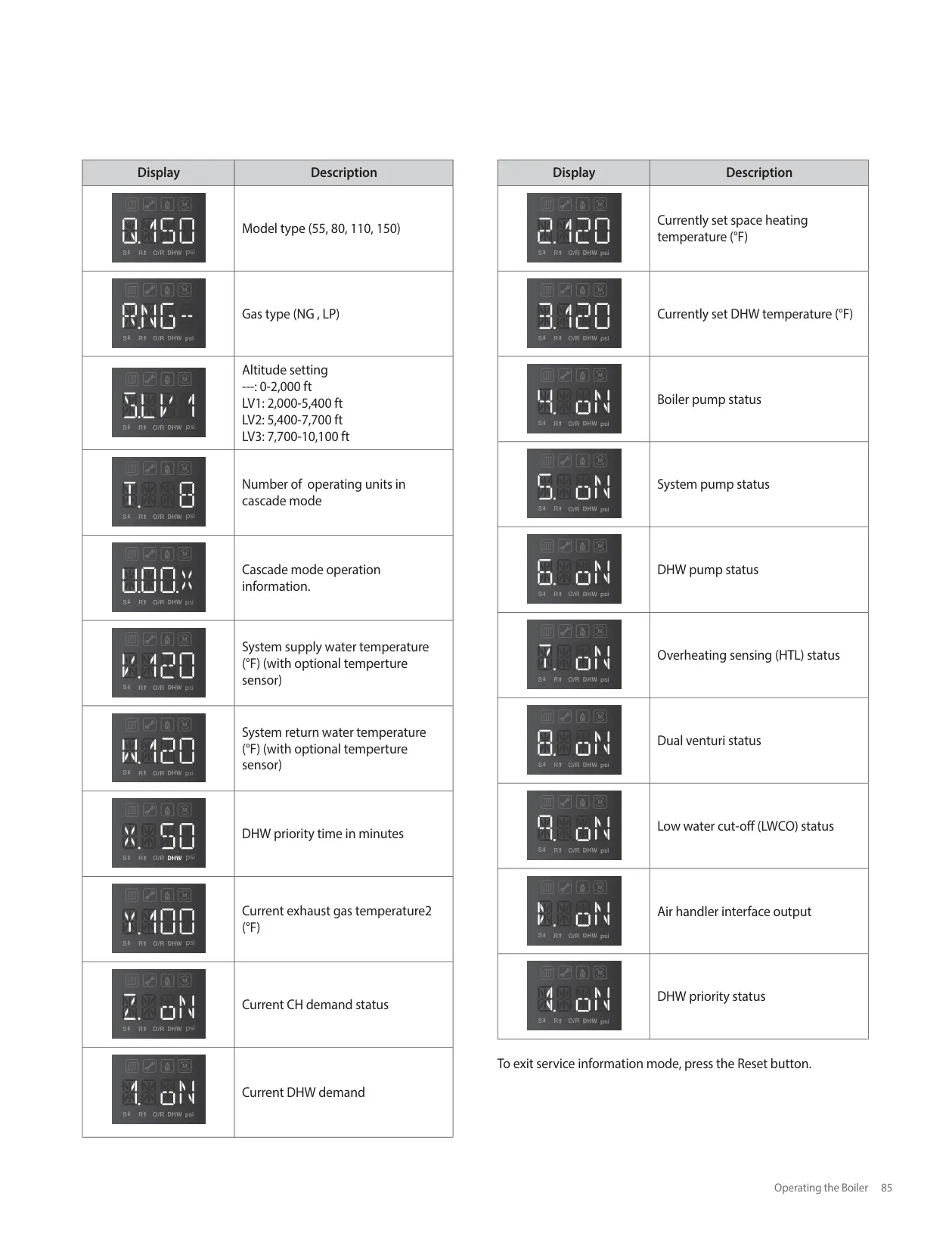

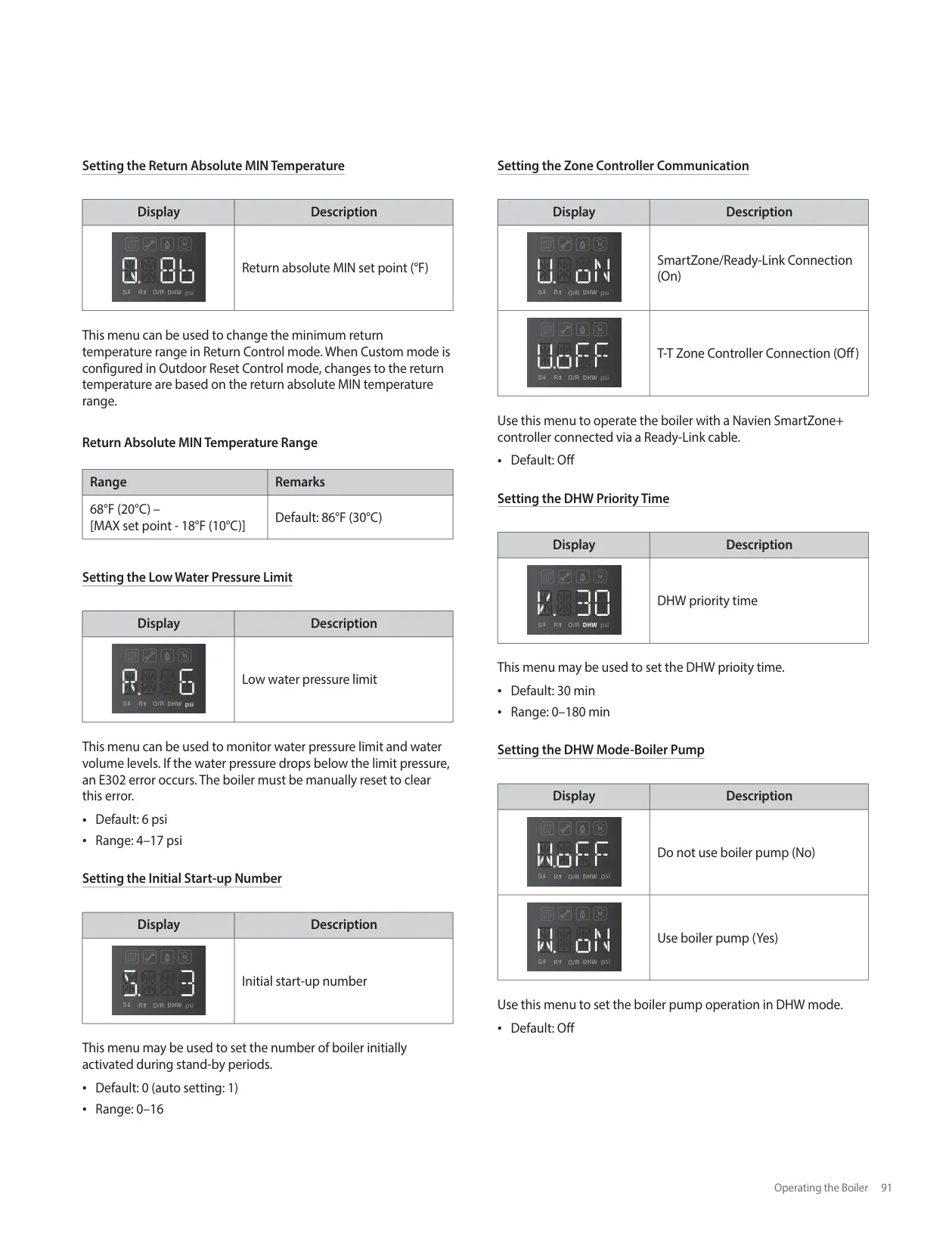

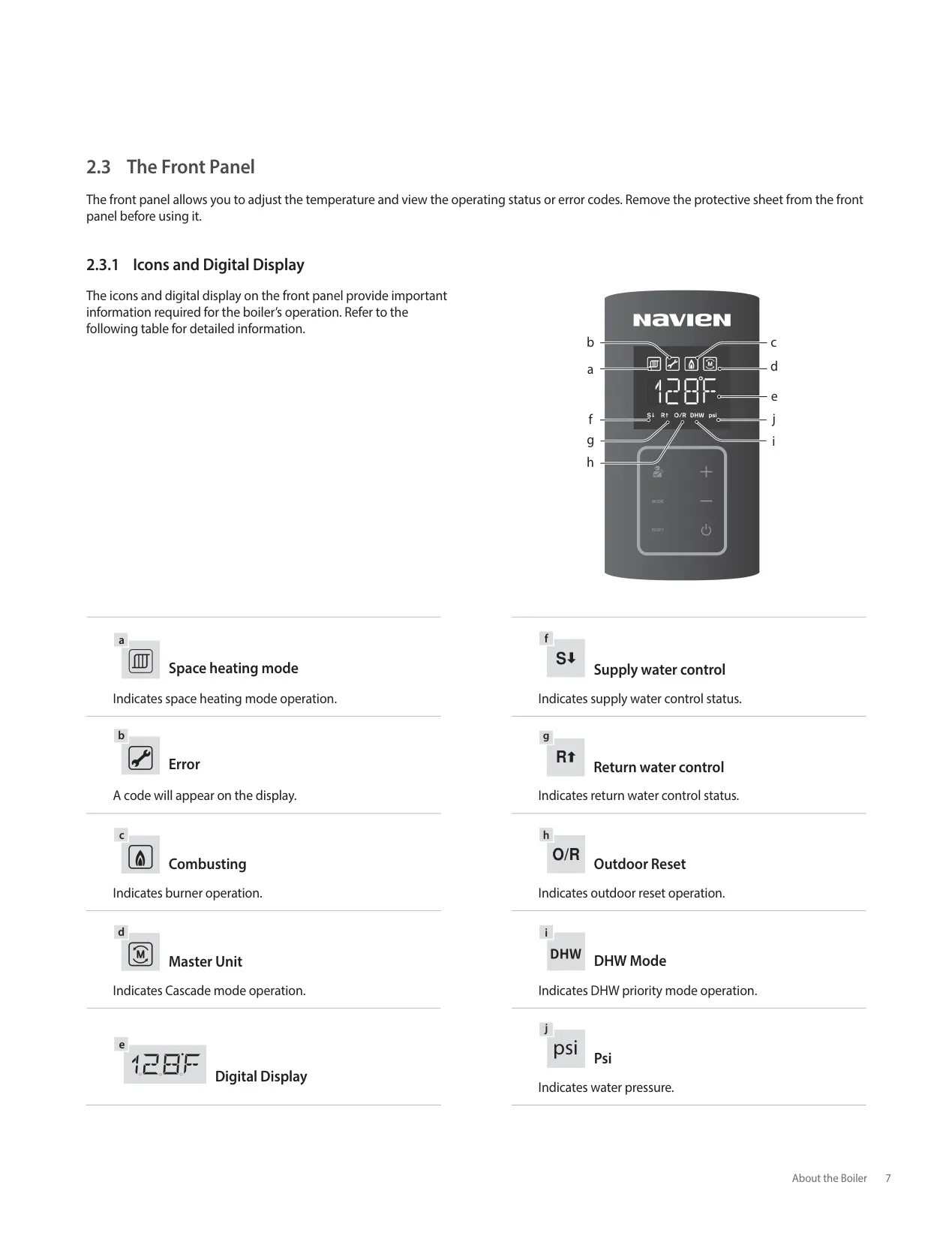

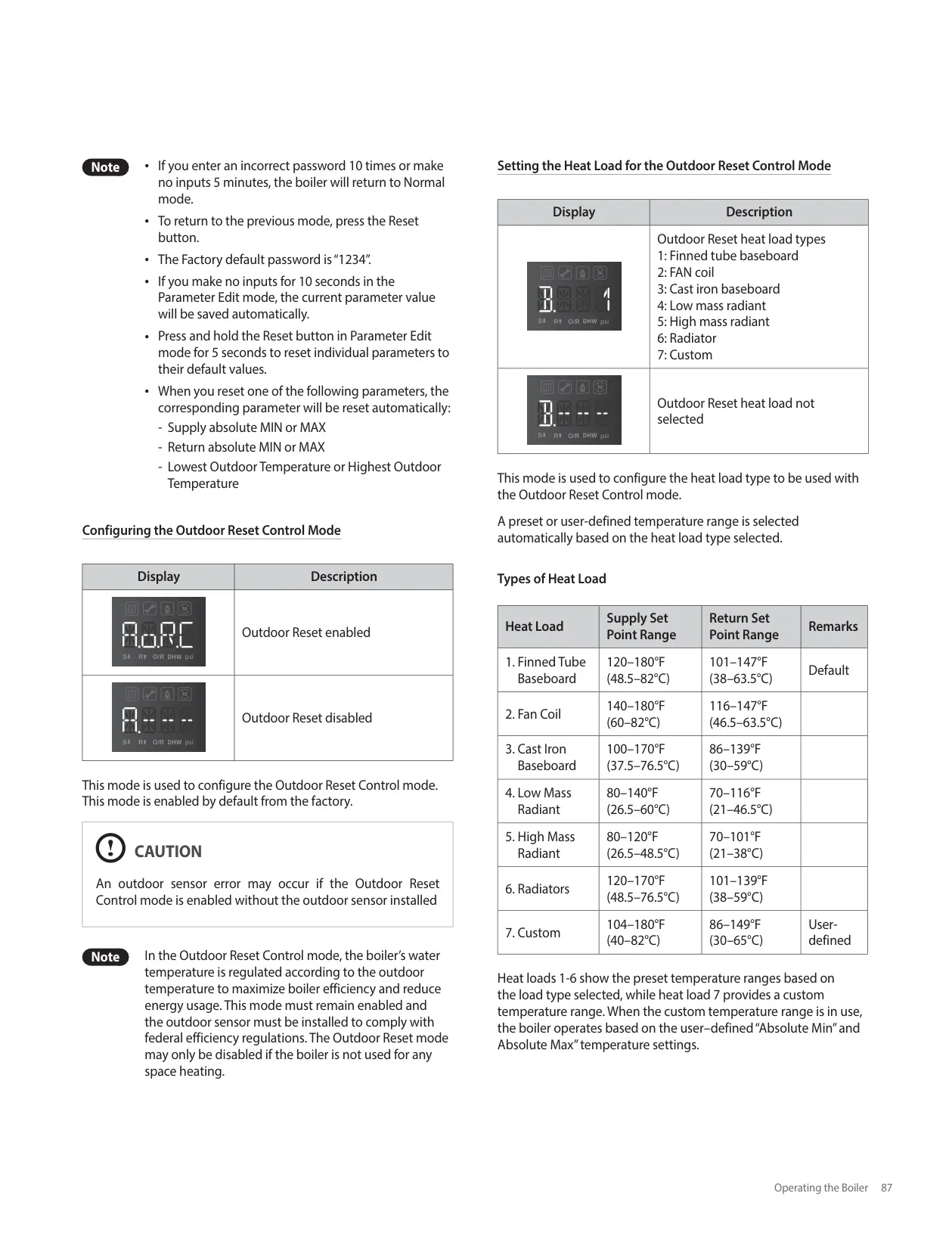

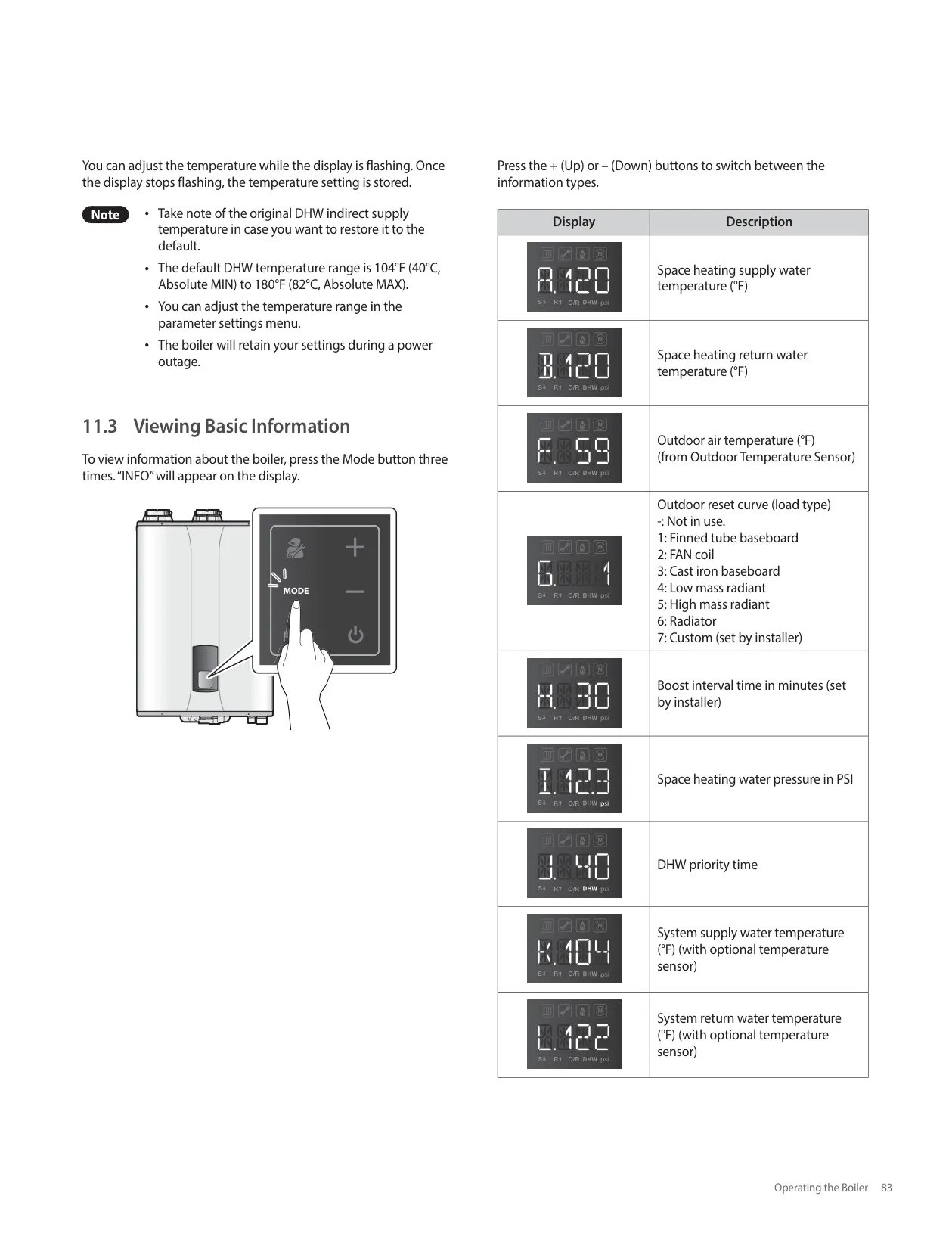

The front panel of the NHB-110 is intuitive, featuring a digital display and various icons that convey essential information like operating status, water pressure, and error codes. Buttons allow users to easily adjust temperatures for both space heating and domestic hot water, view basic system information, and reset the unit if an error occurs. Installers have access to a dedicated diagnostics button.

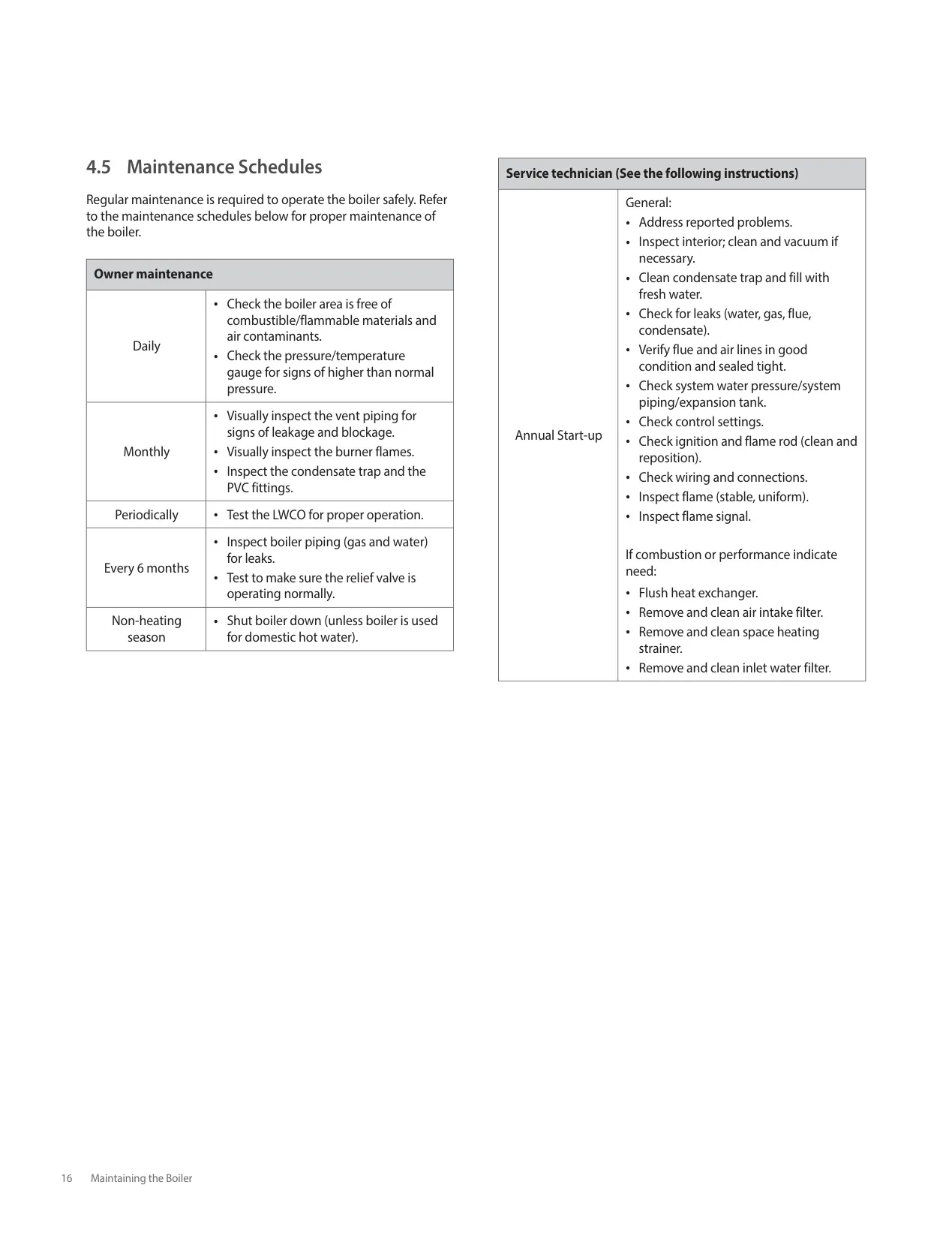

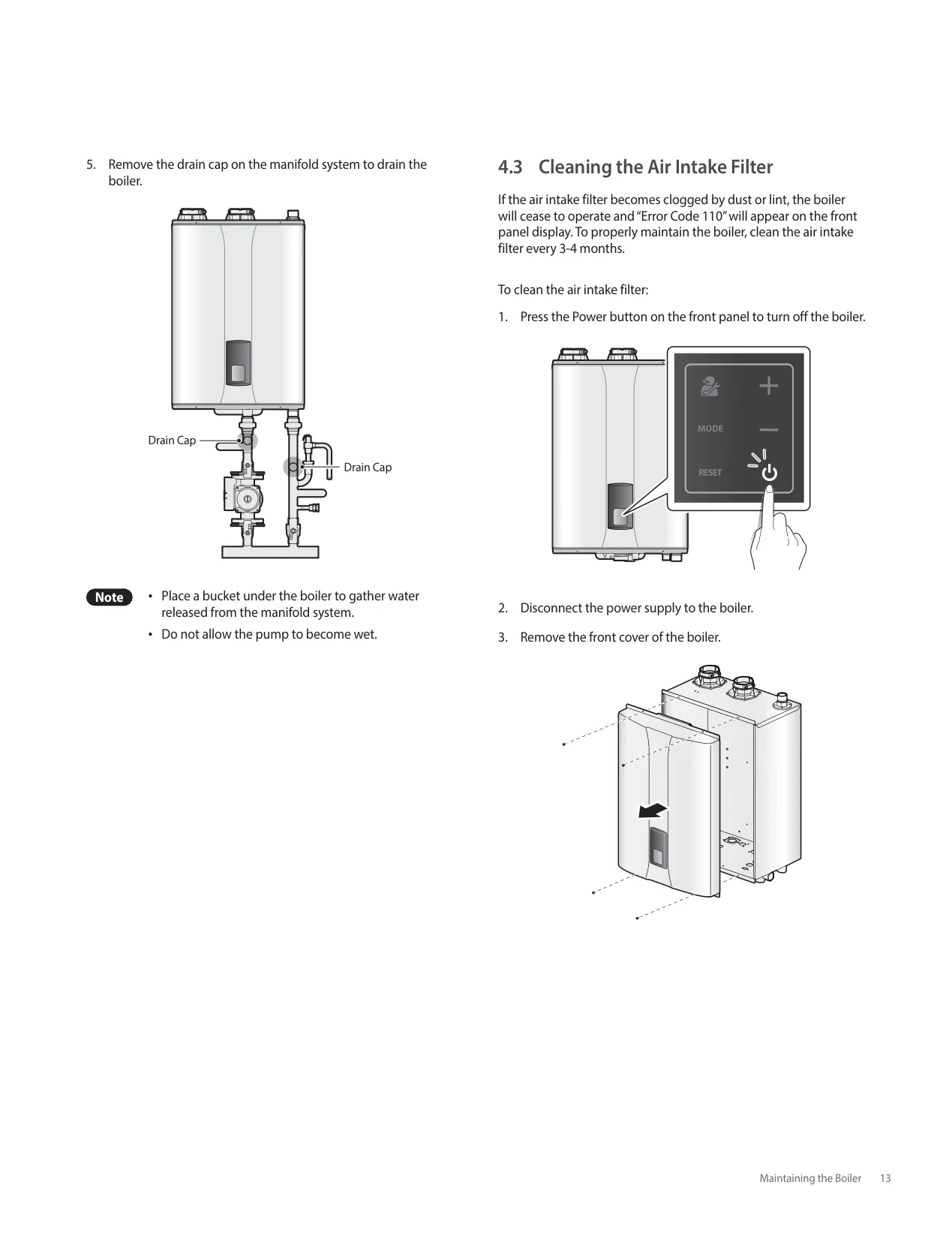

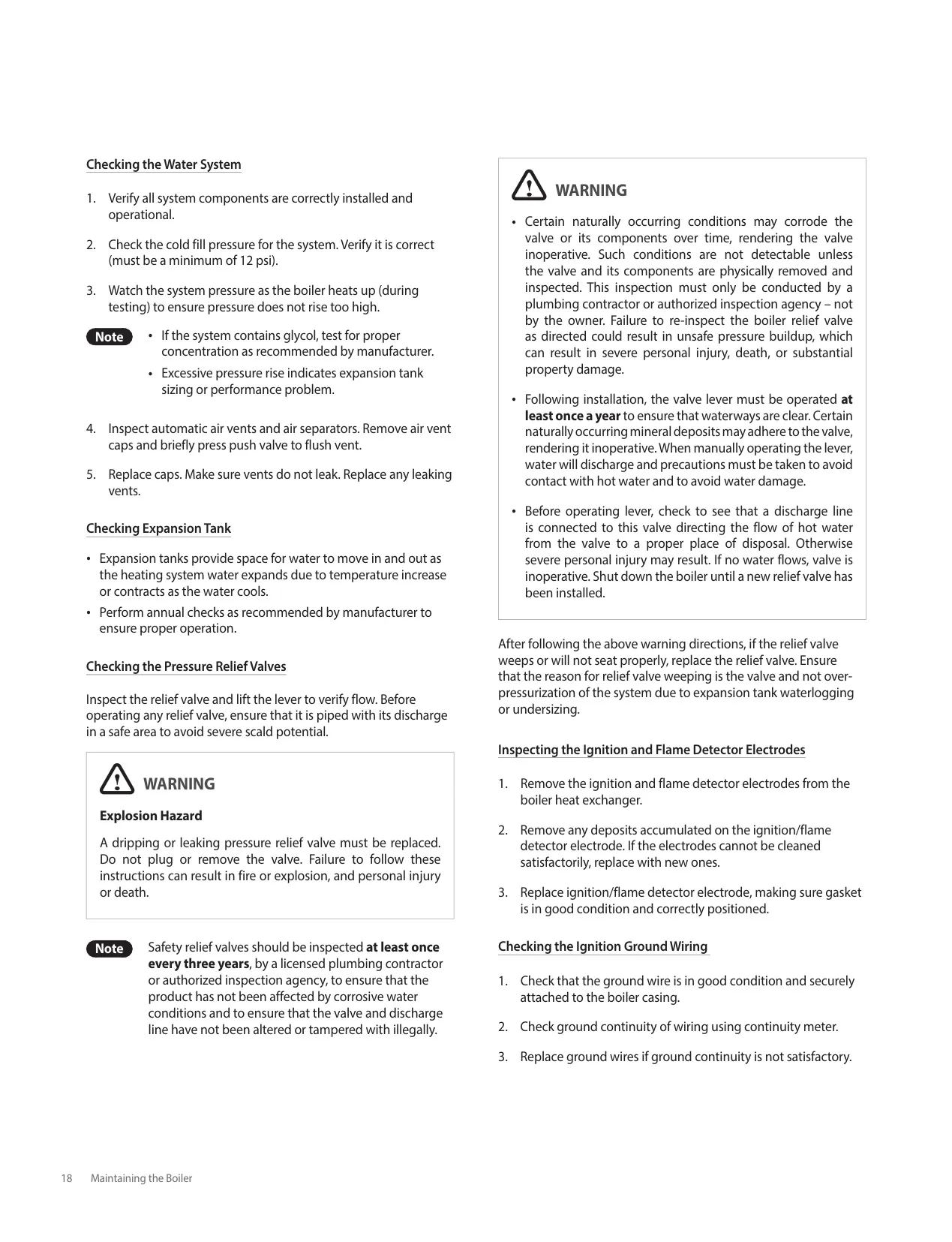

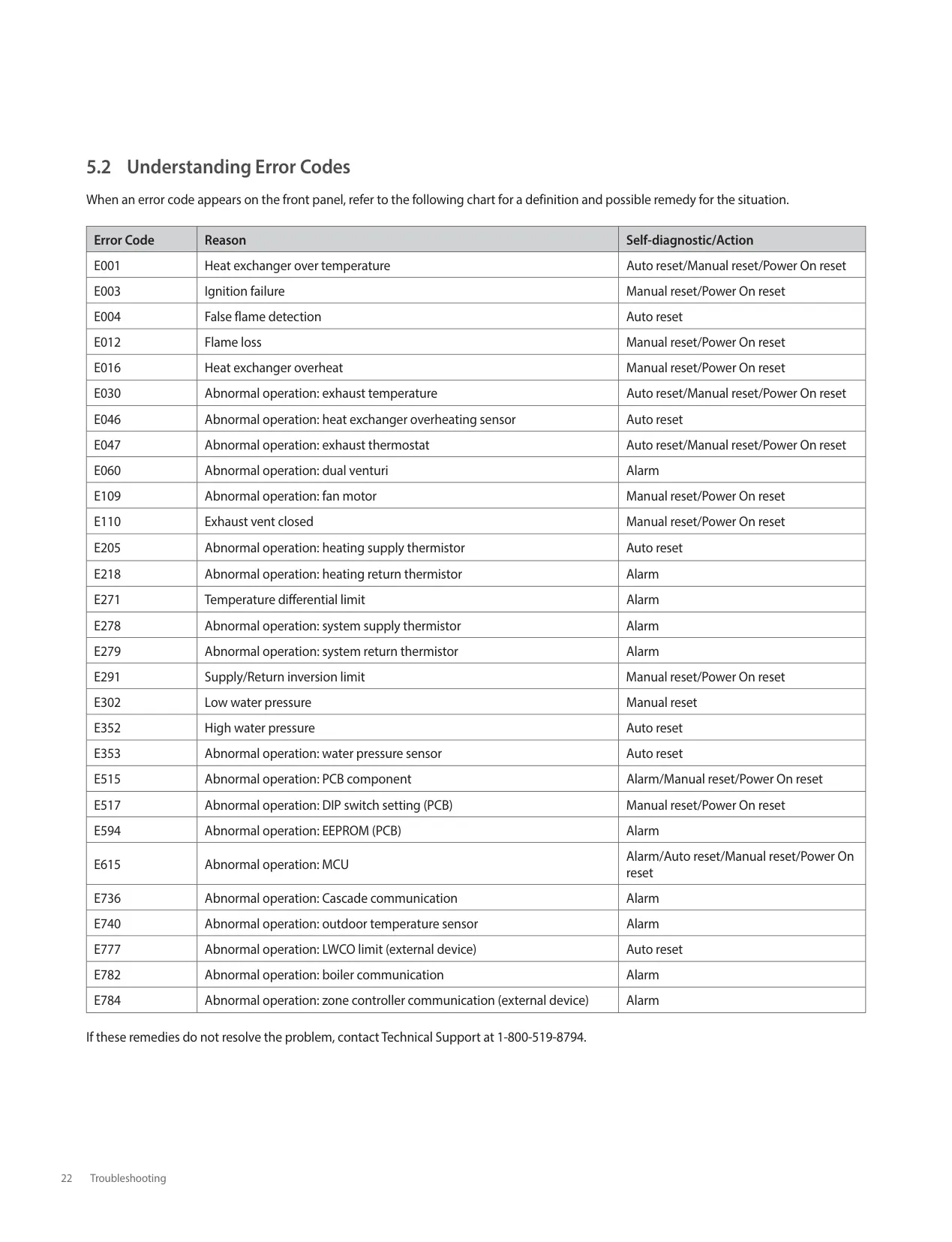

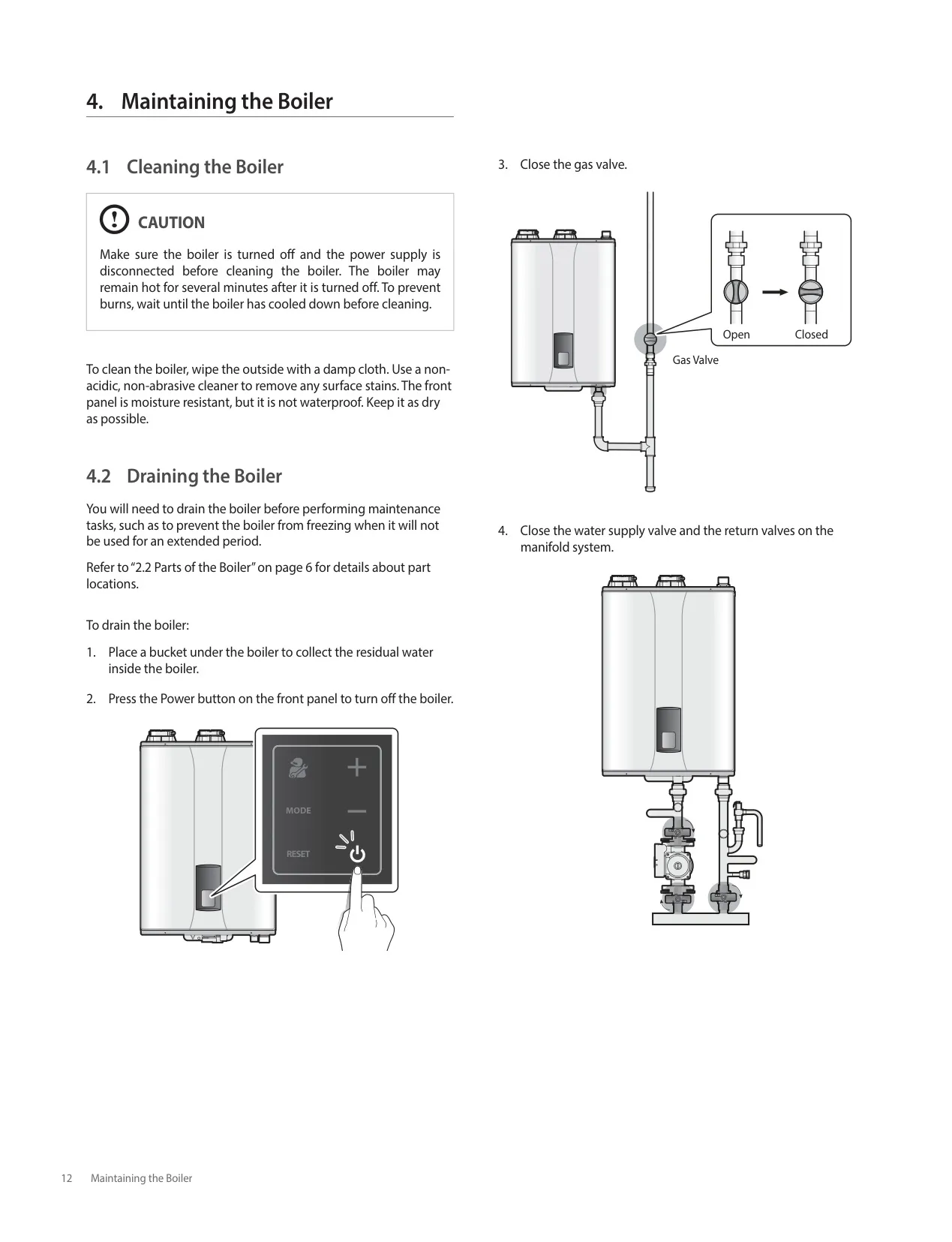

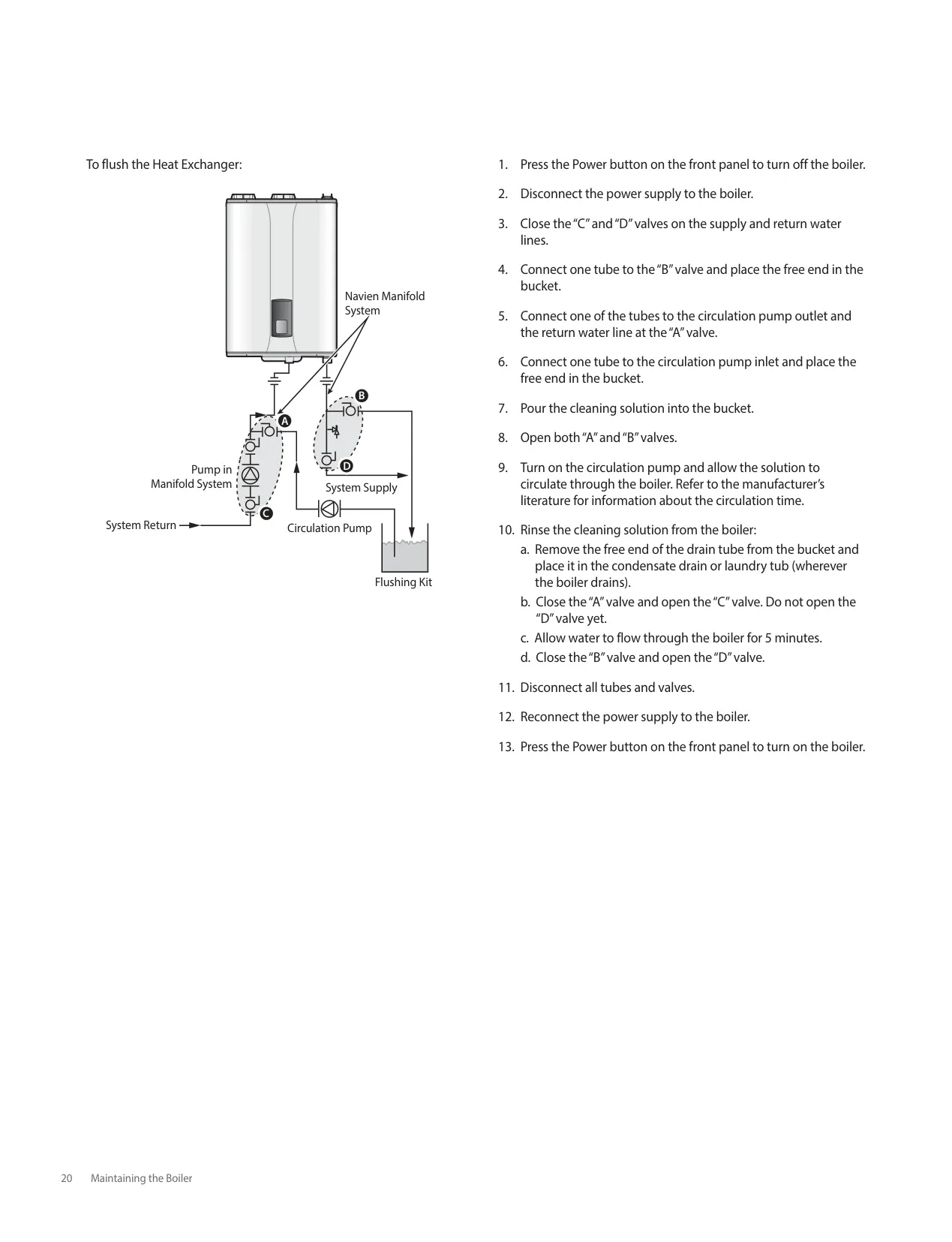

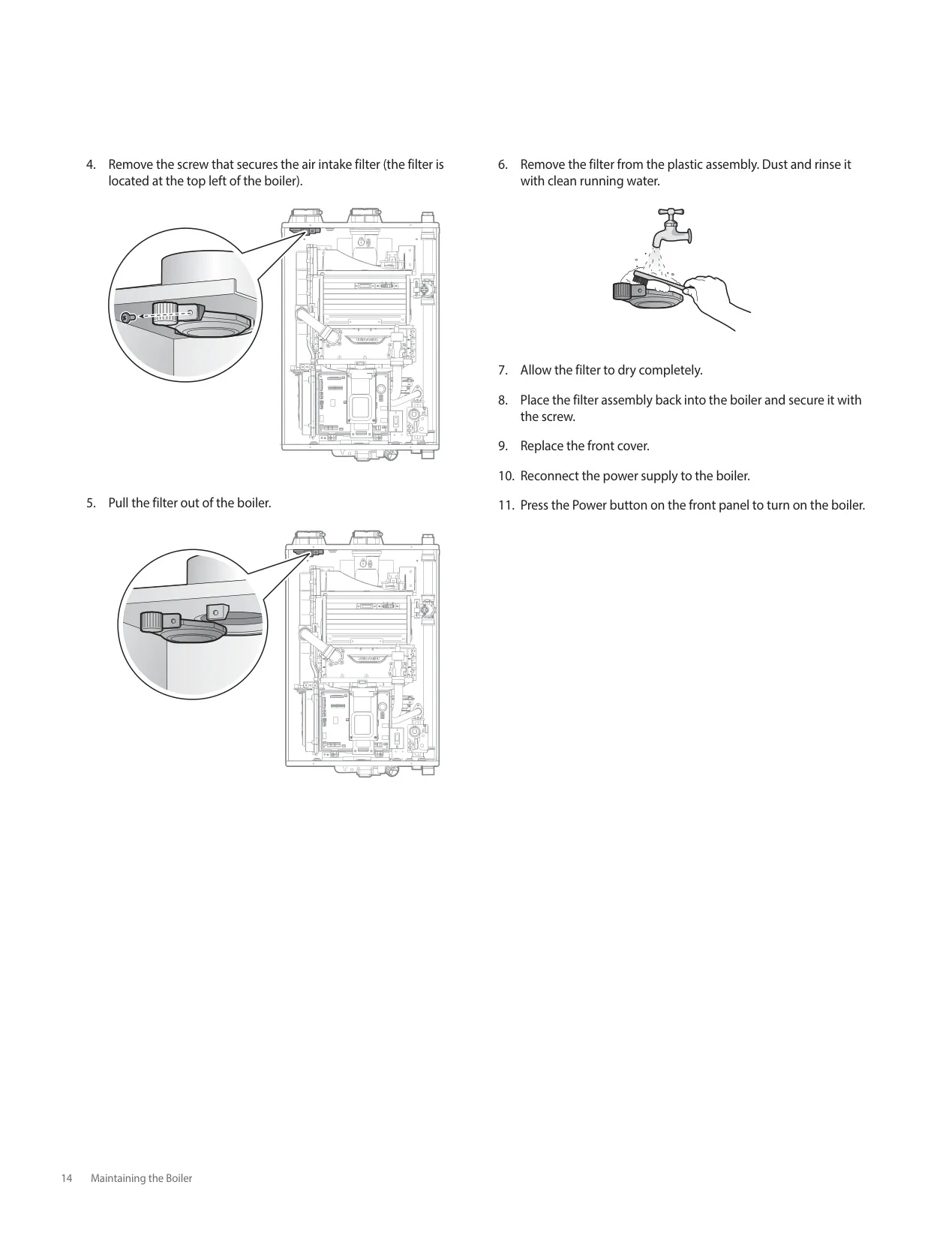

Maintaining the NHB-110 is a simple process. Regular cleaning of the exterior with a damp cloth and a non-acidic cleaner is recommended. Critical tasks include draining the boiler before extended periods of disuse or maintenance, and cleaning the air intake filter every 3-4 months to prevent clogs and error code E110. Adhering to these steps ensures optimal performance.

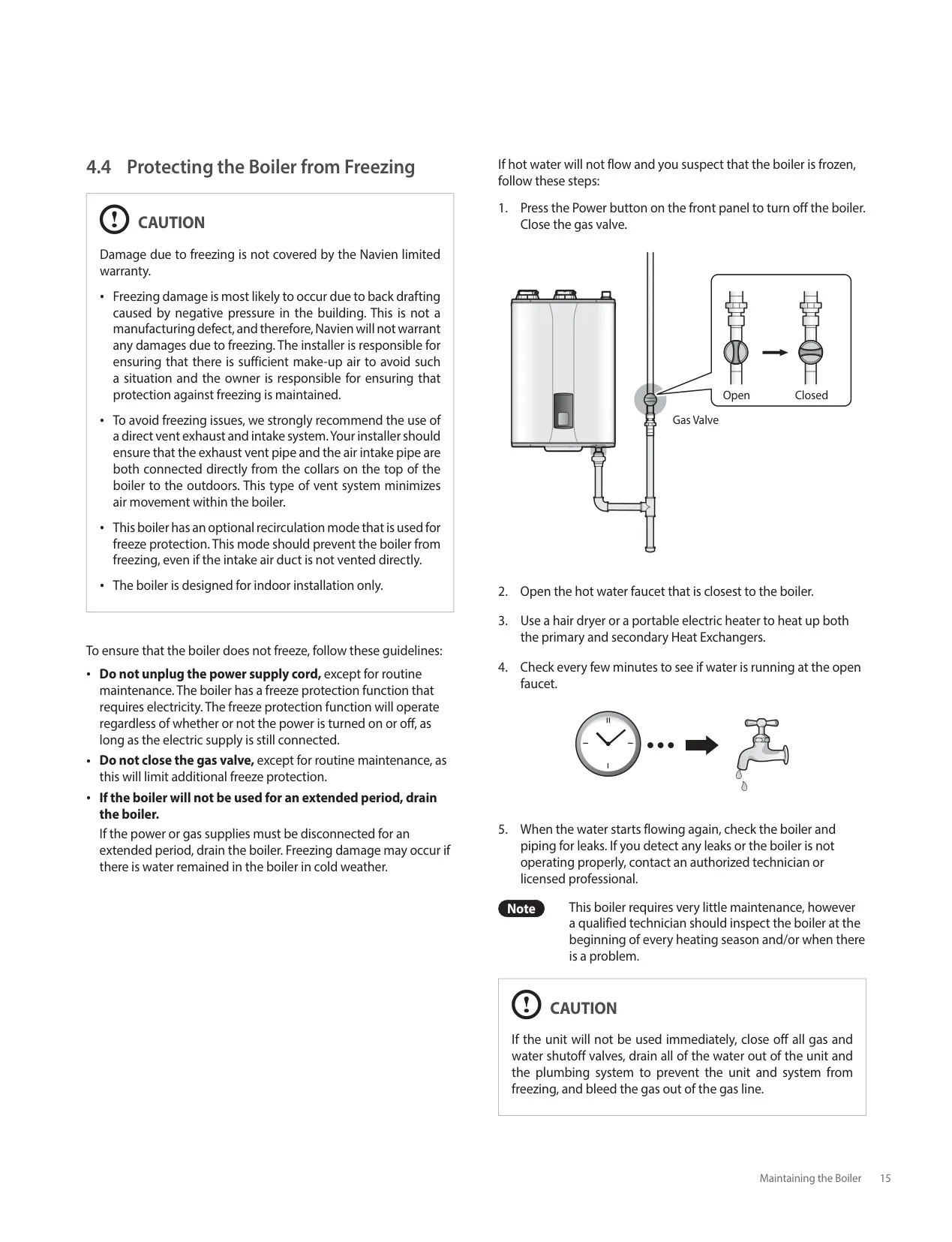

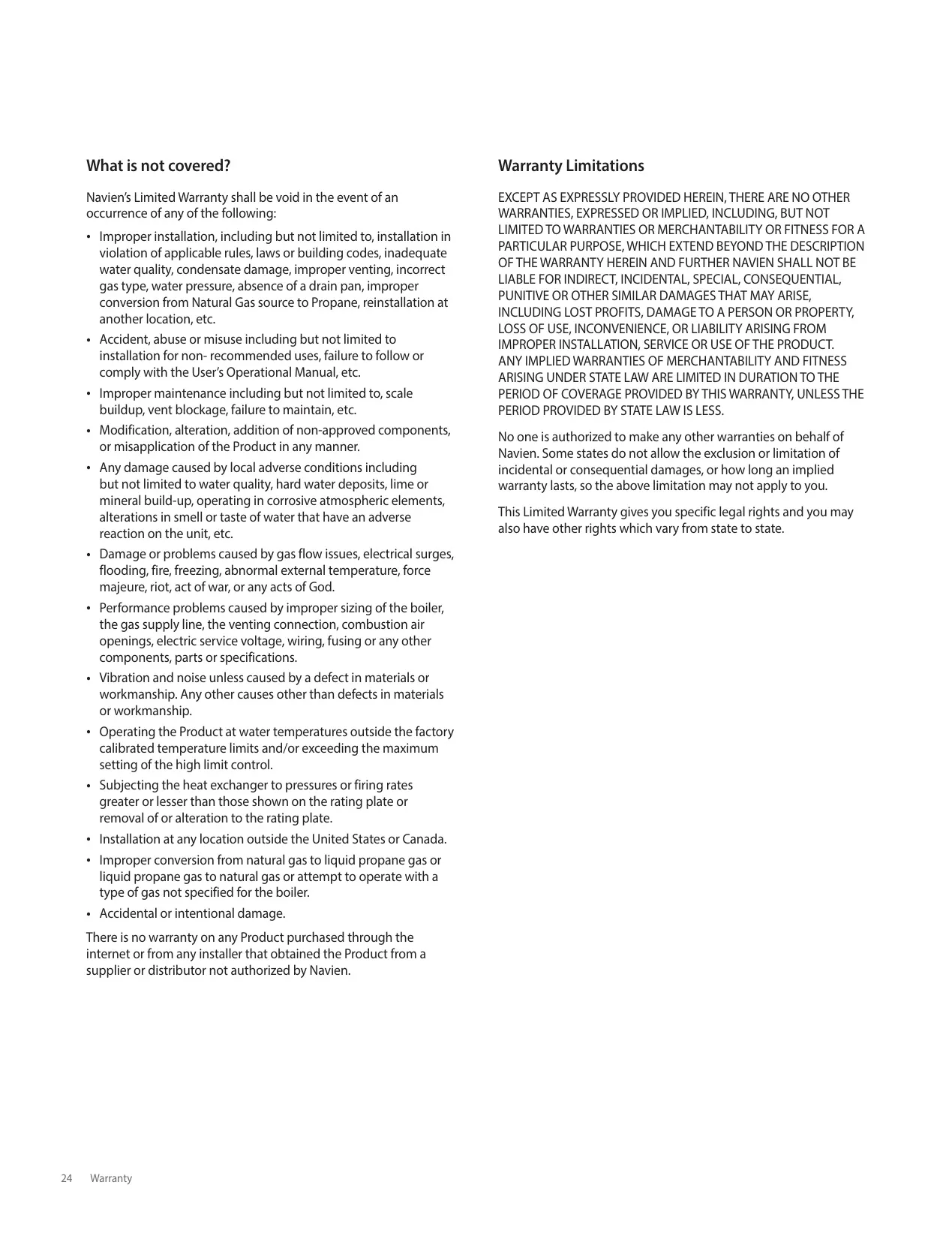

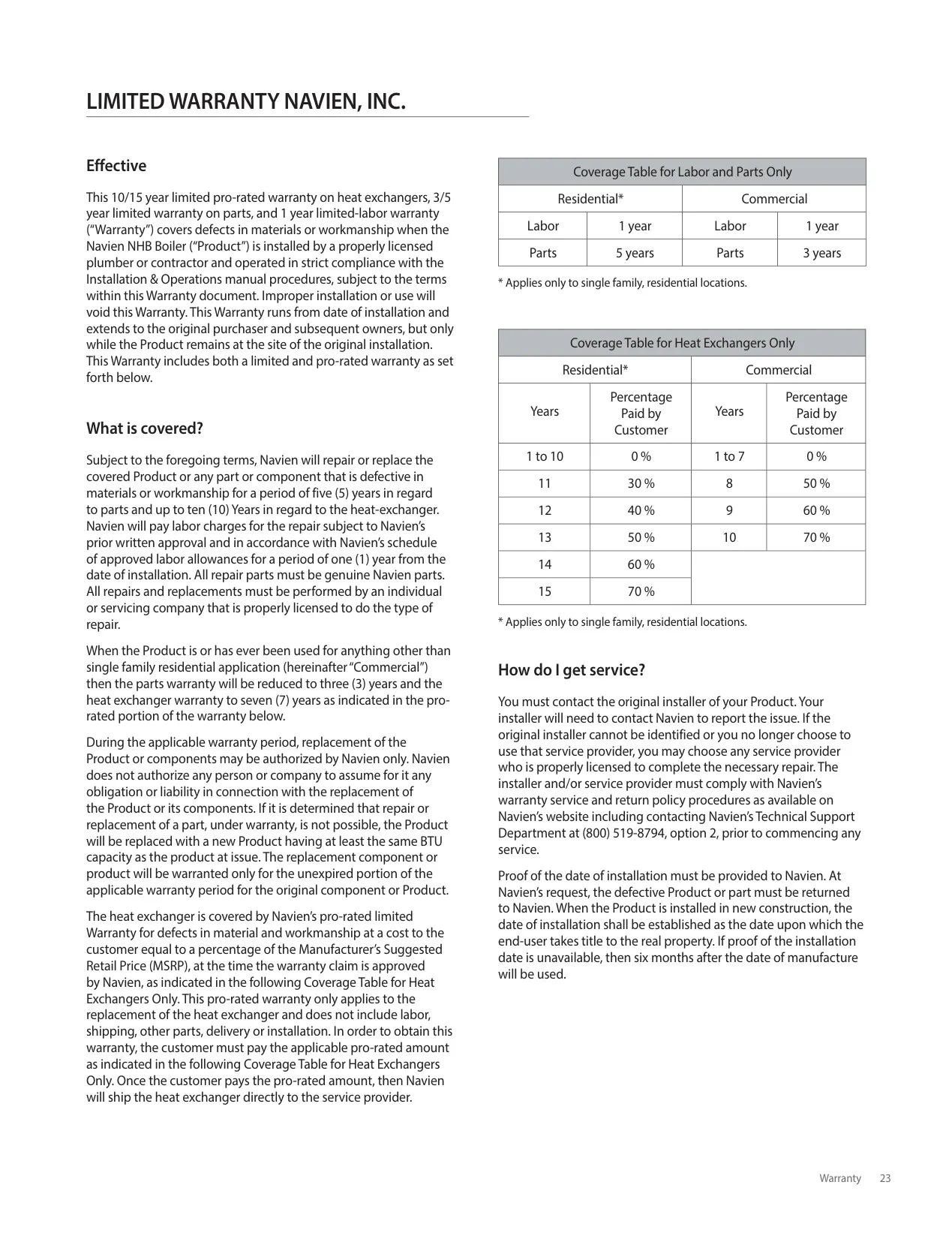

Preventing freezing damage is crucial; users should avoid unplugging the boiler as its freeze protection requires electricity. If freezing is suspected, specific steps involving shutting off gas, opening faucets, and gently heating components are outlined. Navien also provides a limited warranty, covering defects in materials and workmanship, though improper installation or maintenance can void it, underscoring the importance of professional service and adherence to guidelines.
