Miele W1 WMB120 Washing Machine Instruction Manual
Miele W1 WMB120 Washing Machine
Miele W1 WMB120 Instructions
Here we offer the Miele W1 WMB120 Washing Machine manual completely free and in English. We have cataloged this manual in the Washing Machines section on Manualverse, and it has been rated by 1 users with an average rating of 5. If you have any specific questions about Miele W1 WMB120 Washing Machine, we suggest checking the Frequently Asked Questions (FAQs) section of this manual.

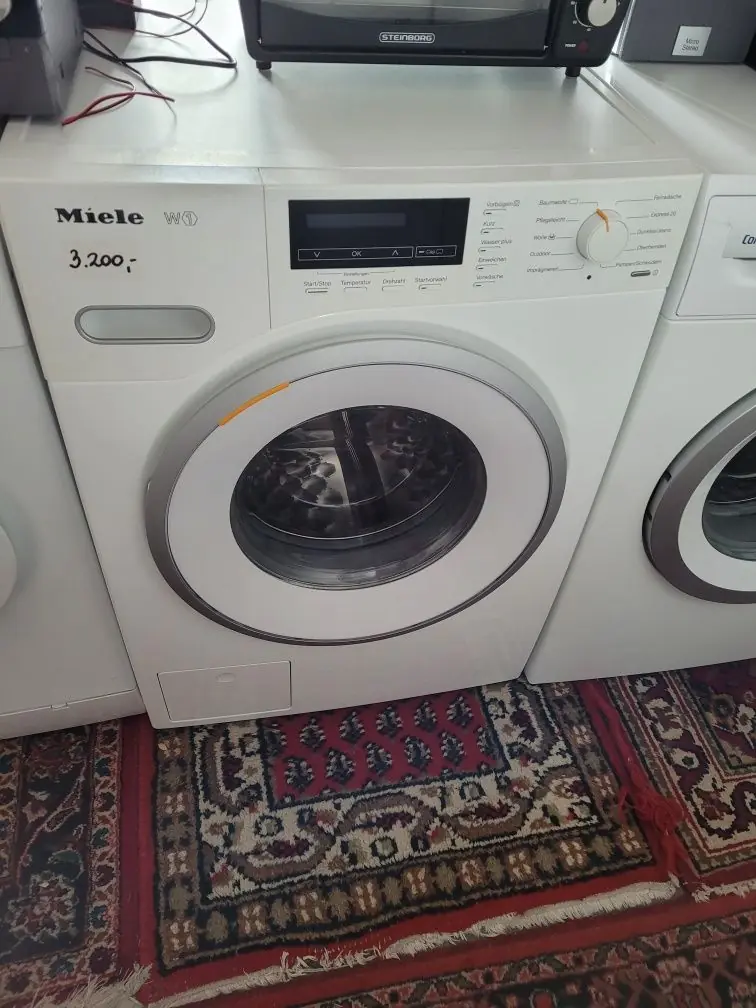

Product Images
Miele W1 WMB120 Washing Machine Specifications
| Feature | Specification |
|---|---|
| Model Name / Identifier | WMB 120 WCS |
| Rated Capacity | 8.0 kg (dry laundry) |
| Energy Efficiency Class | A+++ |
| Annual Energy Consumption (AEc) | 176 kWh/year |
| Energy Consumption (Std. 60°C Cotton, Full Load) | 0.92 kWh |
| Energy Consumption (Std. 60°C Cotton, Partial Load) | 0.80 kWh |
| Energy Consumption (Std. 40°C Cotton, Partial Load) | 0.60 kWh |
| Weighted Power Consumption (Off-mode) | 0.10 W |
| Weighted Power Consumption (Left-on mode) | 3.00 W |
| Weighted Annual Water Consumption (AWc) | 9,900 Litres/year |
| Spin-Drying Efficiency Class | A |
| Maximum Spin Speed | 1,600 rpm |
| Remaining Moisture Content | 44% |
| Programme Time (Std. 60°C Cotton, Full Load) | 179 min |
| Programme Time (Std. 60°C Cotton, Partial Load) | 179 min |
| Programme Time (Std. 40°C Cotton, Partial Load) | 179 min |
| Duration of 'Left-on' Mode (Tl) | 15 min |
| Airborne Acoustical Noise (Washing Phase) | 48 dB(A) re 1 pW |
| Airborne Acoustical Noise (Spinning Phase) | 73 dB(A) re 1 pW |

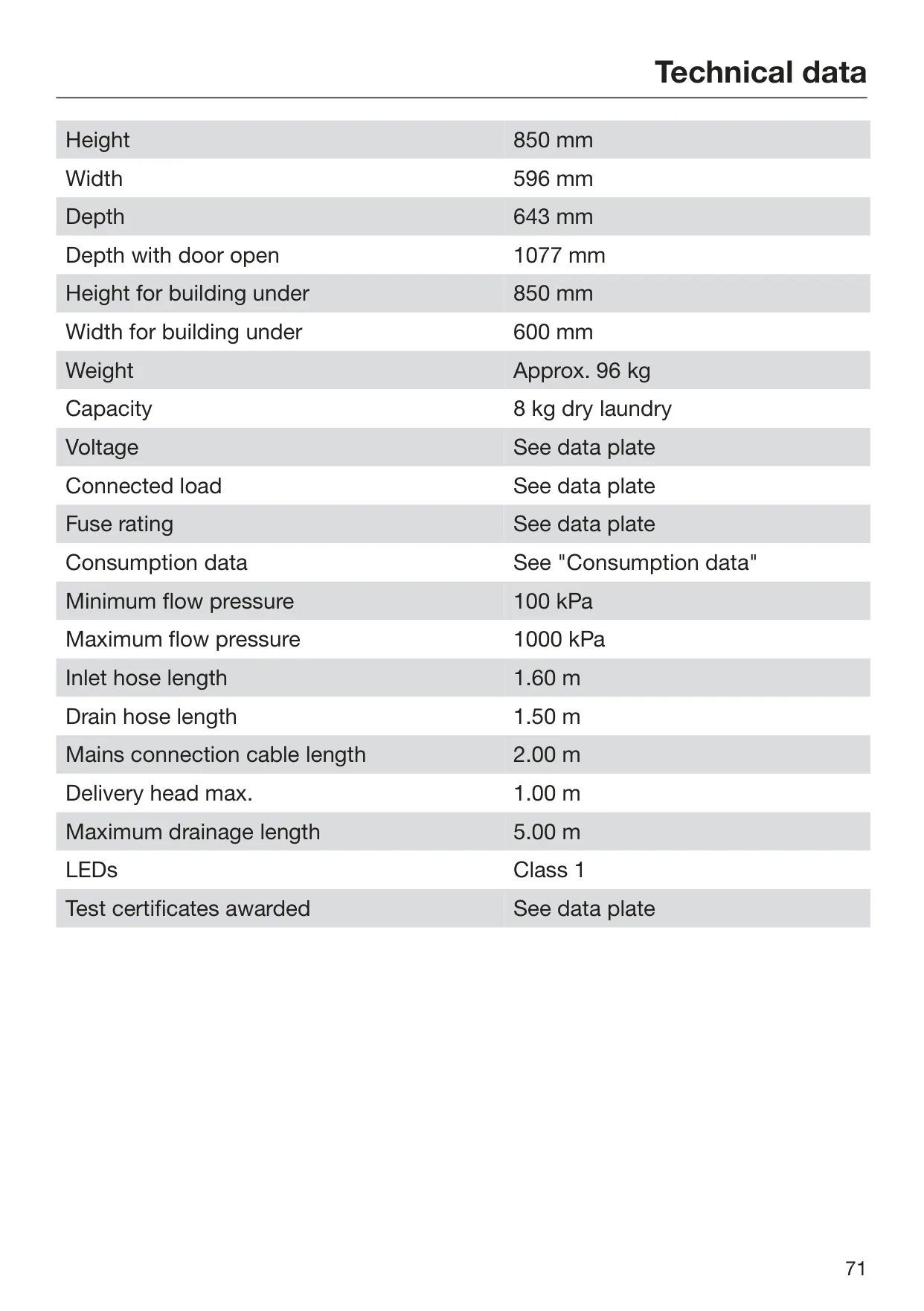

| Height | 850 mm |
| Width | 596 mm |
| Depth | 643 mm |
| Depth with Door Open | 1077 mm |
| Weight | Approx. 96 kg |
| Minimum Flow Pressure | 100 kPa |
| Maximum Flow Pressure | 1000 kPa |
| Inlet Hose Length | 1.60 m |
| Drain Hose Length | 1.50 m |
| Mains Connection Cable Length | 2.00 m |
| Maximum Delivery Head (Drainage) | 1.00 m |
| Maximum Drainage Length | 5.00 m |
Miele W1 WMB120 Washing Machine Details

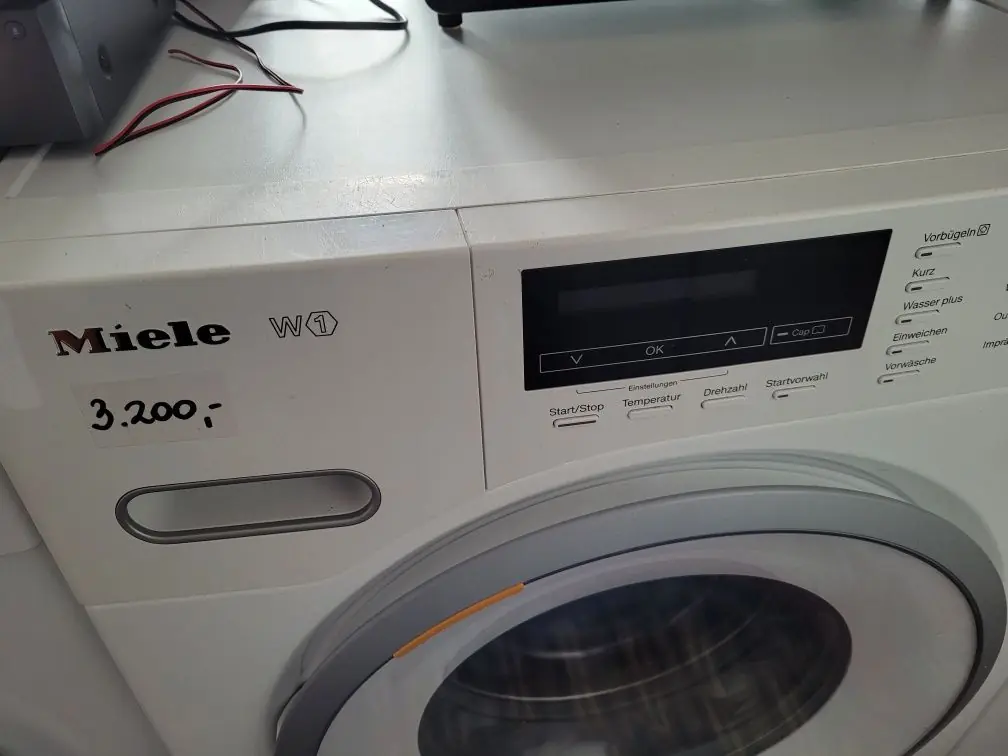

The Miele W1 WMB120 Washing Machine features a sophisticated control panel with a display and various intuitive sensors. Key controls include the Start/Stop button for program initiation and cancellation, a Temperature button for precise heat selection, and a Spin Speed button to adjust RPM. The Delay Start button allows scheduling of wash cycles up to 24 hours in advance, enhancing convenience and energy management. Navigation through menus and value adjustment is intuitive, utilizing the ? and > sensors, with the OK sensor confirming selections.
Additional Option buttons enable users to tailor wash programs with extra features, and the Programme Selector rotary dial offers easy access to various washing cycles. The standard display prominently shows crucial information: the programme duration, selected wash temperature, and chosen spin speed. For advanced detergent use, the Cap sensor activates the CapDosing system, streamlining specialized detergent application. To conserve energy, the appliance automatically switches off 15 minutes after a program ends or after being idle if no selections are made.

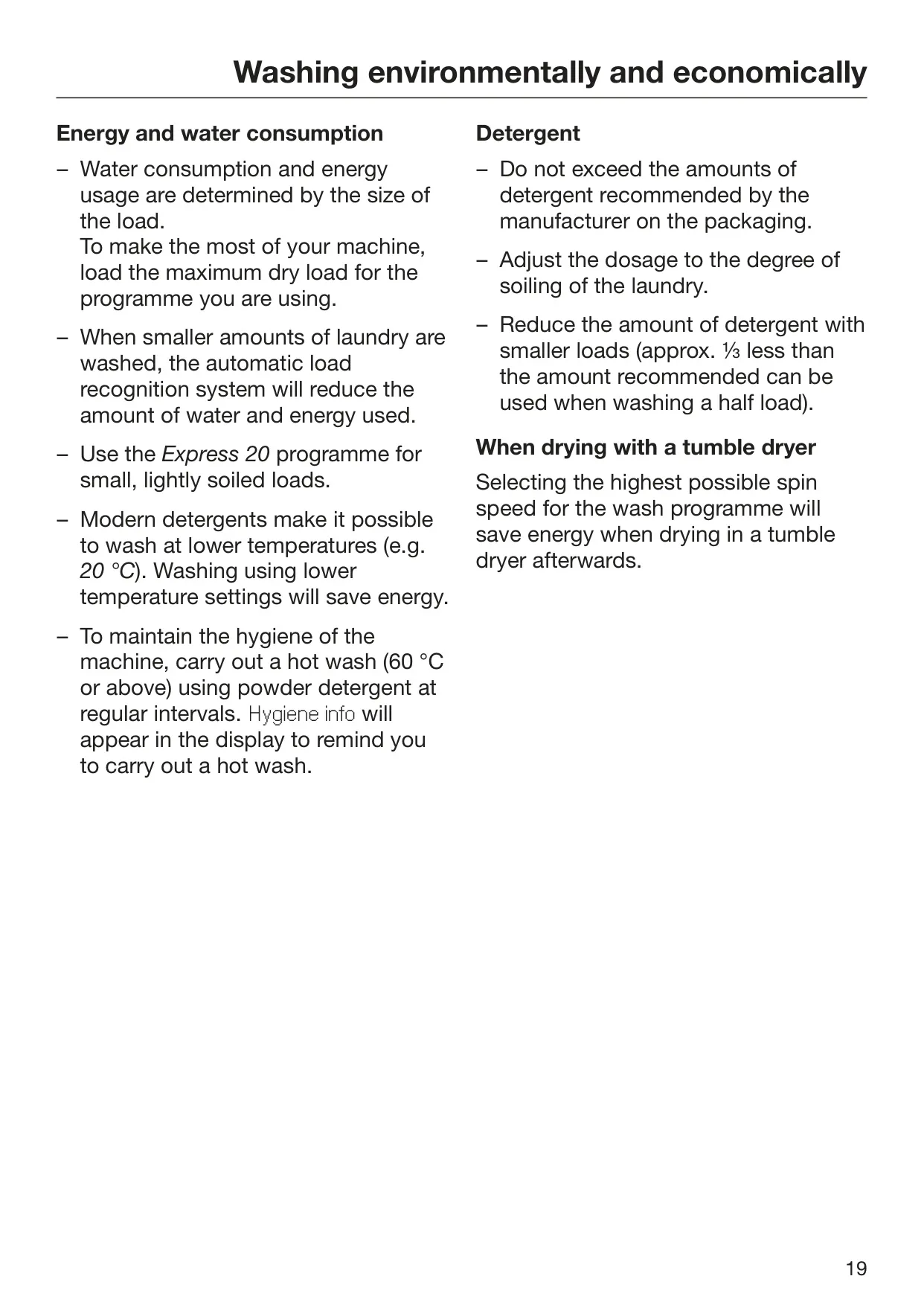

The Miele W1 WMB120 promotes environmentally conscious and economical washing by encouraging users to maximize load size for each program. For smaller loads, an automatic load recognition system intelligently adjusts resource use, preventing waste. Leveraging modern detergents allows washing at lower temperatures, such as 20 °C, significantly reducing energy. Accurate detergent dosage, avoiding excess, not only saves resources but also prevents excessive foam, which can lead to poorer wash results and increased water usage due to additional rinse cycles.

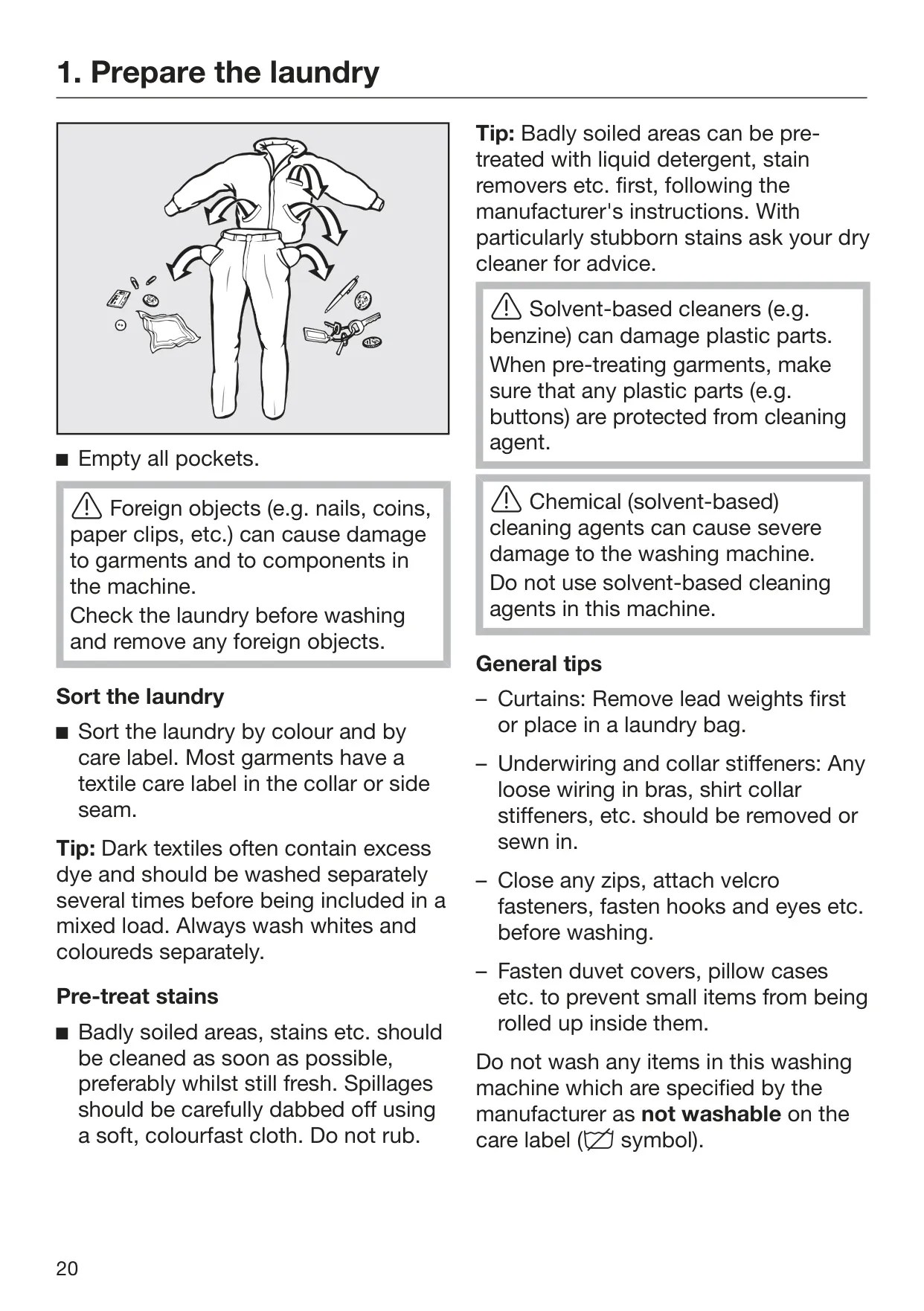

Proper laundry preparation is crucial for optimal results and machine longevity. Users must empty all pockets to prevent foreign objects from damaging garments or internal components. Pre-treating heavily soiled areas or stains with liquid detergent or stain removers is advised, observing manufacturer instructions, while avoiding solvent-based cleaners directly on the machine. Laundry should be sorted by colour and care label, with dark textiles washed separately initially due to excess dye. Fasten zips, Velcro, hooks, and ensure duvet covers are closed to prevent items from getting tangled.

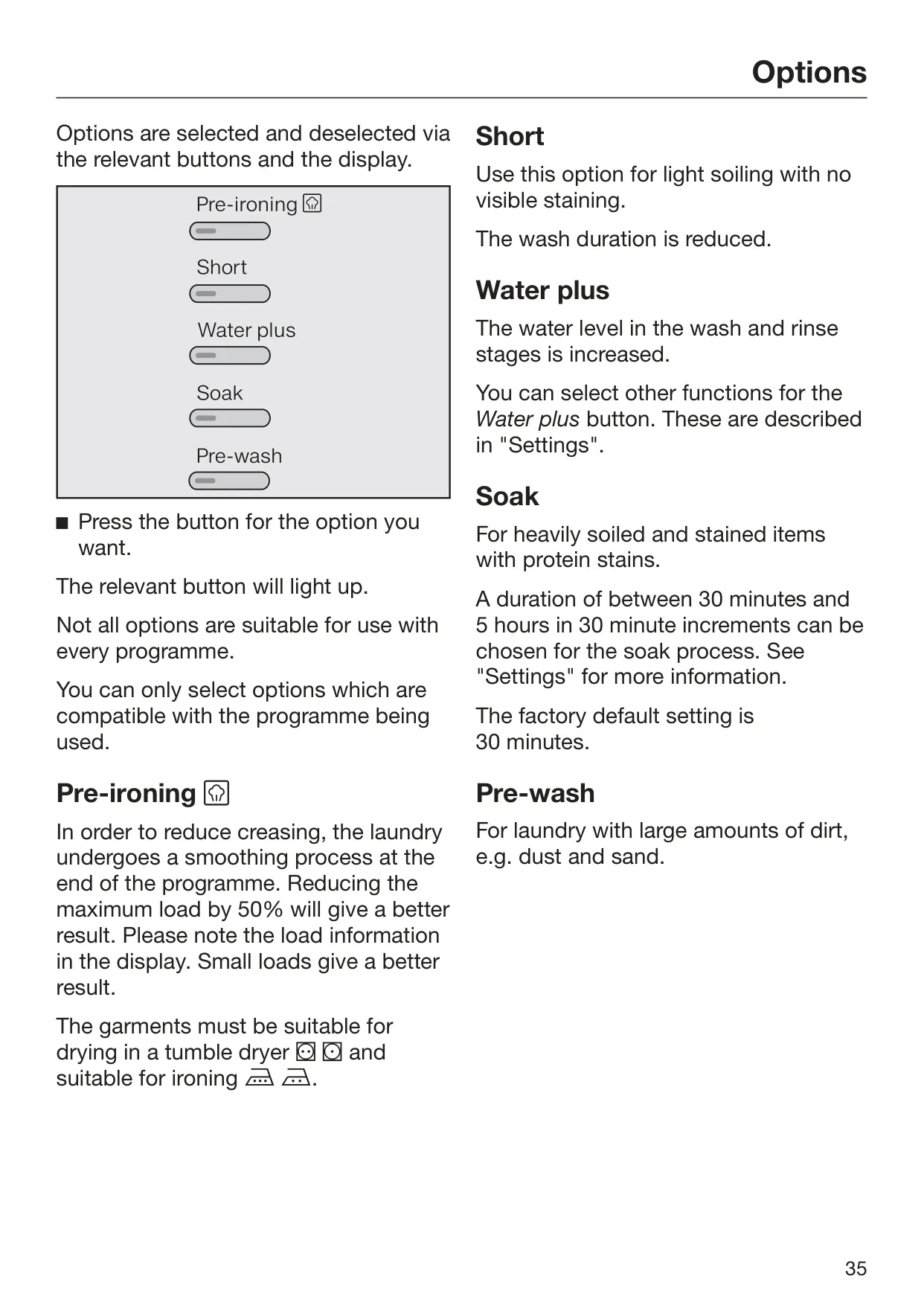

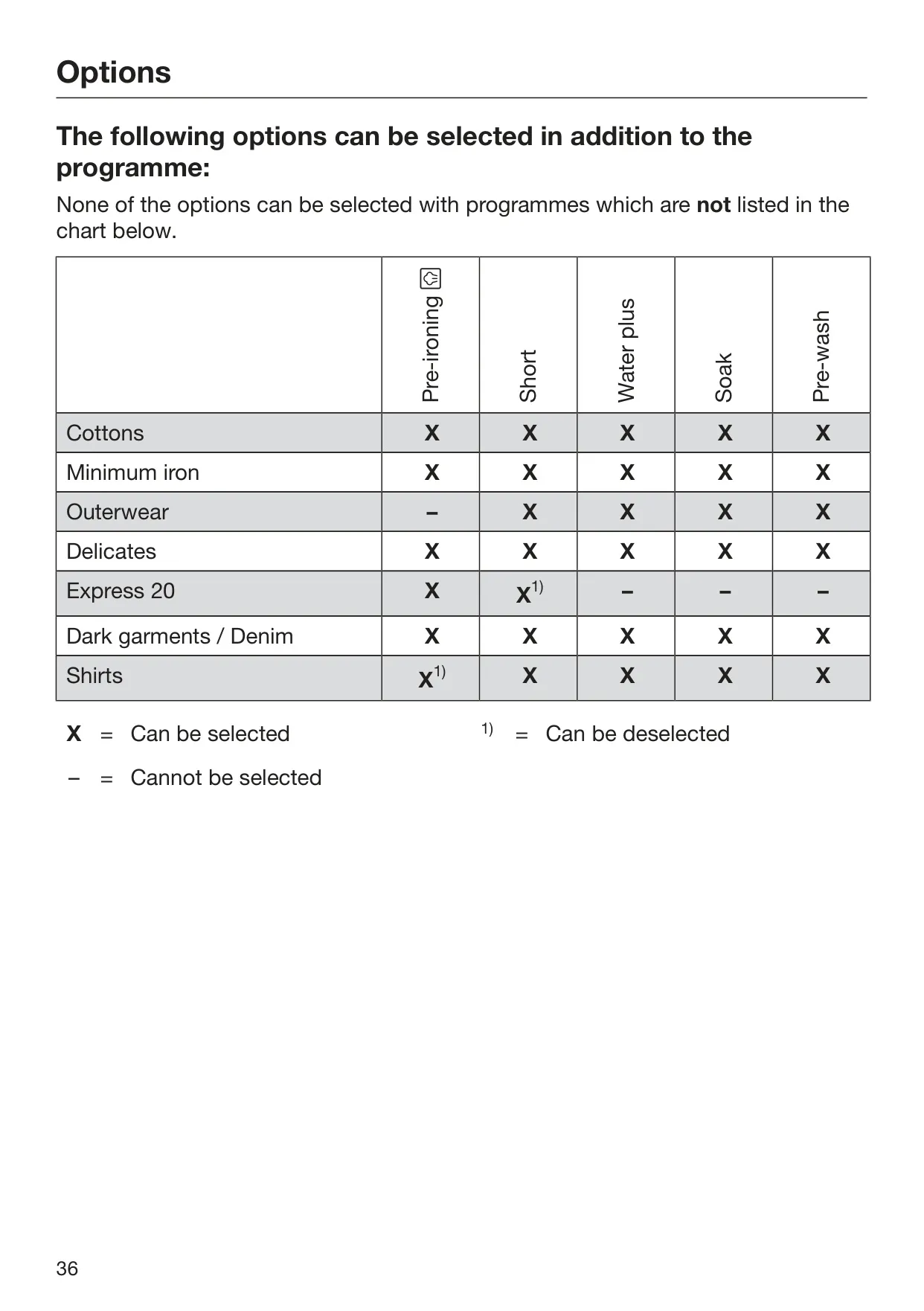

The machine offers several versatile options to customize wash cycles. Pre-ironing reduces creasing at the end of a programme, especially effective with reduced loads. The Short option is ideal for lightly soiled items, decreasing wash duration. Water plus increases water levels in wash and rinse stages, useful for sensitive skin or excessive foam. For heavily soiled or protein-stained items, the Soak option can be selected for durations from 30 minutes to 5 hours. Pre-wash is beneficial for laundry with significant dirt, such as dust or sand.

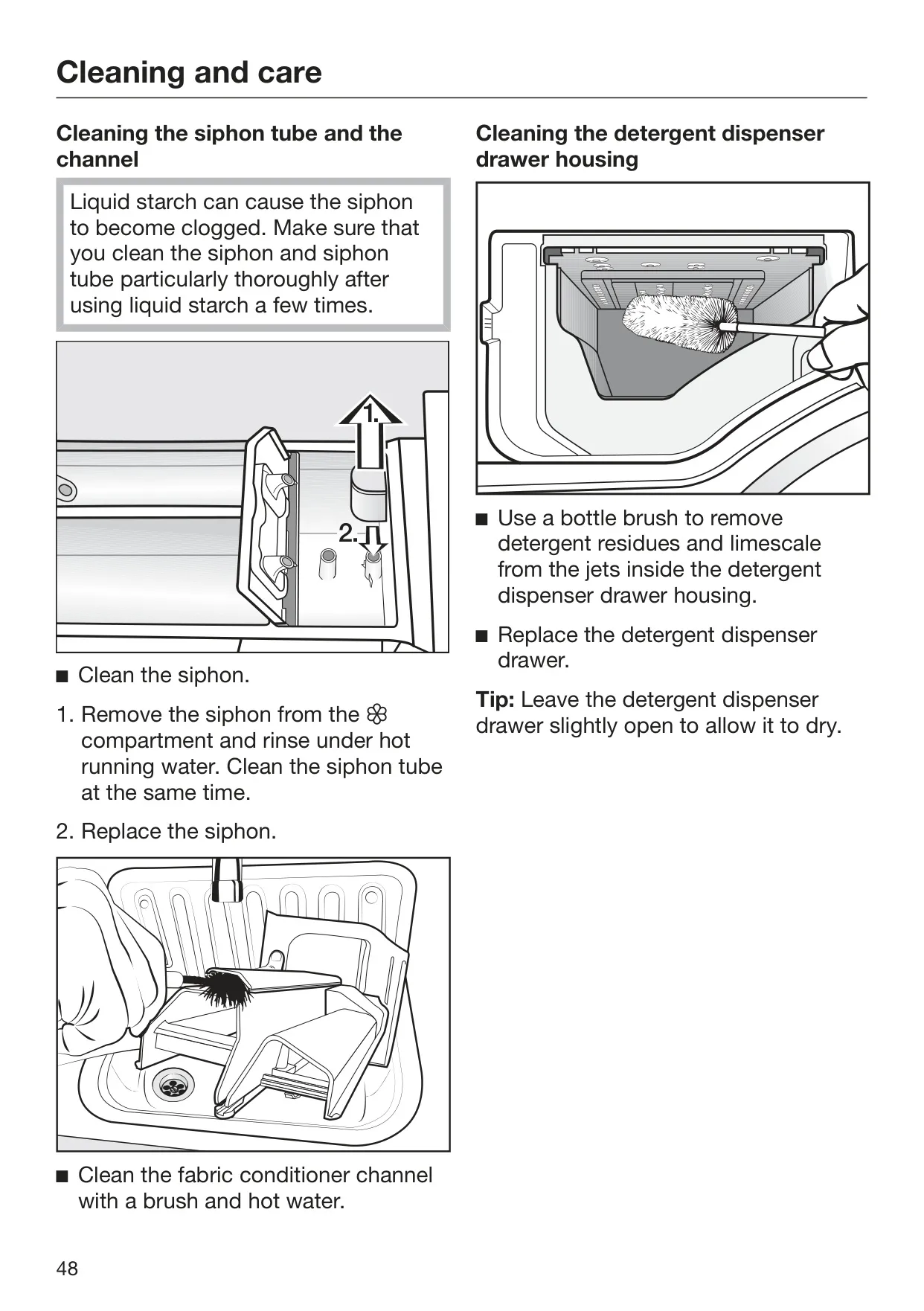

Maintaining the Miele W1 WMB120 ensures longevity and optimal performance. The drum should be cleaned regularly using the 'Cottons 75°C' programme and powder detergent to prevent bacteria and odours, prompted by 'Hygiene info'. The external casing and fascia panel are easily cleaned with a mild, non-abrasive agent. The detergent dispenser drawer requires periodic cleaning due to potential mould and bacteria build-up from low-temperature washes or liquid detergents. Miele's water protection system, comprising a pressure-tested inlet hose, an electronic unit, and a ventilation-protected drain hose, safeguards against water damage.
