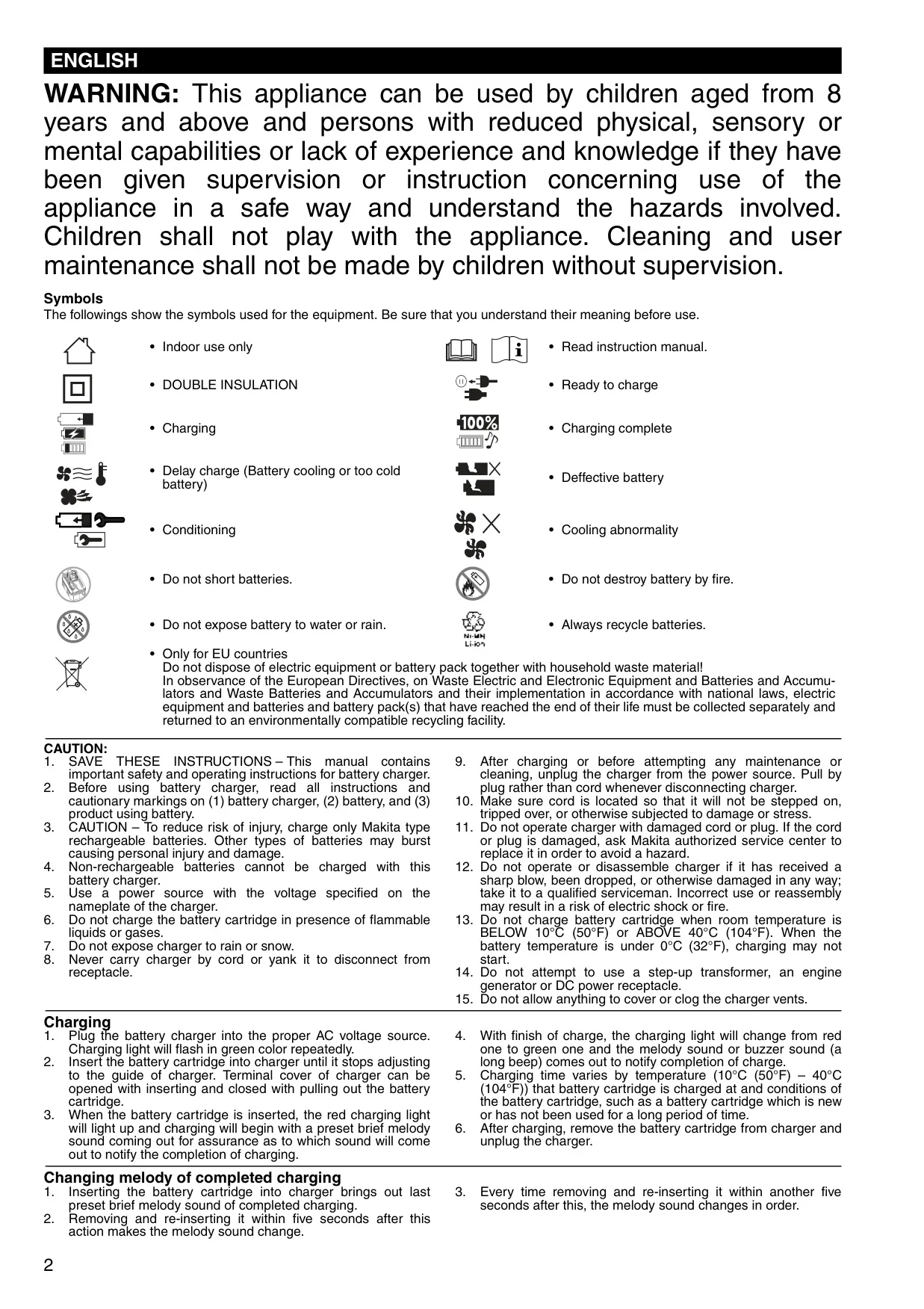

1 / 4

Makita DC18RC Fast Charger Instructions

Here we offer the Makita DC18RC Fast Charger manual completely free and in English. We have cataloged this manual in the Battery Chargers section on Manualverse, and it has been rated by 1 users with an average rating of 5. If you have any specific questions about Makita DC18RC Fast Charger, we suggest checking the Frequently Asked Questions (FAQs) section of this manual.


Product Images

Imagen 1
Imagen 2

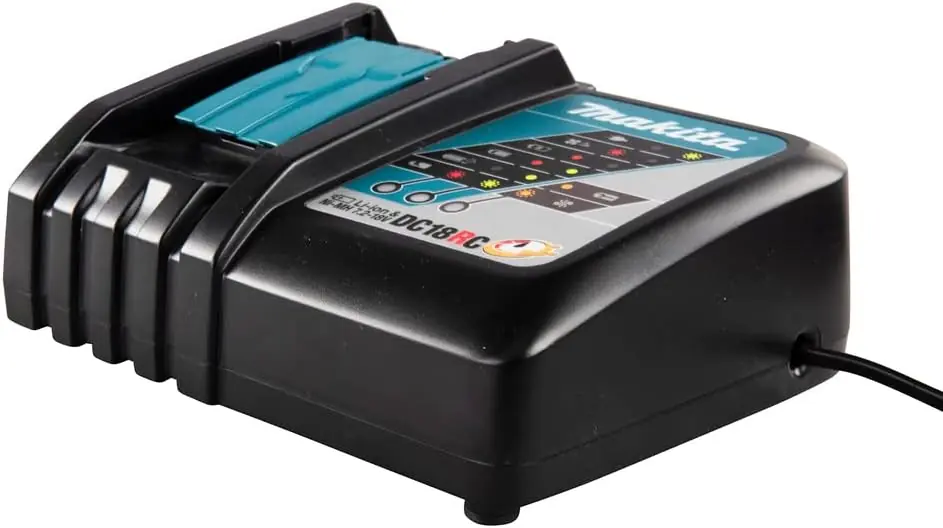

Imagen 3
Imagen 4

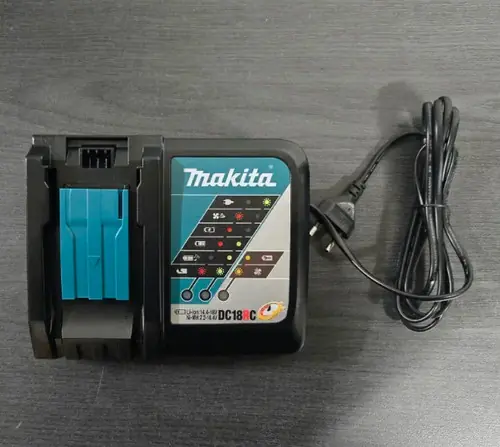

Imagen 5
Anterior
Siguiente
Miniatura 1
Miniatura 2
Miniatura 3
Miniatura 4
Miniatura 5

Makita DC18RC Fast Charger Specifications

Feature Specification Voltage Capacity (Ah) Charging Time (Min)
Ni-MH Battery cartridge B9017A 9.6 V 1.7 20
Ni-MH Battery cartridge BH9020/A 9.6 V 1.8 (IEC61951-2) 20
Ni-MH Battery cartridge BH1220/C 12 V 1.8 (IEC61951-2) 15
Ni-MH Battery cartridge BH1420 14.4 V 1.8 (IEC61951-2) 15
Ni-MH Battery cartridge BH1427 14.4 V 2.5 (IEC61951-2) 20
Ni-MH Battery cartridge BH9033/A 9.6 V 3.1 (IEC61951-2) 30
Ni-MH Battery cartridge BH1233/C 12 V 3.1 (IEC61951-2) 22
Ni-MH Battery cartridge BH1433 14.4 V 3.1 (IEC61951-2) 22
Li-ion Battery cartridge BL1415 14.4 V 1.3 15
Li-ion Battery cartridge BL1815 18 V 1.3 15
Li-ion Battery cartridge BL1430/BL1430A/BL1430B 14.4 V 3.0 22 (DC18RC Only)
Li-ion Battery cartridge BL1830/BL1830B 18 V 3.0 22 (DC18RC Only)
Li-ion Battery cartridge BL1415N/BL1415NA 14.4 V 1.5 15
Li-ion Battery cartridge BL1815N 18 V 1.5 15
Li-ion Battery cartridge BL1820/BL1820B 18 V 2.0 24 (DC18RC Only)
Li-ion Battery cartridge BL1440 14.4 V 4.0 36 (DC18RC Only)
Li-ion Battery cartridge BL1840/BL1840B 18 V 4.0 36 (DC18RC Only)
Li-ion Battery cartridge BL1450 14.4 V 5.0 45 (DC18RC Only)
Li-ion Battery cartridge BL1850/BL1850B 18 V 5.0 45 (DC18RC Only)
Li-ion Battery cartridge BL1460A/BL1460B 14.4 V 6.0 55 (DC18RC Only)
Li-ion Battery cartridge BL1860B 18 V 6.0 55 (DC18RC Only)

Makita DC18RC Fast Charger Details

The Makita DC18RC Fast Charger manual emphasizes critical safety instructions for proper use. It is strictly for indoor use only and requires a power source matching the voltage specified on its nameplate. Users must read all instructions and warnings on the charger, battery, and product before operation. The charger is designed exclusively for Makita rechargeable batteries; attempting to charge other battery types or non-rechargeable cells risks personal injury and damage.

The manual outlines a straightforward charging process. After plugging the charger into an appropriate AC source, the green charging light will flash, indicating readiness. Inserting the battery cartridge causes the red charging light to illuminate, and a brief melody sounds, signaling the start of charging. The charger automatically cools batteries if they are too hot, delaying charging until a safe temperature is reached.

Upon completion of charging, the indicator light changes from red to a steady green, accompanied by a melody or a long beep. The charging time can vary depending on the battery's temperature, its condition (e.g., new or long-unused), and environmental factors. After charging, users should always remove the battery cartridge and unplug the charger from the power source to ensure safety.

A unique feature of the DC18RC is the ability to customize or silence the charging completion melody. By repeatedly removing and re-inserting the battery within five seconds after the initial insertion, users can cycle through different melody options. Selecting the "short beep" mode effectively mutes the completion signal for a silent operation. This preset melody remains stored even if the charger is unplugged.

The charger incorporates a sophisticated cooling system, featuring a fan that activates to cool heated batteries. The sound of this fan is a normal operational indicator. A flashing yellow light serves as a warning, indicating either a fan malfunction or incomplete battery cooling due to clogged vents. While charging is still possible under these conditions, it may take longer.

Beyond basic charging, the DC18RC also provides a "Conditioning charge." This intelligent feature automatically seeks optimum charging conditions, helping to extend battery life, especially for batteries subjected to high or low temperatures, full-charge recharges, or over-discharge. During conditioning, a yellow light illuminates, and charging times may be extended as the charger works to optimize the battery's state.

Important operational notes include never using the charger with a damaged cord or plug, or if it has been dropped or severely impacted. The charging environment temperature is crucial, with a recommended range of 10°C (50°F) to 40°C (104°F). Operating outside this range can prevent charging or damage the battery. Keeping the charger's vents and battery terminals free of dust is vital for efficient operation and optimal cooling.

Frequently Asked Questions (FAQs)

Can't find the answer you need? Here are some frequently asked questions about the Makita DC18RC Fast Charger, and we answer them below.


What types of batteries can I charge with the Makita DC18RC Fast Charger?
The DC18RC is designed to charge only Makita type rechargeable Ni-MH and Li-ion battery cartridges. Do not attempt to charge other brands or non-rechargeable batteries.

What do the different indicator lights on the charger mean?
A flashing green light indicates the charger is ready. A solid red light means charging is in progress. A solid green light signifies charging is complete. A flashing red light indicates the battery is too hot or too cold for charging, and the charger will delay until it reaches an optimal temperature. Alternating green and red flashes mean charging is not possible, often due to dust in terminals or a damaged/worn-out battery.

What is the optimal temperature range for charging batteries?
Batteries should be charged when the room temperature is between 10°C (50°F) and 40°C (104°F). Charging may not start if the battery temperature is below 0°C (32°F) or if it's too hot from recent use or sun exposure.

Why is the charger making a fan noise?
The charger is equipped with a cooling fan to cool down heated batteries. This sound is normal and indicates the cooling system is actively working to allow the battery to perform optimally and charge efficiently.

What does a flashing yellow light indicate?
A flashing yellow light warns of a problem with the cooling fan or incomplete battery cool down, possibly due to clogged vents on the charger or battery. While charging can still occur, it may take longer than usual.

Can I still charge if the yellow warning light is flashing?
Yes, you can still charge the battery even if the yellow warning light is flashing. However, the charging time will likely be longer than usual. It's recommended to check the cooling fan sound and ensure vents are clear of dust.

What is 'Conditioning Charge' and when does it occur?
Conditioning charge is a feature that automatically finds the optimum charging condition for batteries, helping to extend their life. It activates when recharging batteries that are at high or low temperatures, already fully charged, or have been over-discharged. During this process, a yellow light will illuminate, and charging time will be longer.

How do I change the charging completion melody or silence it?
After inserting the battery, the last preset melody will play. To change it, remove and re-insert the battery within five seconds. Repeat this action to cycle through the melodies. To select a silent mode, choose the "short beep" option.

What should I do if the green and red lights flash alternately?
If the green and red lights flash alternately, it indicates that charging is not possible. Check if the terminals on the charger or battery cartridge are clogged with dust. It could also mean the battery cartridge is worn out or damaged.

Is it safe to use the charger outdoors or in wet conditions?
No, the Makita DC18RC Fast Charger is designed for indoor use only. Do not expose the charger to rain or snow, or operate it in the presence of flammable liquids or gases, to avoid risks of electric shock or fire.

What precautions should I take regarding the charger's cord and plug?
Never carry the charger by its cord or yank it from the receptacle. Always unplug the charger by pulling the plug itself, not the cord. Ensure the cord is positioned so it won't be stepped on, tripped over, or otherwise damaged. Do not operate a charger with a damaged cord or plug.

What if a new Ni-MH battery doesn't accept a full charge initially?
When charging a new Ni-MH battery cartridge or one that hasn't been used for a long time, it may not accept a full charge immediately. It might require a couple of complete discharge and recharge cycles to reach its full capacity.
