Hoover Spinscrub 50 Carpet Cleaner Instruction Manual
Hoover Spinscrub 50 Carpet Cleaner
Hoover Spinscrub 50 Instructions
Here we offer the Hoover Spinscrub 50 Carpet Cleaner manual completely free and in English. We have cataloged this manual in the Carpet Cleaners section on Manualverse, and it has been rated by 1 users with an average rating of 5. If you have any specific questions about Hoover Spinscrub 50 Carpet Cleaner, we suggest checking the Frequently Asked Questions (FAQs) section of this manual.
Product Images
Hoover Spinscrub 50 Carpet Cleaner Specifications
| Feature | Specification |
|---|---|
| Product Type | Upright carpet washer (wet extractor) |
| Intended Use | Household use only (commercial use voids the warranty) |
| Power Supply | Nominal 120-volt circuit |

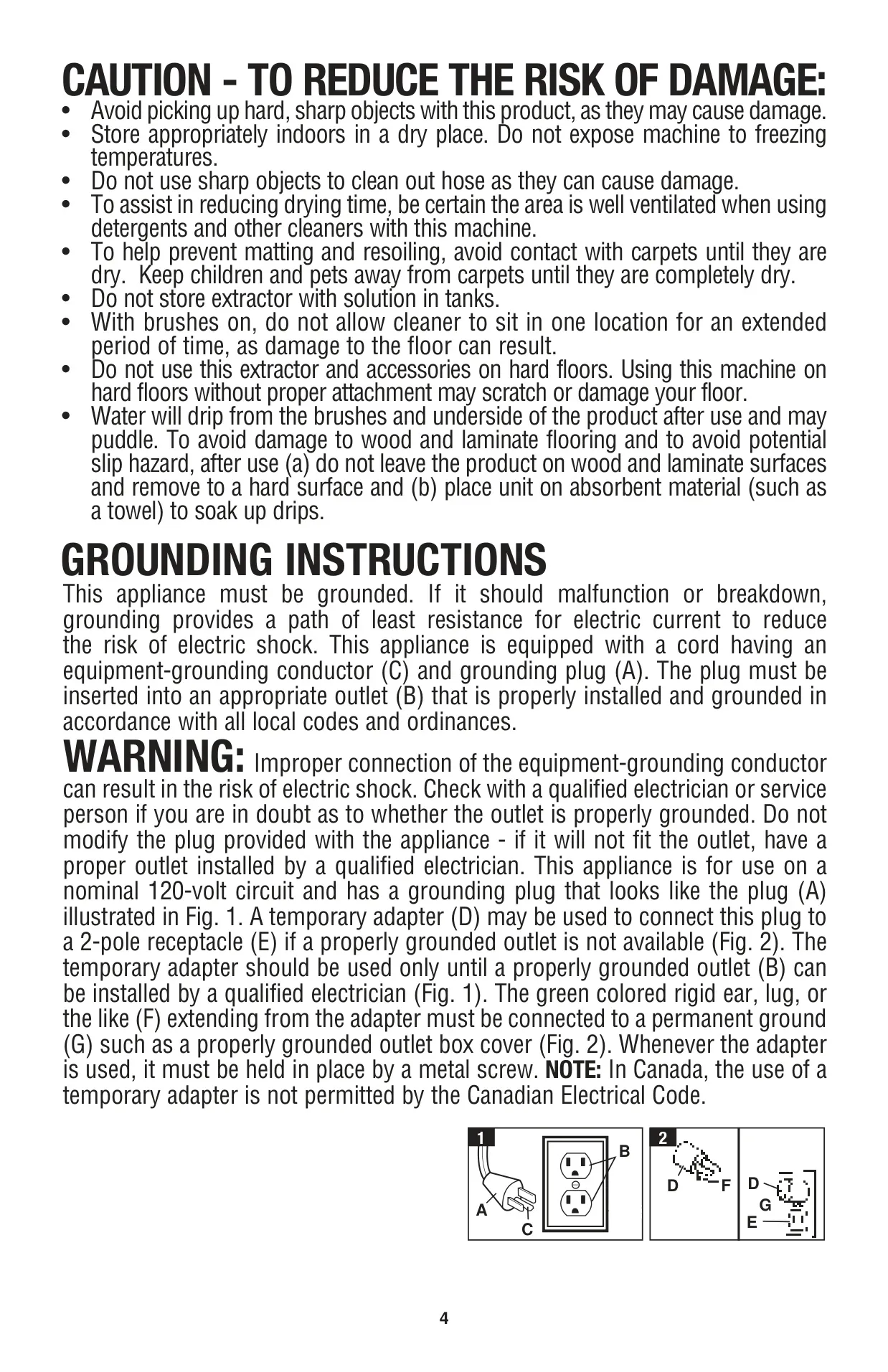

| Plug Type | Grounding plug with equipment-grounding conductor |
| Operating Environment | Indoors only |
| Brush System | SpinScrub rotating brush assembly, removable |
| Clean Water/Solution Tank | Single tank divided into two sections: Clean Water Tank (water only) and Solution Tank (cleaning solution only) |
| Maximum Fill Water Temperature | 140°F (60°C) |
| Dirty Water Tank | Removable recovery tank with Quick Spout Pour Cap and lint filter screen in the lid |
| Automatic Shut-Off | Yellow float disk stops suction when the Dirty Water Tank is full |
| Cleaning Modes | Wash/Rinse Selector |

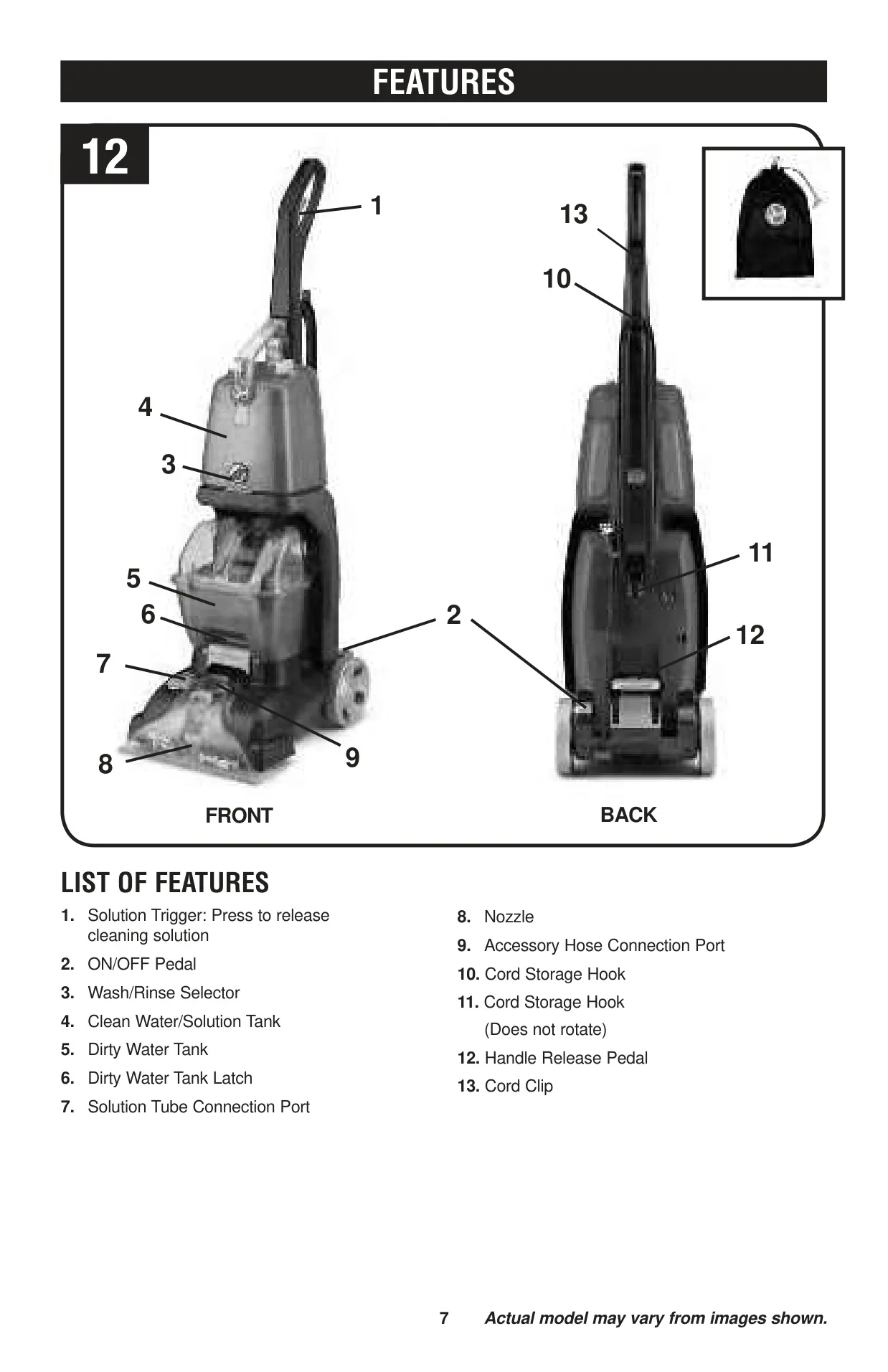

| Controls | ON/OFF Pedal, Handle Release Pedal, Solution Trigger on the handle |
| Accessory Connections | Accessory Hose Suction Port and Solution Tube Connection Port |

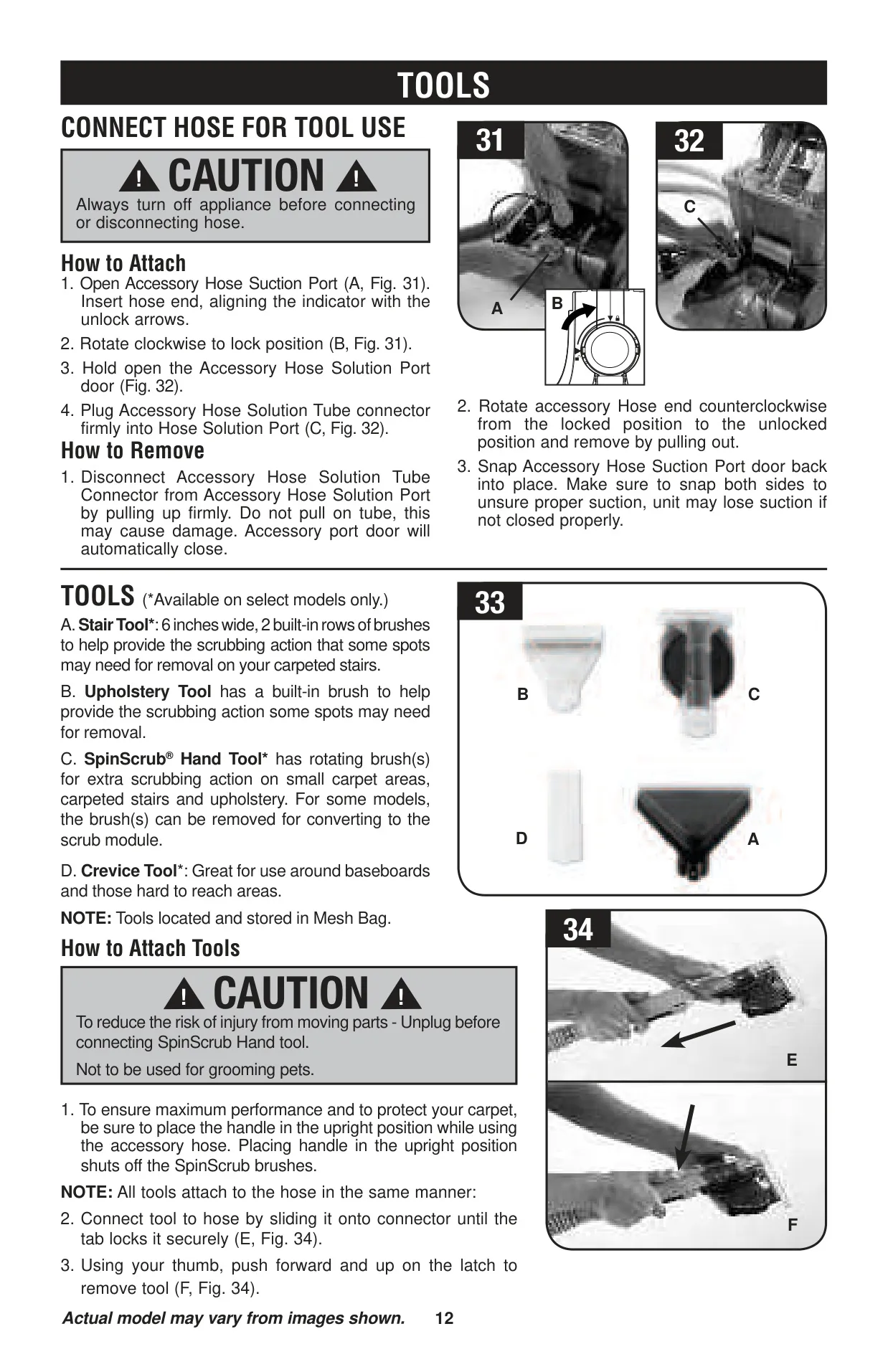

| Included Accessories | Accessory Hose and Upholstery Tool; Stair Tool, Crevice Tool, SpinScrub Hand Tool and Mesh Tool Storage Bag on select models |
| Stair Tool | 6 inches wide with 2 built-in rows of brushes (select models) |
| Cord Management | Two cord storage hooks (one does not rotate) and cord clip |
| Carry Handles | Upper Handle, Solution Tank Handle, Dirty Water Tank Handle, Solution Tank Shelf |

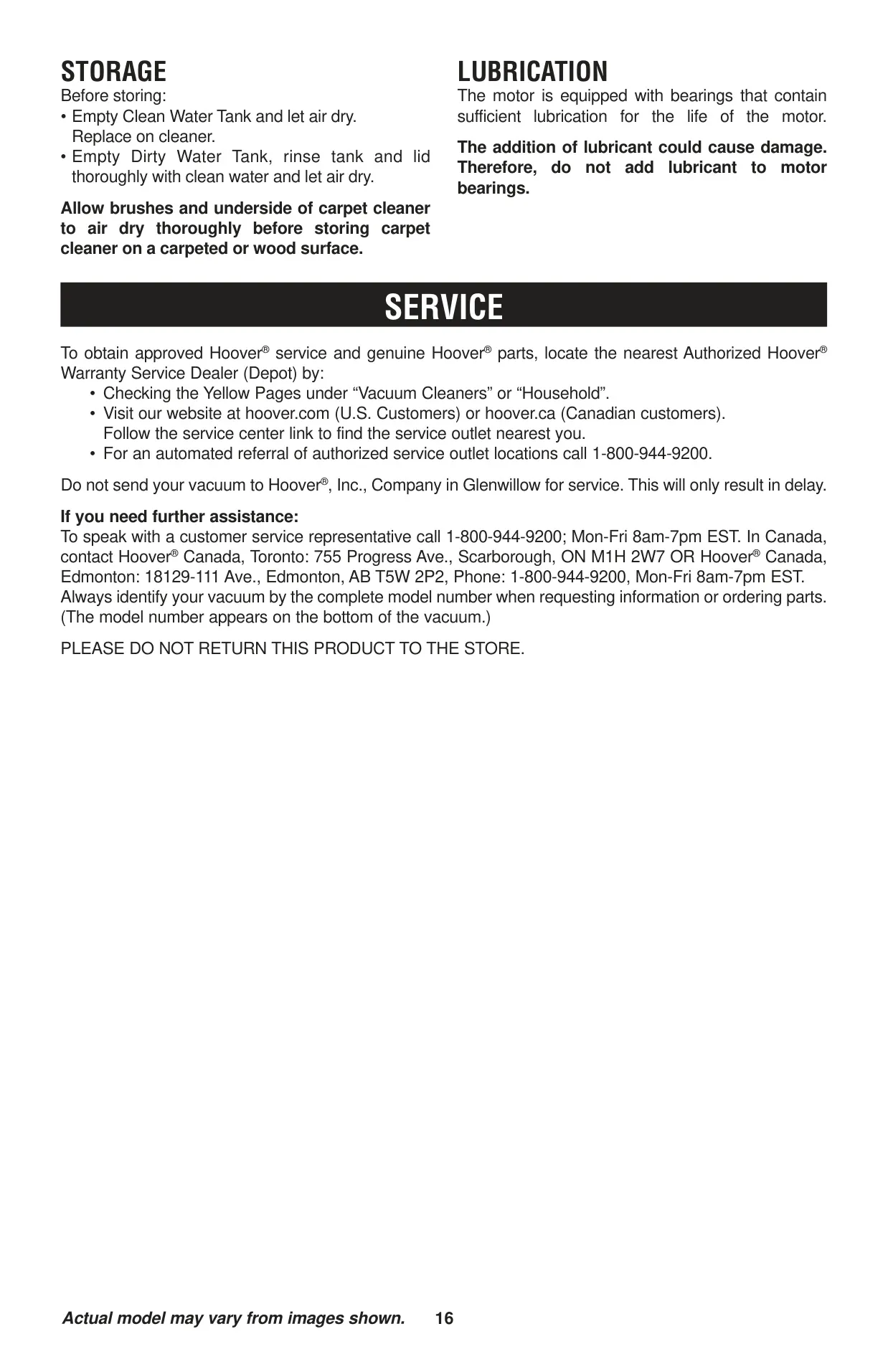

| Motor Lubrication | Bearings lubricated for the life of the motor (do not add lubricant) |
| Assembly Tool Required | Phillips screwdriver |
| Compatible Solutions | Hoover Clean Plus 2X, Pet Plus 2X, Pro Plus 2X (32 oz / 64 oz) |
| Minimum User Age | Not intended for children age 12 and under |

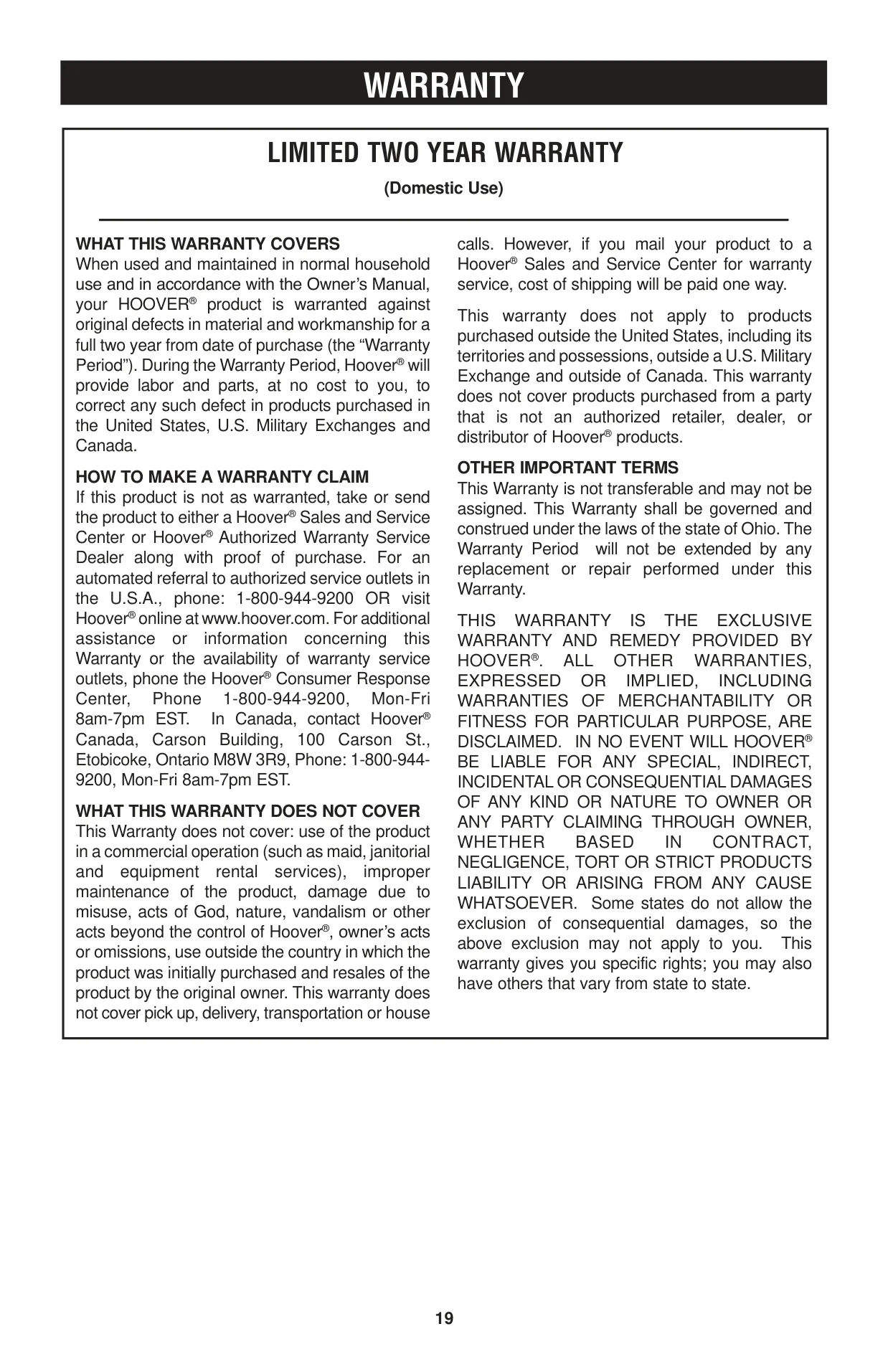

| Warranty | Limited two-year warranty (domestic use) |
| Warranty Coverage Area | United States, U.S. Military Exchanges and Canada |
| Customer Service | 1-800-944-9200, Mon-Fri 8am-7pm EST |
| Manual Reference | #961151057 ID105762-R3 |
Hoover Spinscrub 50 Carpet Cleaner Details

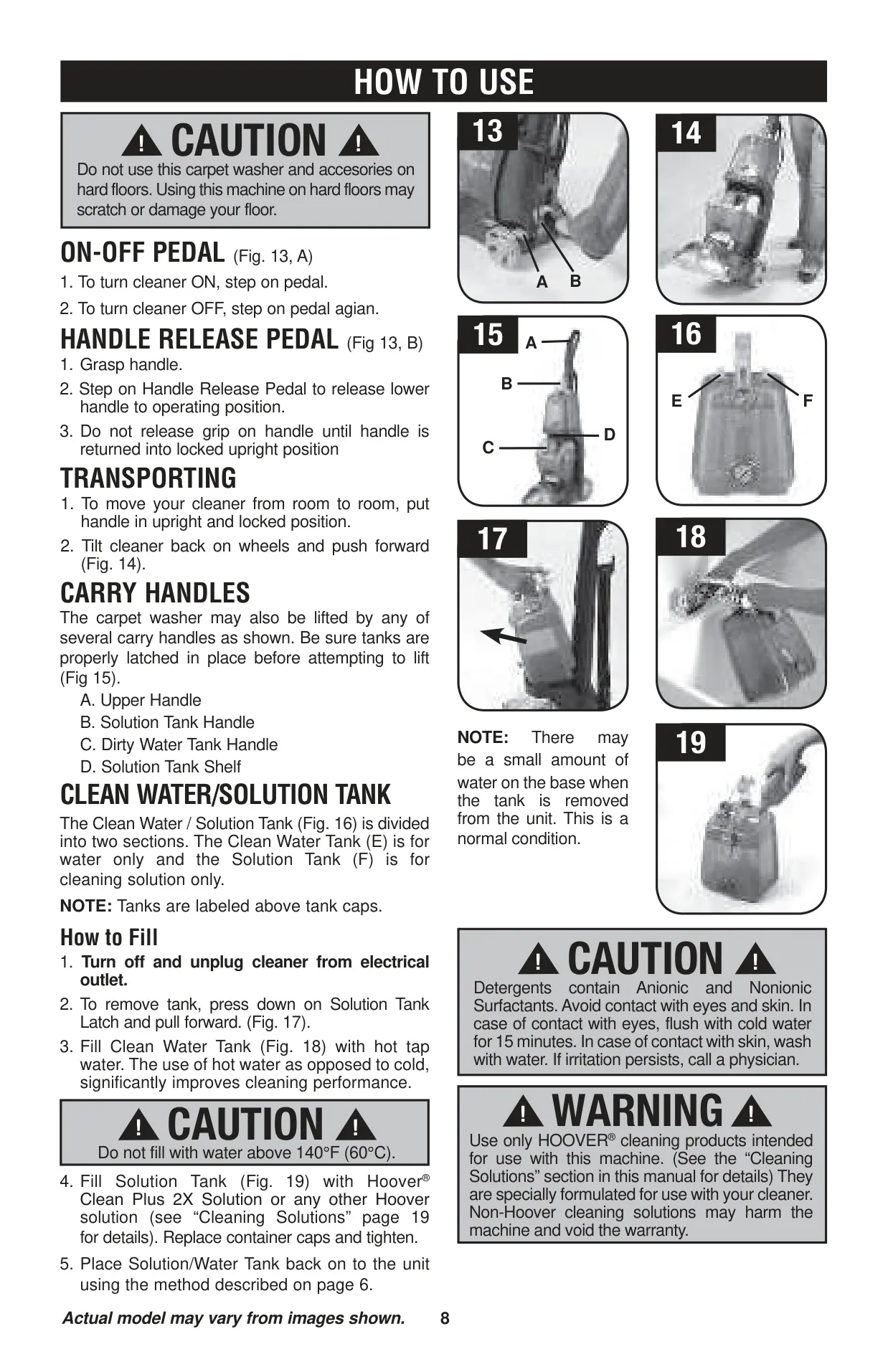

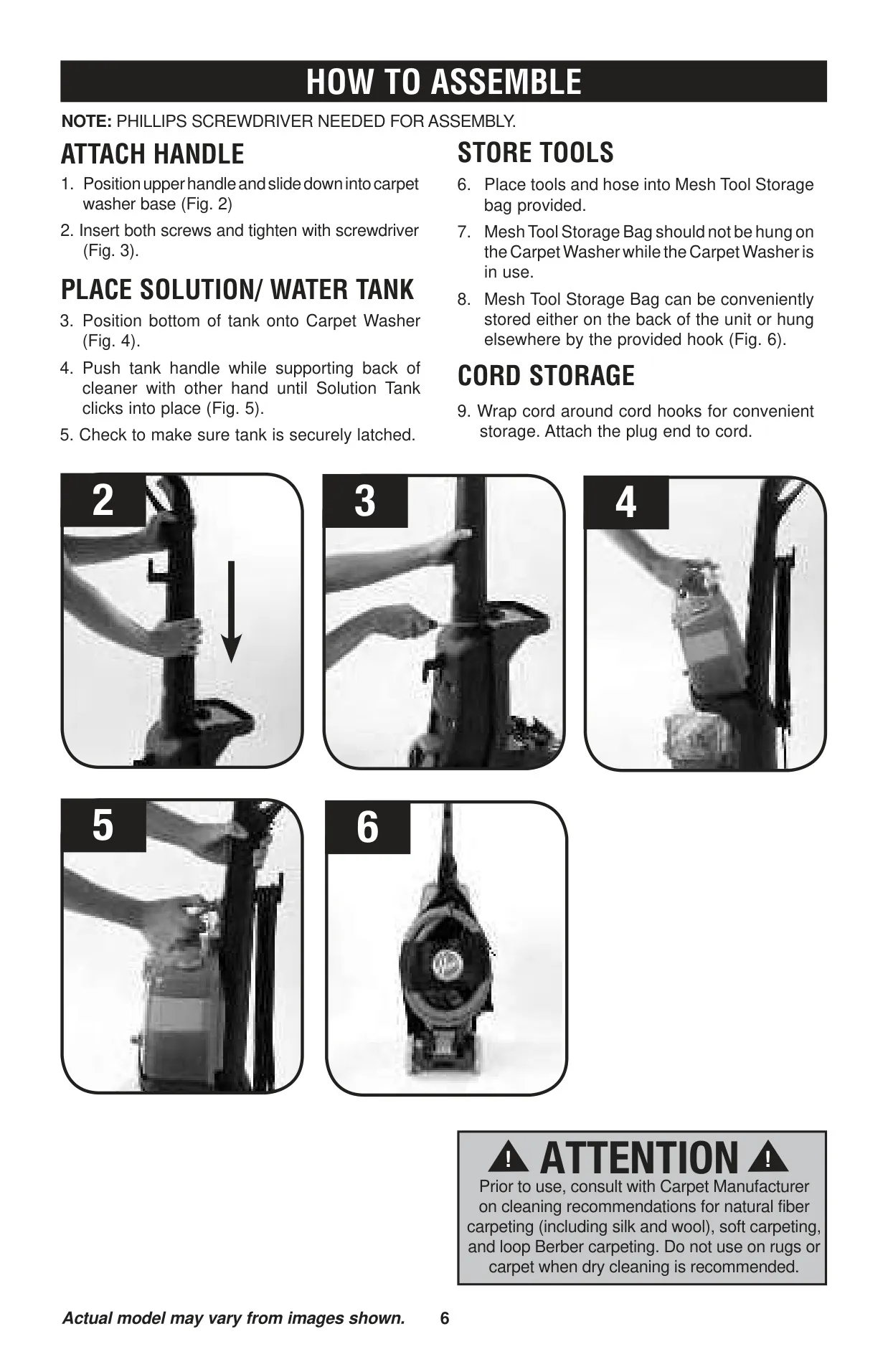

The Hoover Spinscrub 50 is assembled in minutes: the upper handle slides into the base and is secured with two screws, and the solution tank is set onto the base and pushed until it clicks into place. To move the cleaner between rooms, lock the handle upright, tilt the unit back on its wheels and push it forward. The Mesh Tool Storage Bag can hang on the back of the unit or anywhere else using its hook, but it should not hang on the cleaner while it is running.

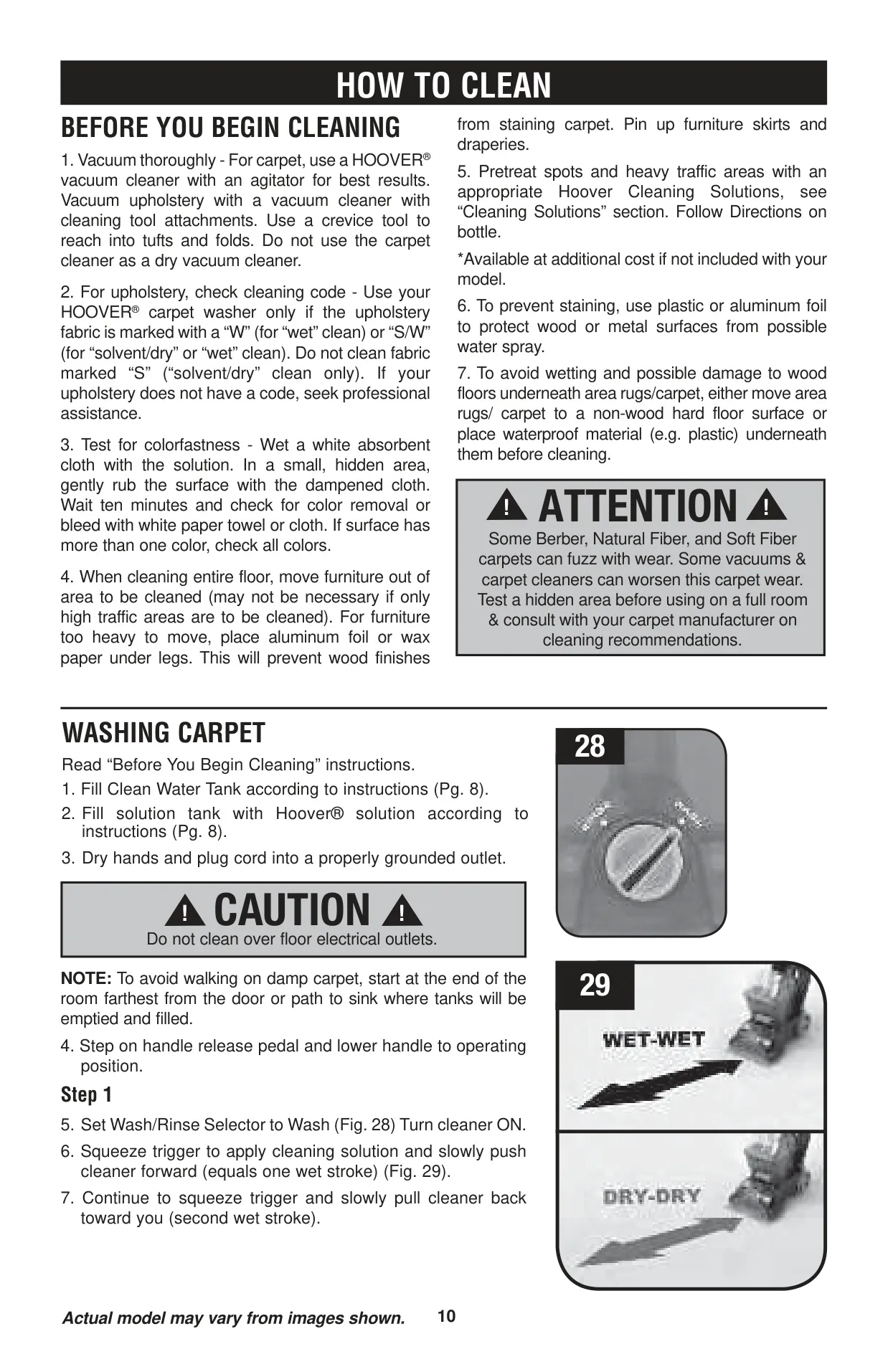

The cleaning method uses alternating wet and dry strokes. In Wash mode, squeeze the trigger while pushing the cleaner forward and again while pulling it back. Then release the trigger and make dry strokes until very little water is visible passing through the Dirty Water Tank lid. Each area needs at least four passes. Use straight, parallel strokes that overlap by about 1 inch to prevent streaking, and keep the nozzle flat on the floor.
To avoid soaking the carpet, Hoover limits cleaning to no more than four wet strokes over any one area, always finishing with dry strokes. After washing, Hoover recommends a water-only rinse in Rinse mode to remove leftover solution. Before cleaning, the manual advises vacuuming thoroughly, pretreating spots, and testing the carpet for colorfastness with a white cloth, waiting ten minutes. Berber, natural fiber and soft fiber carpets should be tested in a hidden area first.

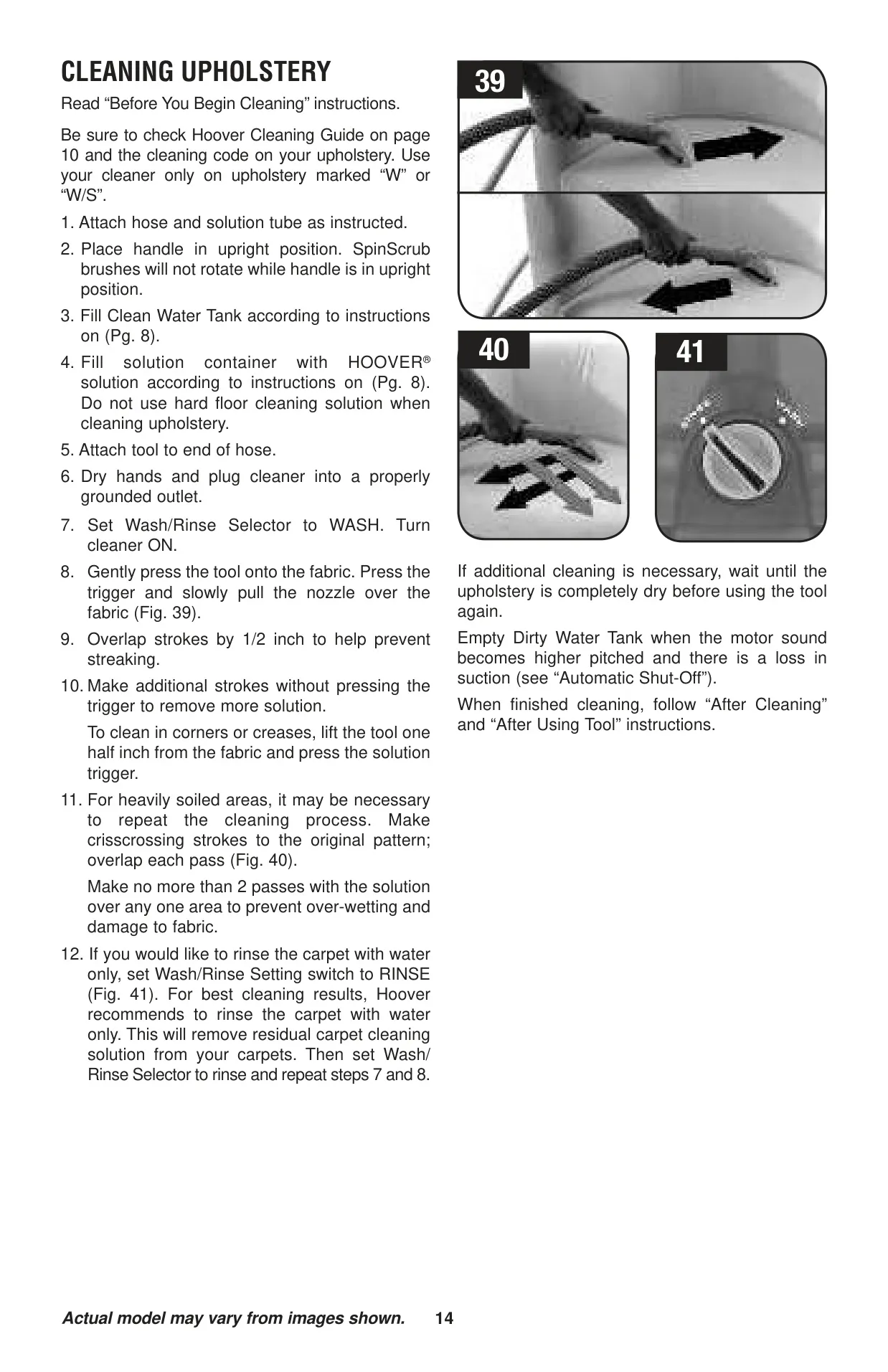

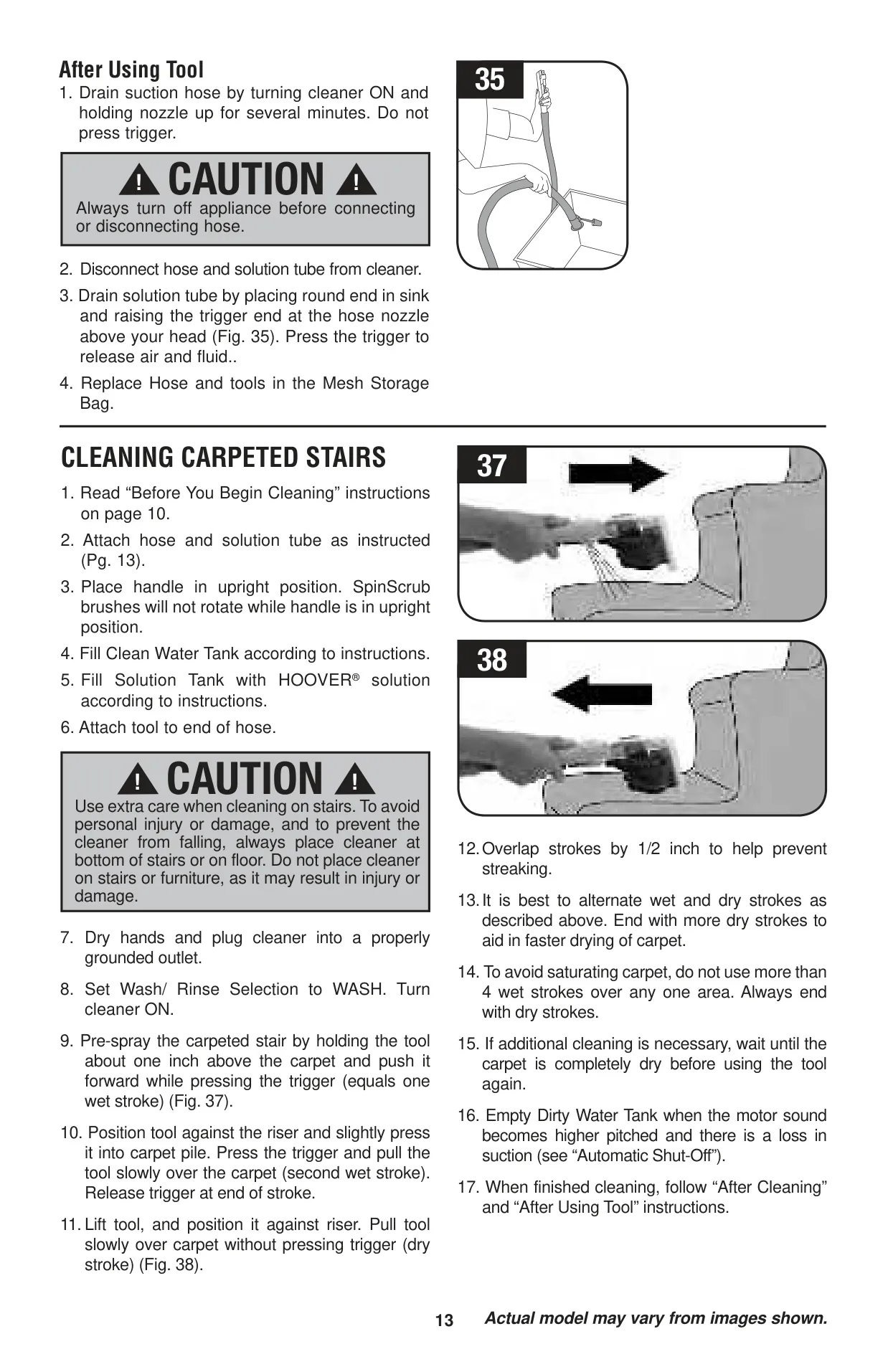

For upholstery, use the machine only on fabrics coded W or S/W. Never use it on fabrics coded S. With the handle locked upright, the SpinScrub floor brushes stop rotating, so it is safe to use the hose and tools. On upholstery, make no more than two passes with solution over any area. On stairs, overlap strokes by 1/2 inch and keep the main unit at the bottom of the staircase or on the floor, never on the steps.
The Dirty Water Tank is easy to empty: open the latch, lift the tank by its handle and swivel the Quick Spout Pour Cap away from the drain hole. The lid comes off so you can rinse it and clear lint from its filter screen. Suction depends on a well-sealed lid, a closed pour cap and the tank being latched correctly. When the tank is full, the motor sounds noticeably higher-pitched, which tells you to empty it.

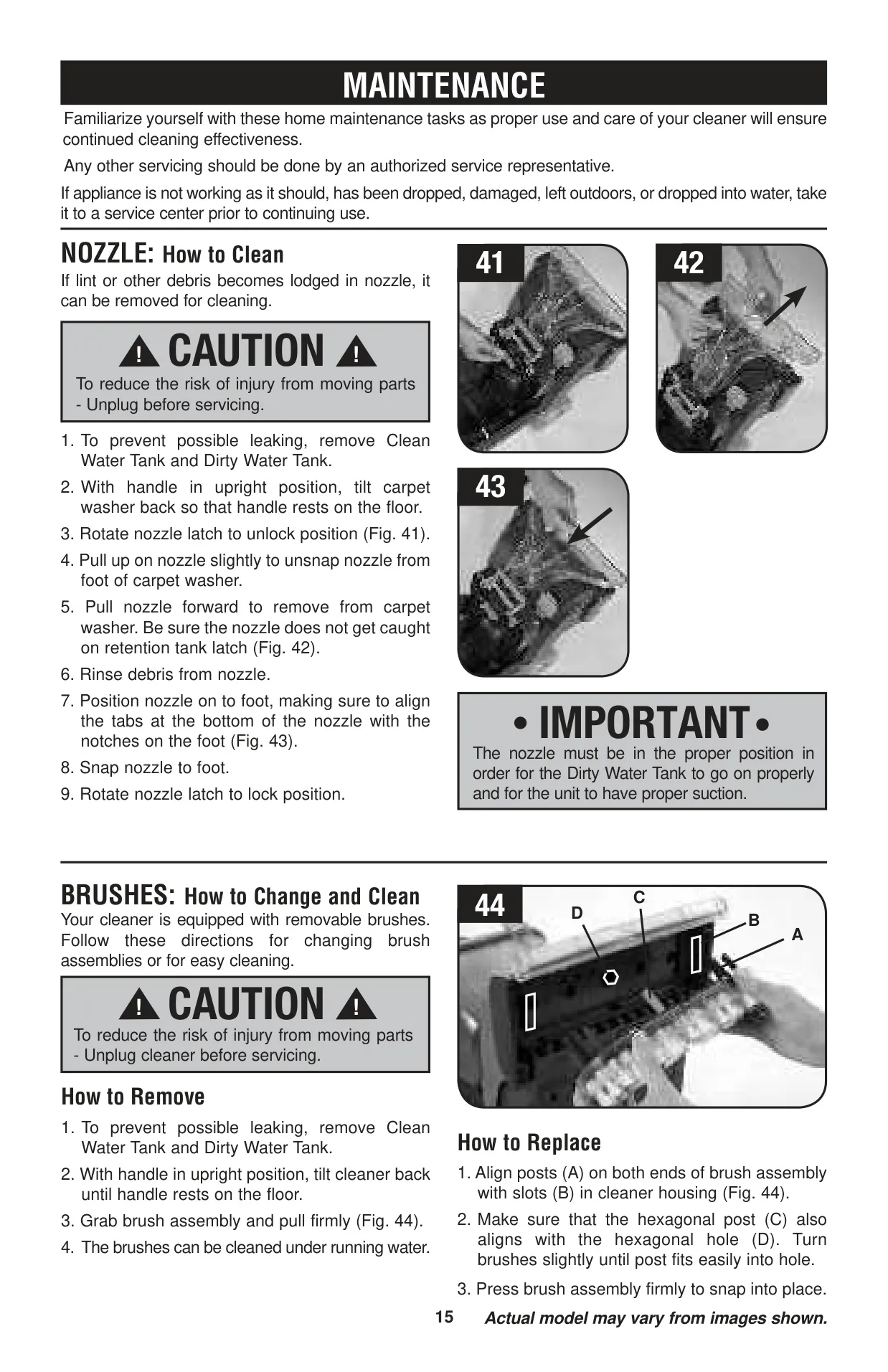

Maintenance requires no special tools. Tilt the cleaner back, turn the nozzle latch, and the nozzle snaps off for rinsing. The brush assembly pulls straight out for cleaning under running water. To refit it, align the side posts and the hexagonal drive post. If the brushes turn slowly, clean the lint screen behind the nozzle. After using the tools, drain the hose and solution tube, and let the tanks air dry before storage.
Because water drips from the brushes after use, the manual says to place the unit on a towel and to avoid leaving it on wood or laminate floors. If the hose won't spray after you refill the tanks, prime the pump by lowering the hose to the floor and holding the trigger for up to one minute. Store the cleaner indoors where it won't freeze, and never store it with solution in the tanks.
