Instax Mini 11 Instant Camera Instruction Manual
Instax Mini 11 Instant Camera
Instax Mini 11 Instant Camera Instructions
Here we offer the Instax Mini 11 Instant Camera manual completely free and in English. We have cataloged this manual in the Instant Cameras section on Manualverse, and it has been rated by 1 users with an average rating of 5. If you have any specific questions about Instax Mini 11 Instant Camera, we suggest checking the Frequently Asked Questions (FAQs) section of this manual.
Product Images

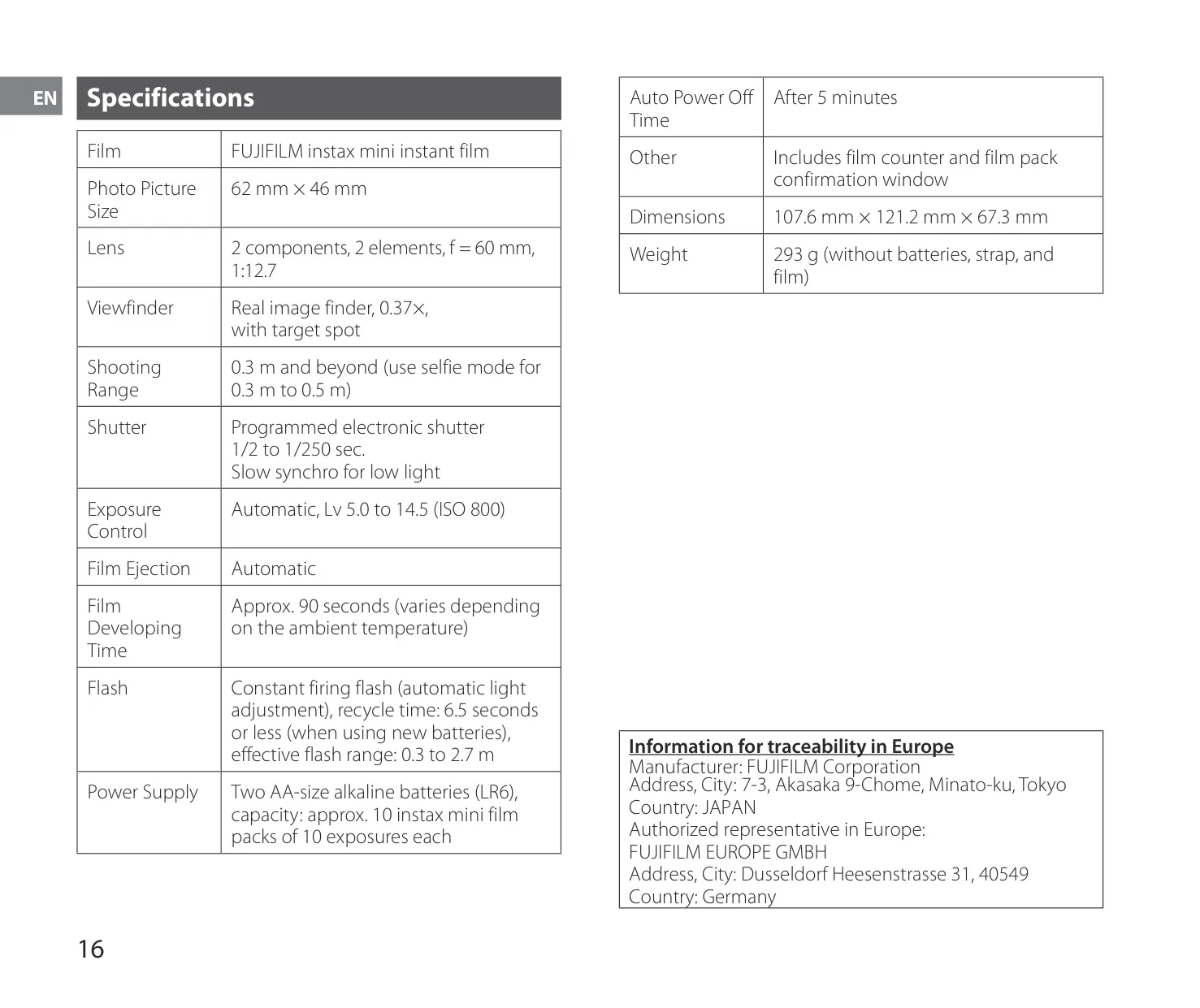

Instax Mini 11 Instant Camera Specifications
| Feature | Specification |
|---|---|
| Film | FUJIFILM instax mini instant film |
| Photo Picture Size | 62 mm × 46 mm |
| Lens | 2 components, 2 elements, f = 60 mm, 1:12.7 |
| Viewfinder | Real image finder, 0.37×, with target spot |
| Shooting Range | 0.3 m and beyond (use selfie mode for 0.3 m to 0.5 m) |
| Shutter | Programmed electronic shutter 1/2 to 1/250 sec., Slow synchro for low light |
| Exposure Control | Automatic, Lv 5.0 to 14.5 (ISO 800) |
| Film Ejection | Automatic |
| Film Developing Time | Approx. 90 seconds (varies depending on the ambient temperature) |
| Flash | Constant firing flash (automatic light adjustment), recycle time: 6.5 seconds or less (when using new batteries), effective flash range: 0.3 to 2.7 m |

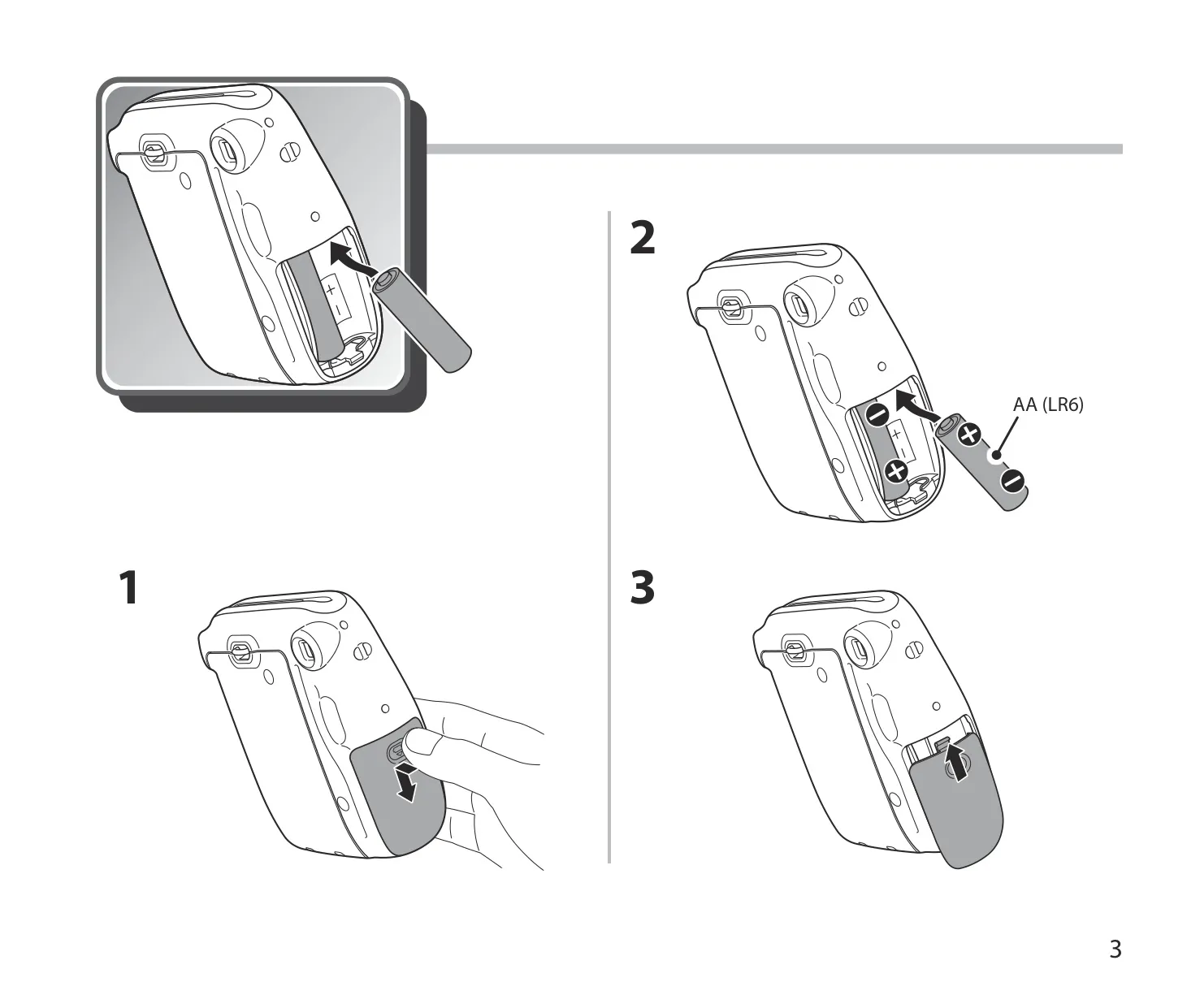

| Power Supply | Two AA-size alkaline batteries (LR6), capacity: approx. 10 instax mini film packs of 10 exposures each |
| Auto Power Off Time | After 5 minutes |
| Other | Includes film counter and film pack confirmation window |
| Dimensions | 107.6 mm × 121.2 mm × 67.3 mm |
| Weight | 293 g (without batteries, strap, and film) |
Instax Mini 11 Instant Camera Details

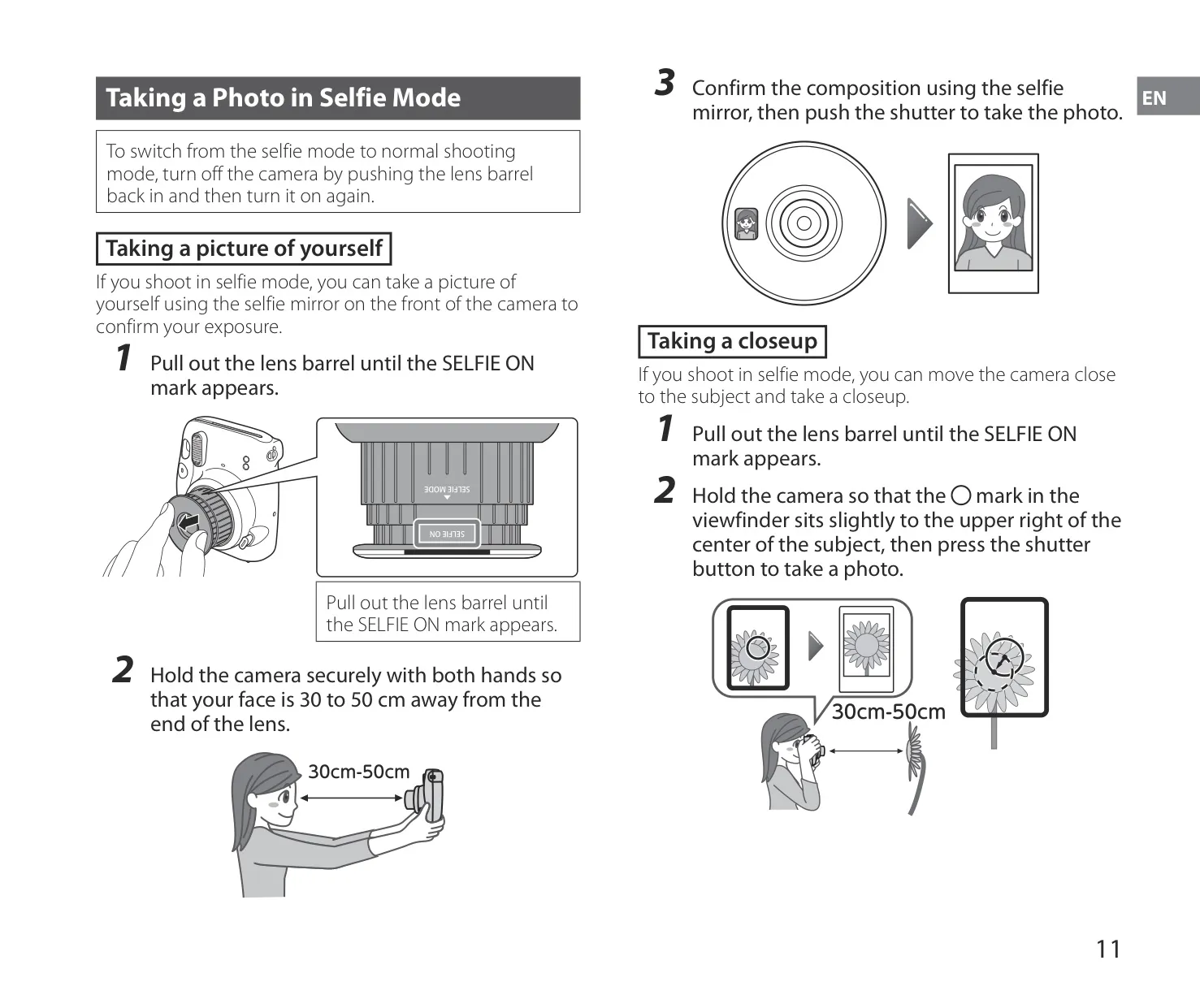

The Instax Mini 11 introduces a convenient Selfie Mode, activated by simply pulling out the lens barrel until the "SELFIE ON" mark appears. This mode allows users to take self-portraits using the integrated selfie mirror to compose their shot, maintaining a recommended distance of 30 to 50 cm. Beyond self-portraits, this specialized mode also facilitates close-up photography, enabling crisp shots of subjects positioned within the same 30 to 50 cm range. This versatility makes the camera highly adaptable for various shooting scenarios.

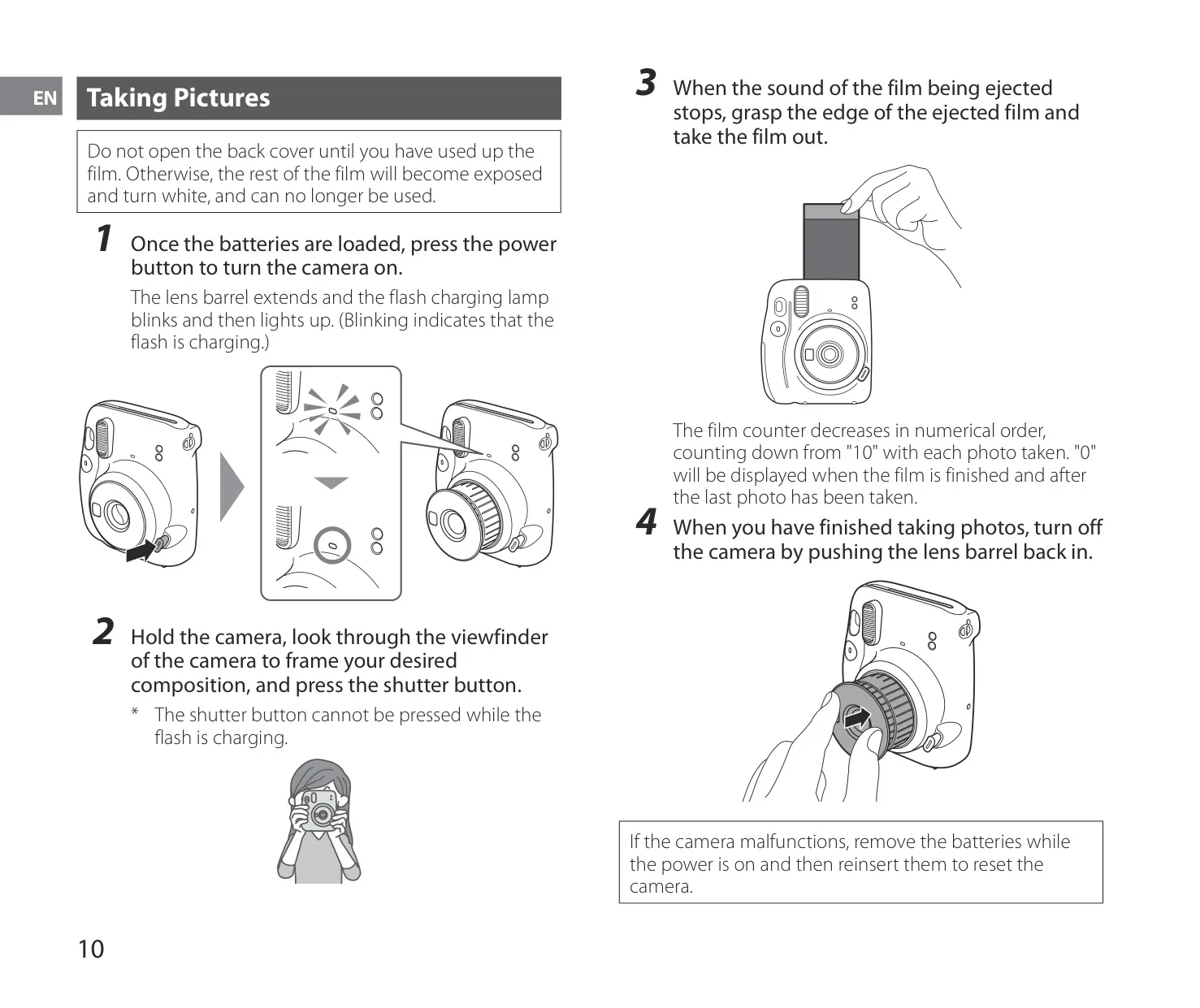

Designed for simplicity, the Instax Mini 11 features automatic exposure control that intelligently adjusts to ambient light conditions, ensuring optimal brightness for every photo. The camera provides clear feedback through its flash charging lamp; a slow blink indicates charging (typically 3-10 seconds), while a steady light signals readiness. The shutter button is deactivated during flash charging, preventing premature shots. A visible film counter meticulously tracks remaining exposures, decrementing from "10" until "0" is displayed, signaling the pack is empty.

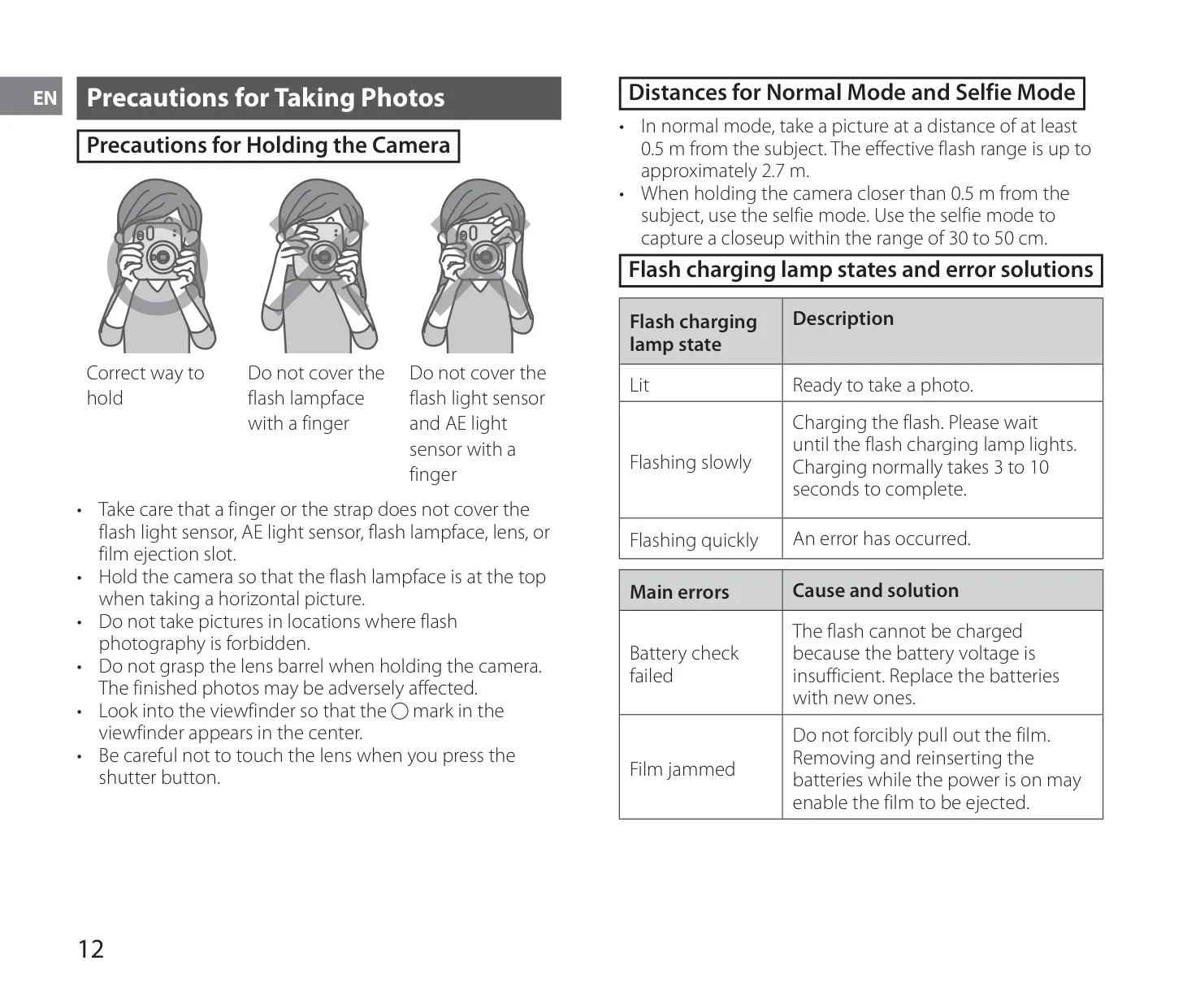

Proper camera handling is crucial for optimal results. Users are advised to avoid obstructing the flash light sensor, AE light sensor, flash lampface, lens, or film ejection slot. When taking horizontal pictures, the flash lampface should be at the top. The manual emphasizes not to grasp the lens barrel, as this could adversely affect the final photos. In the rare event of a malfunction, the camera can be reset by temporarily removing and reinserting the batteries while the power is on, a simple troubleshooting step.
The Instax Mini 11 provides specific indicators for its flash system. If the flash charging lamp flashes quickly, it signifies an error. Common issues include a "Battery check failed," pointing to insufficient battery voltage, which requires replacing them with new AA (LR6) alkaline batteries. Another potential error, "Film jammed," advises against forceful removal. Instead, users should try removing and reinserting the batteries while the camera is powered on, which may facilitate proper film ejection.

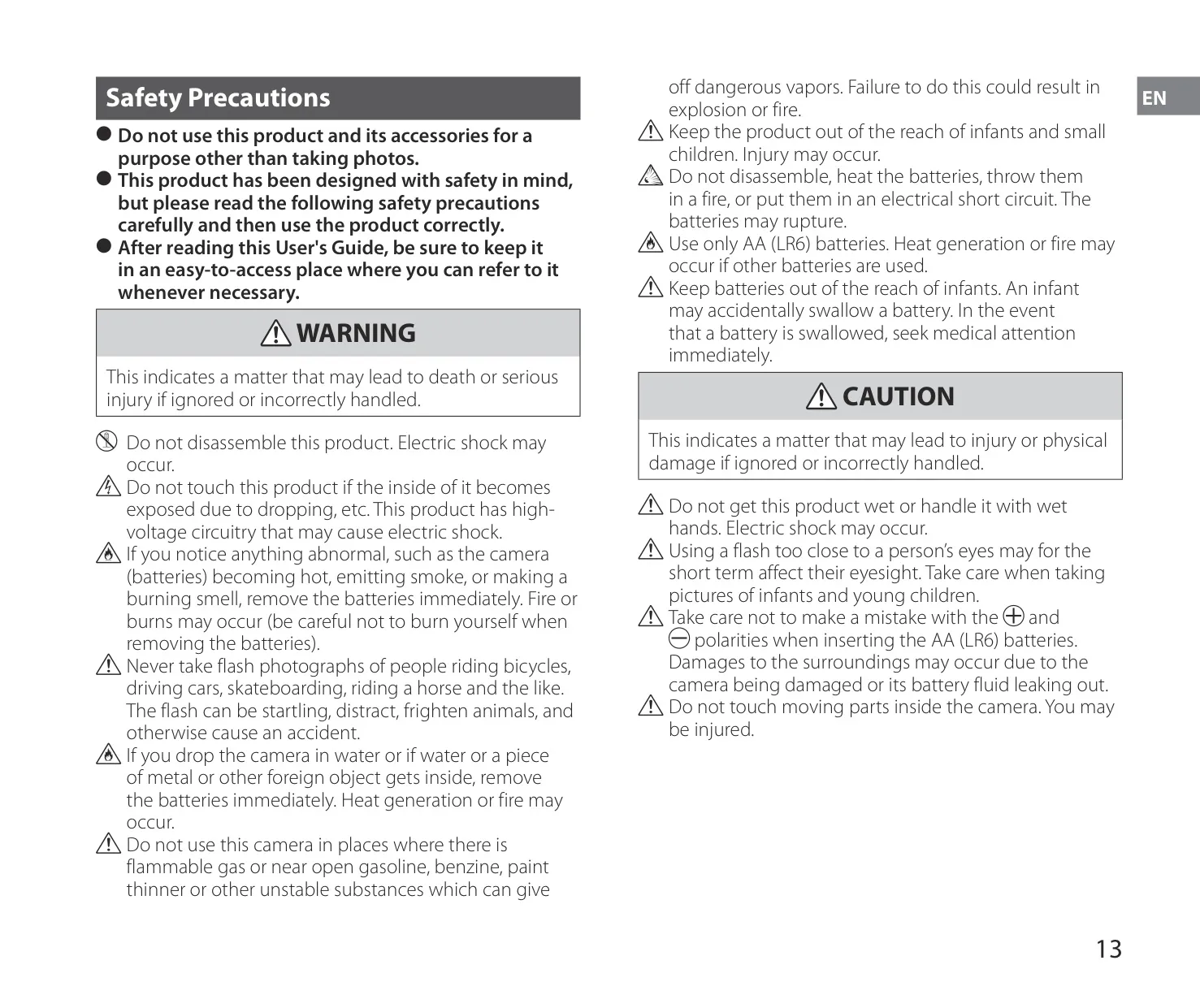

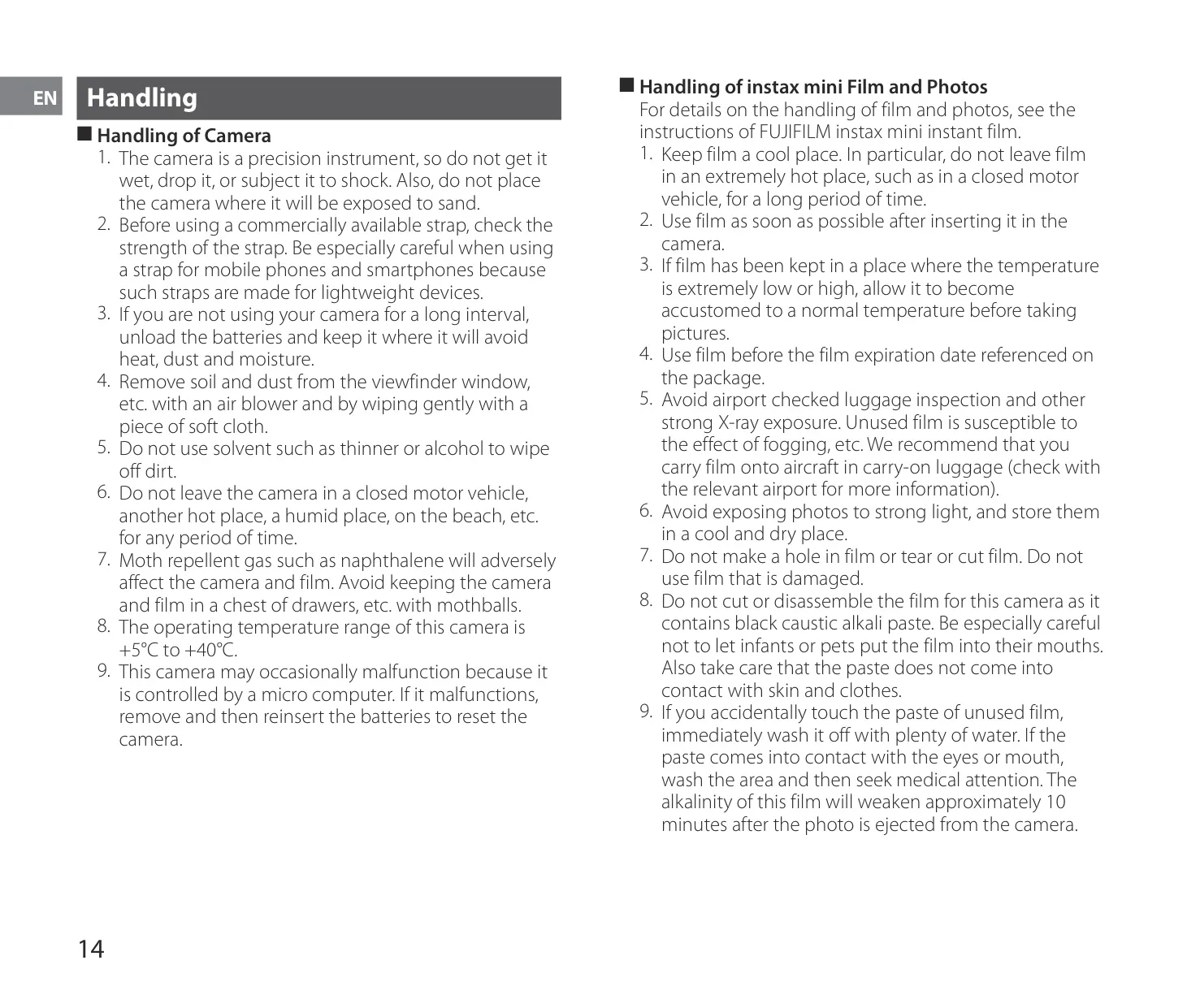

The manual stresses safety precautions, including warnings against disassembling the product, touching exposed internal components, or using it near flammable gases. It also advises caution when using the flash near eyes, especially with infants. For general handling, the camera should be treated as a precision instrument, kept away from water, extreme temperatures, dust, and sand. When not in use for extended periods, batteries should be removed, and the camera stored in a cool, dry place away from moth repellents like naphthalene.
