Here we offer the Everstart Maxx 50 Amp BC50BE Battery Charger manual completely free and in English. We have cataloged this manual in the Battery Chargers section on Manualverse, and it has been rated by 1 users with an average rating of 5. If you have any specific questions about Everstart Maxx 50 Amp BC50BE Battery Charger, we suggest checking the Frequently Asked Questions (FAQs) section of this manual.
Product Images
Everstart Maxx 50 Amp BC50BE Battery Charger Specifications
| Feature | Specification |
|---|---|
| Model Number | BC50BE |
| Product Type | Automatic high-frequency smart battery charger with engine start |
| AC Input | 120V AC, 60Hz, 245W |
| DC Charging Output | 12V DC, 15A |
| Engine Start Output | 50A |
| Engine Start Duty Cycle | 5 seconds on, 5 minutes off |
| Compatible Batteries | 12V lead acid batteries only |
| Minimum Rechargeable Battery Voltage | 2V (batteries below 2V cannot be recharged) |
| Charging Safety Timer | Automatic cut-off after 18 hours of continuous charging (error code F04) |
| Maintenance Mode | Automatic float charge (display shows "FLO") |
| Battery Reconditioning Cycle | 24 hours, automatic stop, then switches to charging mode |
| Engine Start Countdown | 60 to 00 seconds before cranking (Quick Start Guide describes a 40-second concentrated charge period) |
| Cranking Countdown | 5 seconds |
| Post-Cranking Charge | 3A for 5 minutes, then returns to charging mode |
| Rest Period Between Start Attempts | 4 to 5 minutes |
| Battery Voltage Display Duration | 10 seconds |
| Temperature Compensation Indicators | High temperature above approx. 40°C, low temperature below 0°C |
| Control Buttons | Battery Charge, Engine Start, Alternator Check, Battery Voltage Check, Battery Recondition |
| Display | LCD with digital readout, amps/volts/seconds indicator, charge gauge and status icons |
| Clamps | Color-coded: Red (positive), Black (negative) |
| AC Plug | Polarized 120V AC plug with storage tabs on back of unit |
| Protections | Reverse polarity alarm, overheat alarm, battery fault detection |
| Minimum Placement Height in Garage | 18 inches above the floor |
| Off-Vehicle Charging Cable | 24-inch (minimum) AWG #6 insulated battery cable |
| Recommended Circuit Protection | GFCI protected outlet |
| Intended Use | Household use only, not for commercial use |
| Regulatory Compliance | FCC Part 15, Class B digital device |
| Warranty | Two-year limited warranty |
| Importer | Baccus Global LLC, Boca Raton, FL 33487 |
| Customer Service | 1-877-571-2391 |
Everstart Maxx 50 Amp BC50BE Details
The Everstart Maxx BC50BE is built around a smart, high-frequency charging concept that reads the battery before it does anything. When plugged in without clamps attached, the LCD shows a flashing clamp icon, an empty battery icon and the gauge with no pointer. Once the clamps are attached correctly, the unit goes into Standby mode, and the clamp icons, arrow icons and battery icon light solid. Charging begins only when the user presses the charge button, so the charger never starts working by surprise.
Feedback on screen is detailed. While charging, the digital readout shows the output current, the gauge shows the state of charge, the battery bars fill from bottom to top and the arrows move toward the battery icon. The Quick Start Guide notes that a solid battery icon means the battery is fully charged and a flashing one means it is still charging. If the charger cannot sense enough baseline voltage, it may switch to reconditioning instead of normal charging.
Protection is a core part of the design. A reverse polarity alarm sounds a continuous beep and flashes the "+" and "–" symbols and the fault icon until the clamps are removed. The overheat alarm tells the user to unplug, let the unit cool for several minutes and improve ventilation. A separate battery fault indication means the battery needs to be checked by a qualified technician. The high and low temperature icons are not faults. They only show that temperature compensation is active.
The alternator check runs in two parts. Part 1 tests with no load, with all accessories off, a fully charged battery and the engine at normal idle. Part 2 tests under load, with as many accessories on as possible, except A/C and defrost. The display flashes "Check" during the analysis, then shows "Good" or "ALT" with a flashing fault icon. All other buttons are disabled during the test. Results may not be accurate on every vehicle, and the test is for 12V systems only.
The battery reconditioning function sends electrical pulses that break up crystalline lead sulfate and turn it back into usable electrolyte. On screen, the battery bars empty from top to bottom and the recondition icons flash. Pressing the button again stops the process, and the other buttons do nothing during the cycle. The manual says to recycle the battery if five cycles do not help. The Quick Start Guide is stricter: stop charging if the battery does not take a charge after one cycle.

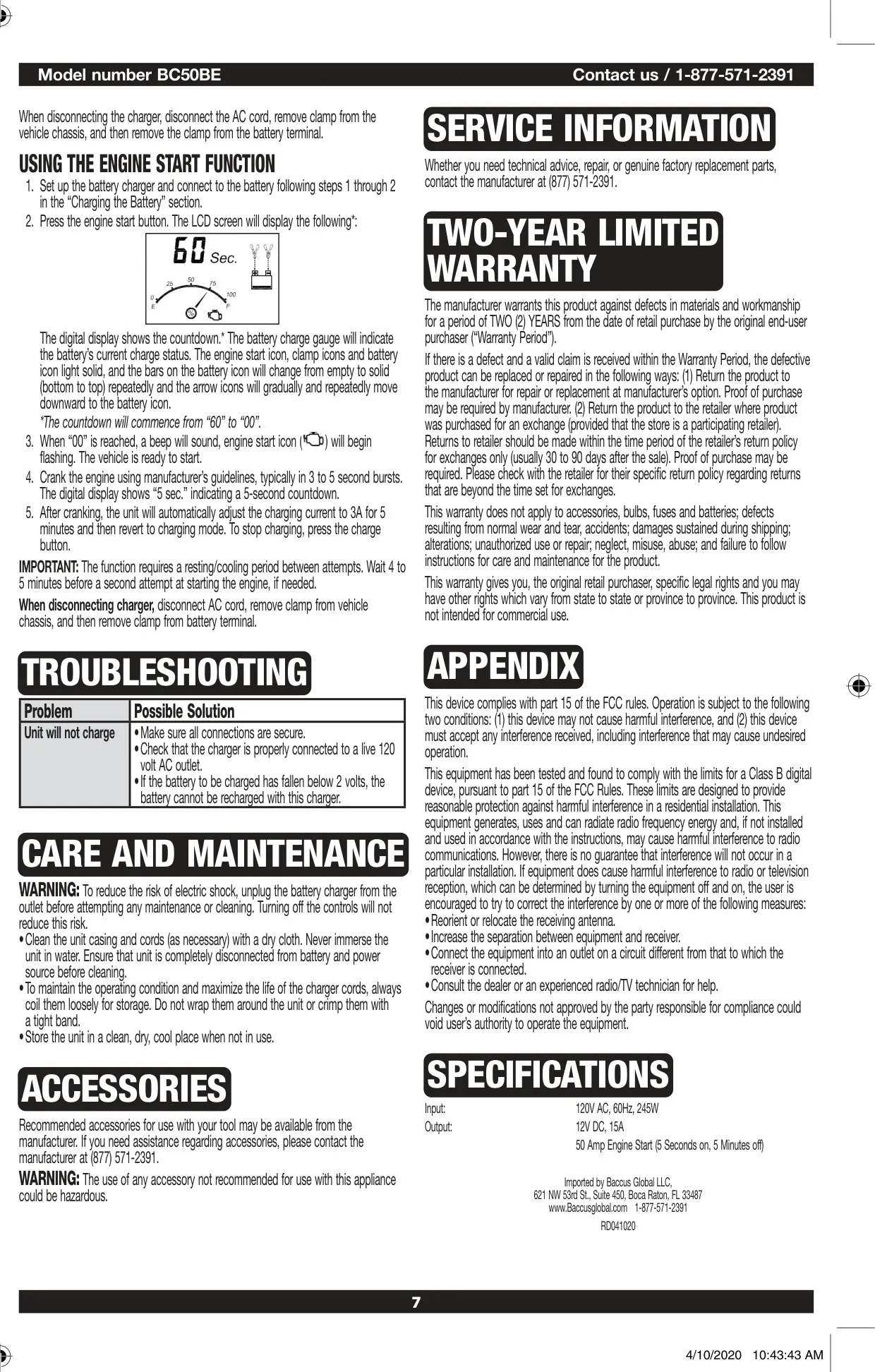

The Quick Start Guide stresses that the Engine Start feature is not a jump-starting function. It delivers a concentrated, high-amperage charge before cranking. After the countdown, a beep sounds and the engine start icon flashes to show the vehicle is ready to crank. The user should crank in 3 to 5 second bursts. The voltage check button can also be used in Standby or charging mode, and the unit returns to its previous mode automatically.
For care, clean the casing and cords with a dry cloth only, and always unplug the charger from the outlet and the battery first. Coil the cords loosely and never wrap them tightly around the unit. Store the charger in a clean, dry, cool place. Never place it above the battery, because battery gases corrode the housing. Marine batteries must be charged on shore. Opening the housing, using an improper extension cord or misusing the charger will void the two-year warranty.
