Electrolux Ultimatecare 300 EWW8024D3WB Instruction Manual
Electrolux Ultimatecare 300 EWW8024D3WB
Electrolux EWW8024D3WB Instructions
Here we offer the Electrolux Ultimatecare 300 EWW8024D3WB manual completely free and in English. We have cataloged this manual in the Dryers section on Manualverse, and it has been rated by 1 users with an average rating of 5. If you have any specific questions about Electrolux Ultimatecare 300 EWW8024D3WB, we suggest checking the Frequently Asked Questions (FAQs) section of this manual.

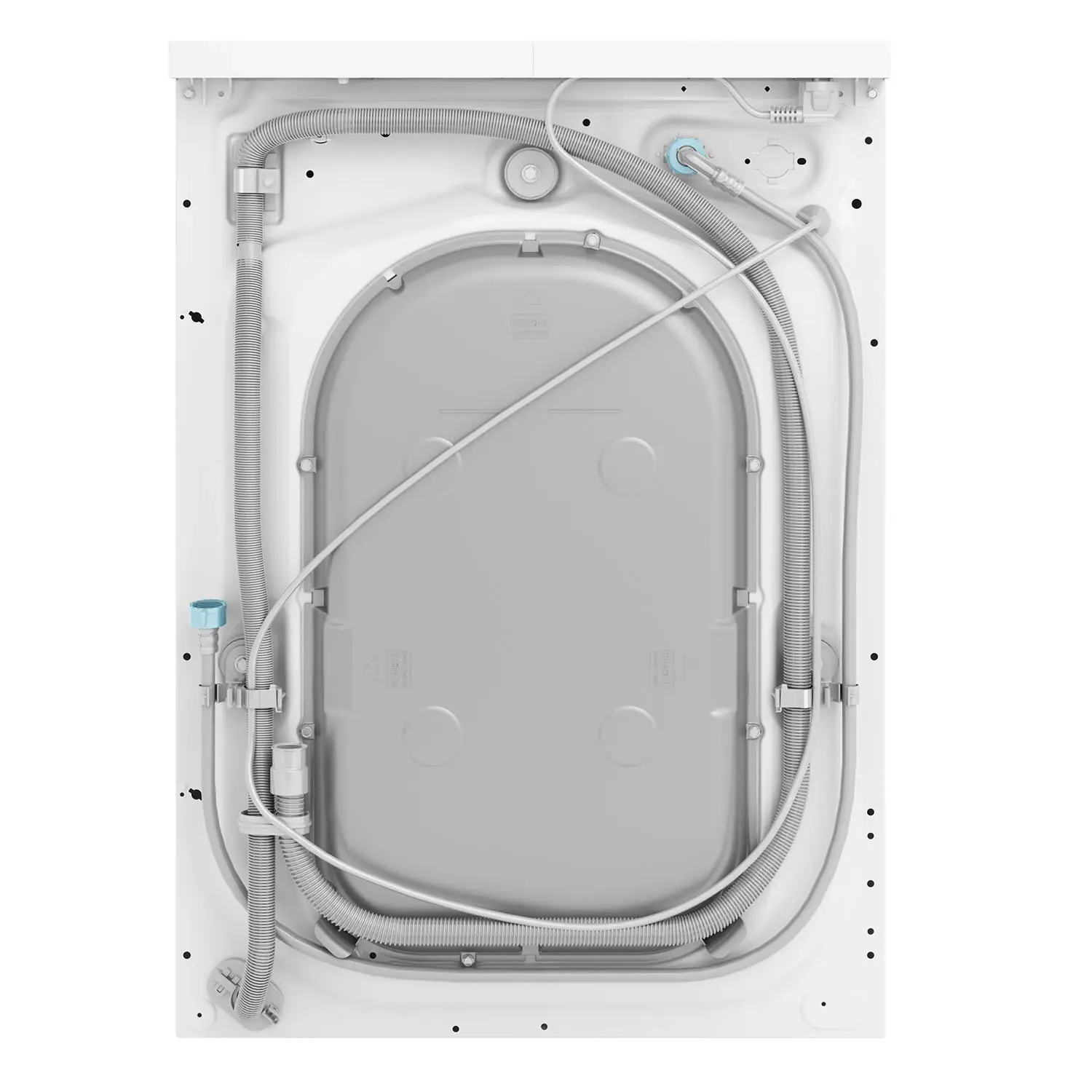

Product Images

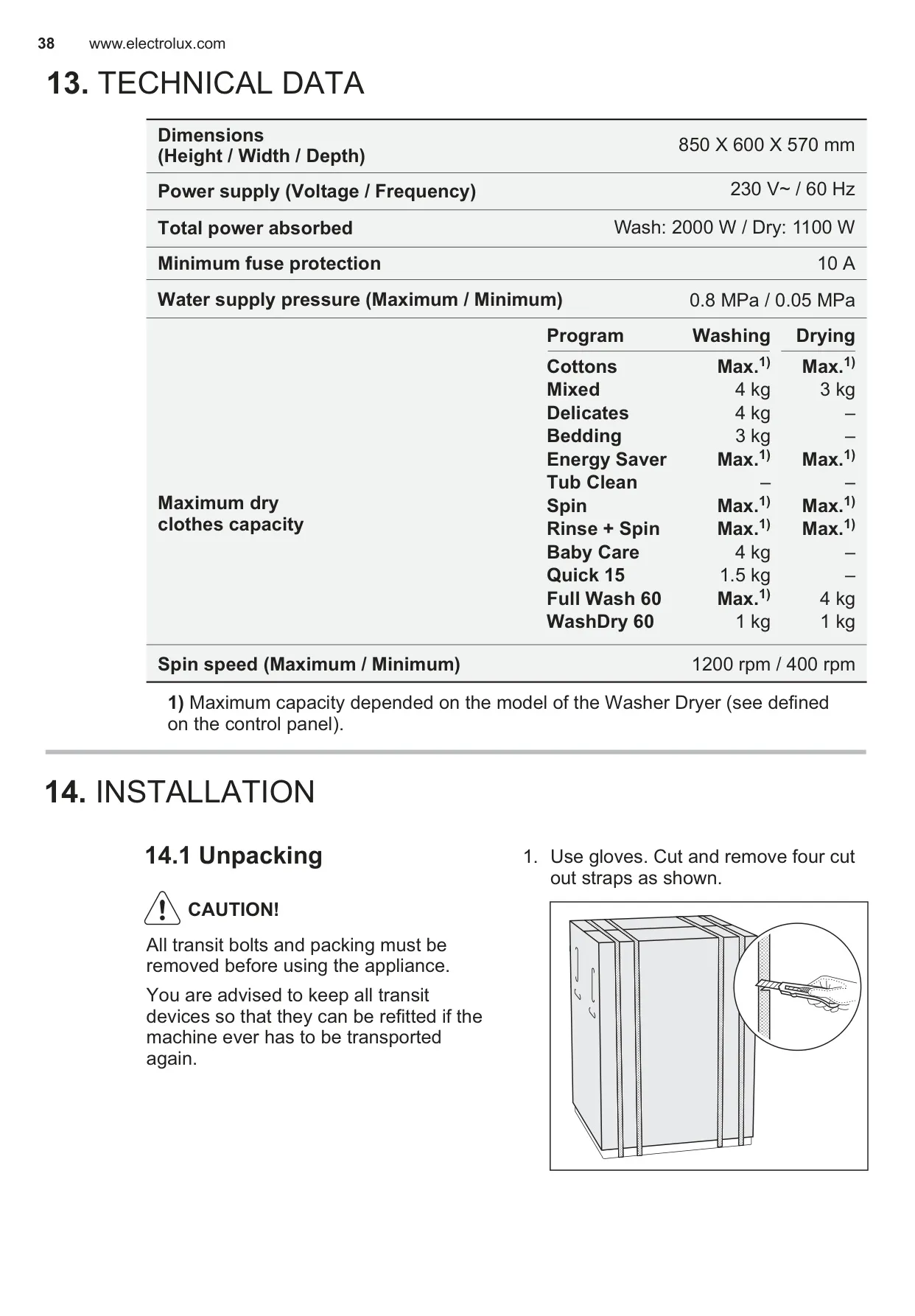

Electrolux Ultimatecare 300 EWW8024D3WB Specifications
| Feature | Specification |
|---|---|
| Model | EWW8024D3WB (UltimateCare 300 Series) |
| Appliance type | Front-loading washer-dryer |
| Dimensions (H x W x D) | 850 x 600 x 570 mm |
| Power supply | 230 V~ / 60 Hz, single-phase |
| Total power absorbed (wash) | 2000 W |
| Total power absorbed (dry) | 1100 W |
| Minimum fuse protection | 10 A |
| Water supply pressure | 0.05 MPa minimum / 0.8 MPa maximum |
| Maximum spin speed | 1200 rpm |
| Minimum spin speed | 400 rpm |
| Bedding program max. spin | 800 rpm |
| Wash temperature range | Cold to 90°C (depending on program) |

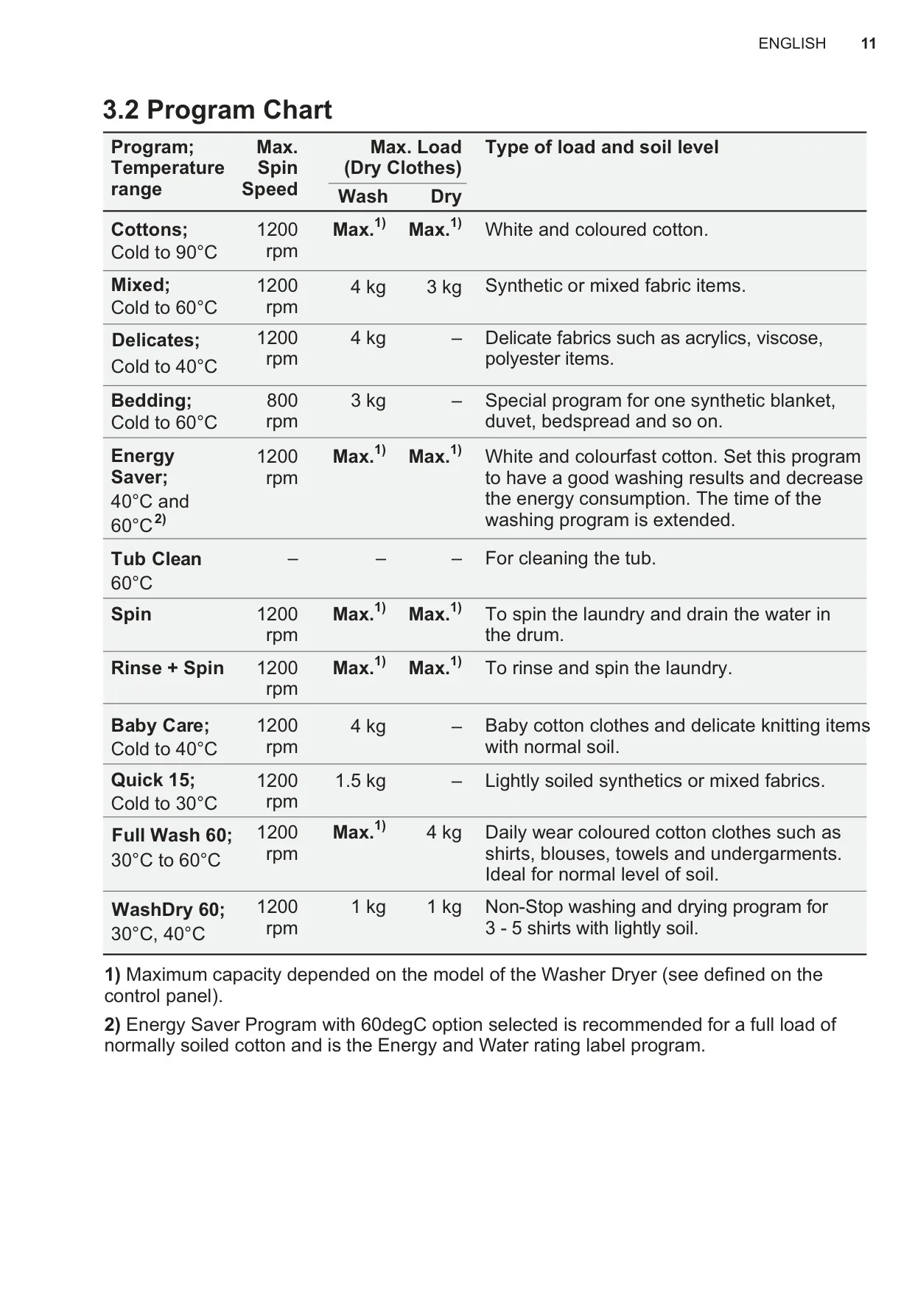

| Number of programs | 12 |
| Programs | Cottons, Mixed, Delicates, Bedding, Energy Saver, Tub Clean, Spin, Rinse + Spin, Baby Care, Quick 15, Full Wash 60, WashDry 60 |
| Maximum load: Cottons / Energy Saver | Maximum rated capacity for wash and dry (marked on the control panel) |
| Maximum load: Mixed | 4 kg wash / 3 kg dry |
| Maximum load: Delicates | 4 kg wash (no drying) |
| Maximum load: Bedding | 3 kg wash (no drying) |
| Maximum load: Baby Care | 4 kg wash (no drying) |
| Maximum load: Quick 15 | 1.5 kg wash (no drying) |
| Maximum load: Full Wash 60 | Maximum rated wash capacity / 4 kg dry |
| Maximum load: WashDry 60 | 1 kg wash / 1 kg dry (3 to 5 lightly soiled shirts) |
| Energy and water rating label program | Energy Saver at 60°C |
| Tub Clean program temperature | 60°C |
| Delay Start | 30, 60 or 90 min, then hourly from 2 to 20 hours |
| Drying principle | Condensation (water tap must stay open during drying) |
| Drum | Stainless steel washing drum with drum lifters |

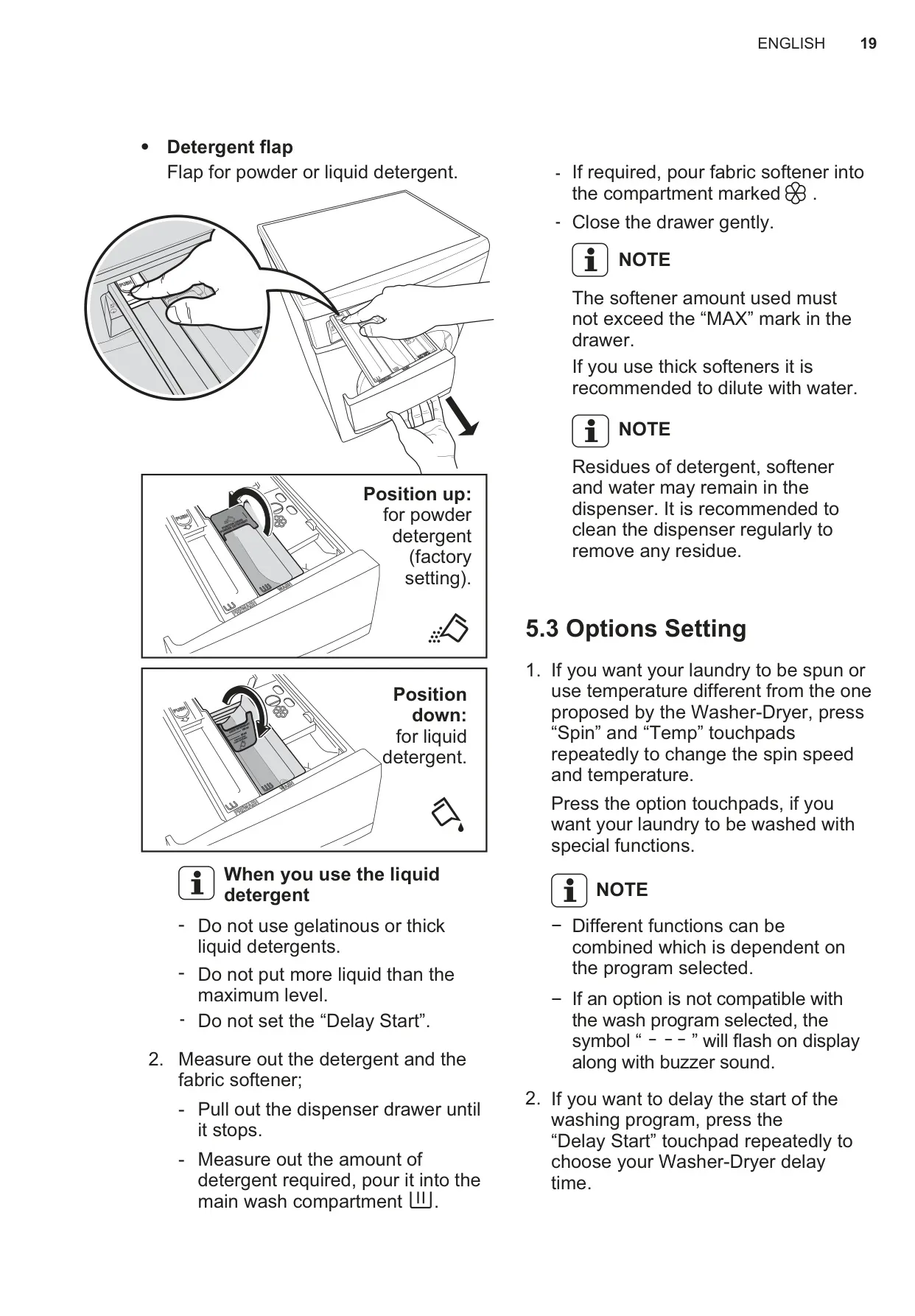

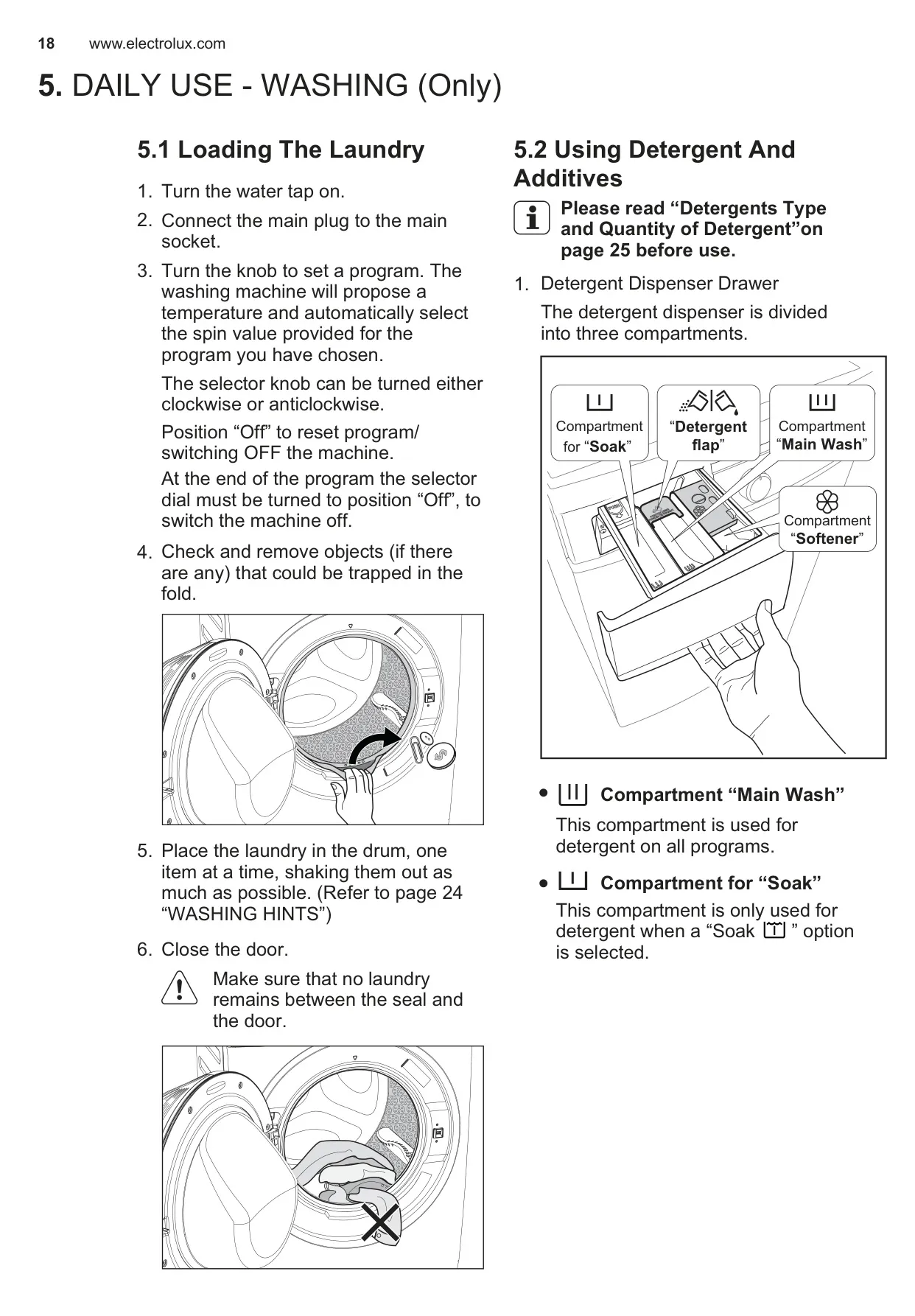

| Detergent dispenser | 3 compartments (Soak/Prewash, Main Wash, Softener) with powder/liquid flap |
| Water inlet connection | 3/4" BSP threaded tap |
| Inlet hose angle adjustment | 35° / 45° left or right |

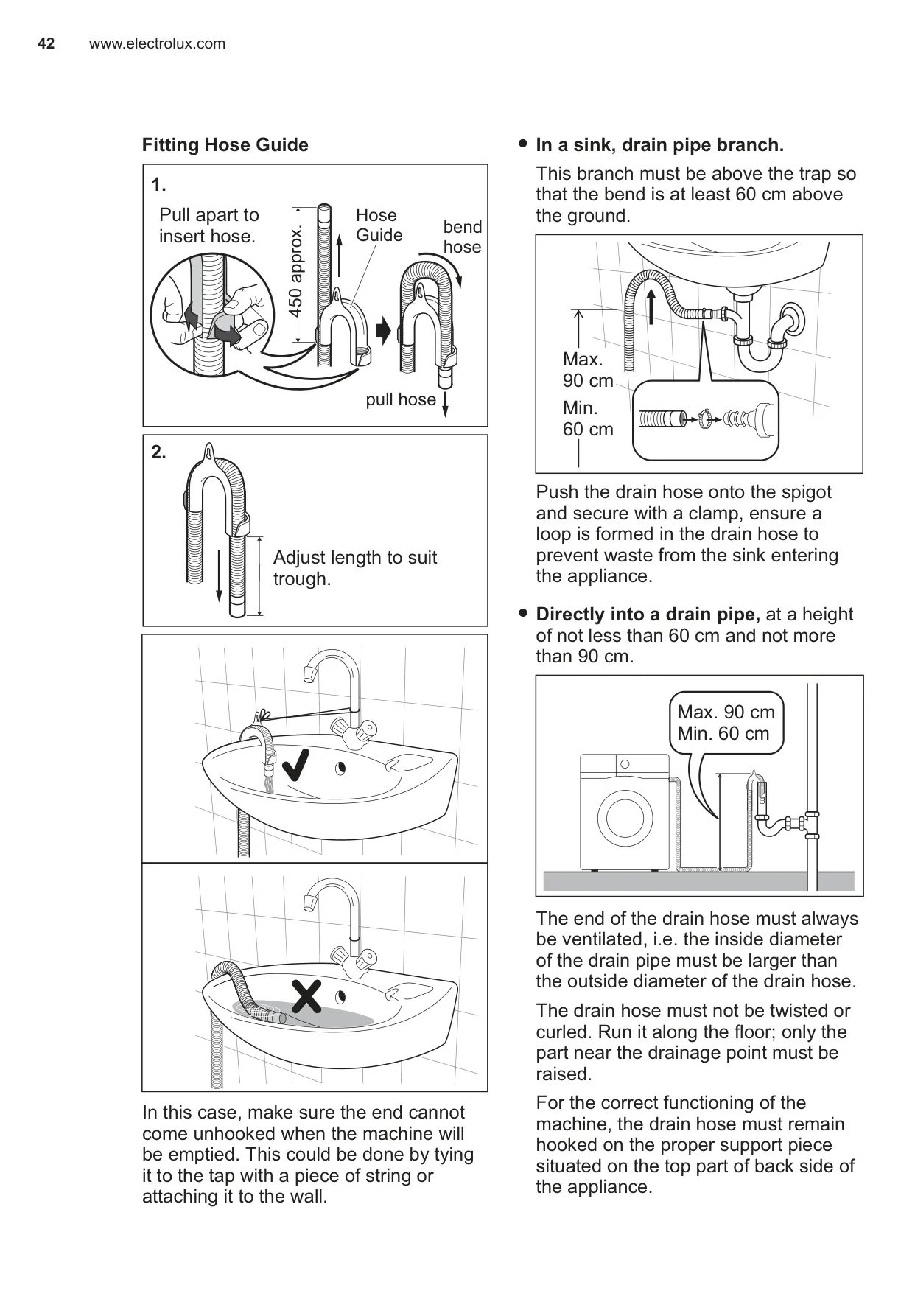

| Drain hose height | Minimum 60 cm, maximum 90 cm |
| Transit bolts | 3 (to be removed before use, holes closed with supplied plastic caps) |
| Supplied accessories | Plastic caps, plastic hose guide |
| Display | Digital, showing program time, dryness level, door lock and phase indicators |
Electrolux EWW8024D3WB Dryer Details

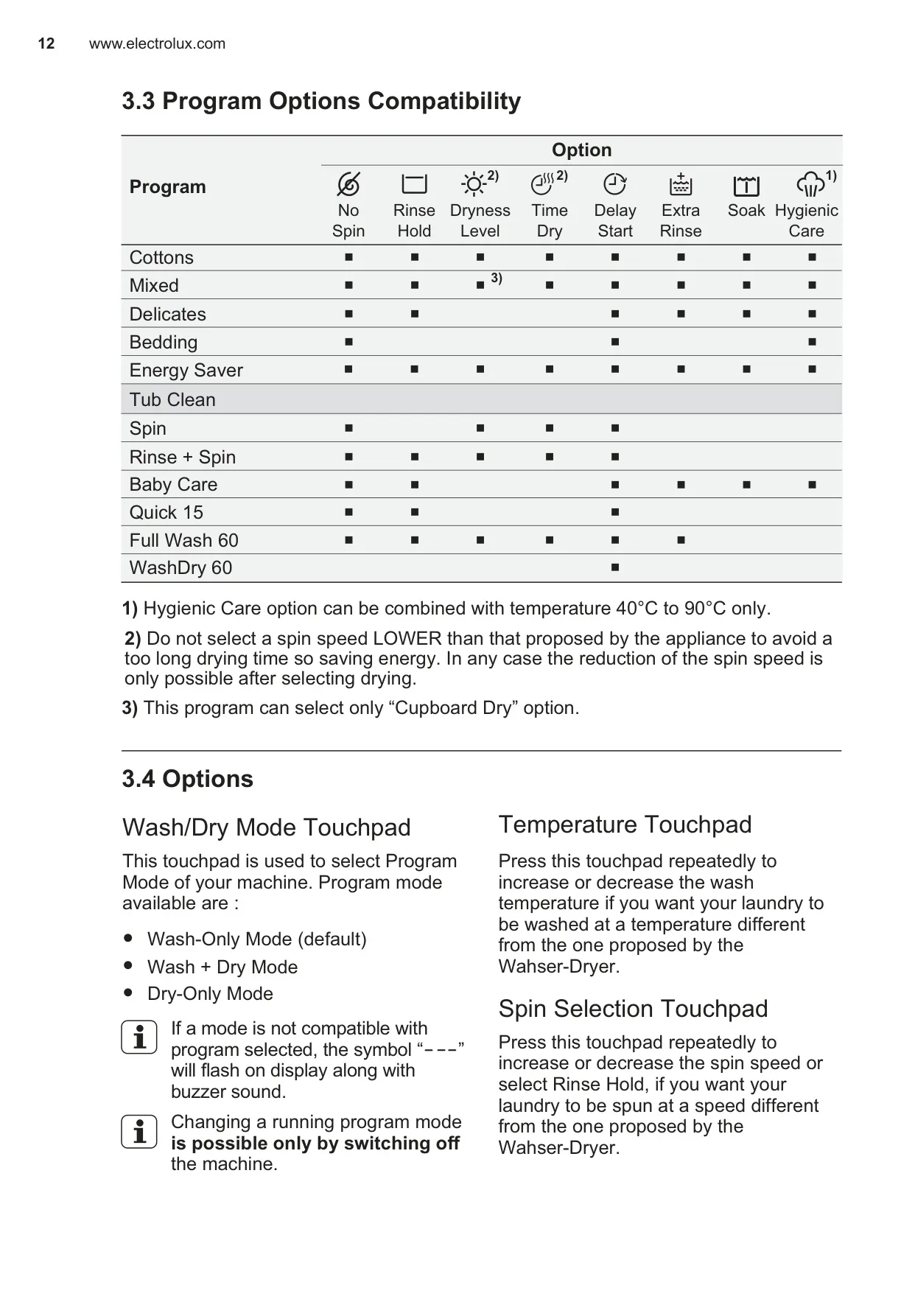

The UltimateCare 300 control panel has a program knob that turns in either direction, plus touchpads for temperature, spin, dryness level, timed drying, delay start and extra rinse. A dedicated Mode touchpad switches between Wash-Only (the default), Wash + Dry and Dry-Only operation. If the selected mode or option doesn't work with the chosen program, a warning symbol flashes and the buzzer sounds. To change the mode of a program that is already running, you have to switch the machine off.

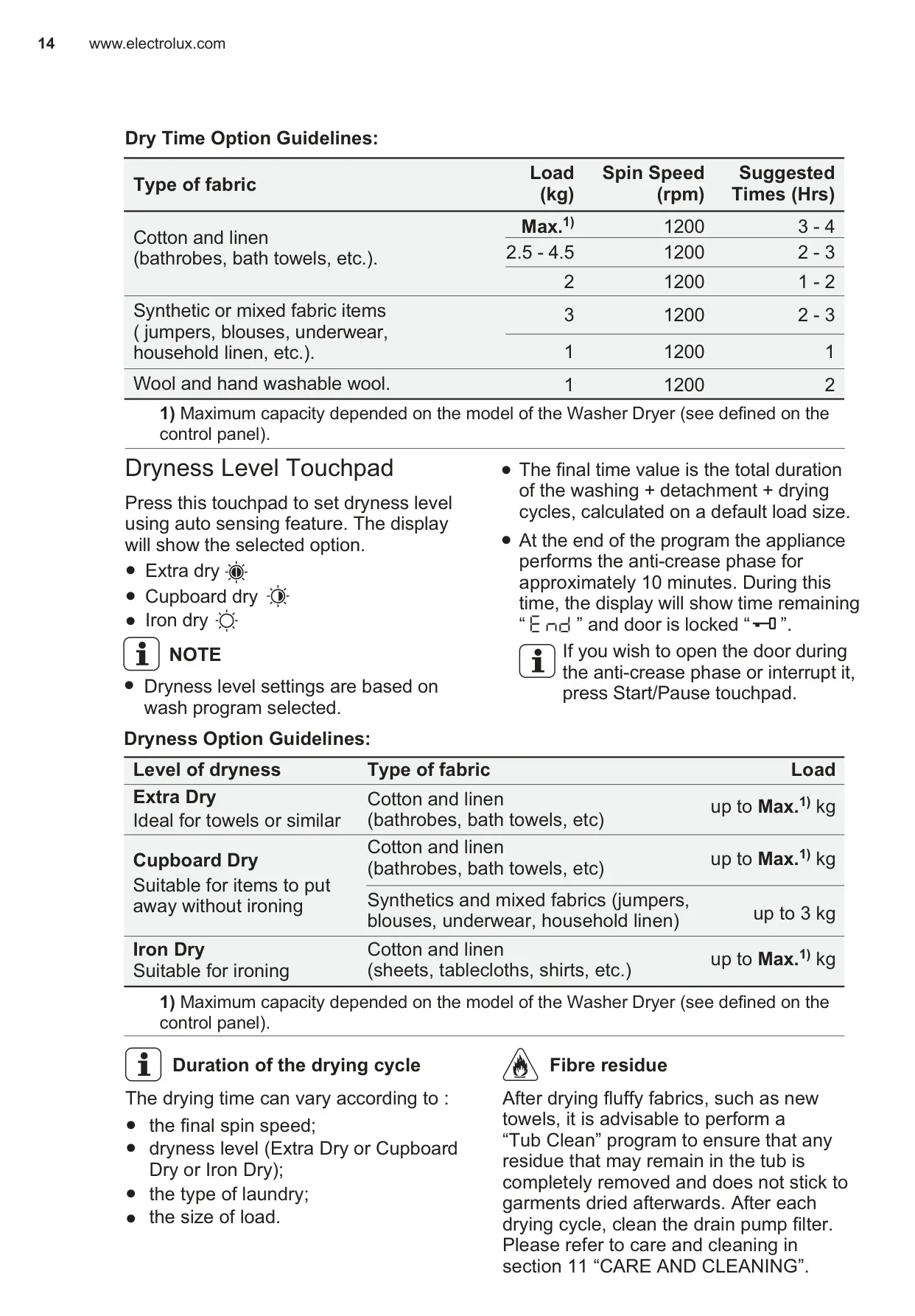

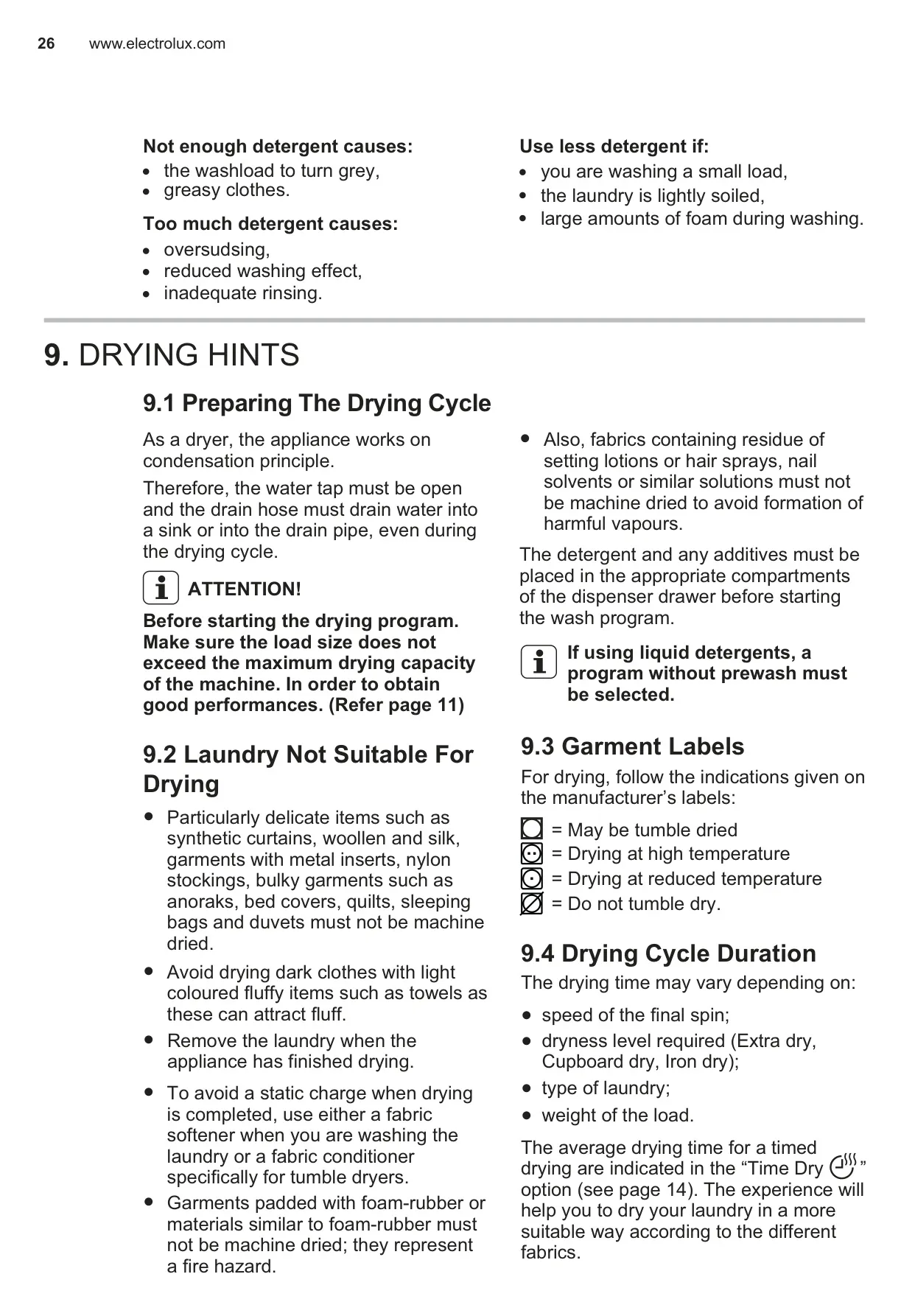

Drying can be controlled automatically or by time. In automatic mode, the Dryness Level touchpad uses sensors to deliver Extra Dry for towels, Cupboard Dry for items stored without ironing, or Iron Dry for sheets and shirts. Time Dry lets you set a fixed duration instead. Each drying cycle ends with an unheated cool-down phase and then an anti-crease phase of about 10 minutes. If you set only 10 minutes of drying, the machine runs just the cooling phase.
The Hygienic Care touchpad adds about 30 minutes of tumbling in vapour after the rinse. It works only with temperatures from 40°C to 90°C. The vapour is produced below the drum and rises into the clothes, so you may not see it, and it works best with a half load. Rinse temperatures are higher when this option is active. Vapour coming out of the drain hose is normal. At the end of the cycle, clothes are warmer, softer and loose from the drum.
For heavily soiled items, the Soak option soaks the load before the main wash. To turn it on, hold Extra Rinse and Delay Start together for about 2 seconds. Put the soak detergent in the Prewash compartment. Soak adds about 50 minutes to the program and uses more water. Cold water is recommended because hot water can set some stains. The Extra Rinse option adds two rinse phases and is recommended for people allergic to detergent and for areas with very soft water.
The Add Clothes function lets you pause the program and add garments while the matching icon is shown on the display. The Child Safety Lock is turned on by holding Hygienic Care for about 3 seconds, and it stays active after the machine is switched off. You can mute the end-of-cycle buzzer by holding Dryness and Delay Start for 3 seconds. Error beeps are never muted. With Rinse Hold, the machine automatically drains and spins after about 18 hours if no one presses Start/Pause.
About 15 minutes after the start, the load-sensing system adjusts the displayed program time to suit the type and size of the load. Near the end, the remaining time may suddenly drop from 7 minutes to zero, which is normal. An electronic unbalance detector redistributes the laundry by turning the drum in reverse. If the load is still unbalanced after 10 minutes, the machine does not spin. To save energy, the Auto Off function switches off the display after 5 minutes without any input.
For maintenance, use the Tub Clean program regularly, especially after drying fluffy items such as new towels. Clean the drain pump filter after each drying cycle and clean the water inlet filters from time to time. If the door stays locked after a power or appliance failure, you can open it with the red emergency unlock strap behind the filter door. In freezing conditions, drain the inlet hose and the pump.
