Delta MS300 Variable Frequency Drive Instruction Manual
Delta MS300 Variable Frequency Drive
Delta MS300 Variable Frequency Drive

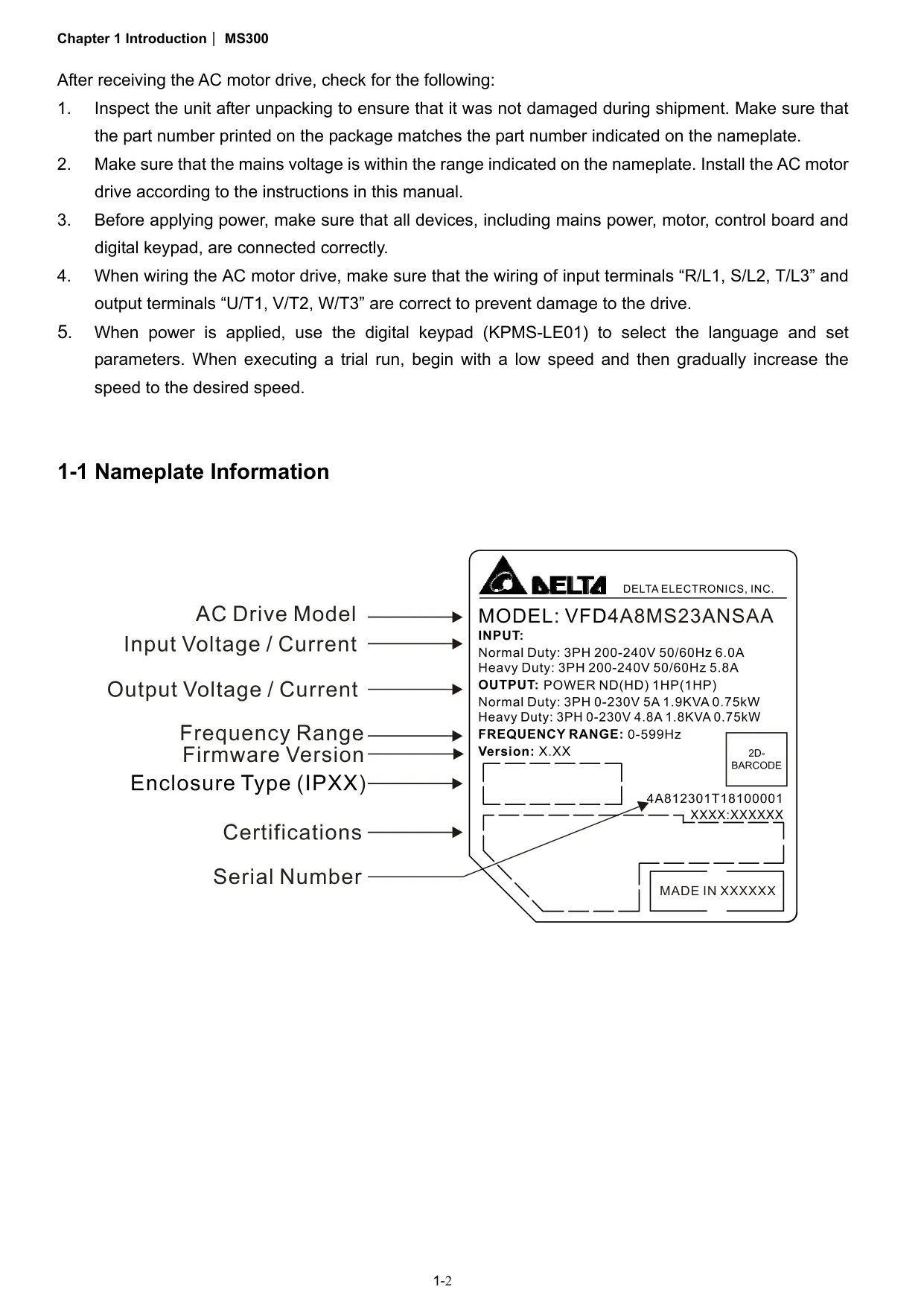

Delta MS300 VFD Instructions

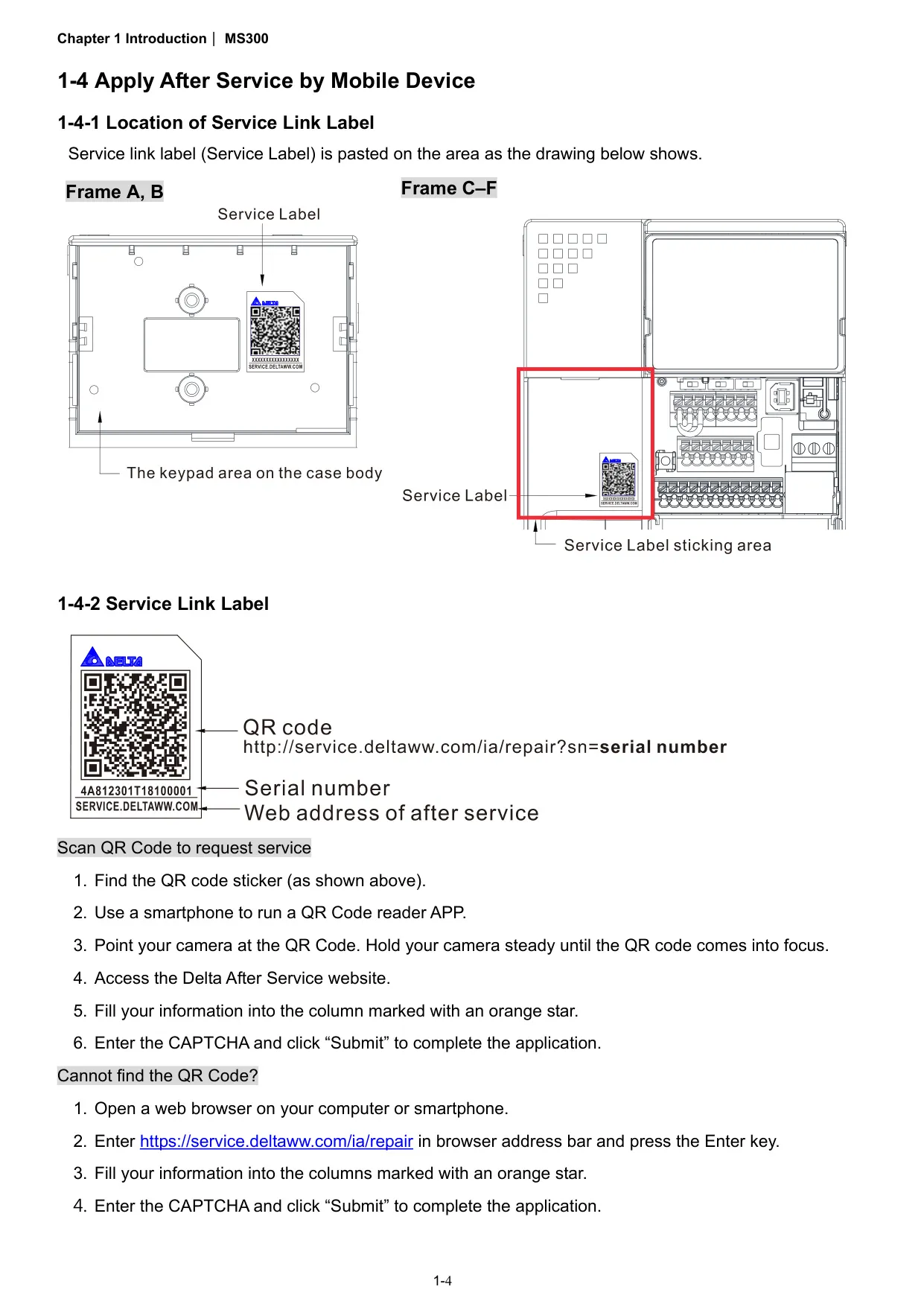

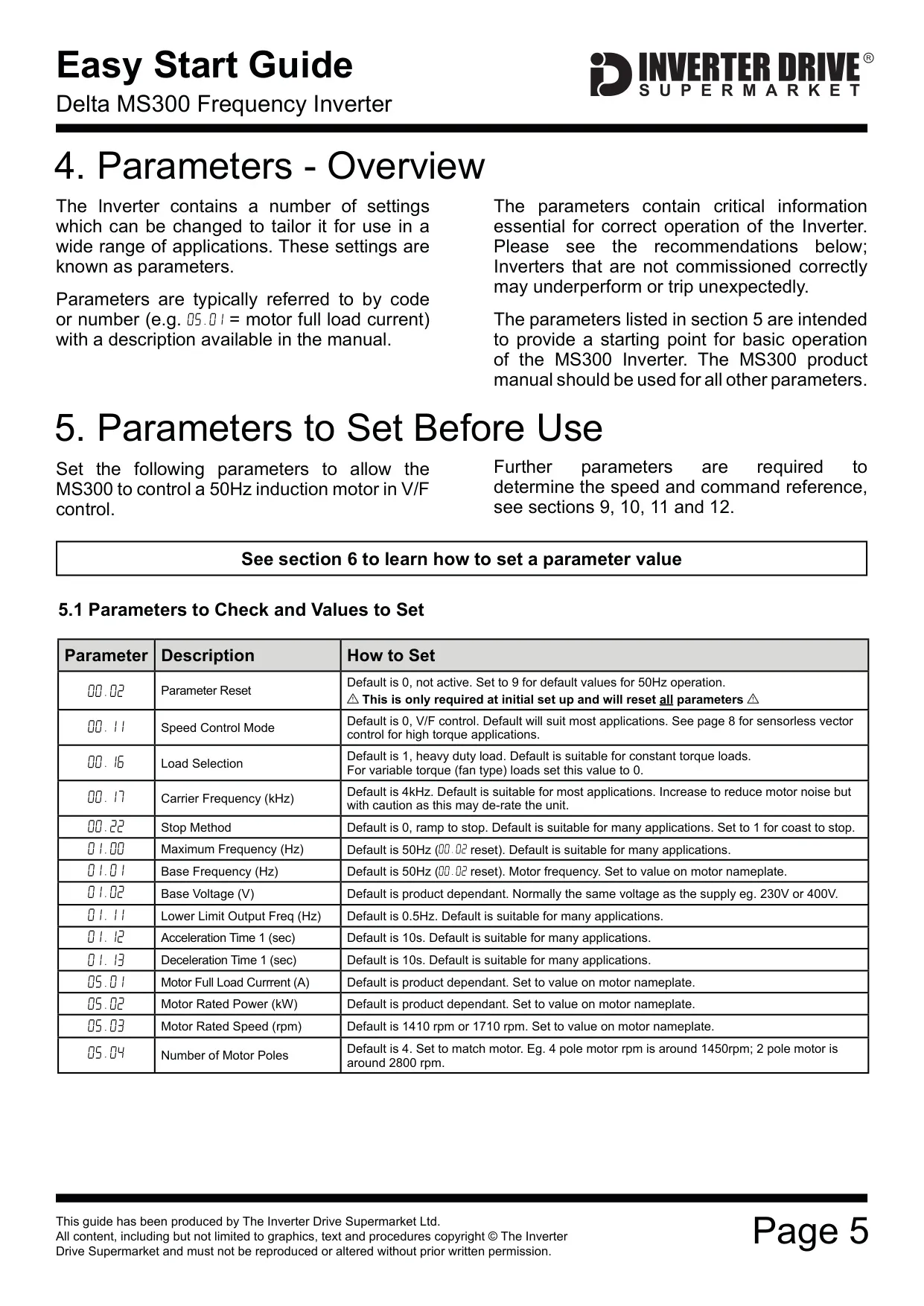

Here we offer the Delta MS300 Variable Frequency Drive manual completely free and in English. We have cataloged this manual in the Variable Frequency Drives section on Manualverse, and it has been rated by 1 users with an average rating of 5. If you have any specific questions about Delta MS300 Variable Frequency Drive, we suggest checking the Frequently Asked Questions (FAQs) section of this manual.

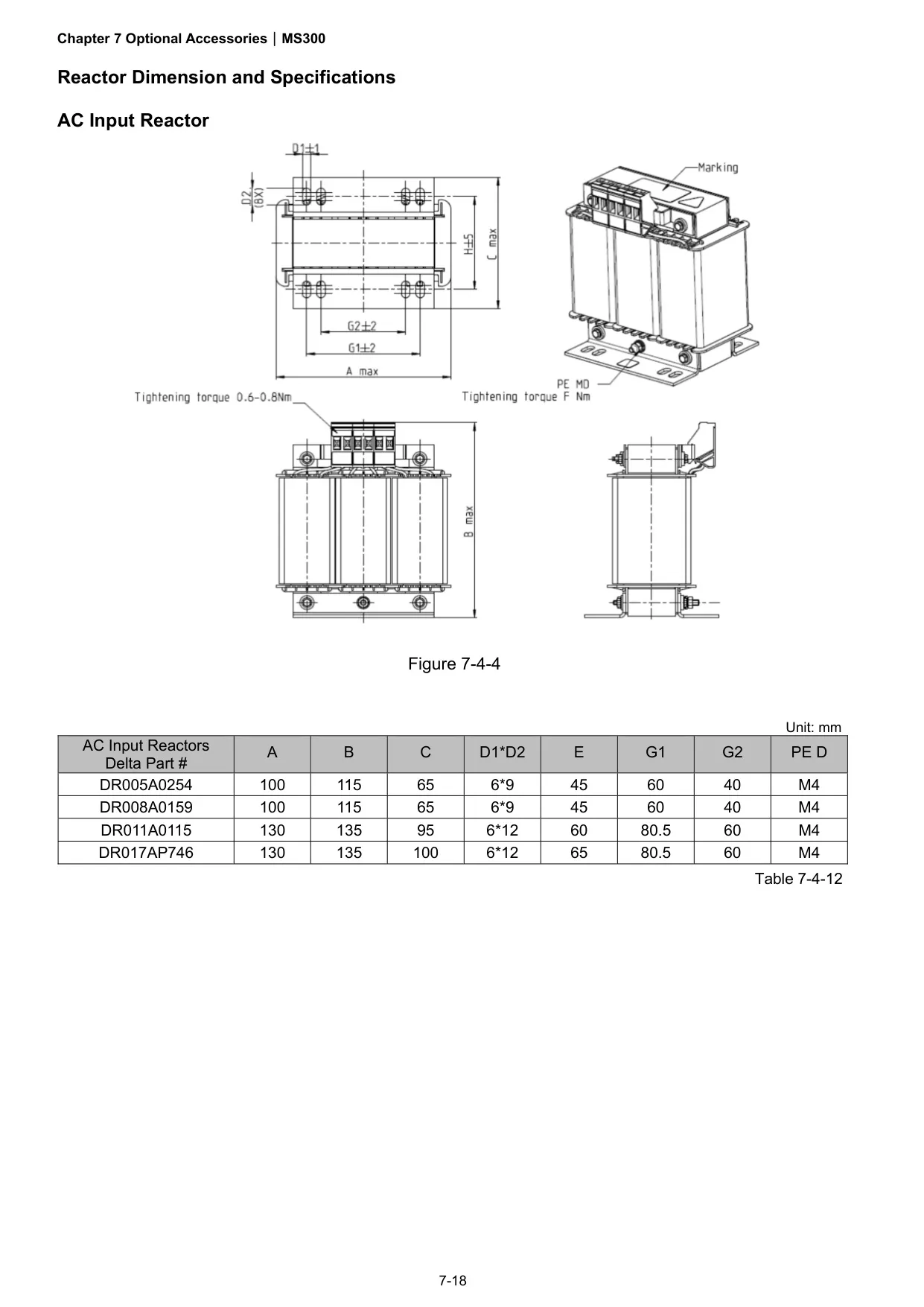

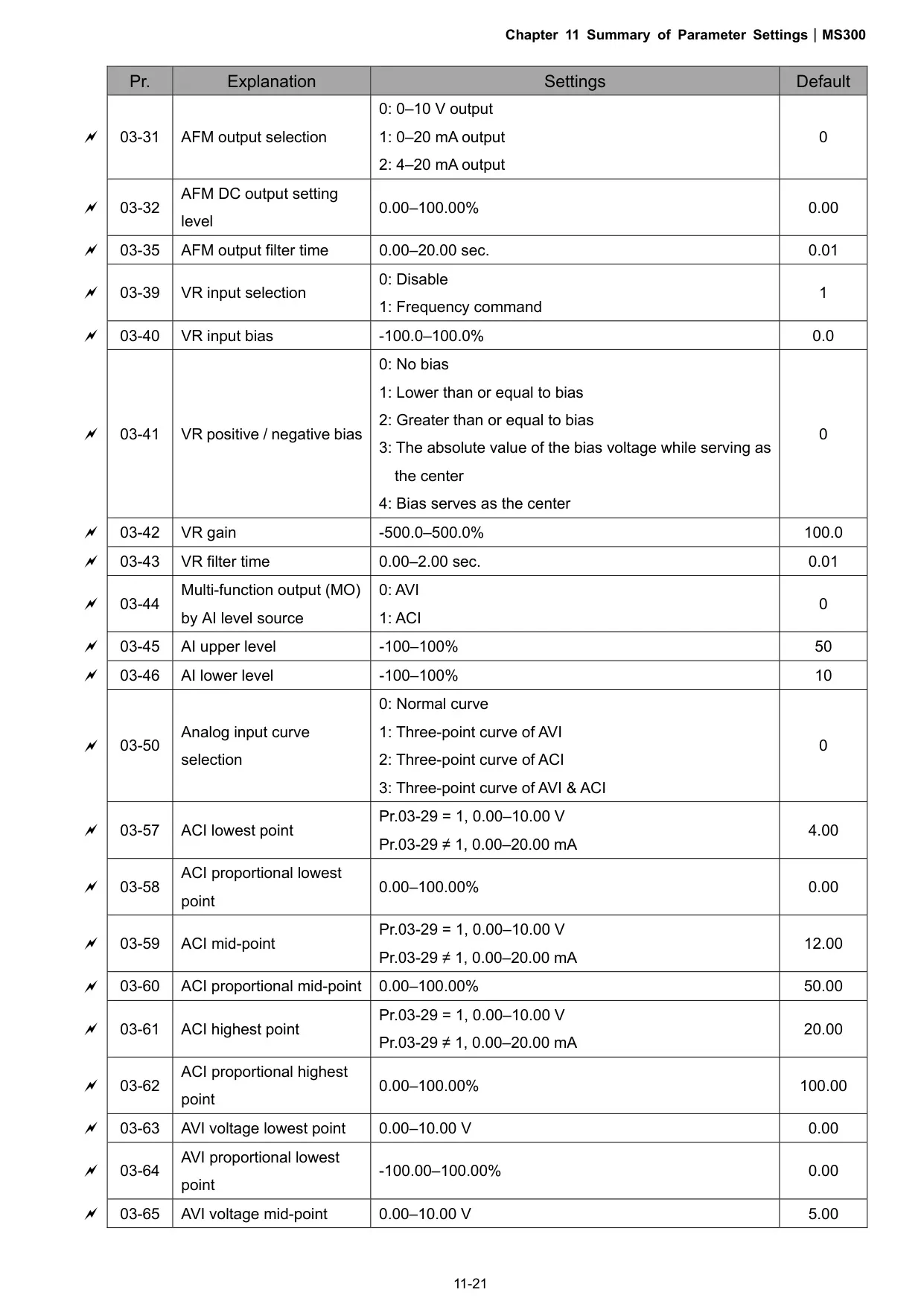

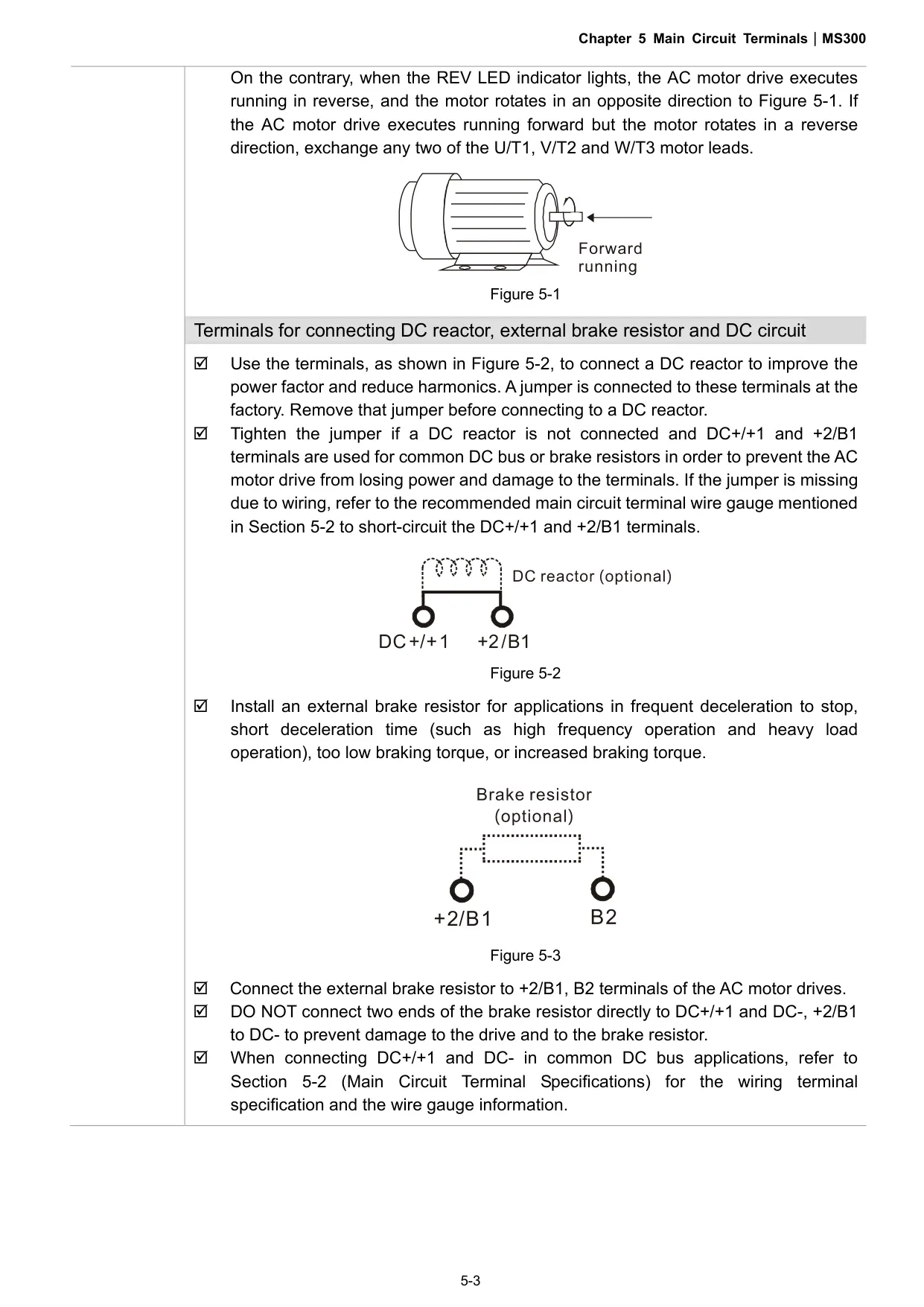

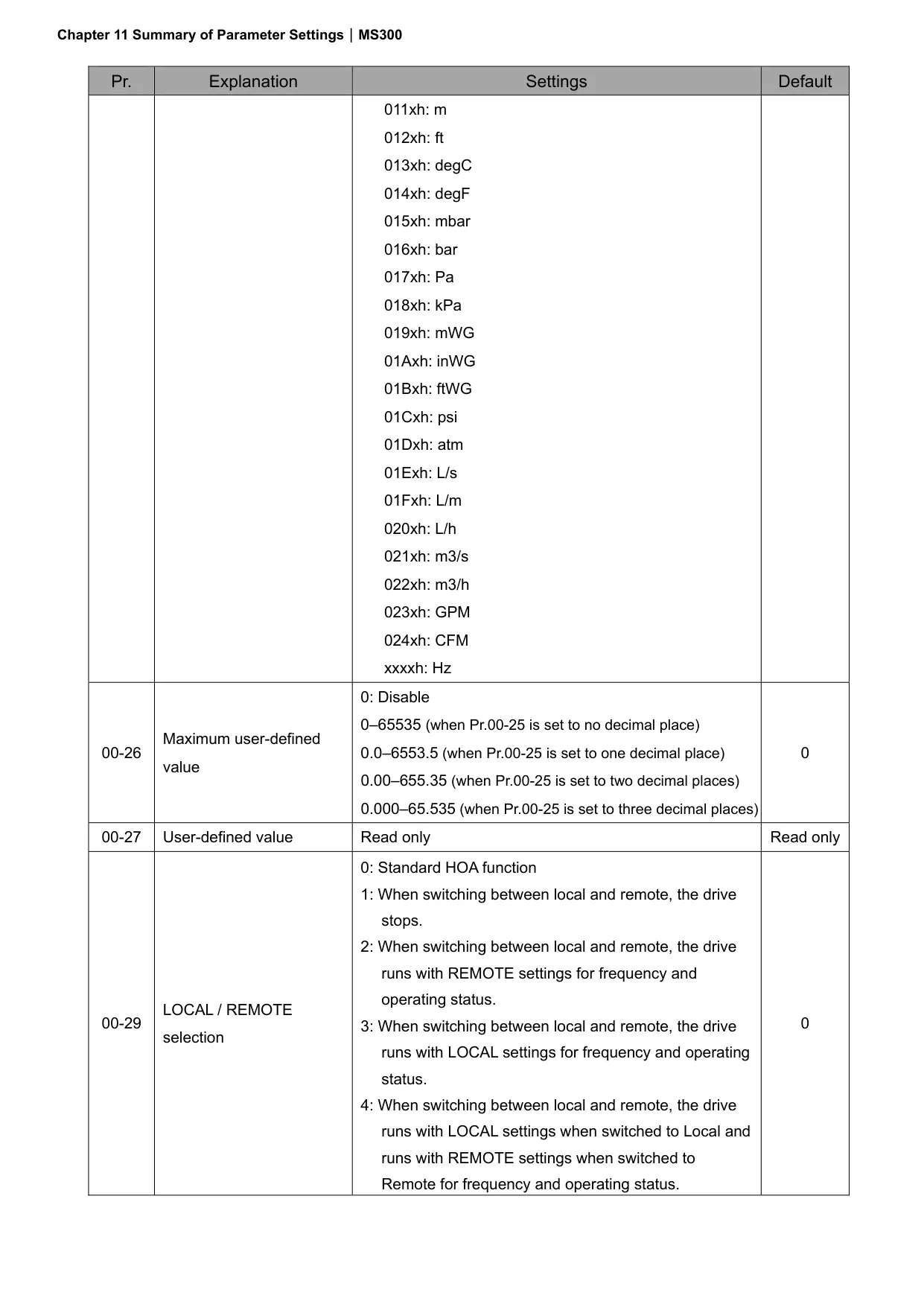

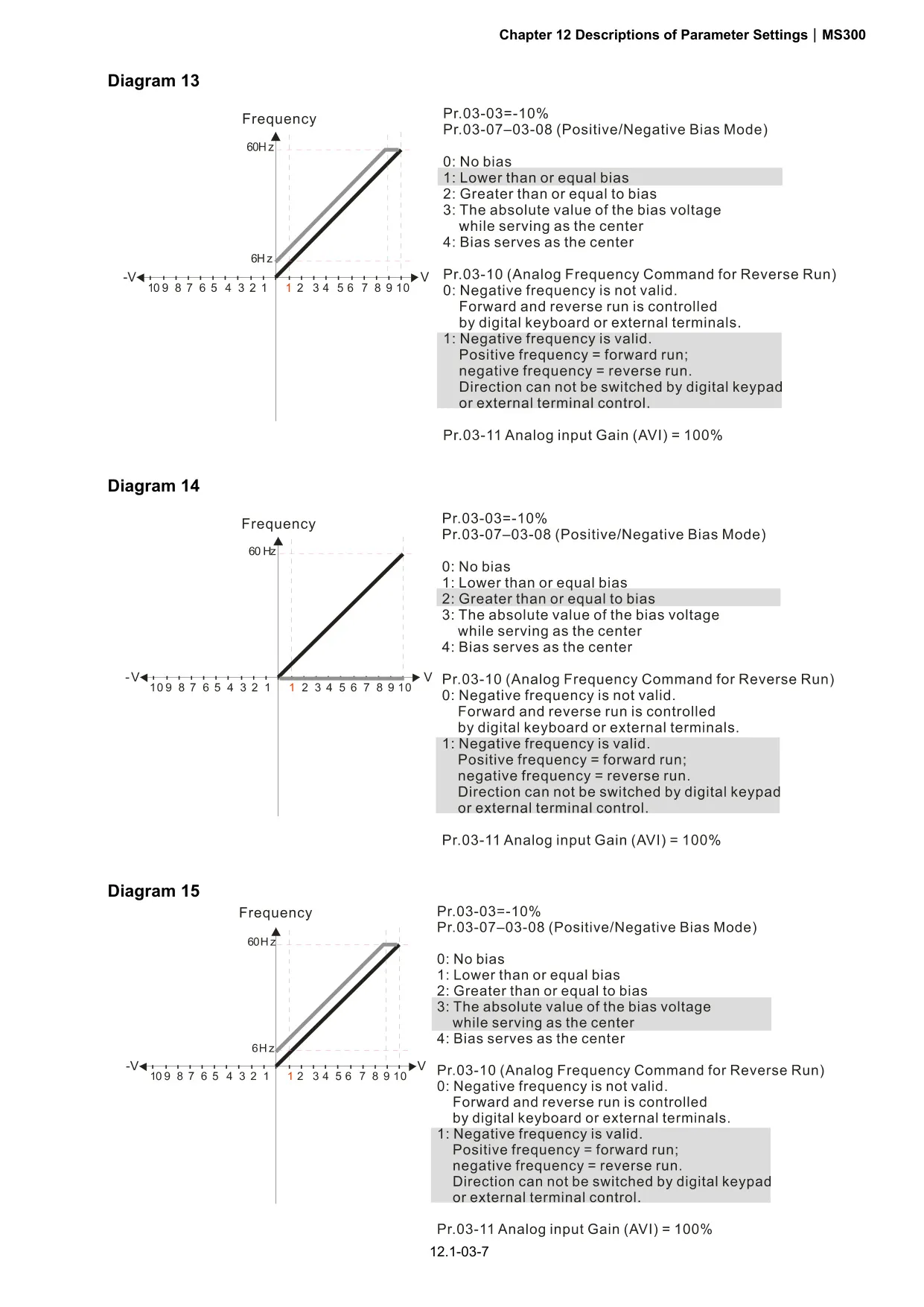

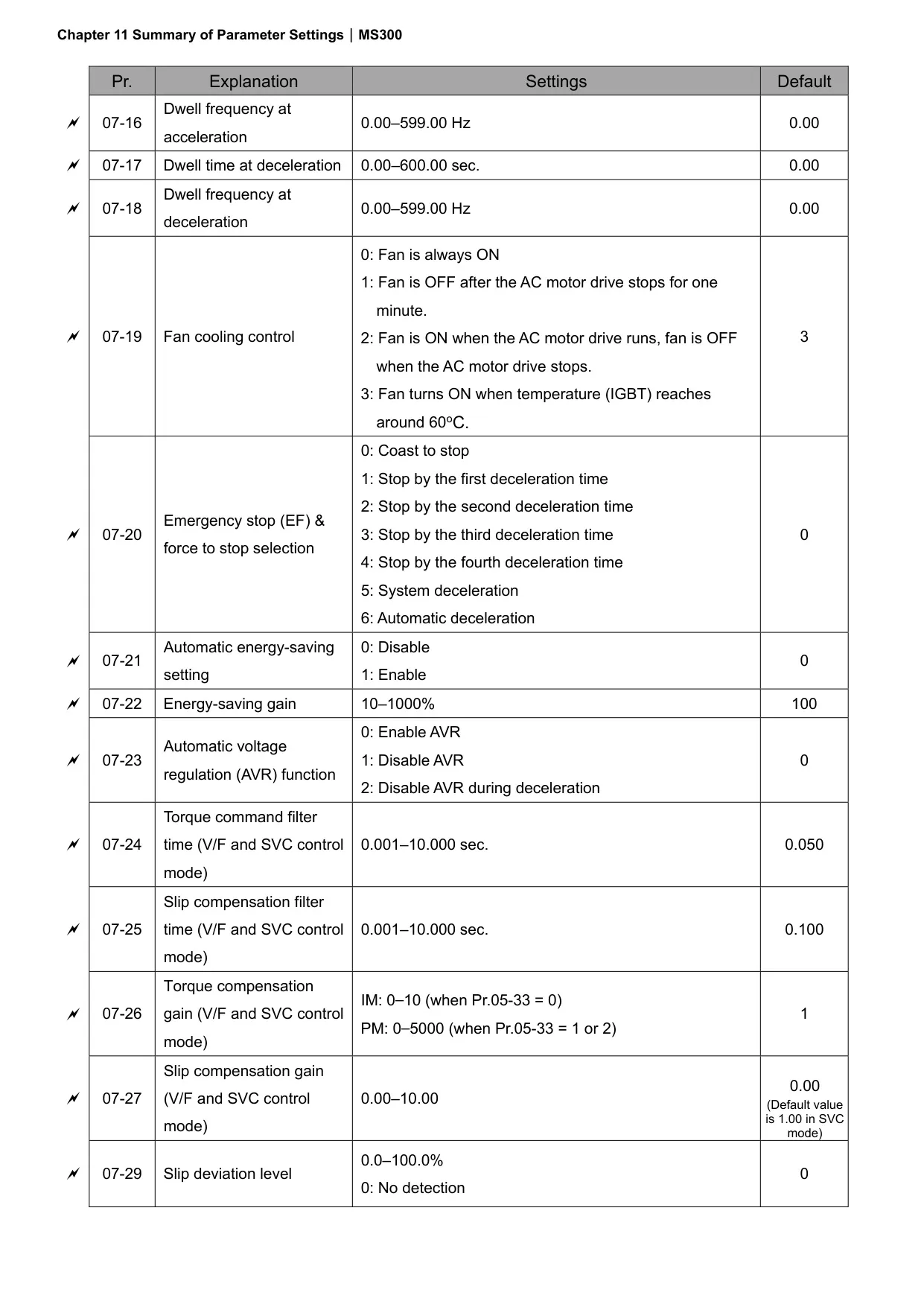

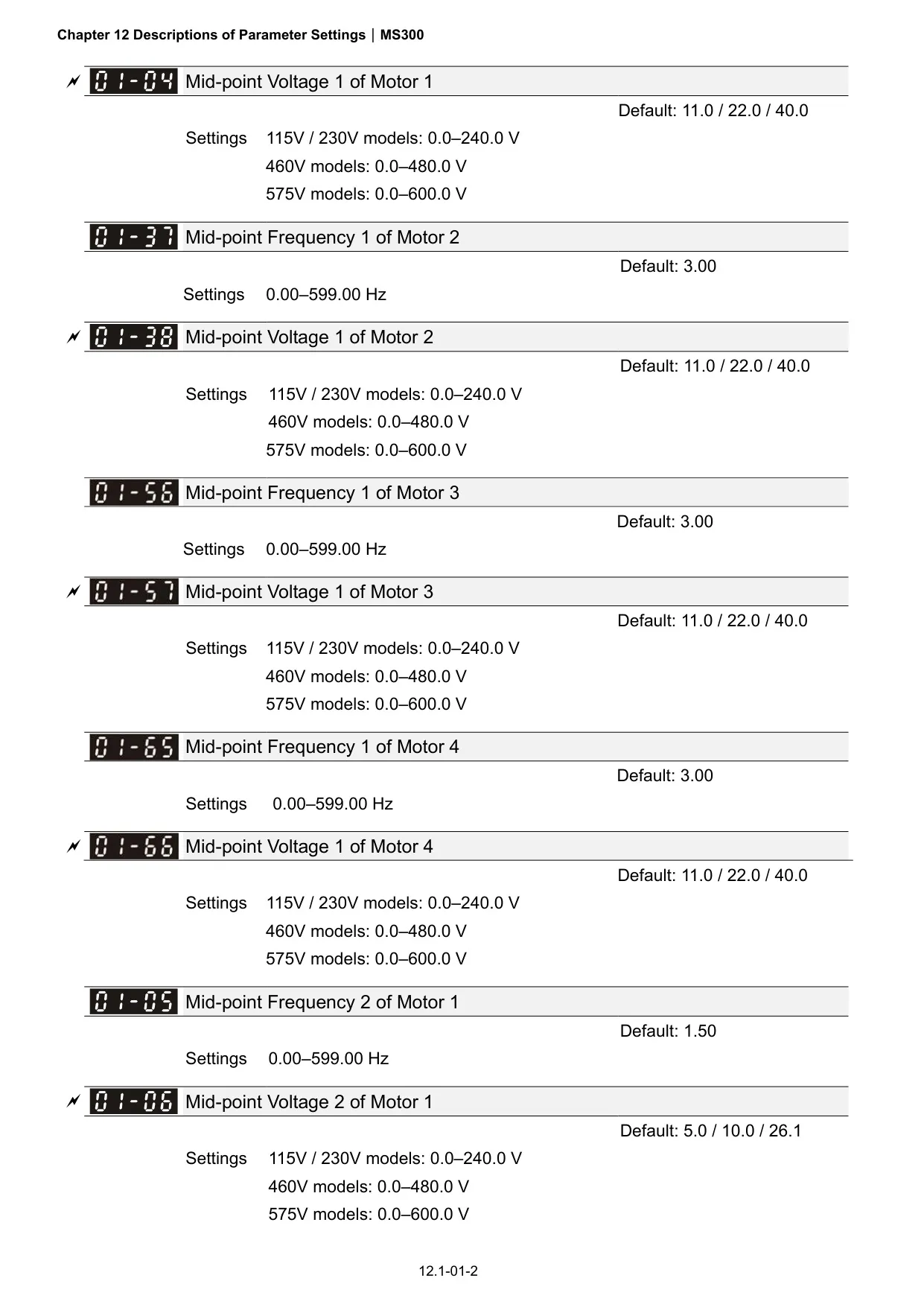

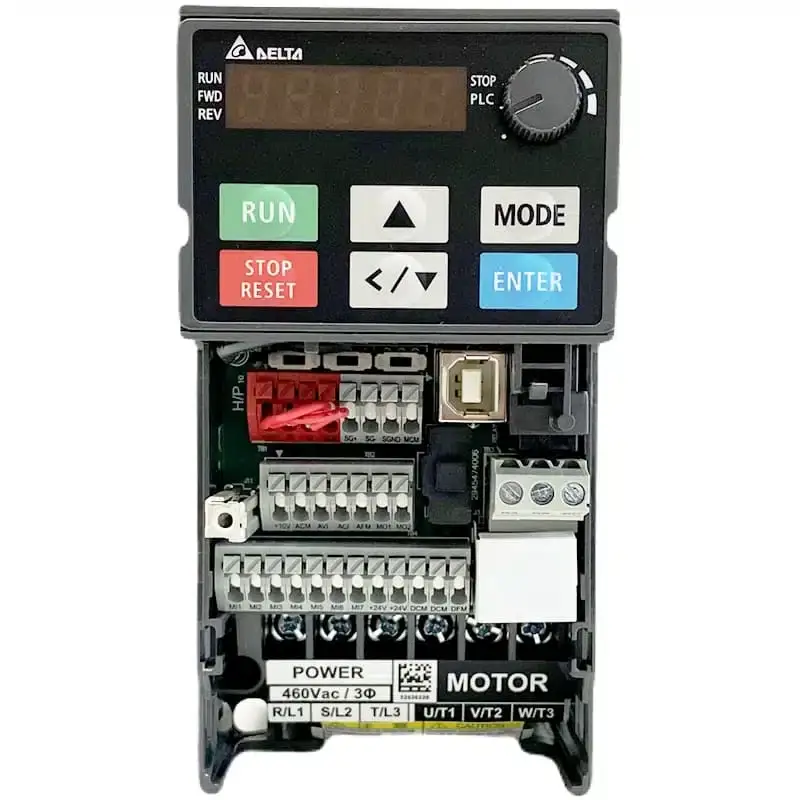

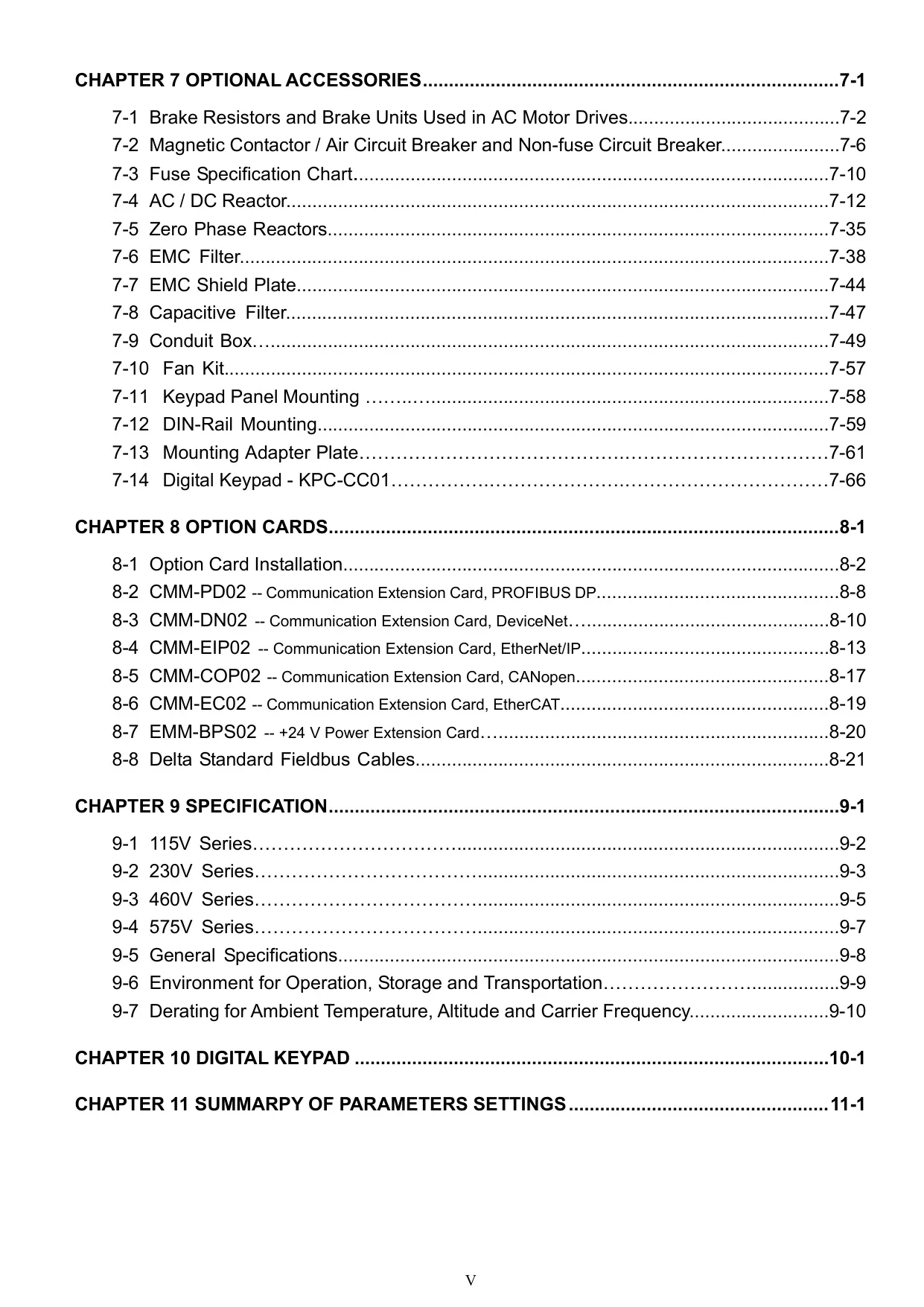

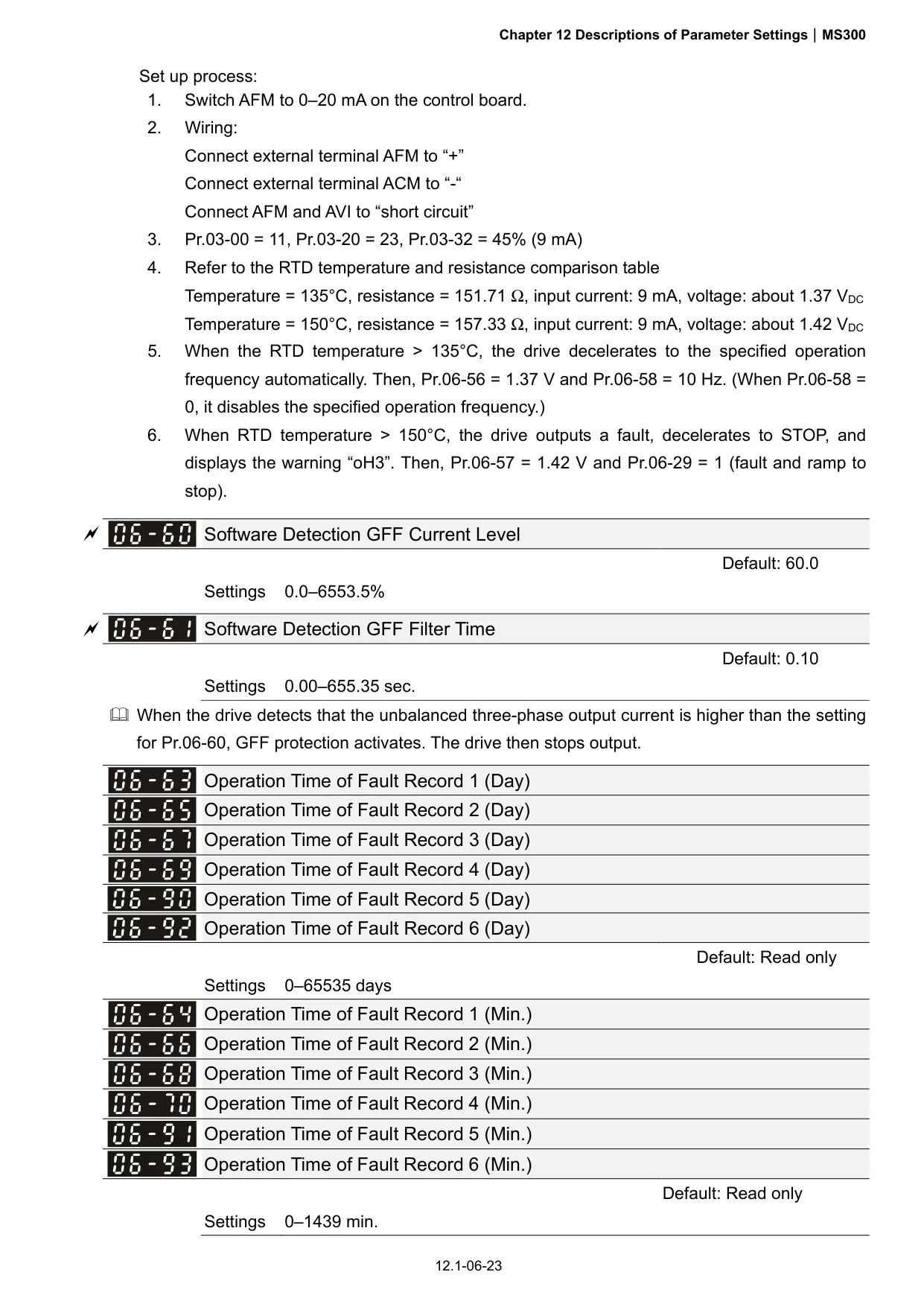

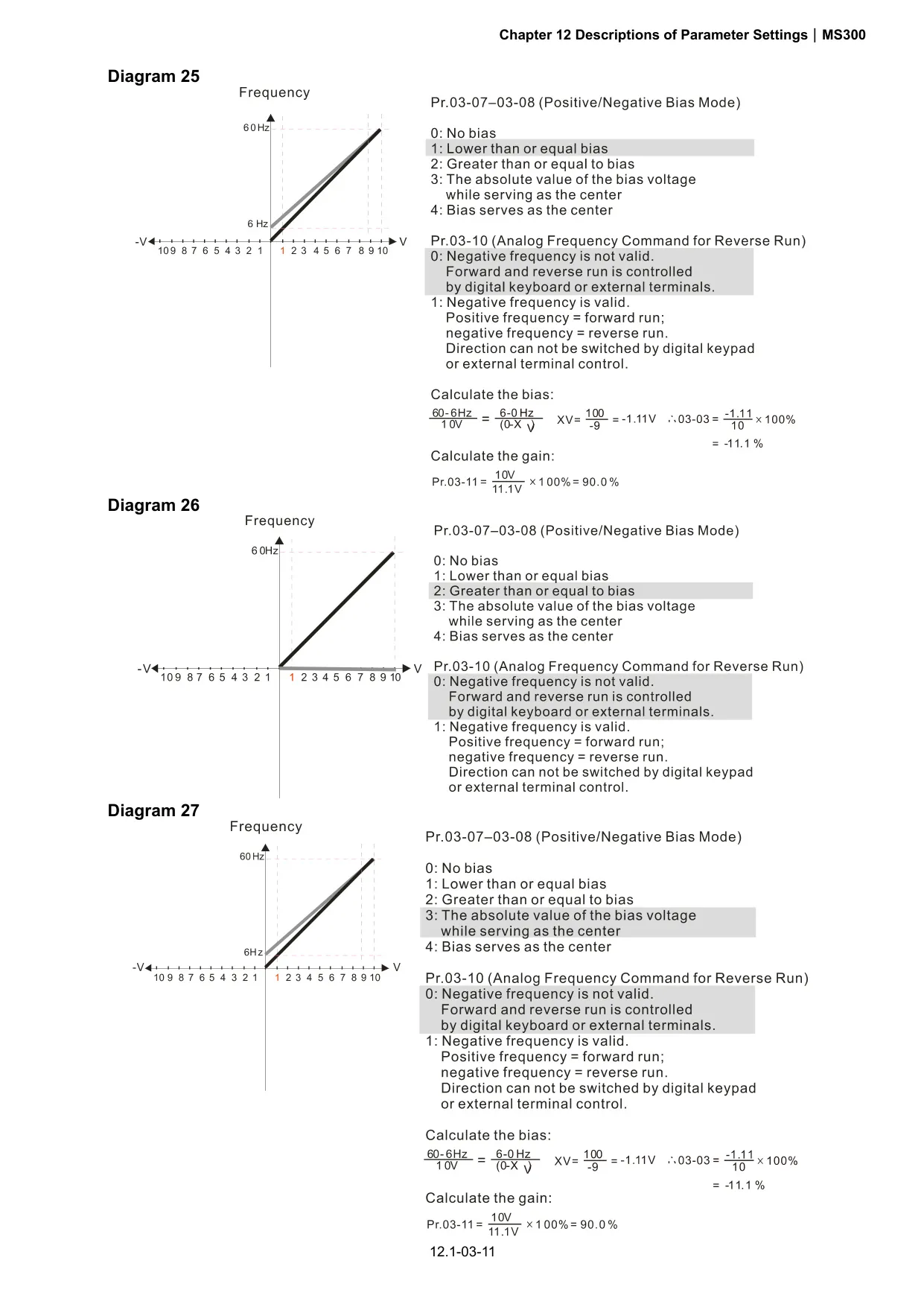

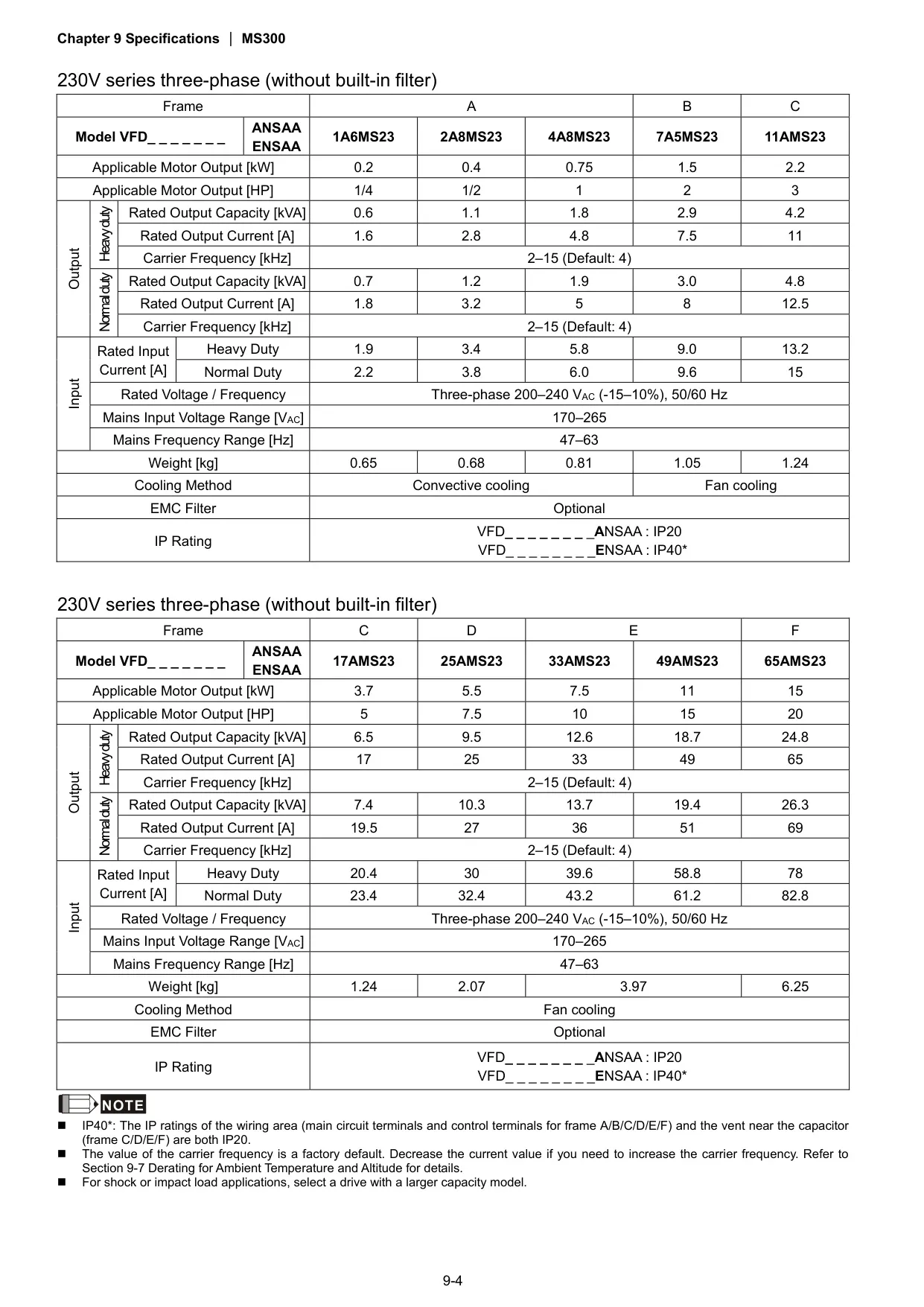

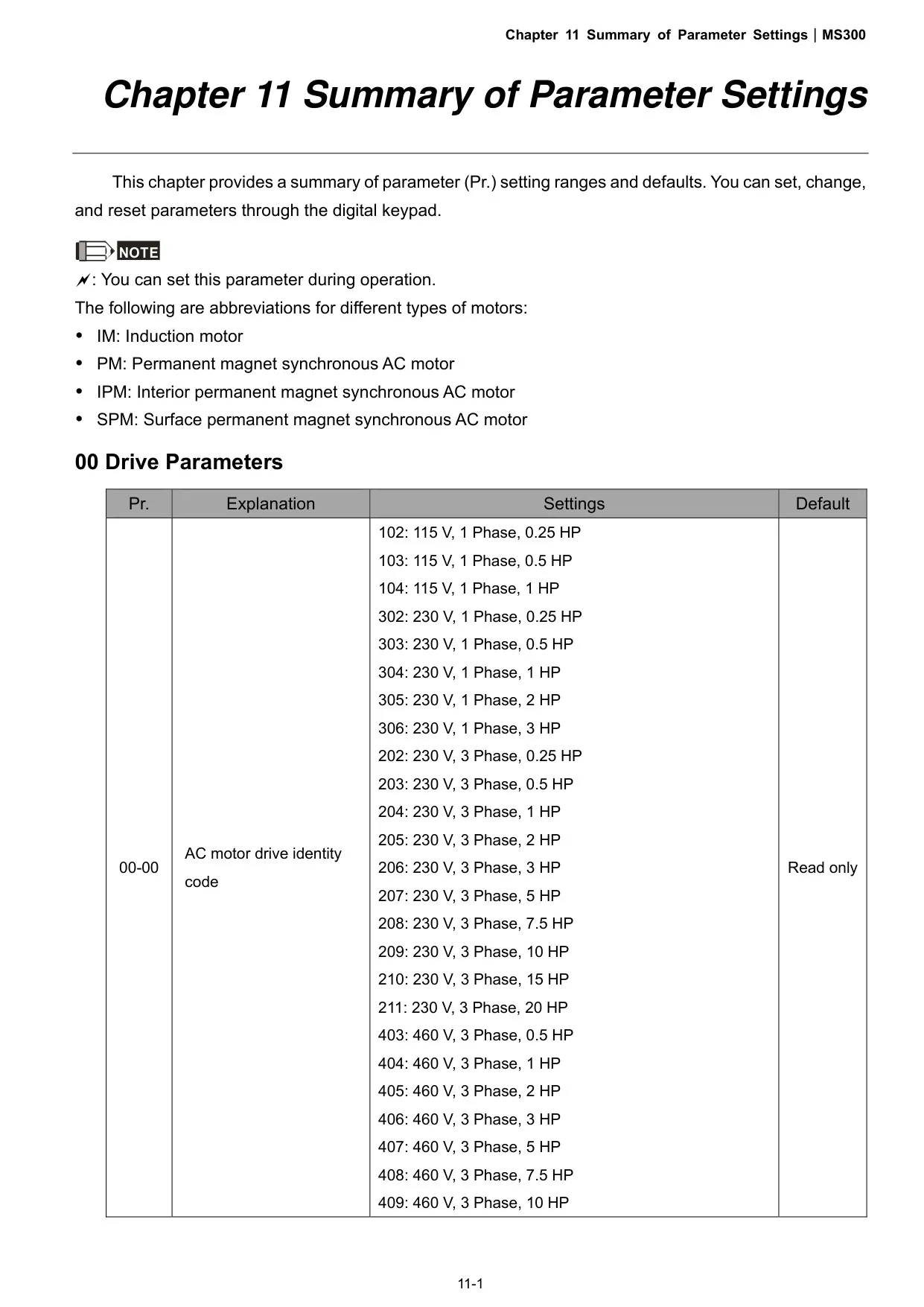

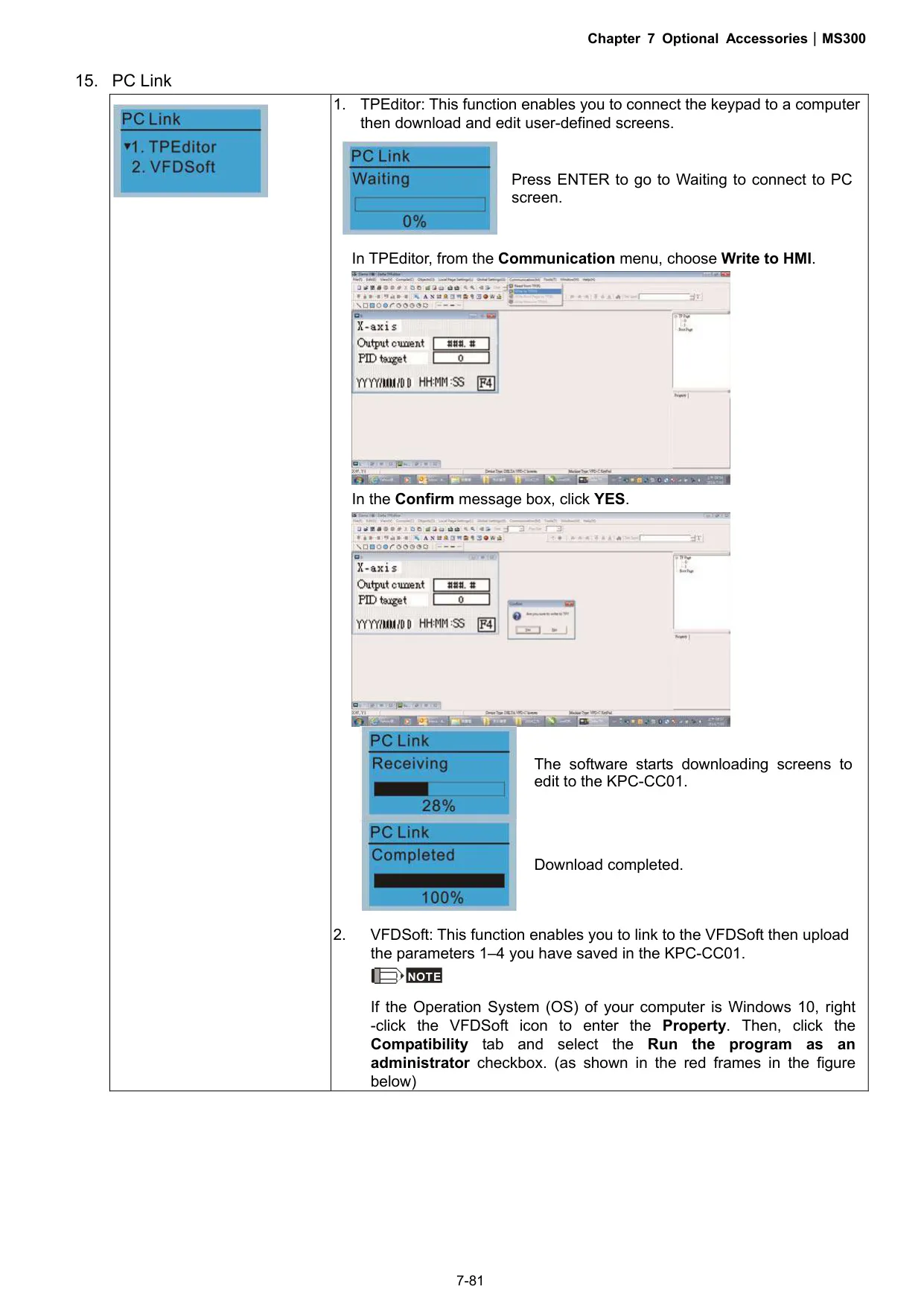

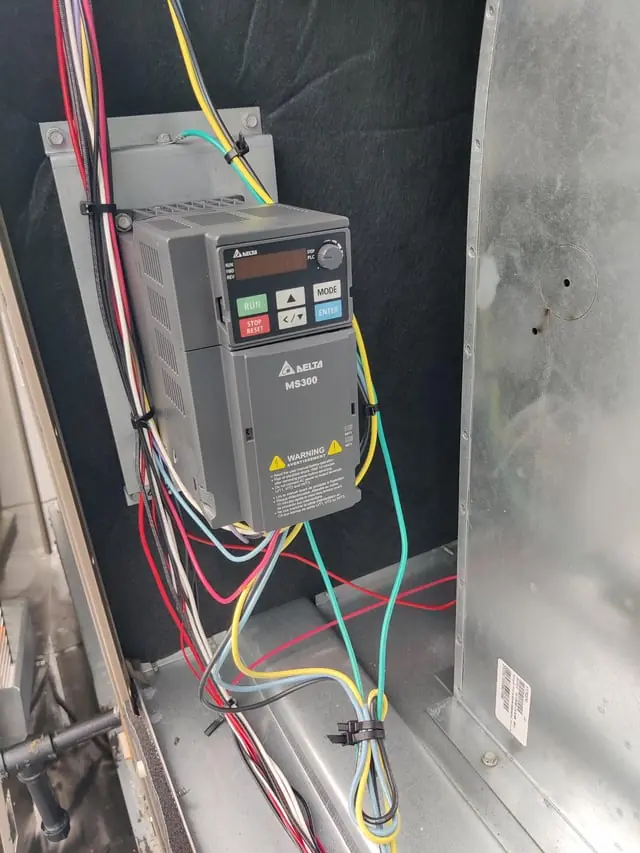

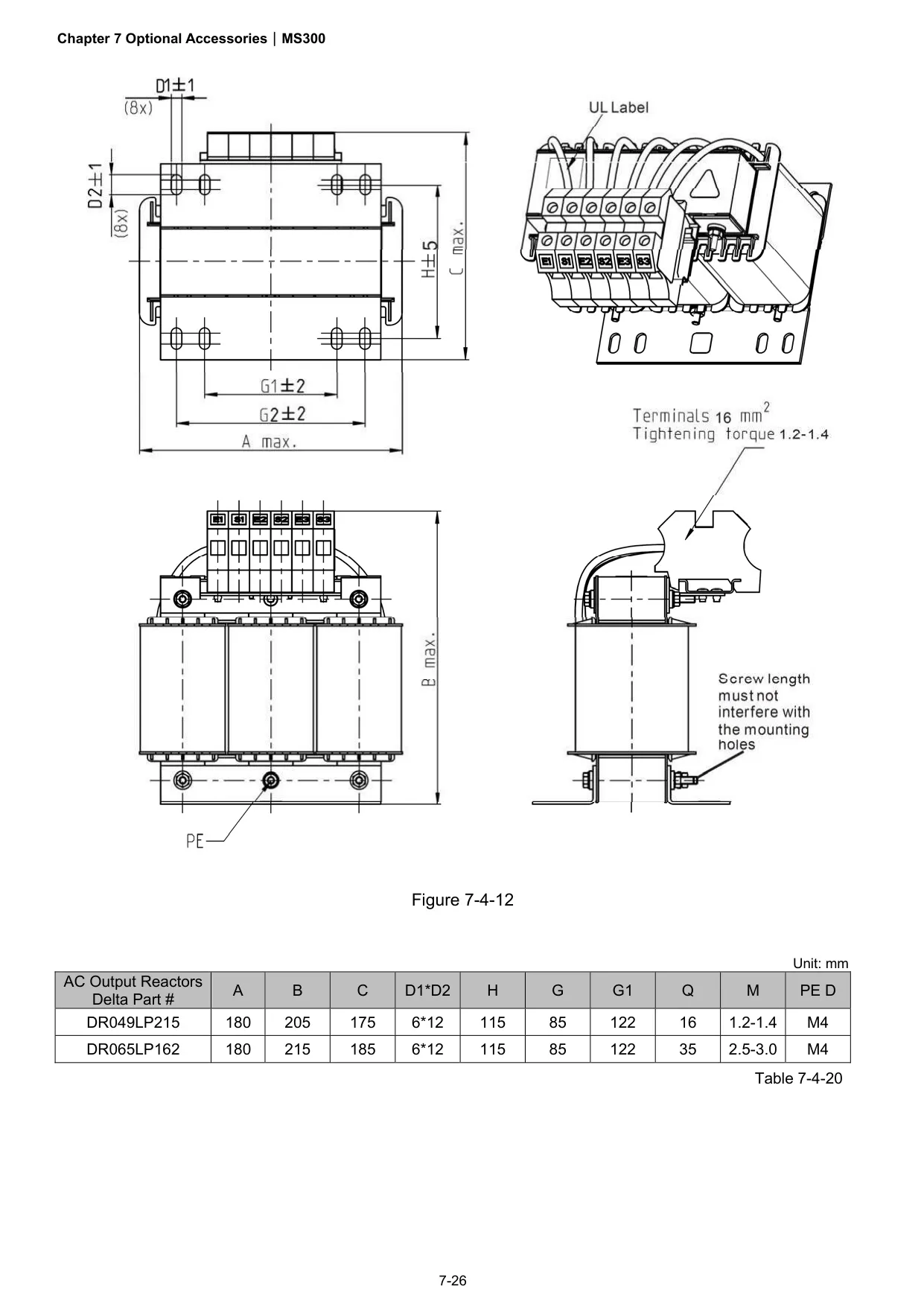

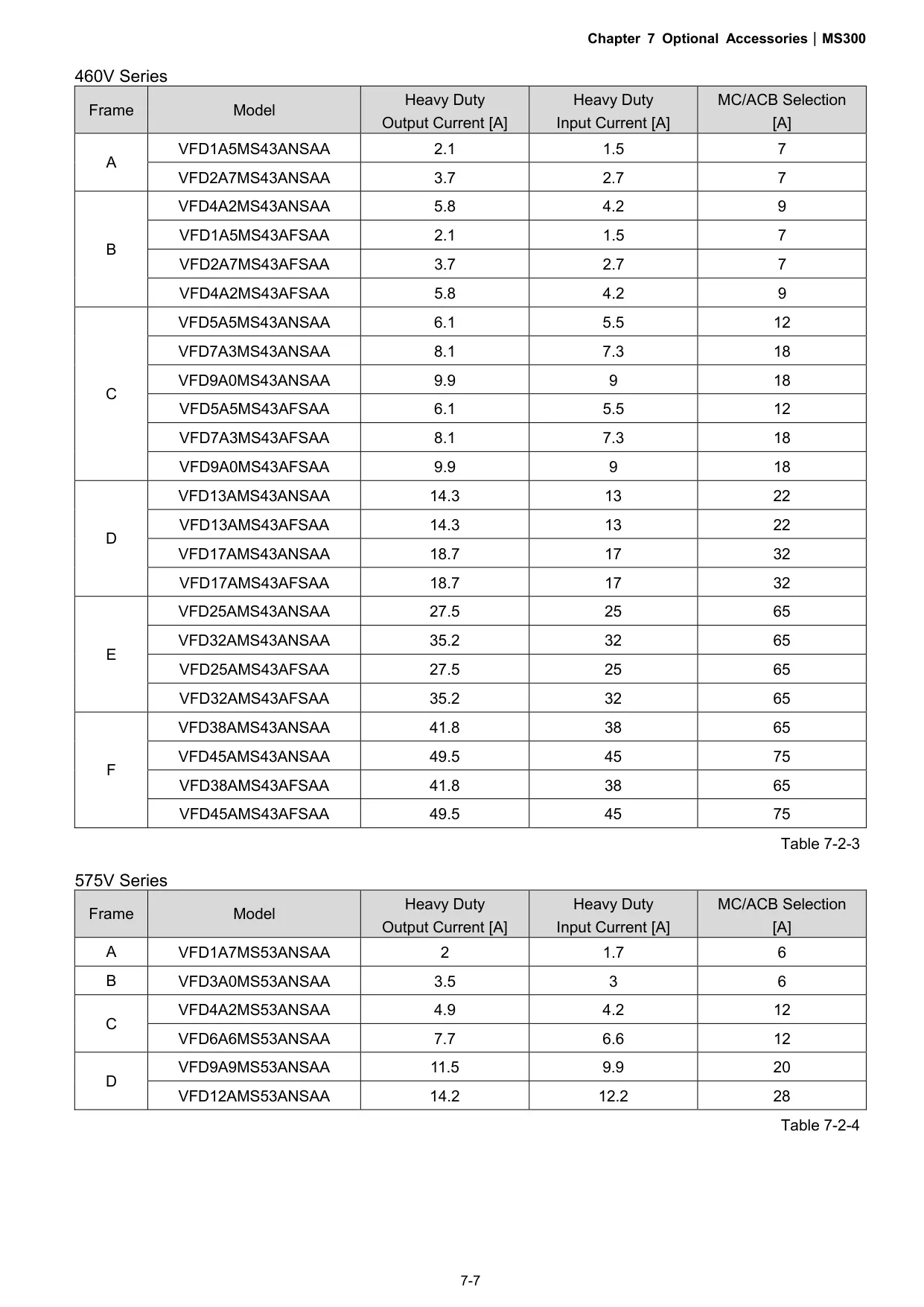

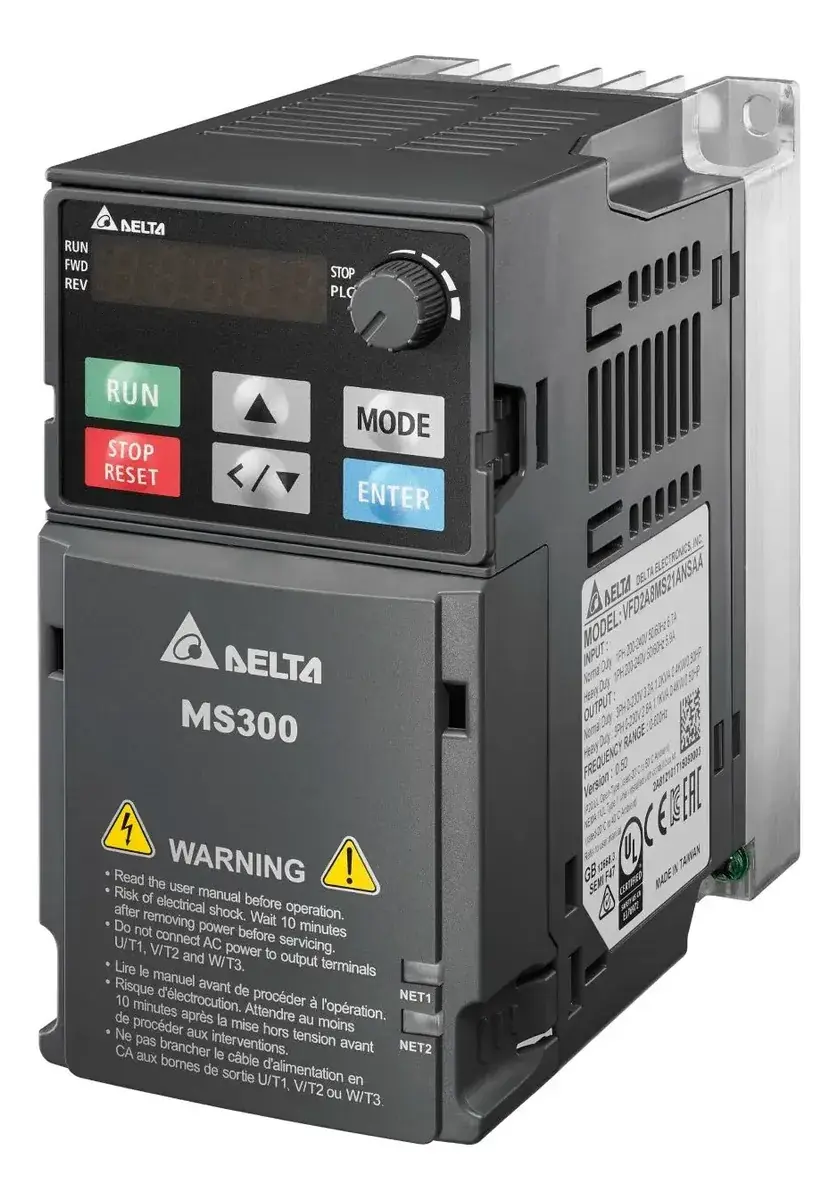

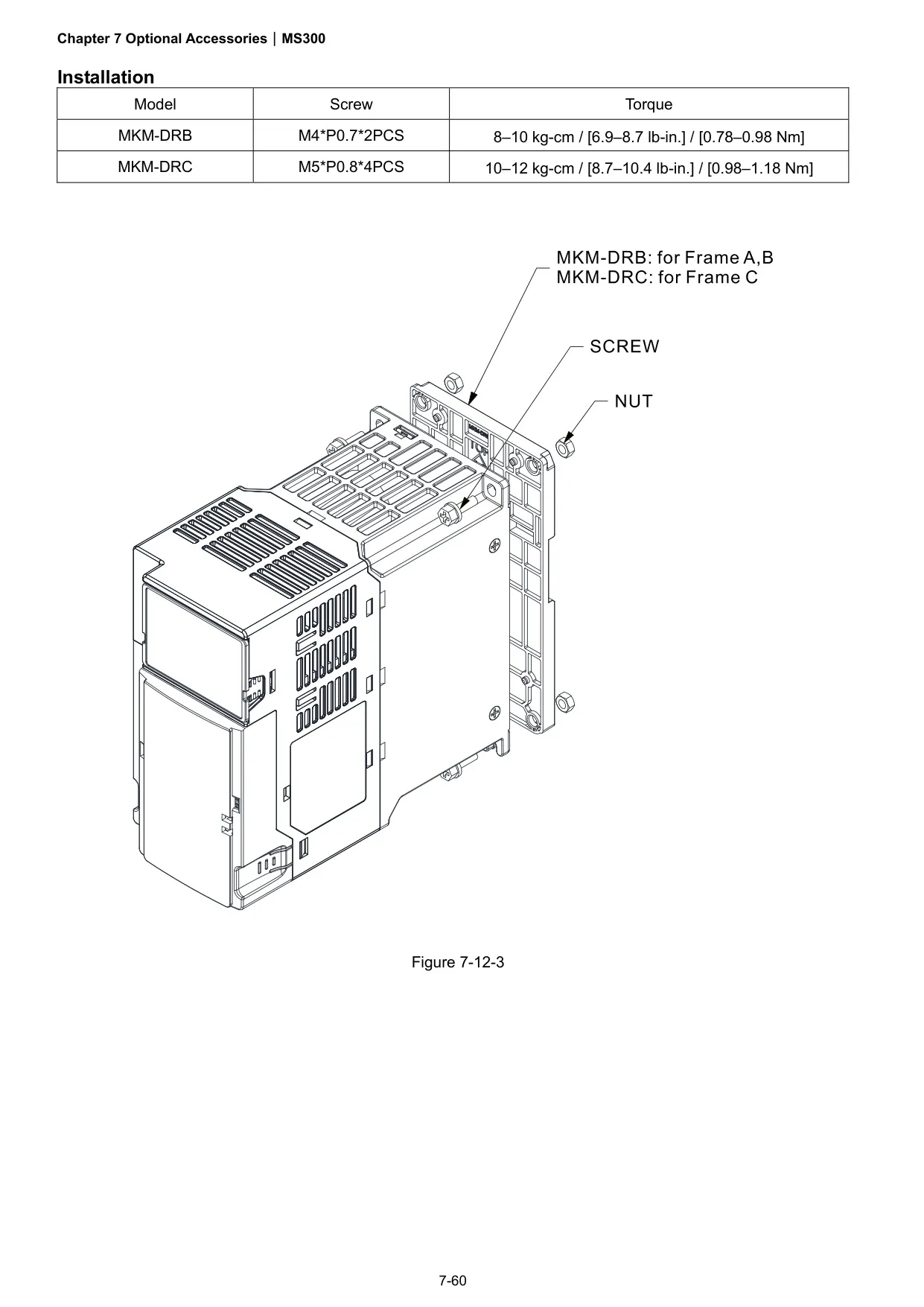

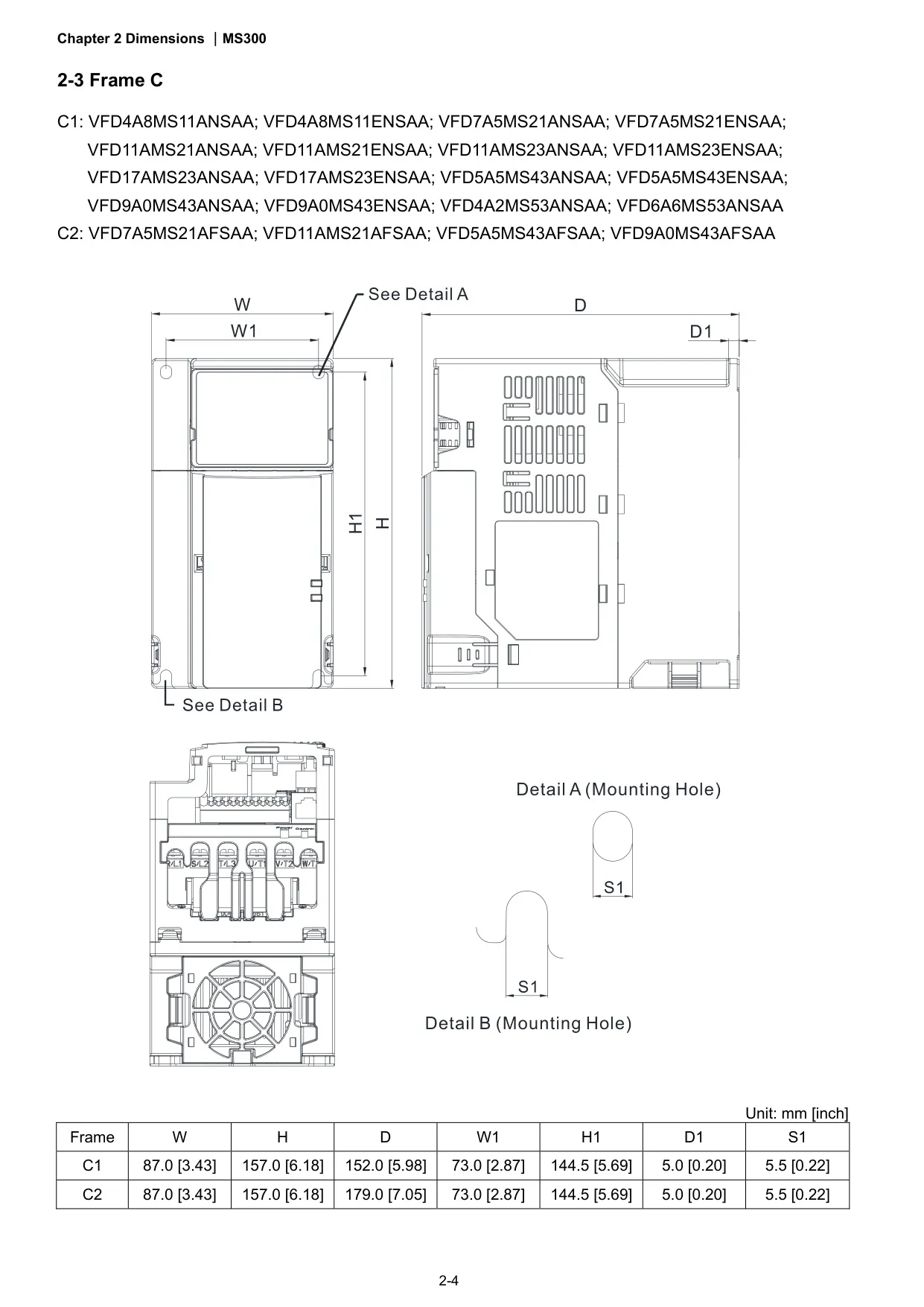

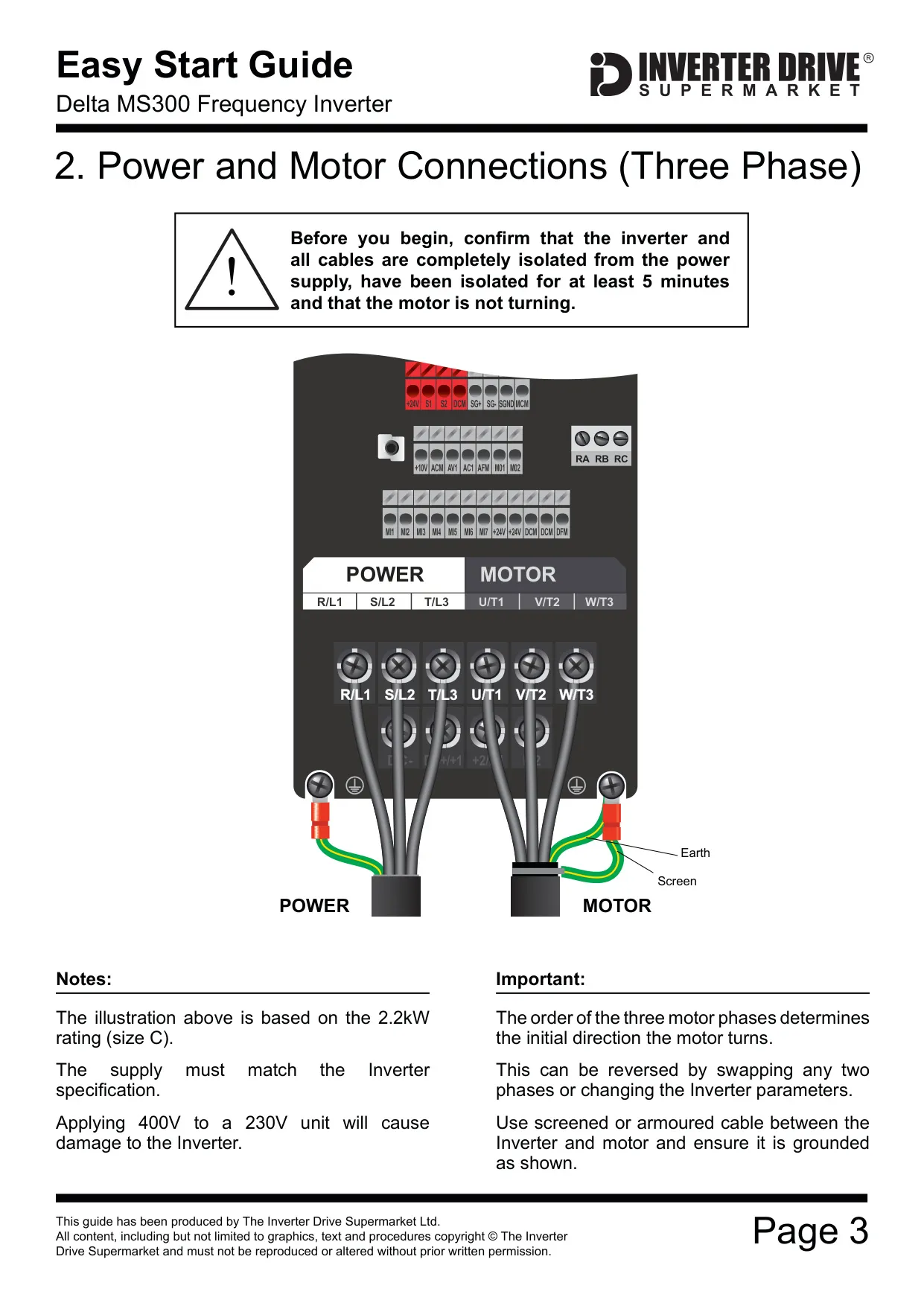

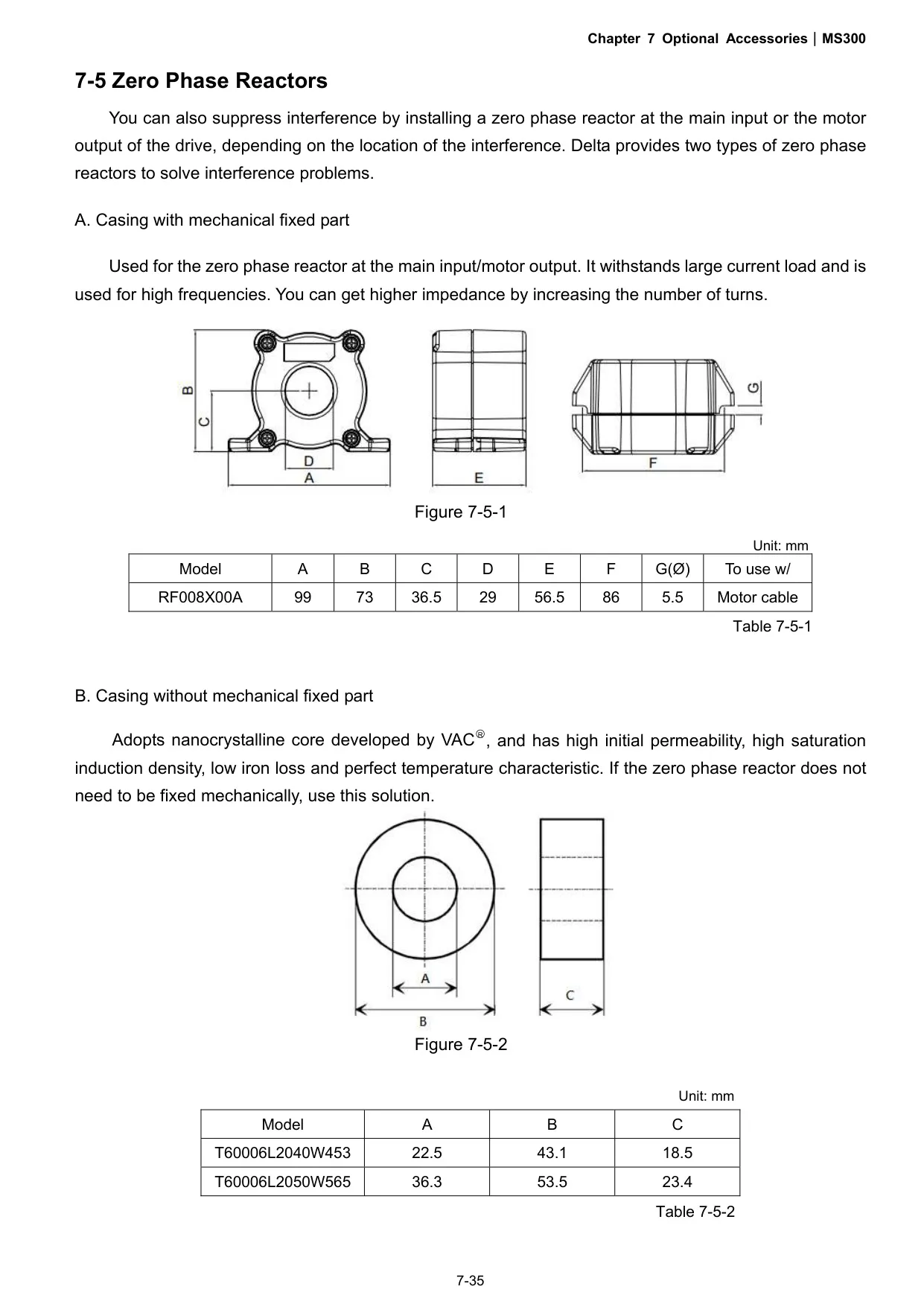

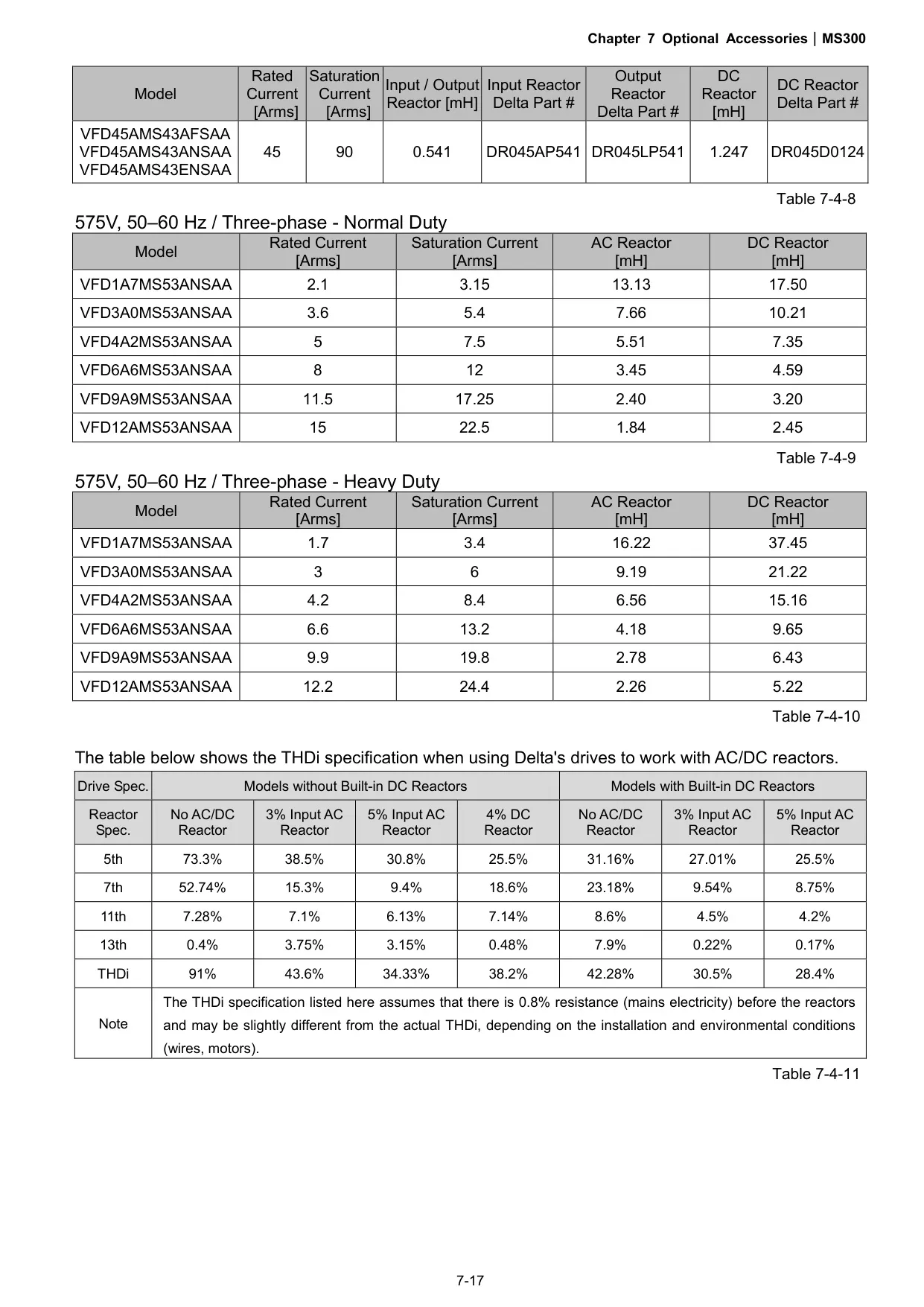

Product Images

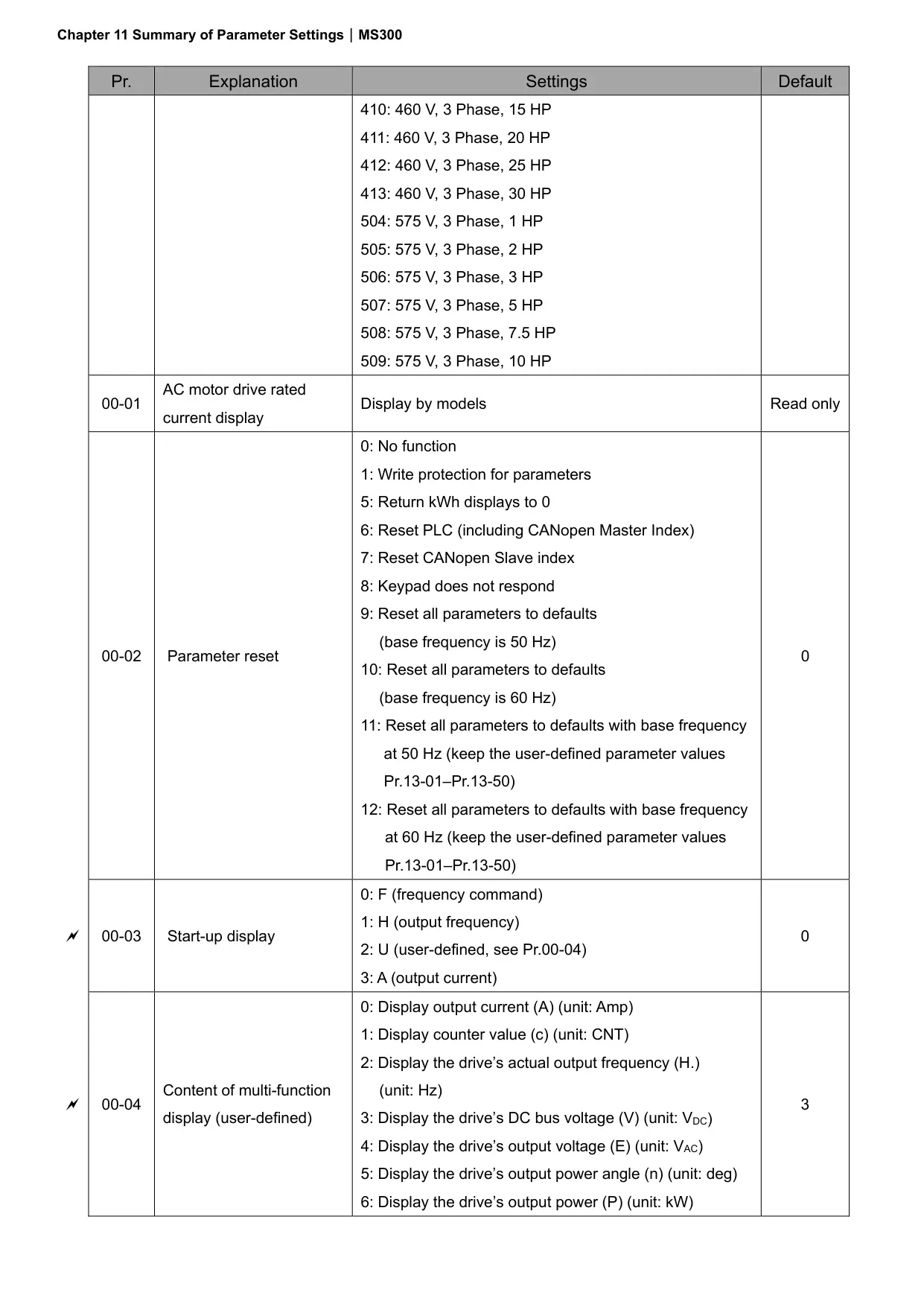

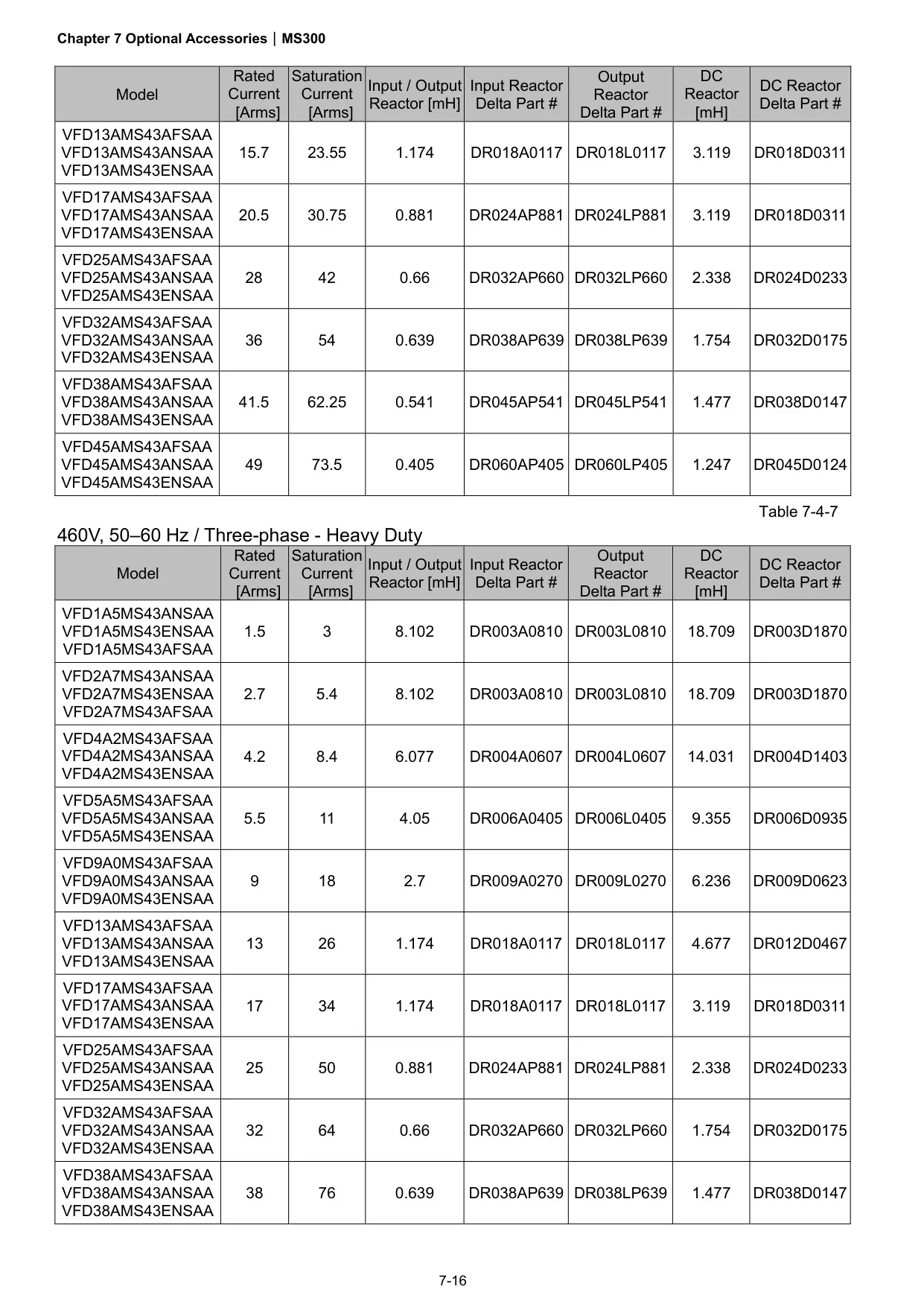

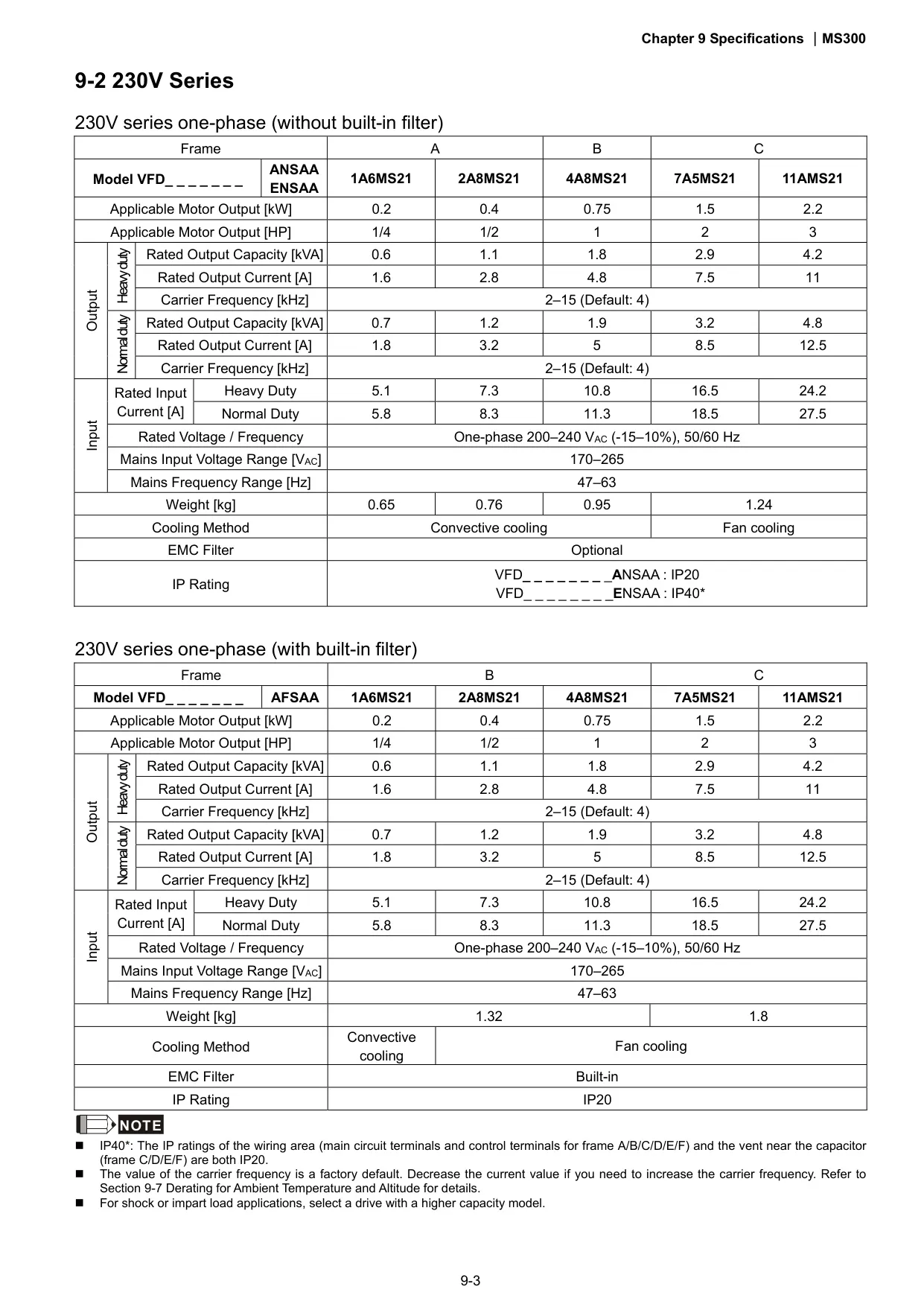

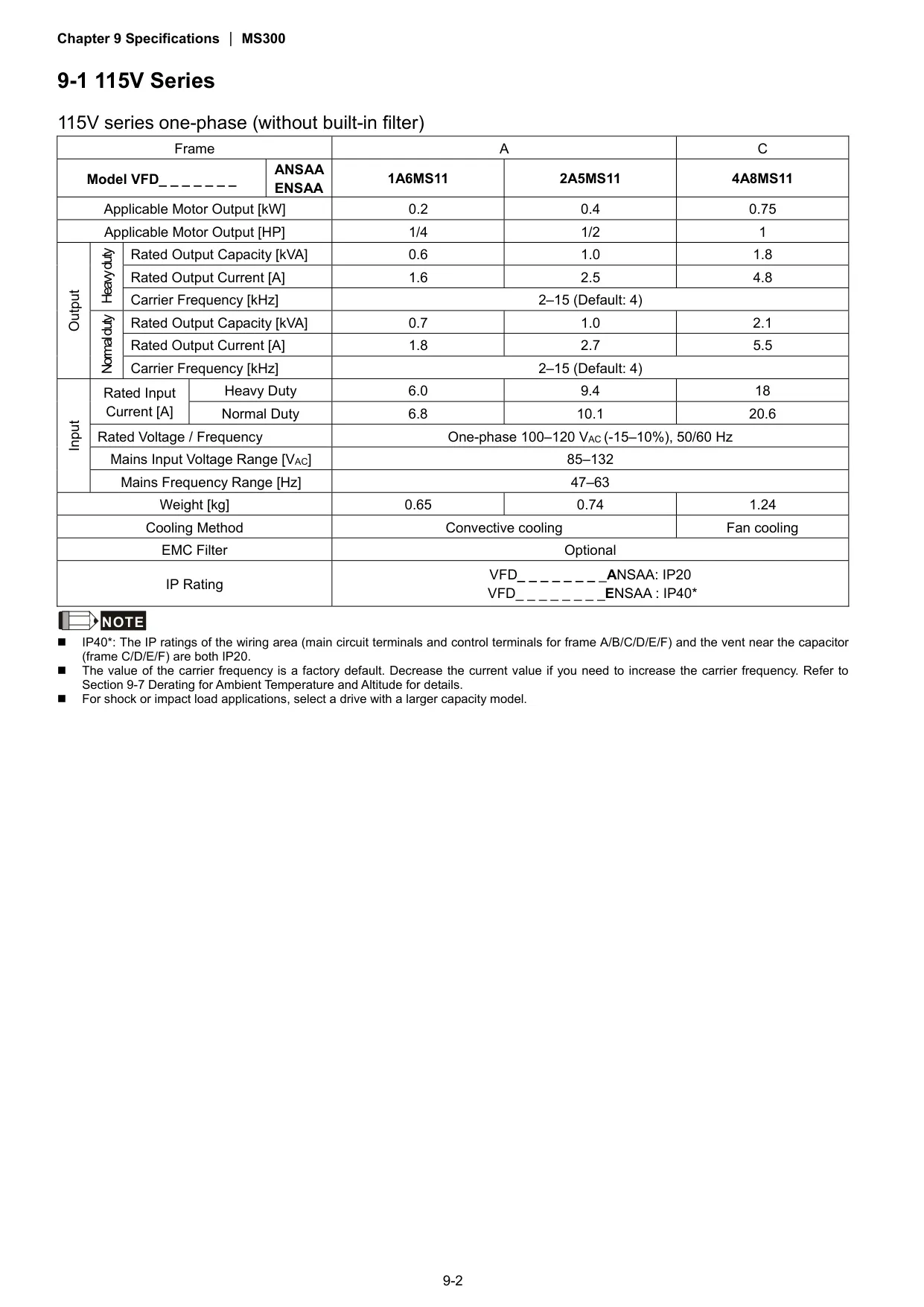

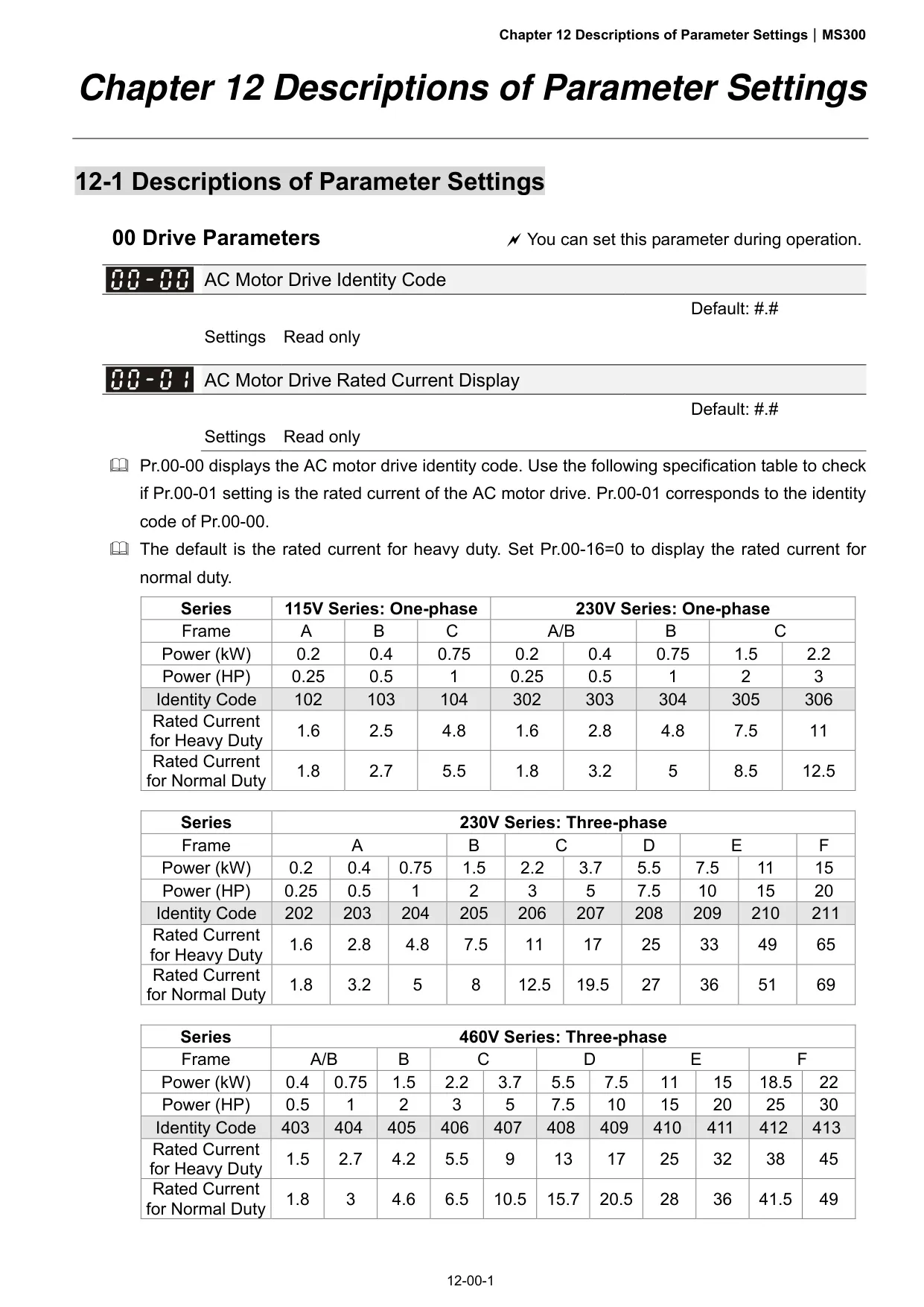

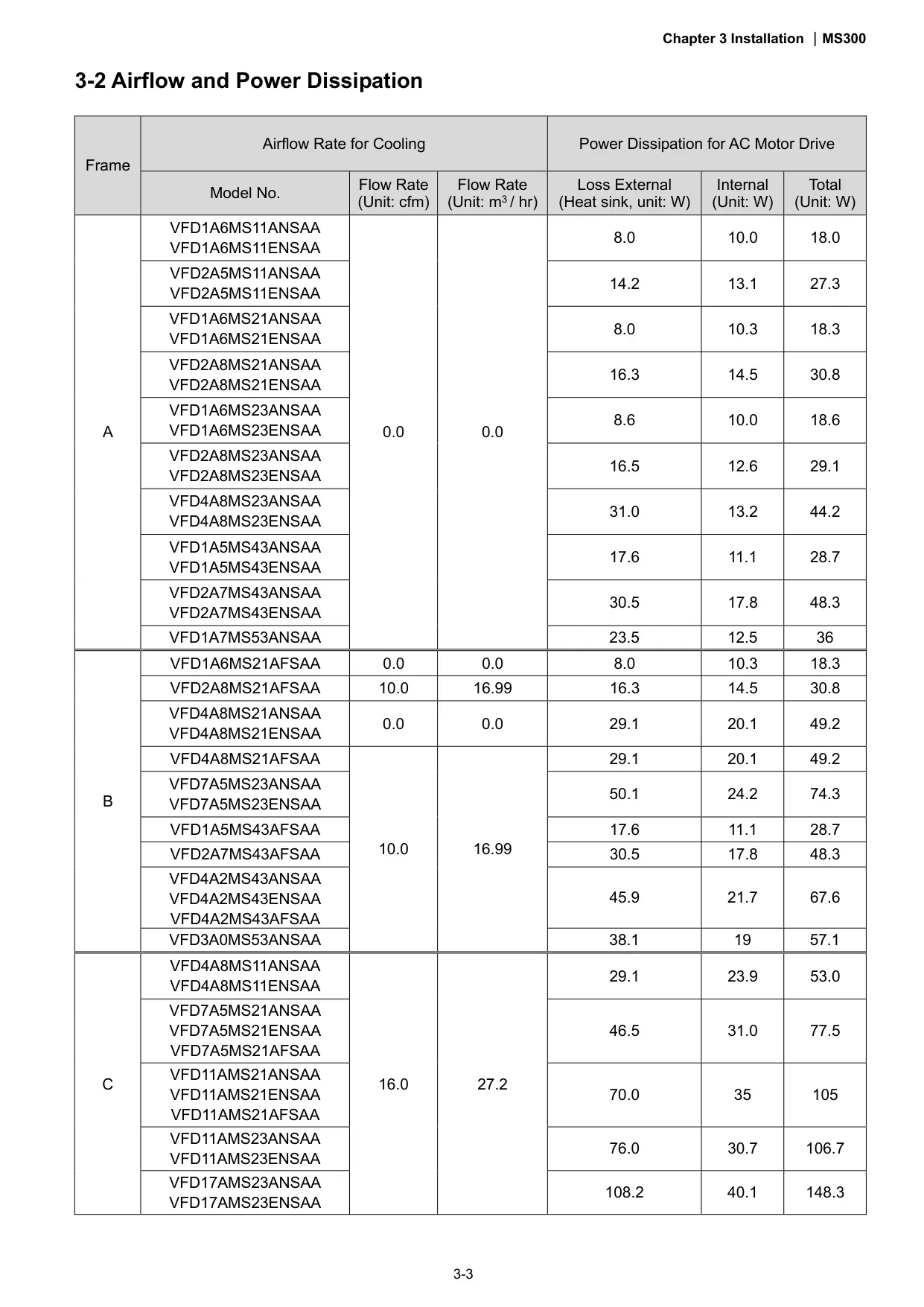

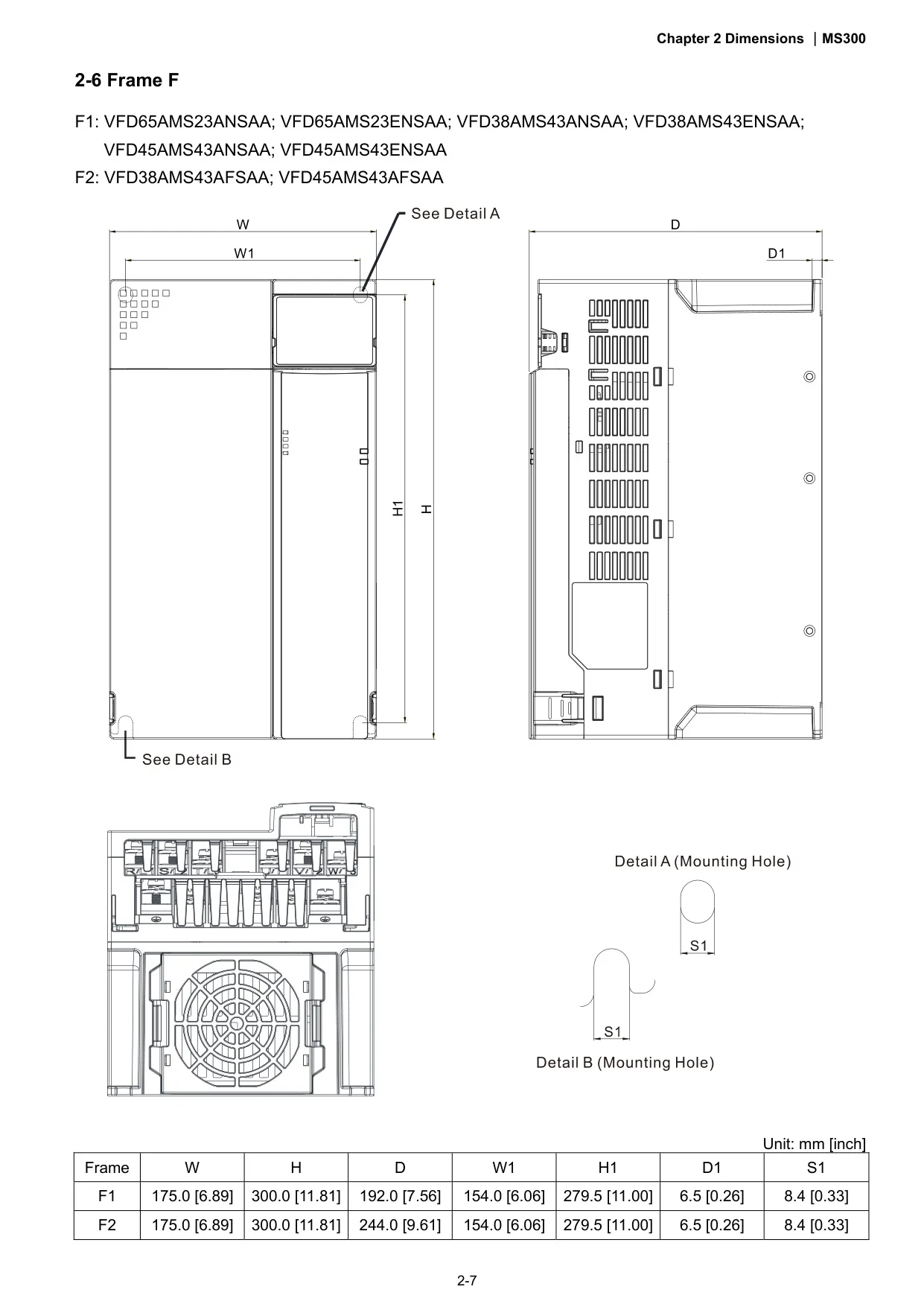

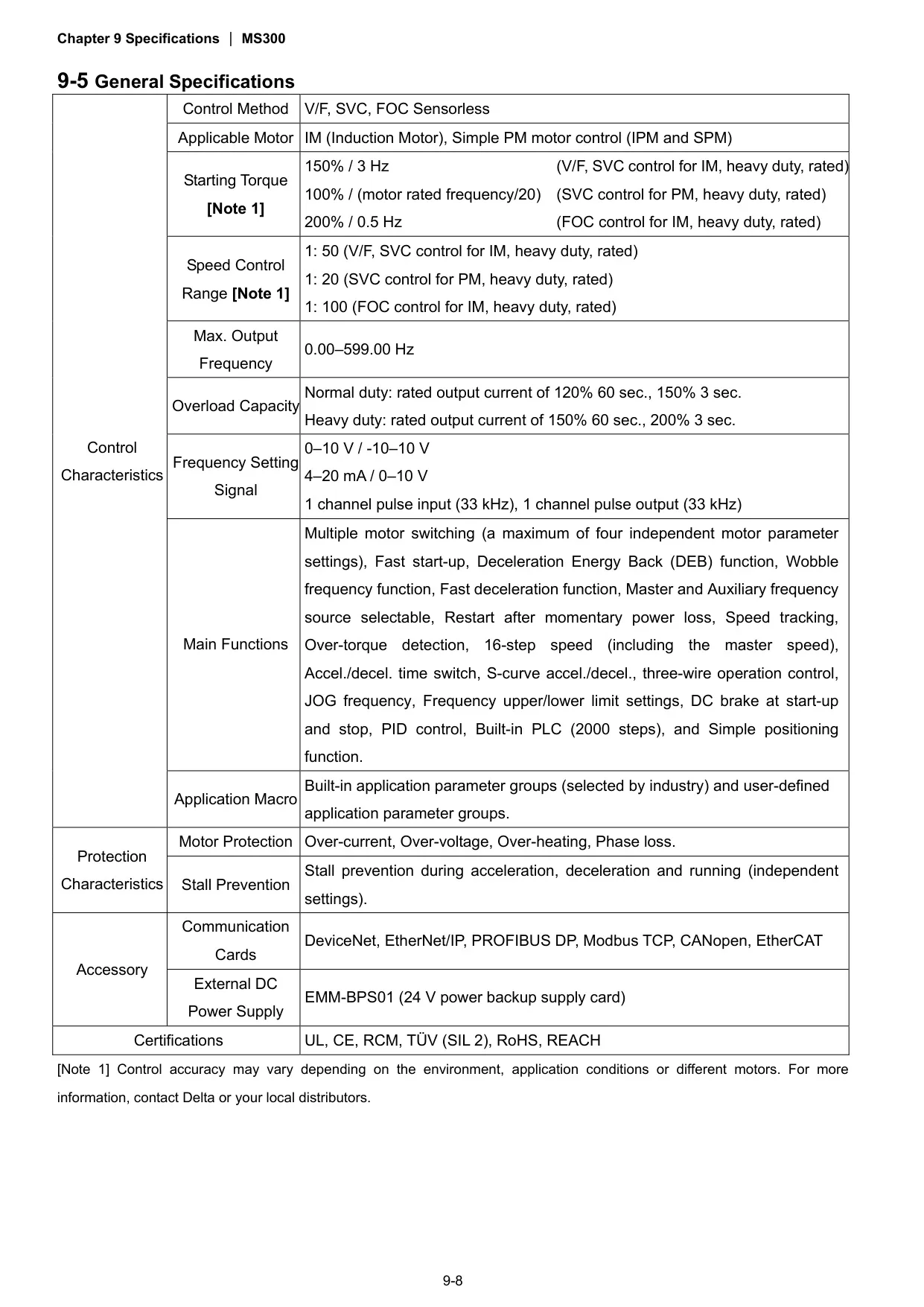

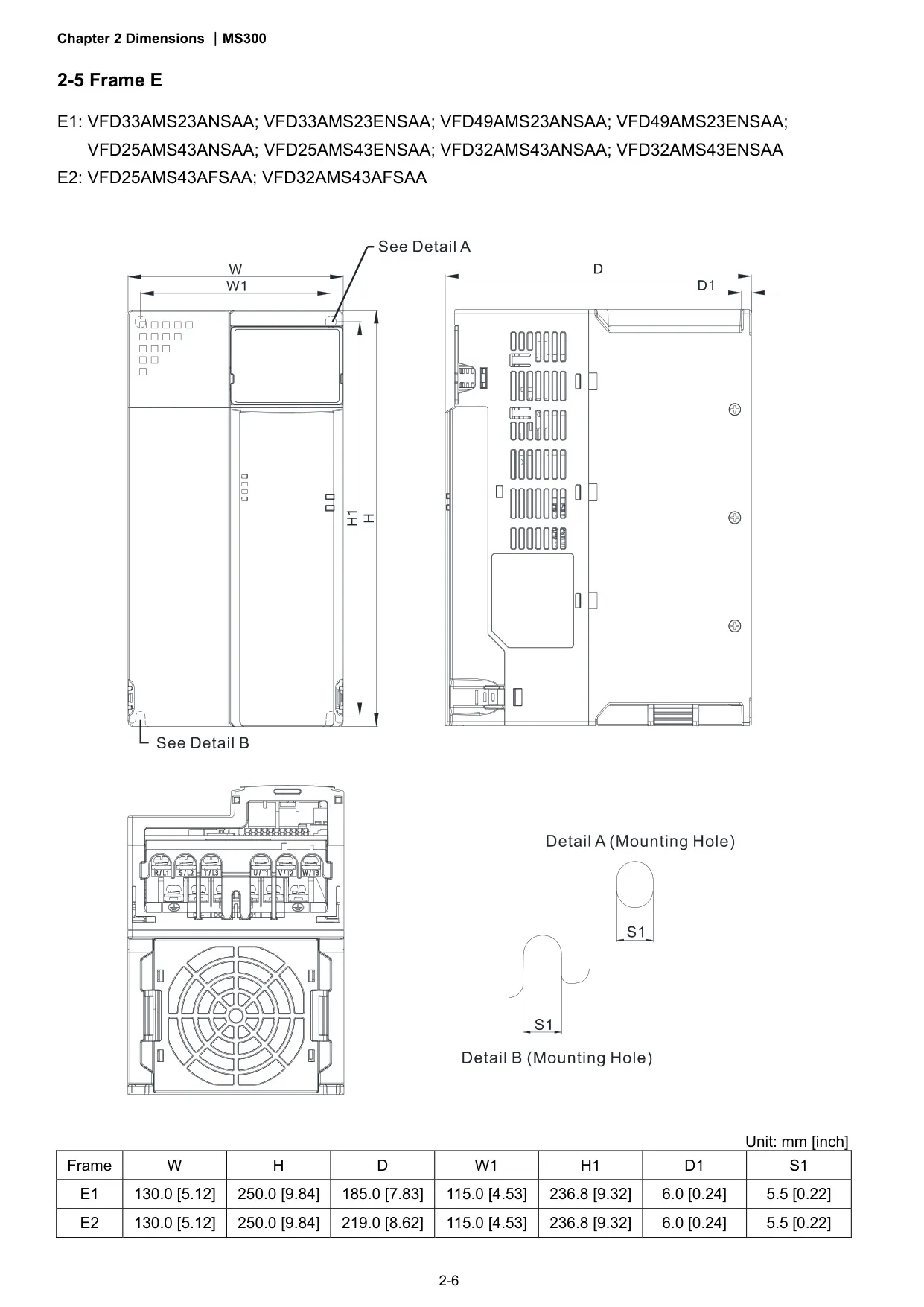

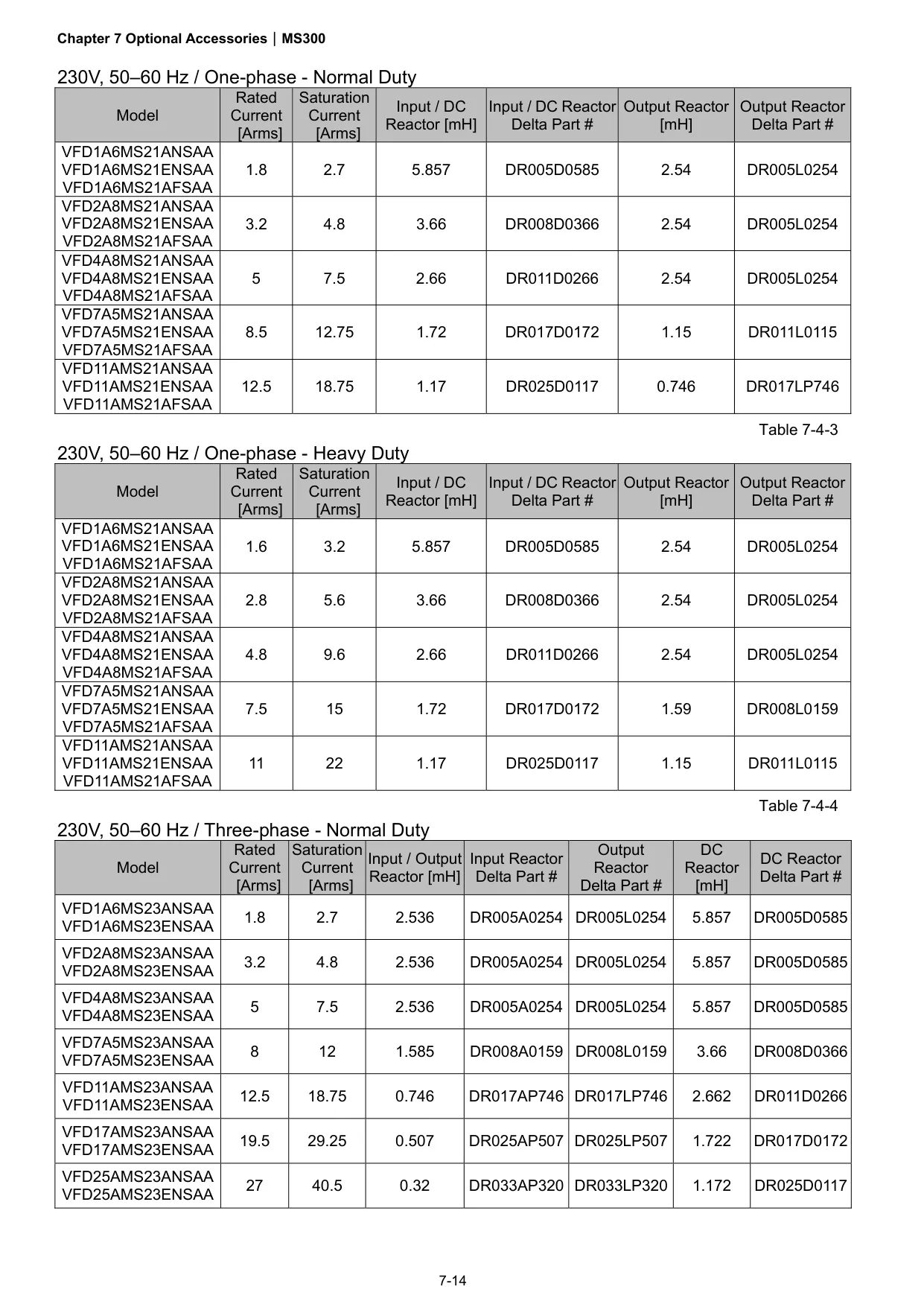

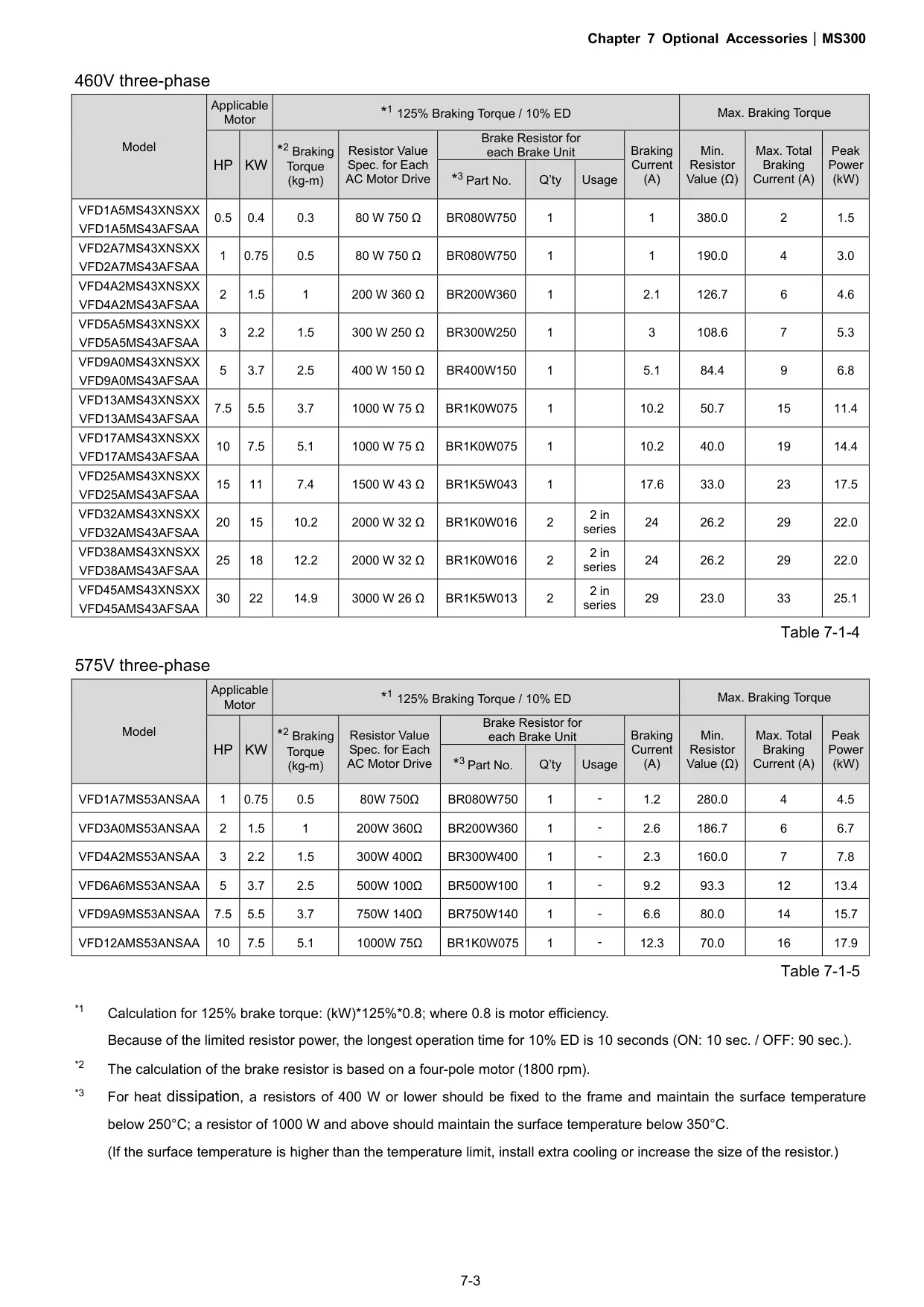

Delta MS300 VFD Specifications

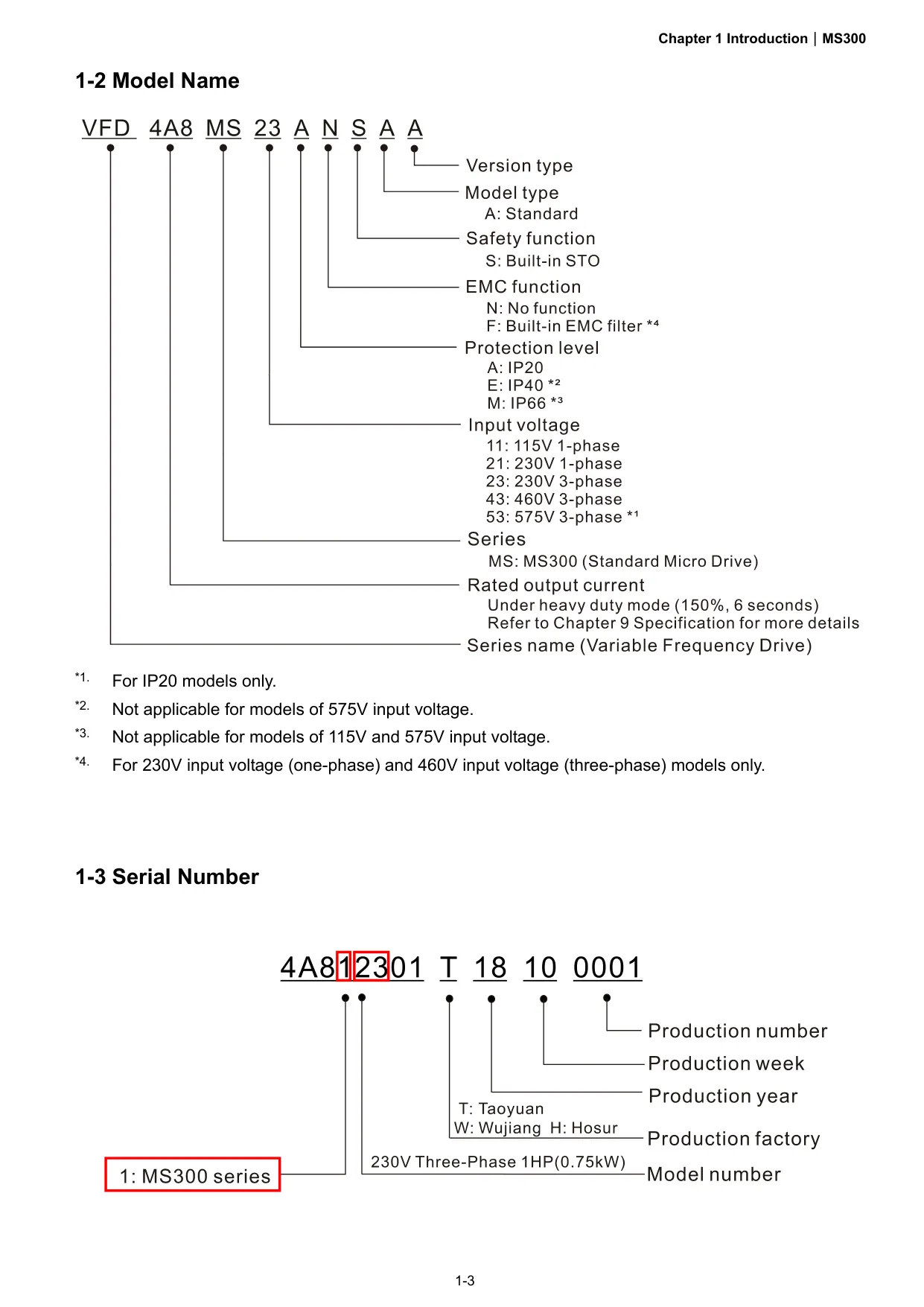

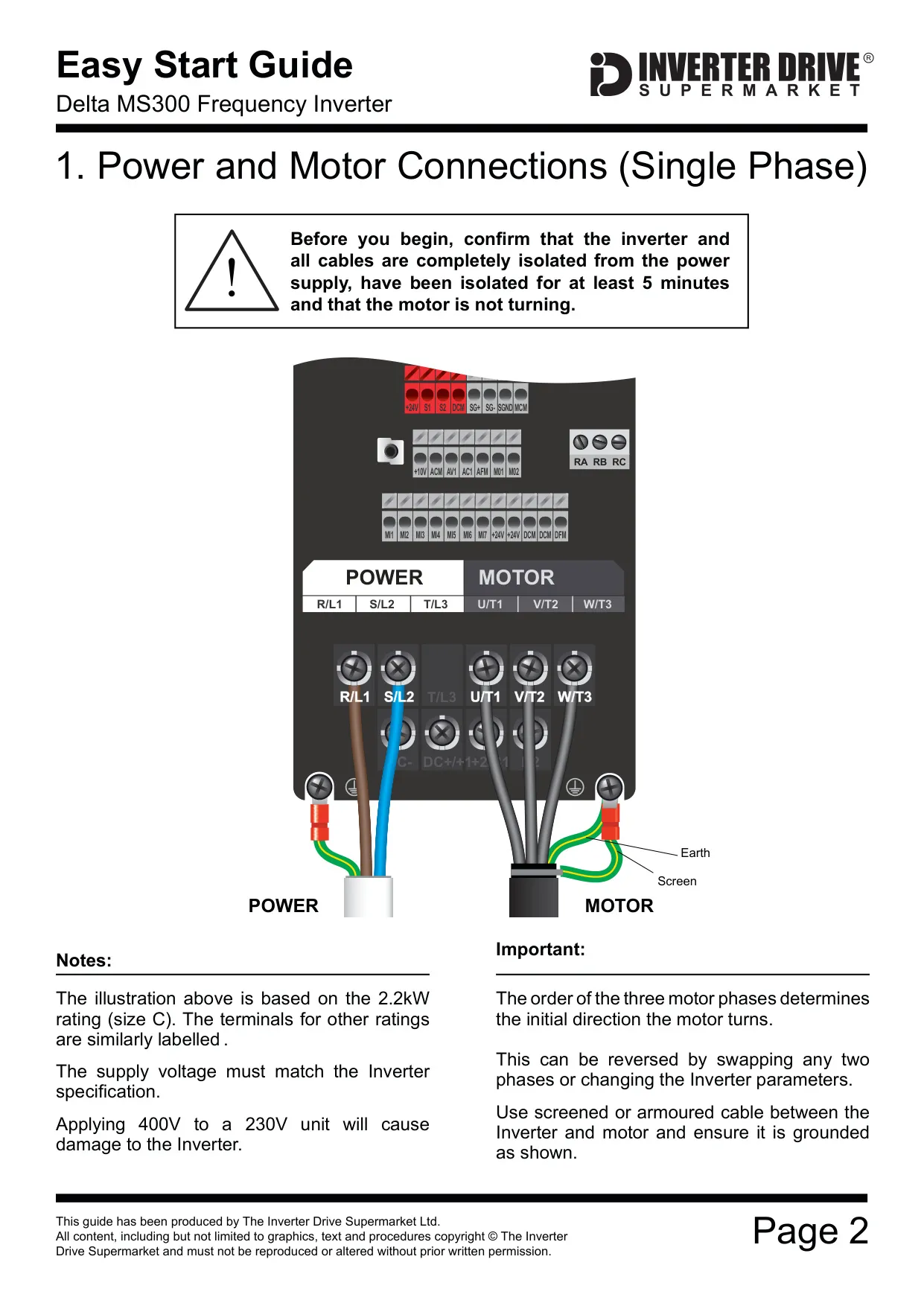

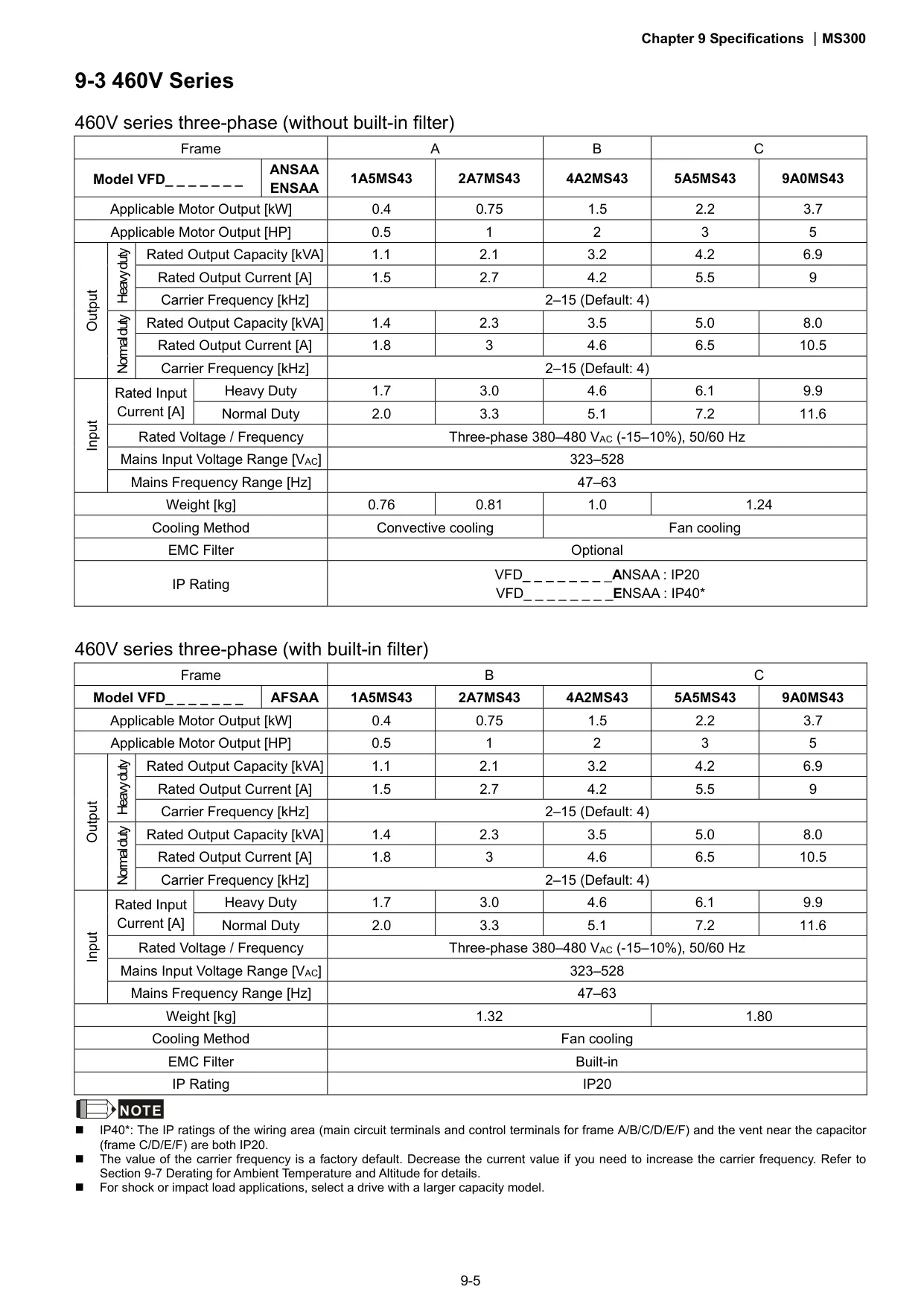

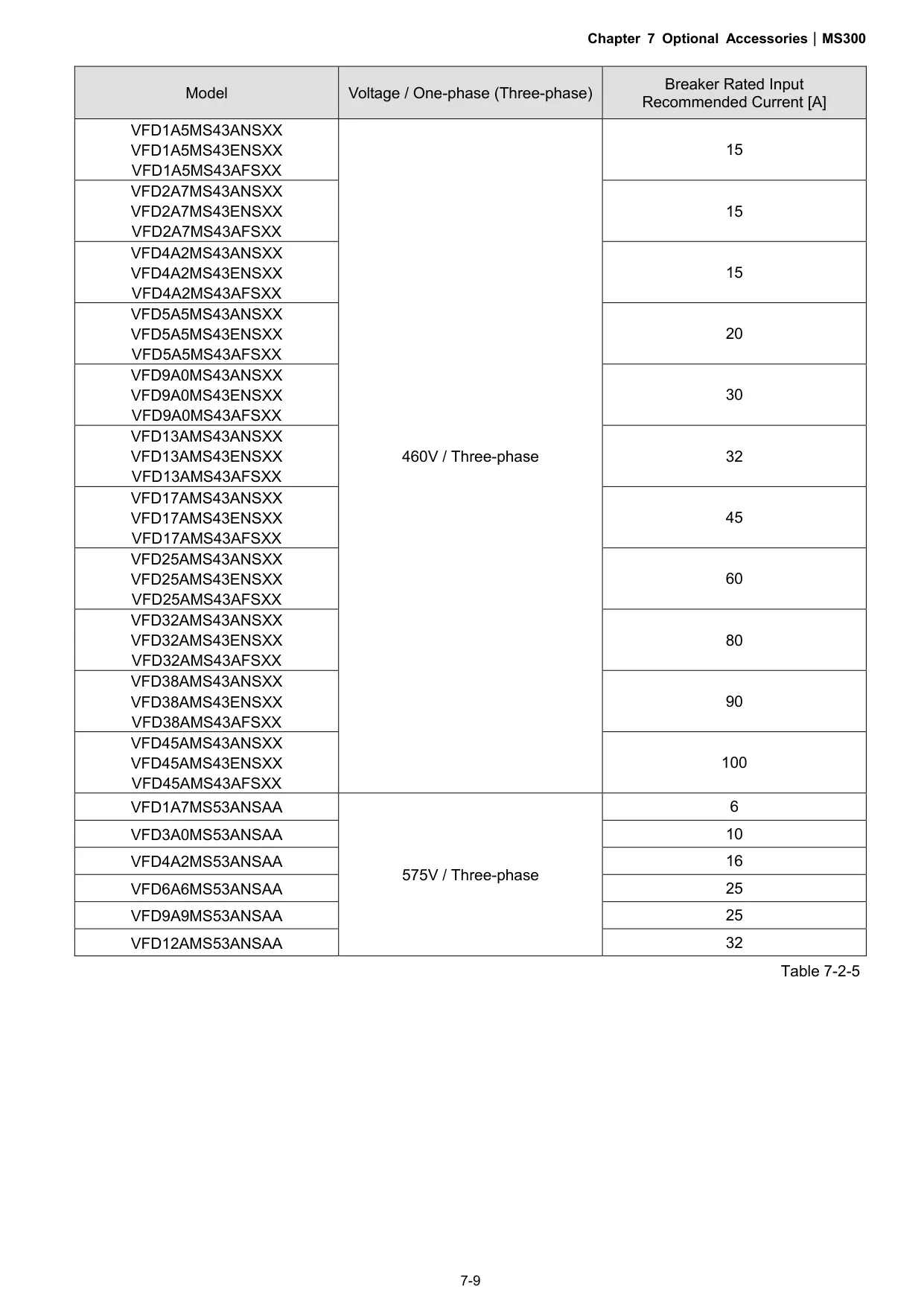

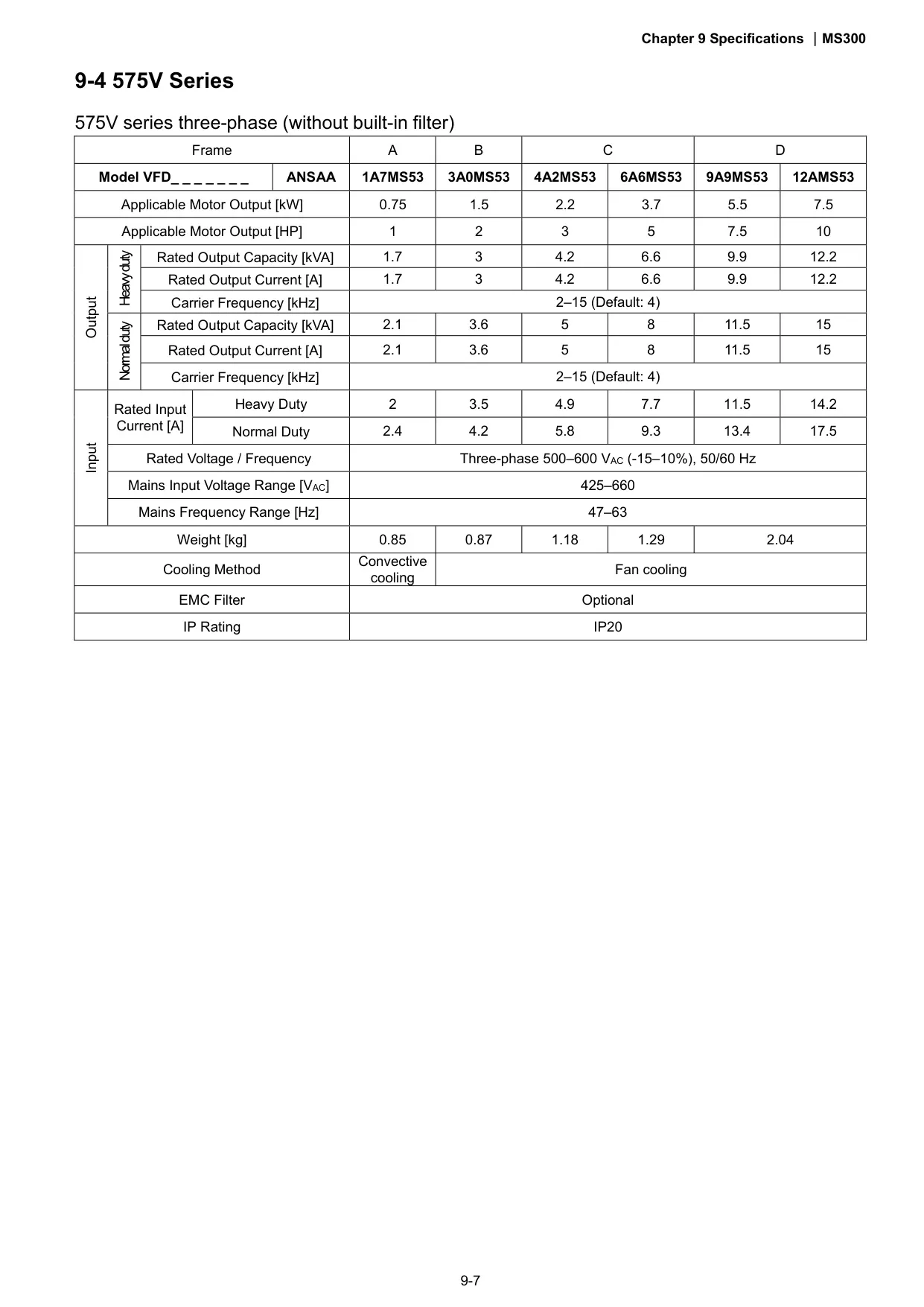

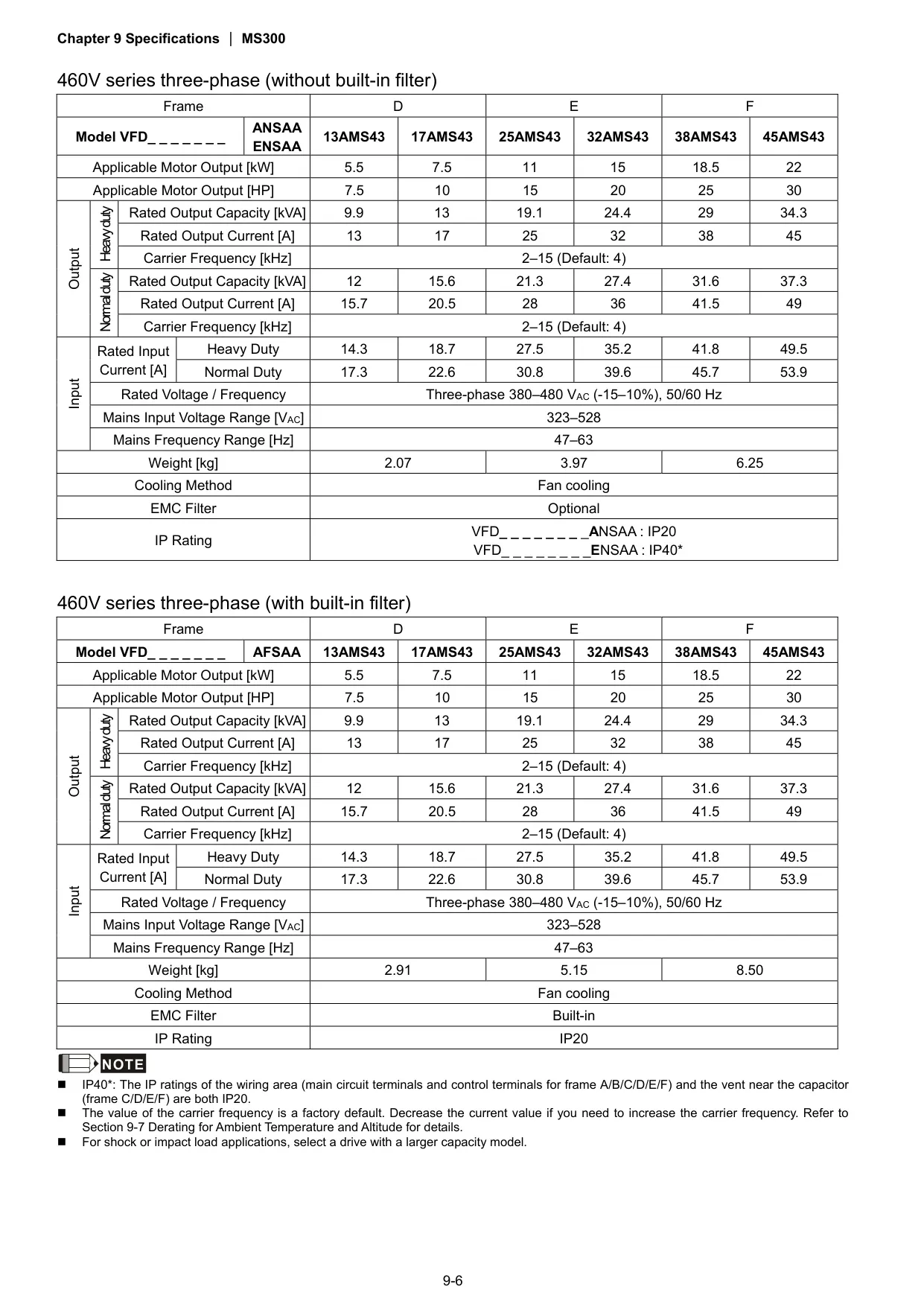

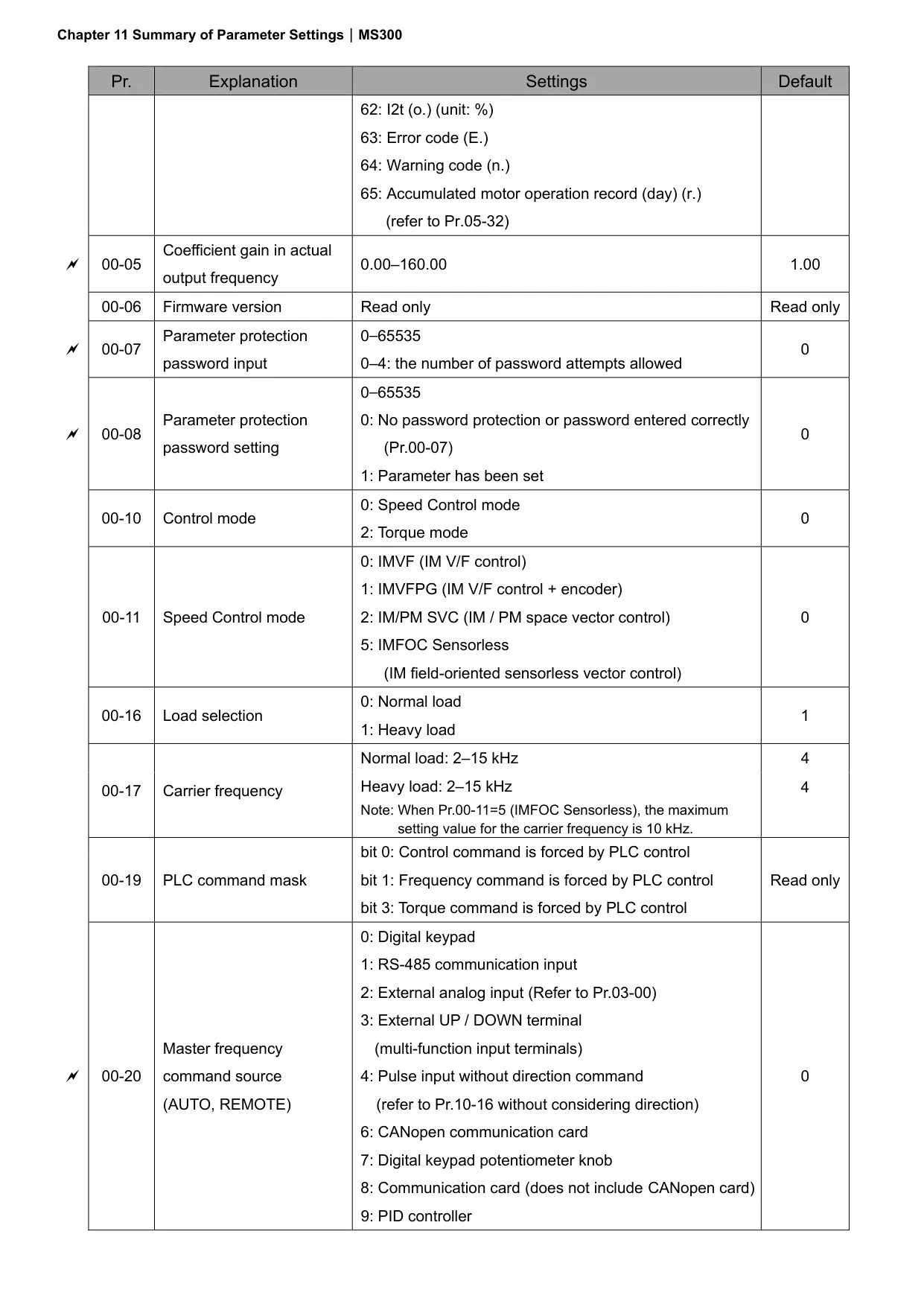

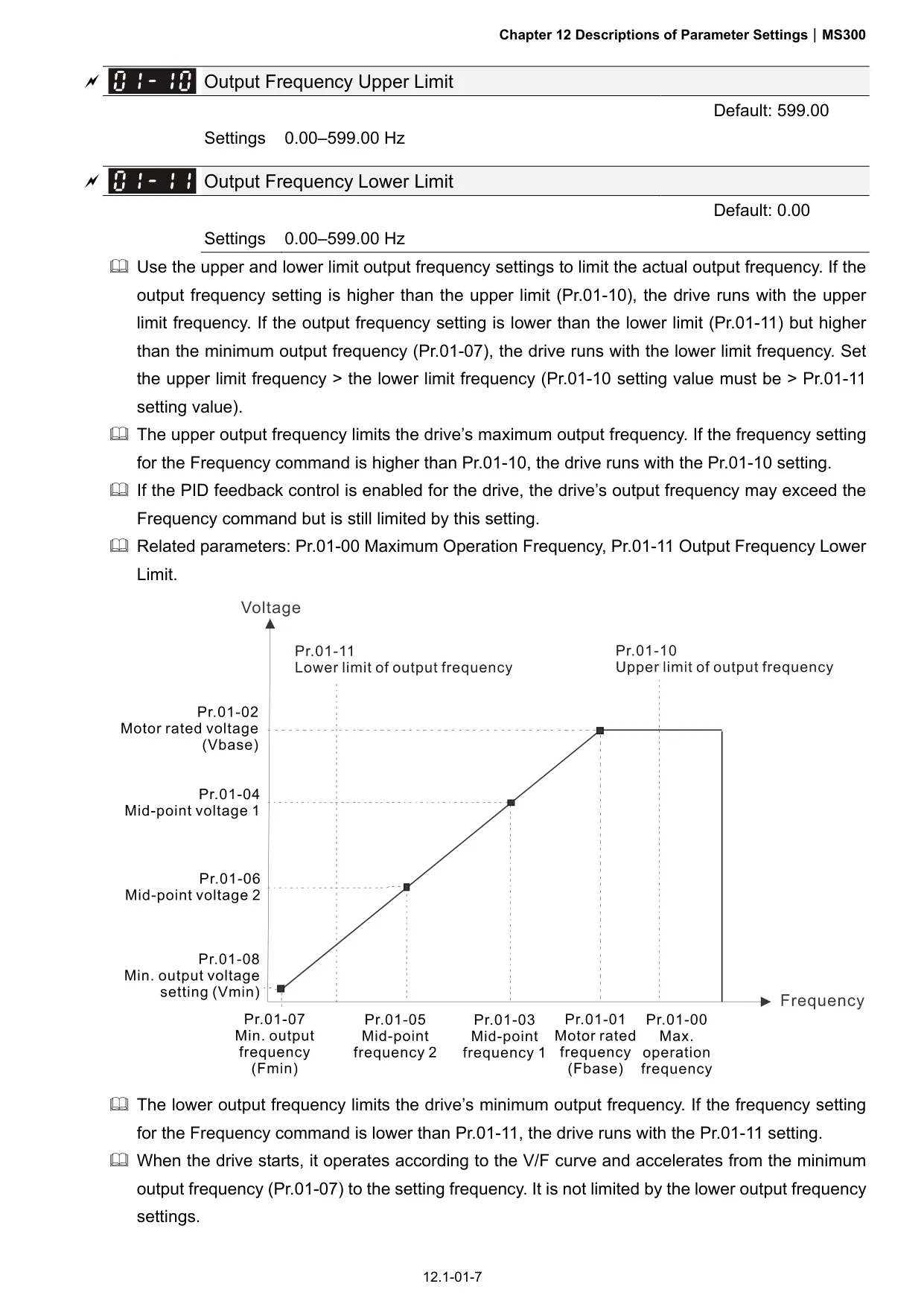

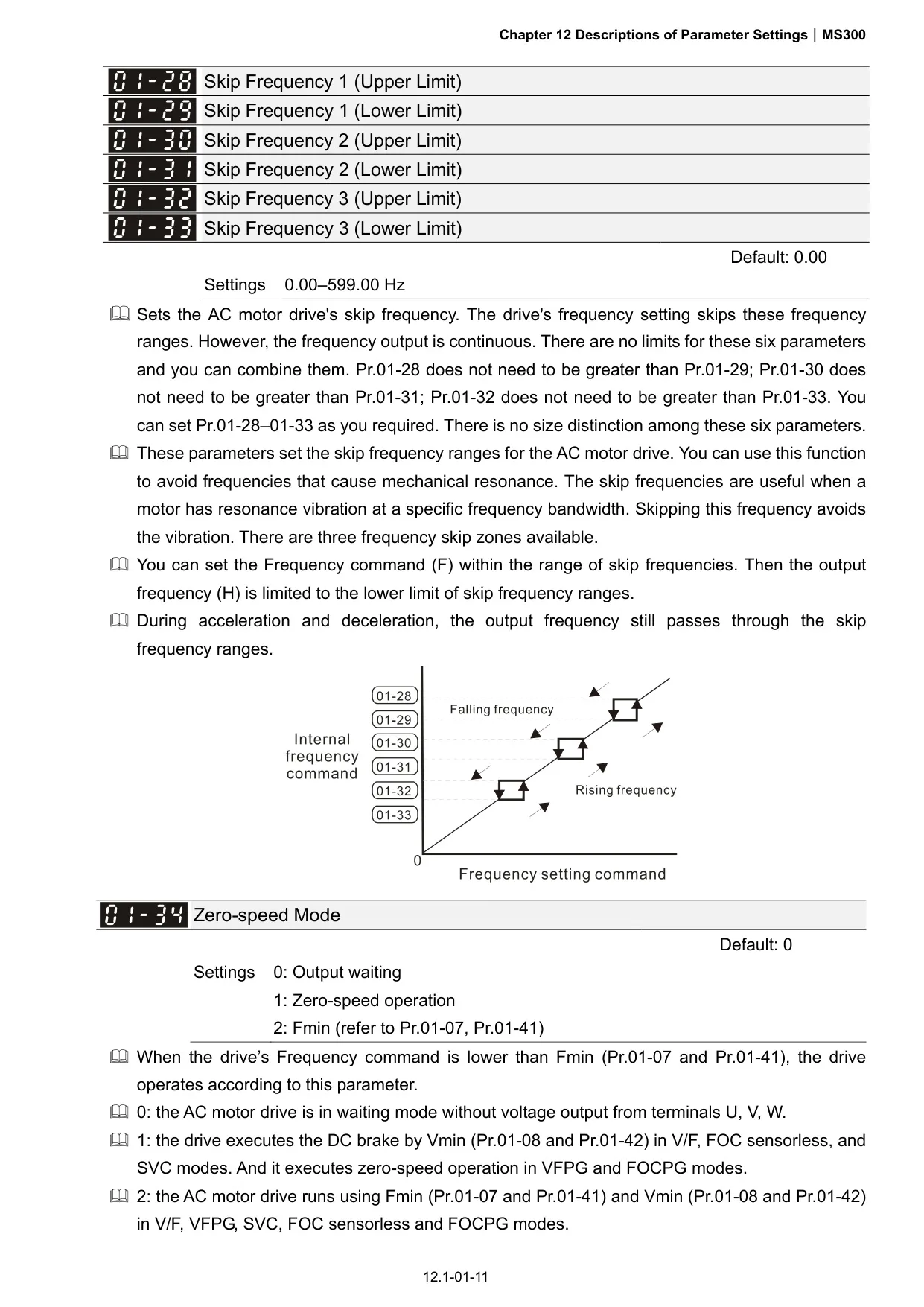

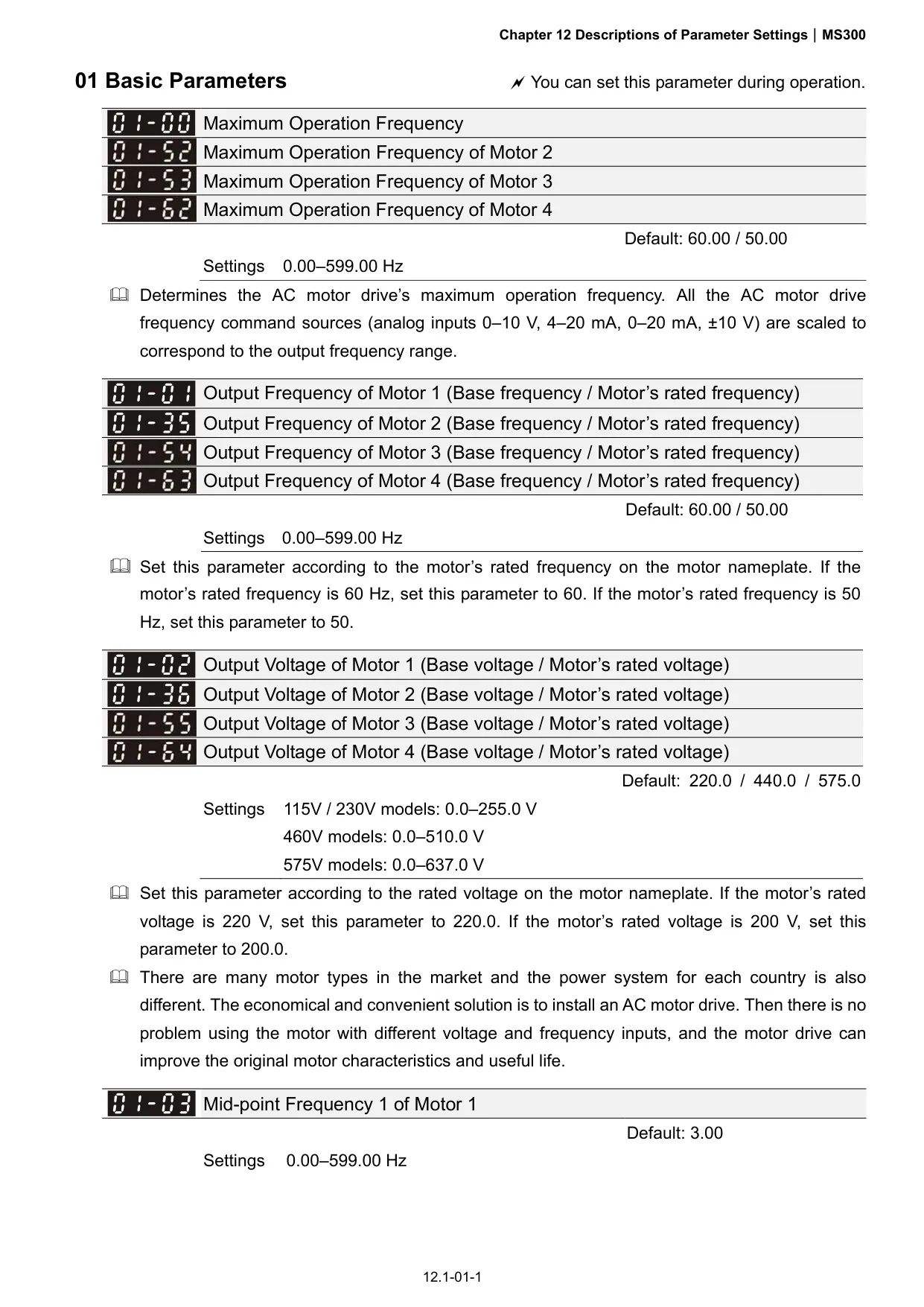

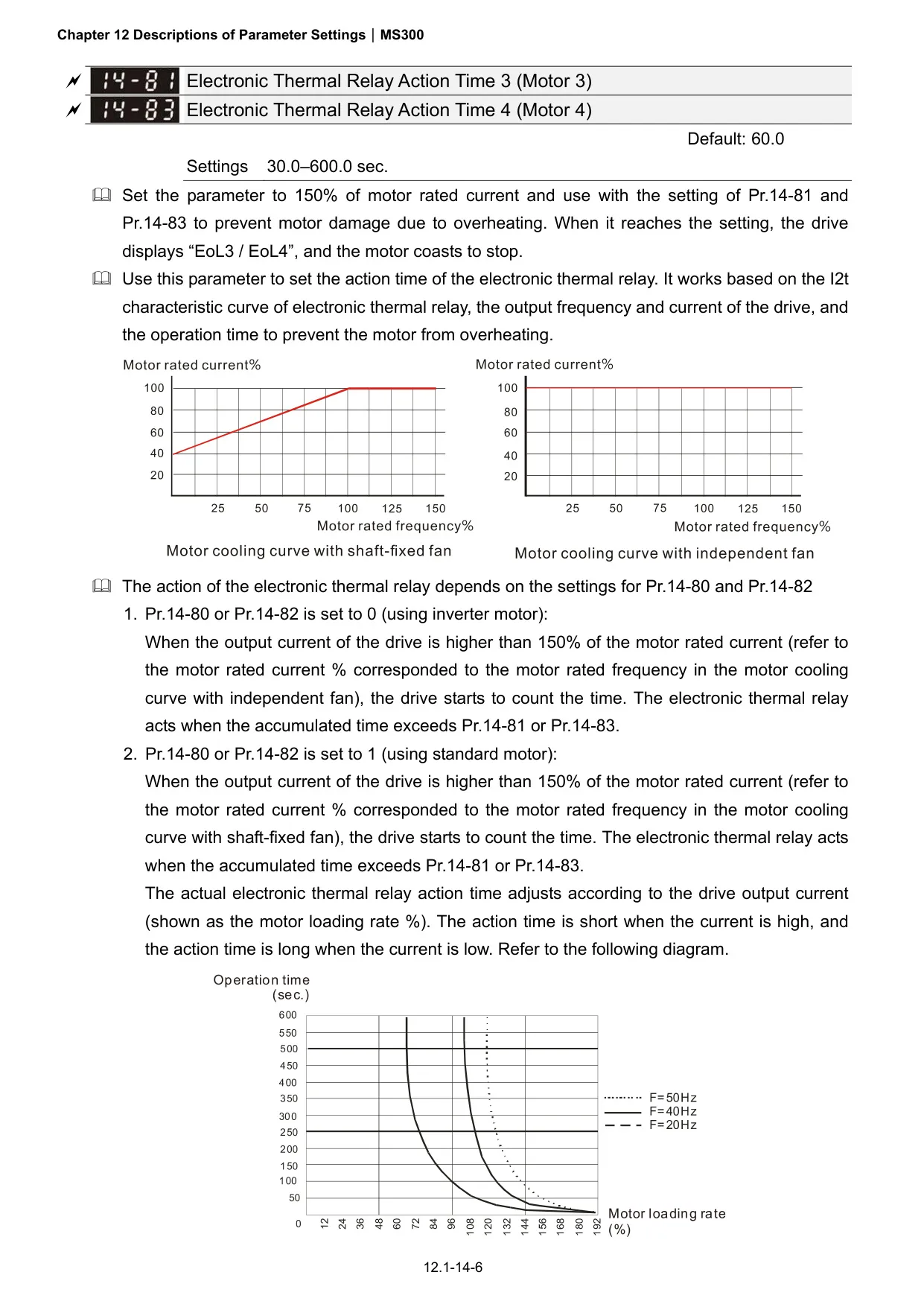

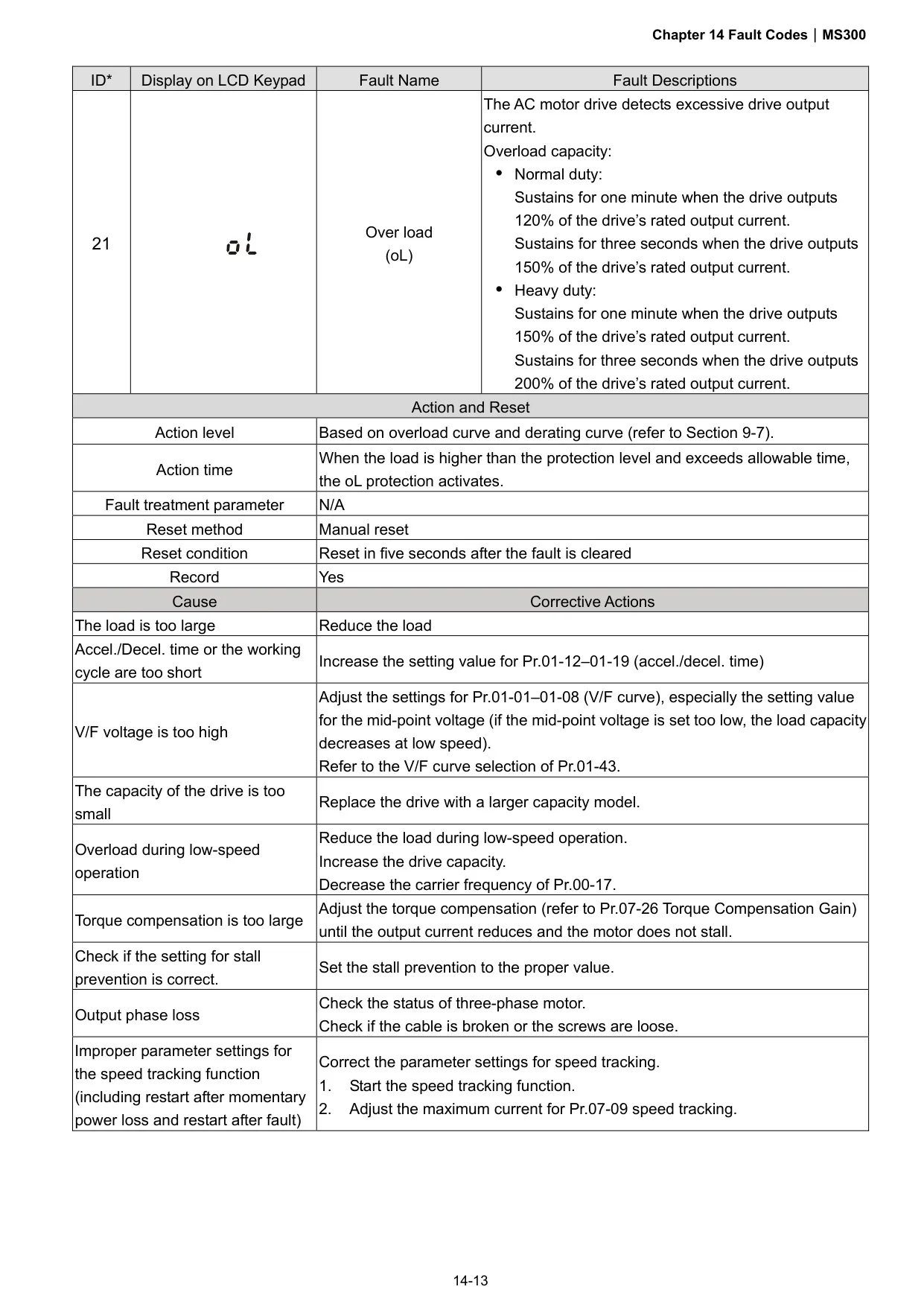

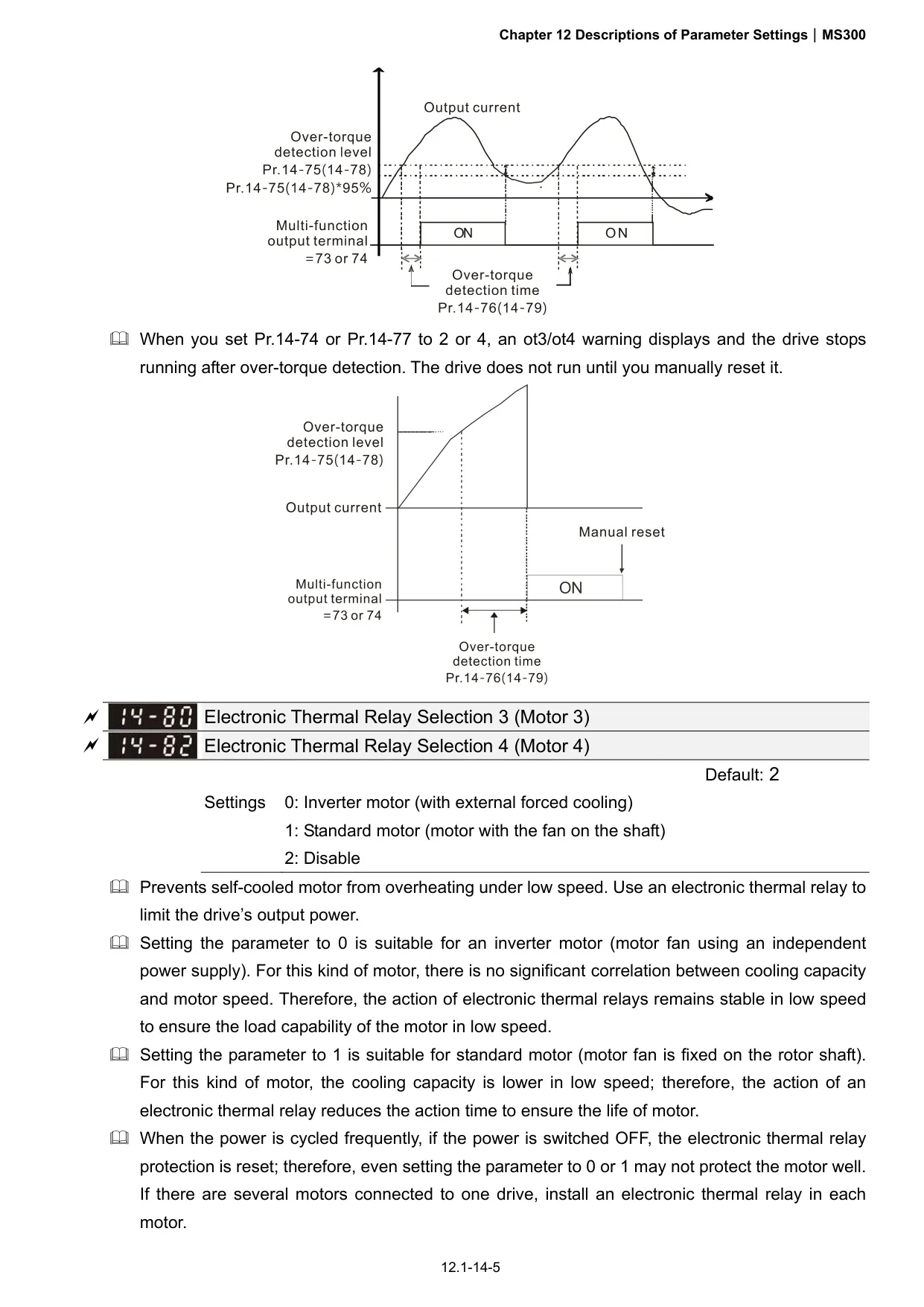

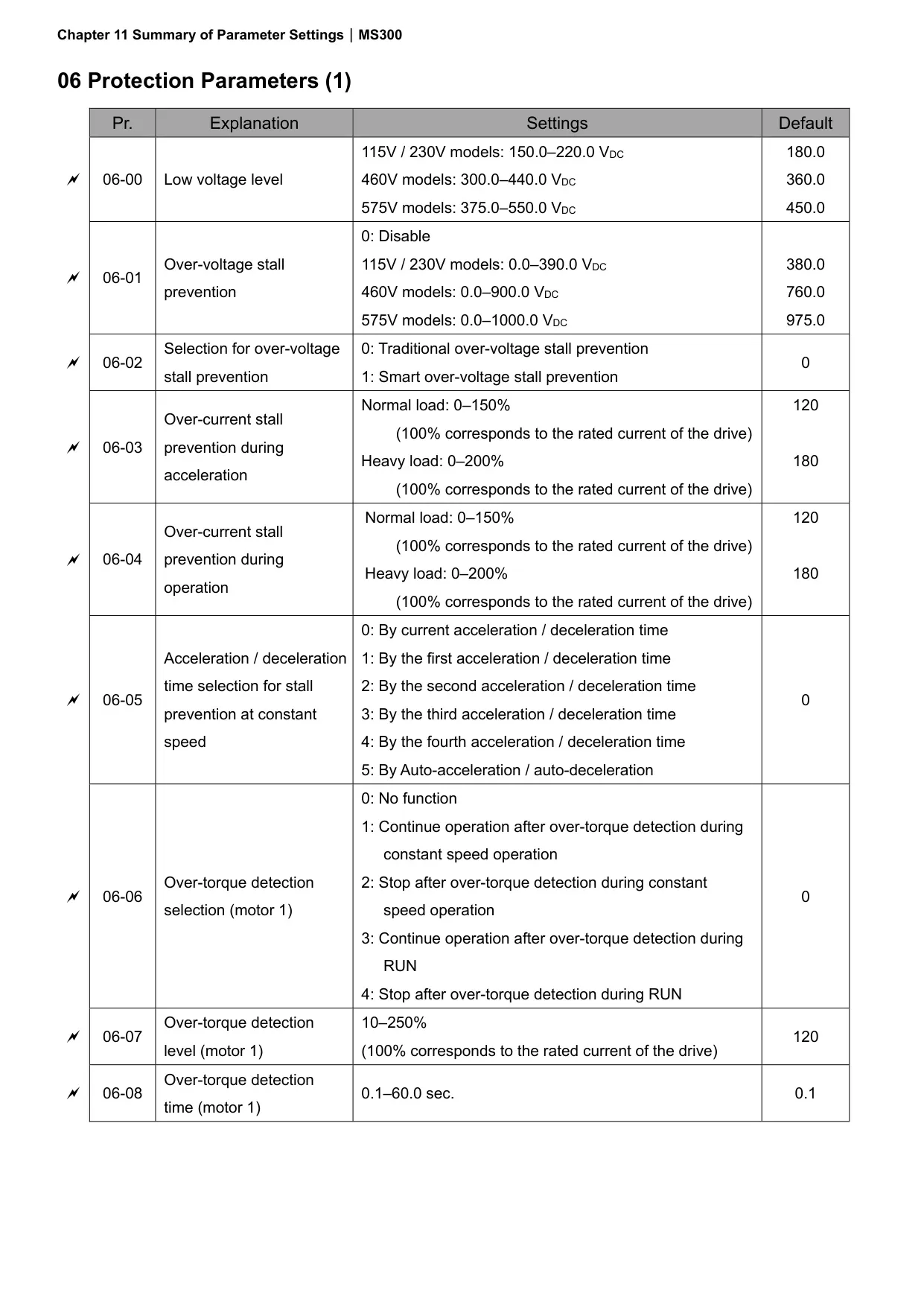

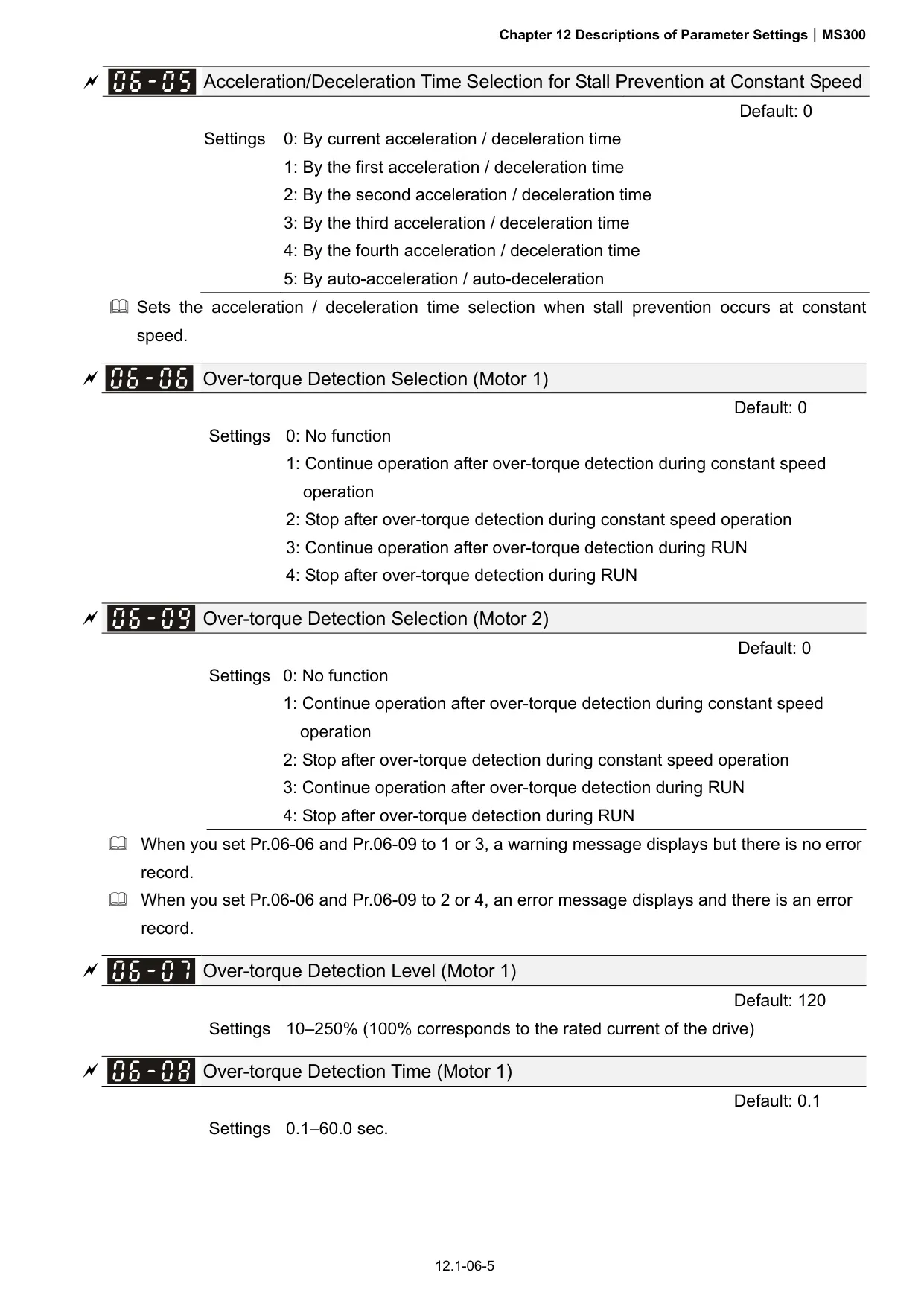

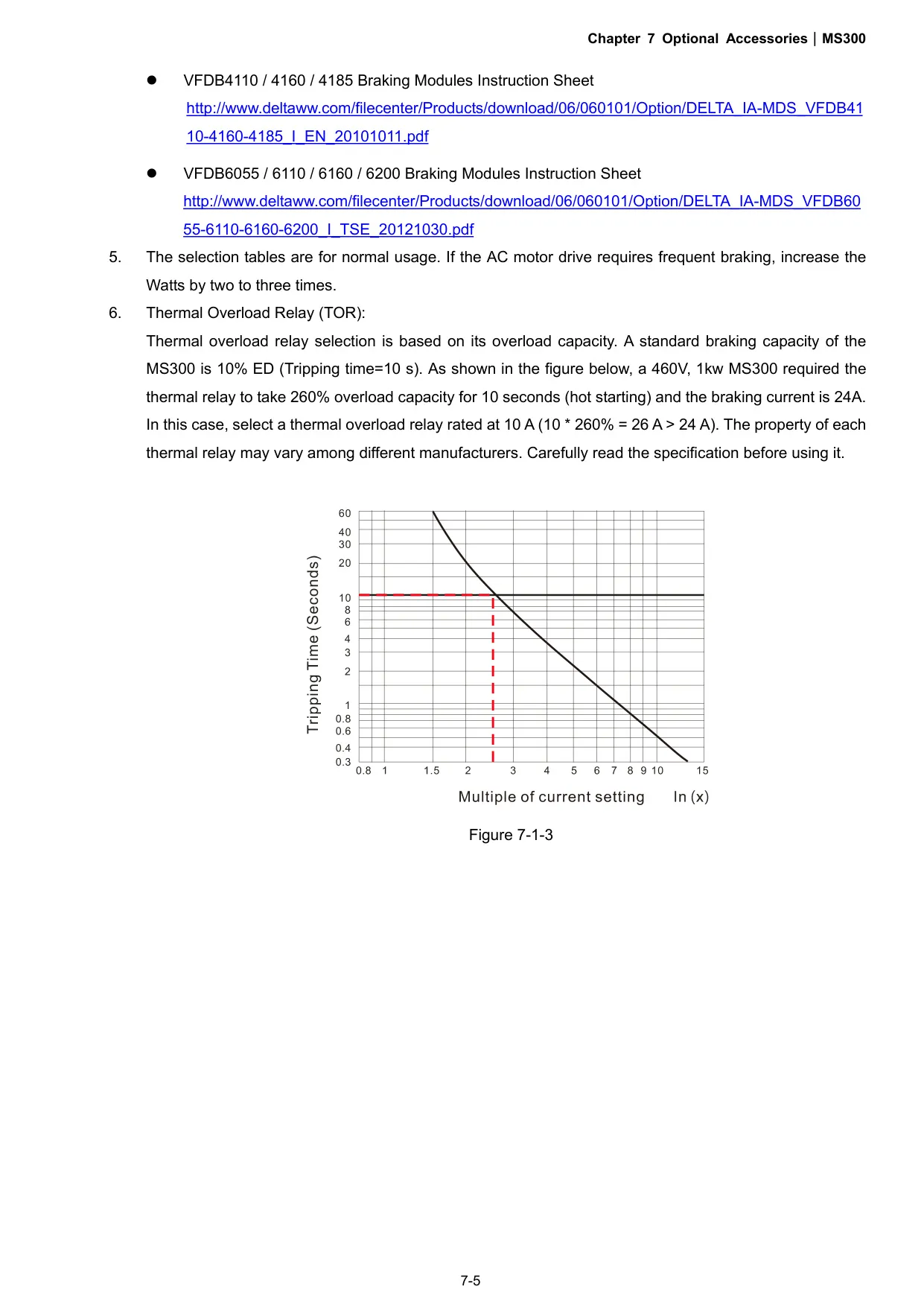

| Feature | Specification |
|---|---|
| Manufacturer | Delta Electronics, Inc. |
| Series | MS300 Standard Compact Drive |
| Function | Variable Frequency Drive (VFD) for AC Motors |
| Voltage Range (1-phase) | 85 – 132 VAC (115V series), 170 – 265 VAC (230V series) |
| Voltage Range (3-phase) | 170 – 265 VAC (230V series), 323 – 528 VAC (460V series), 425 – 660 VAC (575V series) |
| Power Range (1-phase) | 0.2 – 0.75 kW (1/4 – 1 HP) for 115V series |
| Power Range (3-phase) | 0.2 – 15 kW (1/4 – 20 HP) for 230V series, 0.4 – 22 kW (0.5 – 30 HP) for 460V series, 0.75 – 7.5 kW (1 – 10 HP) for 575V series |
| Control Methods | V/F (Voltage/Frequency), SVC (Sensorless Vector Control), FOC (Field-Oriented Control) Sensorless |
| Applicable Motors | Induction Motors (IM), Permanent Magnet Synchronous Motors (PM, IPM, SPM) |
| Max Output Frequency | 0.00 – 599.00 Hz |
| Overload Capacity (Normal Duty) | 120% of rated current for 60 sec, 150% for 3 sec |
| Overload Capacity (Heavy Duty) | 150% of rated current for 60 sec, 200% for 3 sec |
| Starting Torque (IM, FOC, HD) | 200% at 0.5 Hz |
| Speed Control Range (IM, FOC, HD) | 1:100 |

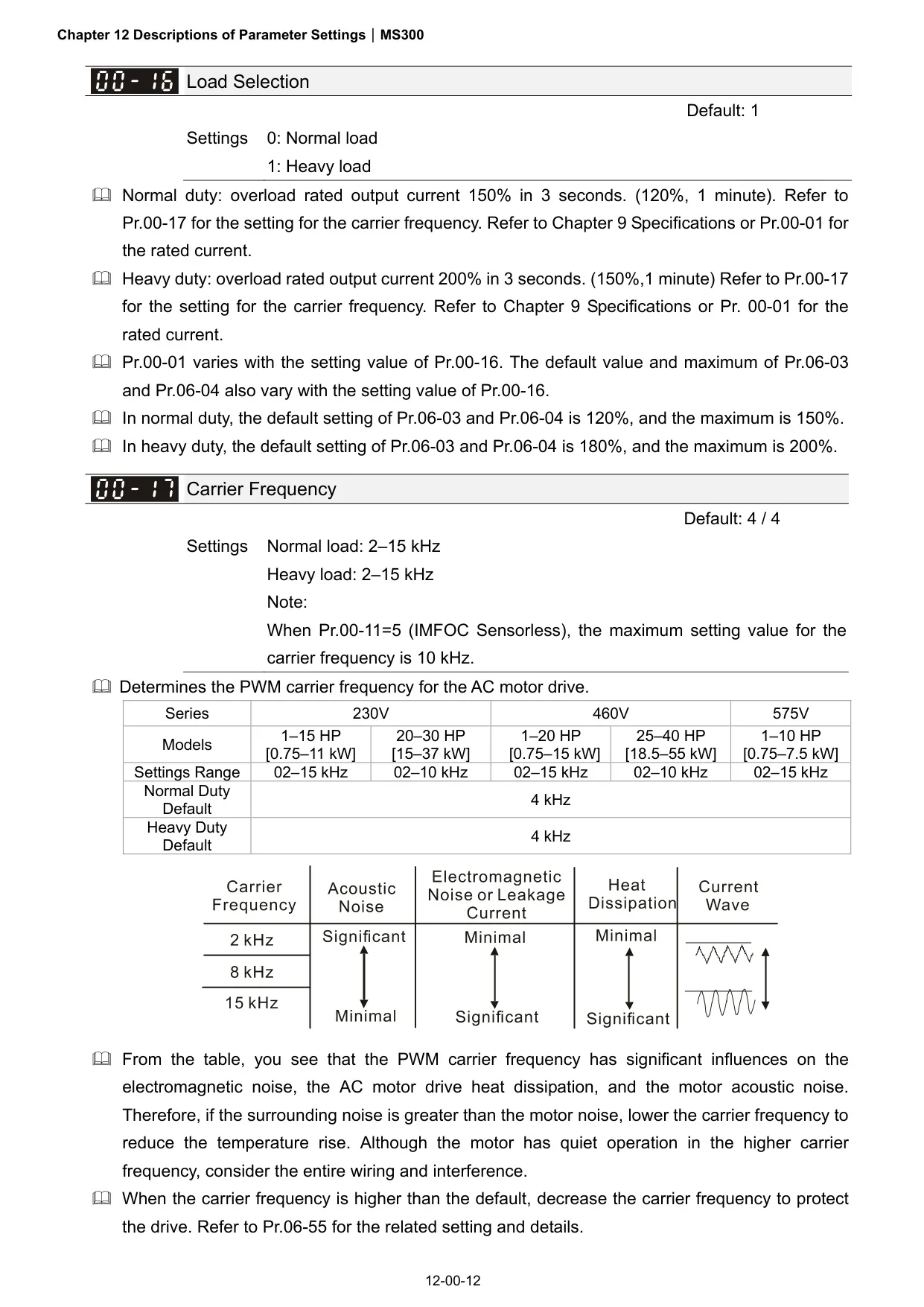

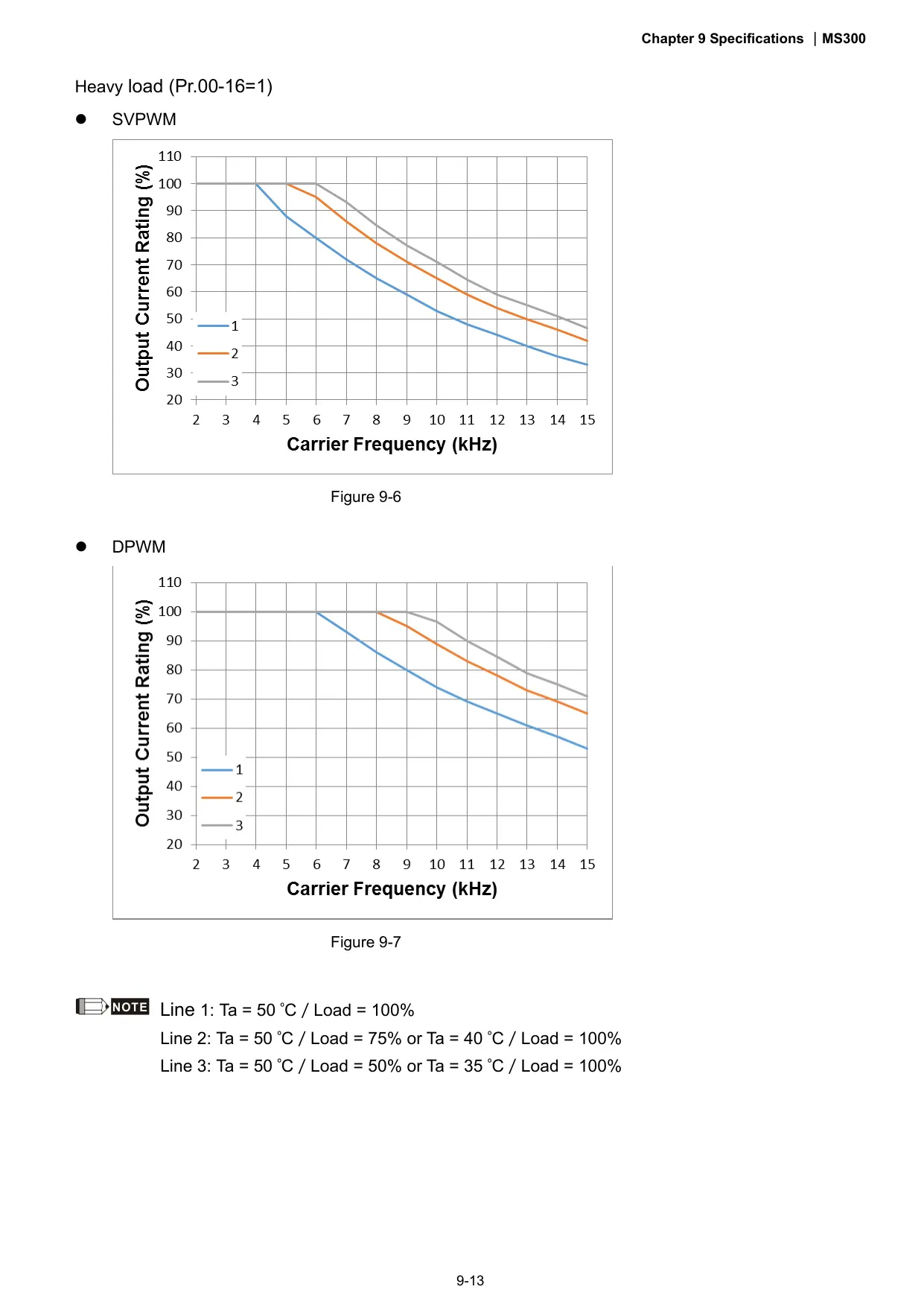

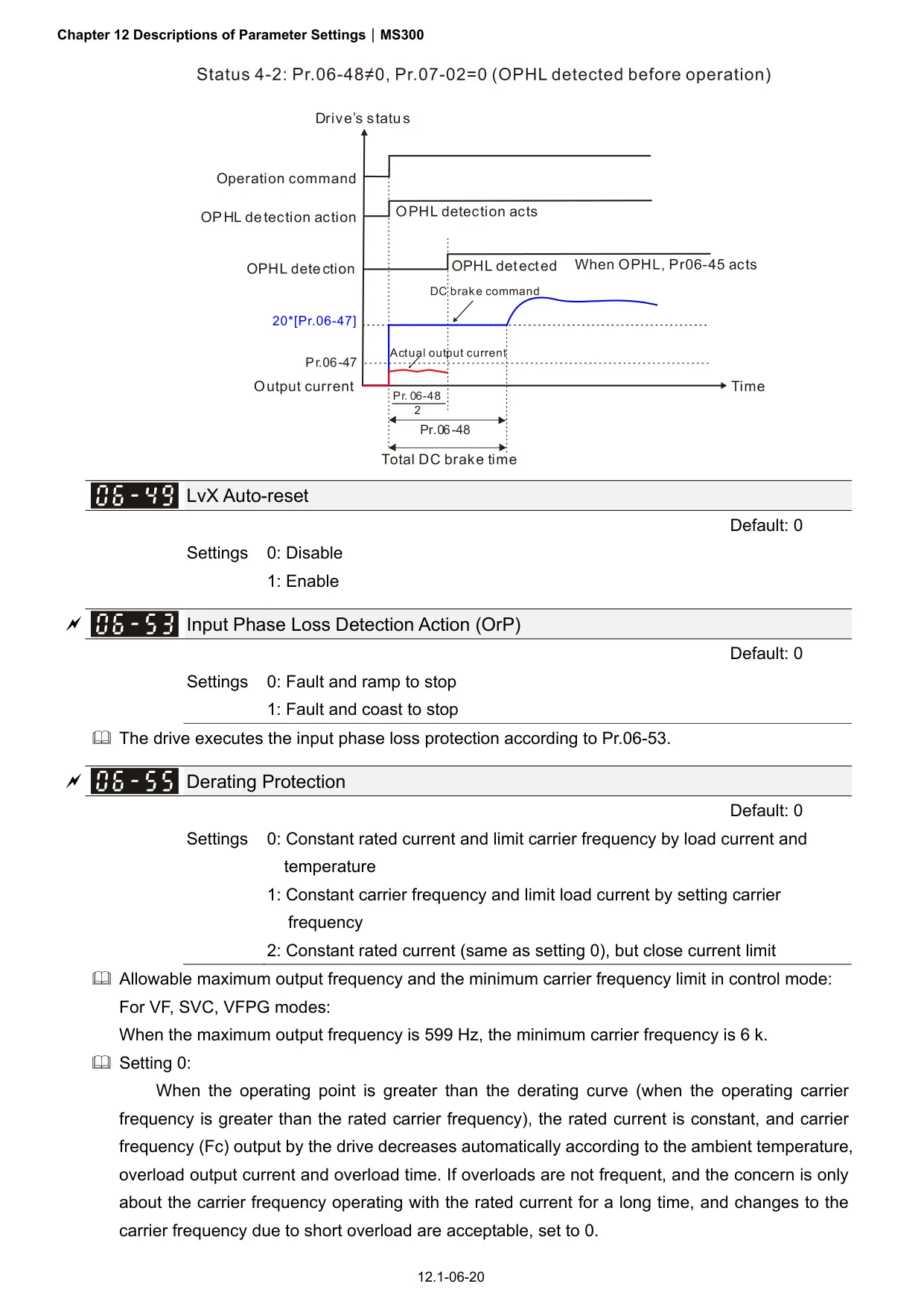

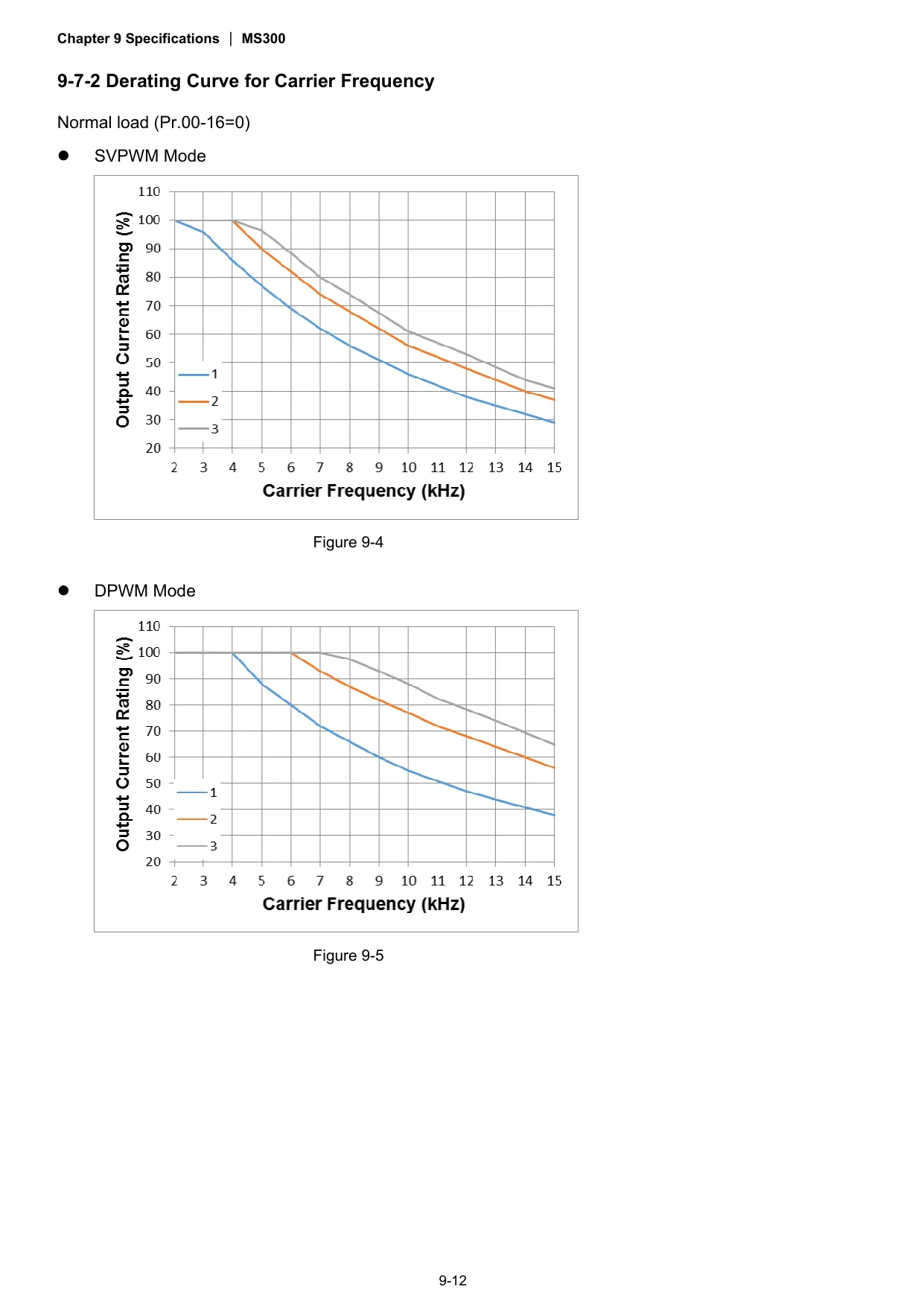

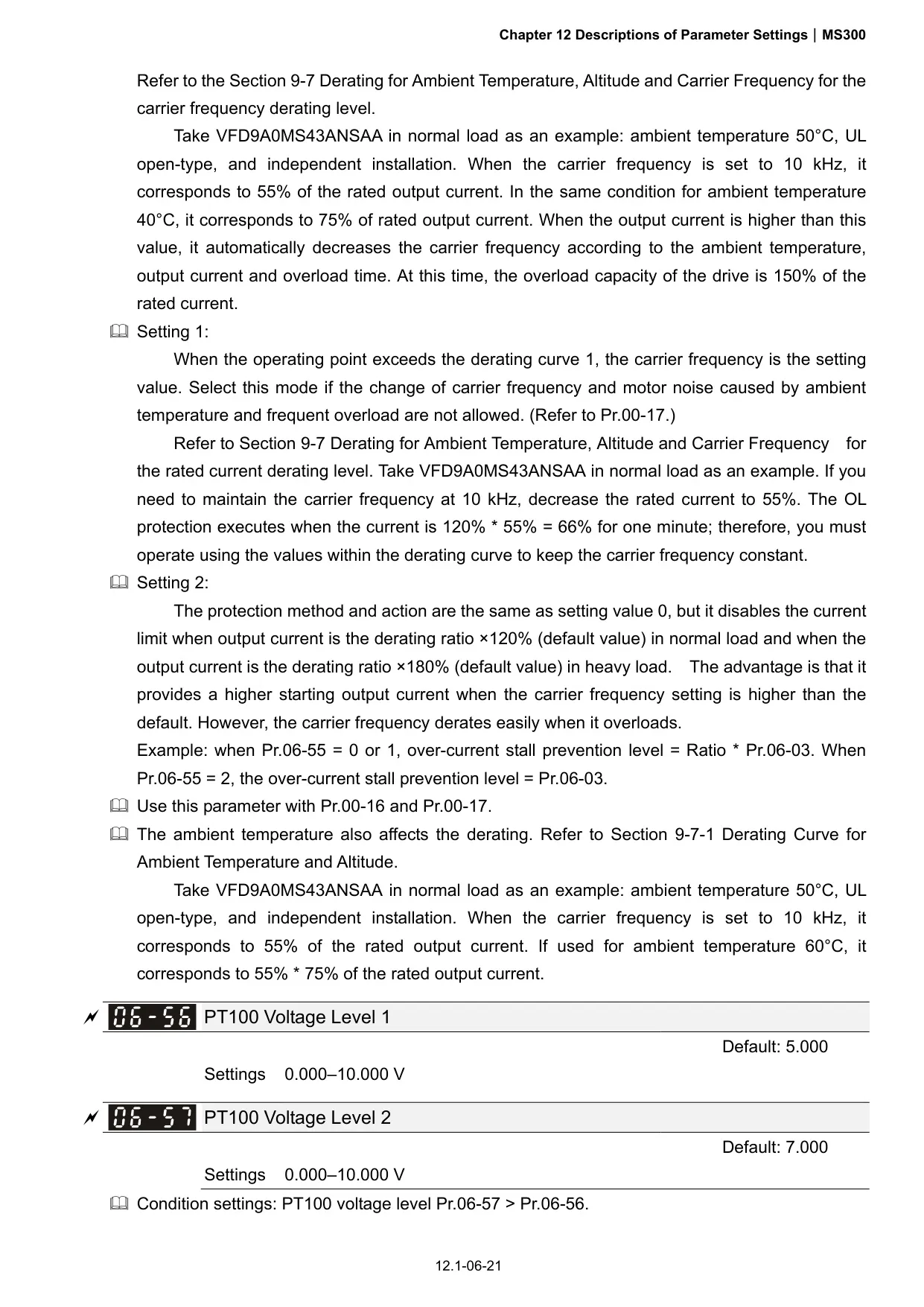

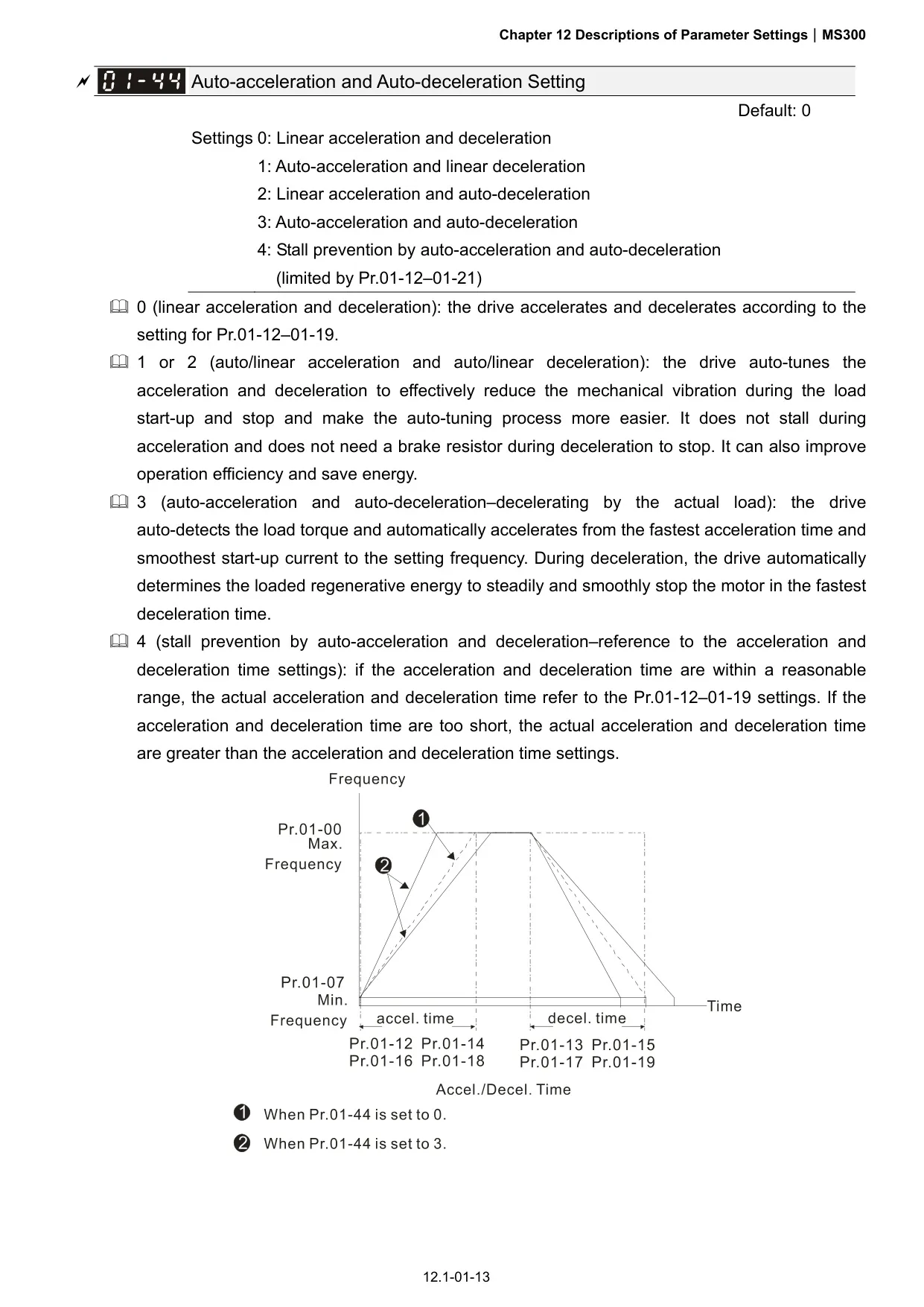

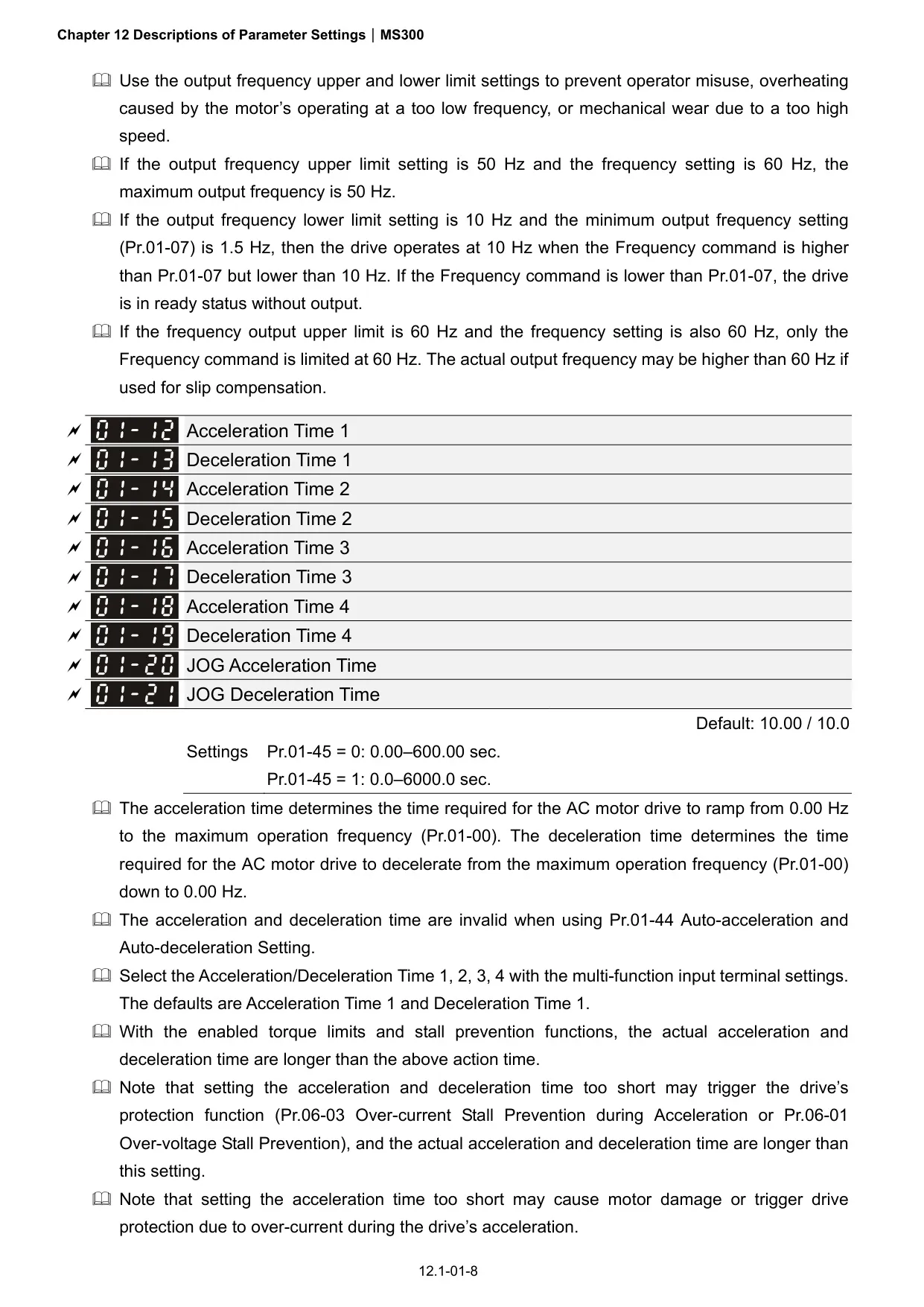

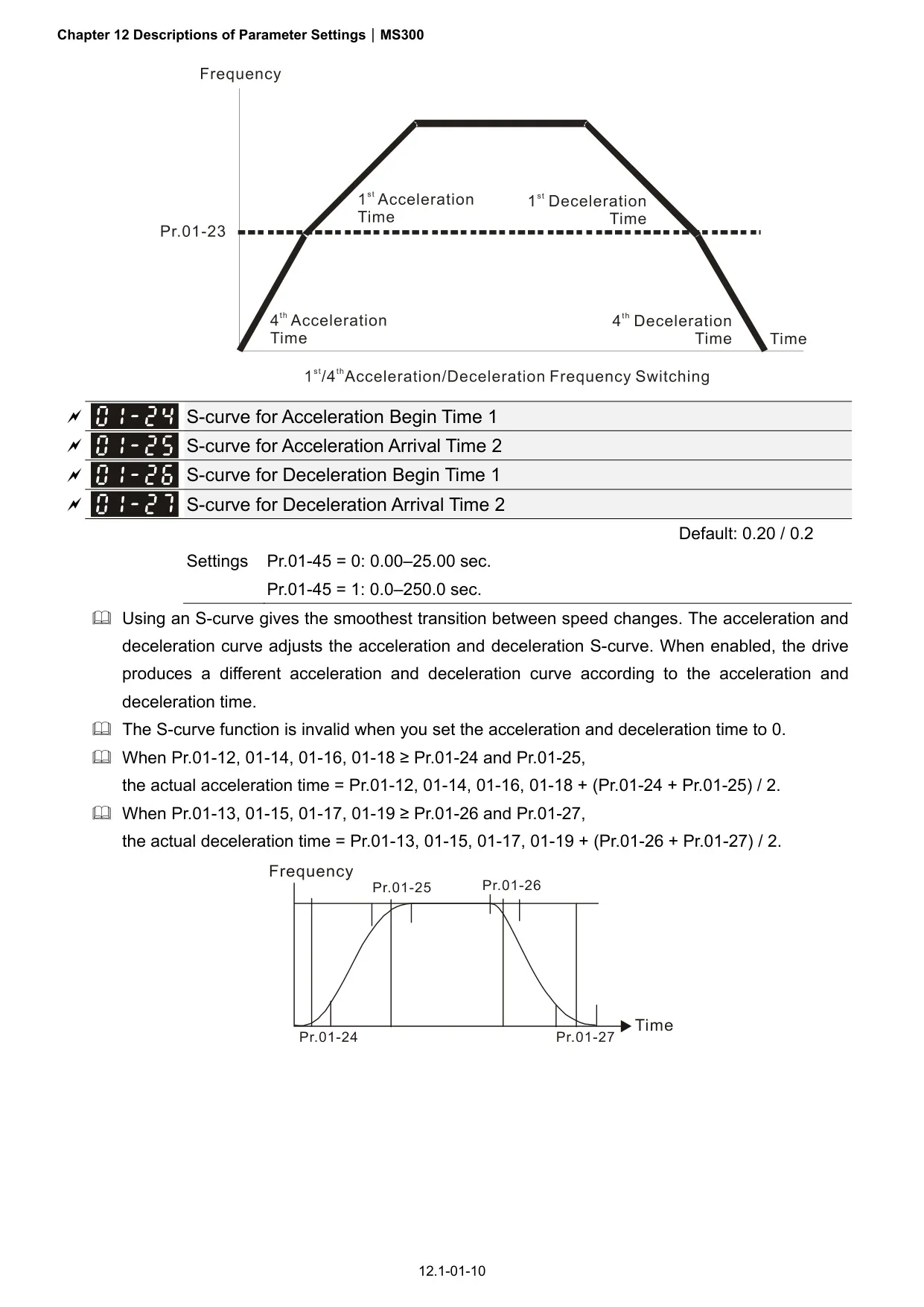

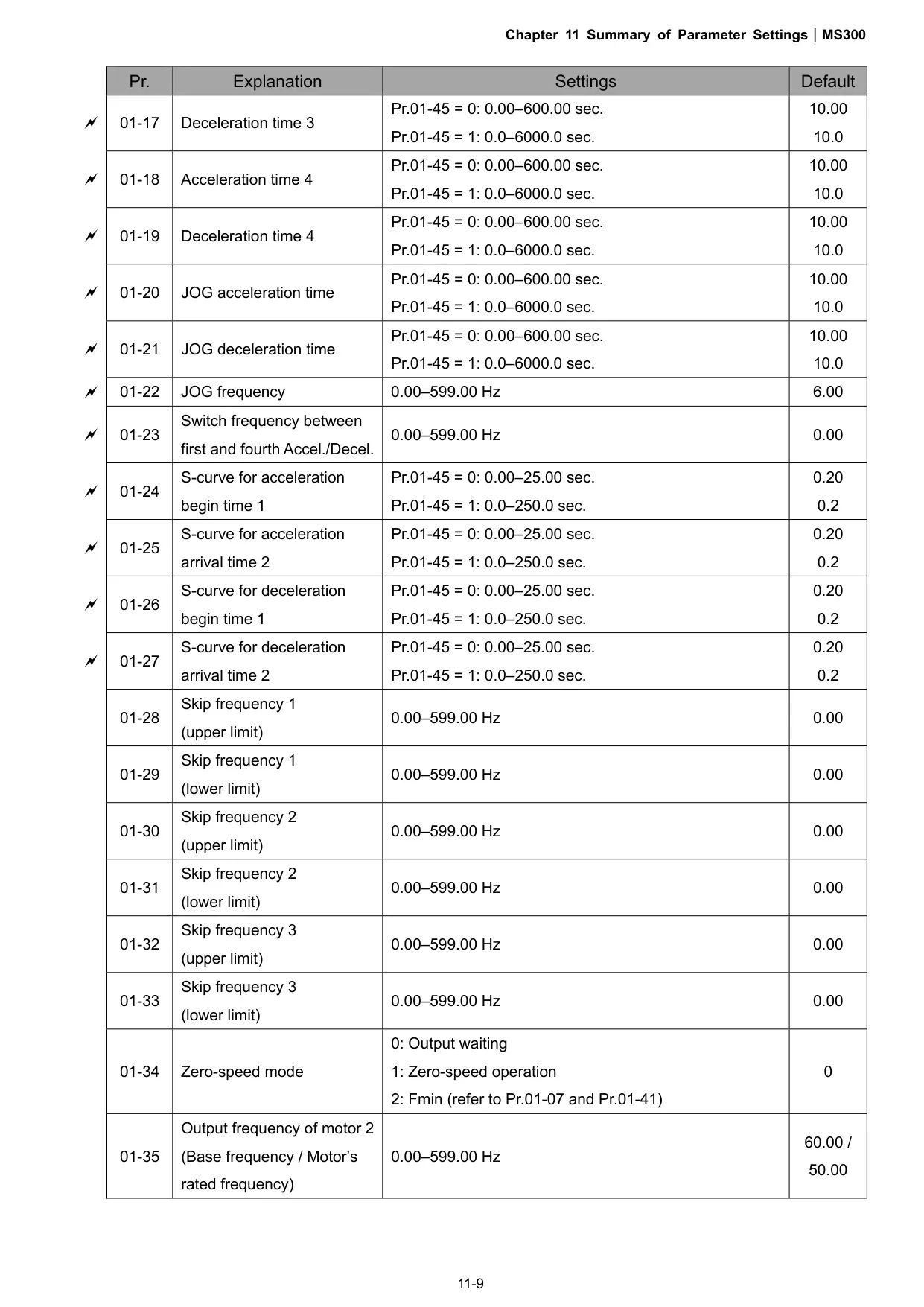

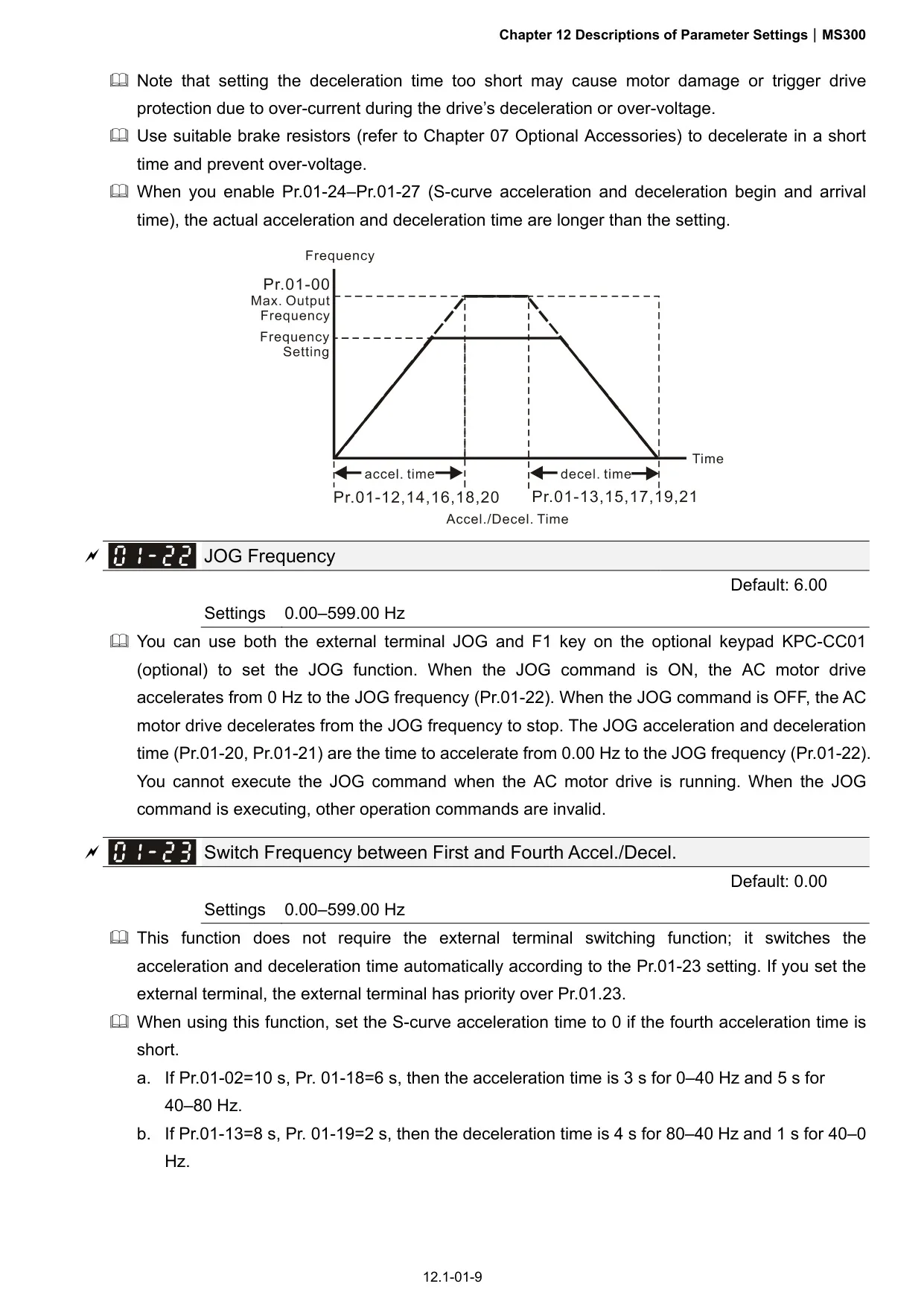

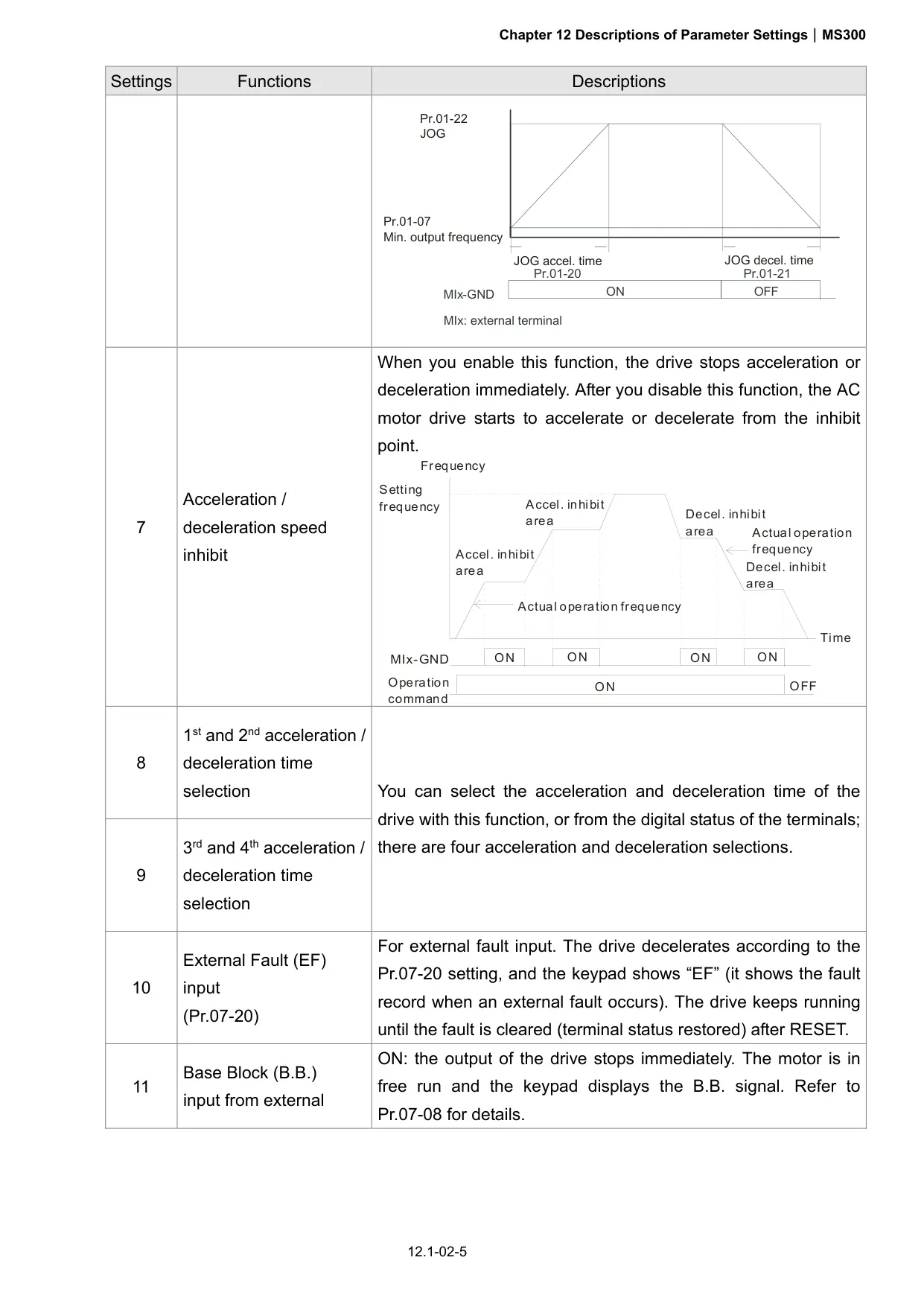

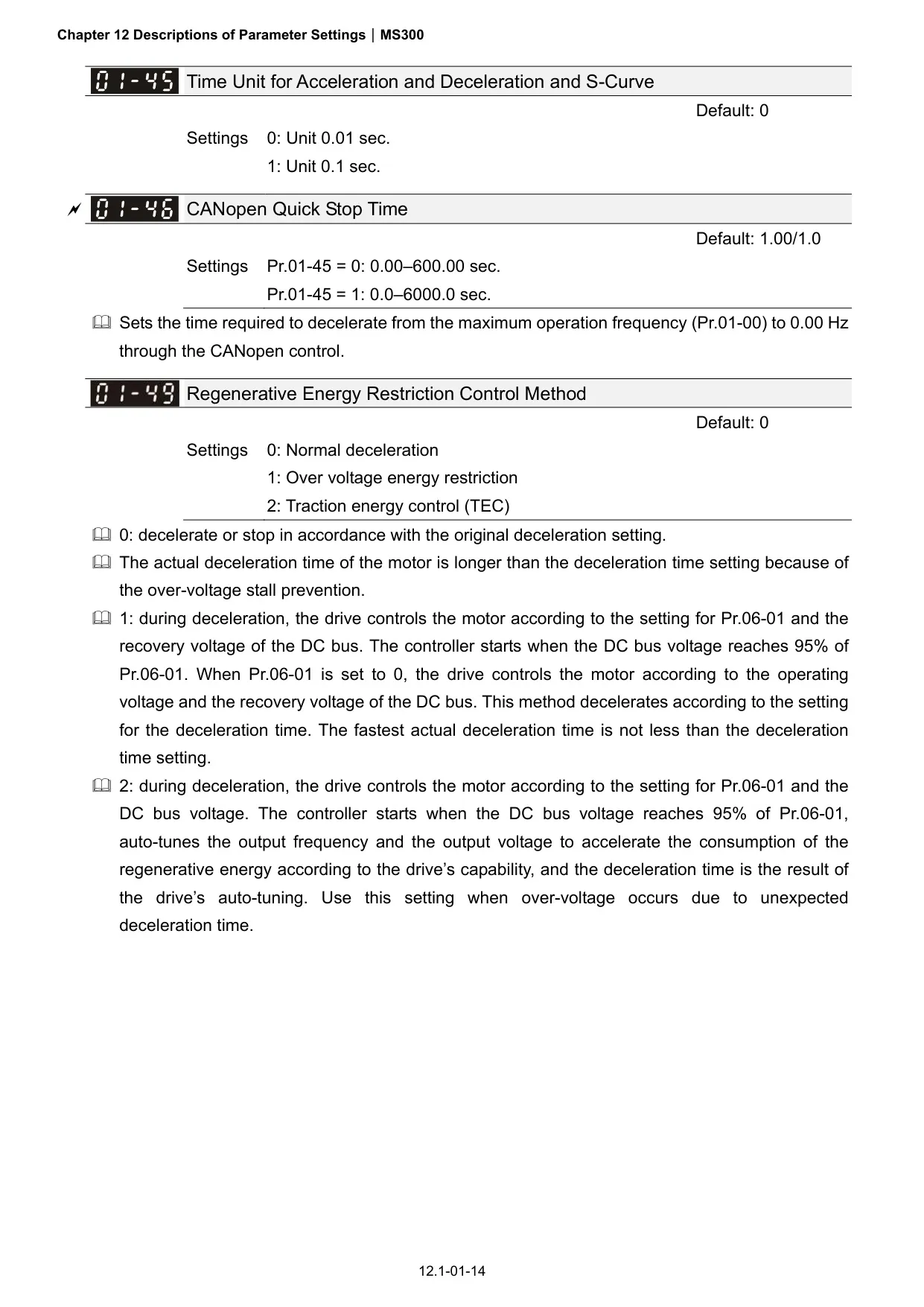

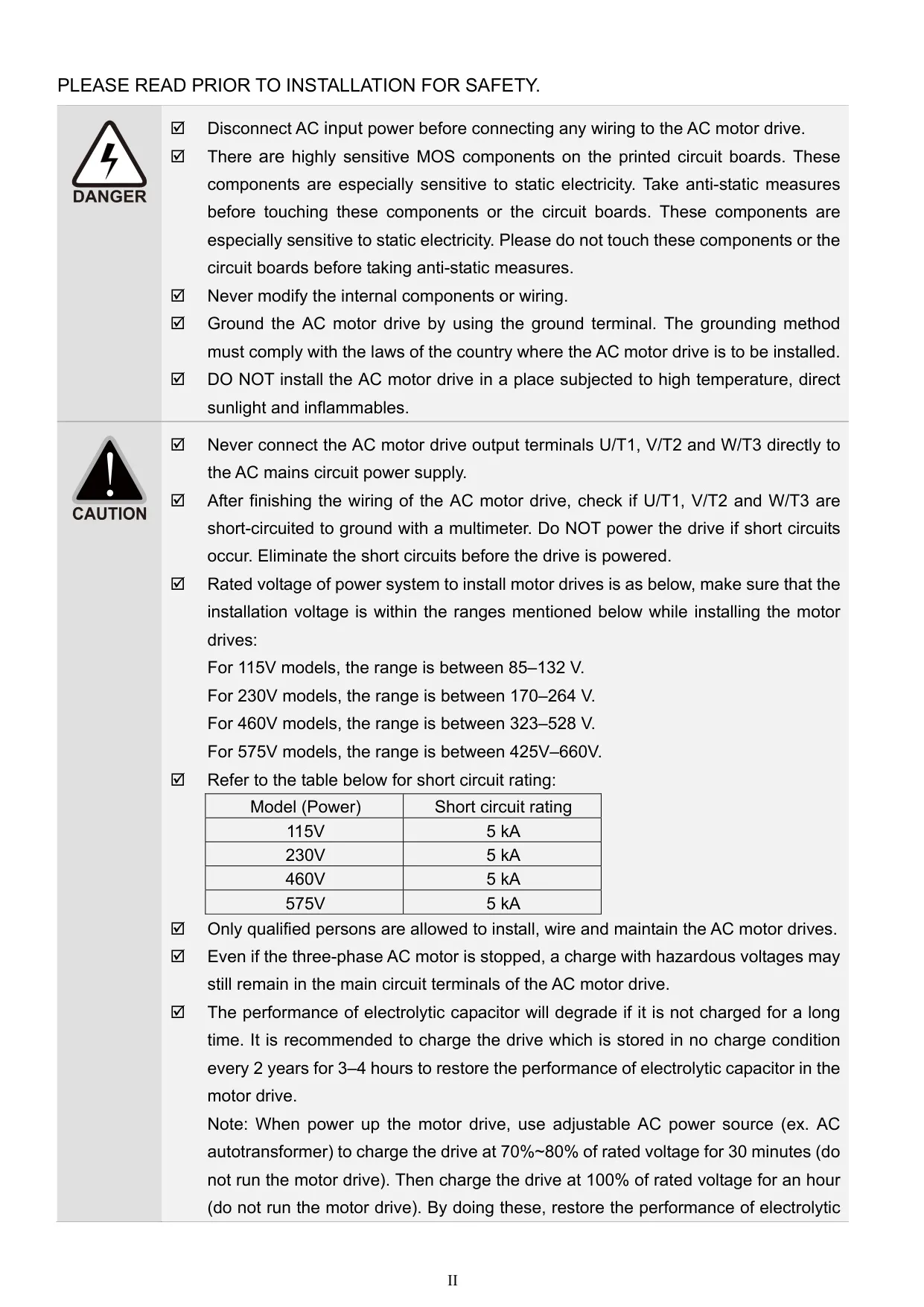

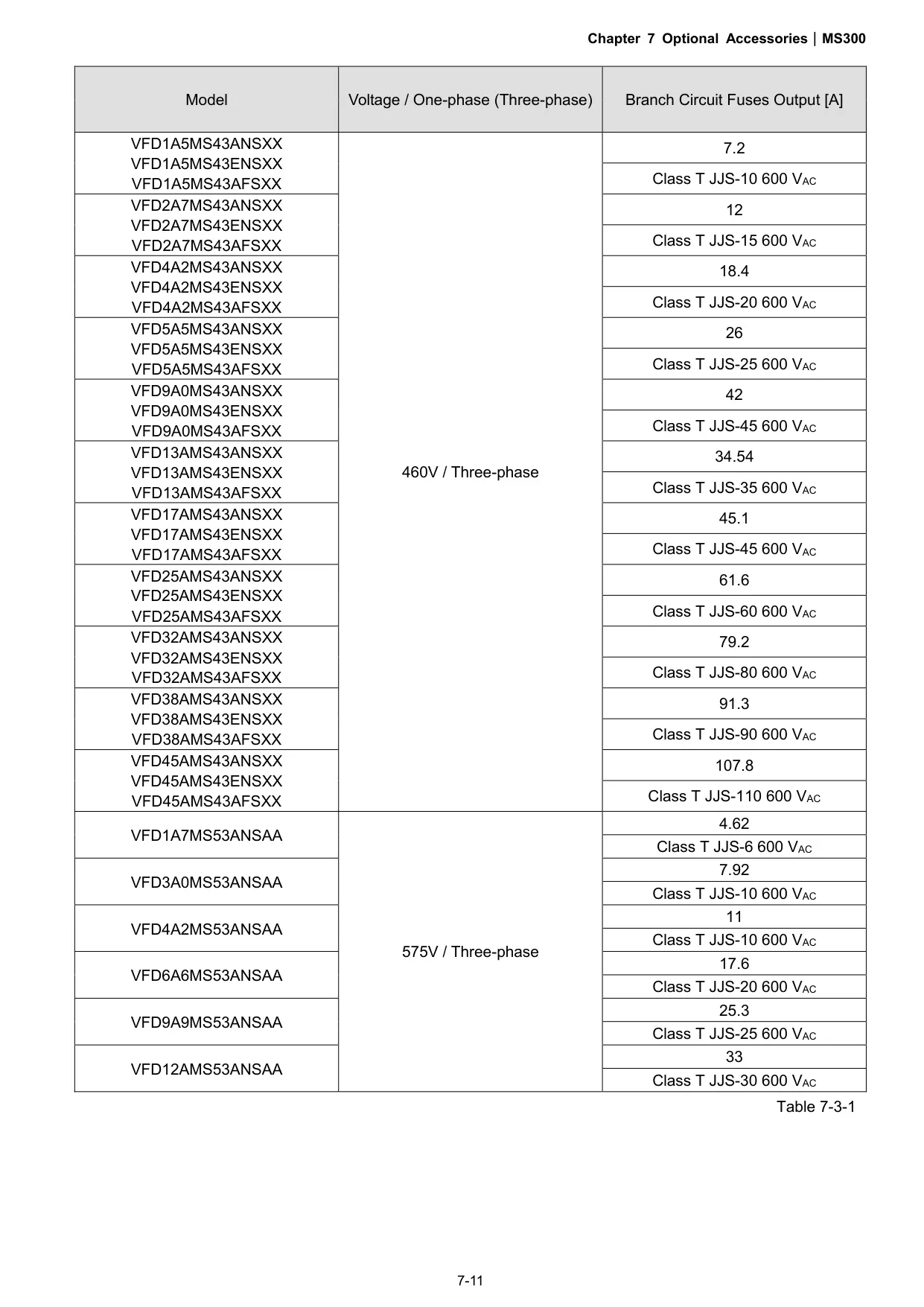

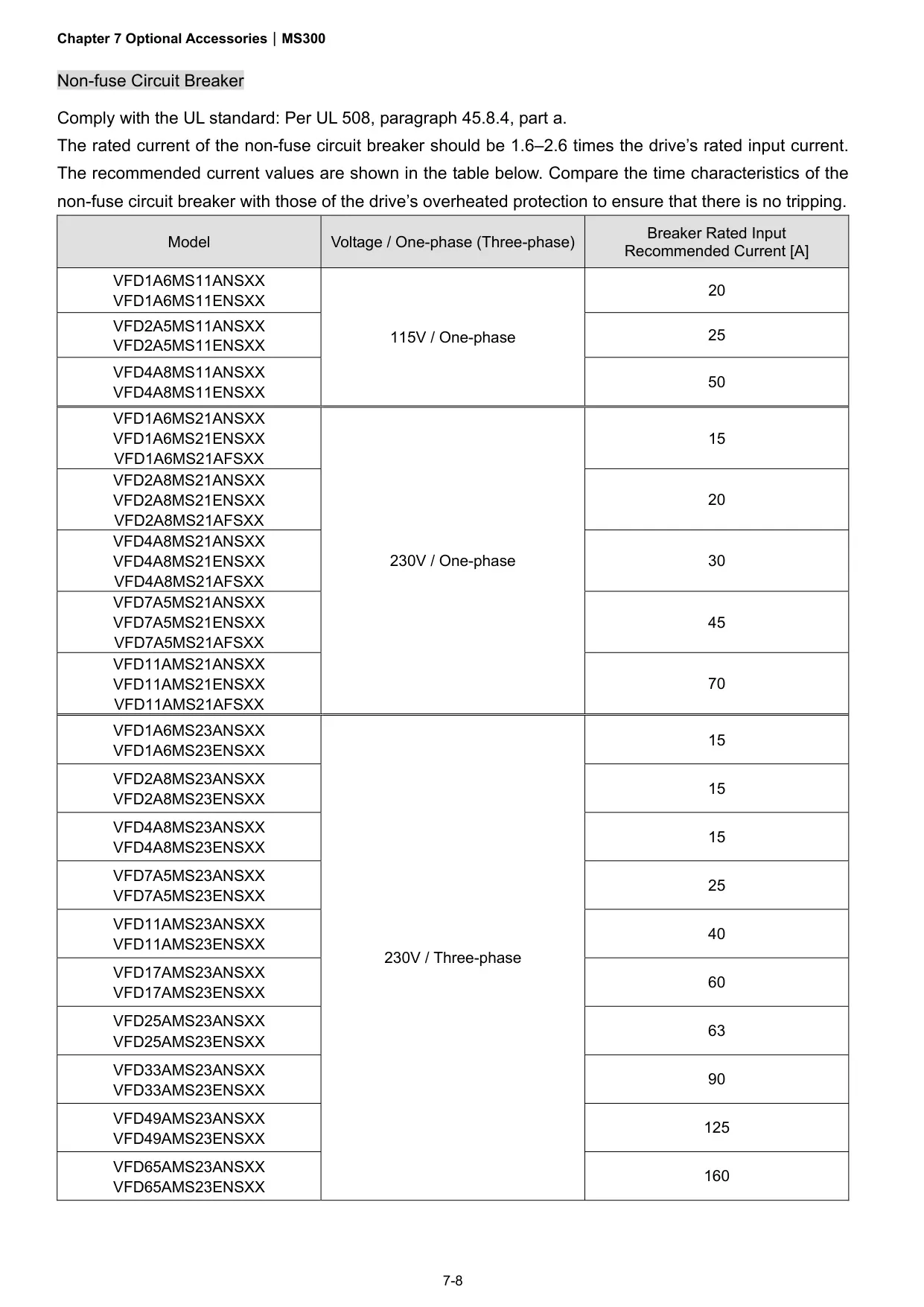

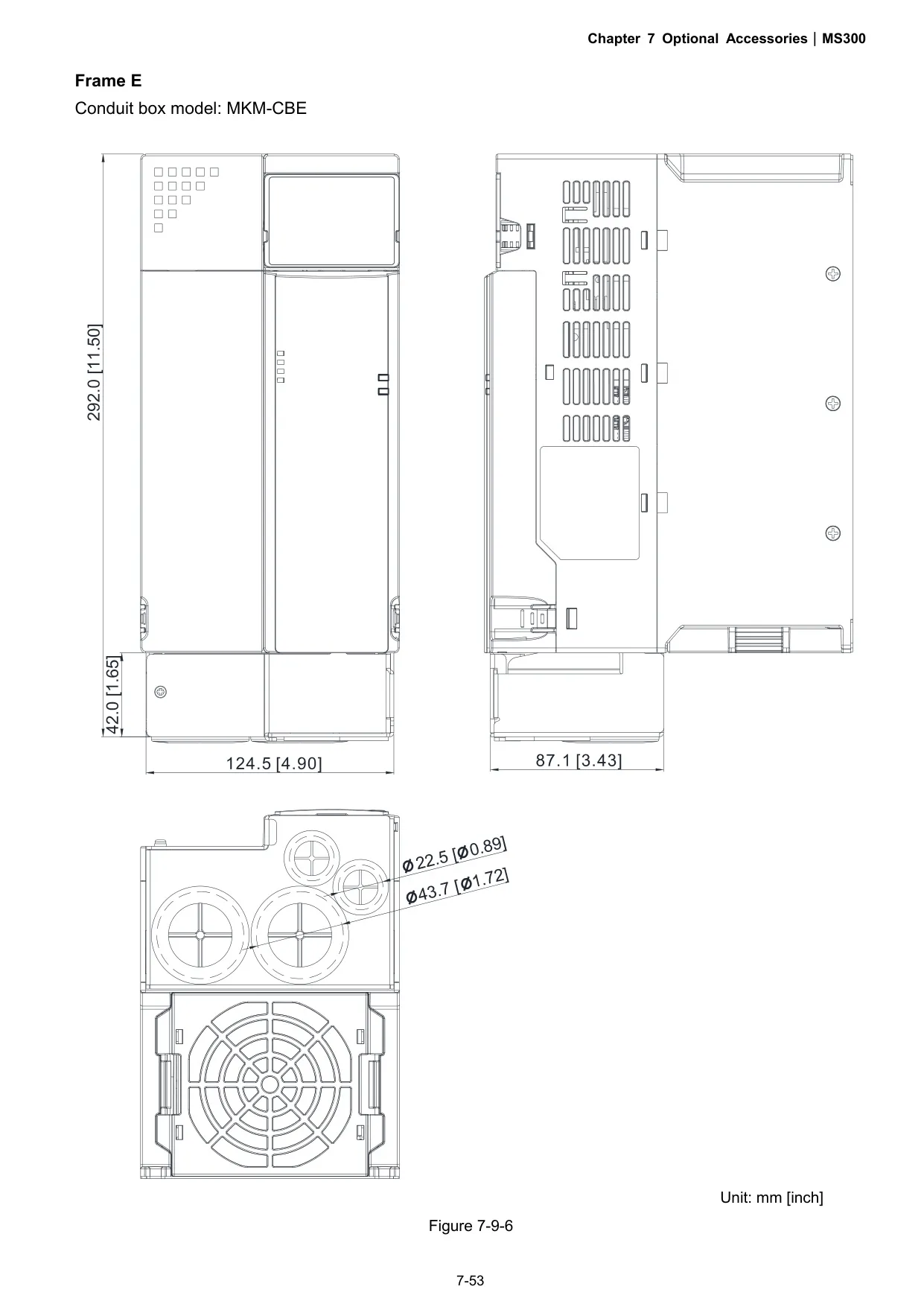

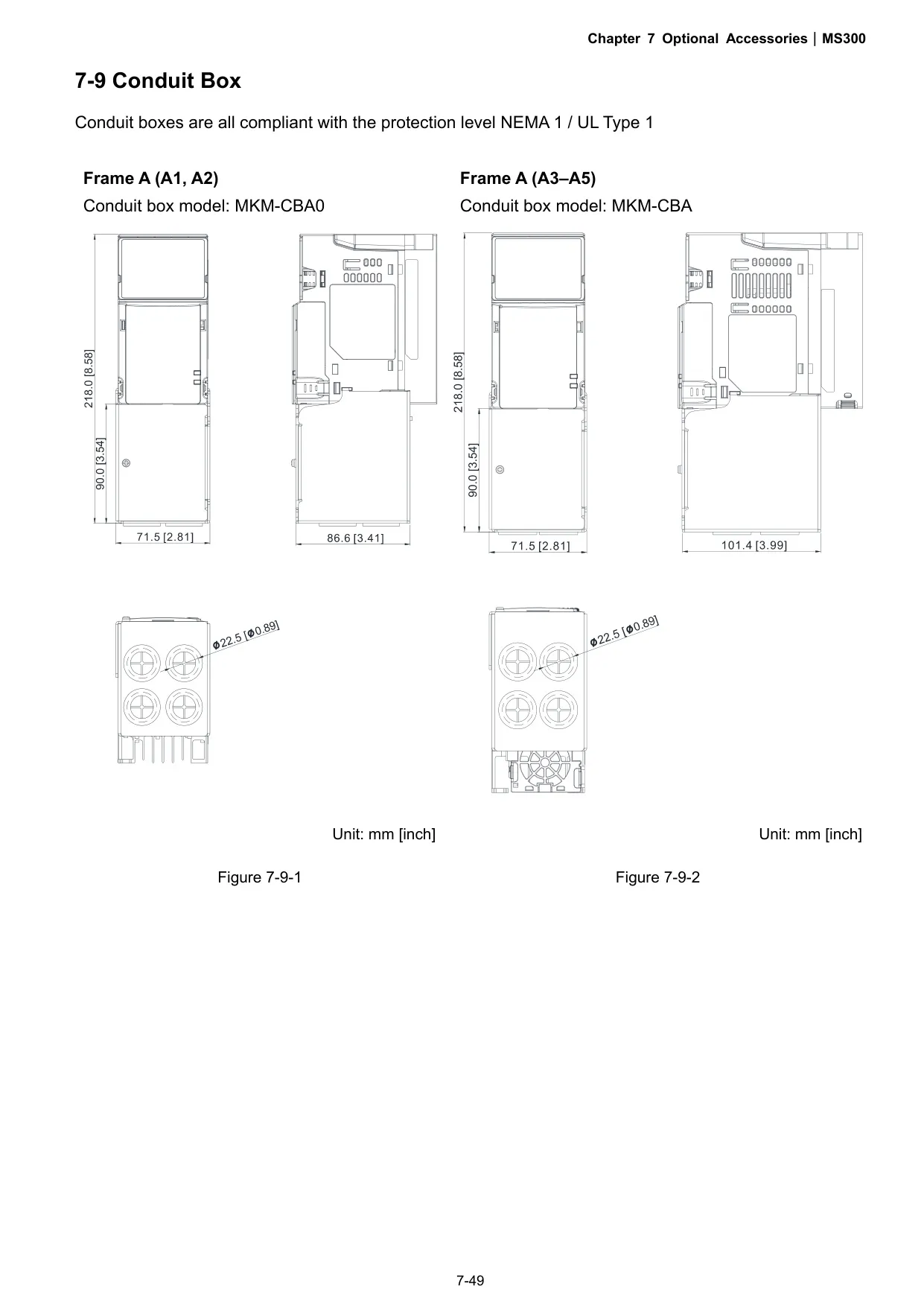

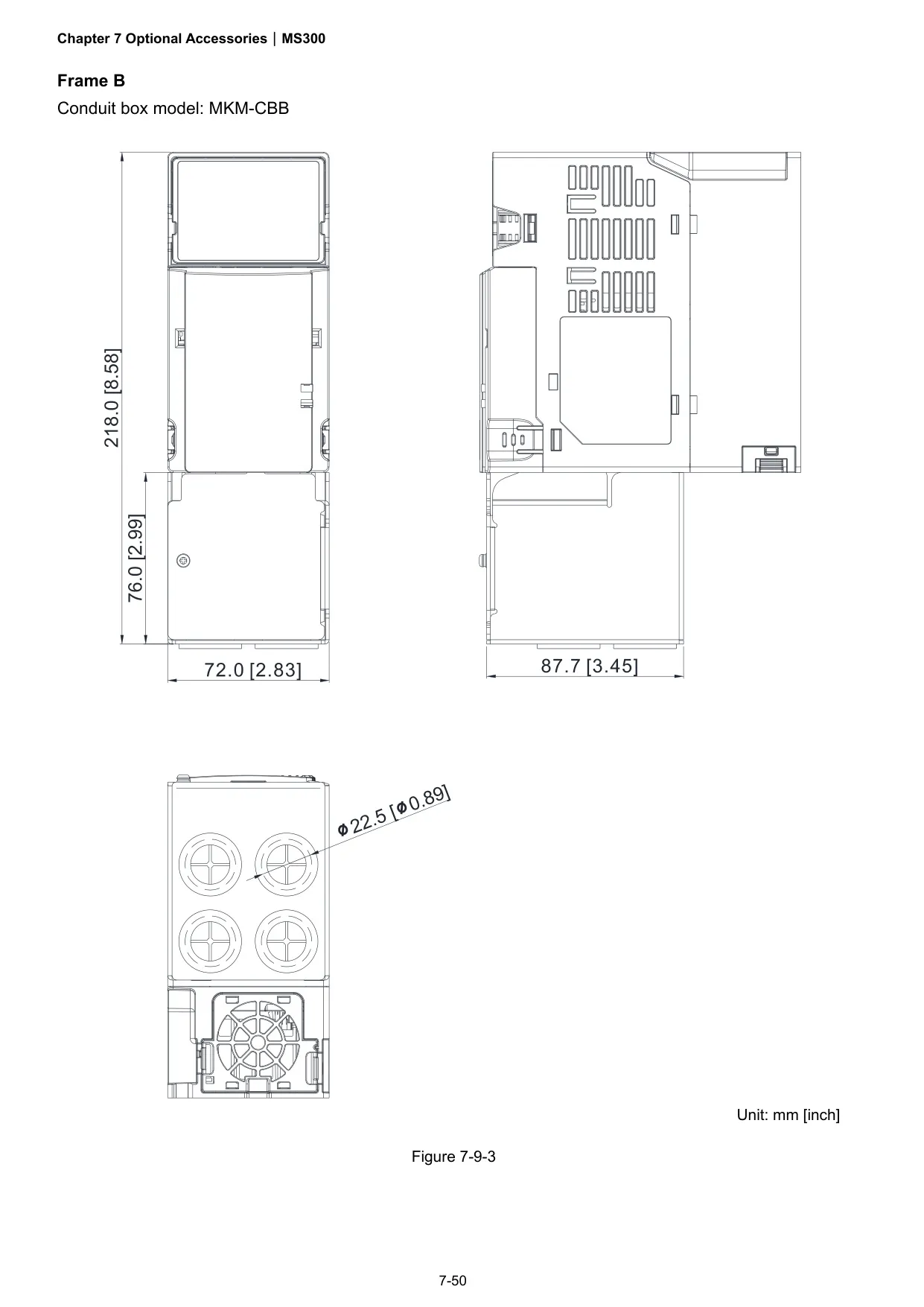

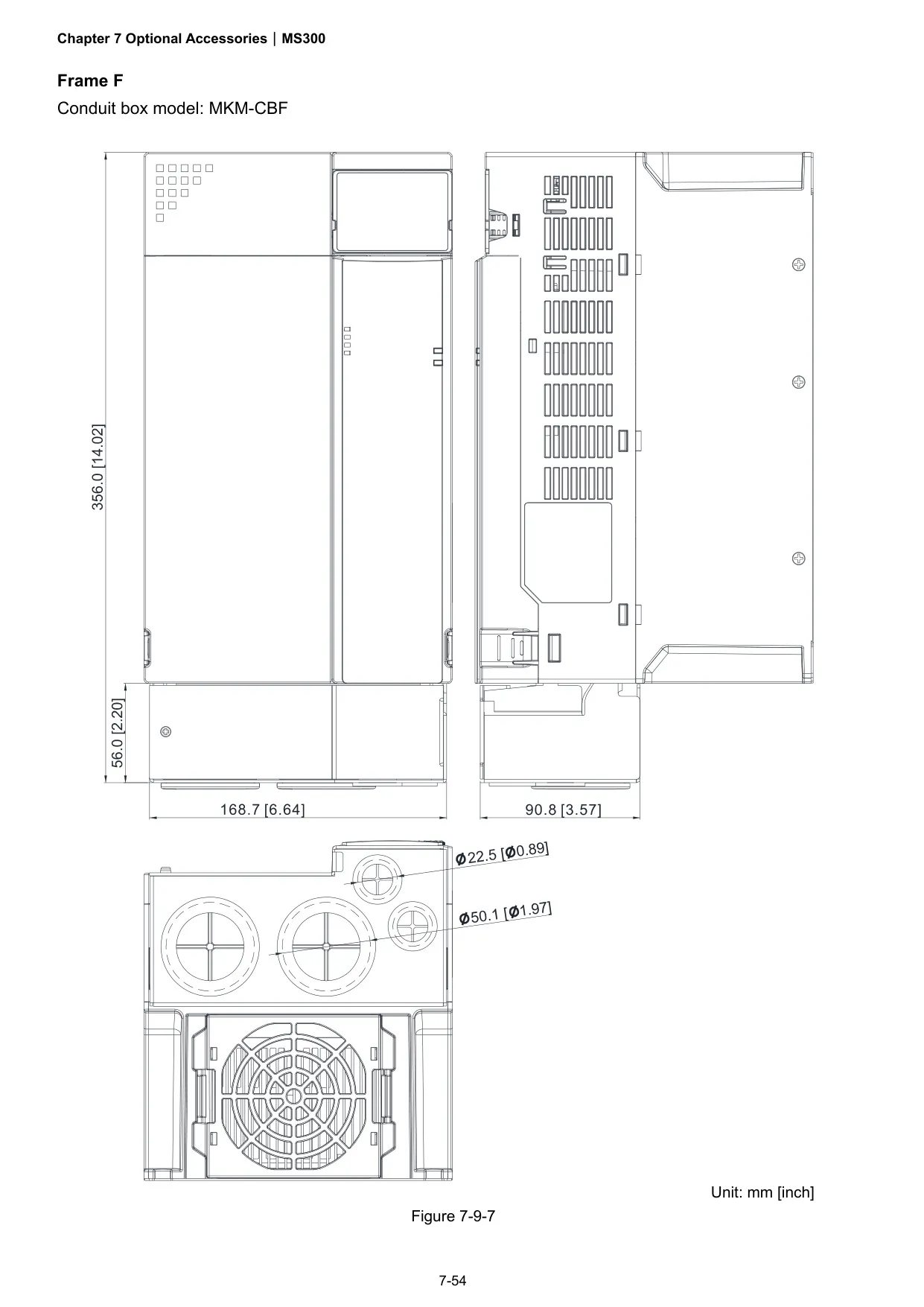

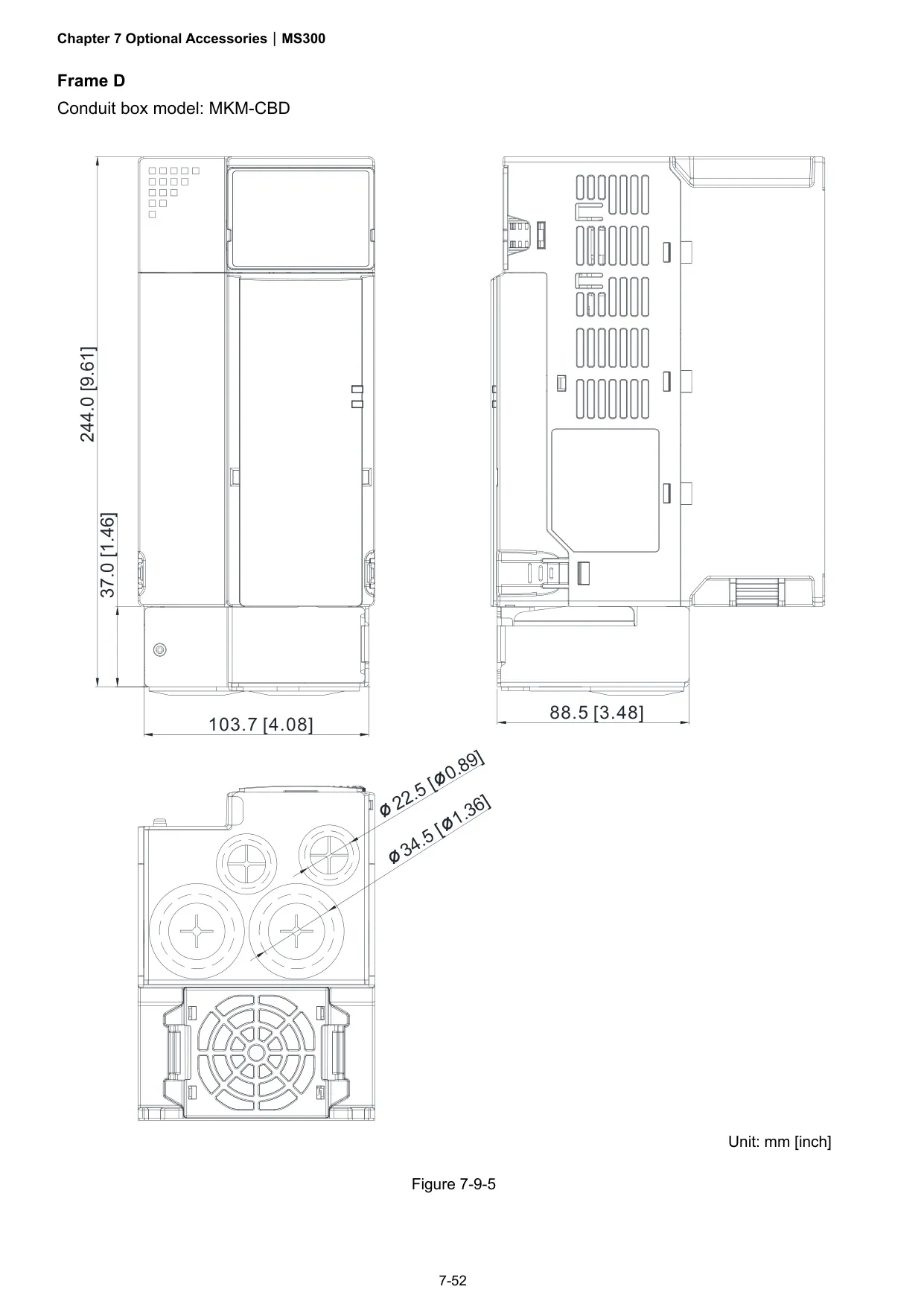

| Carrier Frequency | 2 – 15 kHz (Default: 4 kHz), Max 10 kHz for FOC Sensorless |
| Acceleration/Deceleration Time | 0.00 – 600.00 sec (0.01s unit) or 0.0 – 6000.0 sec (0.1s unit) |
| Short Circuit Rating | 5 kA (all 115V, 230V, 460V, 575V models) |
| Protection Rating | IP20 (standard models), IP40 (ENSAA/NEMA 1/UL Type 1 models) |

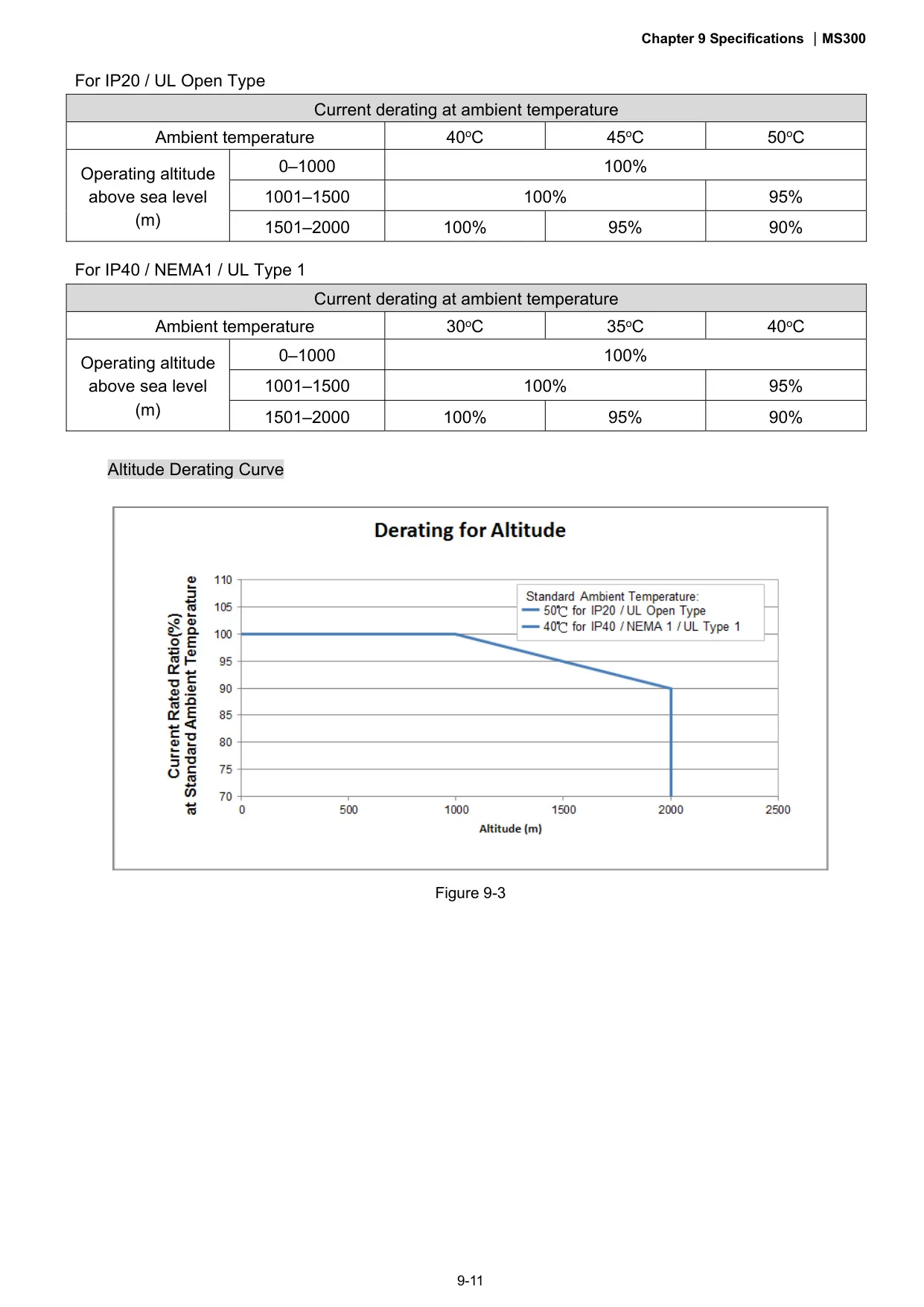

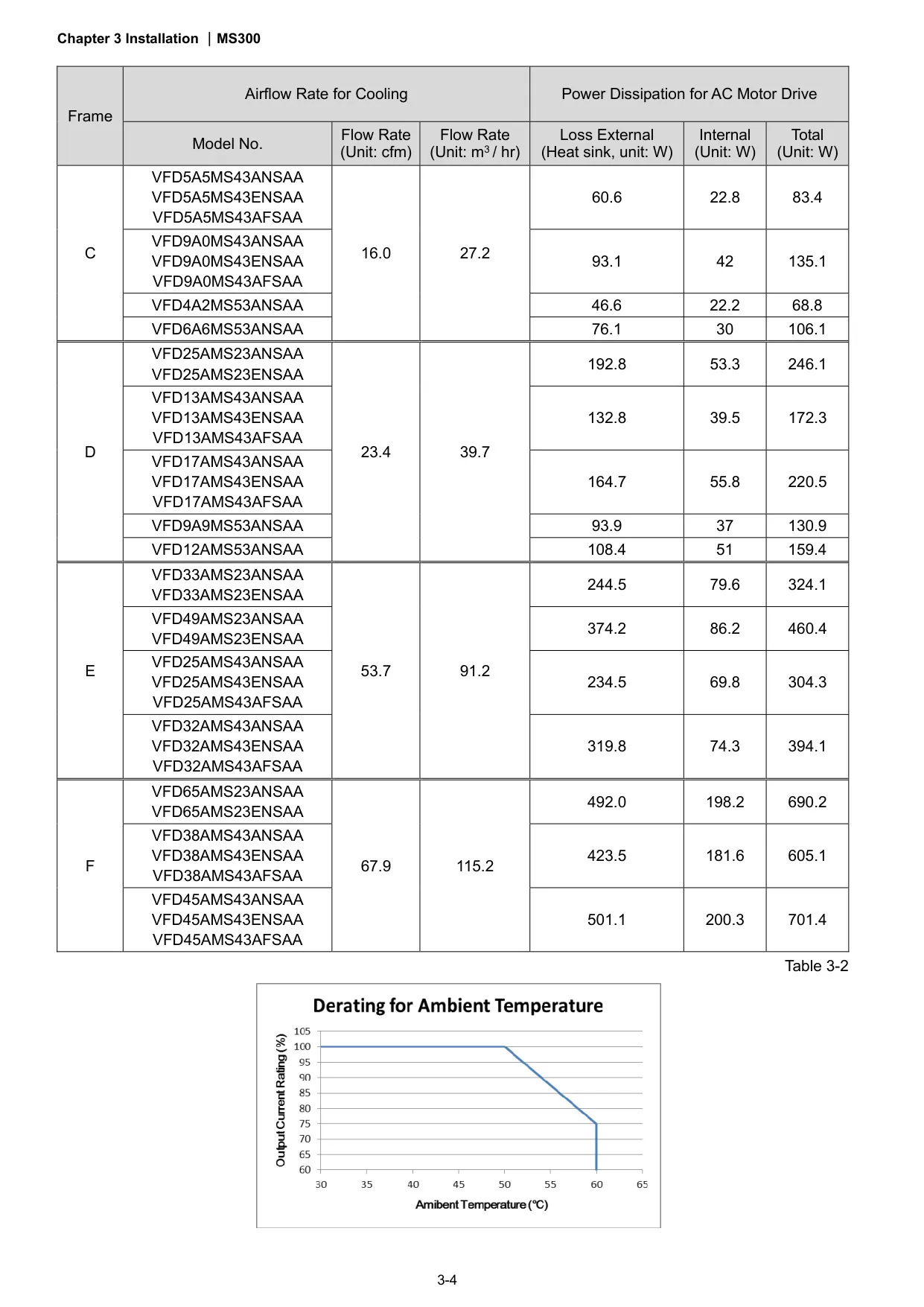

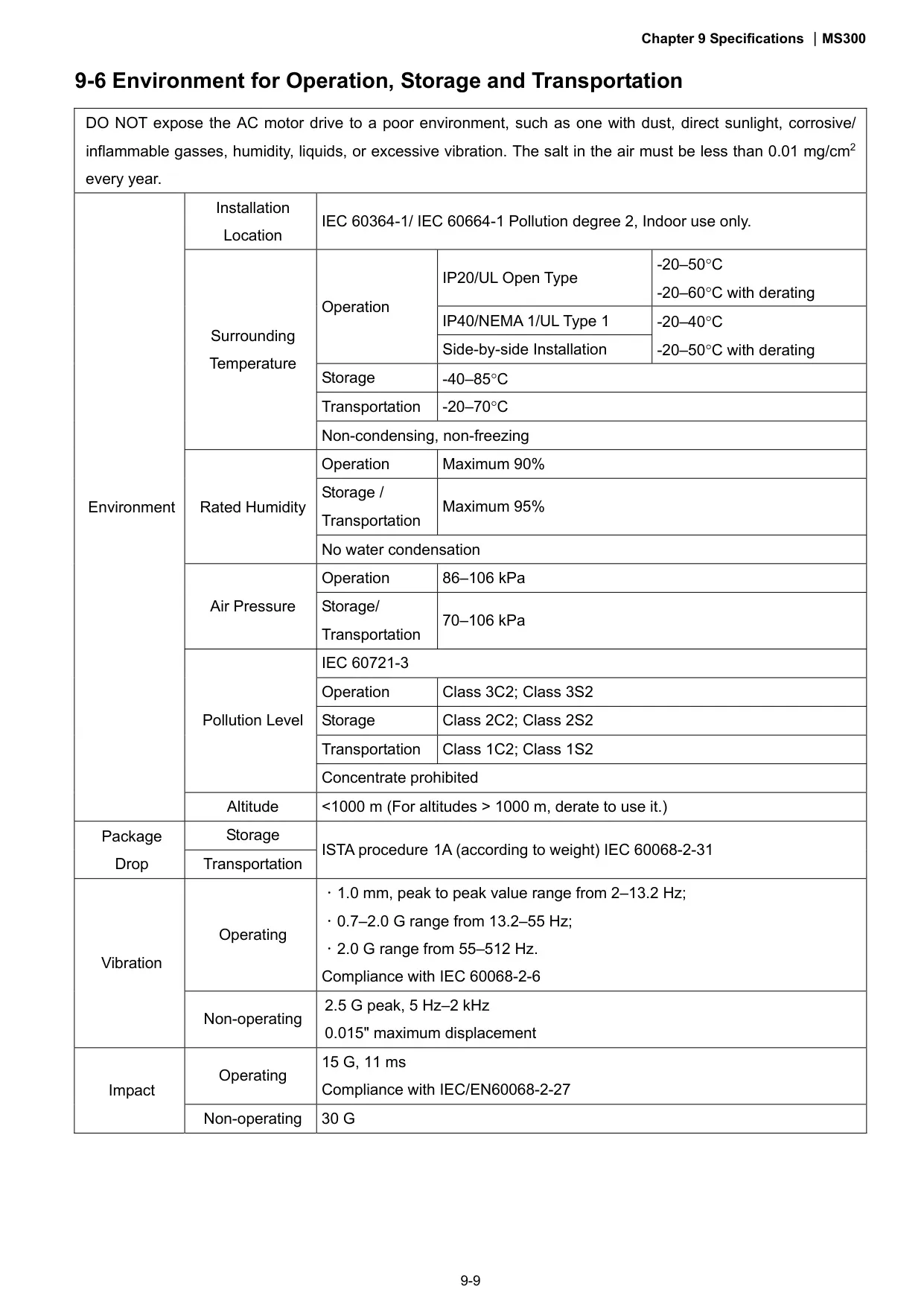

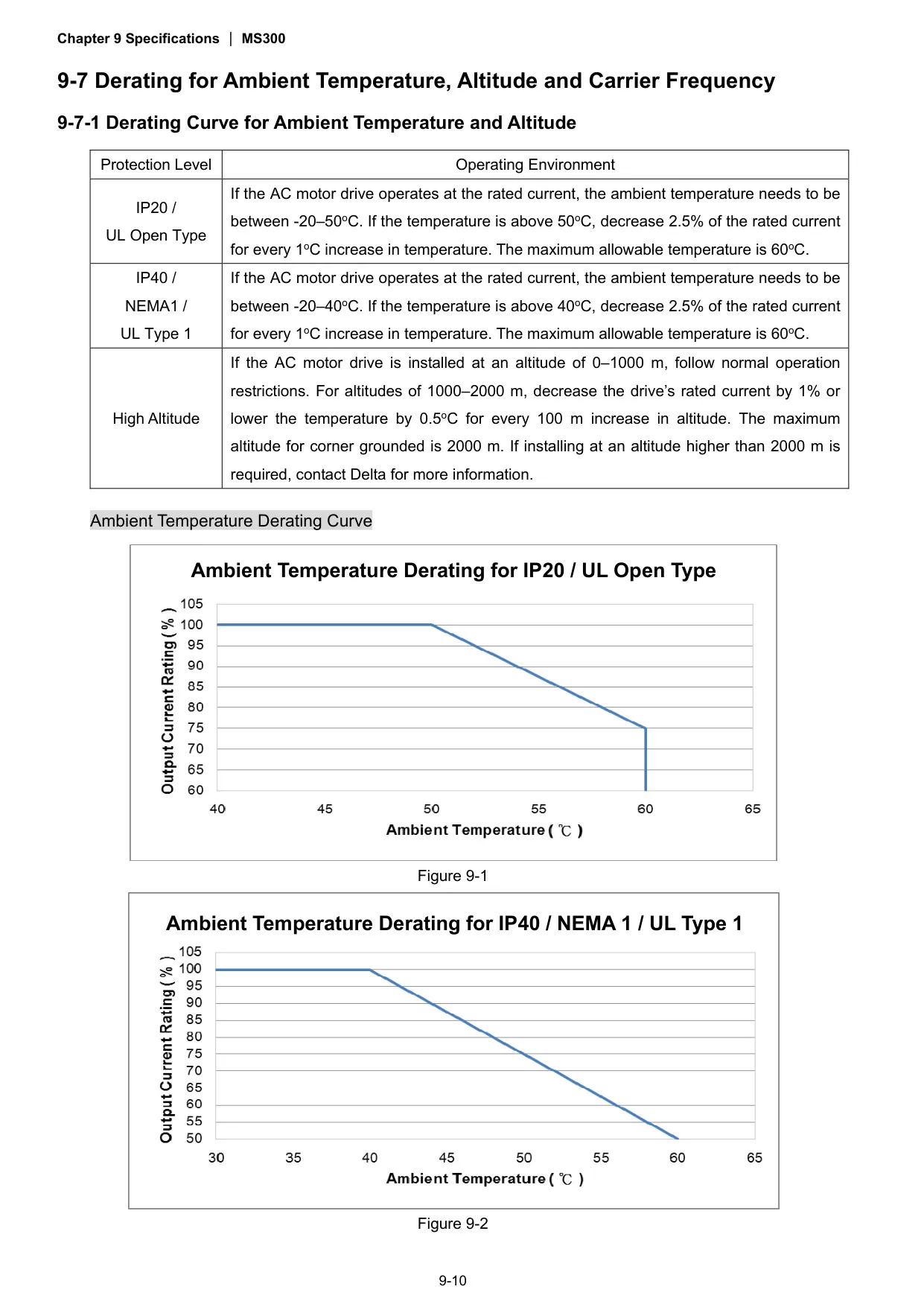

| Ambient Temperature | -20 to 50°C (without derating, IP20), -20 to 40°C (without derating, IP40) |
| Certifications | UL, CE, RCM, TÜV (SIL 2), RoHS, REACH |

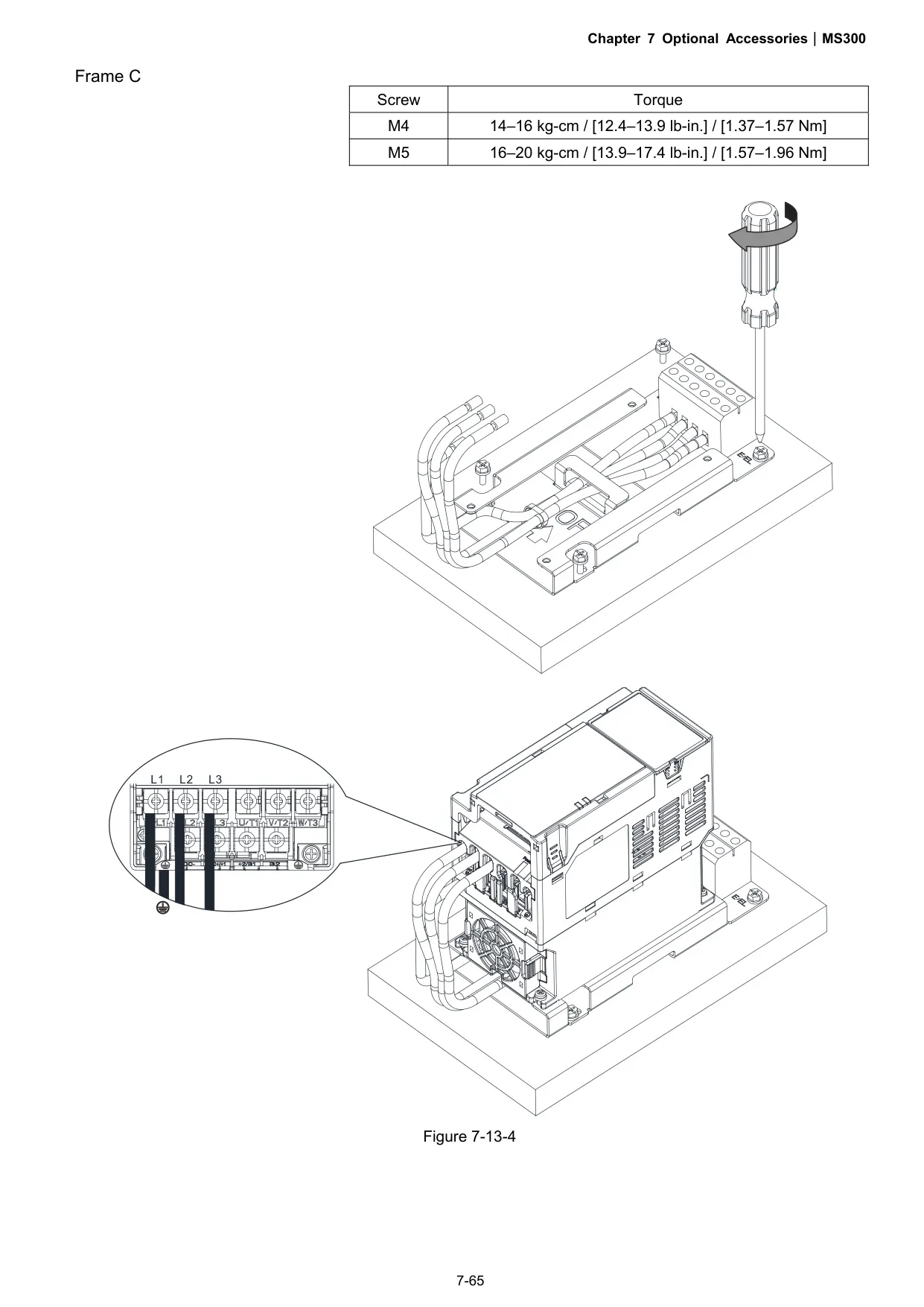

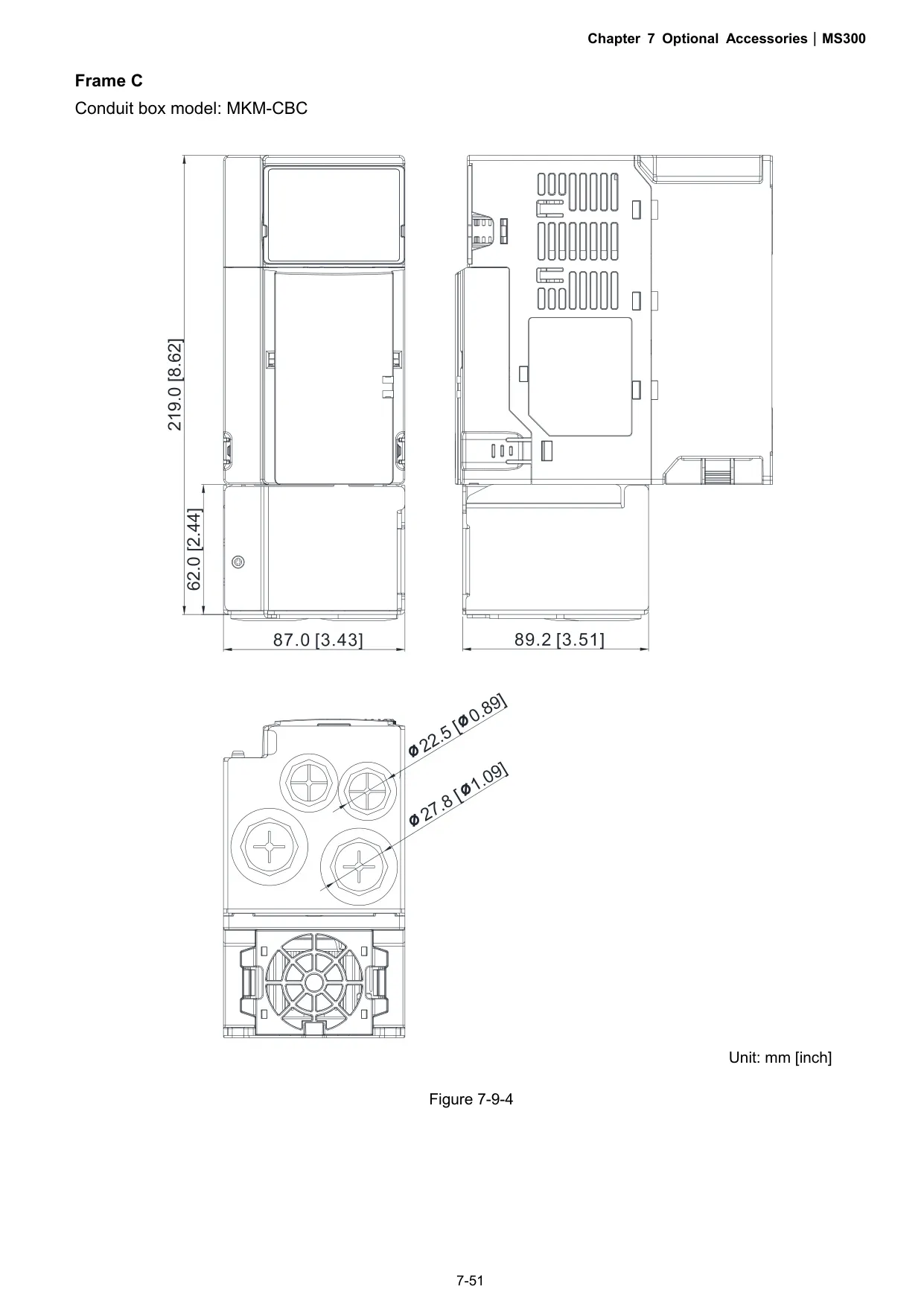

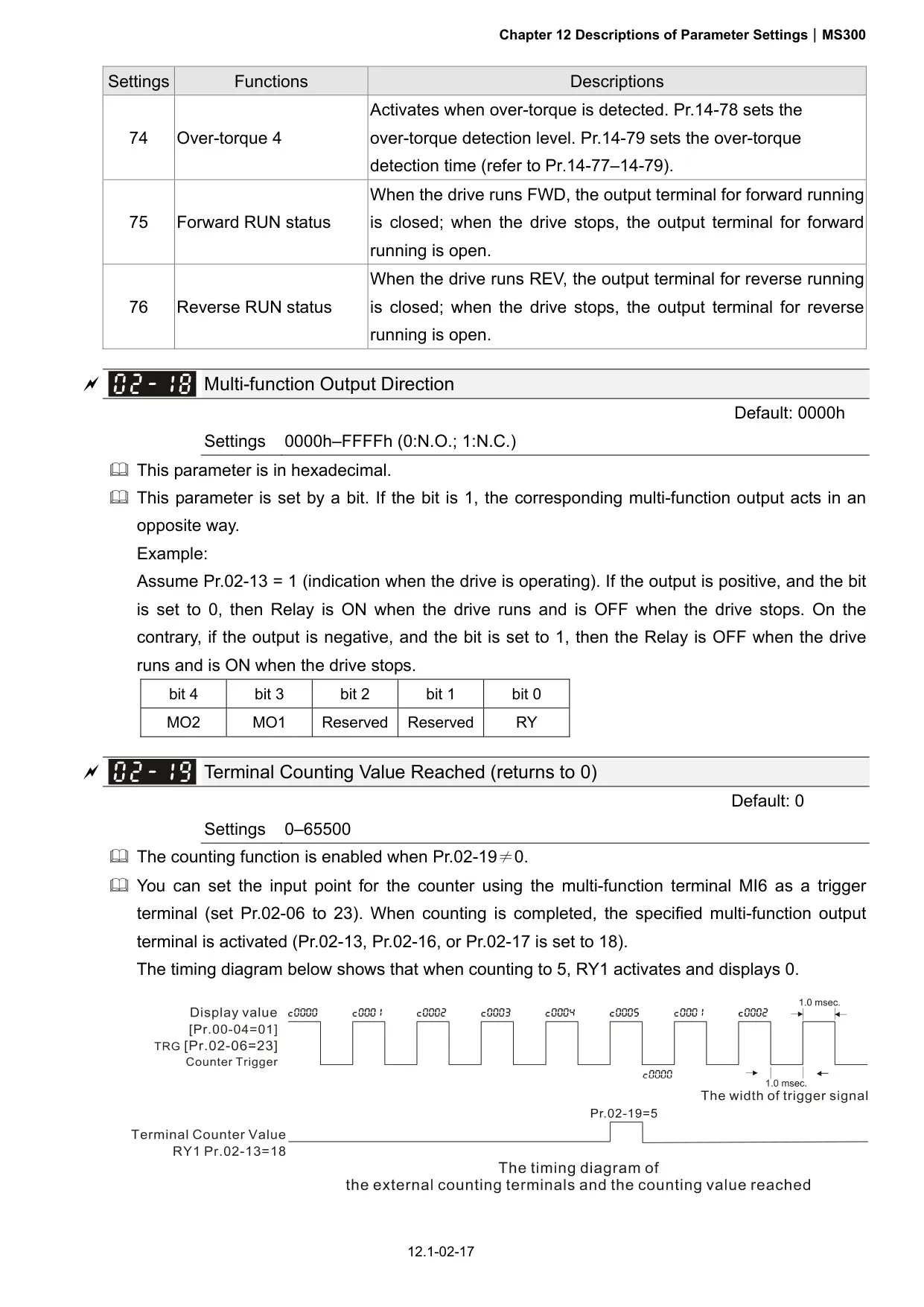

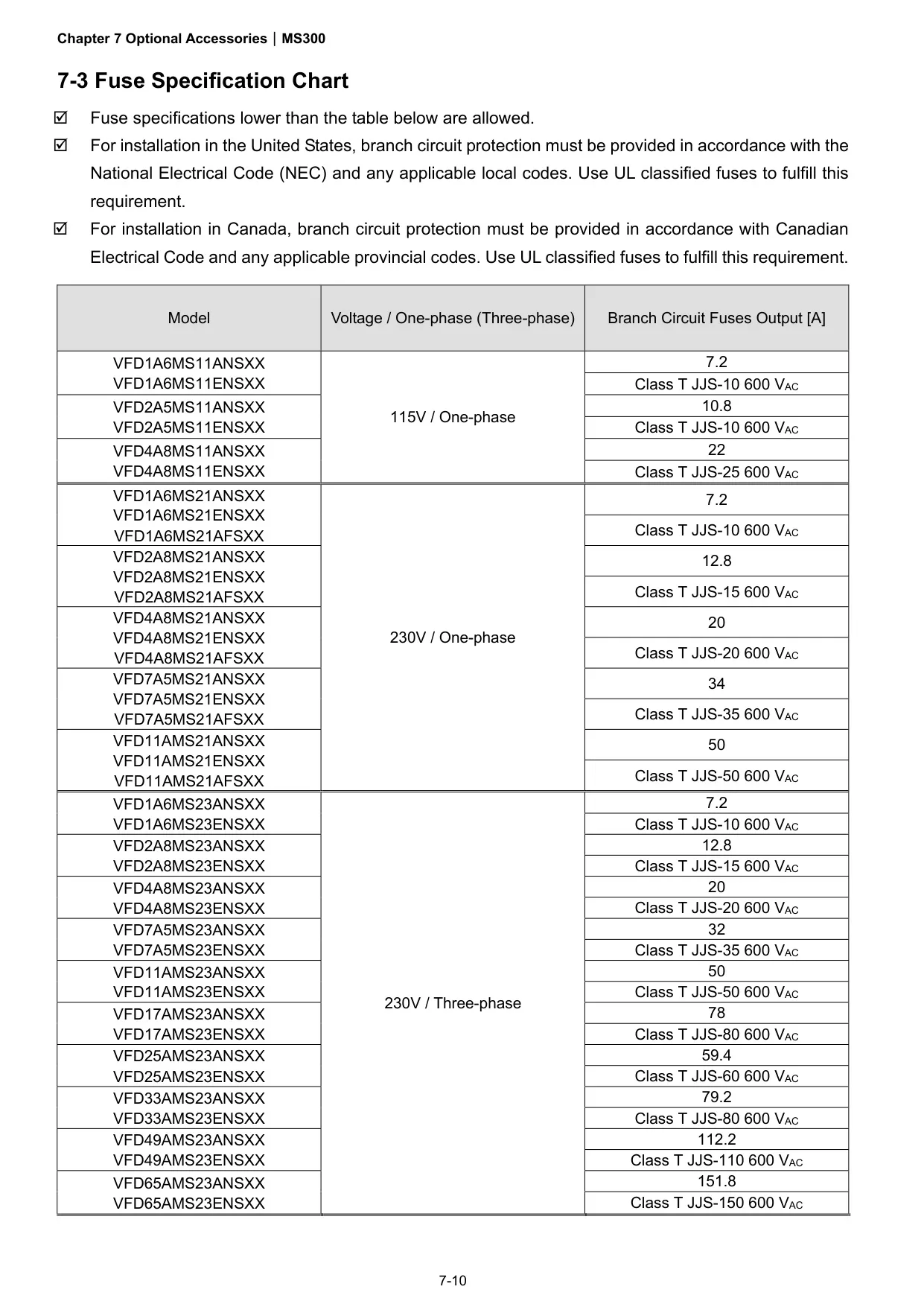

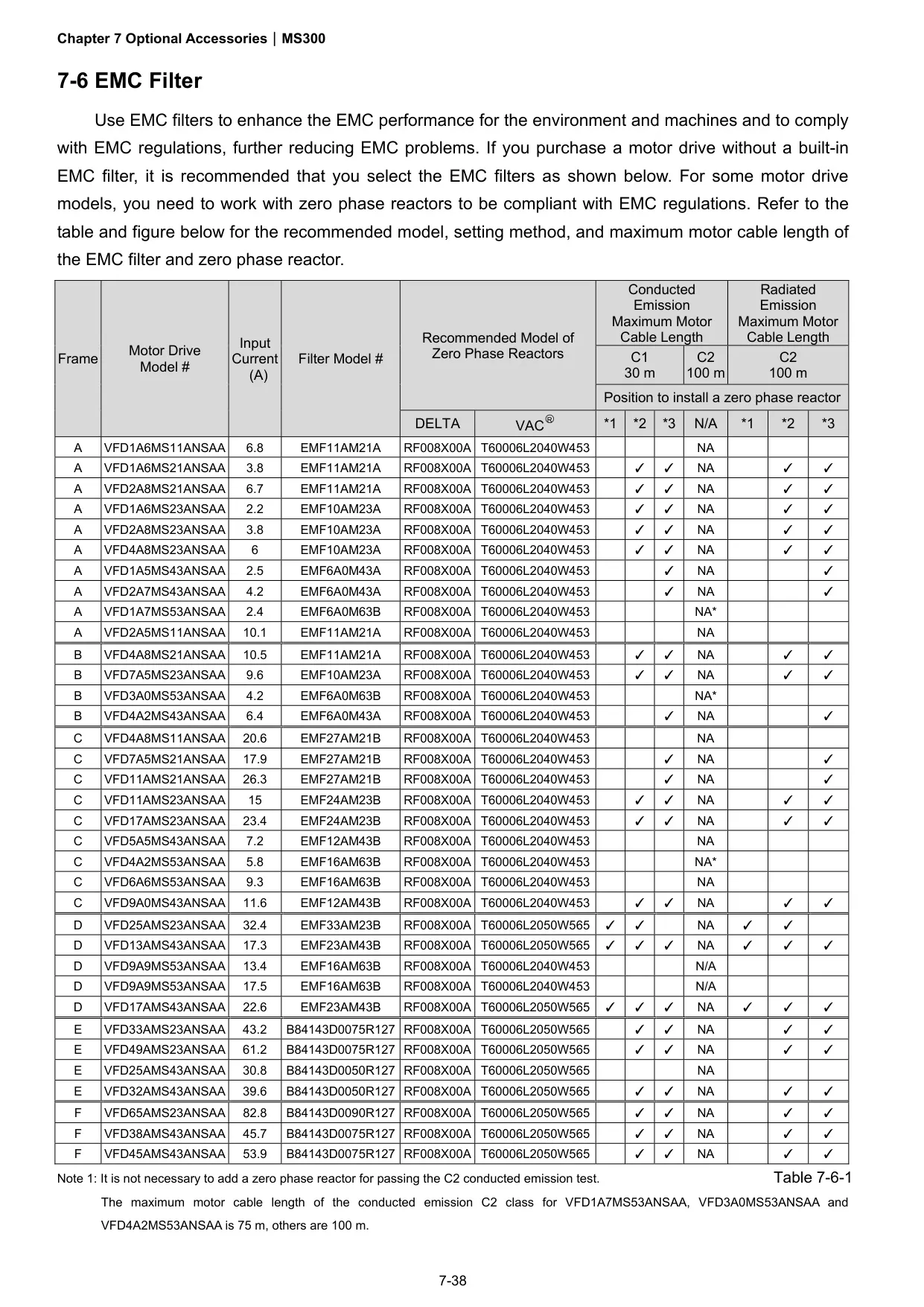

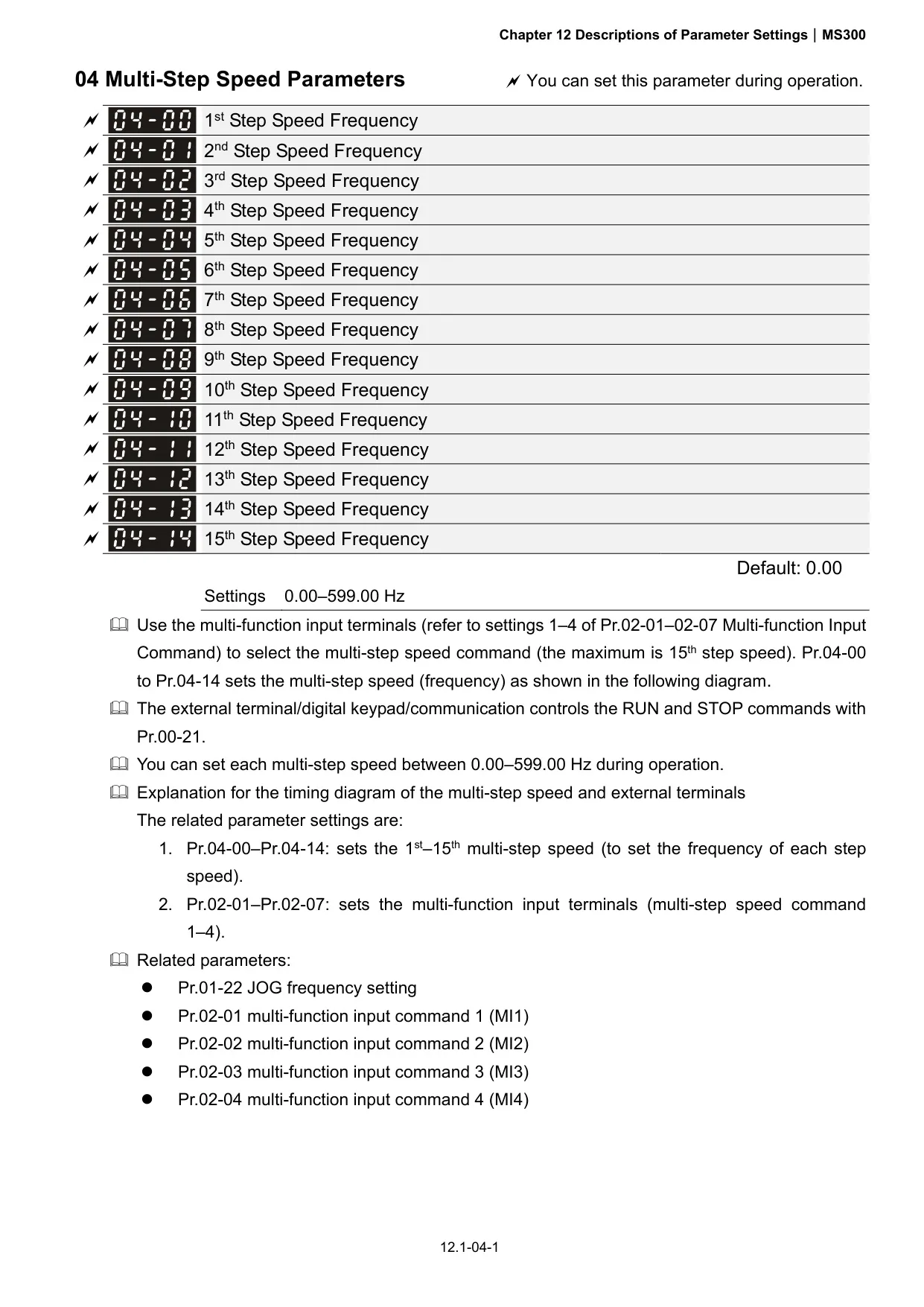

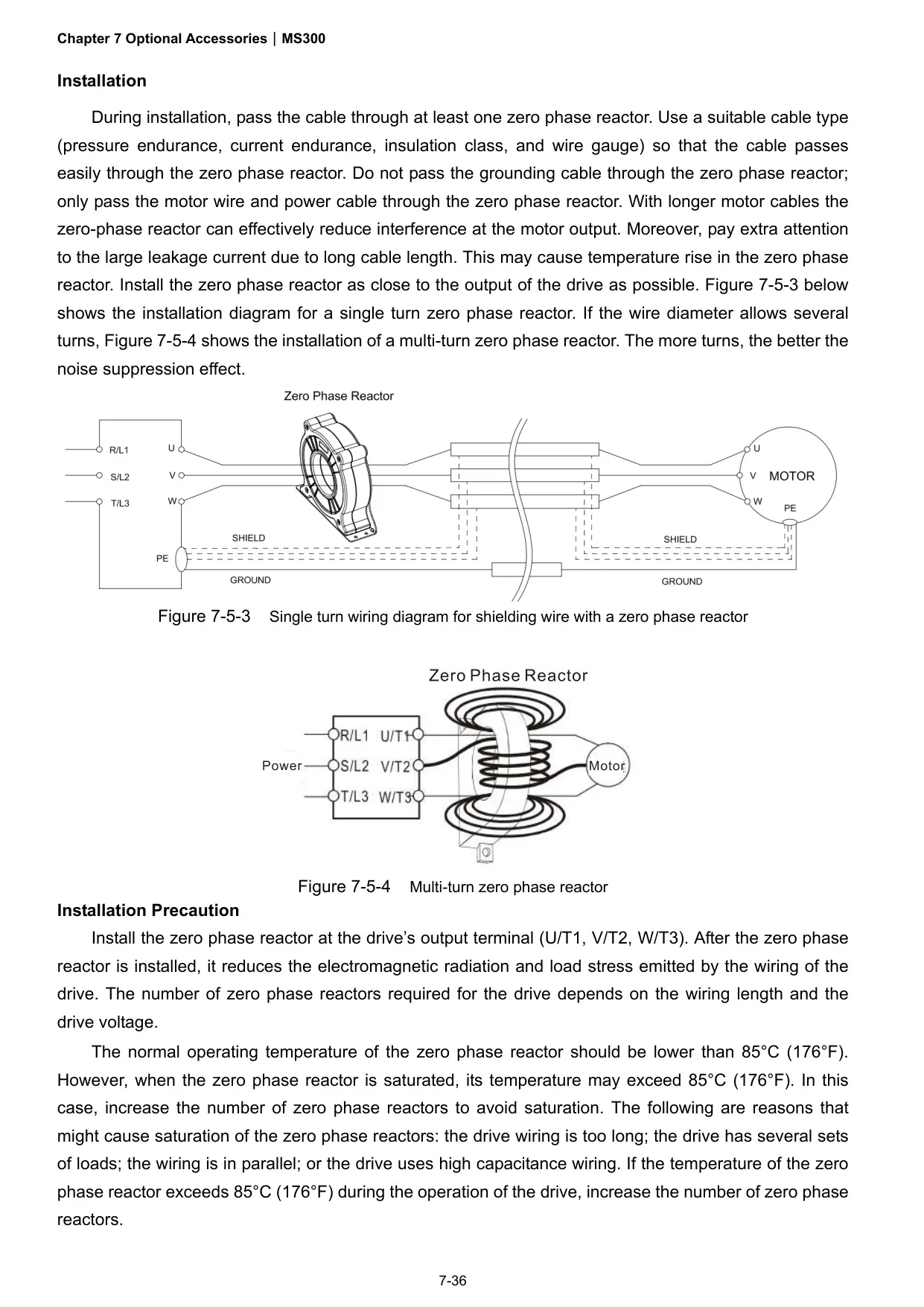

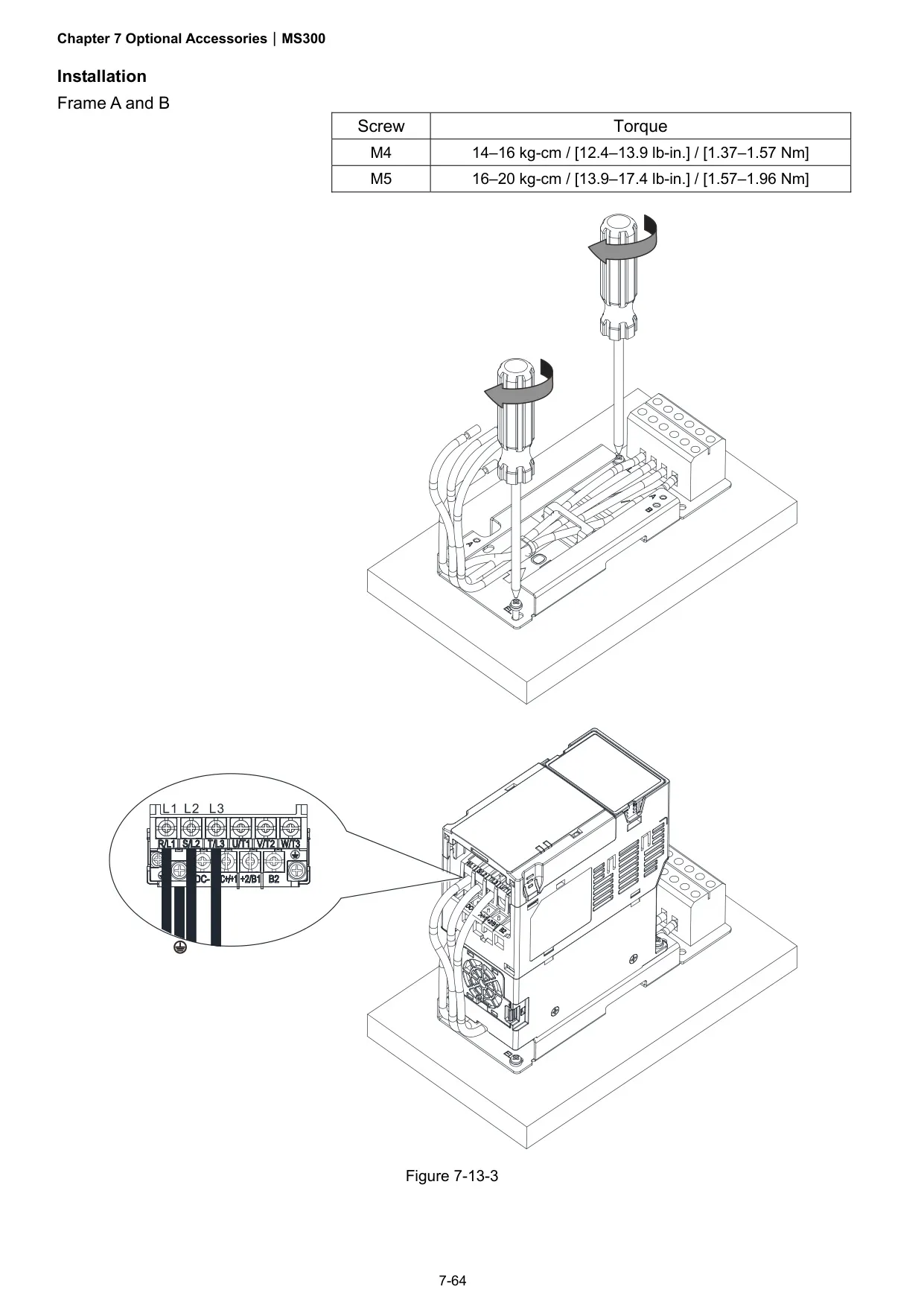

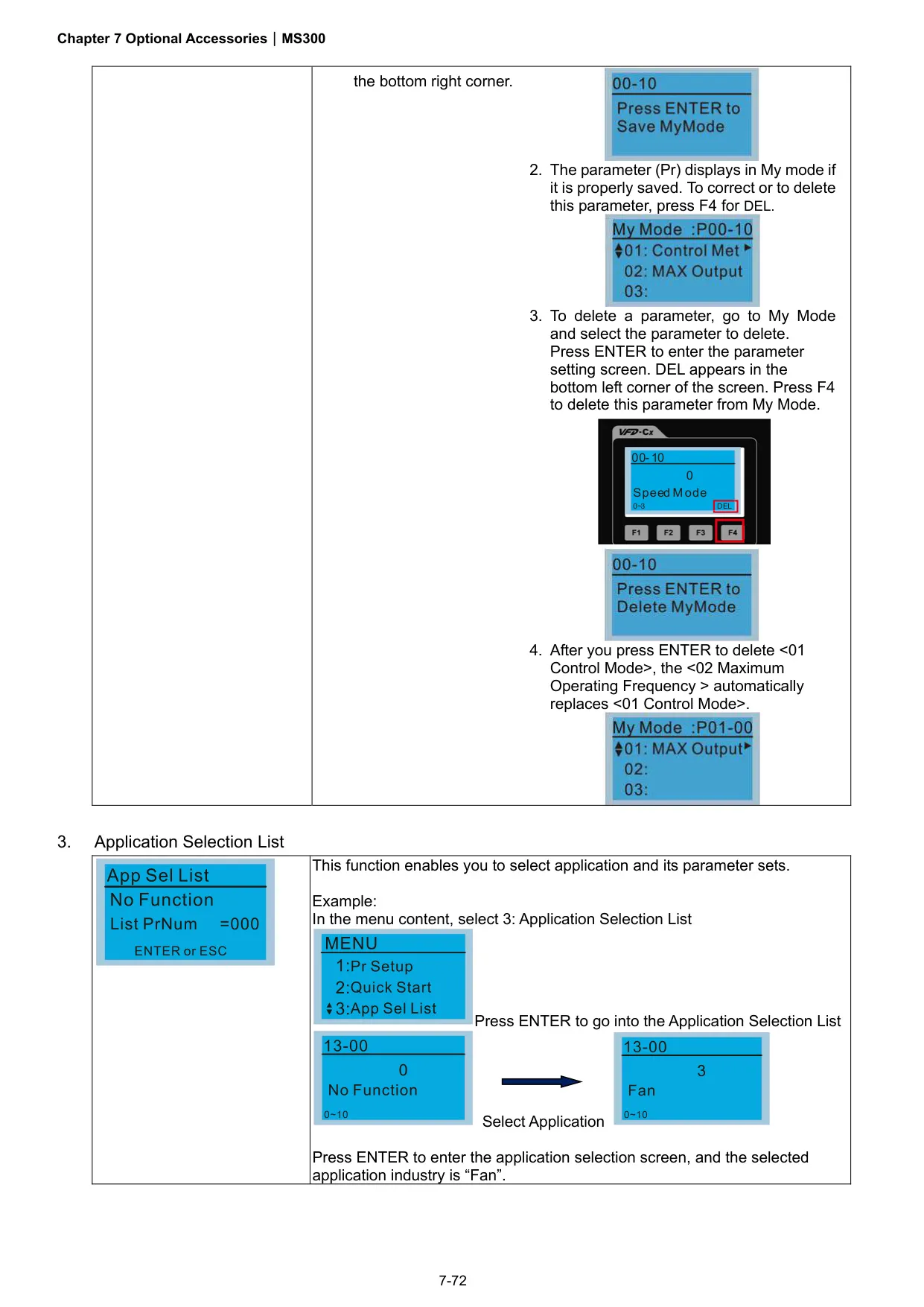

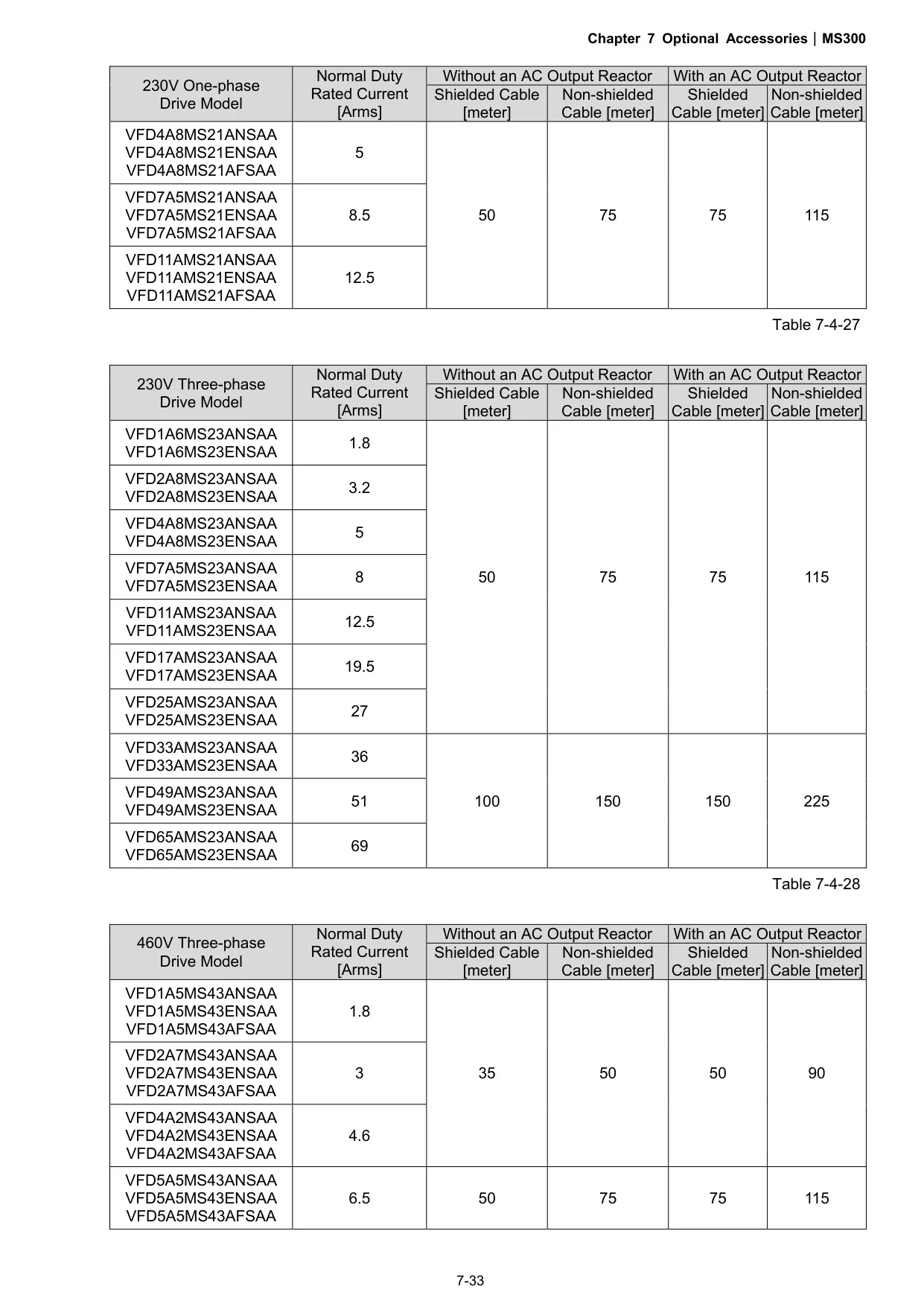

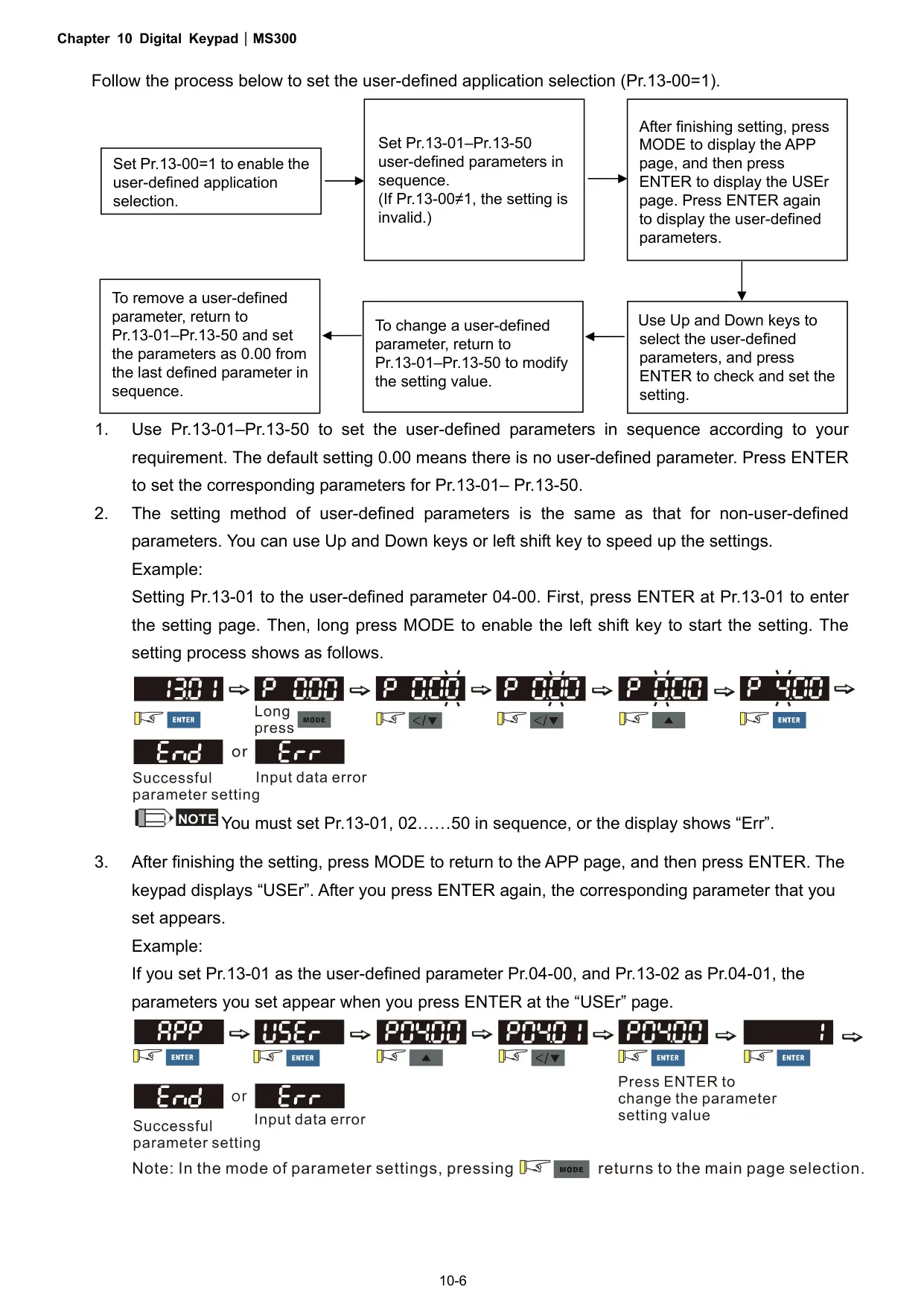

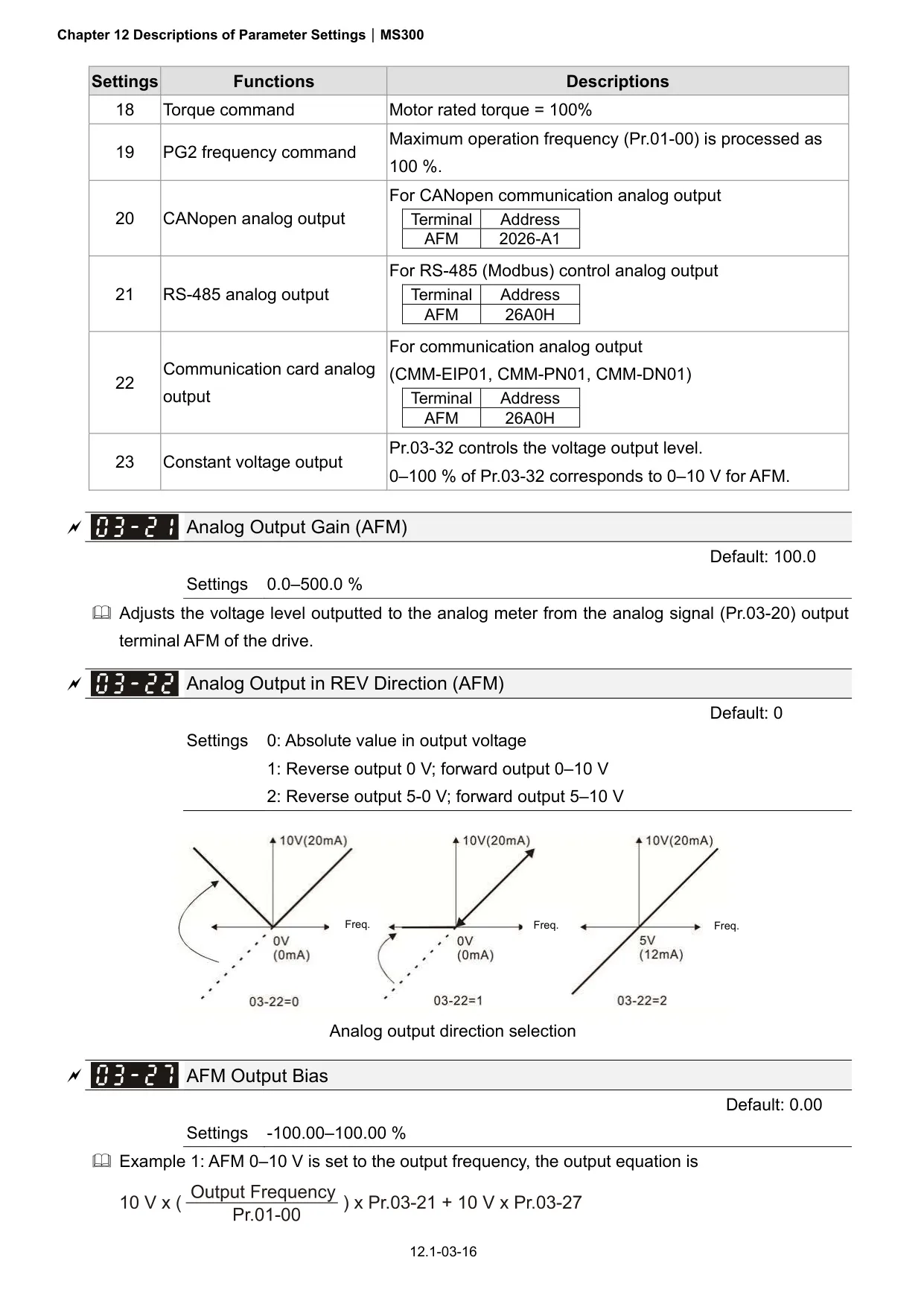

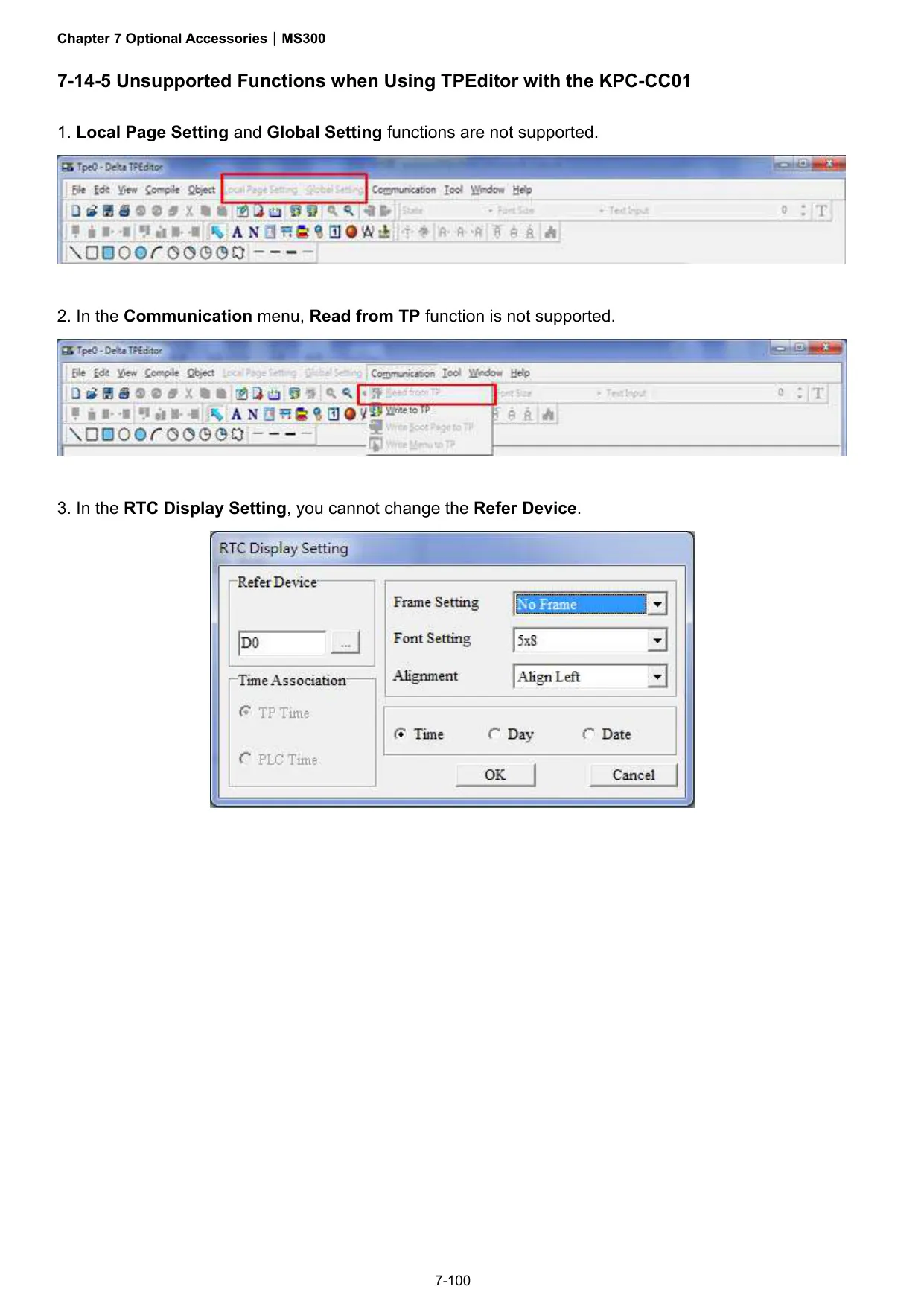

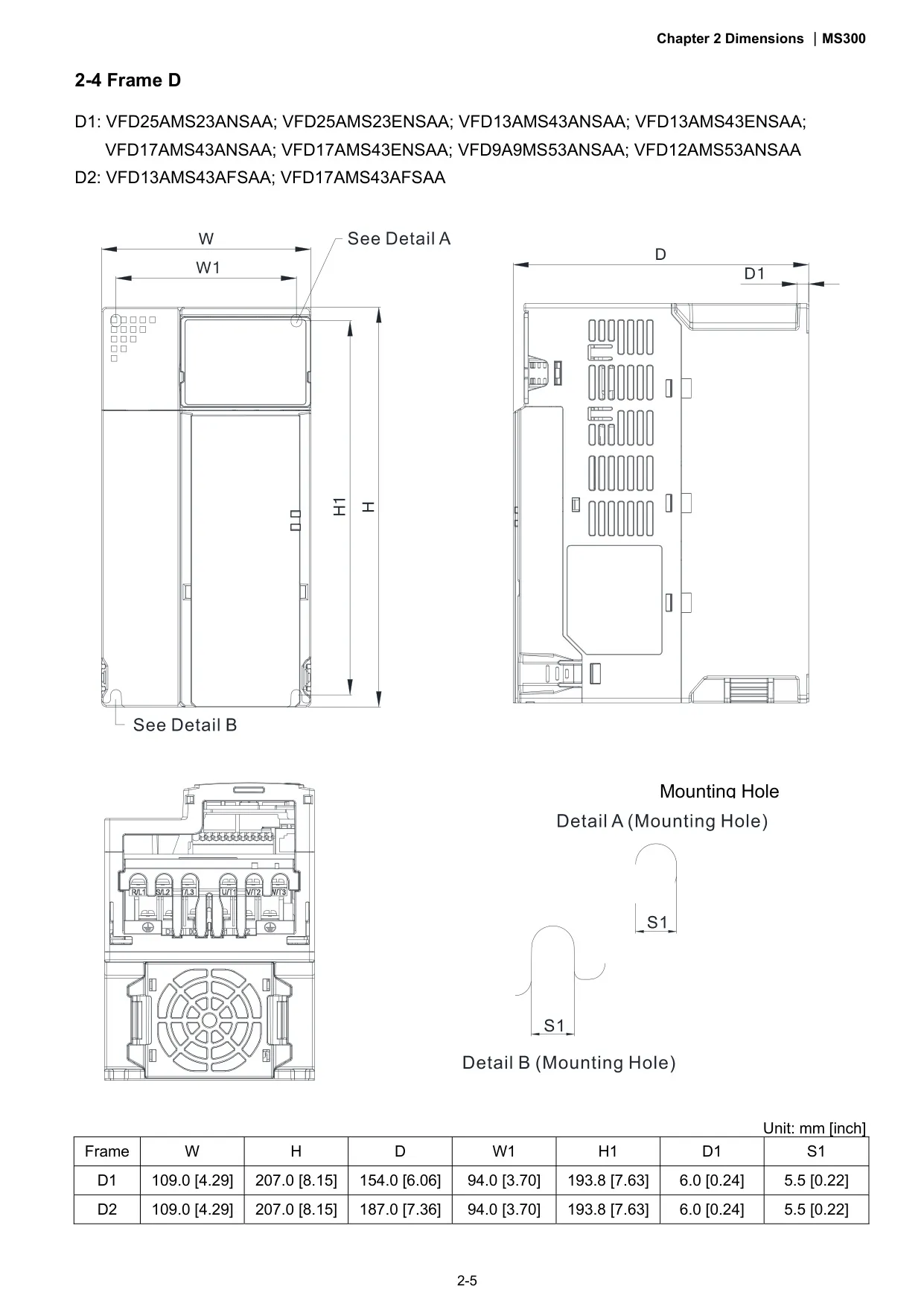

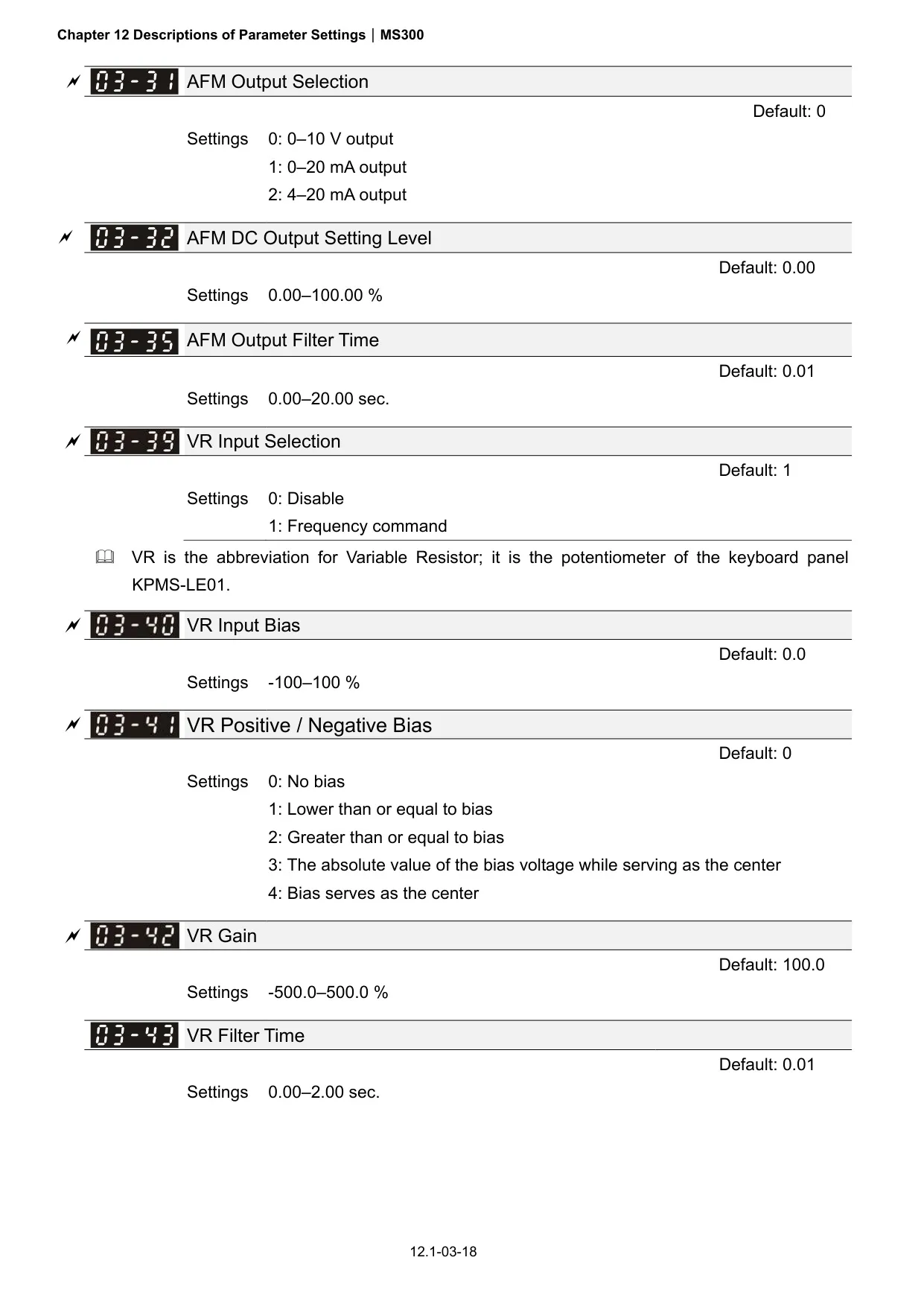

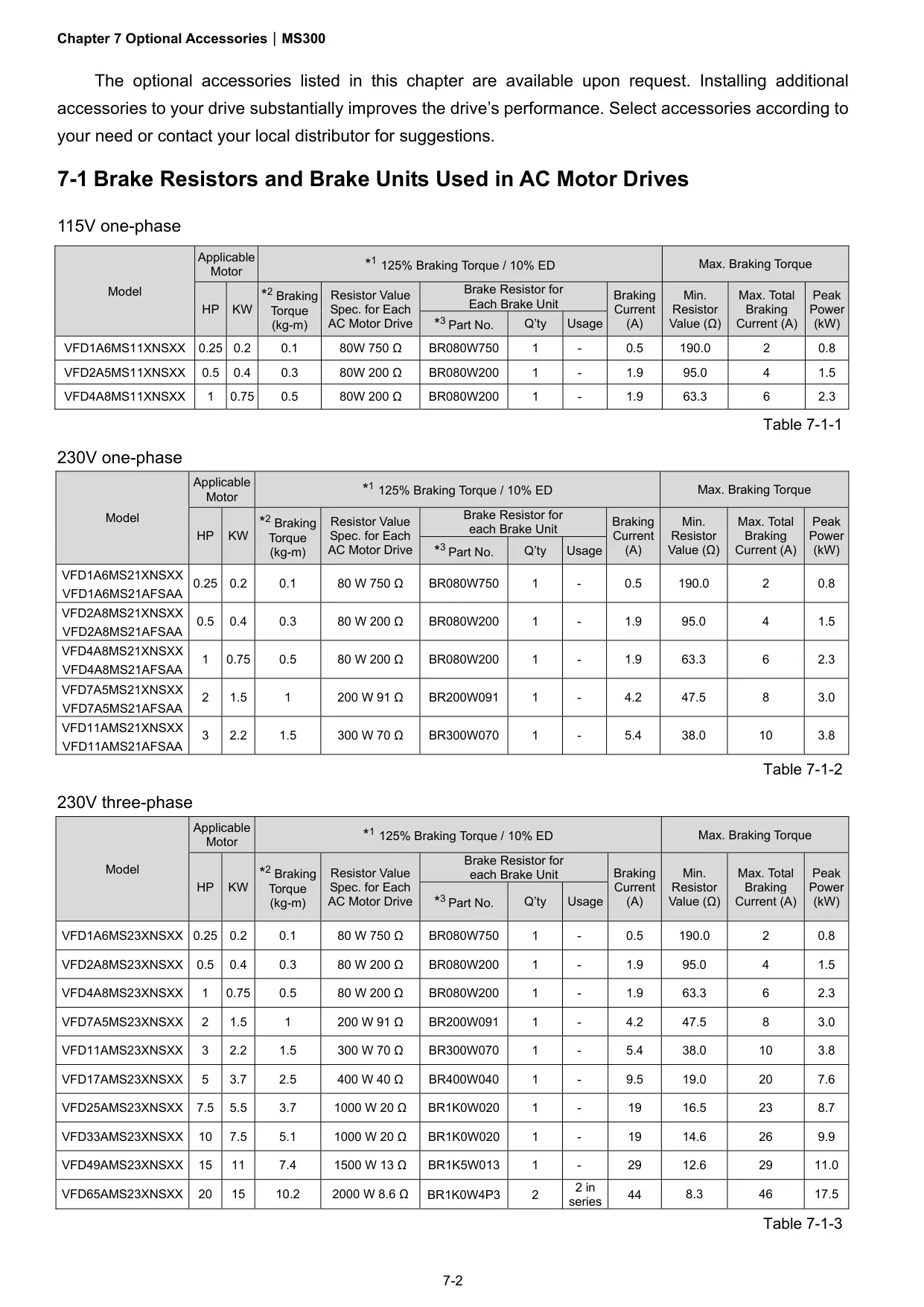

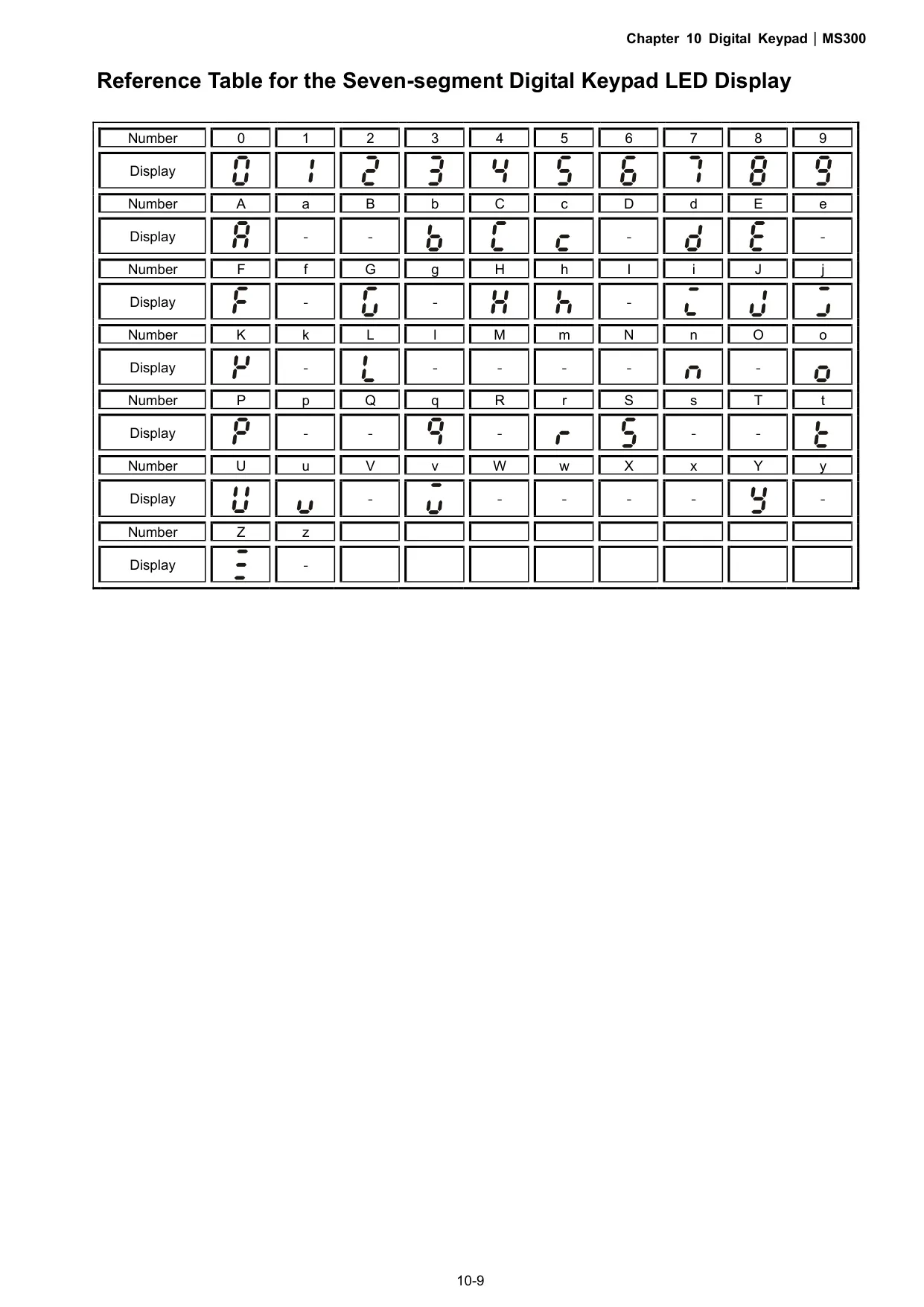

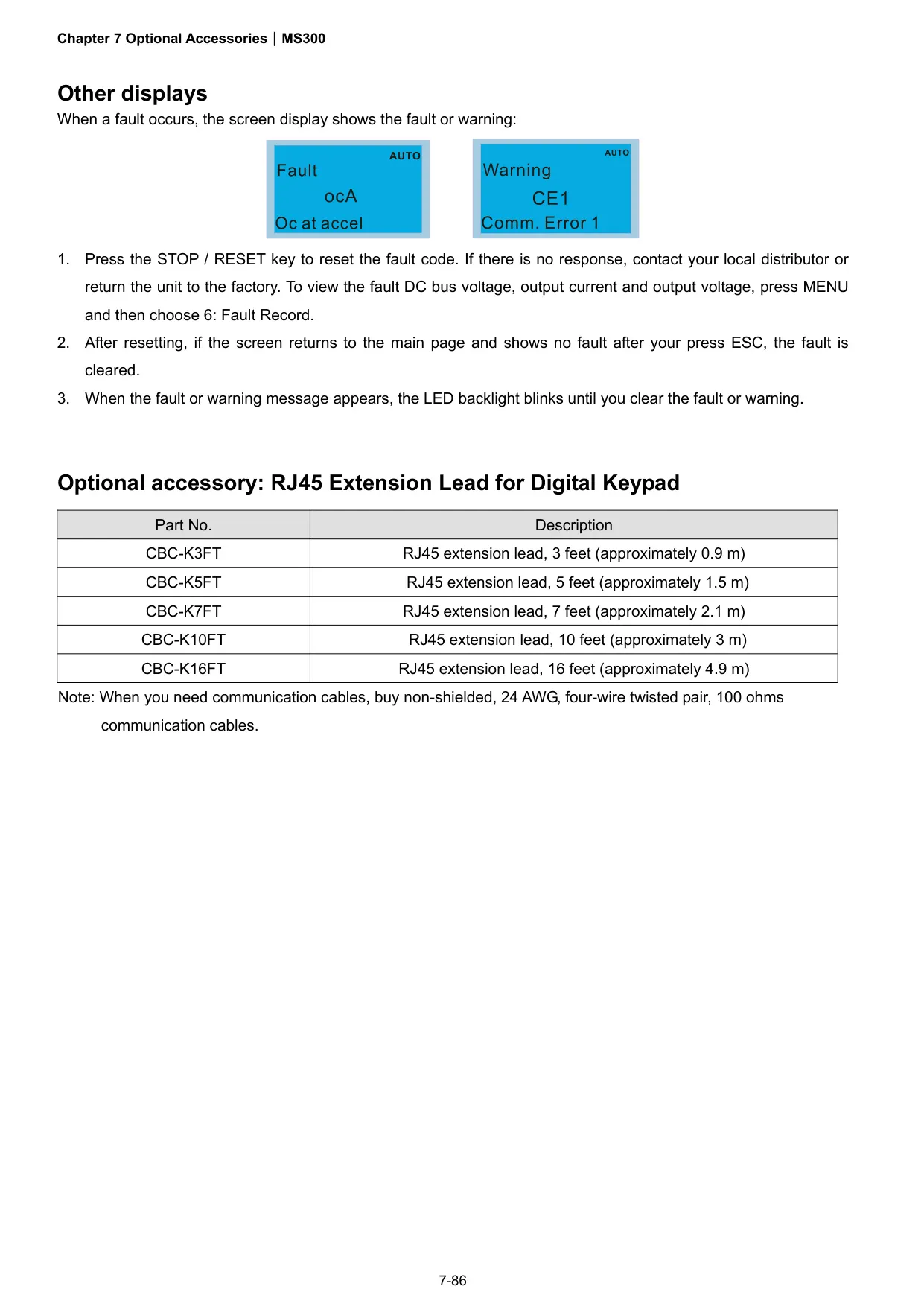

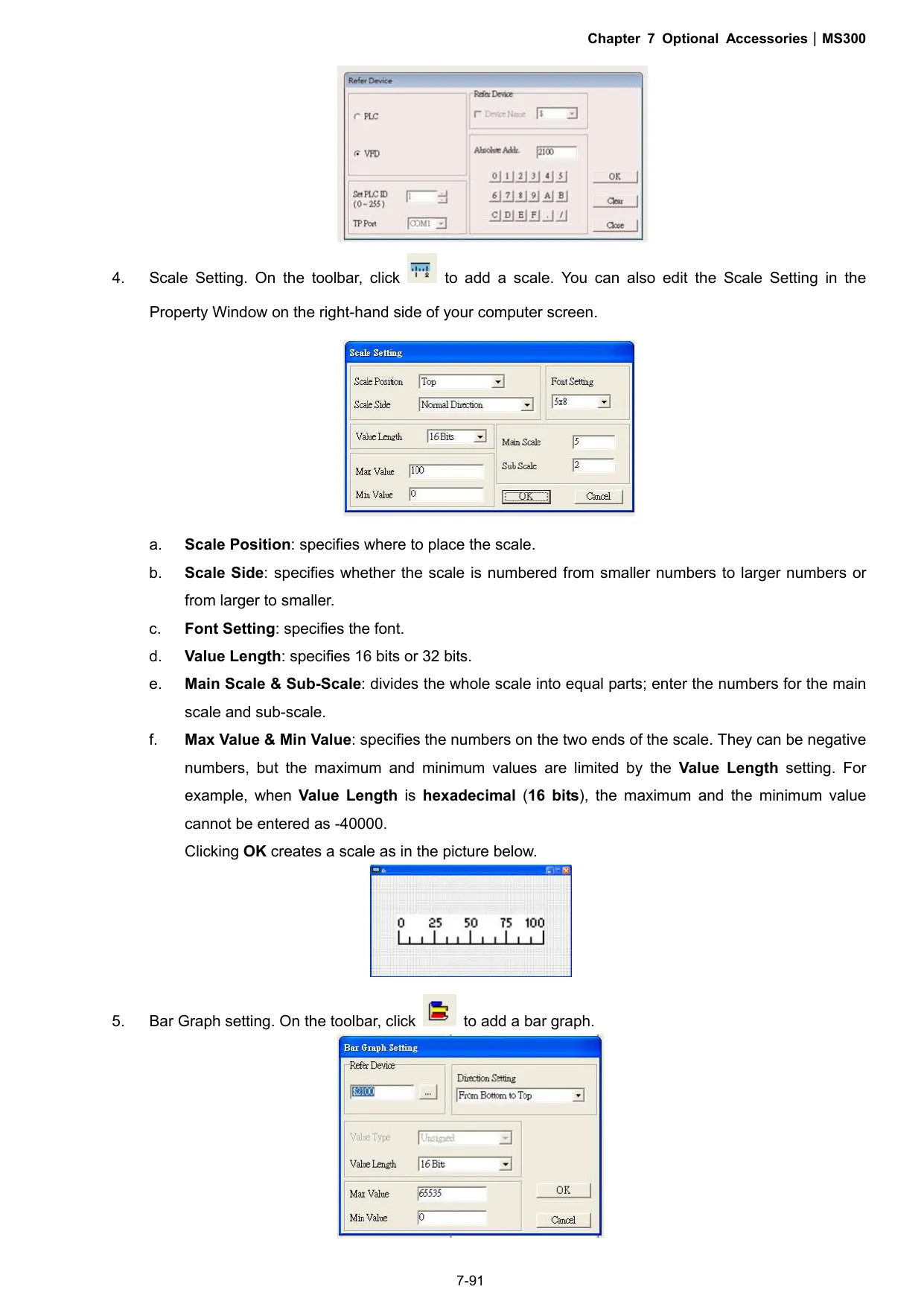

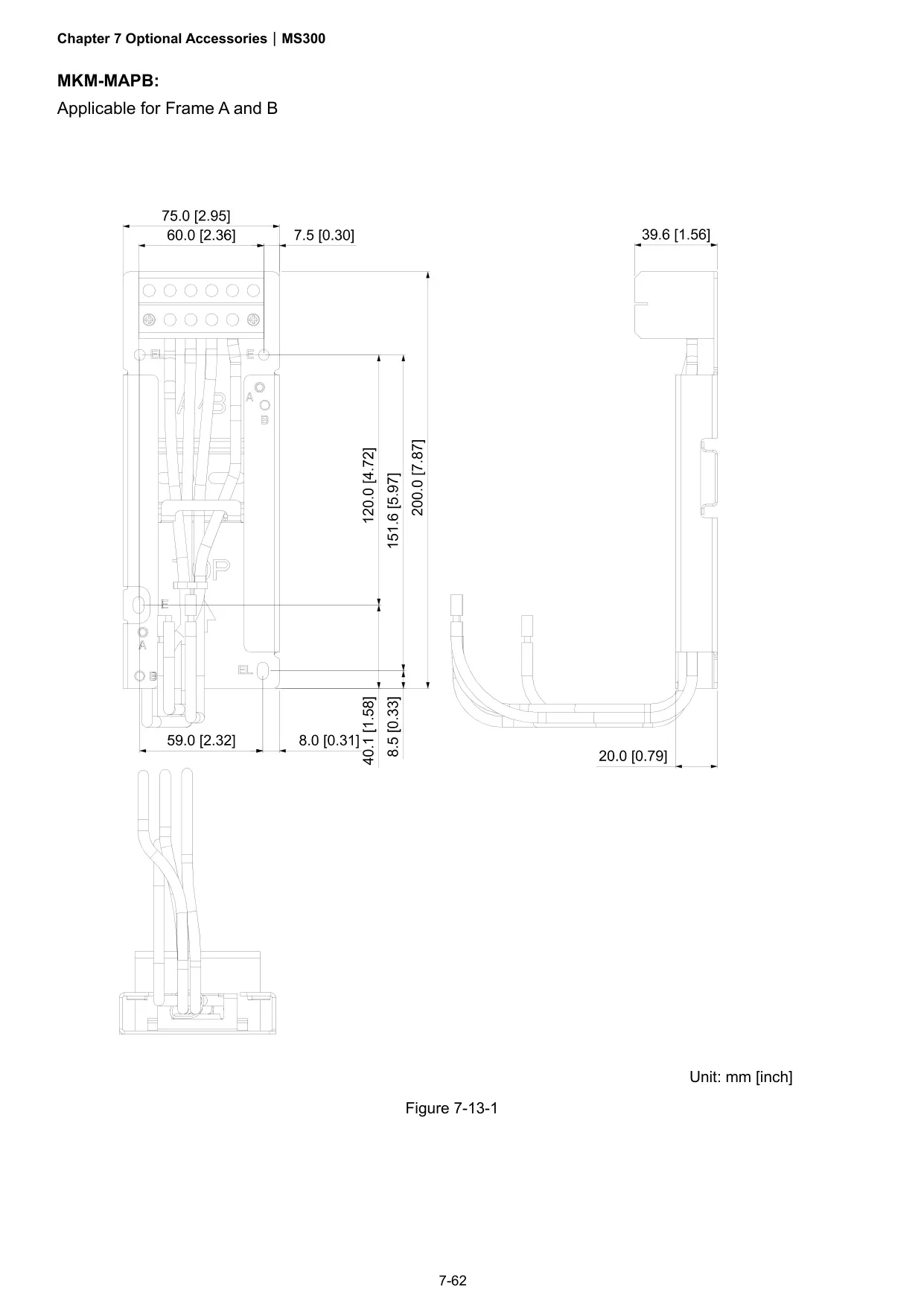

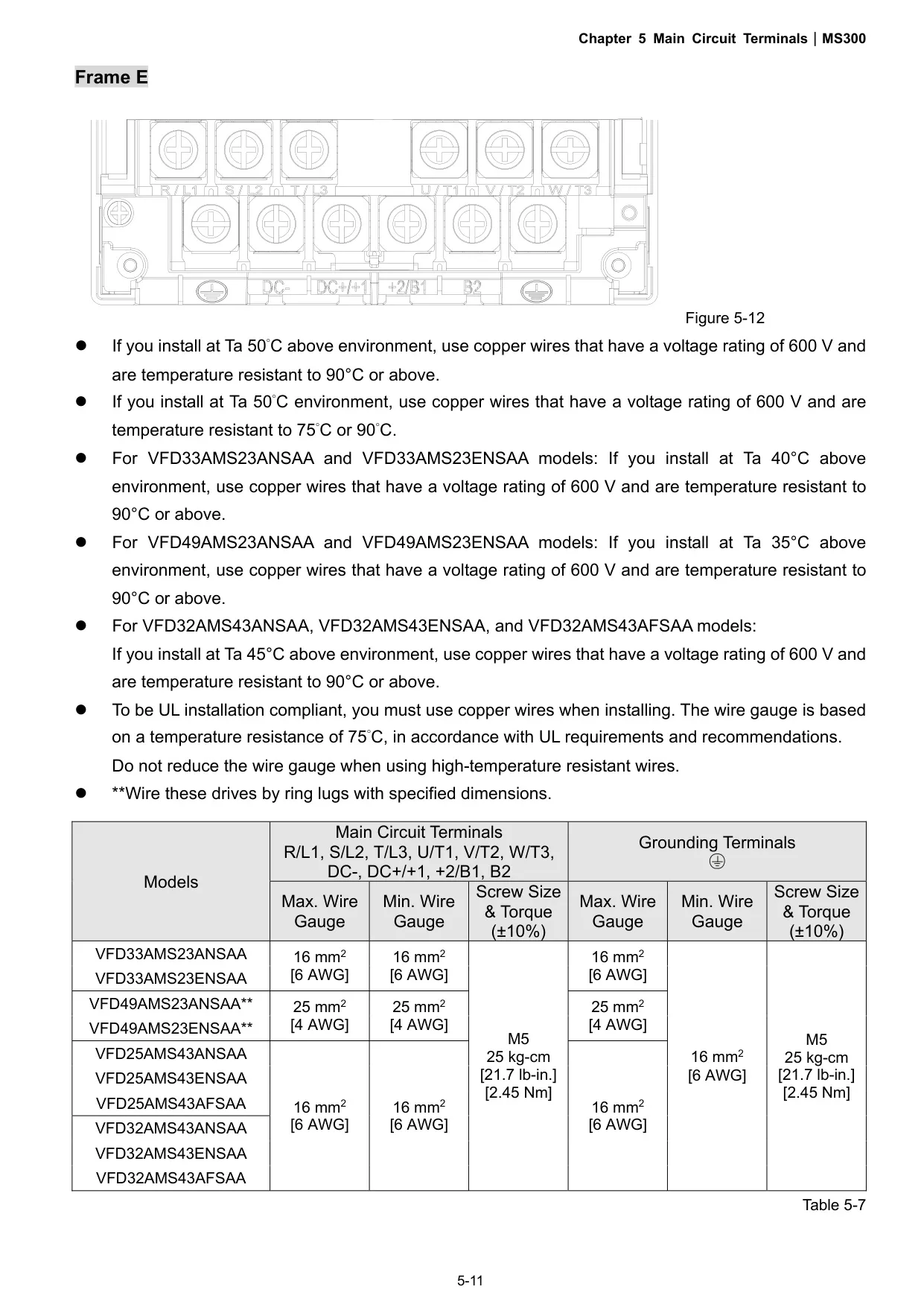

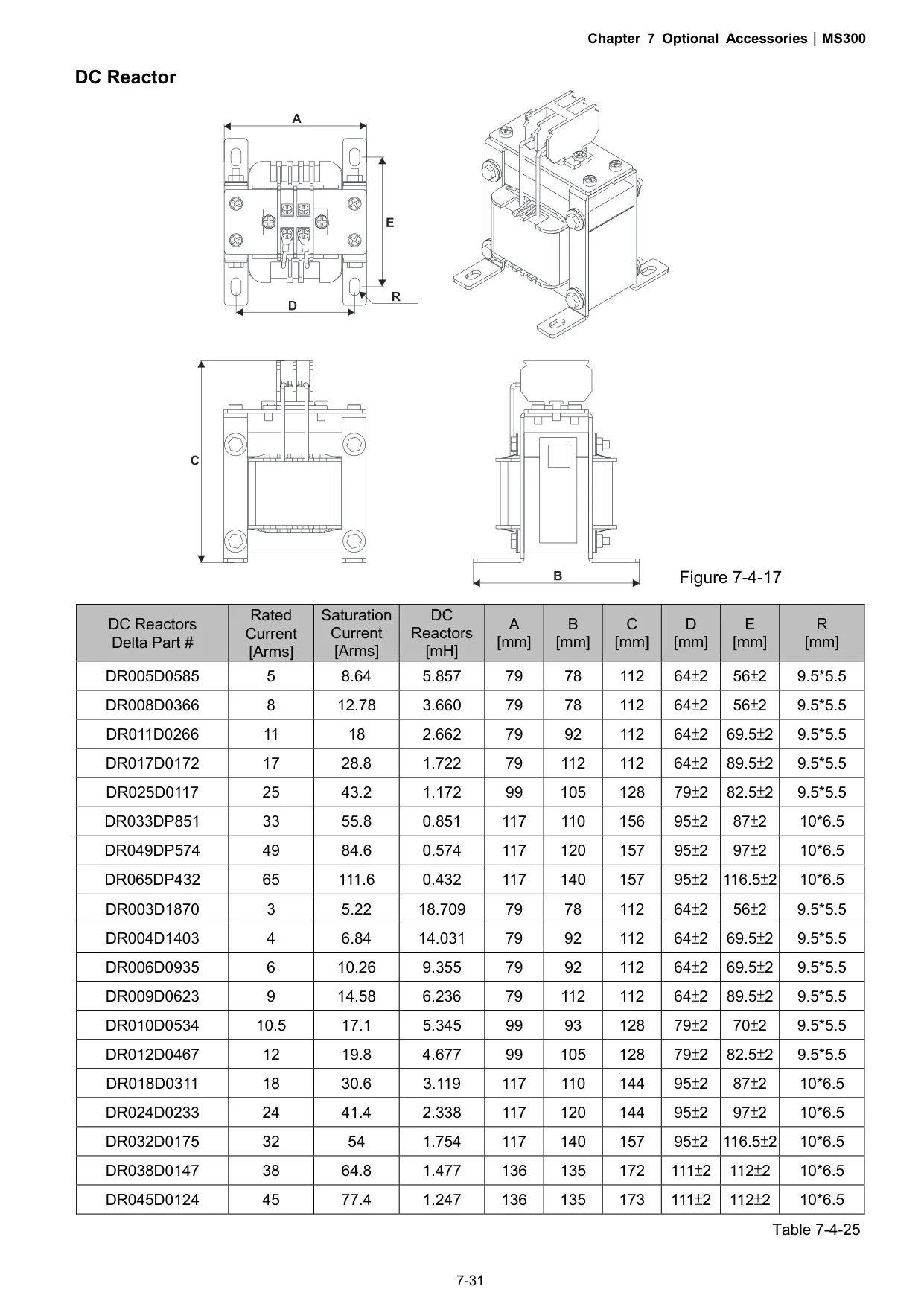

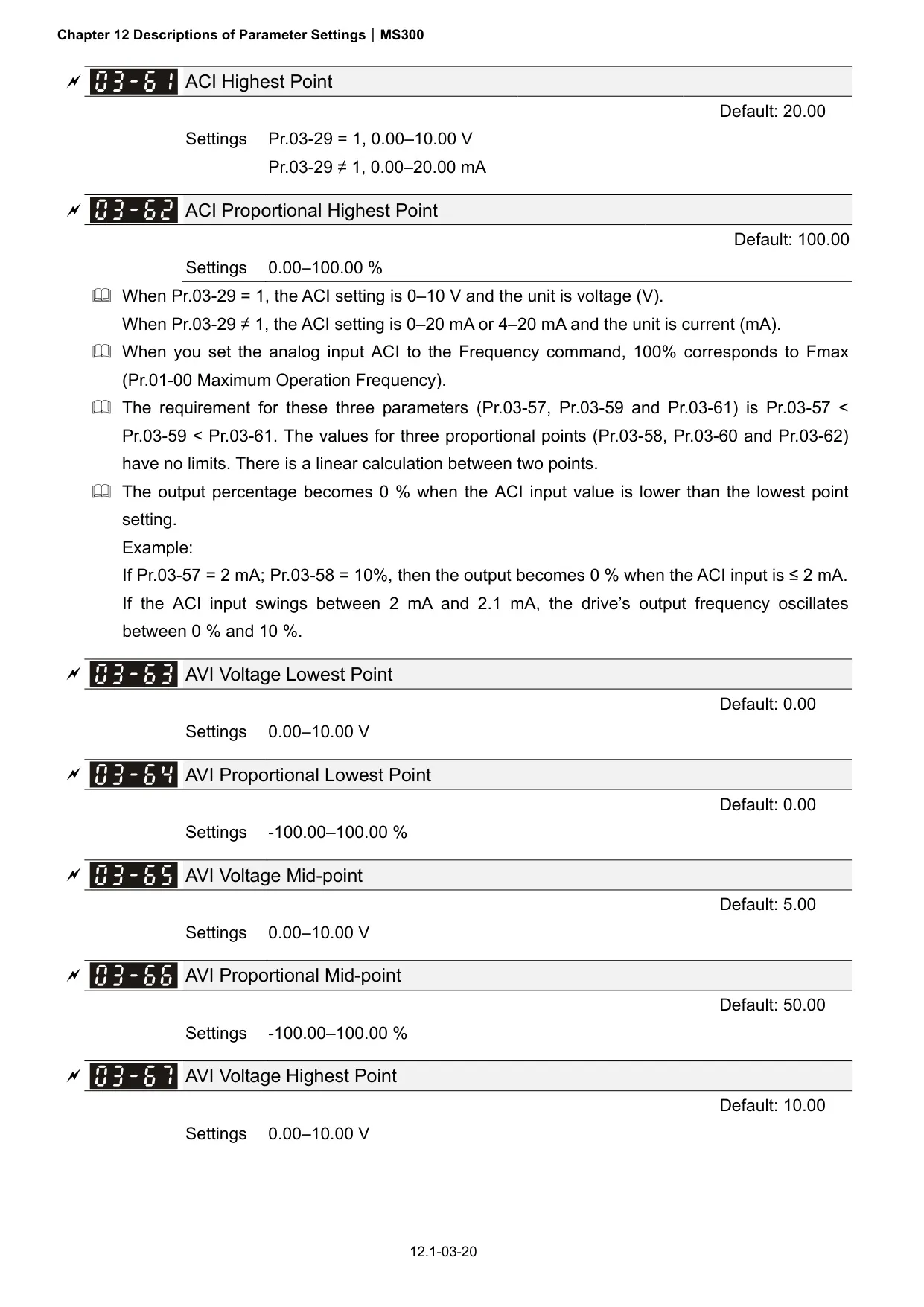

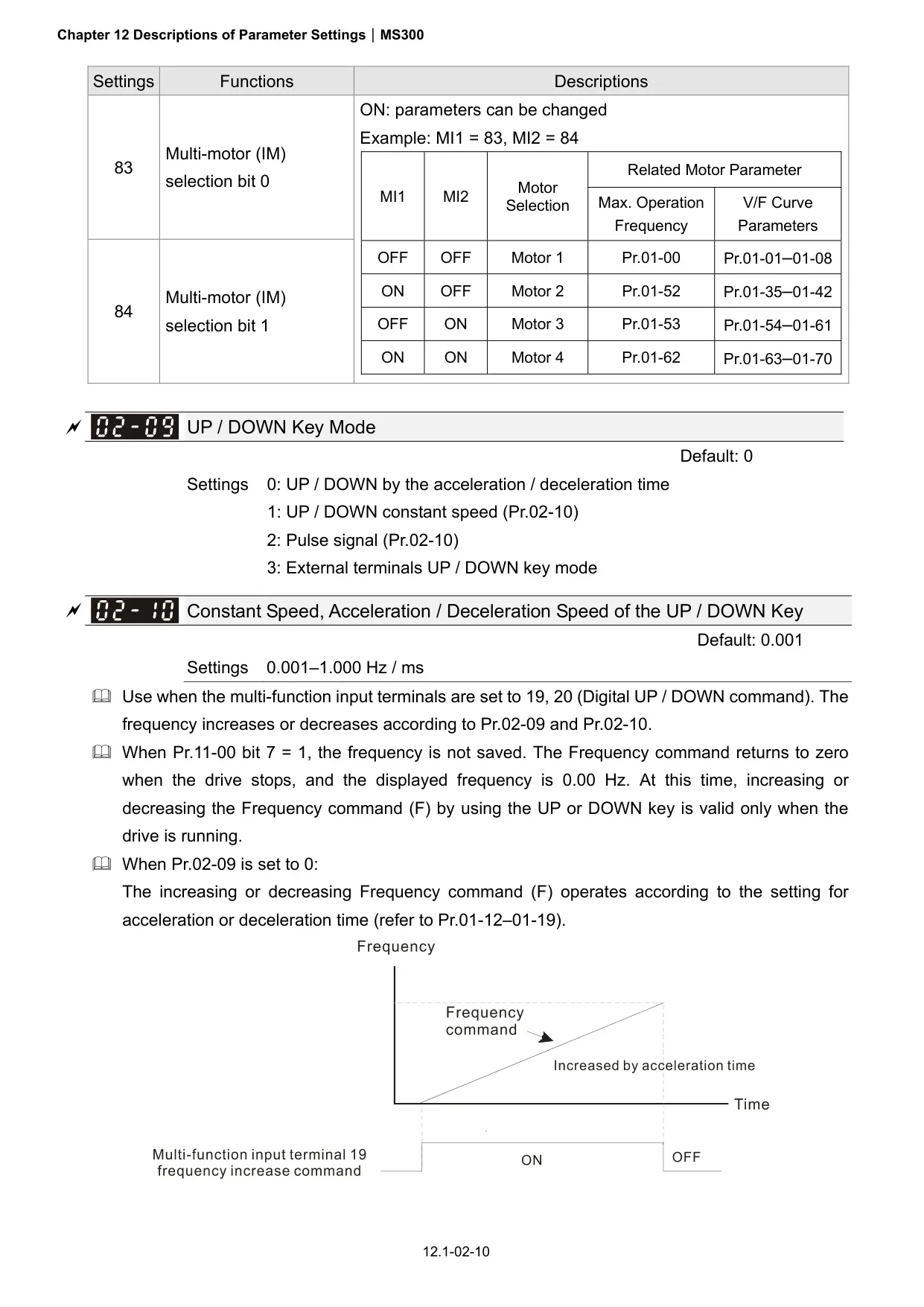

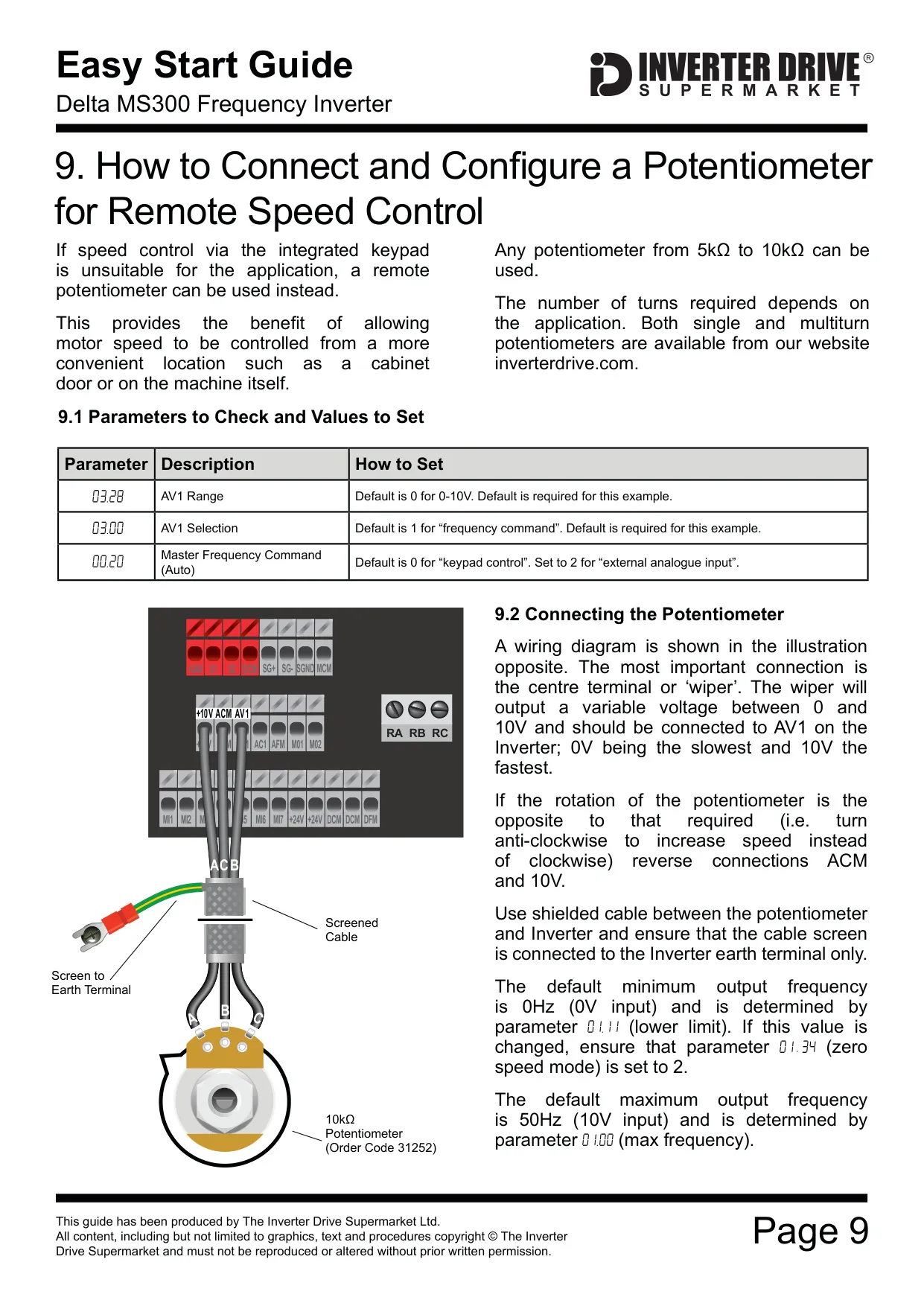

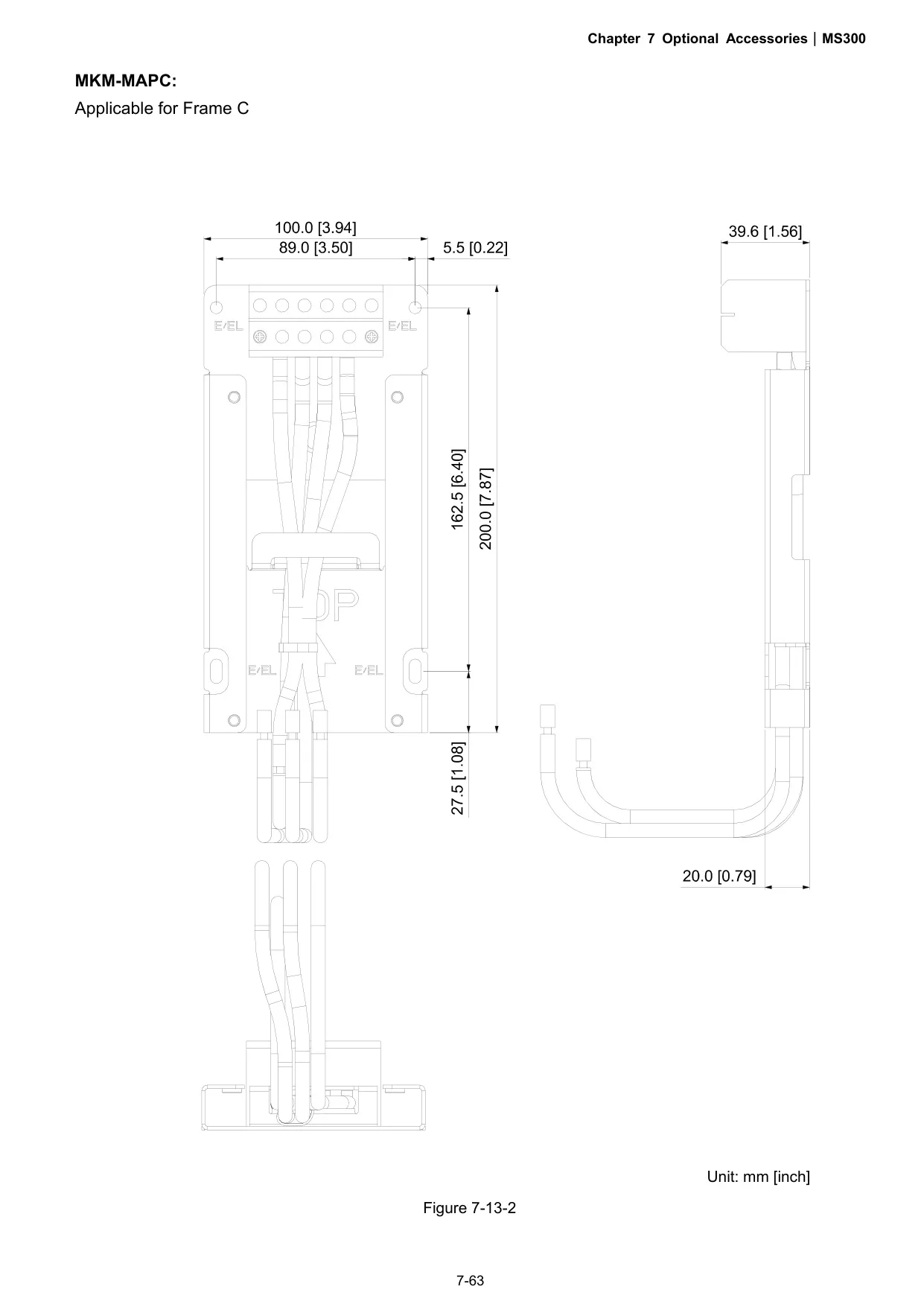

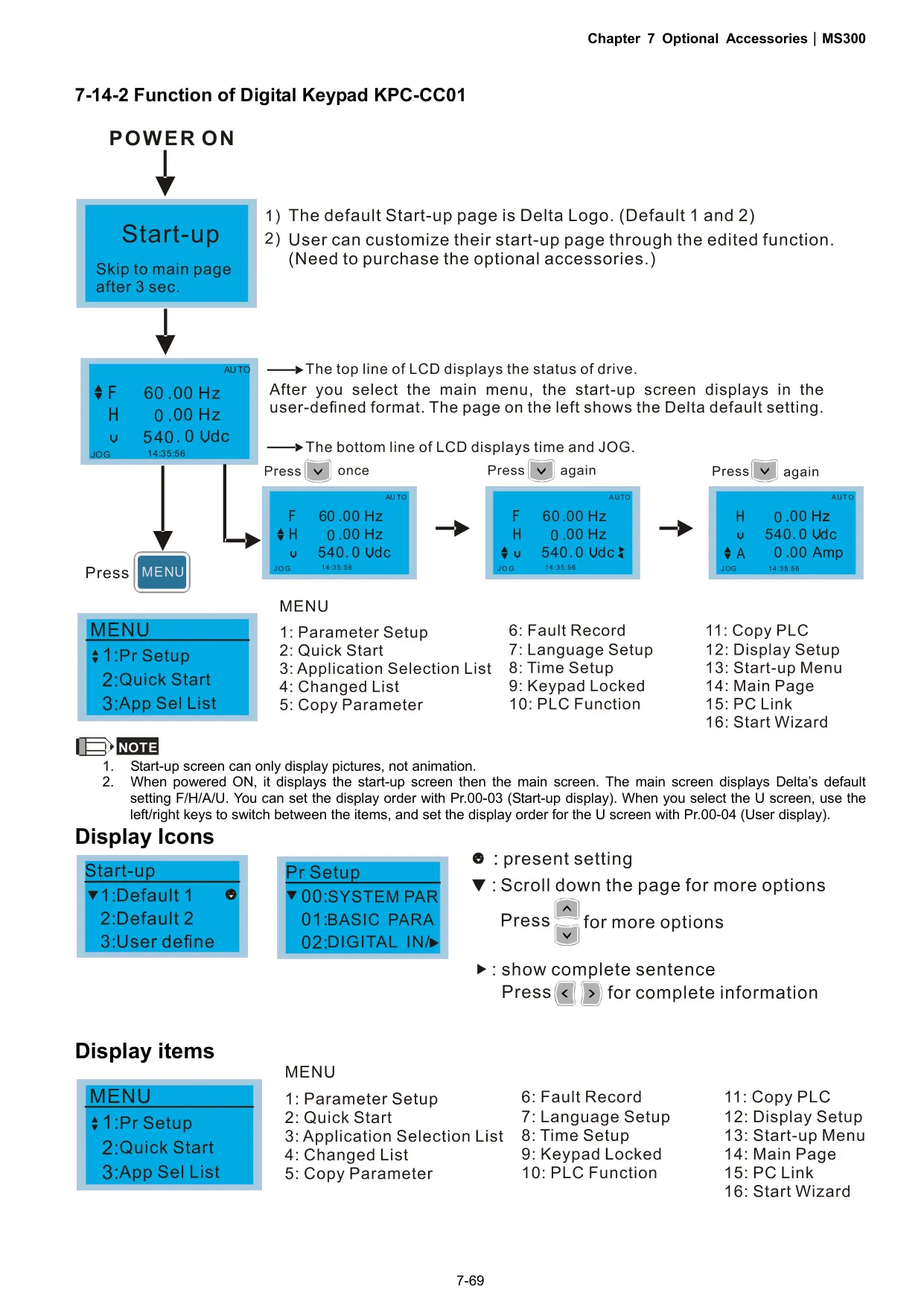

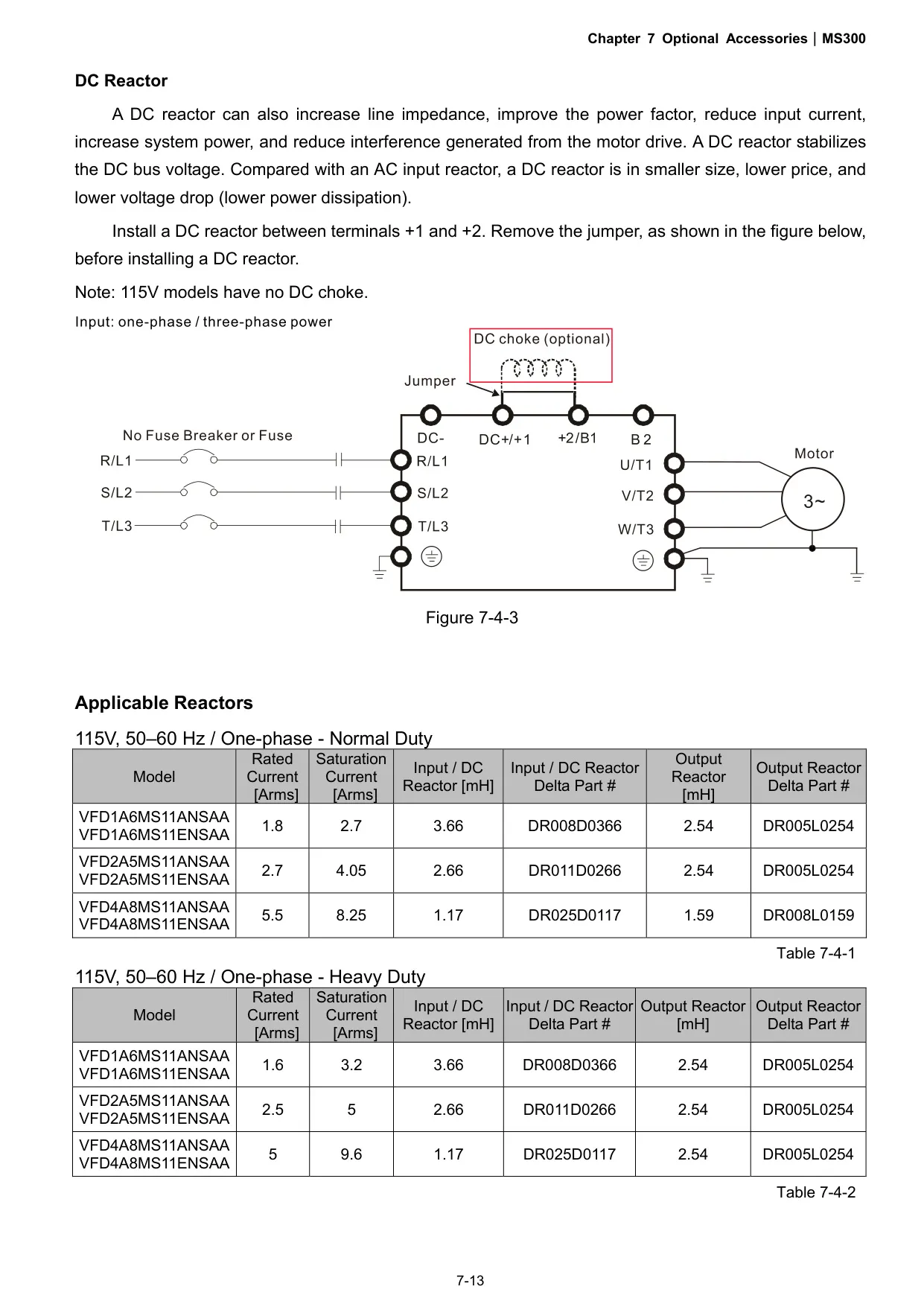

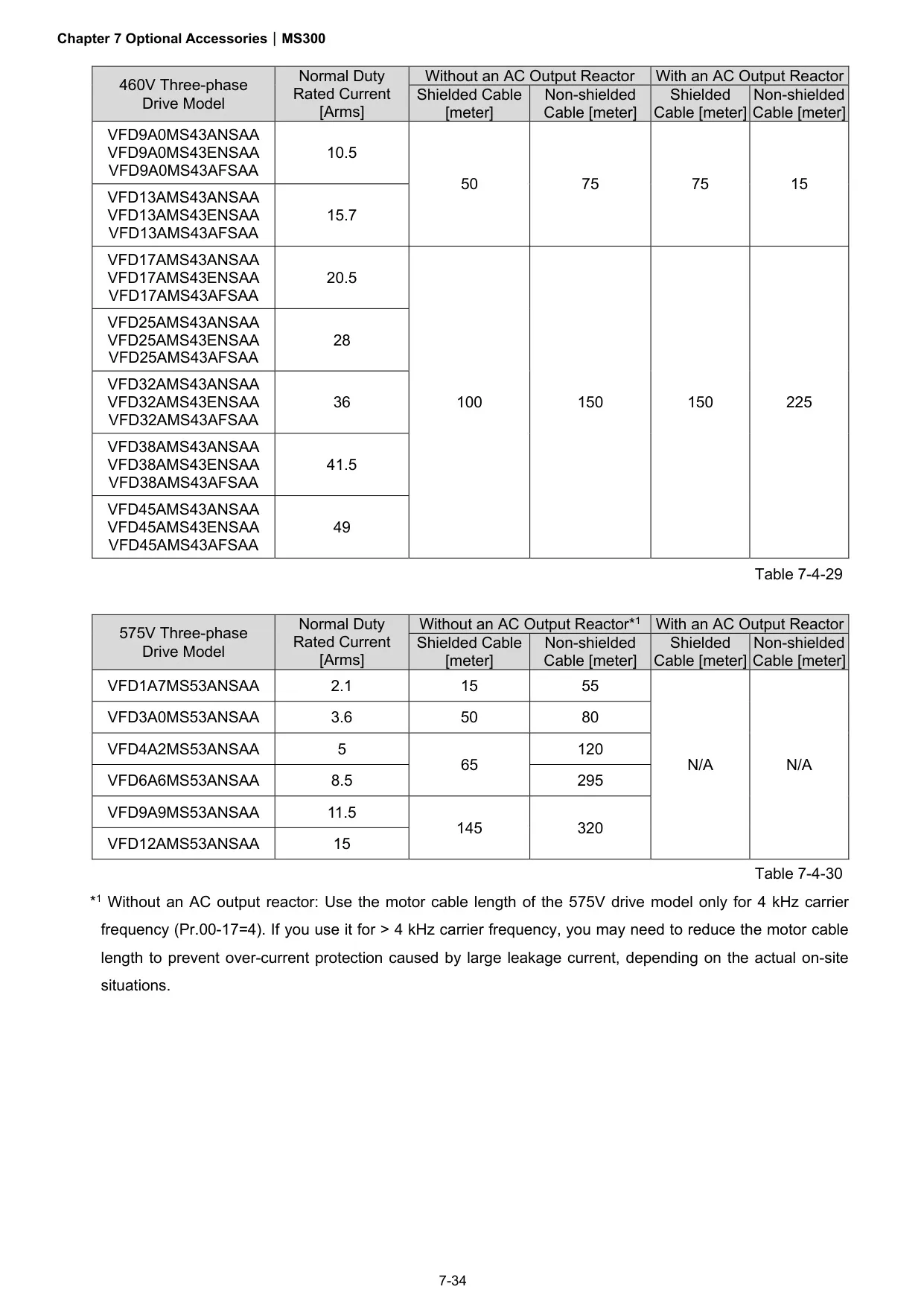

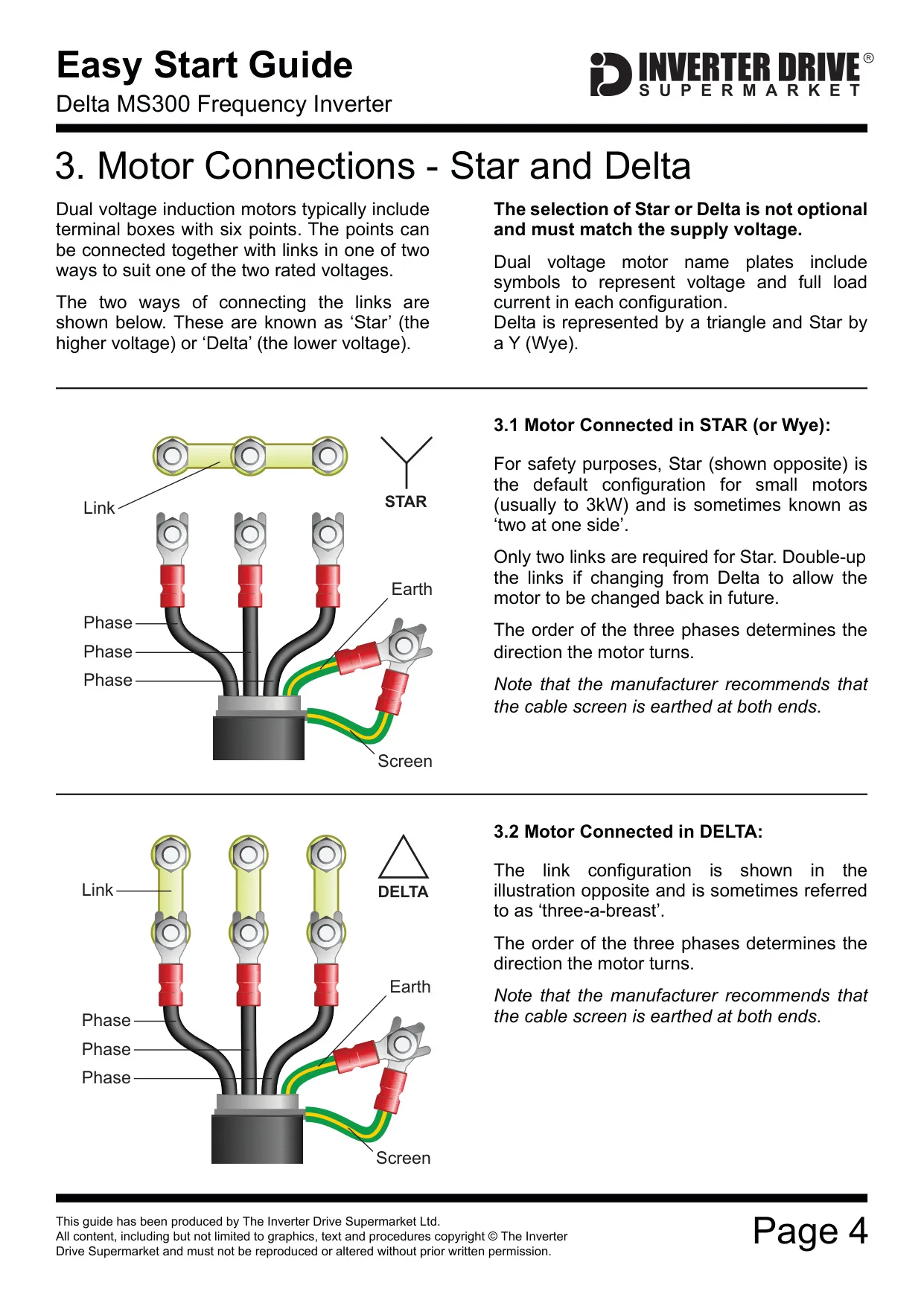

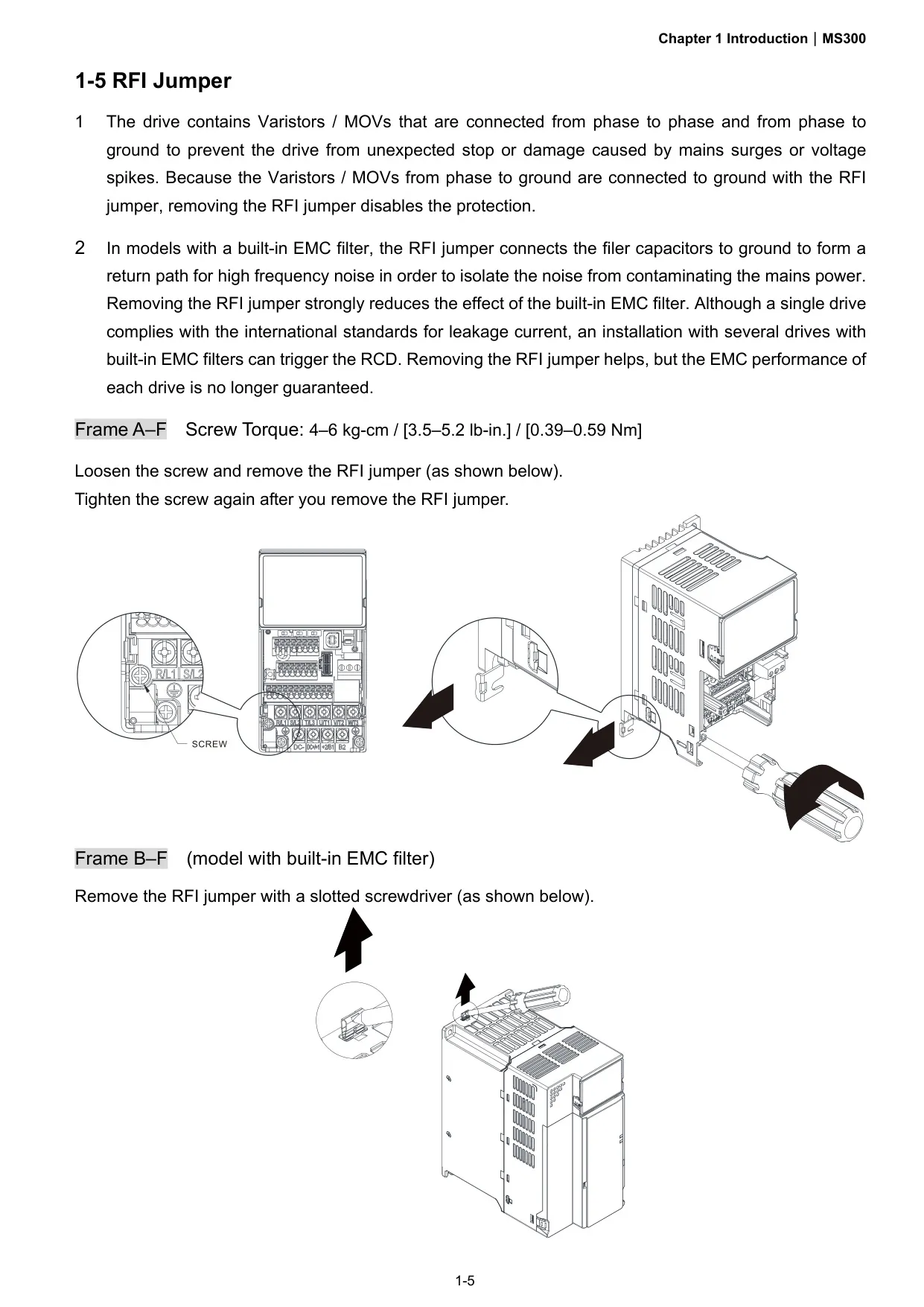

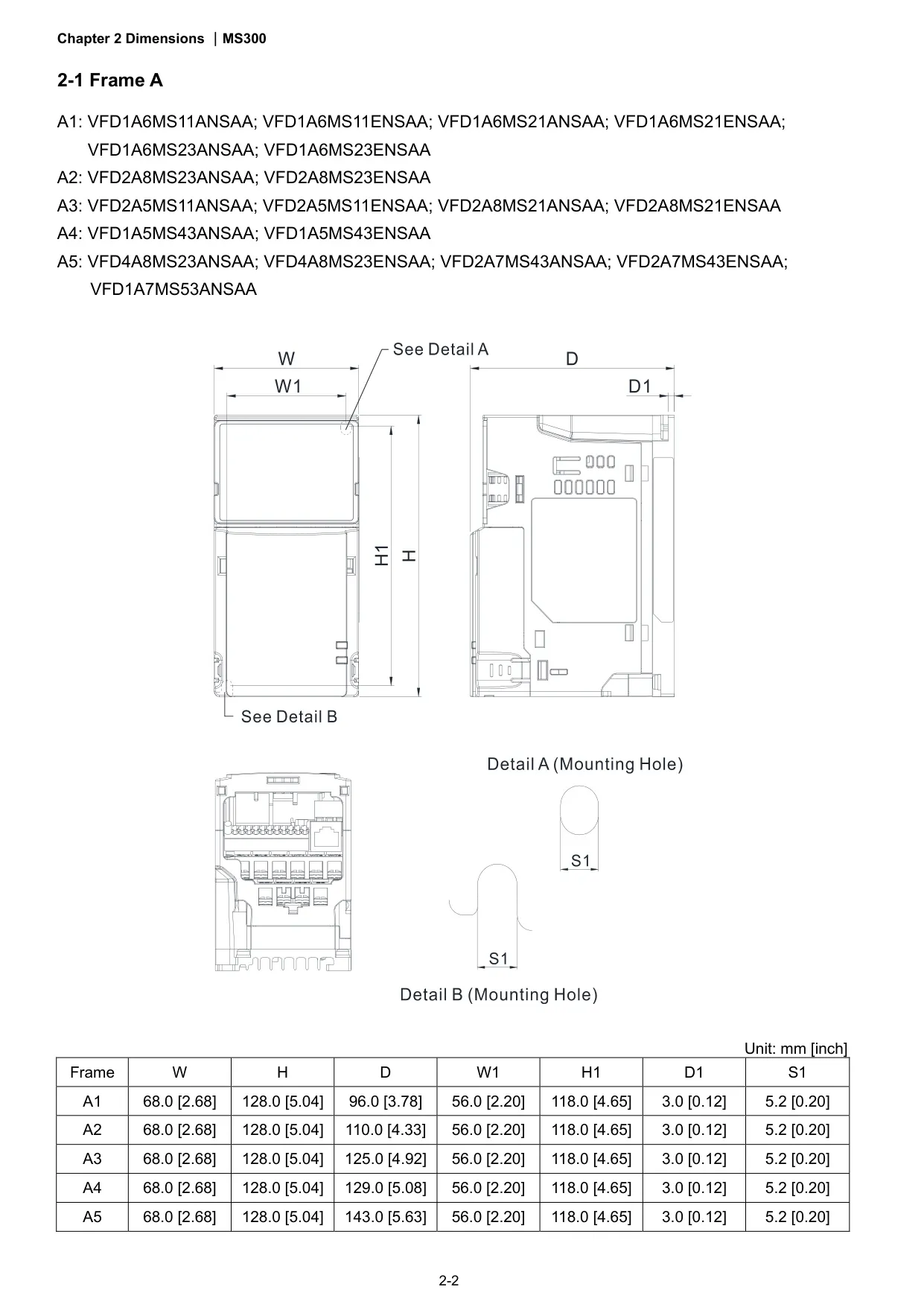

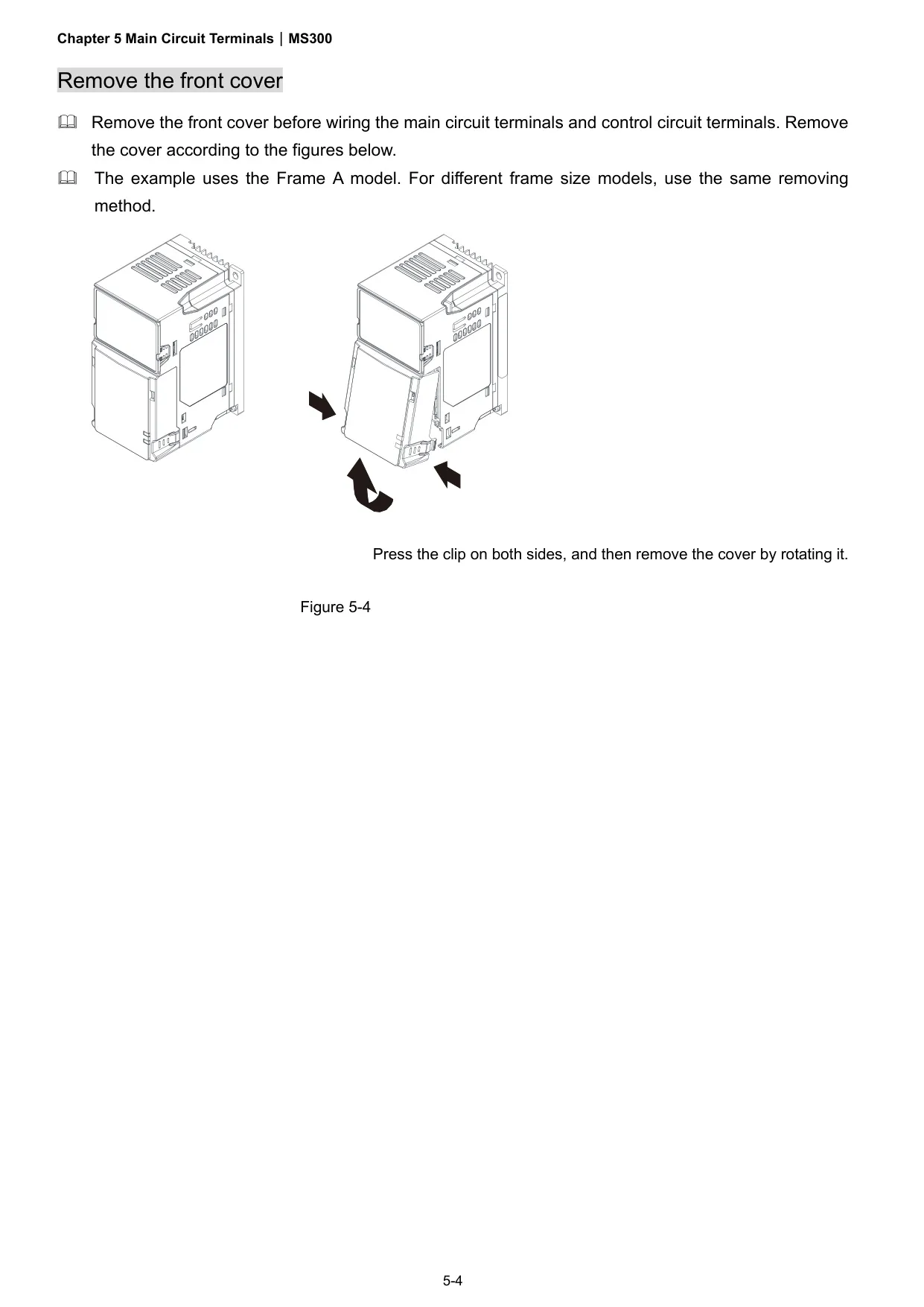

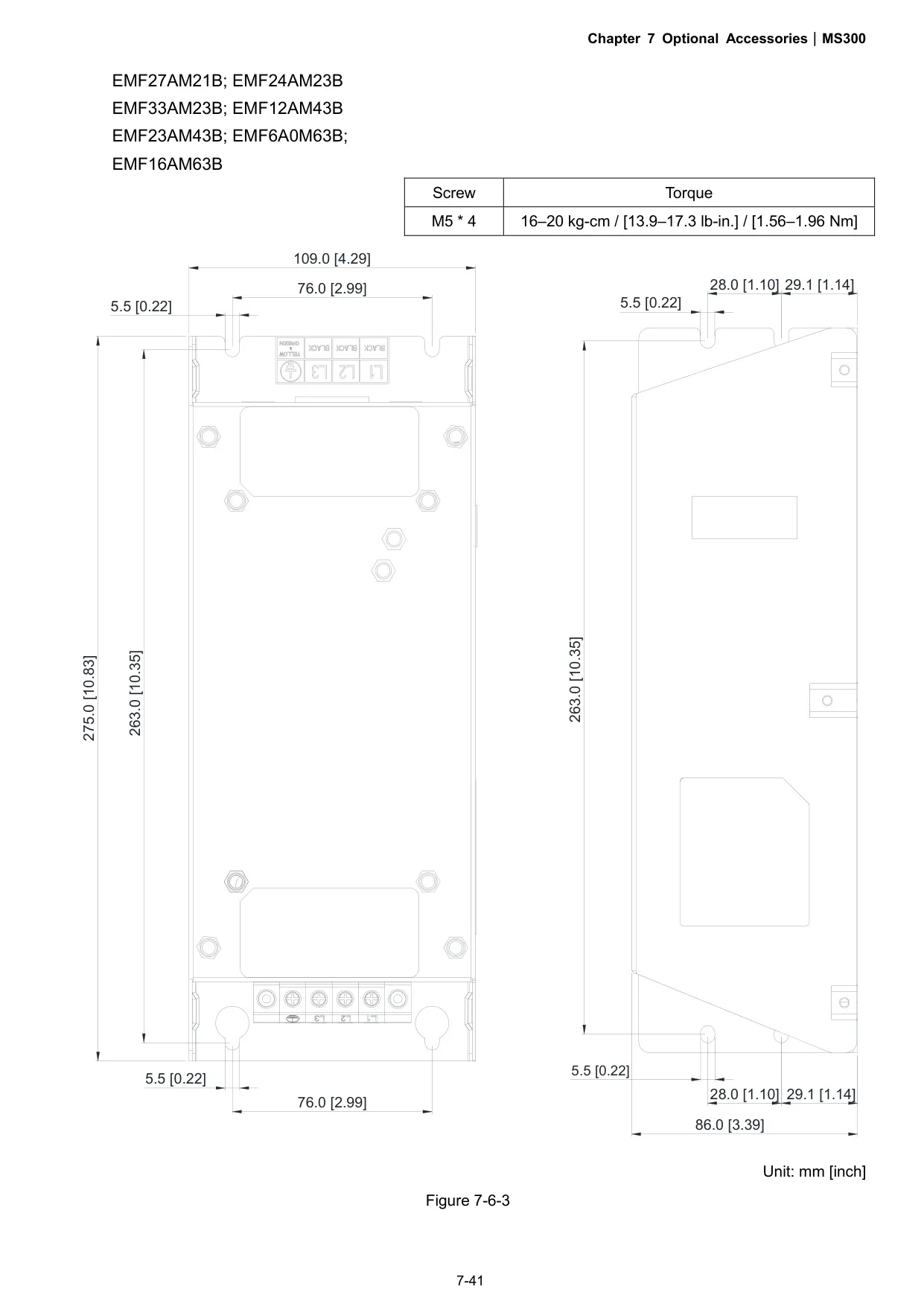

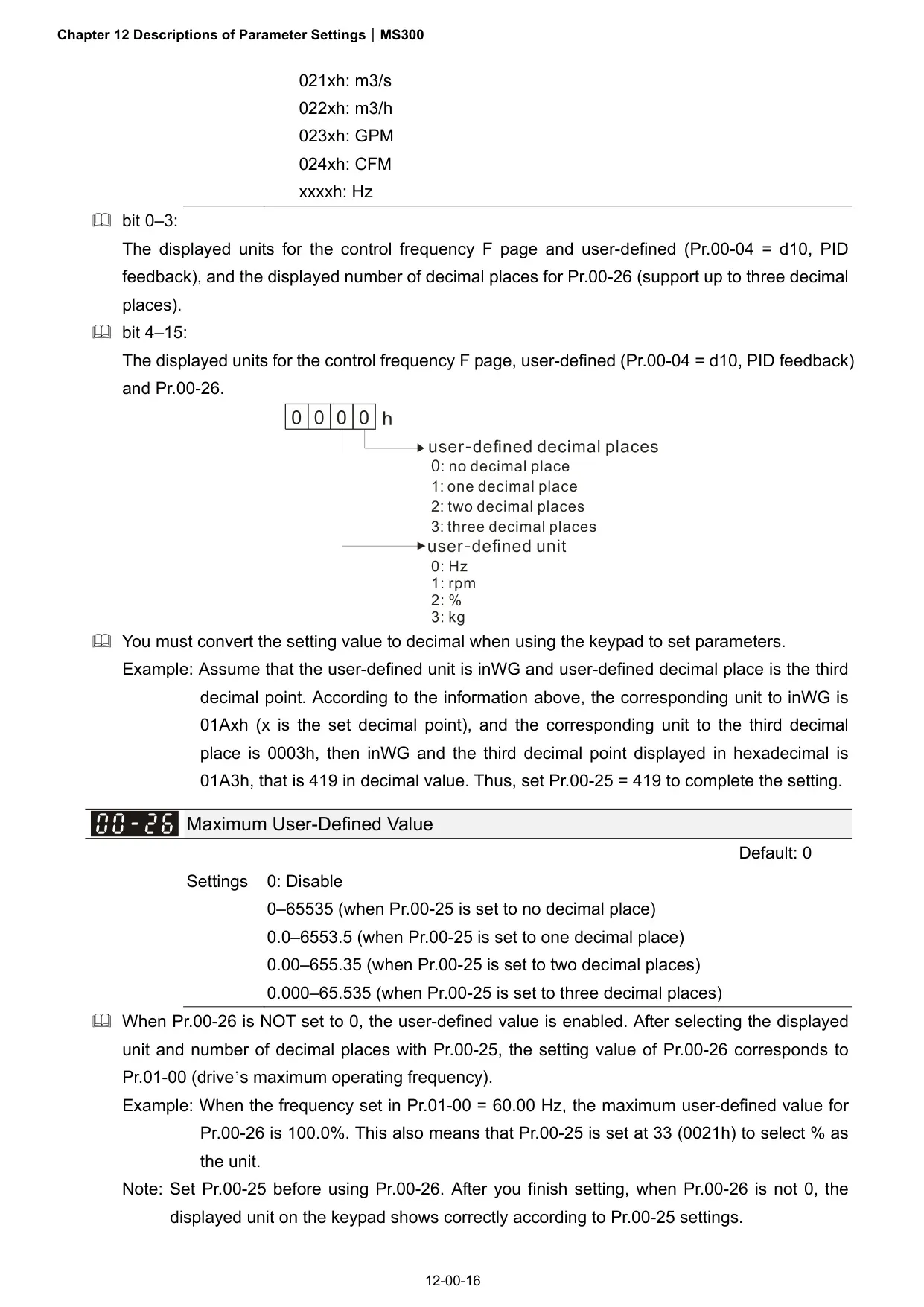

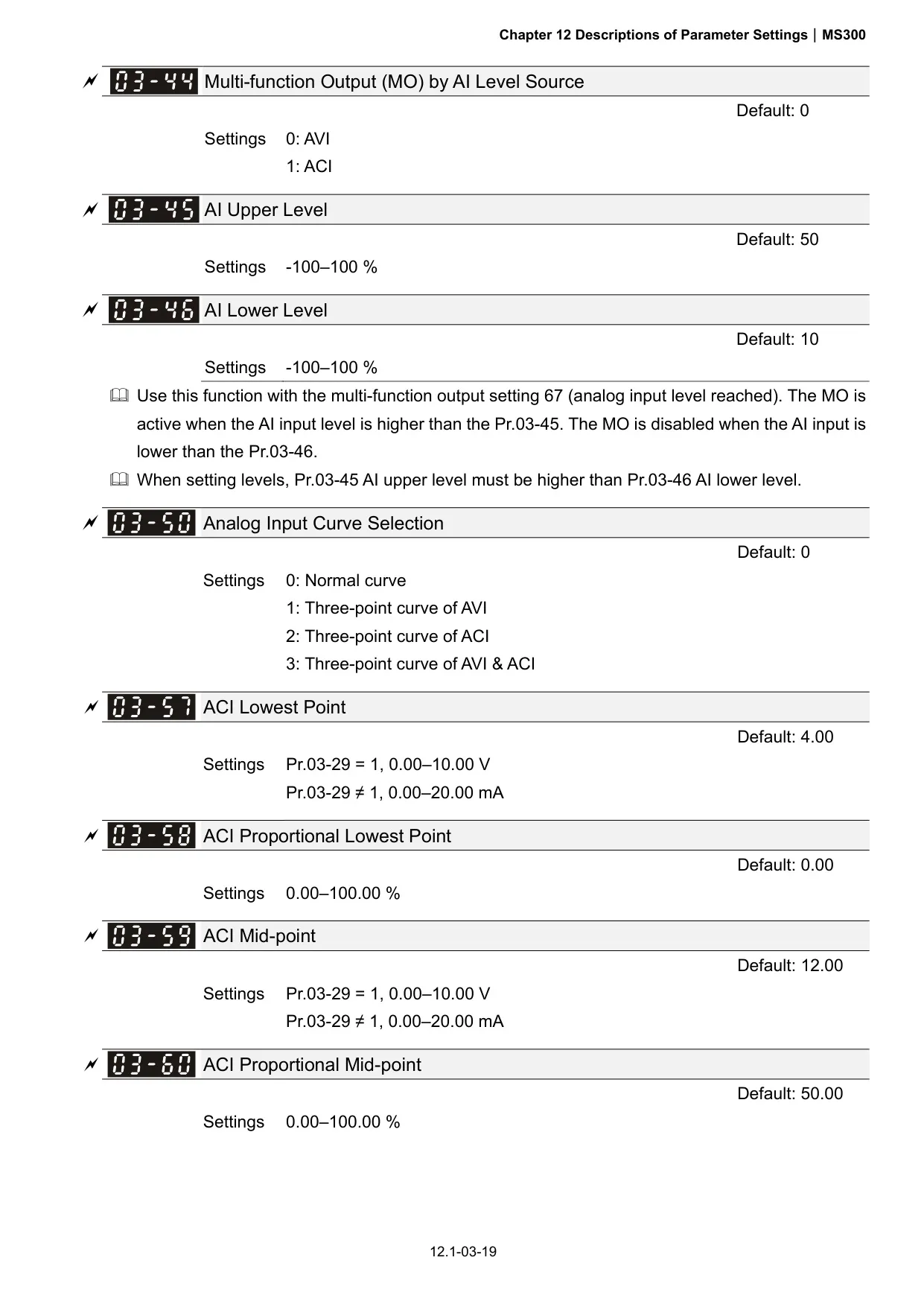

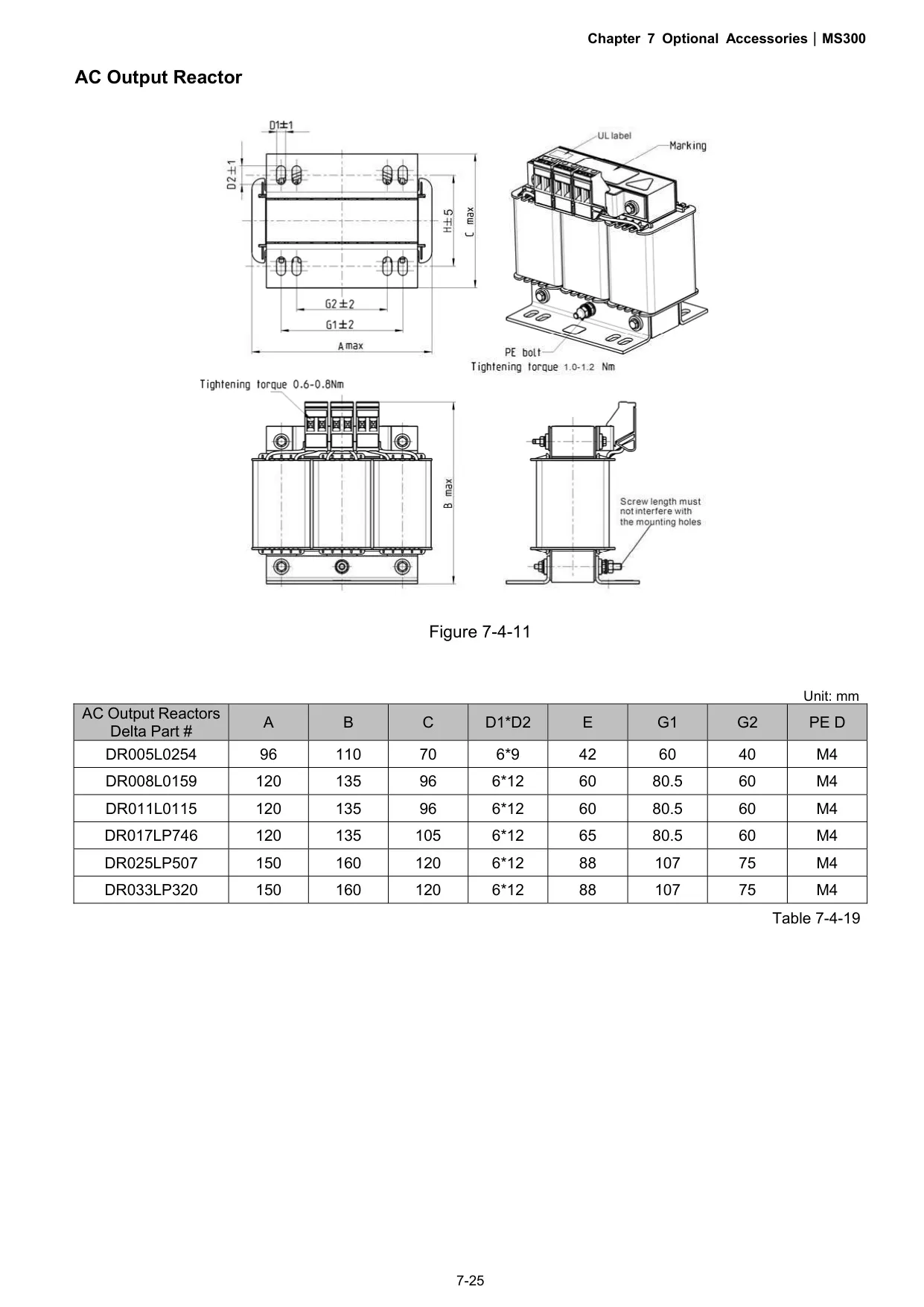

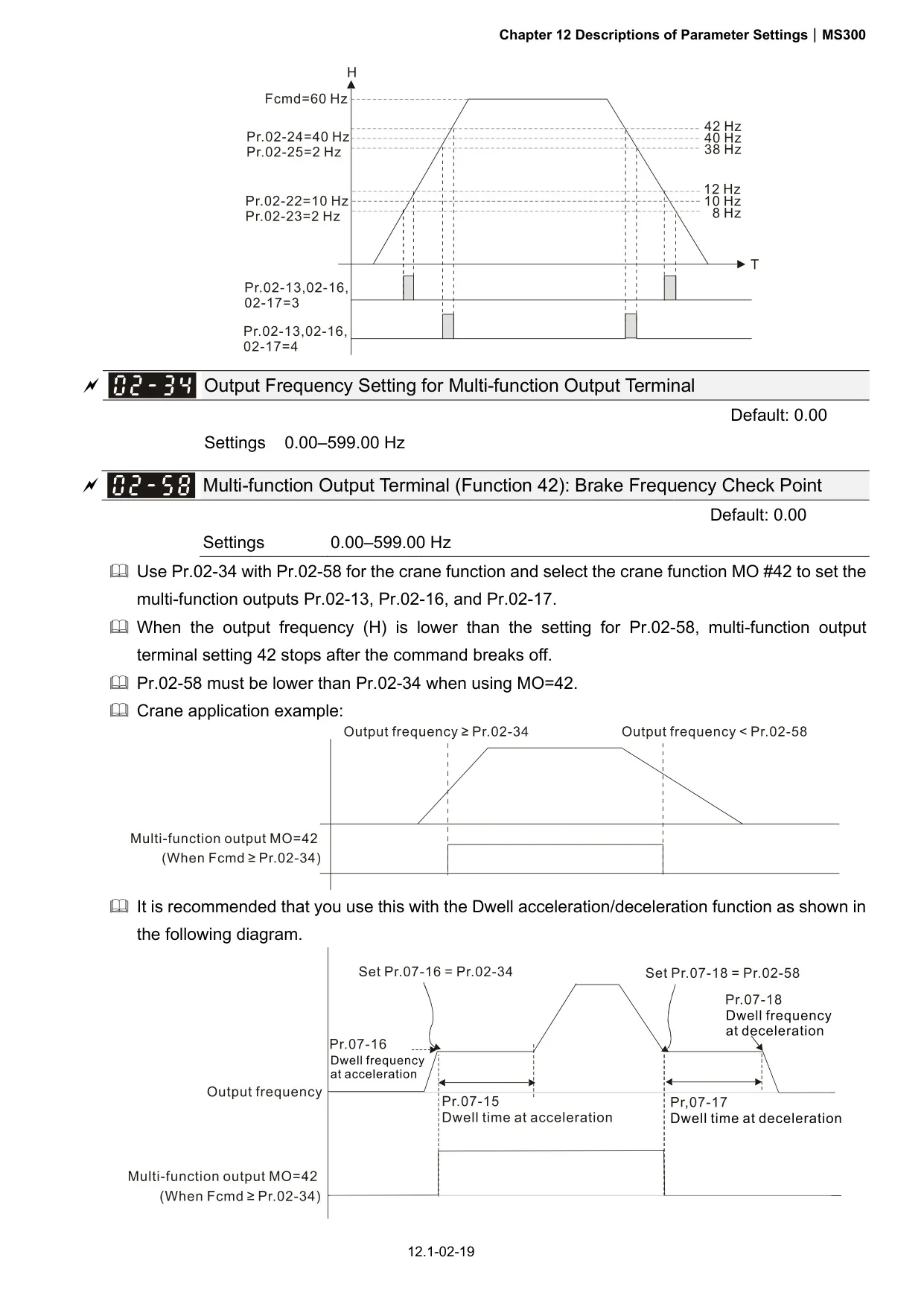

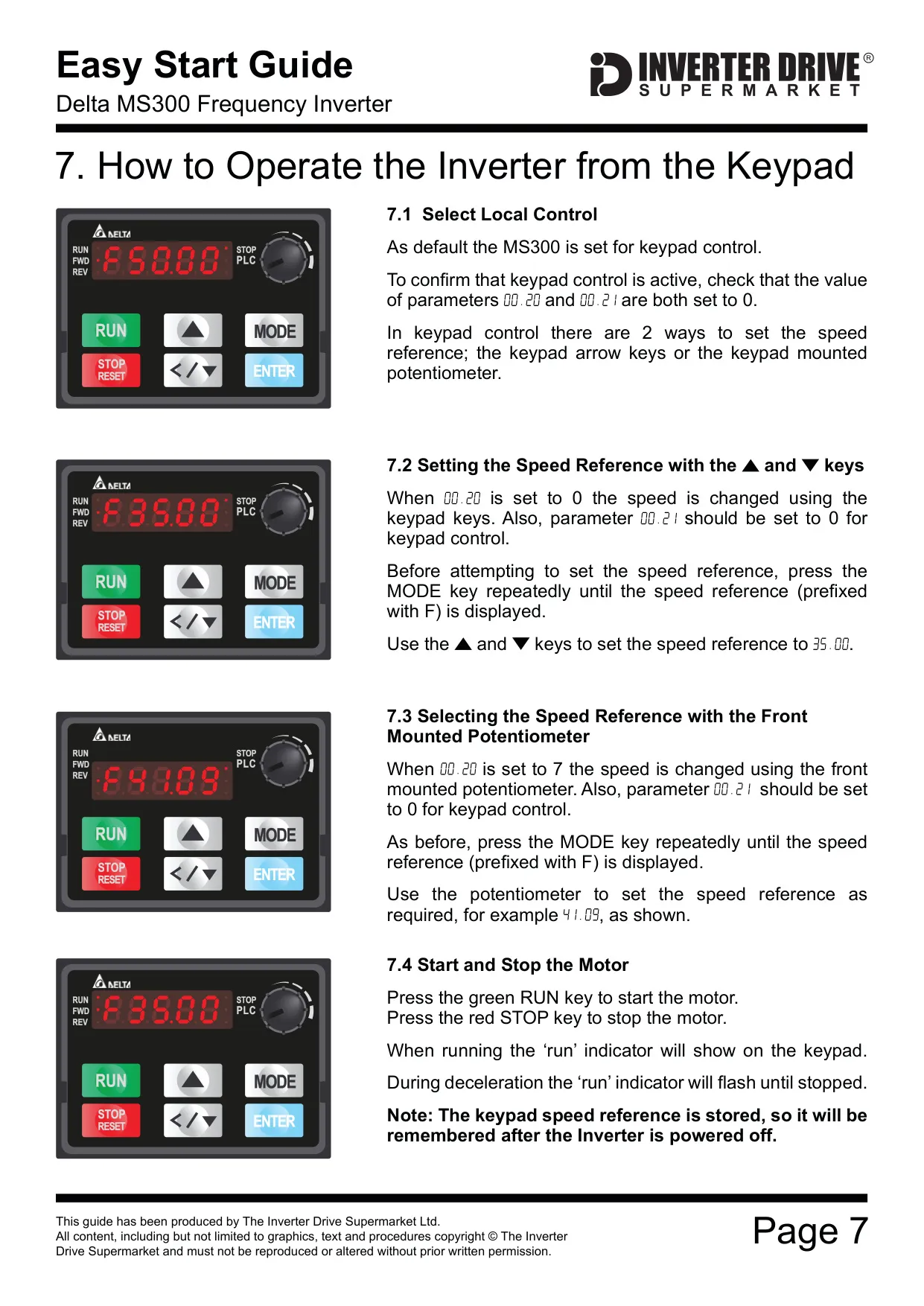

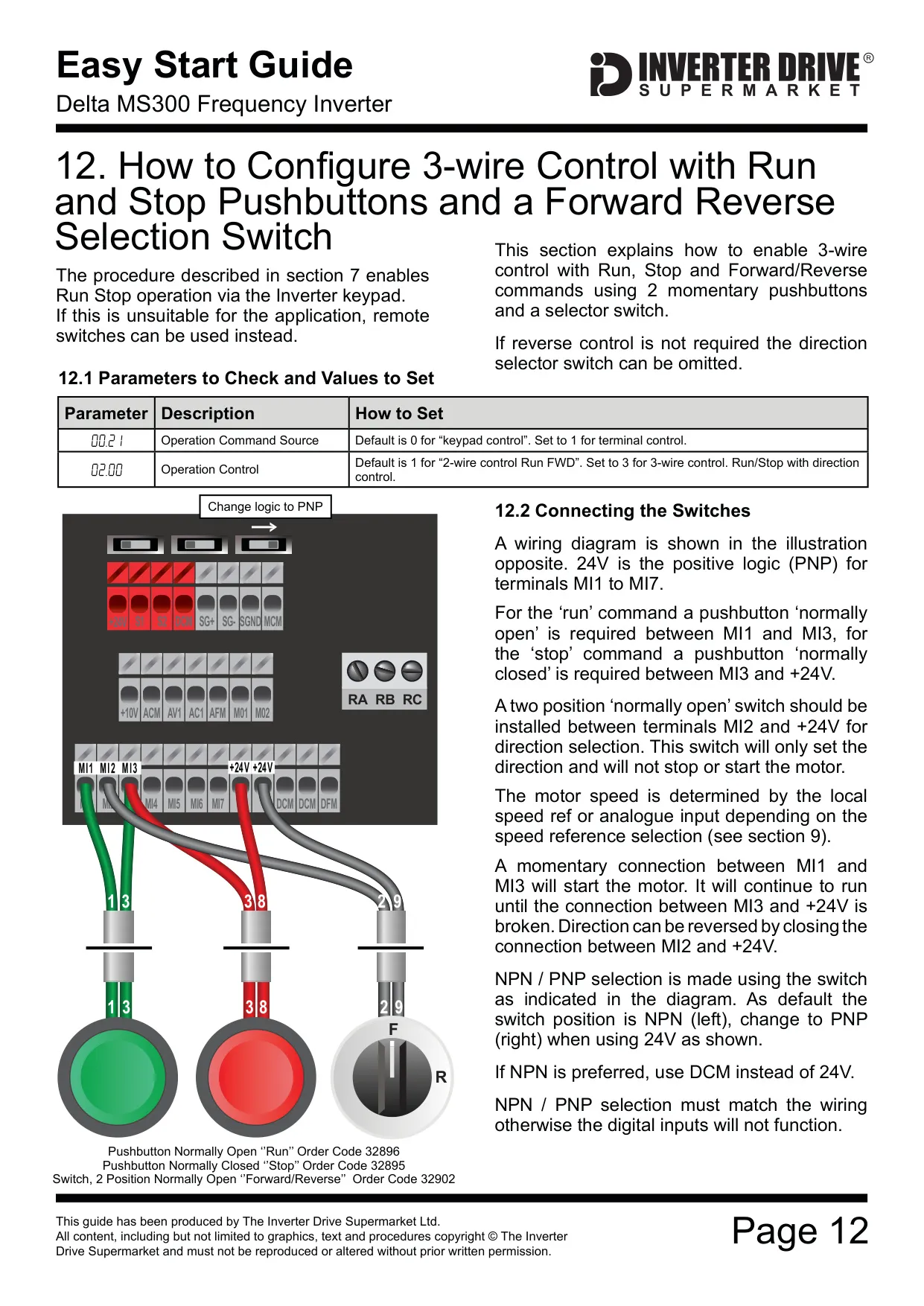

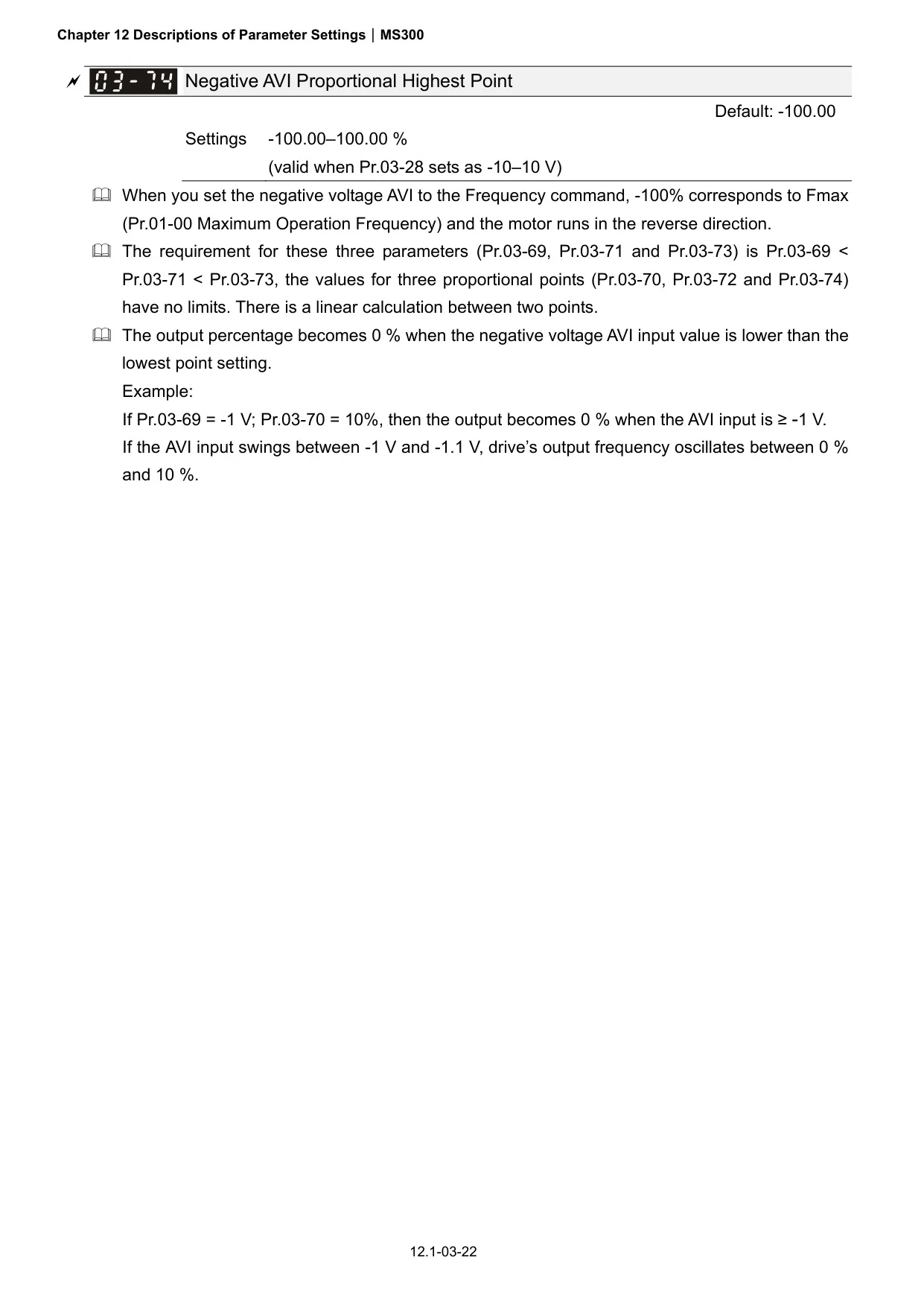

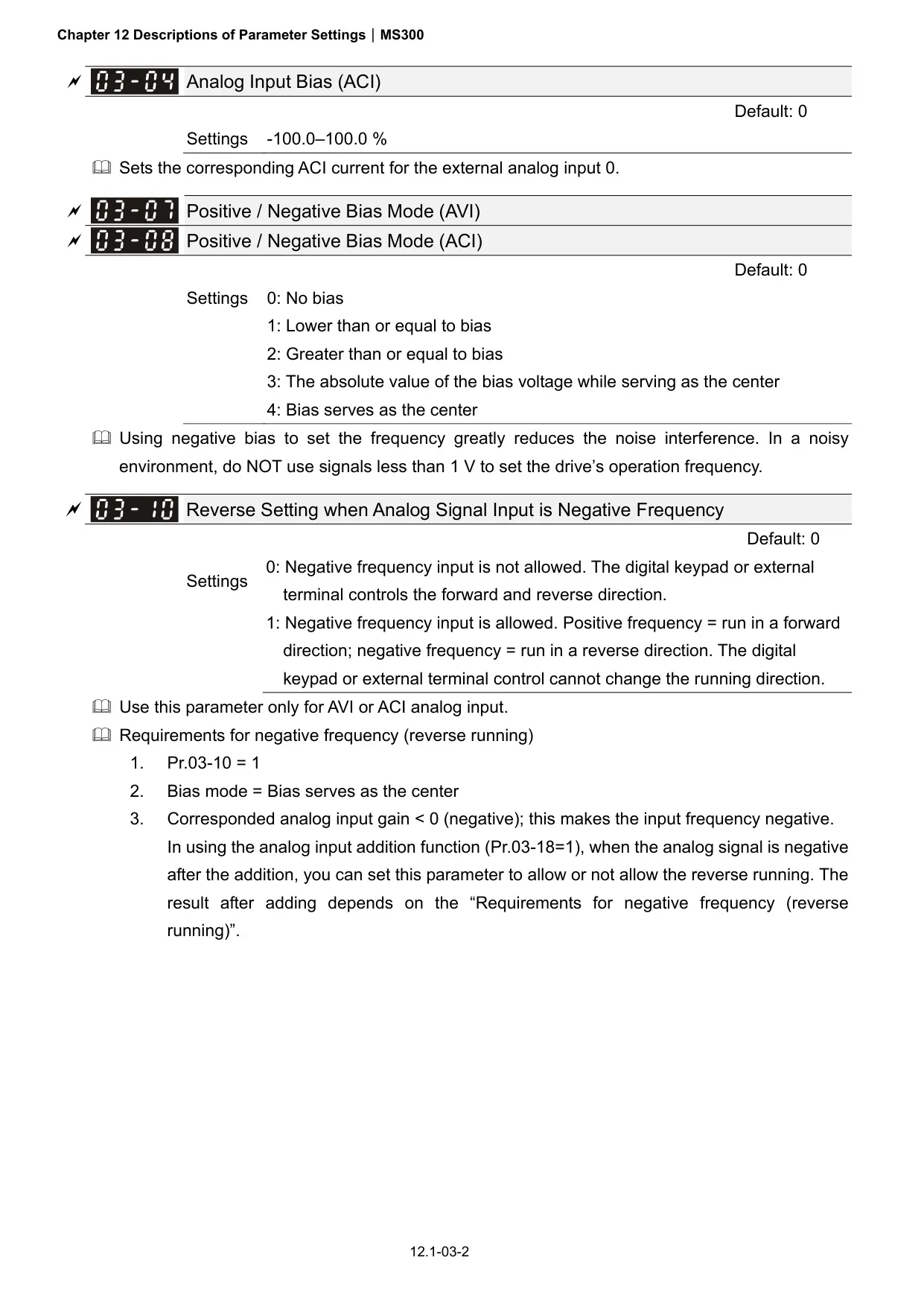

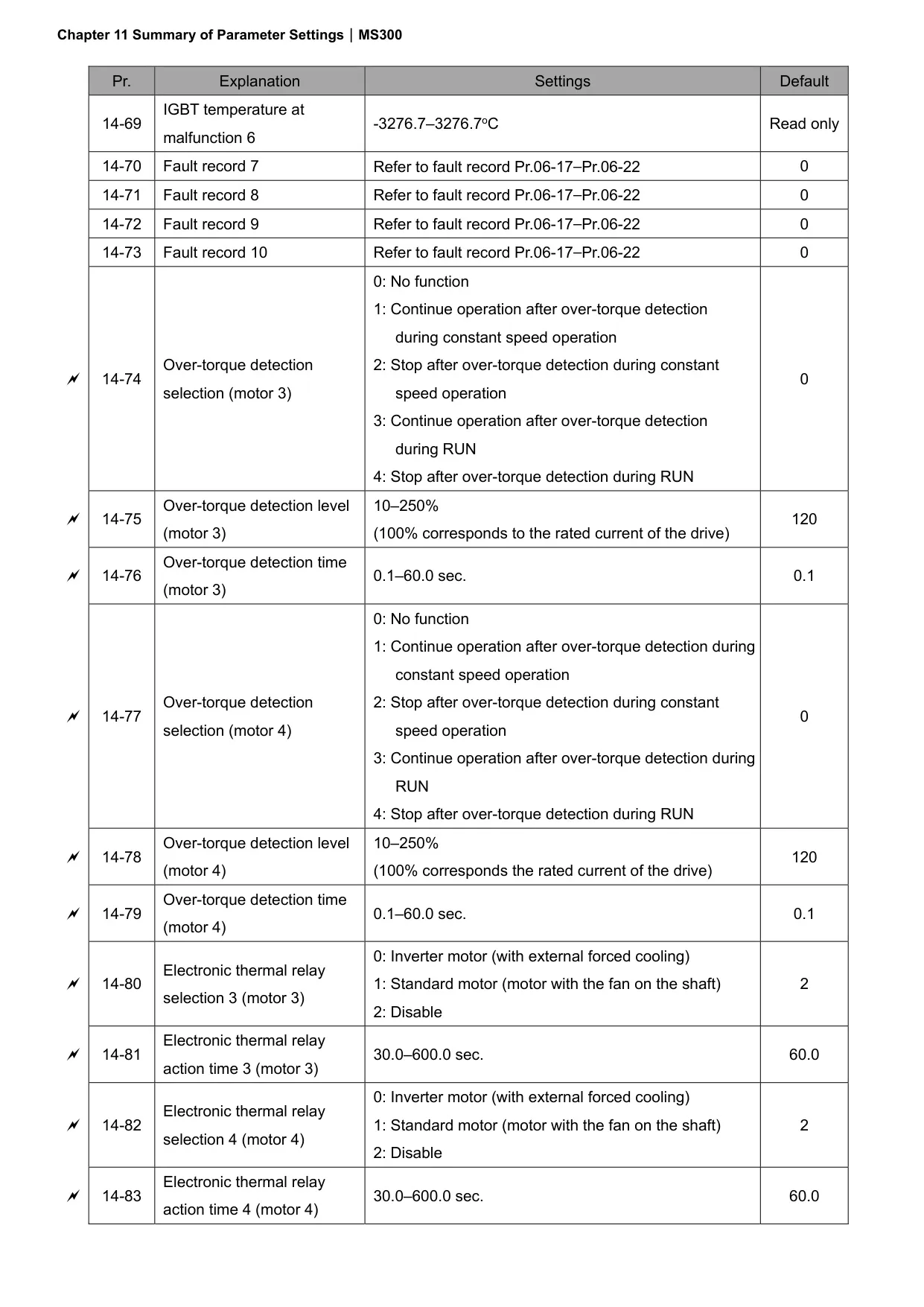

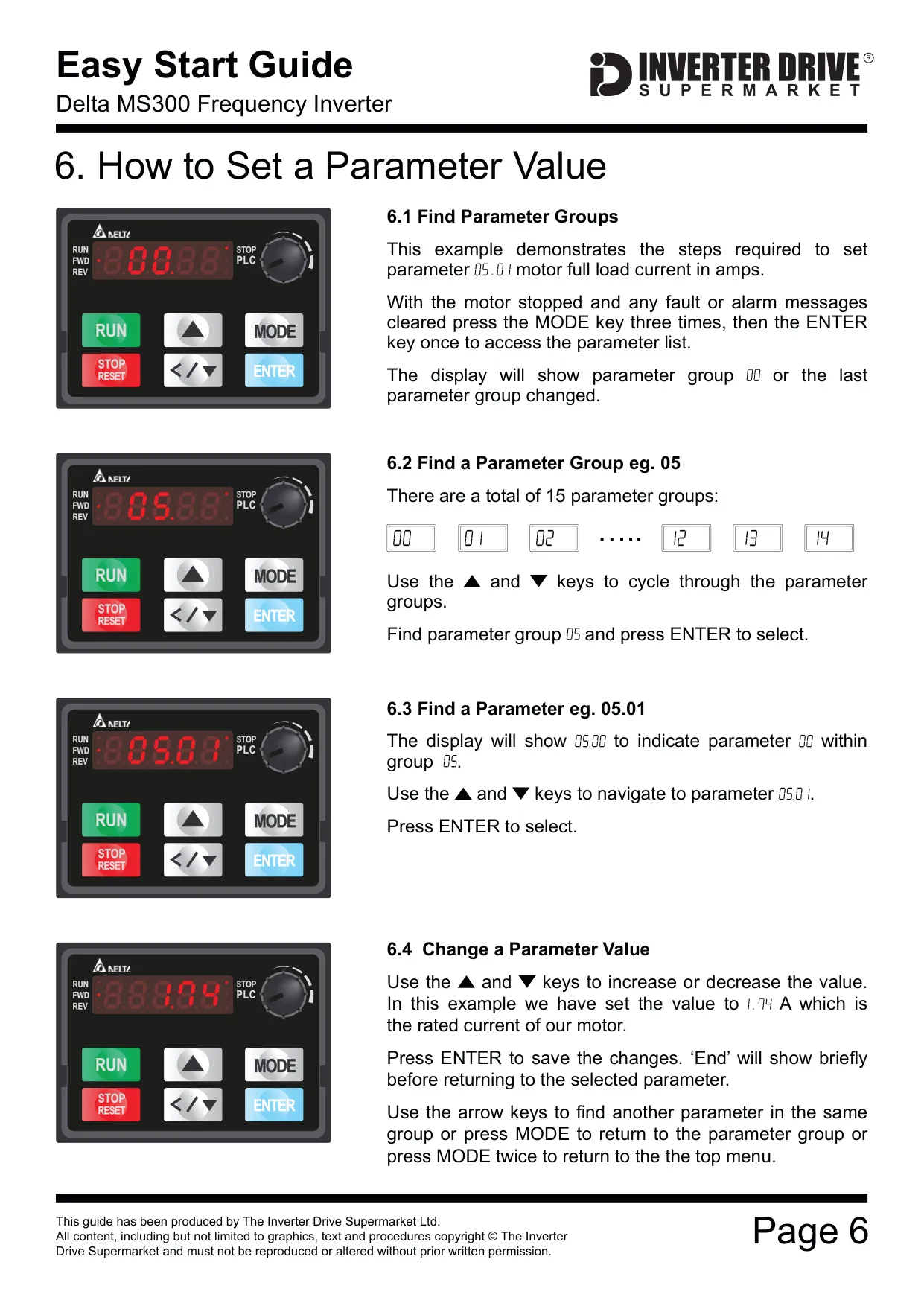

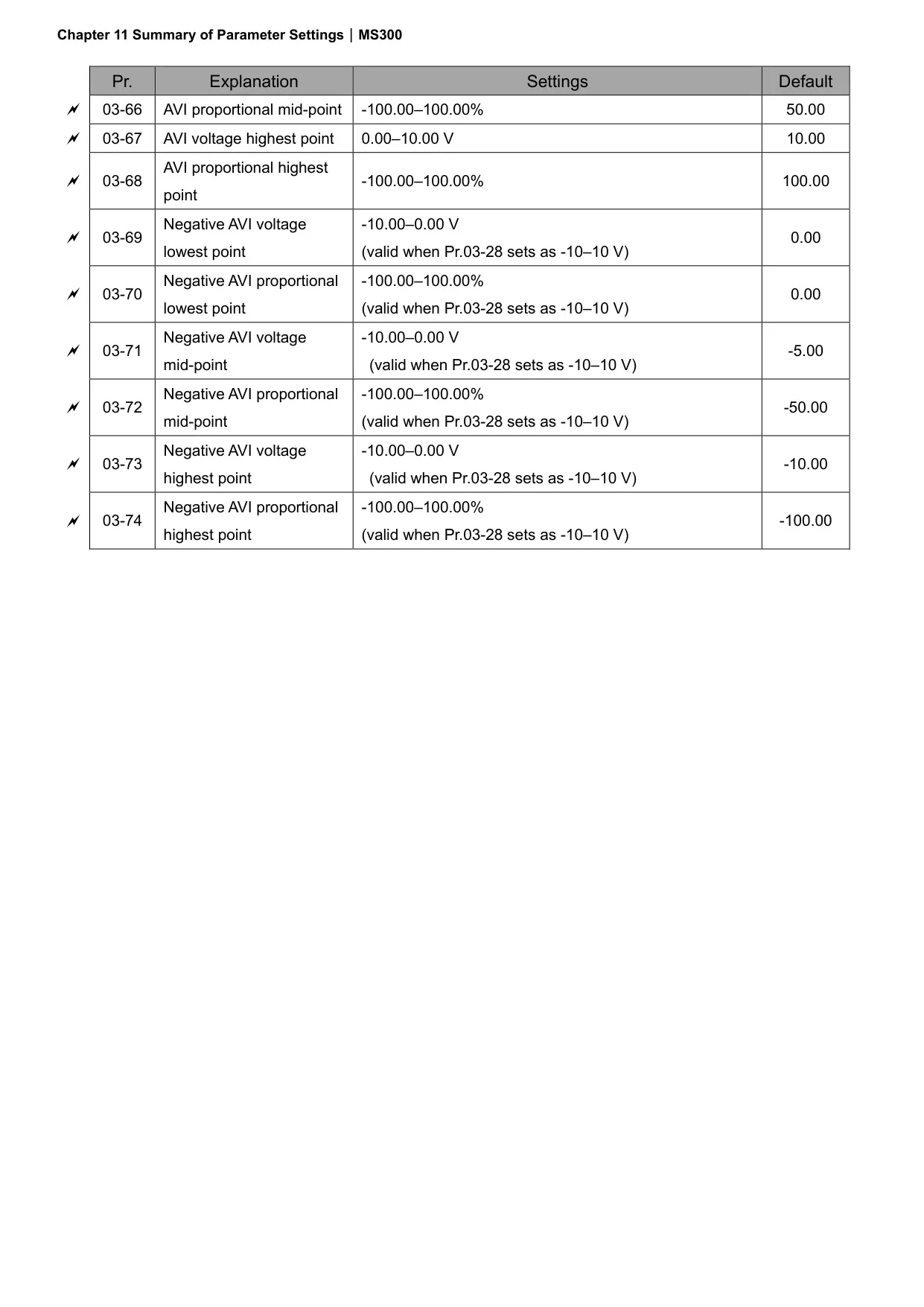

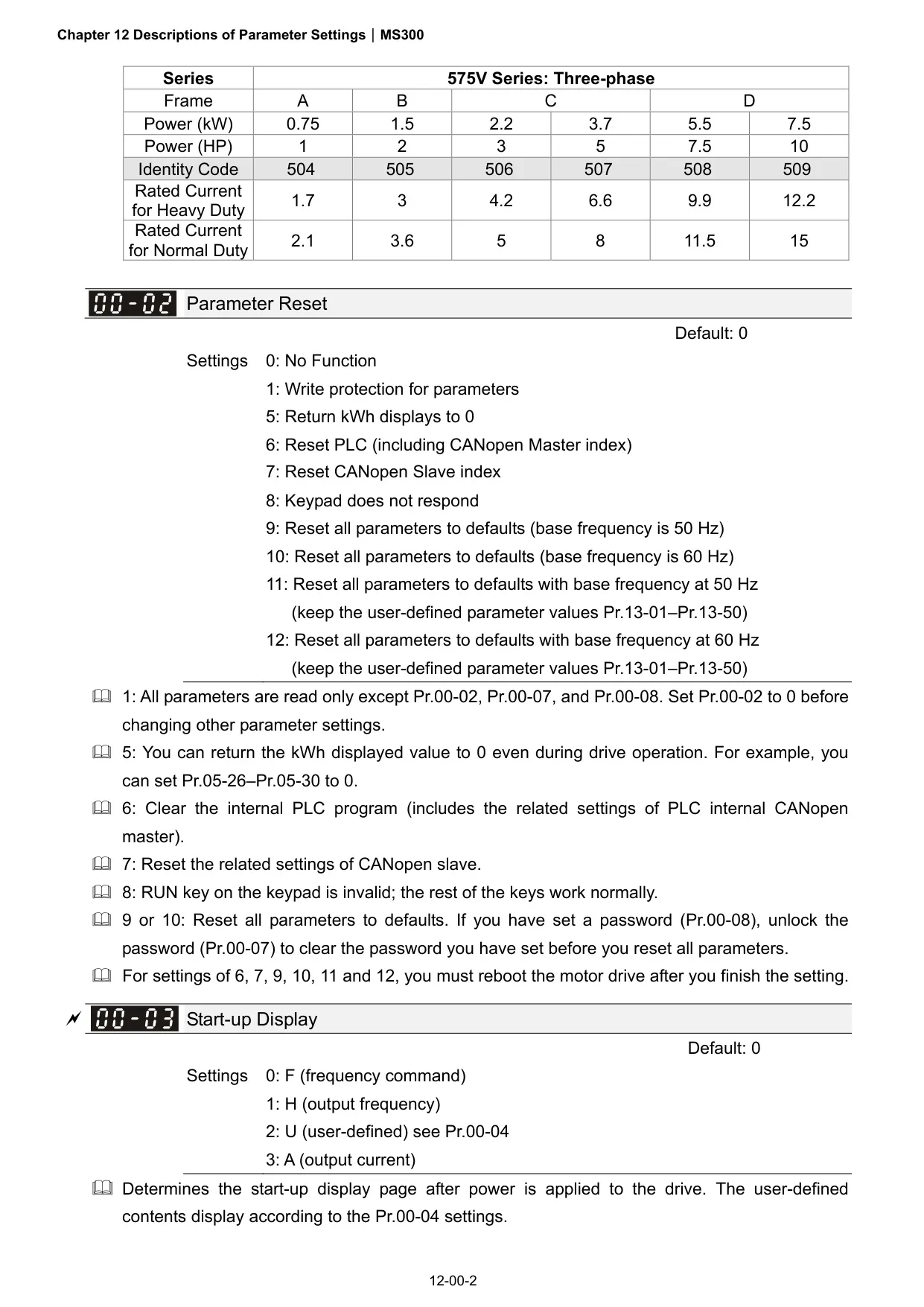

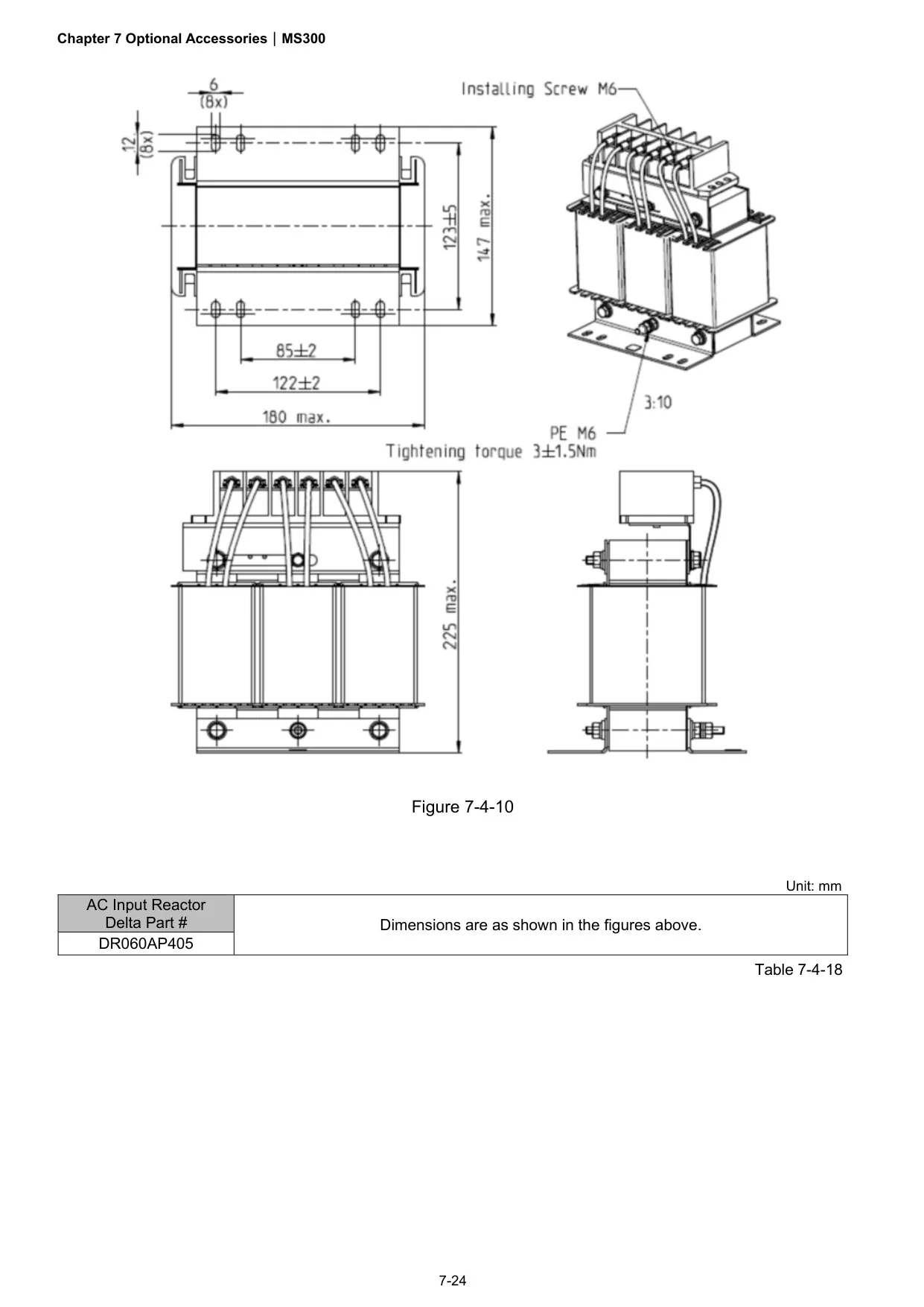

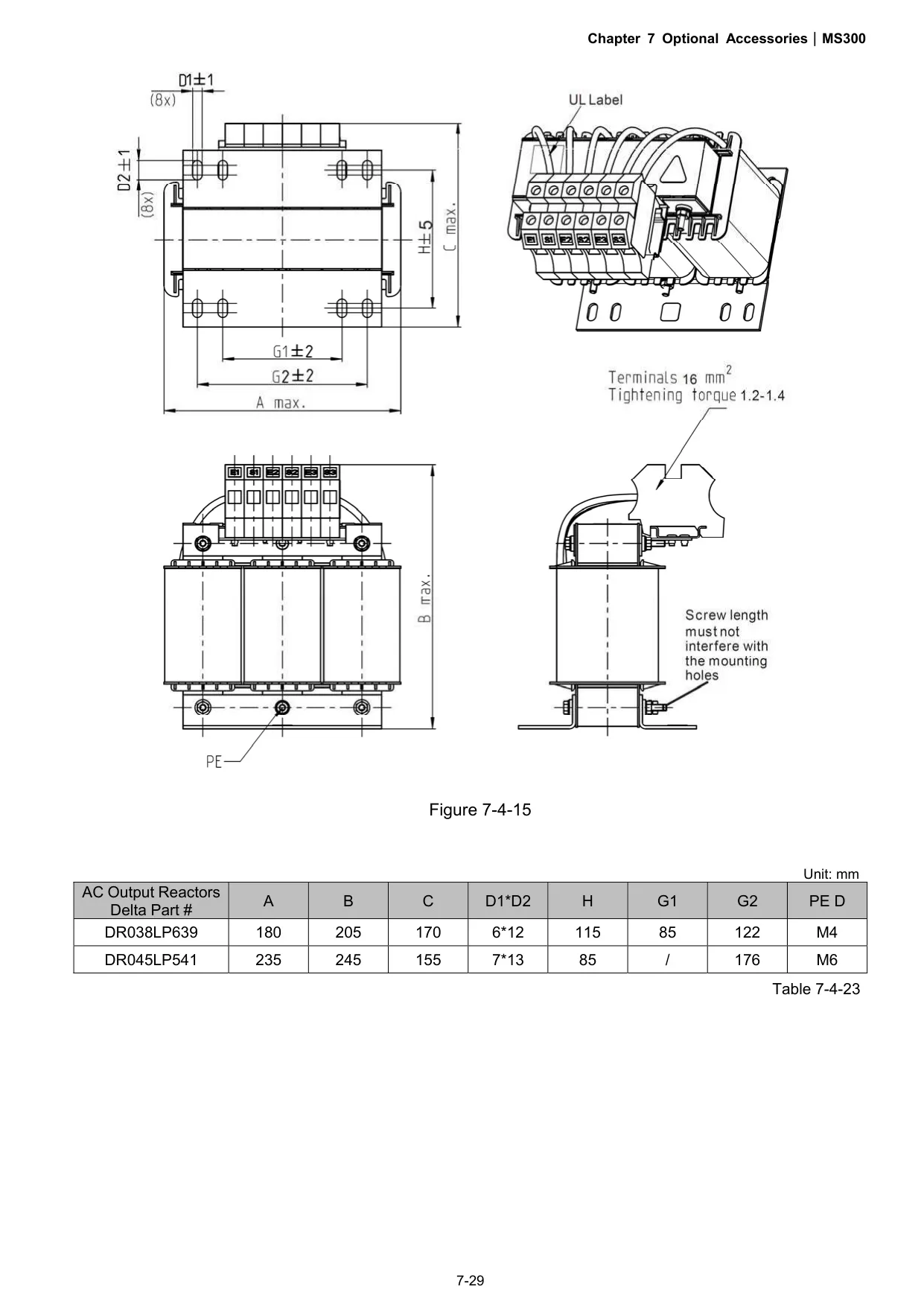

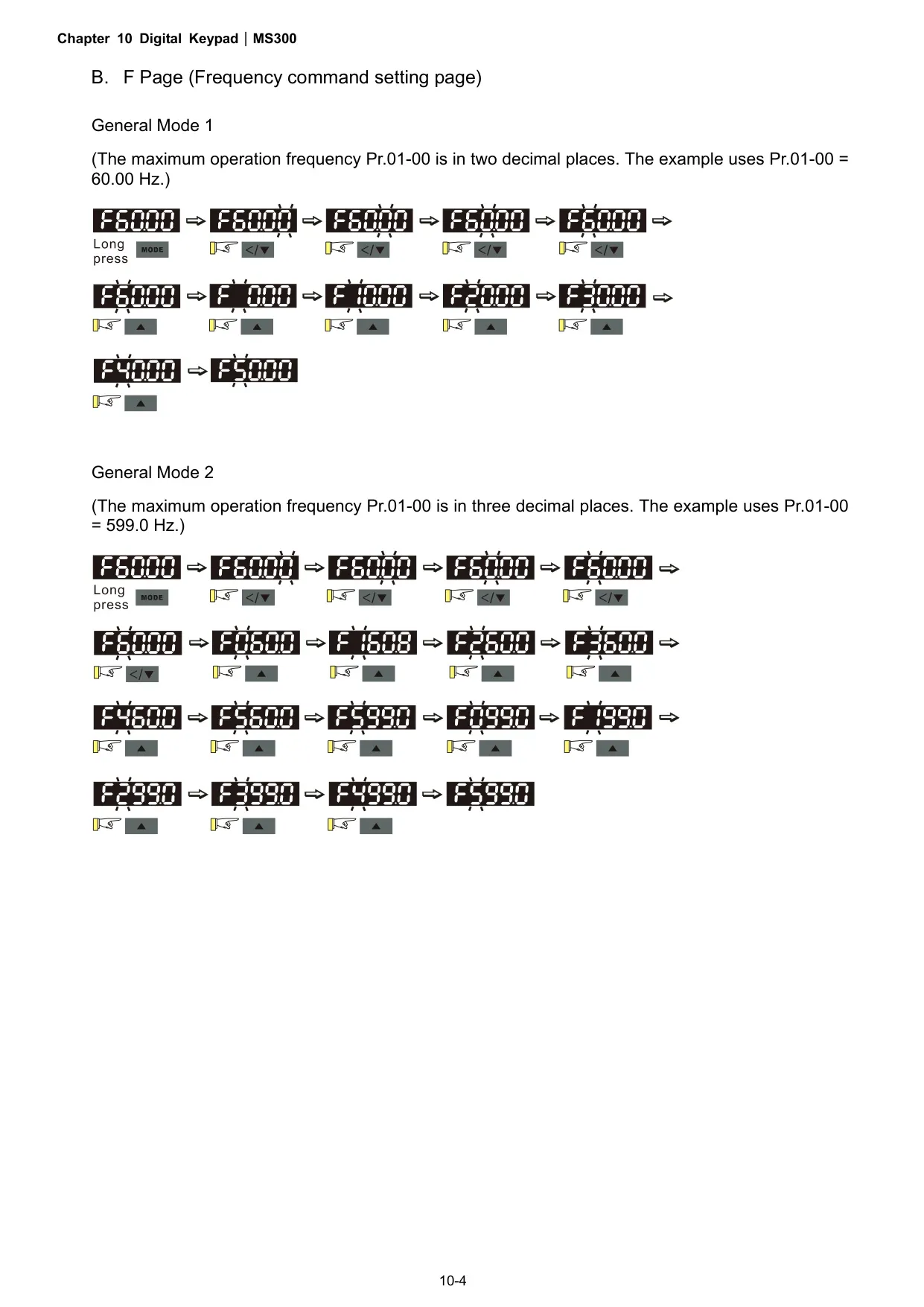

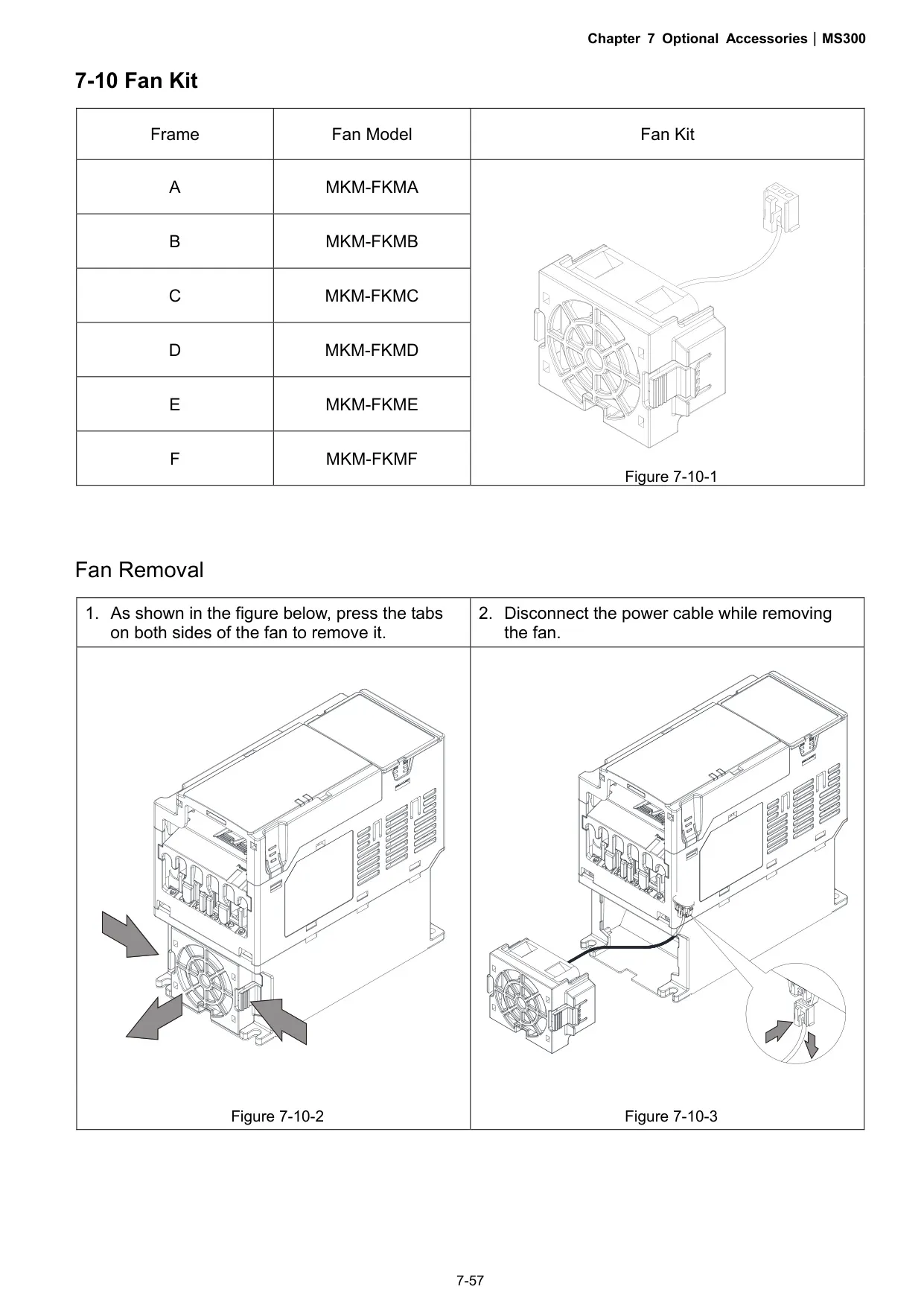

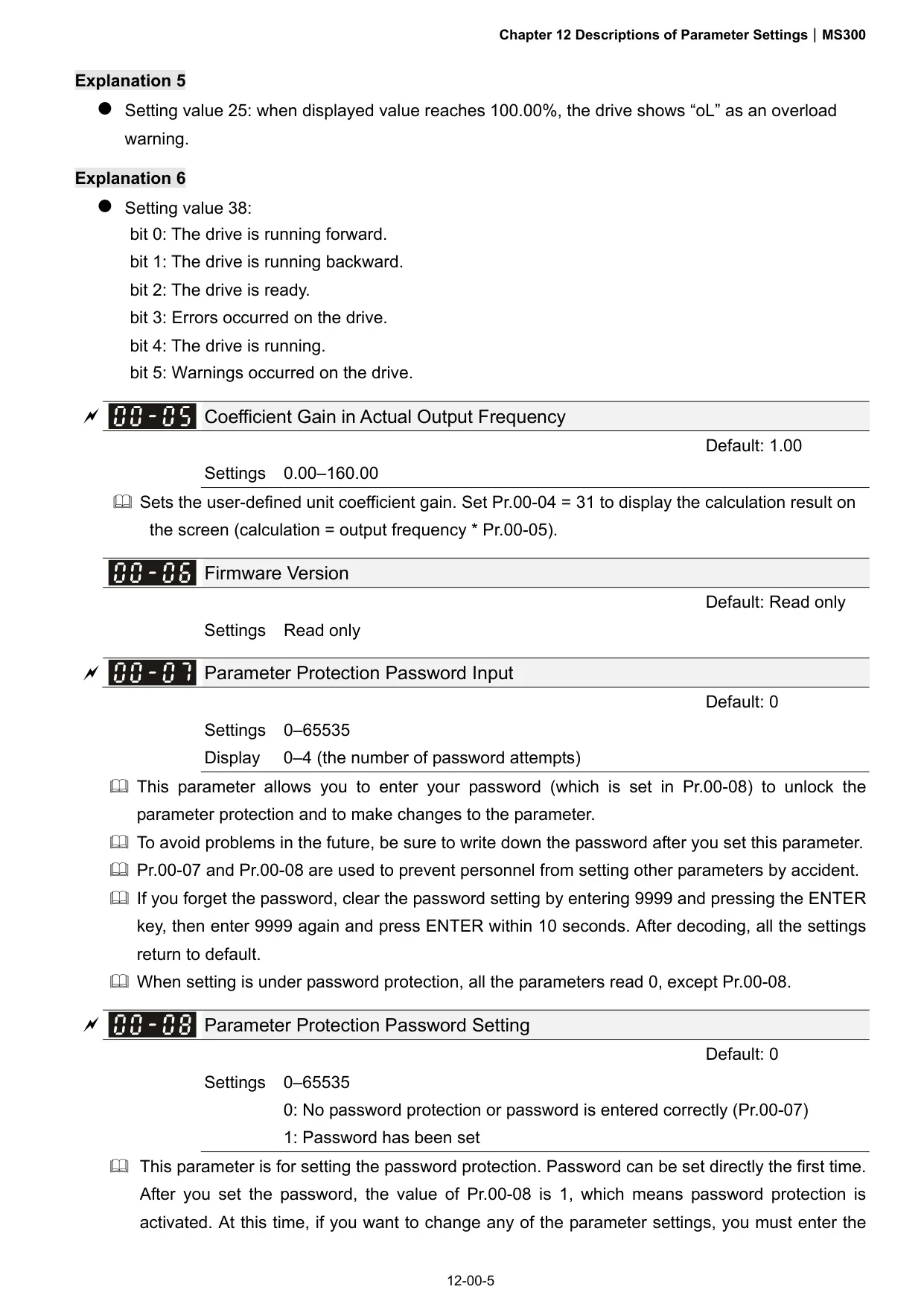

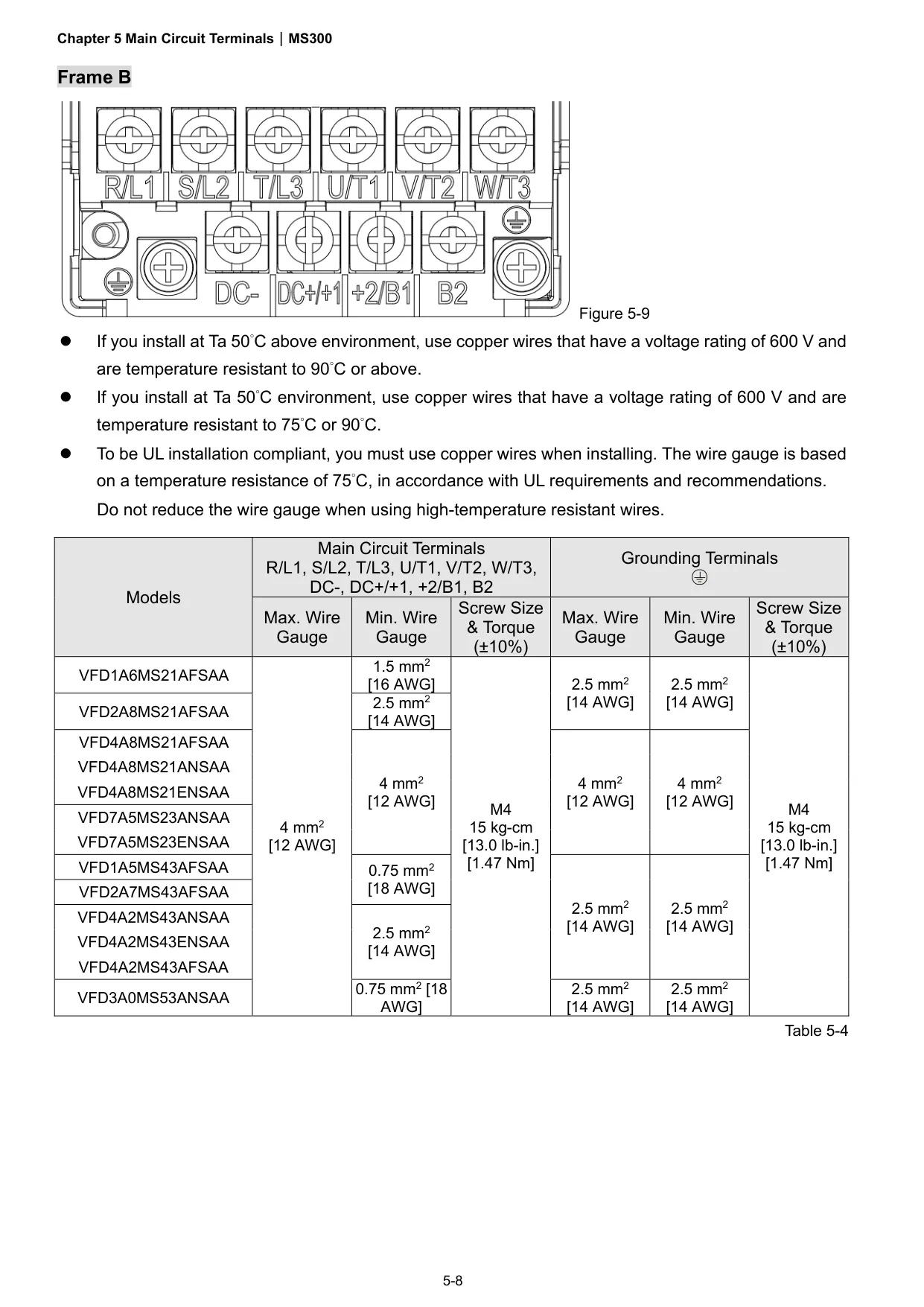

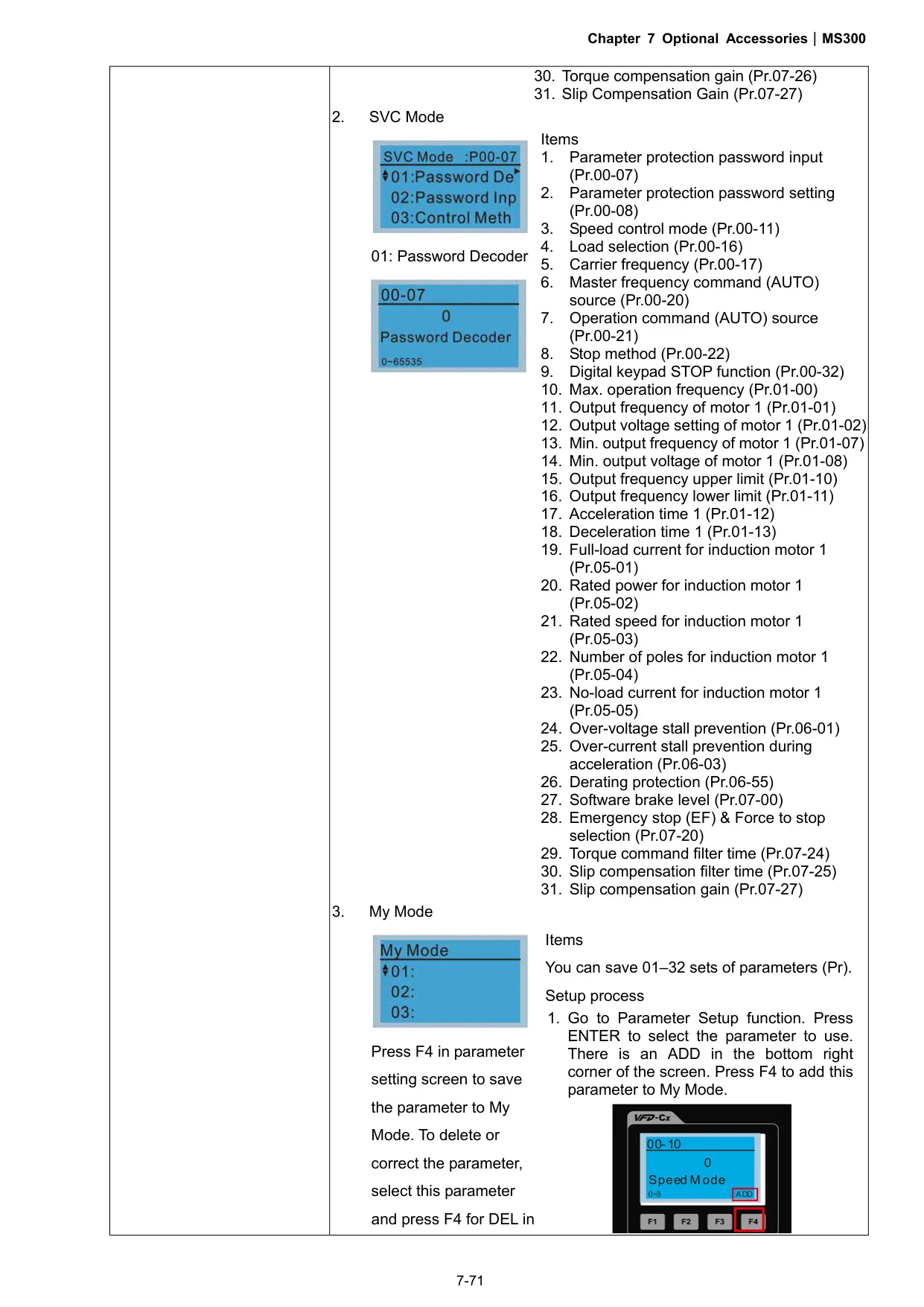

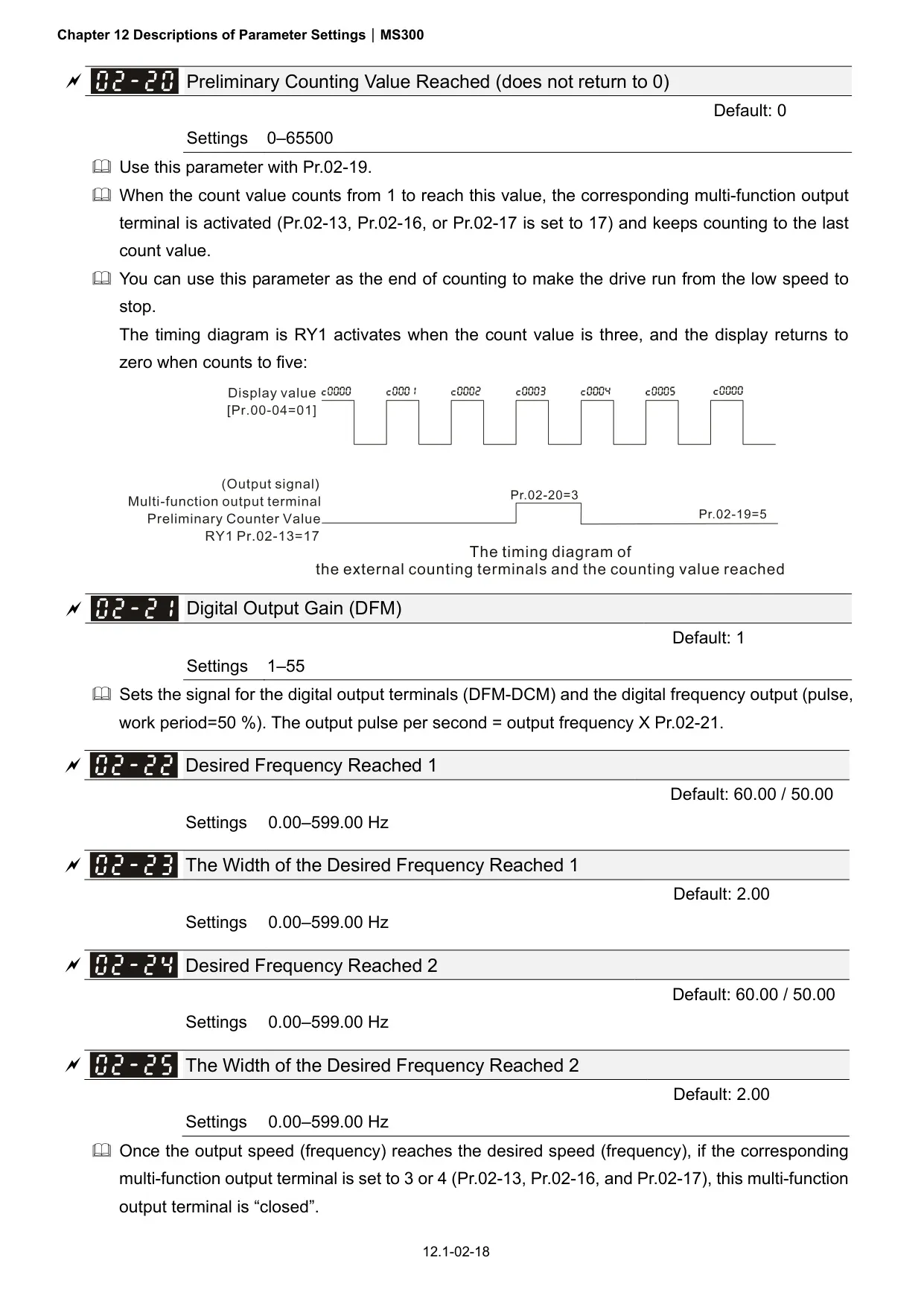

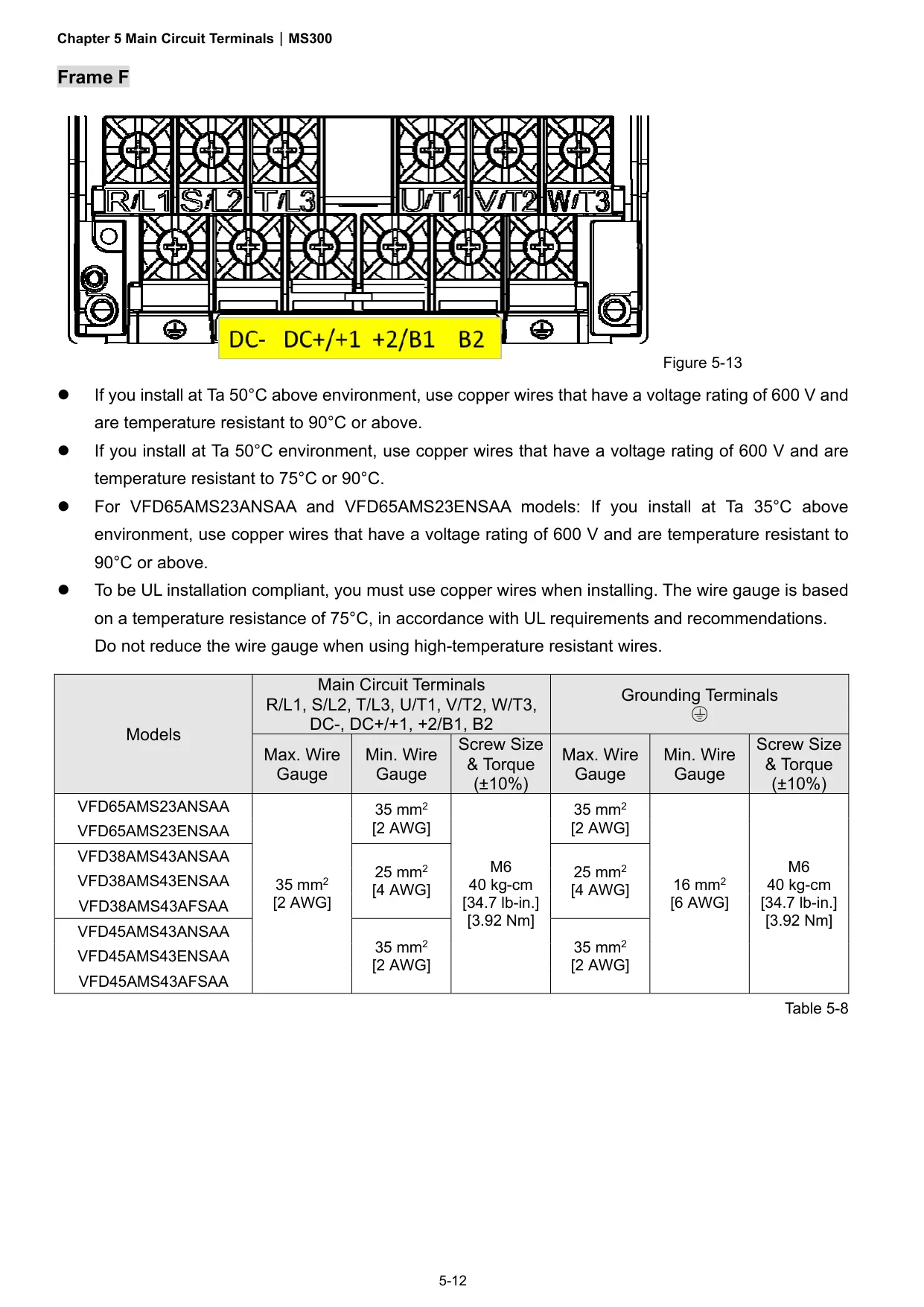

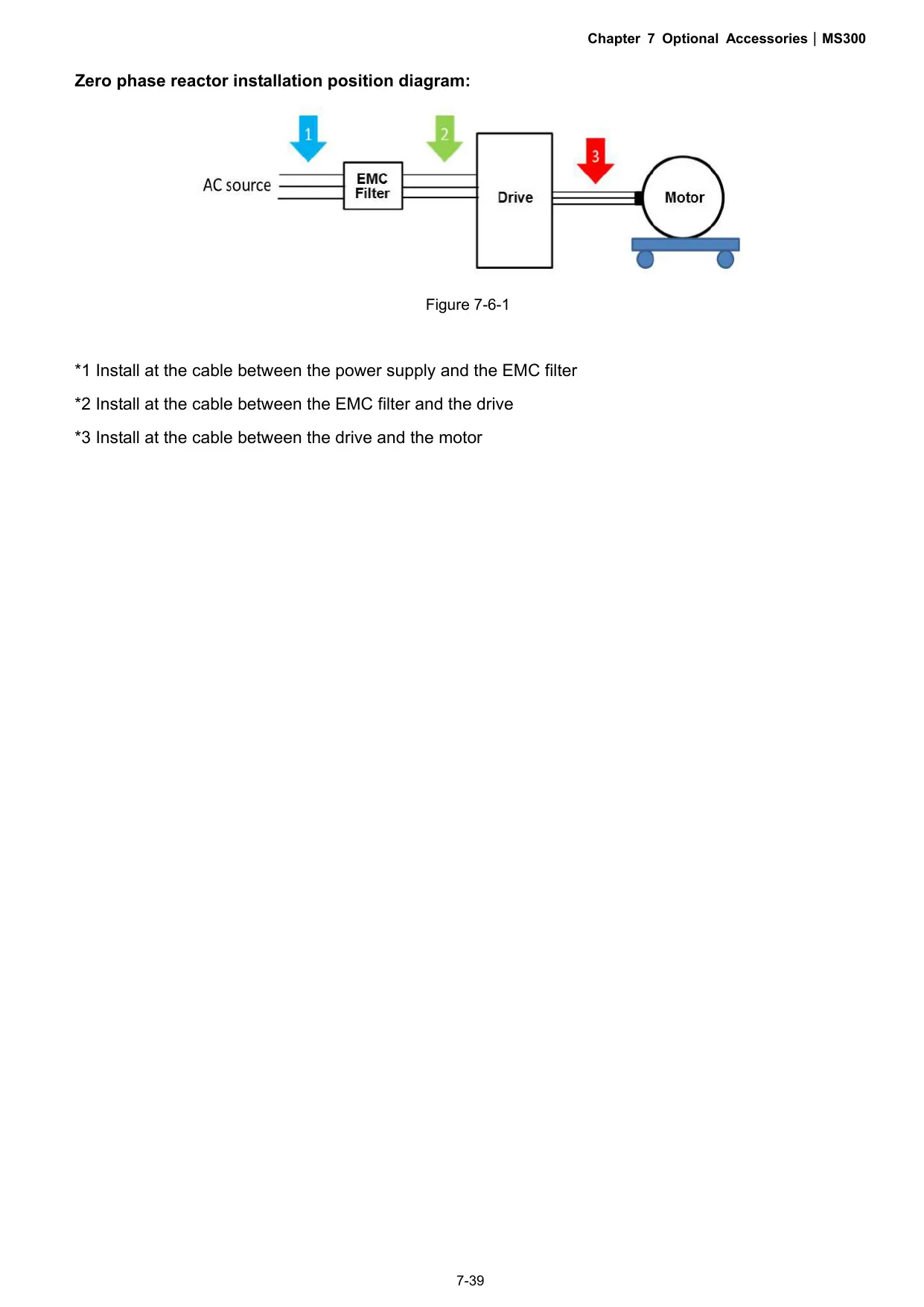

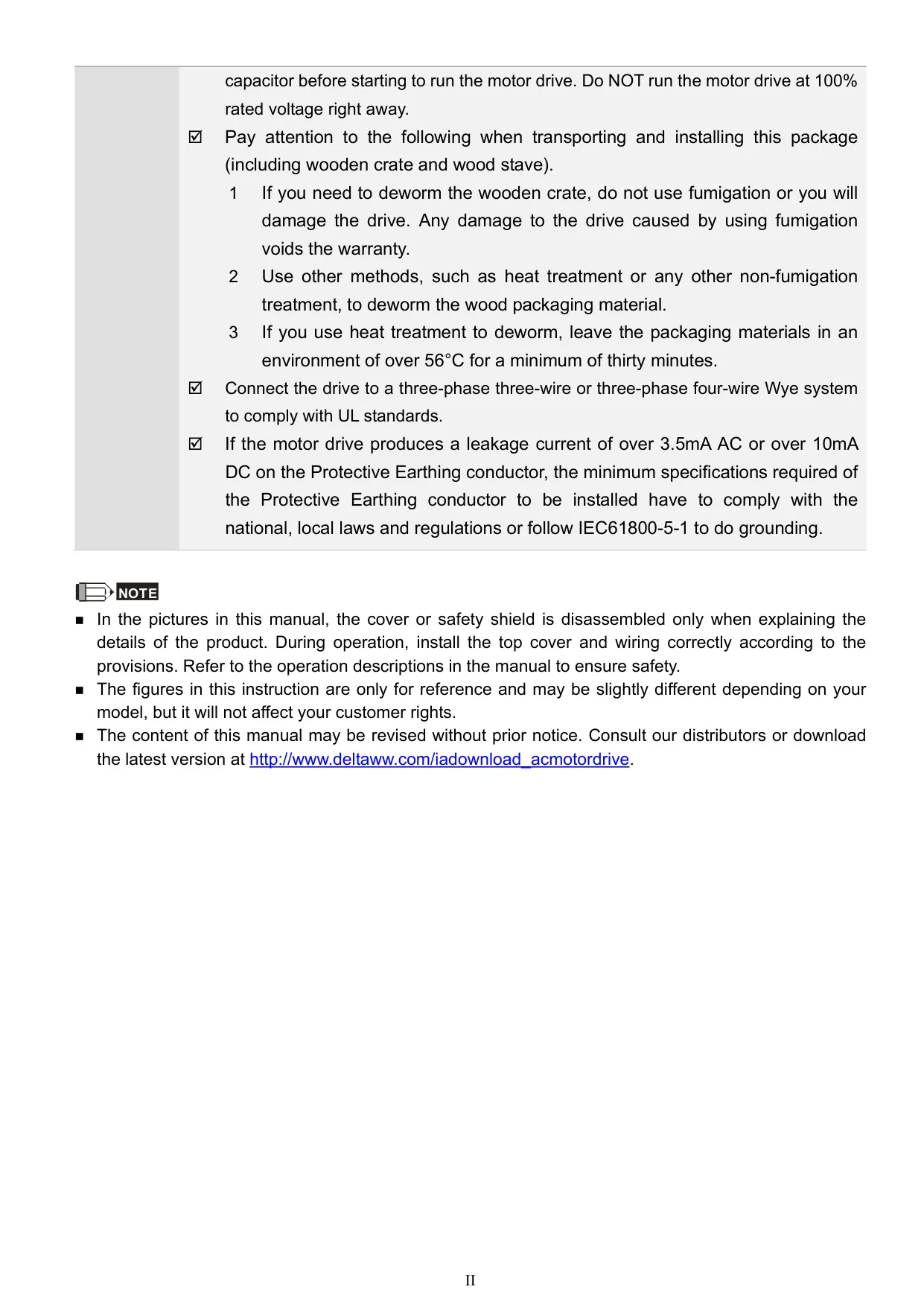

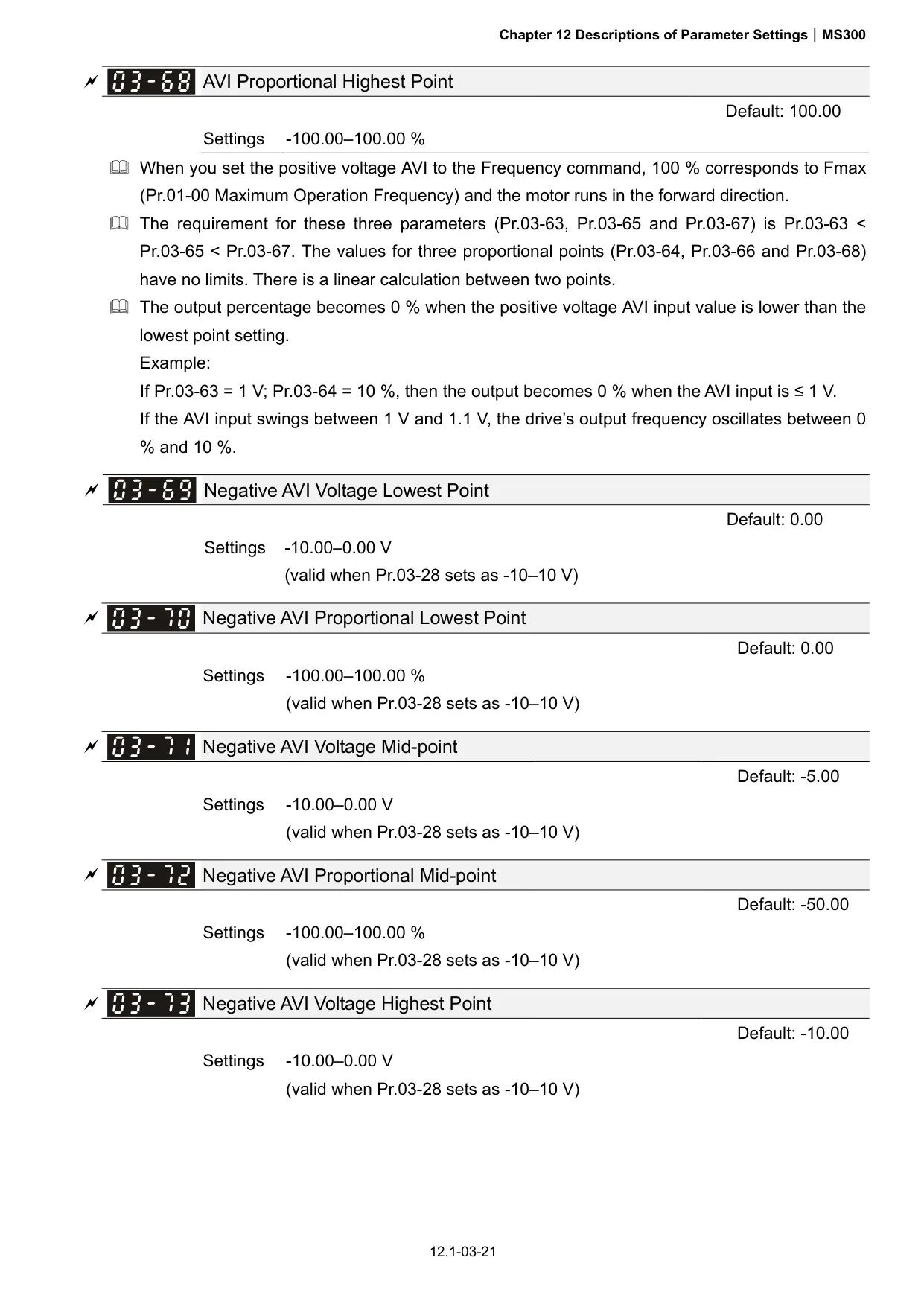

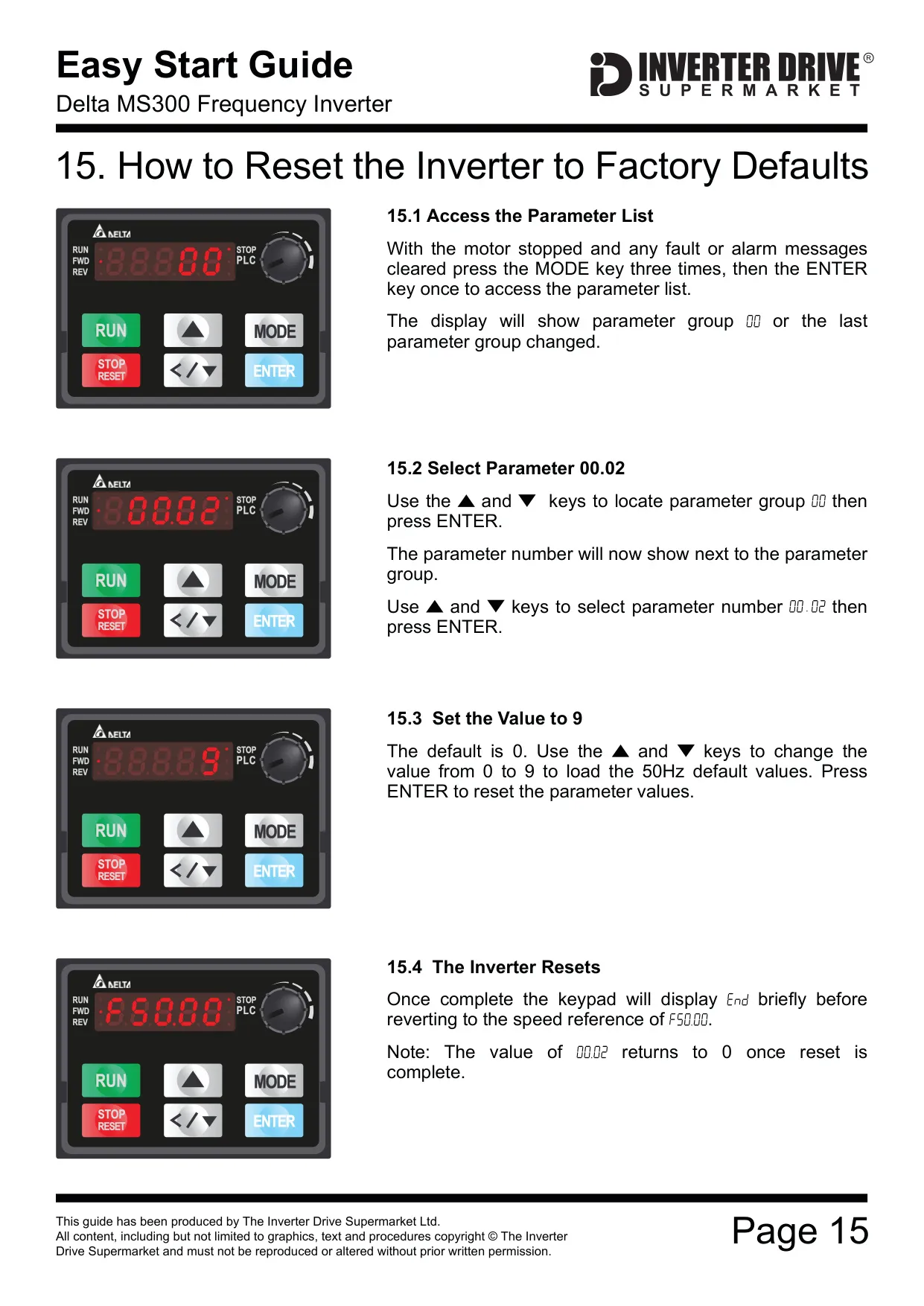

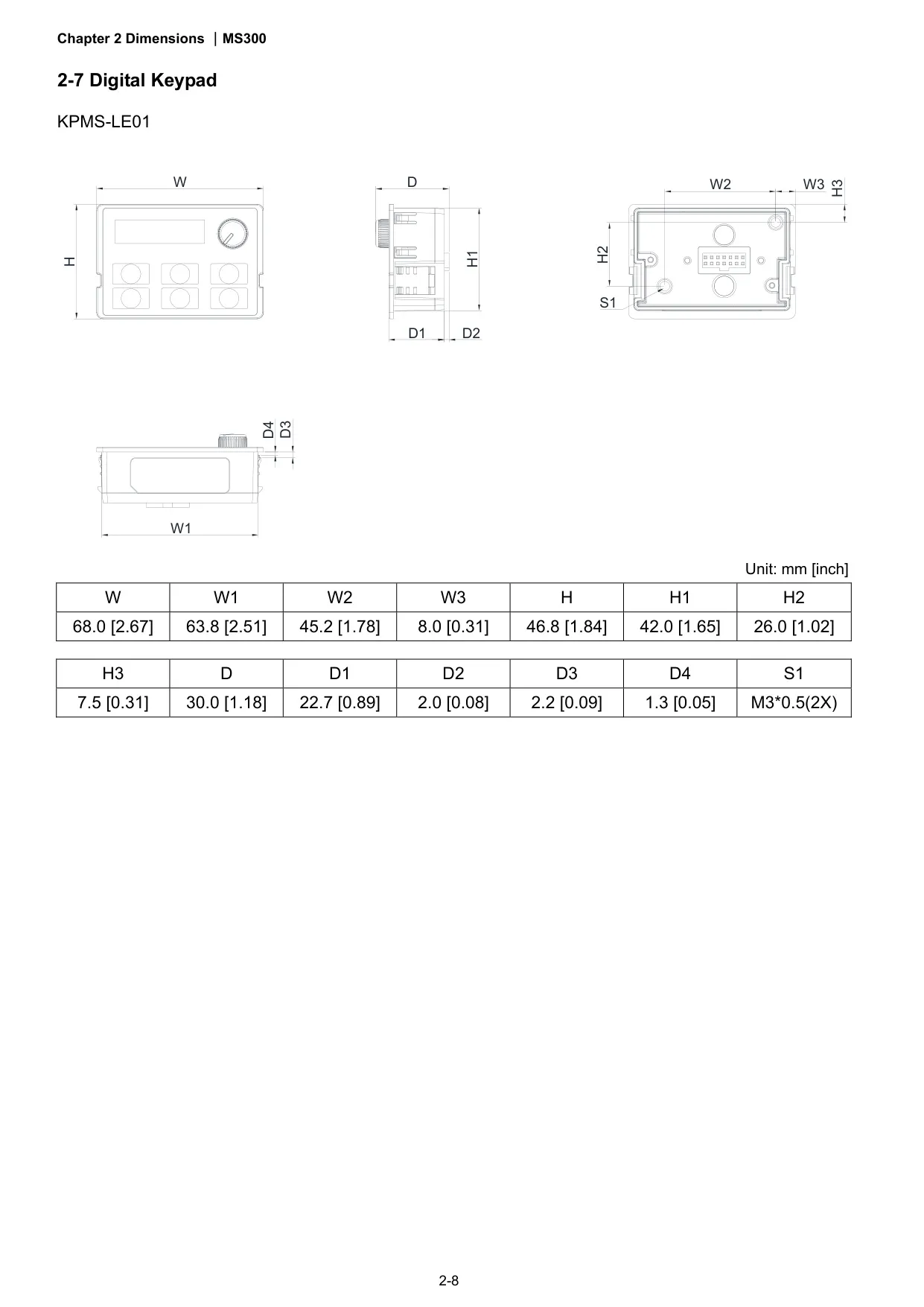

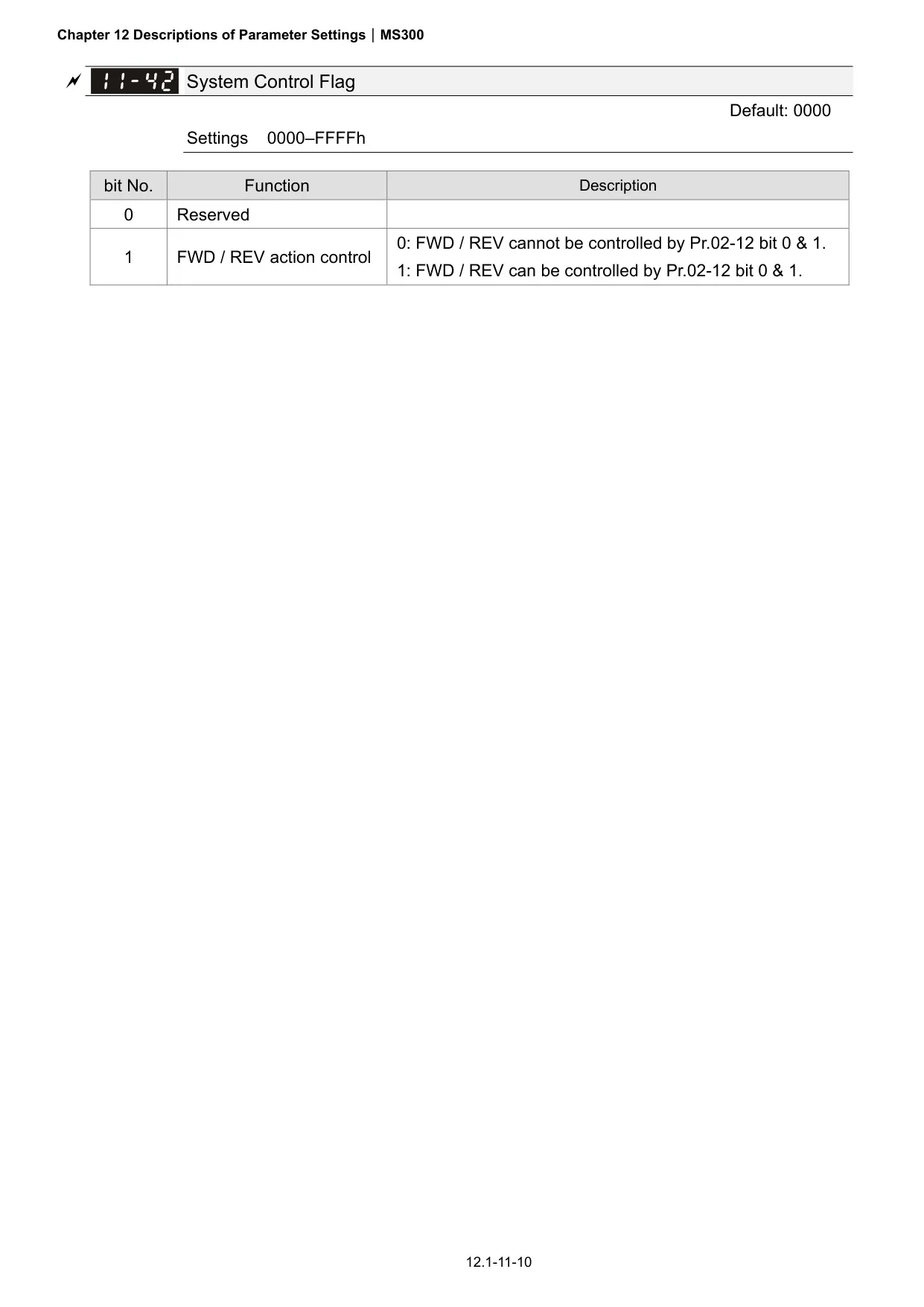

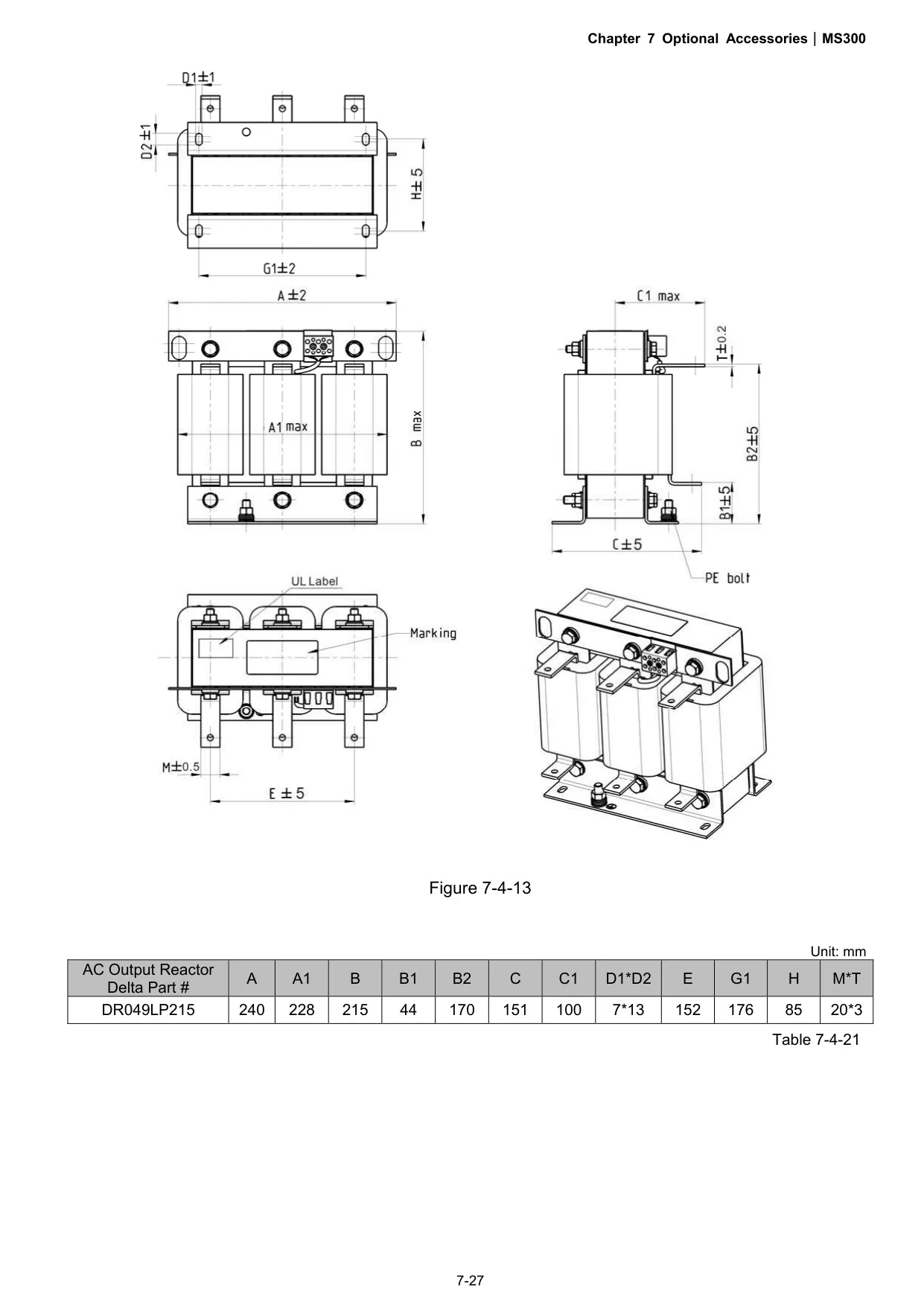

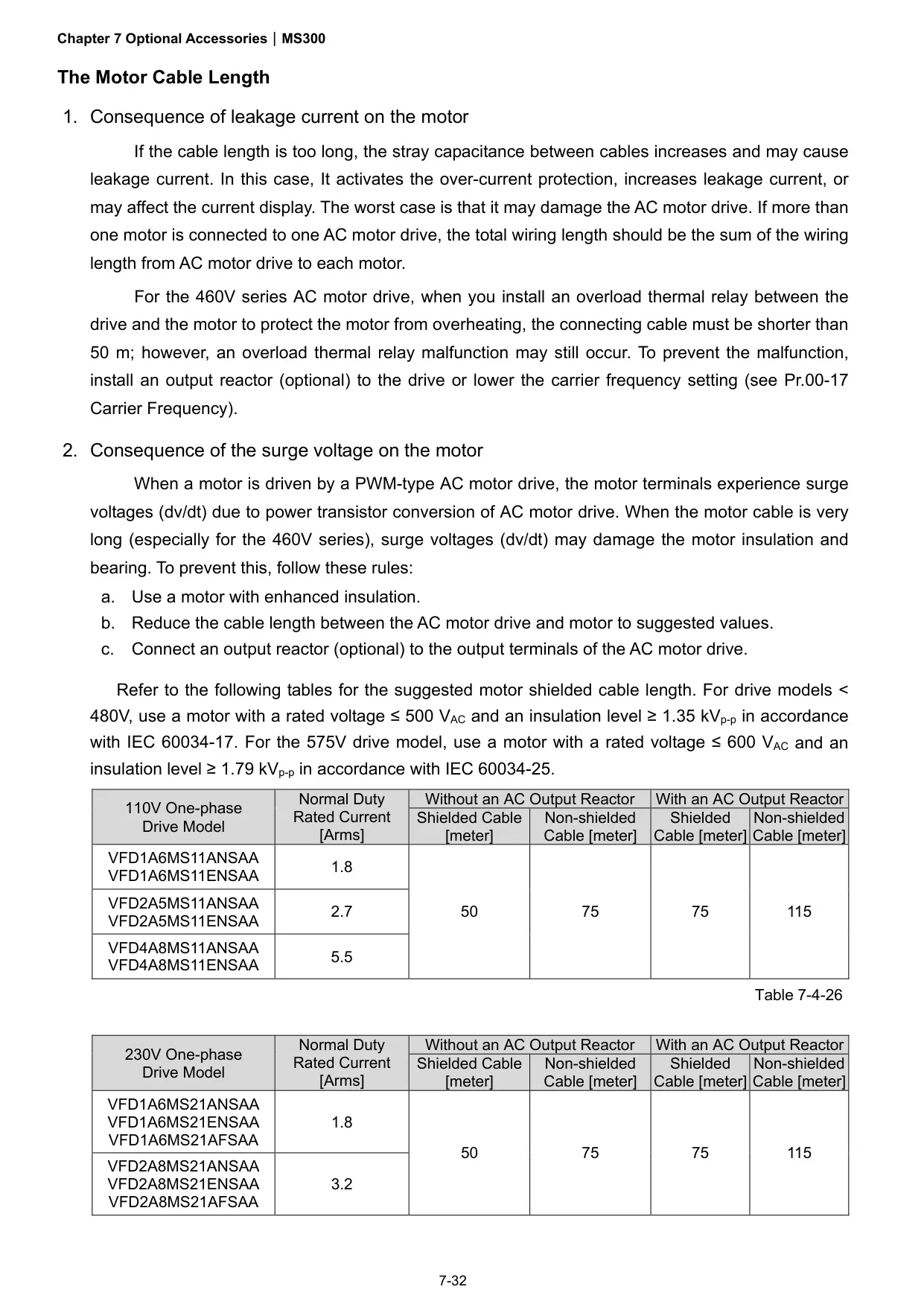

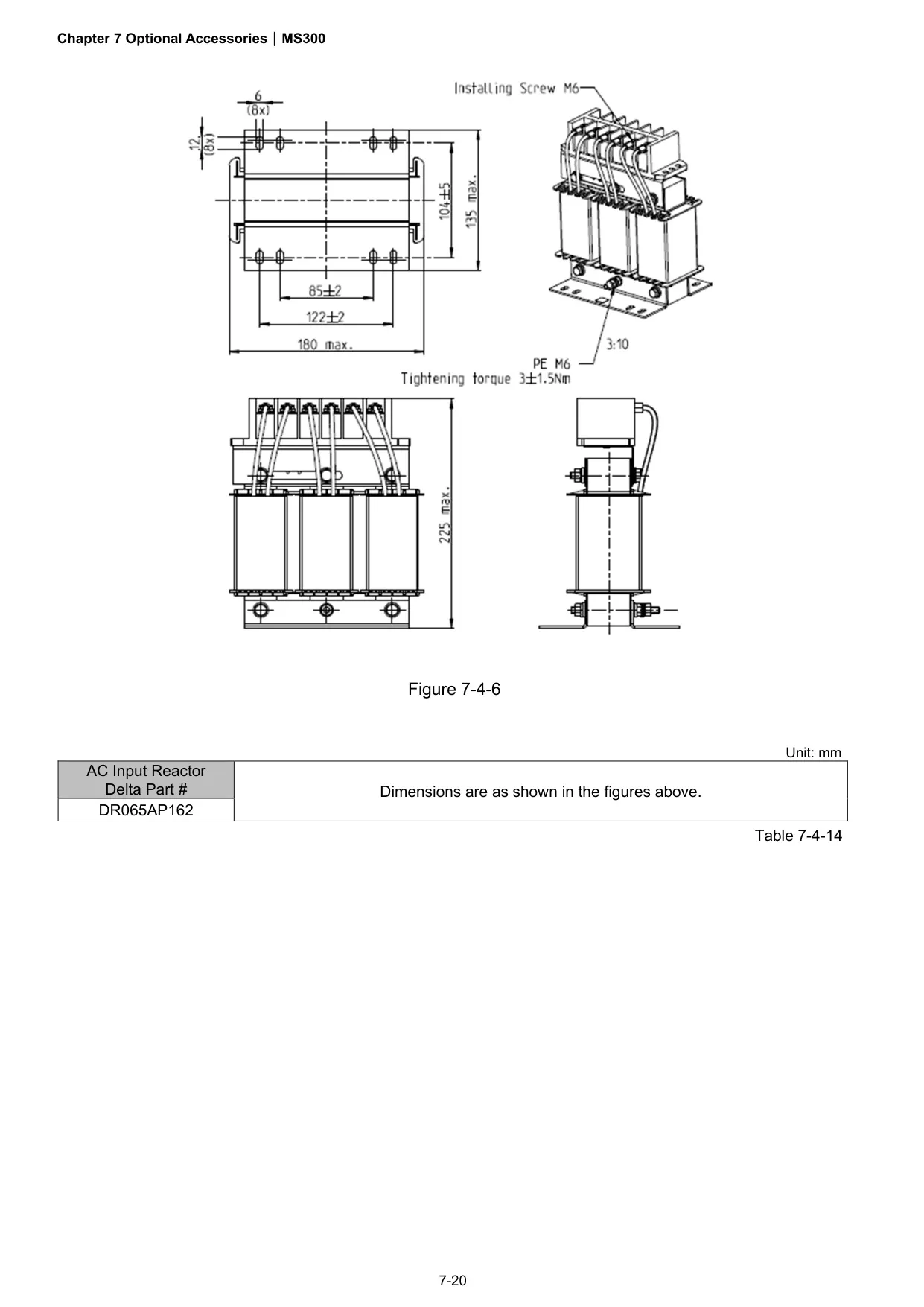

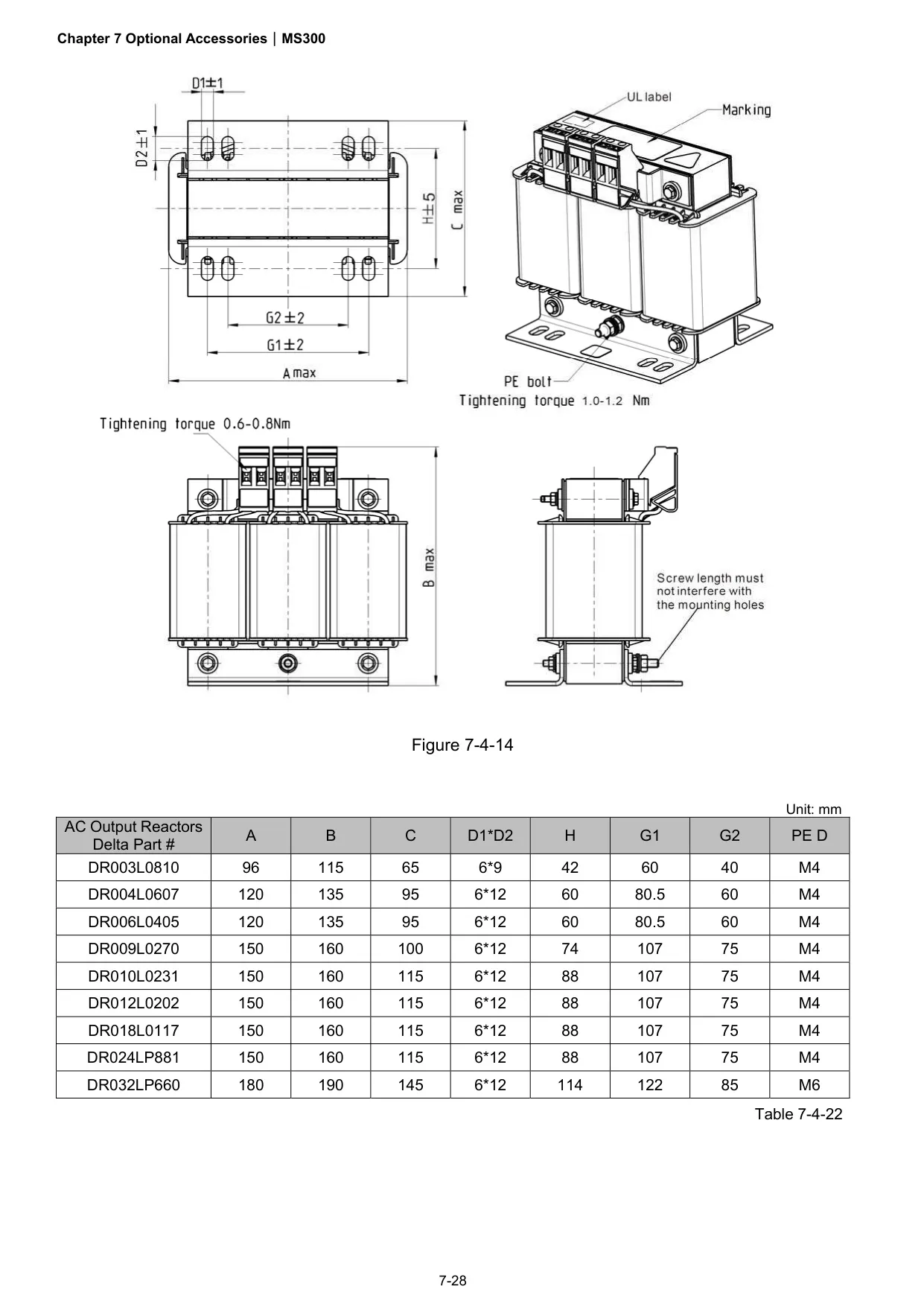

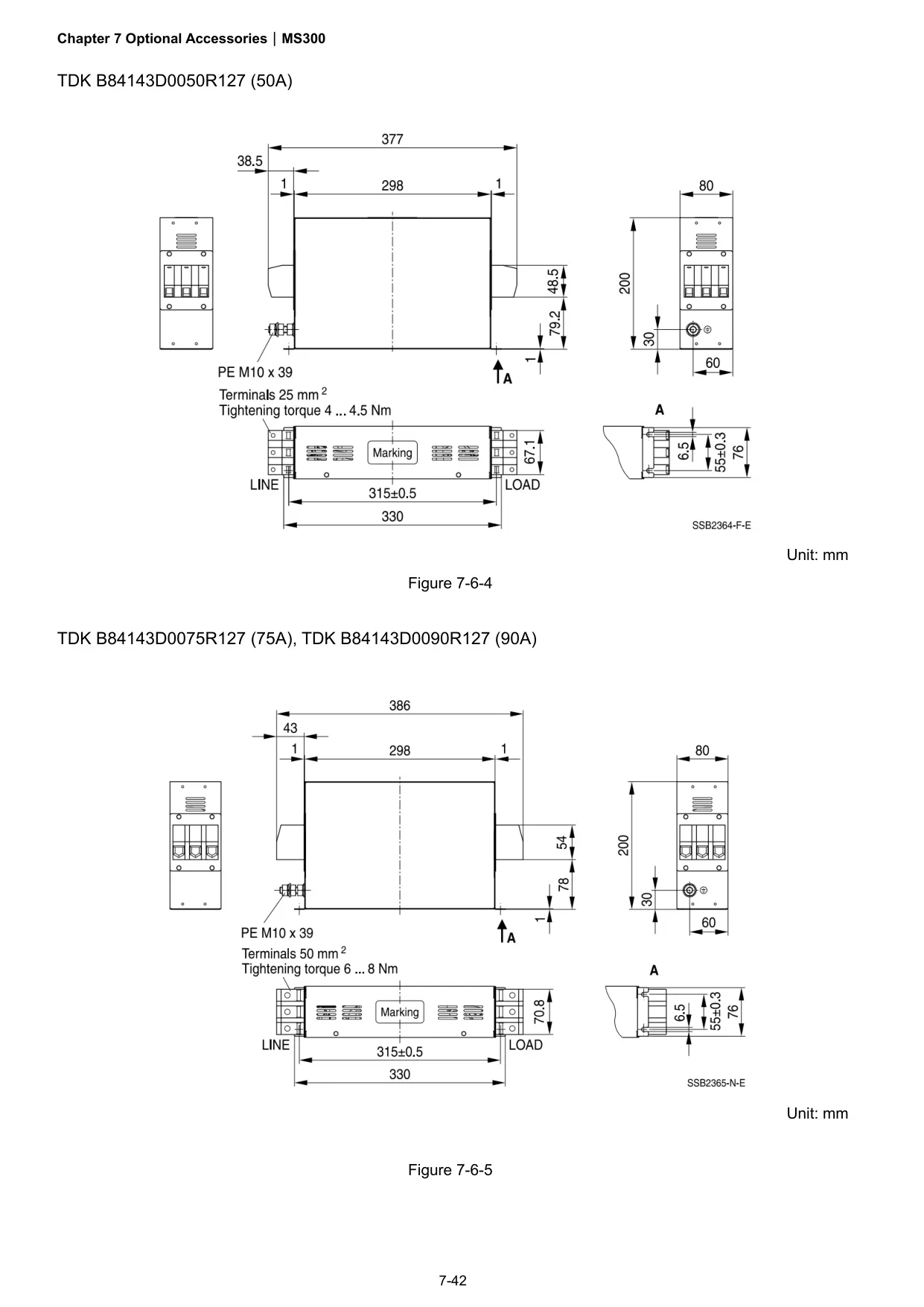

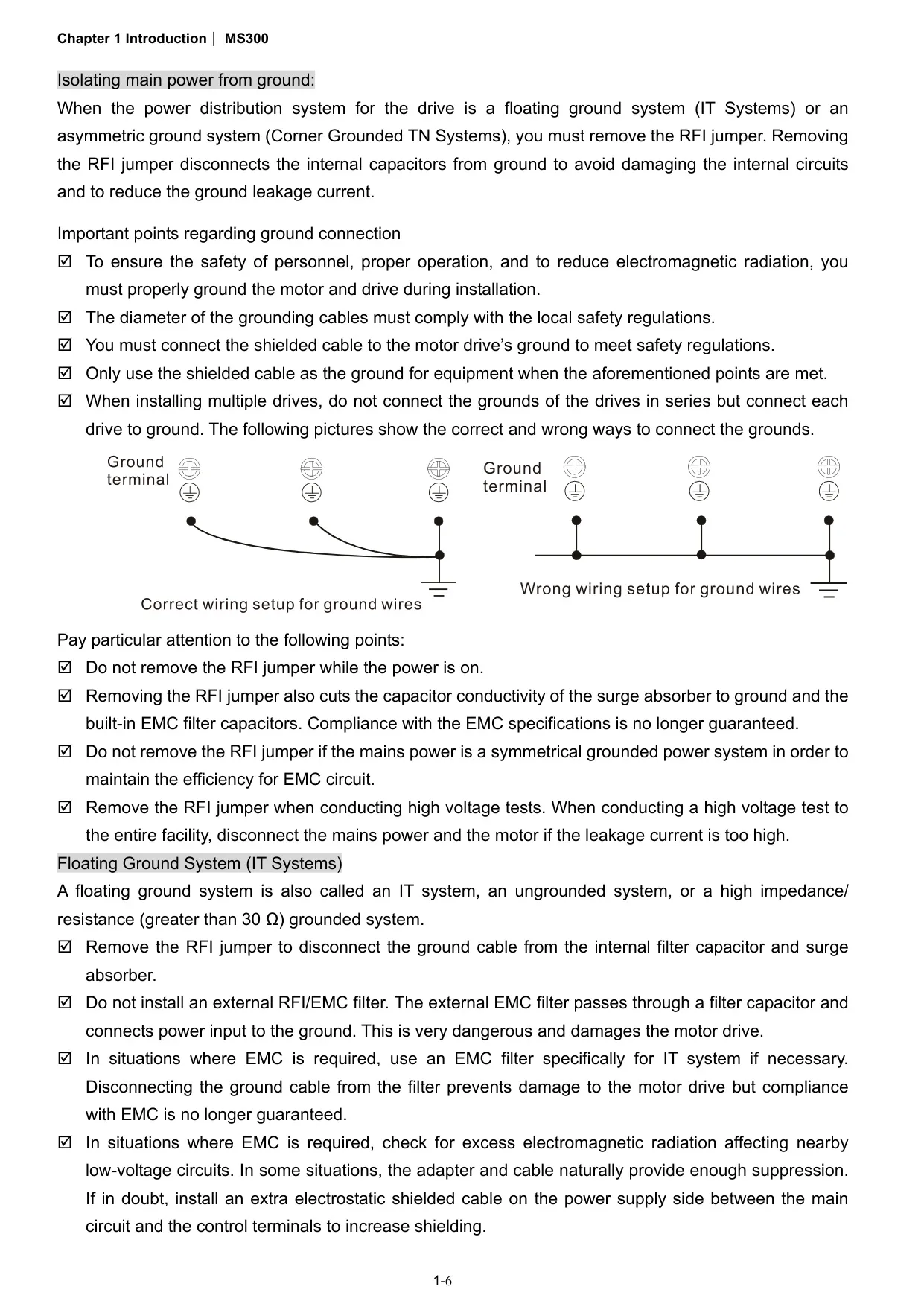

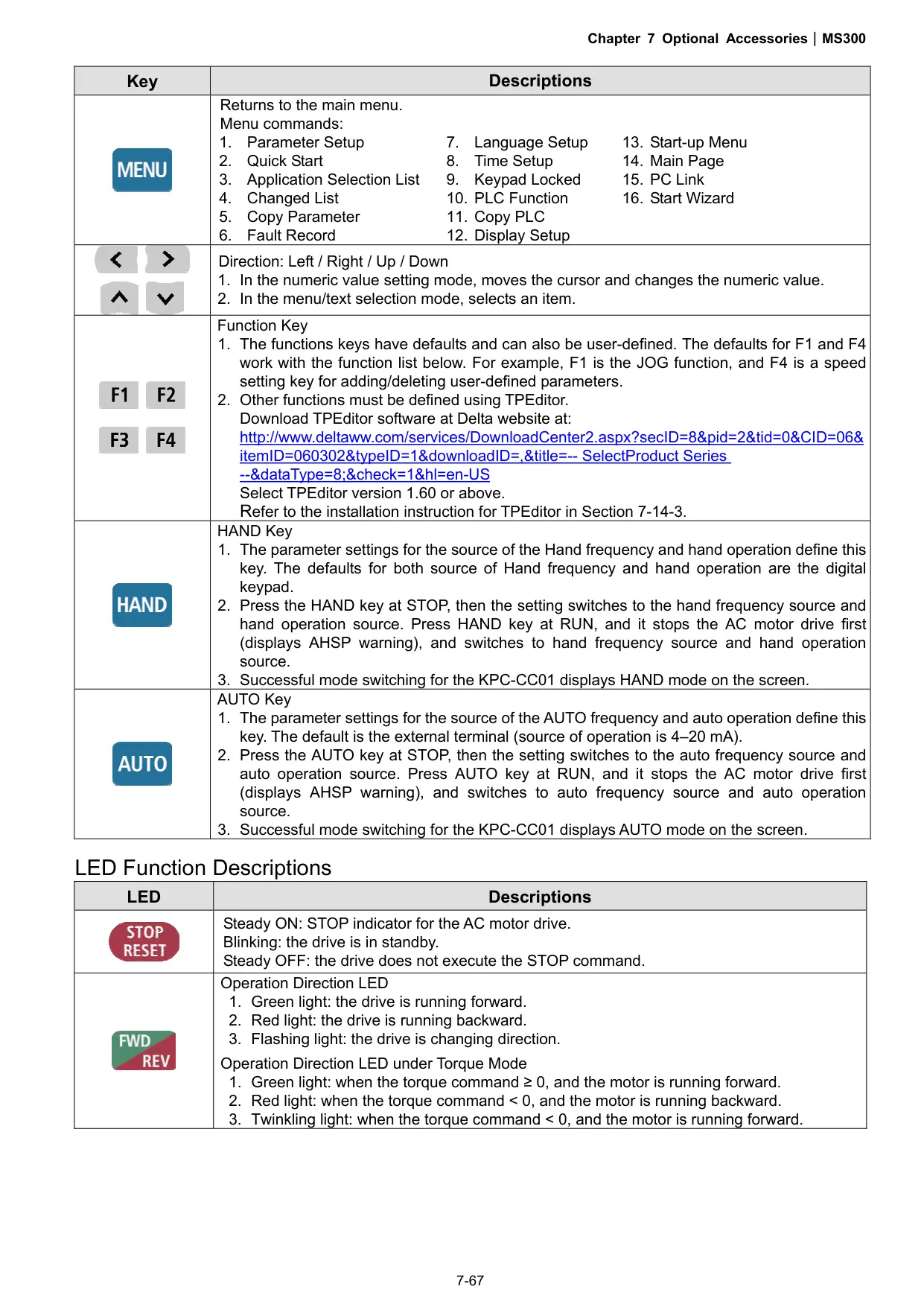

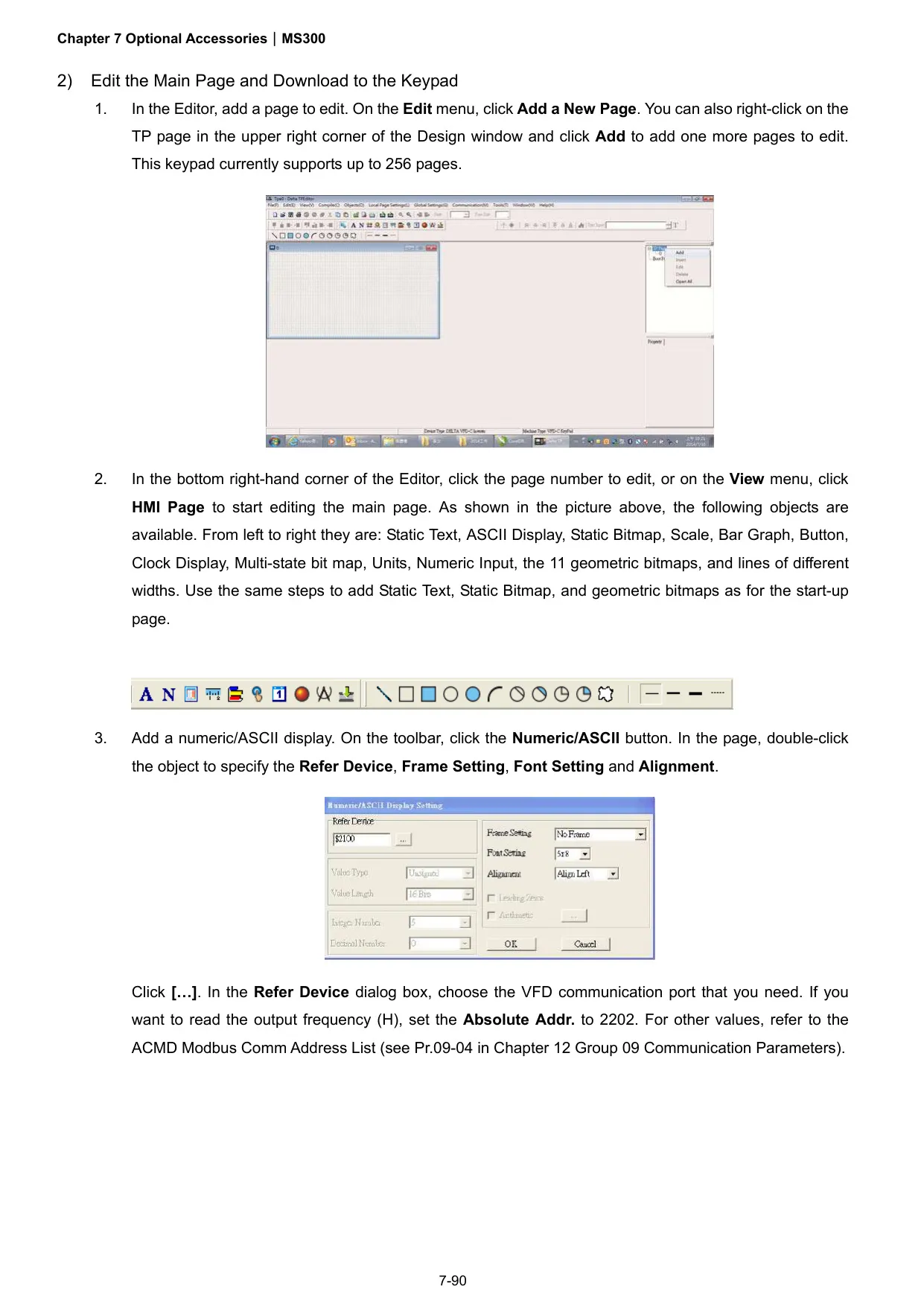

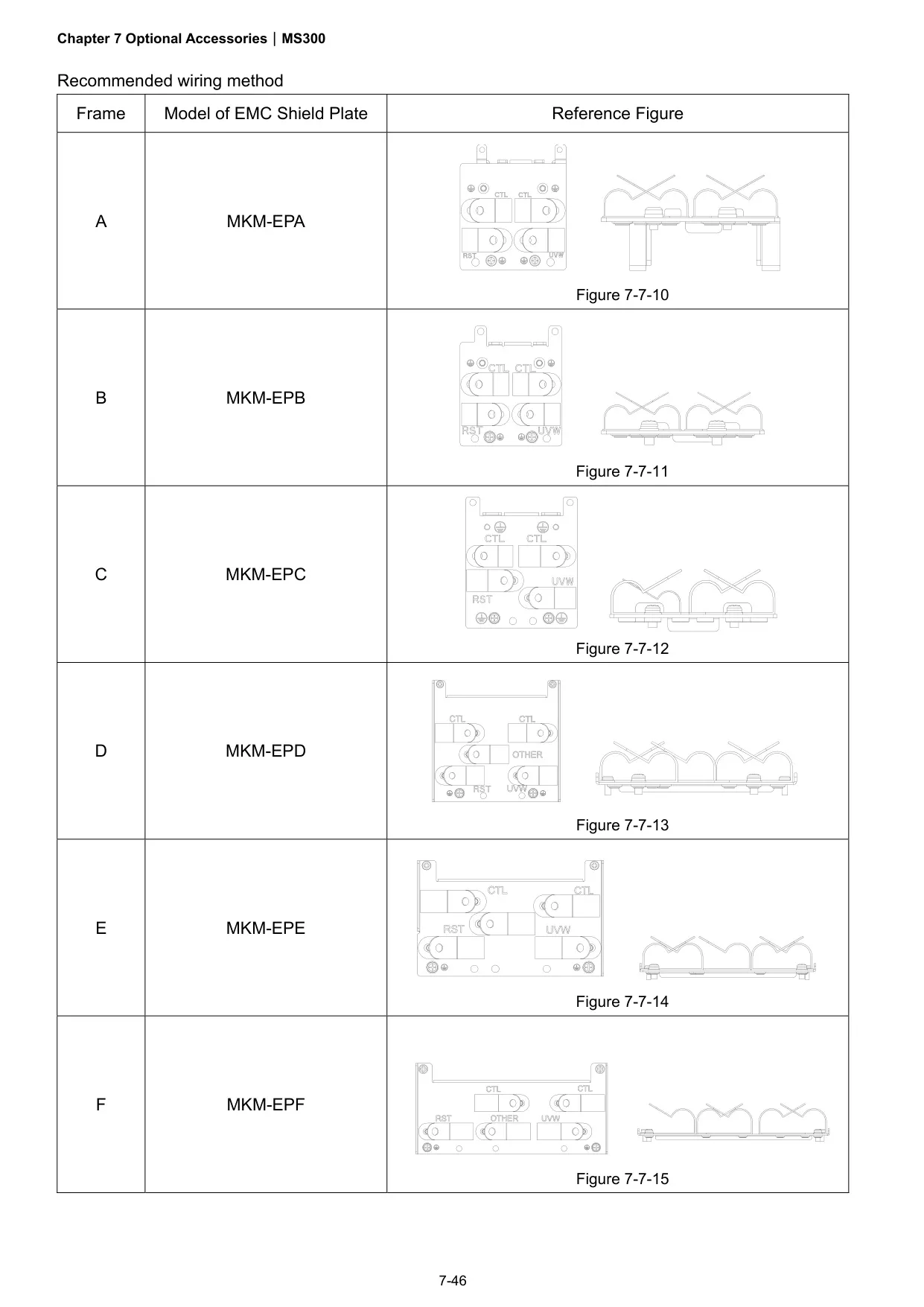

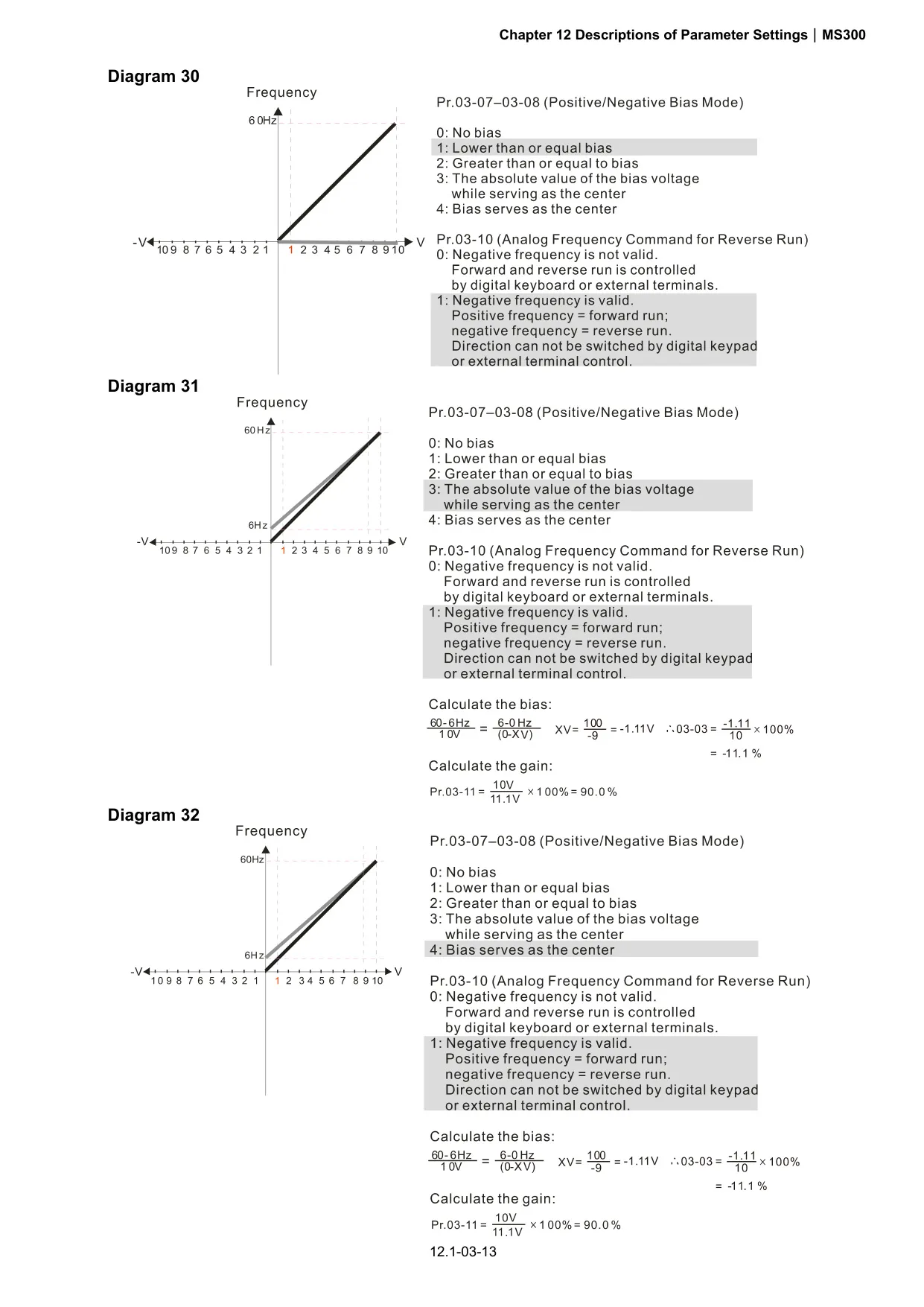

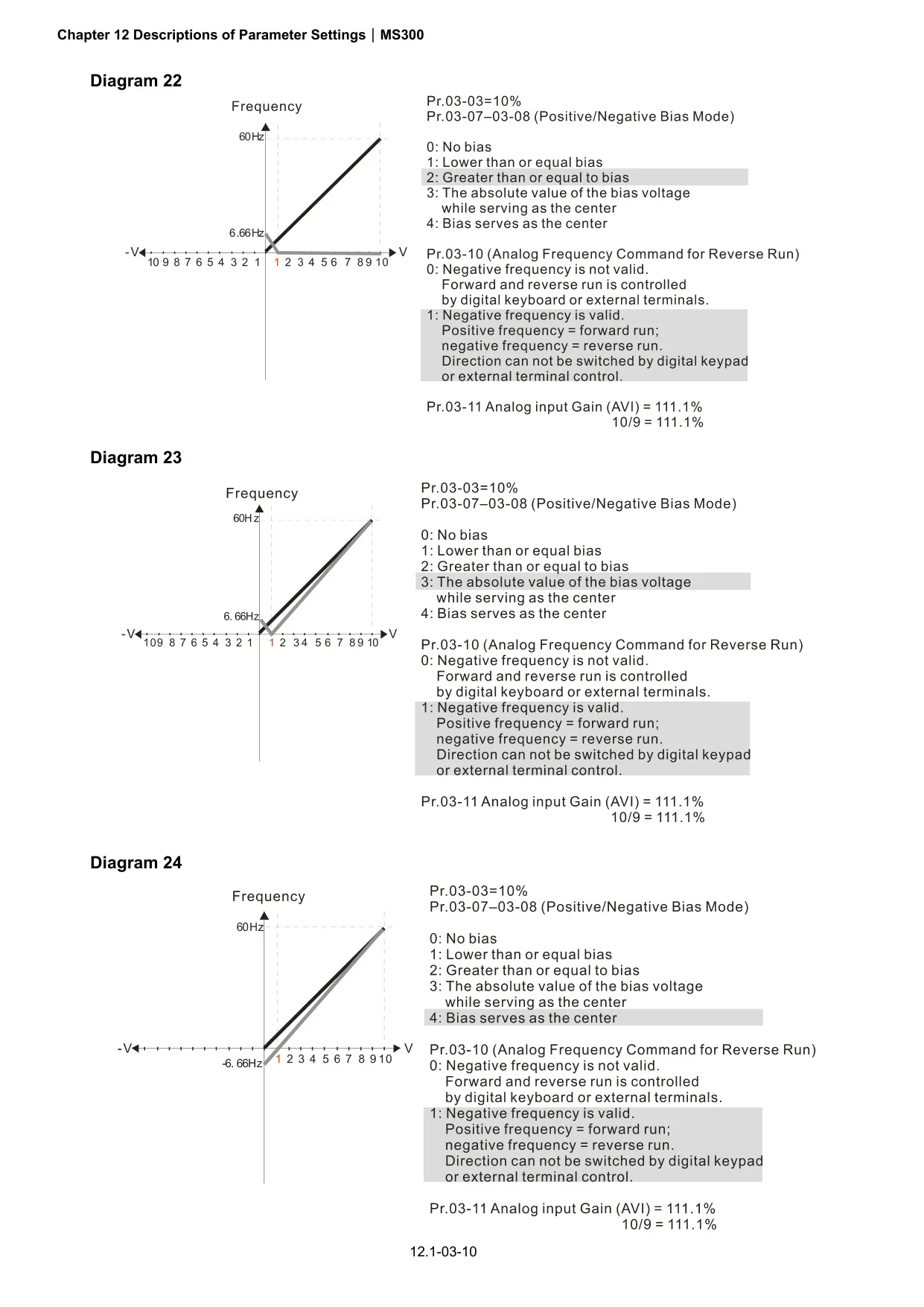

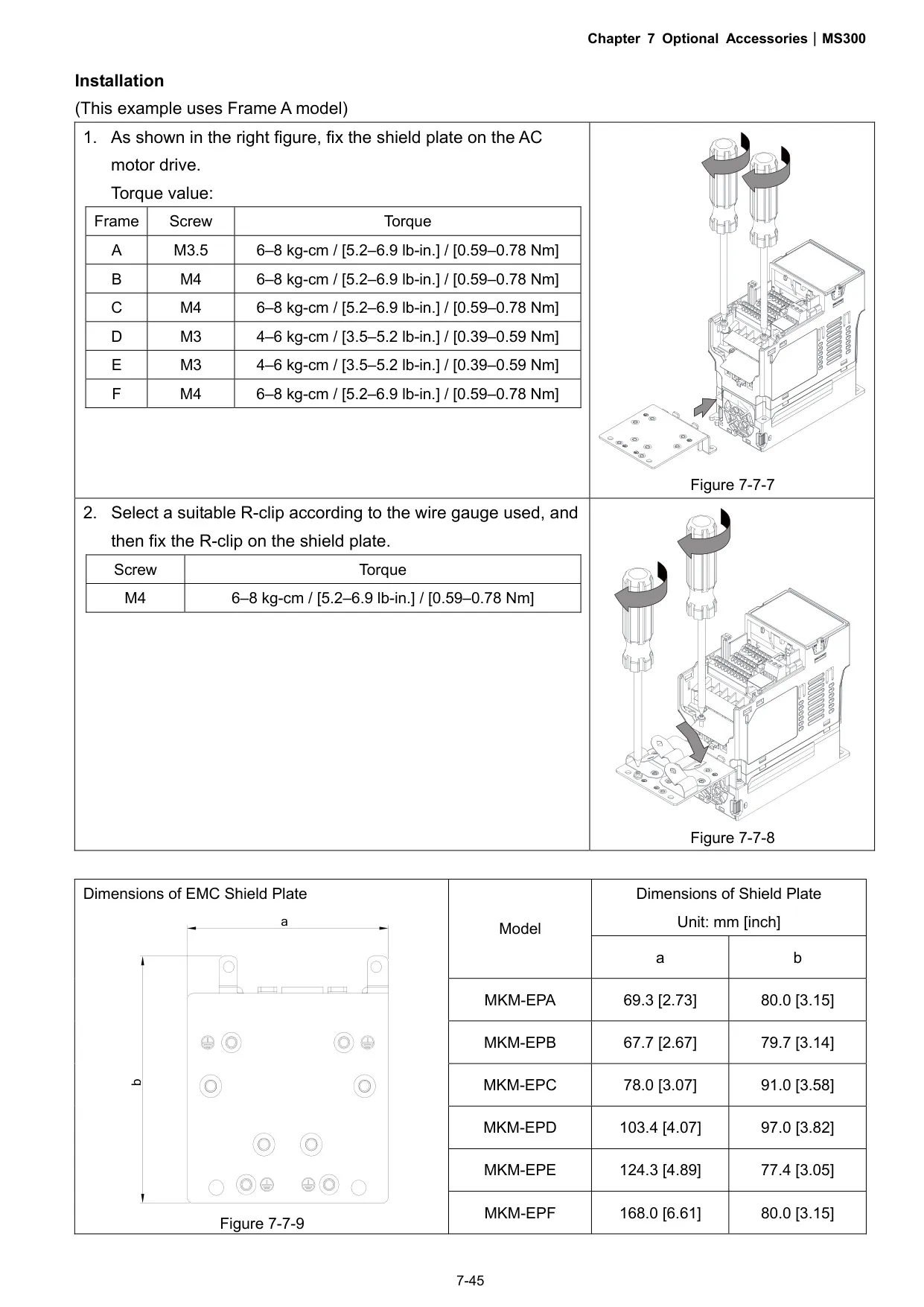

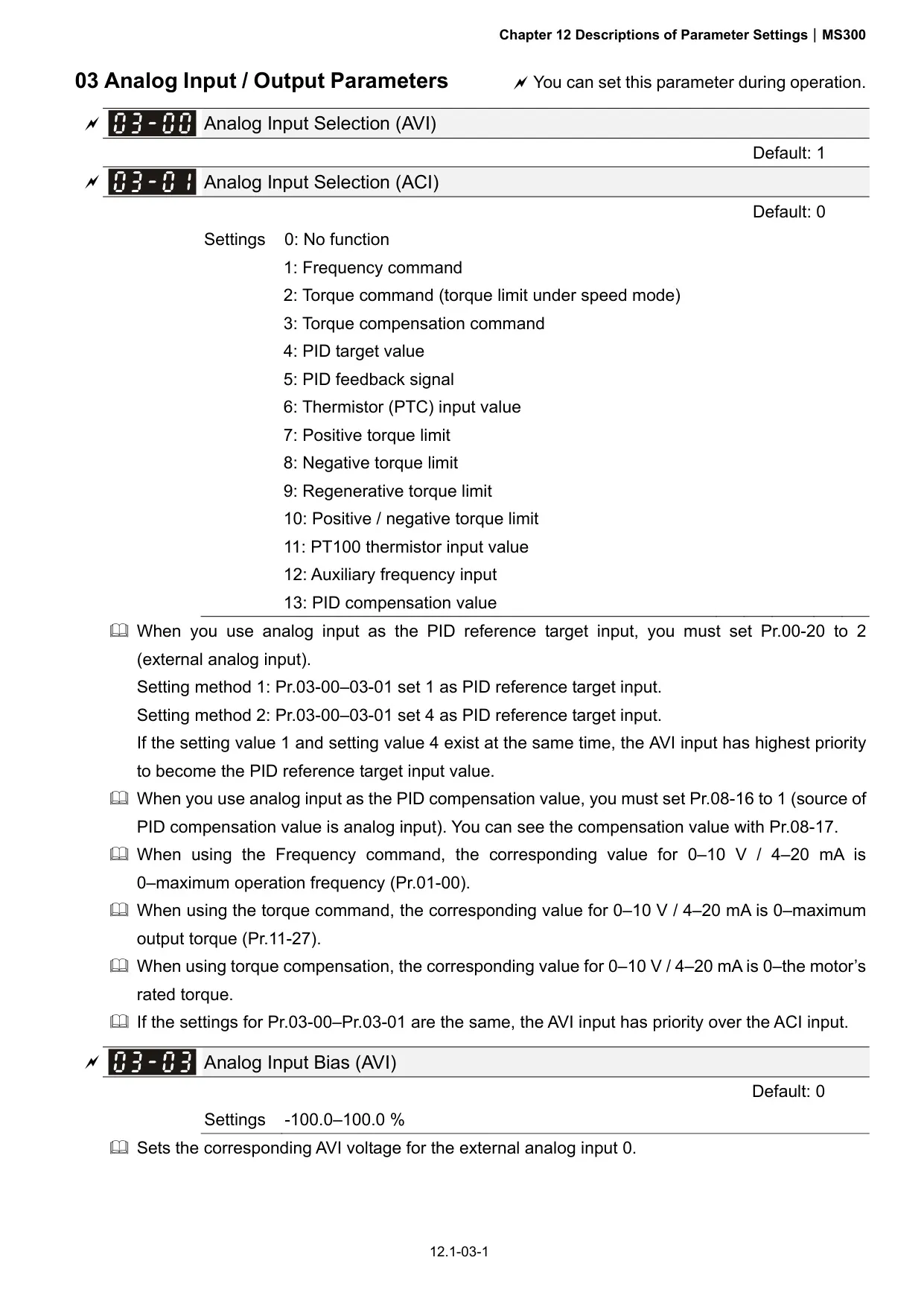

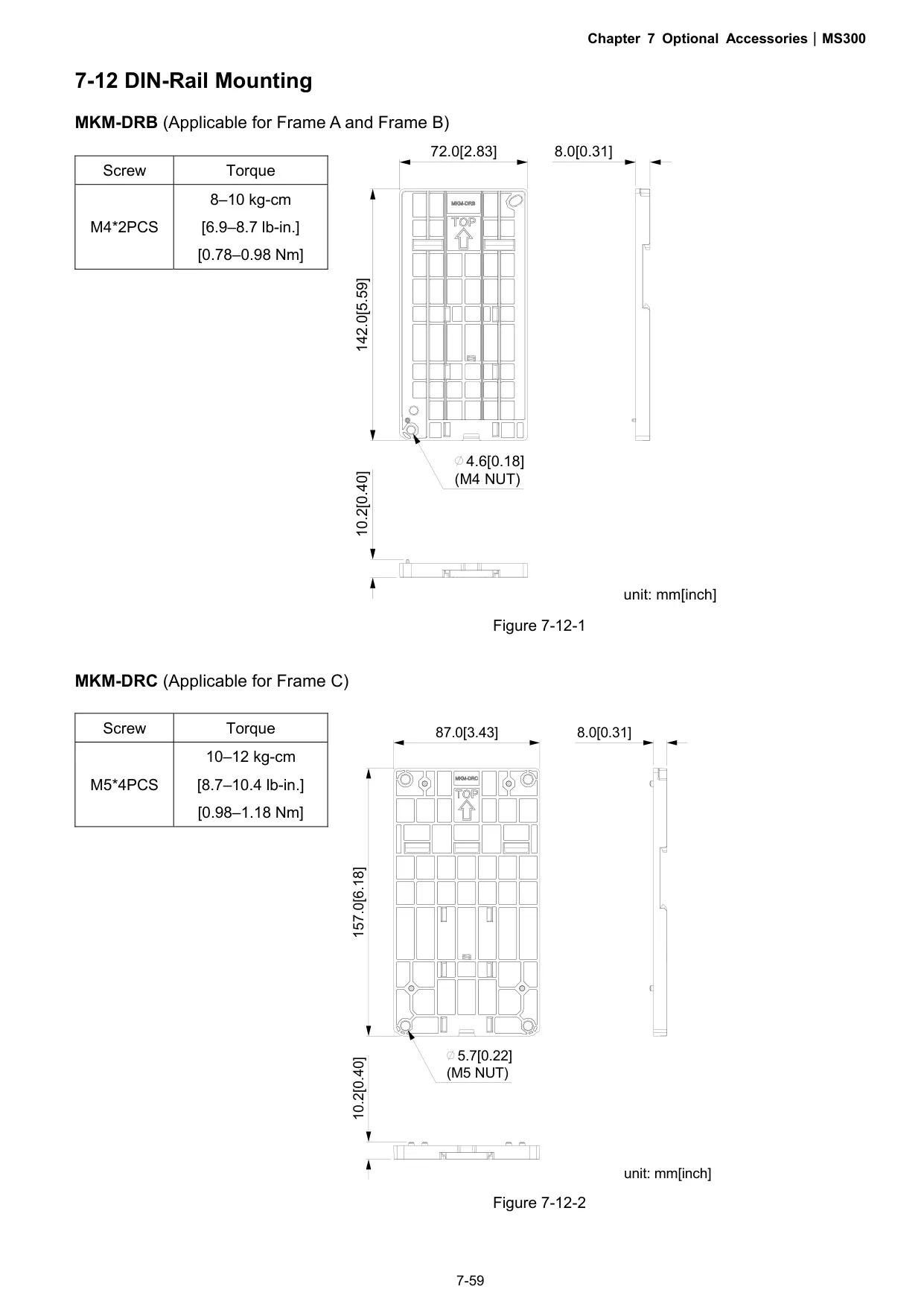

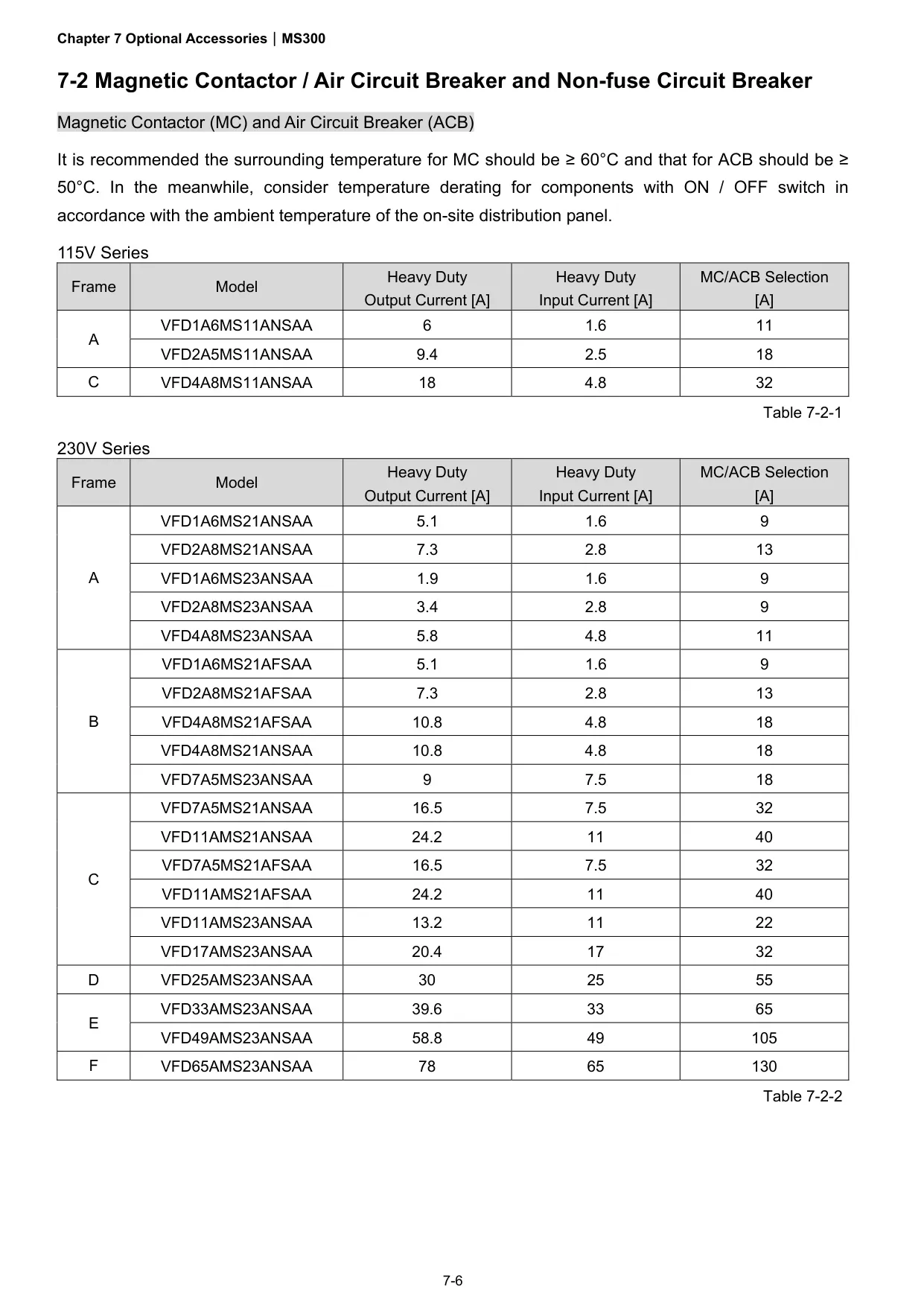

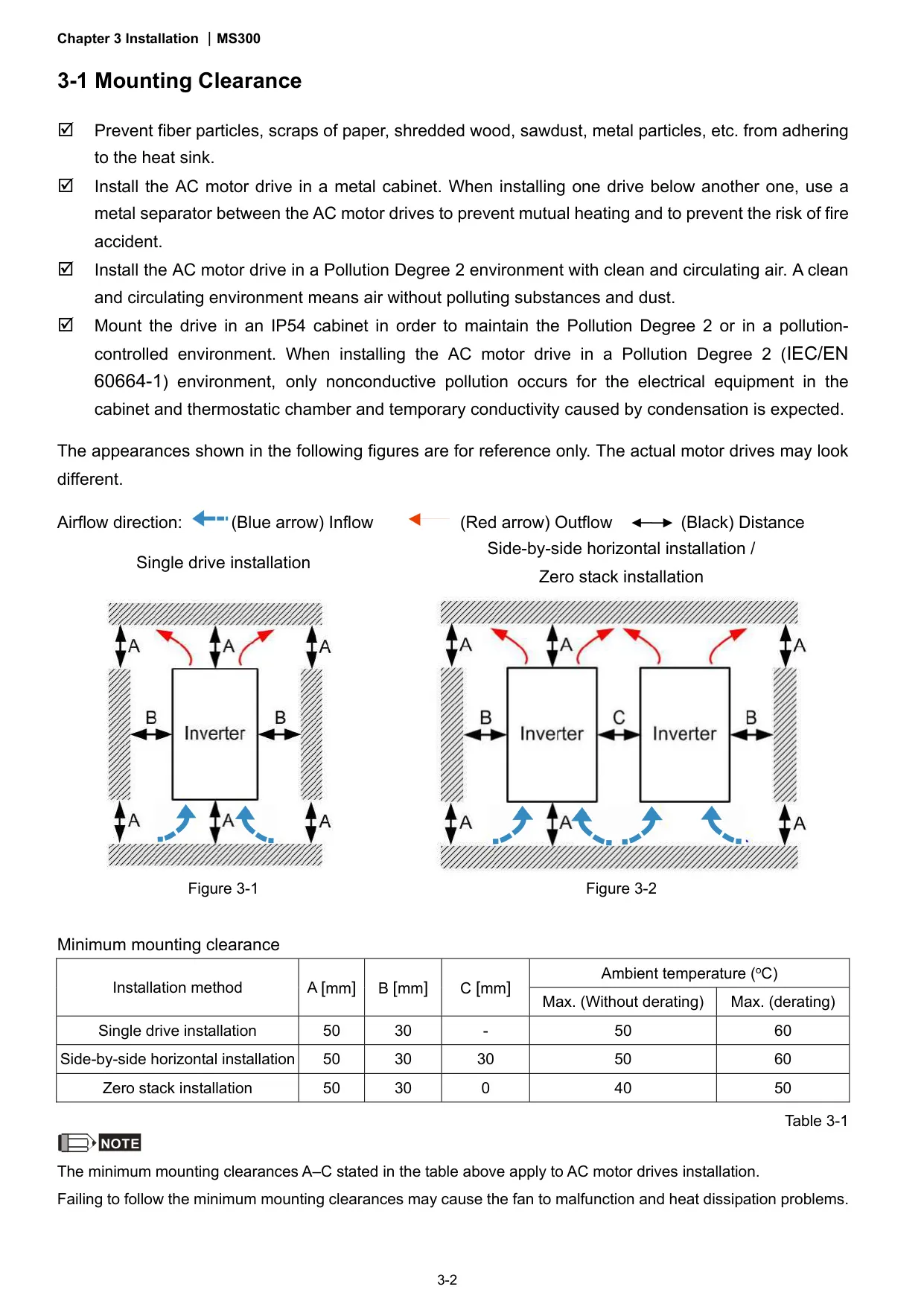

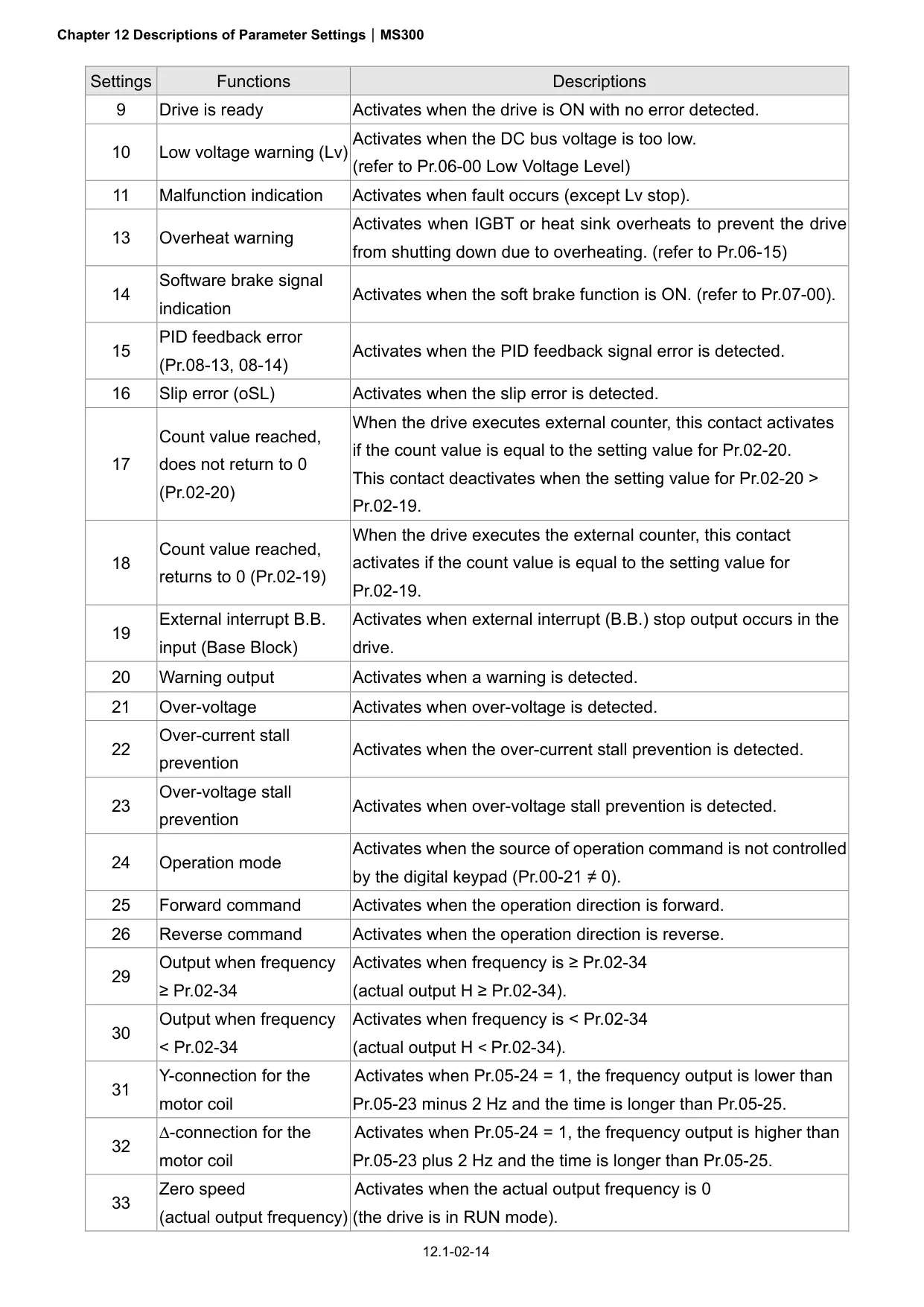

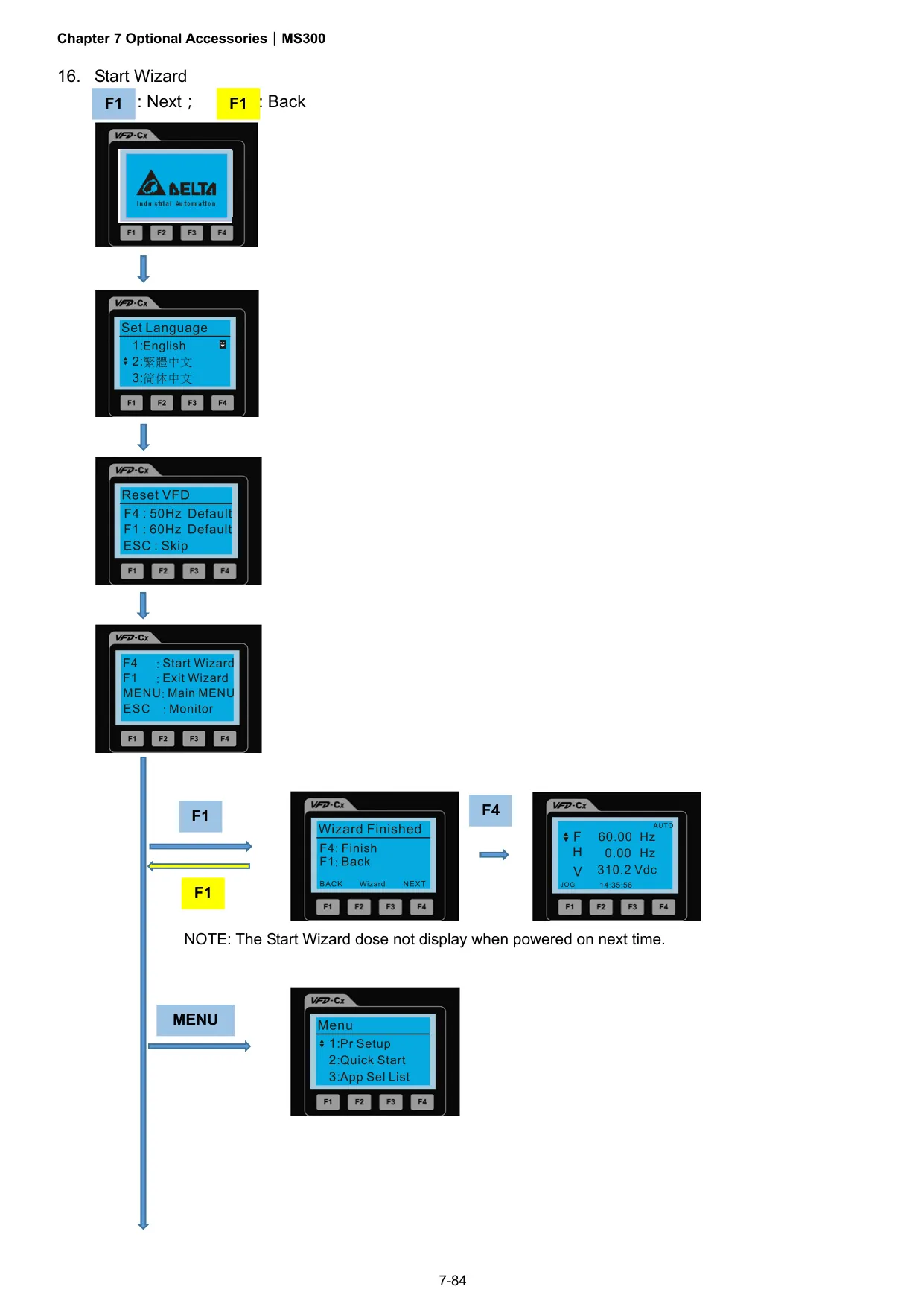

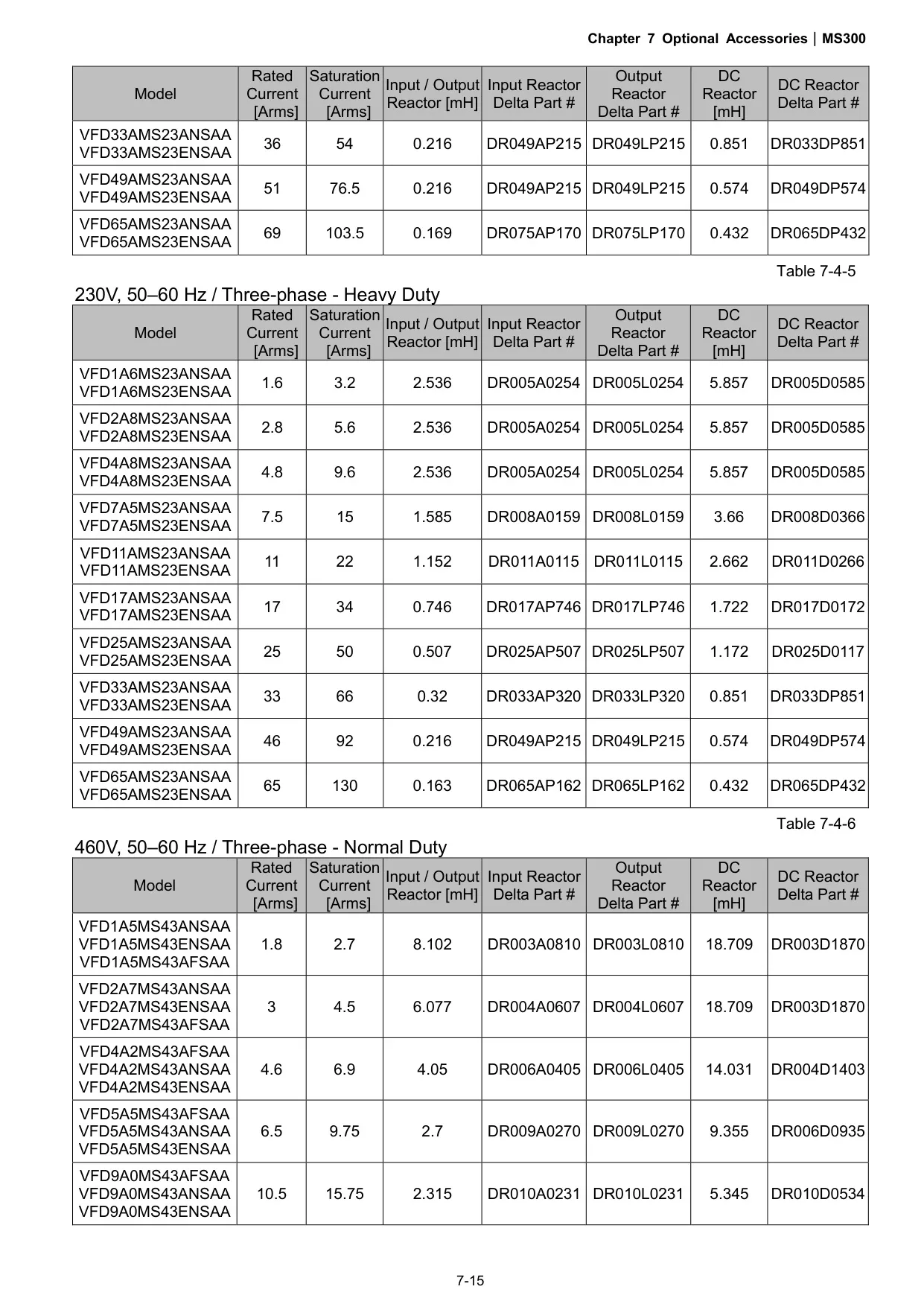

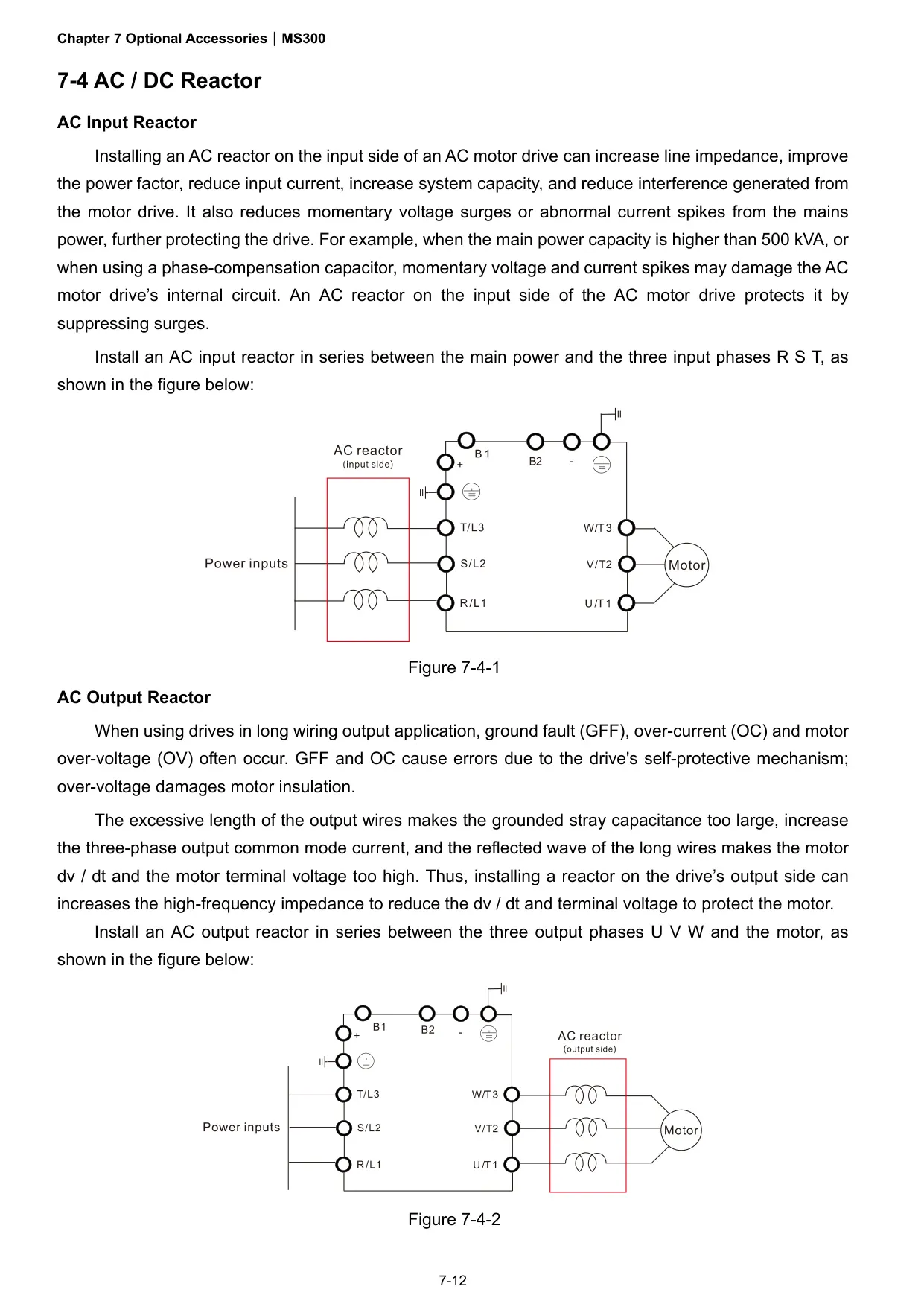

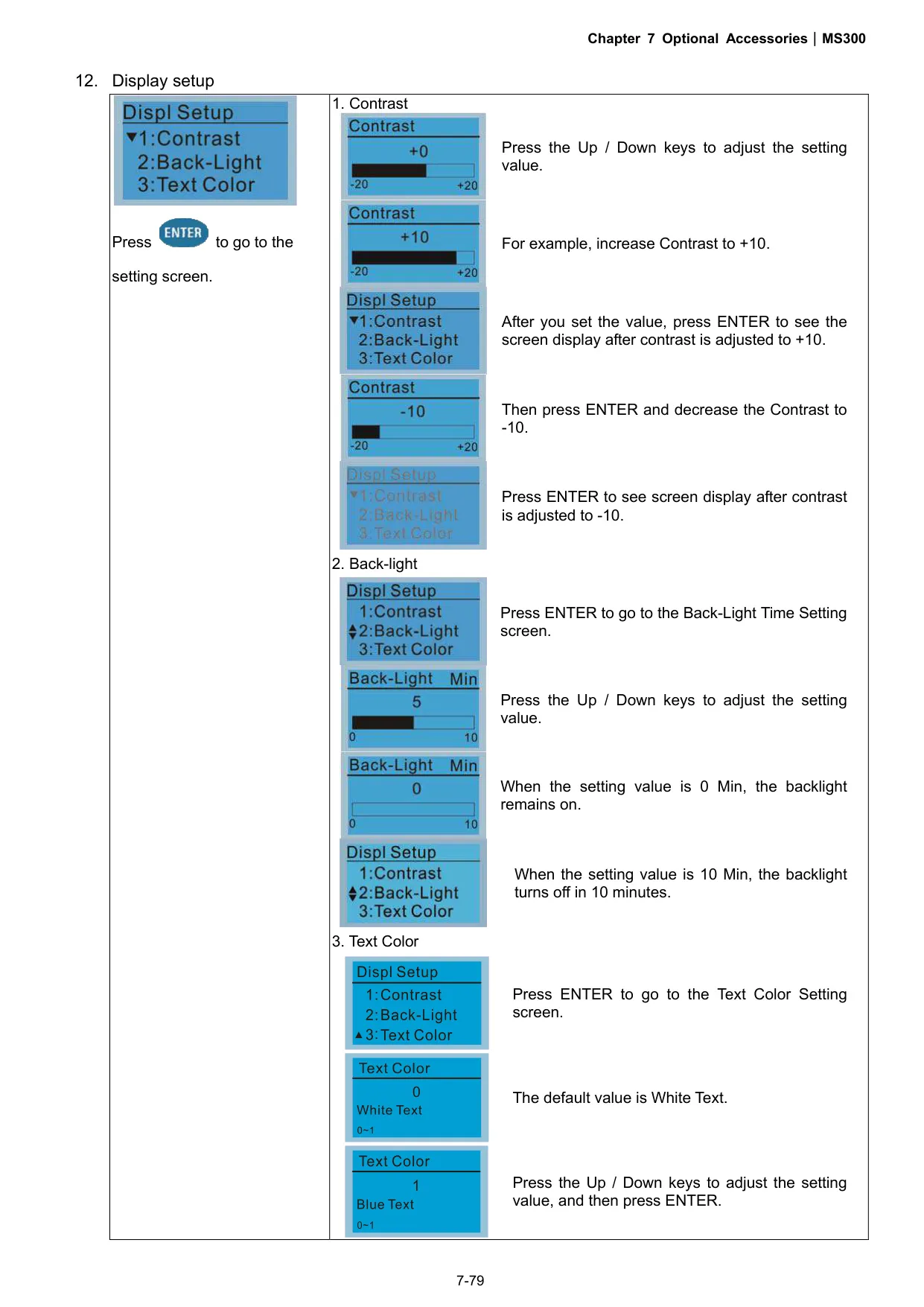

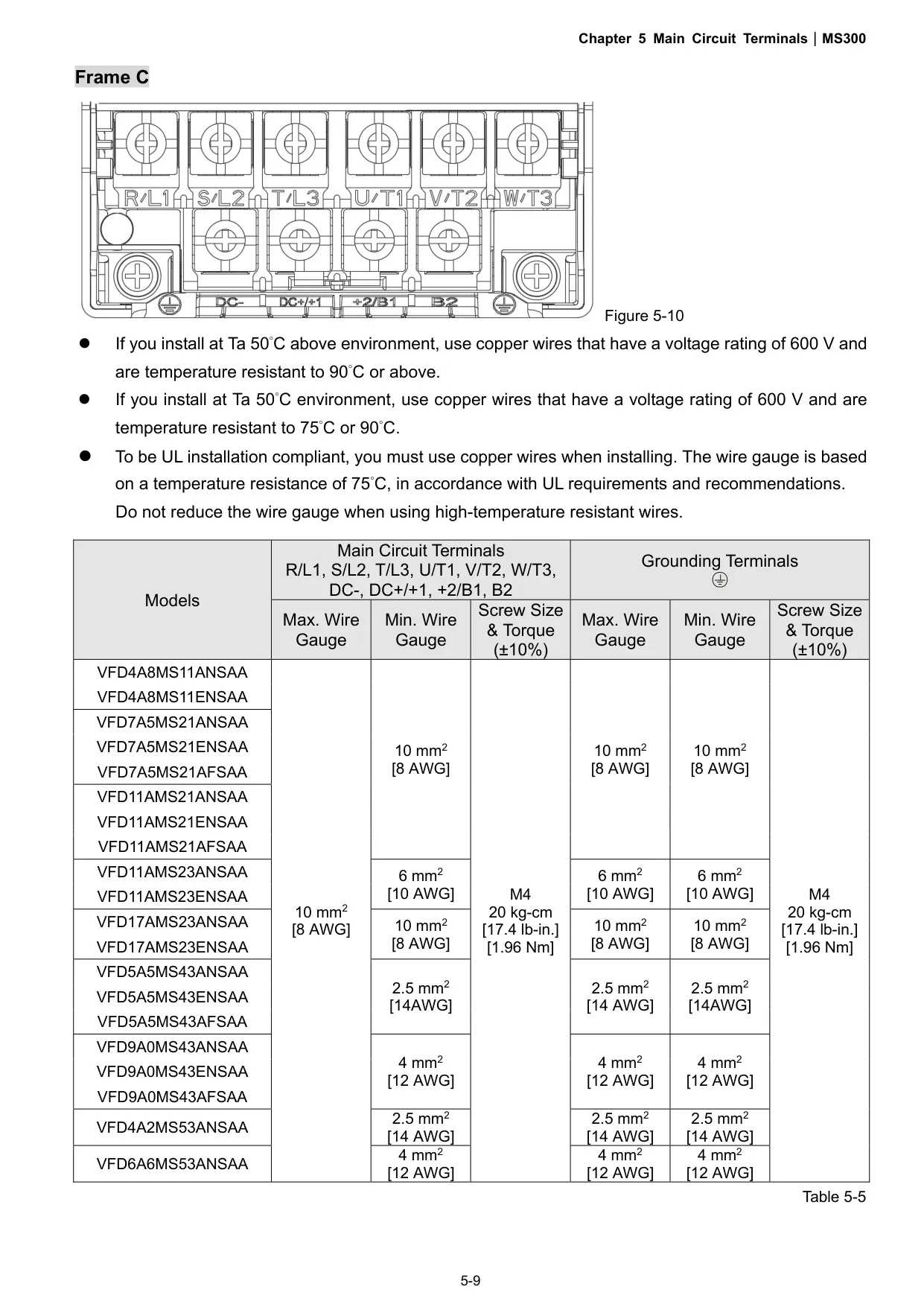

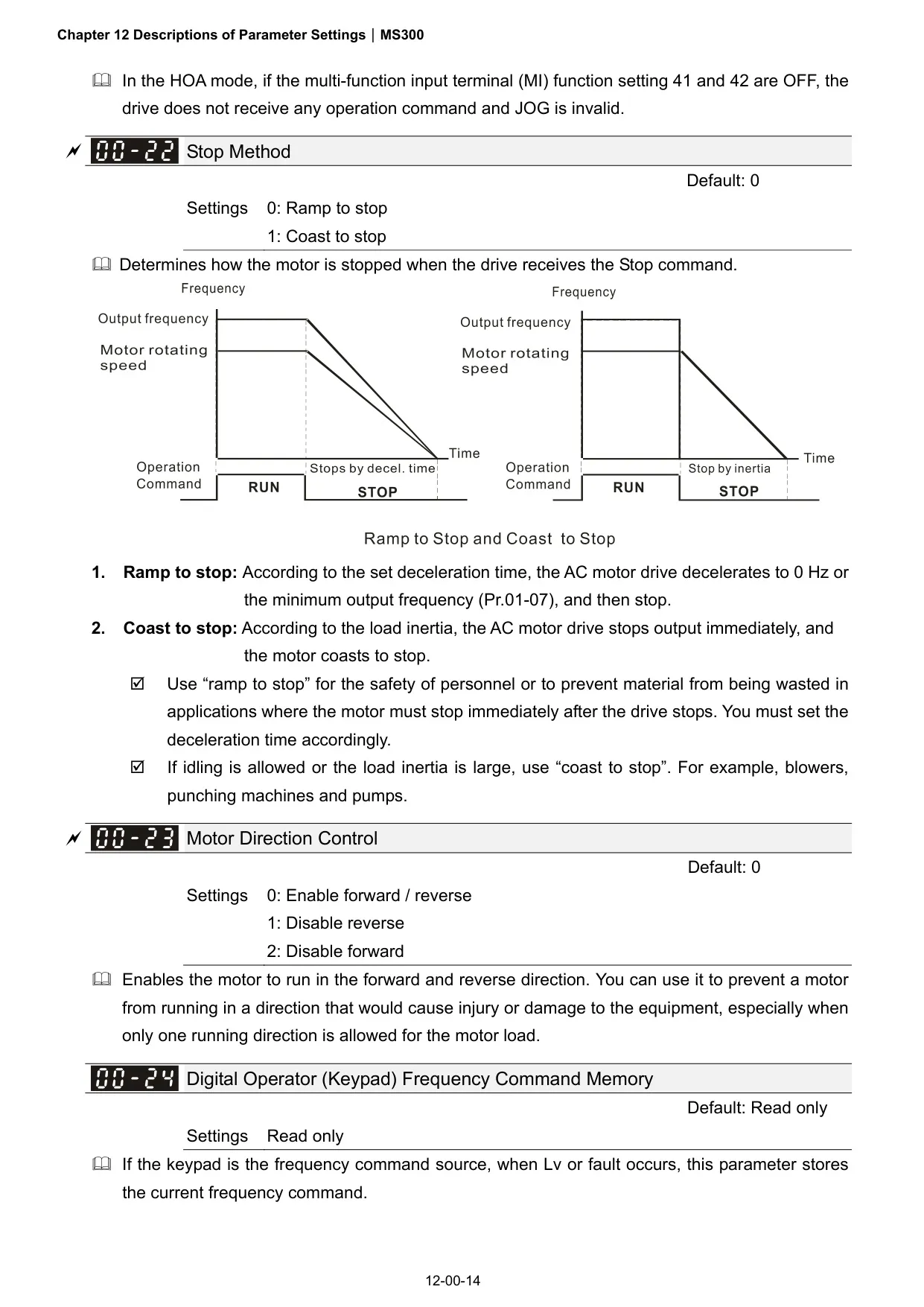

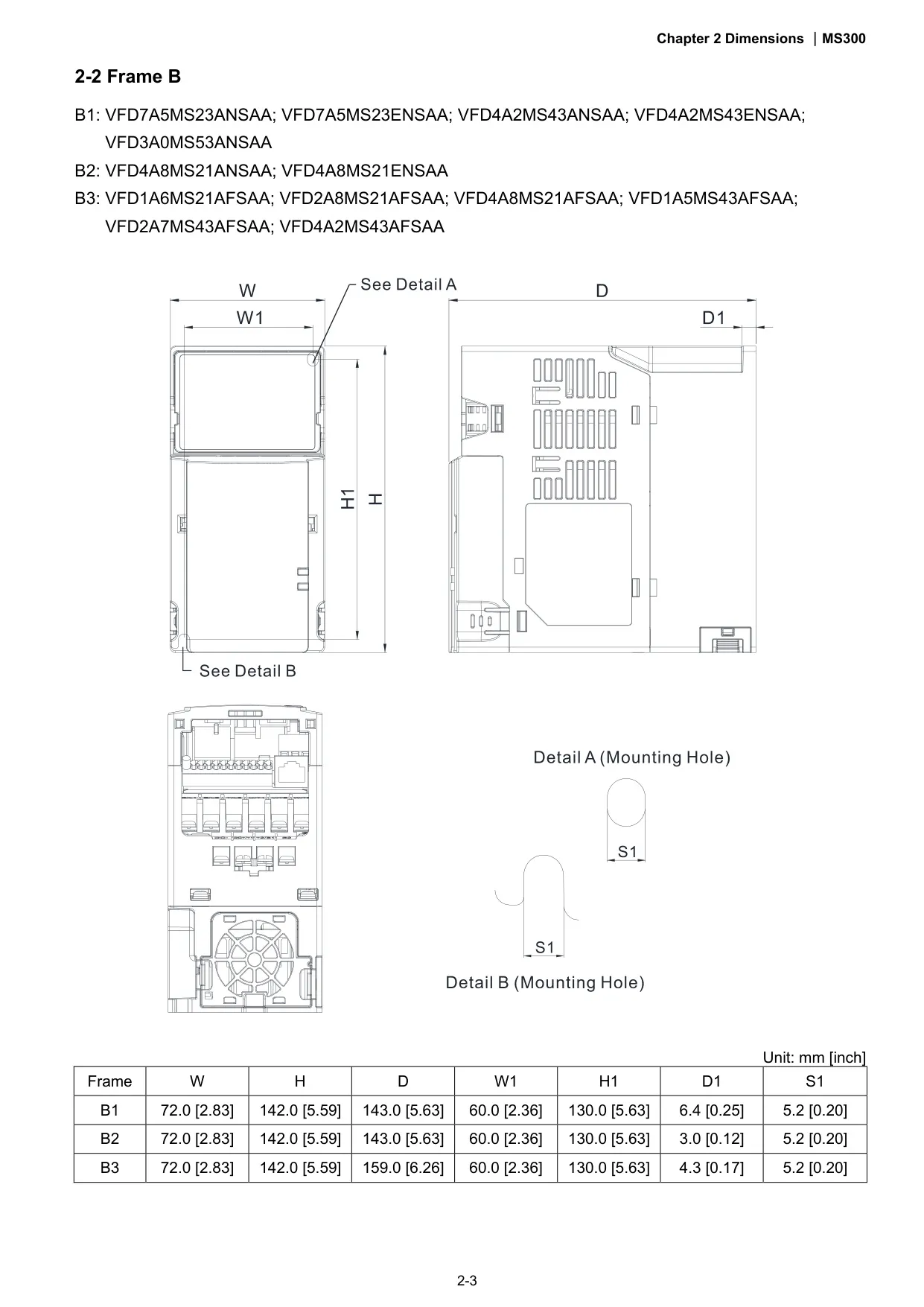

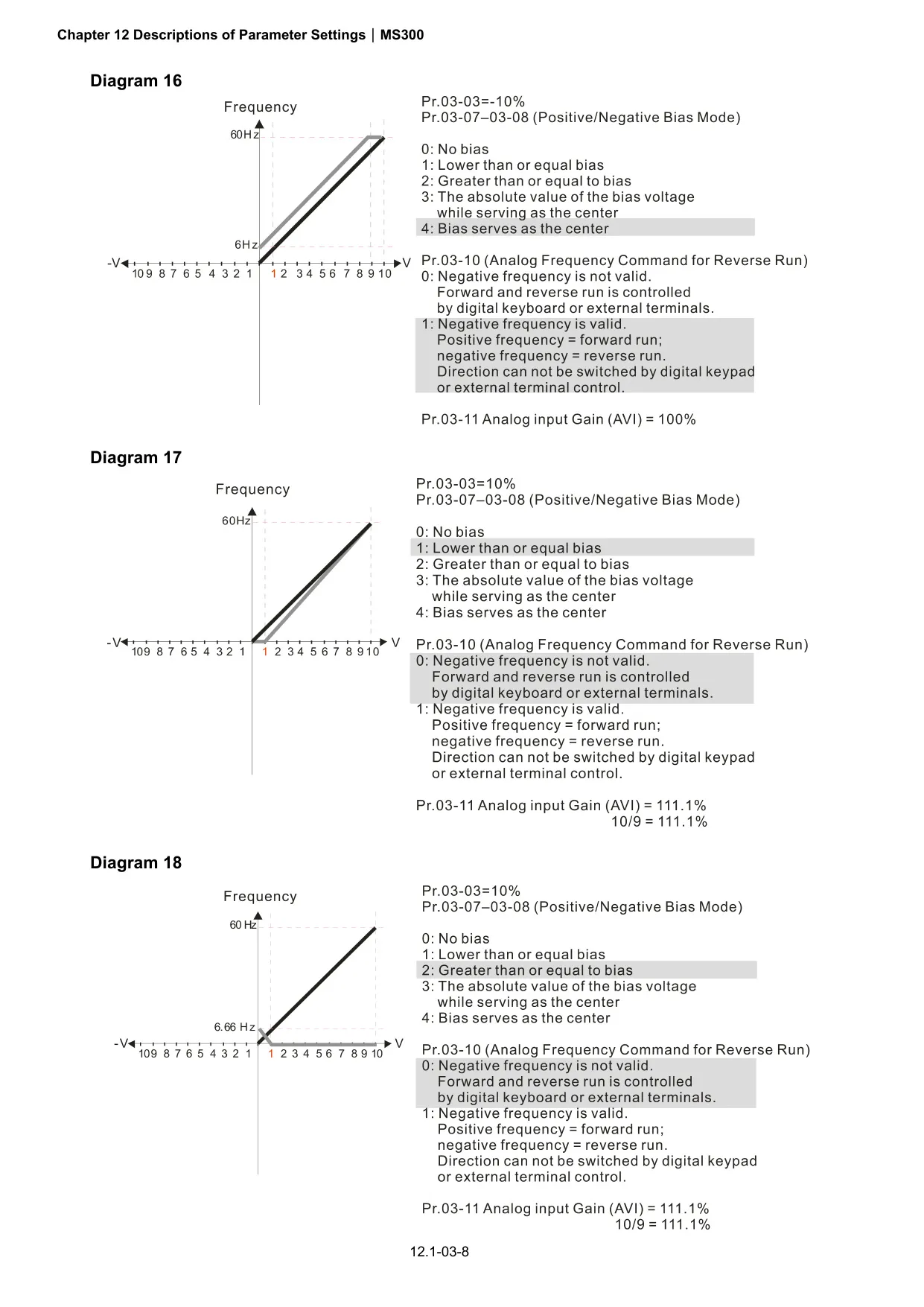

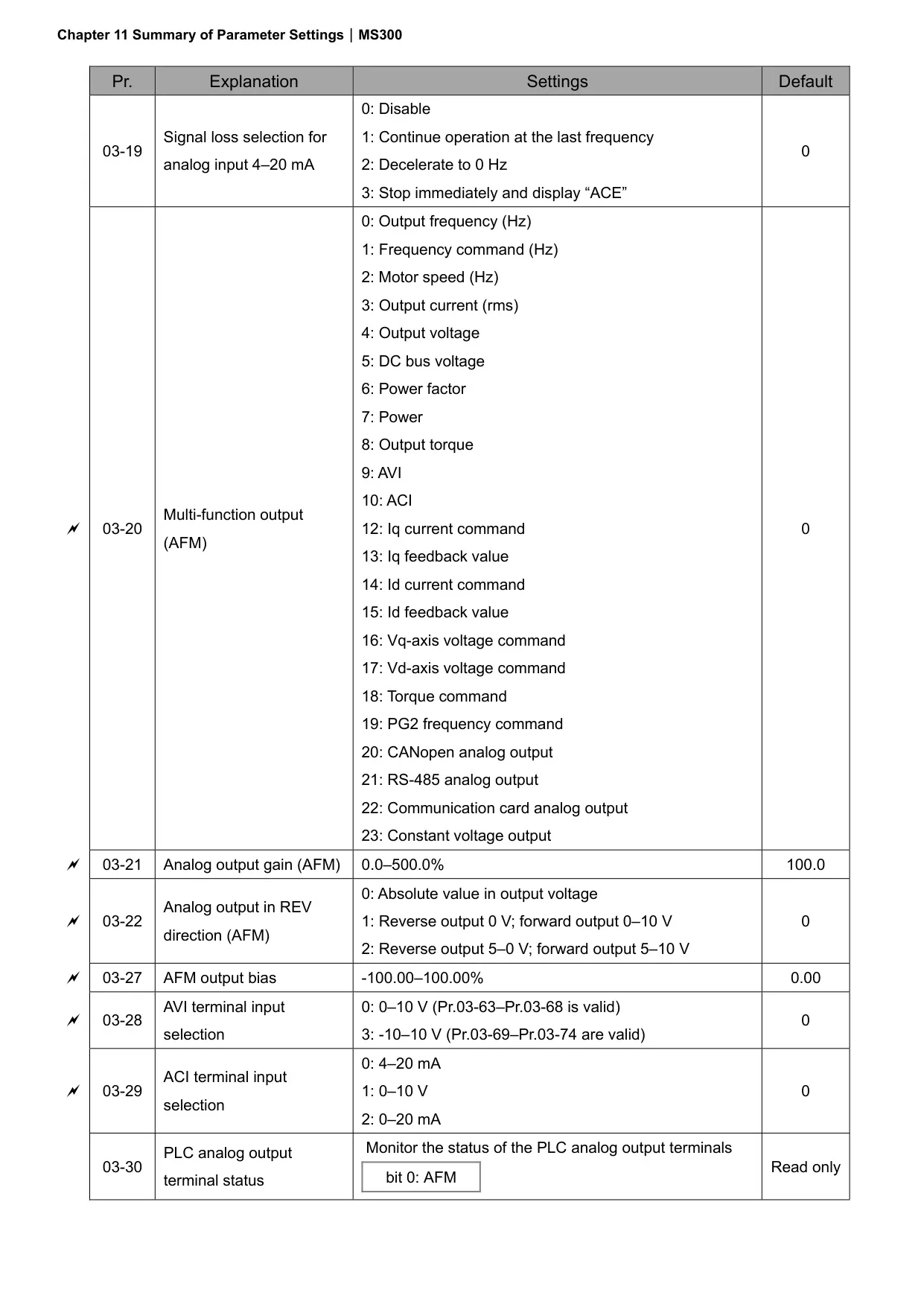

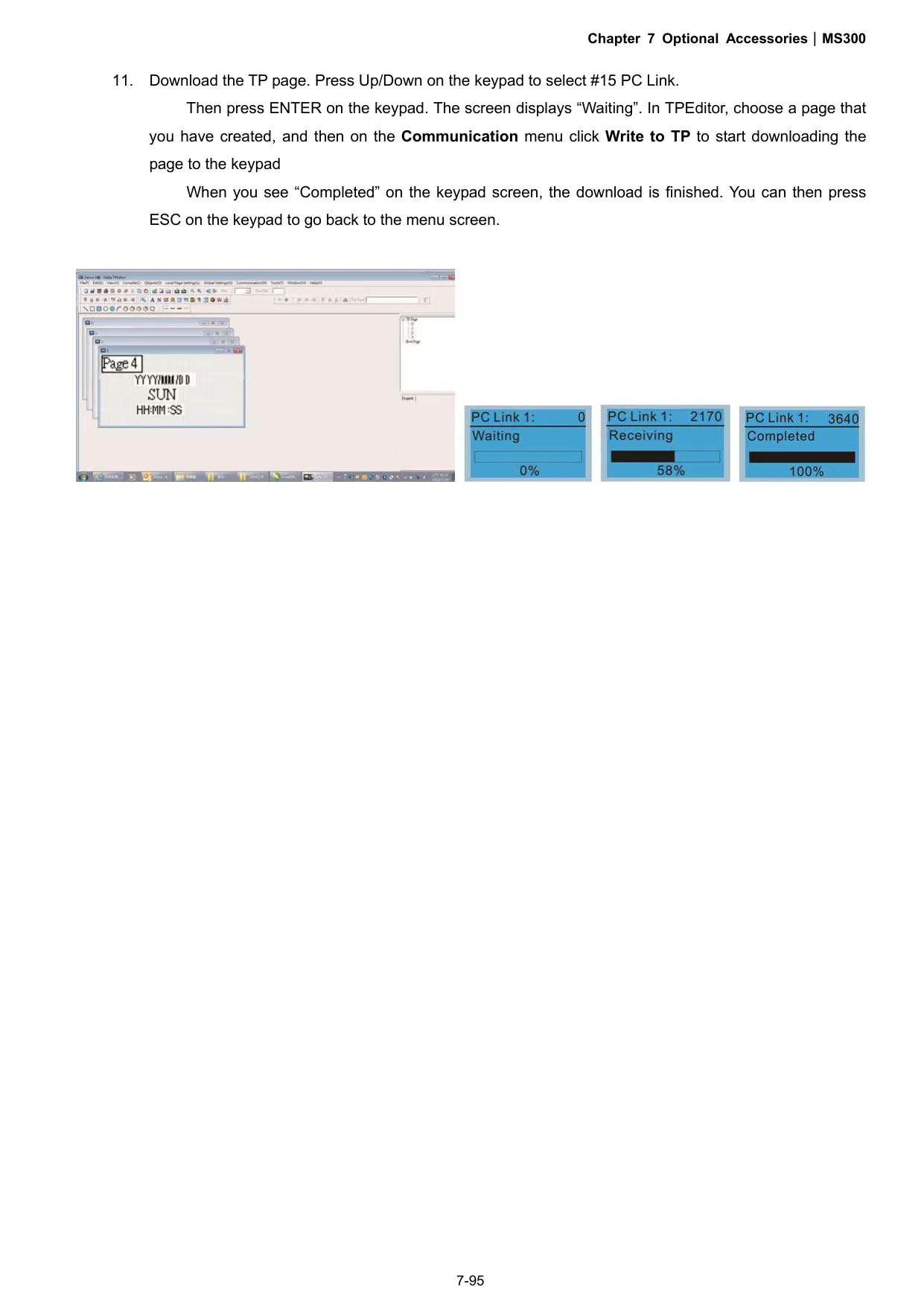

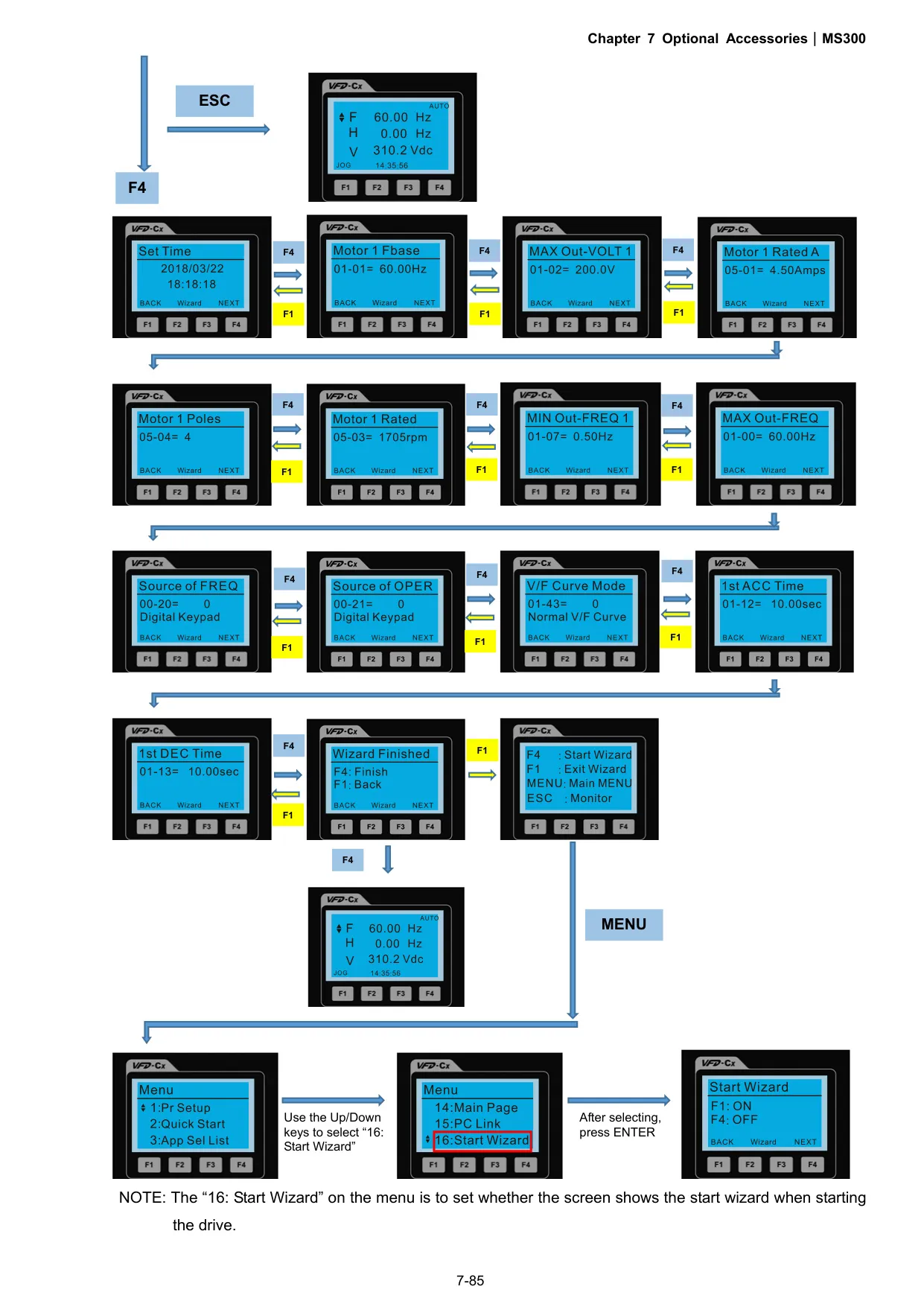

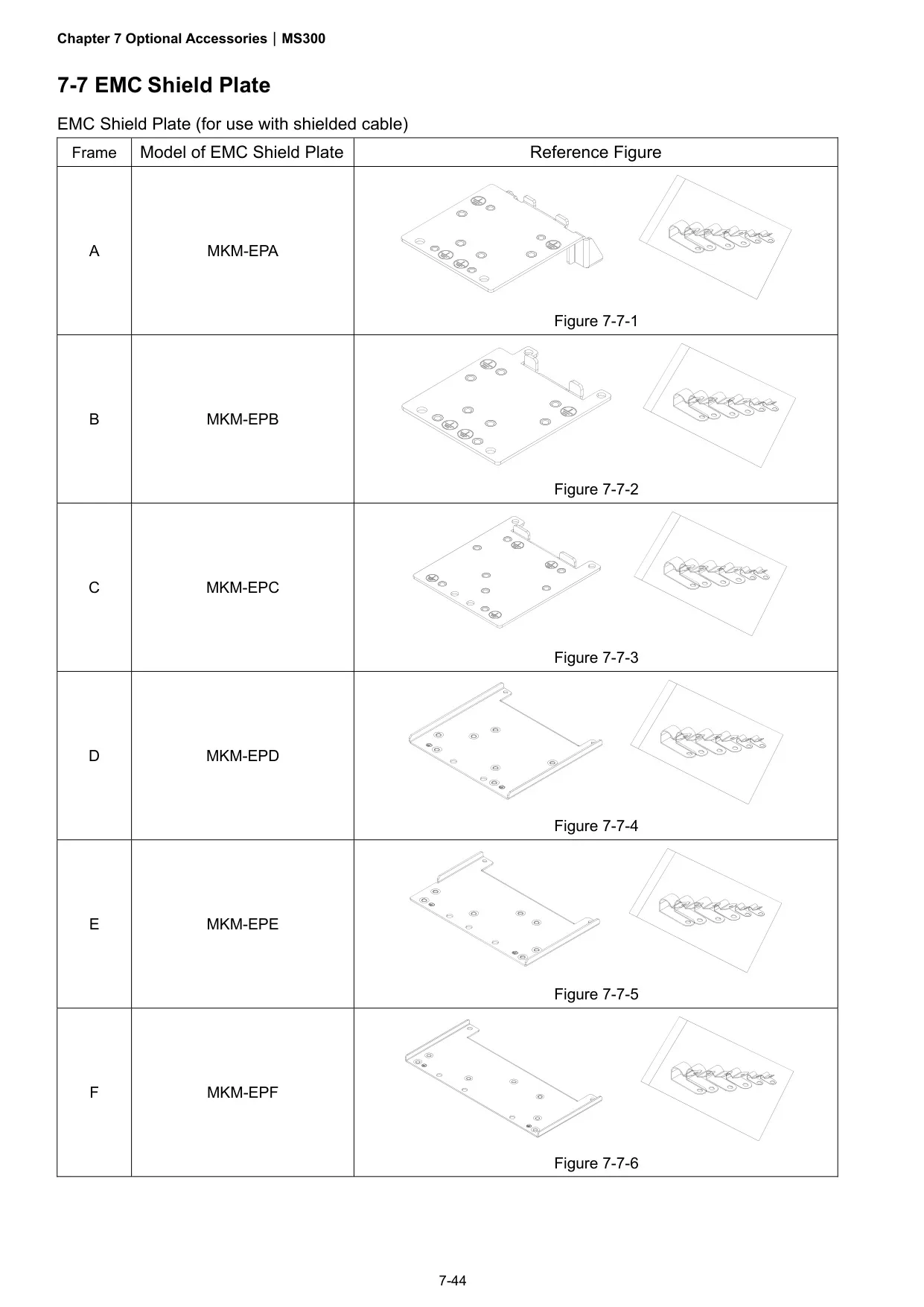

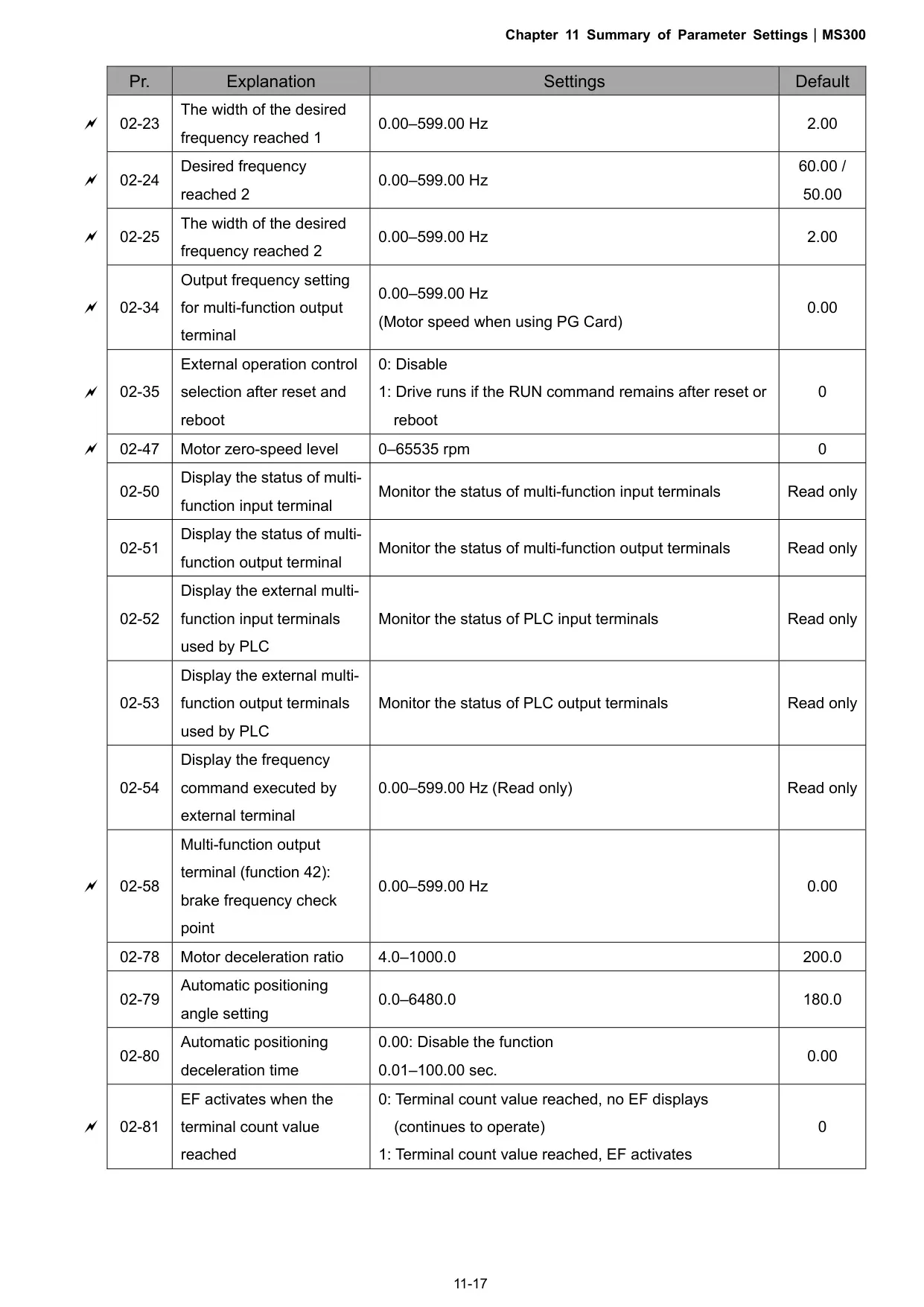

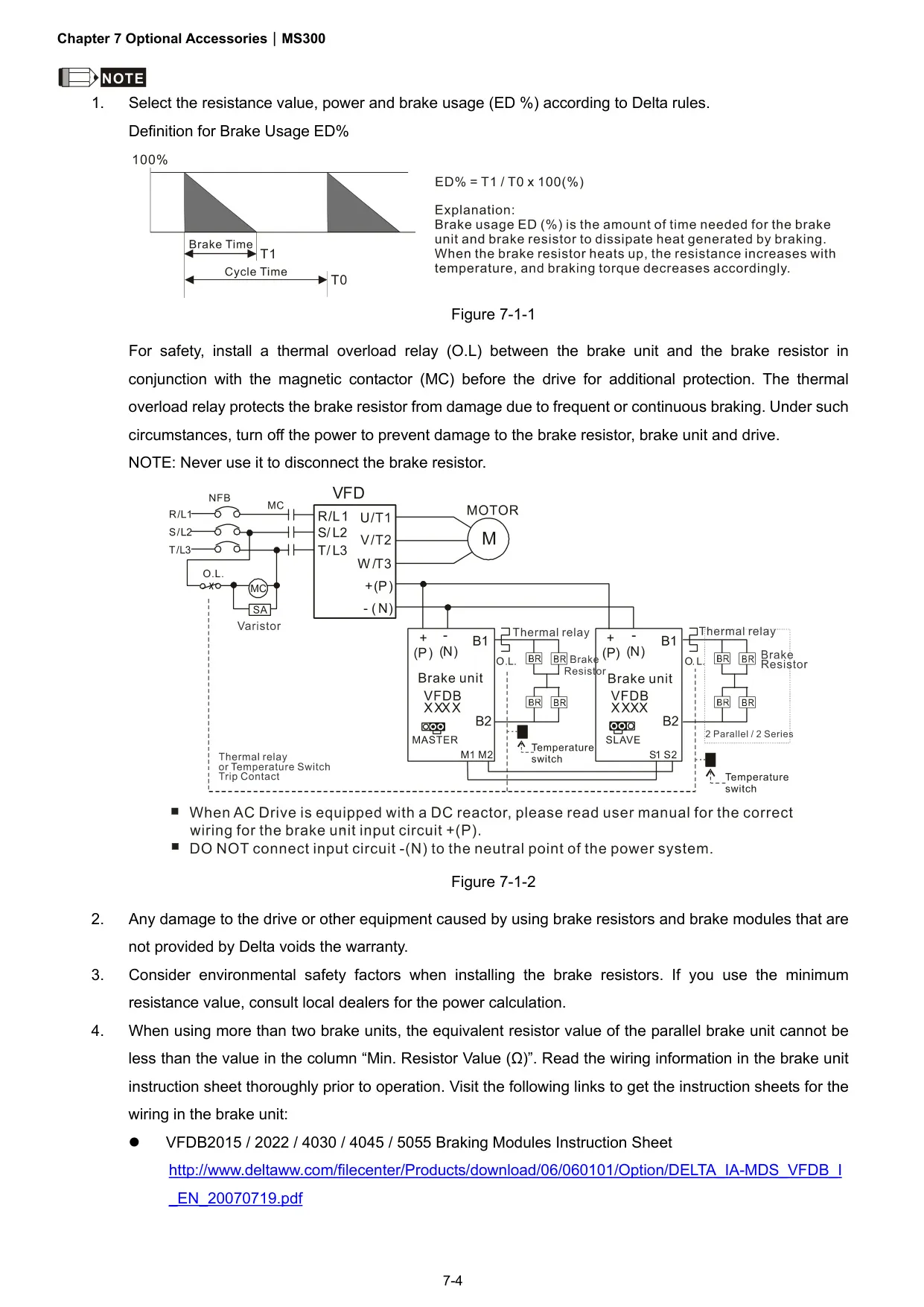

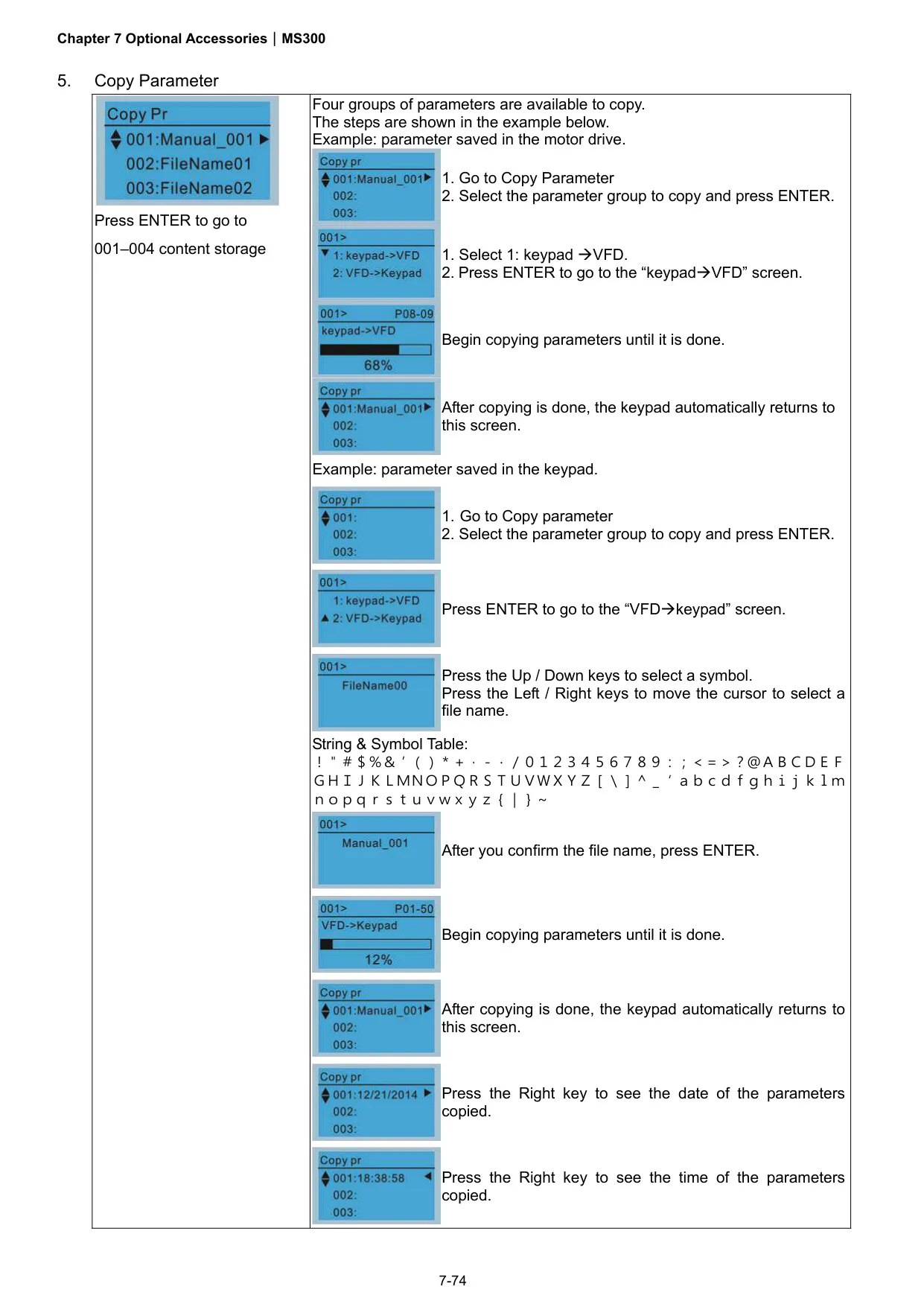

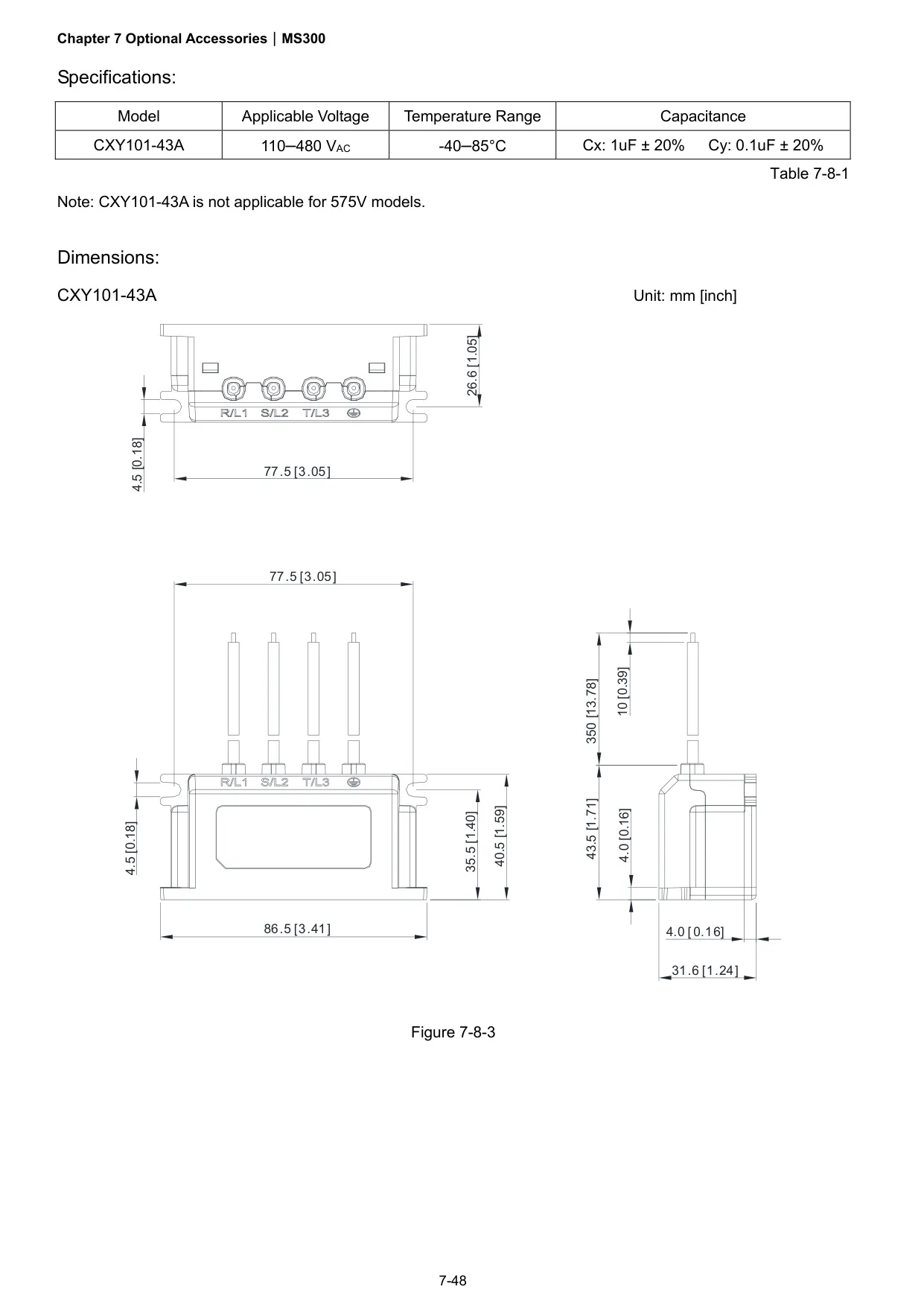

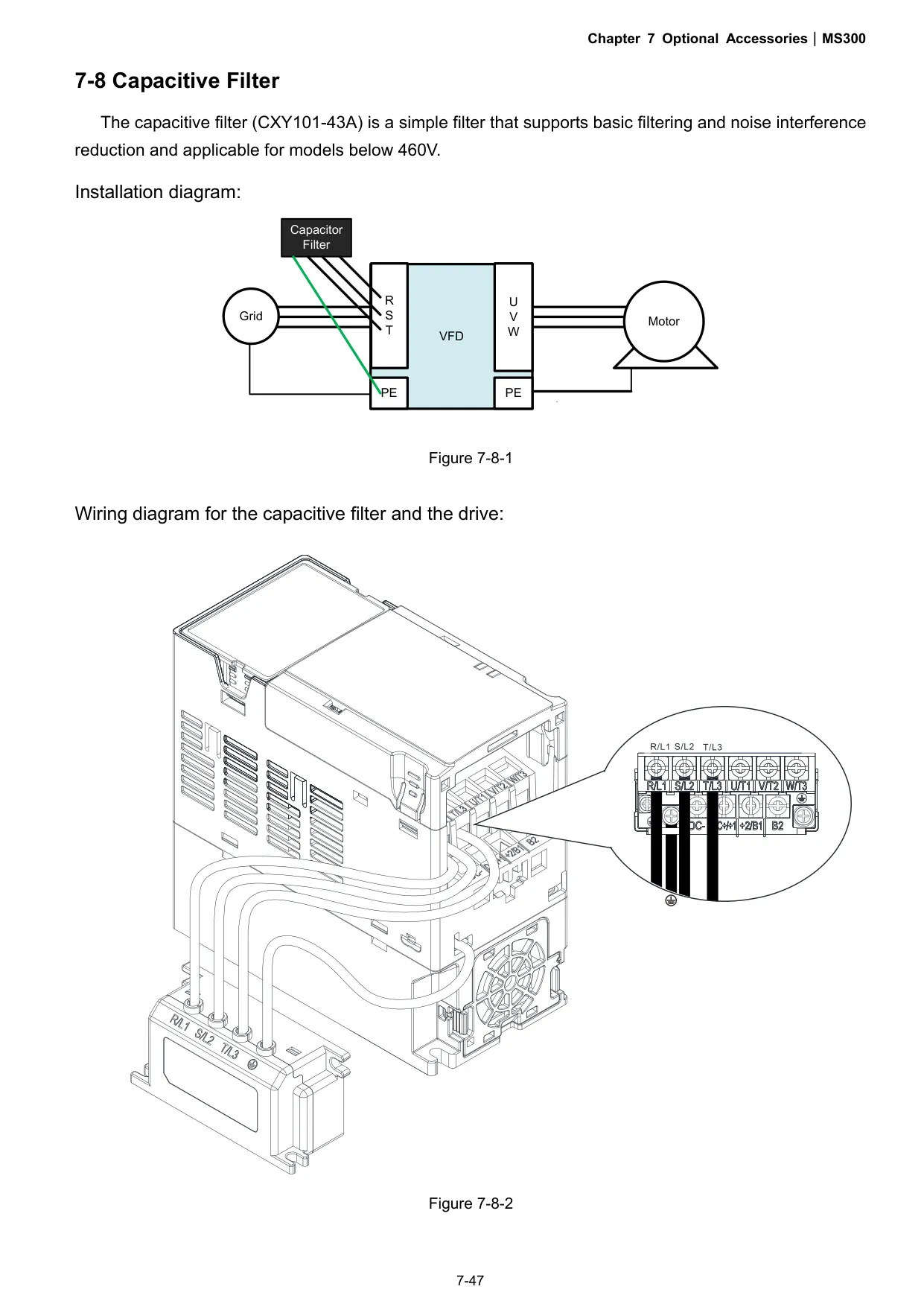

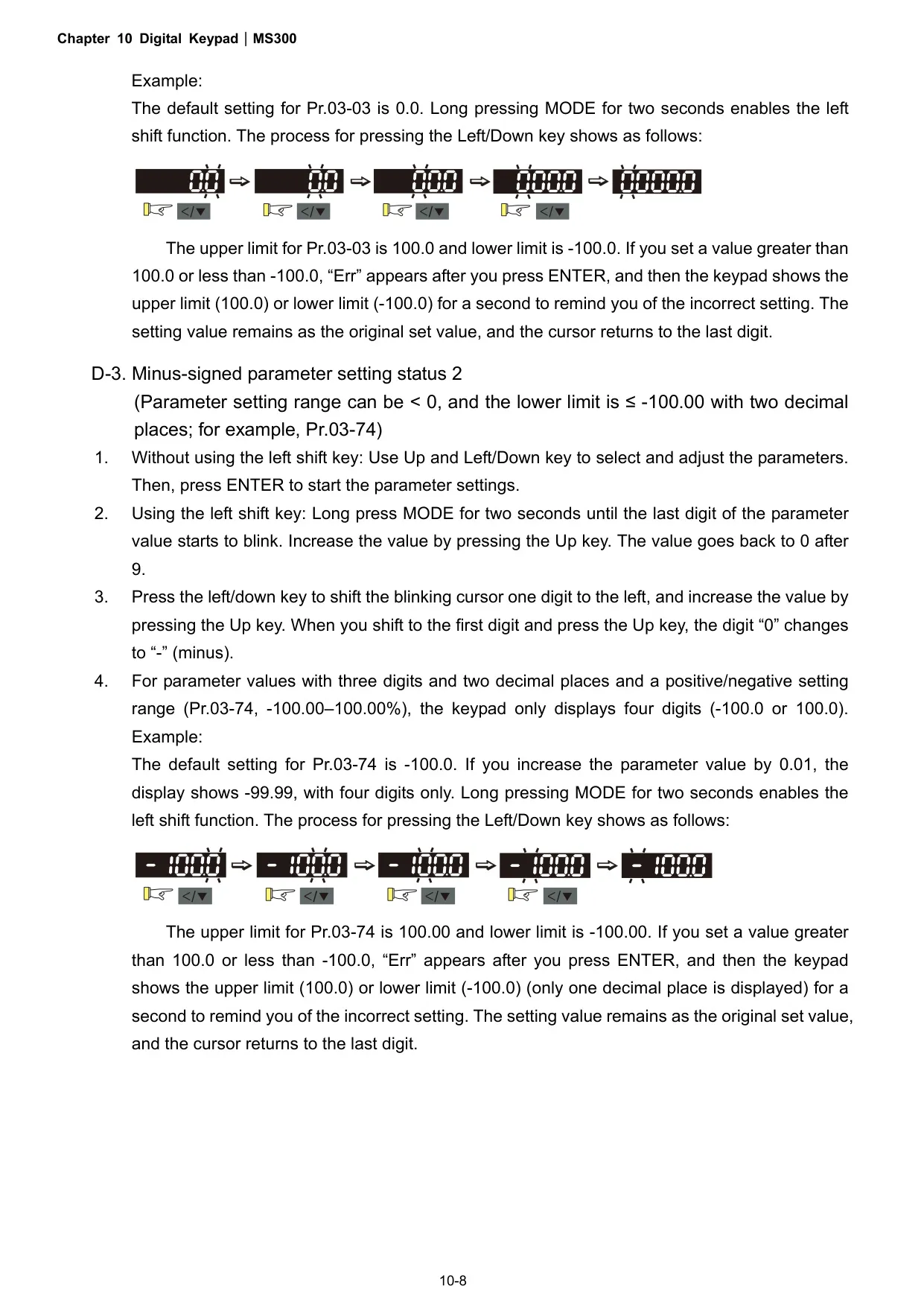

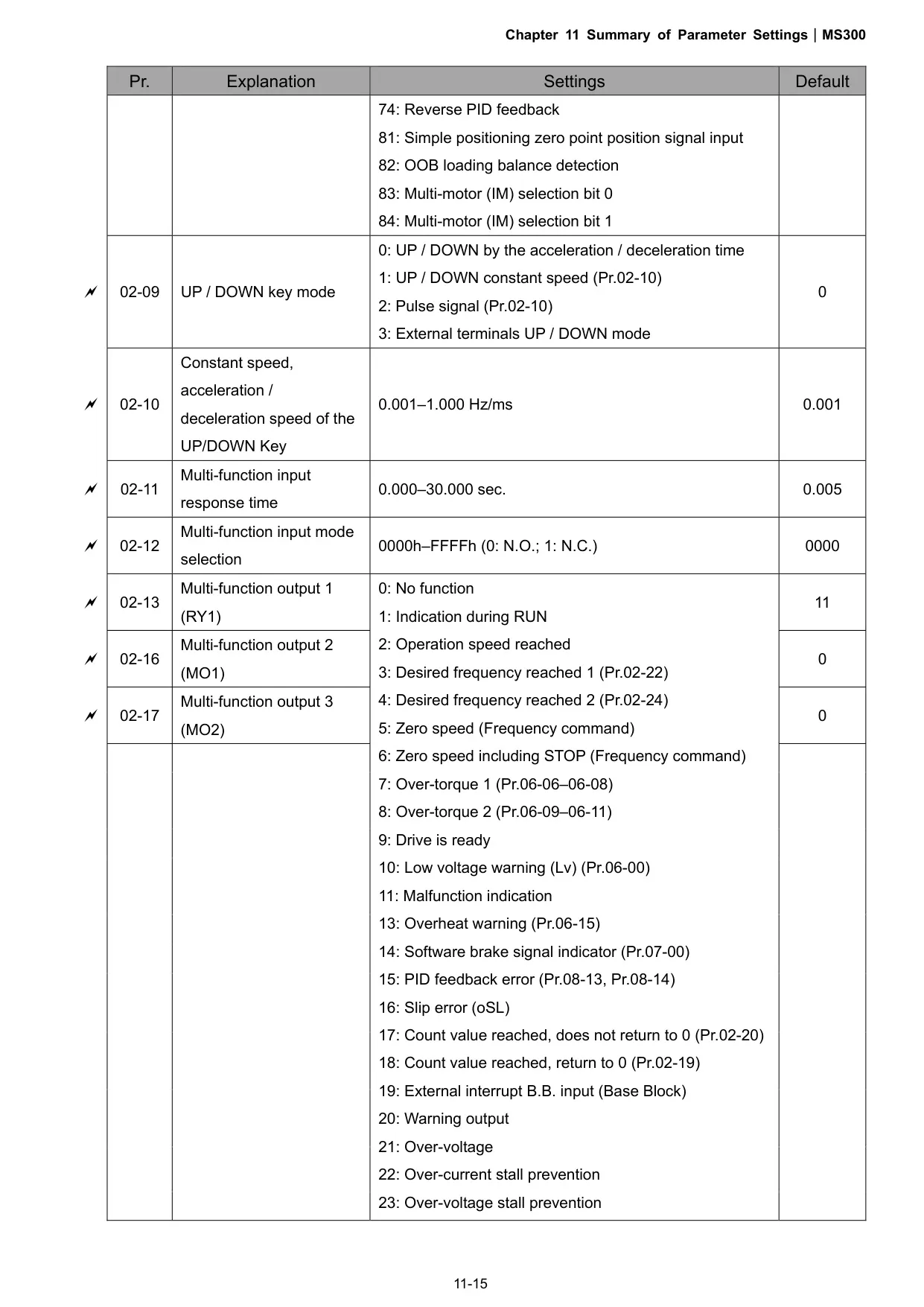

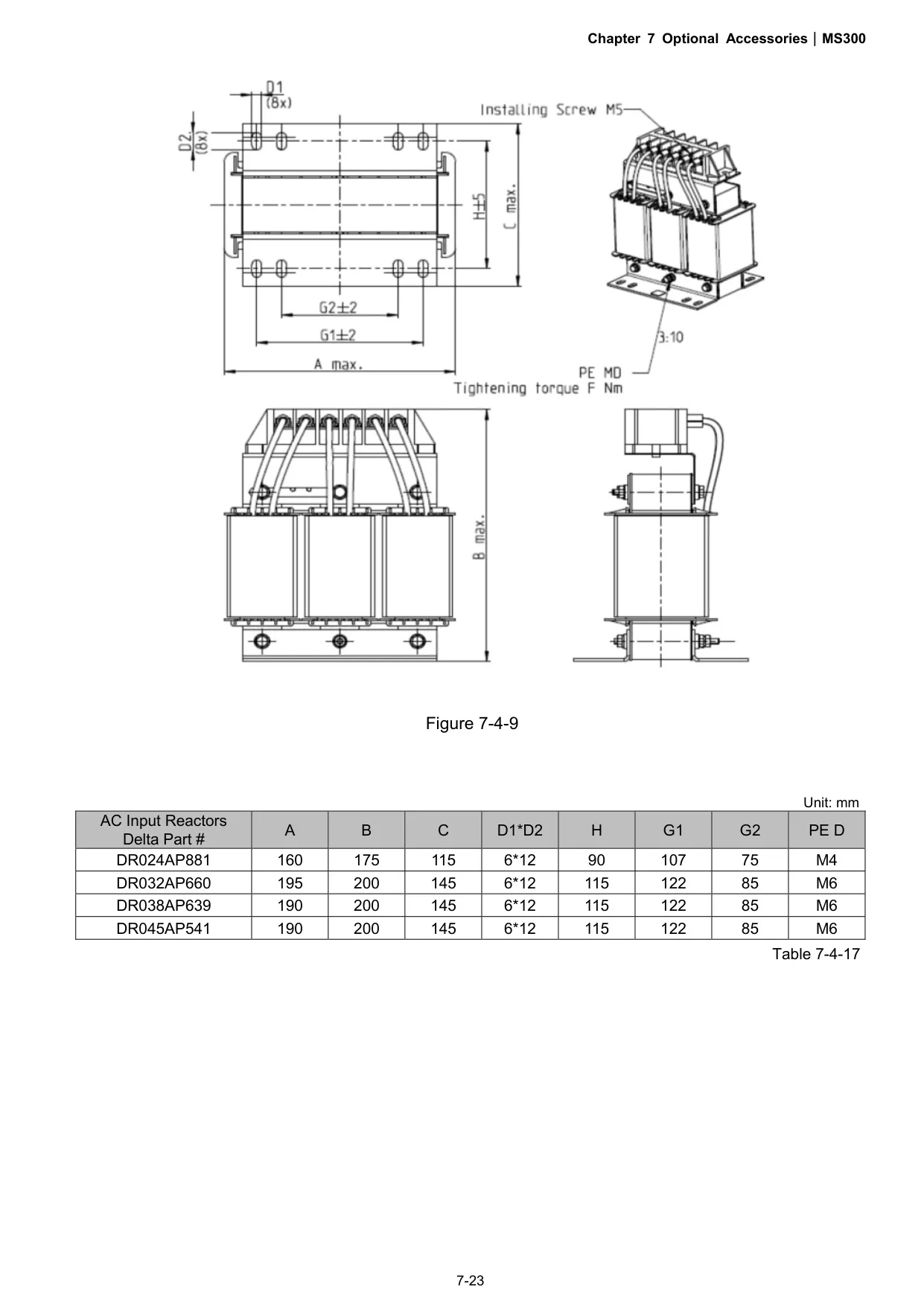

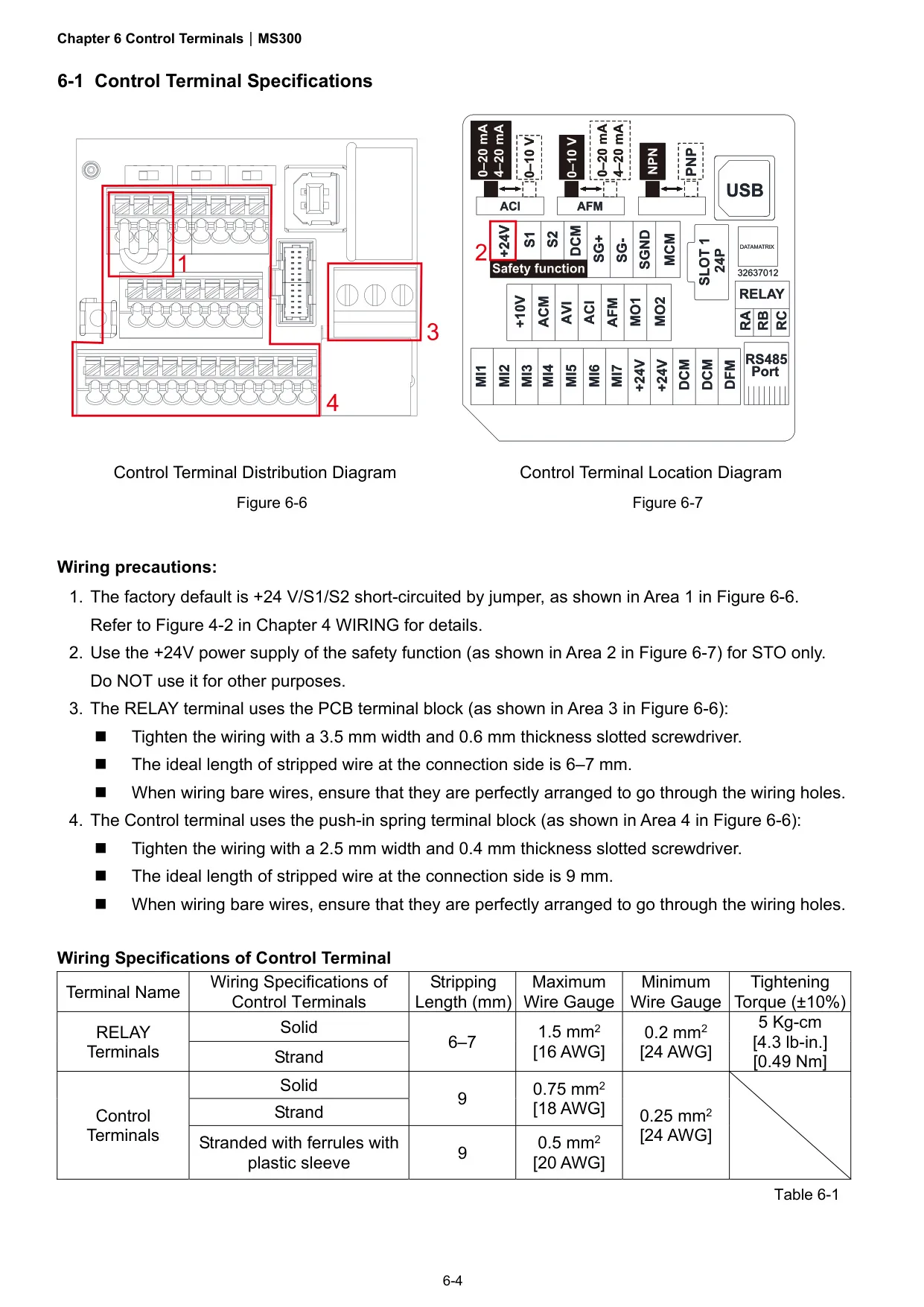

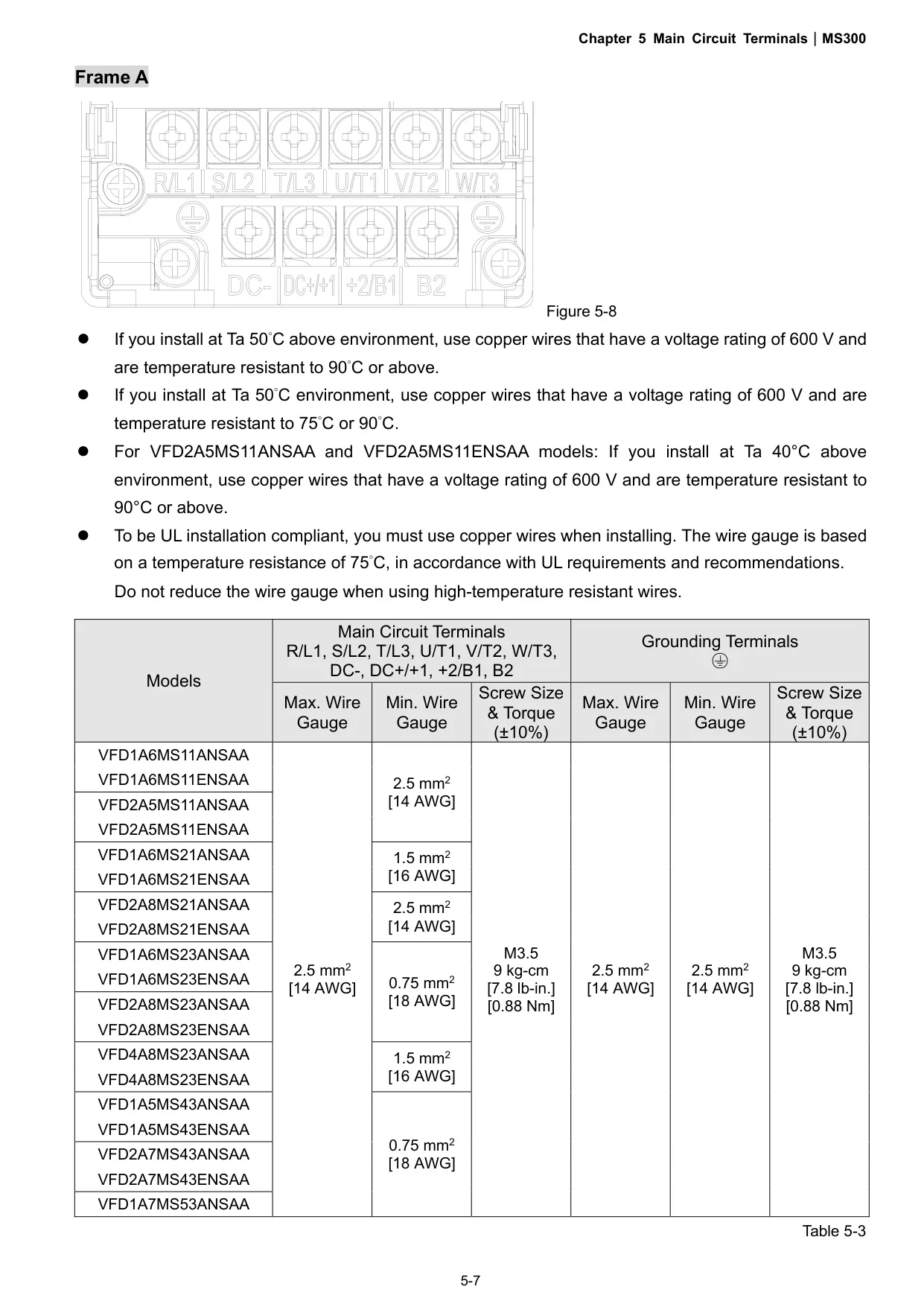

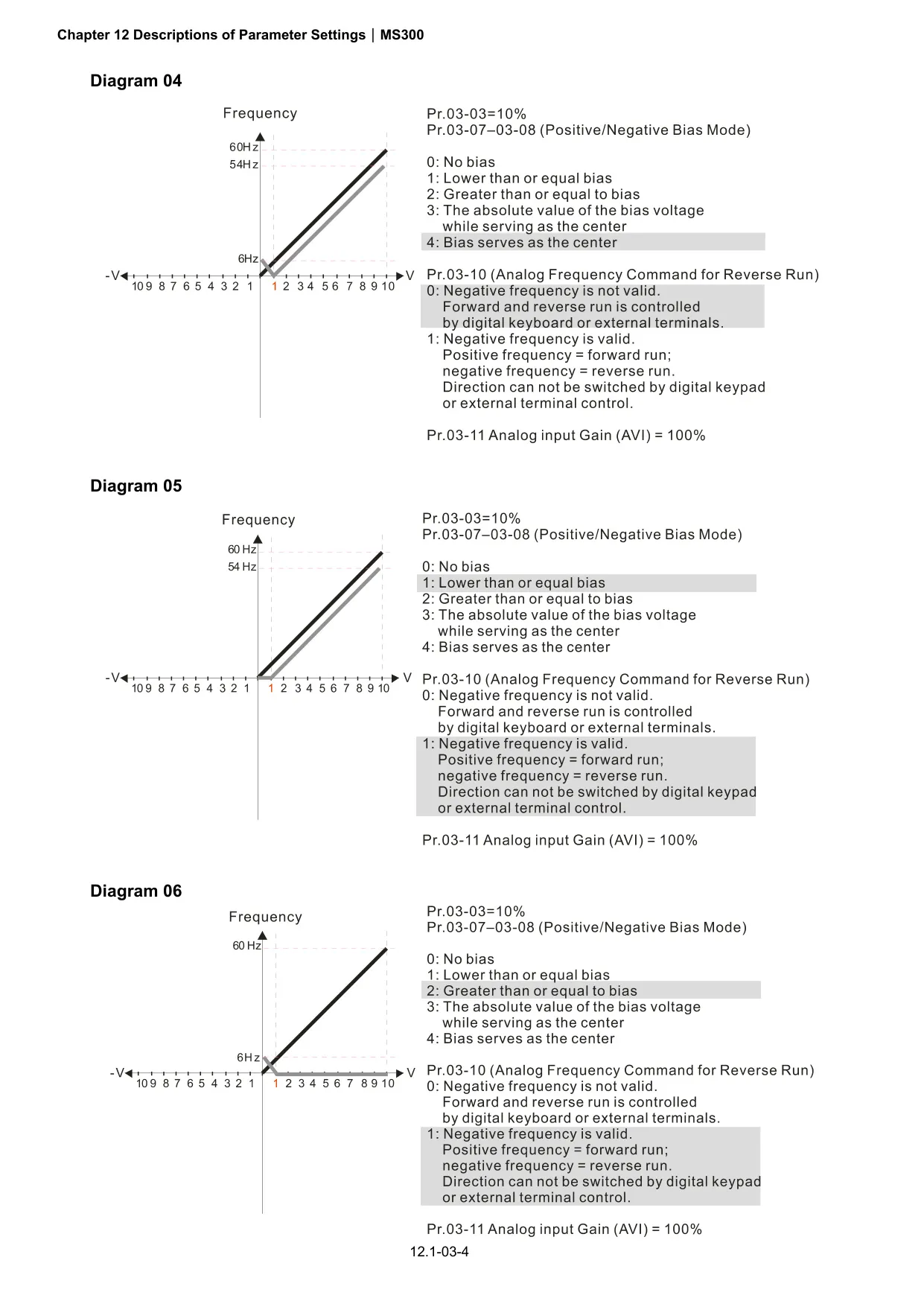

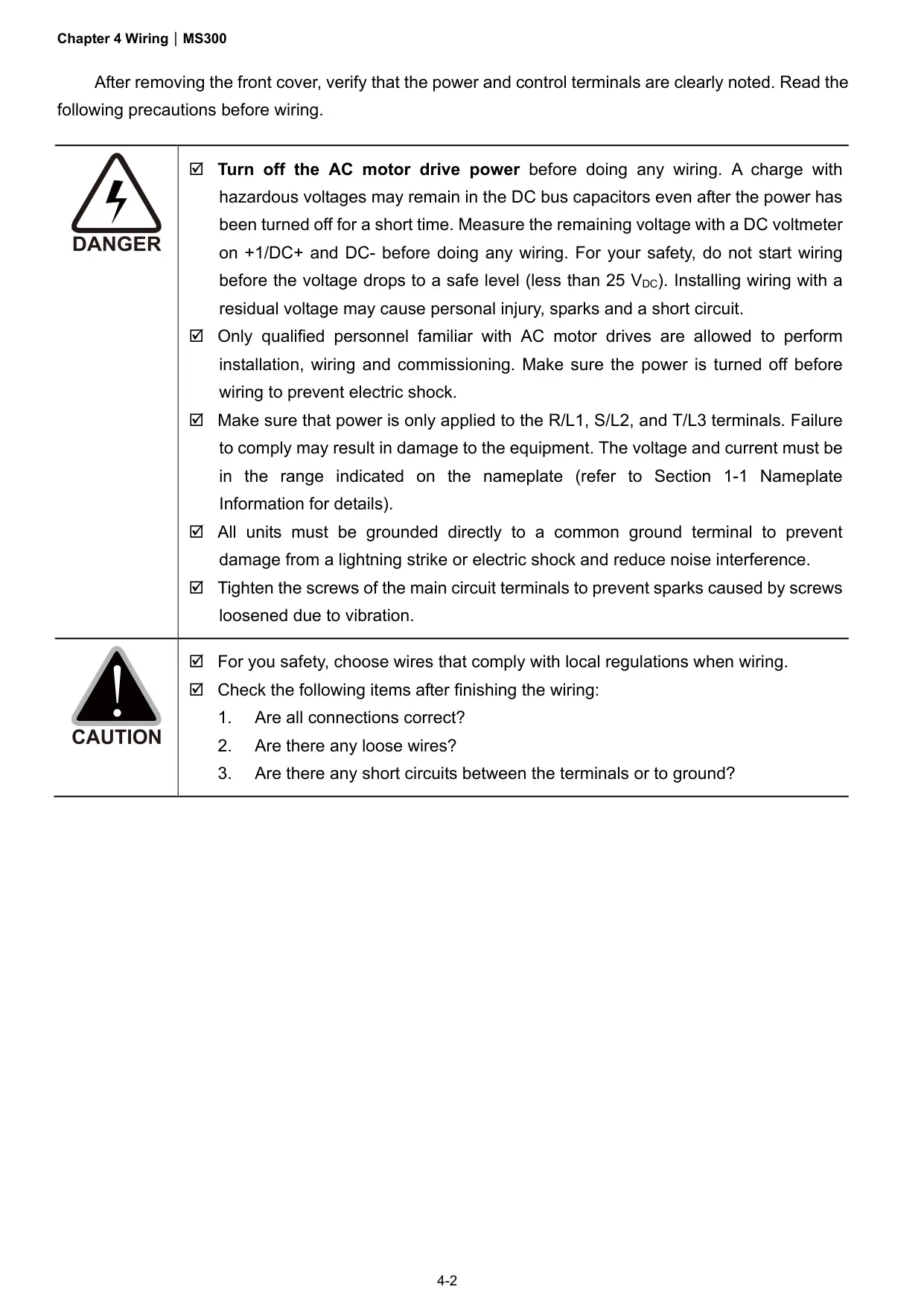

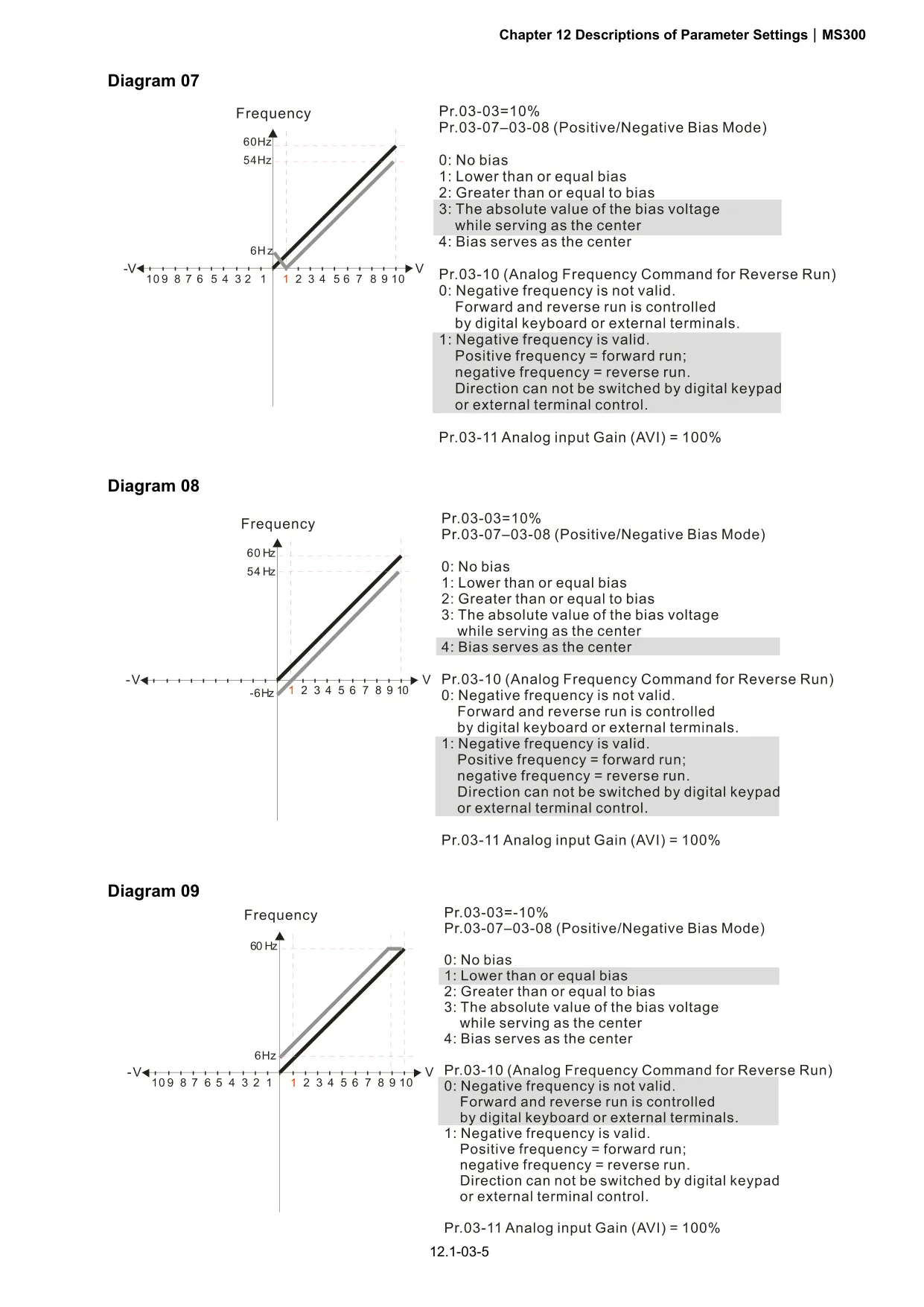

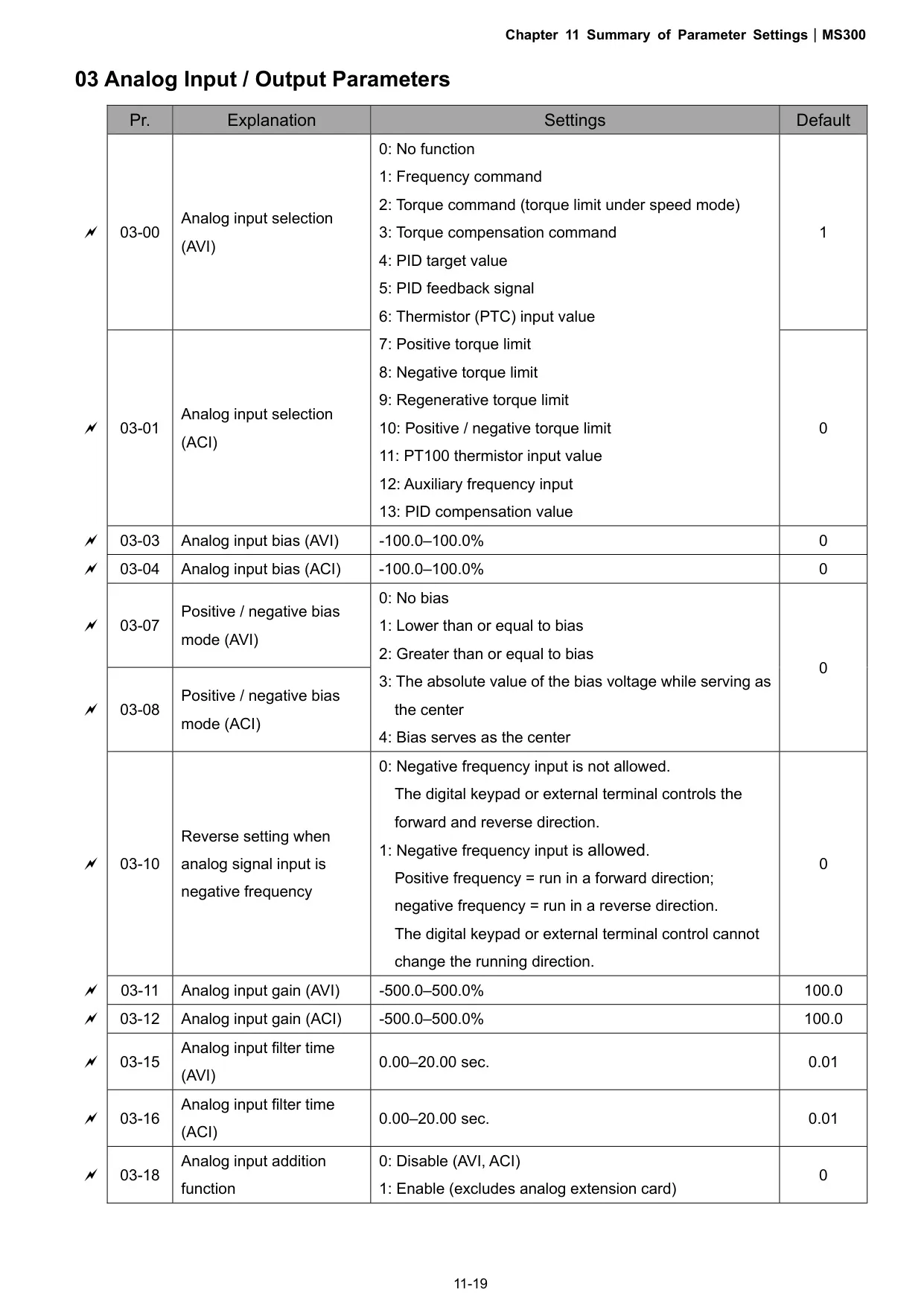

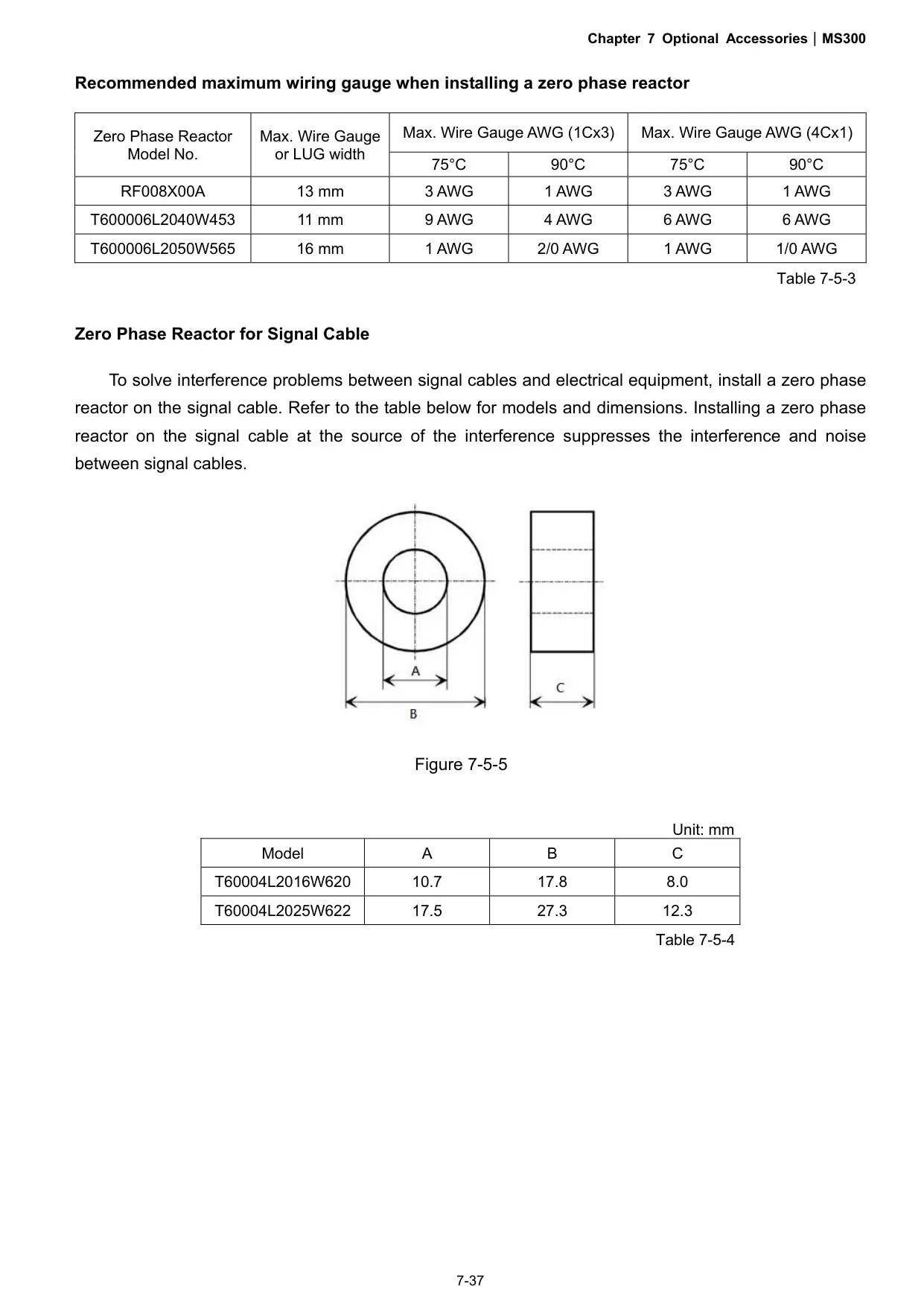

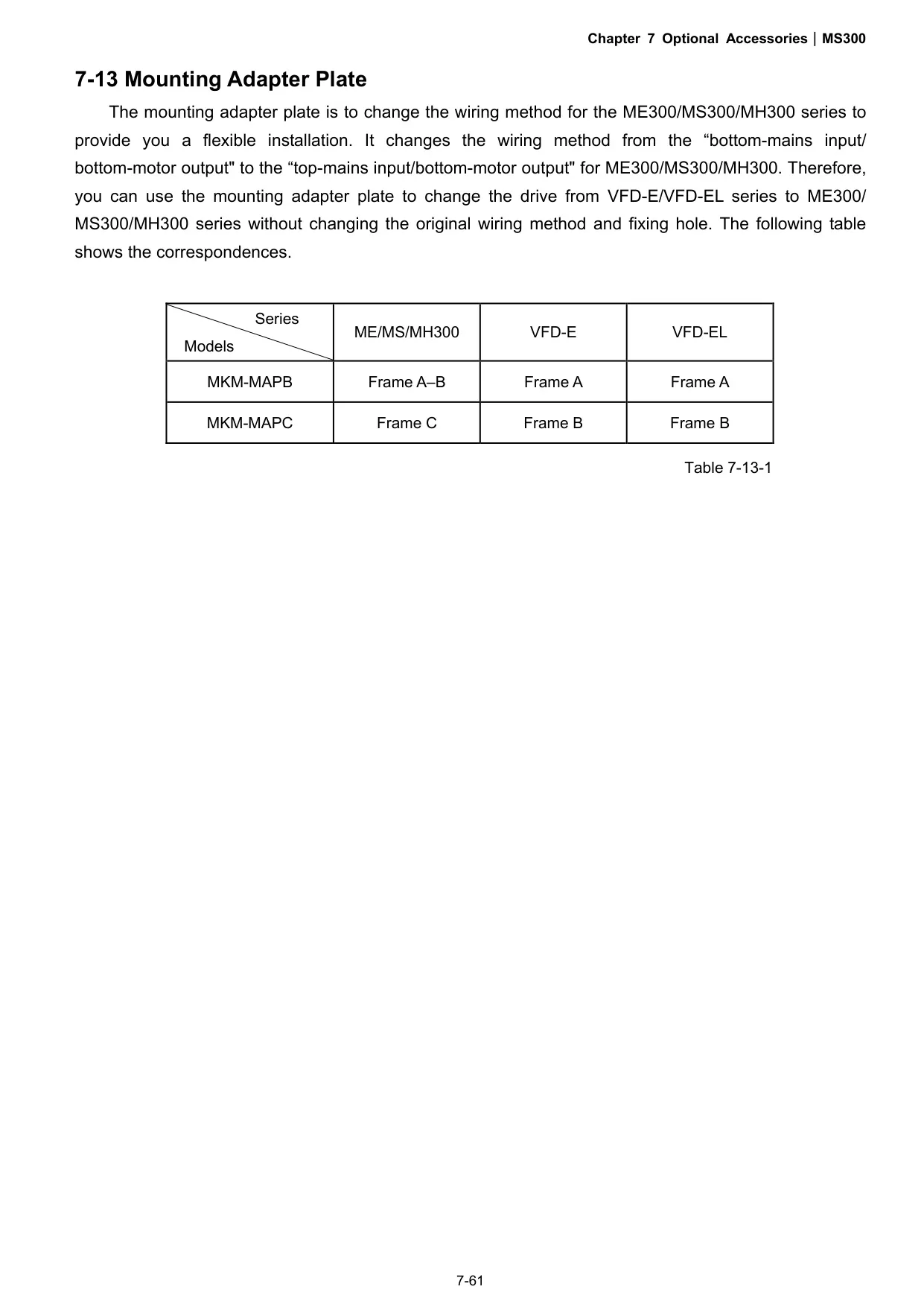

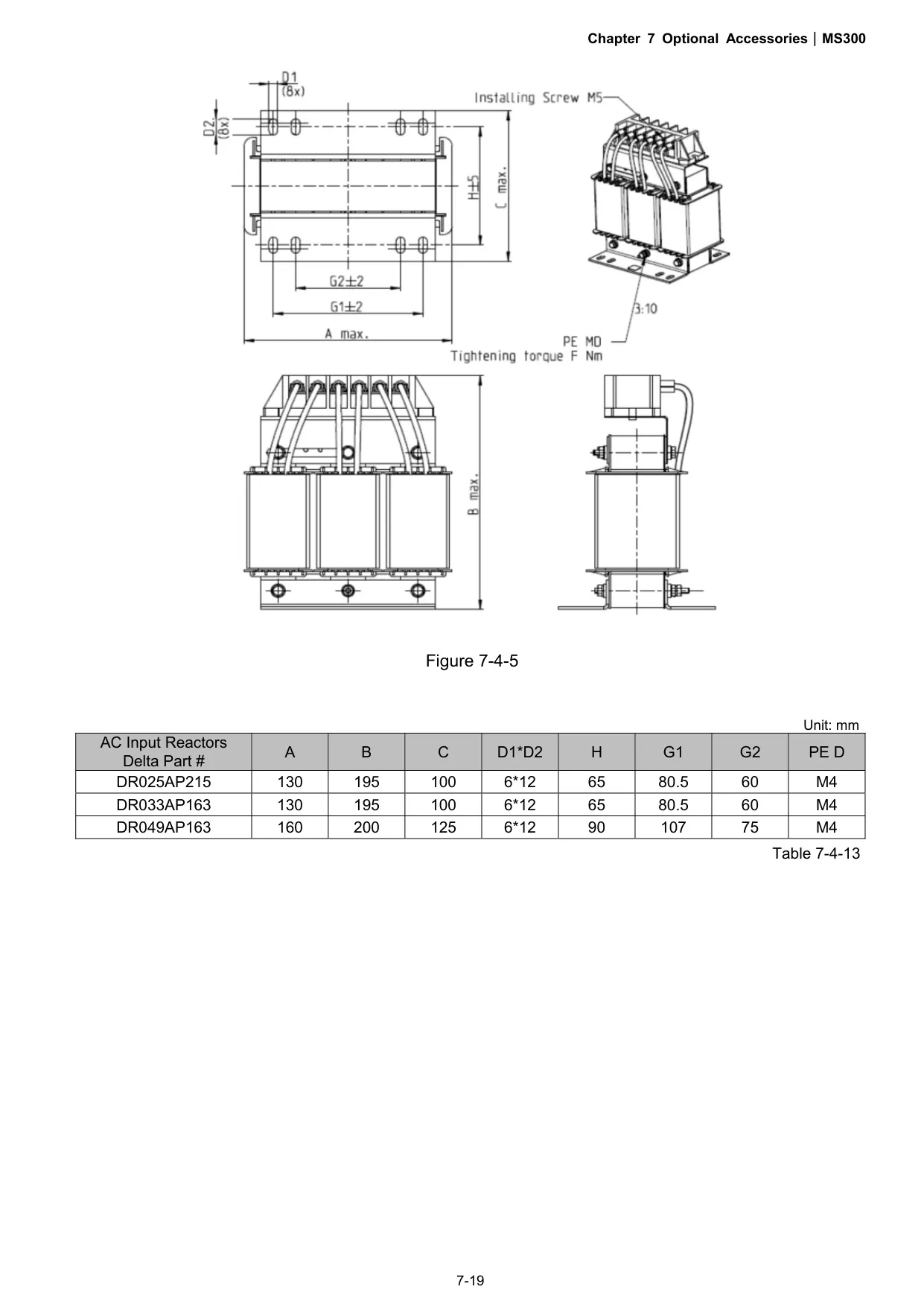

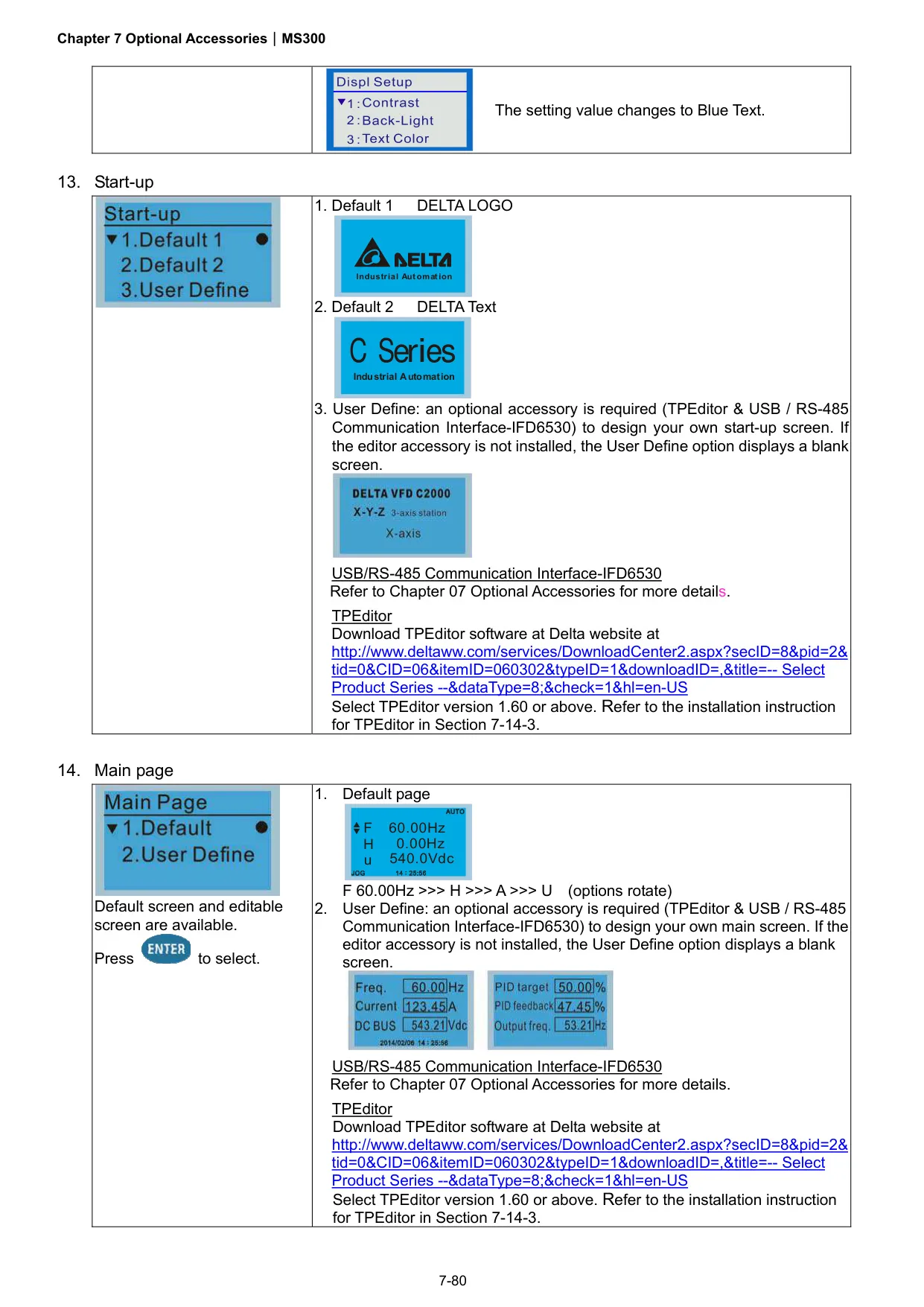

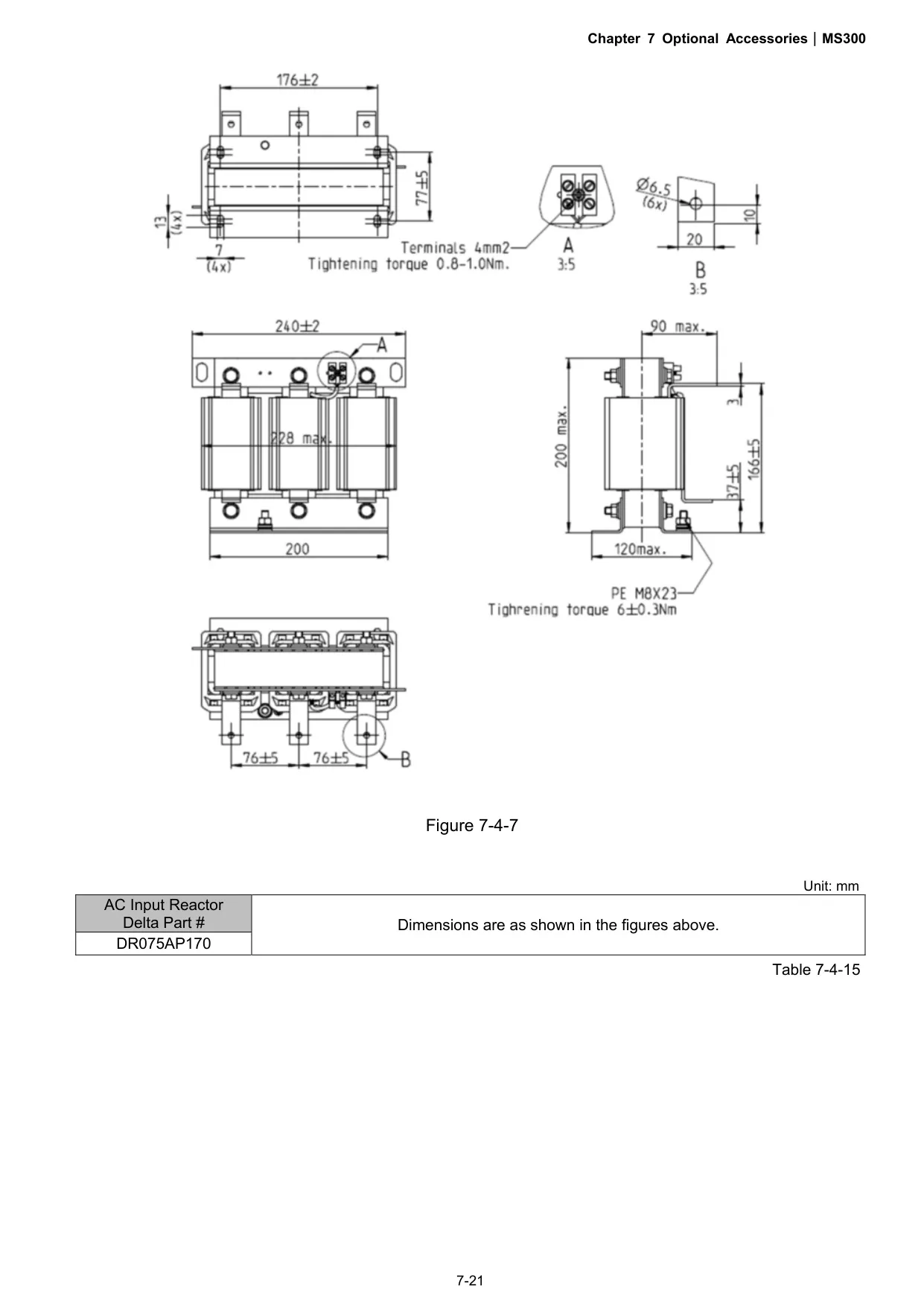

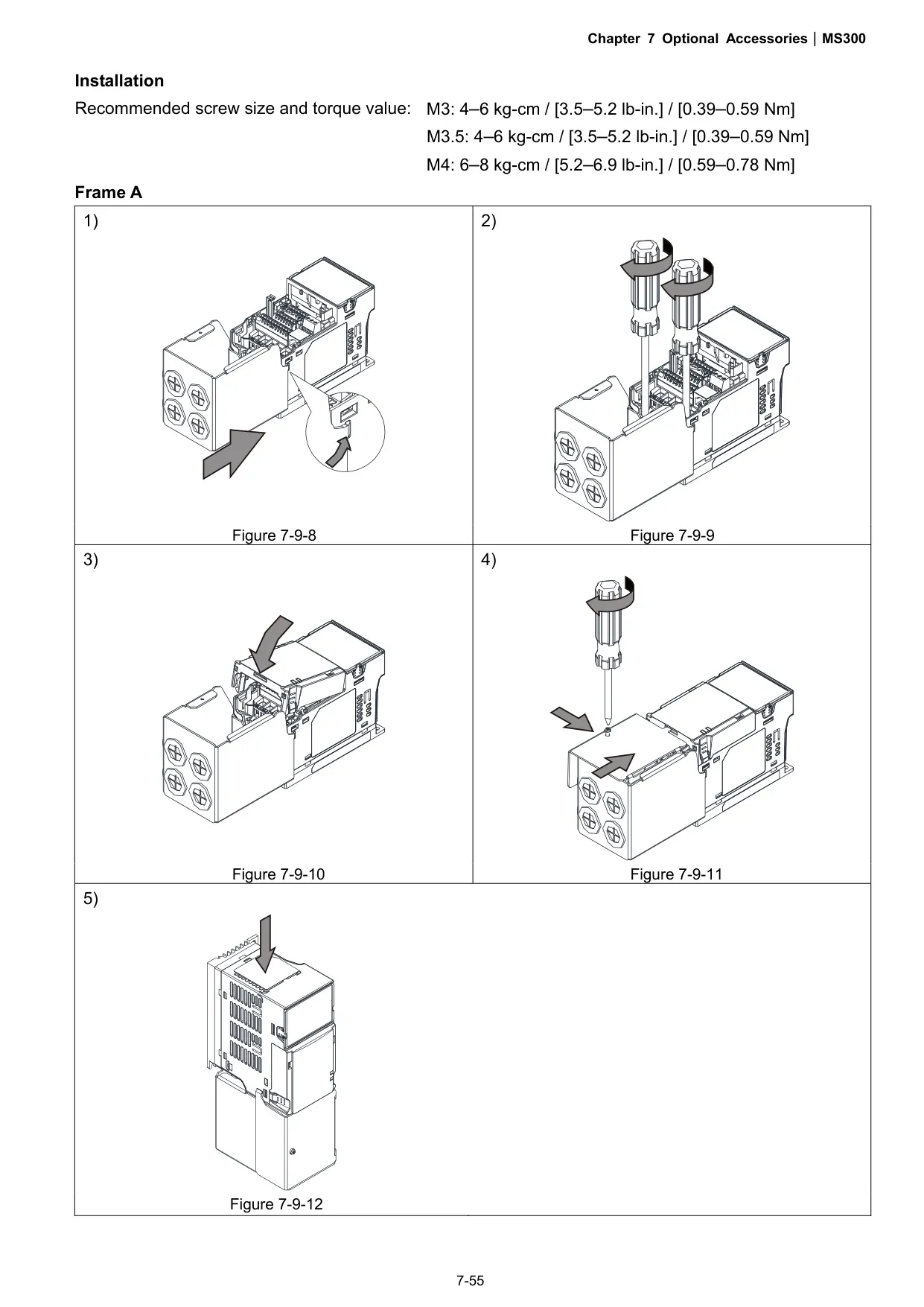

Delta MS300 VFD Details

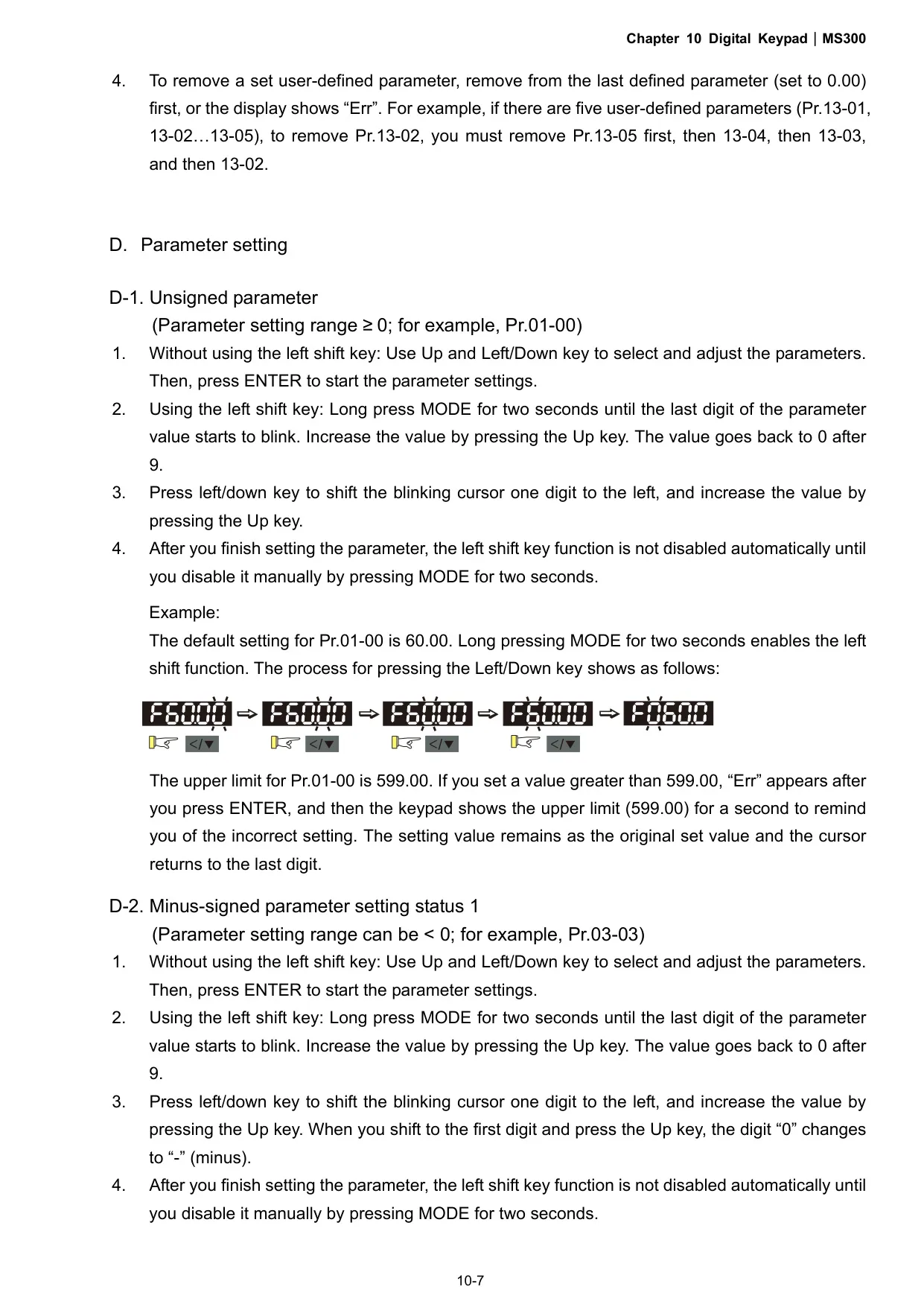

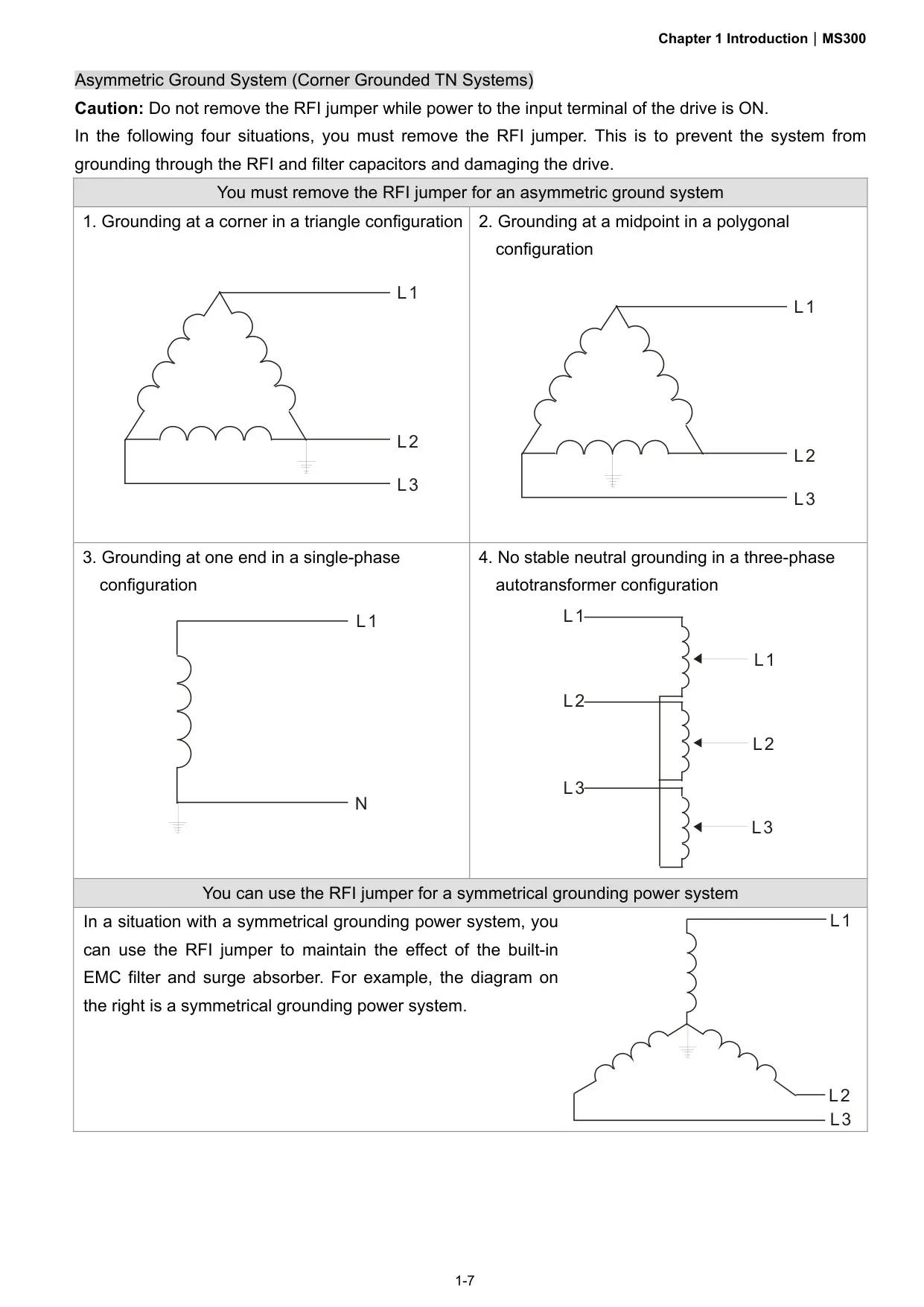

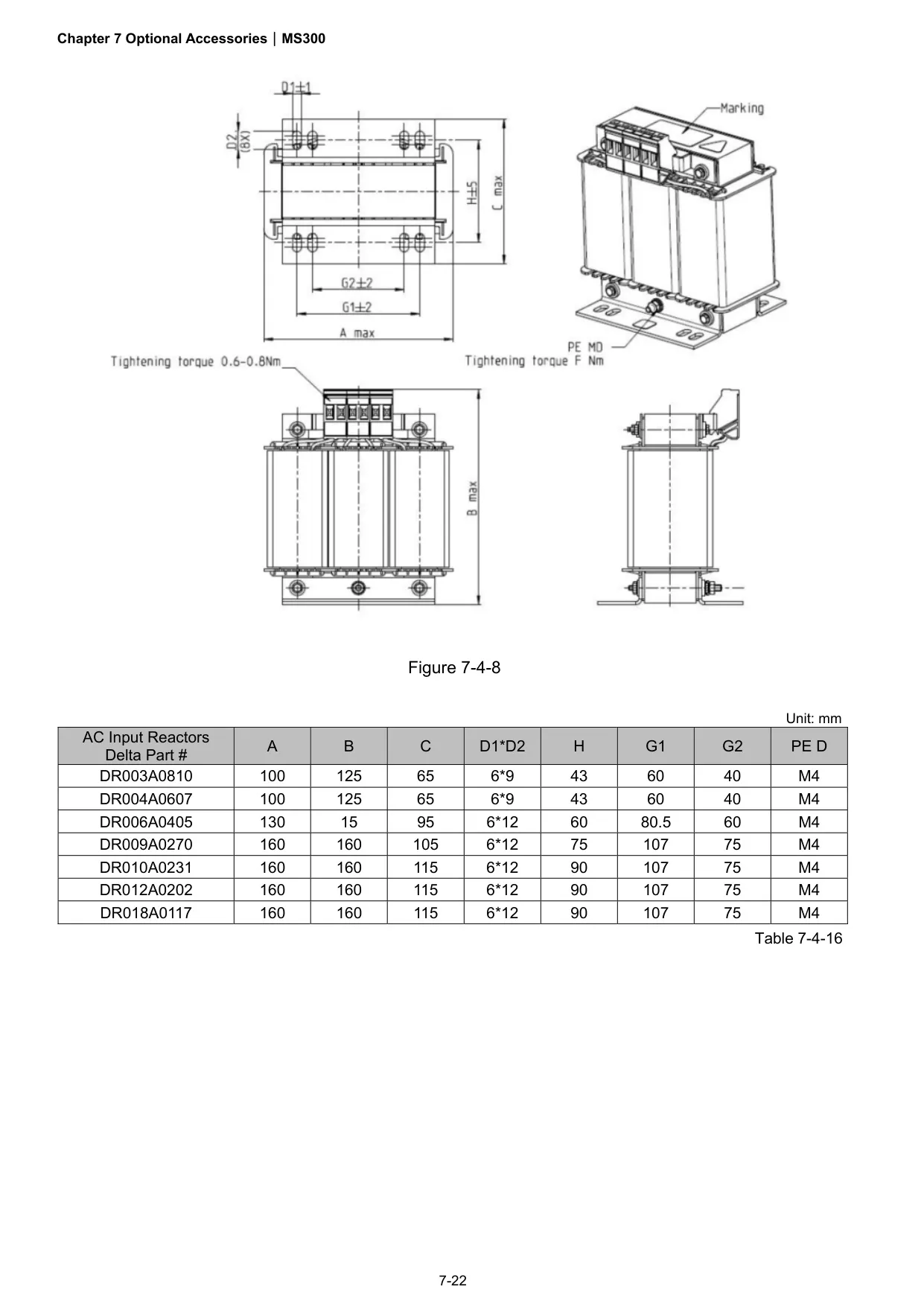

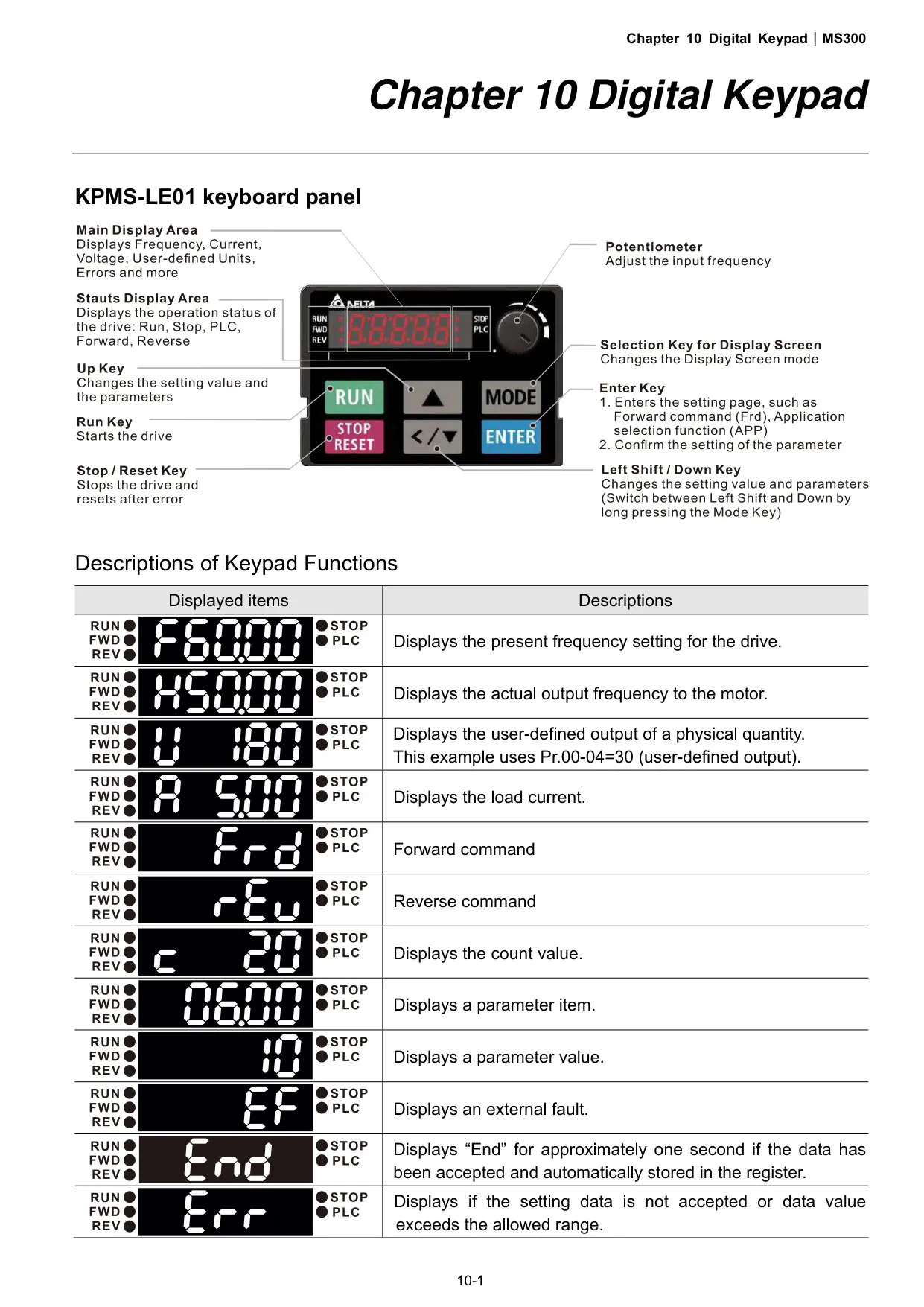

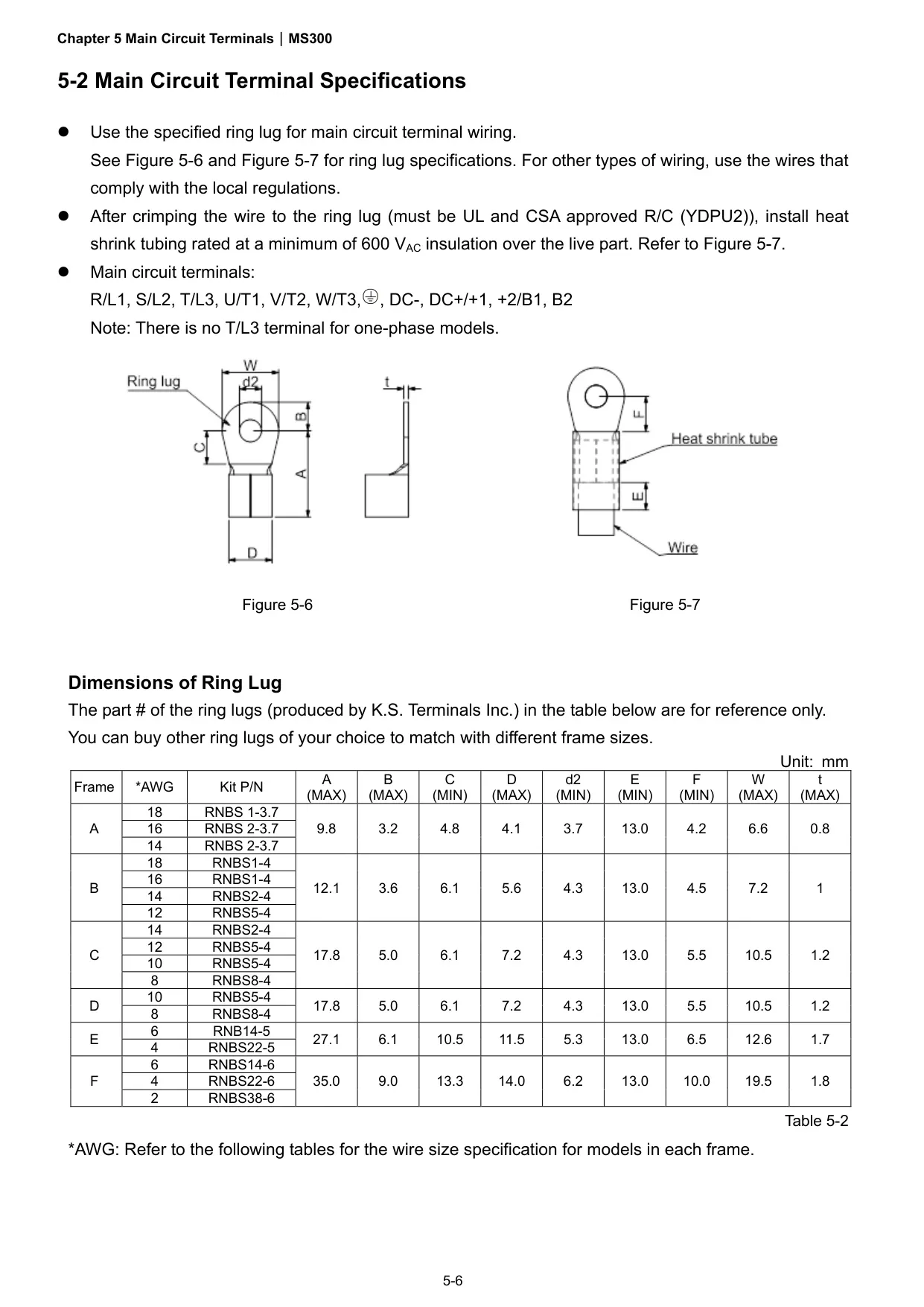

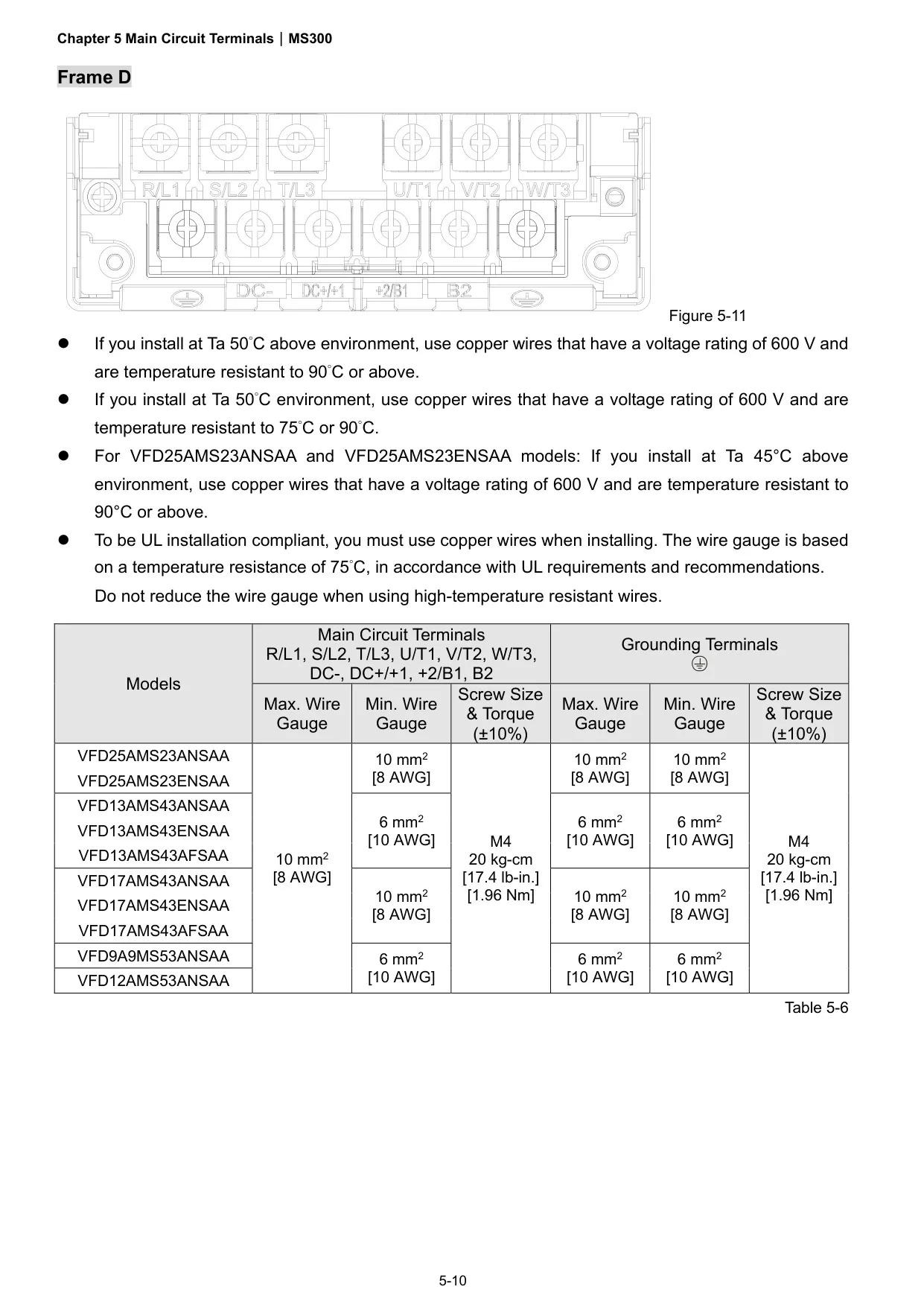

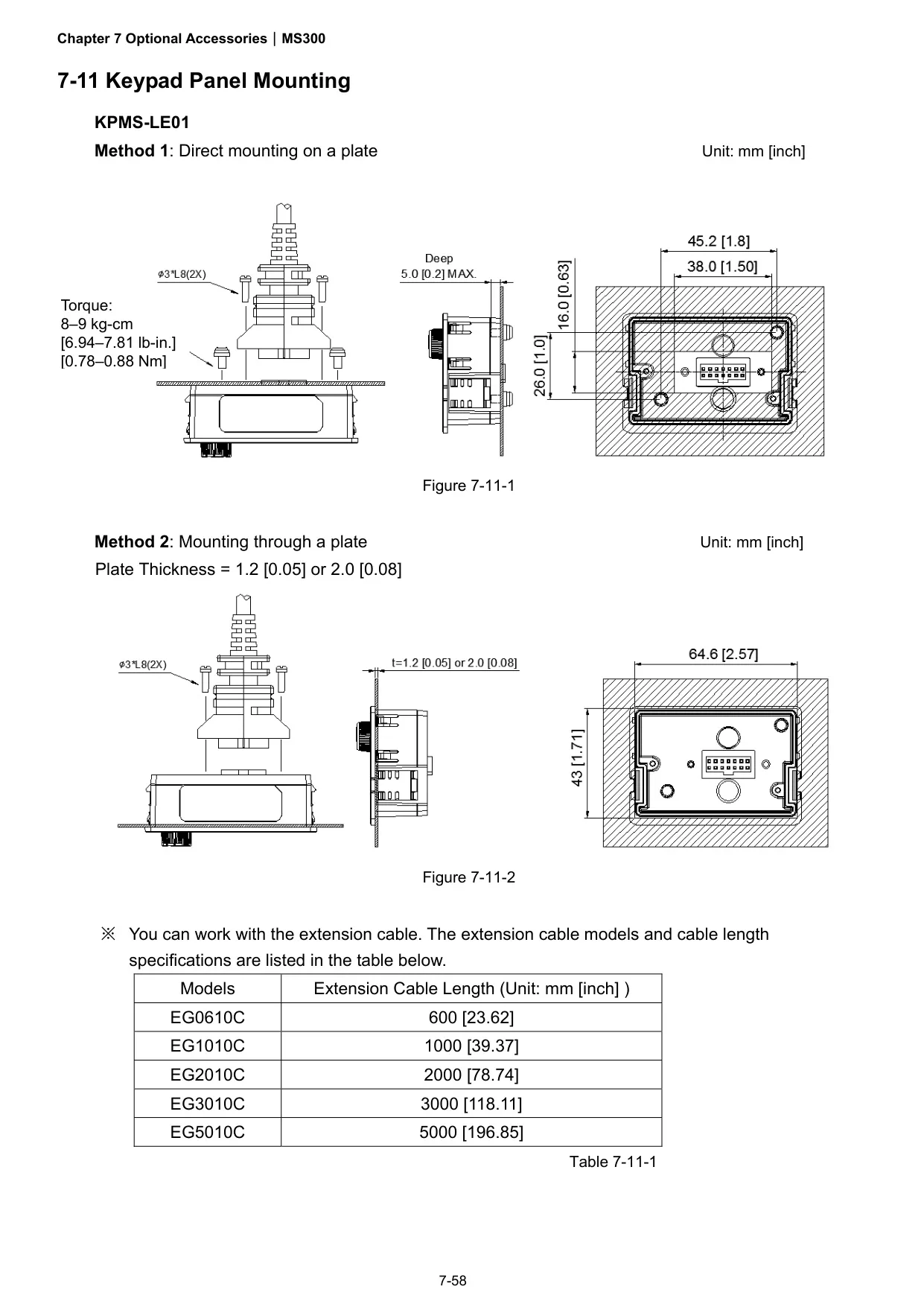

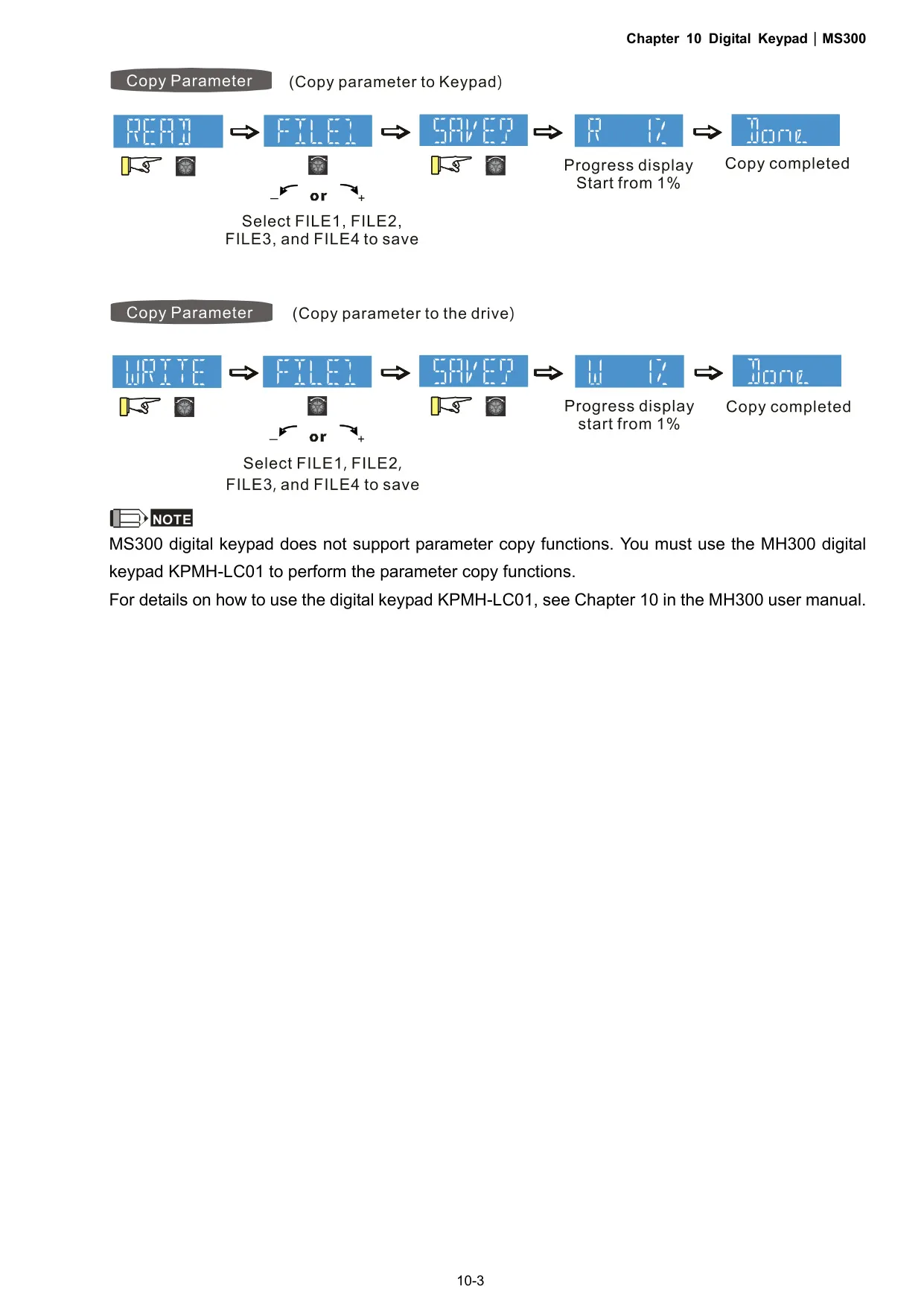

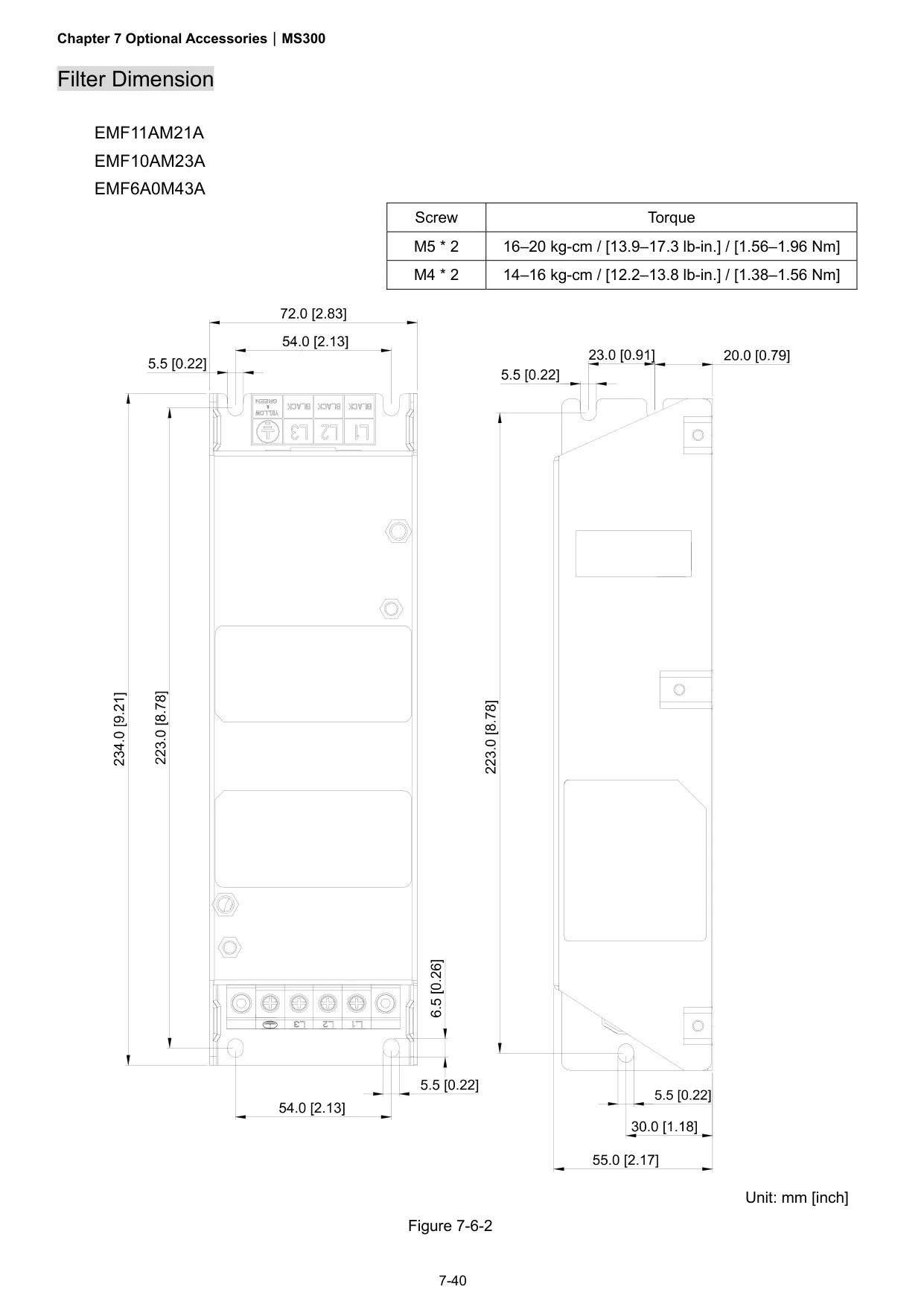

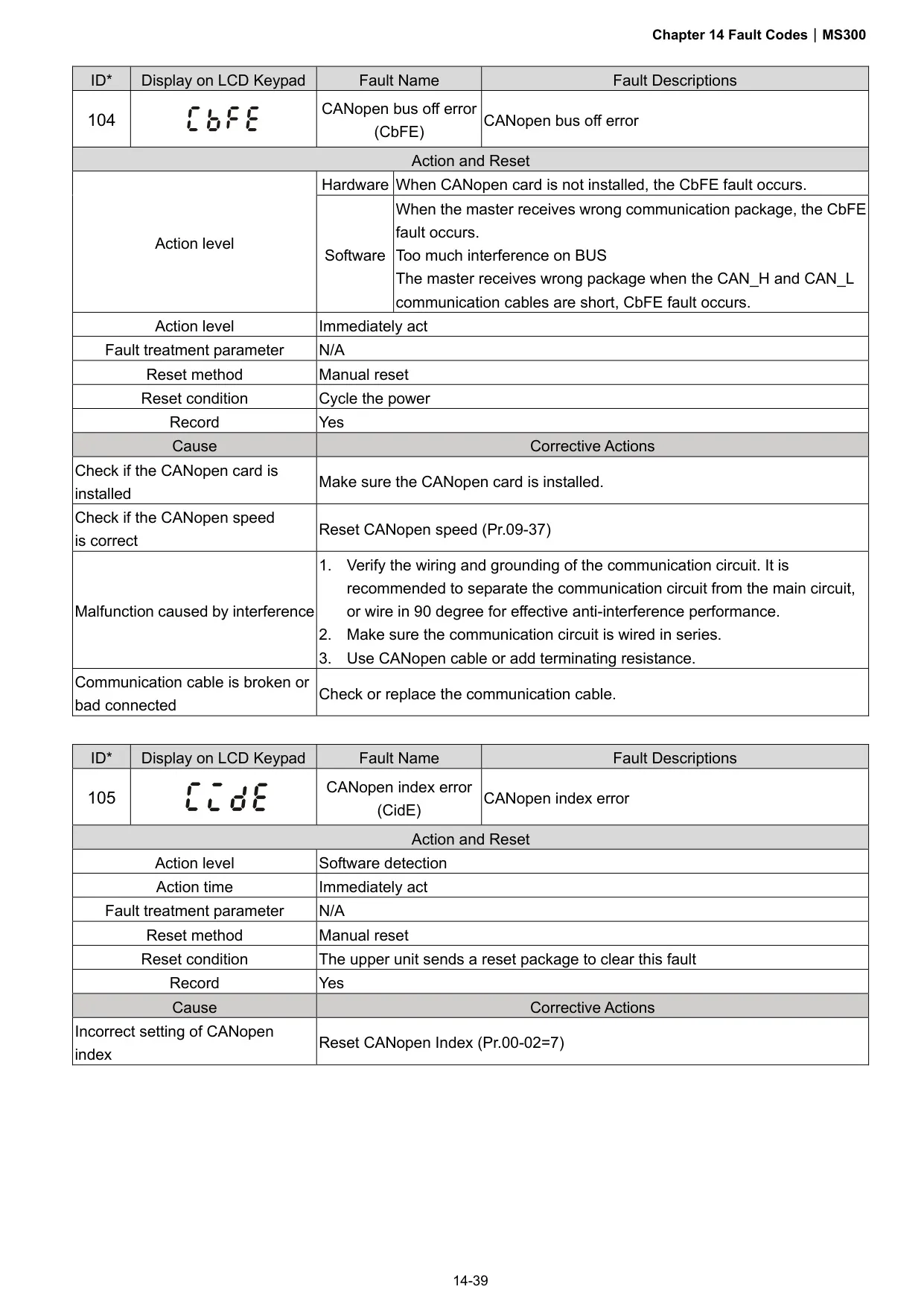

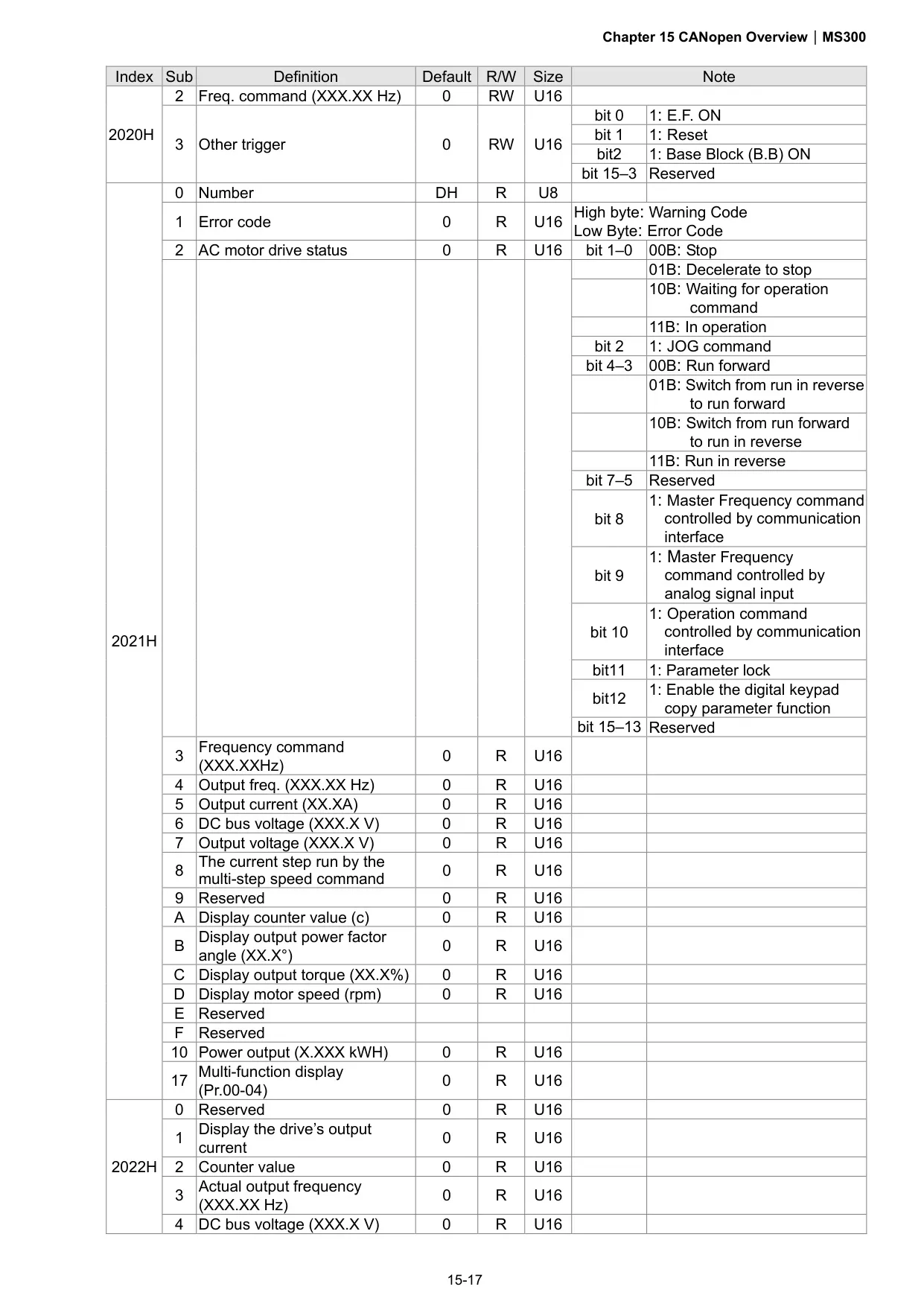

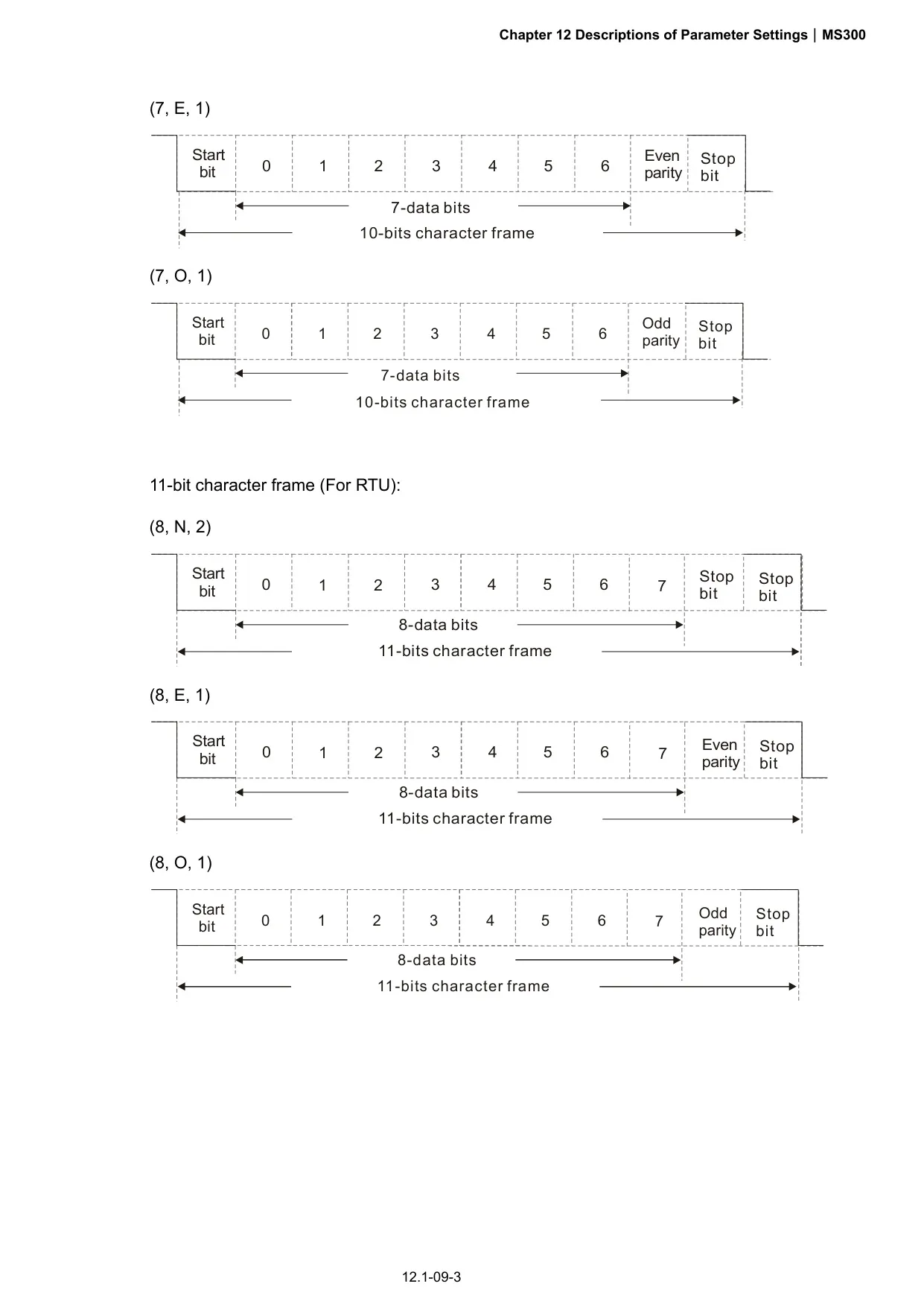

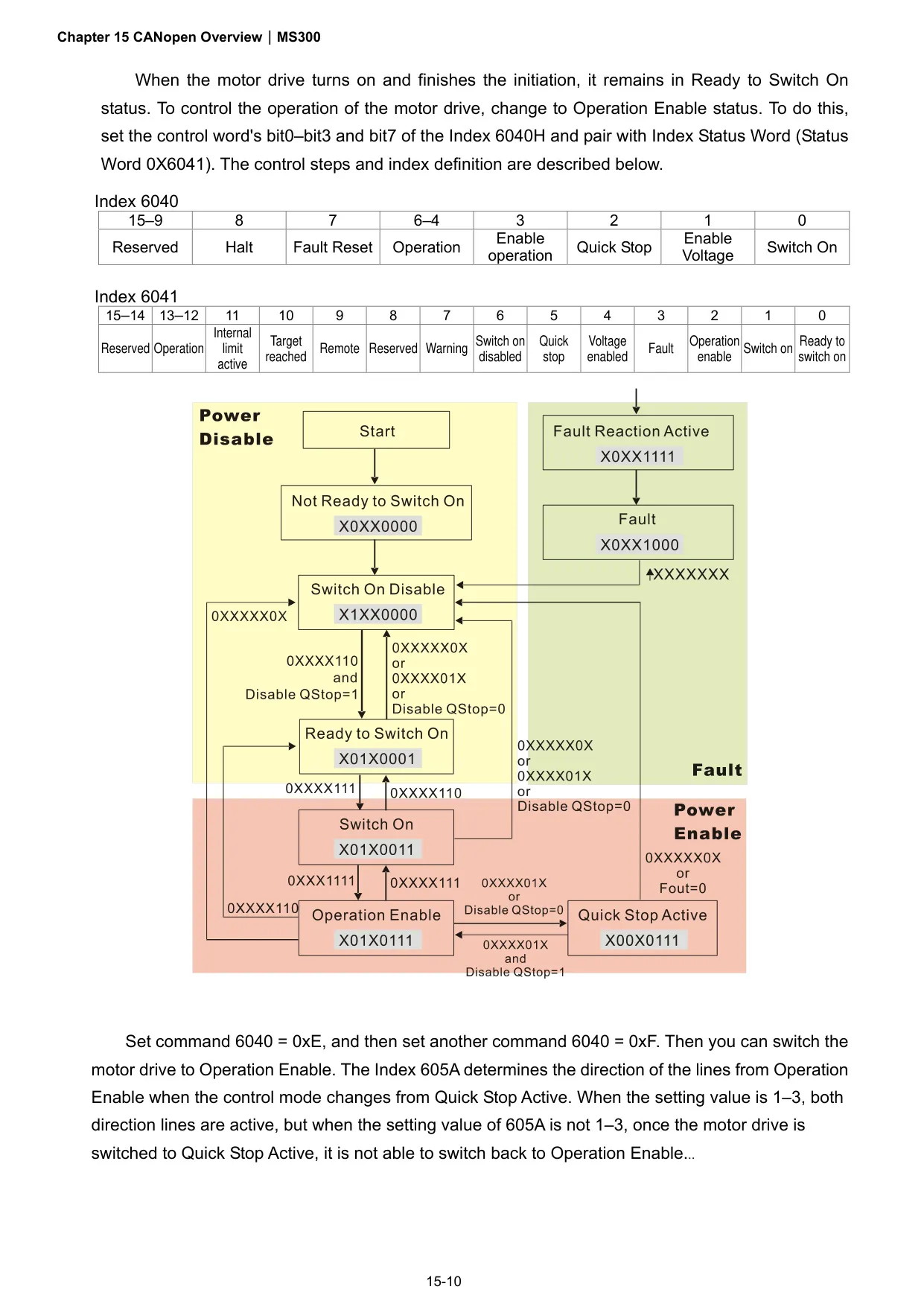

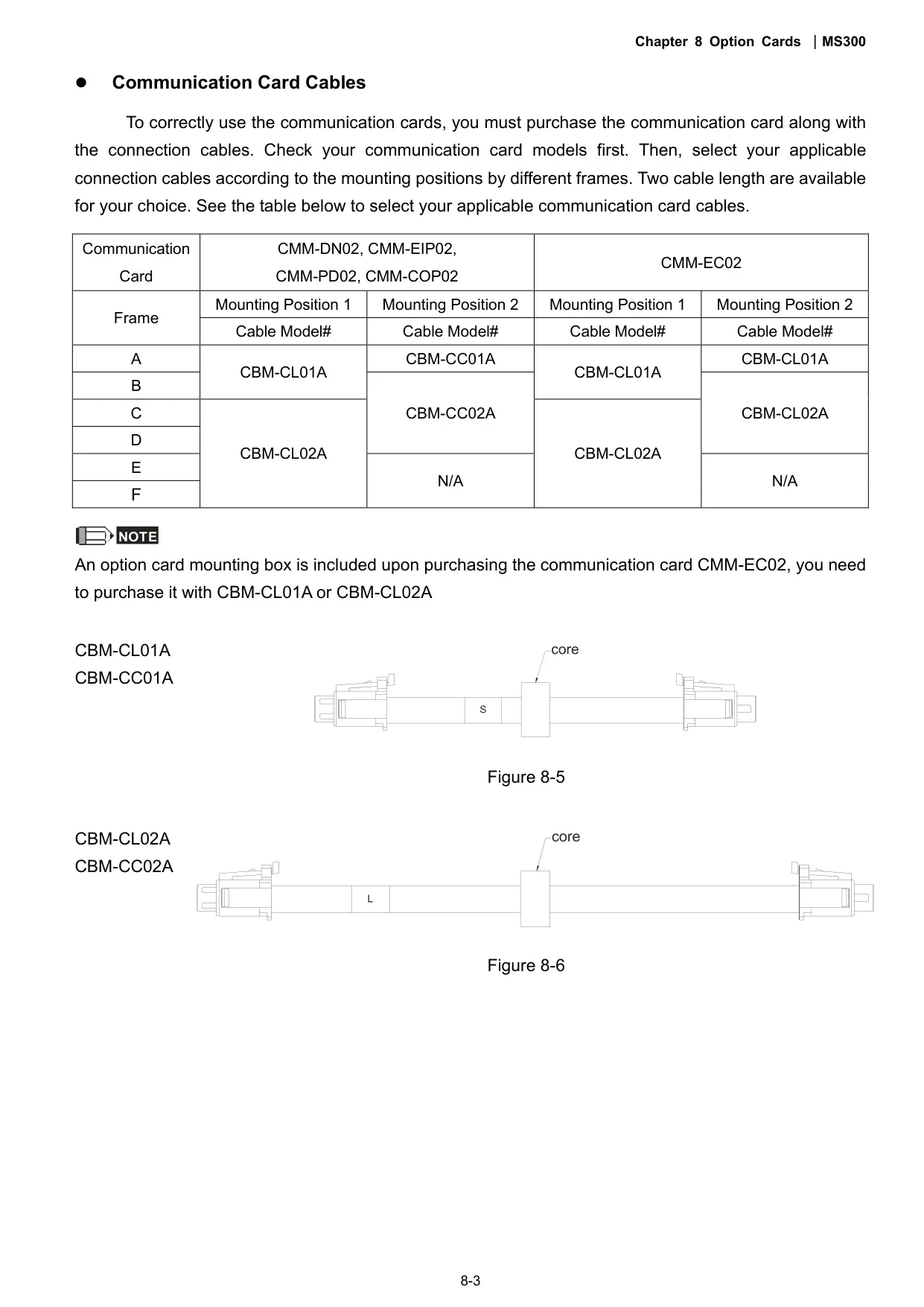

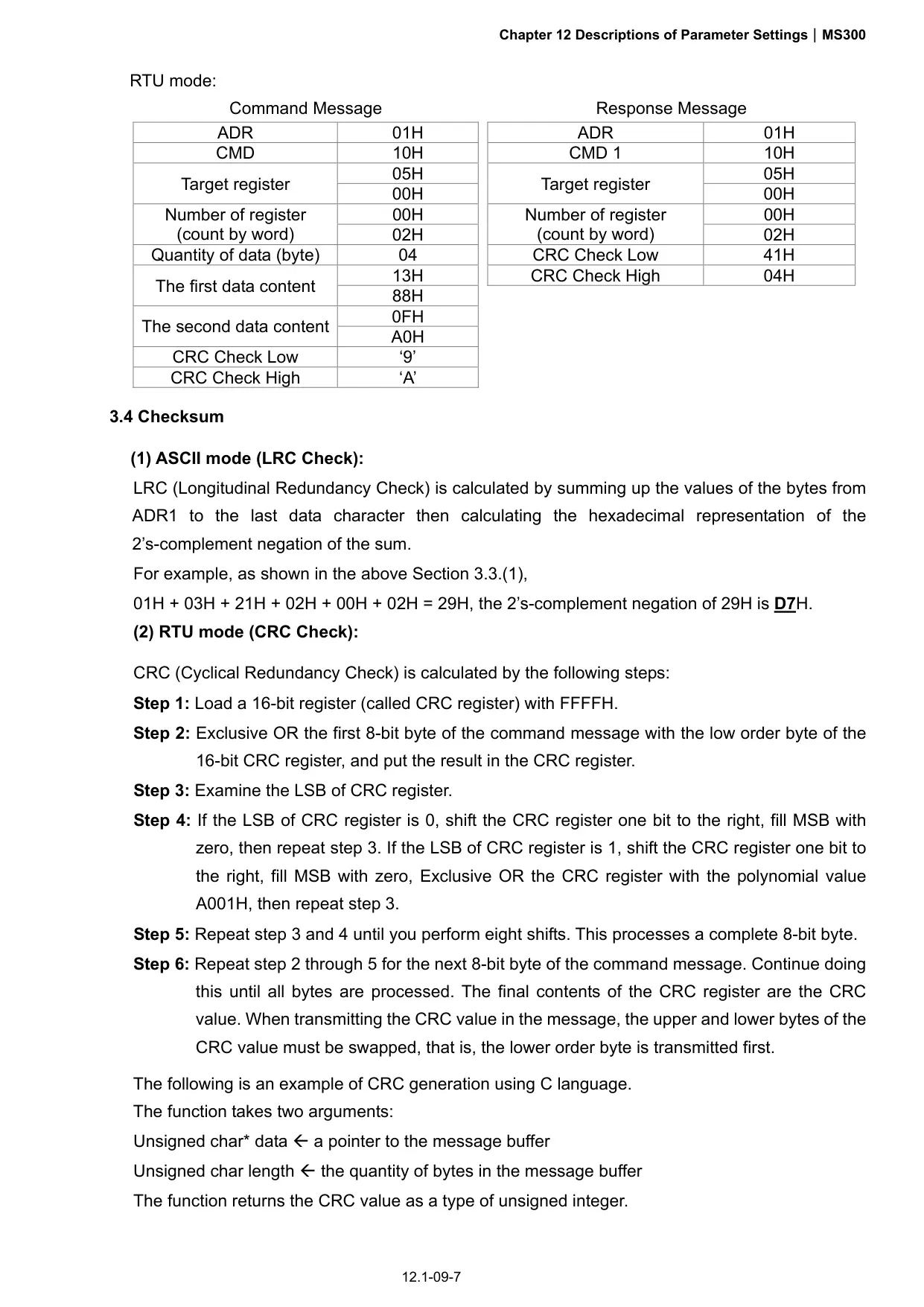

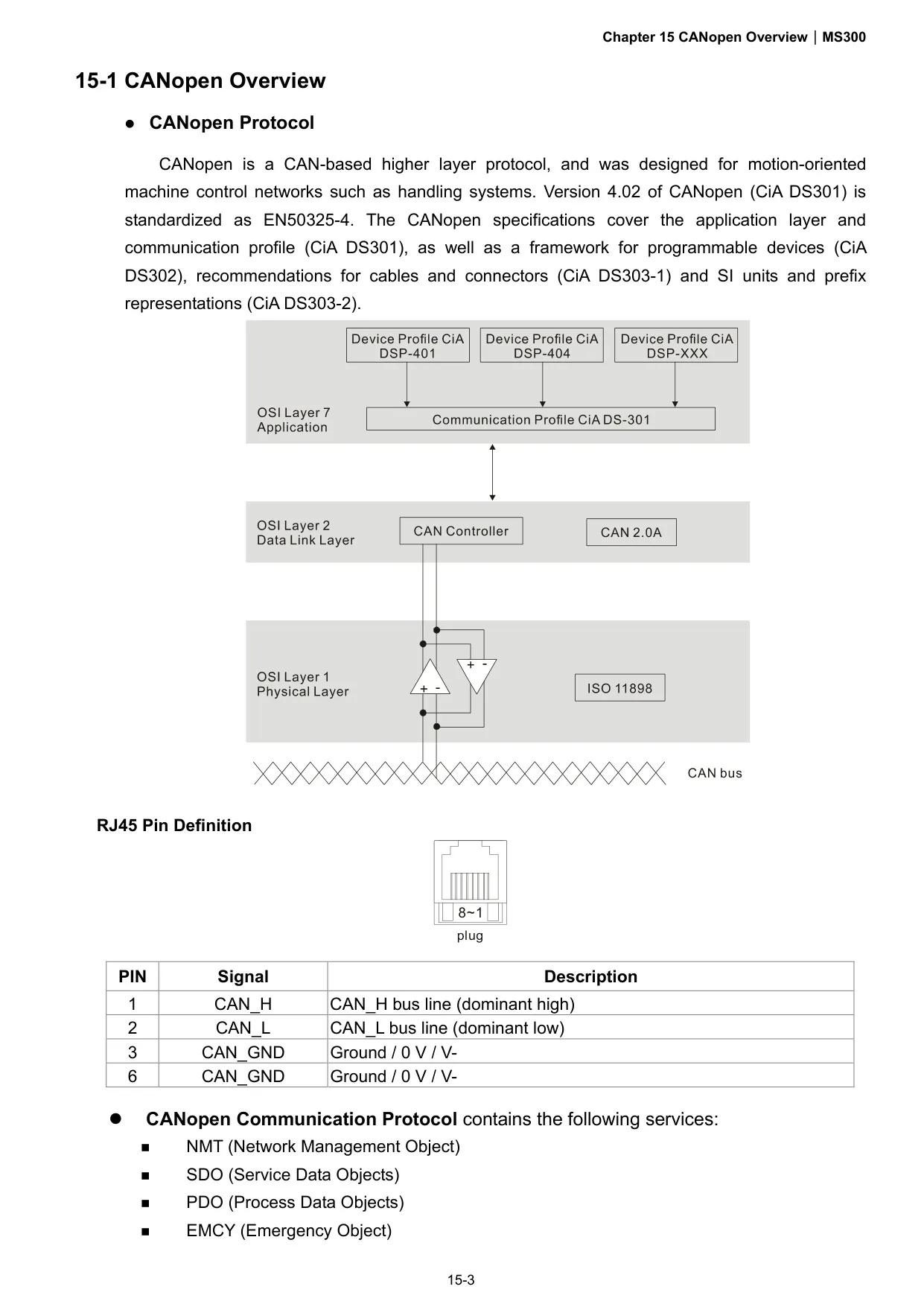

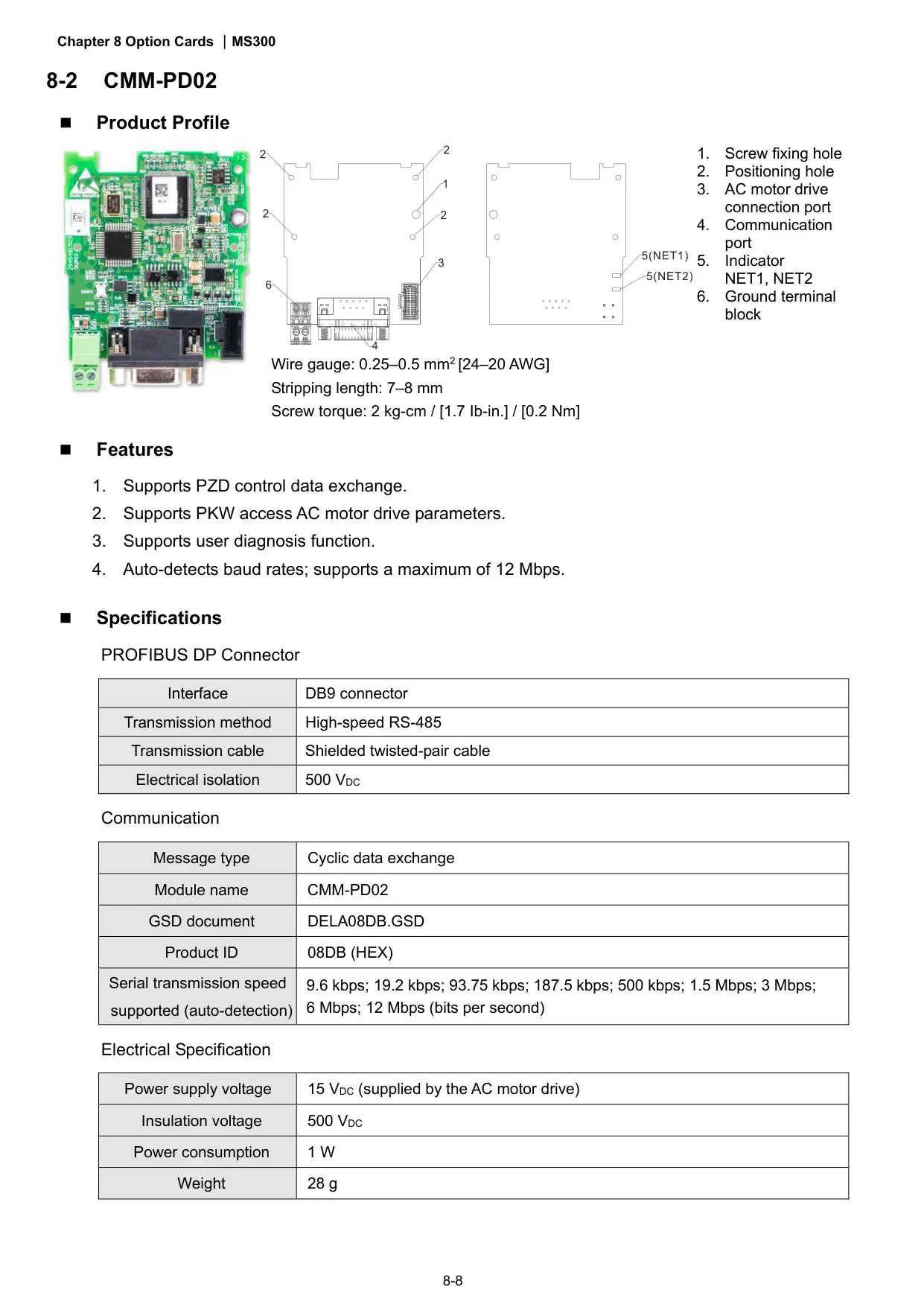

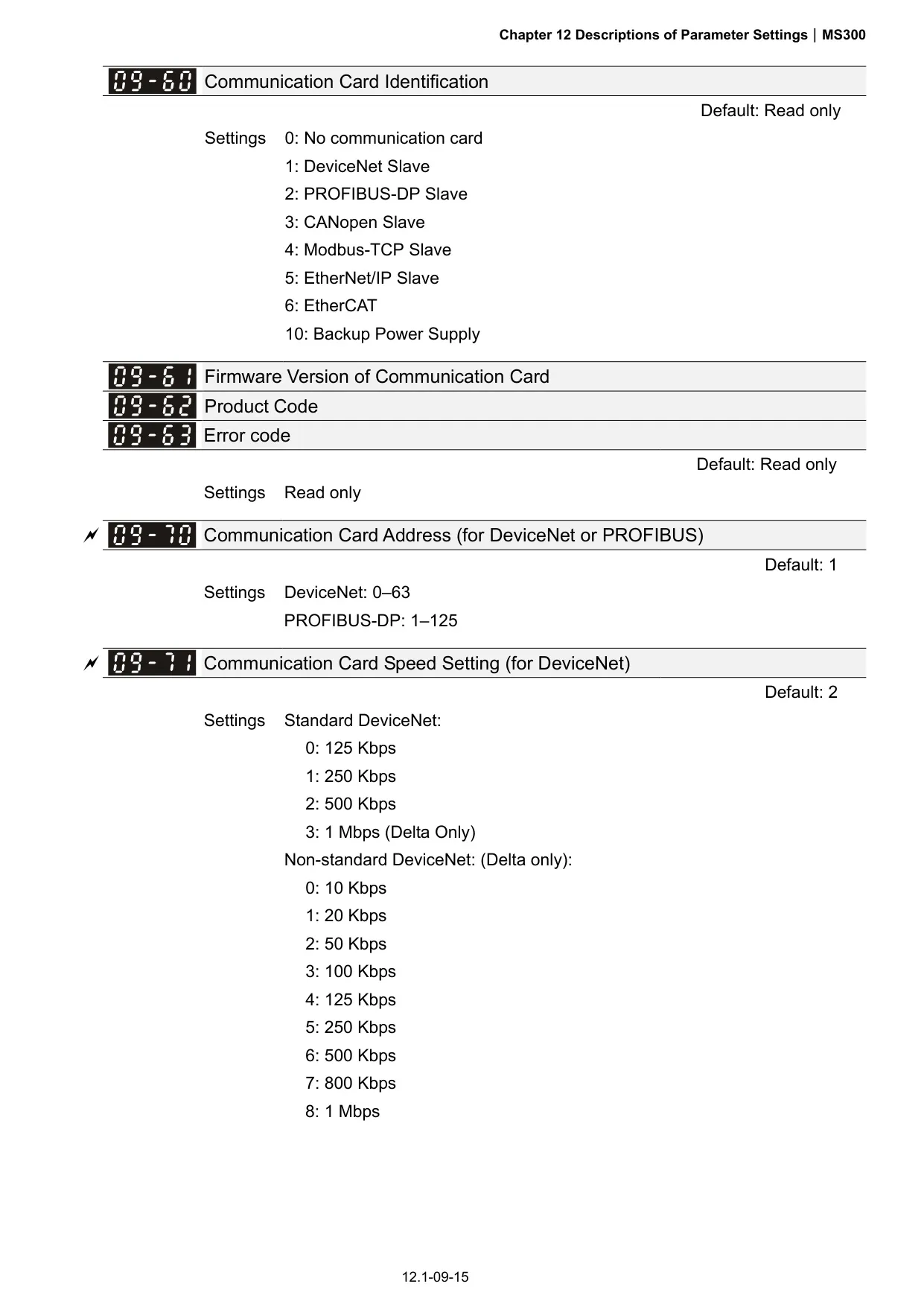

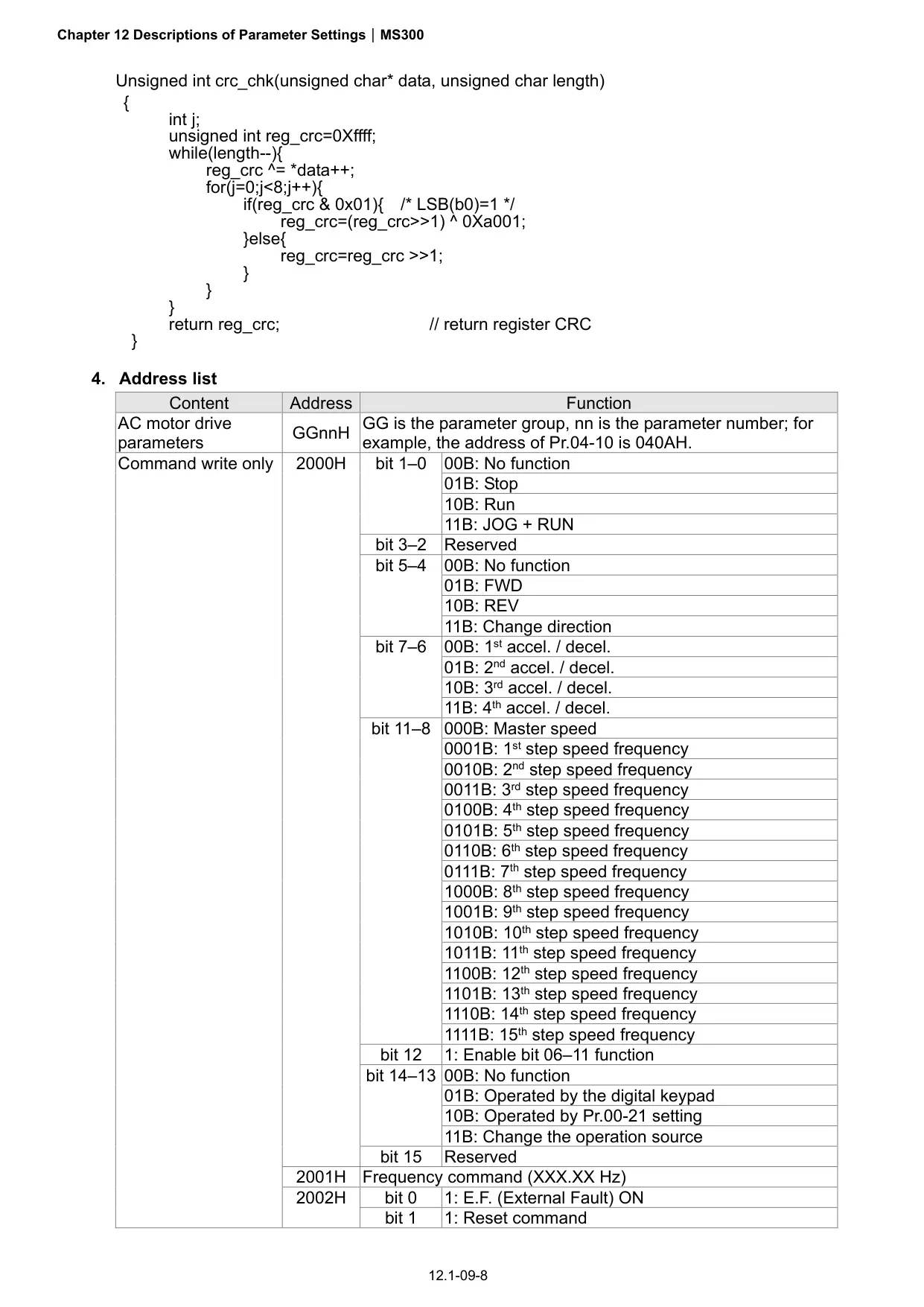

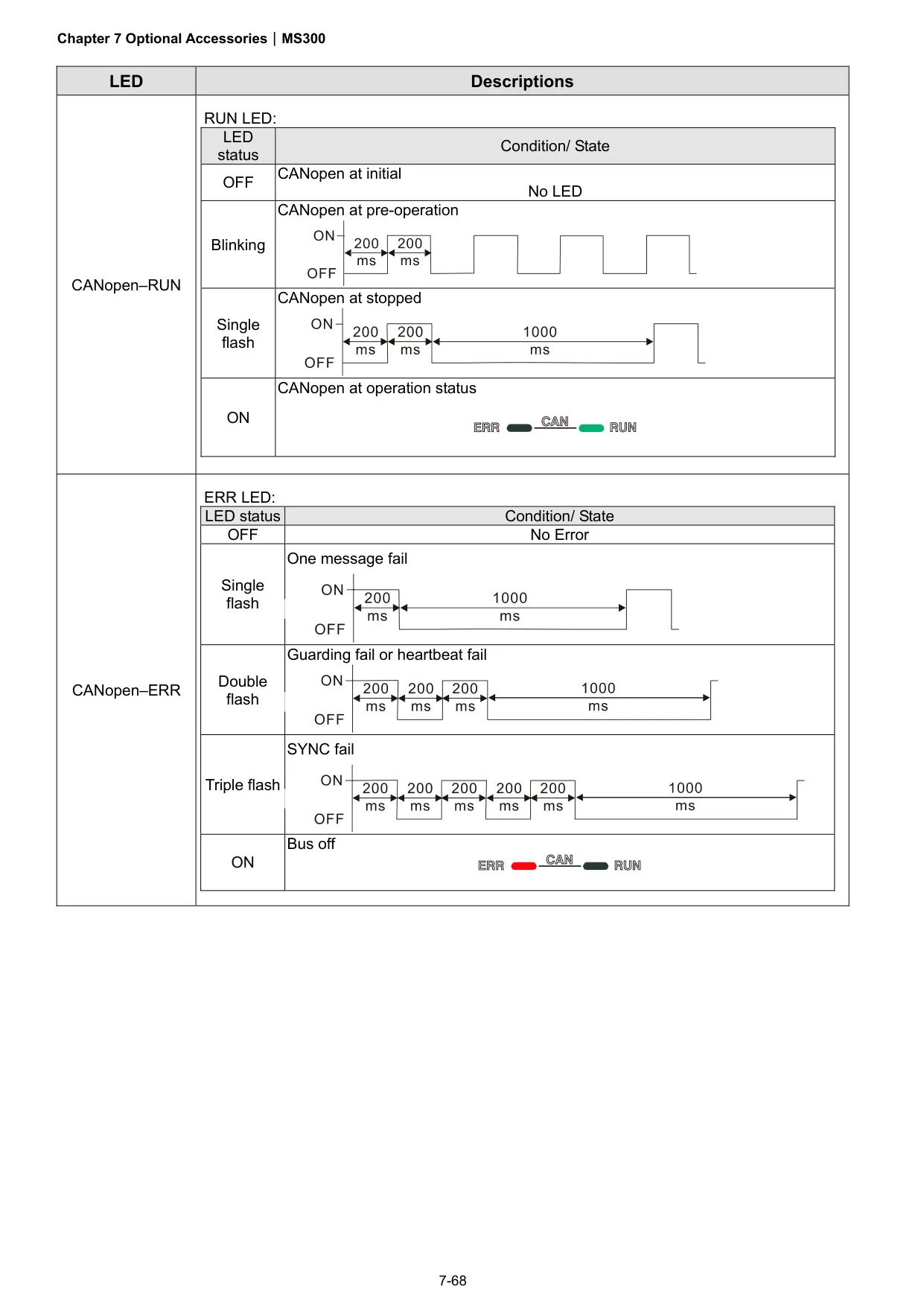

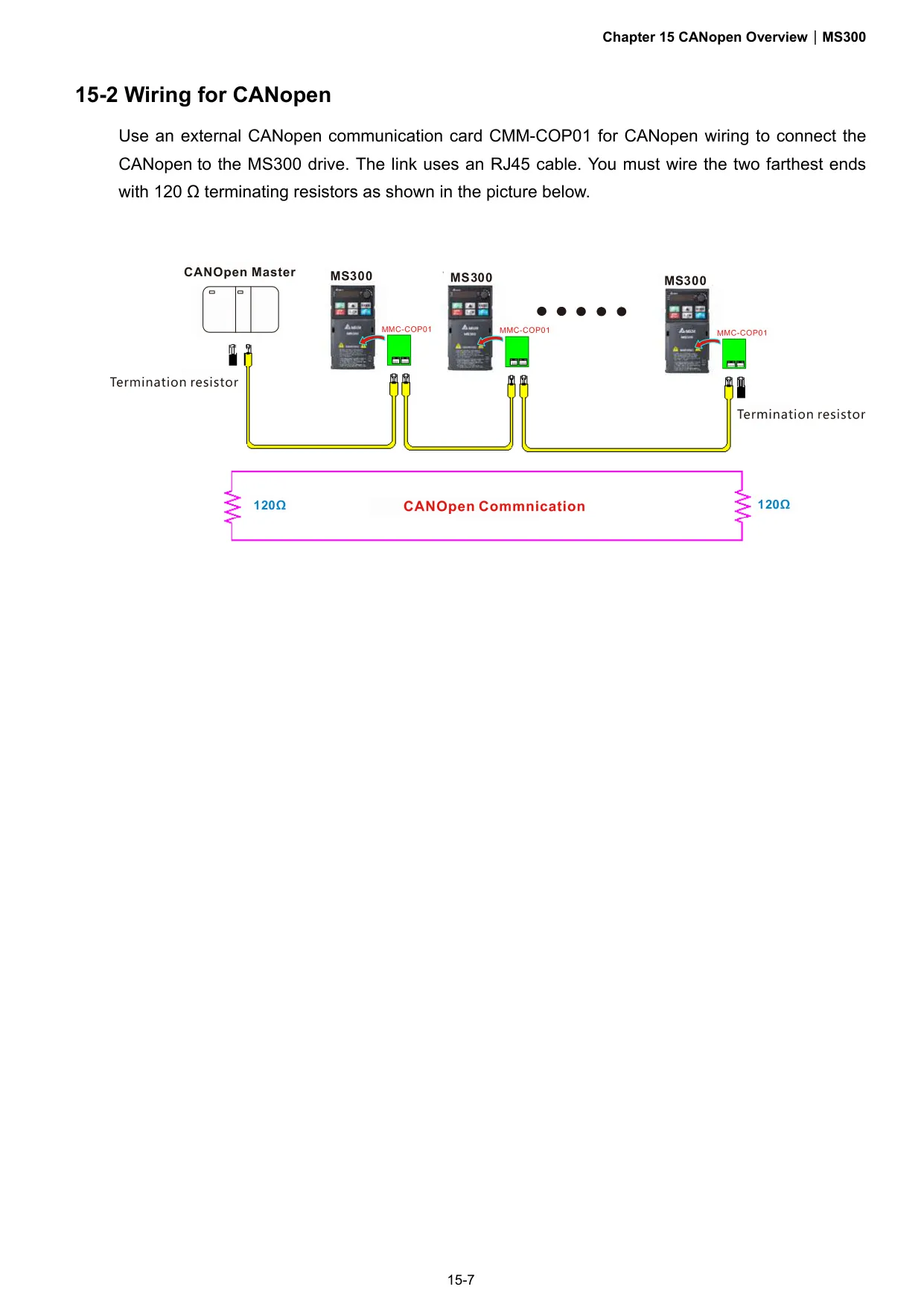

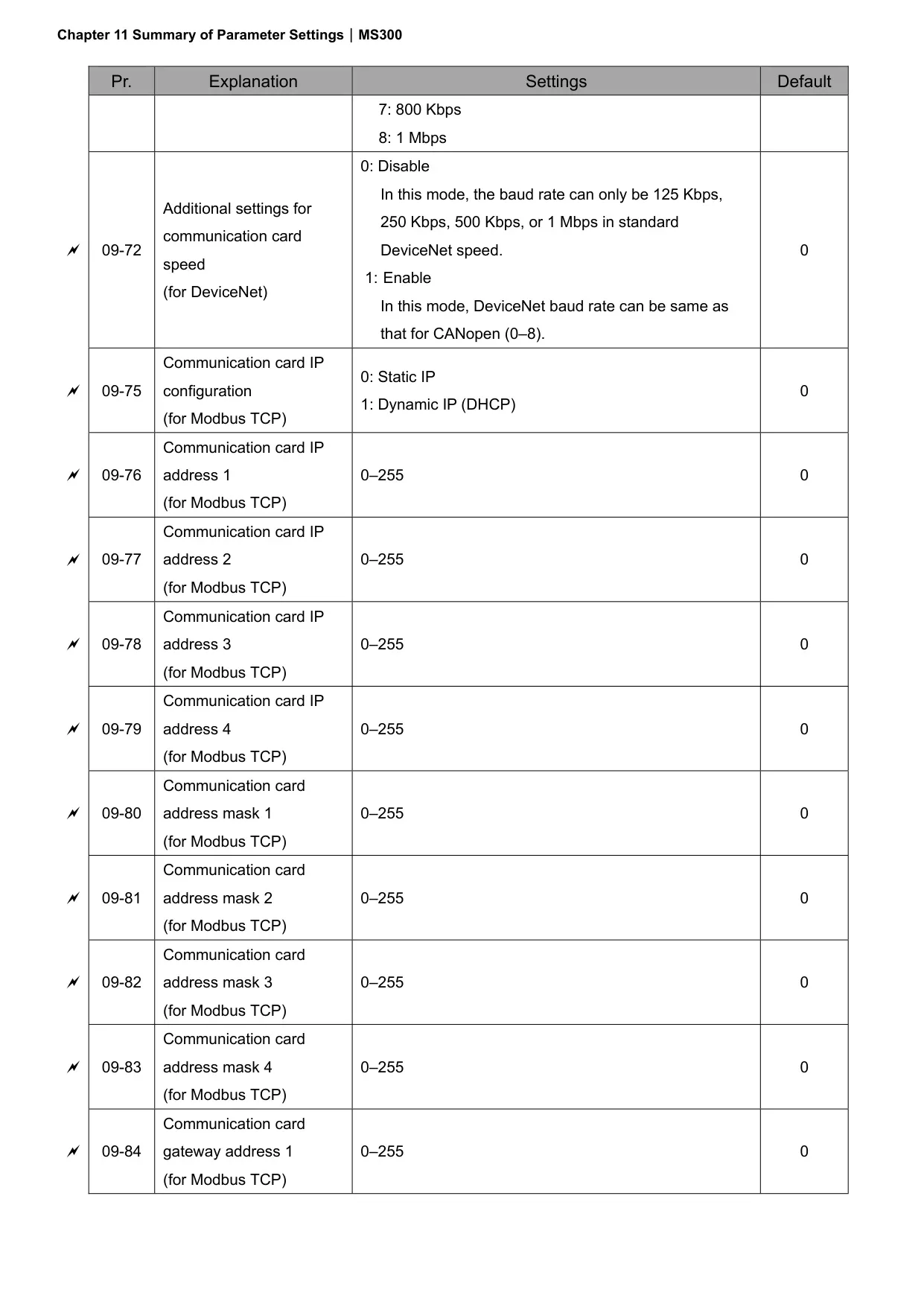

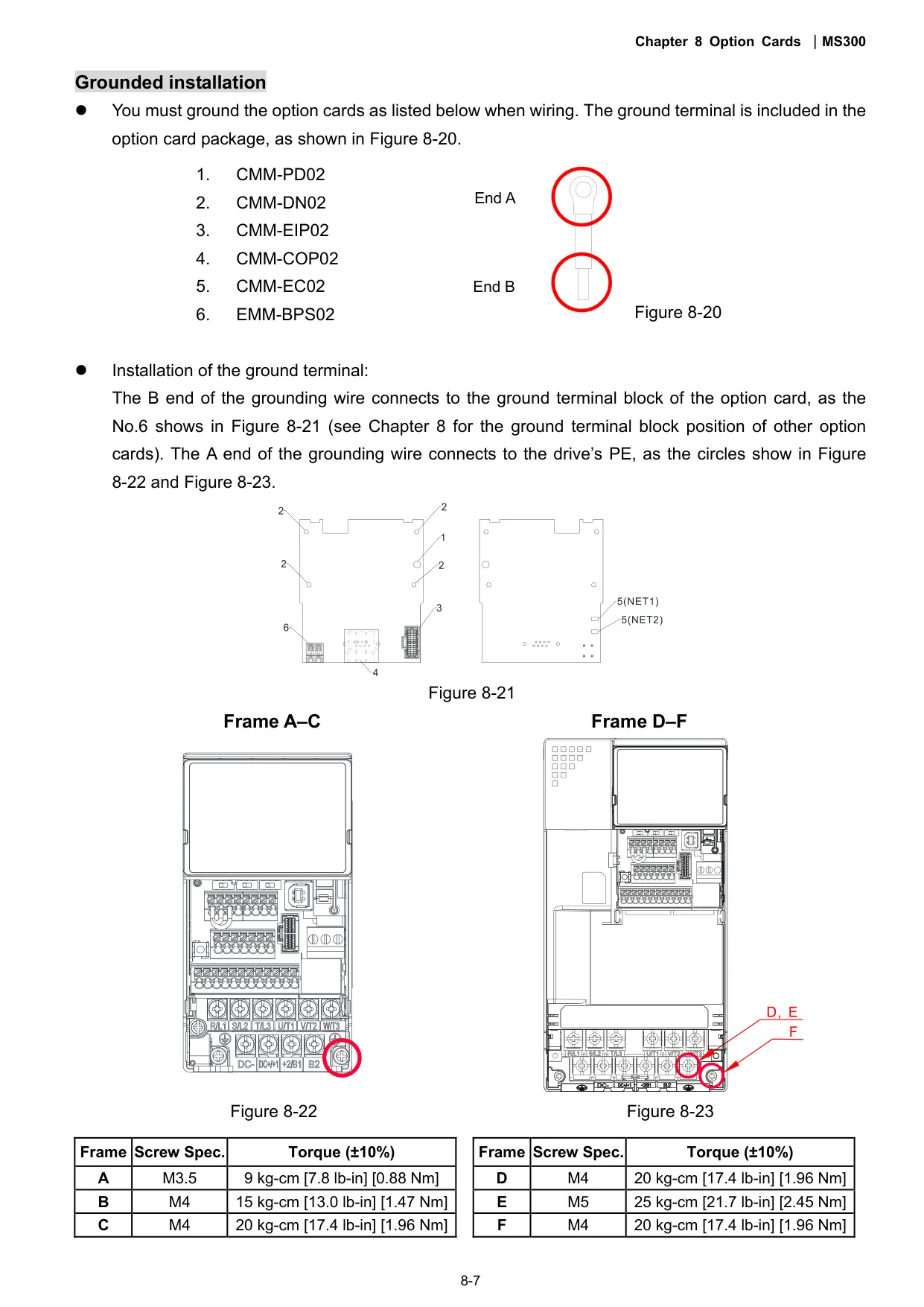

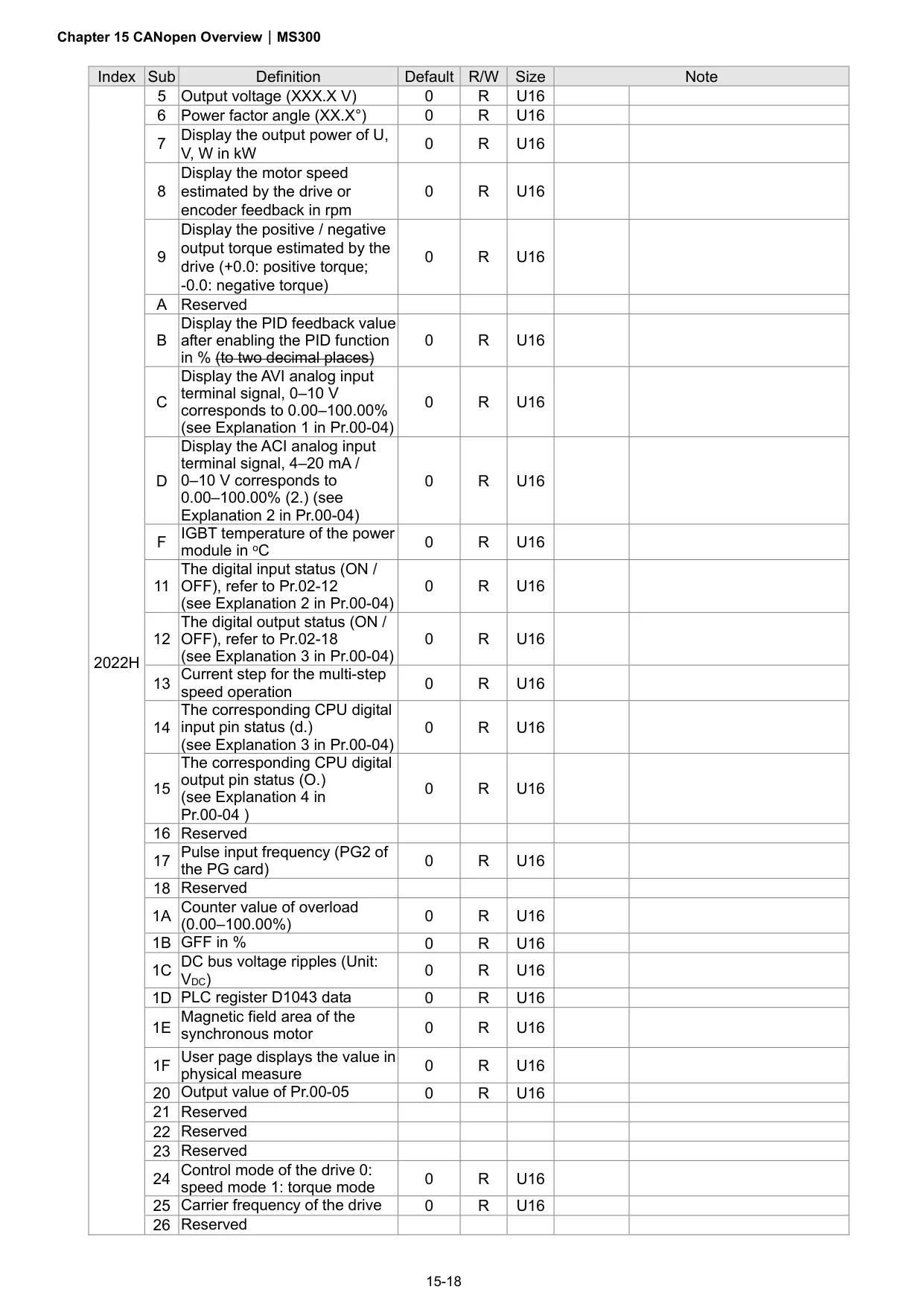

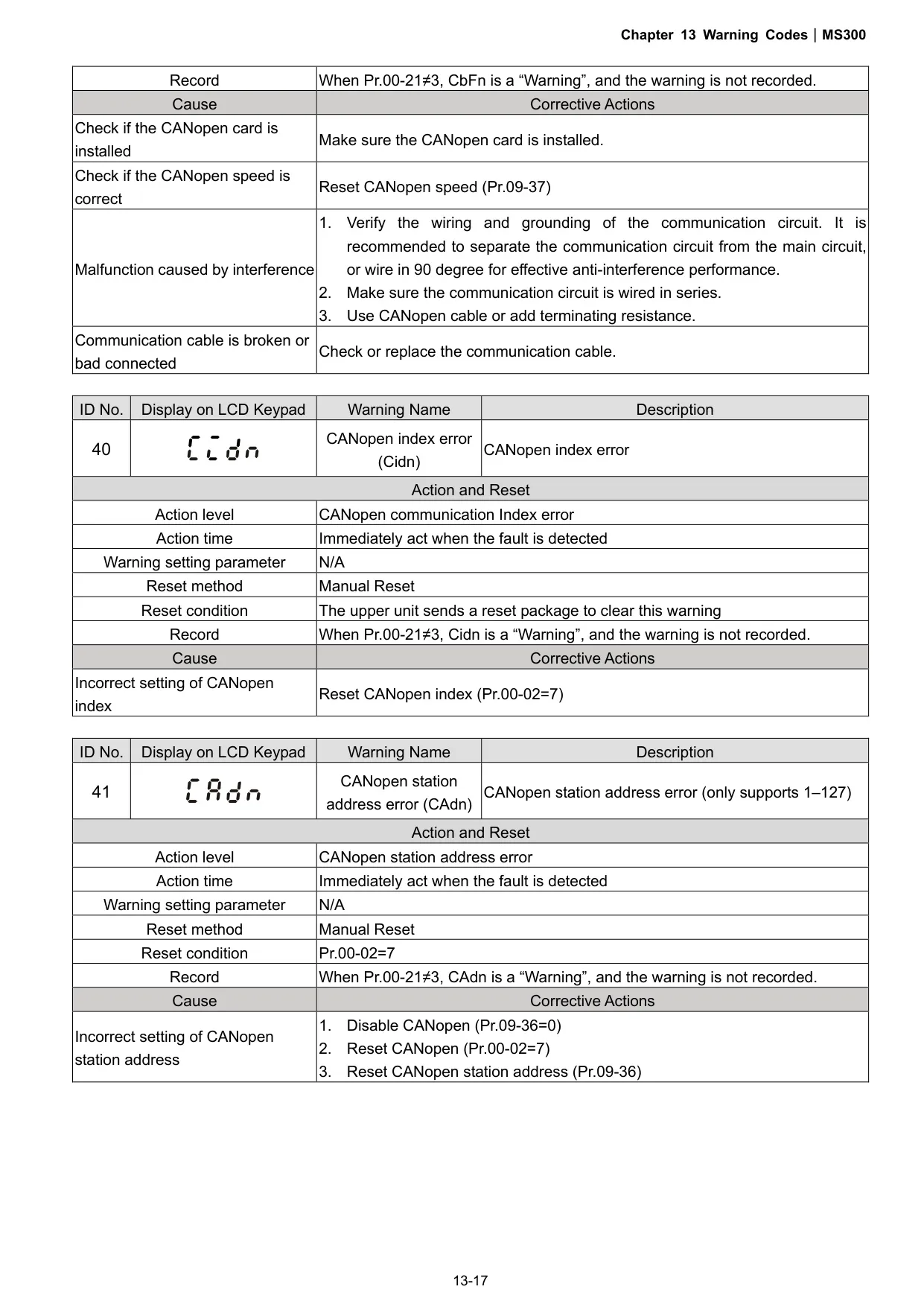

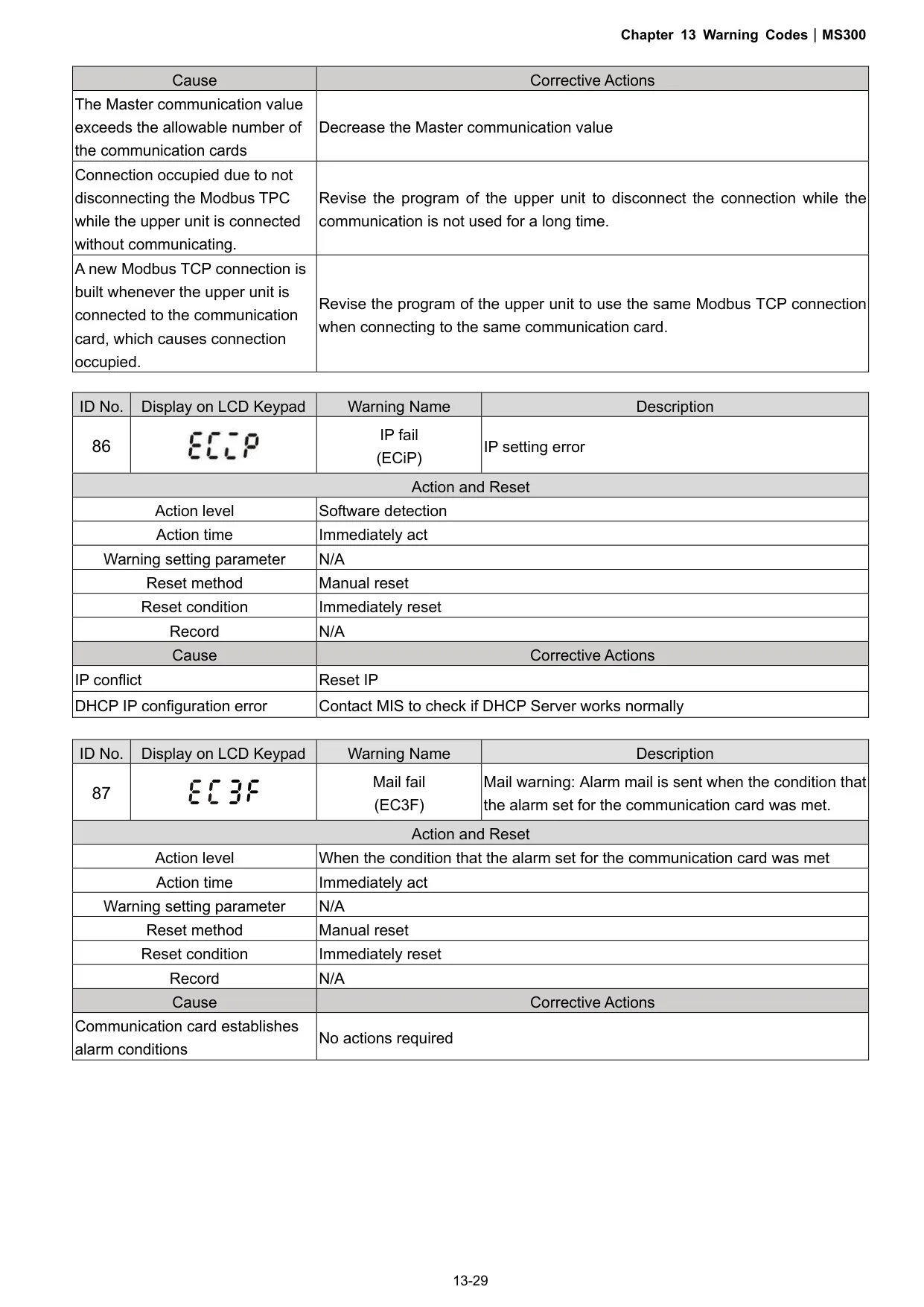

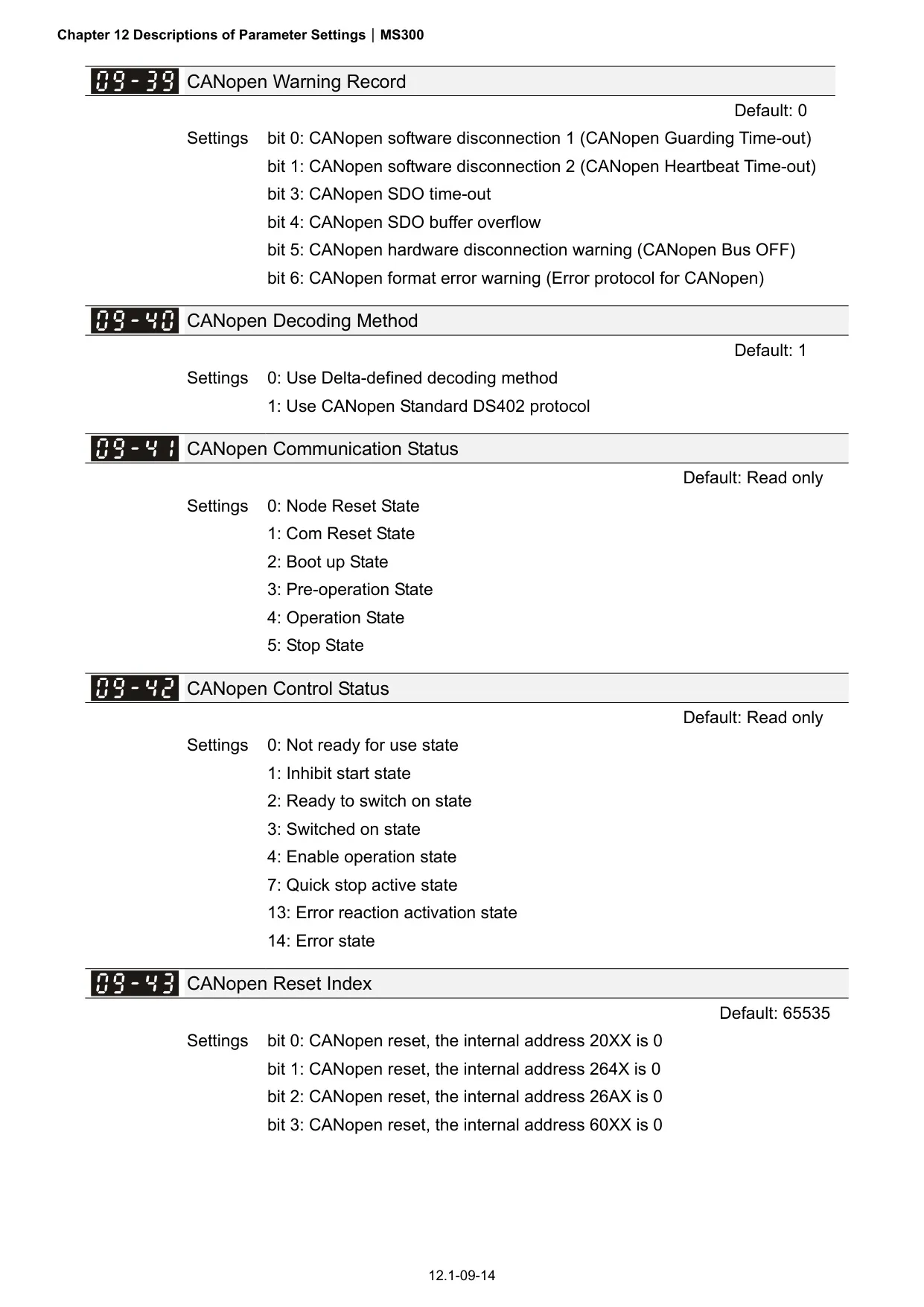

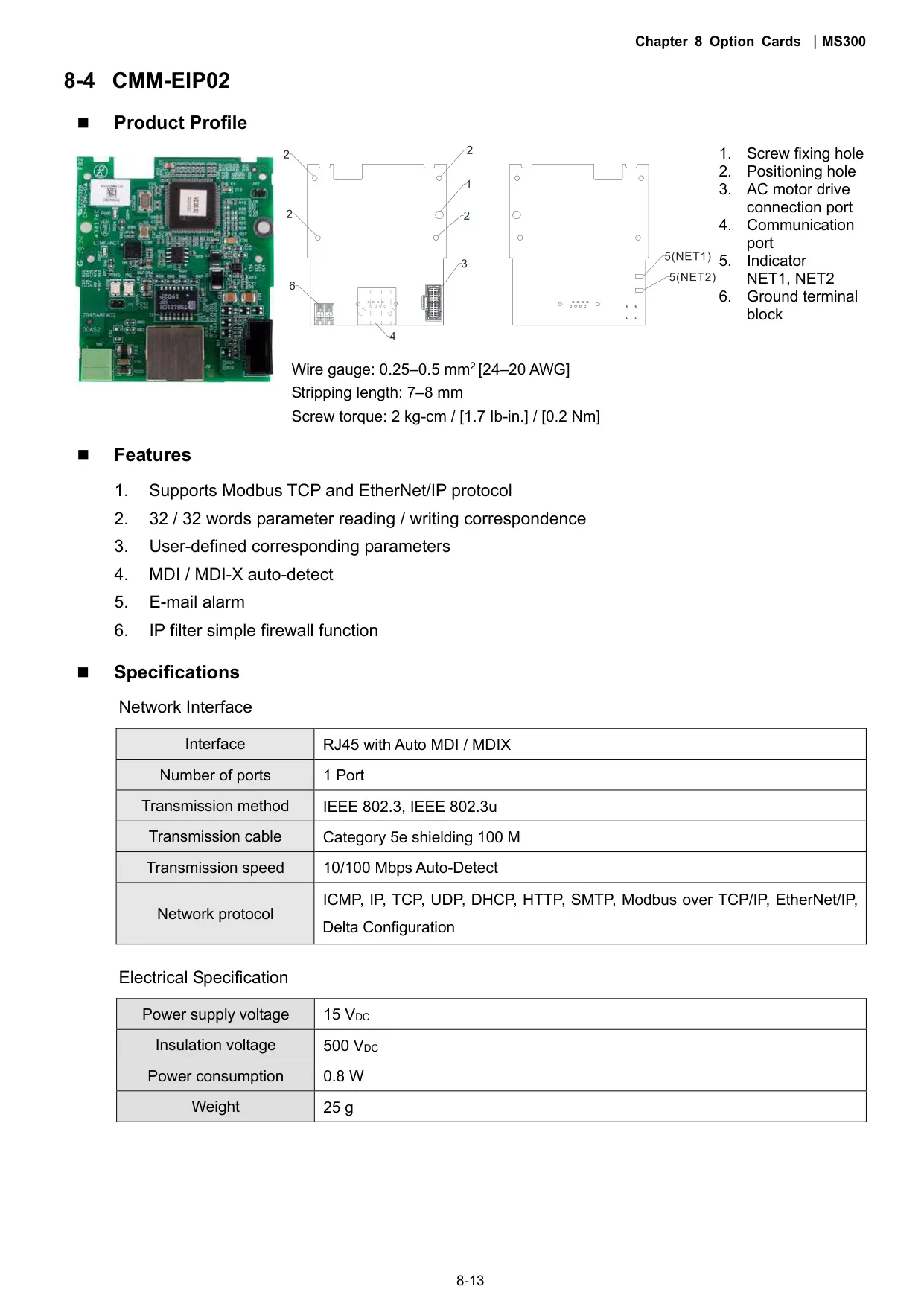

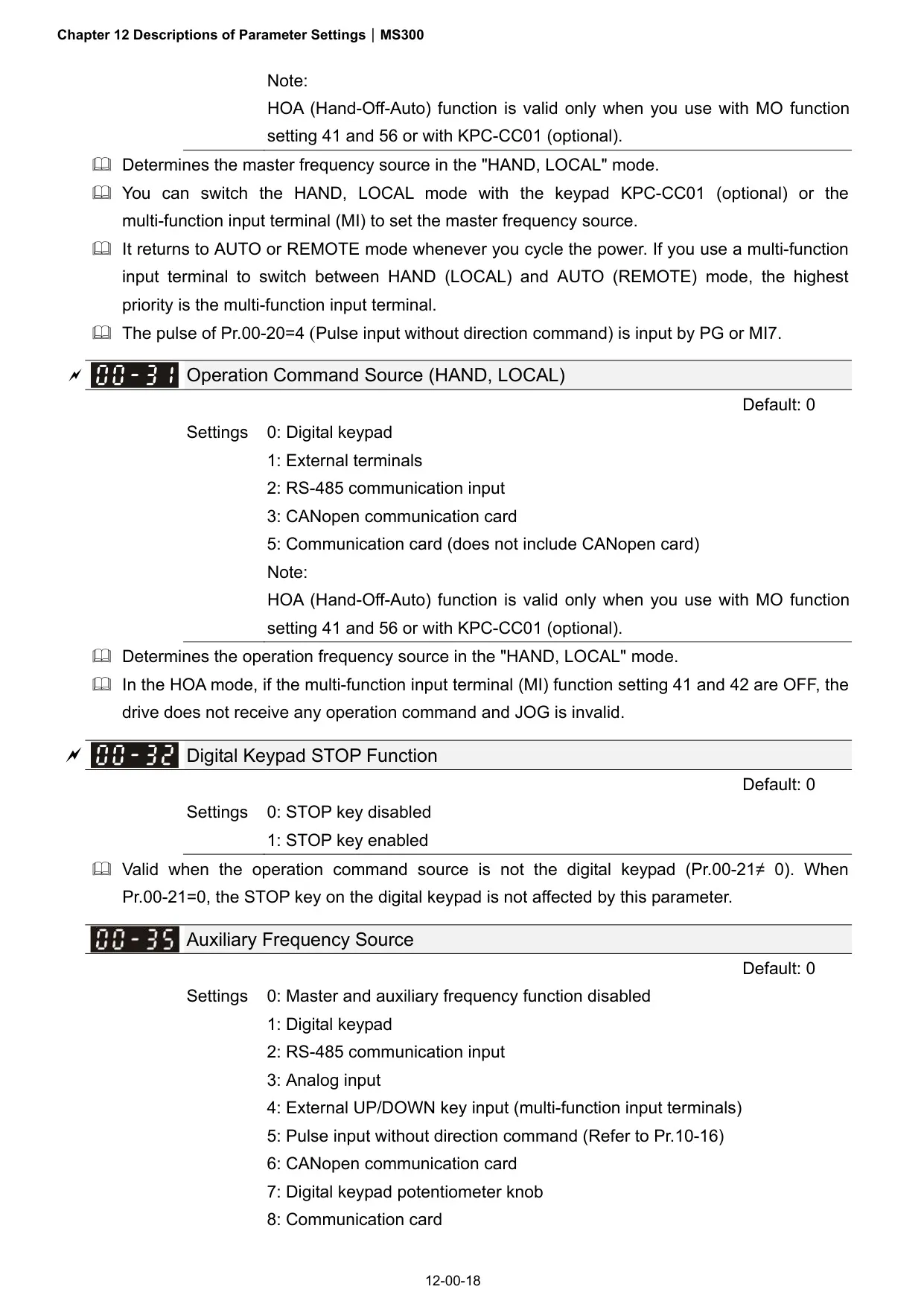

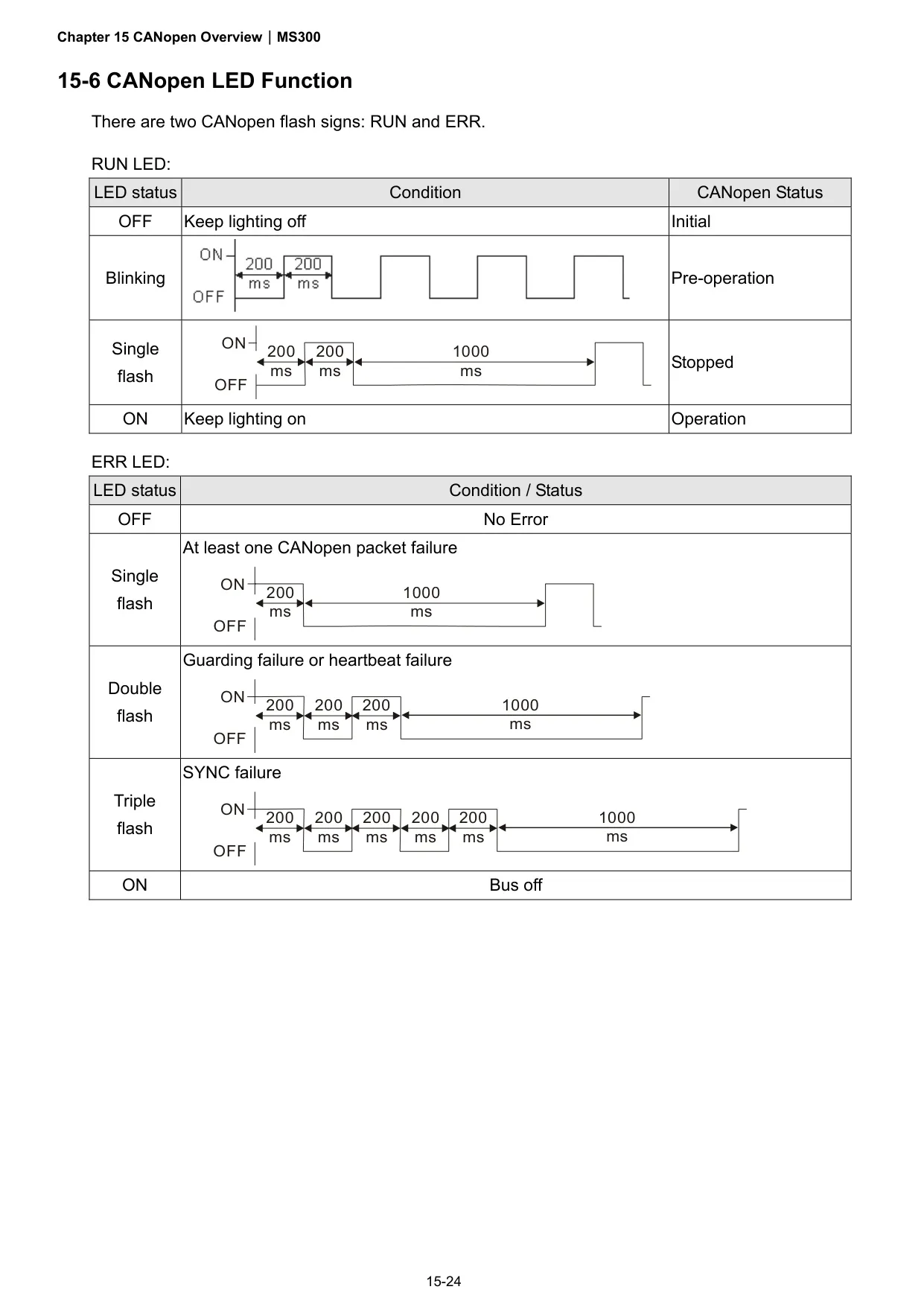

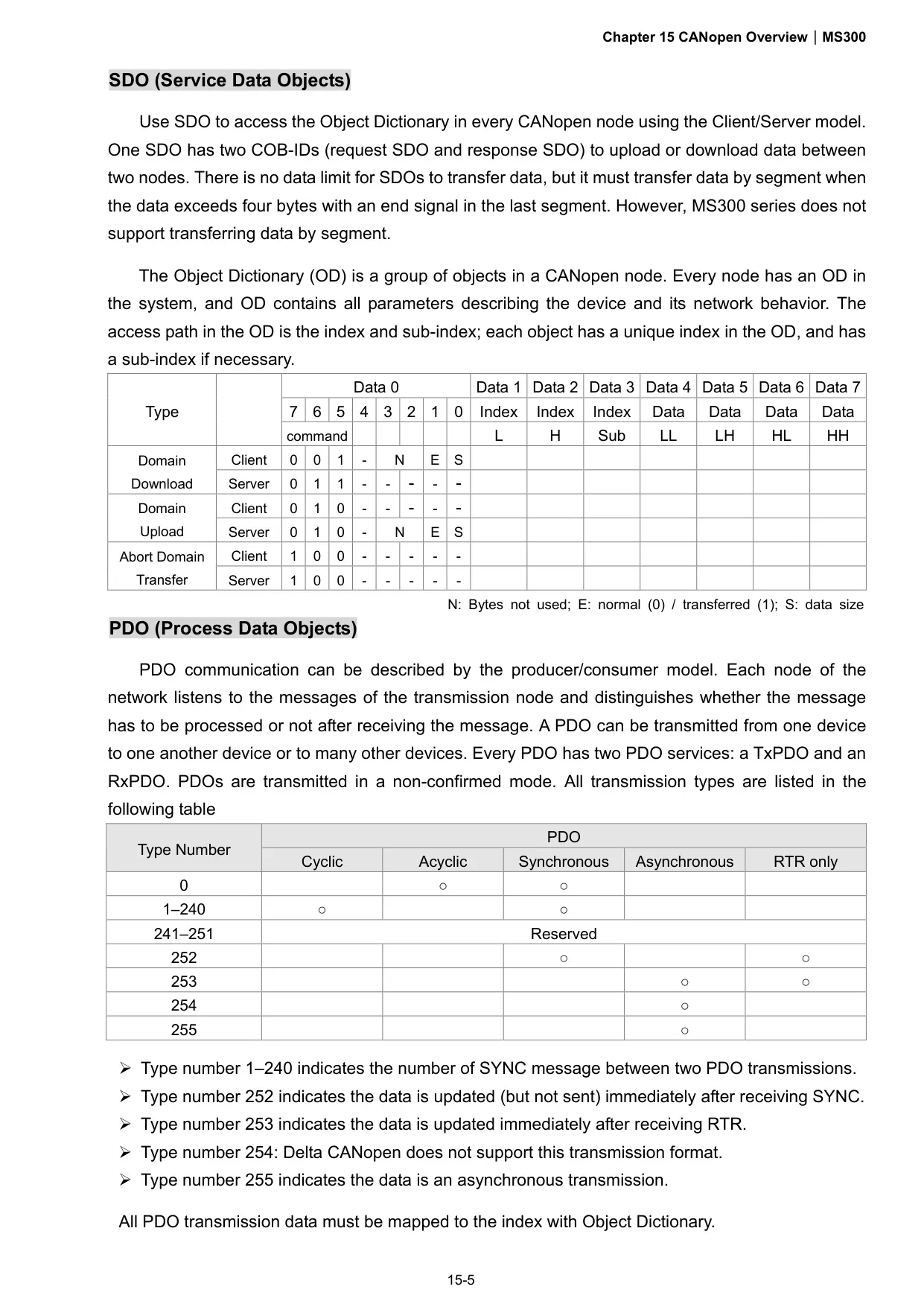

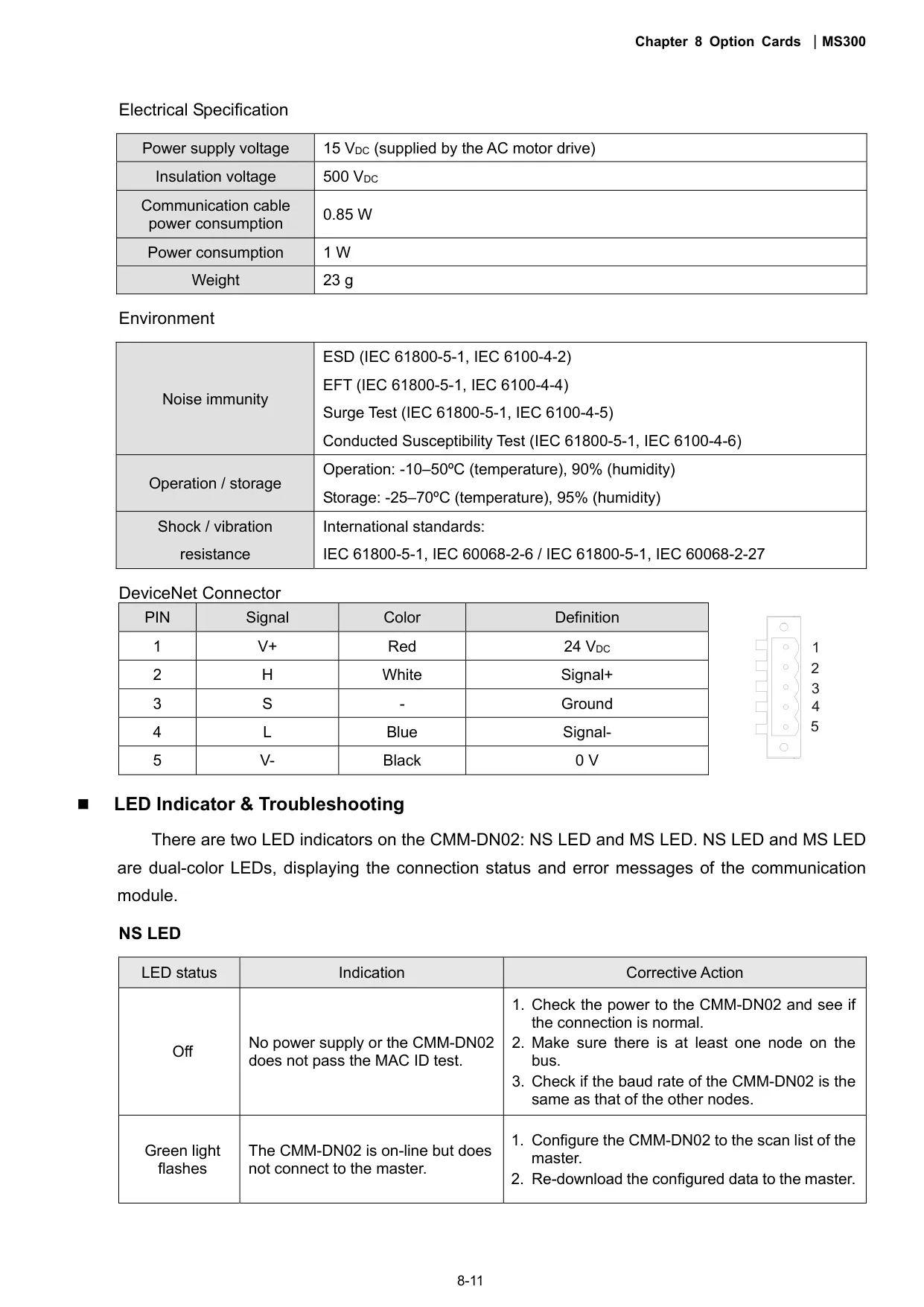

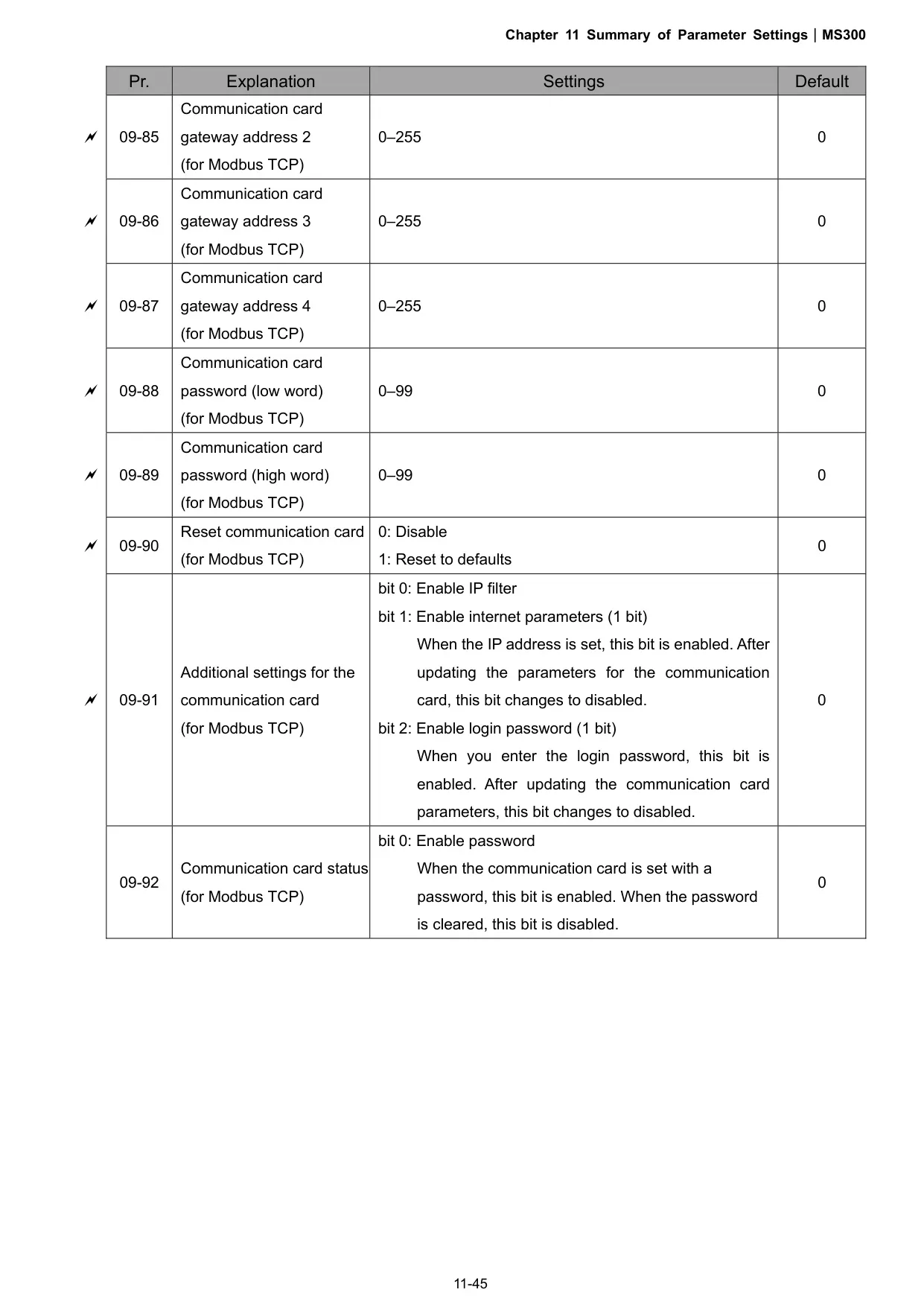

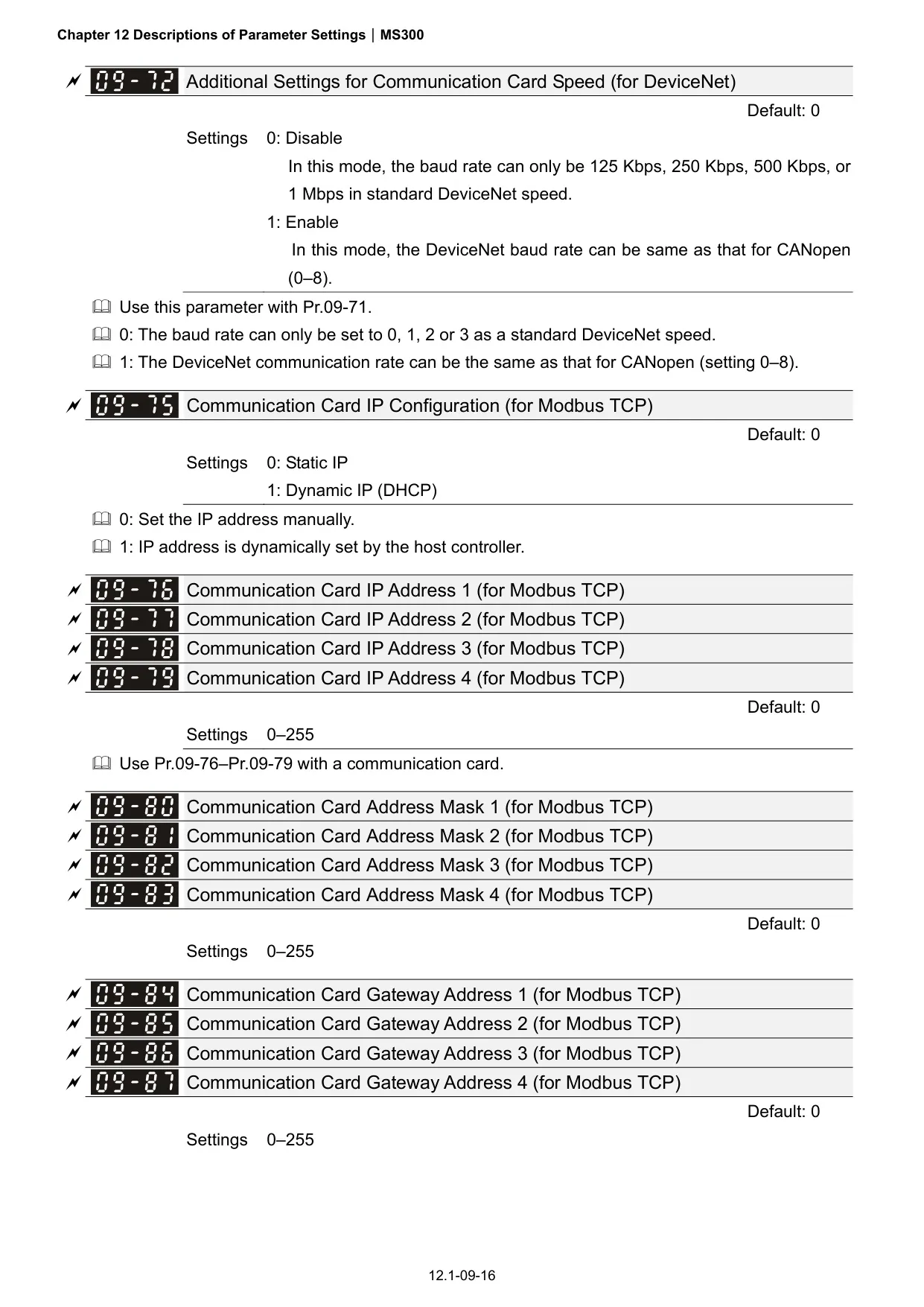

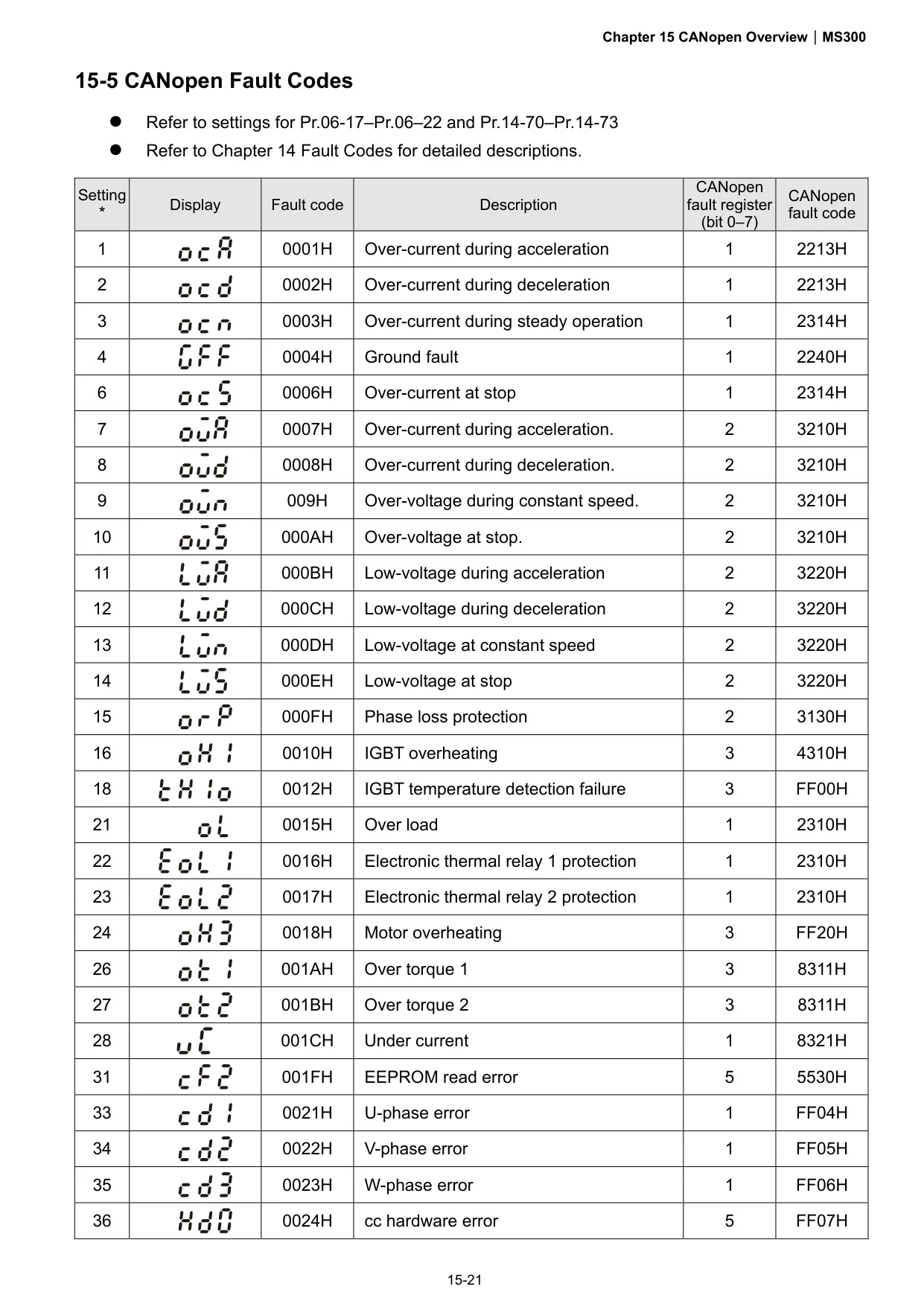

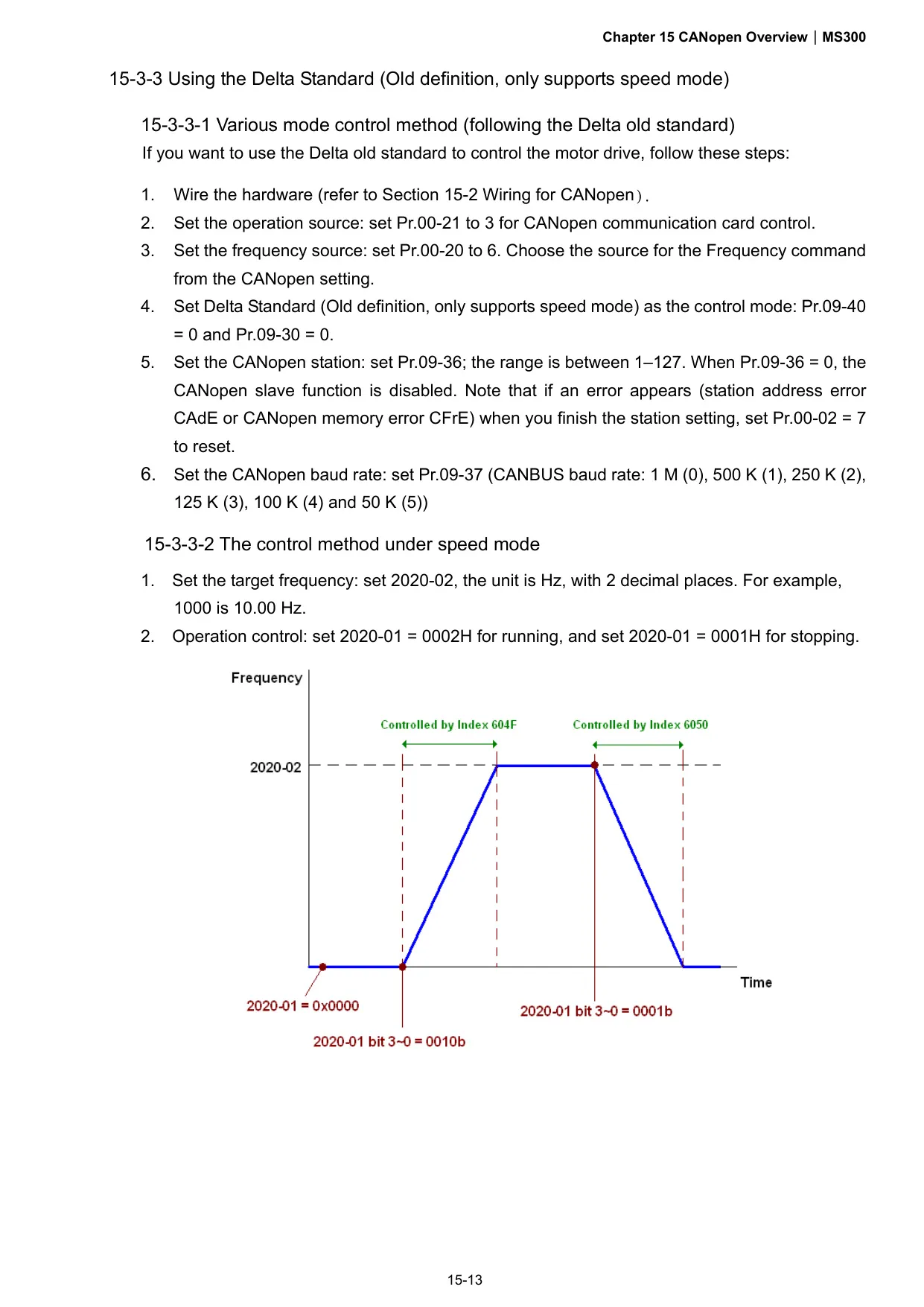

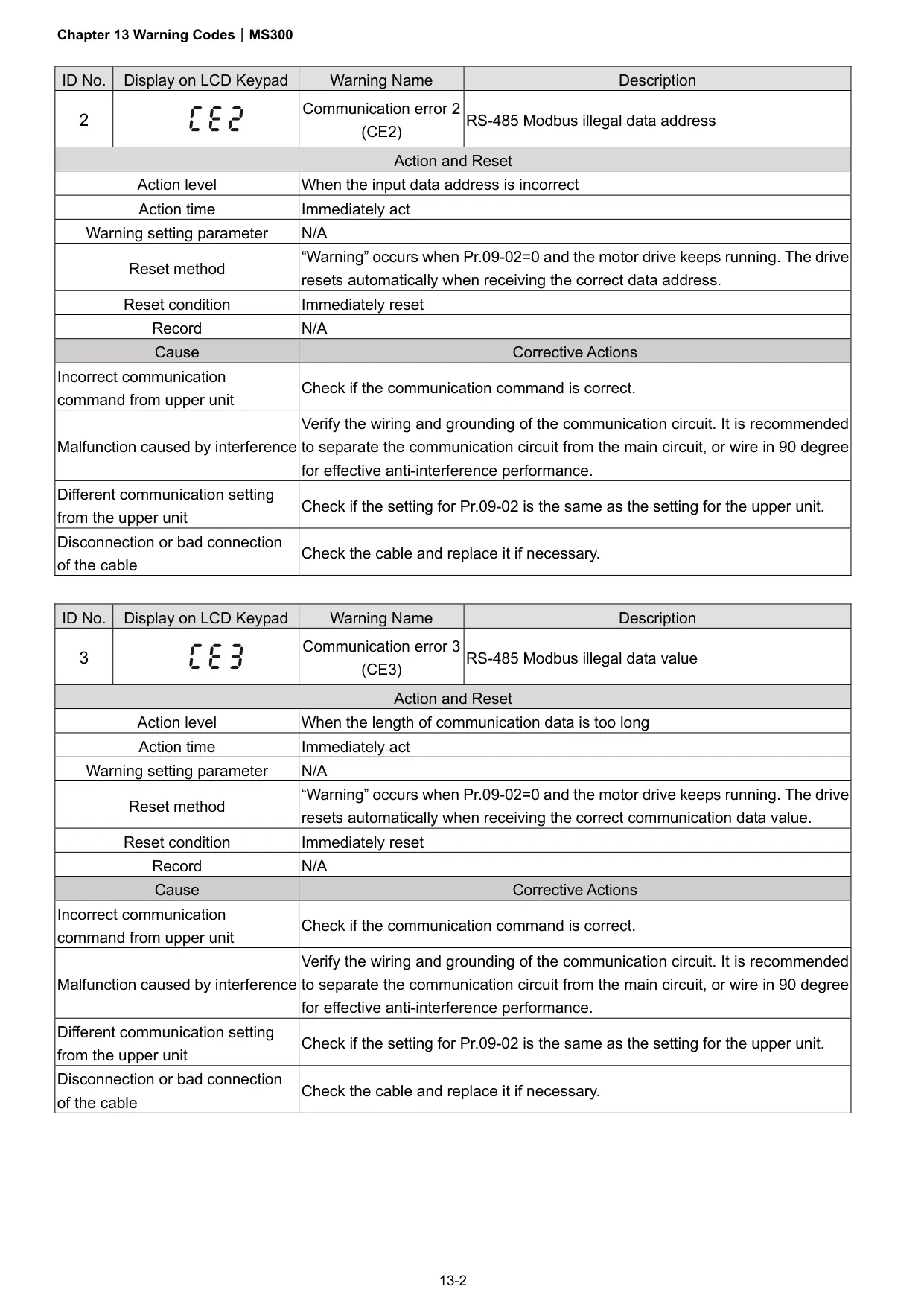

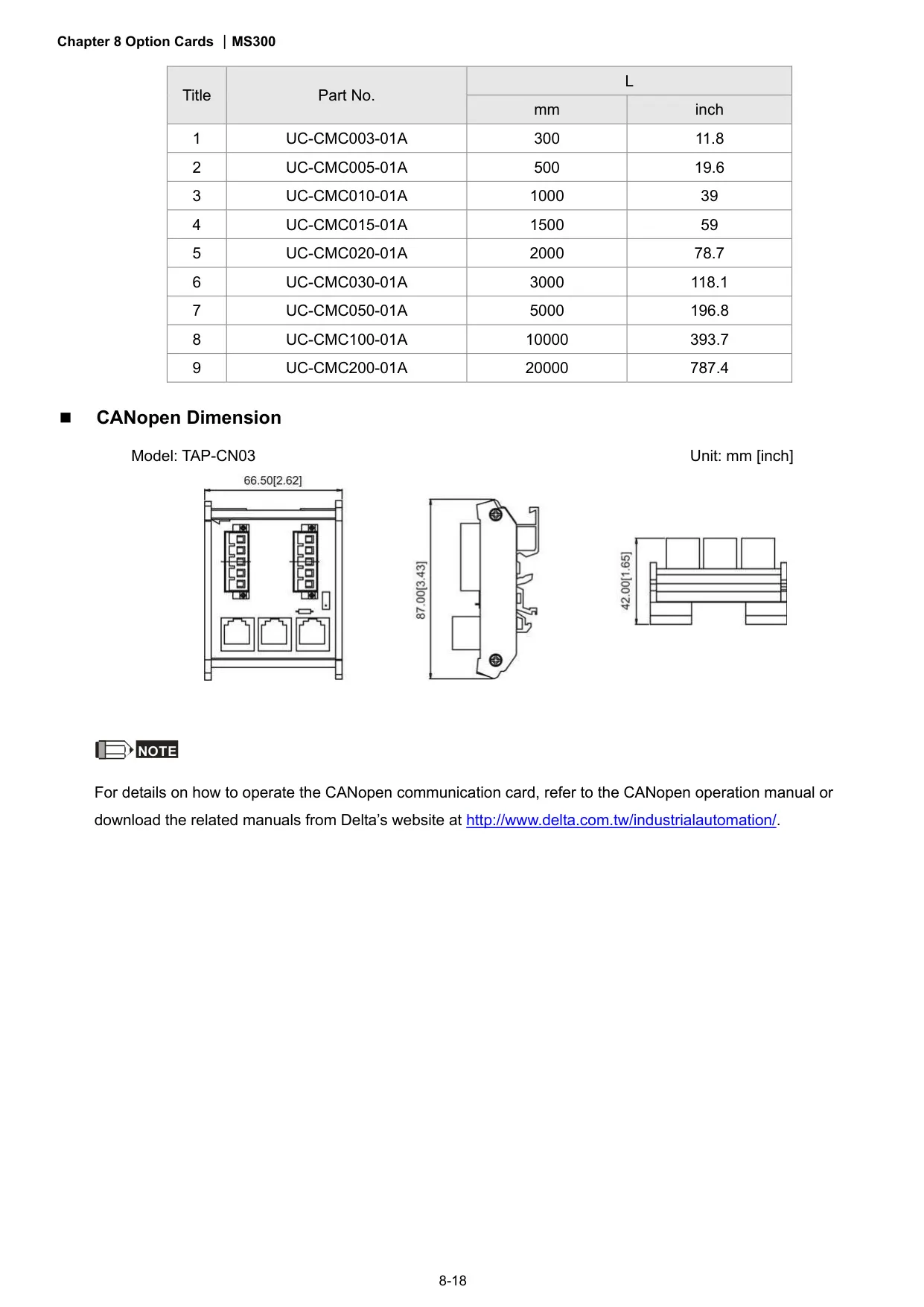

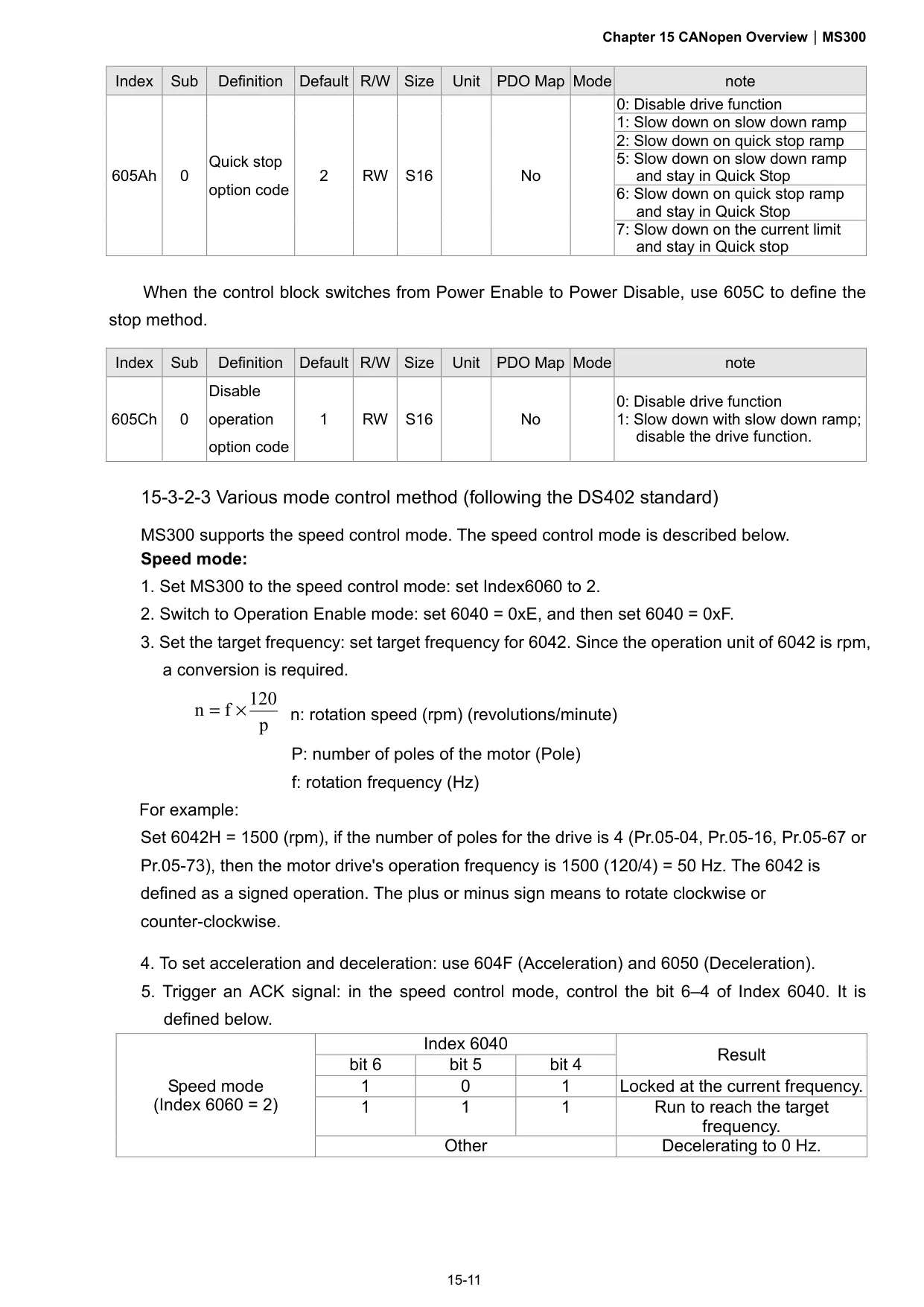

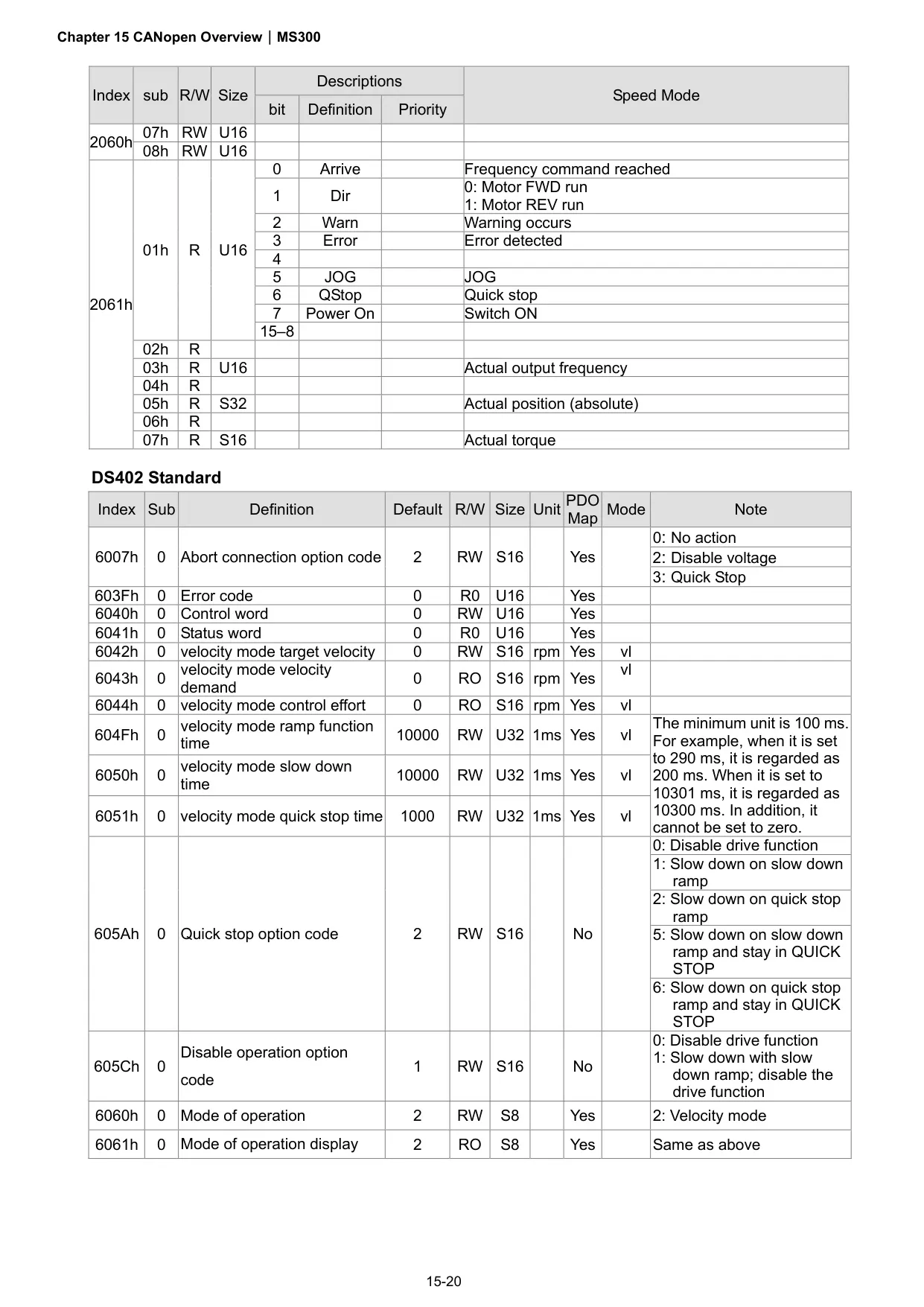

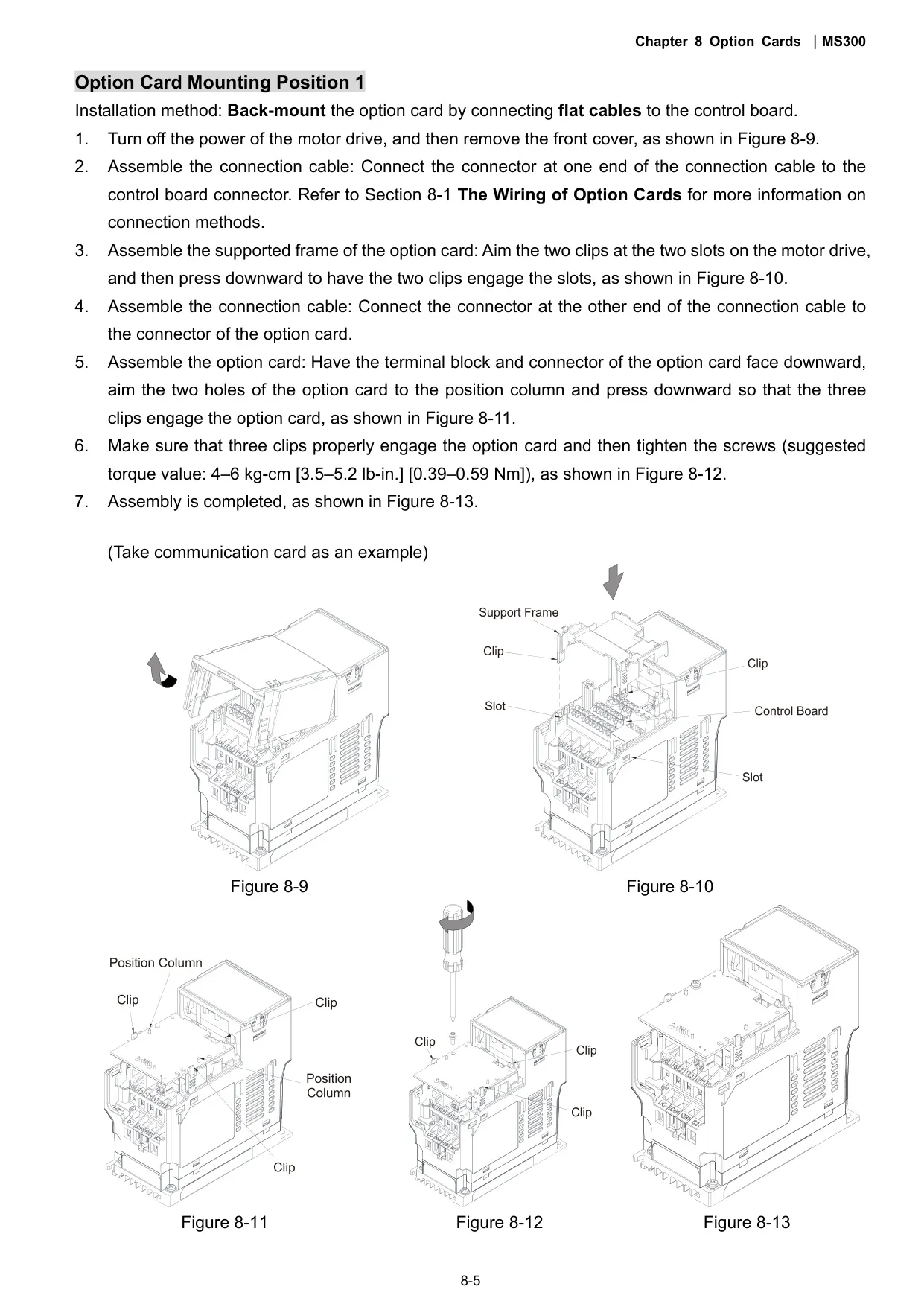

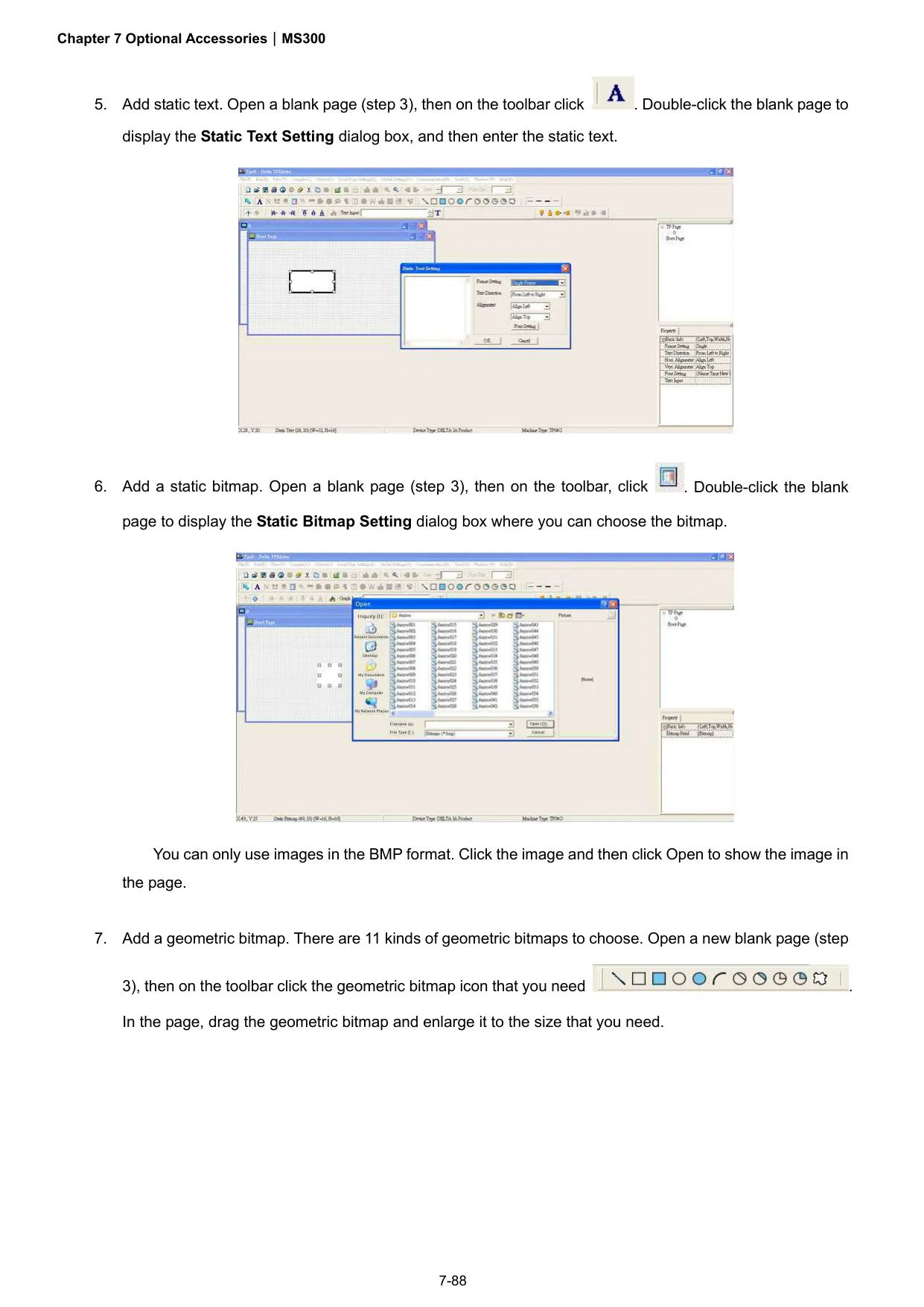

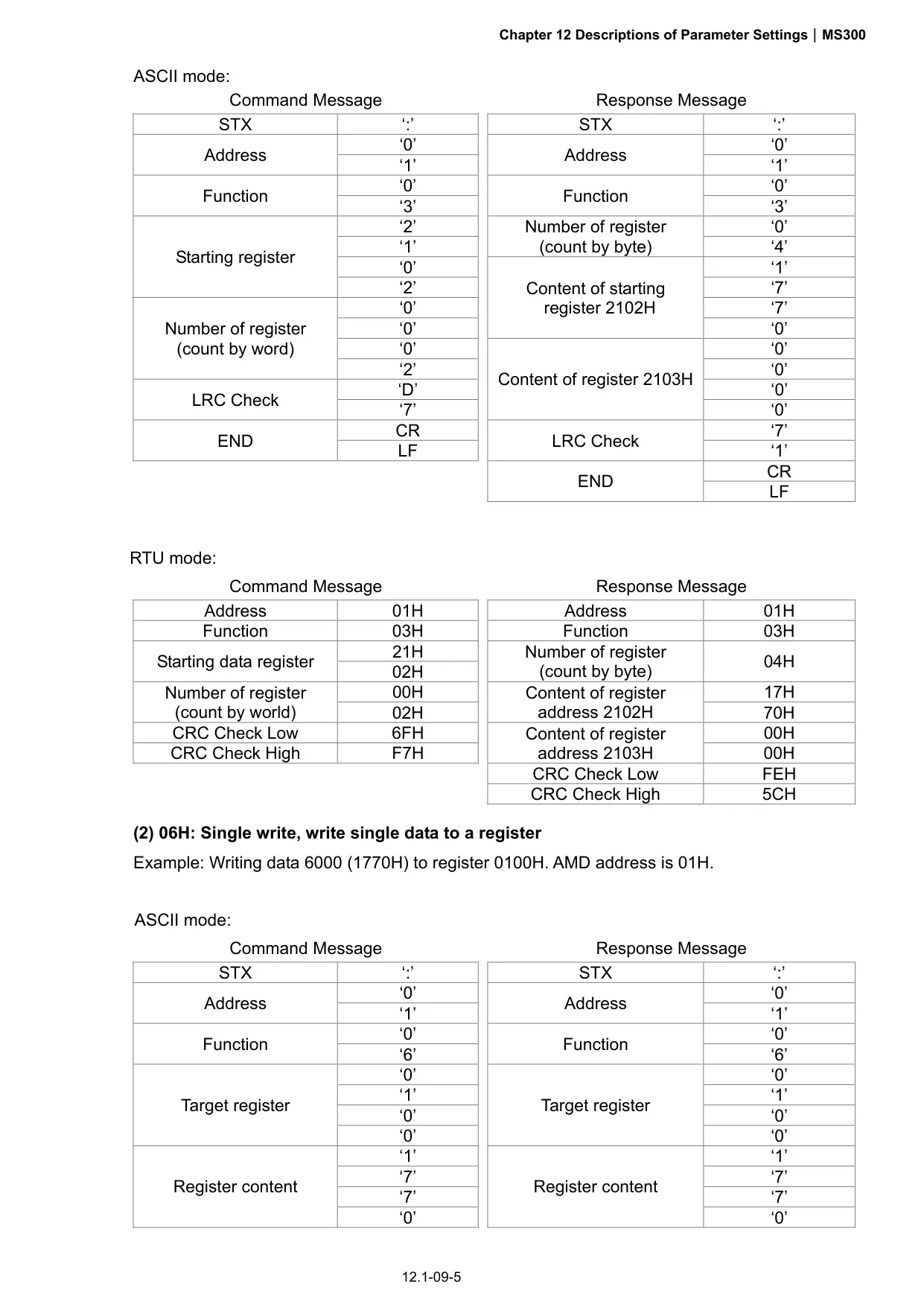

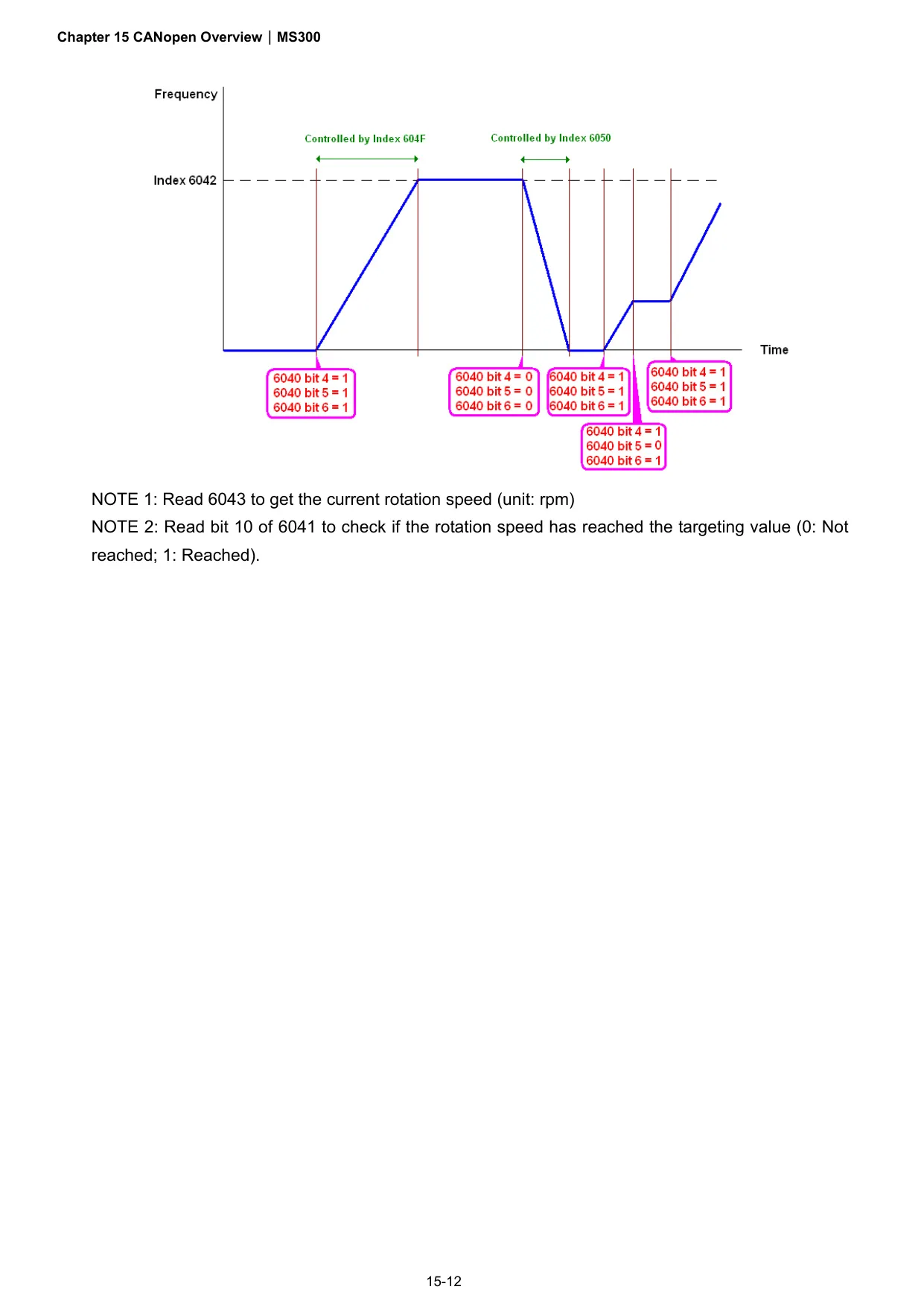

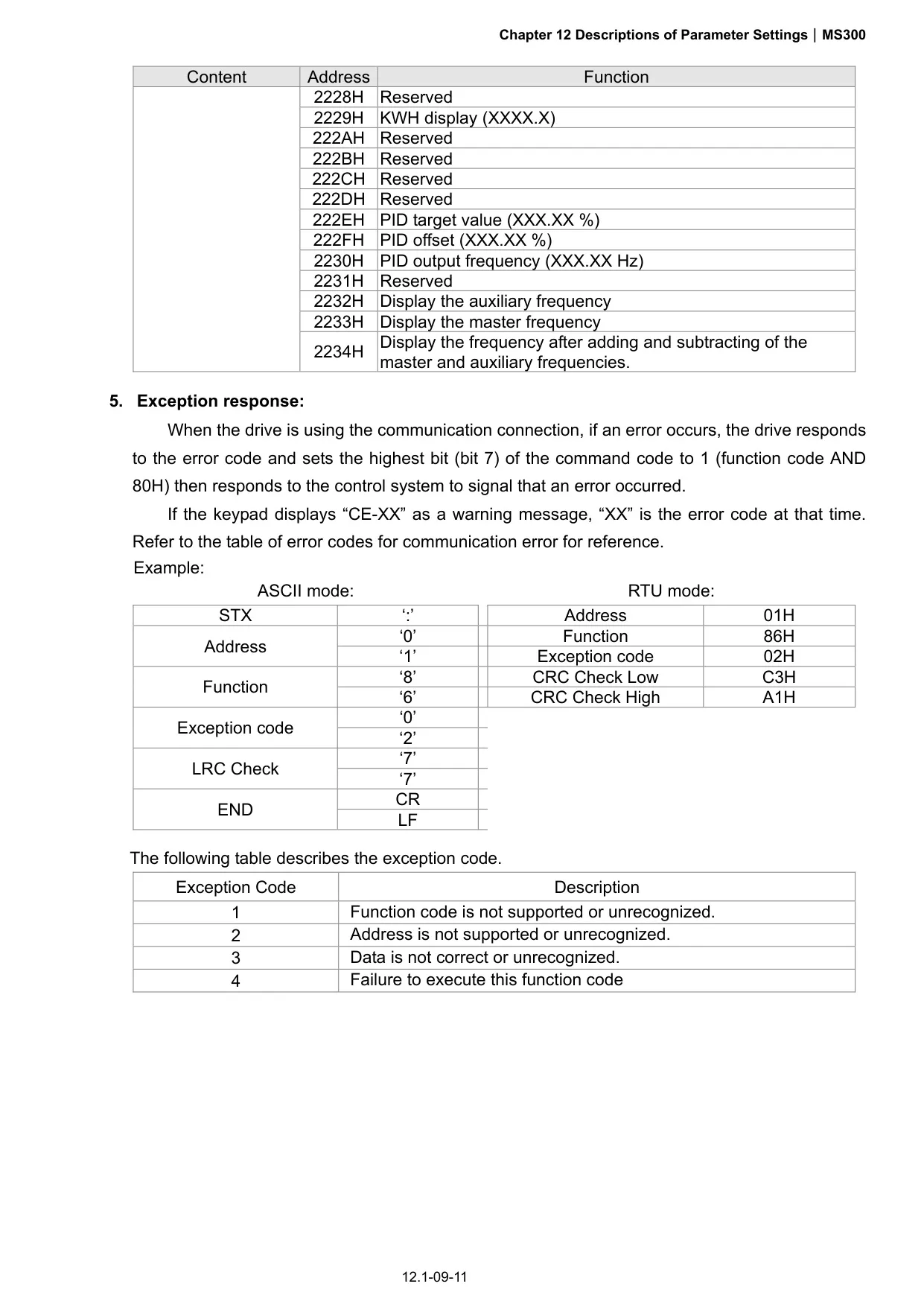

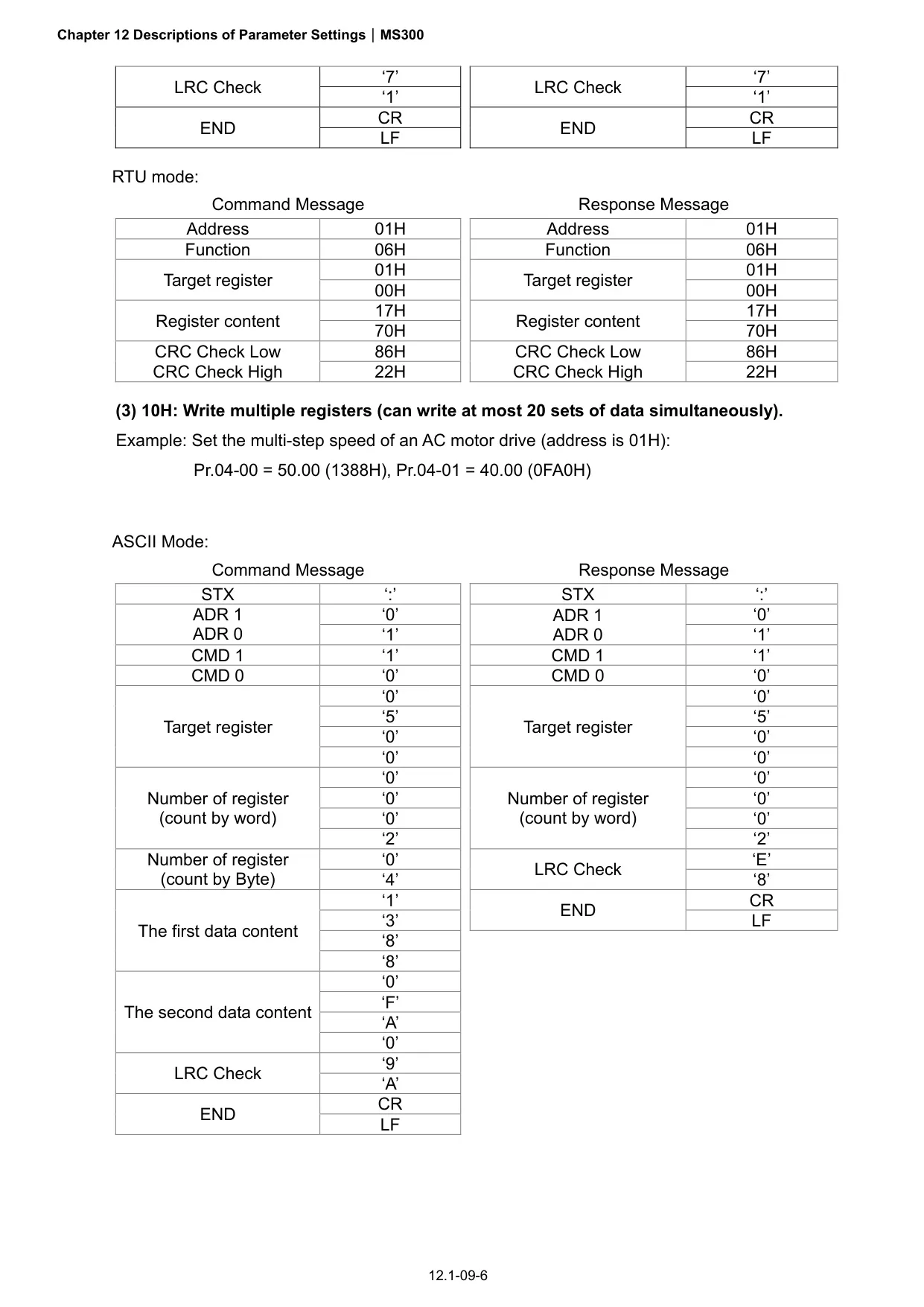

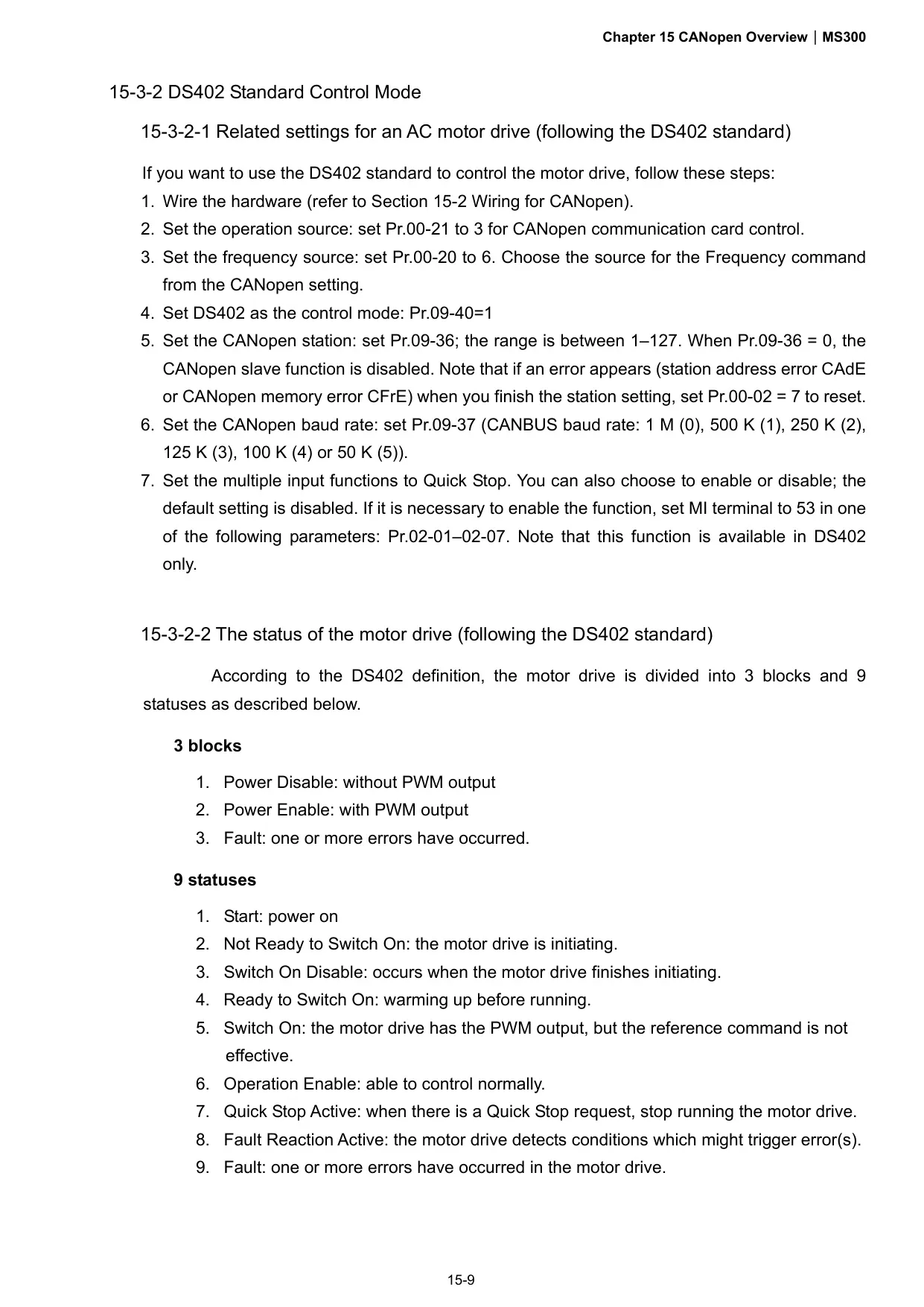

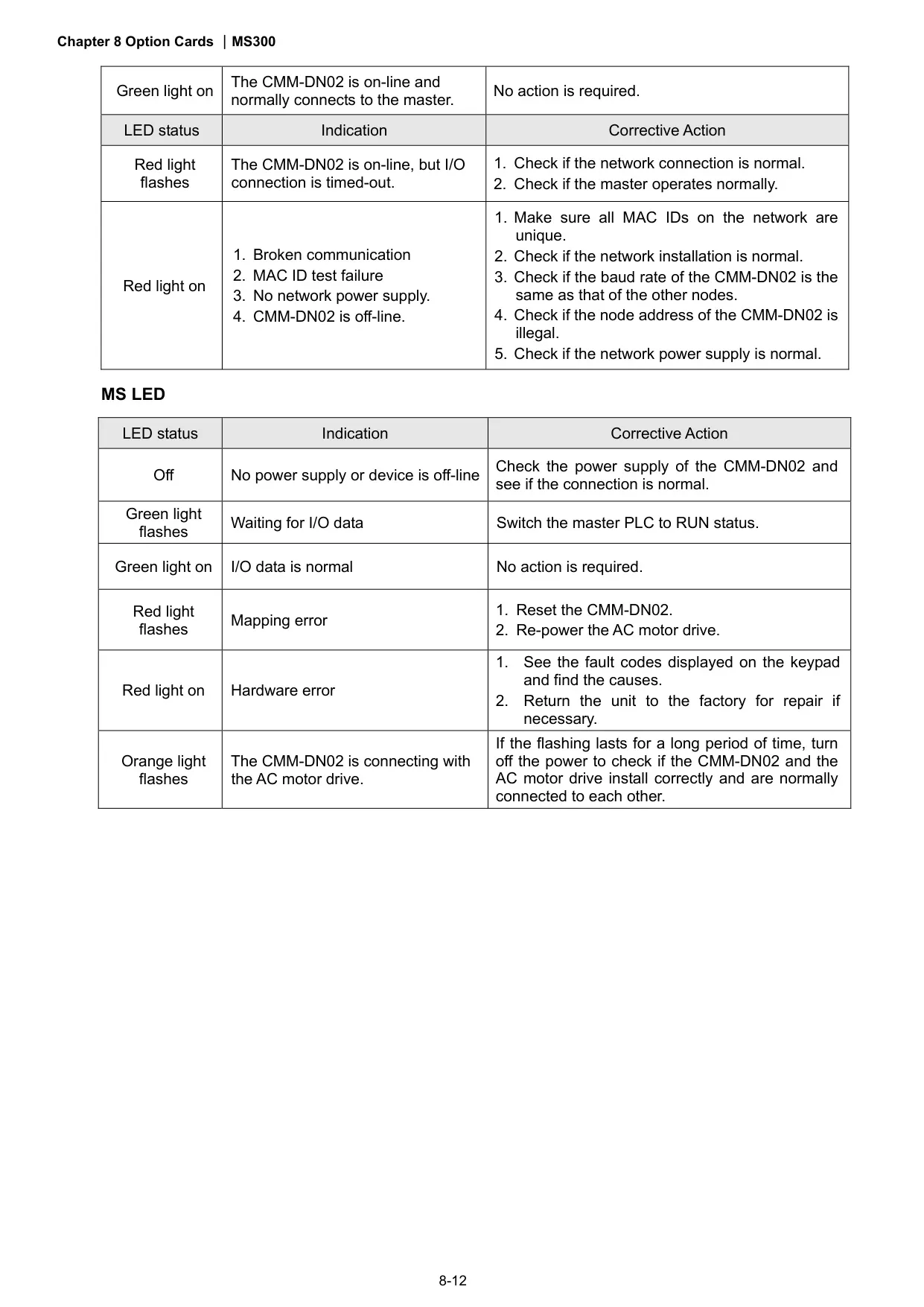

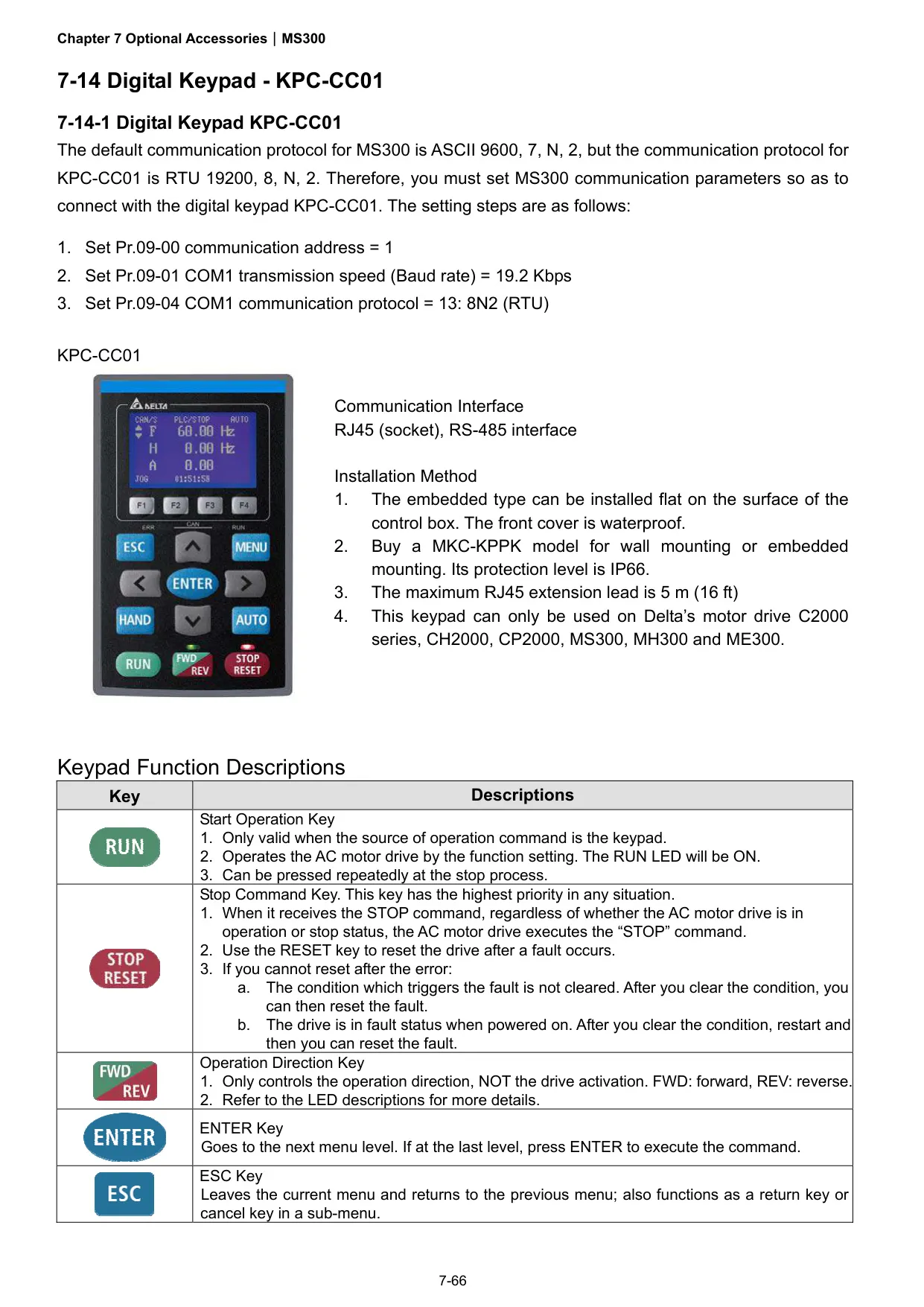

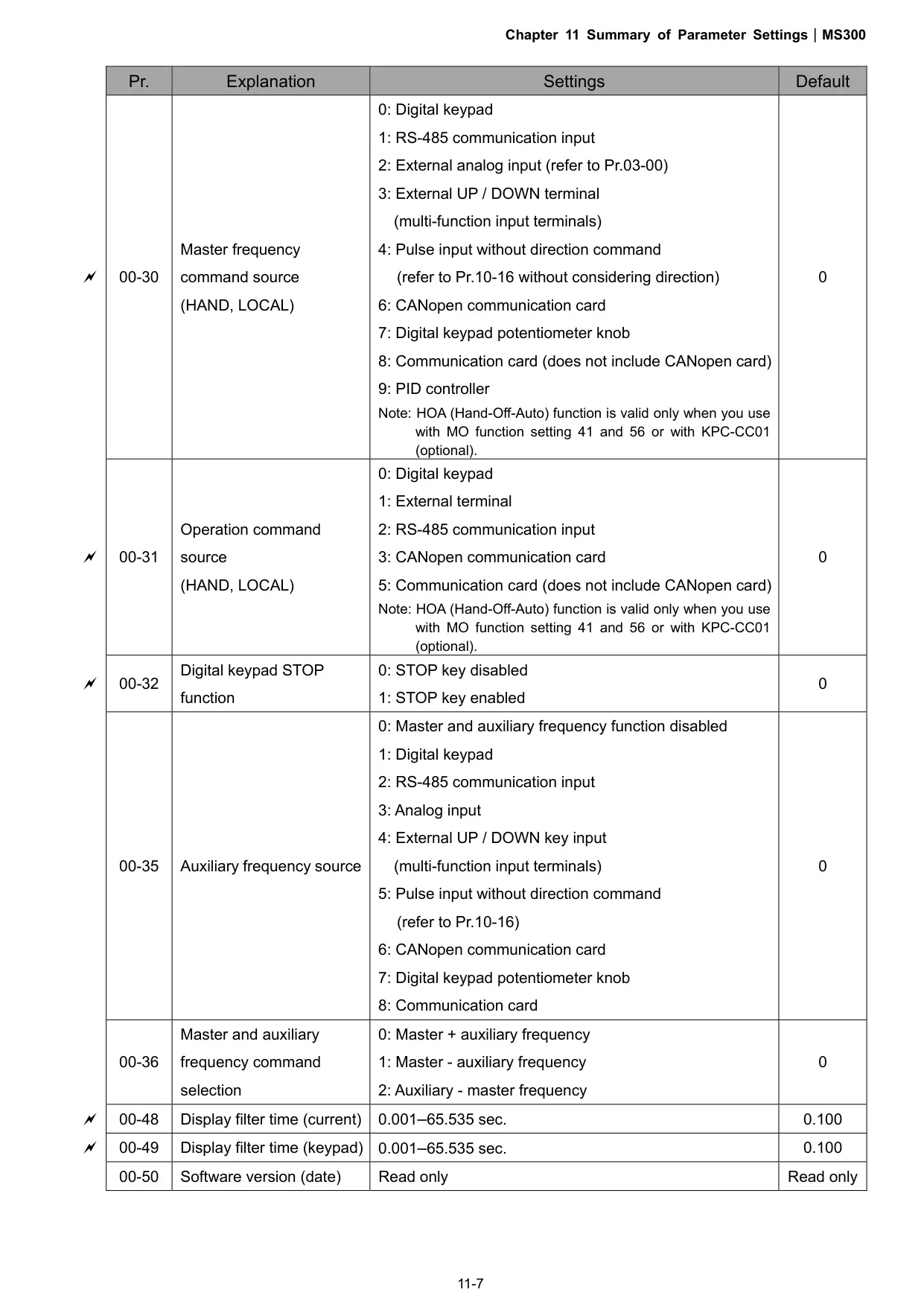

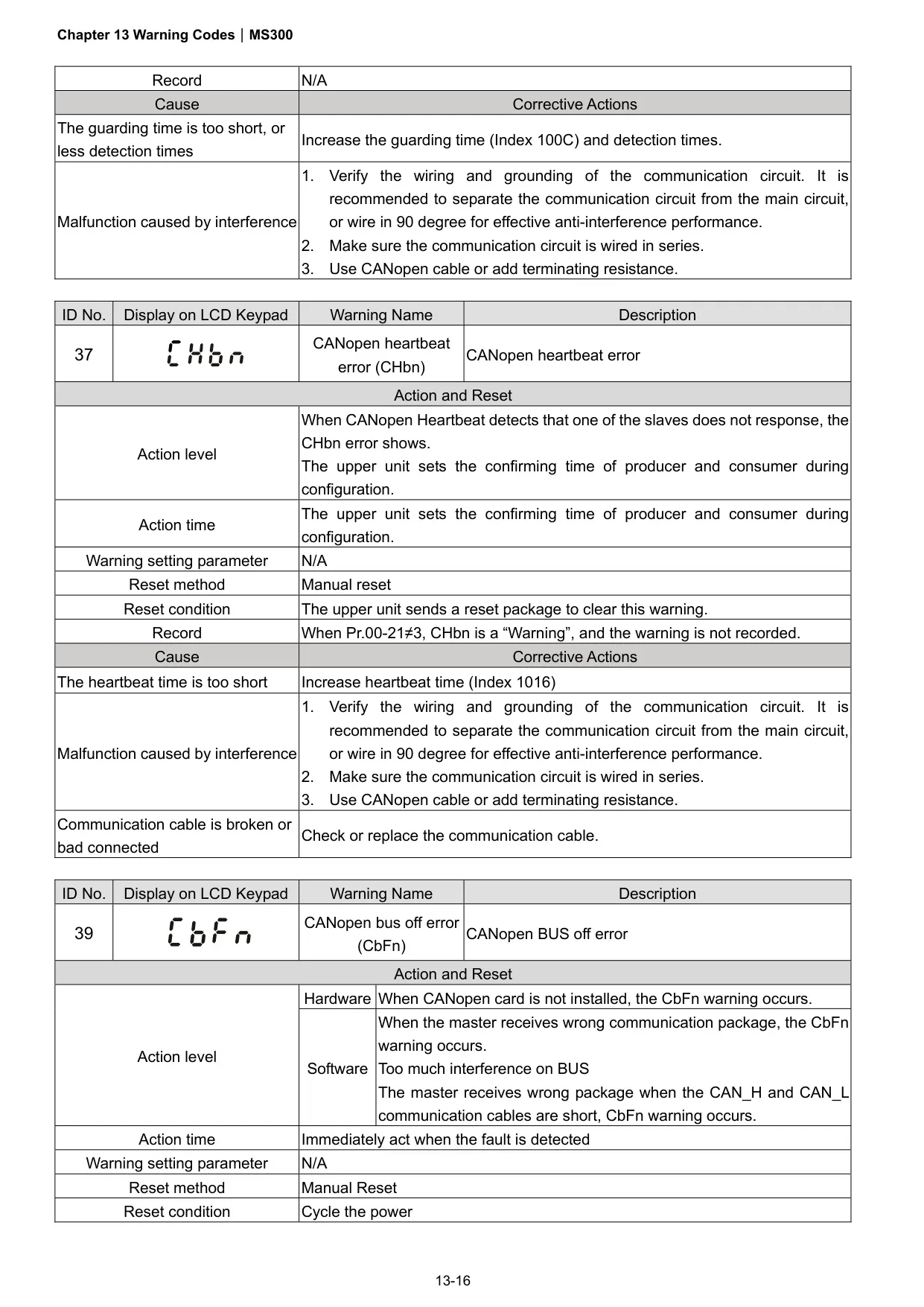

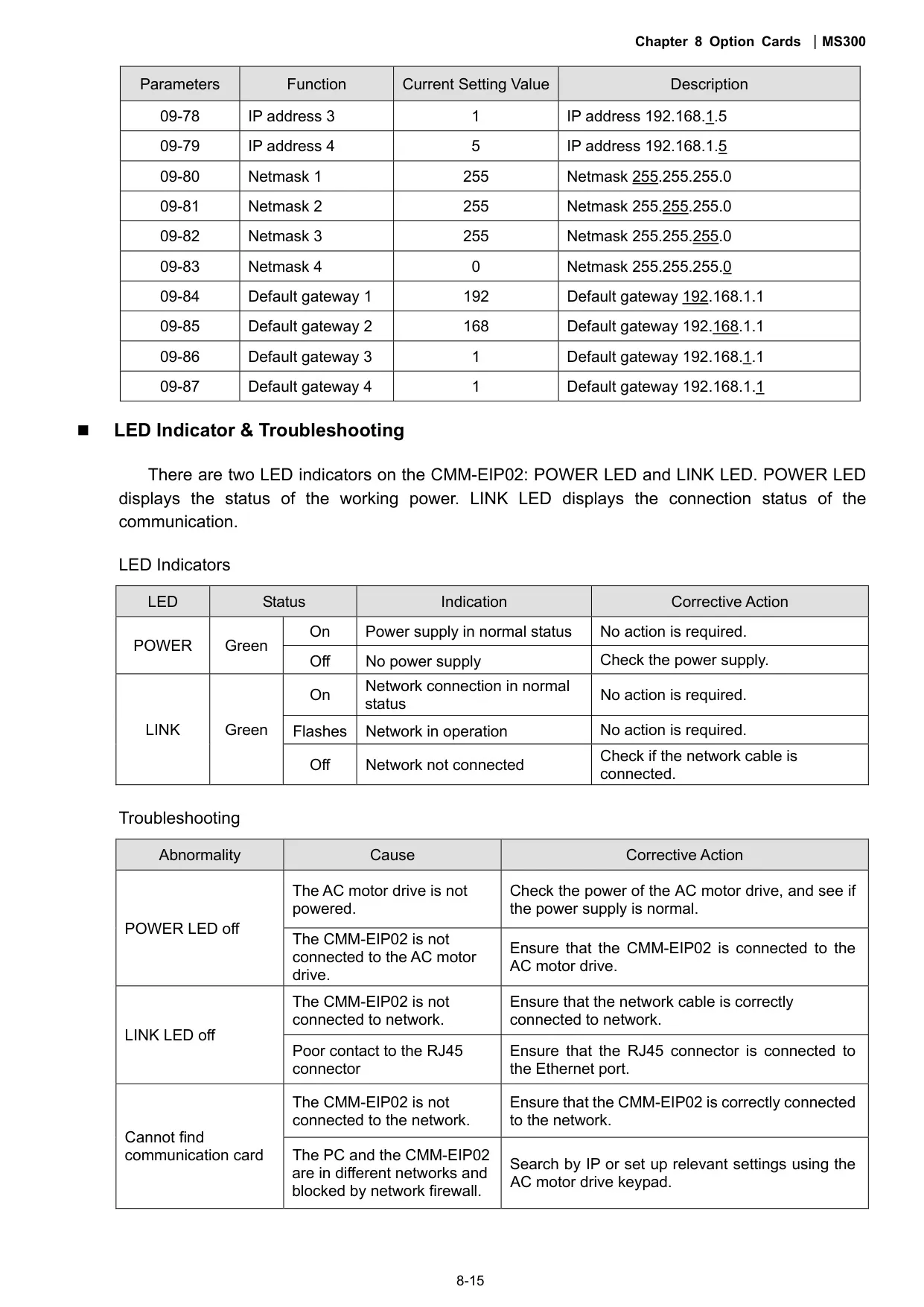

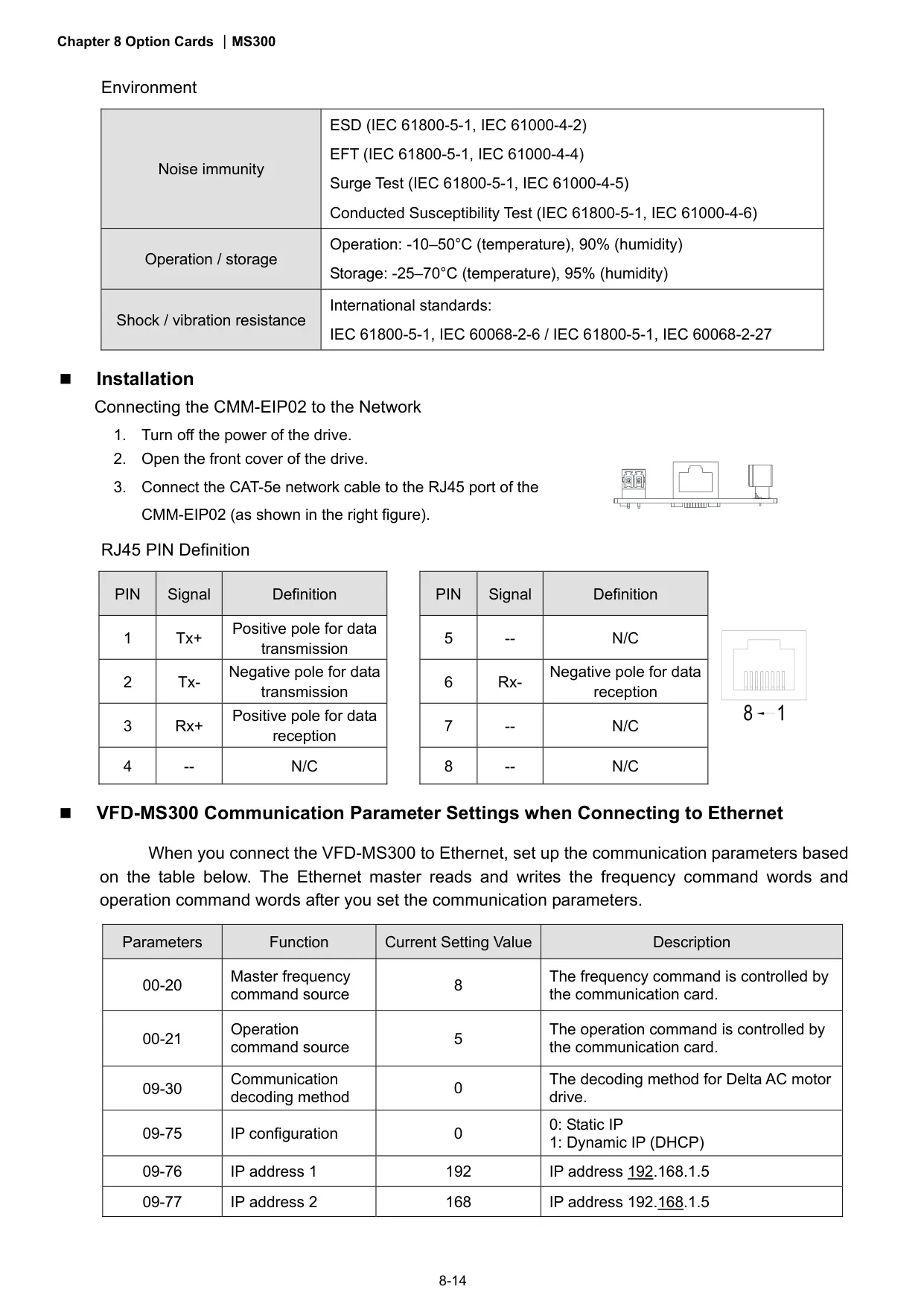

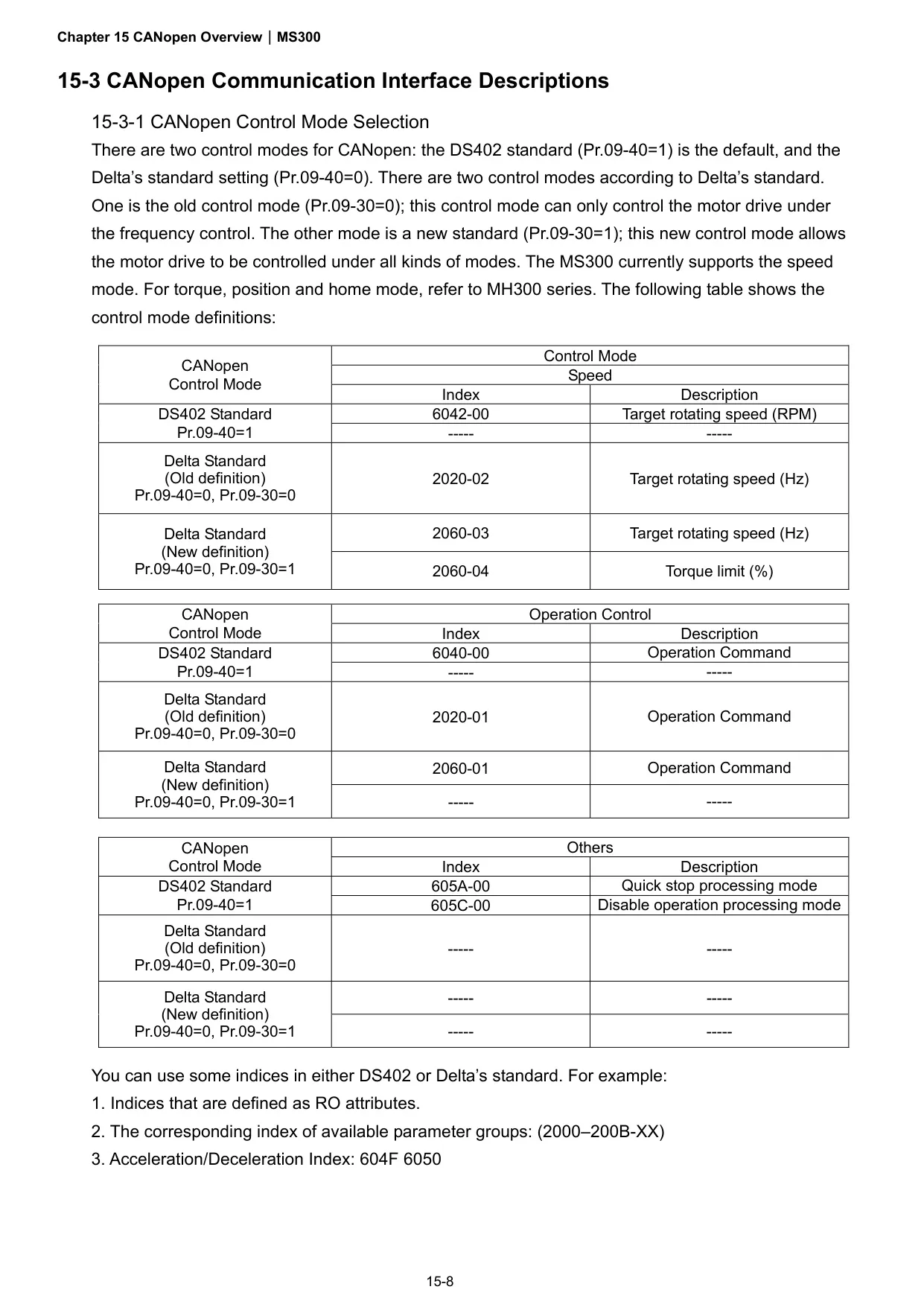

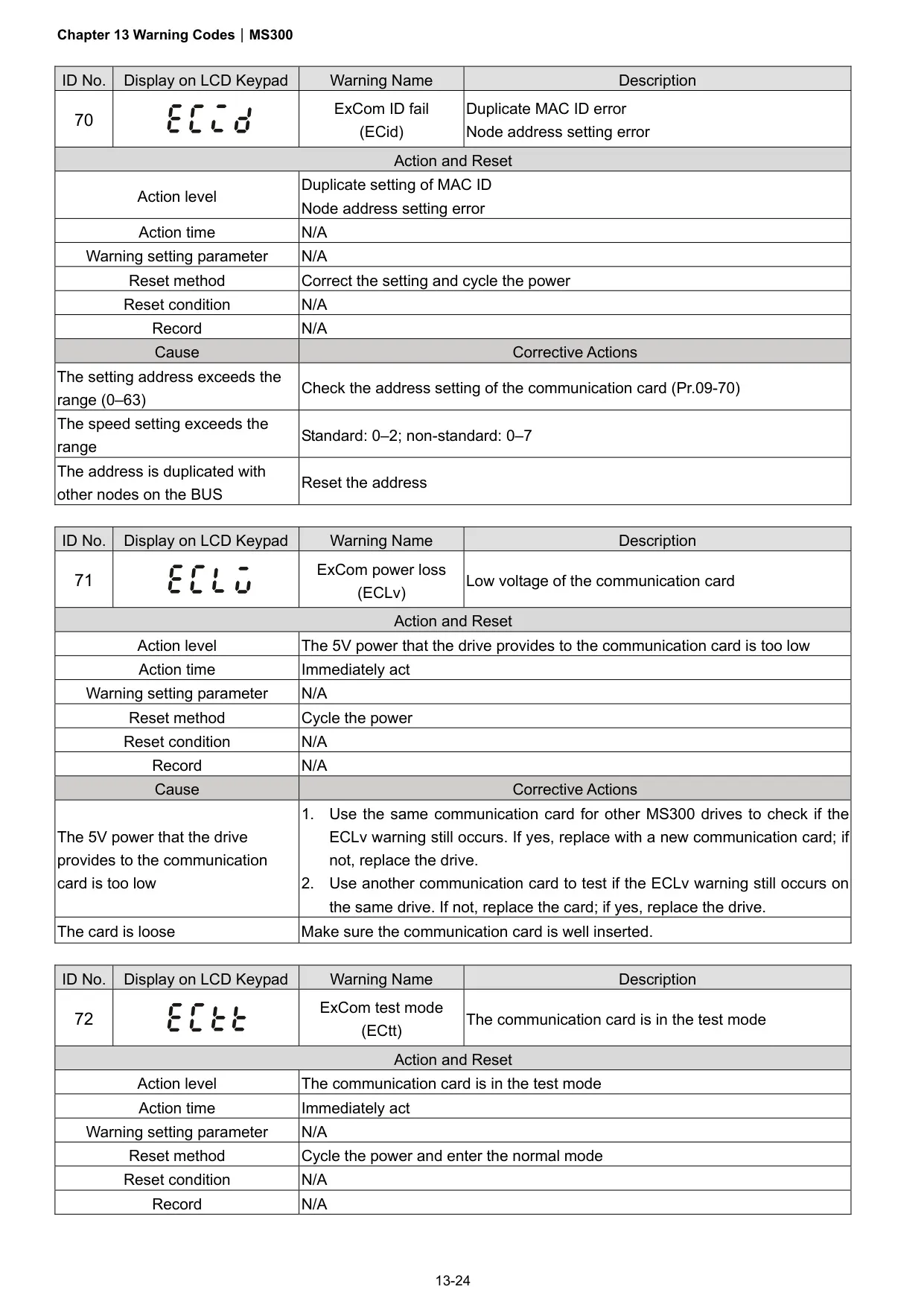

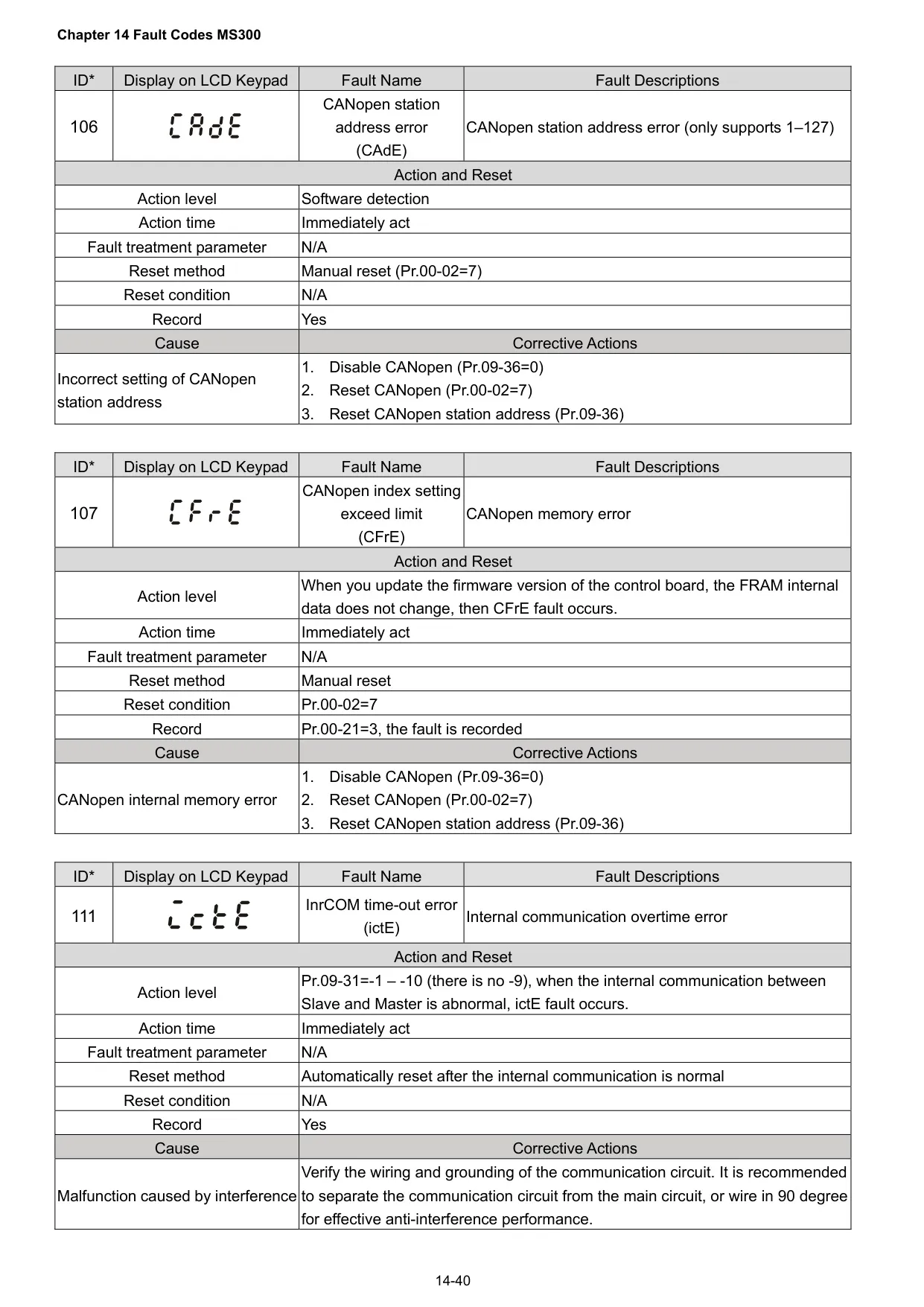

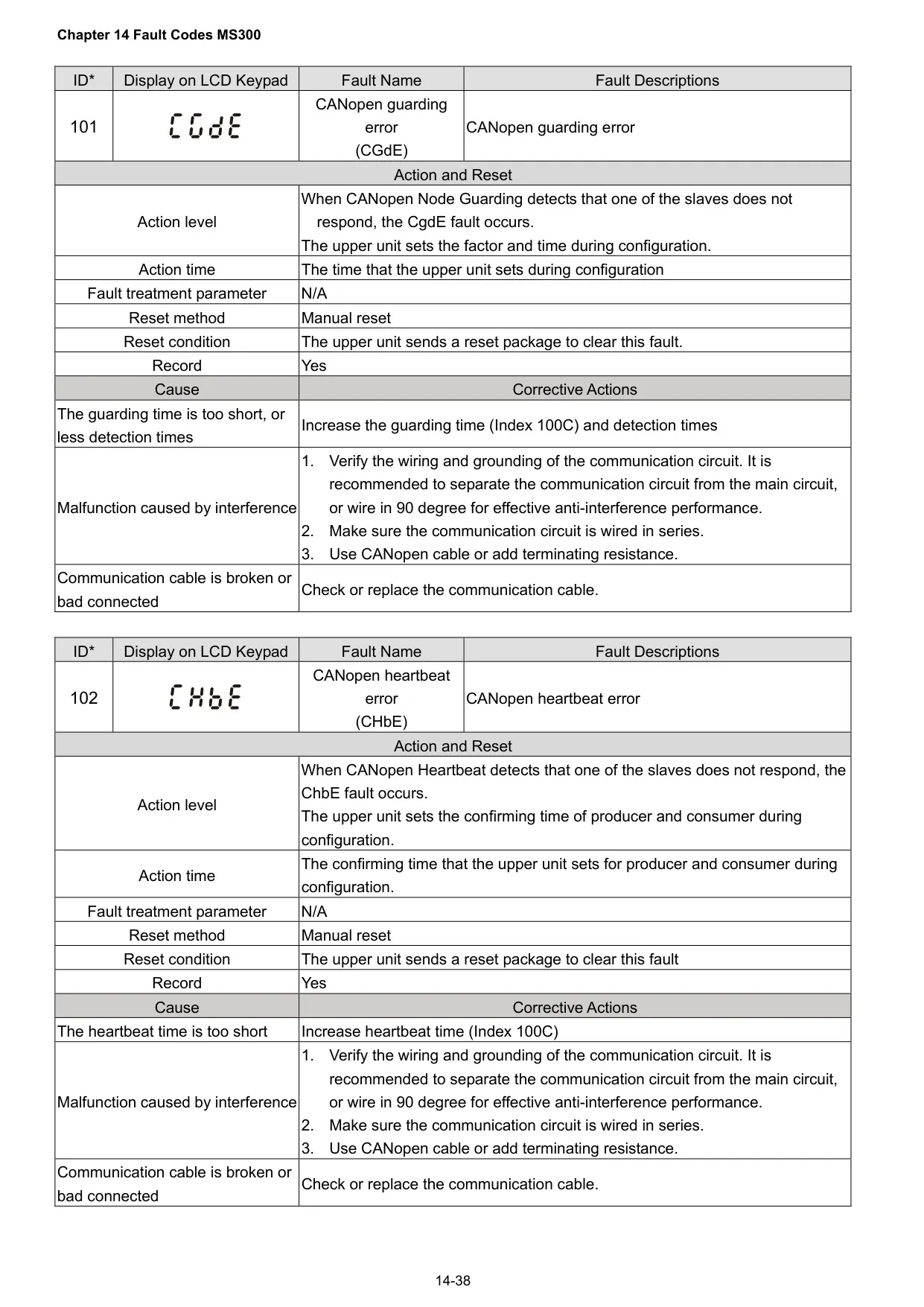

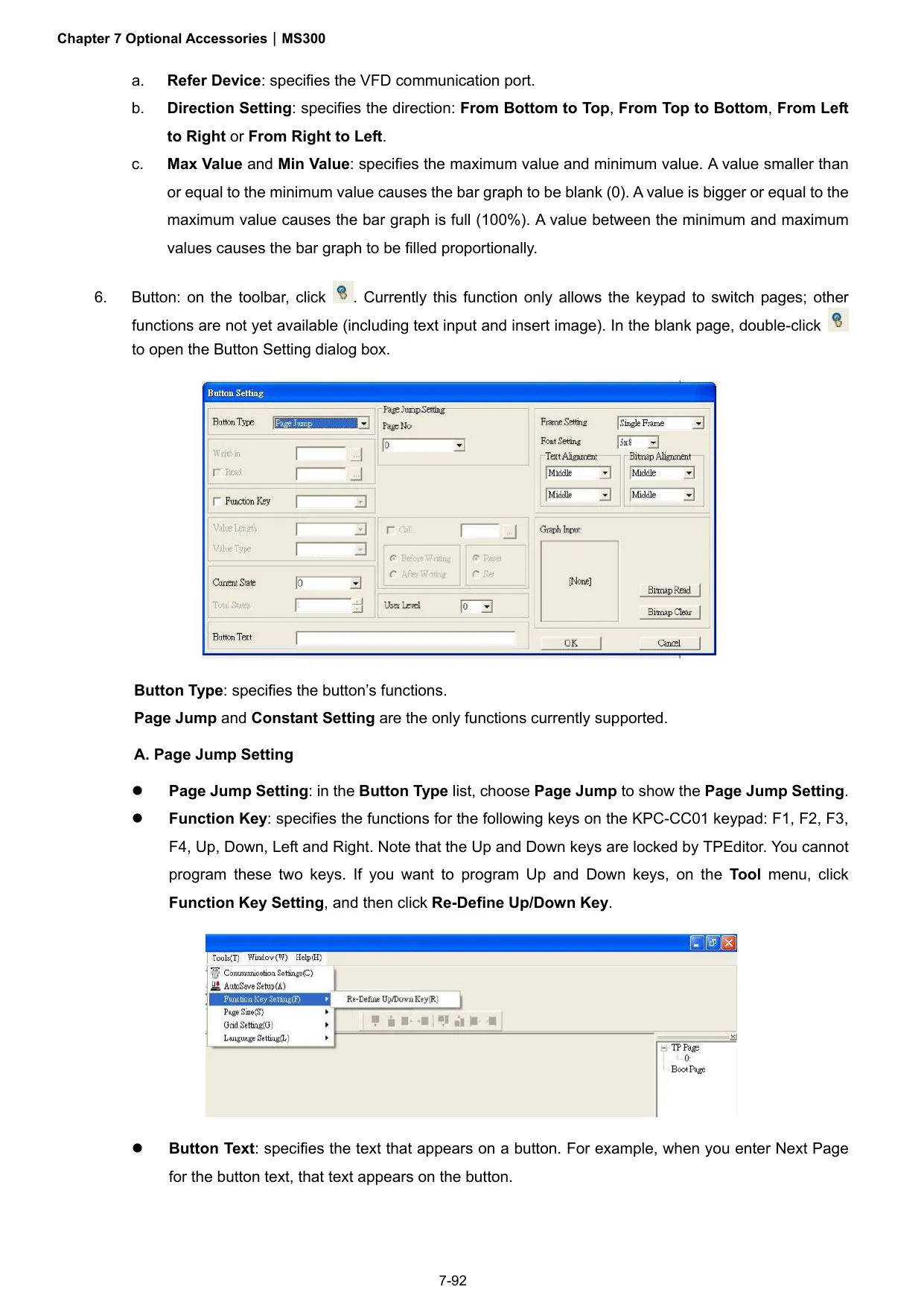

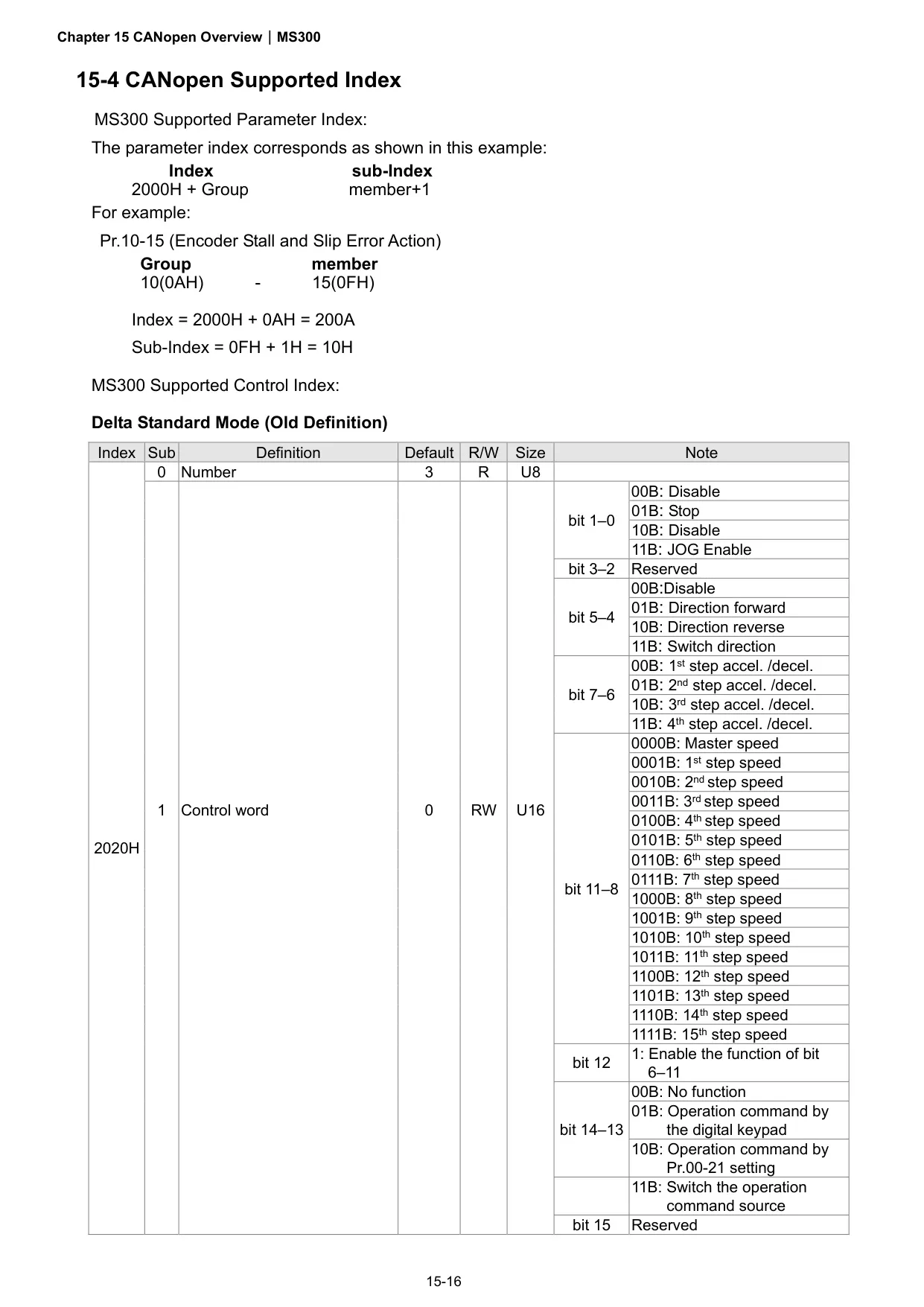

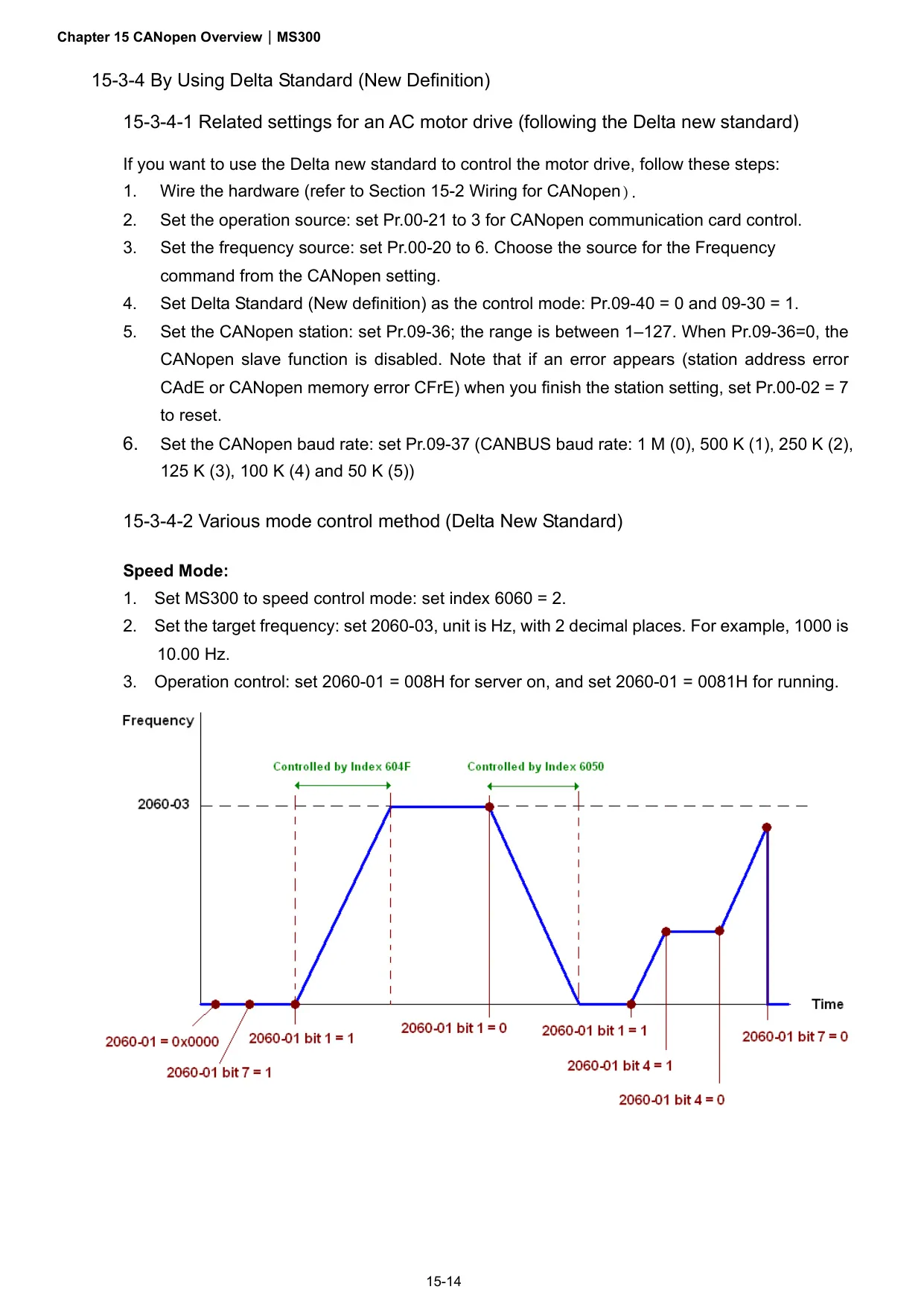

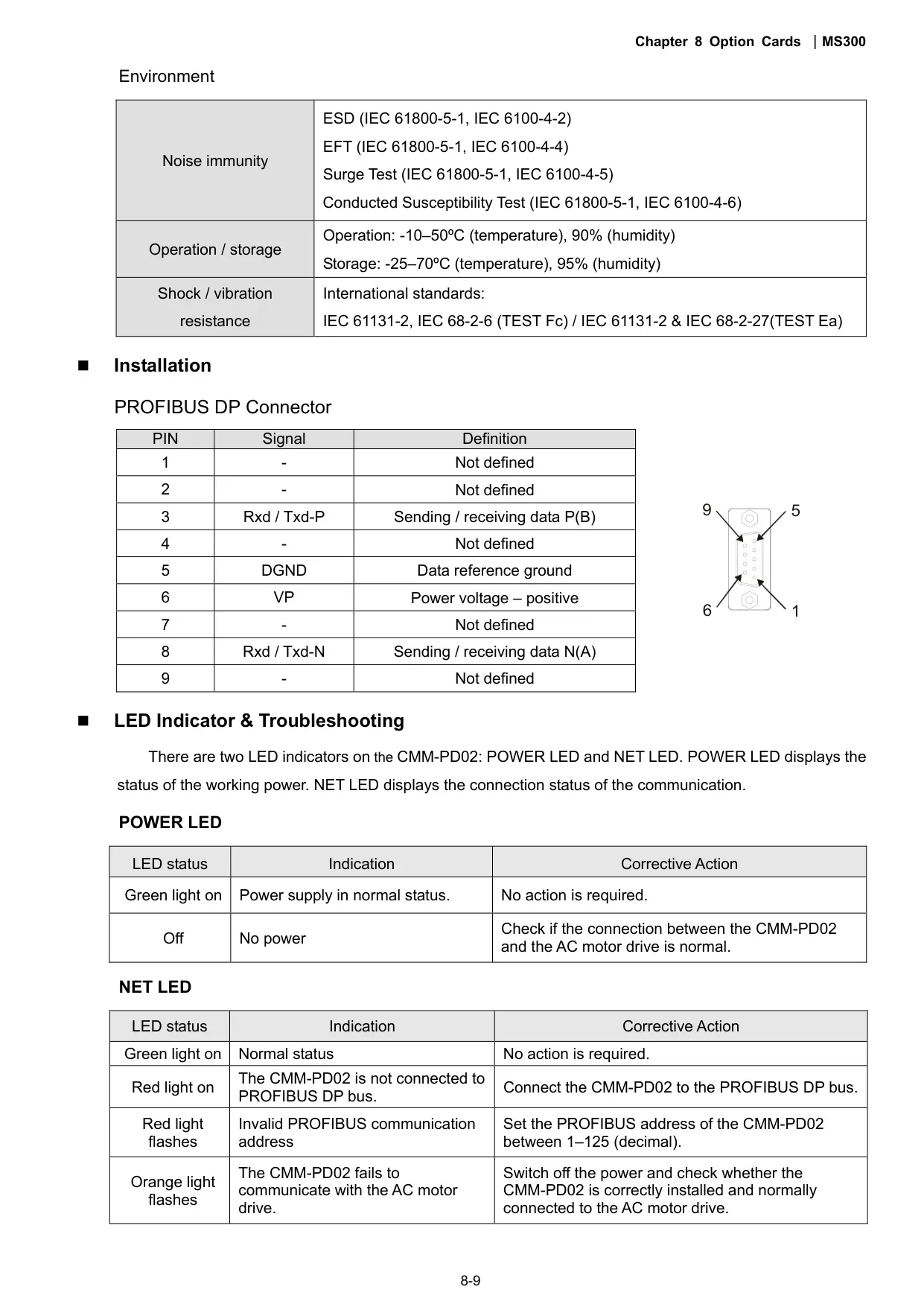

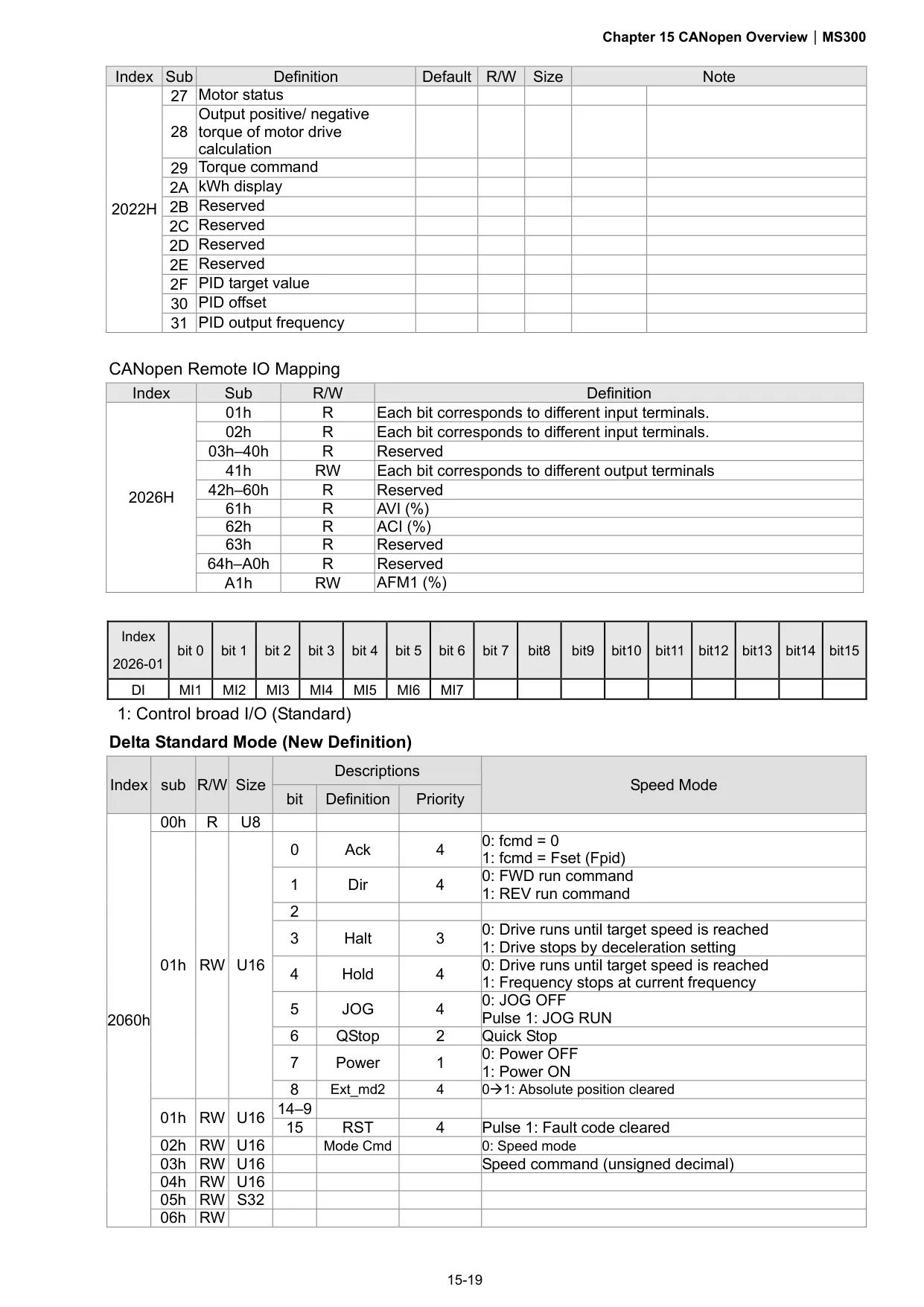

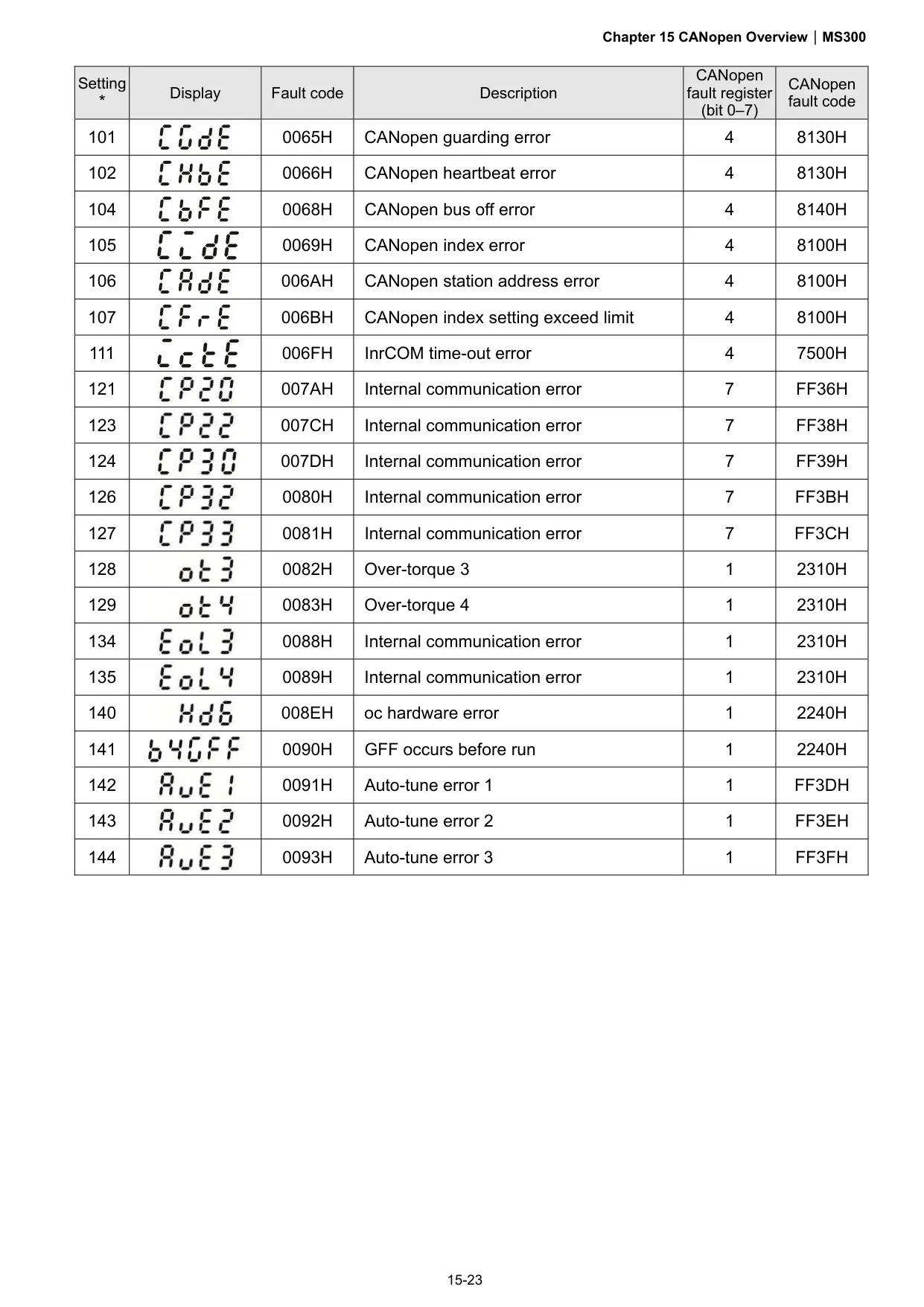

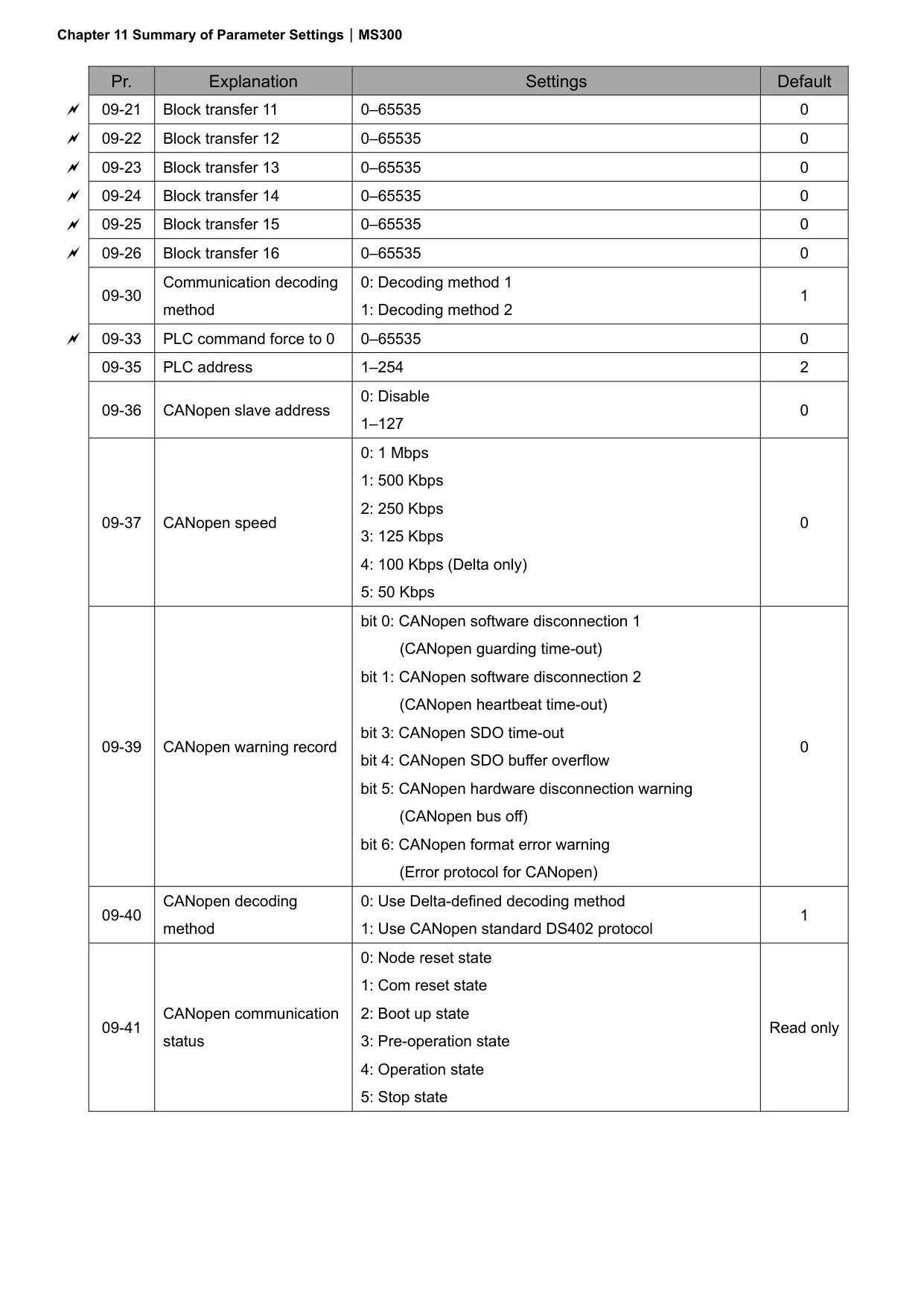

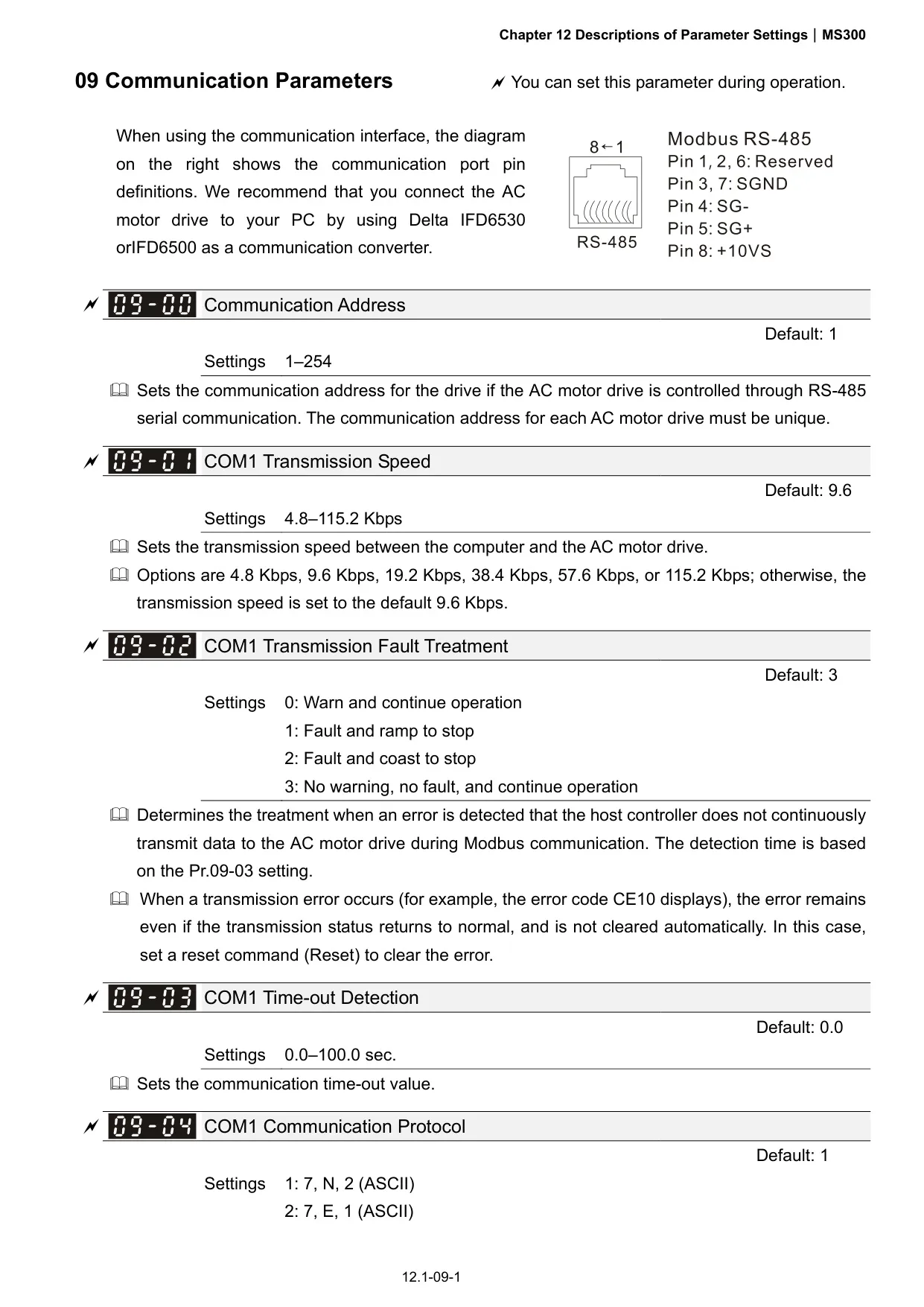

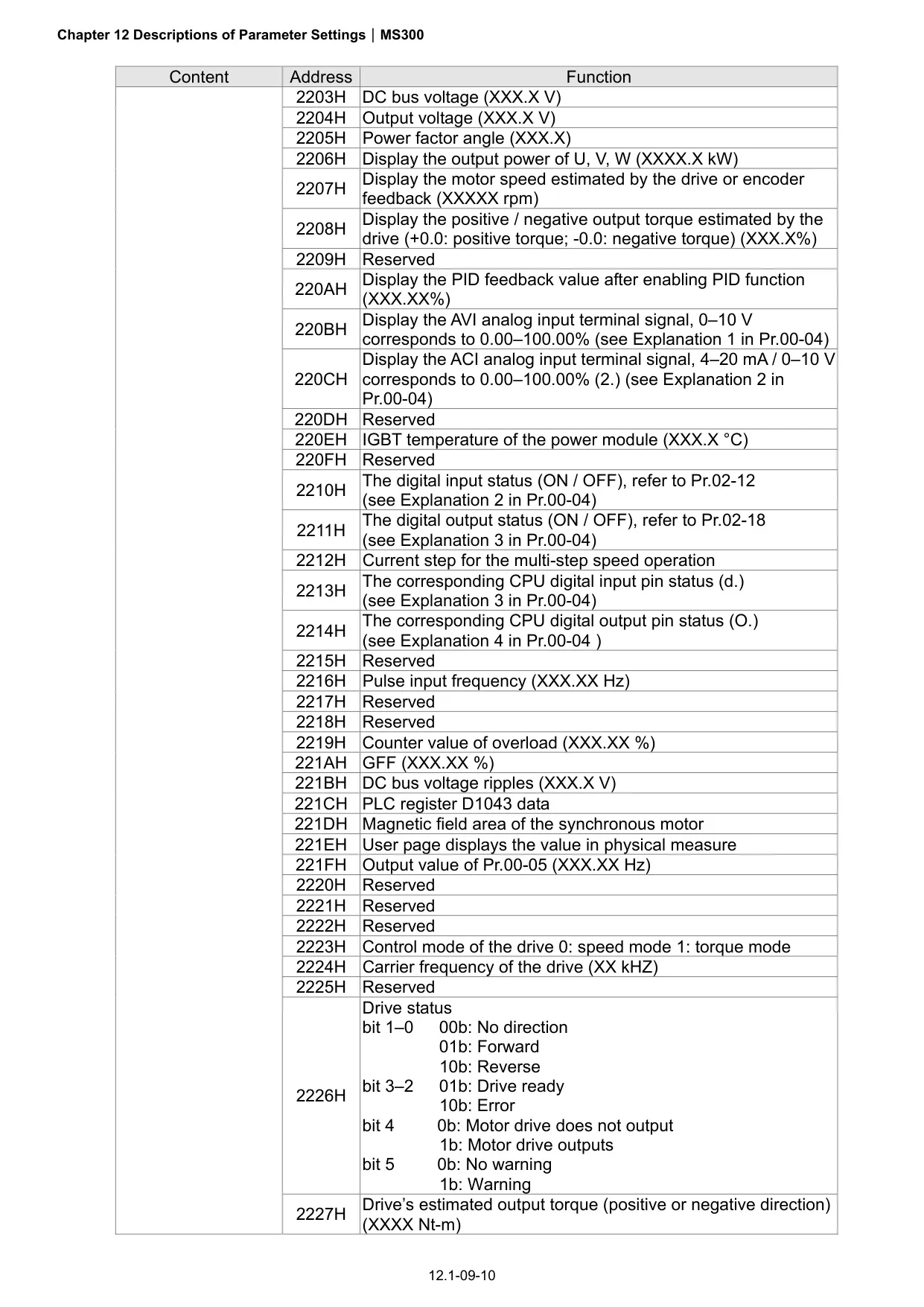

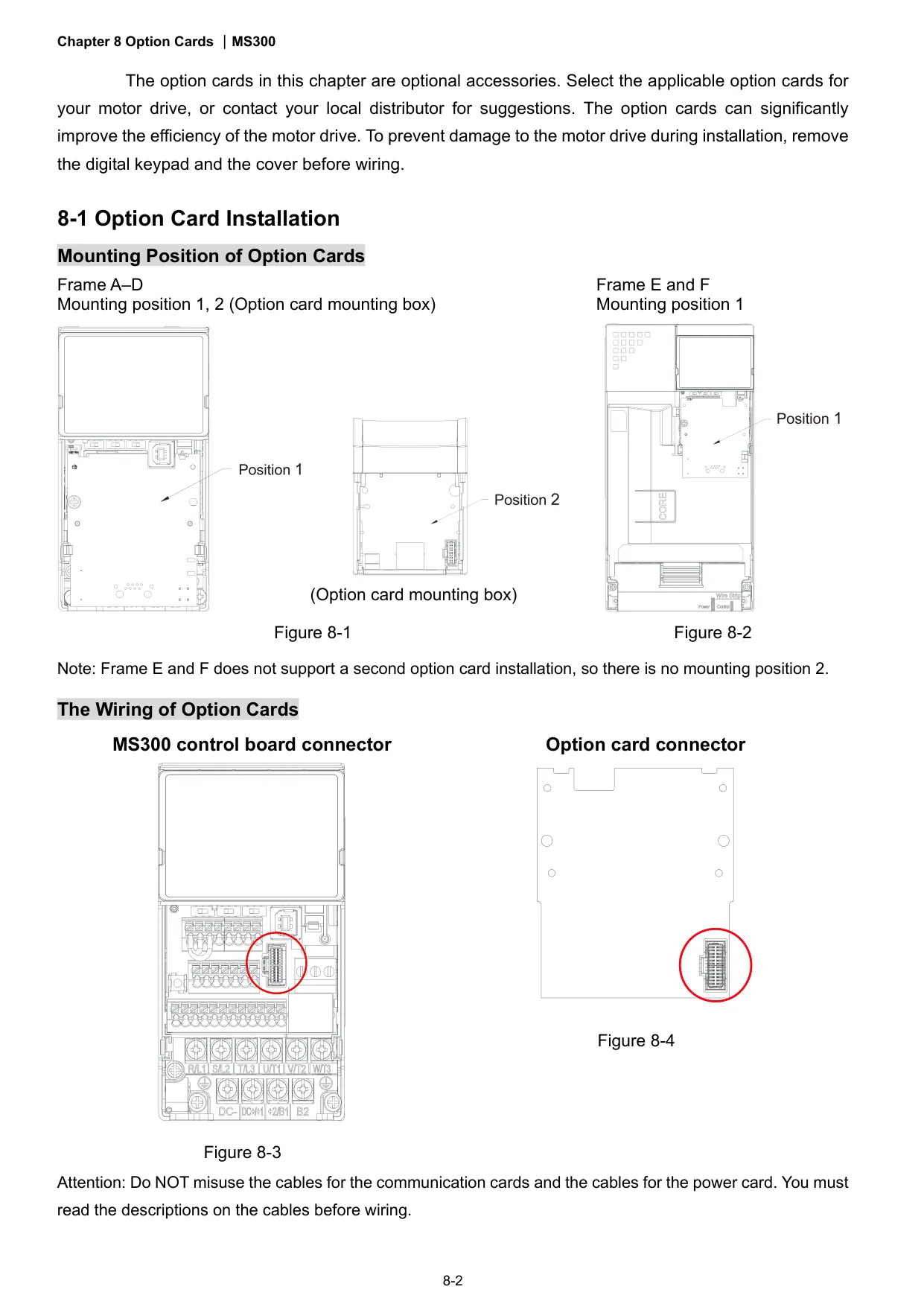

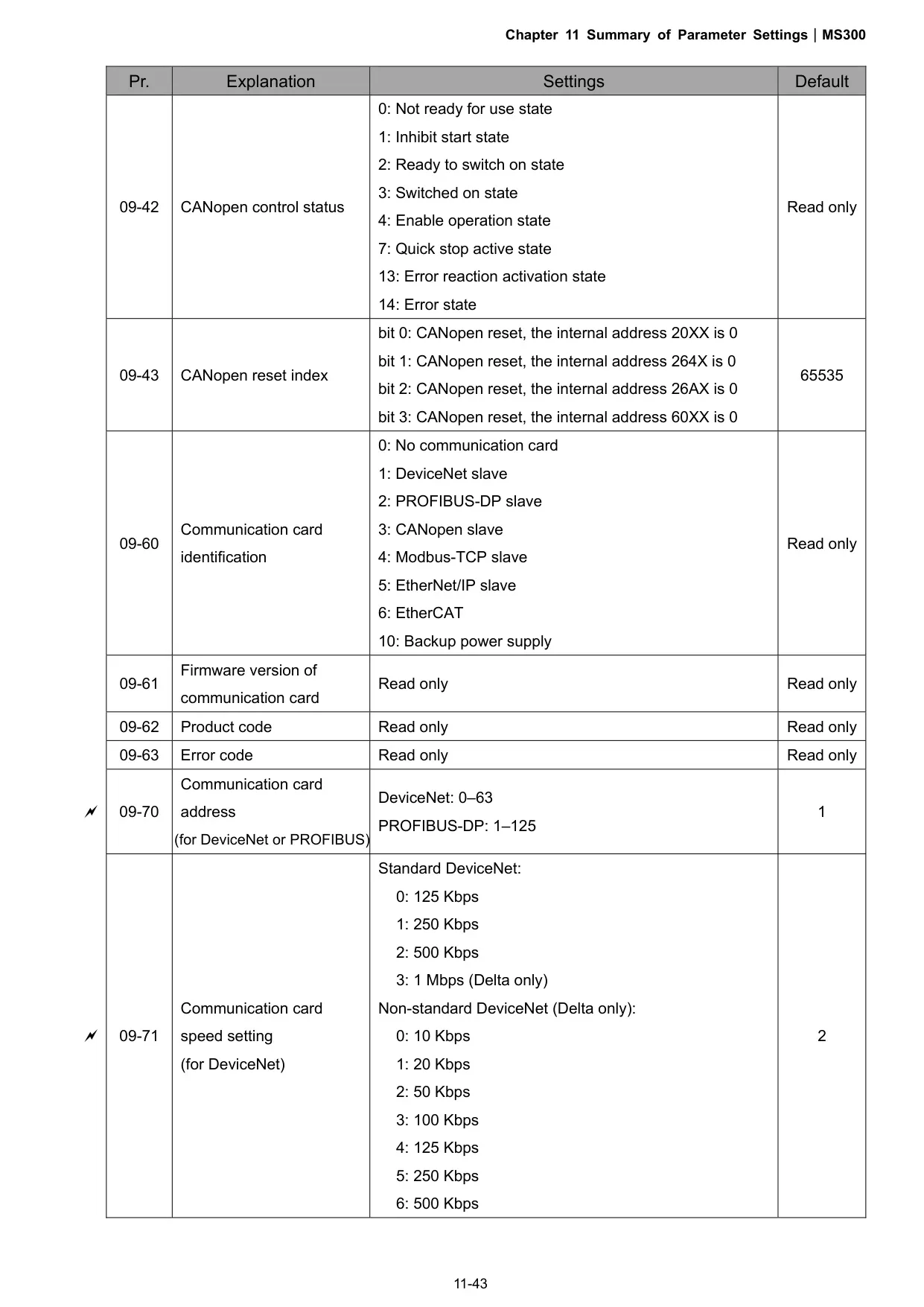

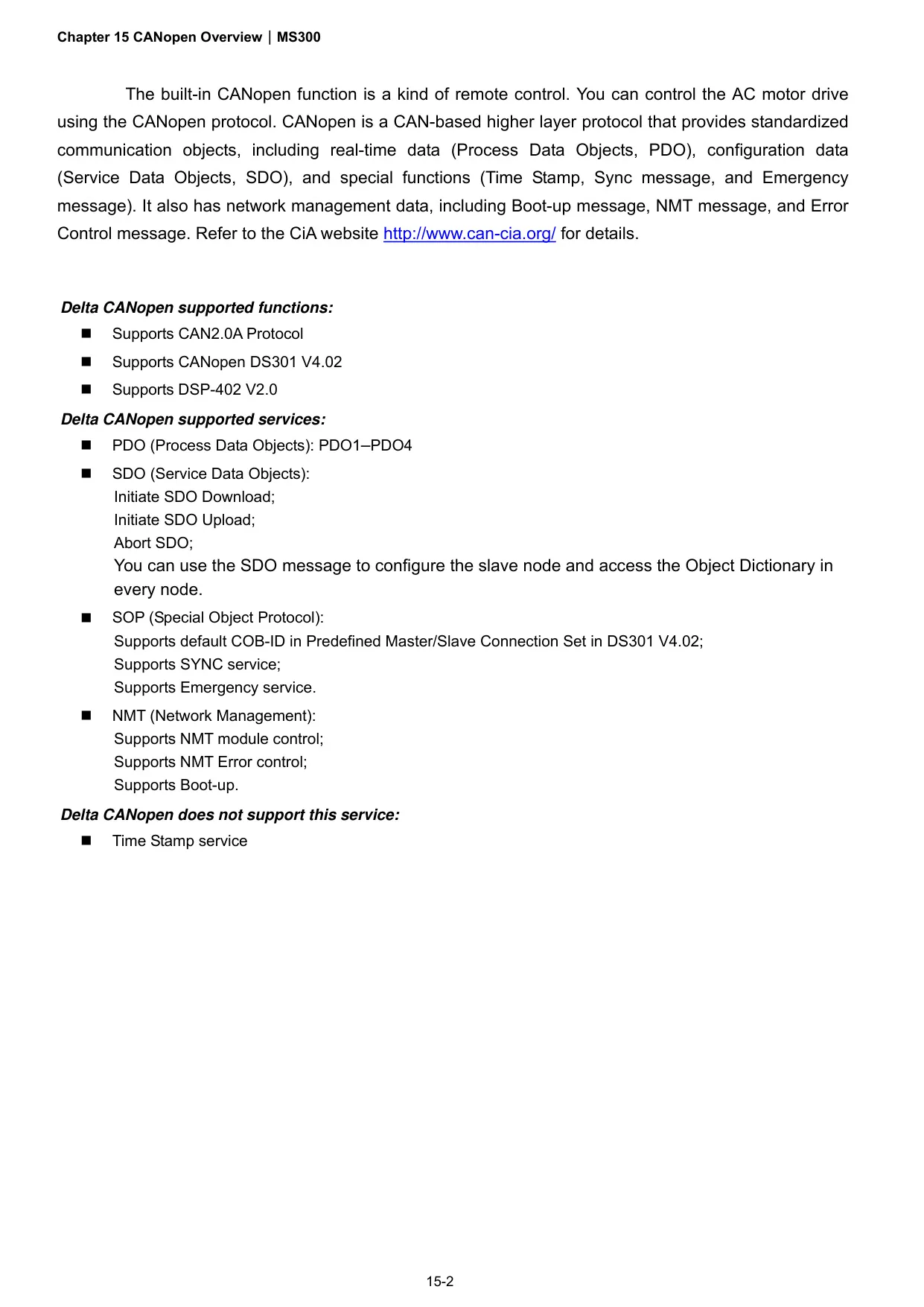

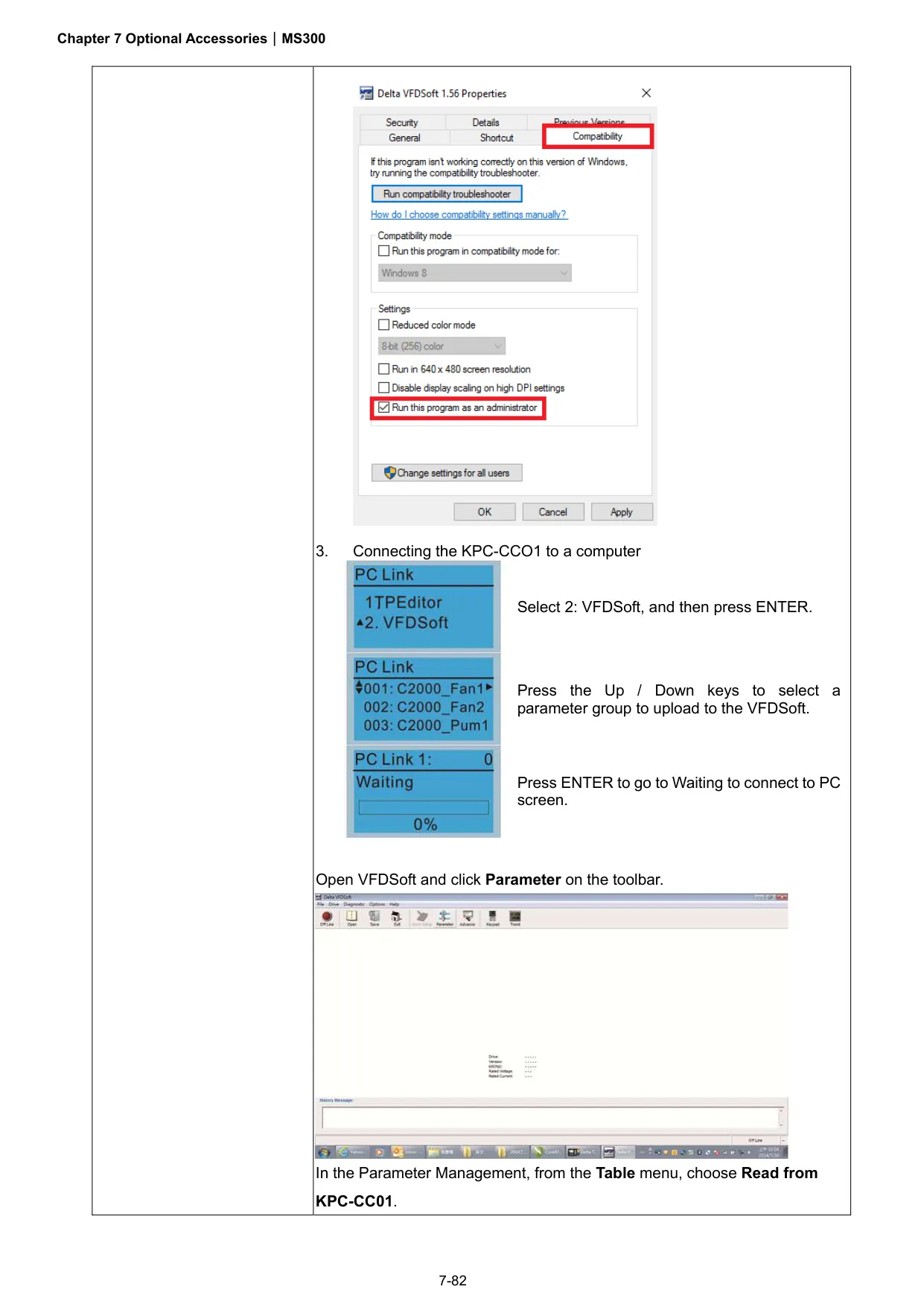

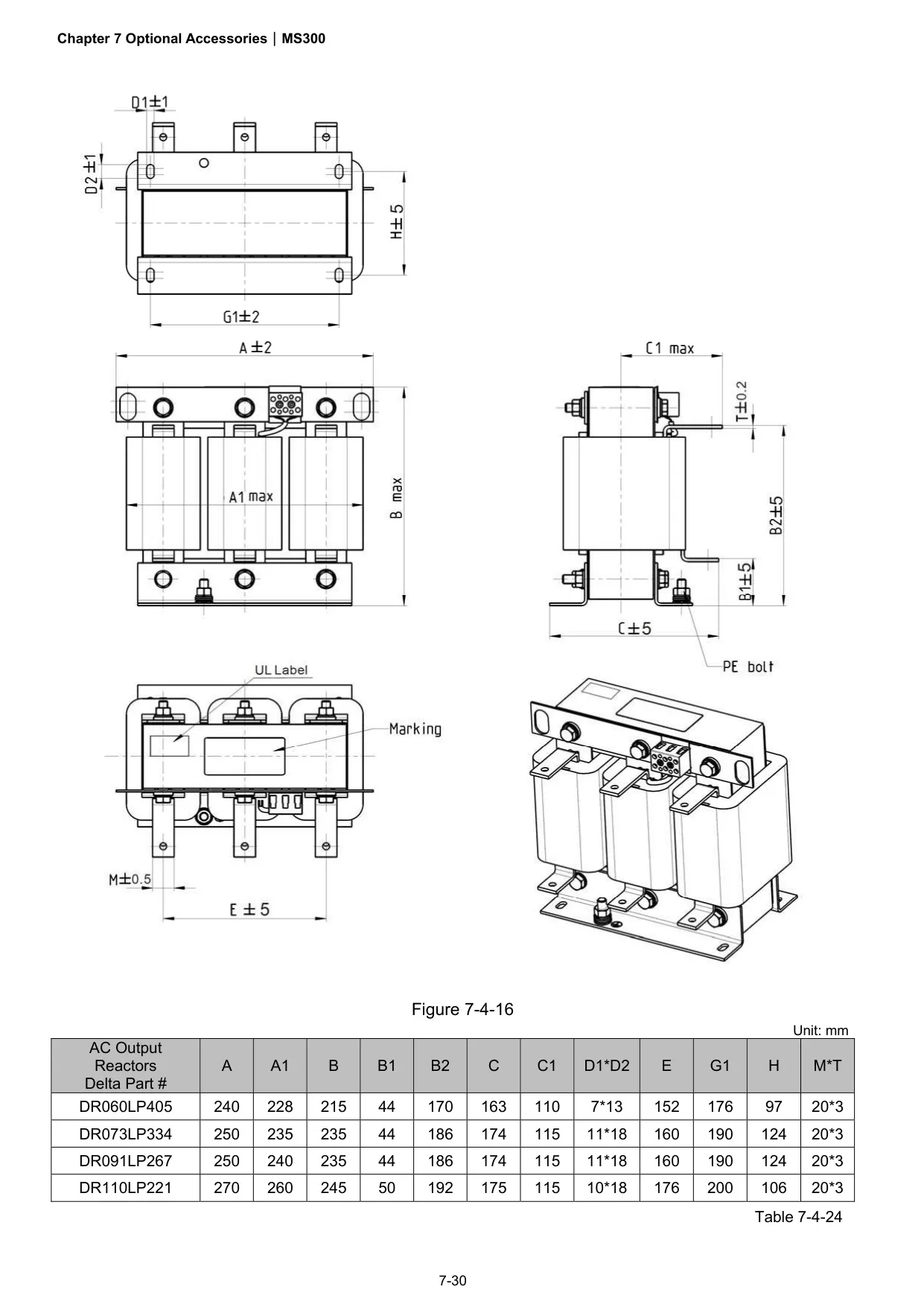

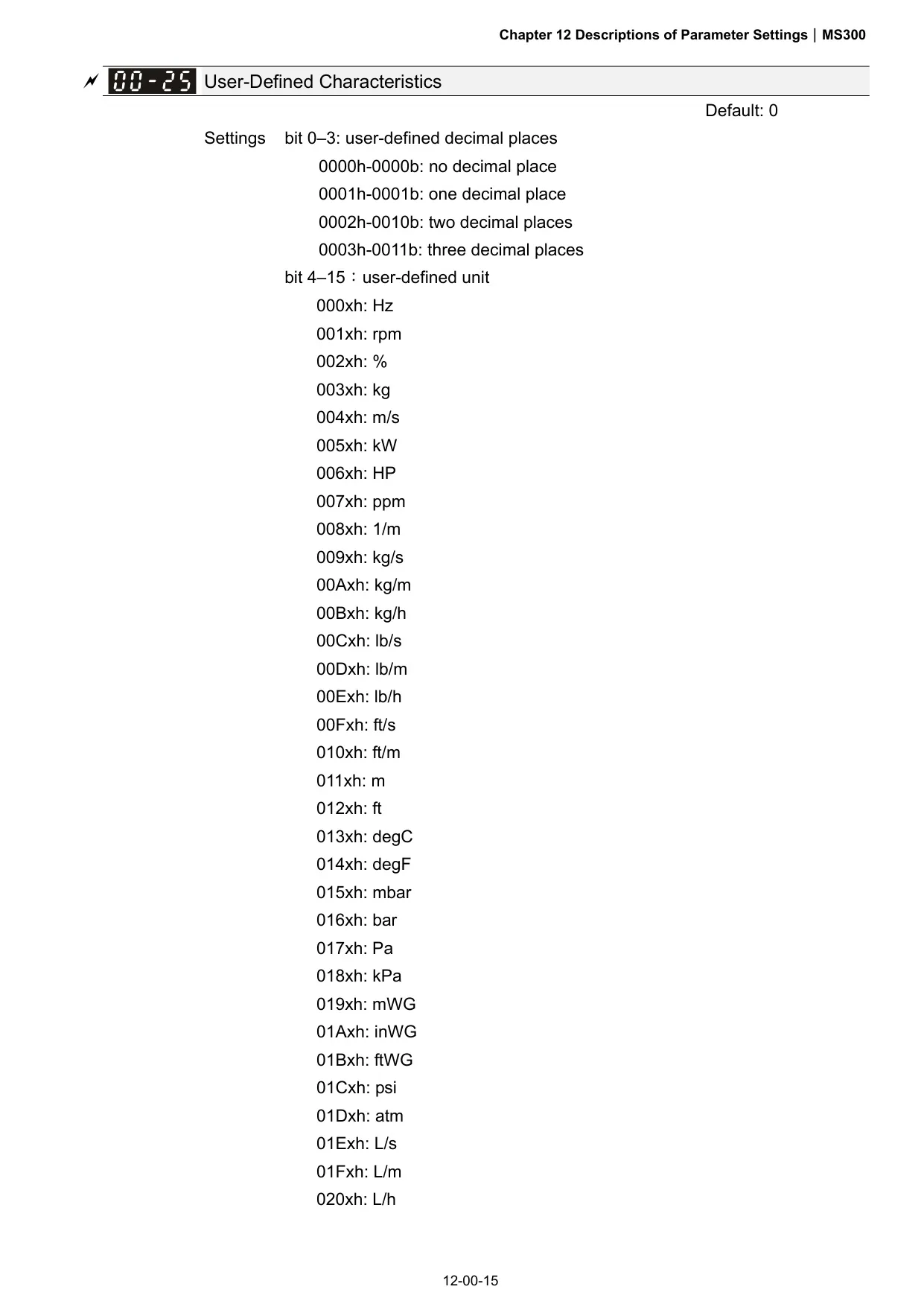

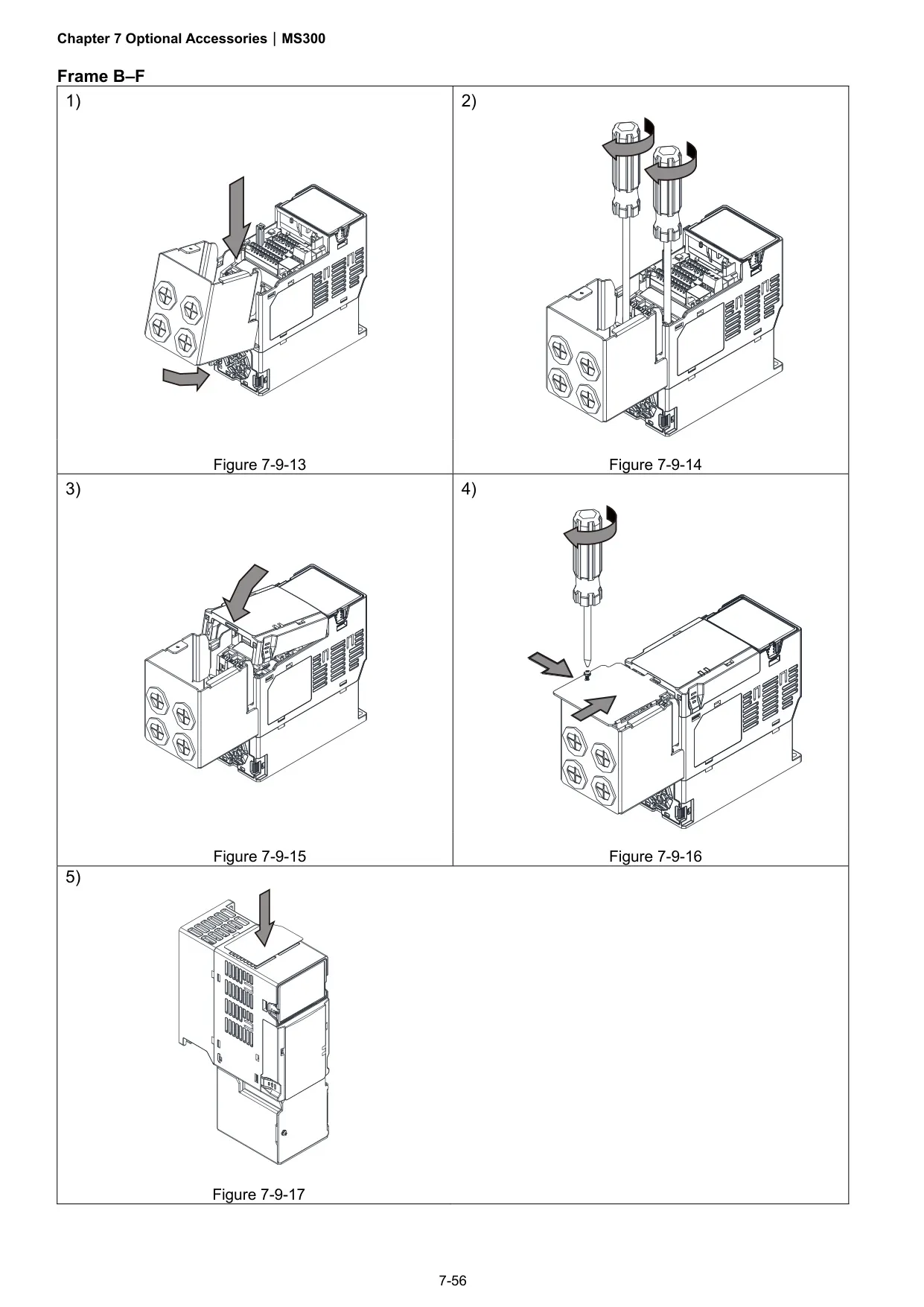

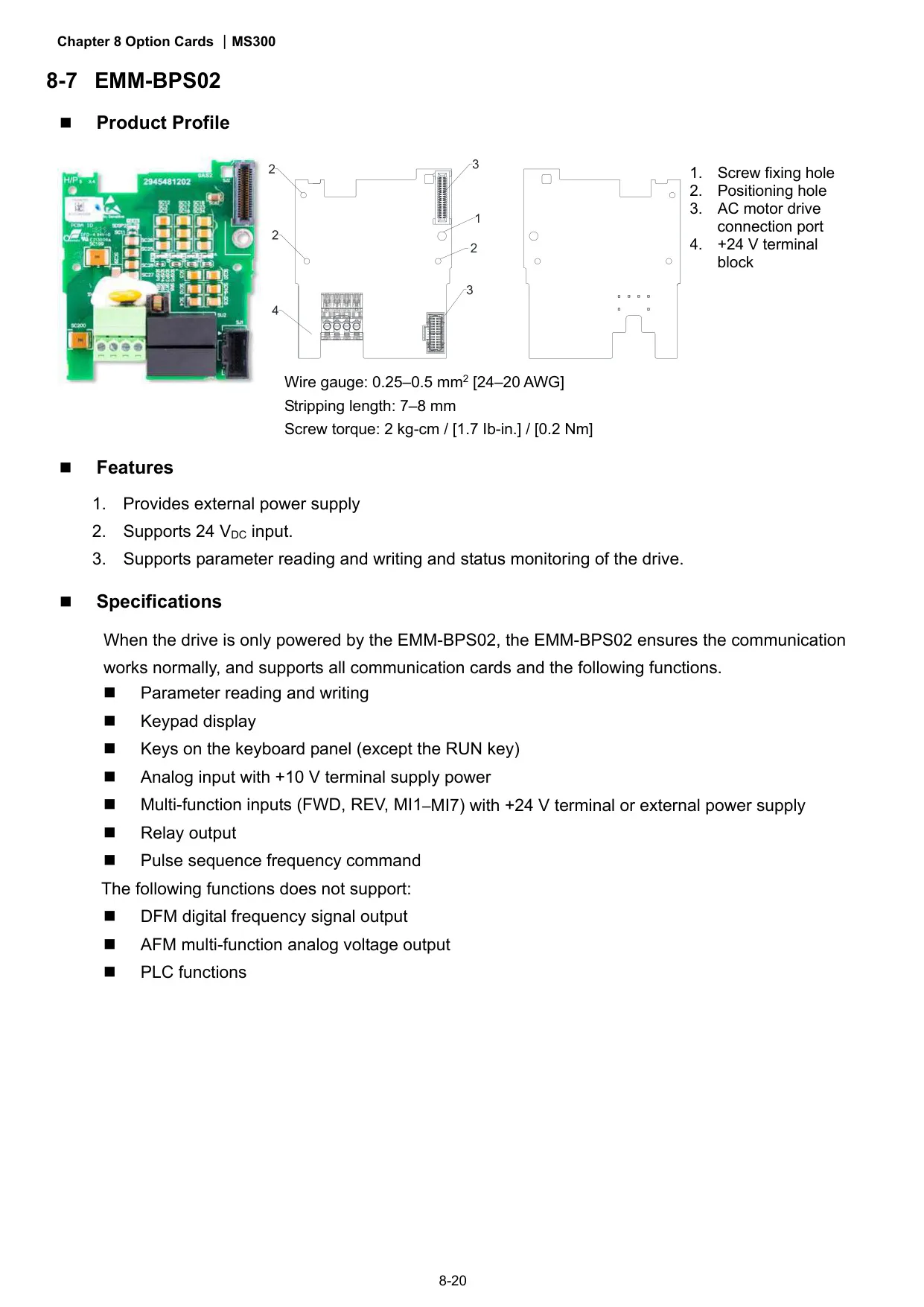

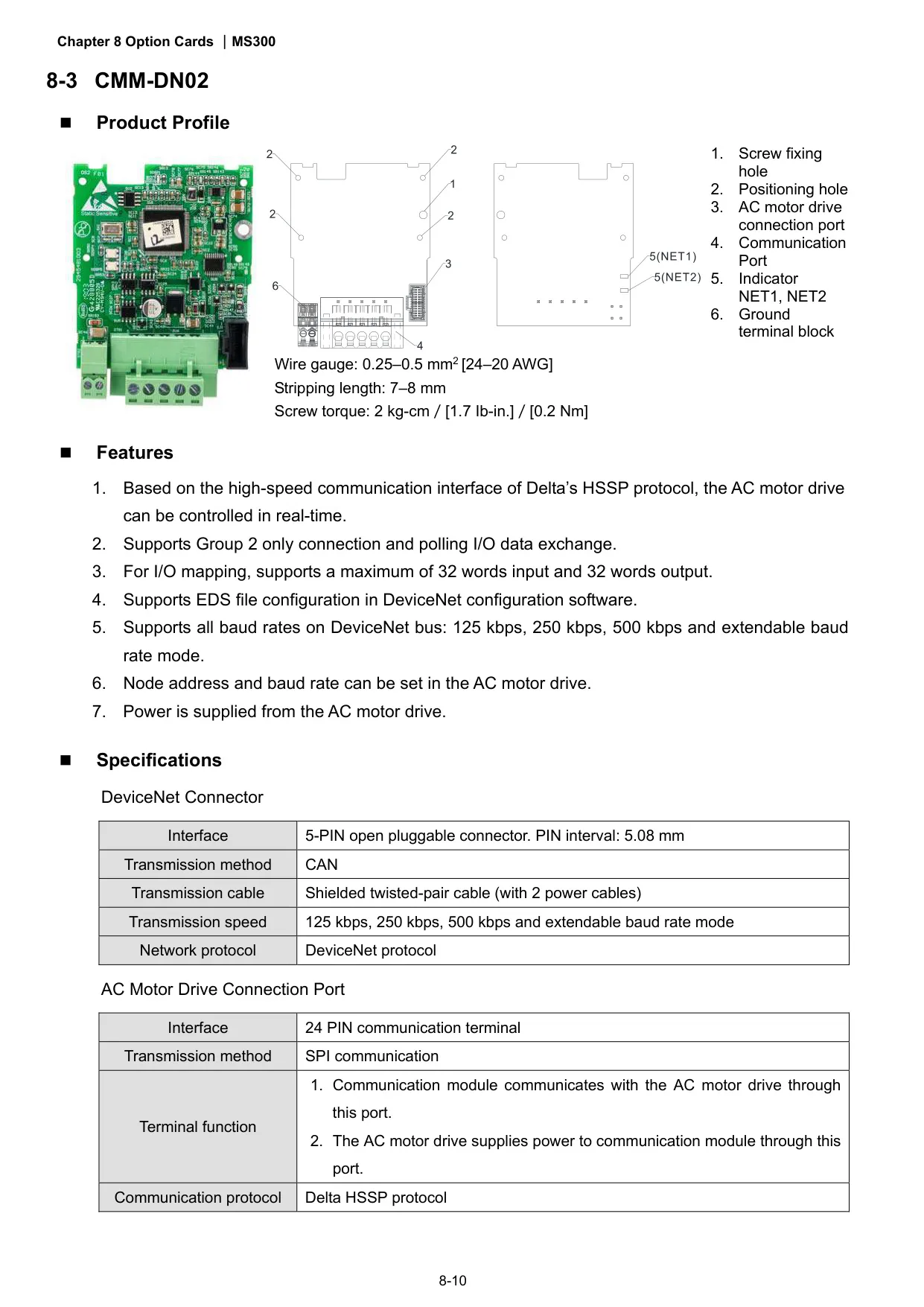

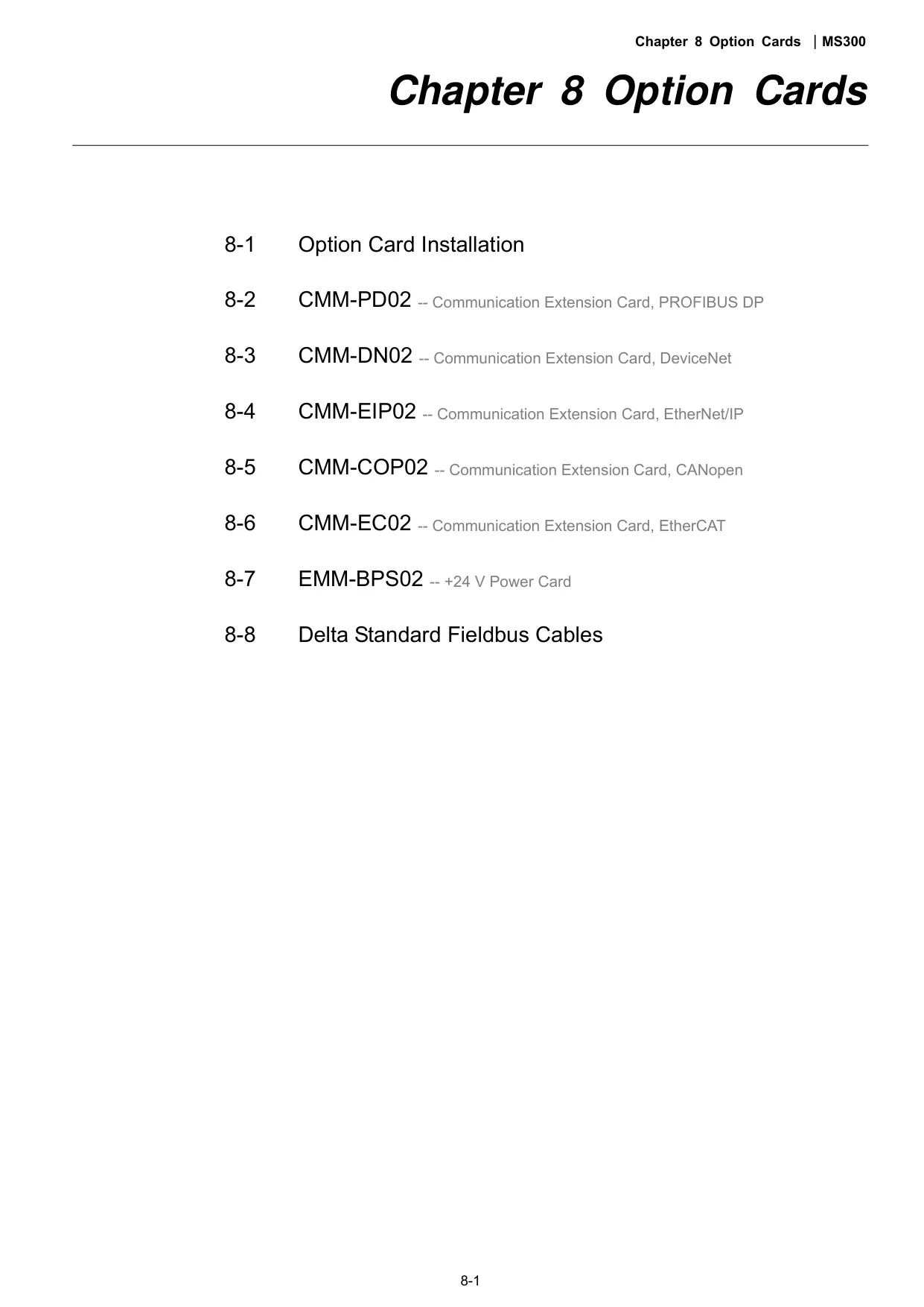

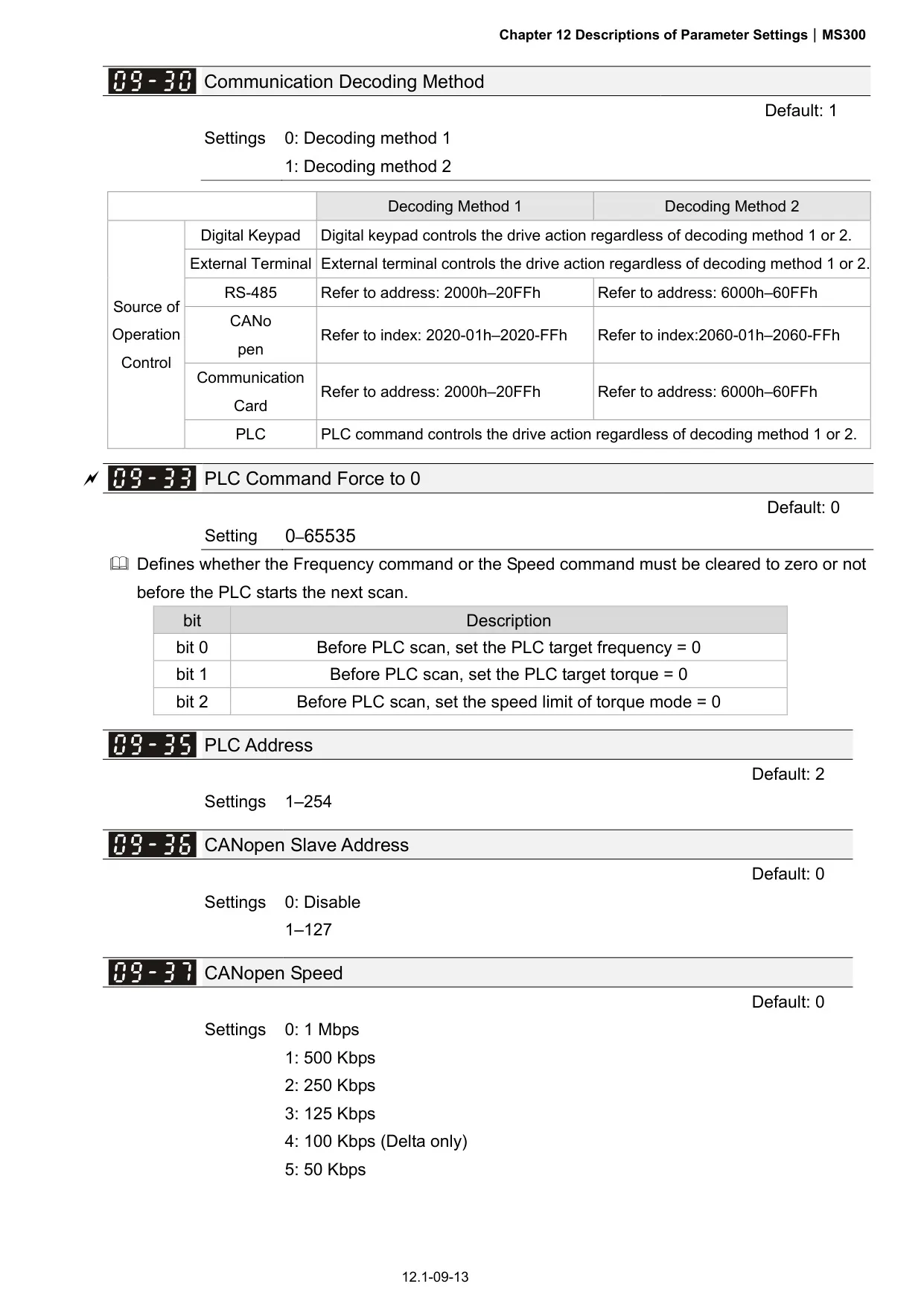

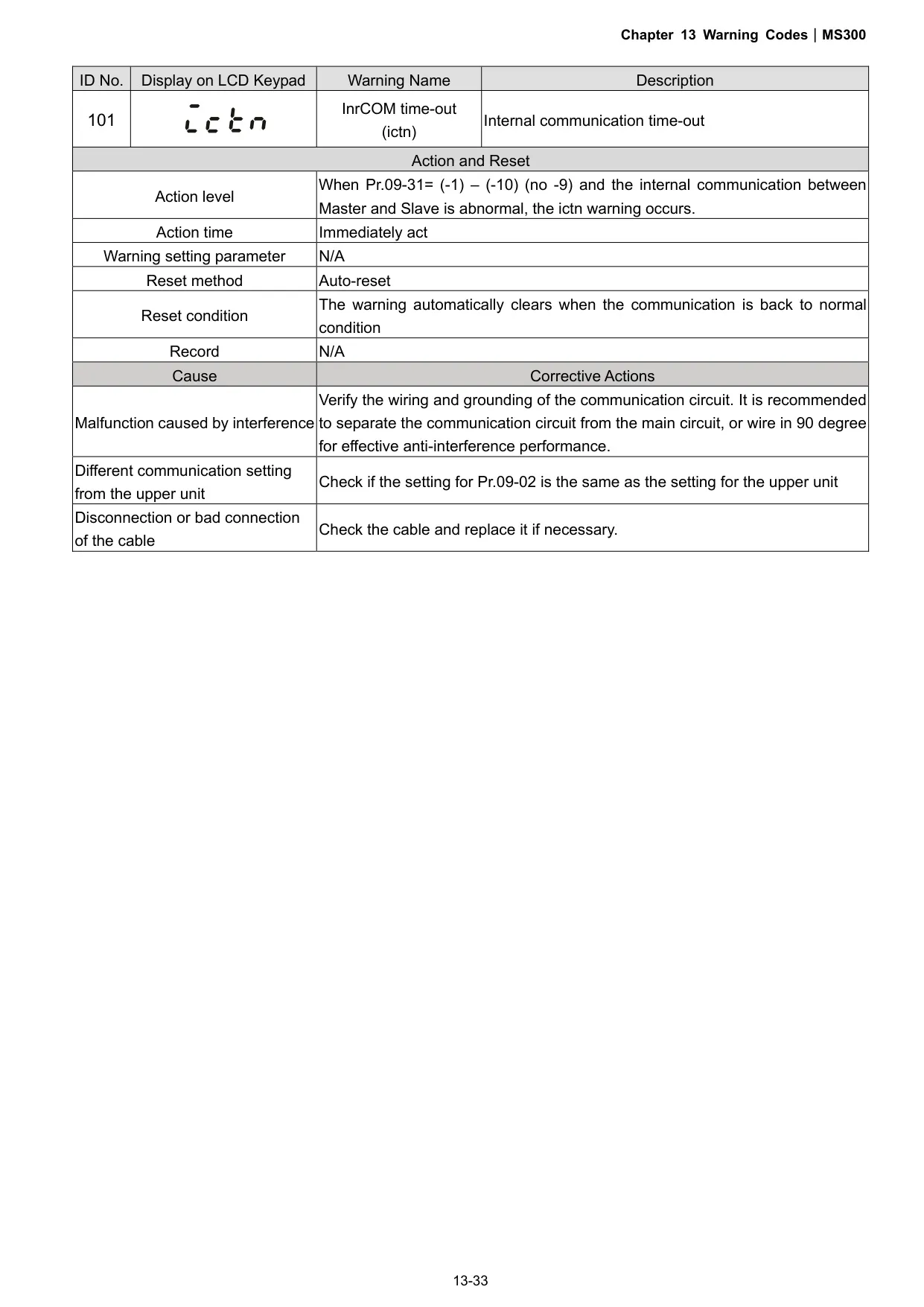

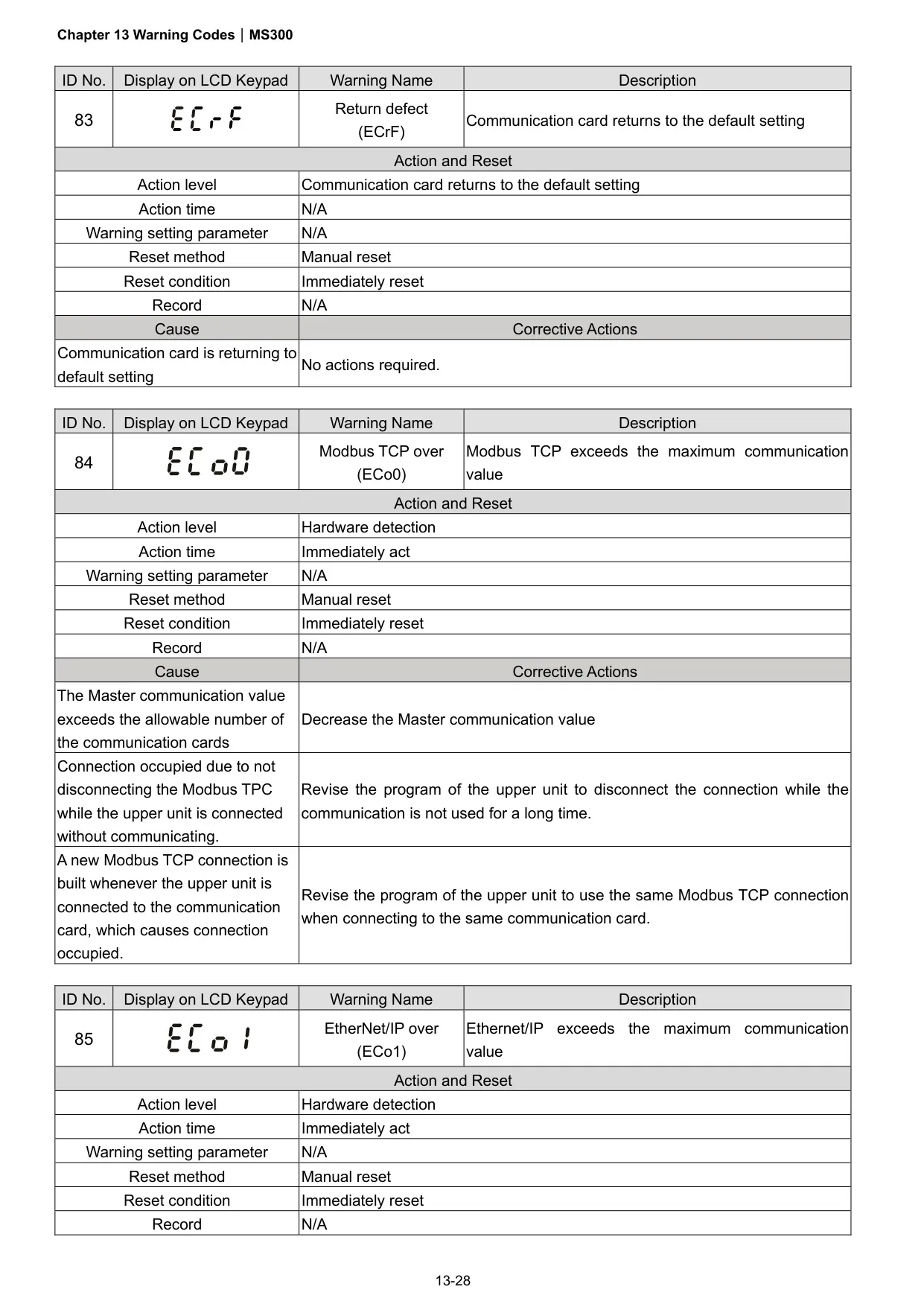

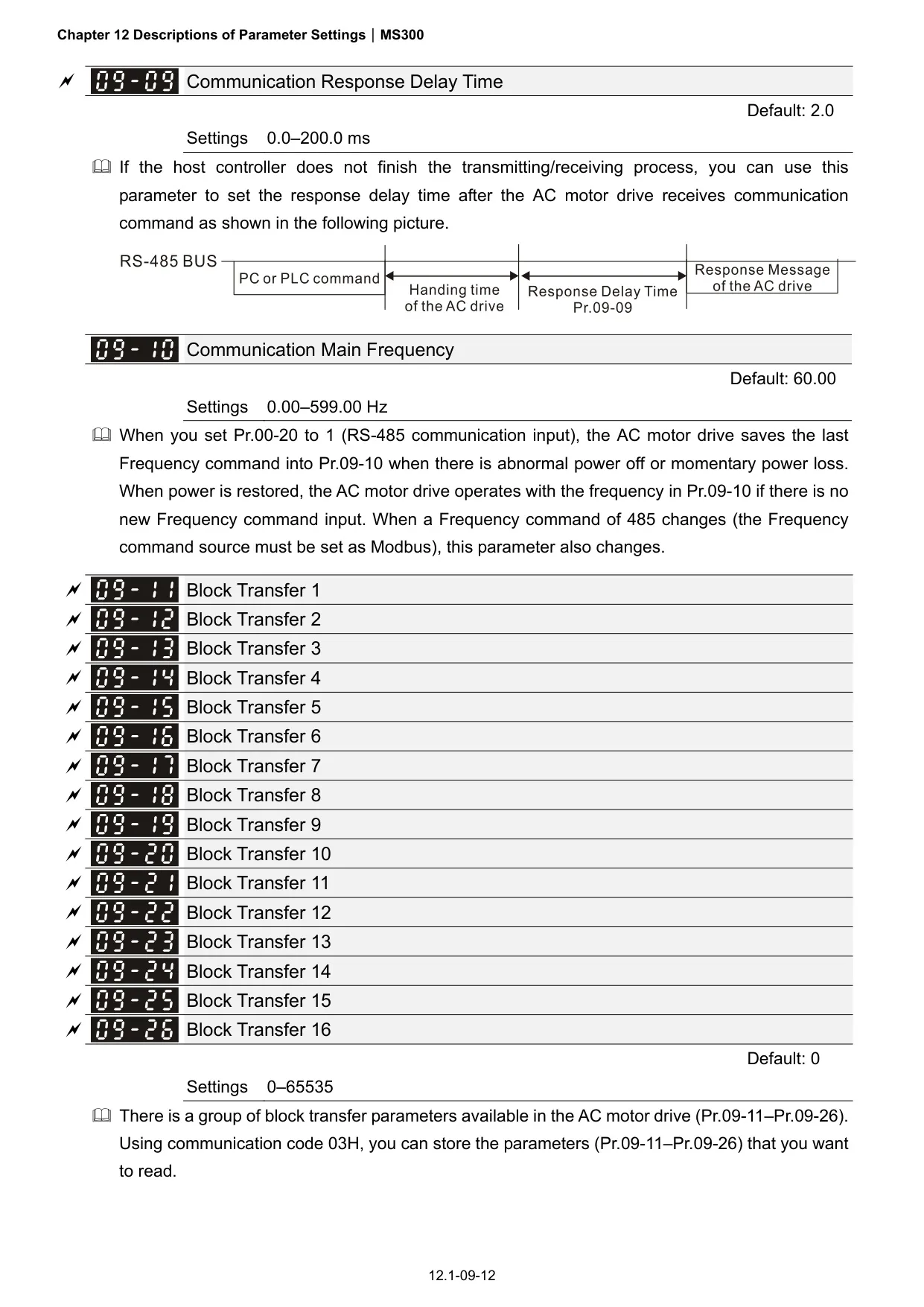

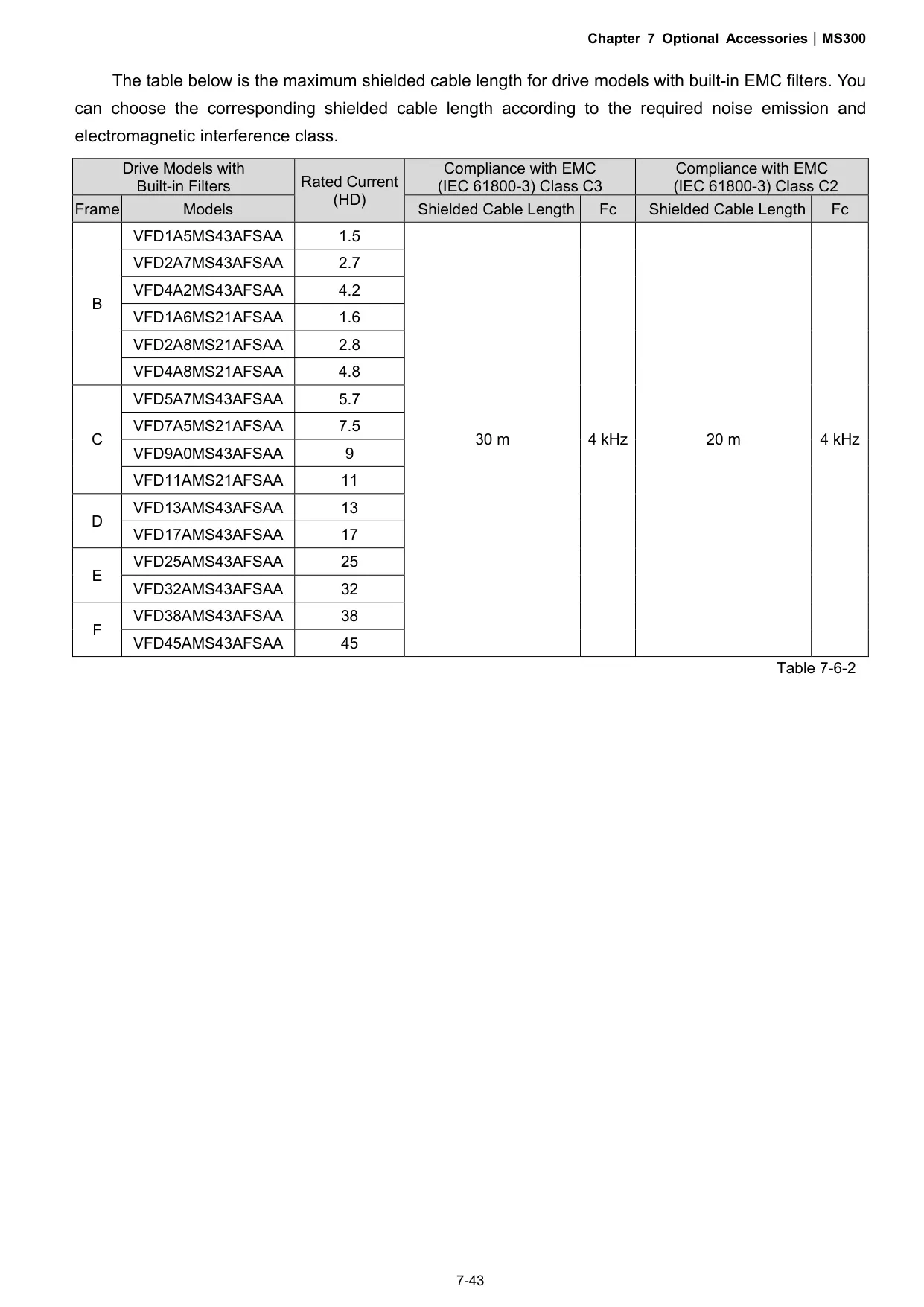

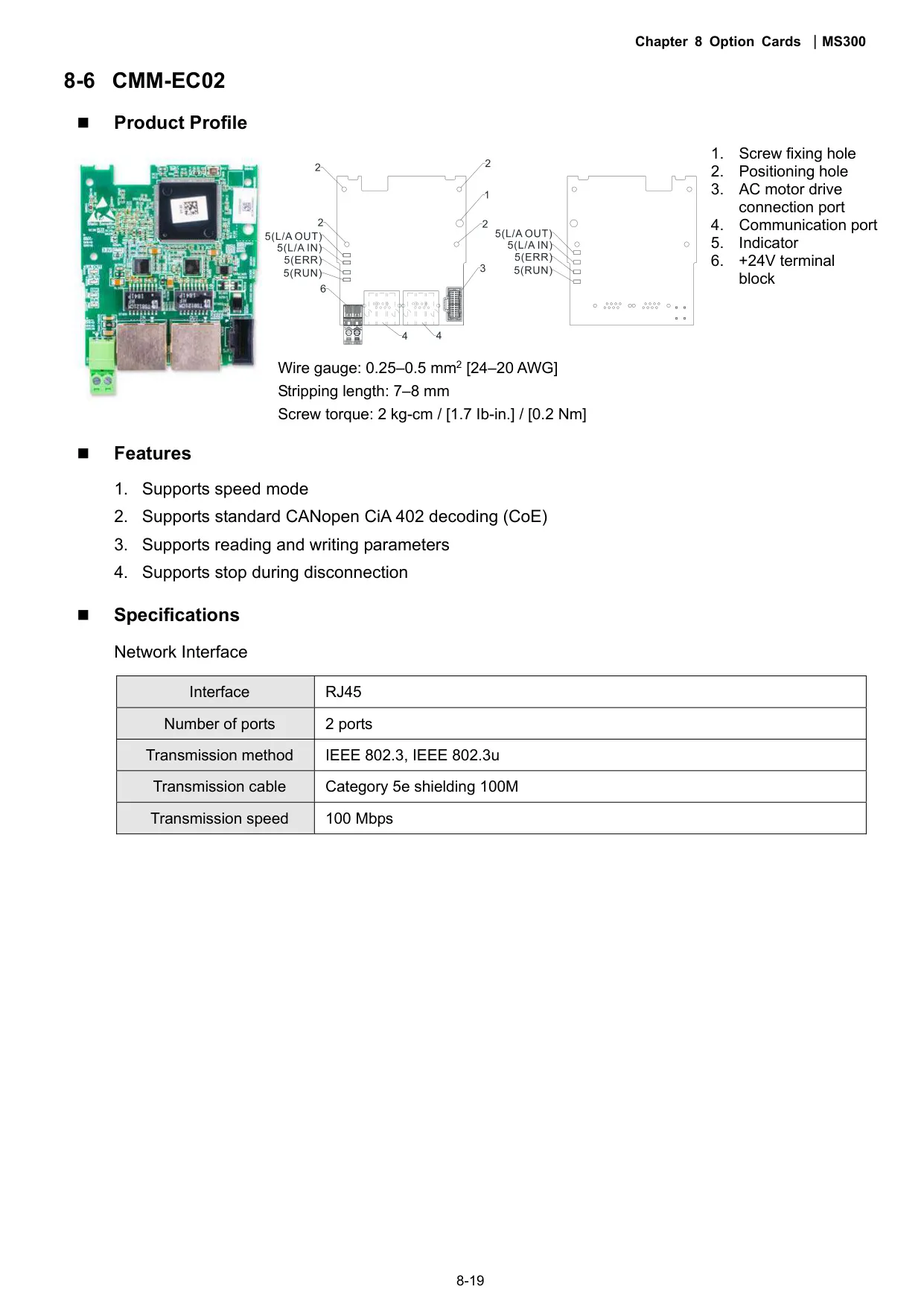

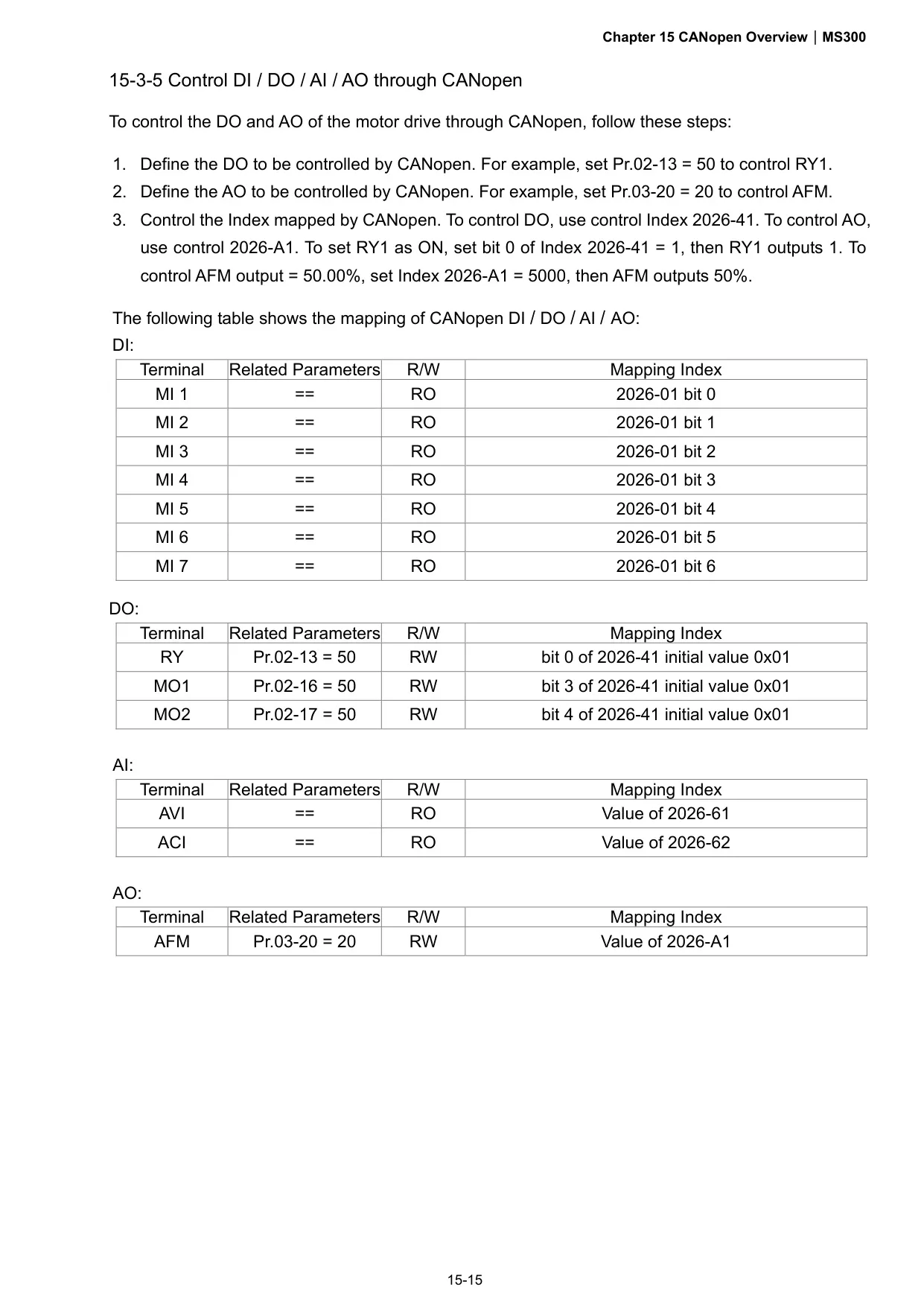

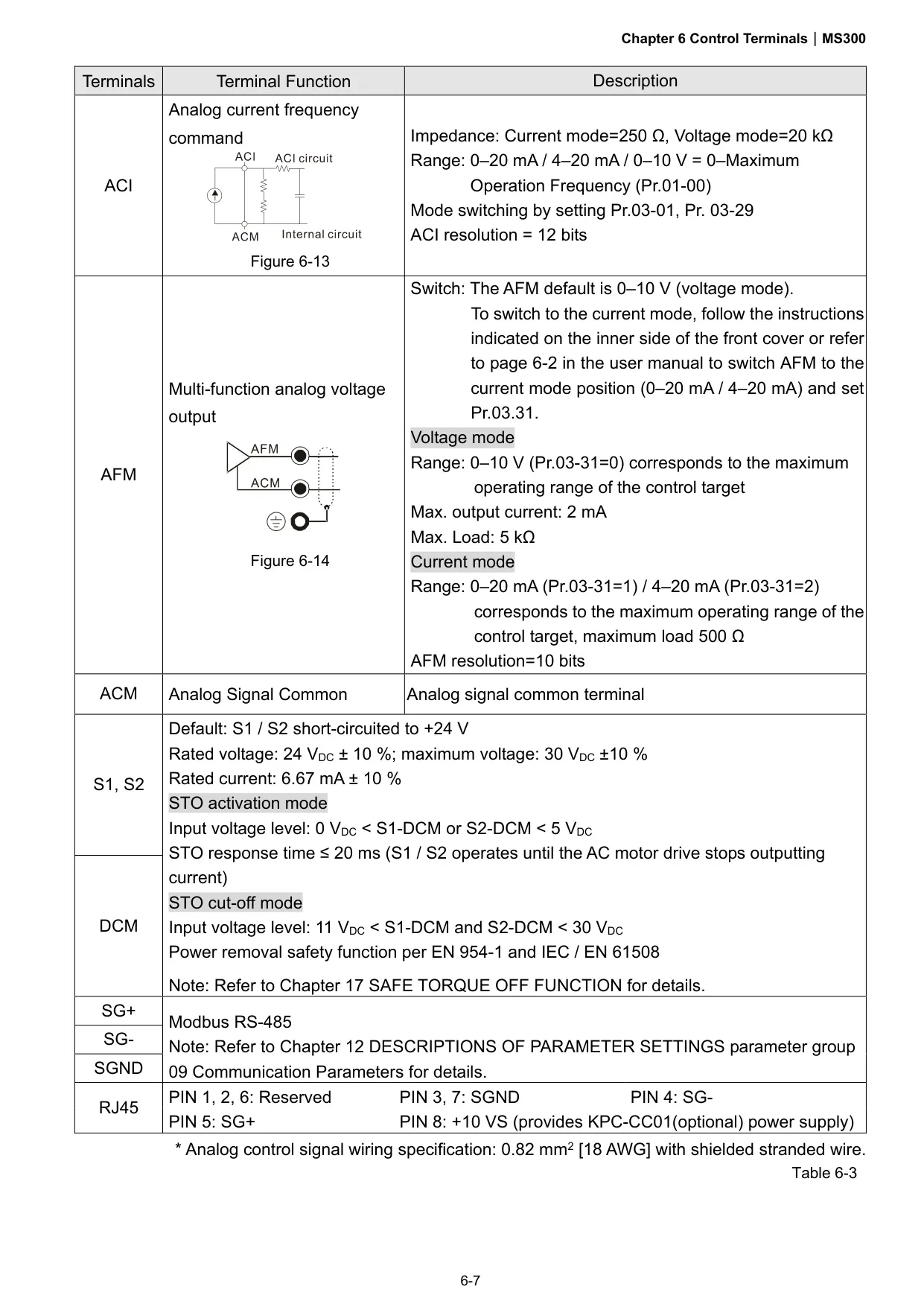

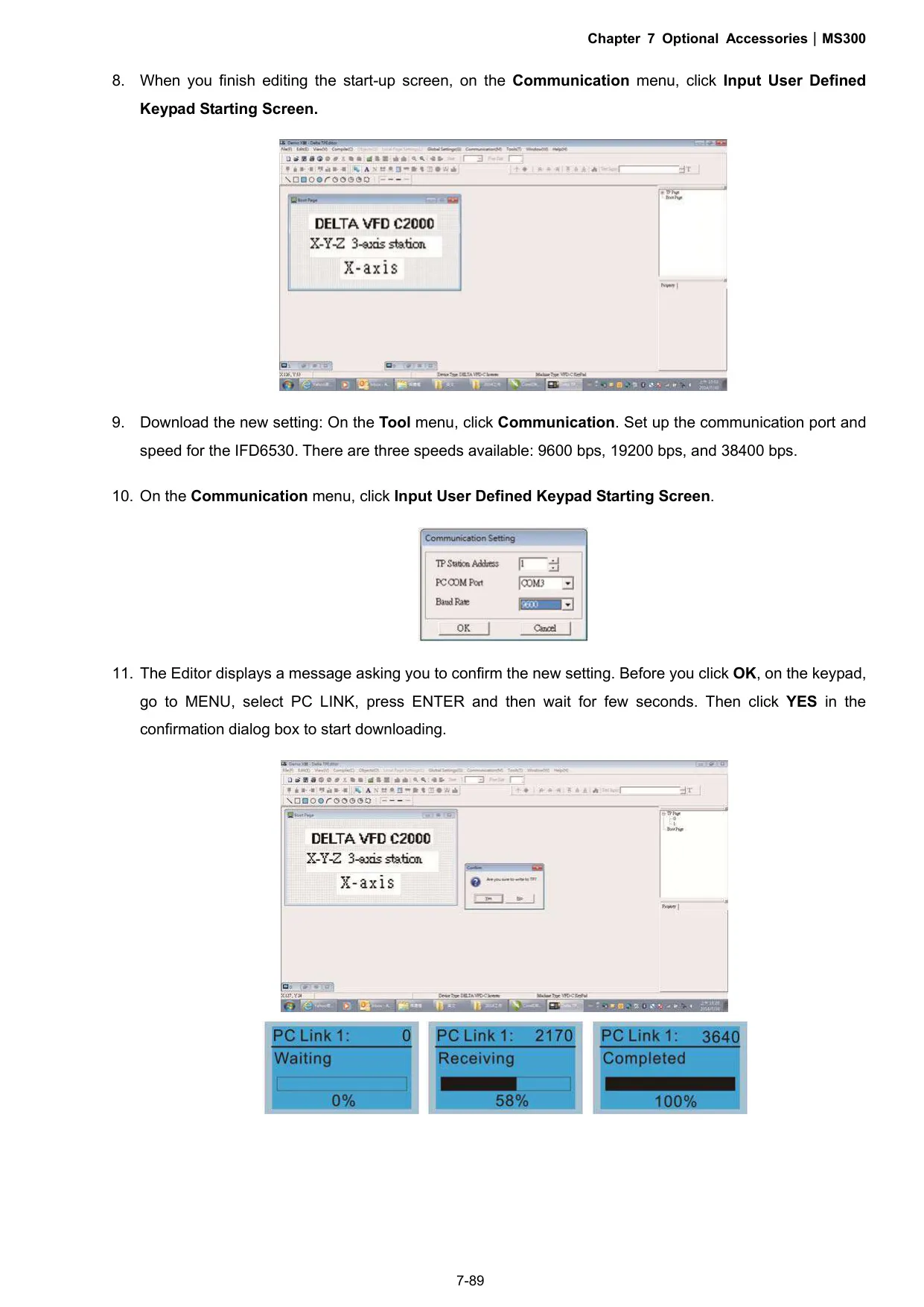

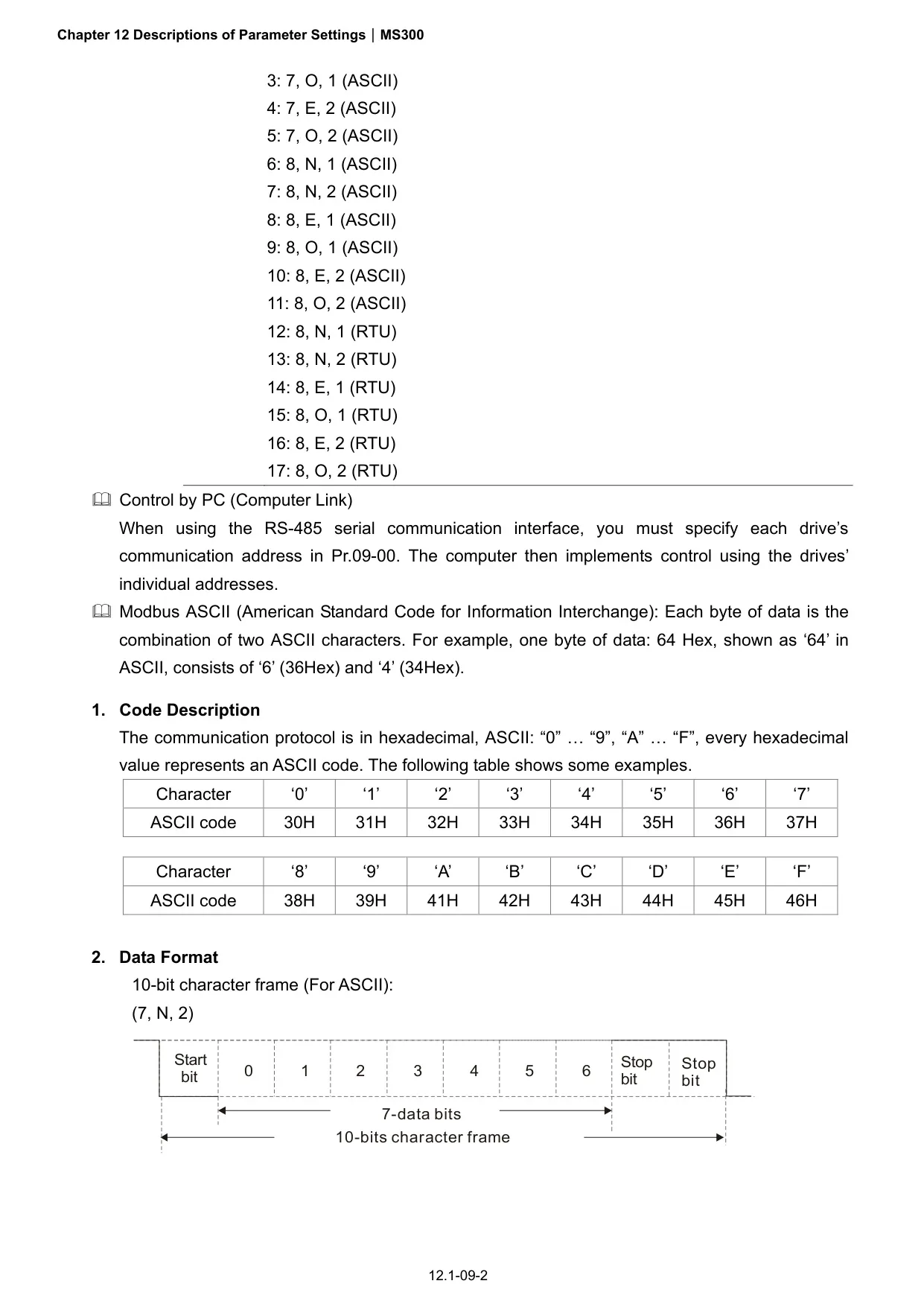

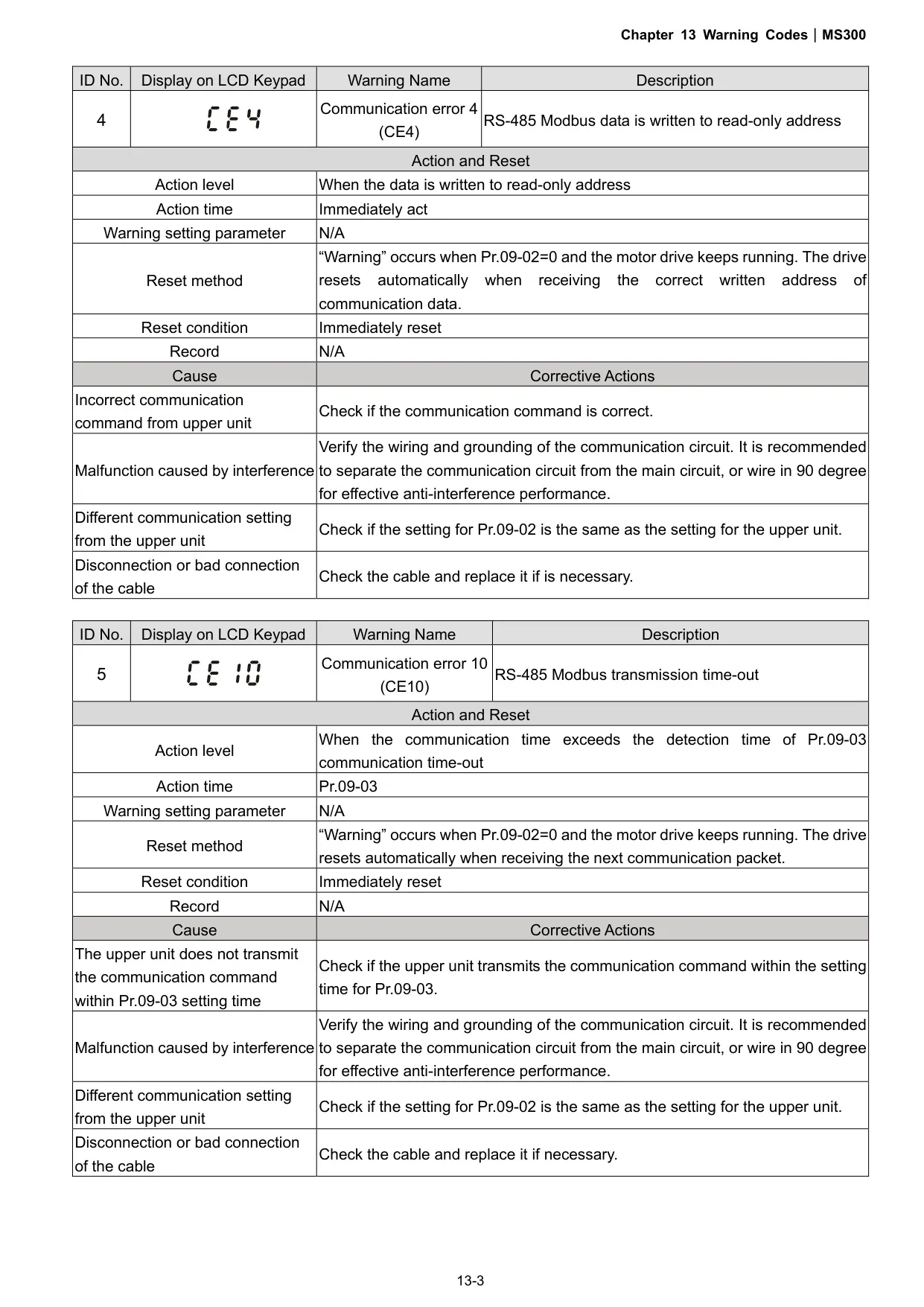

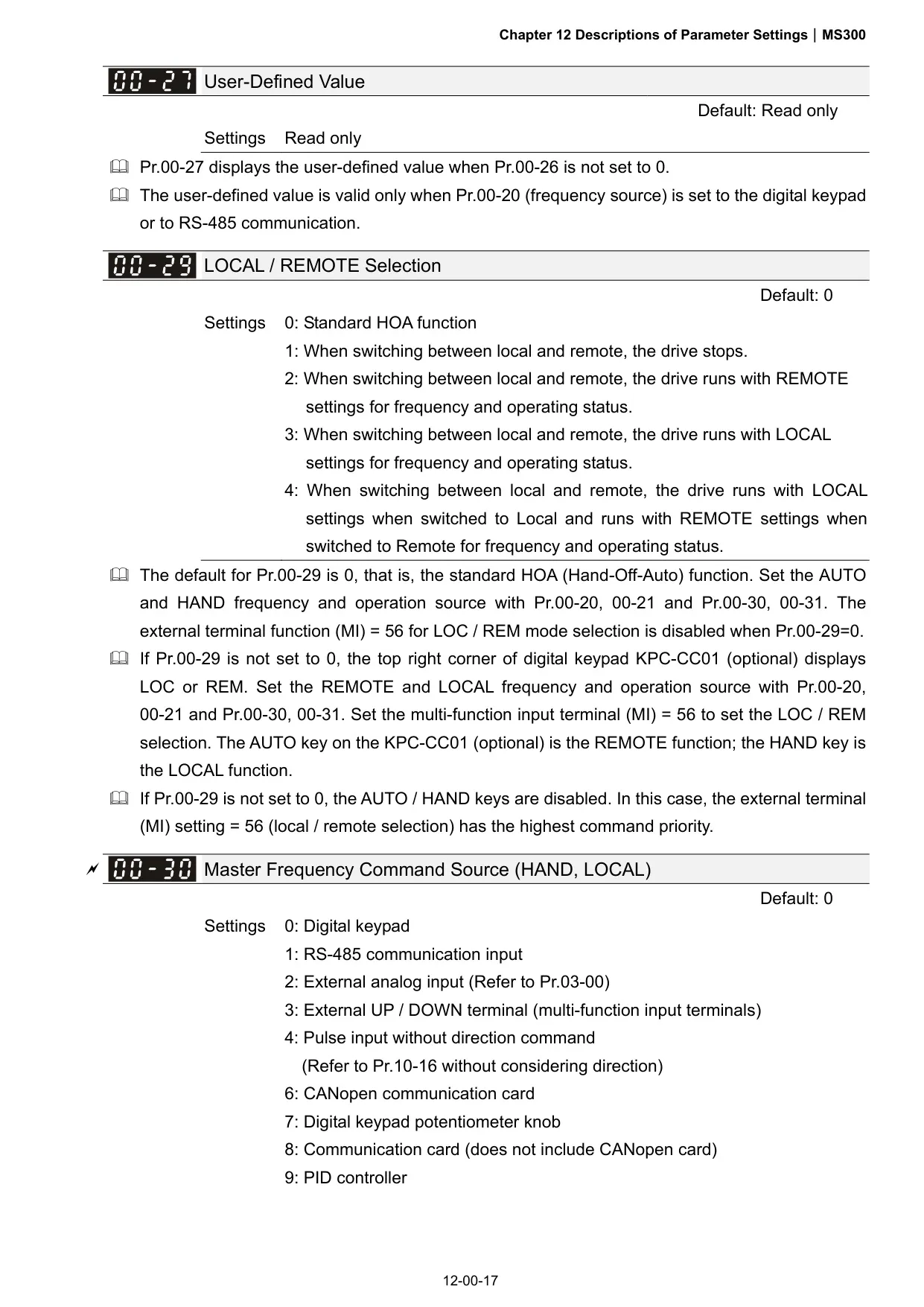

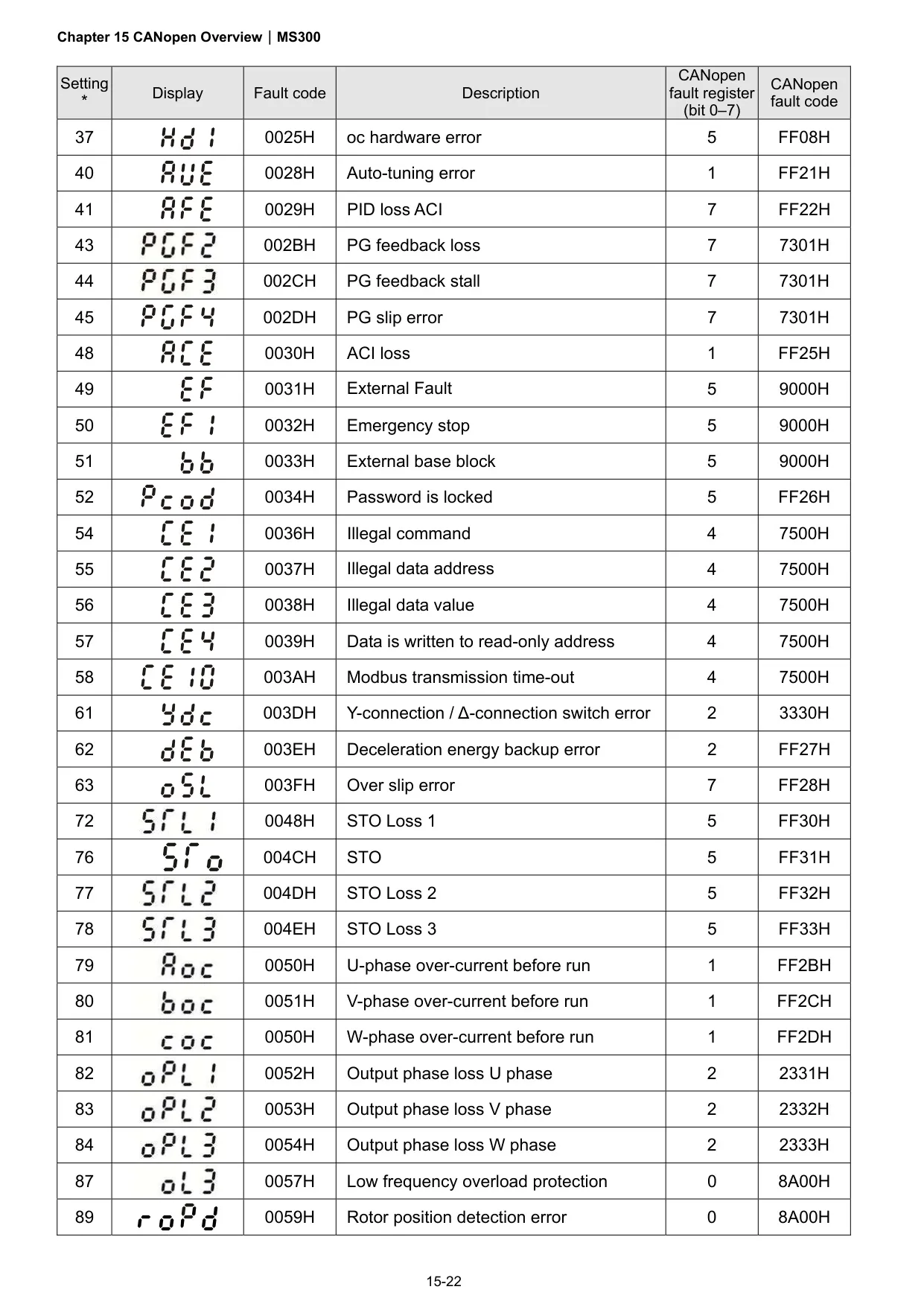

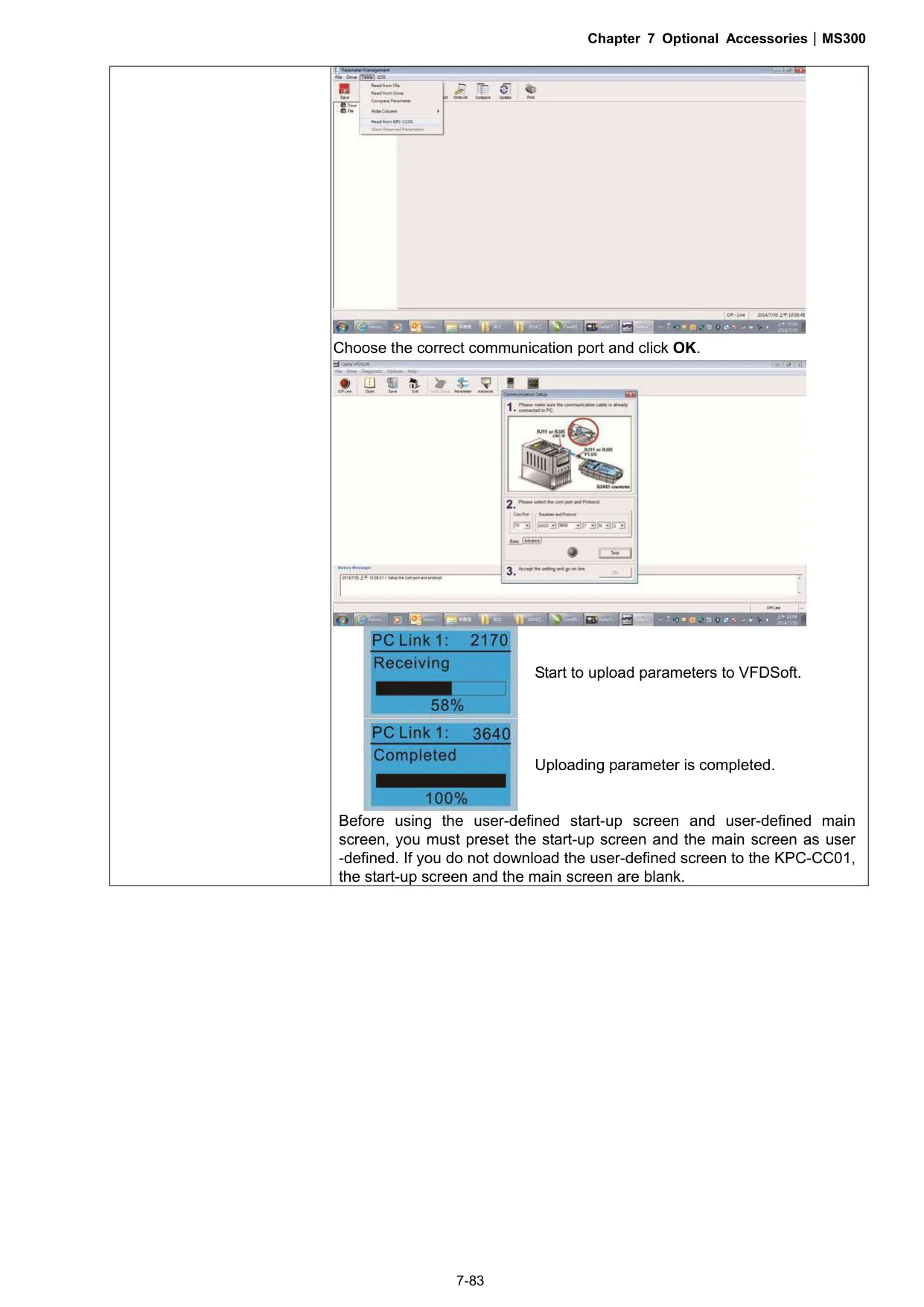

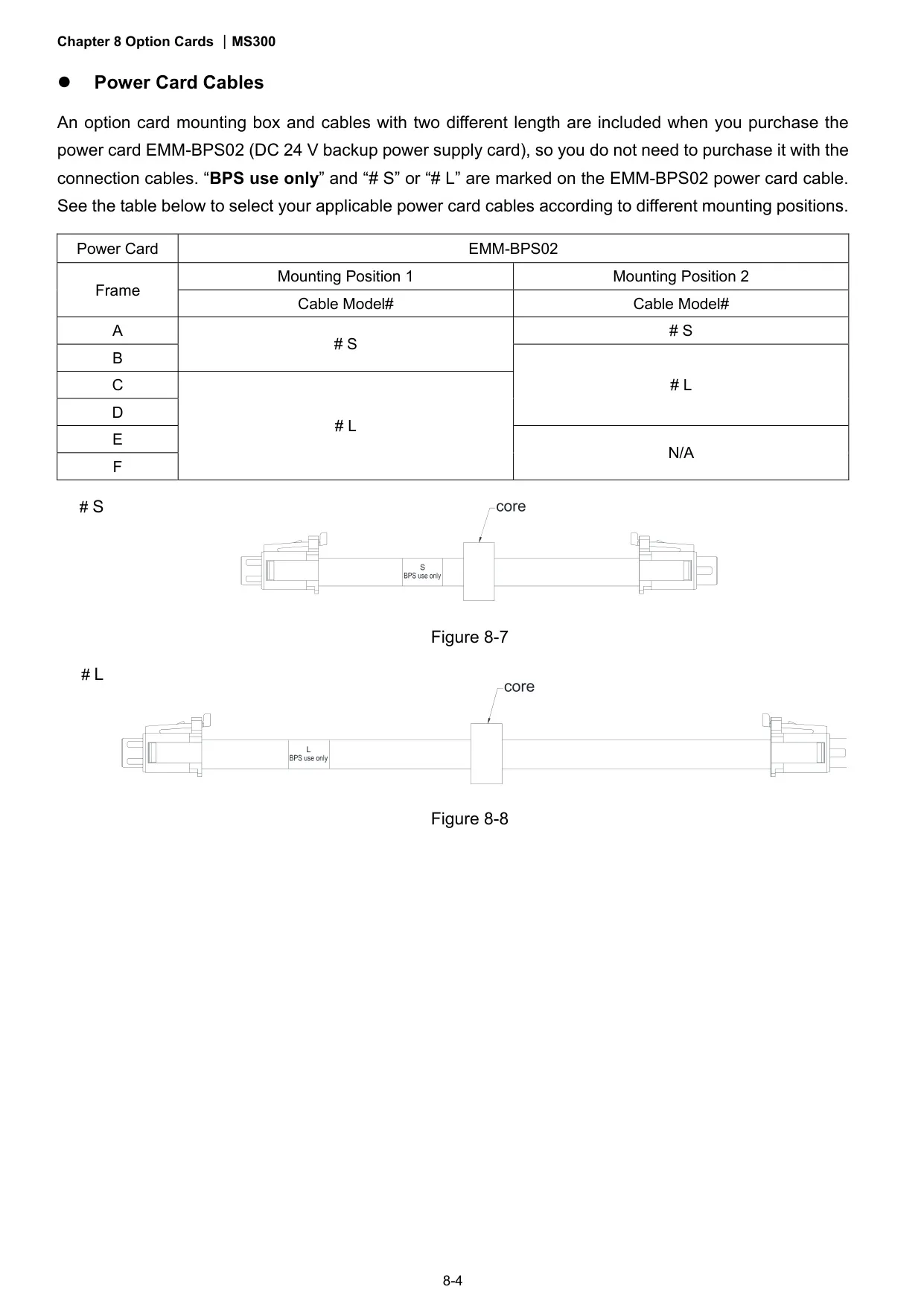

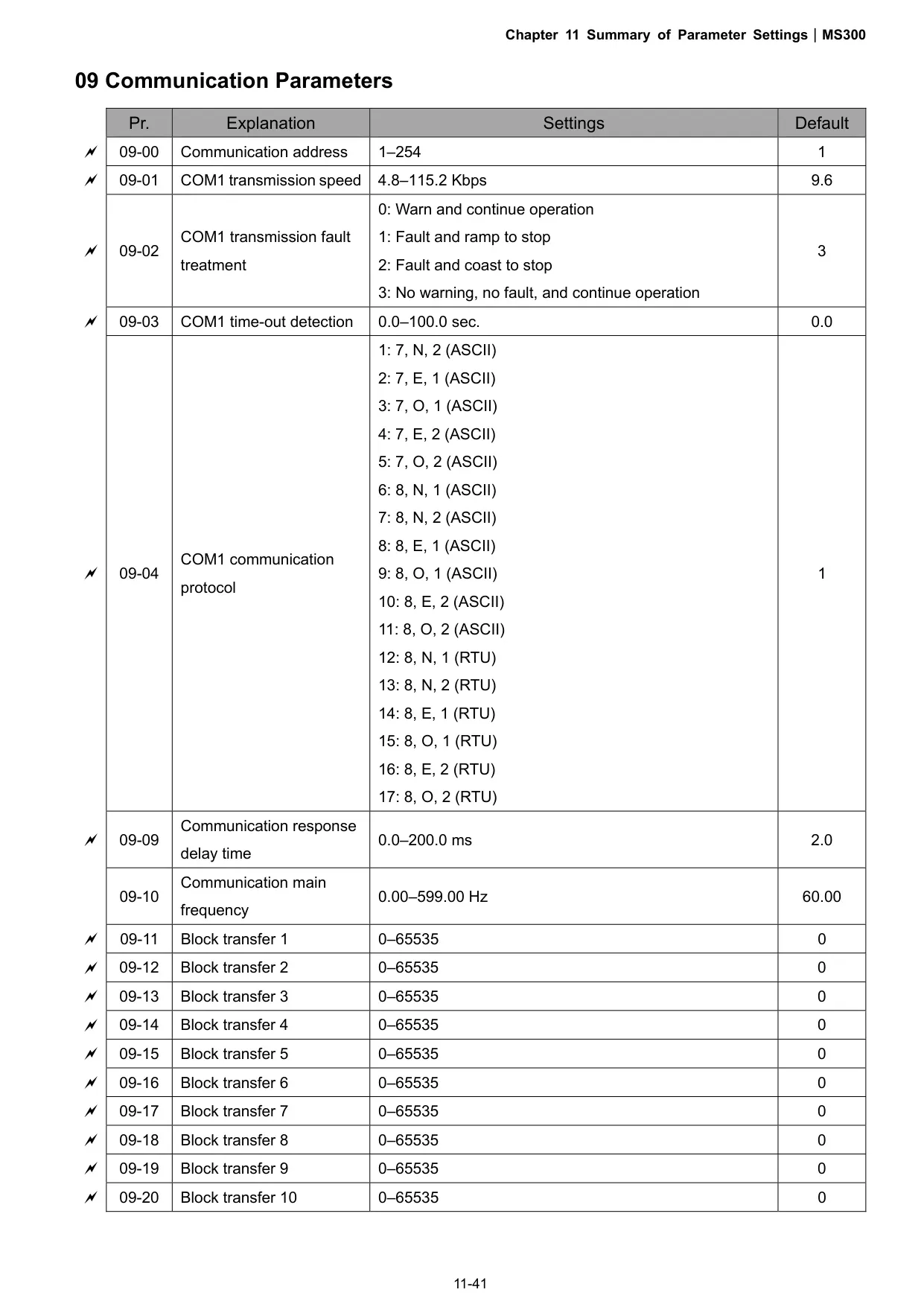

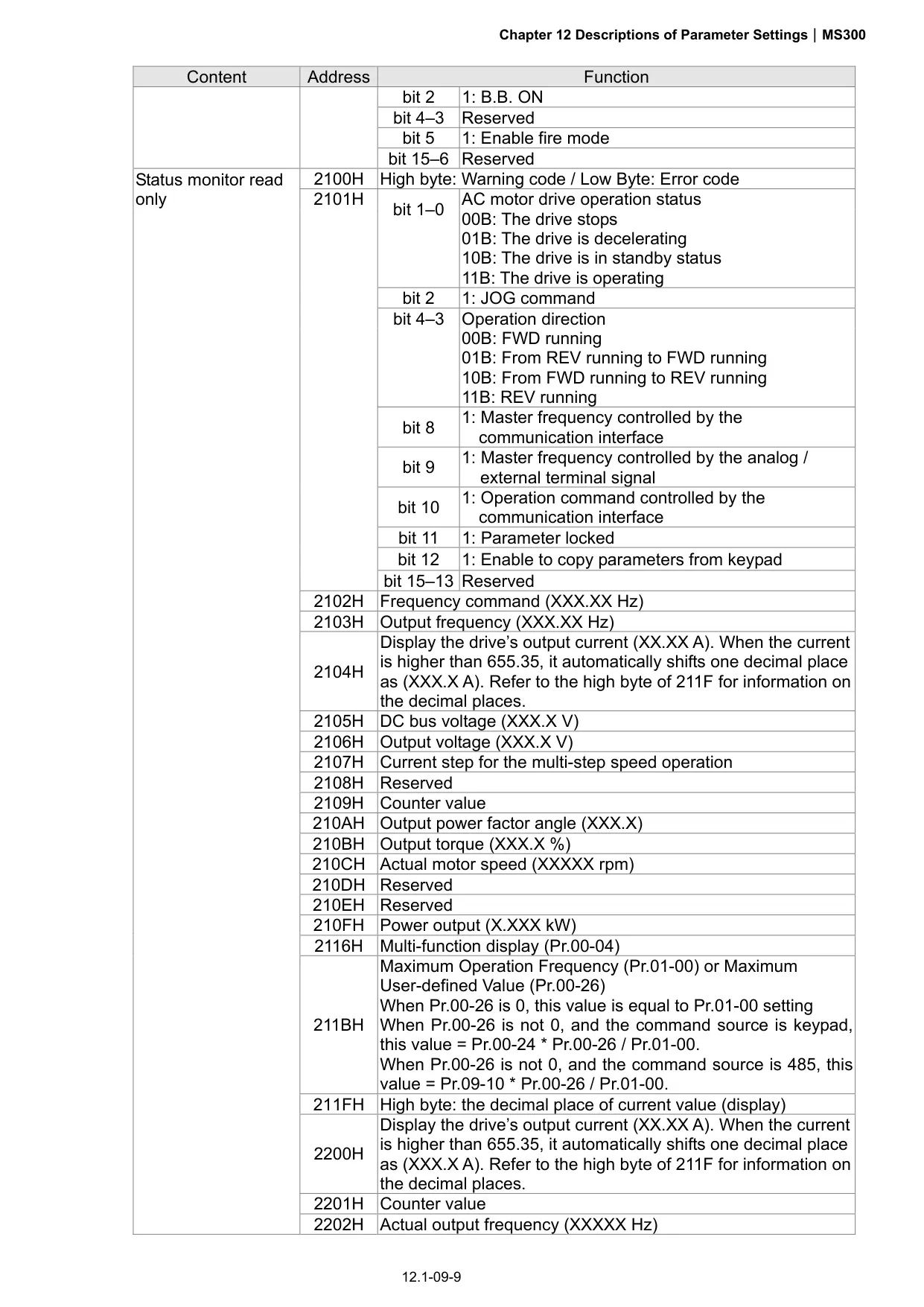

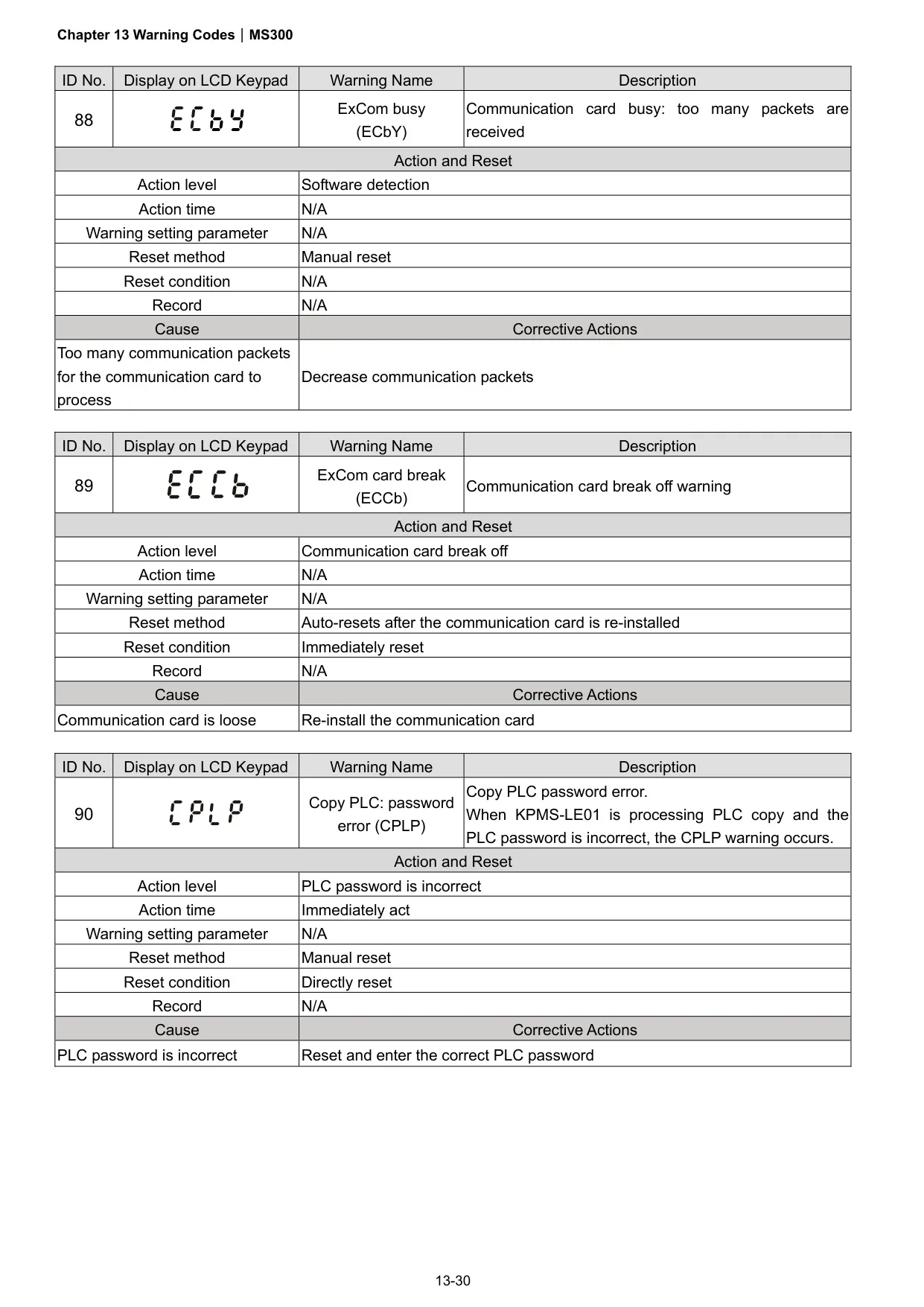

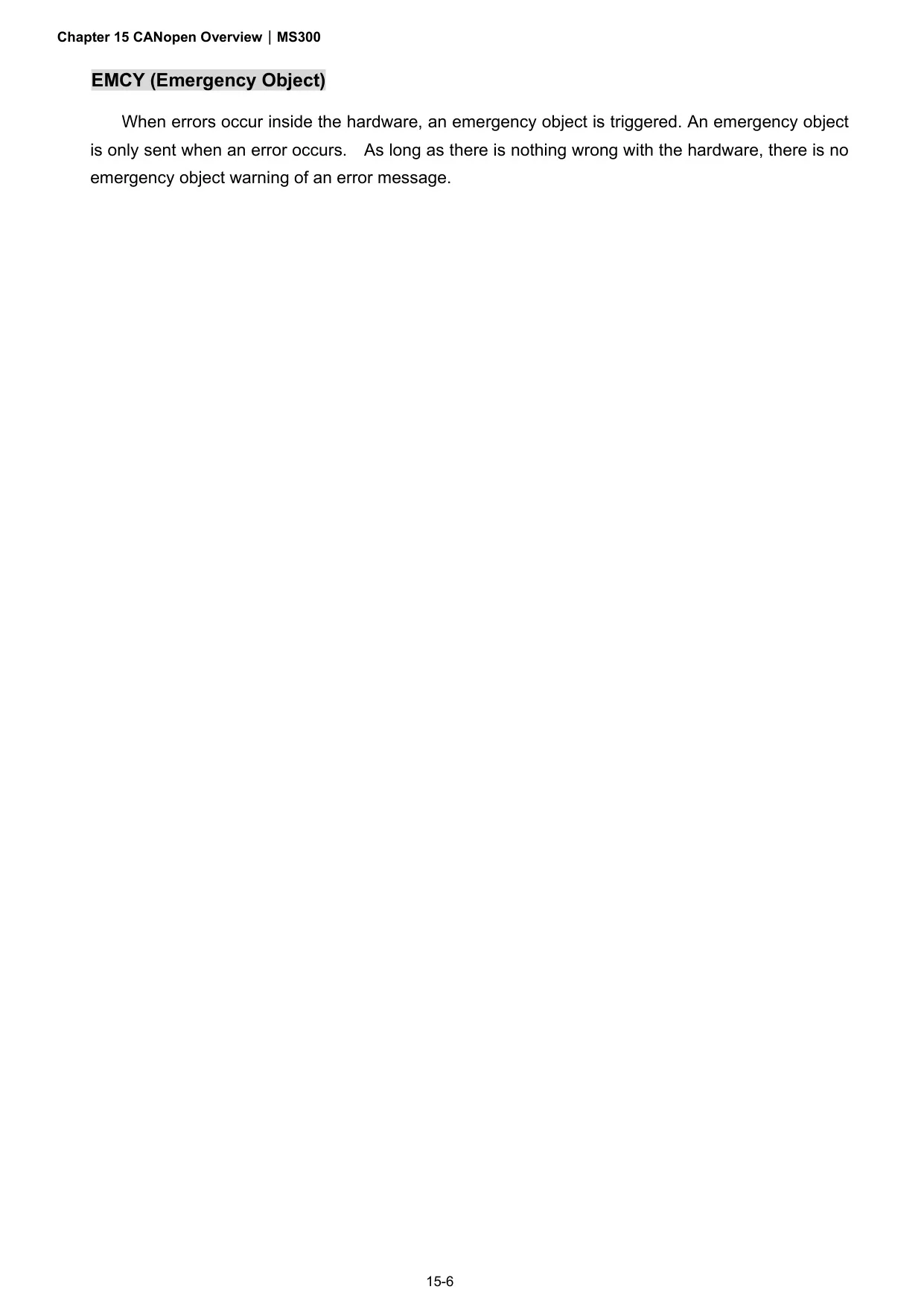

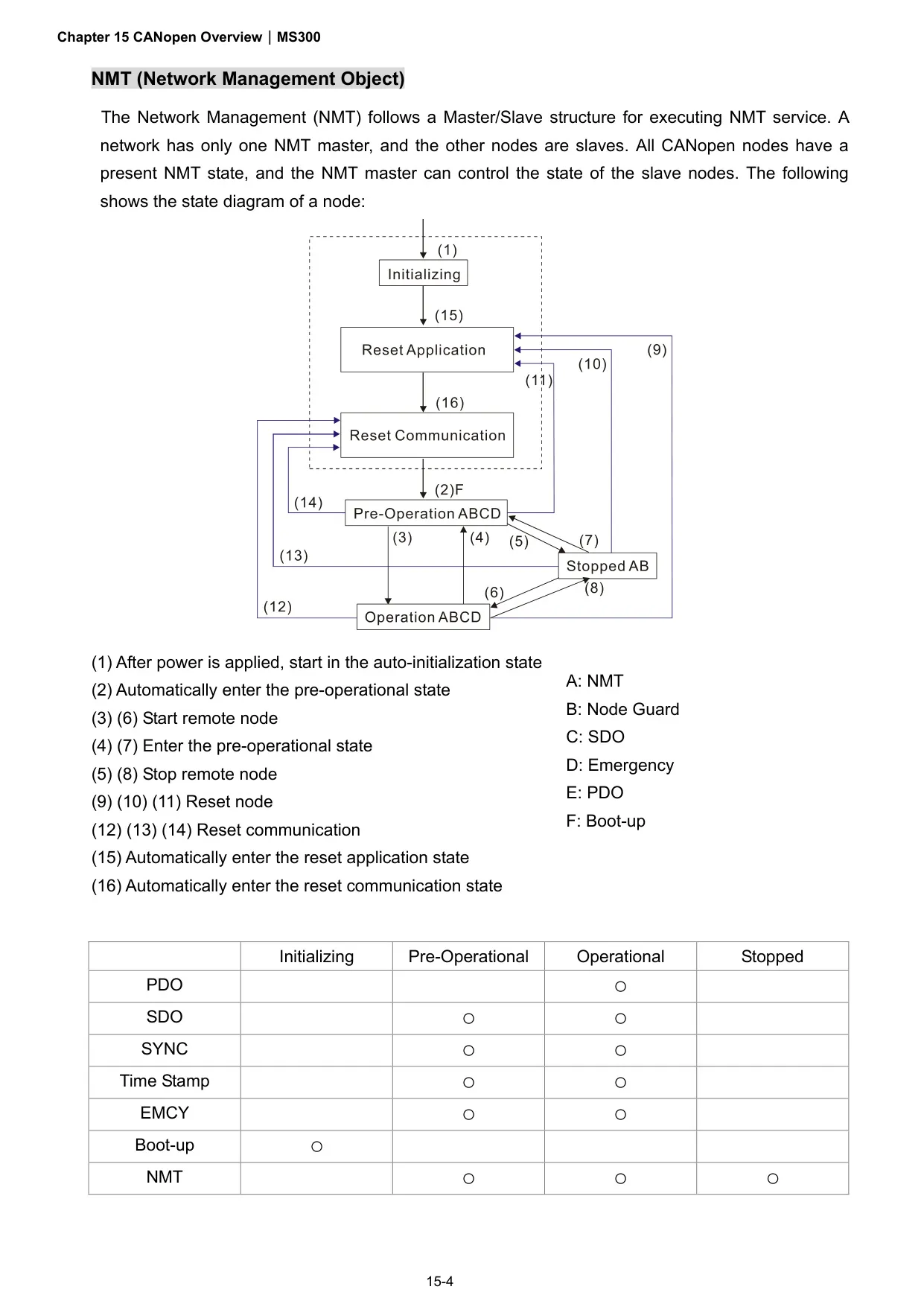

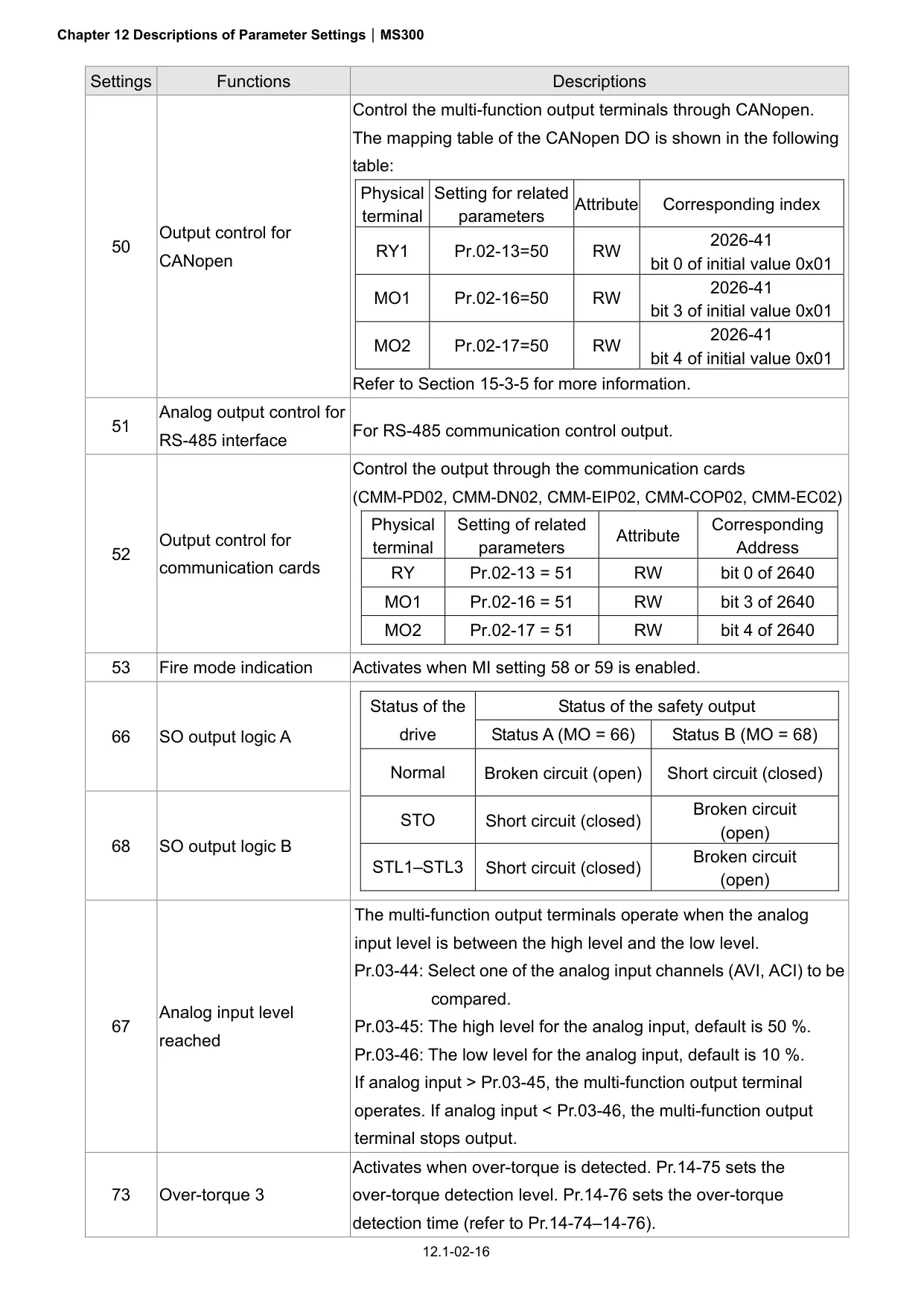

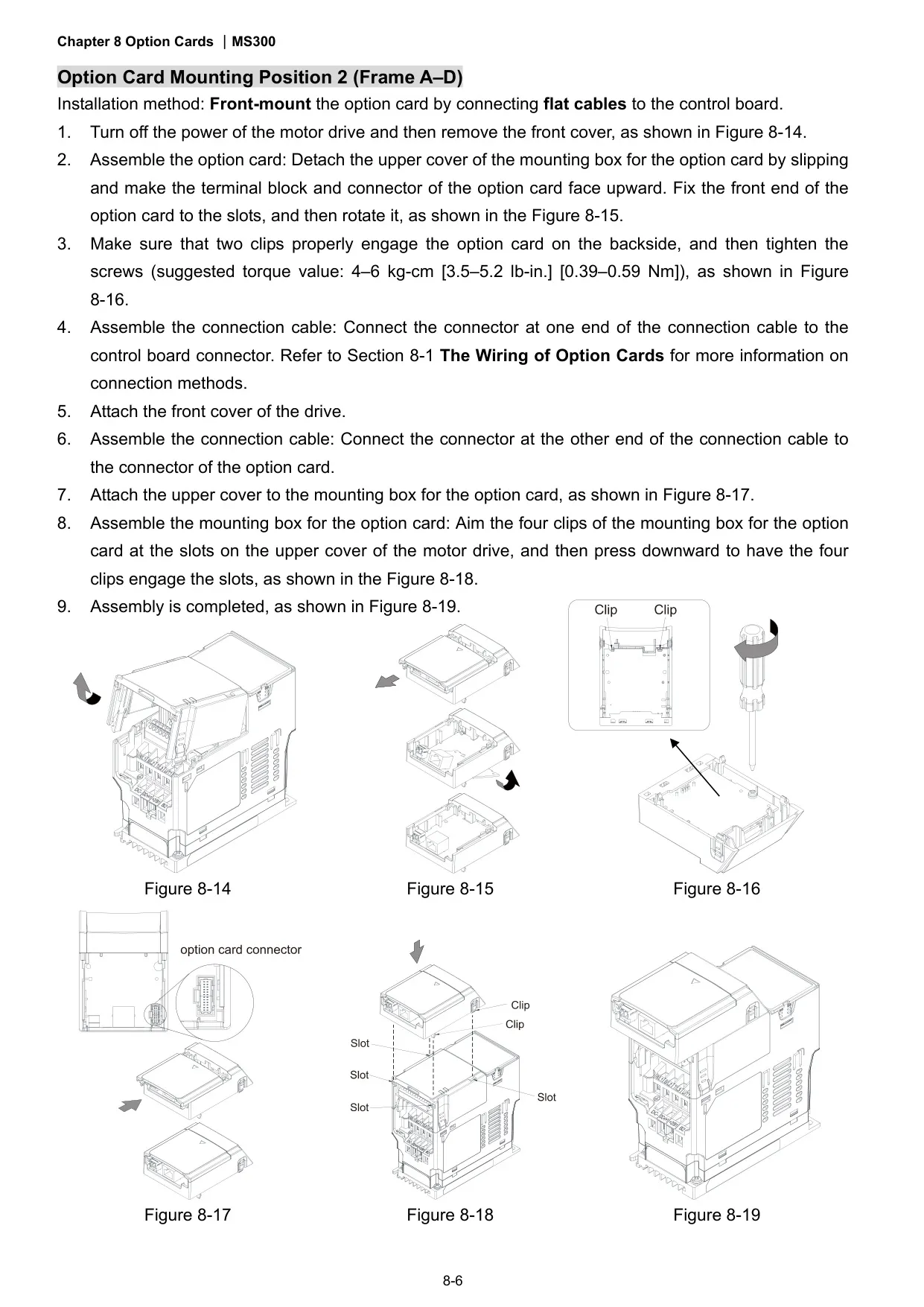

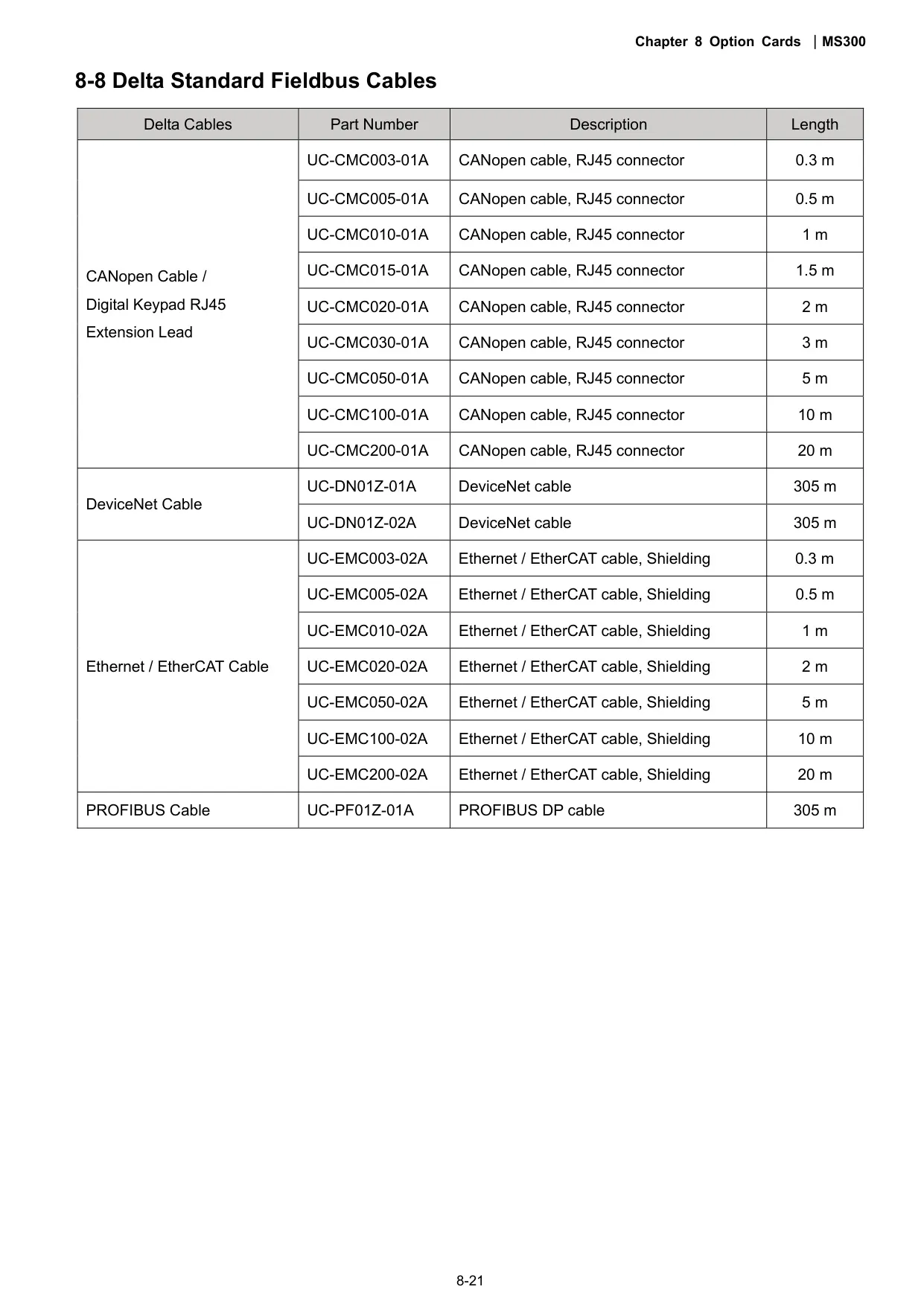

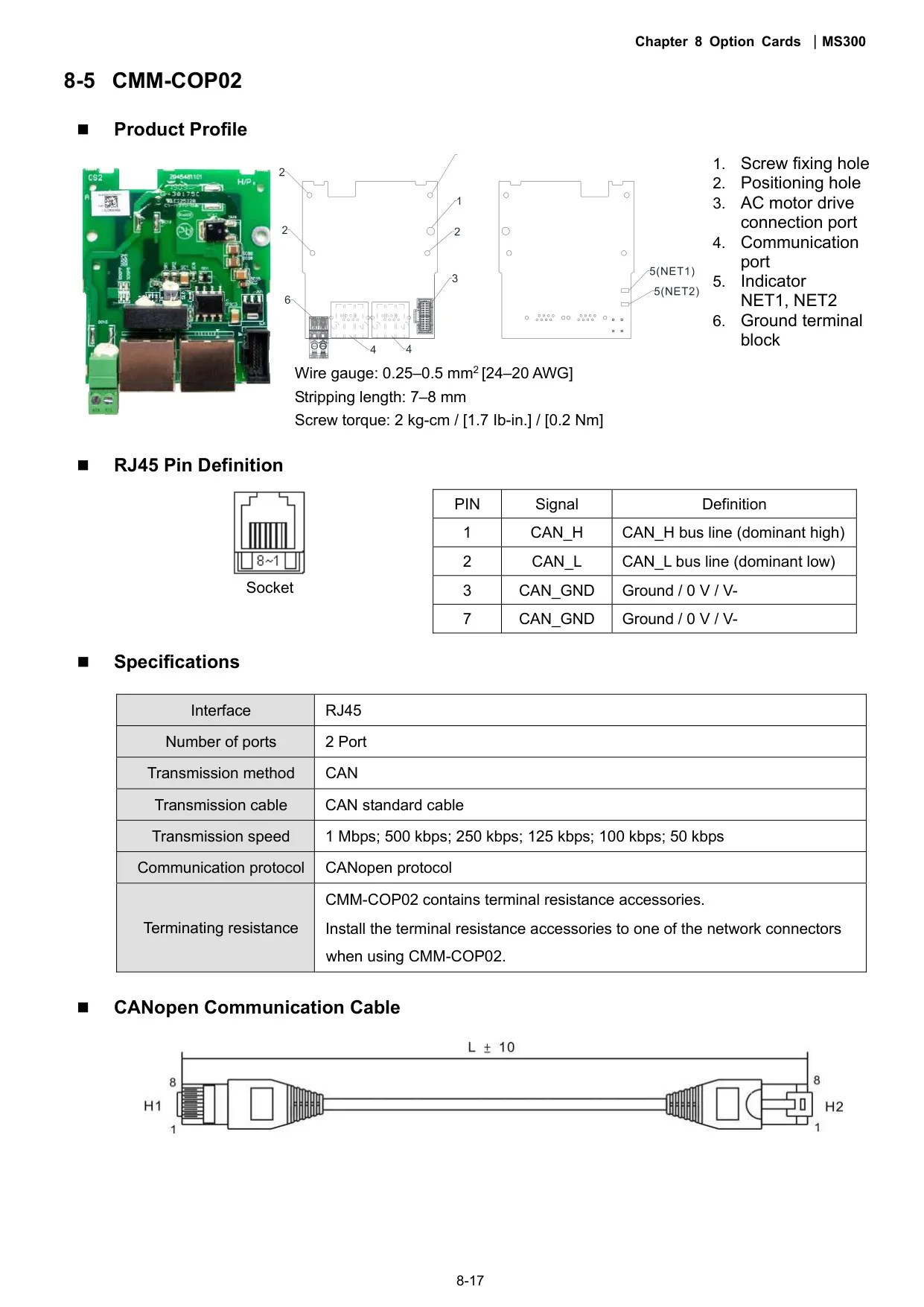

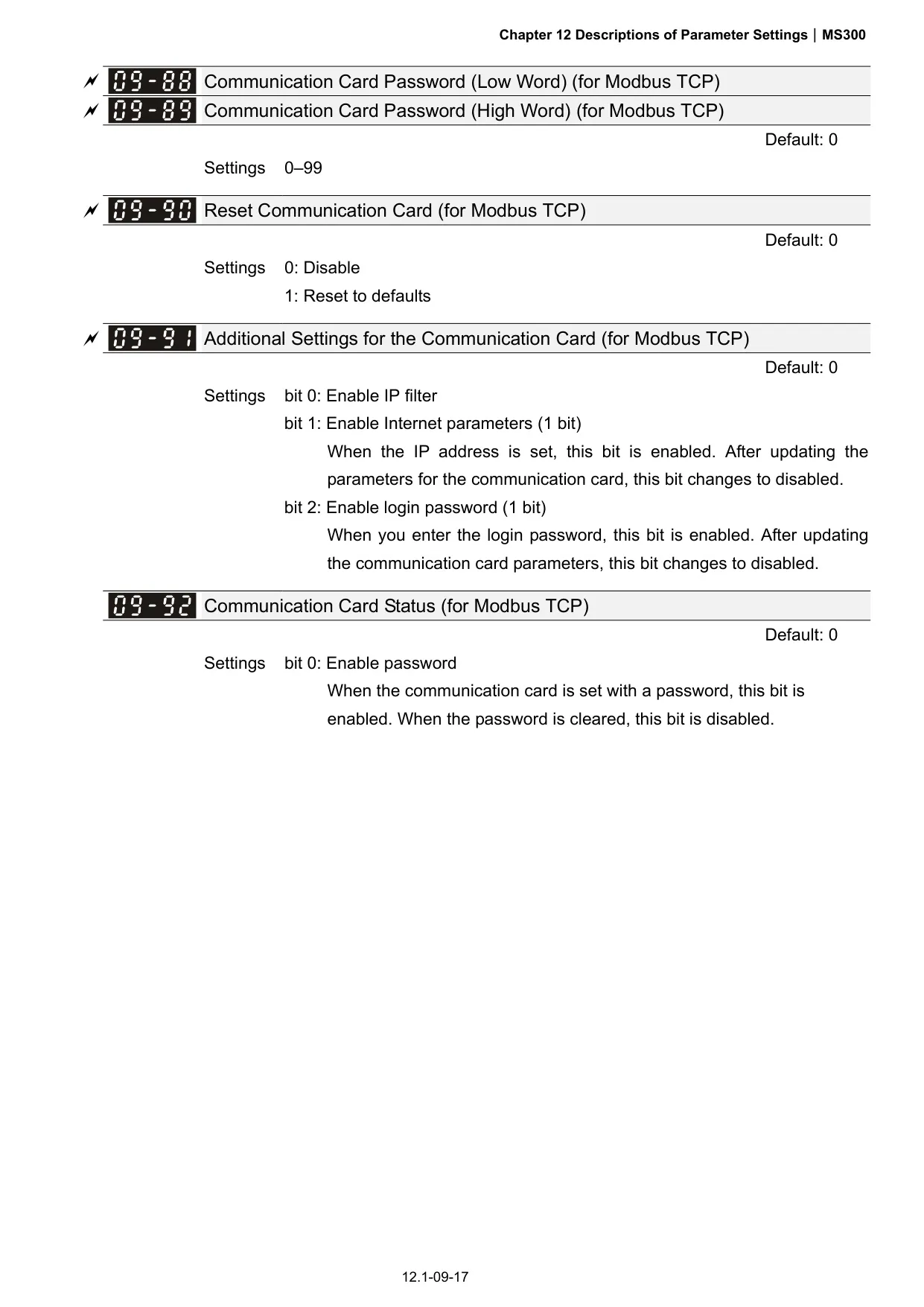

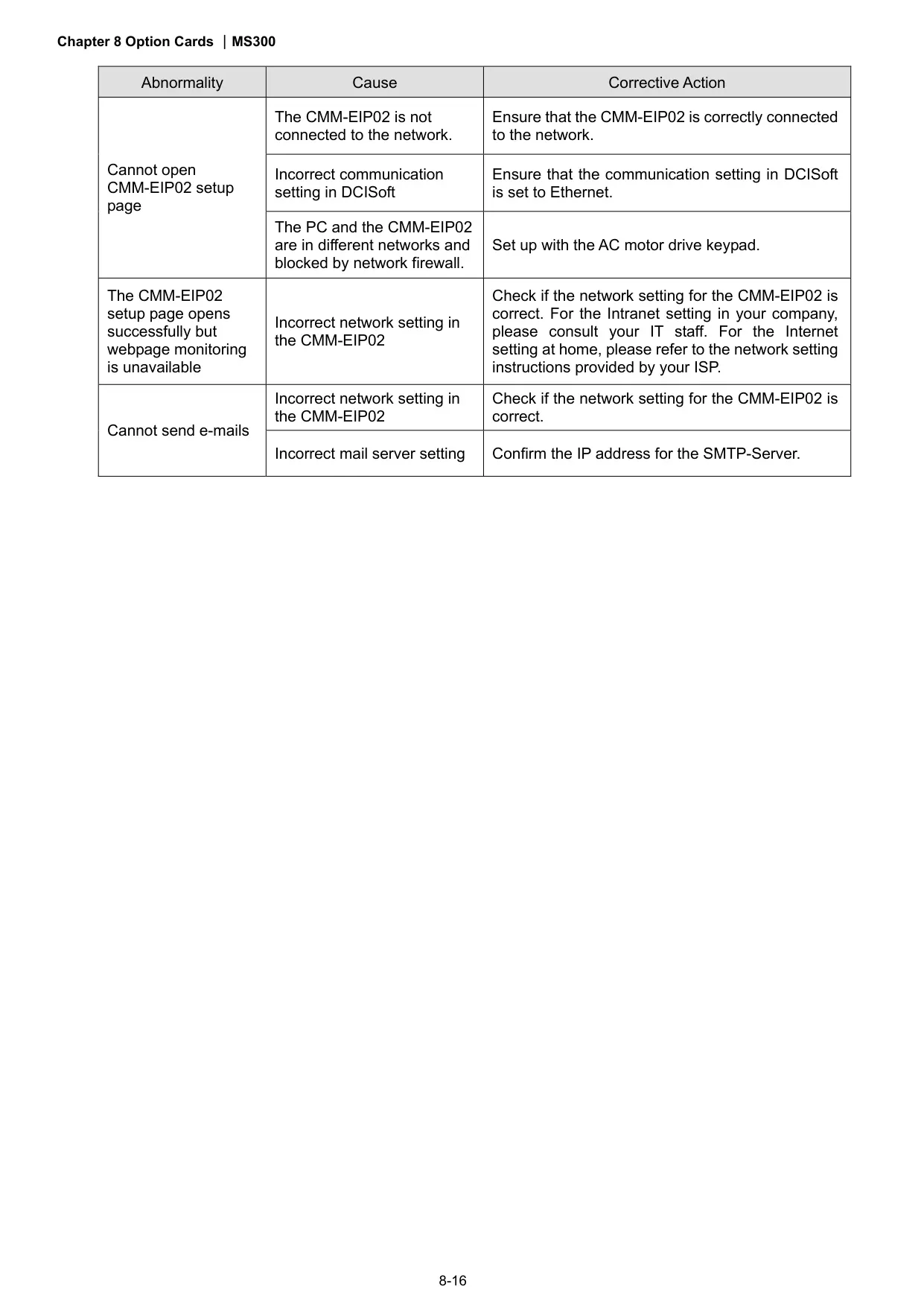

The Delta MS300 VFD goes beyond basic motor control, offering a rich set of features that significantly enhance its versatility and applicability in industrial automation. Its advanced communication capabilities are a cornerstone, integrating a standard Modbus RS-485 port, supporting both ASCII and RTU modes. This allows for seamless integration into existing control networks, enabling remote monitoring and parameter adjustments. Various optional communication cards further expand its connectivity, including support for protocols such as PROFIBUS DP, DeviceNet, EtherNet/IP, CANopen, and EtherCAT, catering to diverse industrial networking requirements.

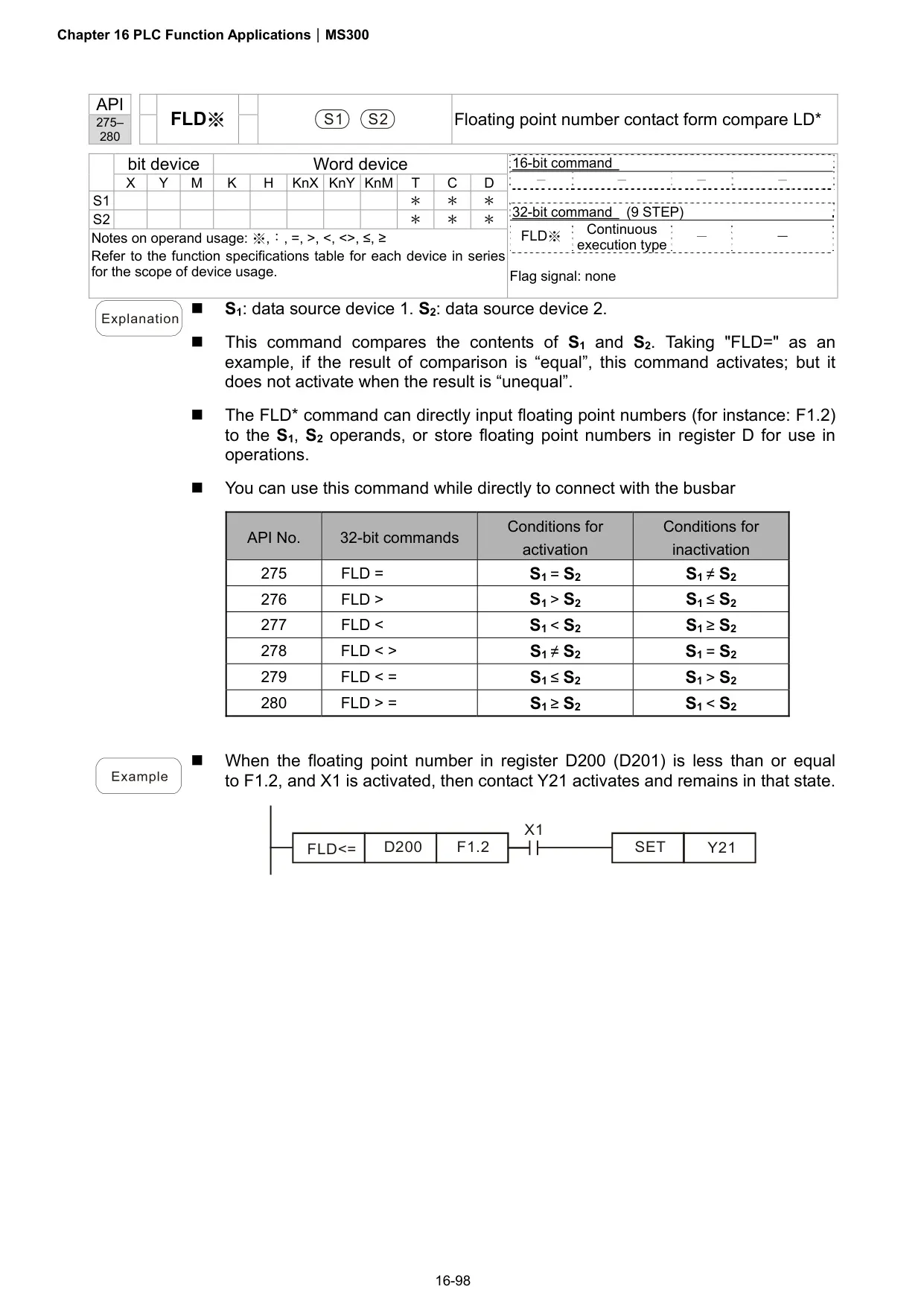

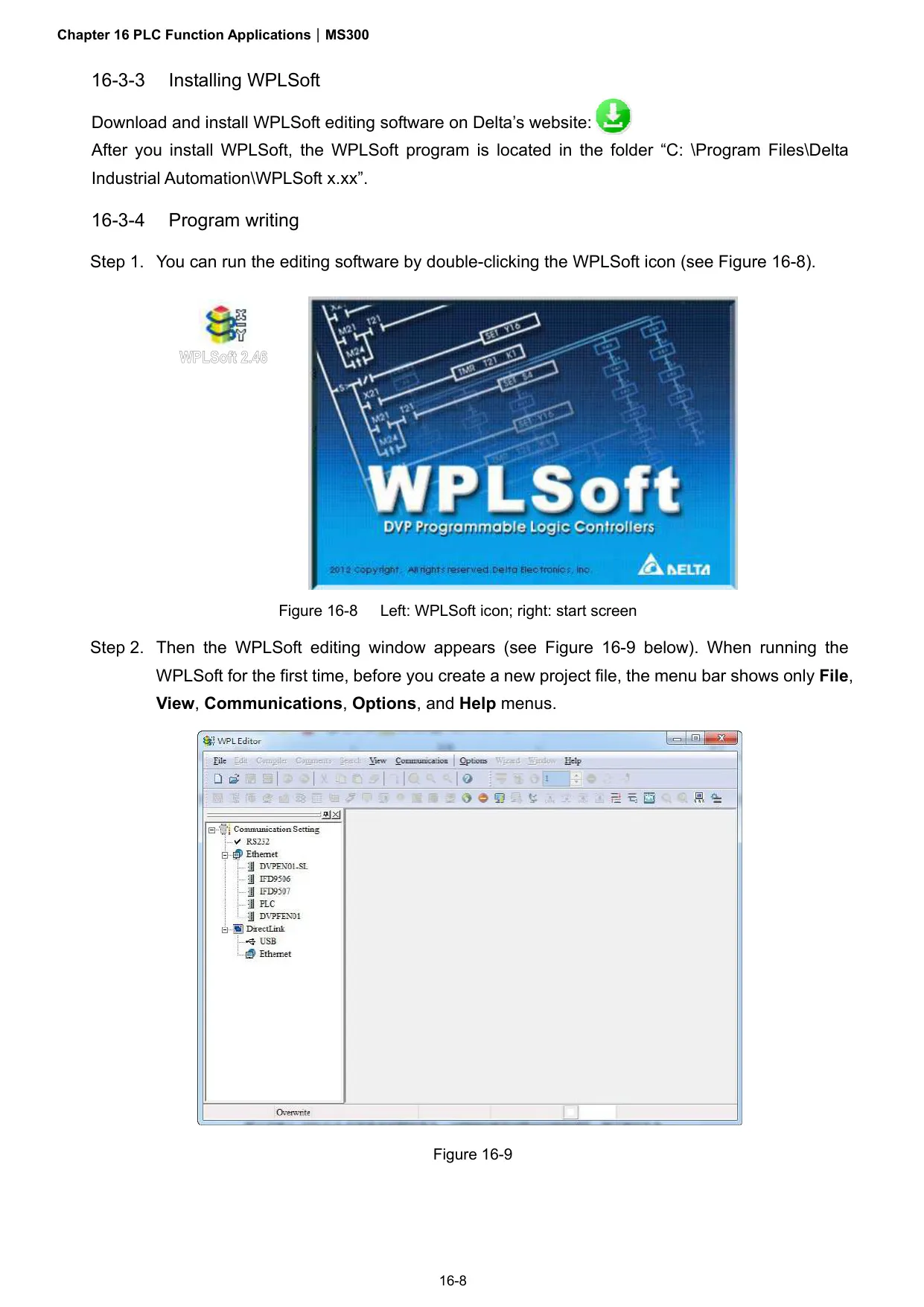

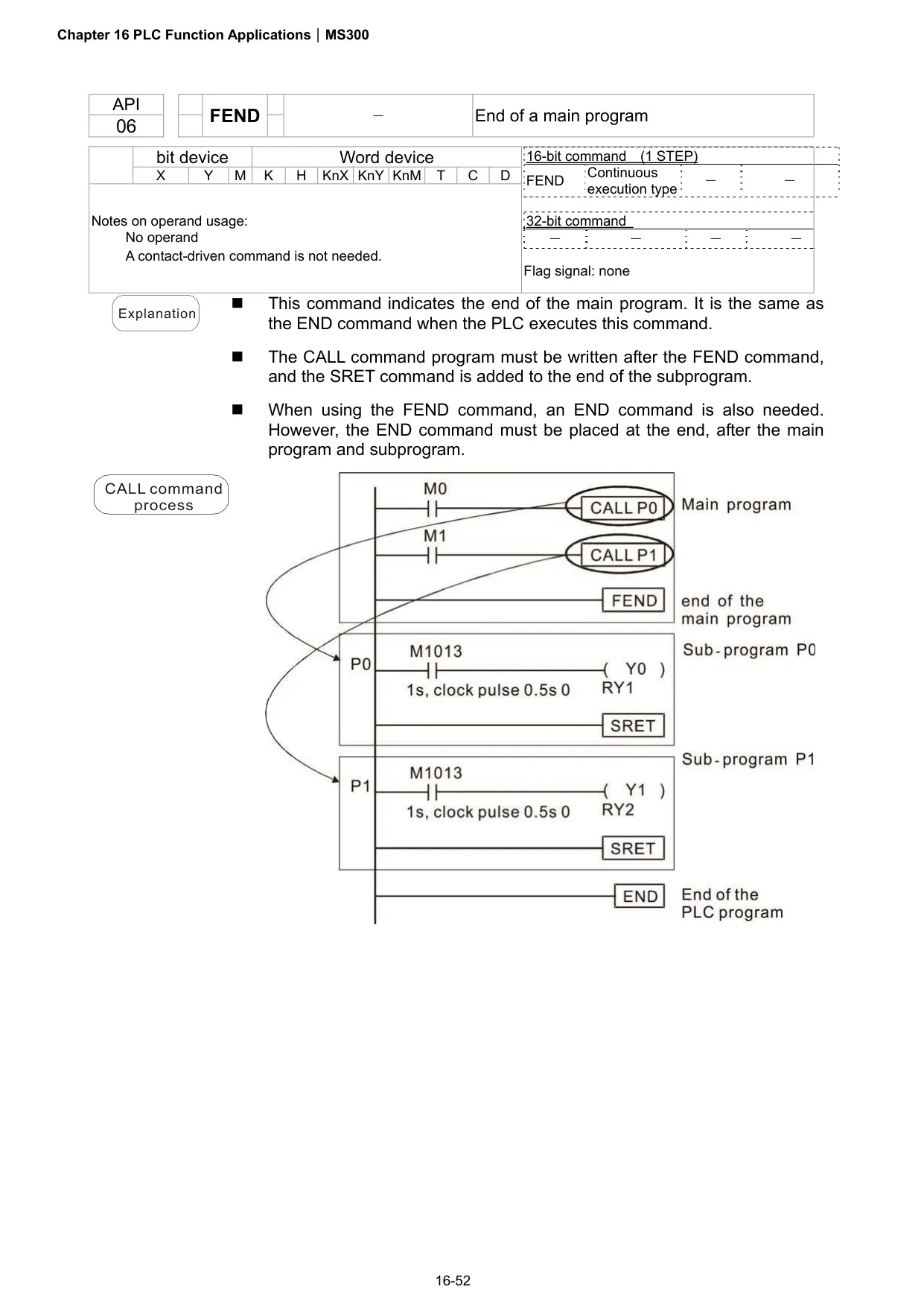

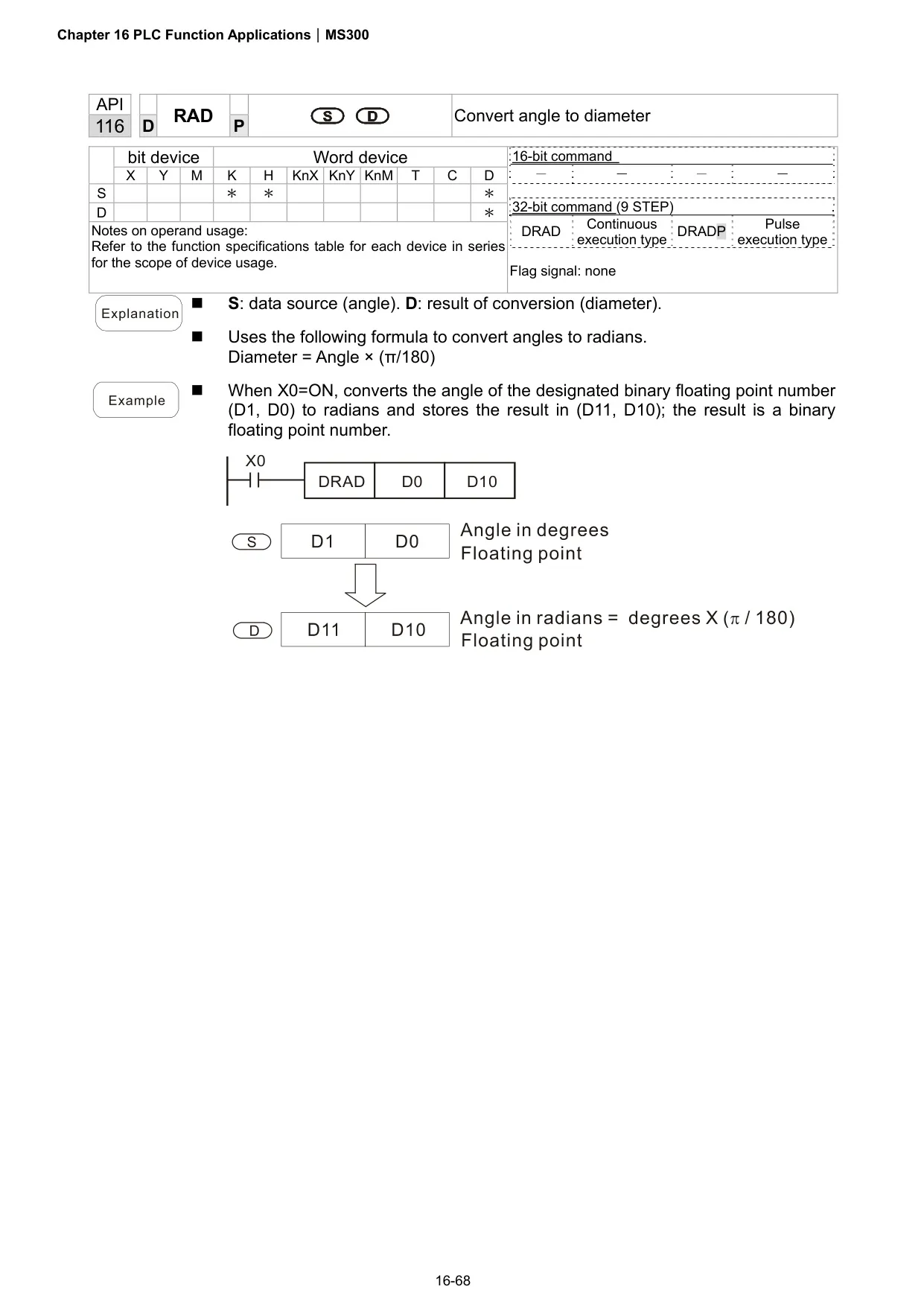

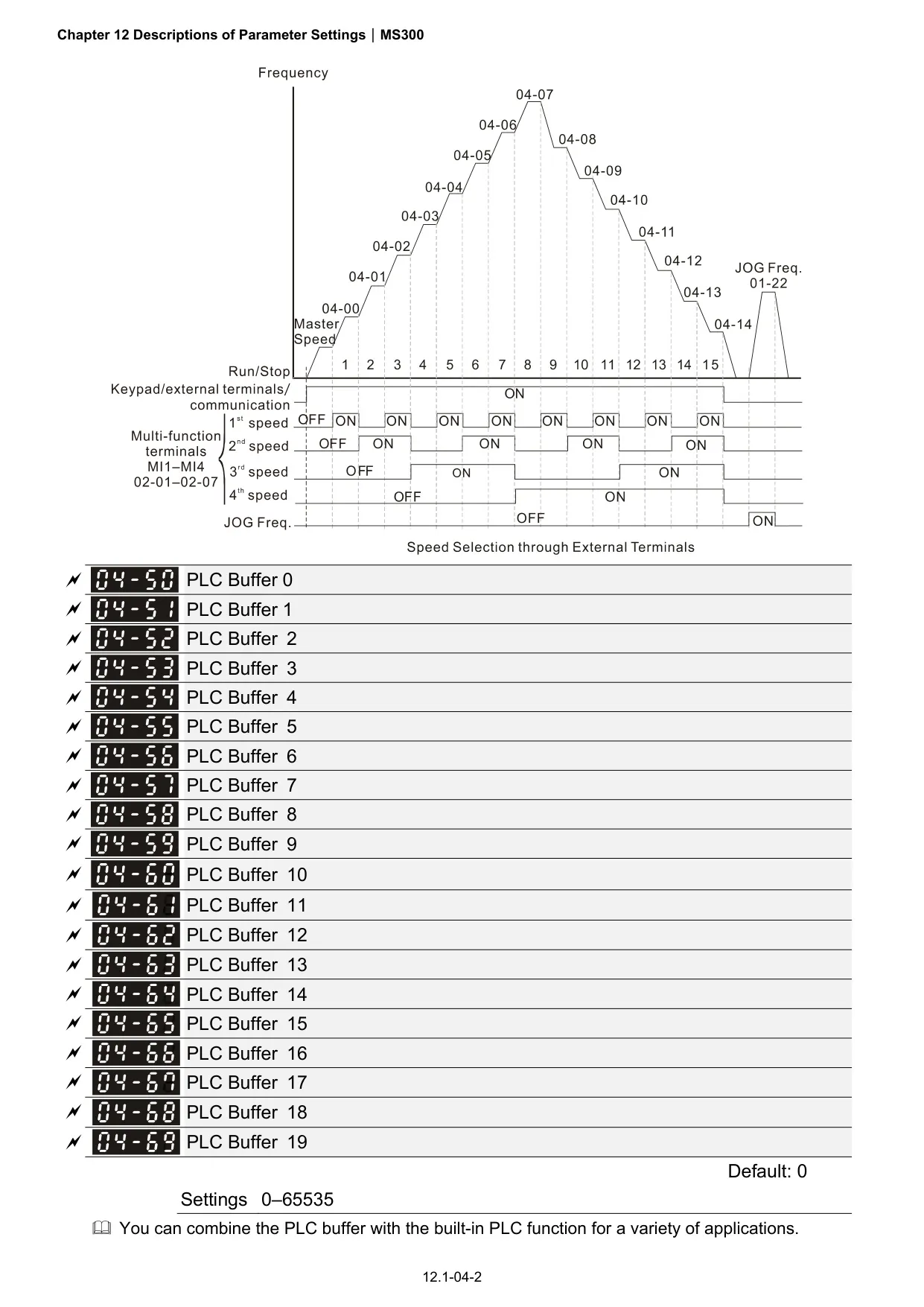

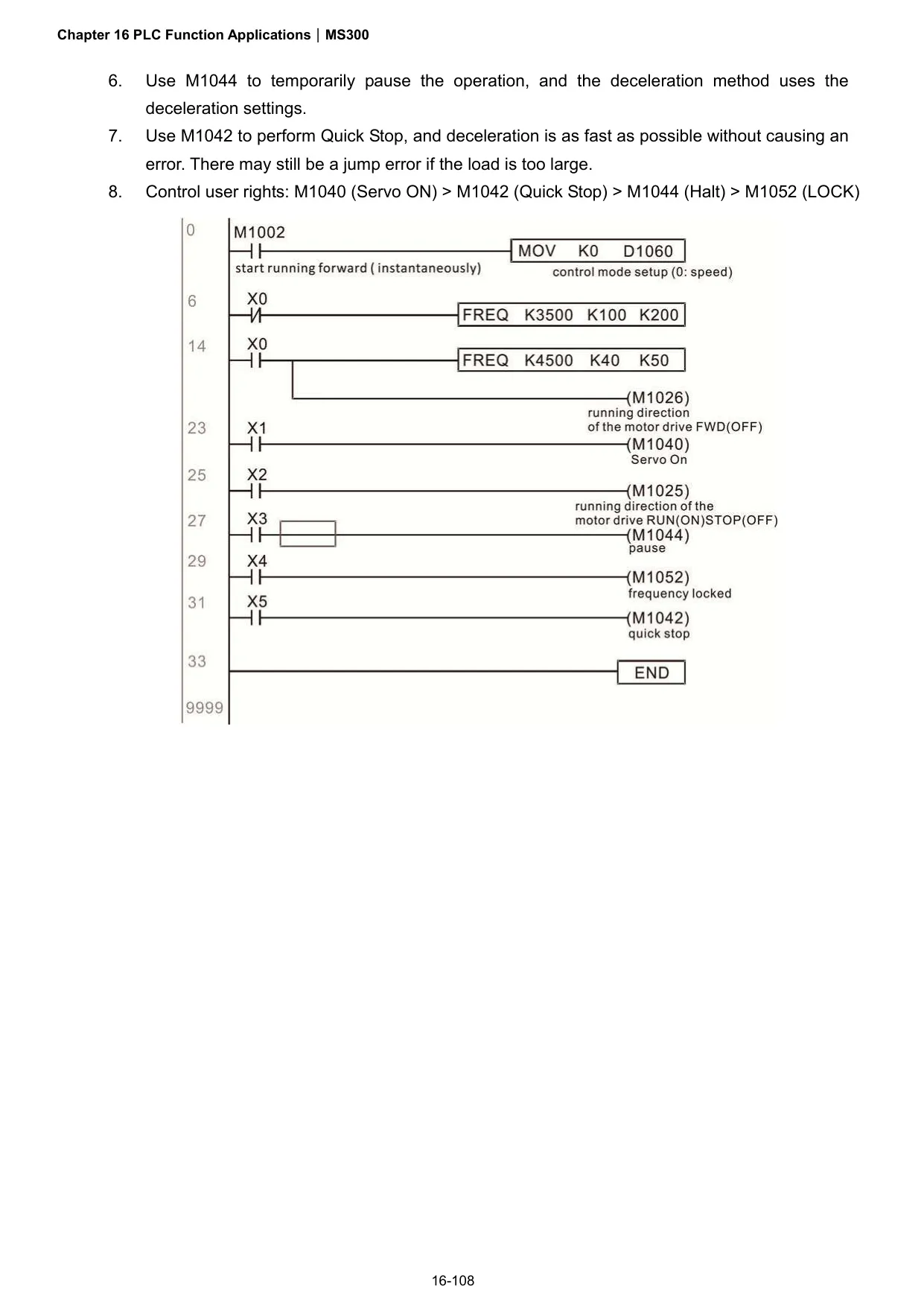

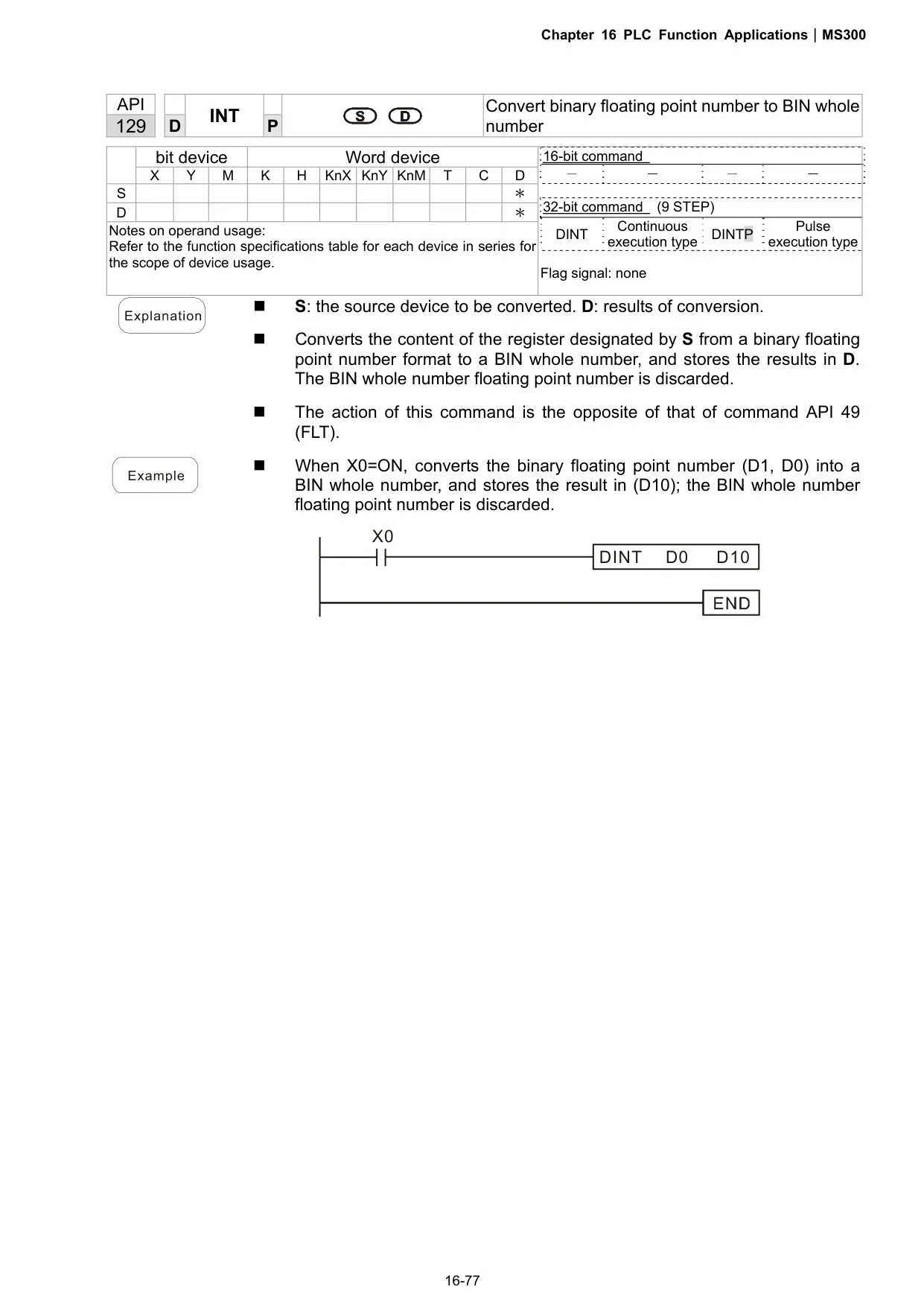

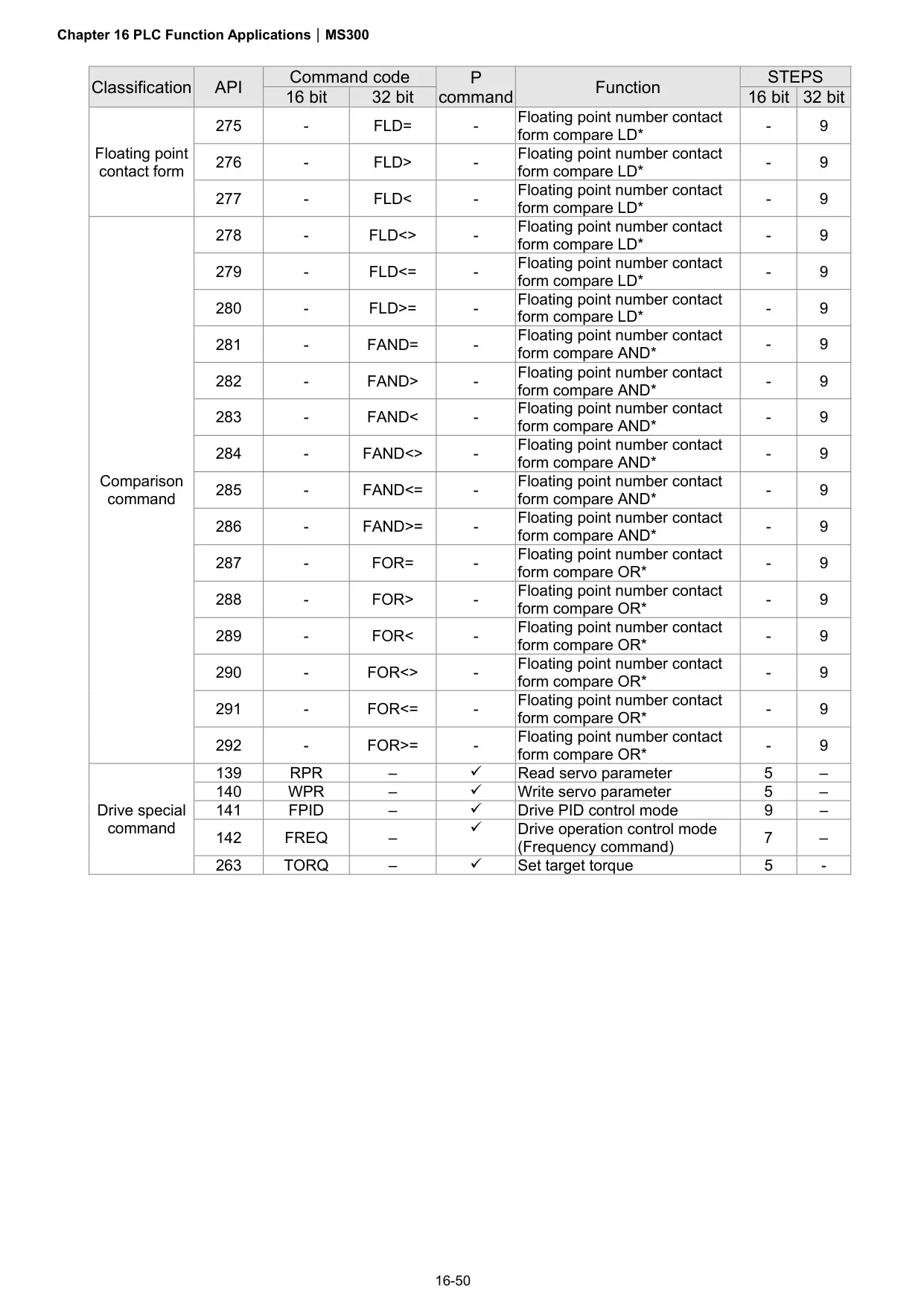

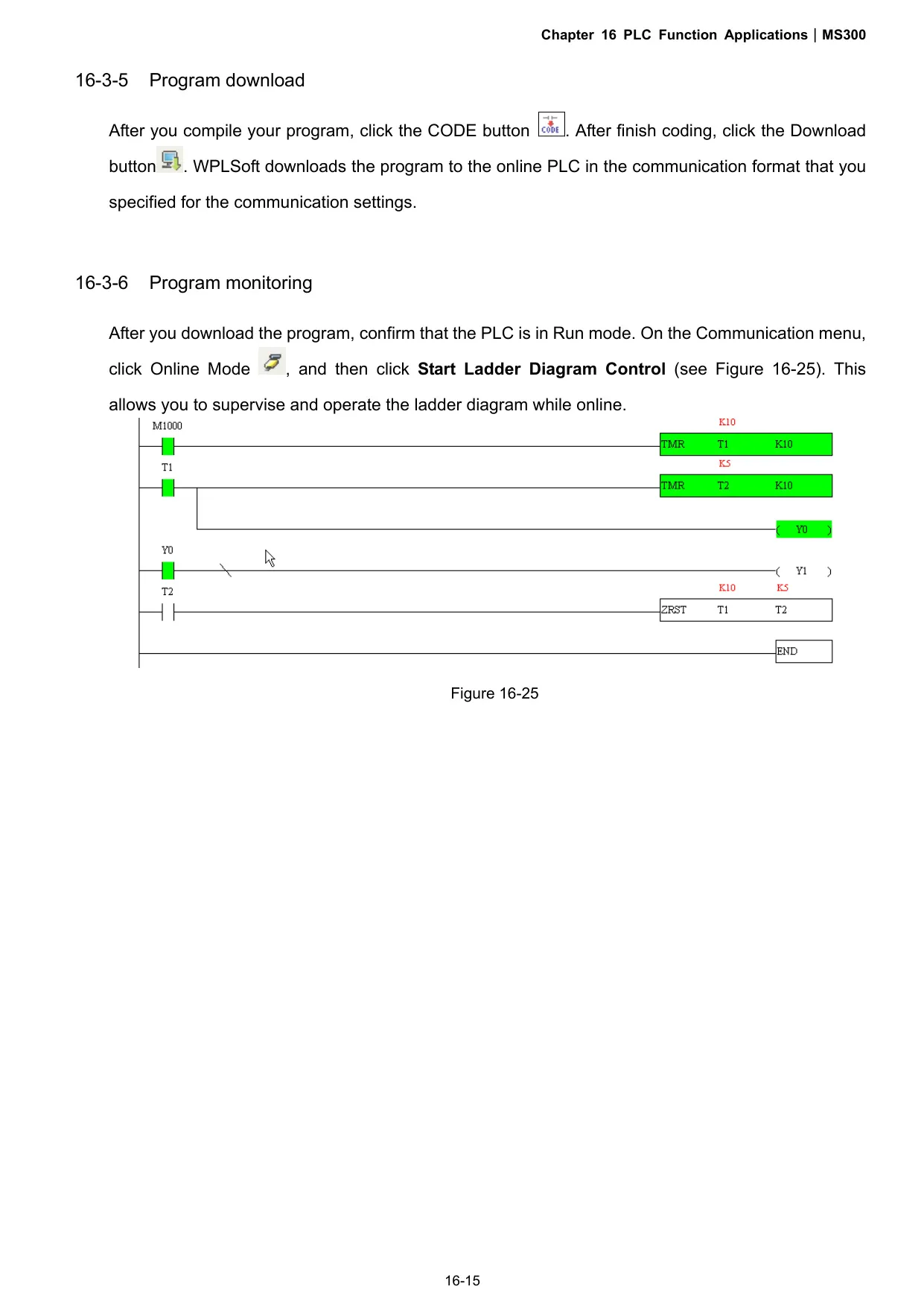

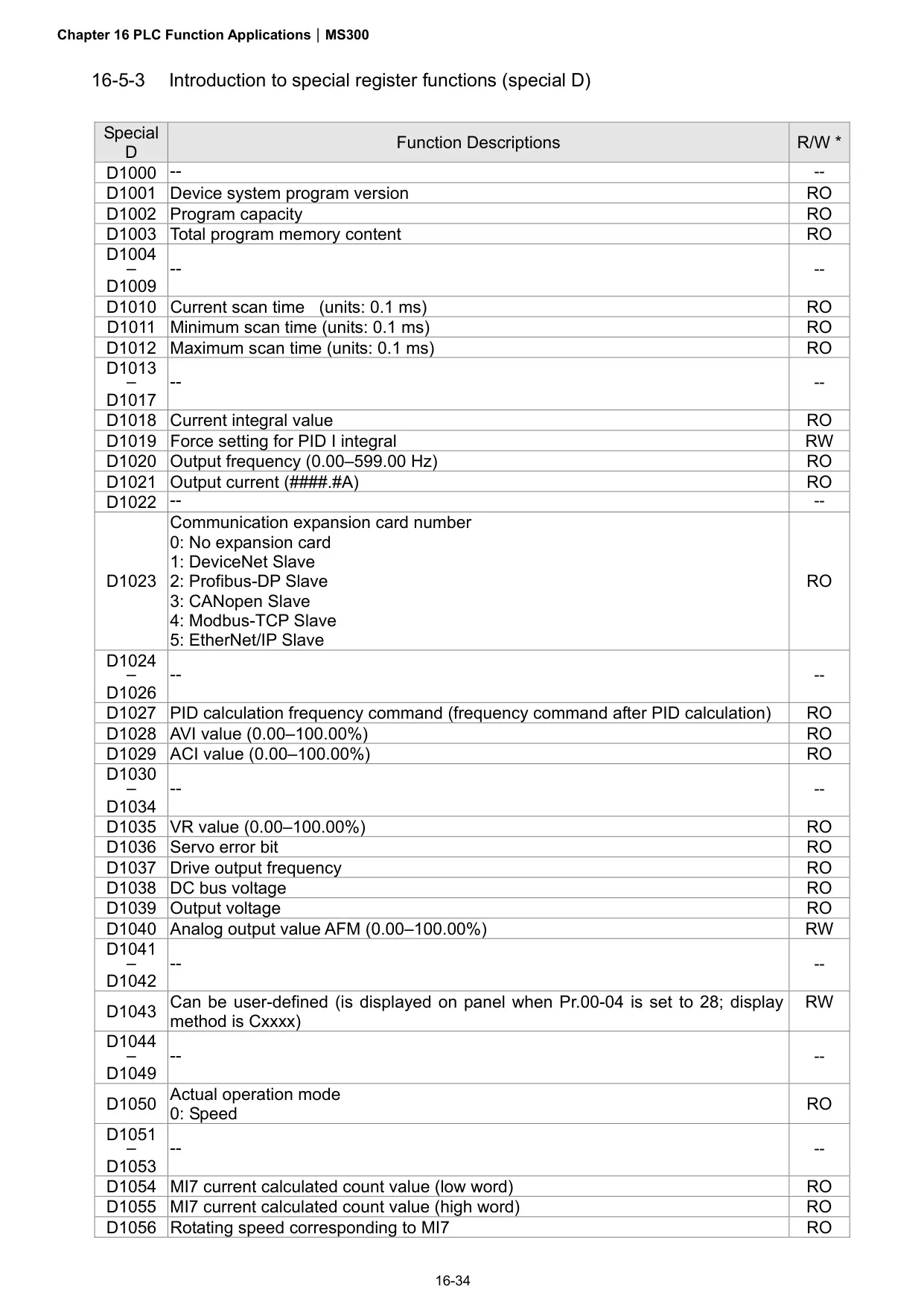

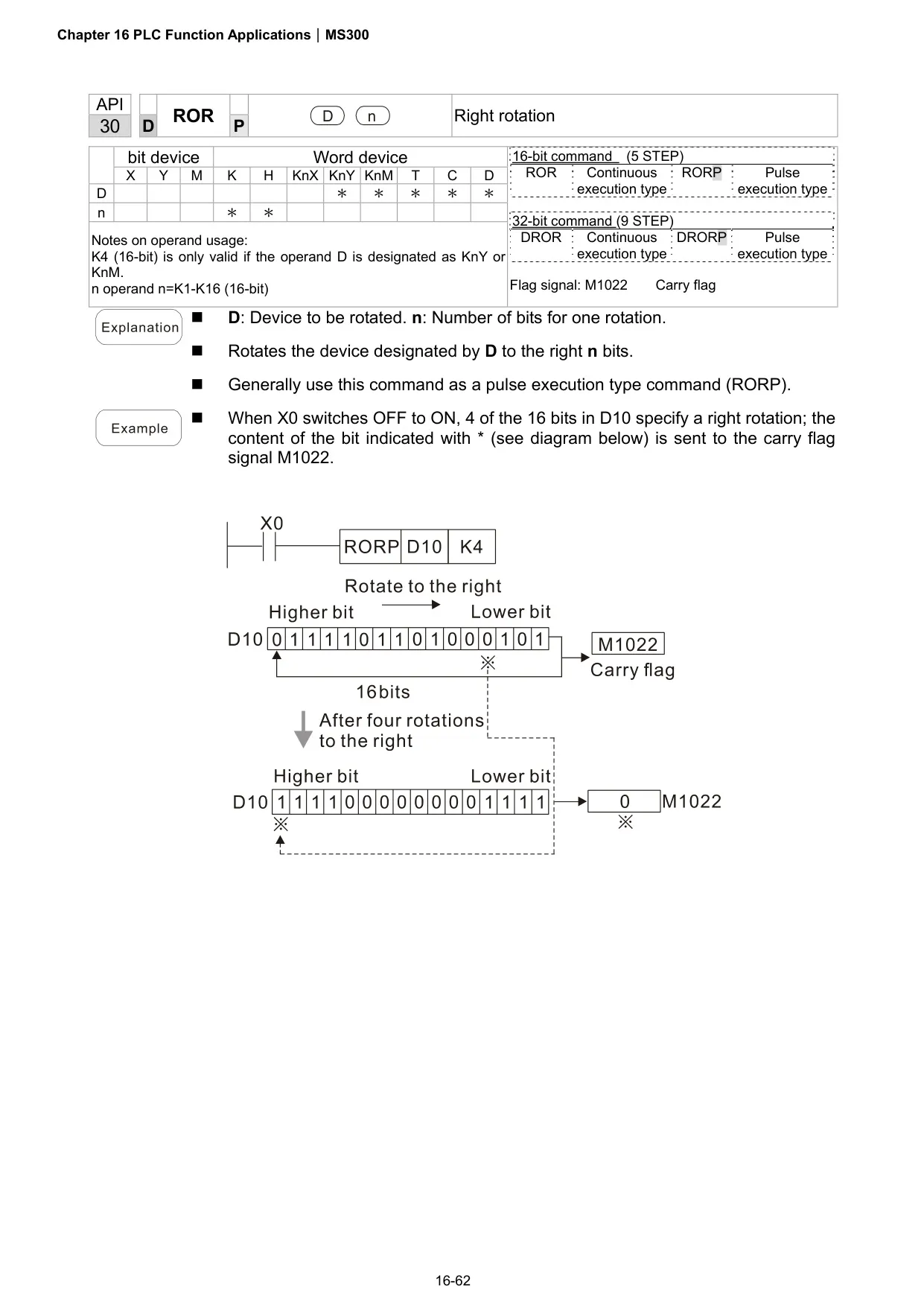

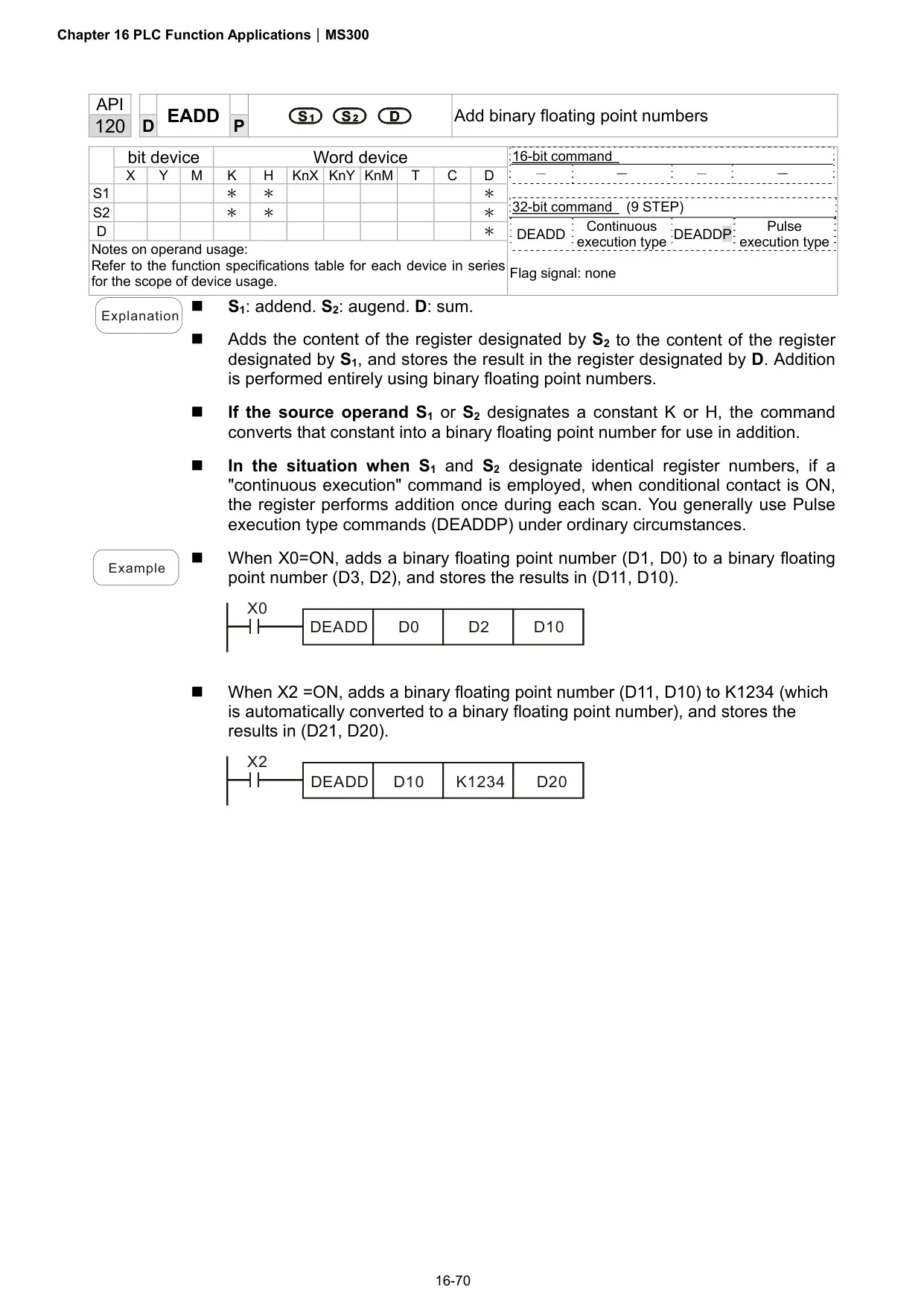

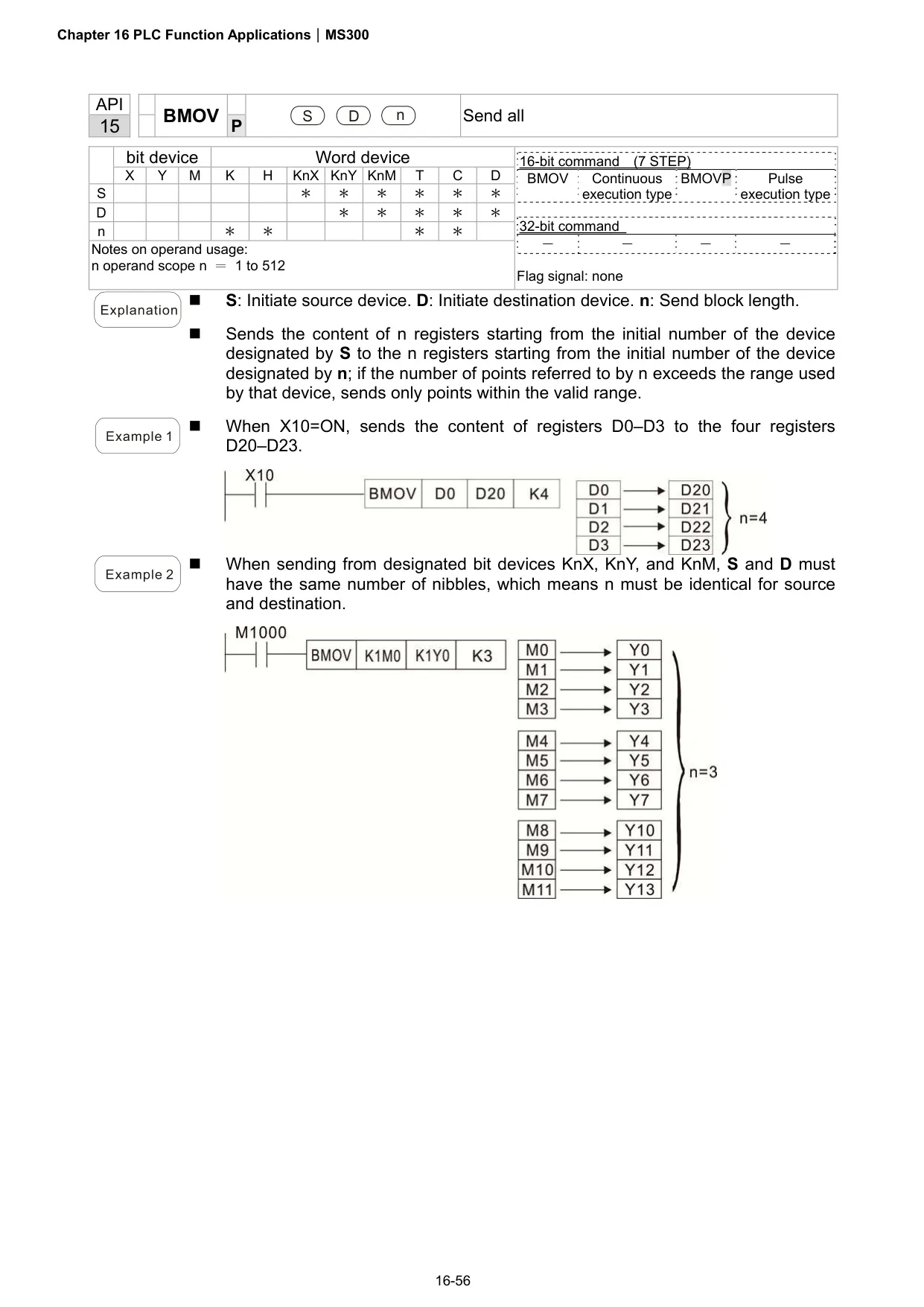

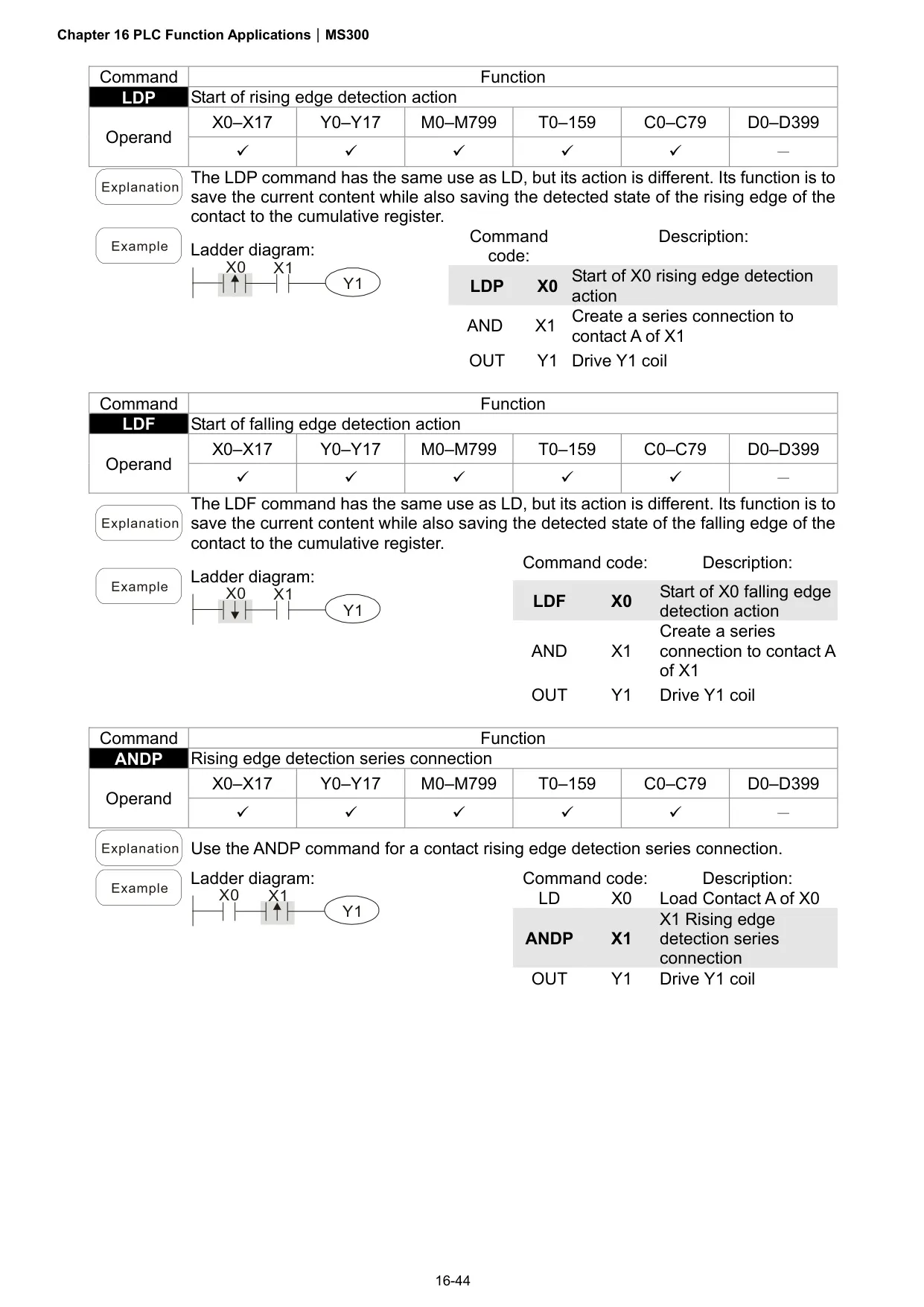

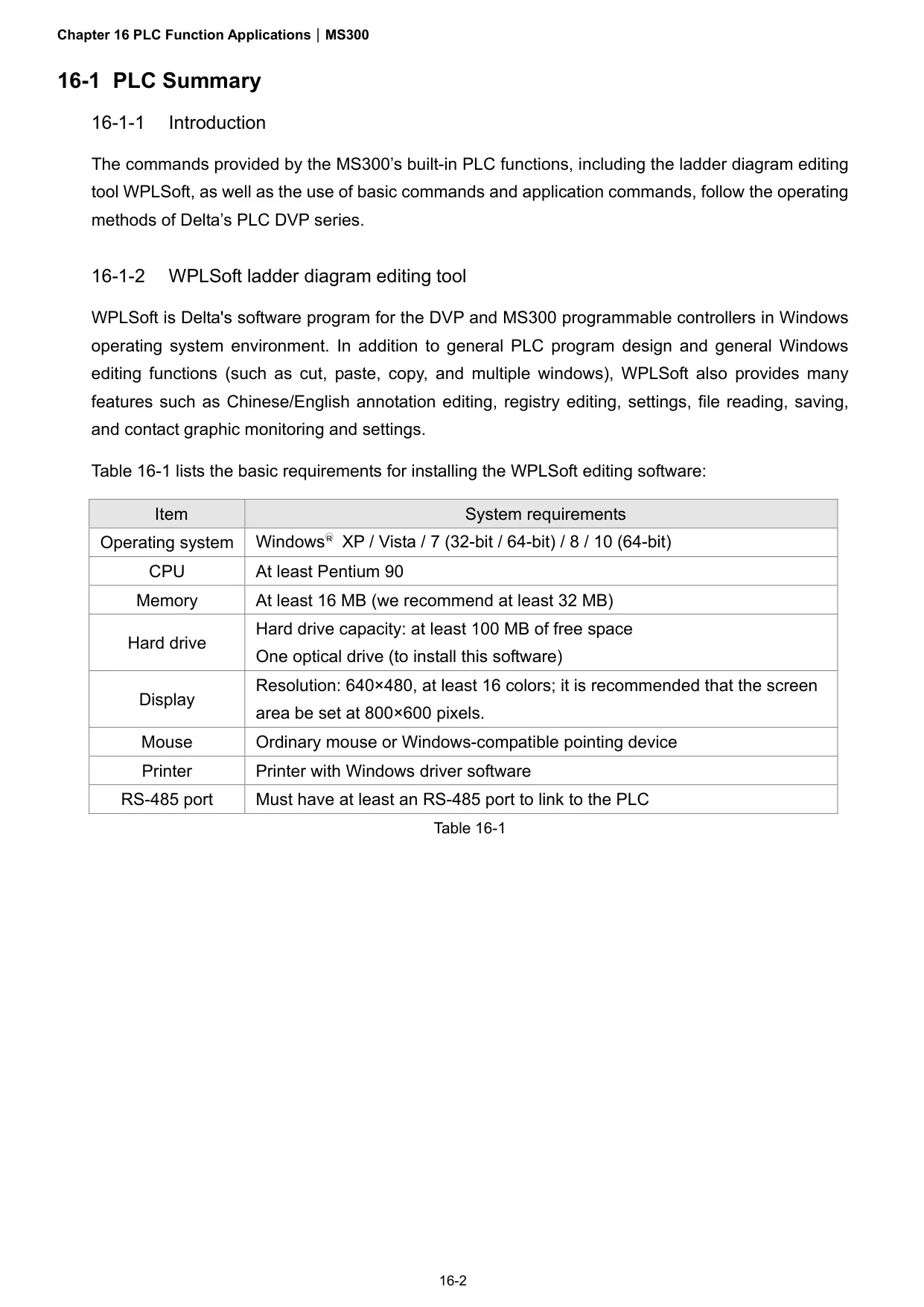

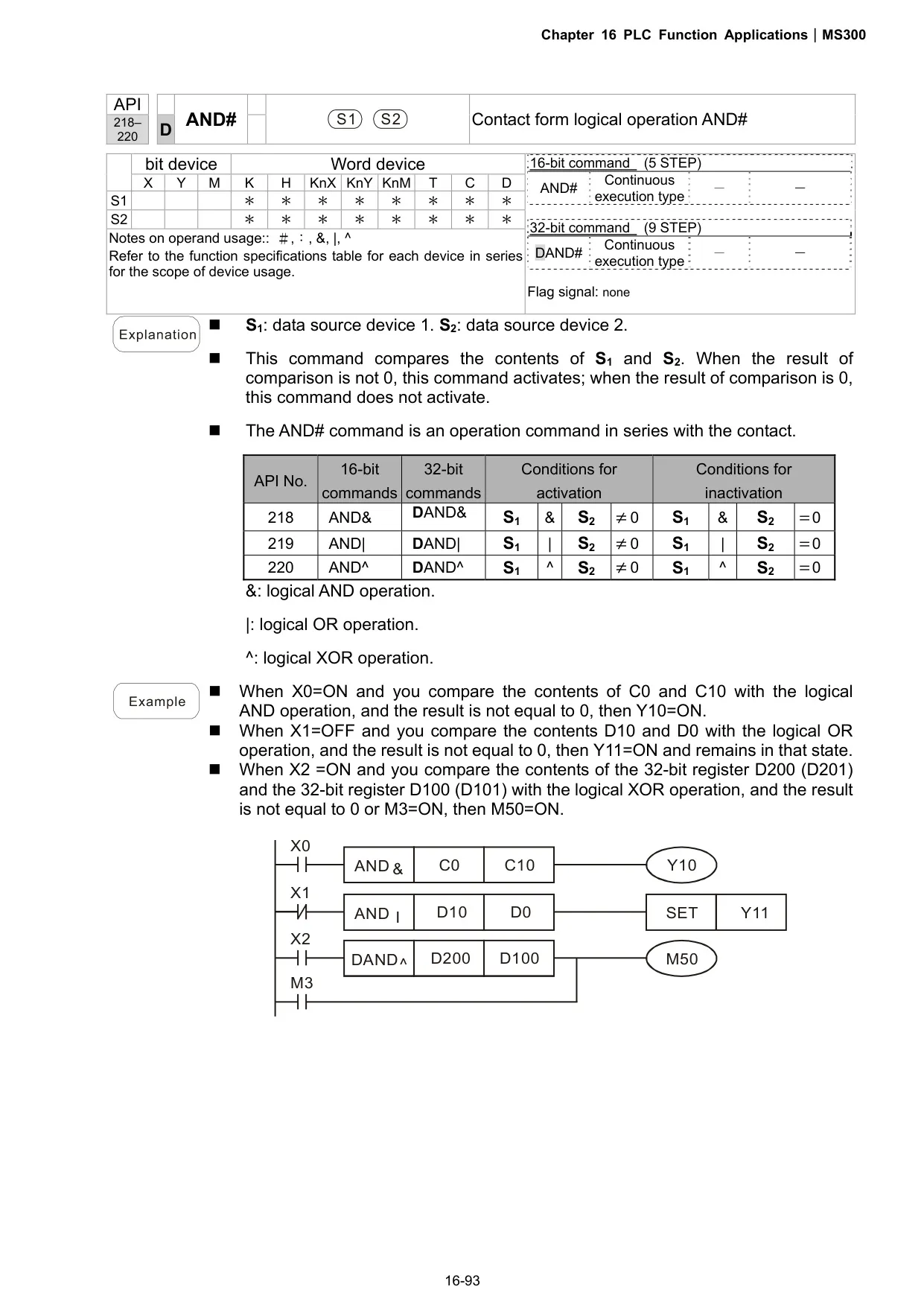

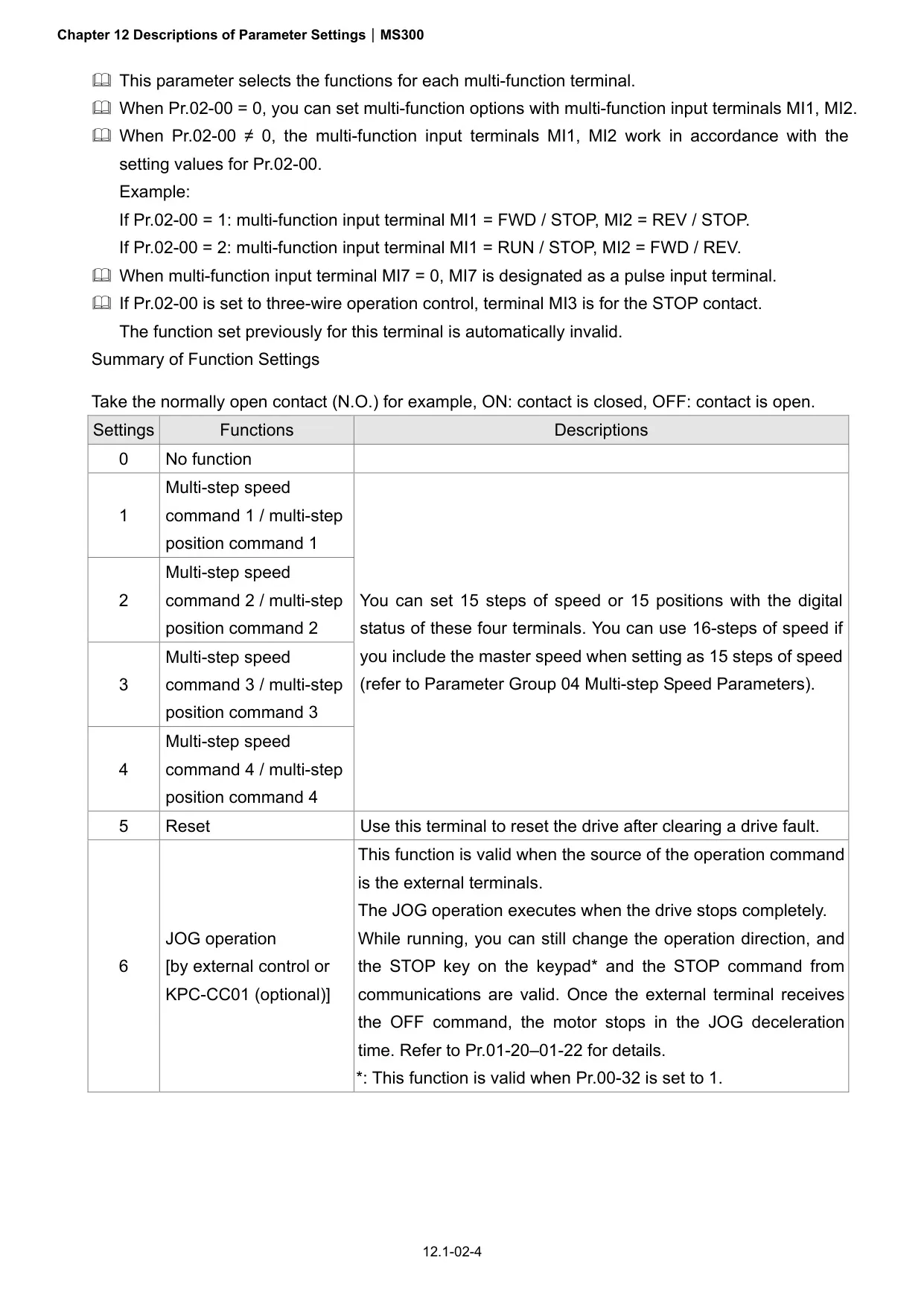

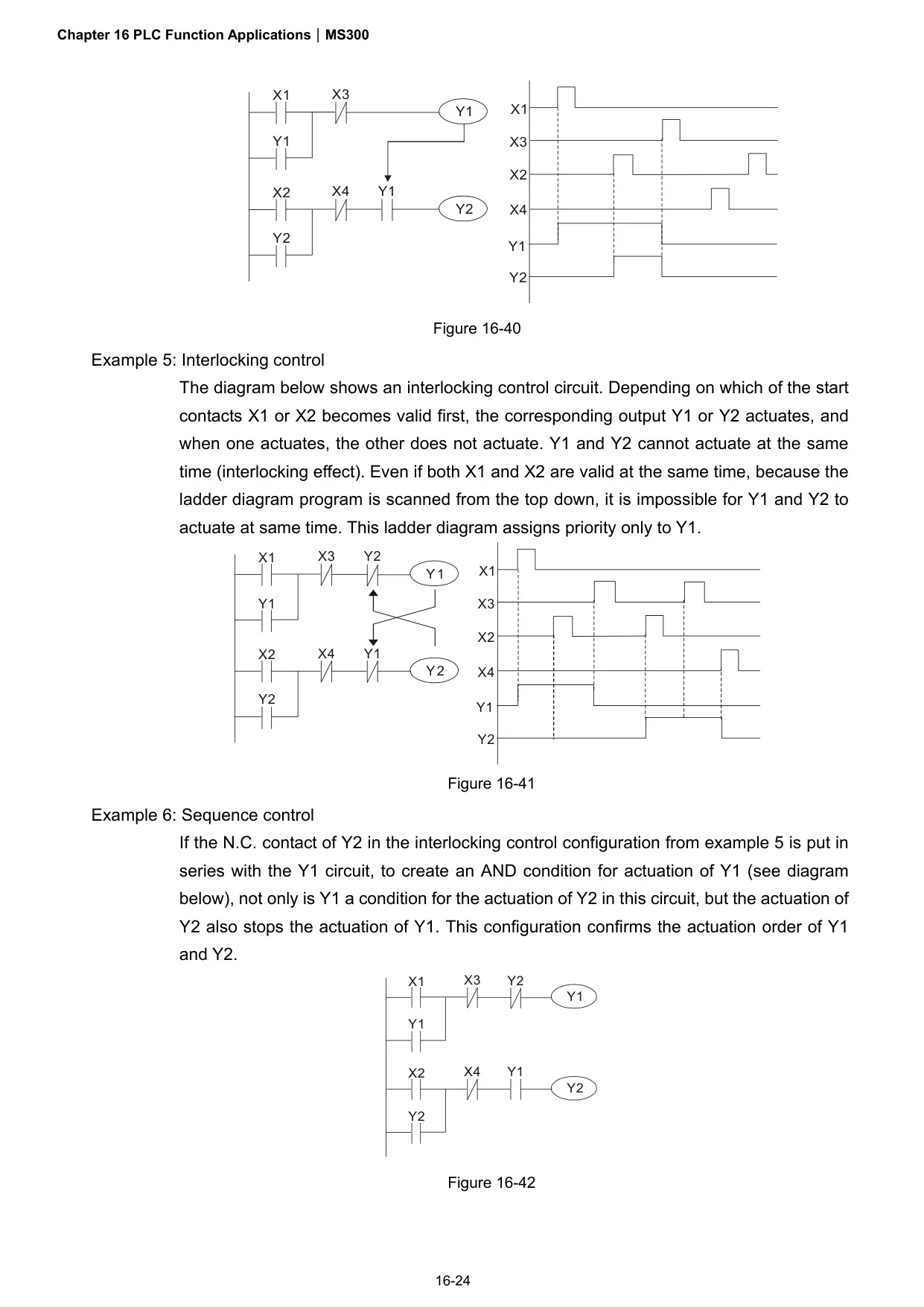

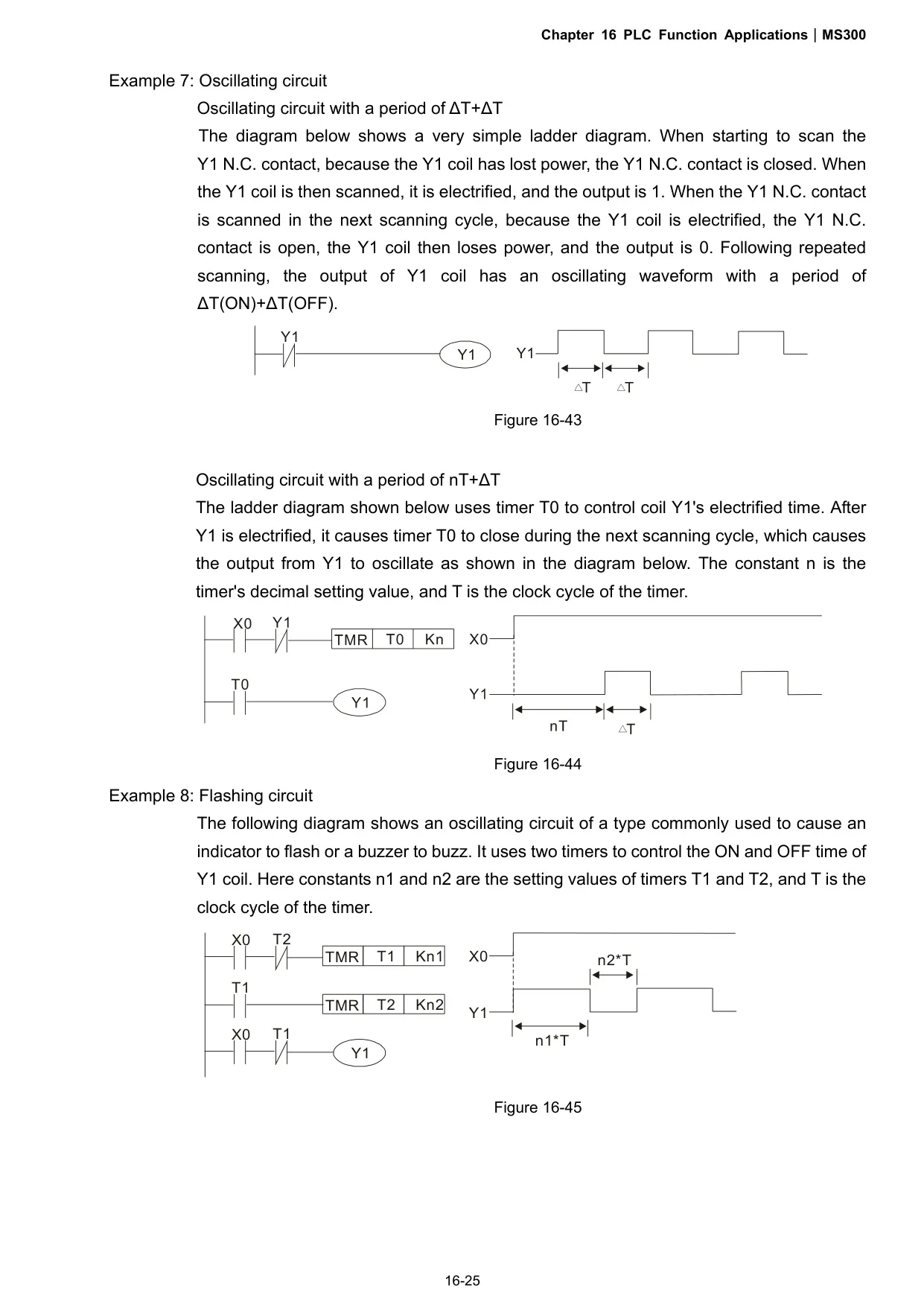

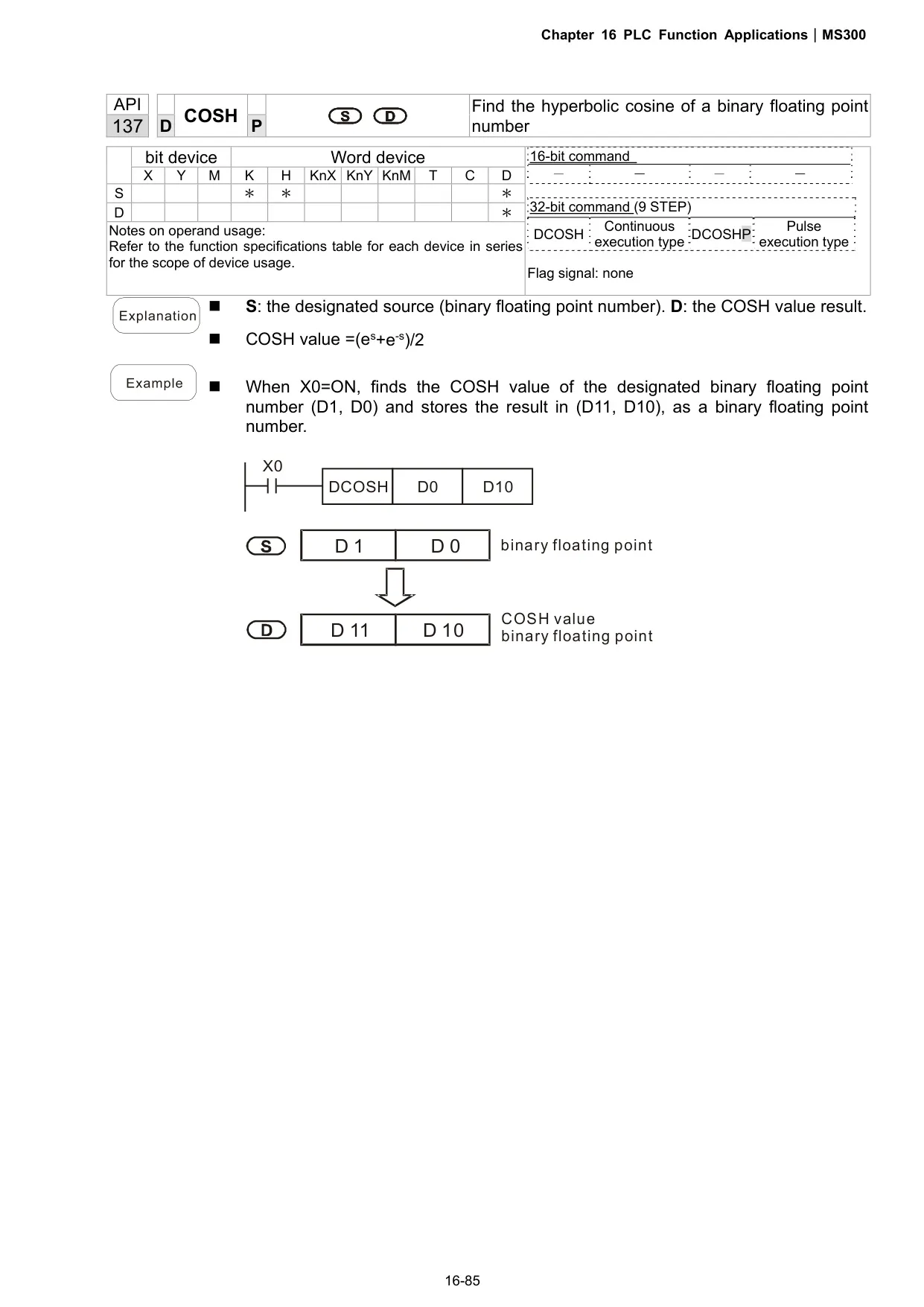

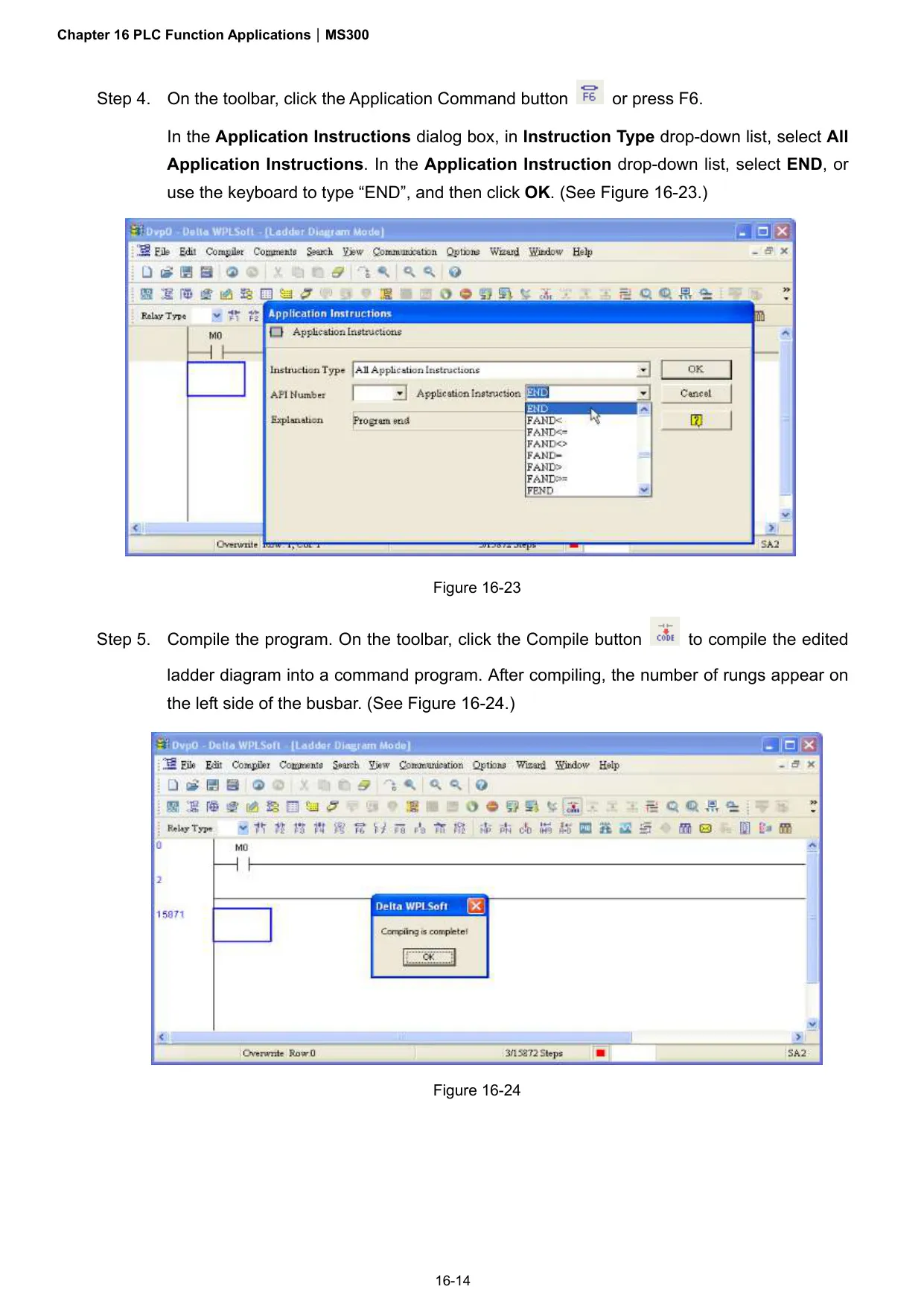

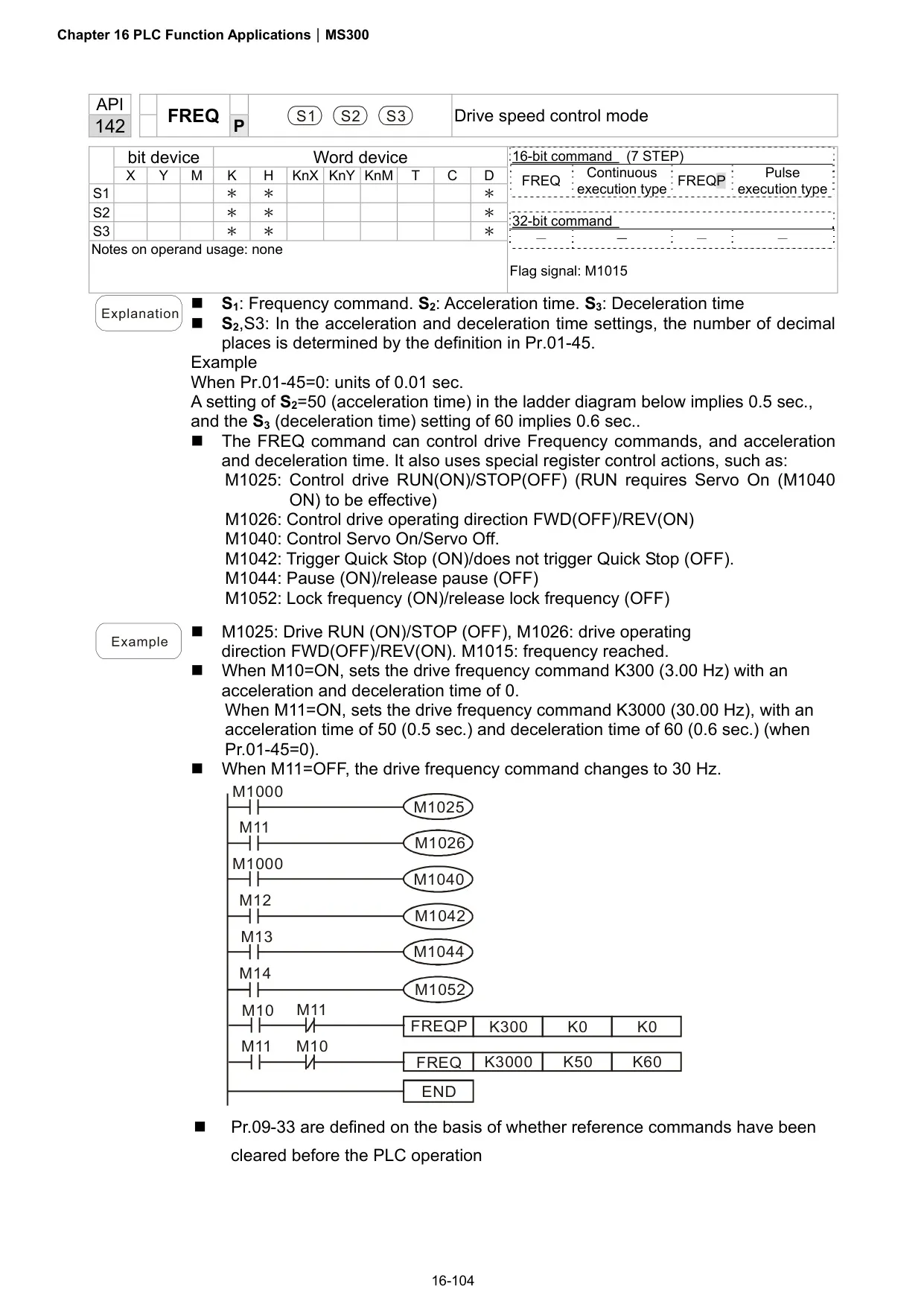

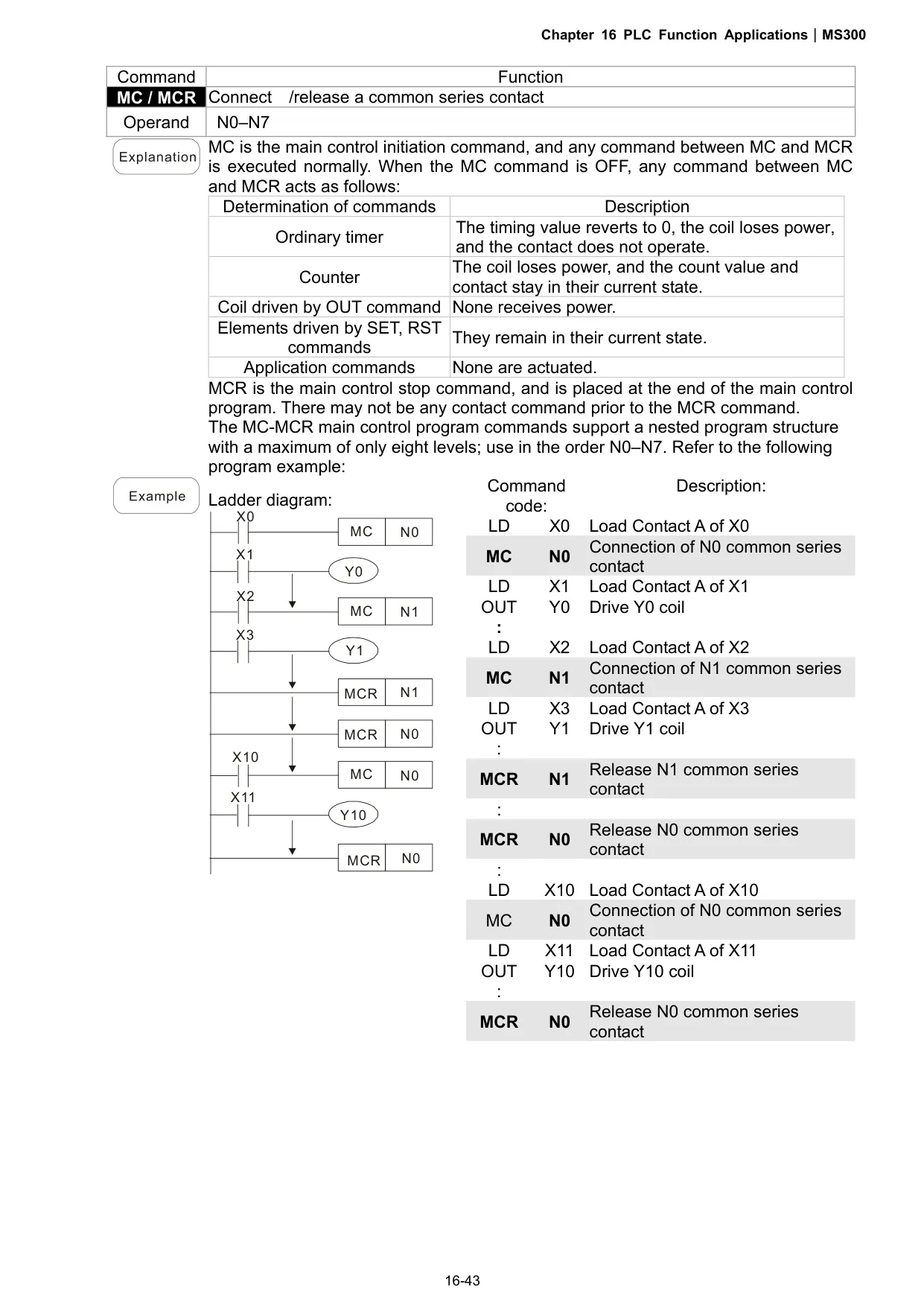

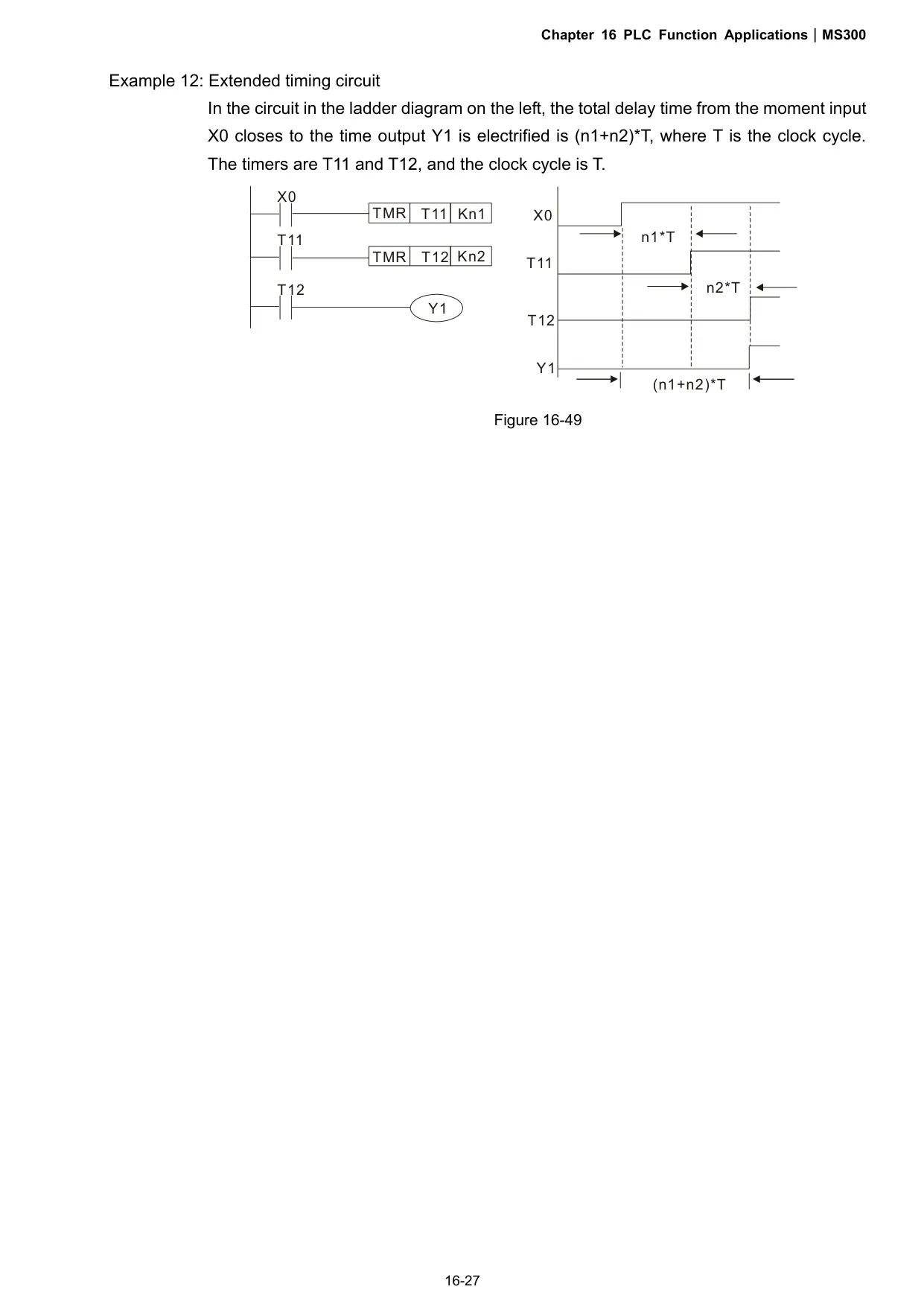

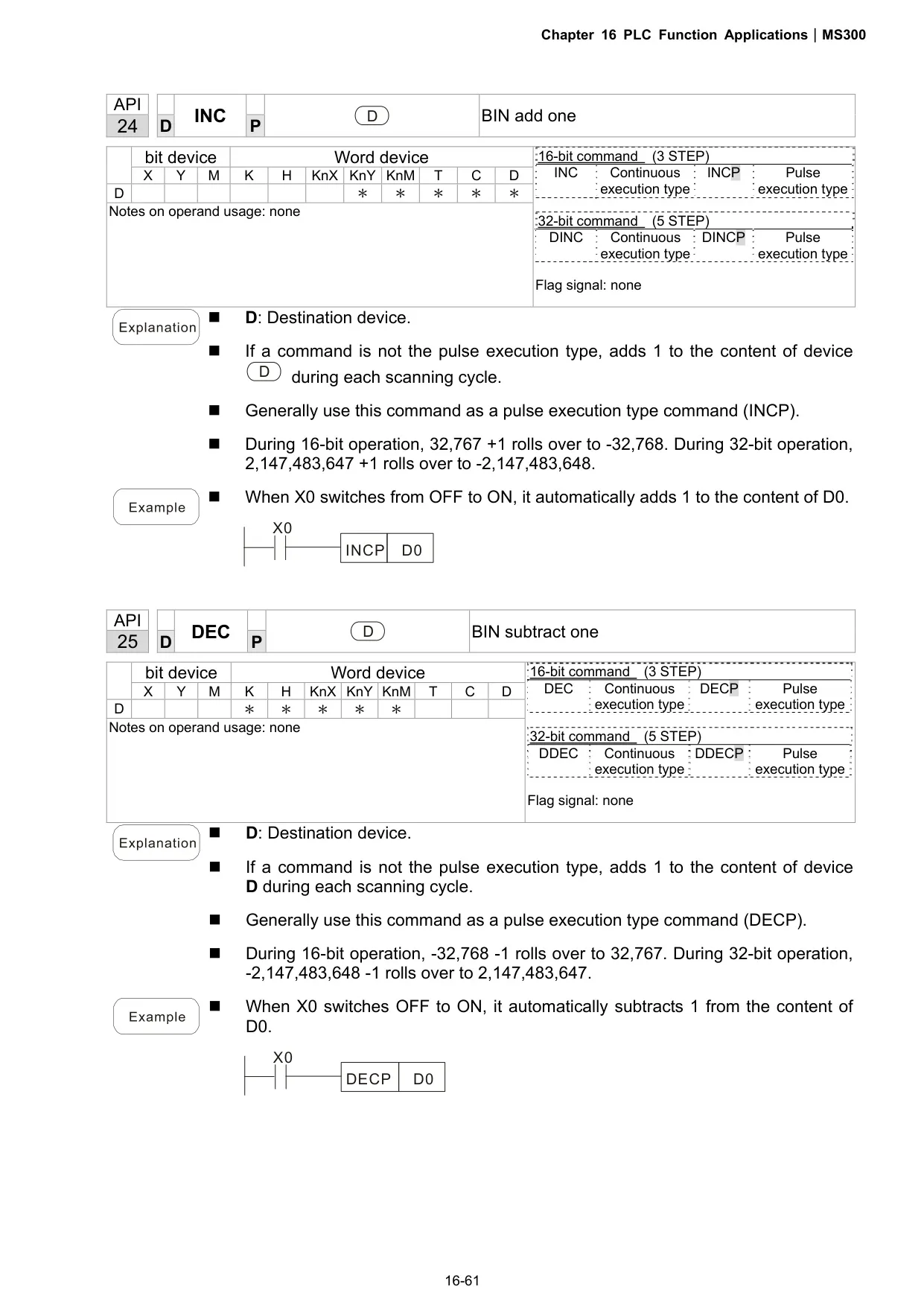

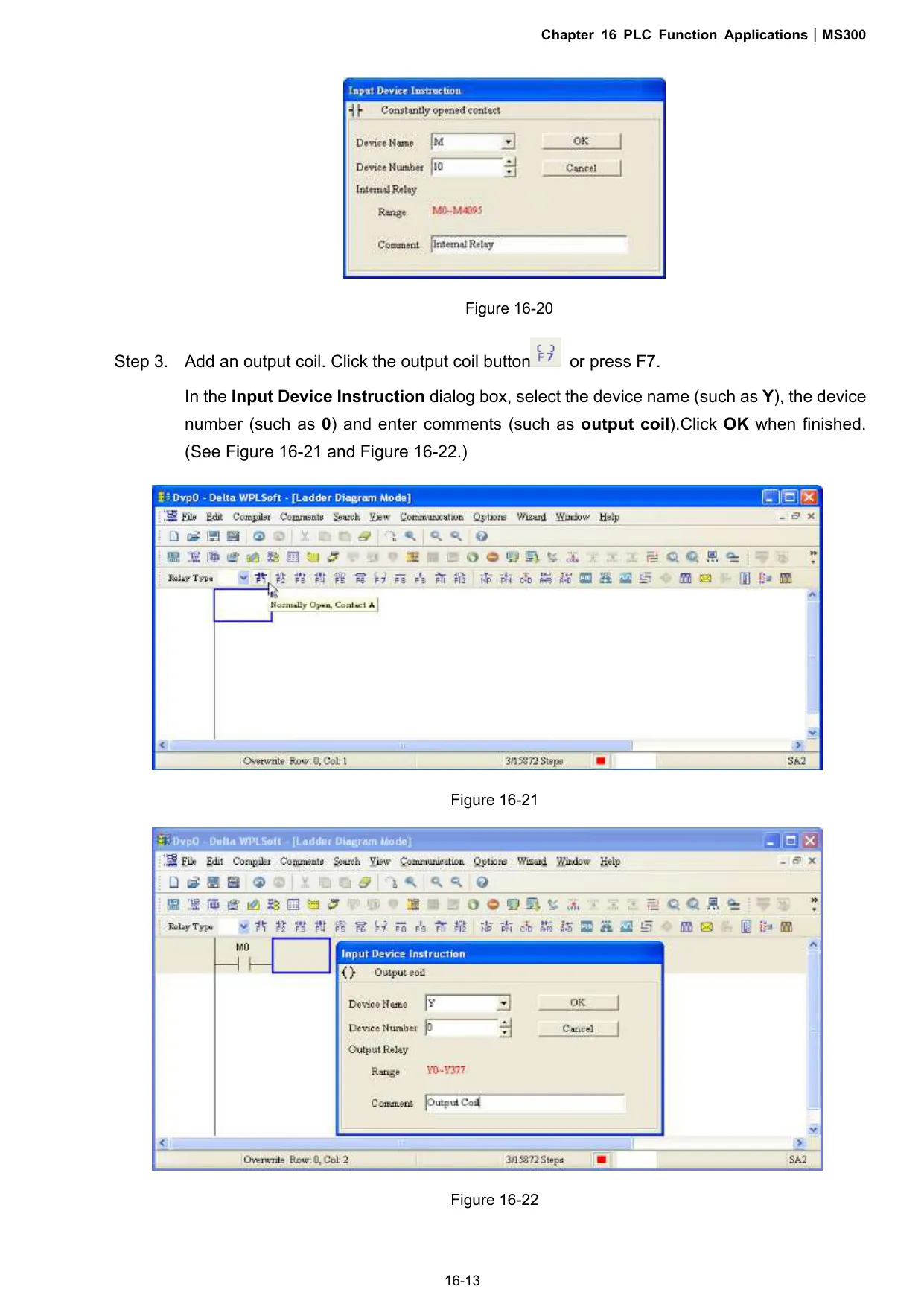

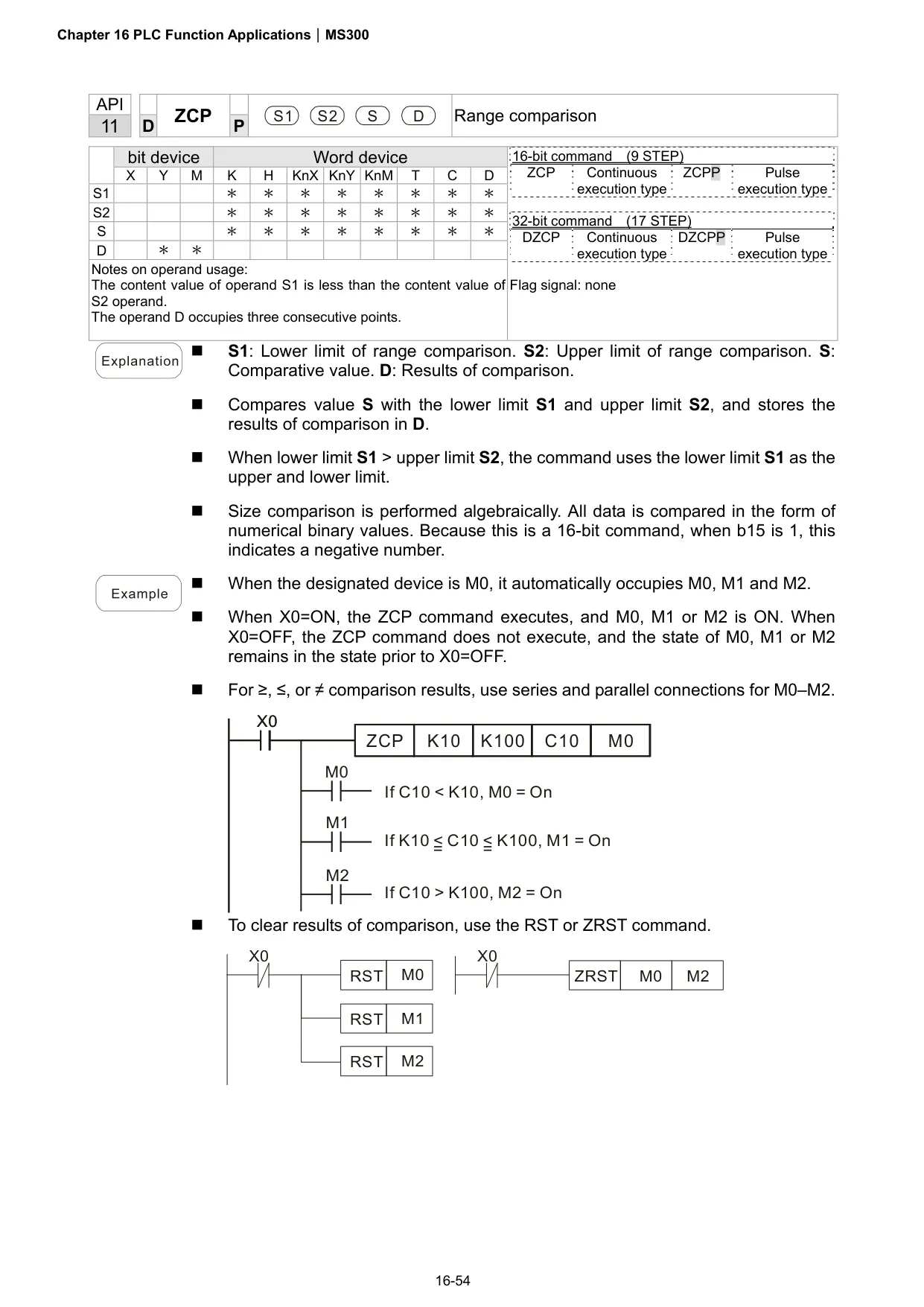

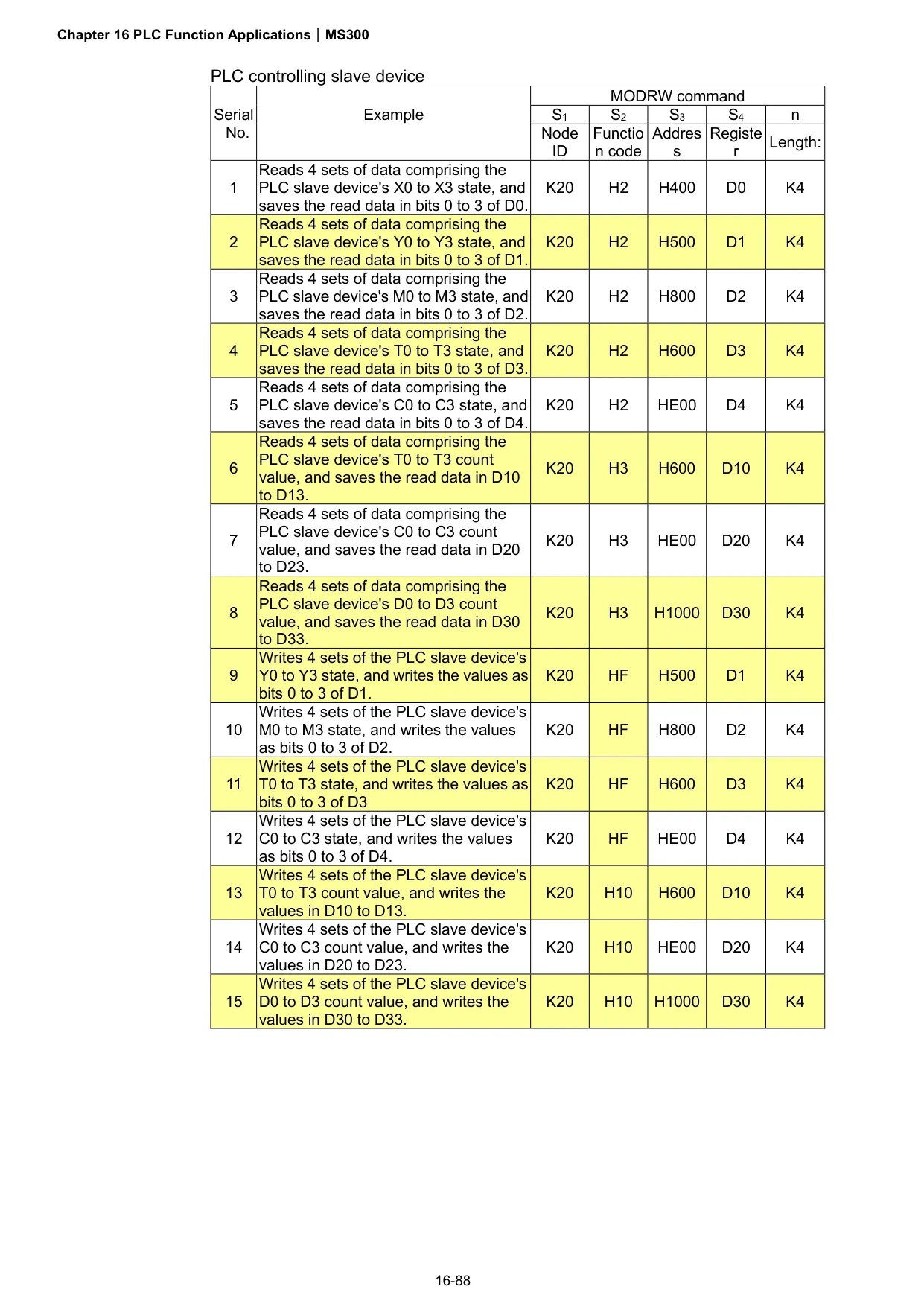

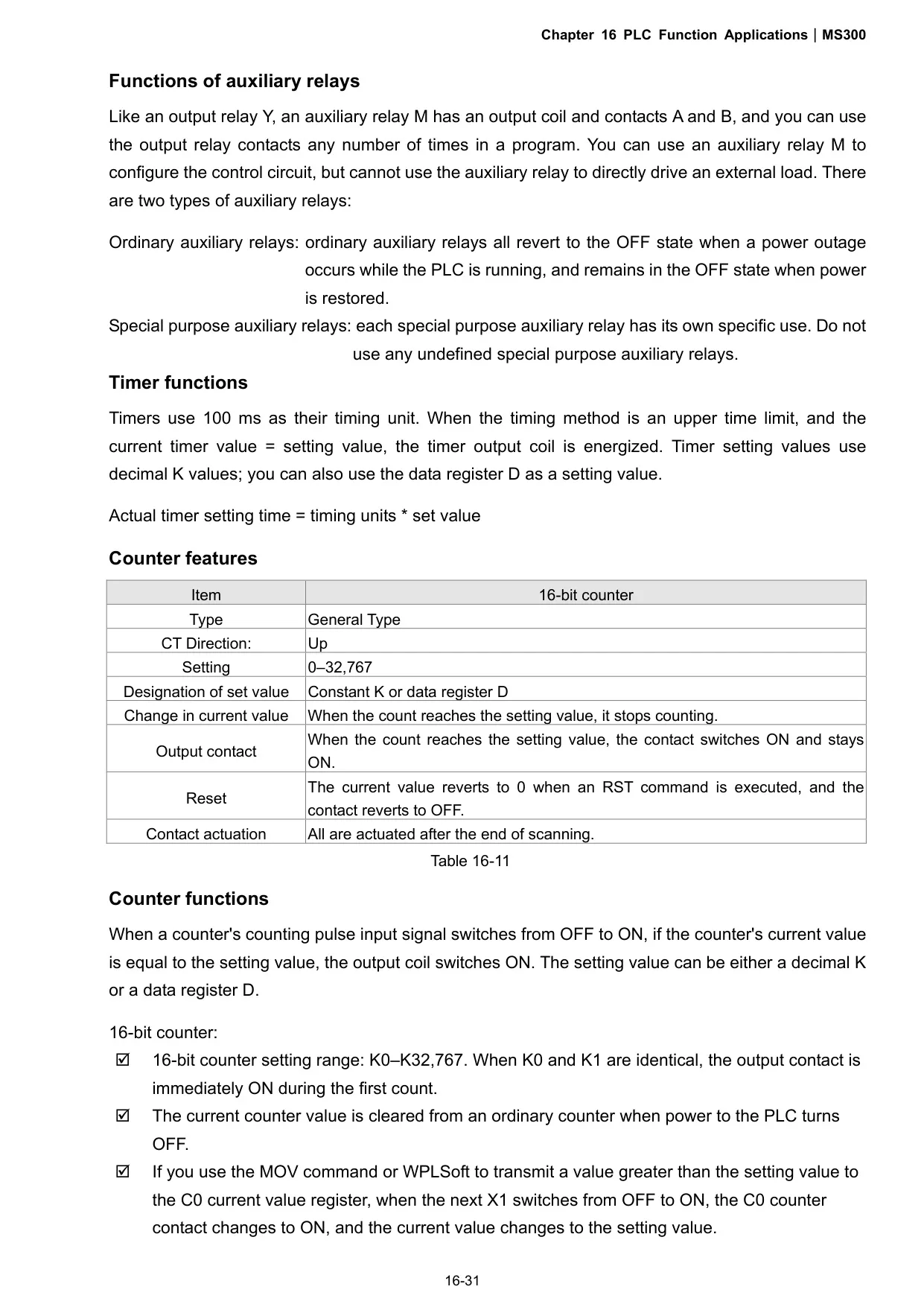

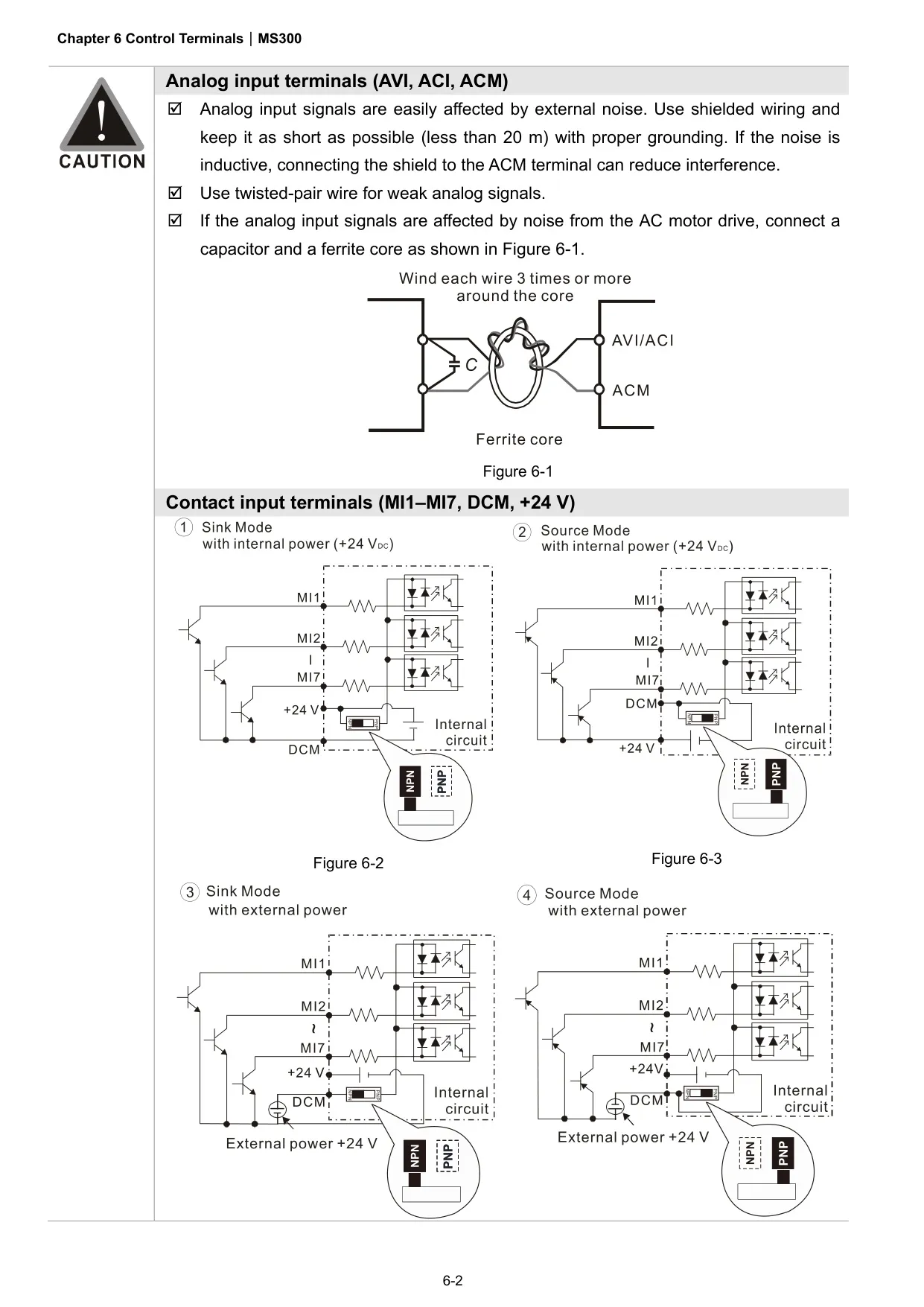

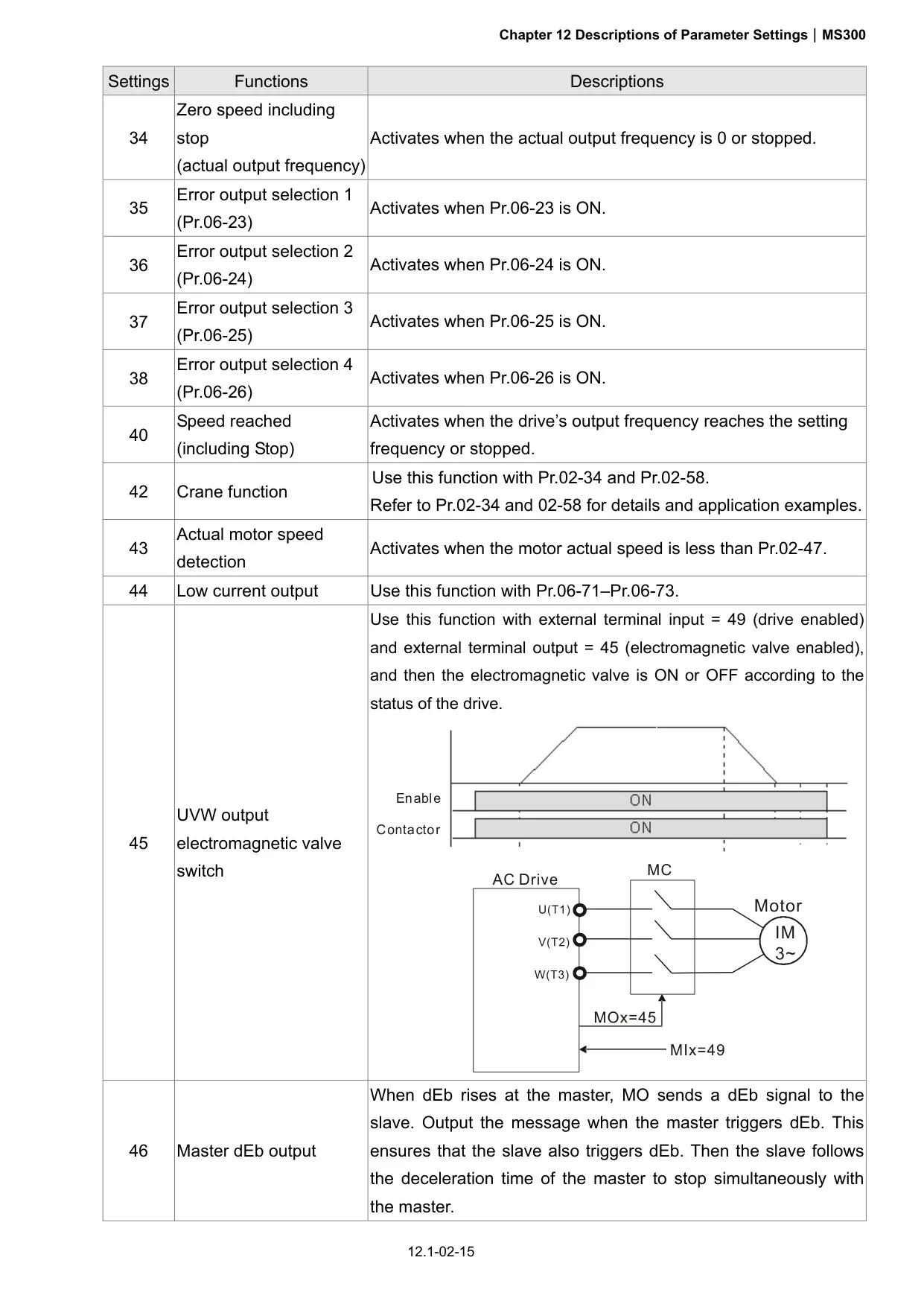

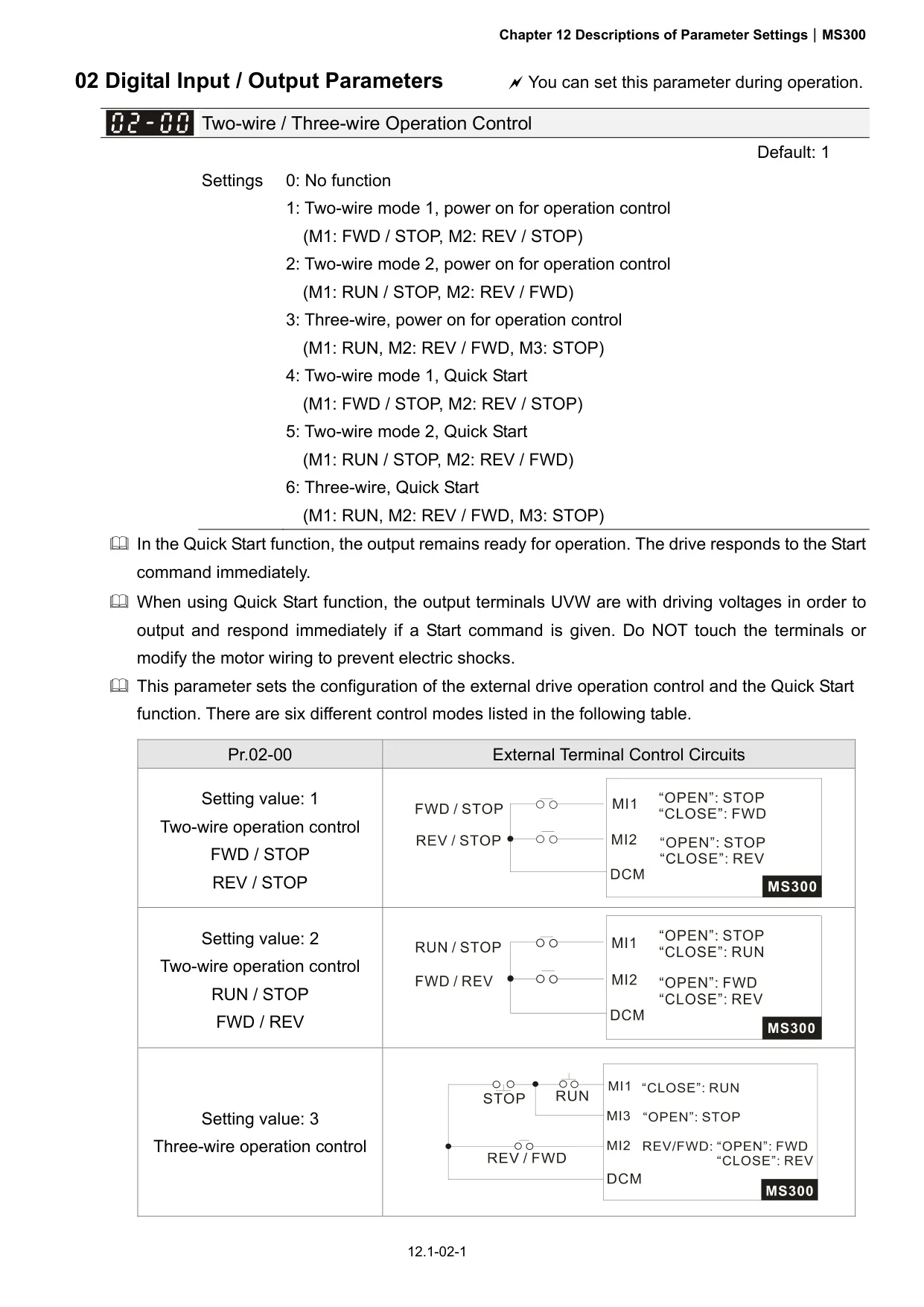

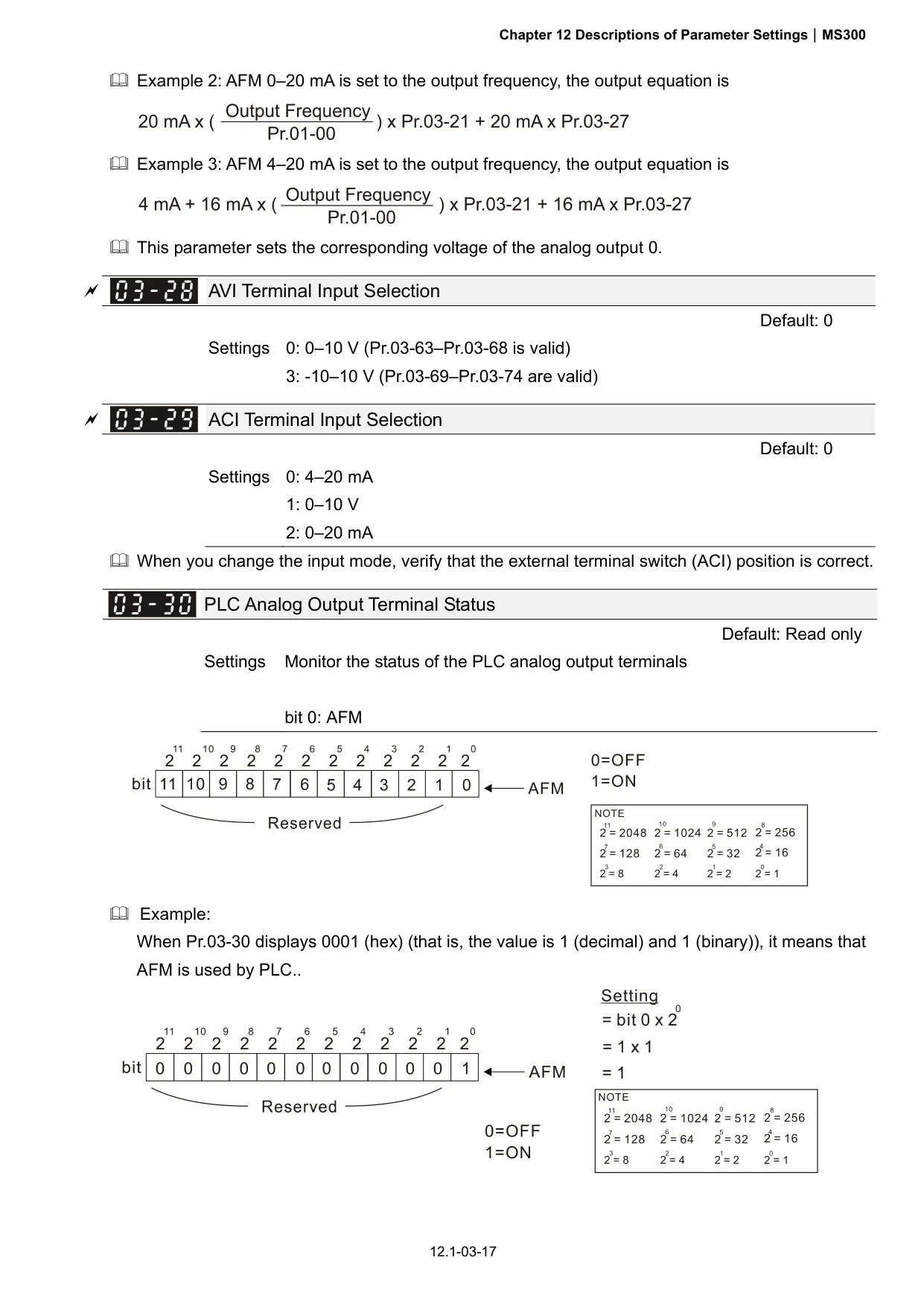

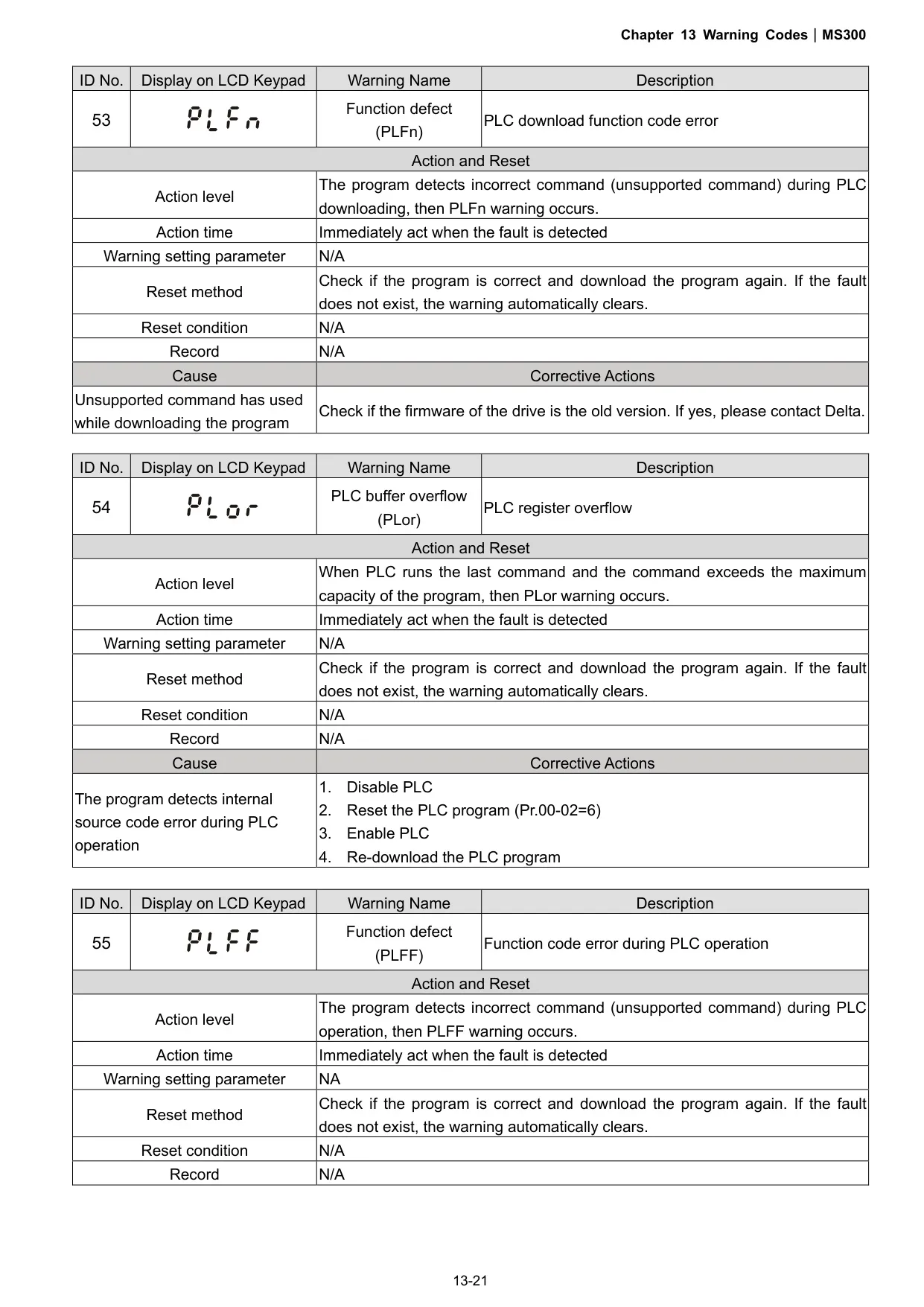

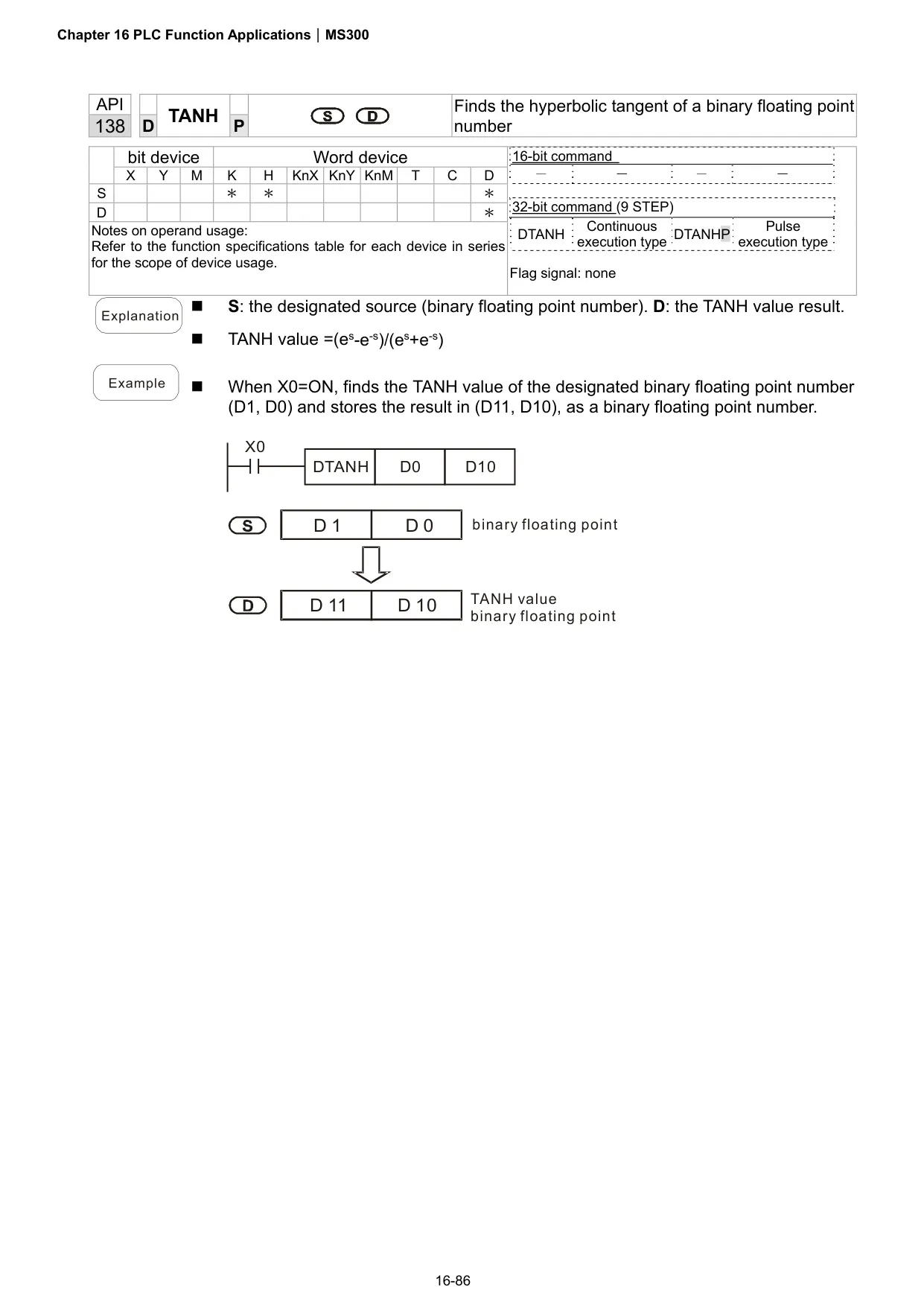

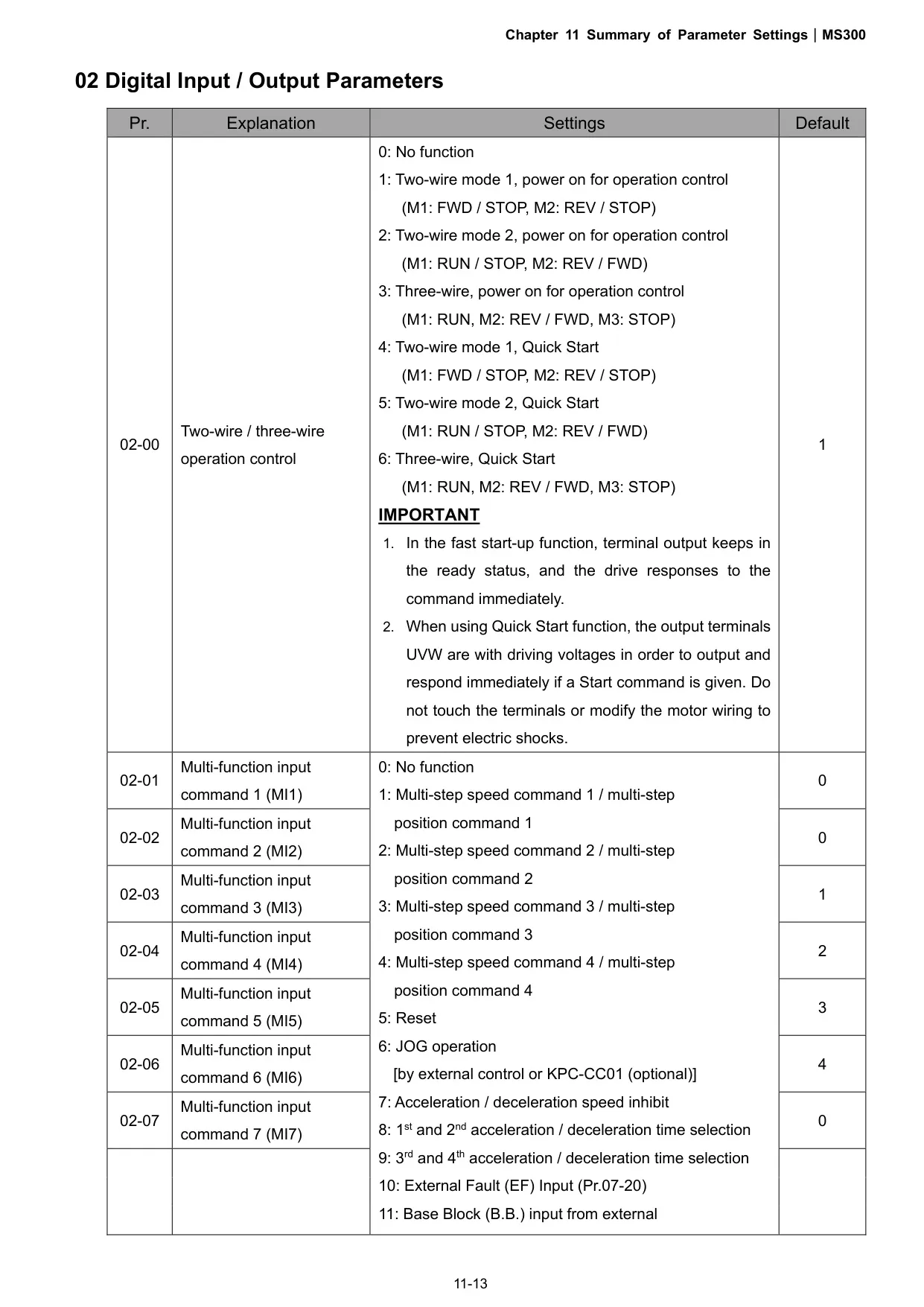

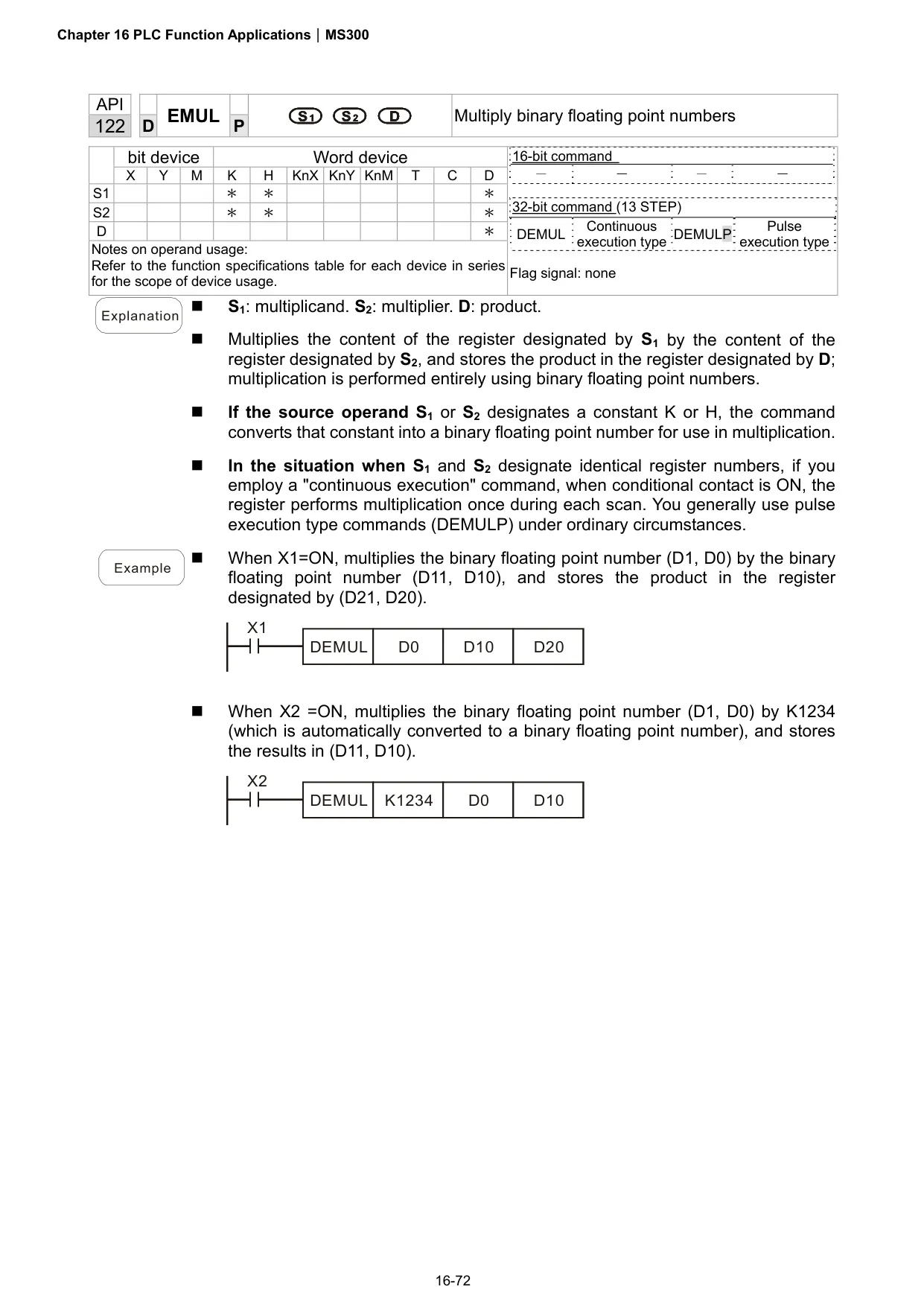

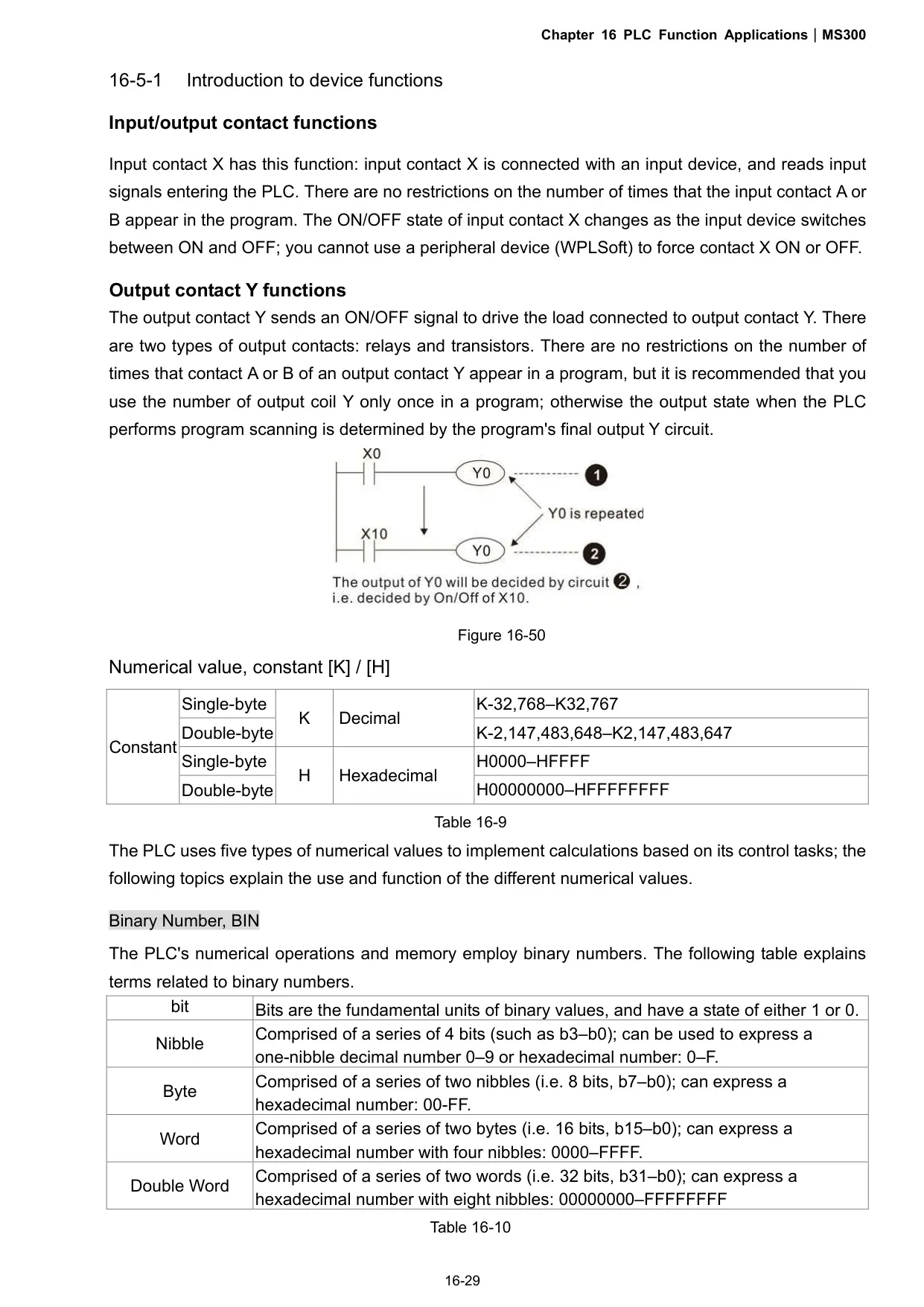

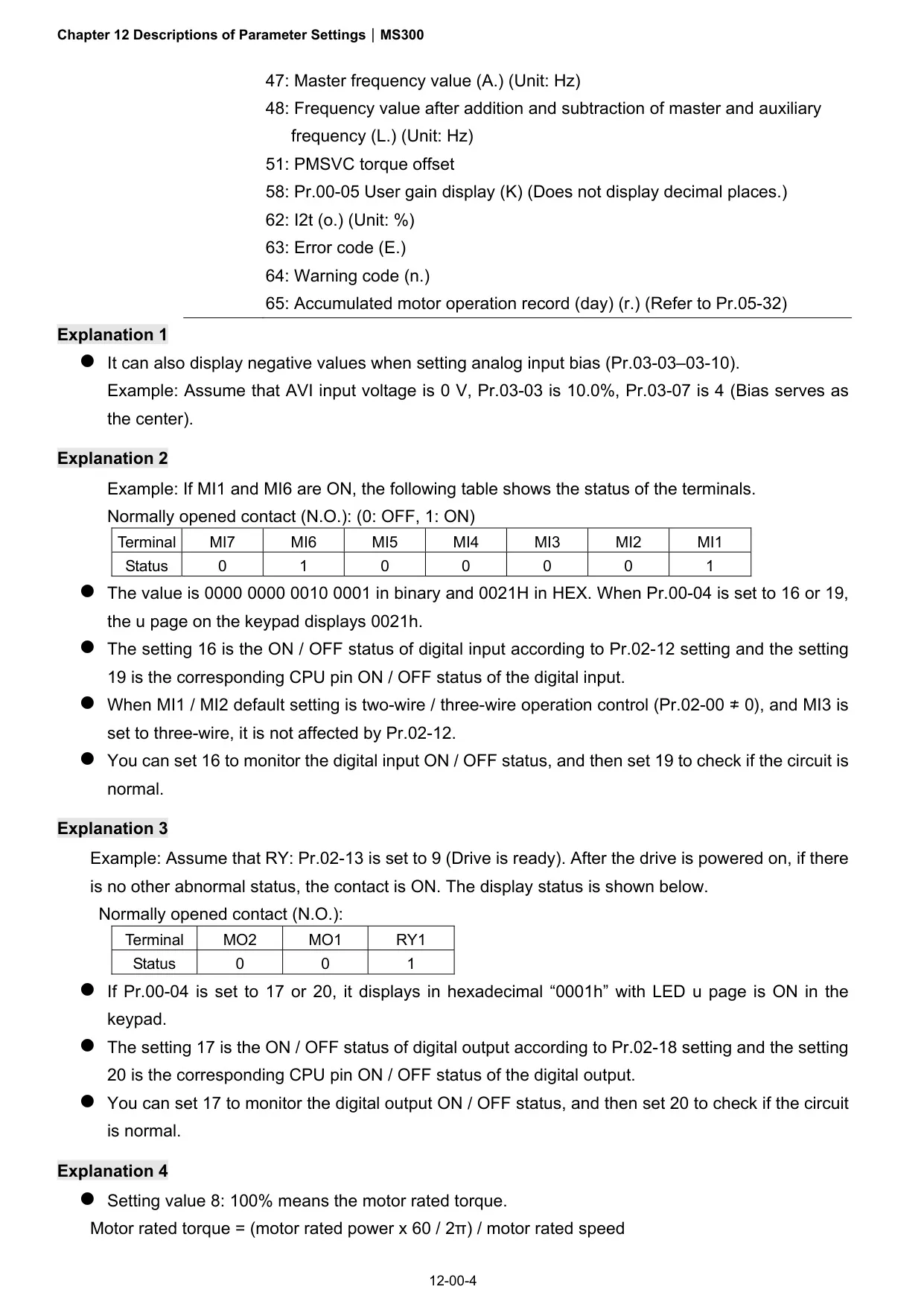

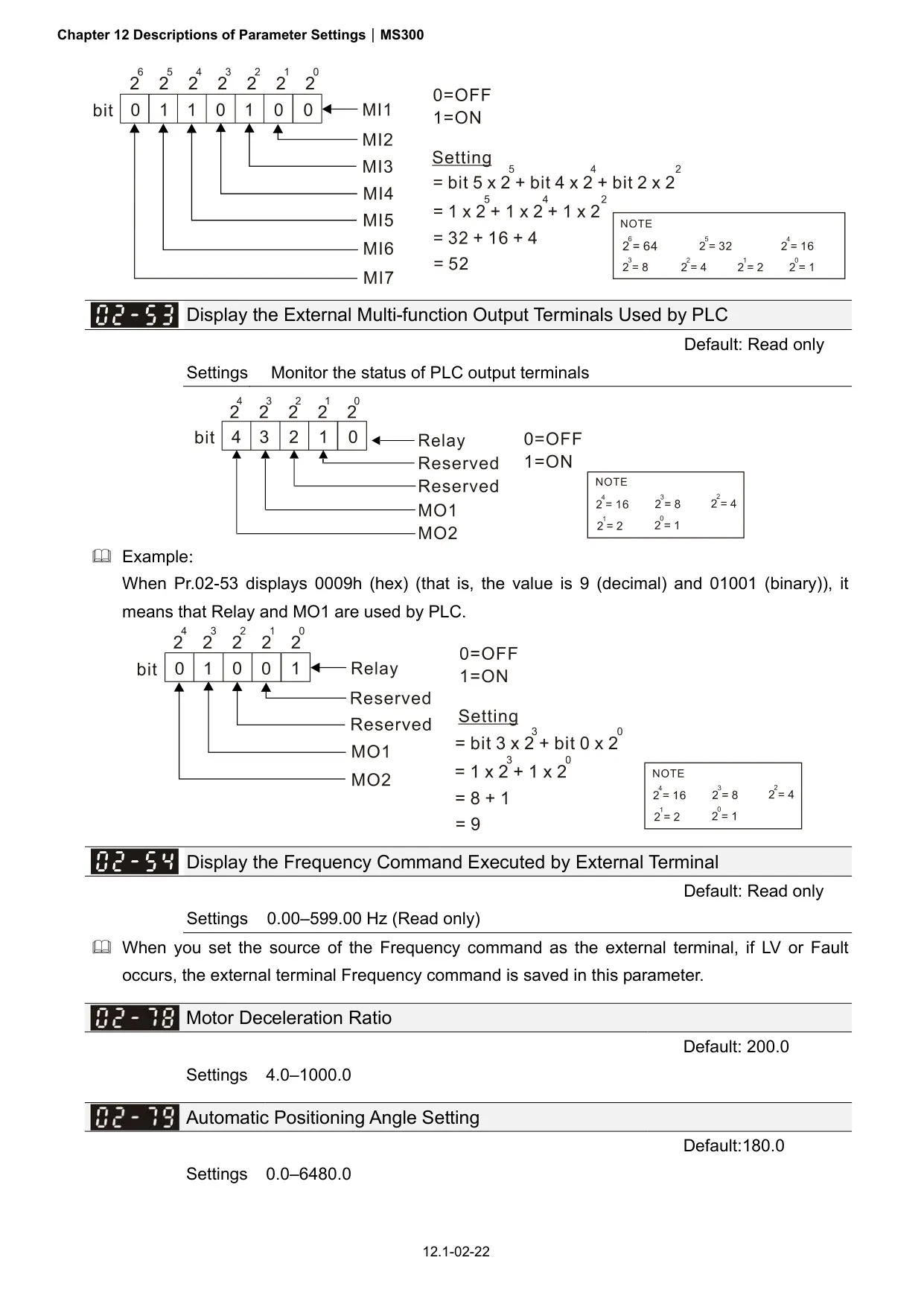

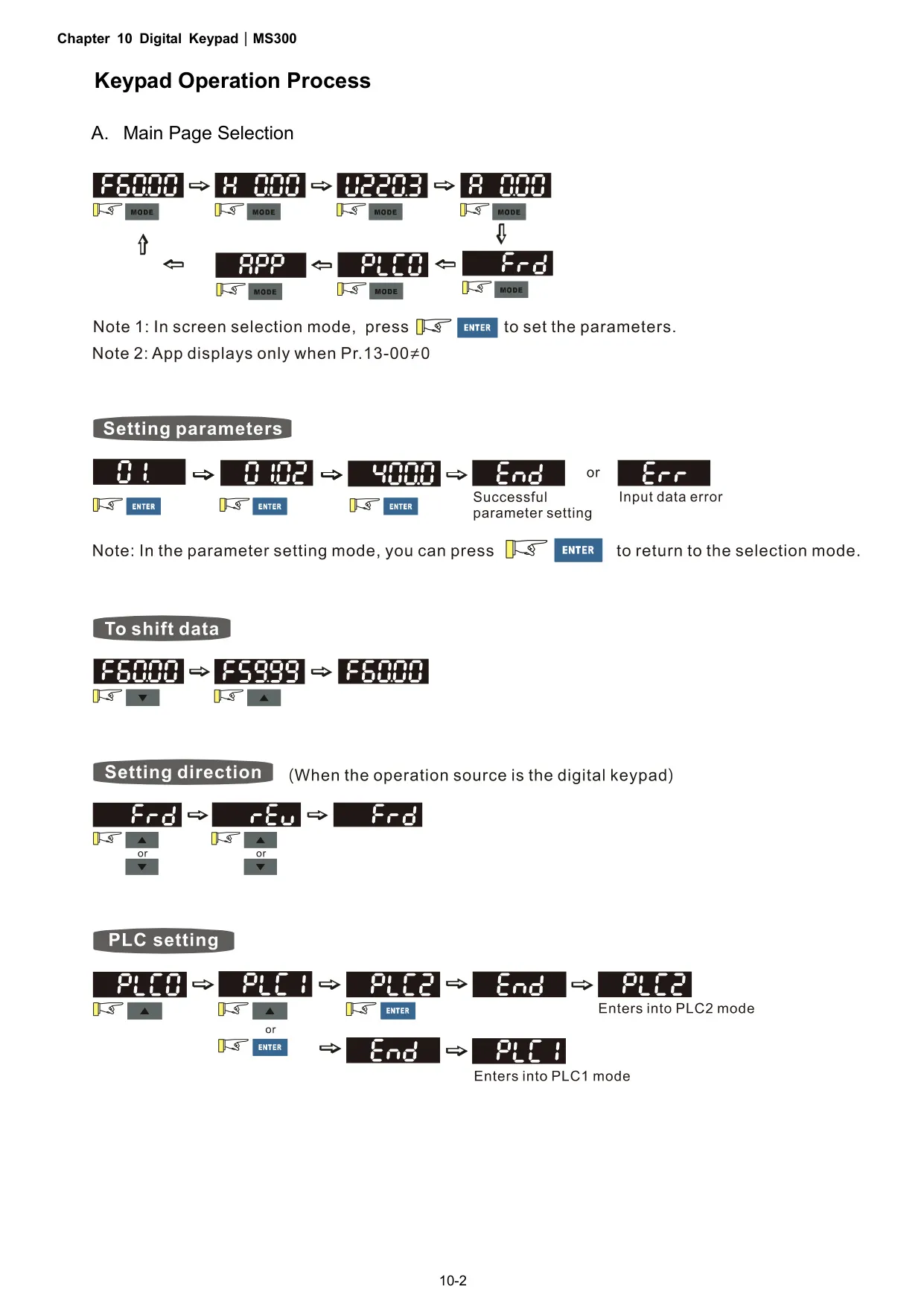

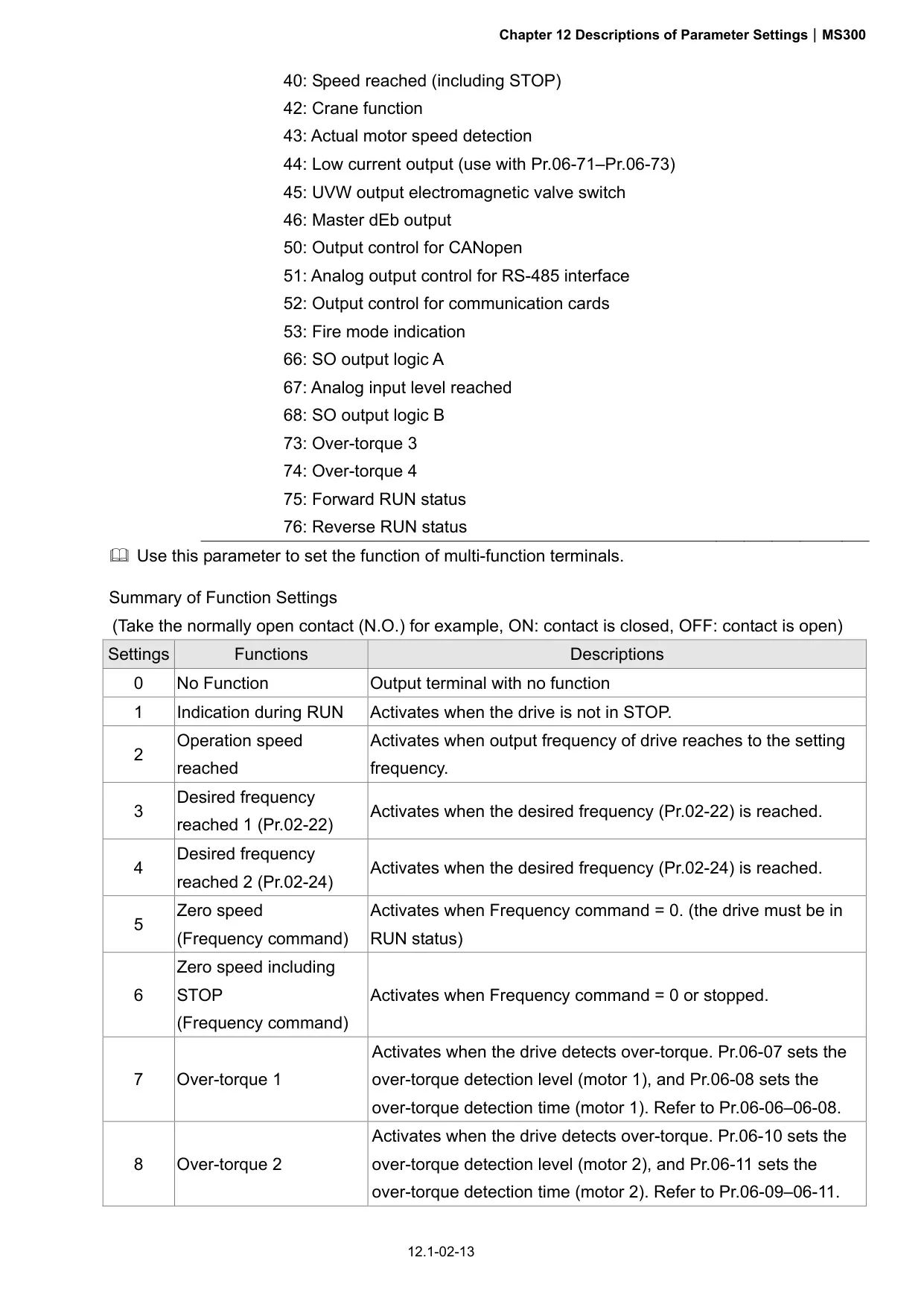

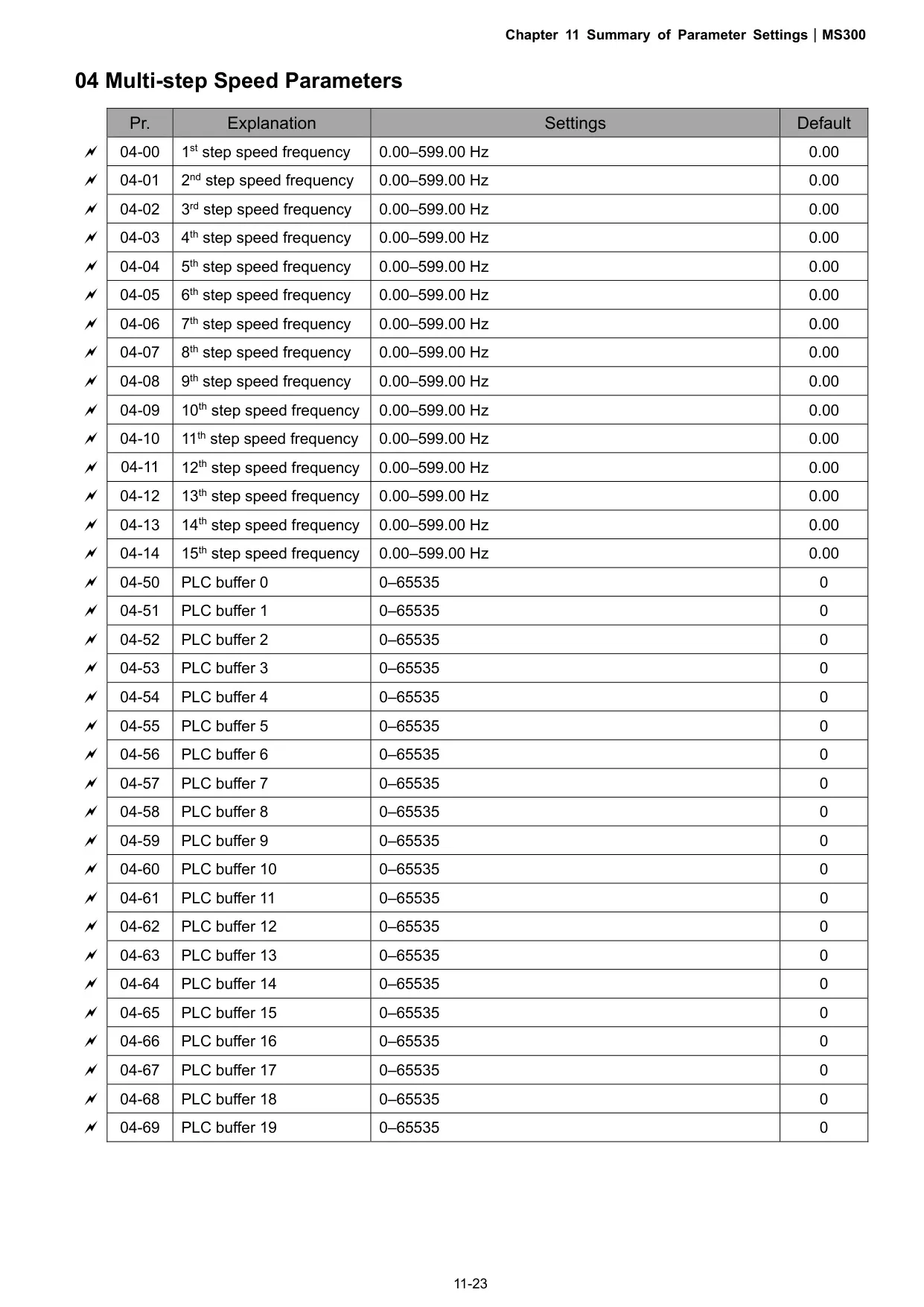

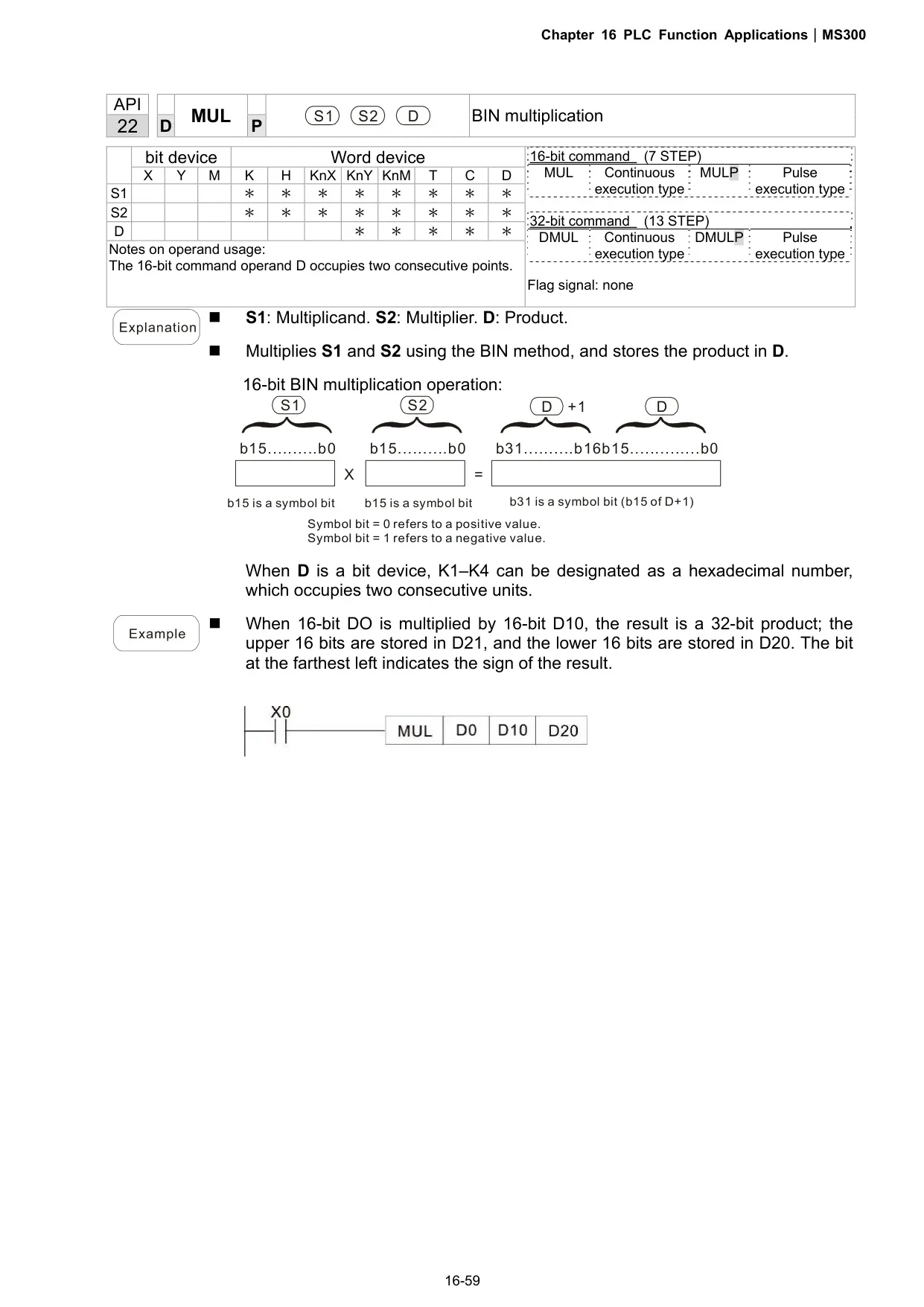

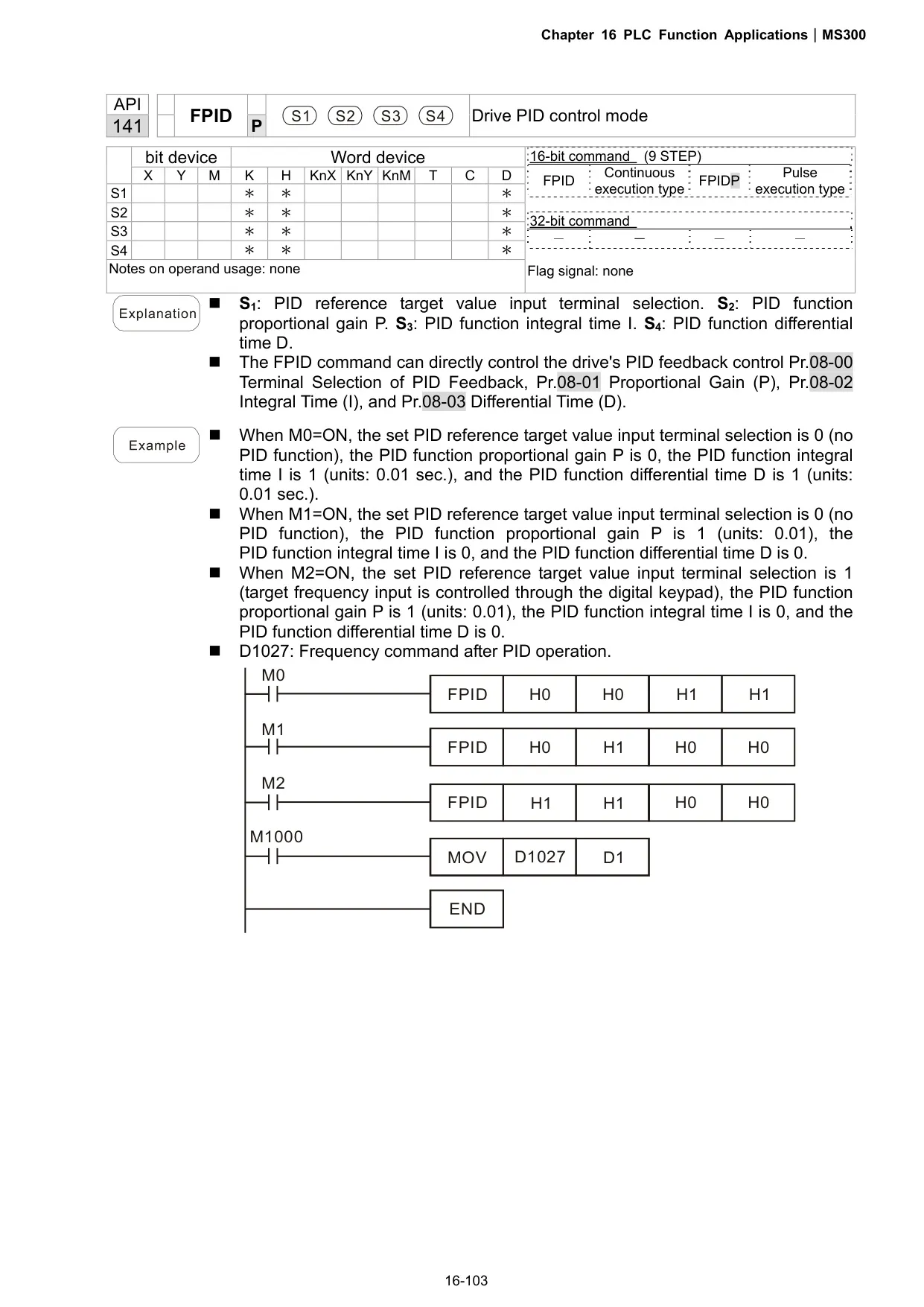

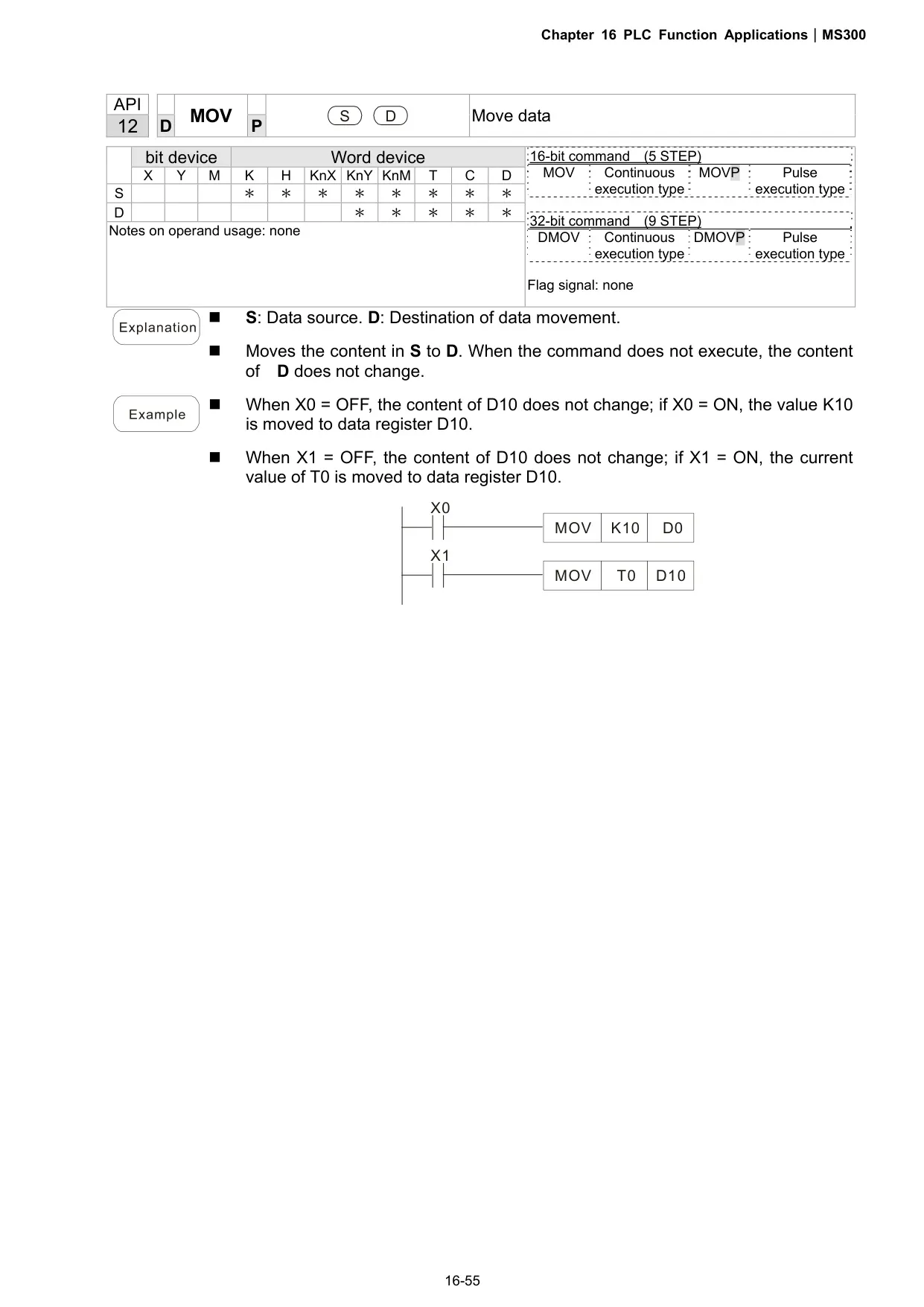

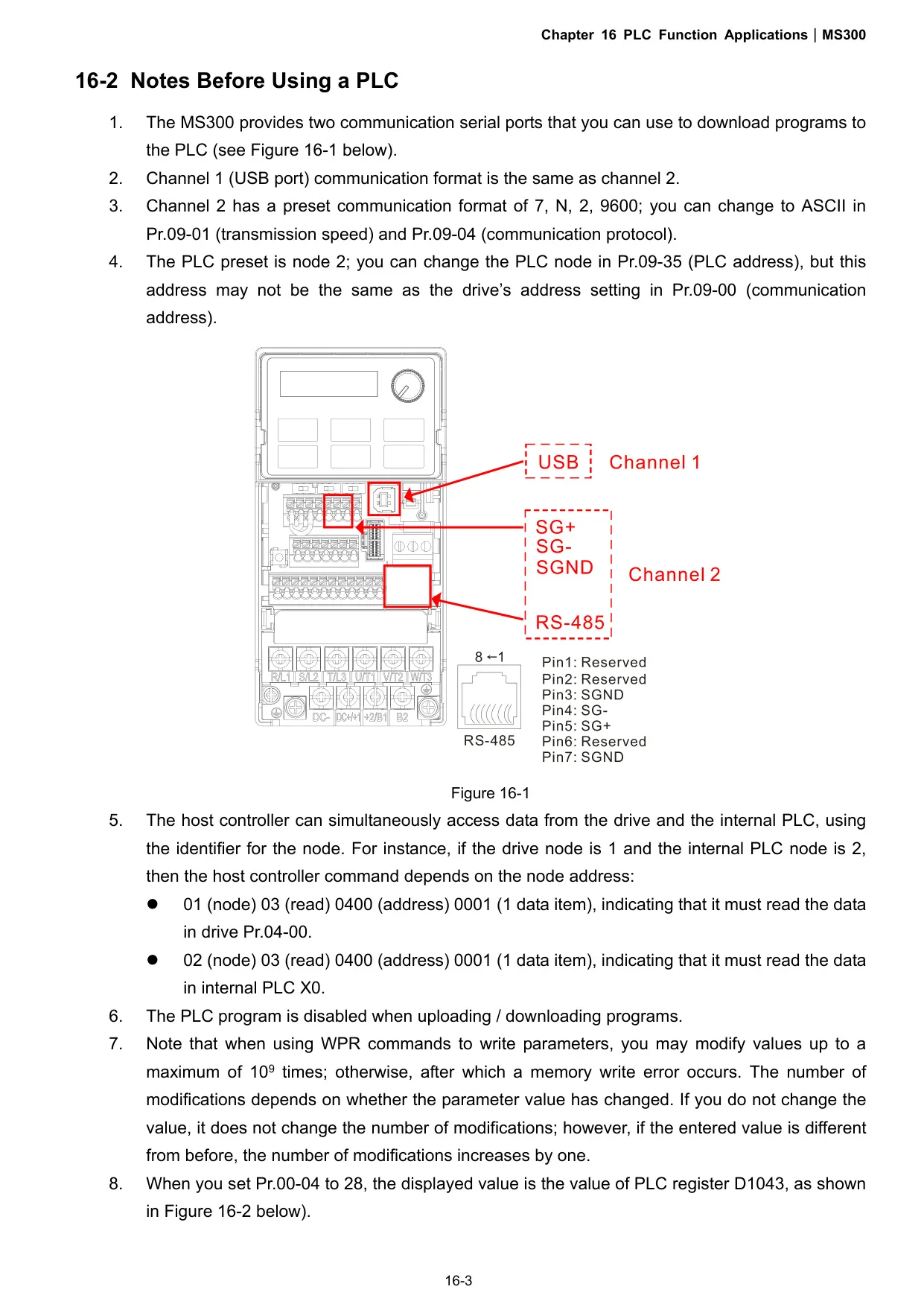

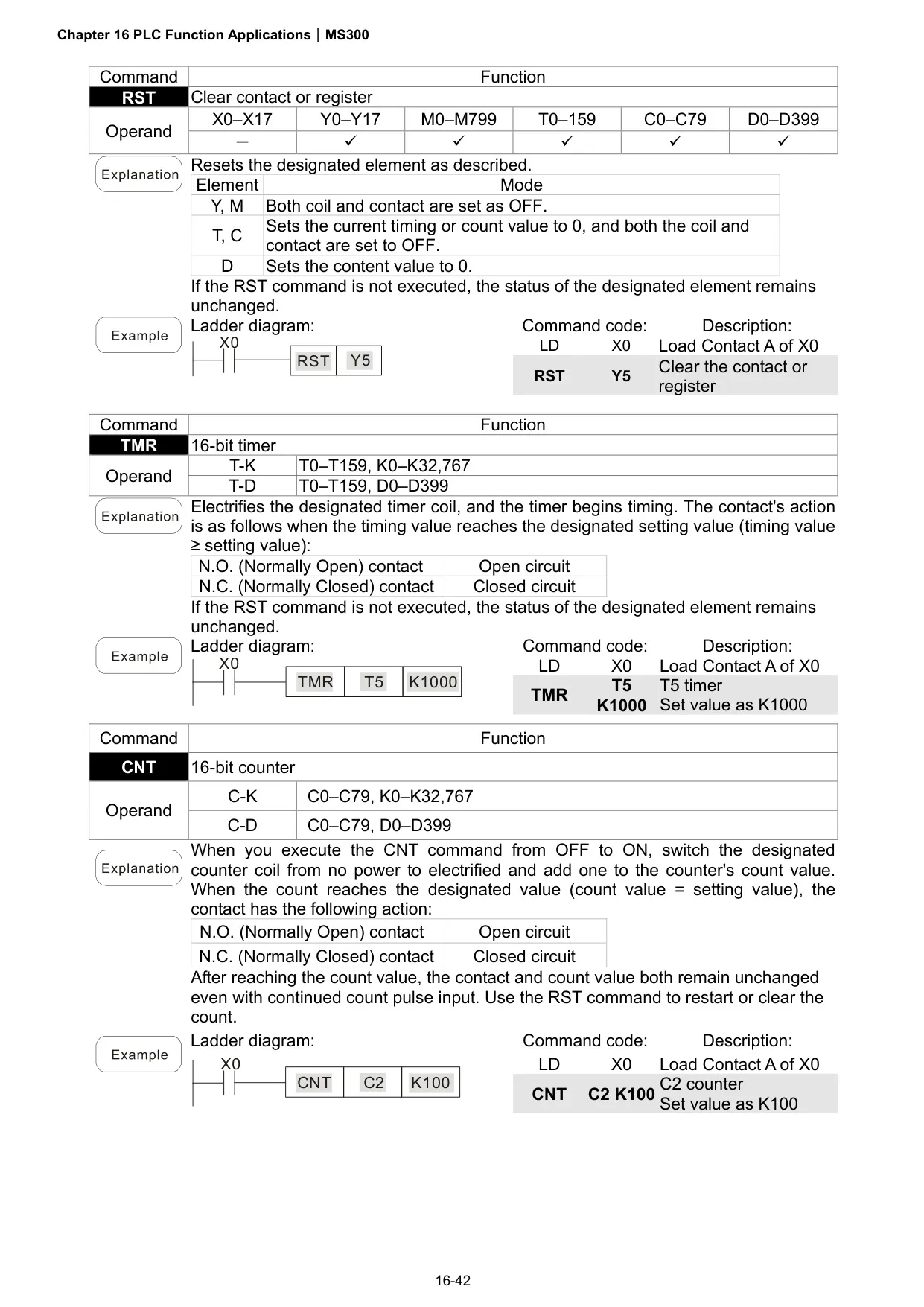

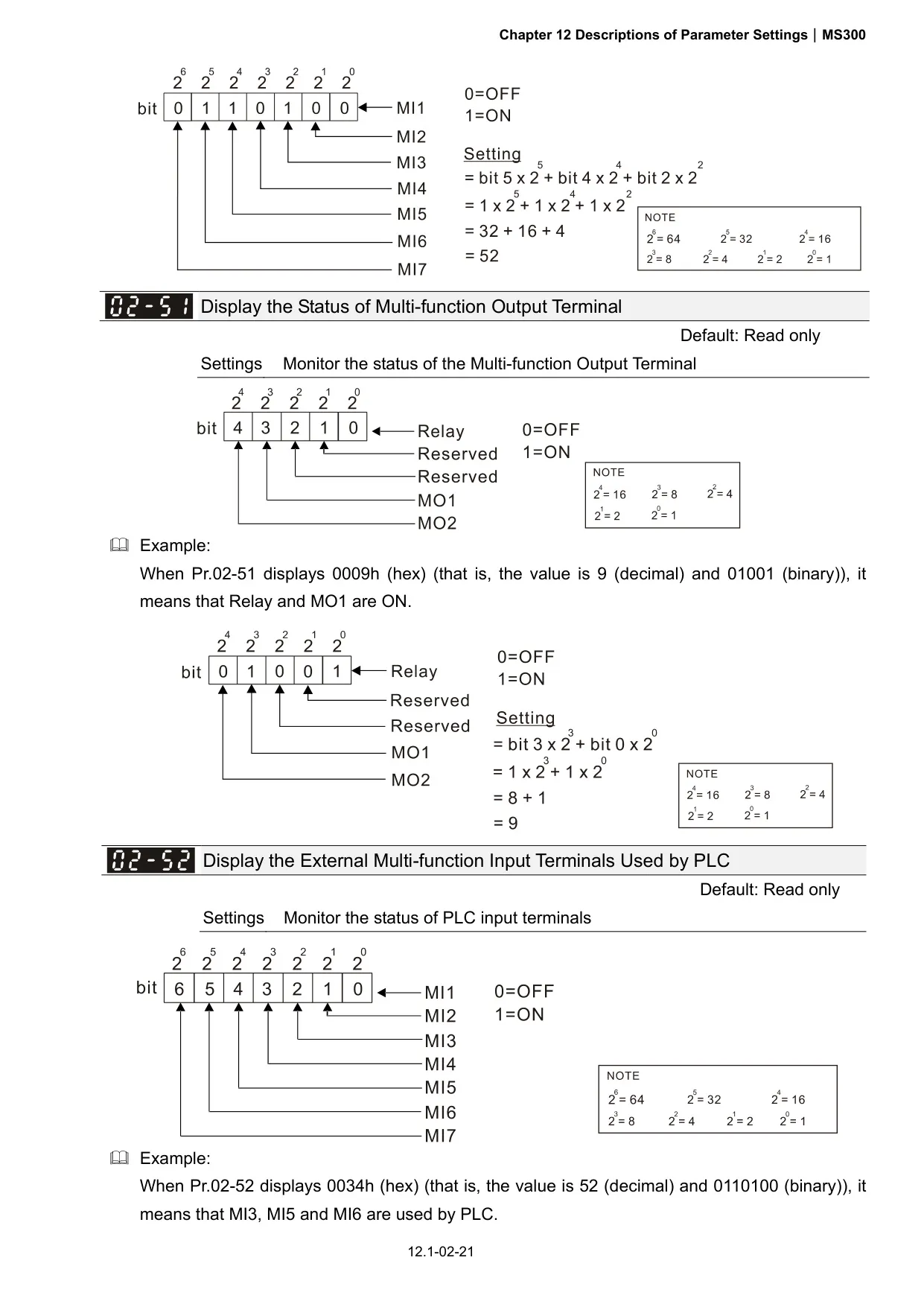

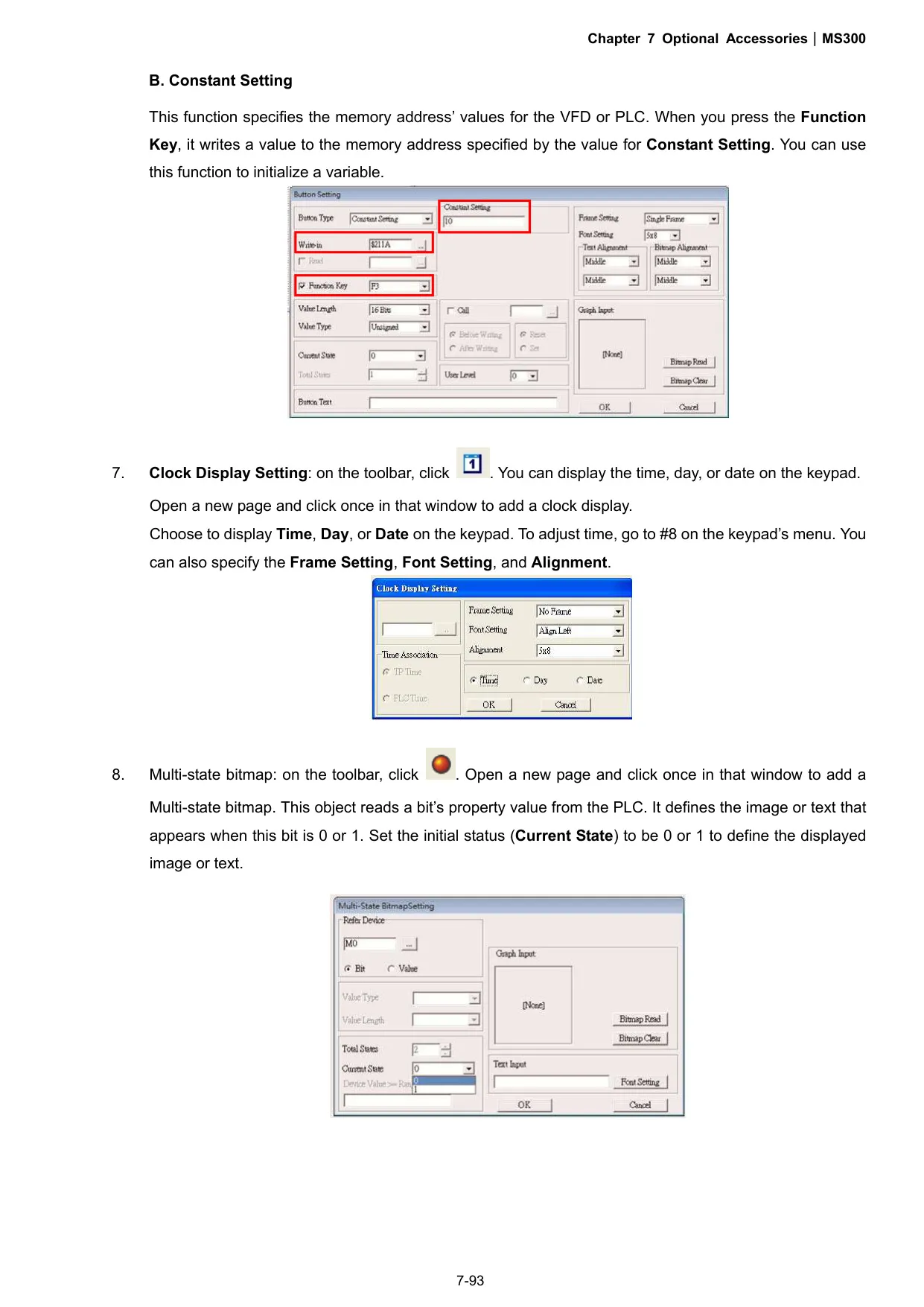

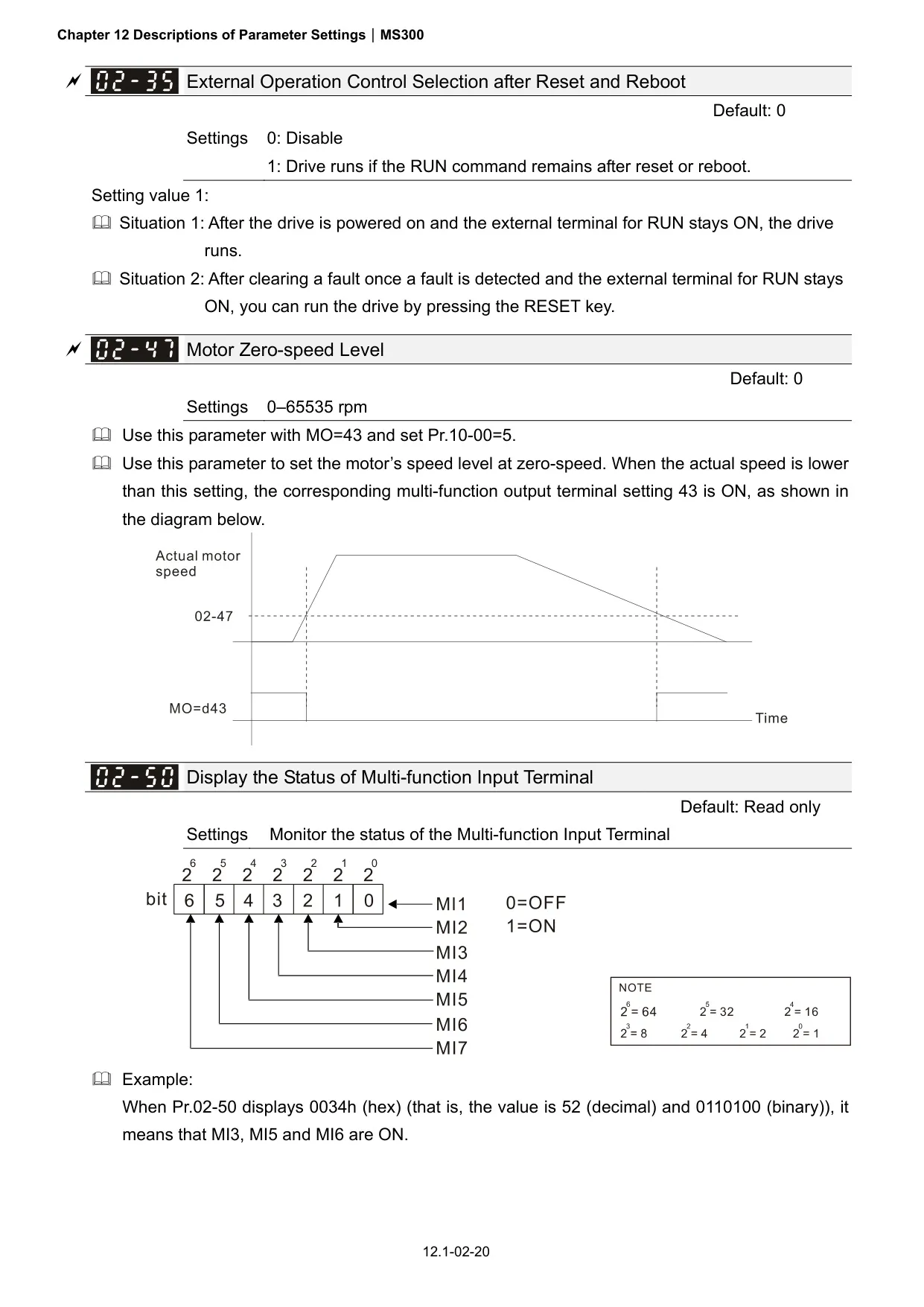

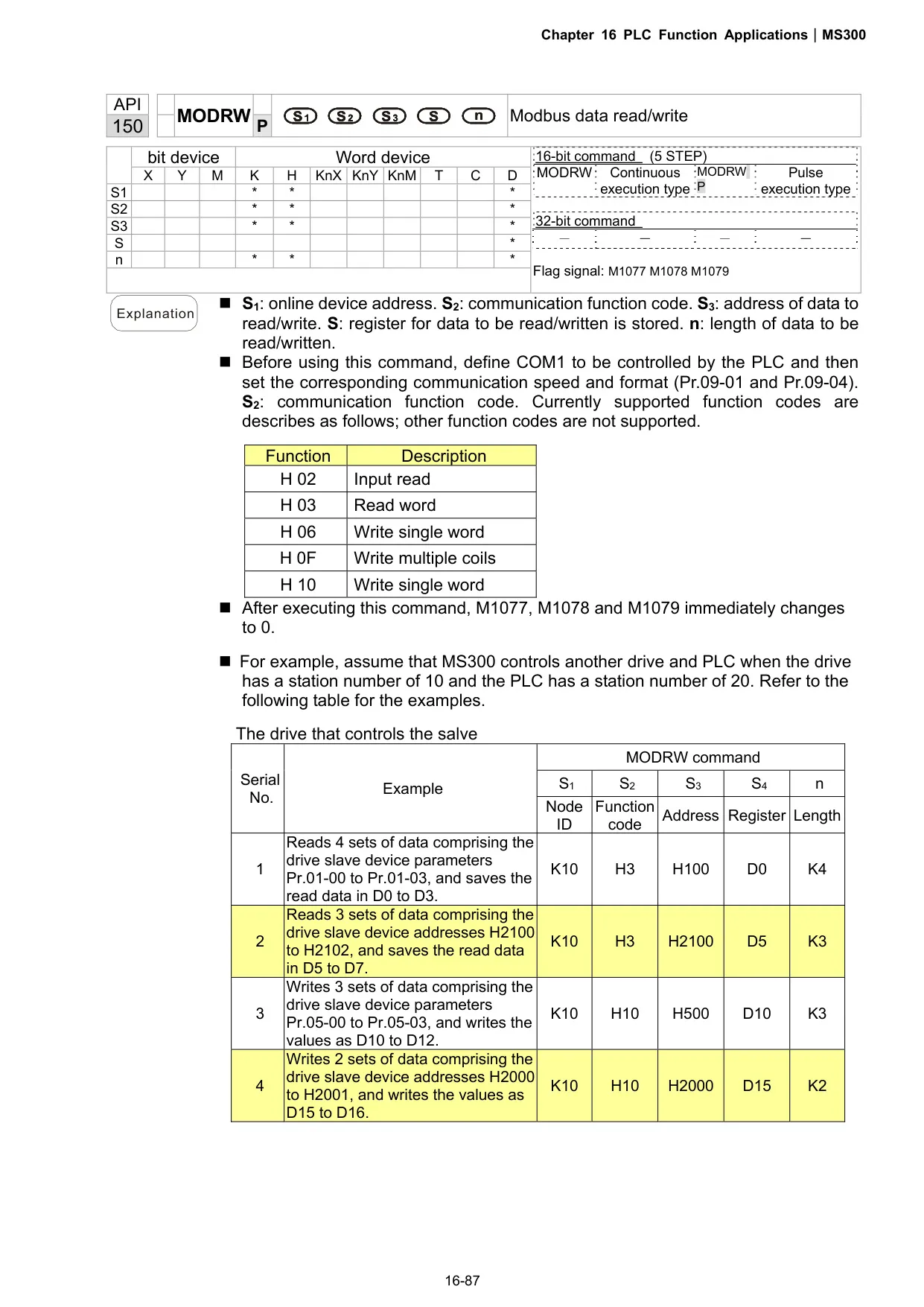

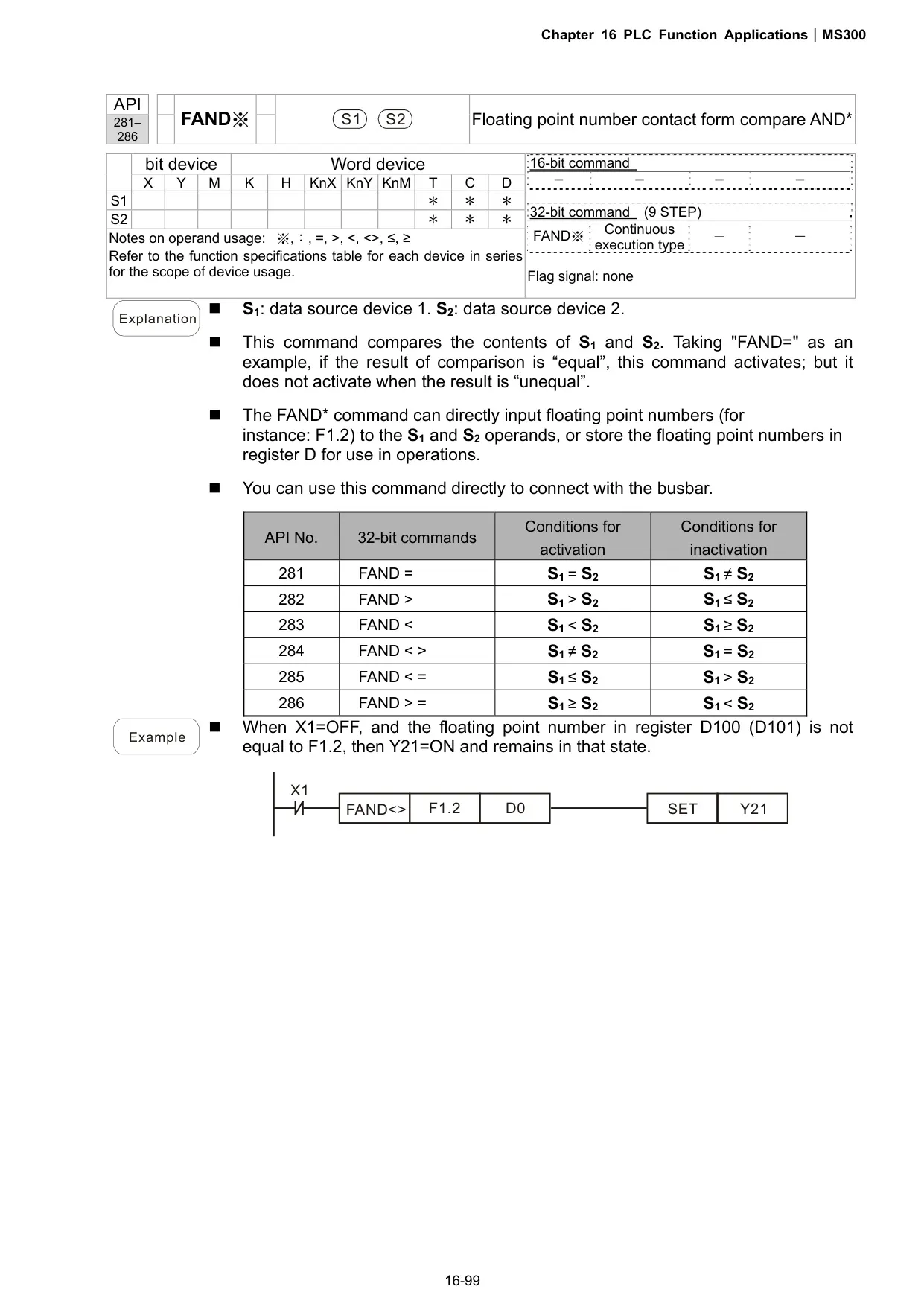

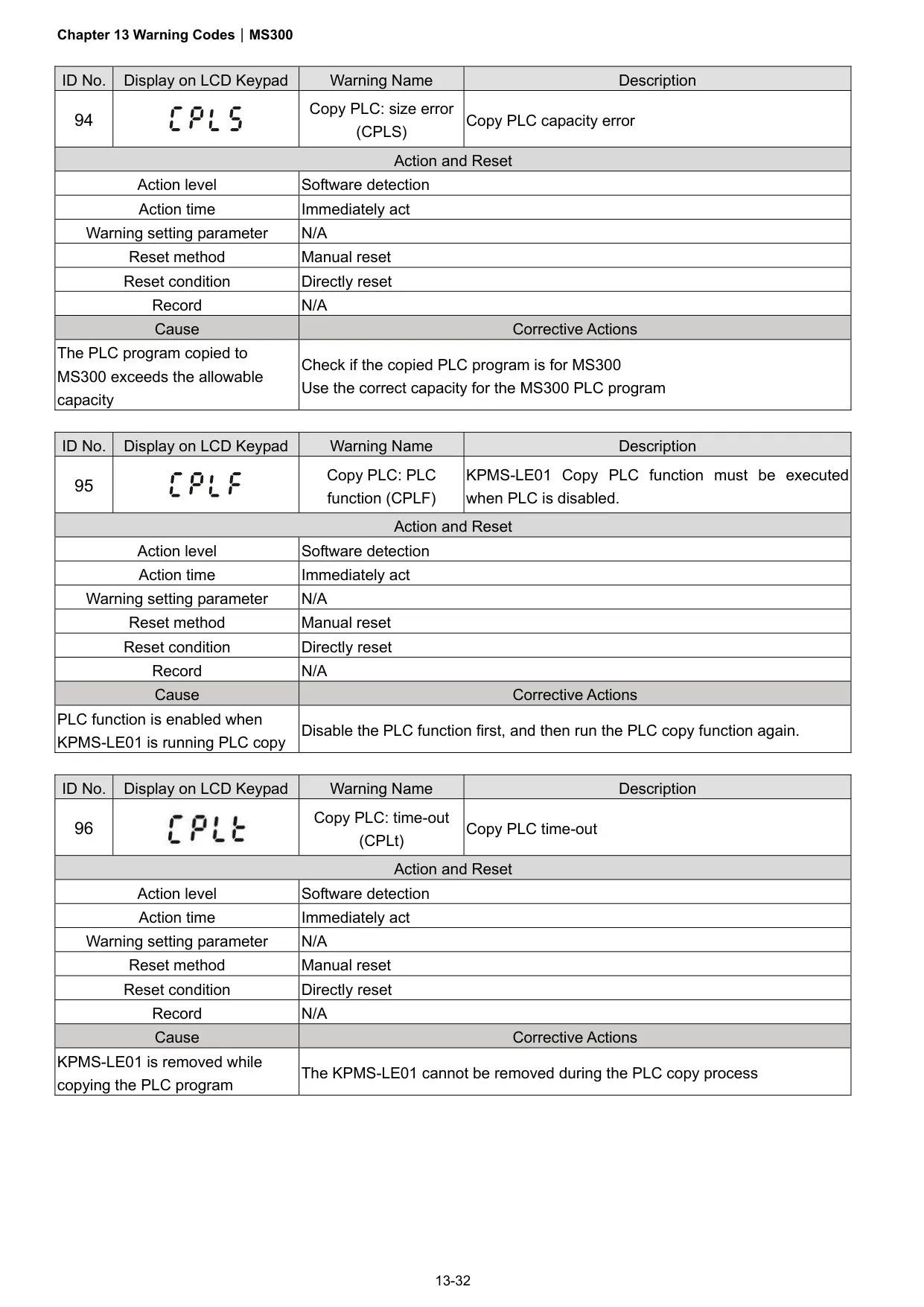

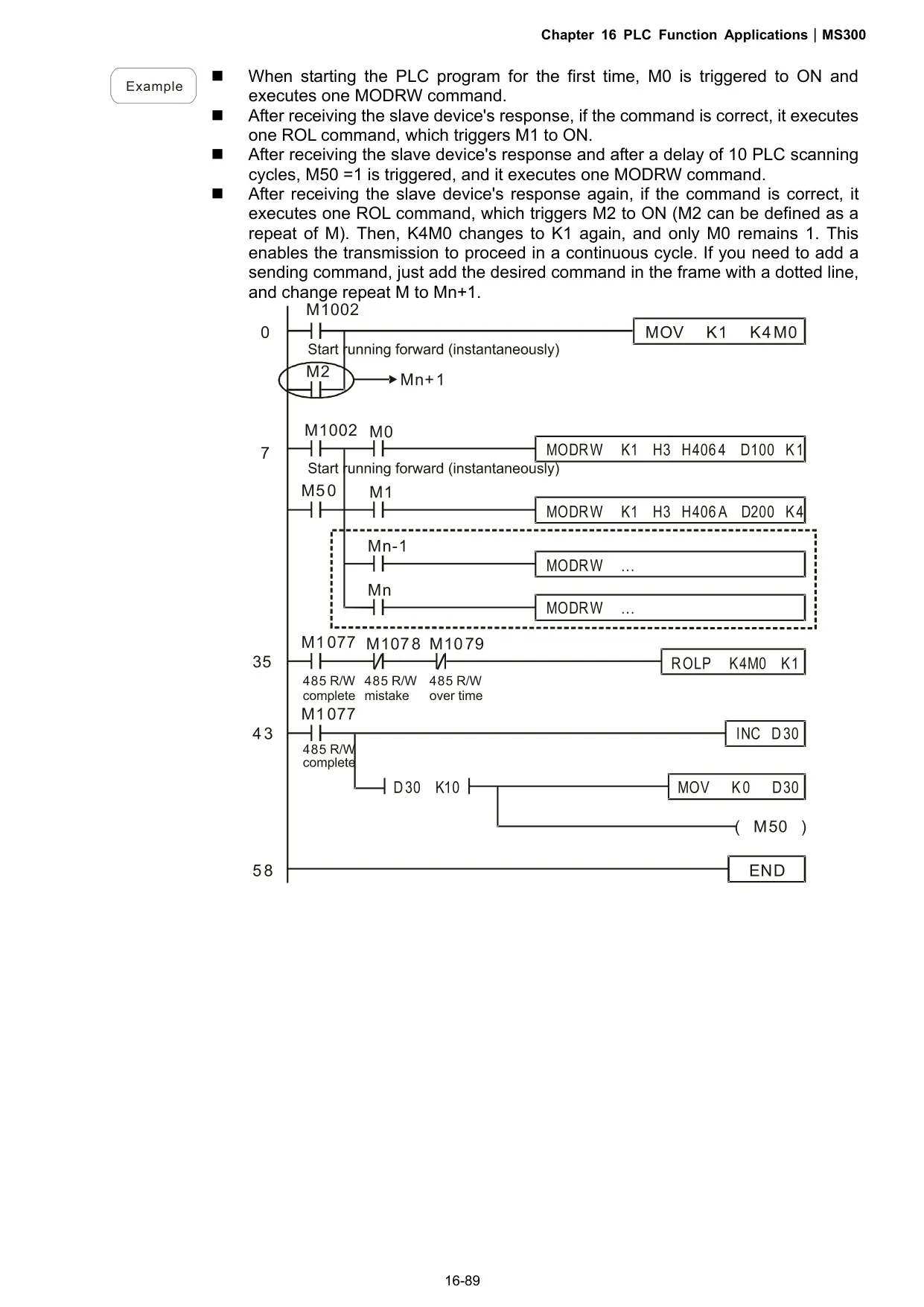

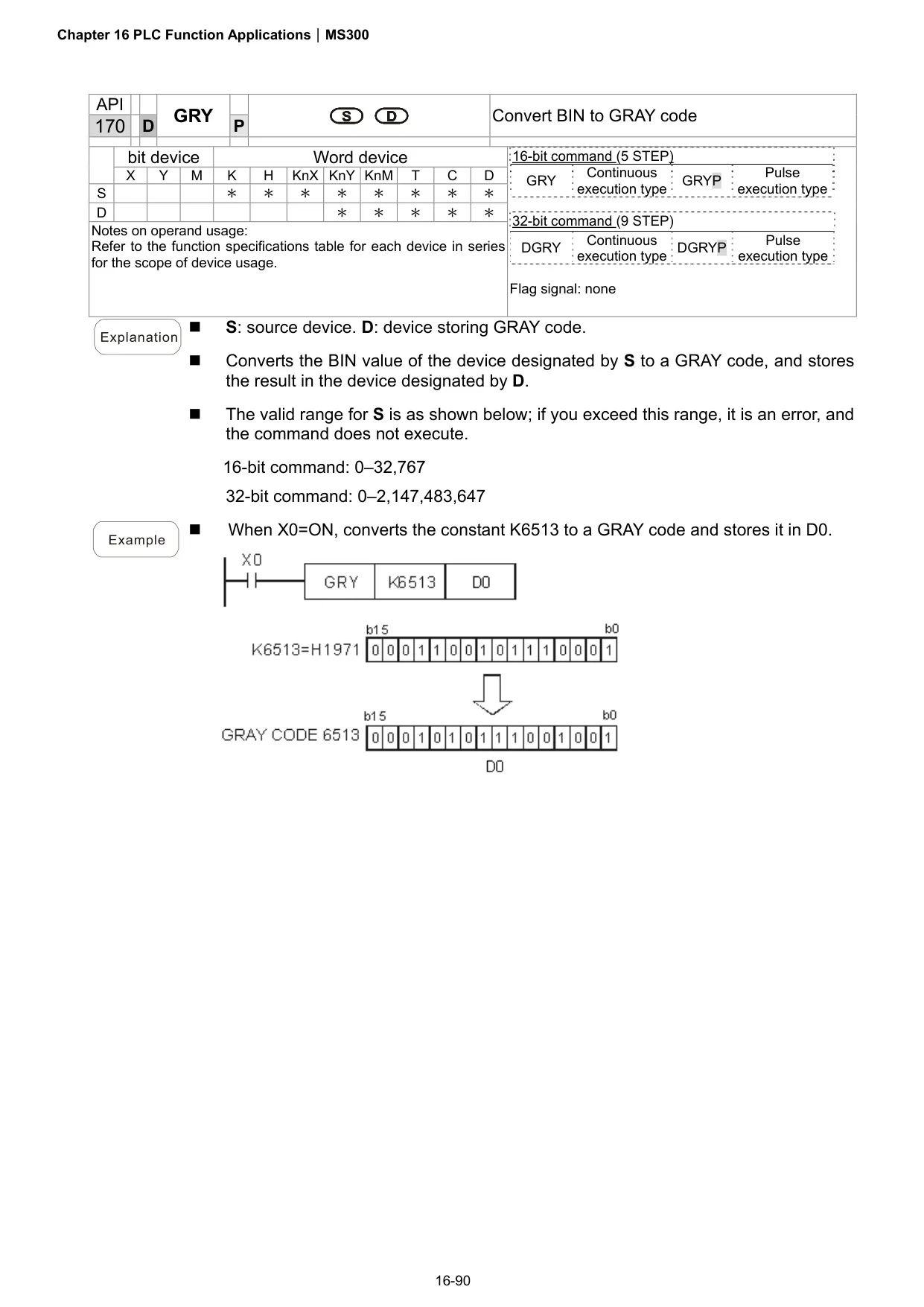

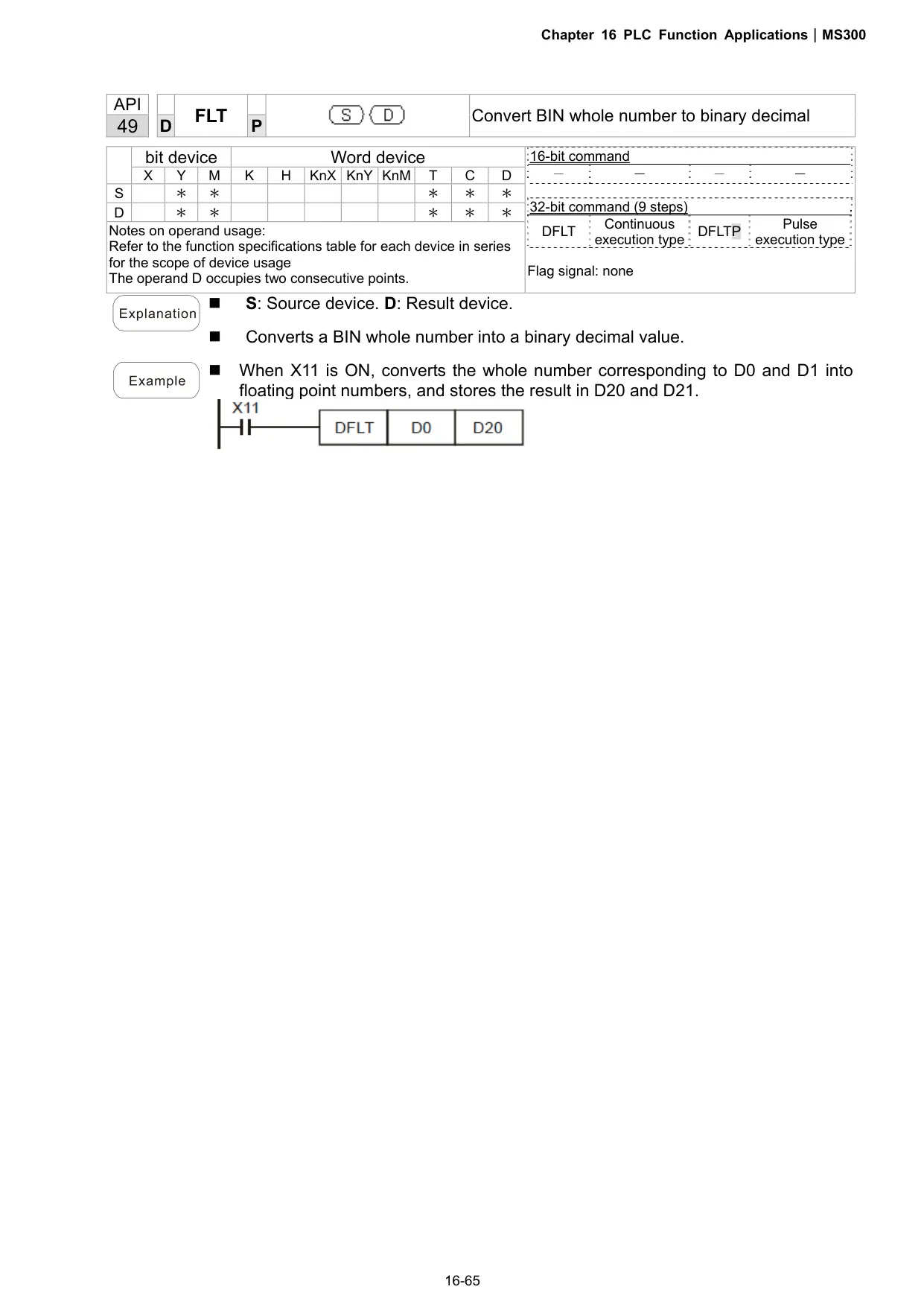

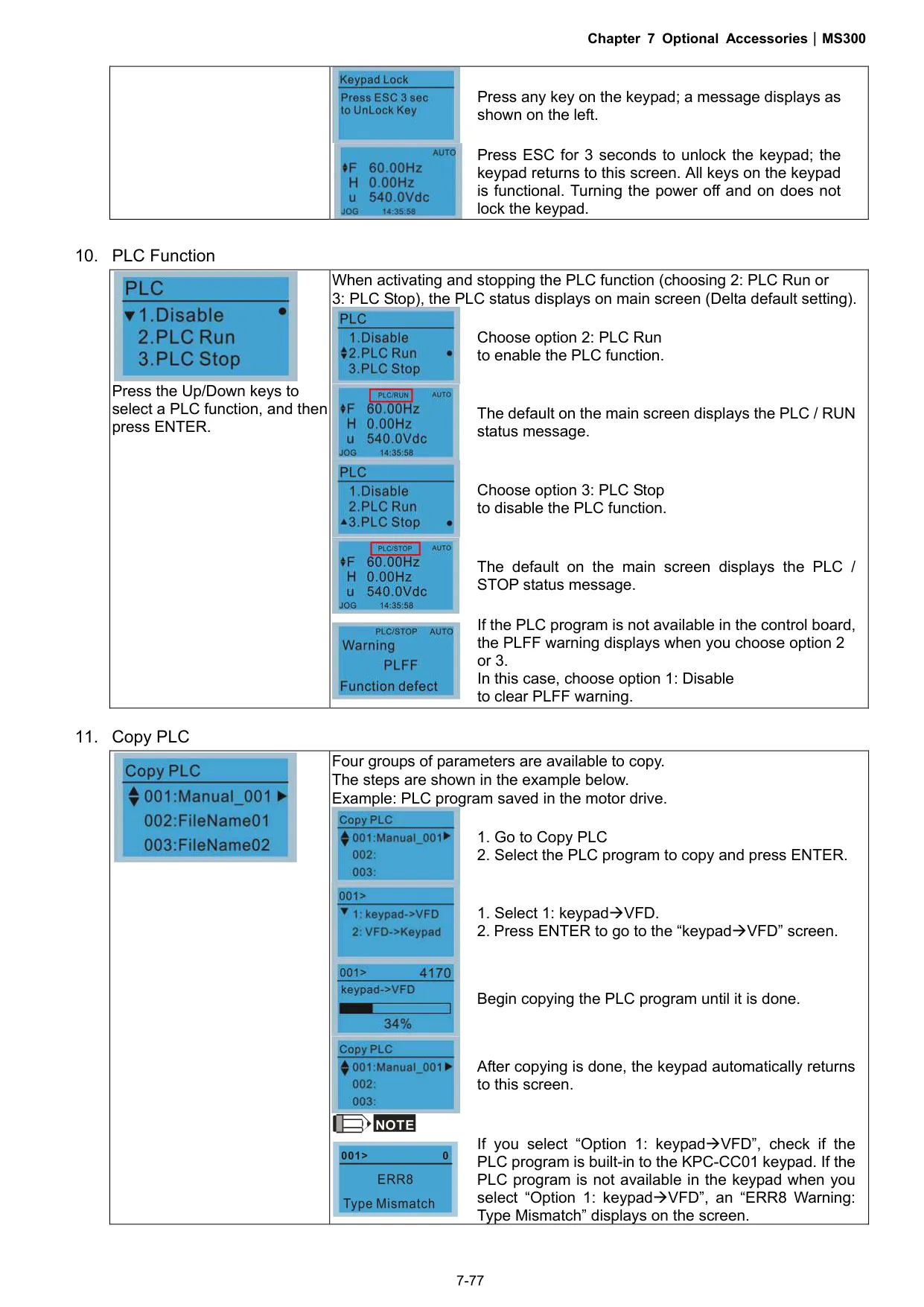

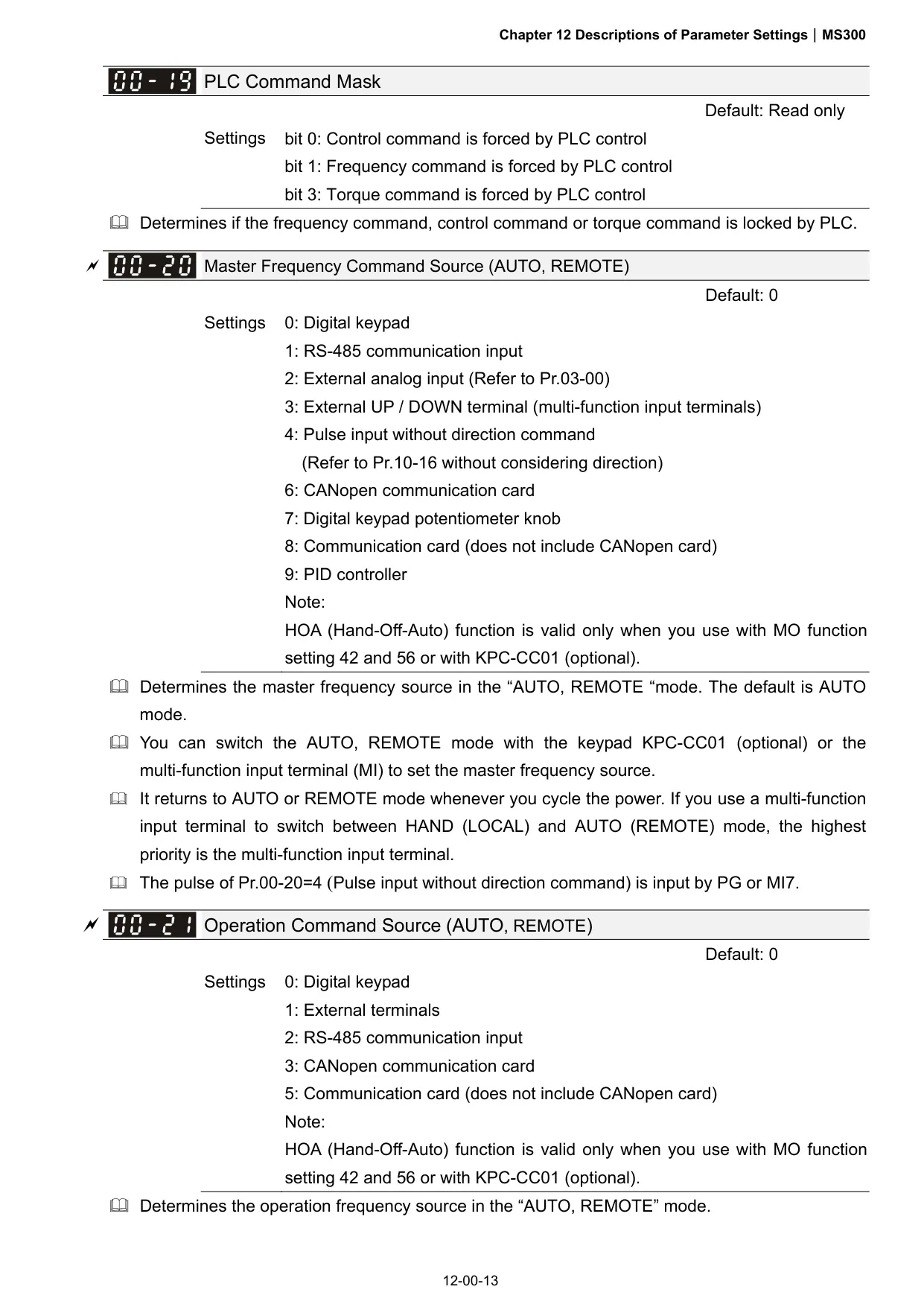

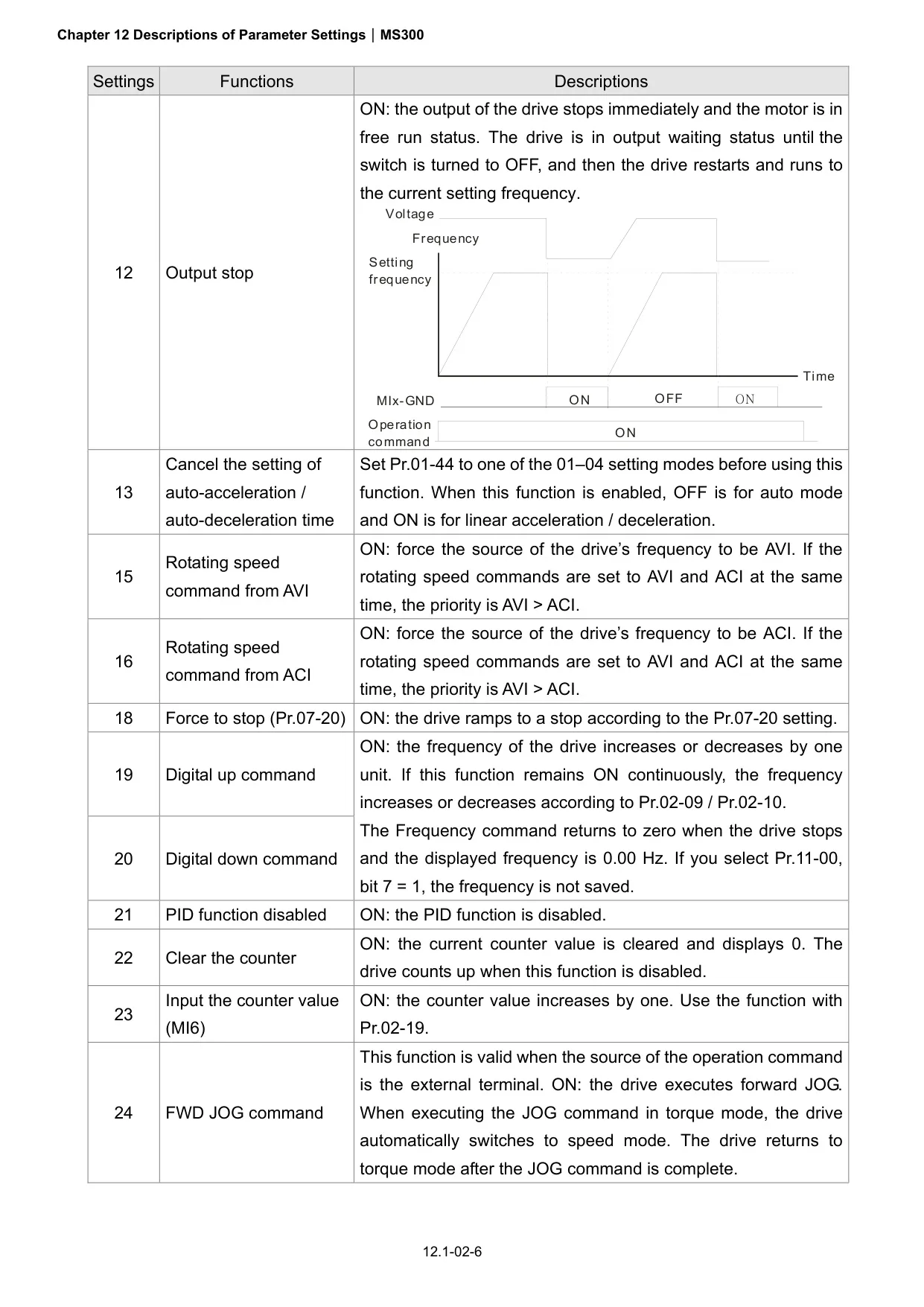

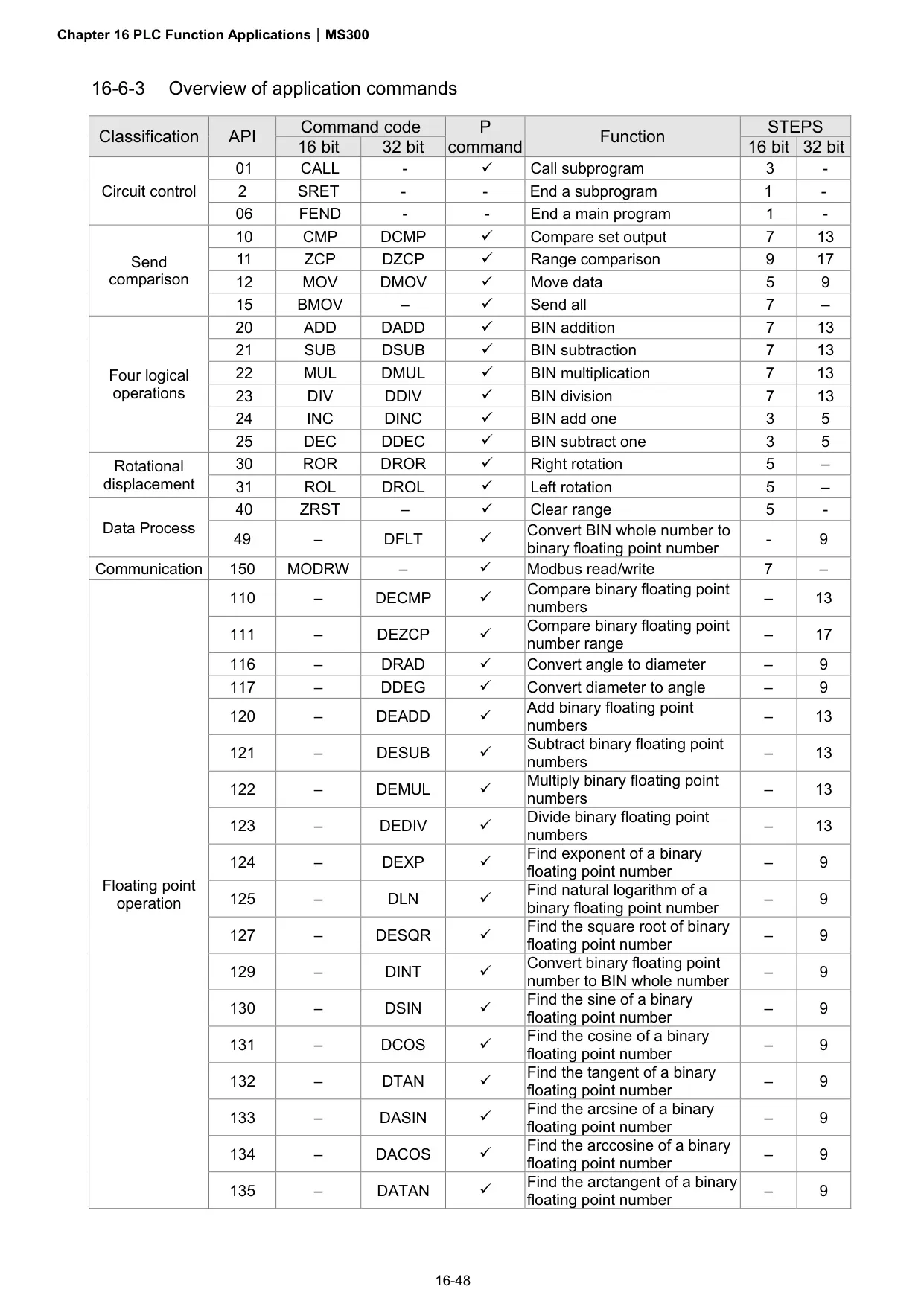

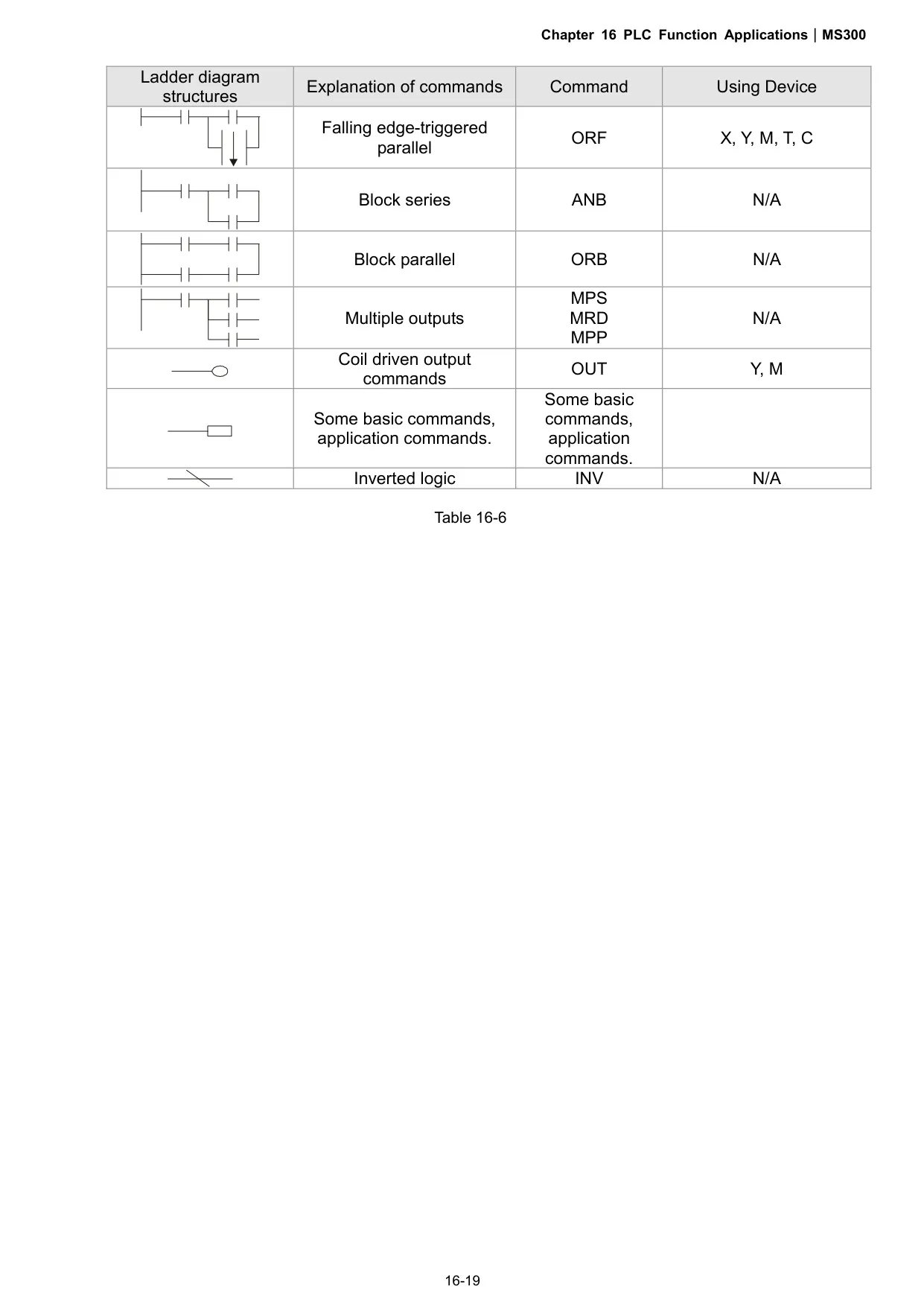

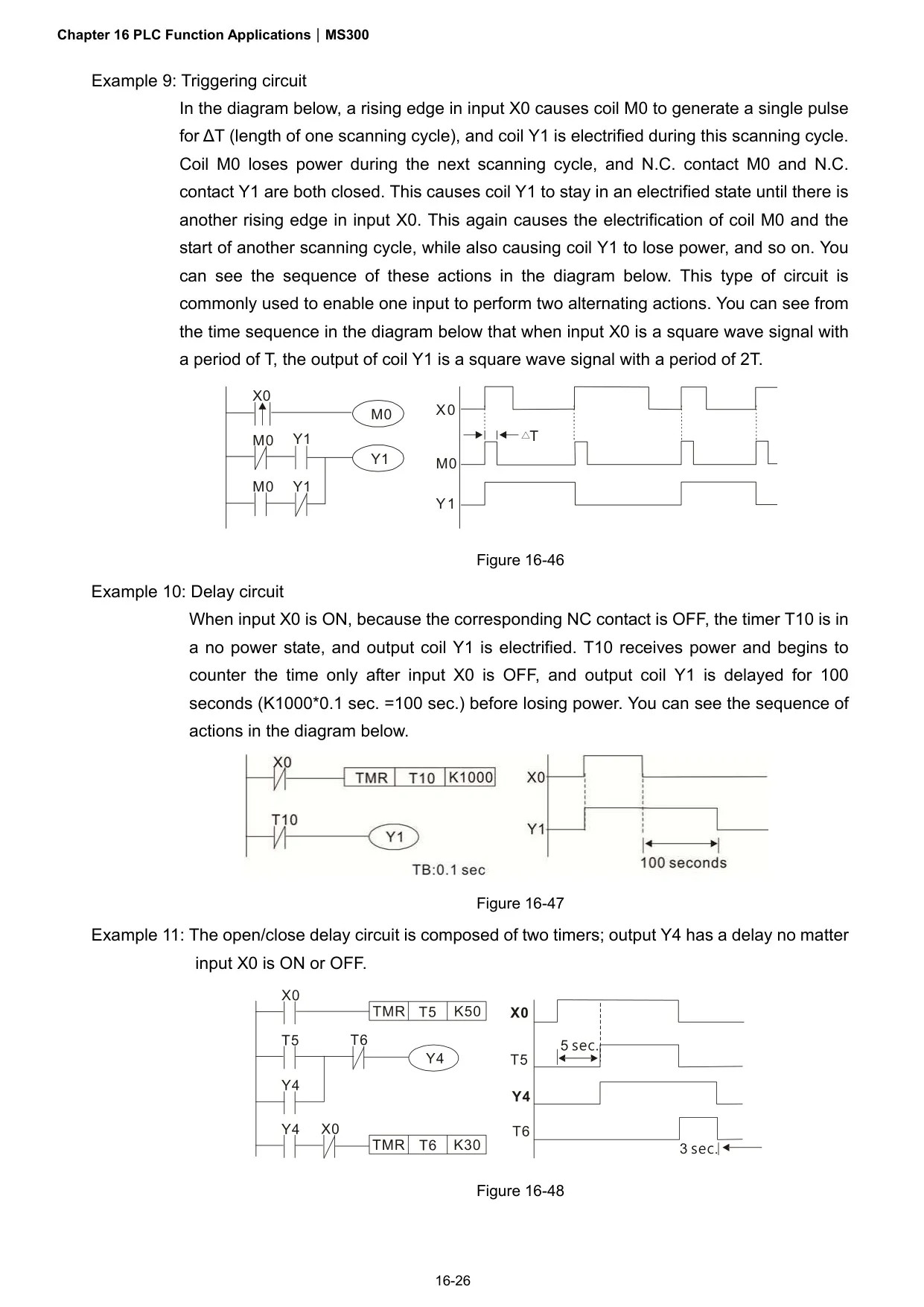

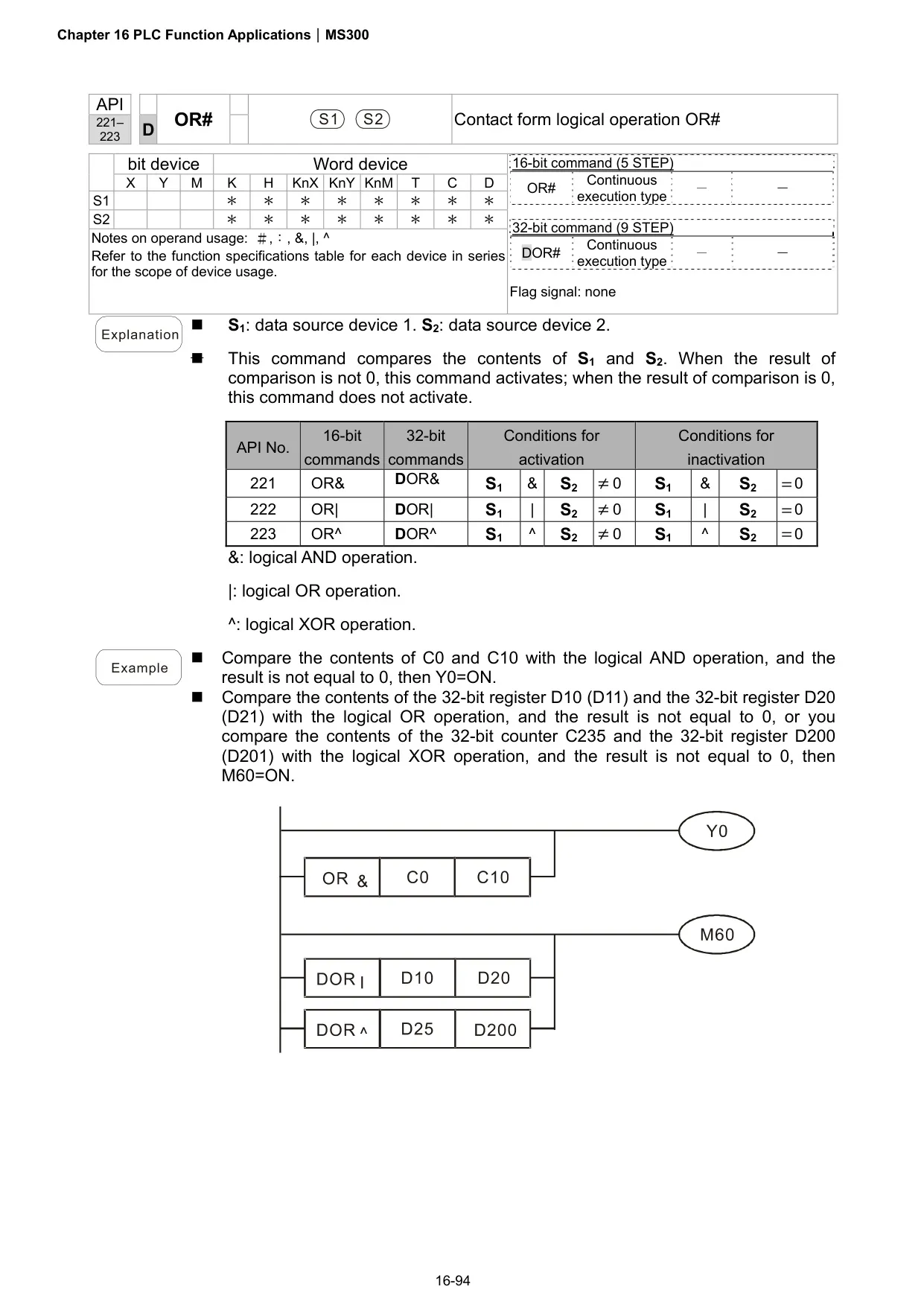

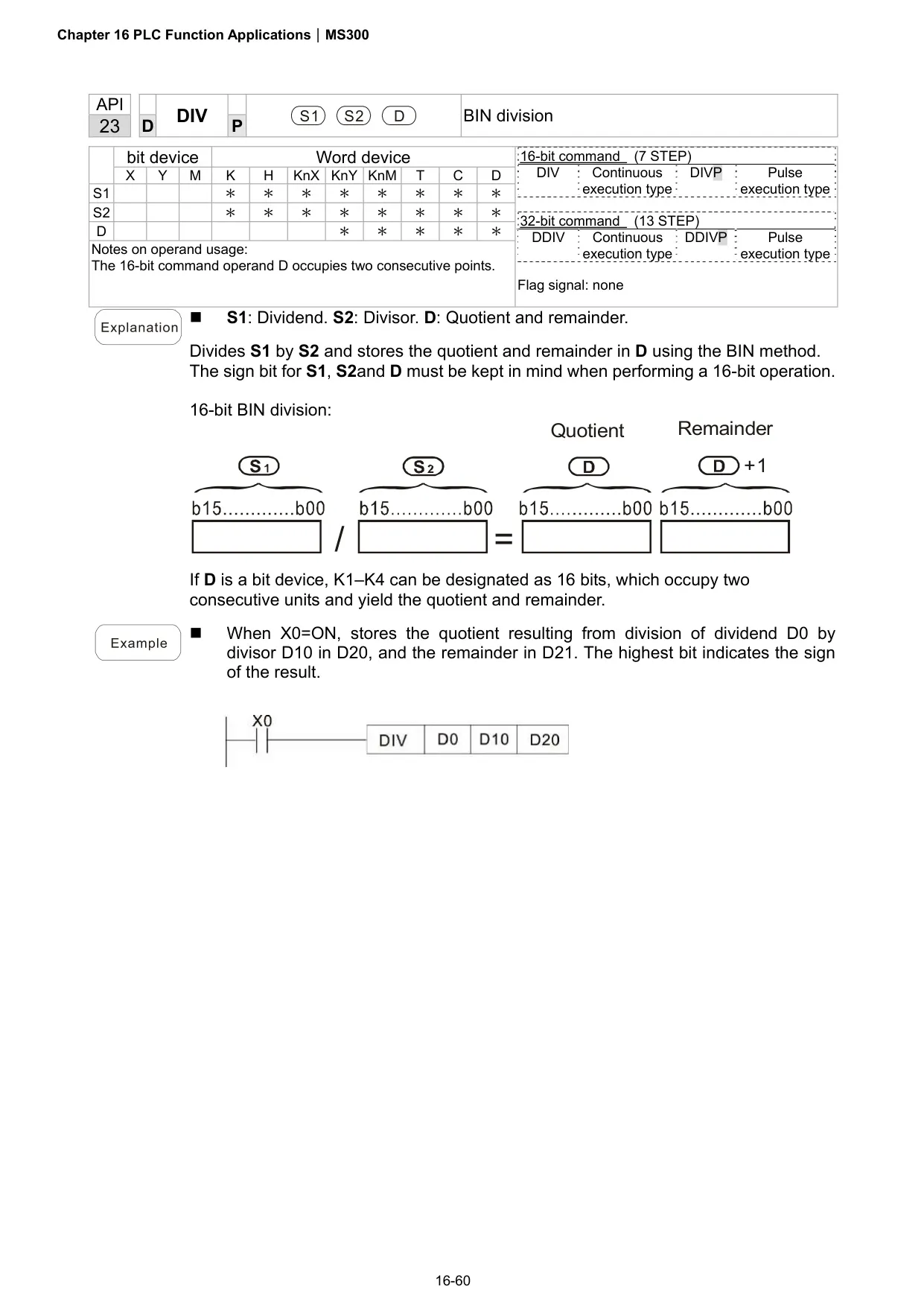

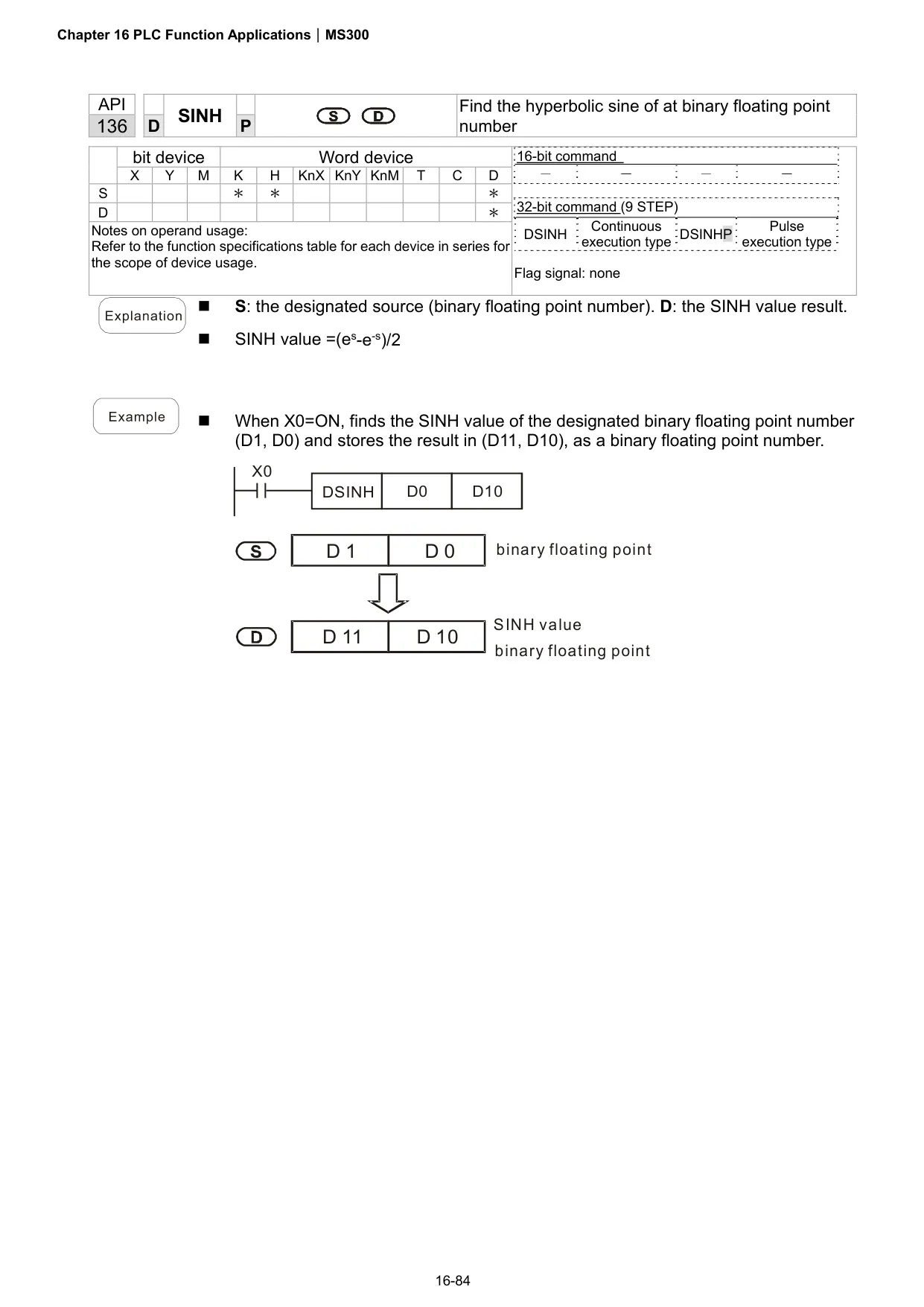

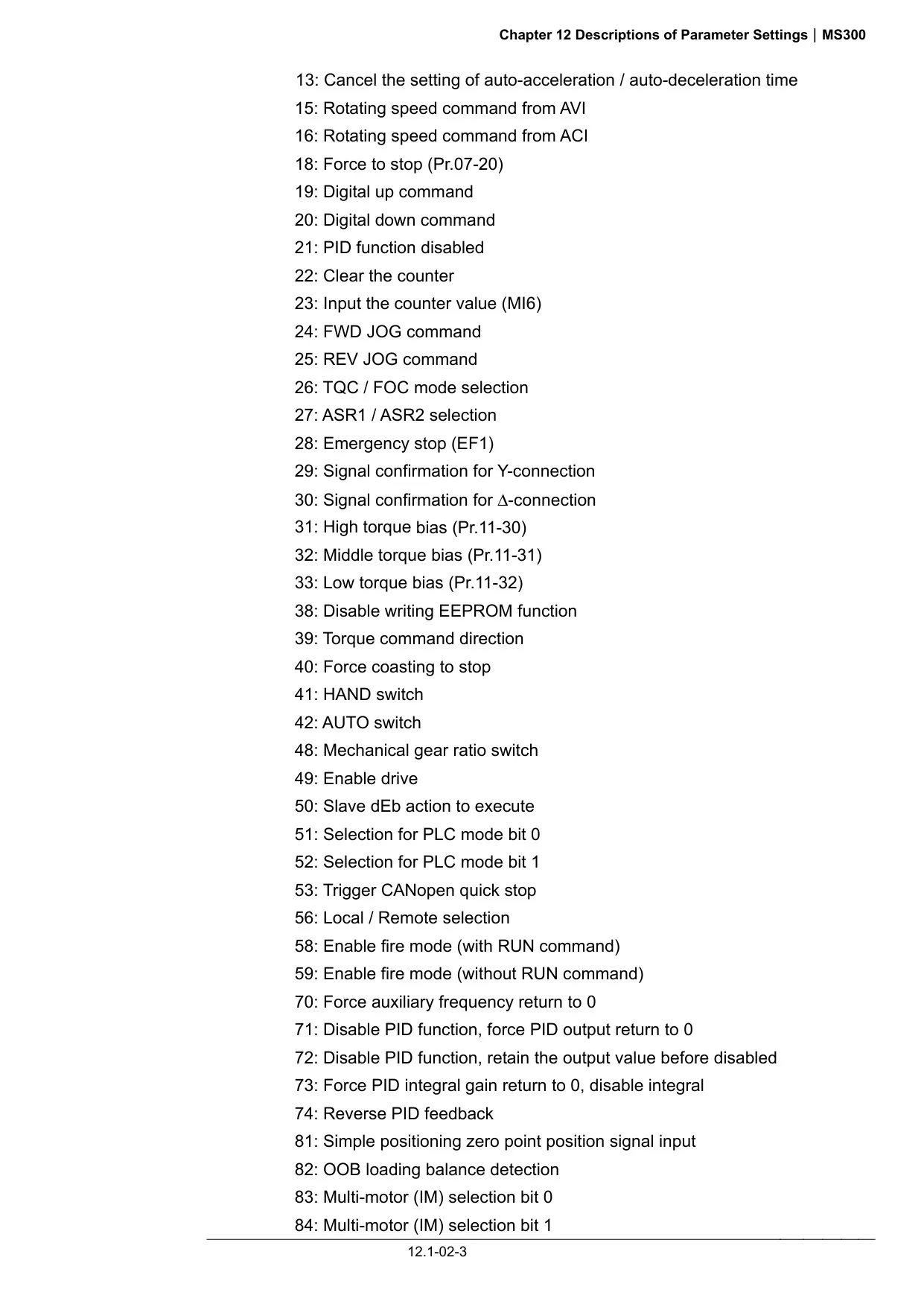

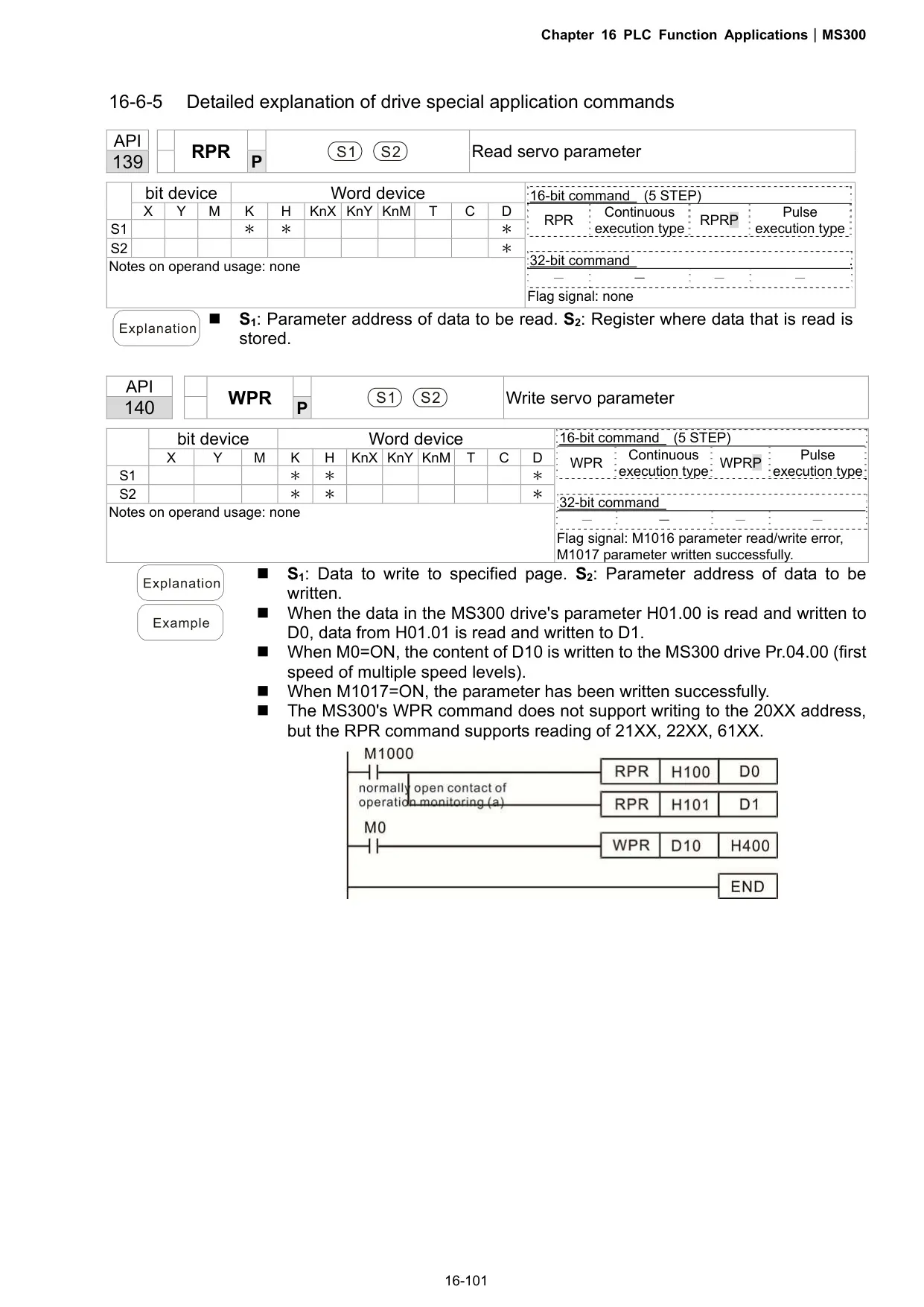

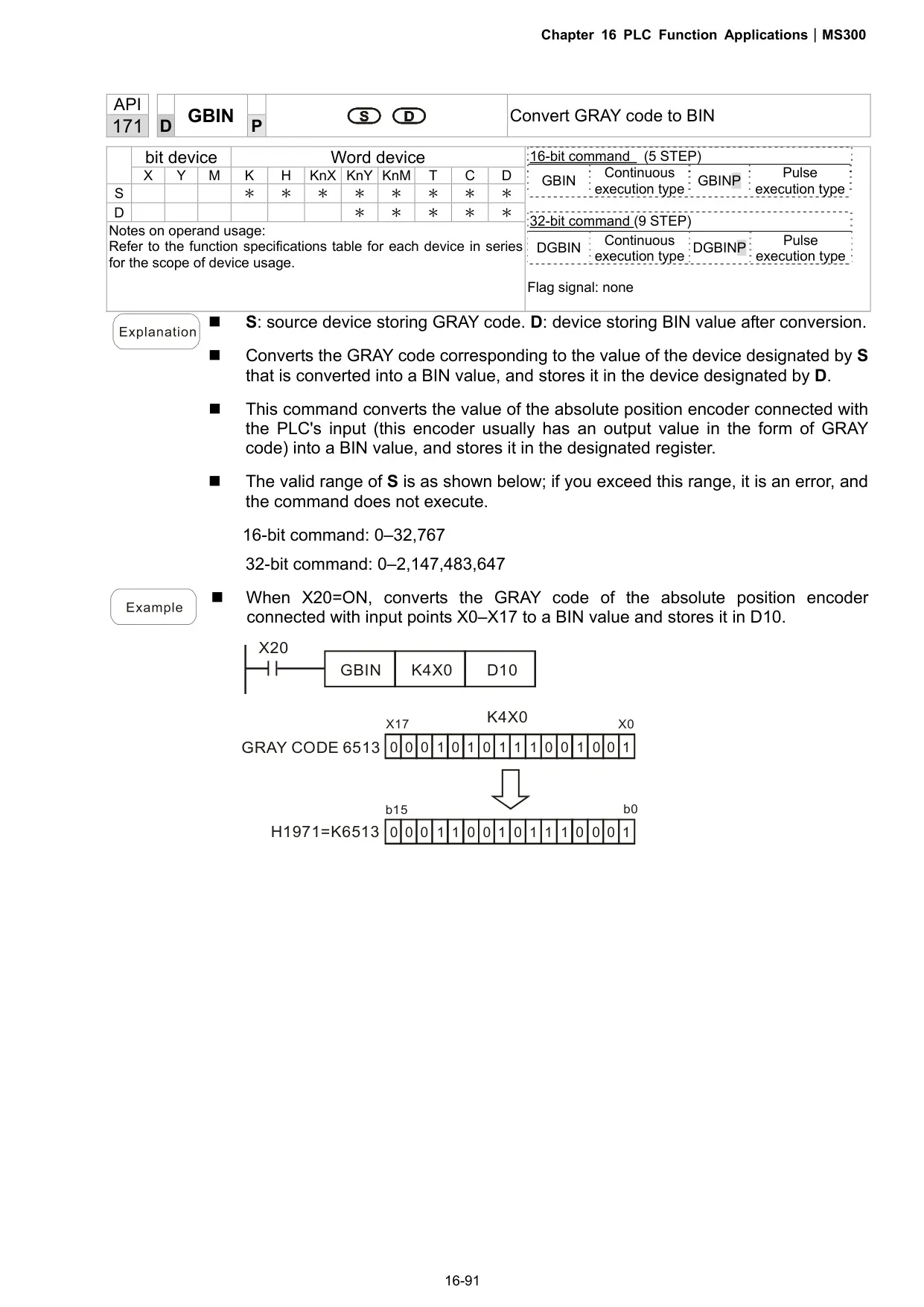

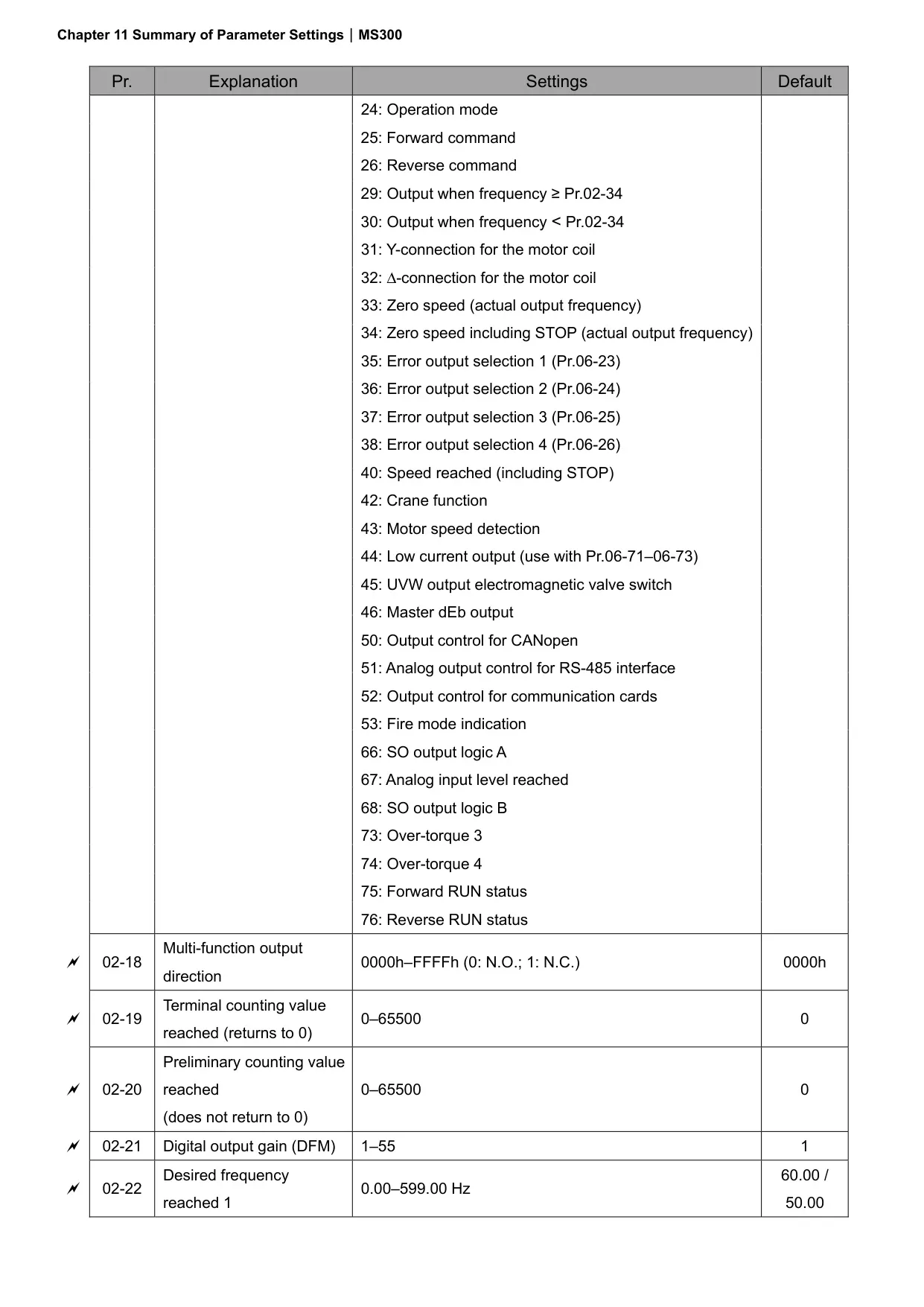

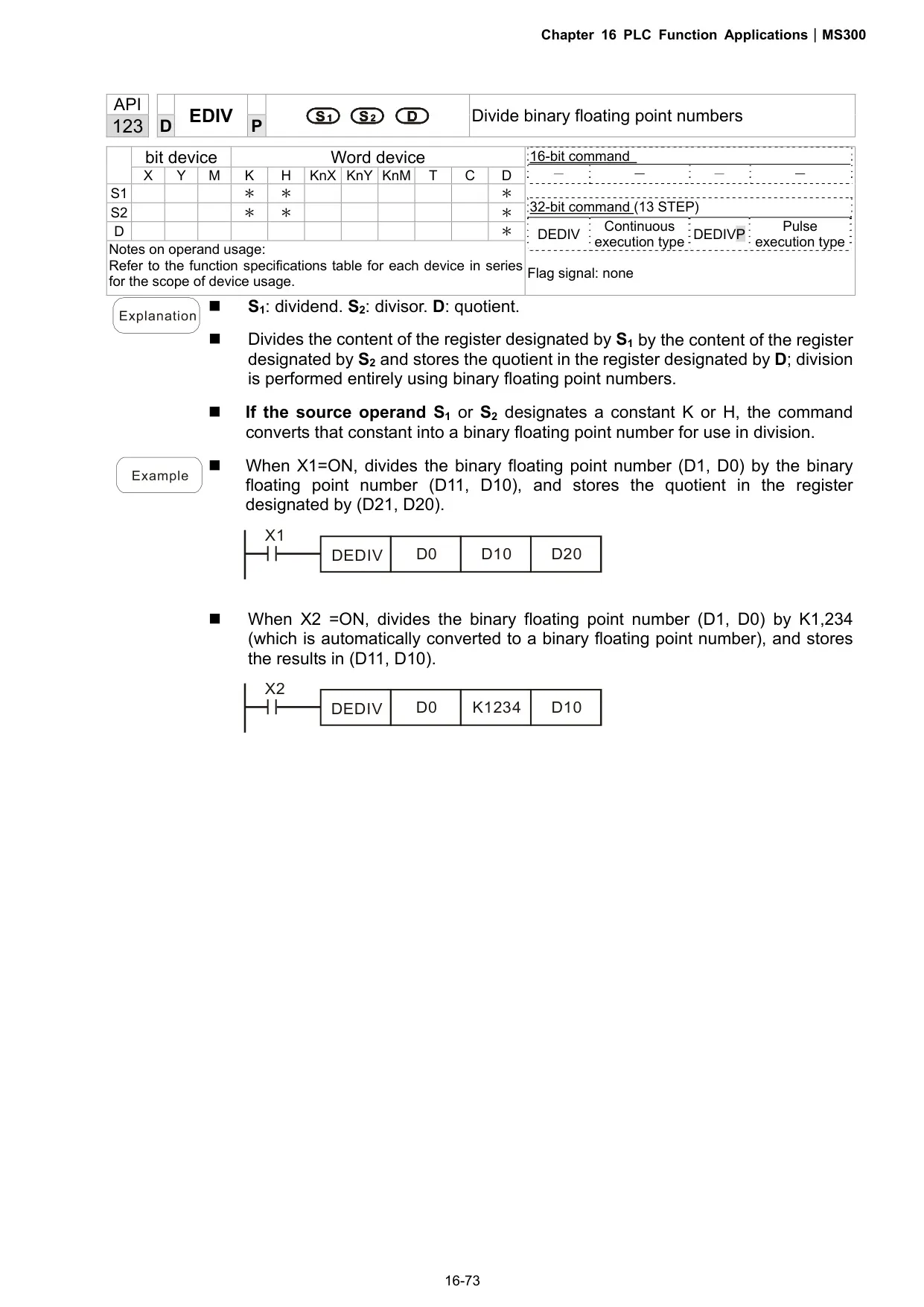

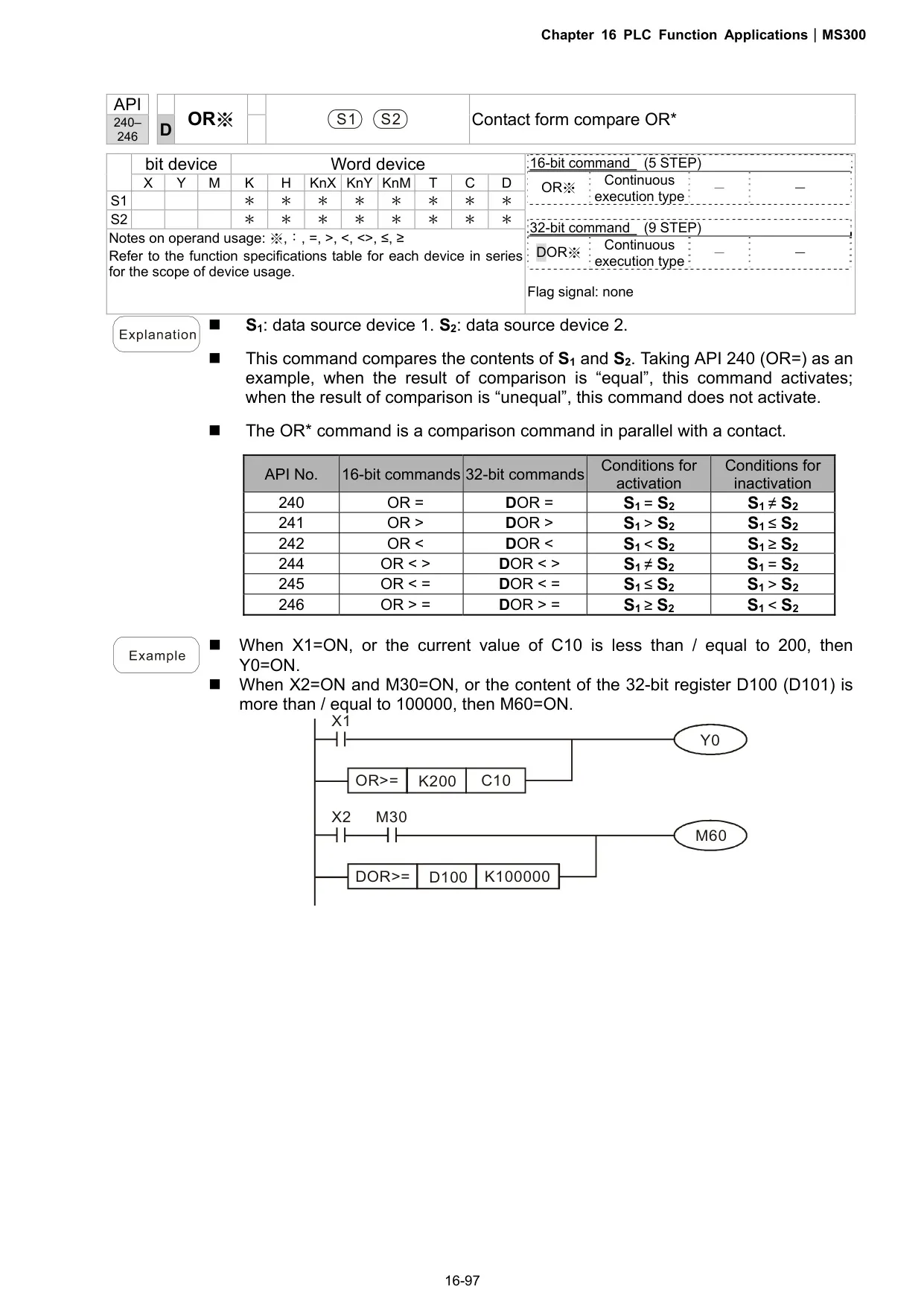

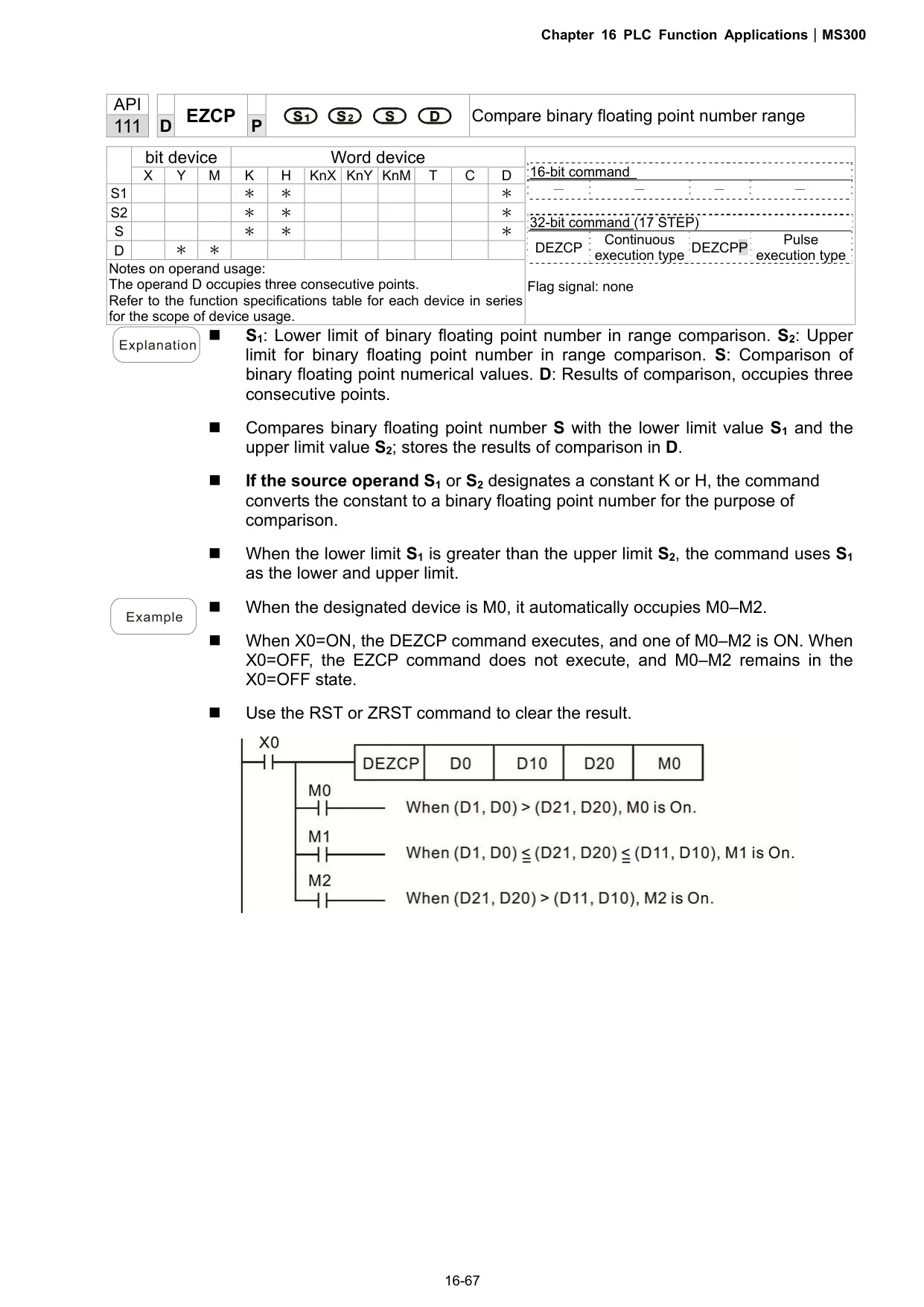

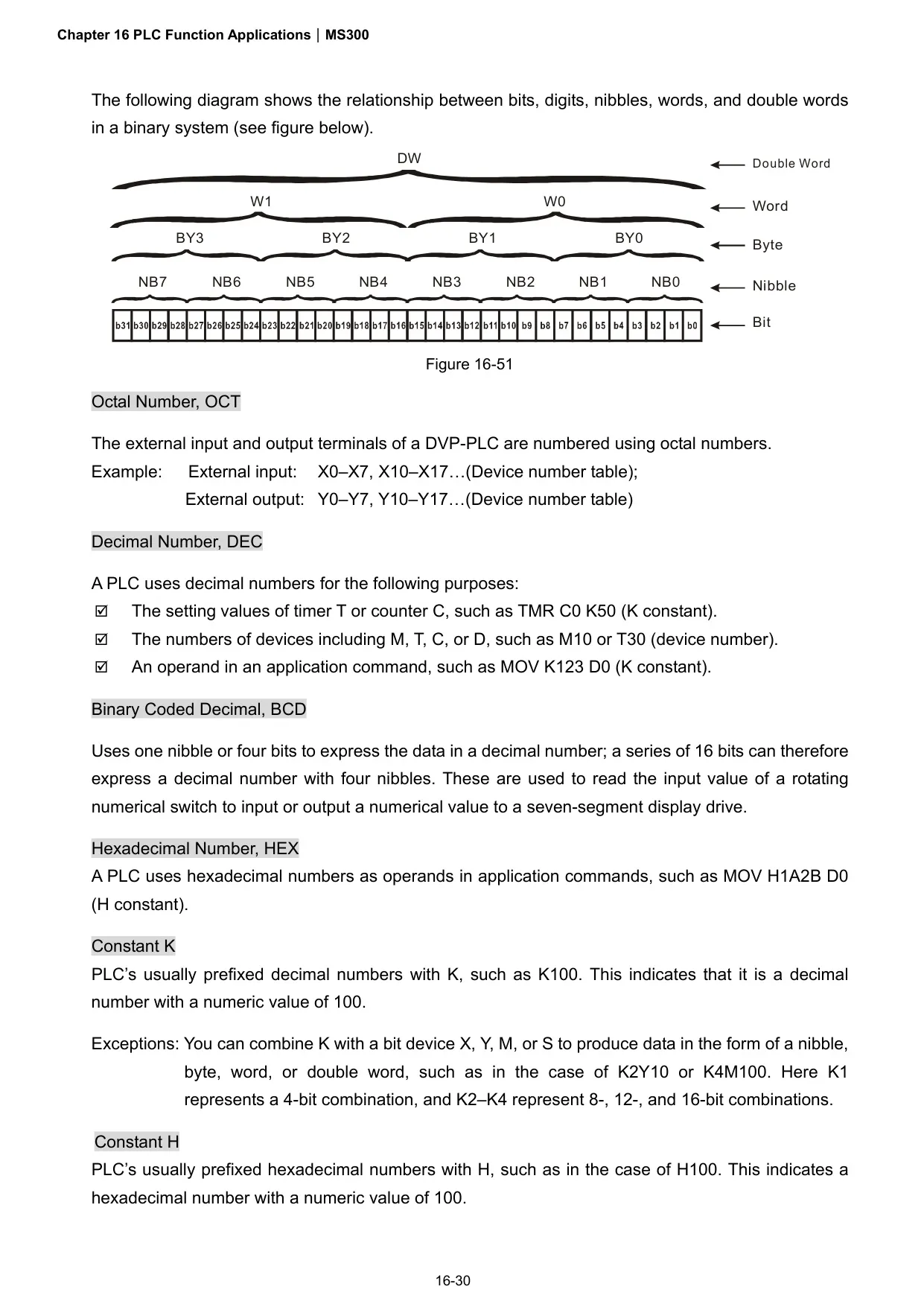

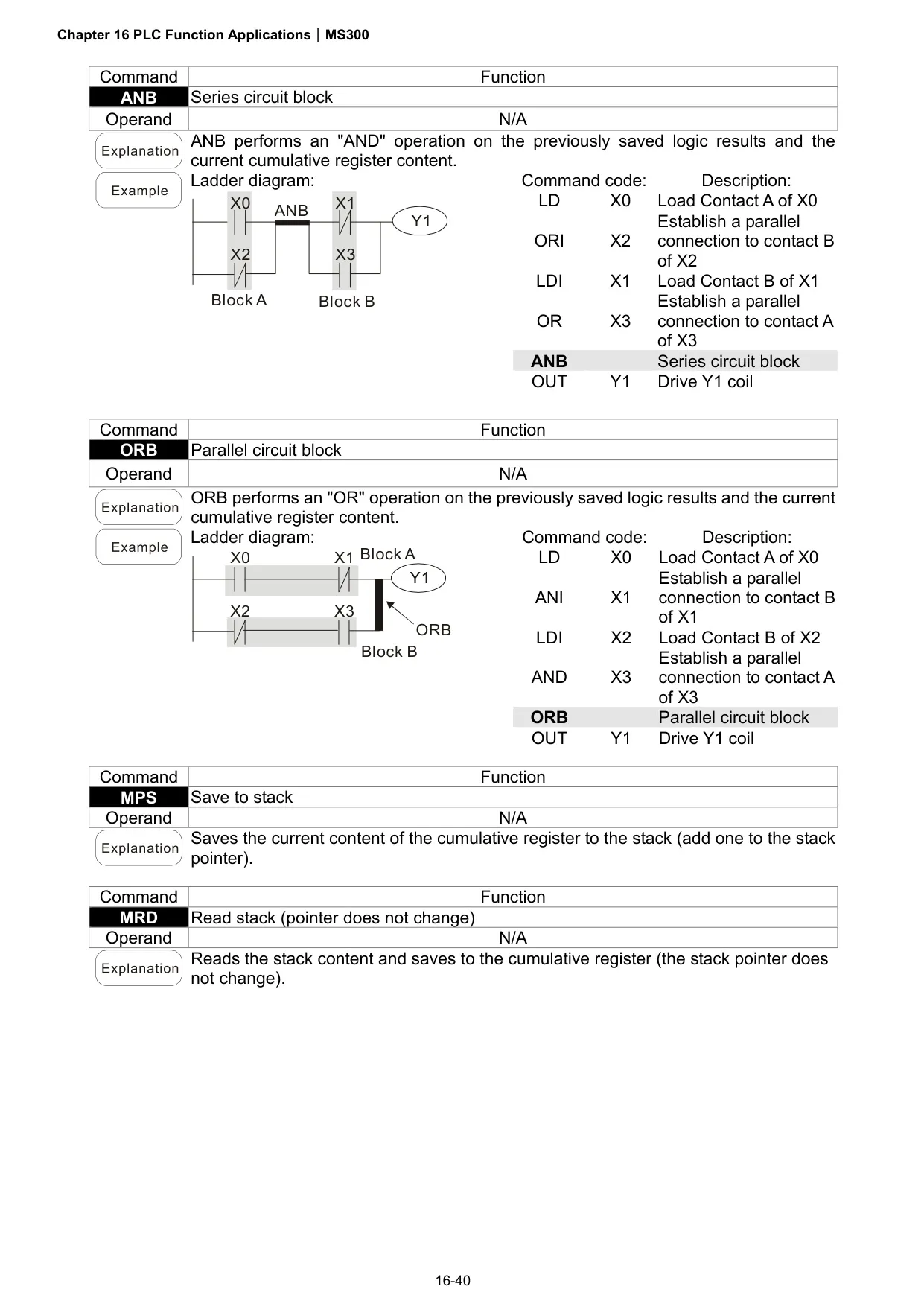

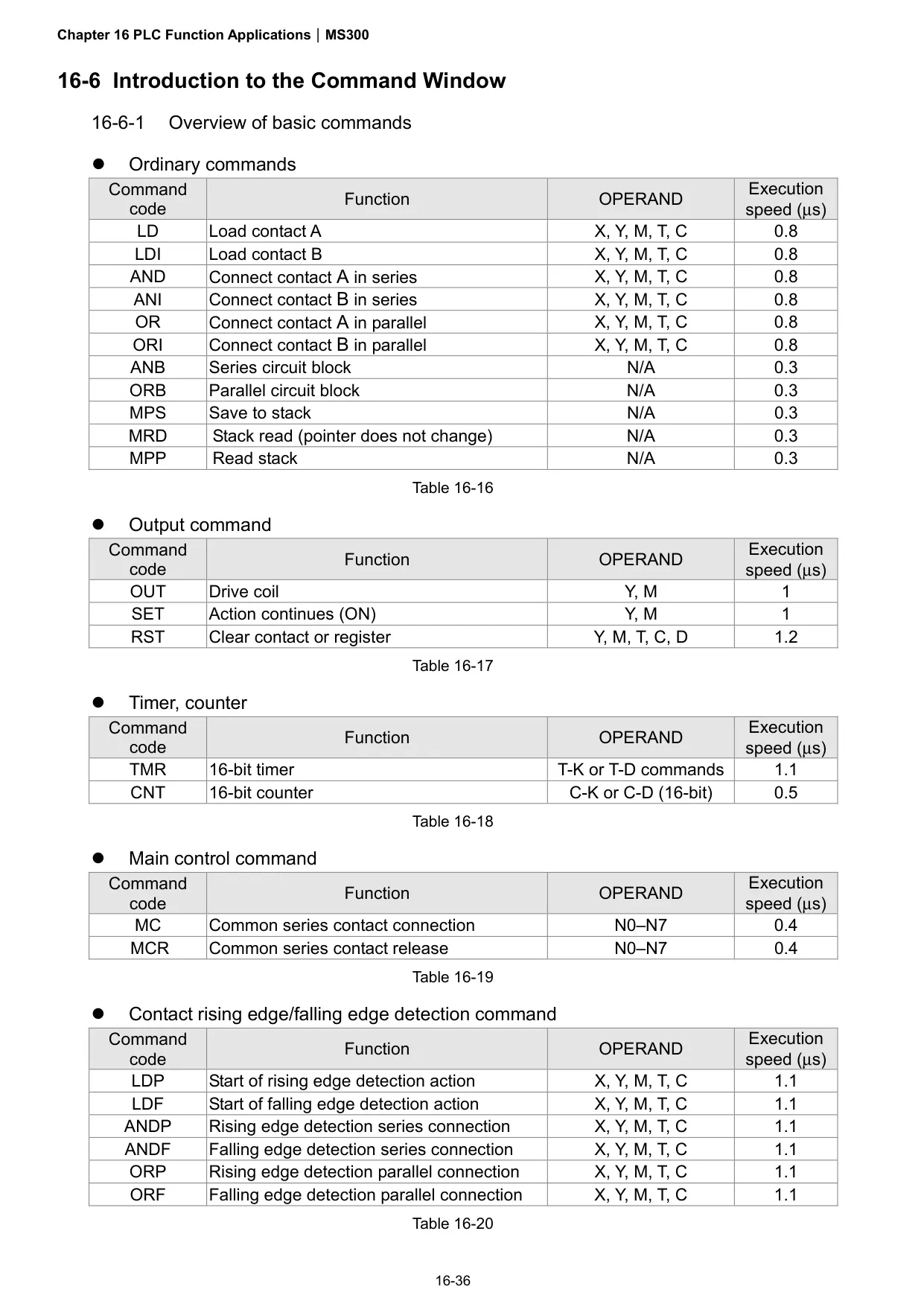

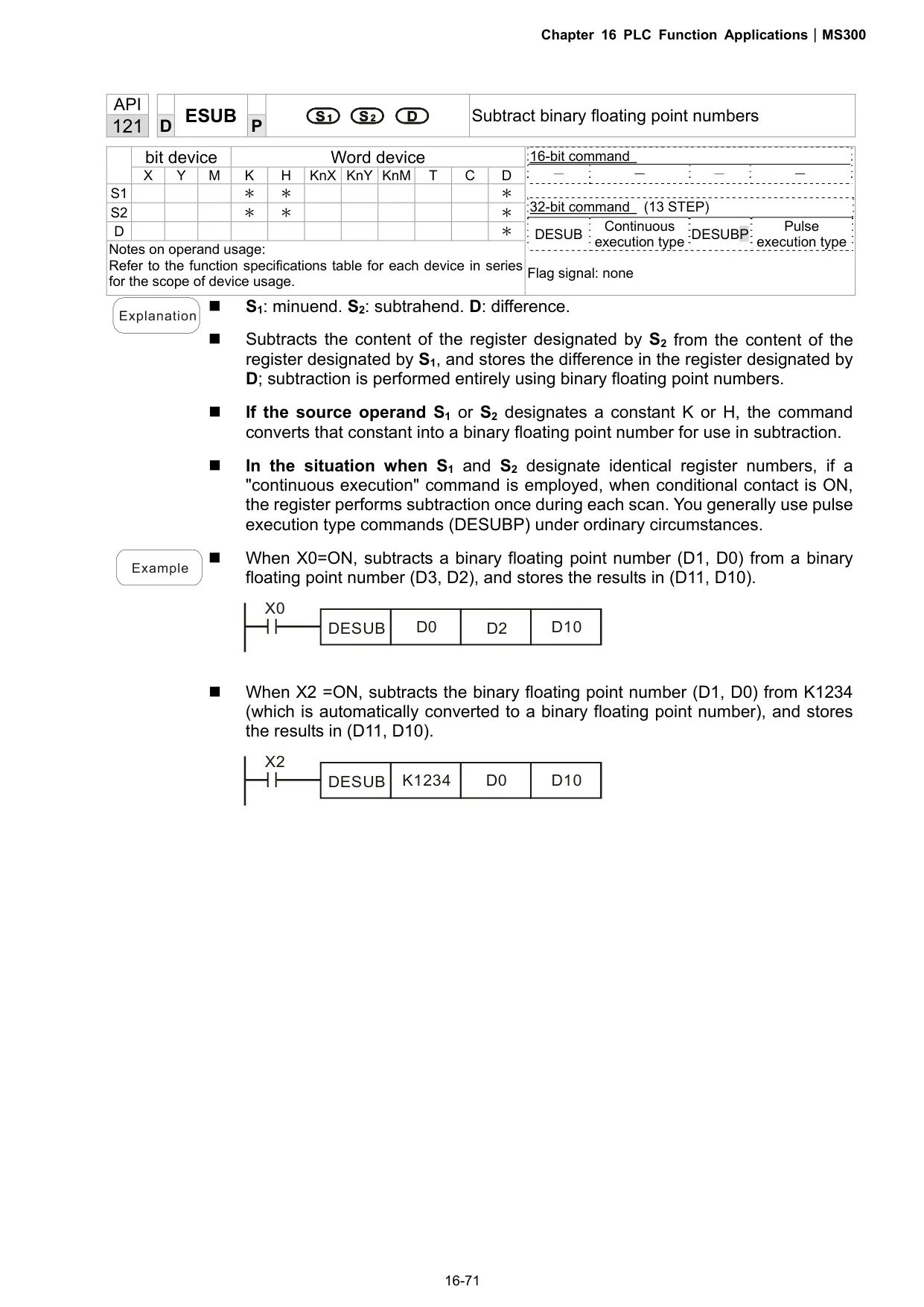

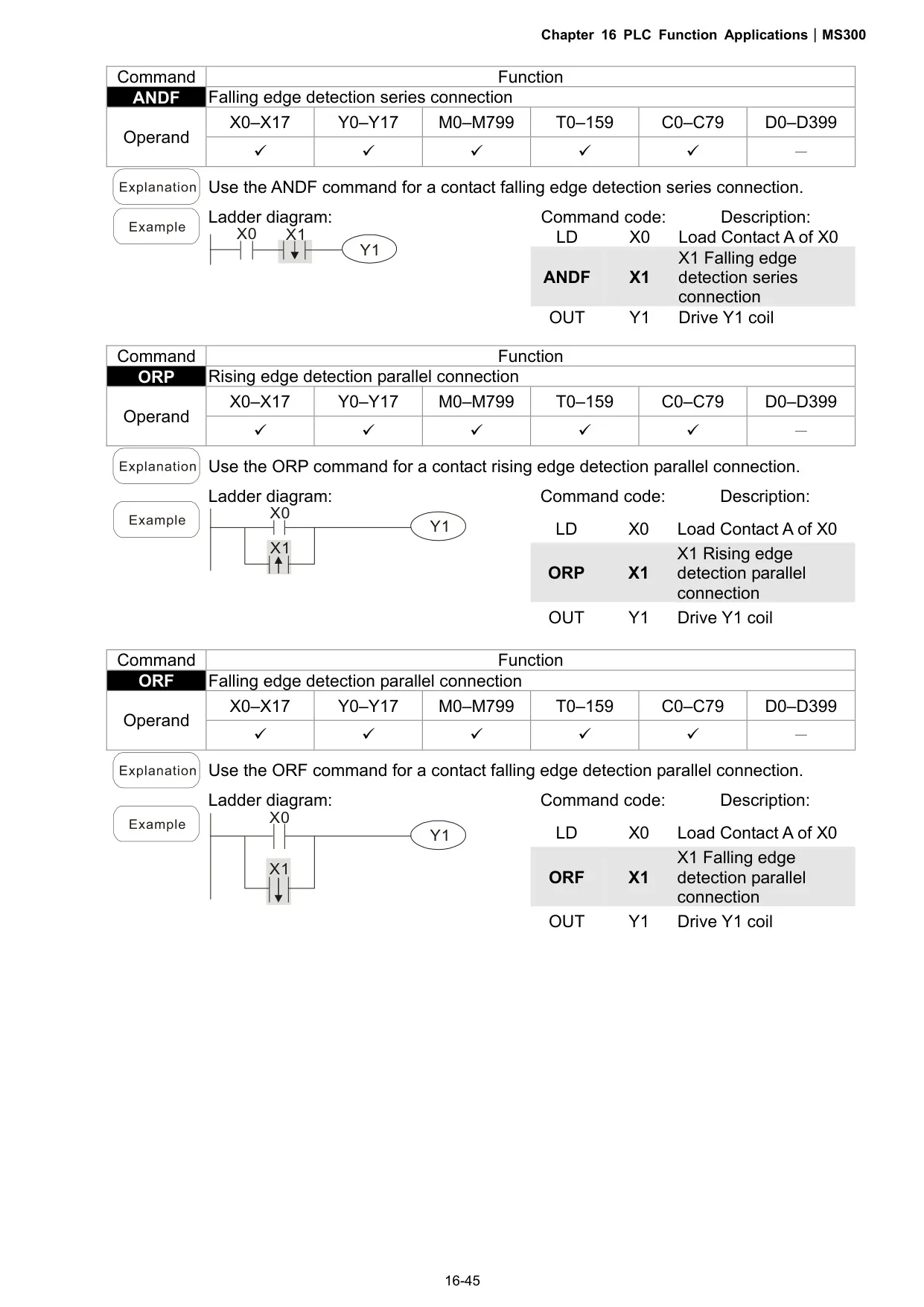

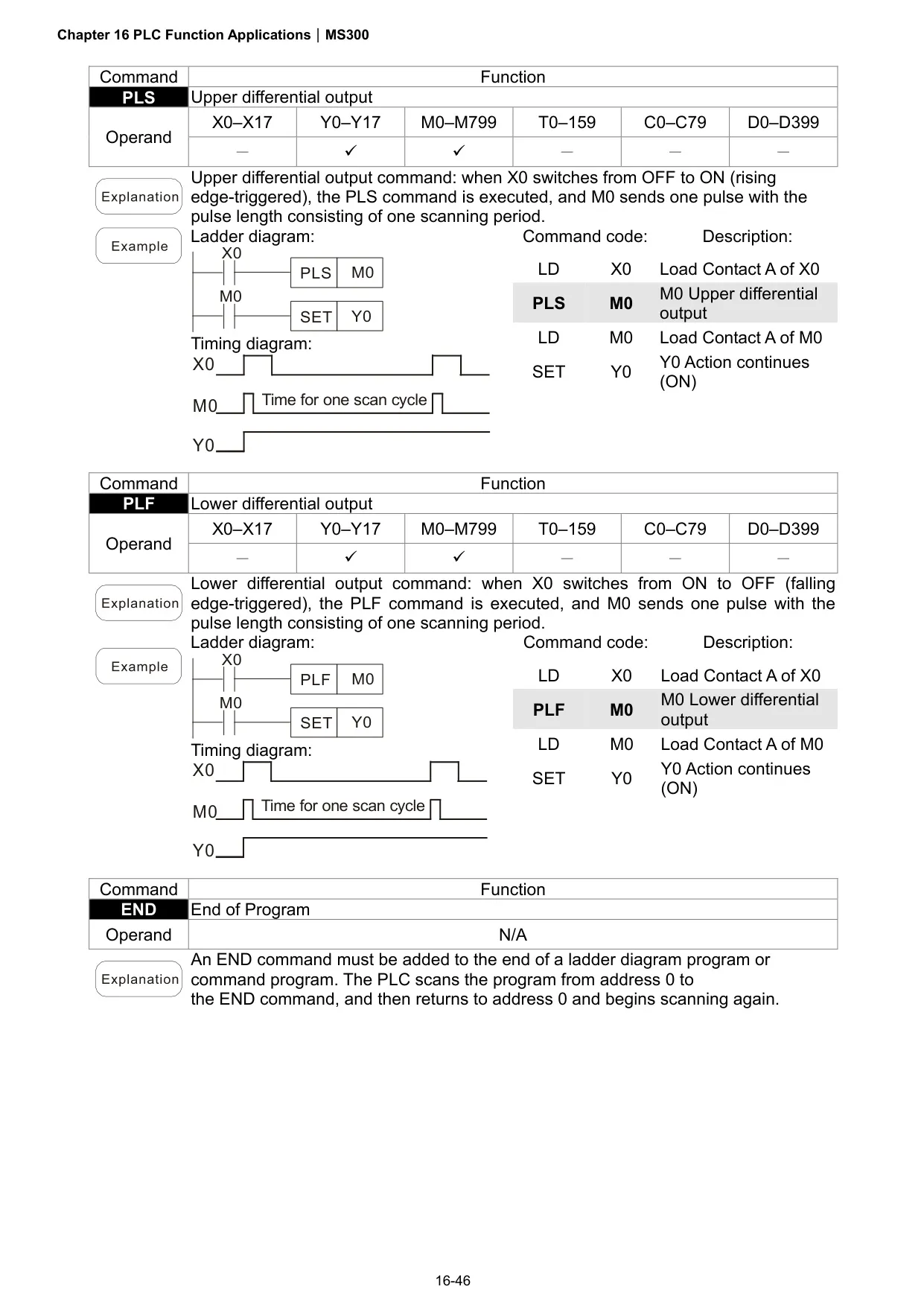

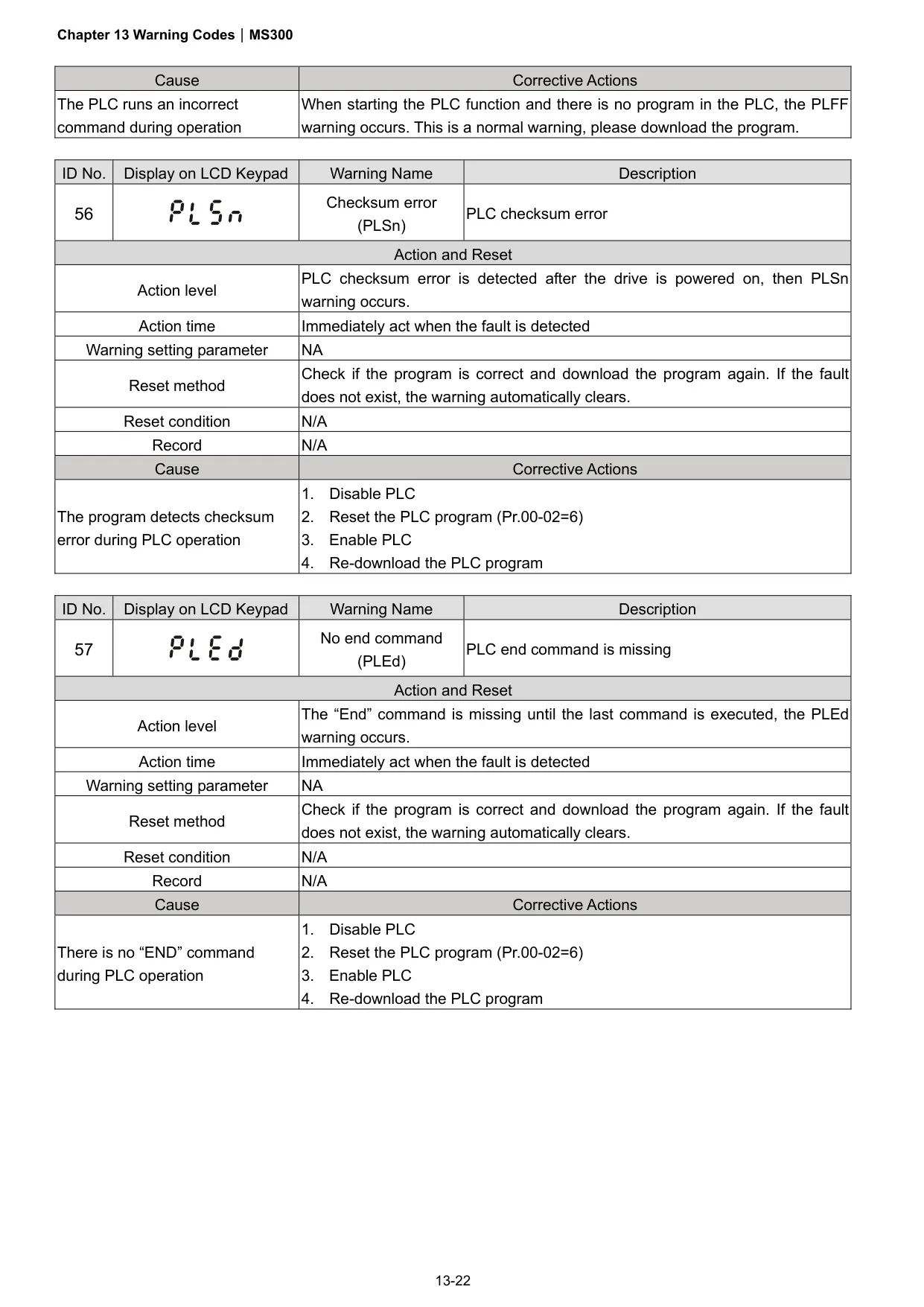

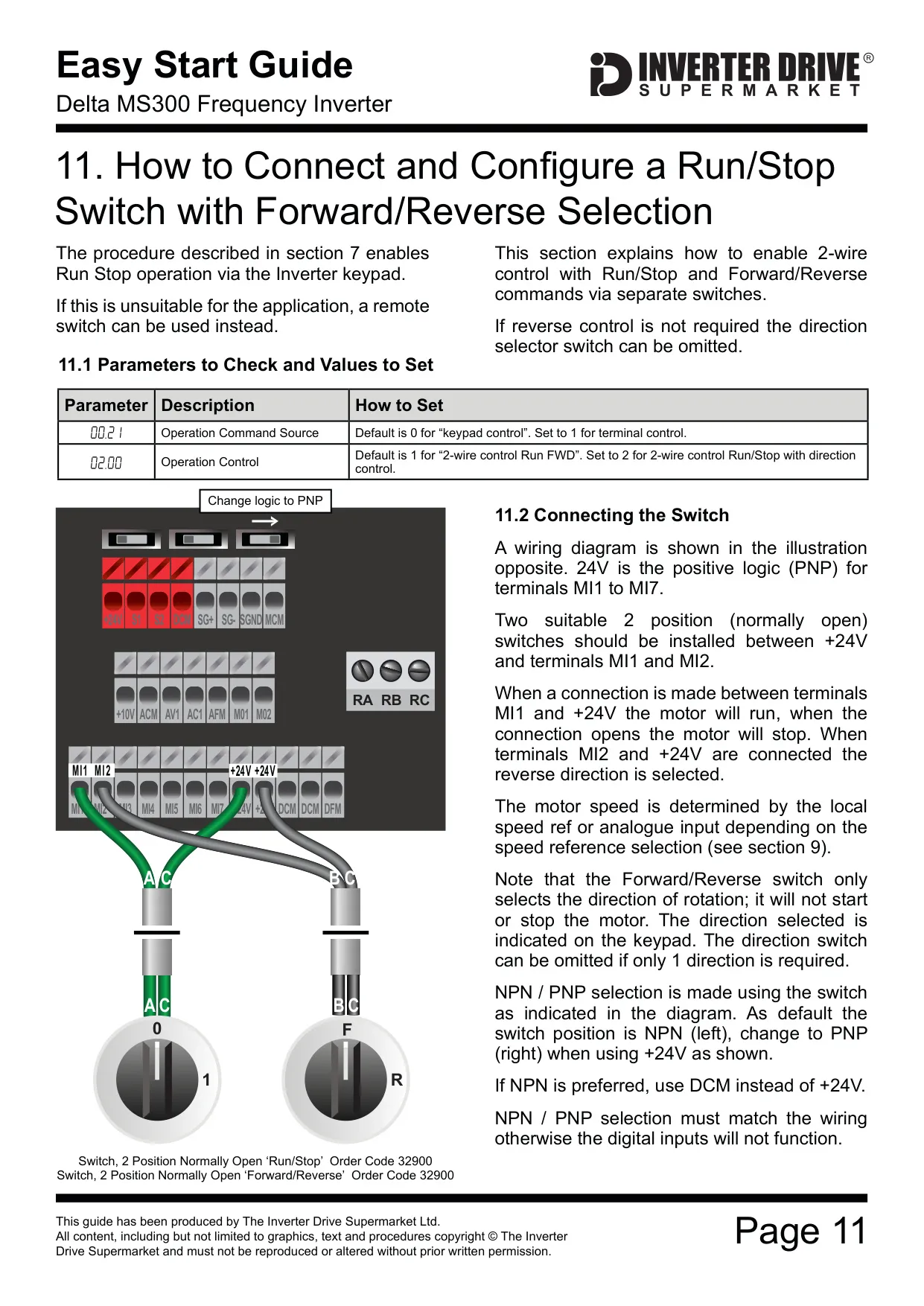

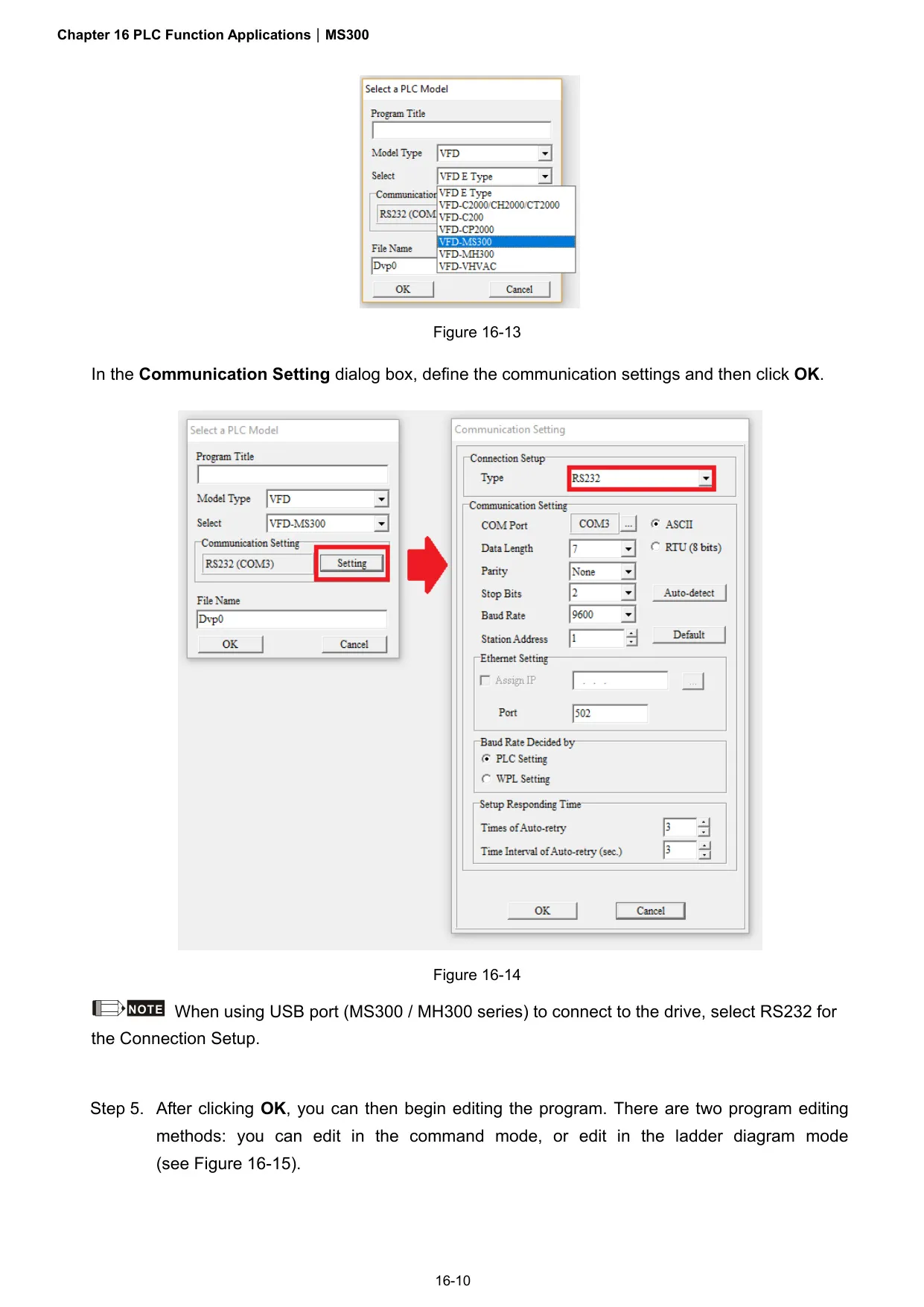

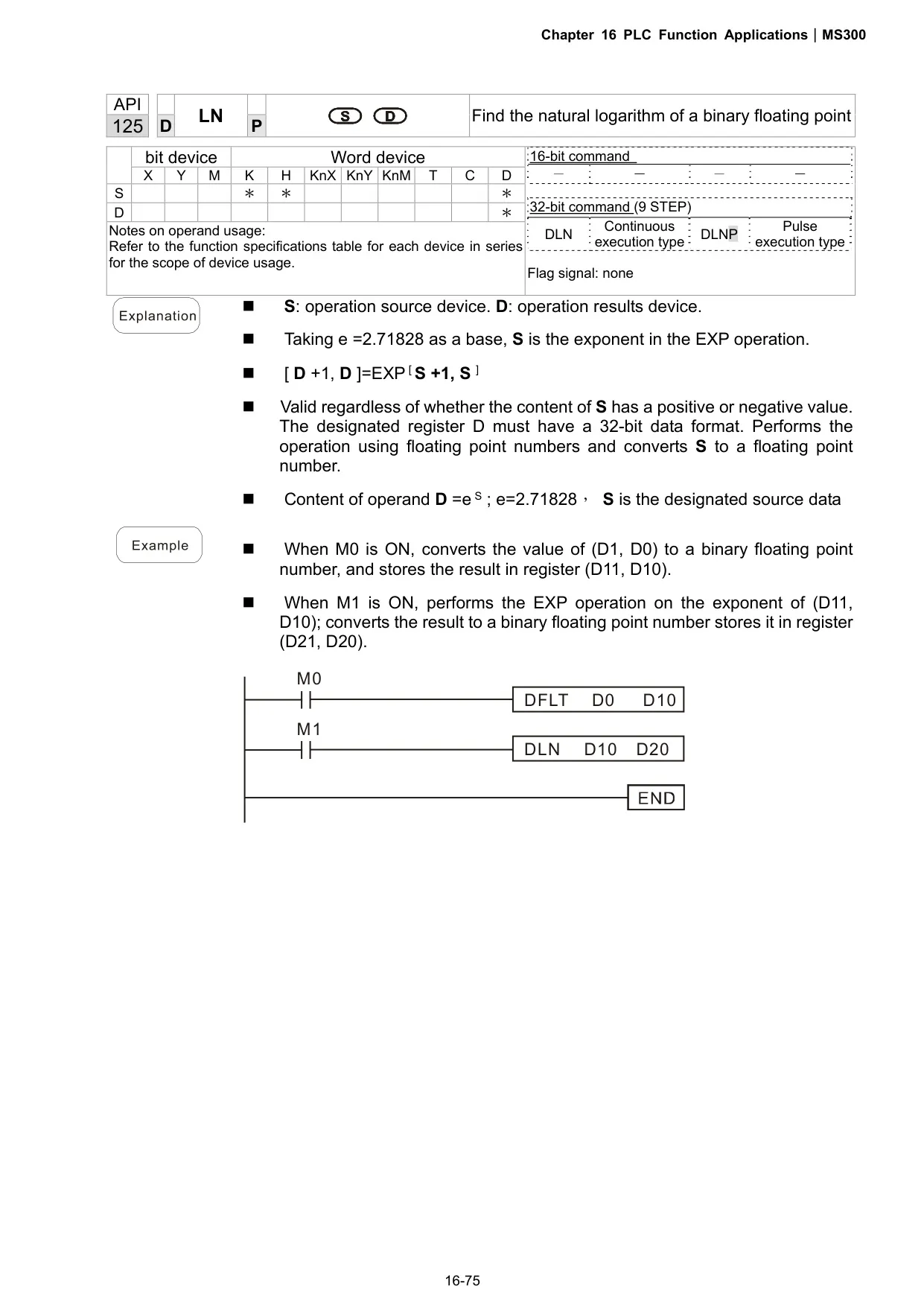

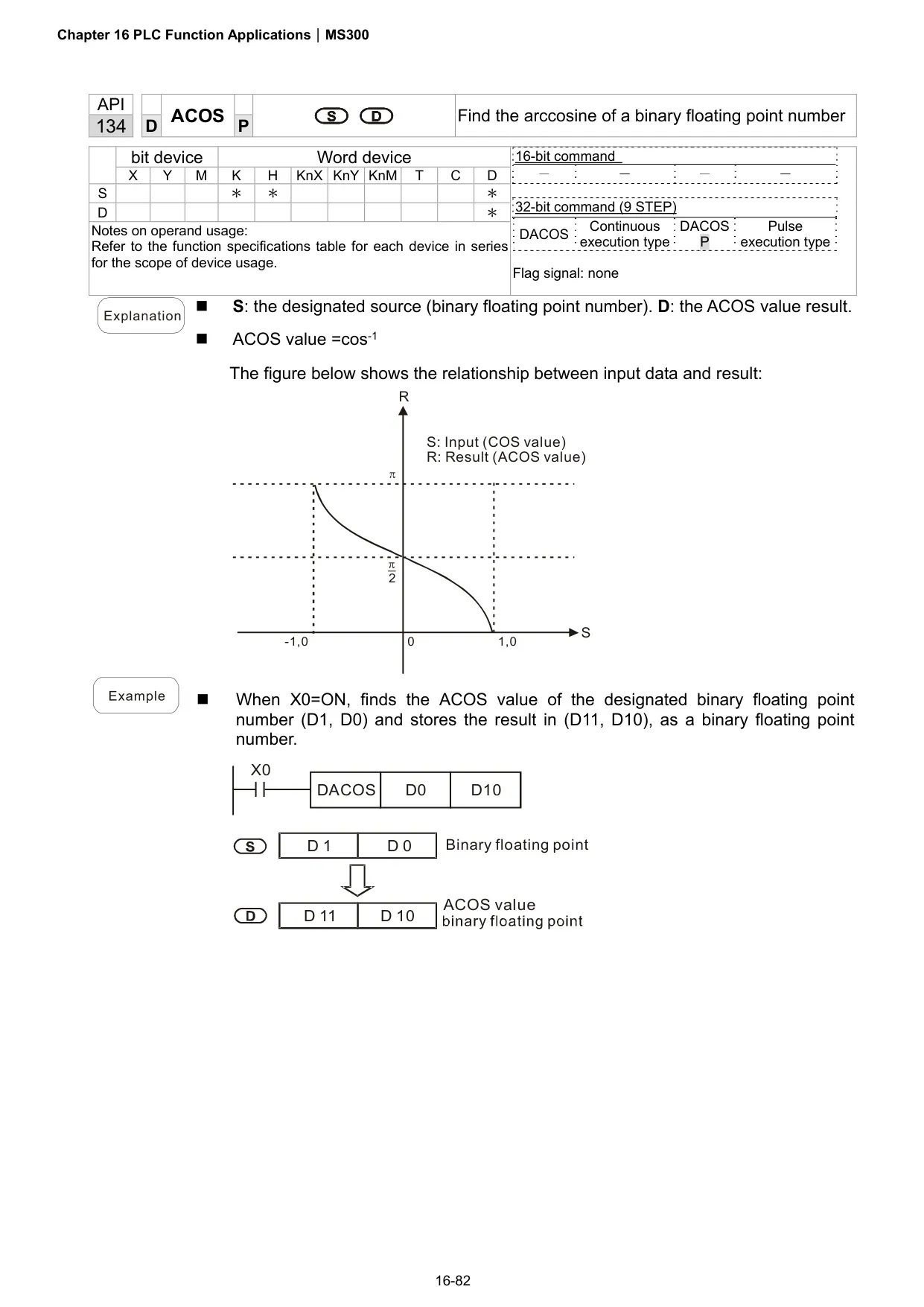

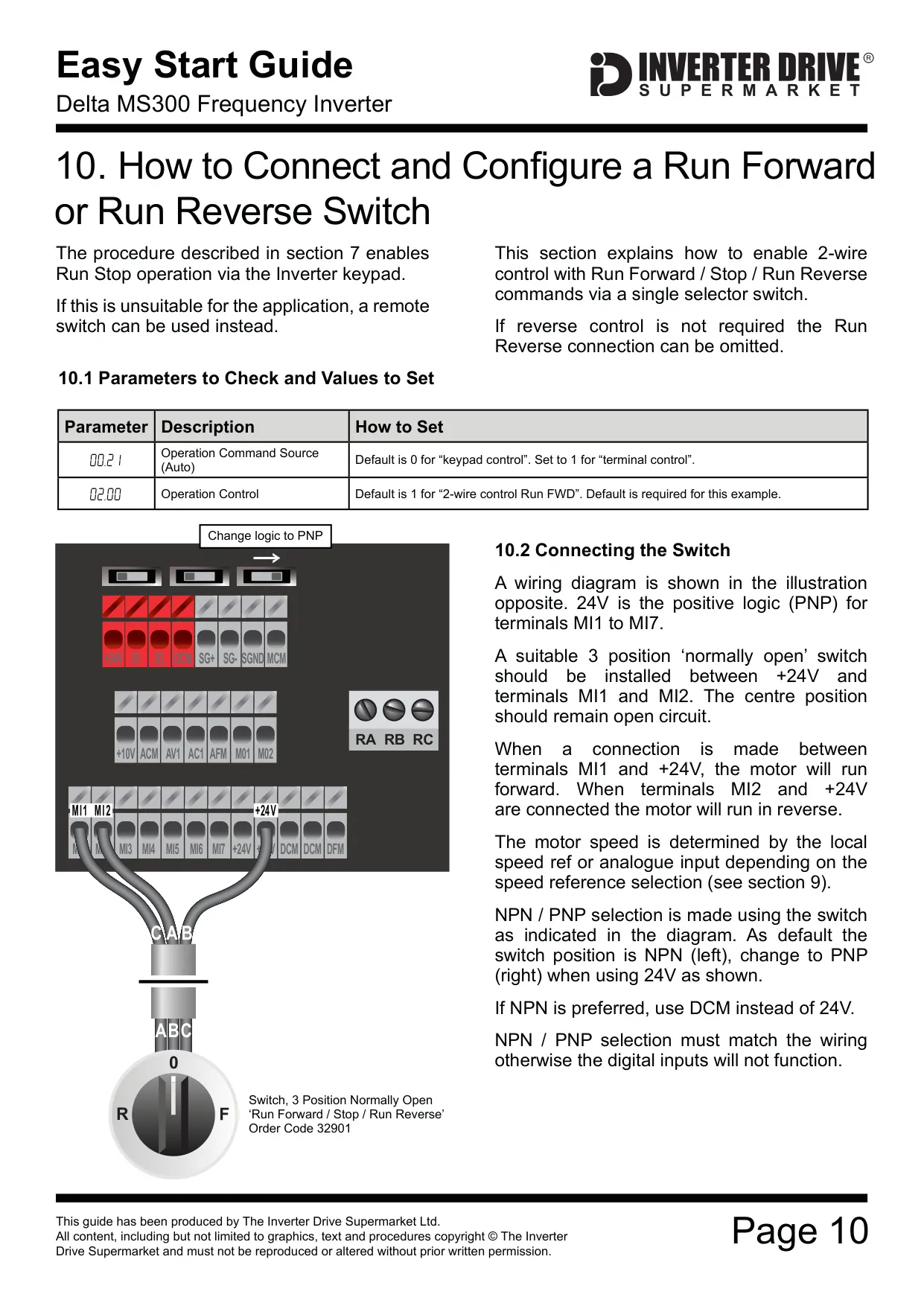

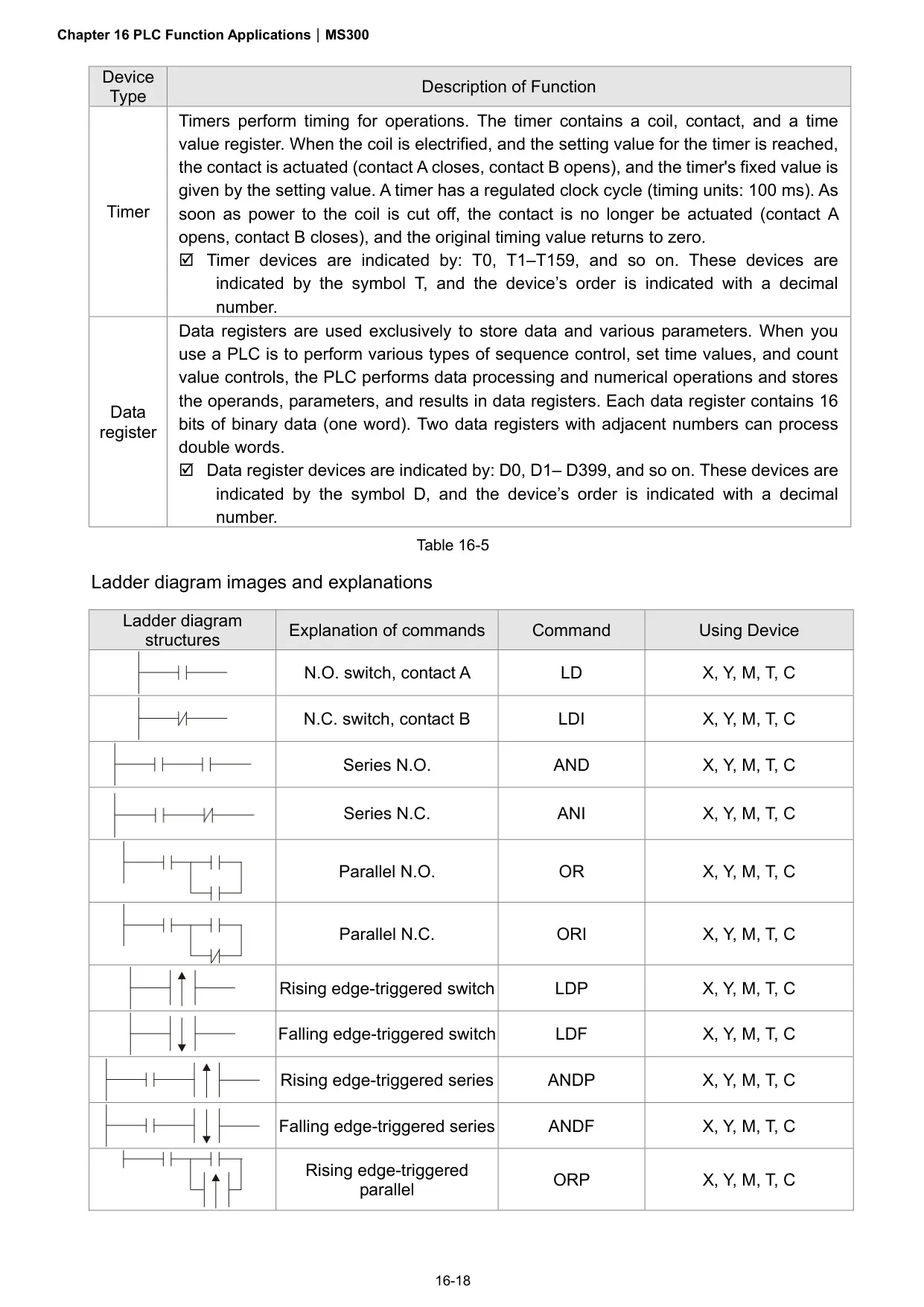

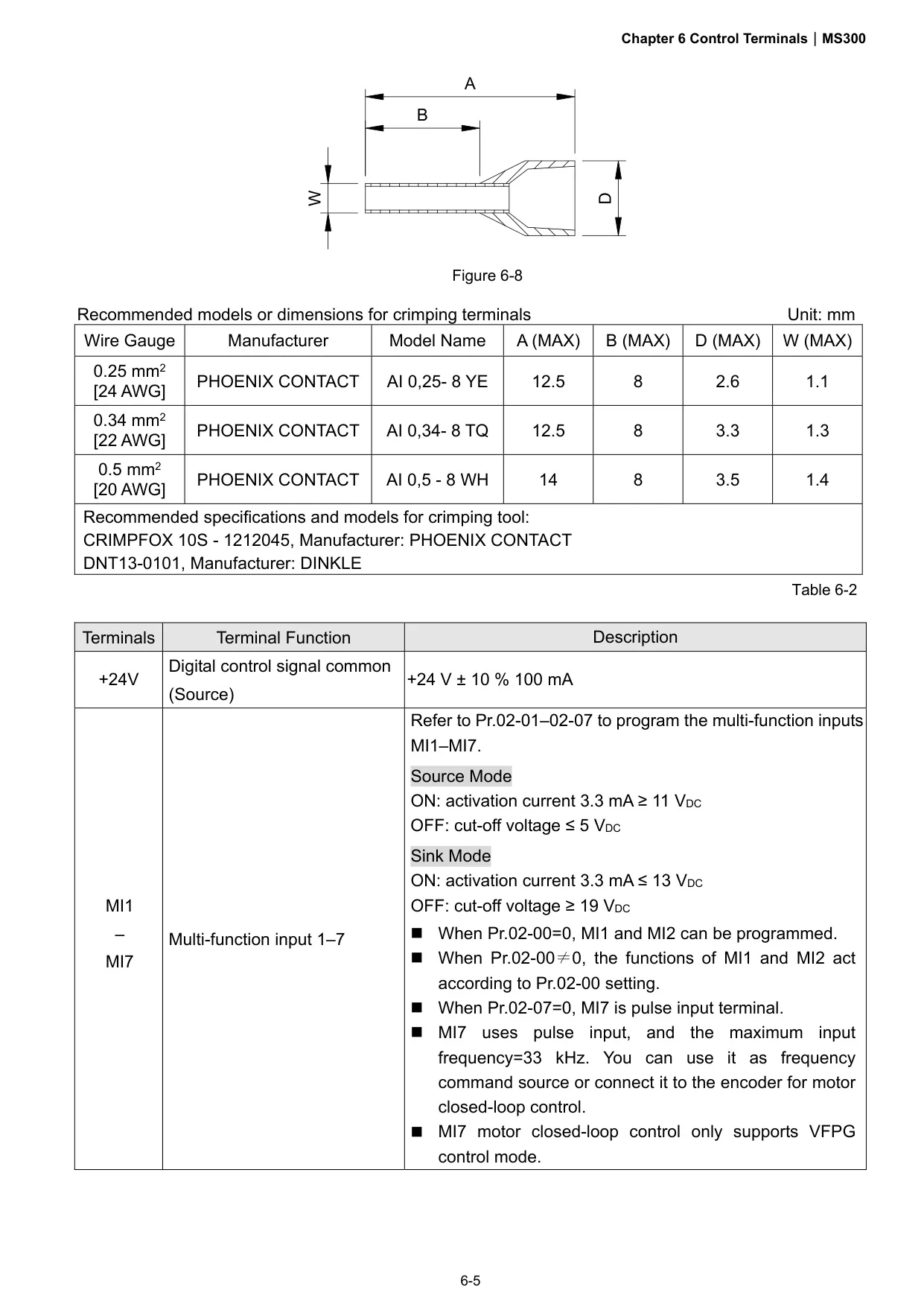

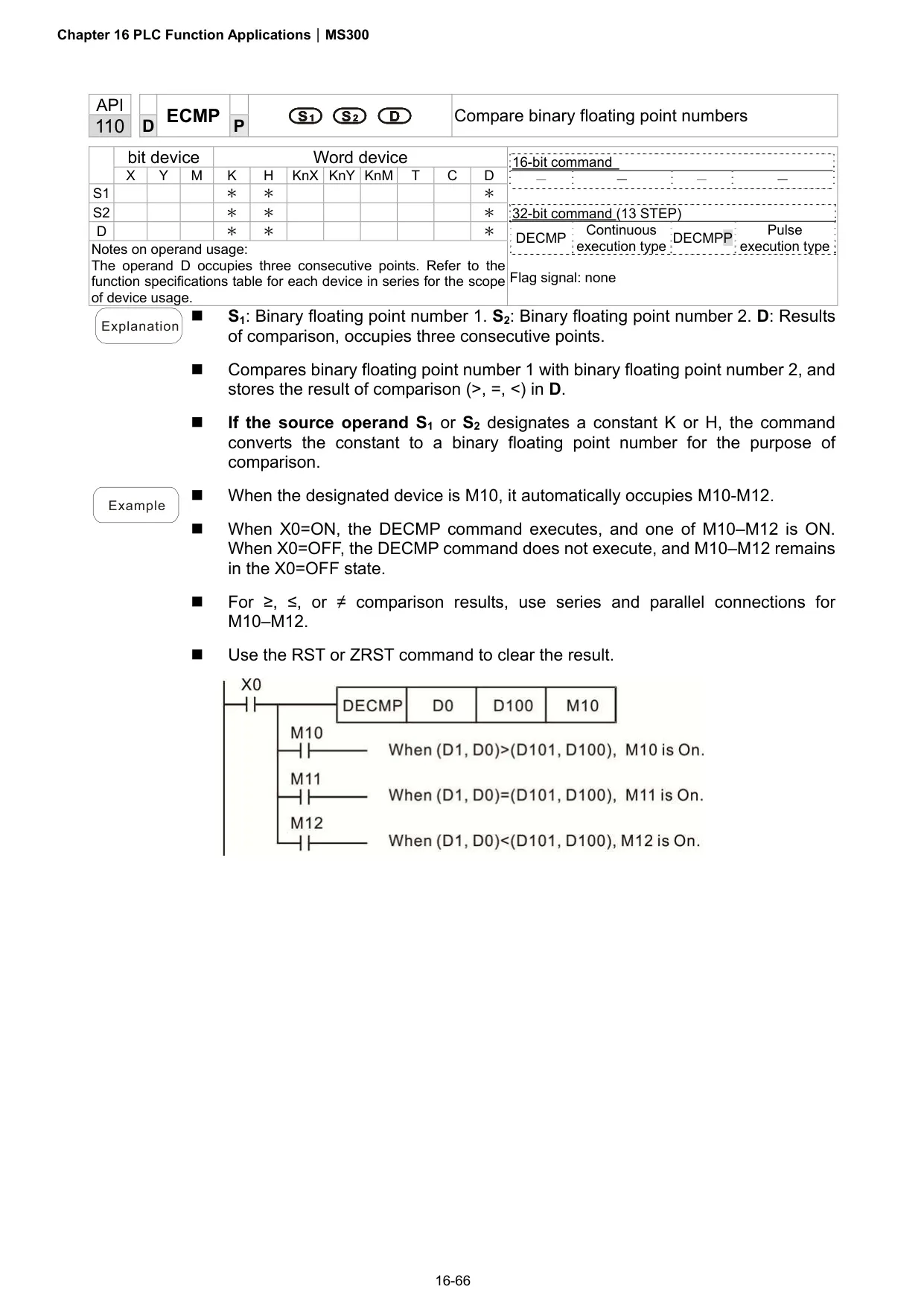

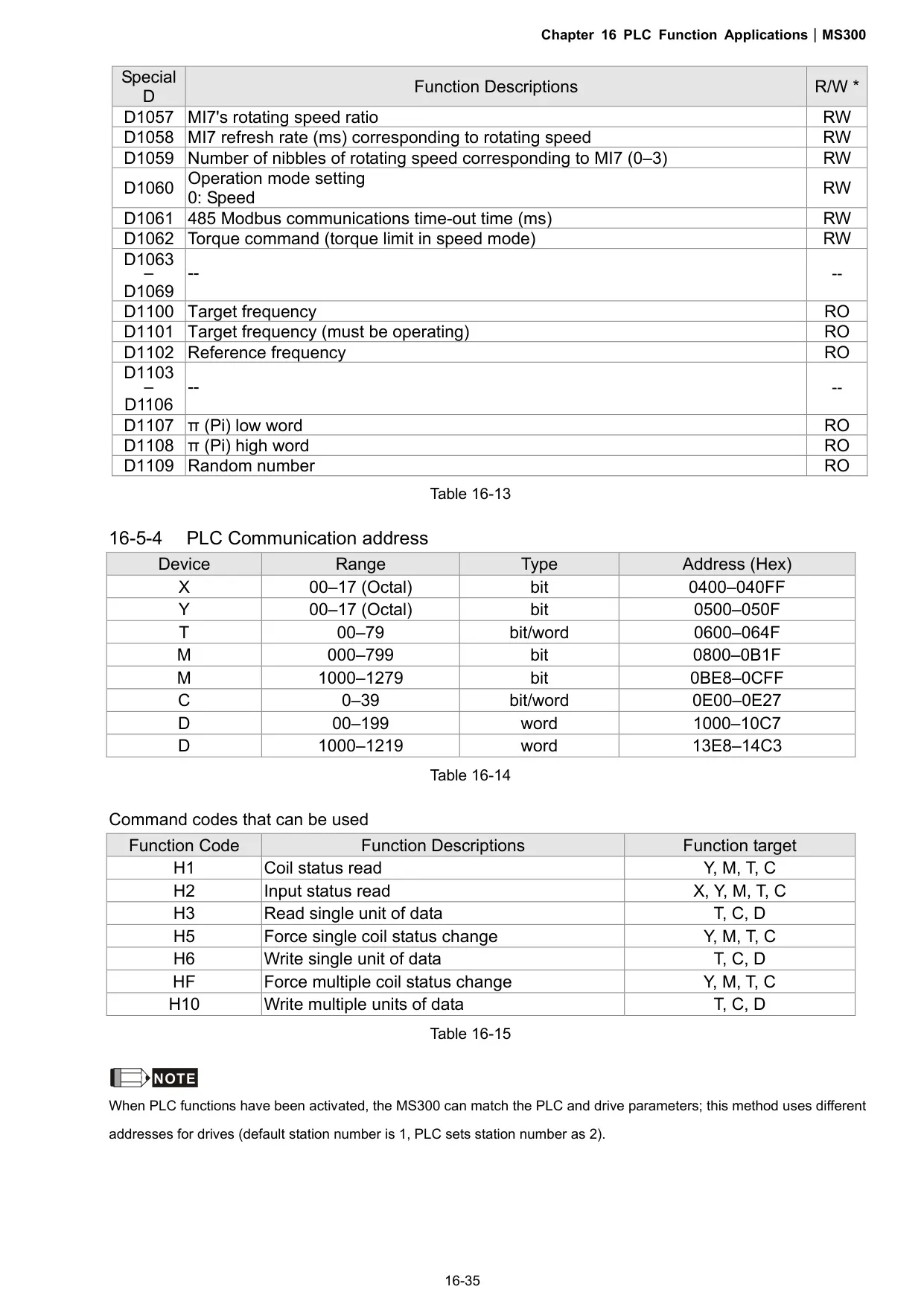

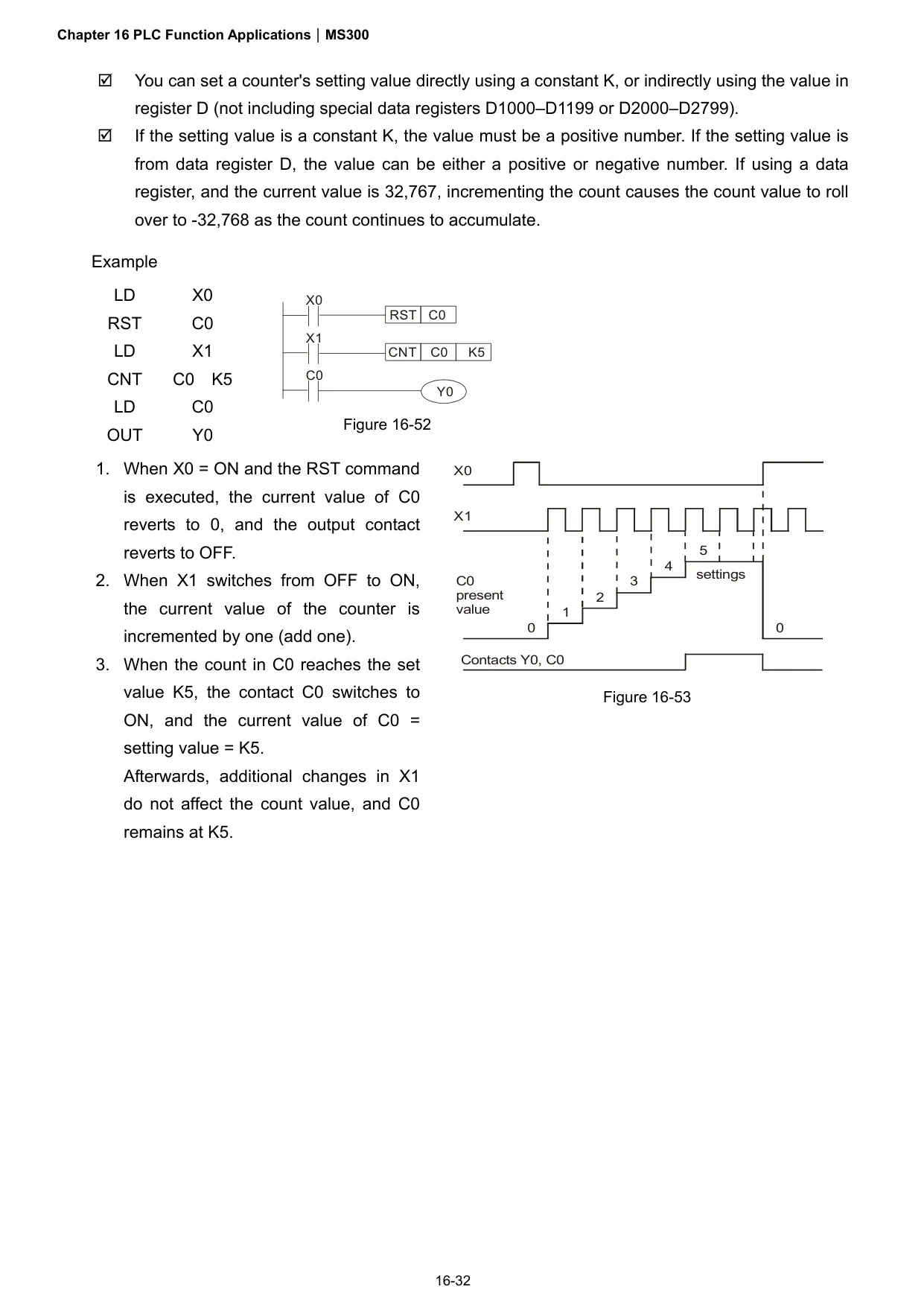

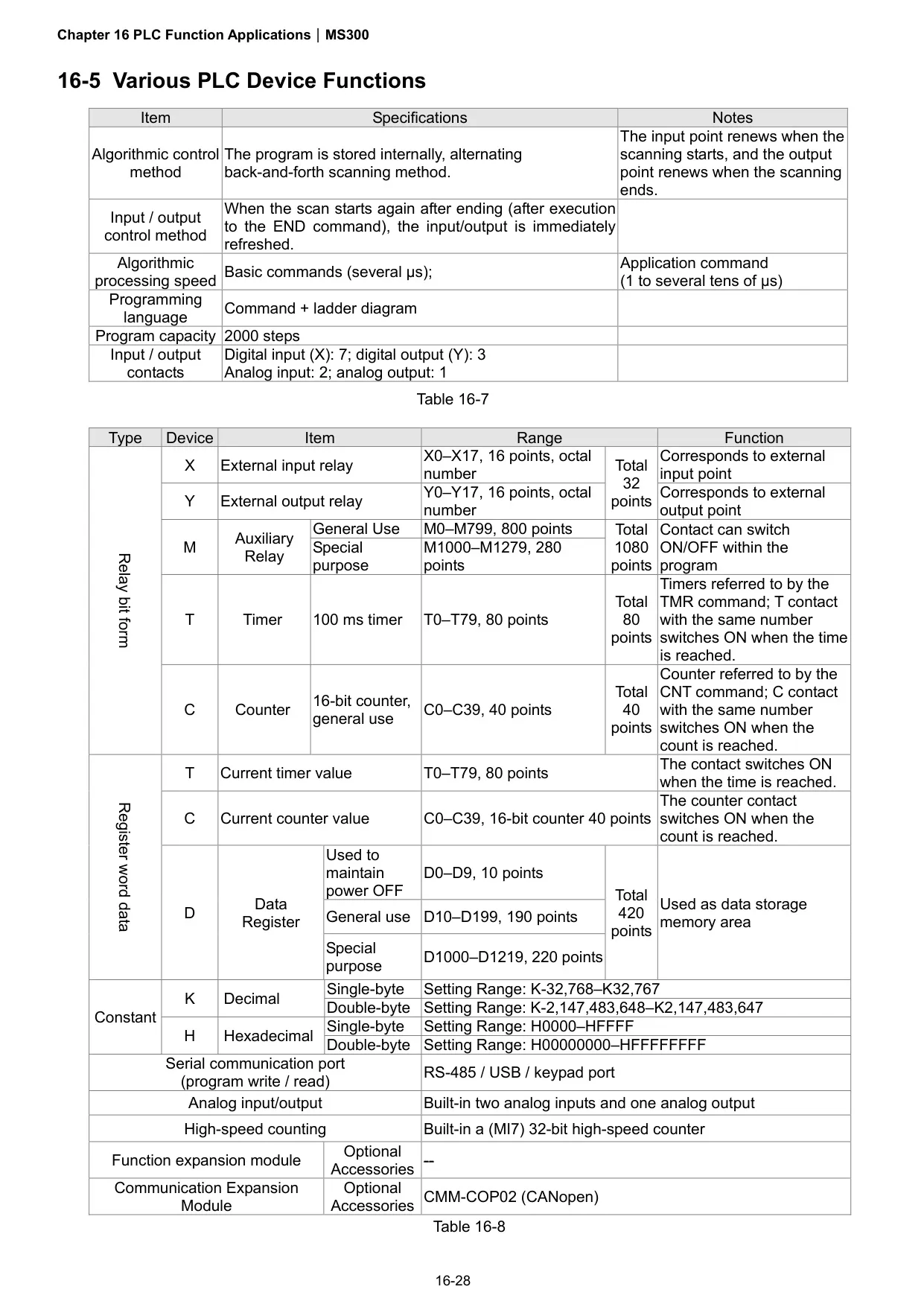

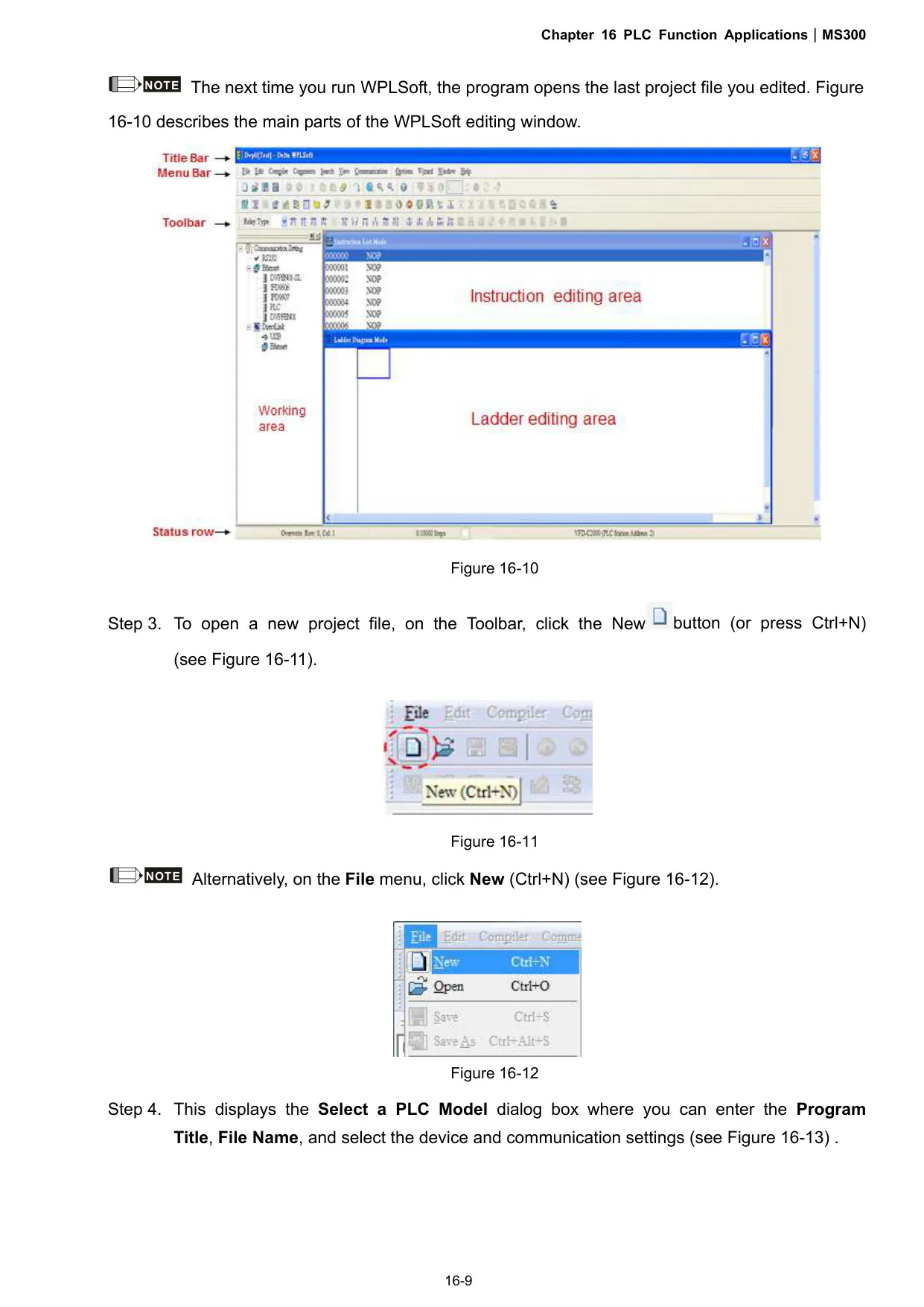

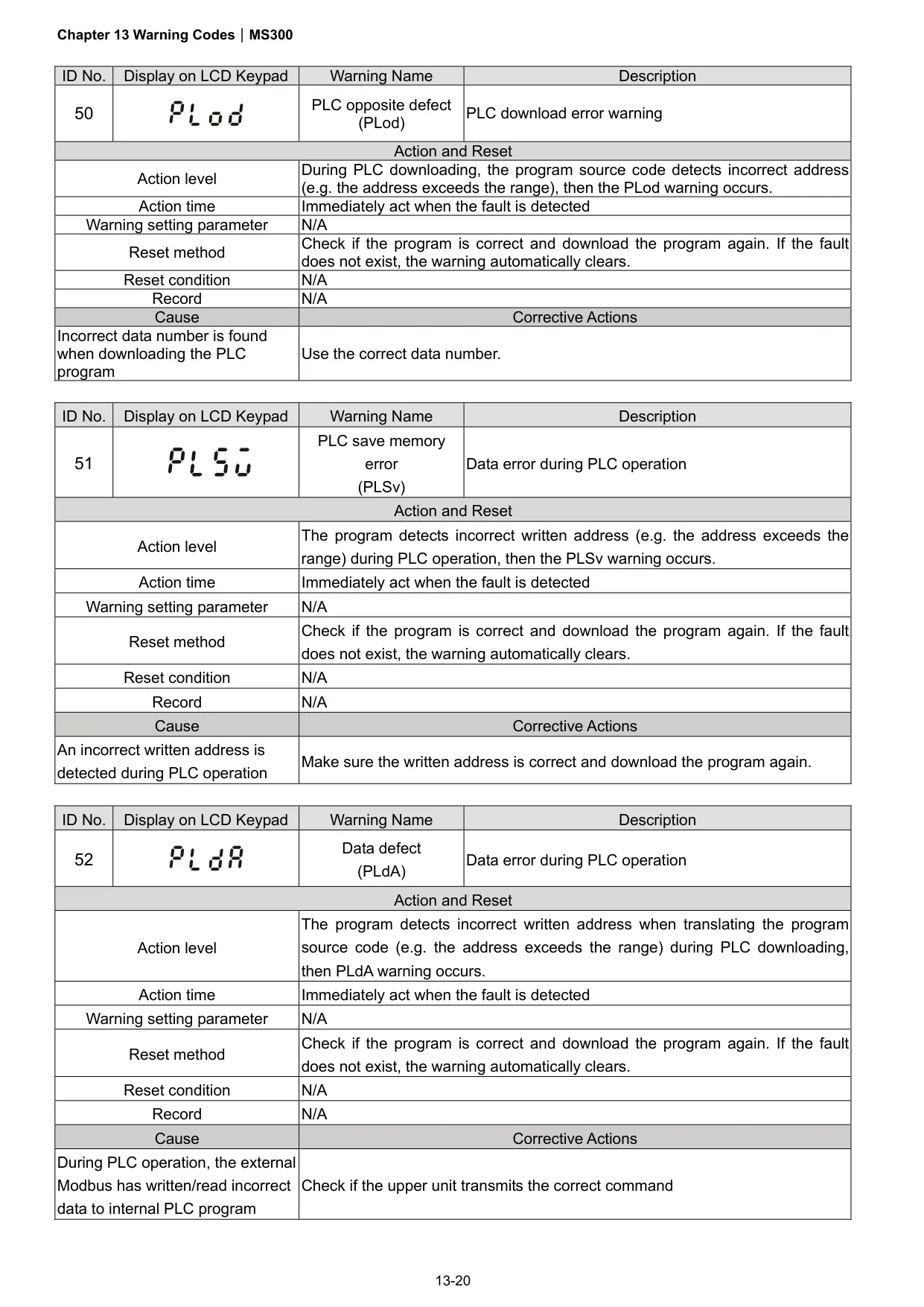

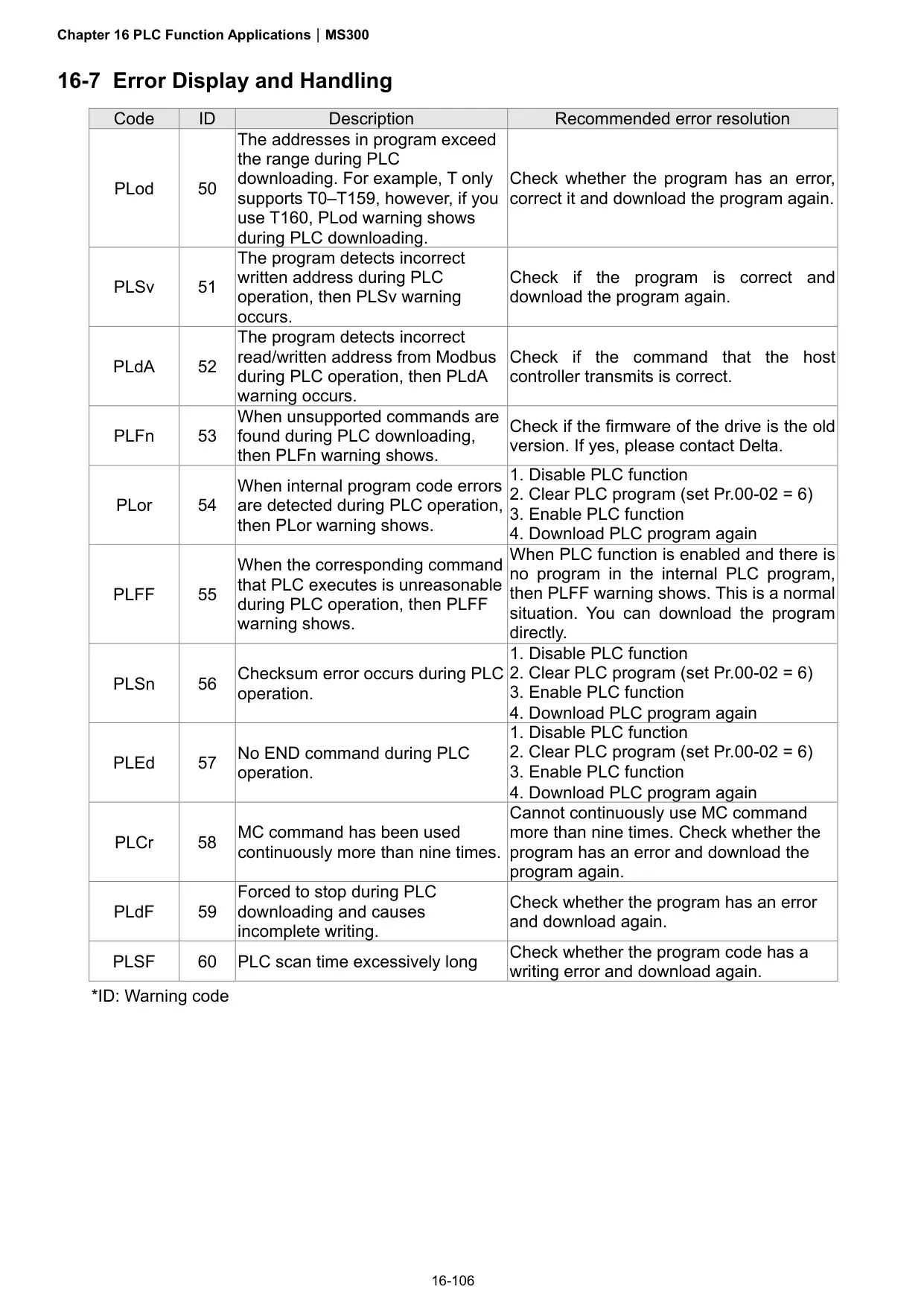

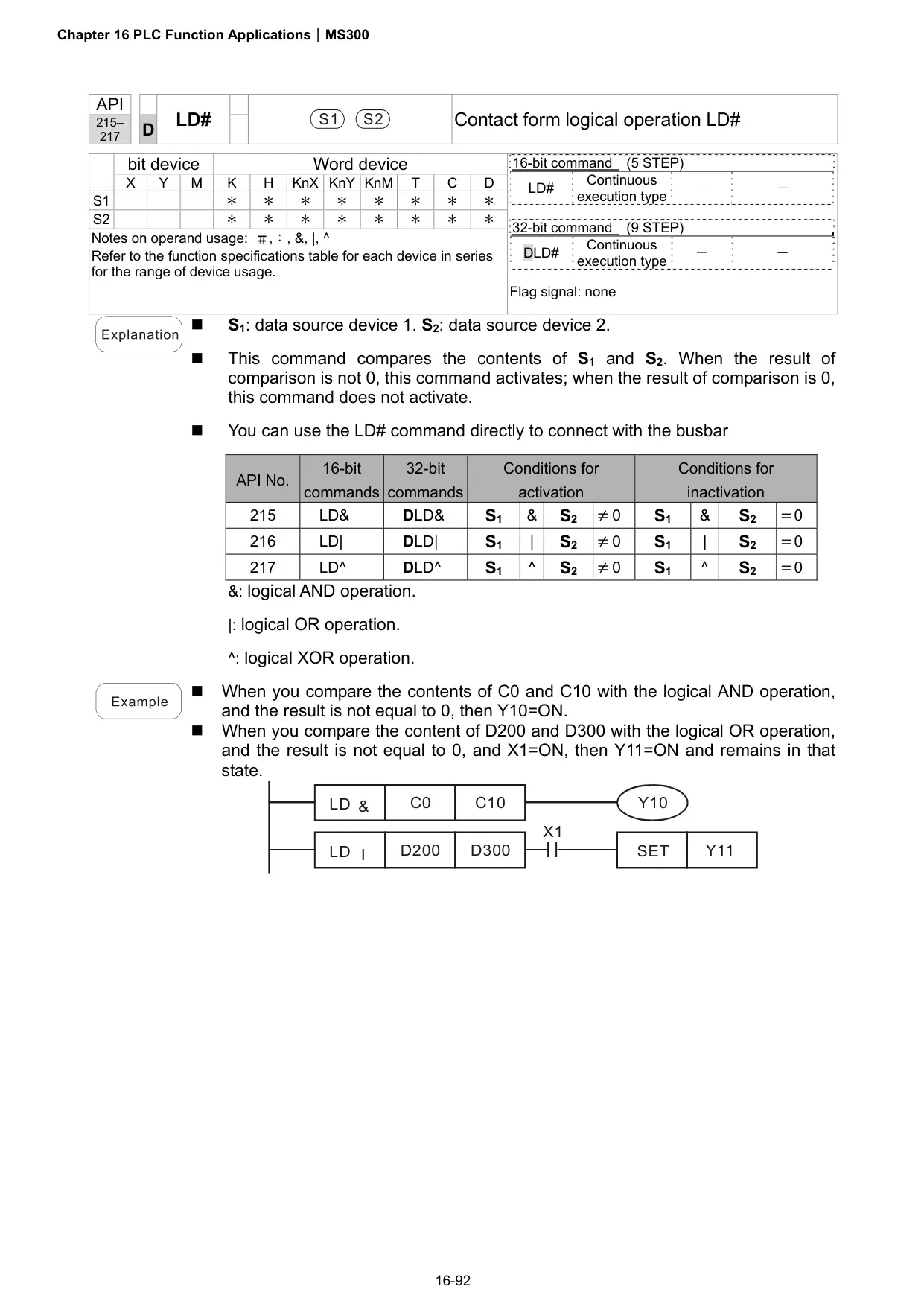

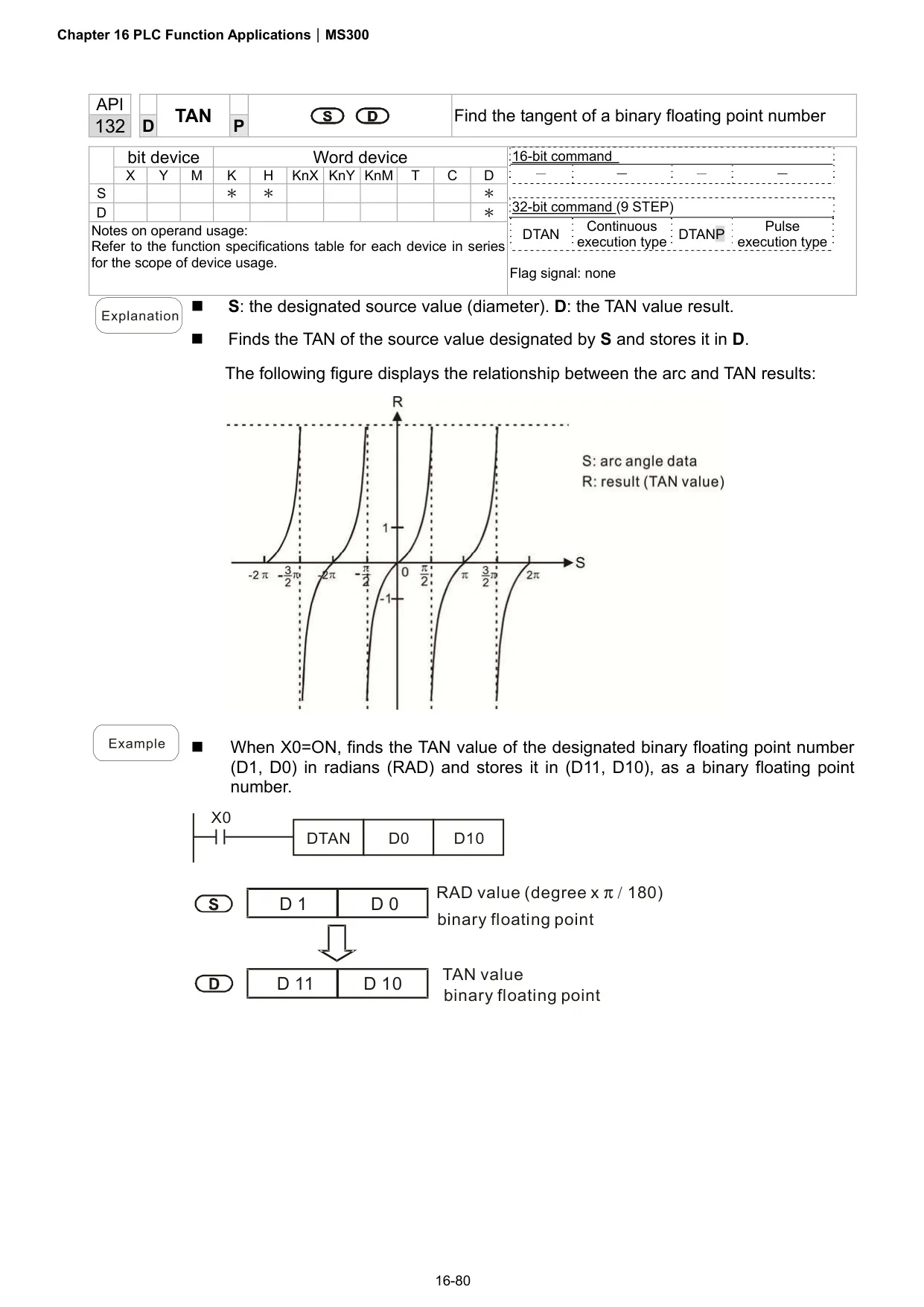

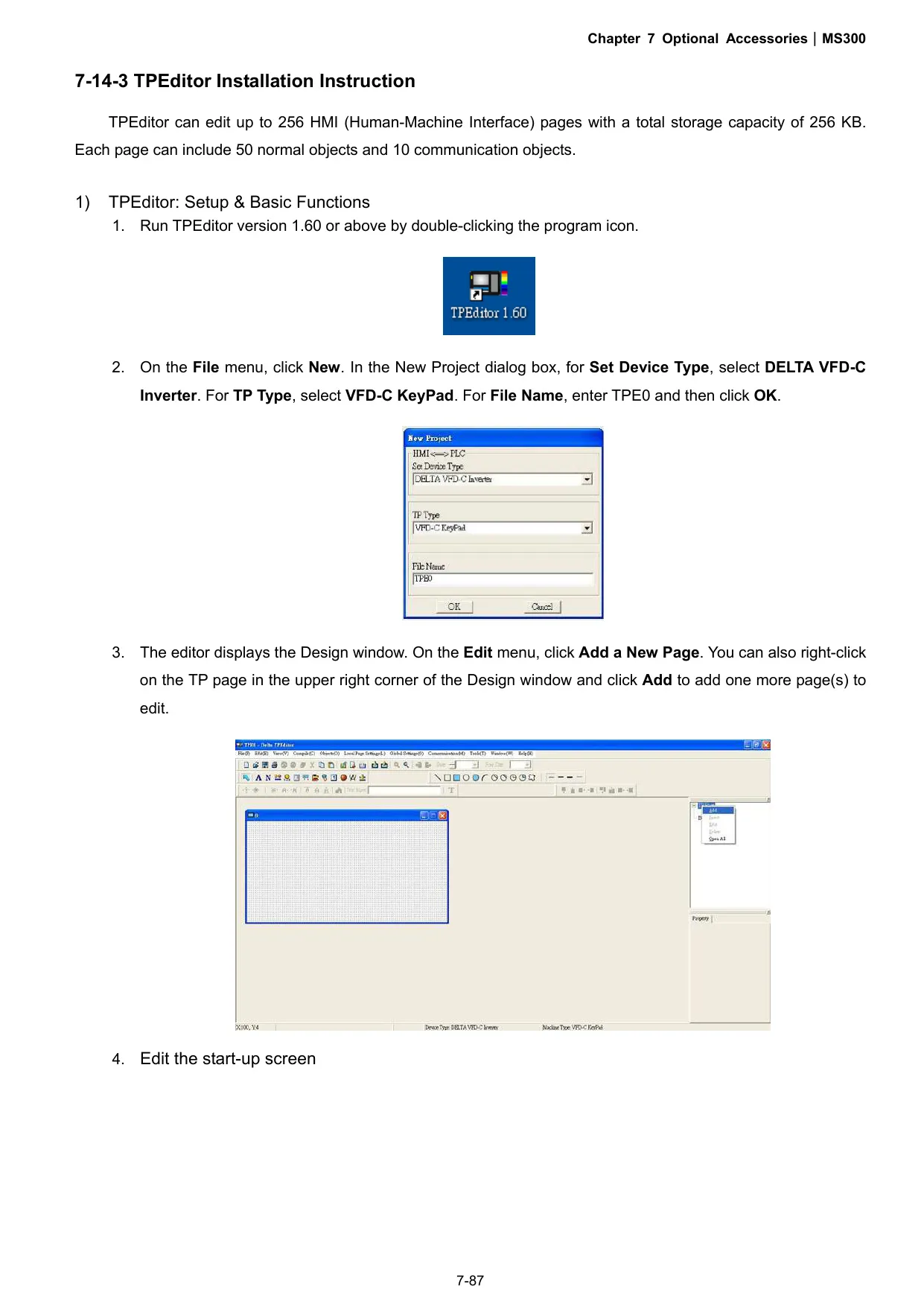

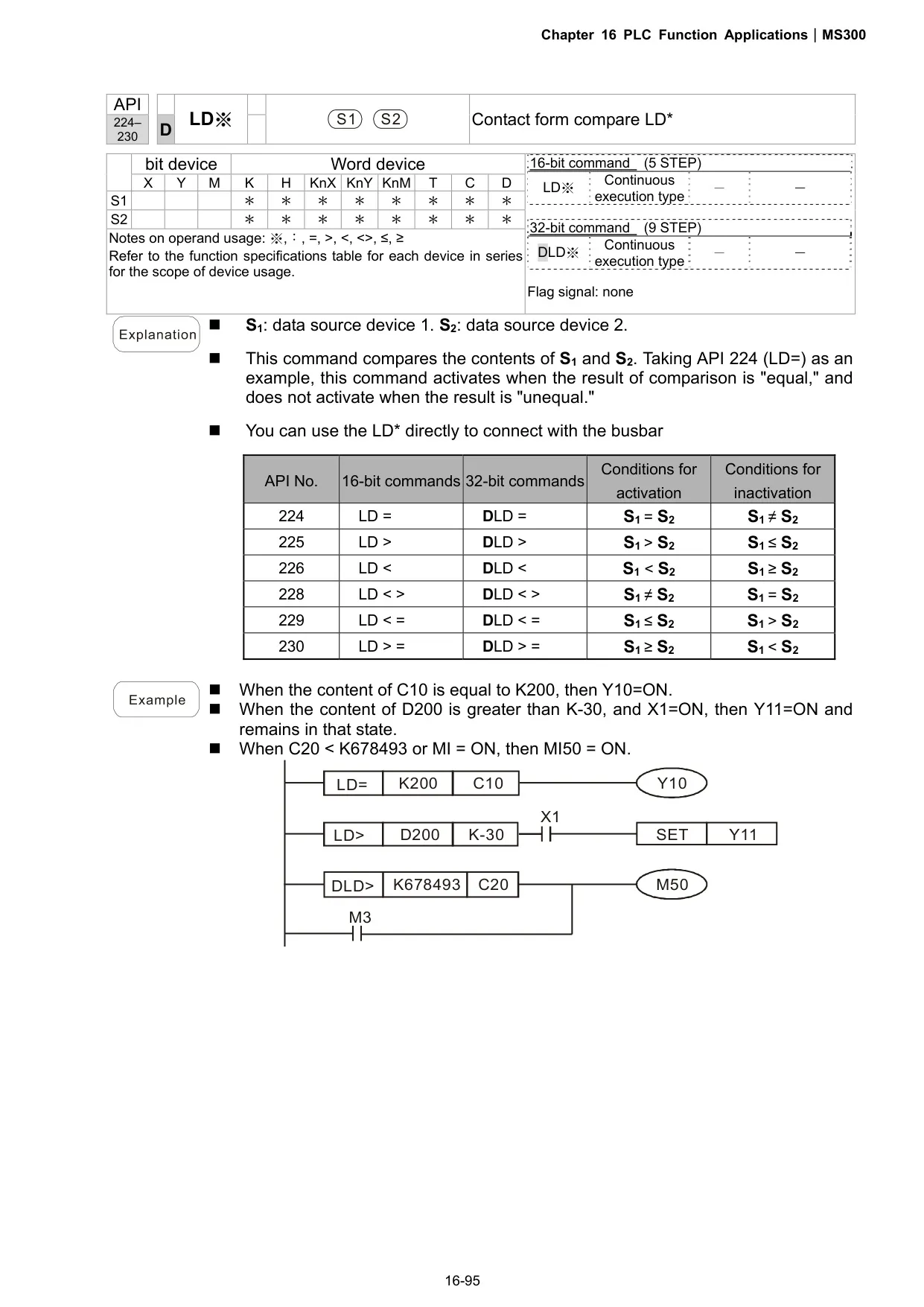

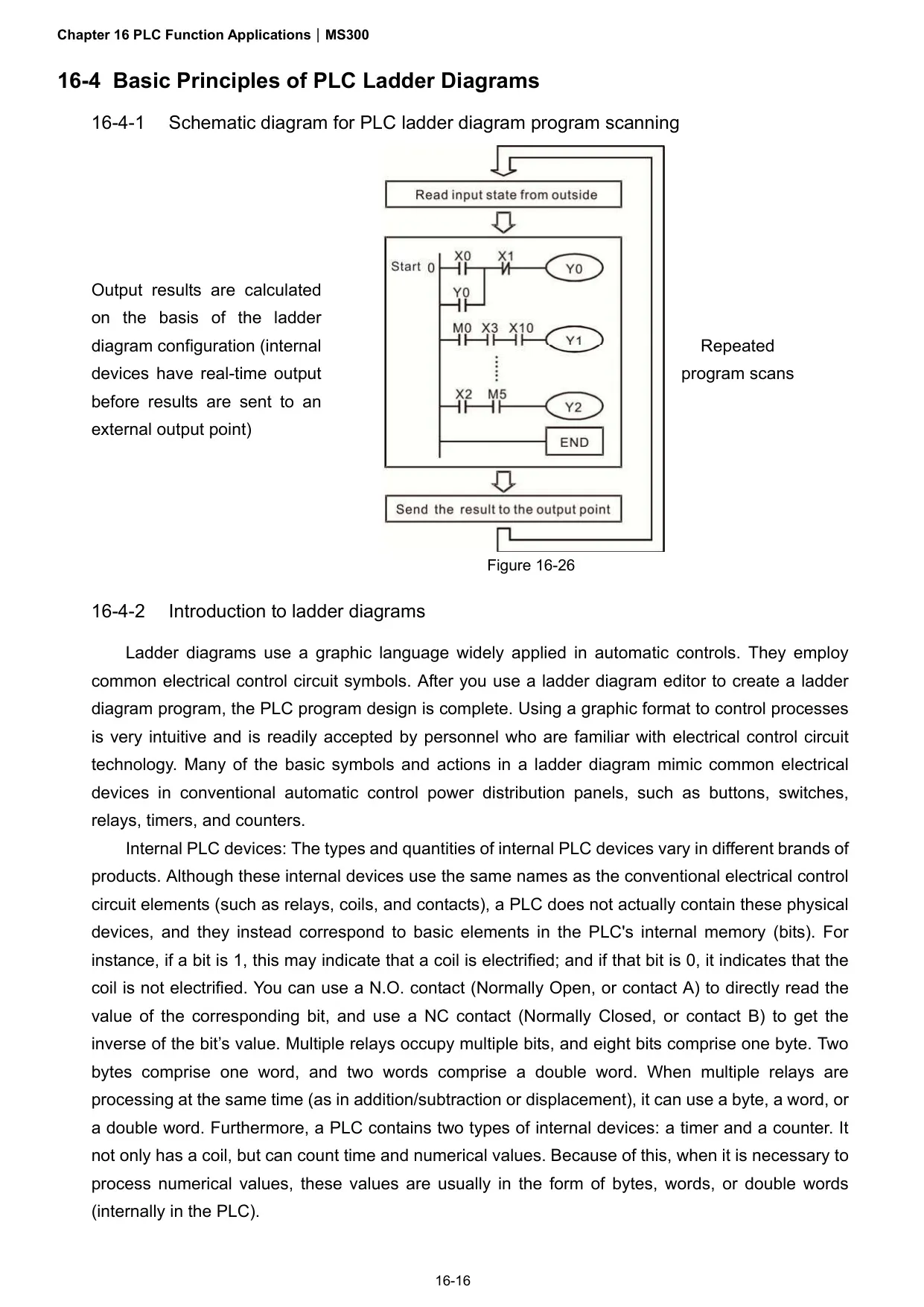

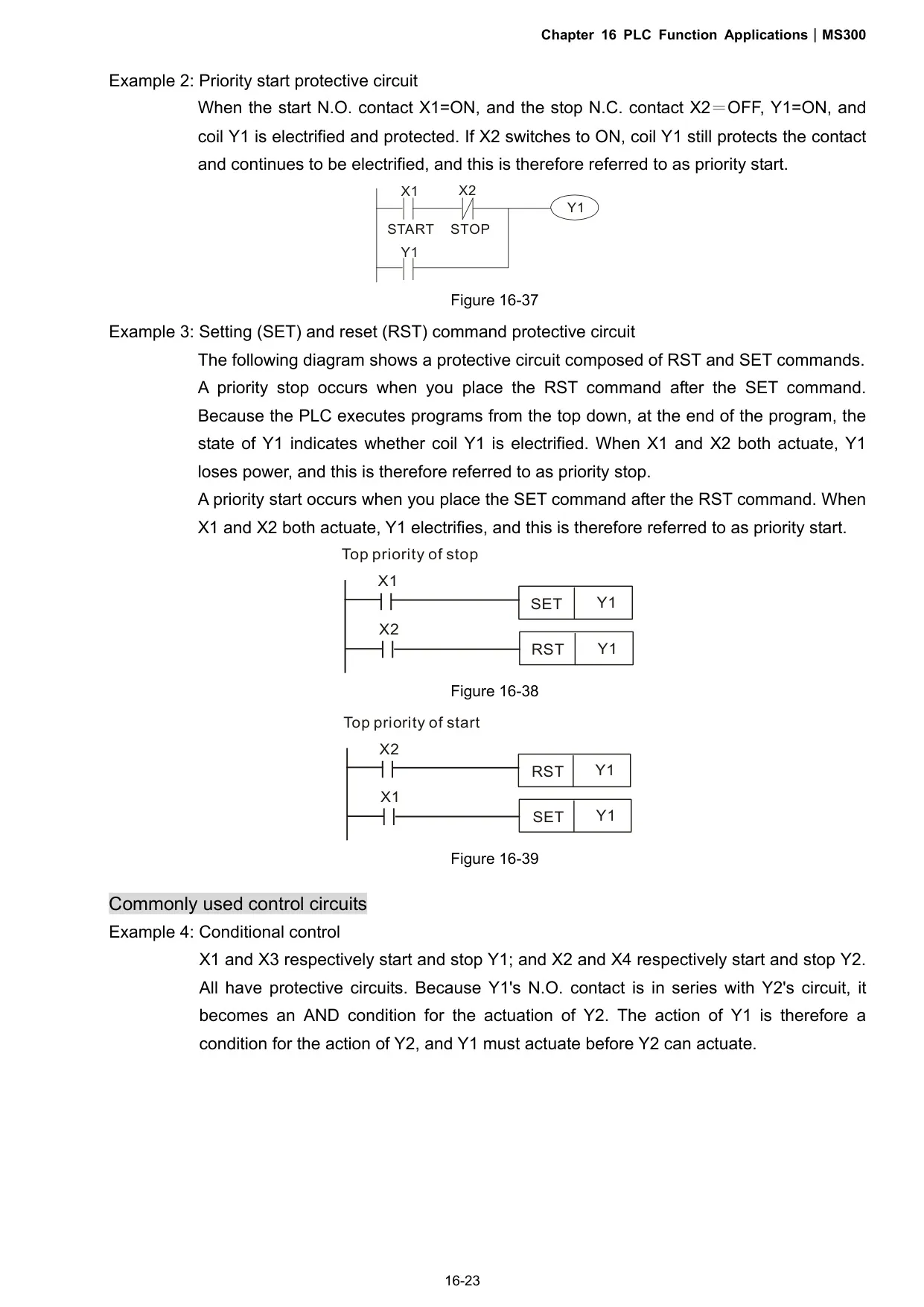

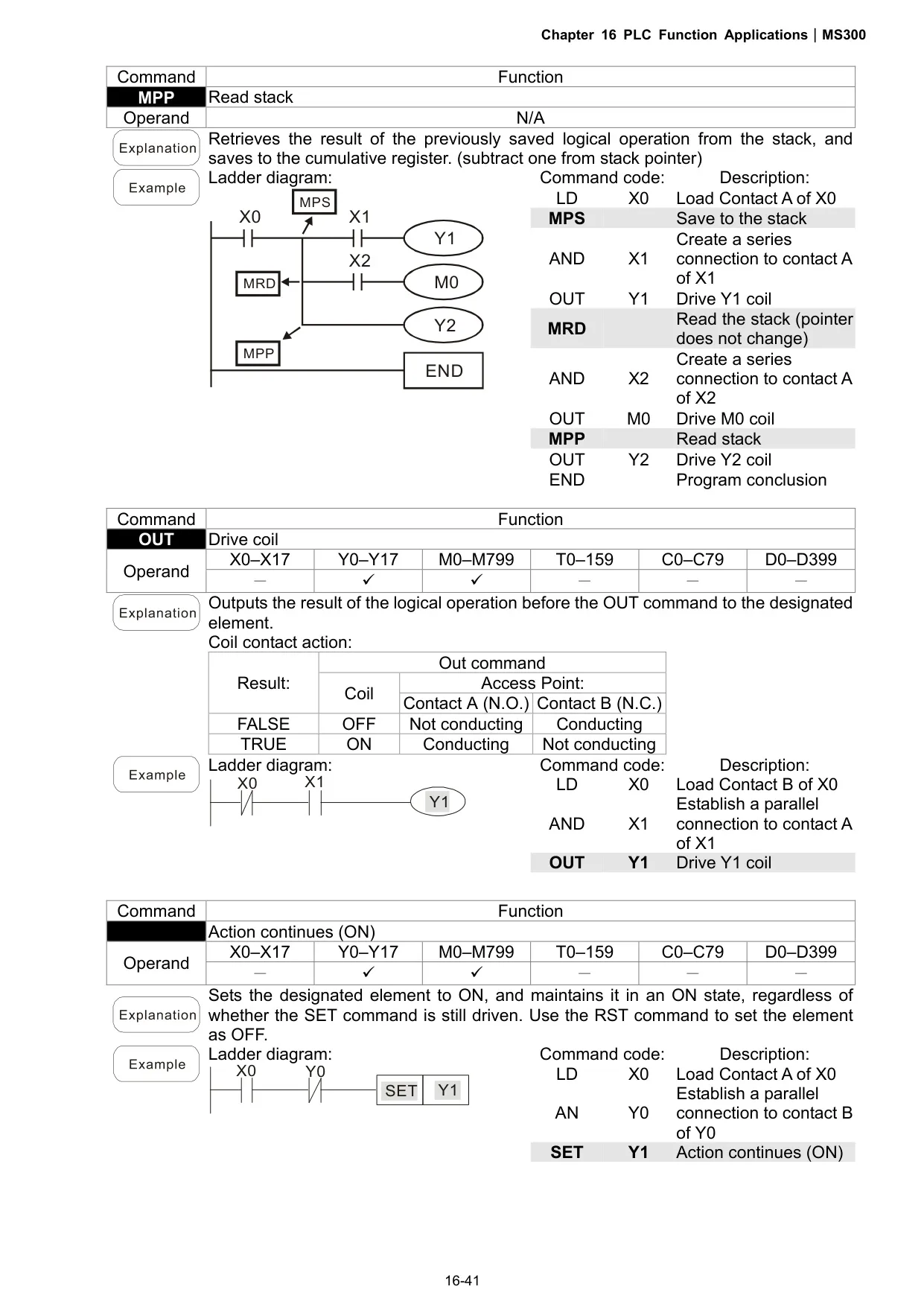

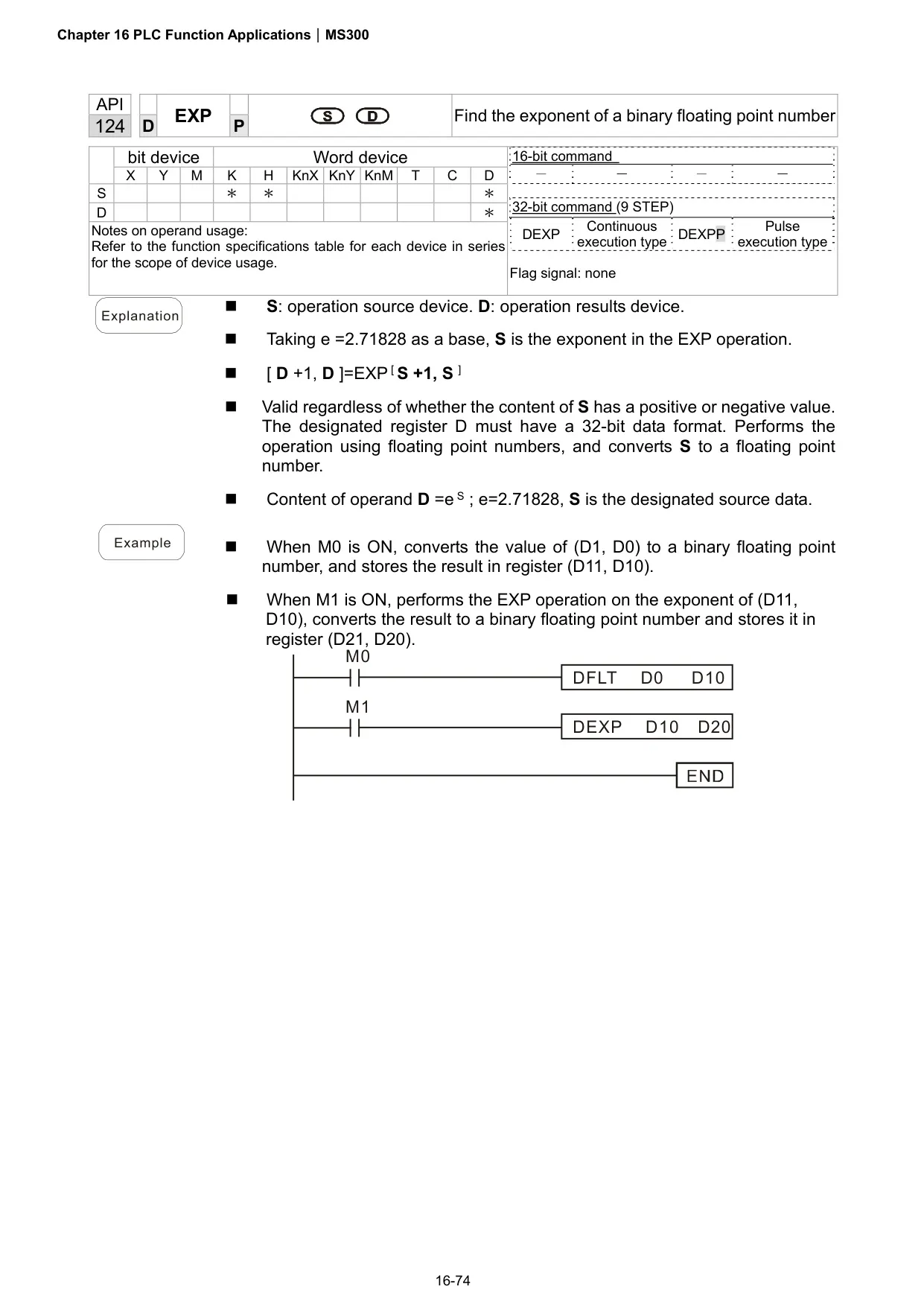

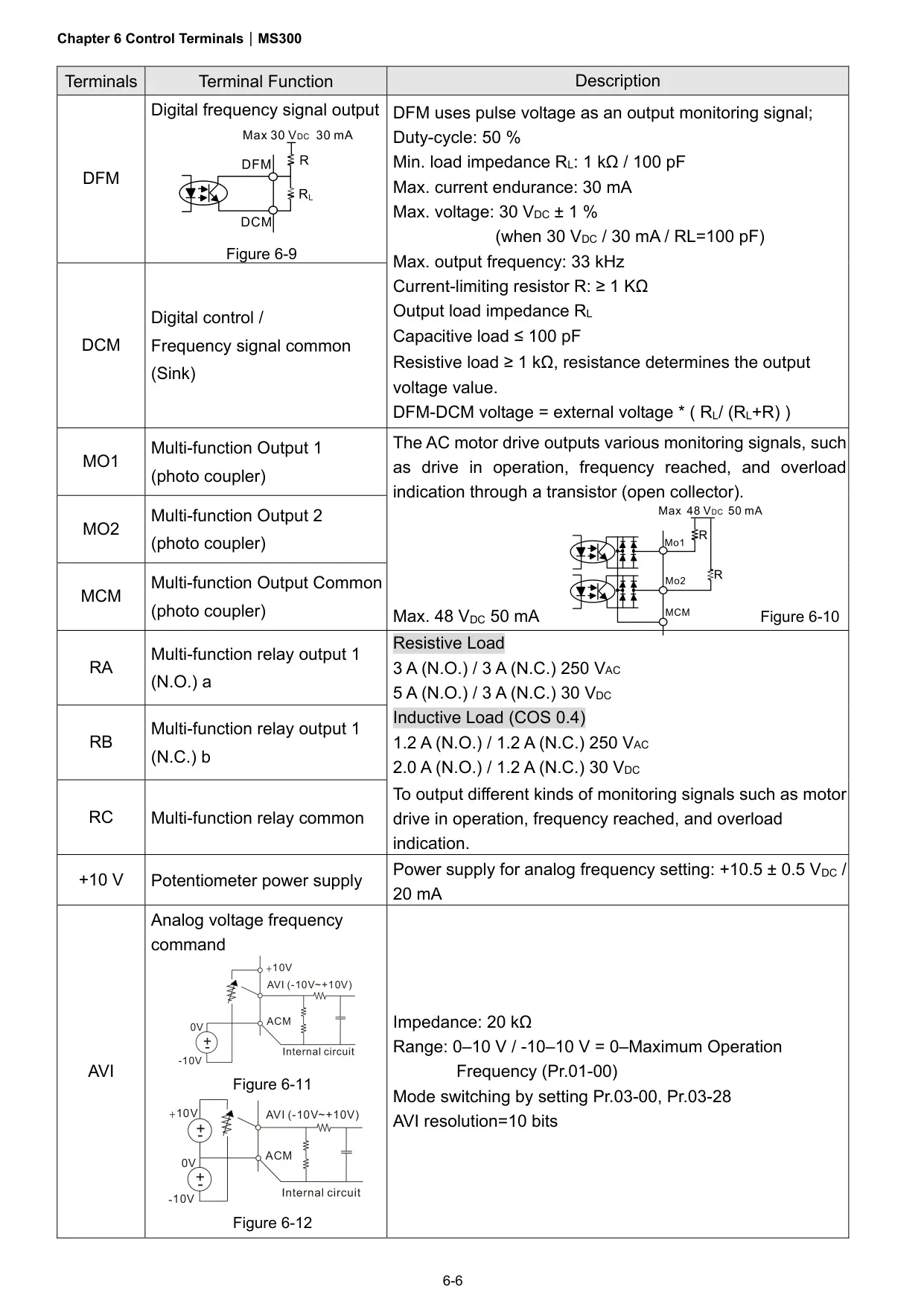

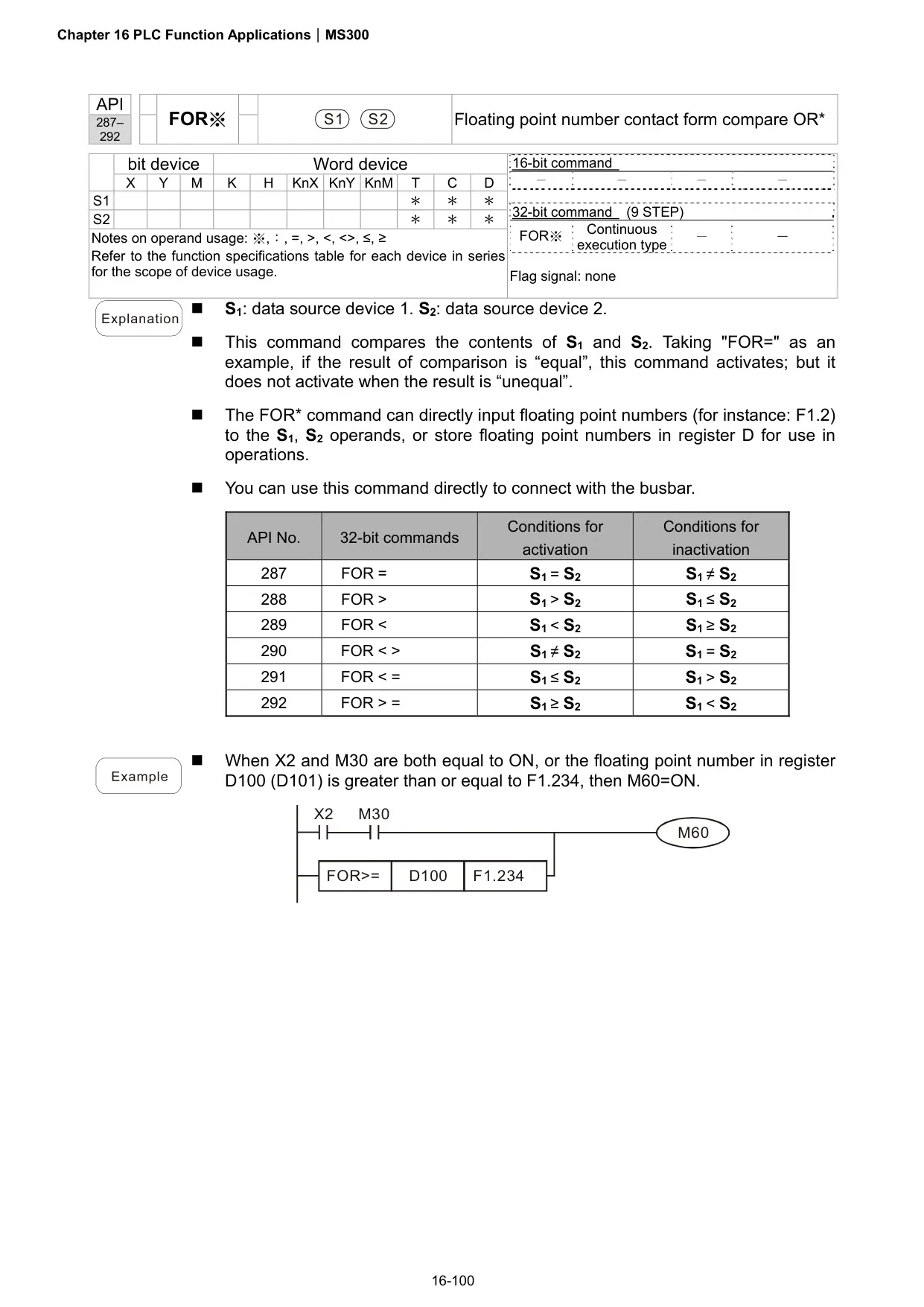

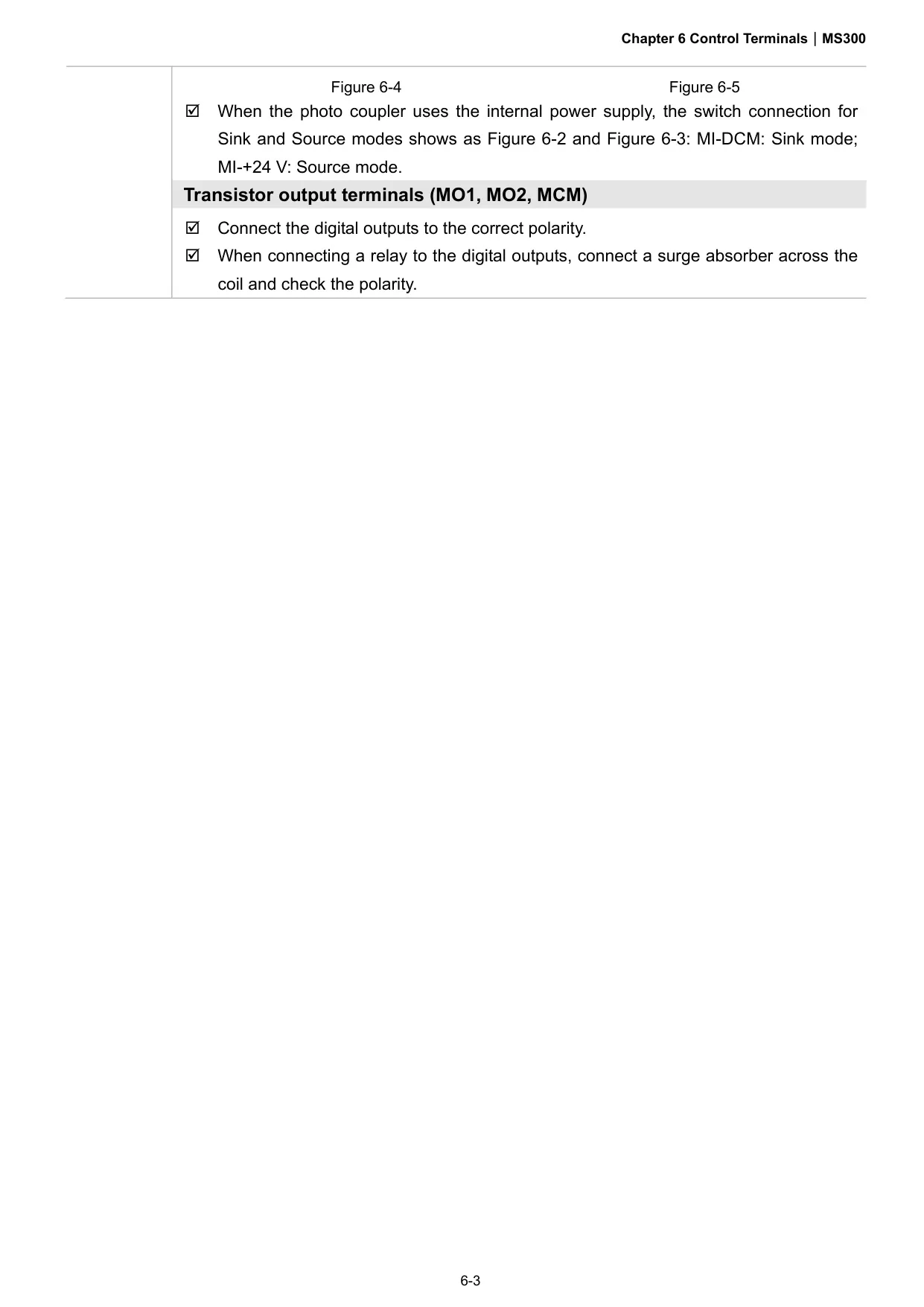

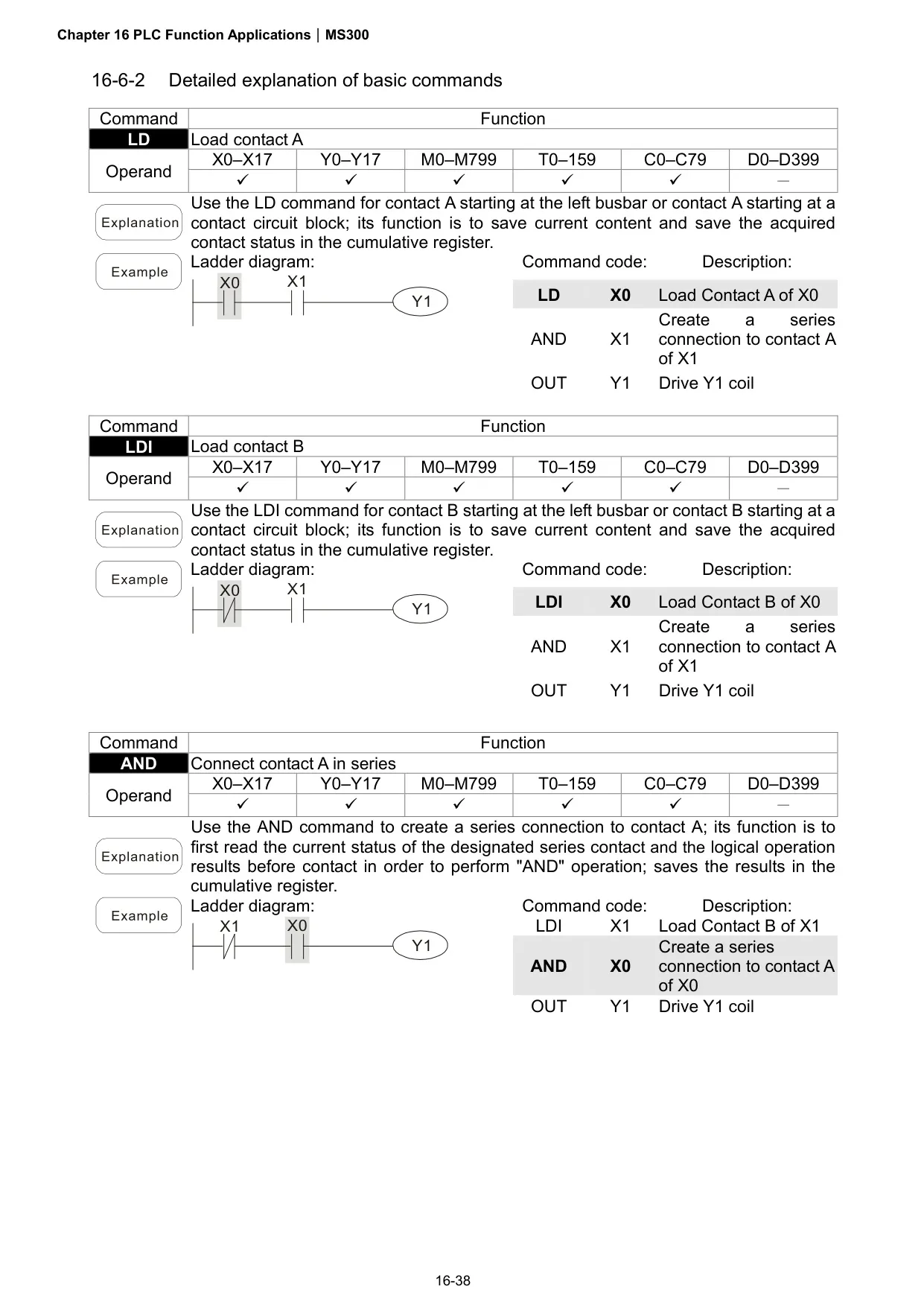

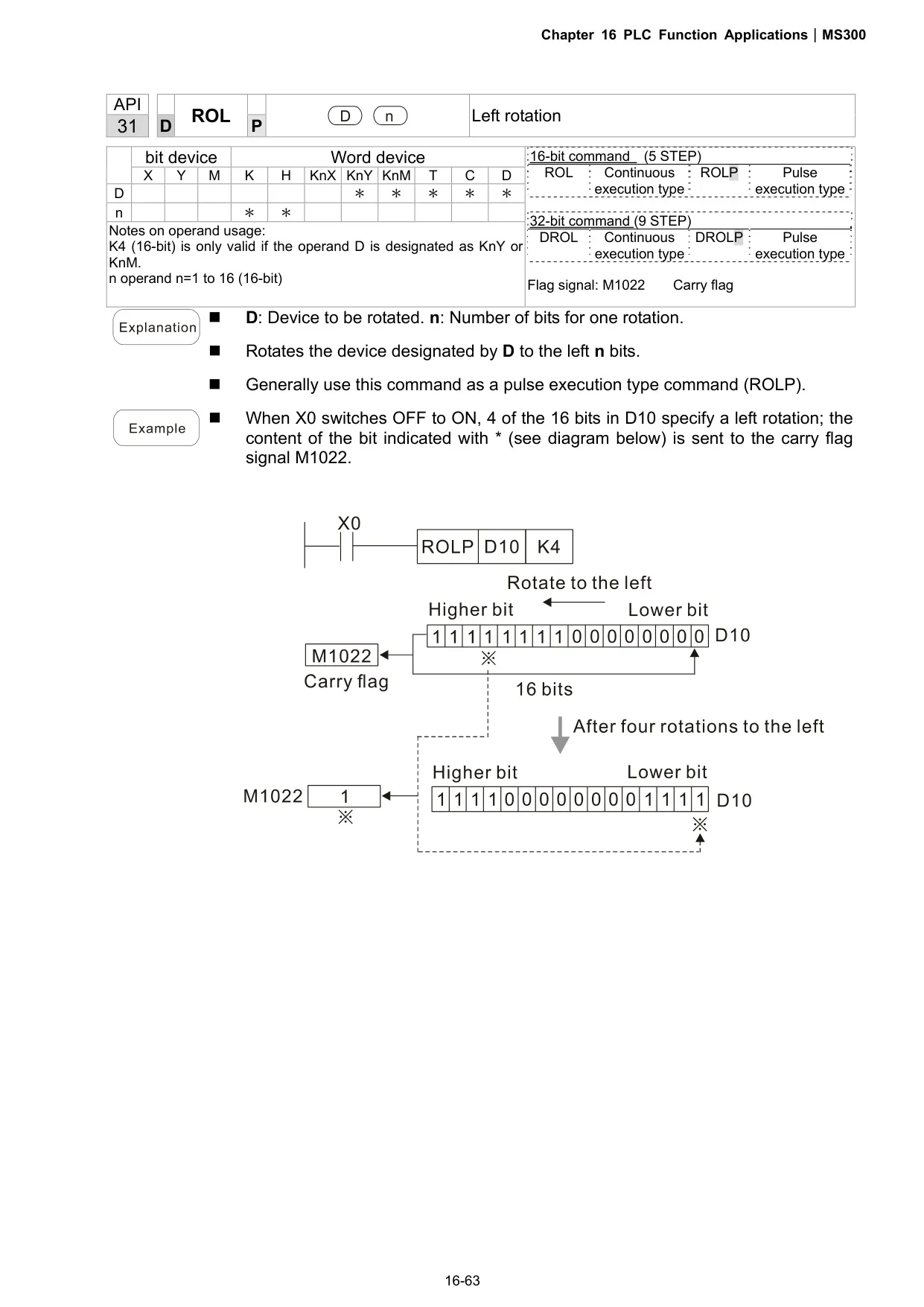

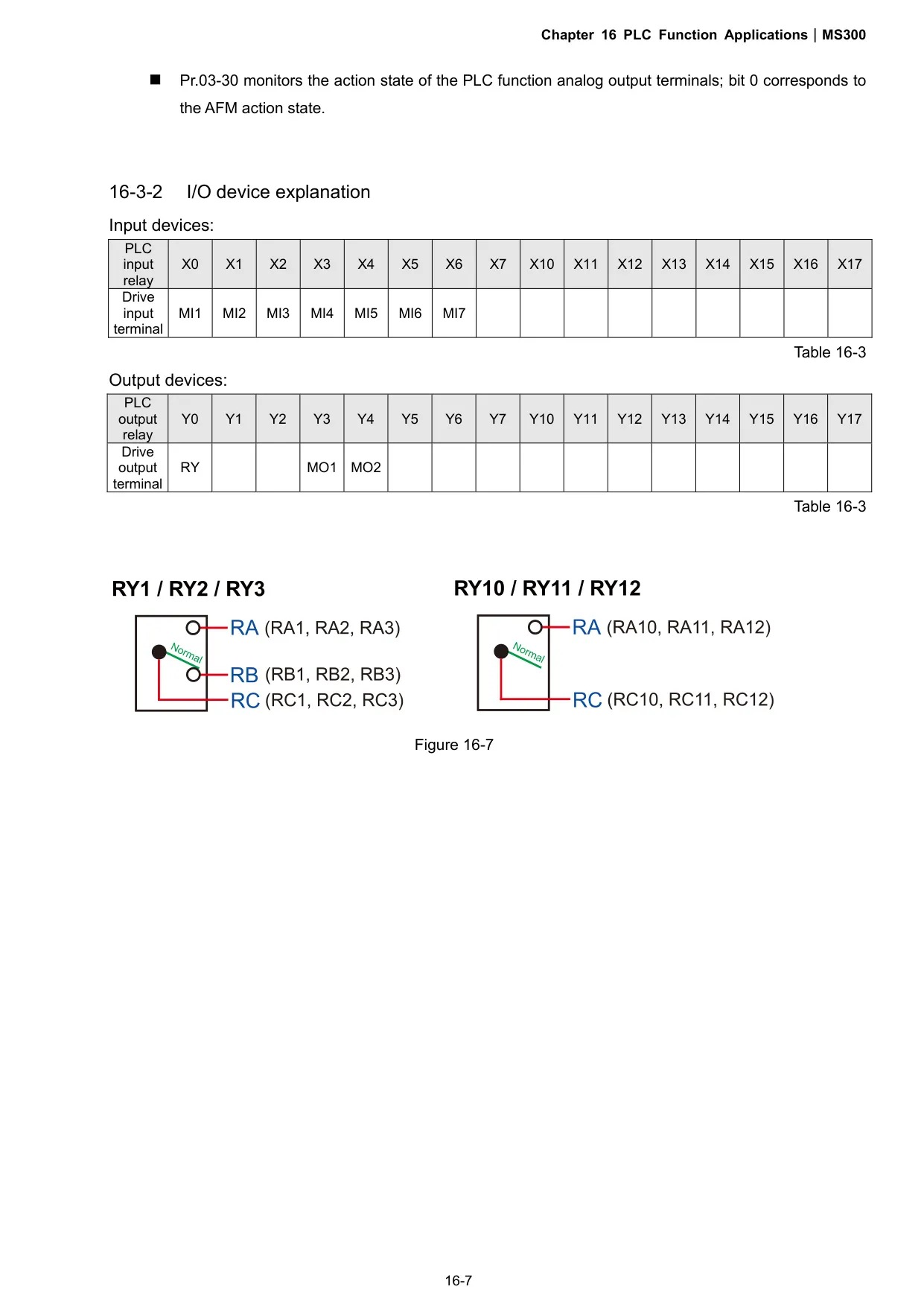

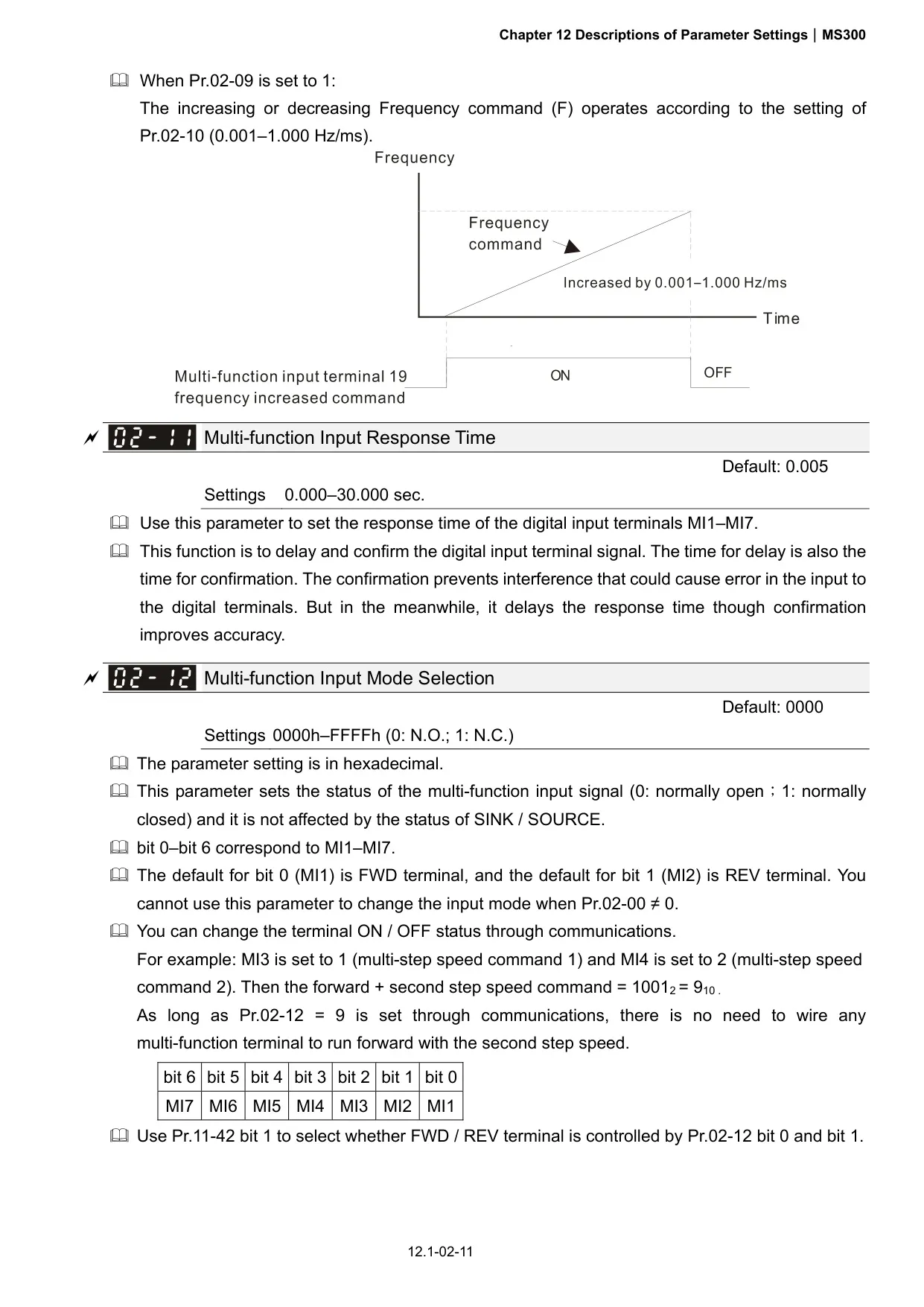

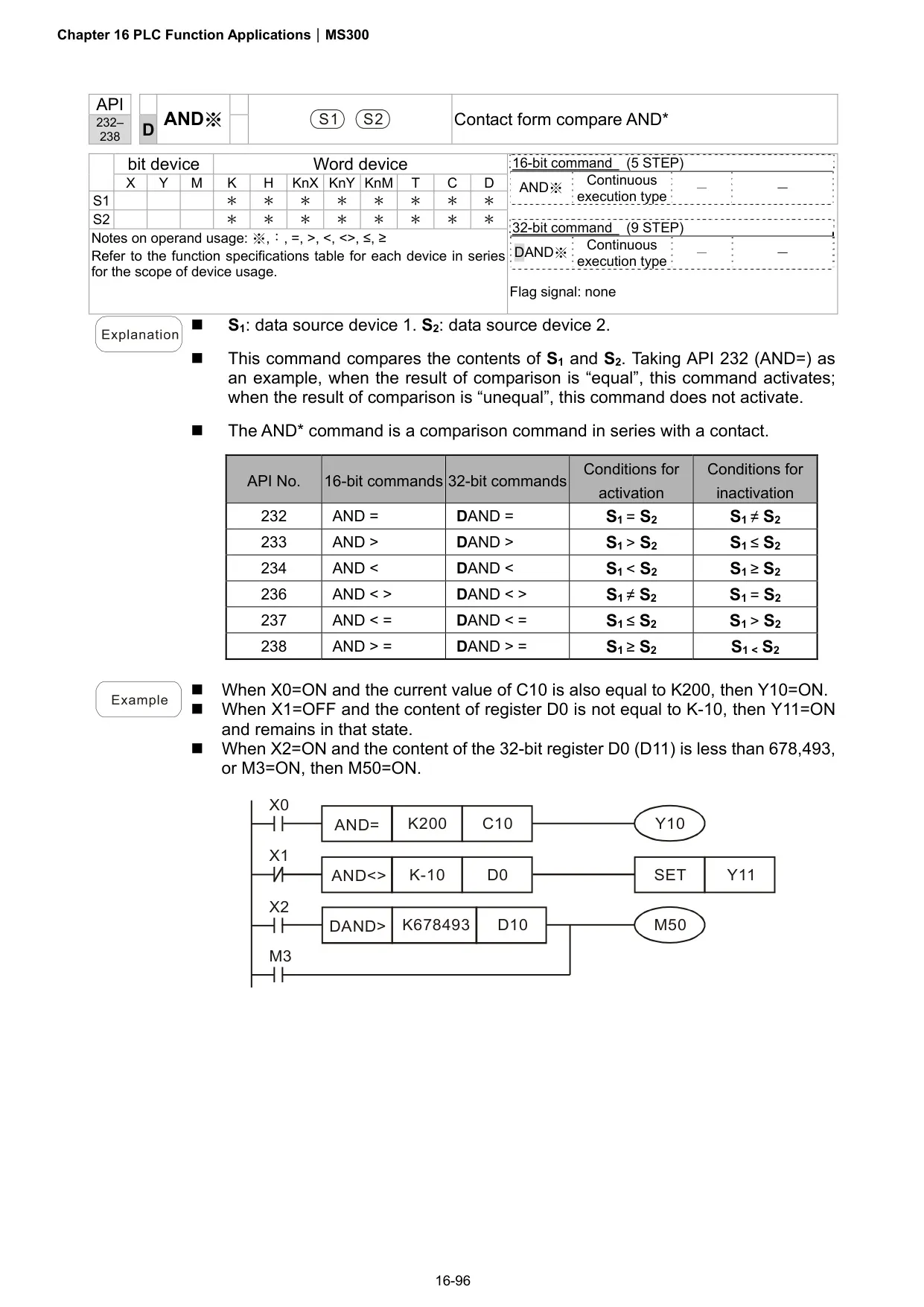

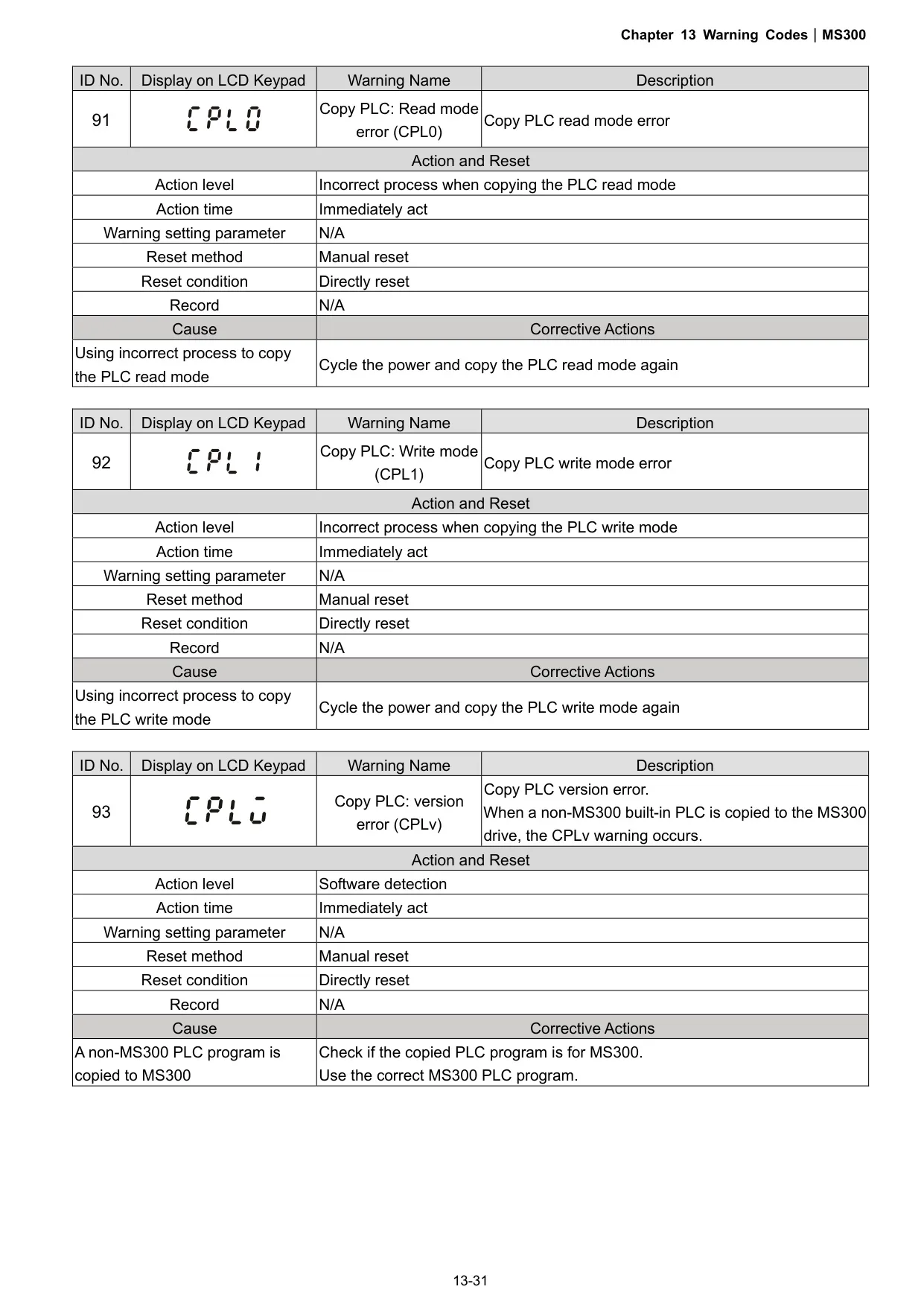

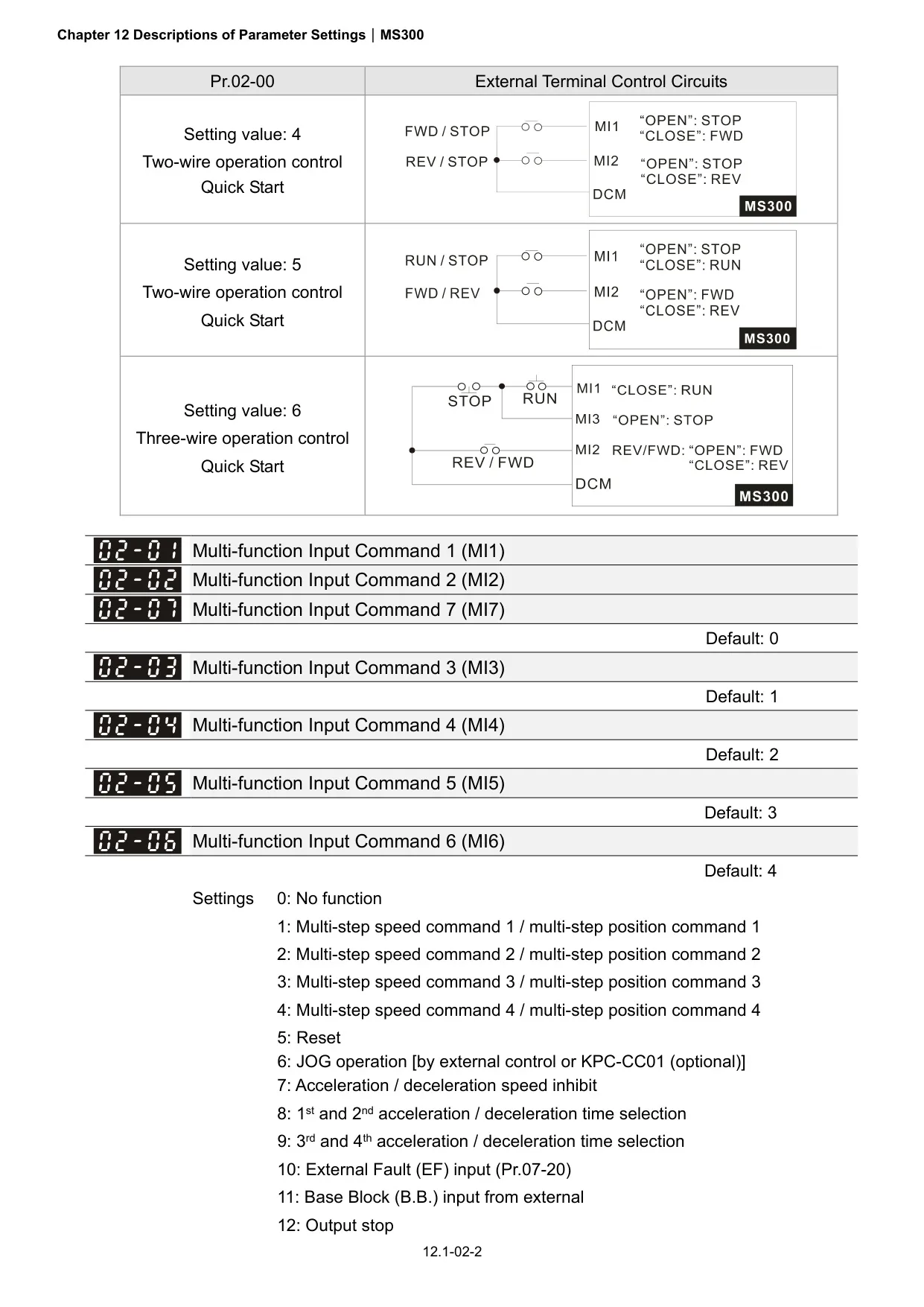

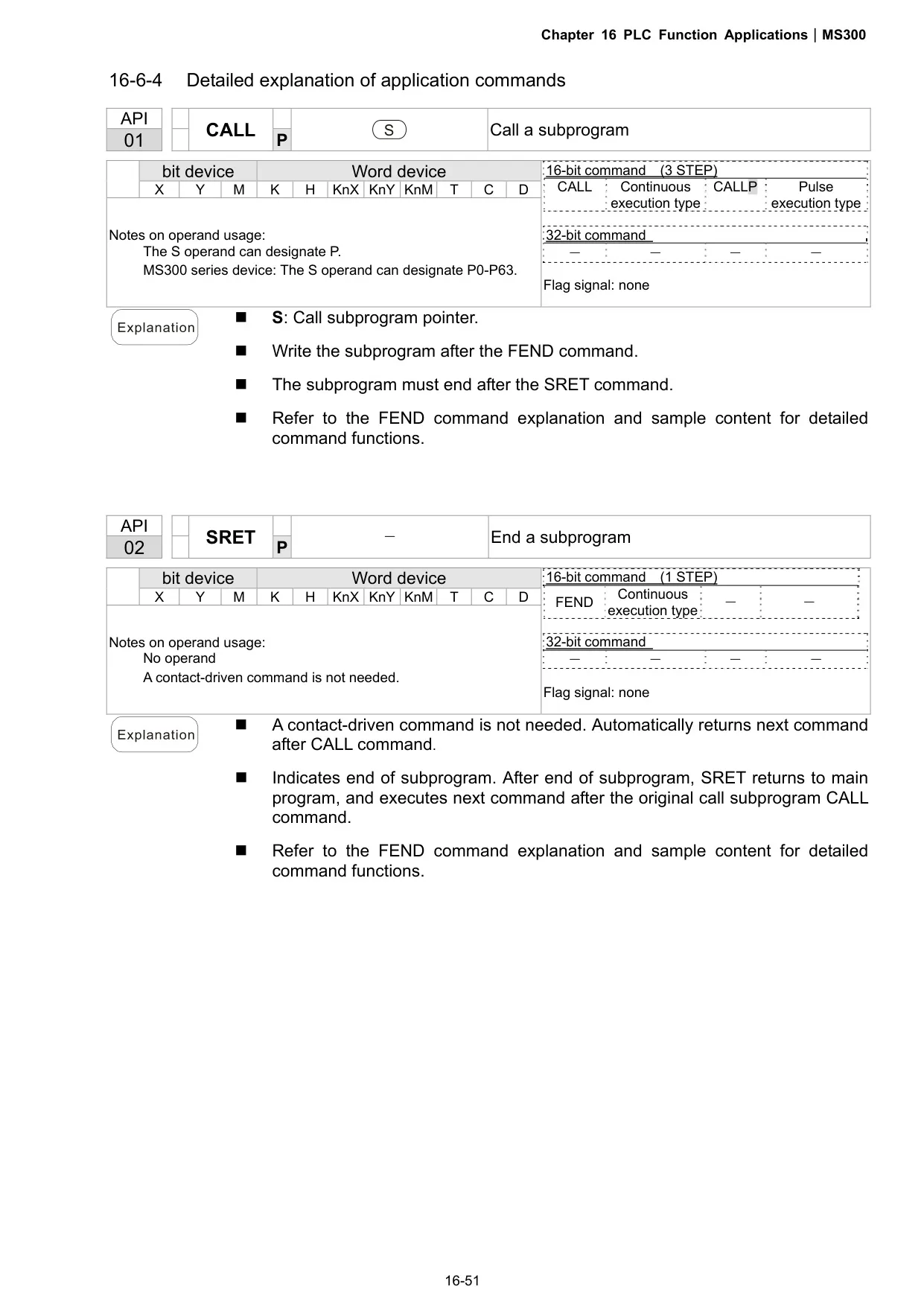

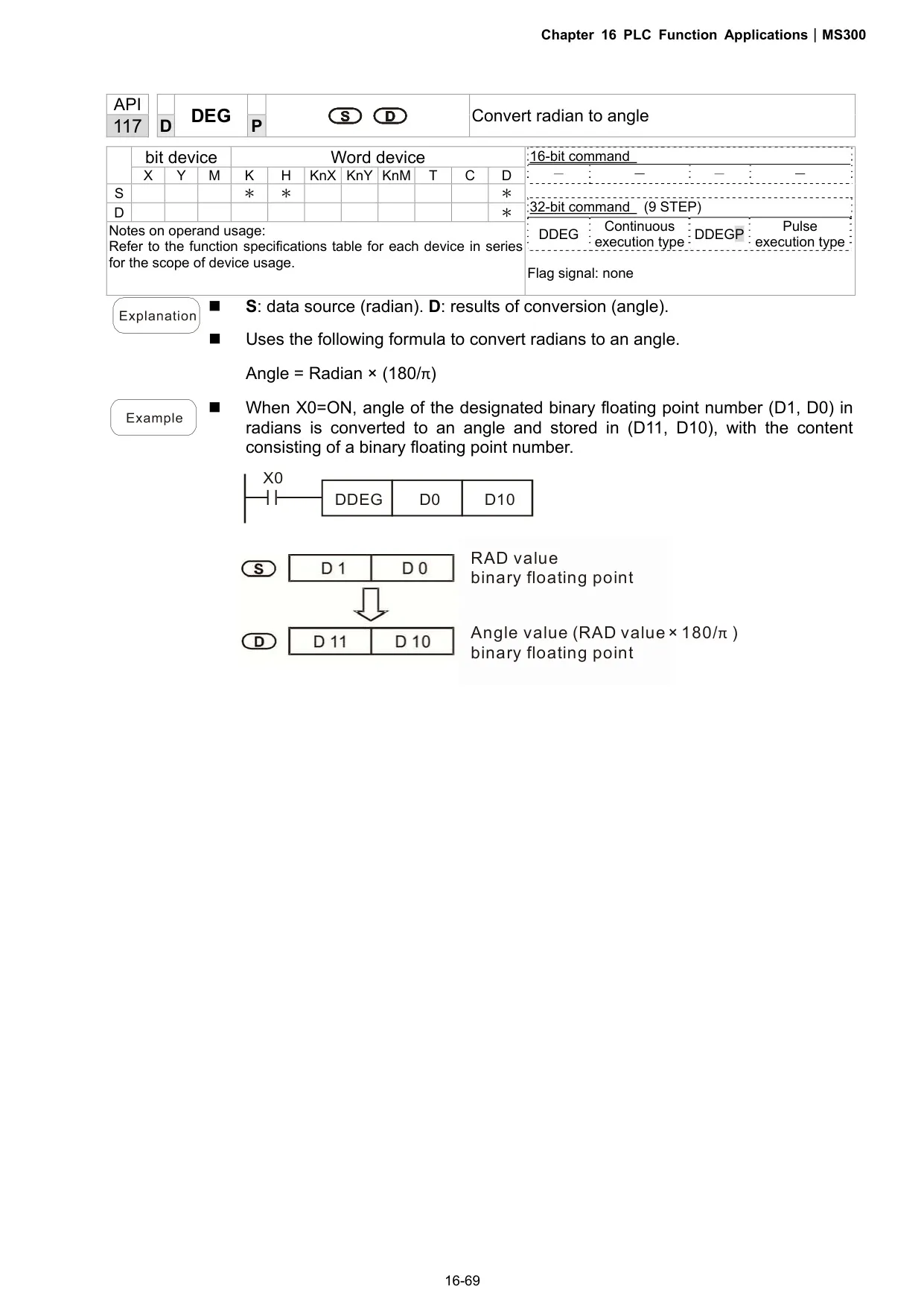

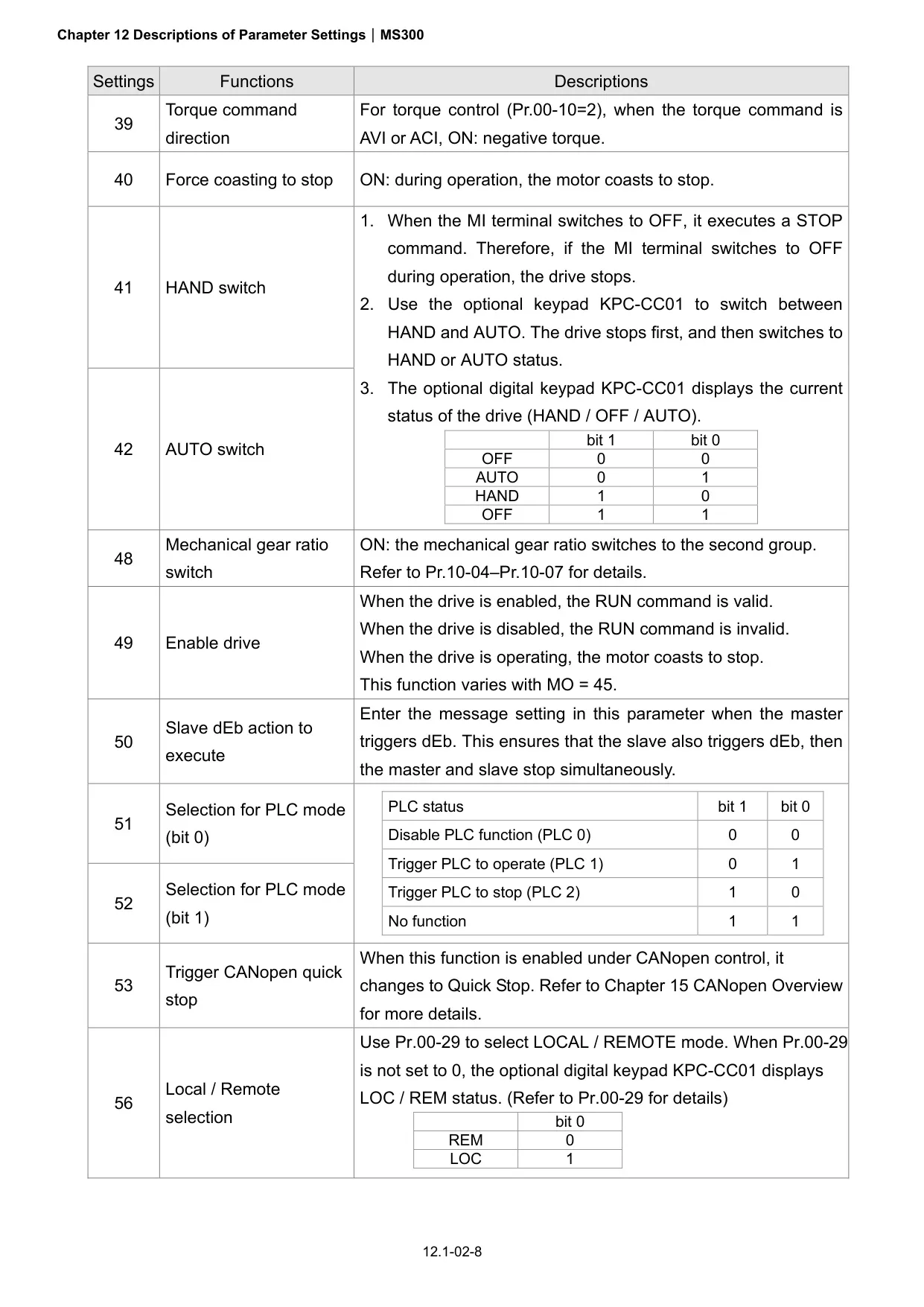

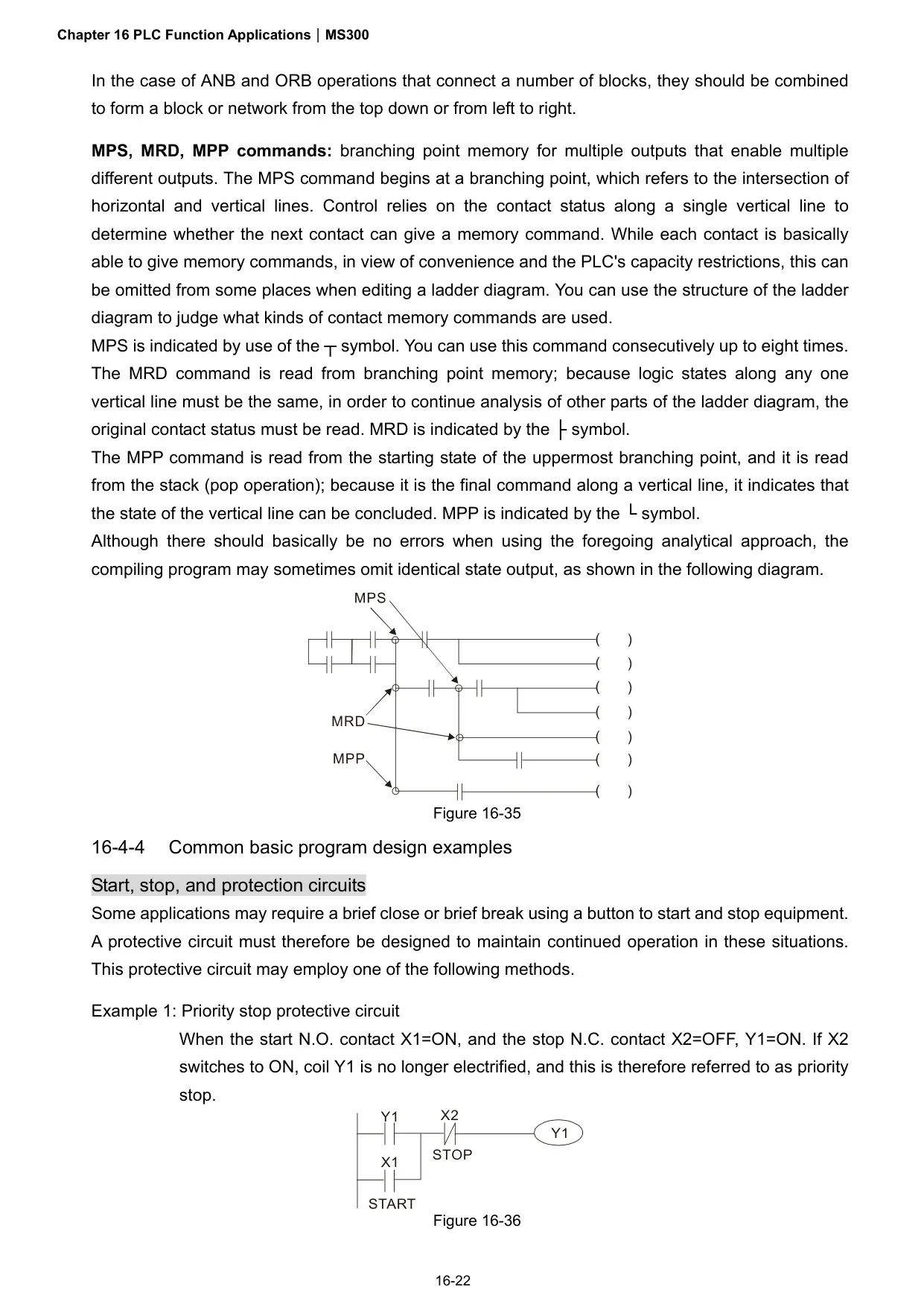

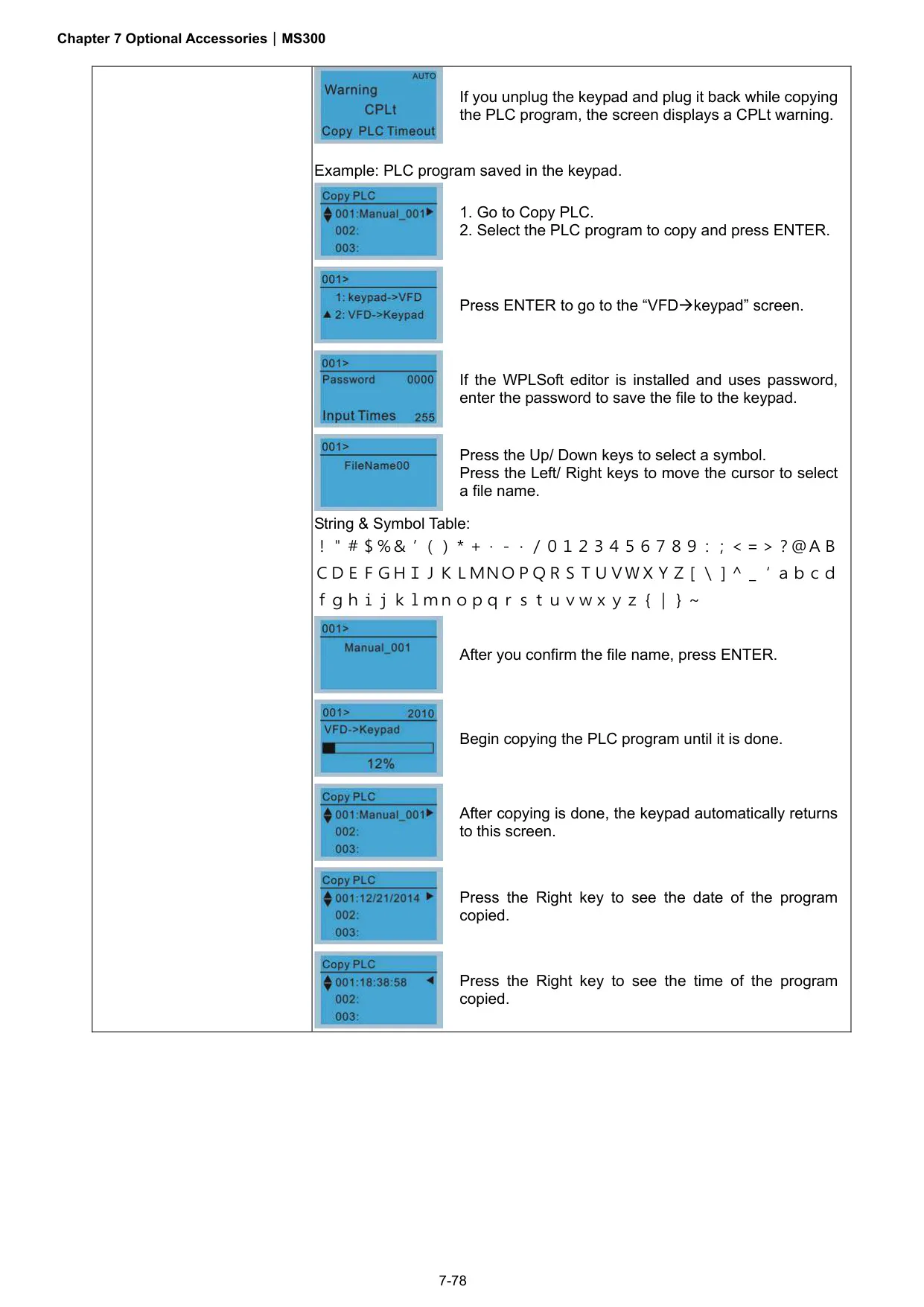

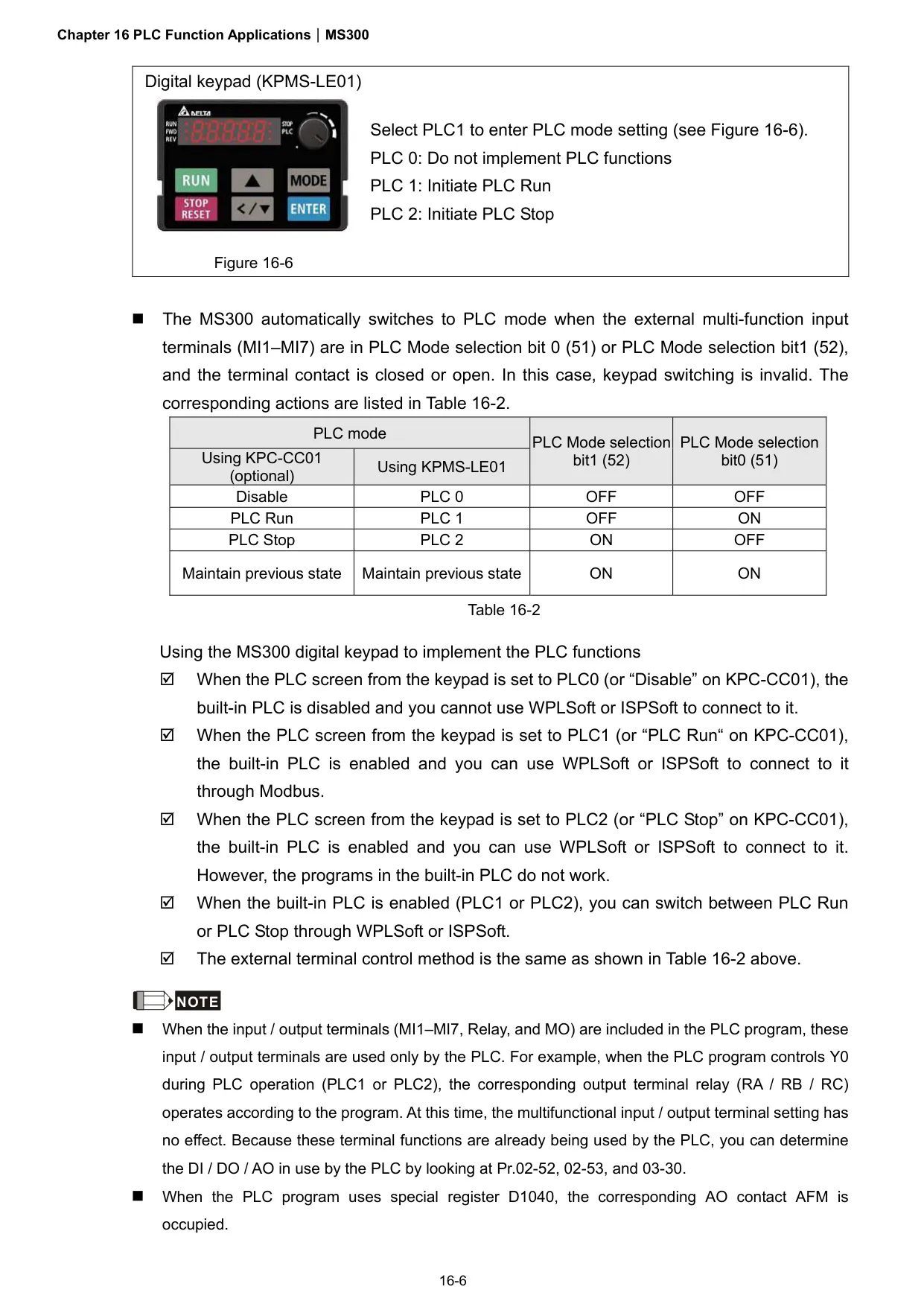

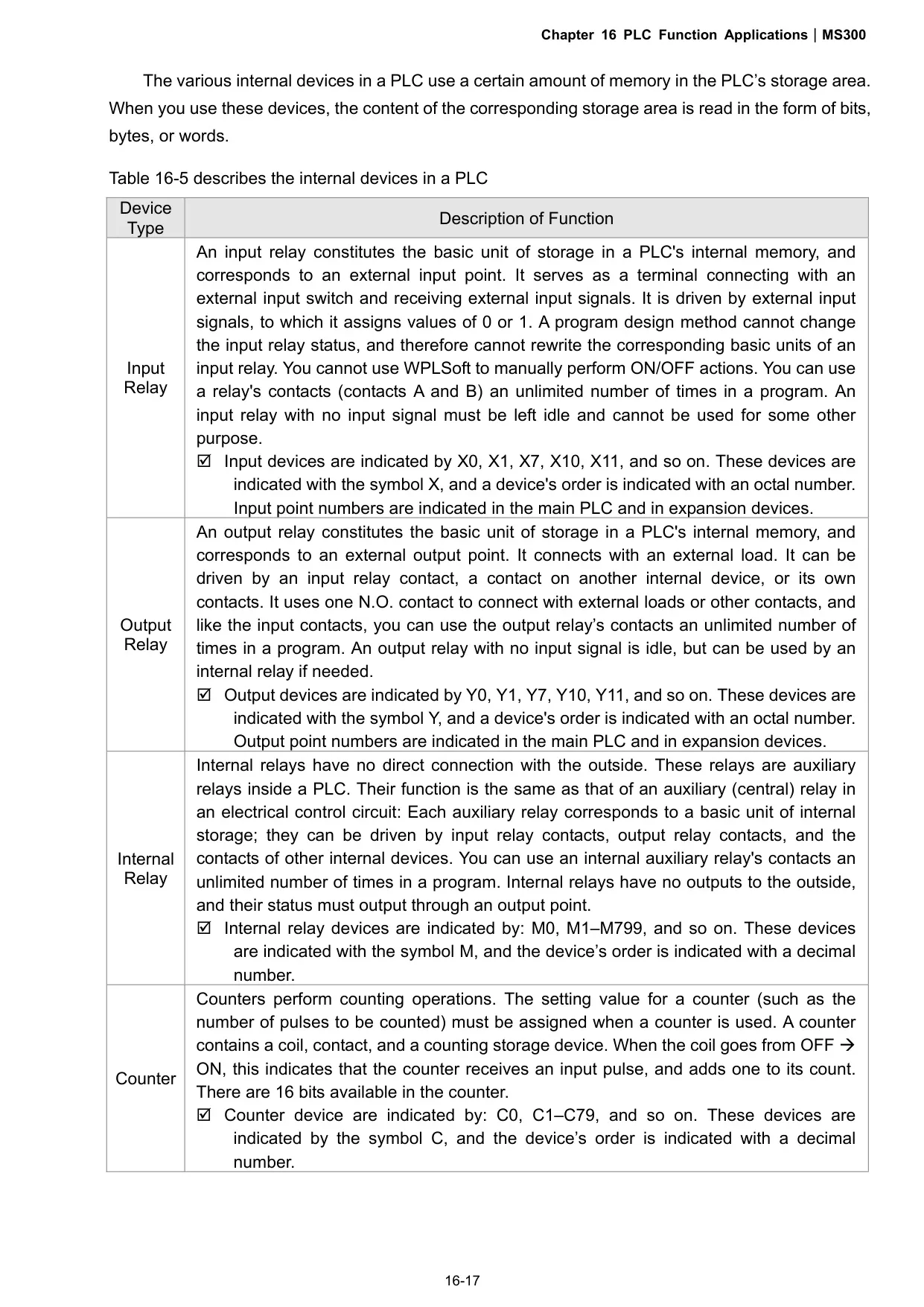

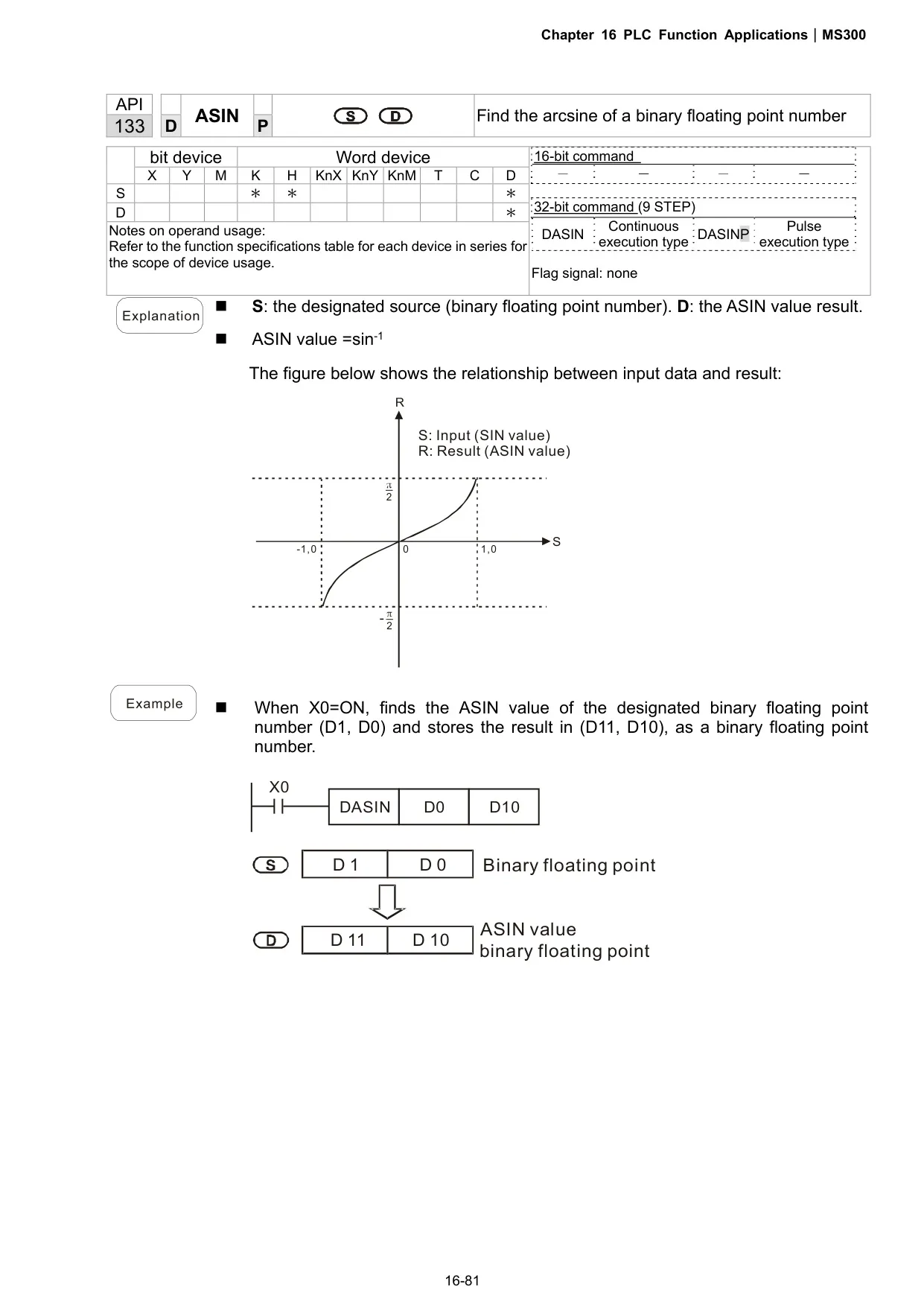

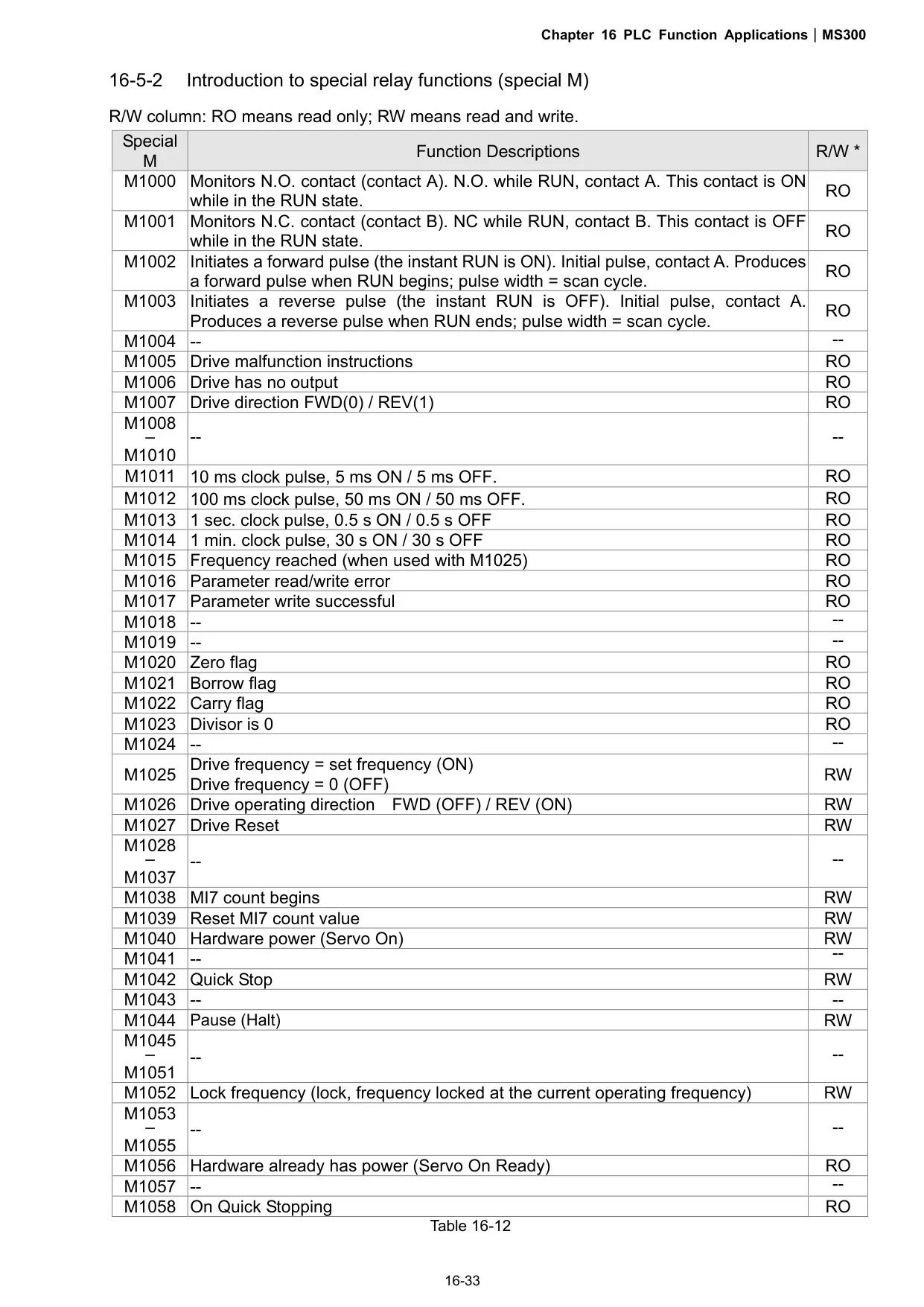

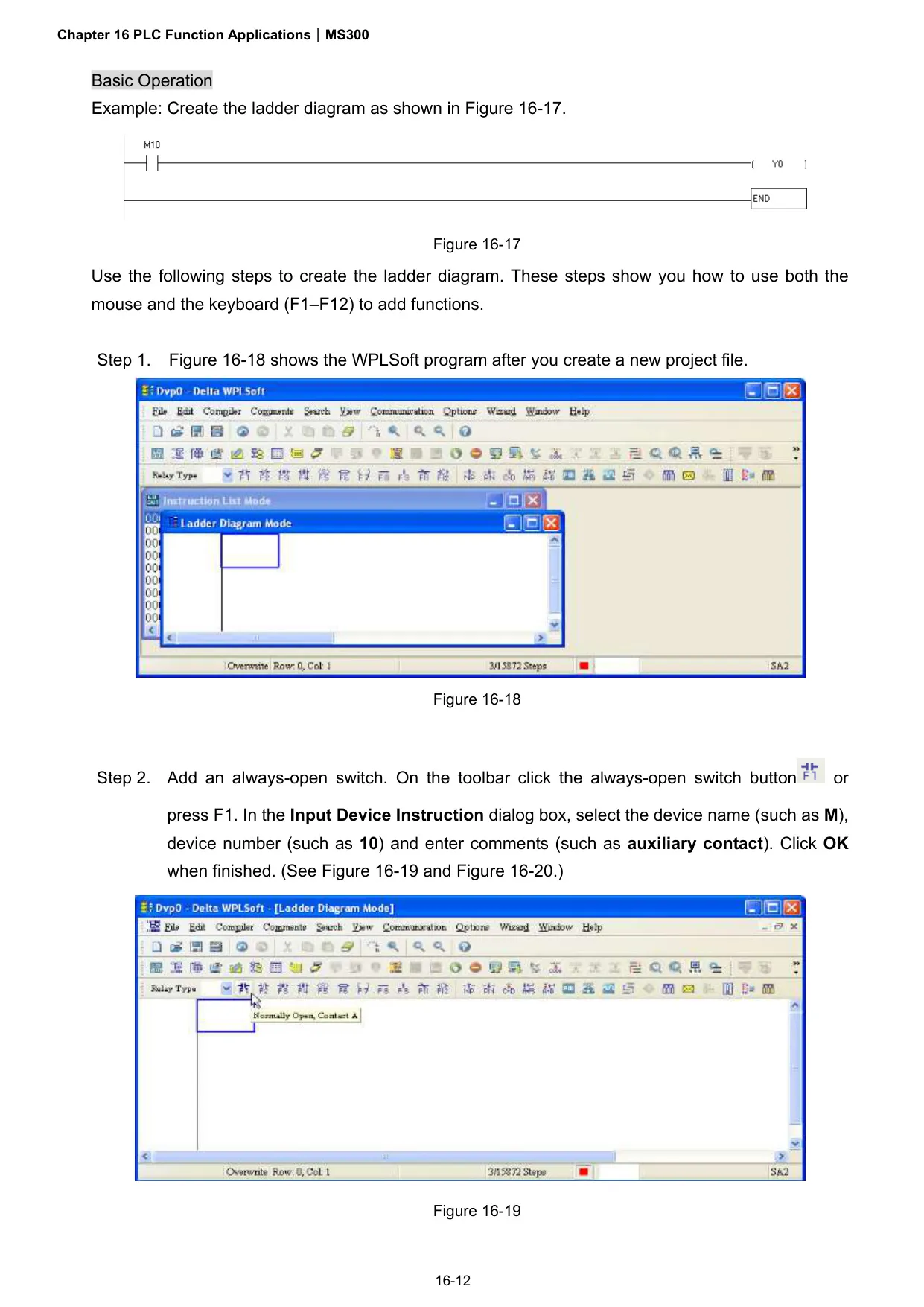

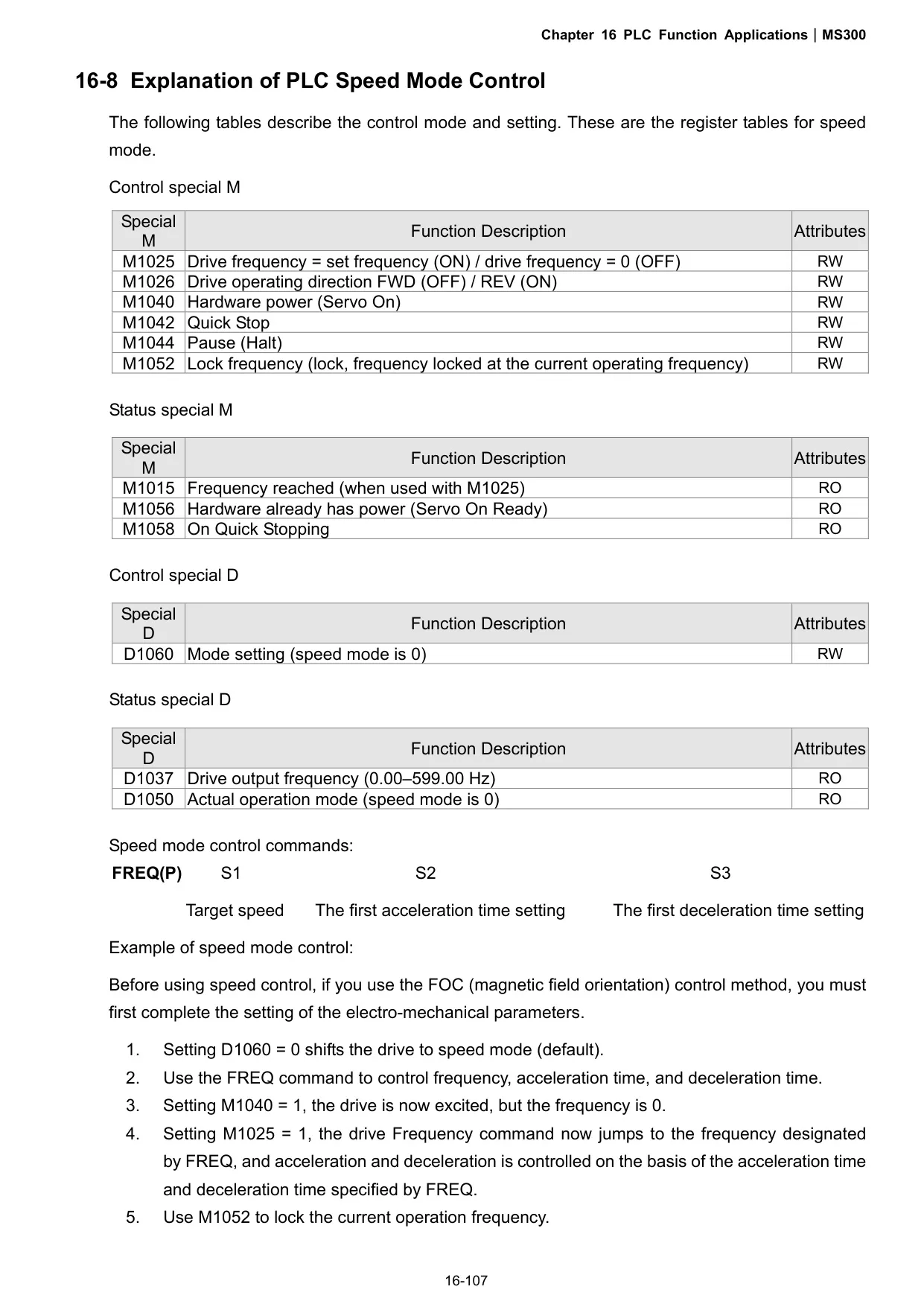

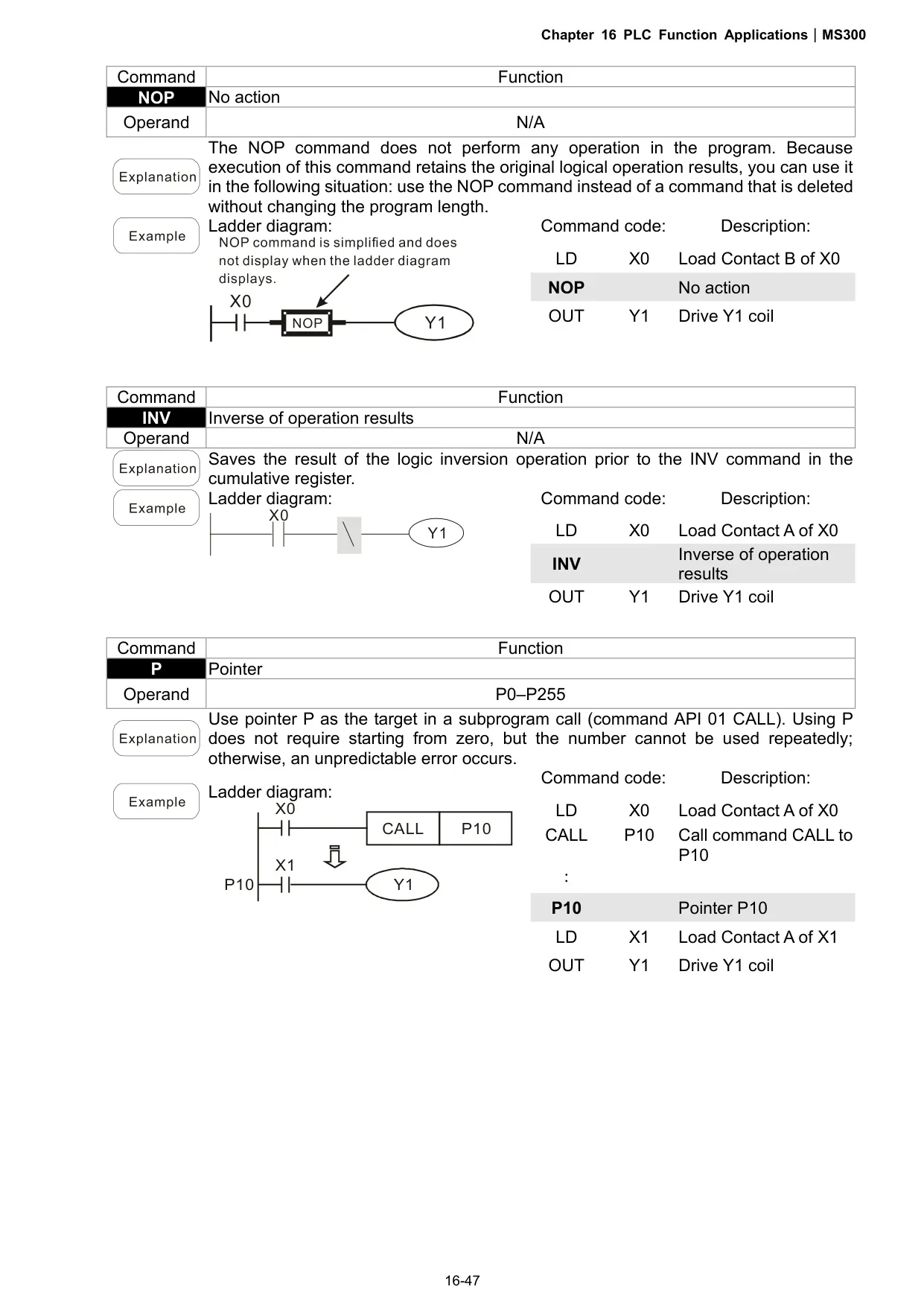

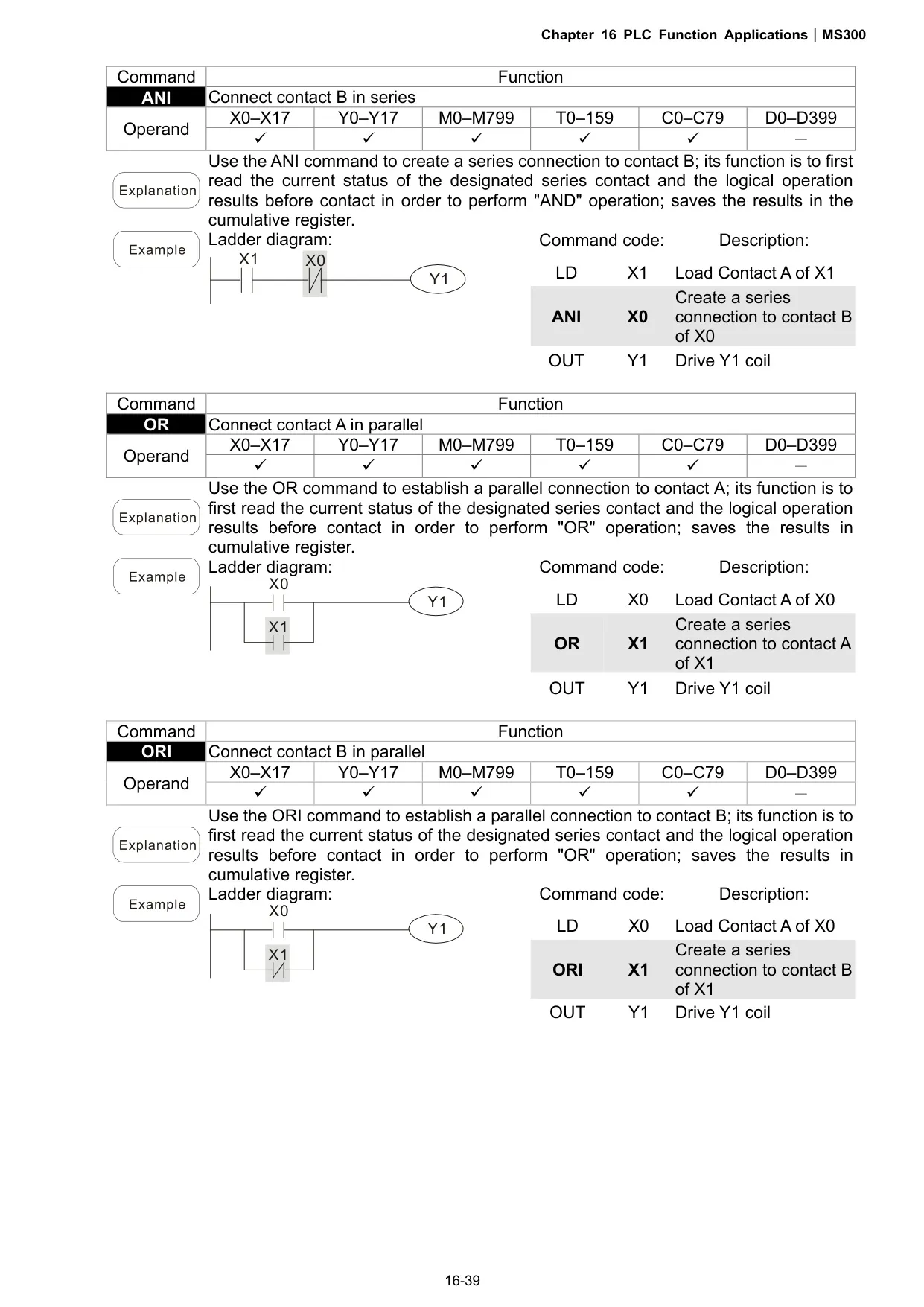

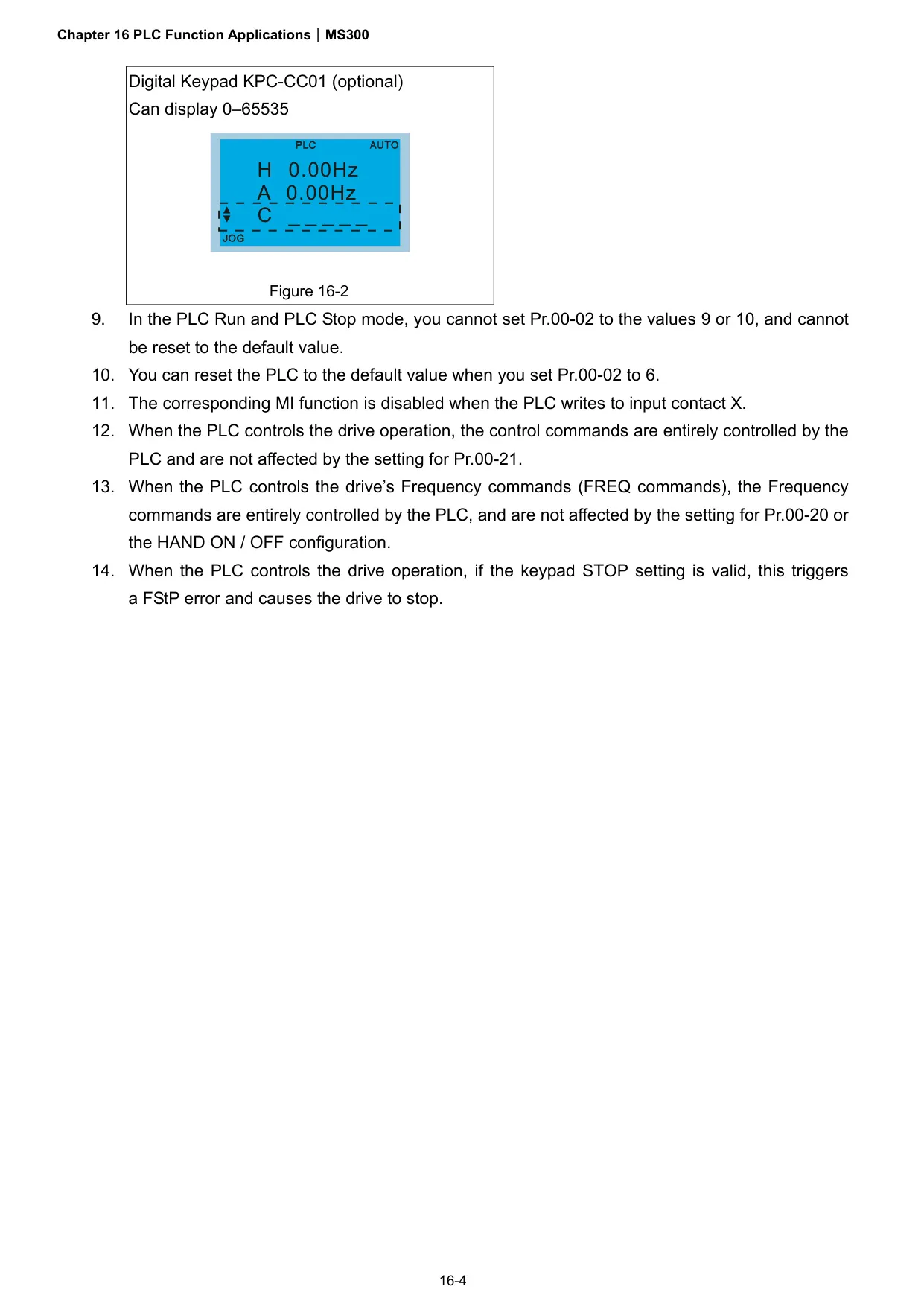

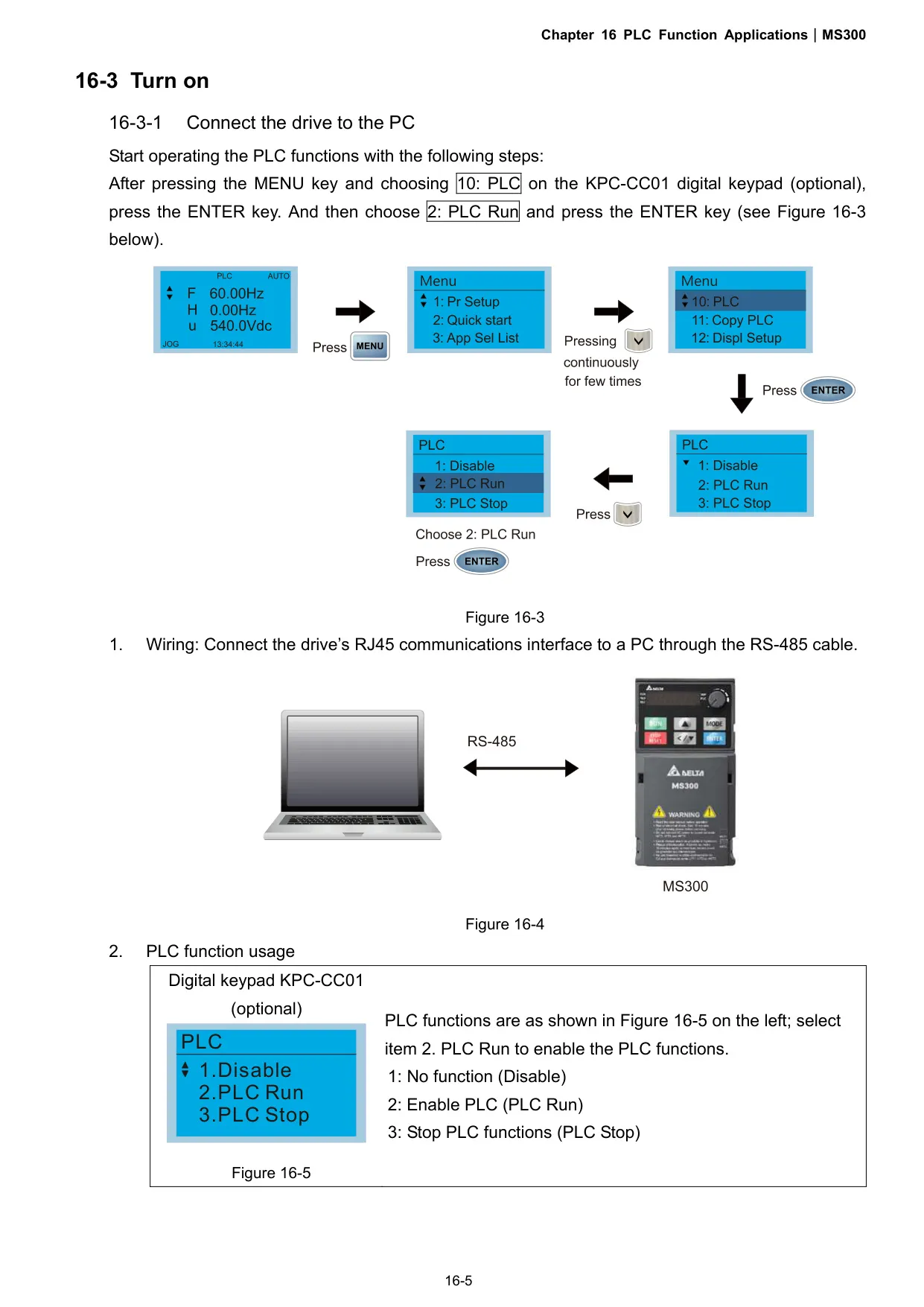

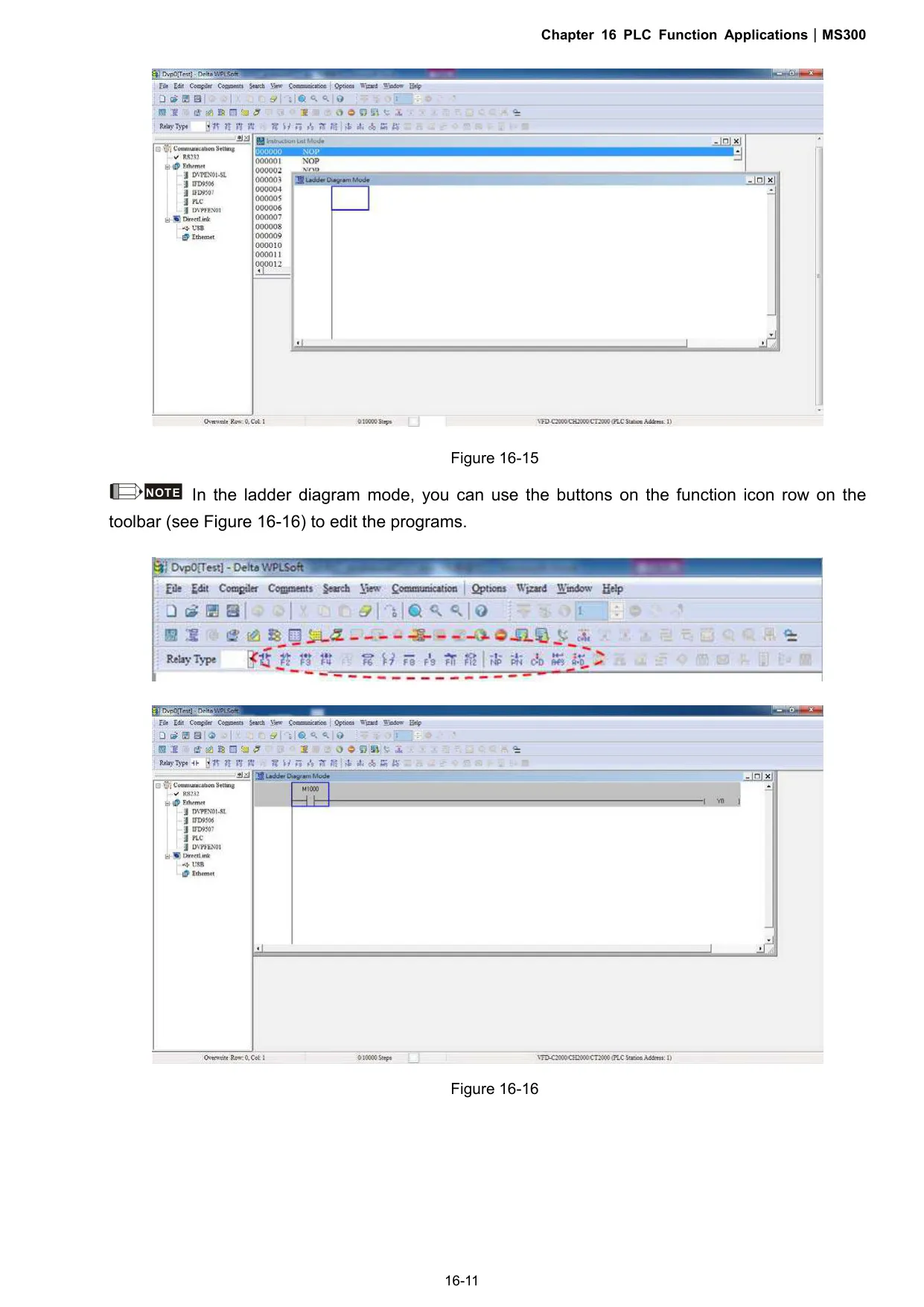

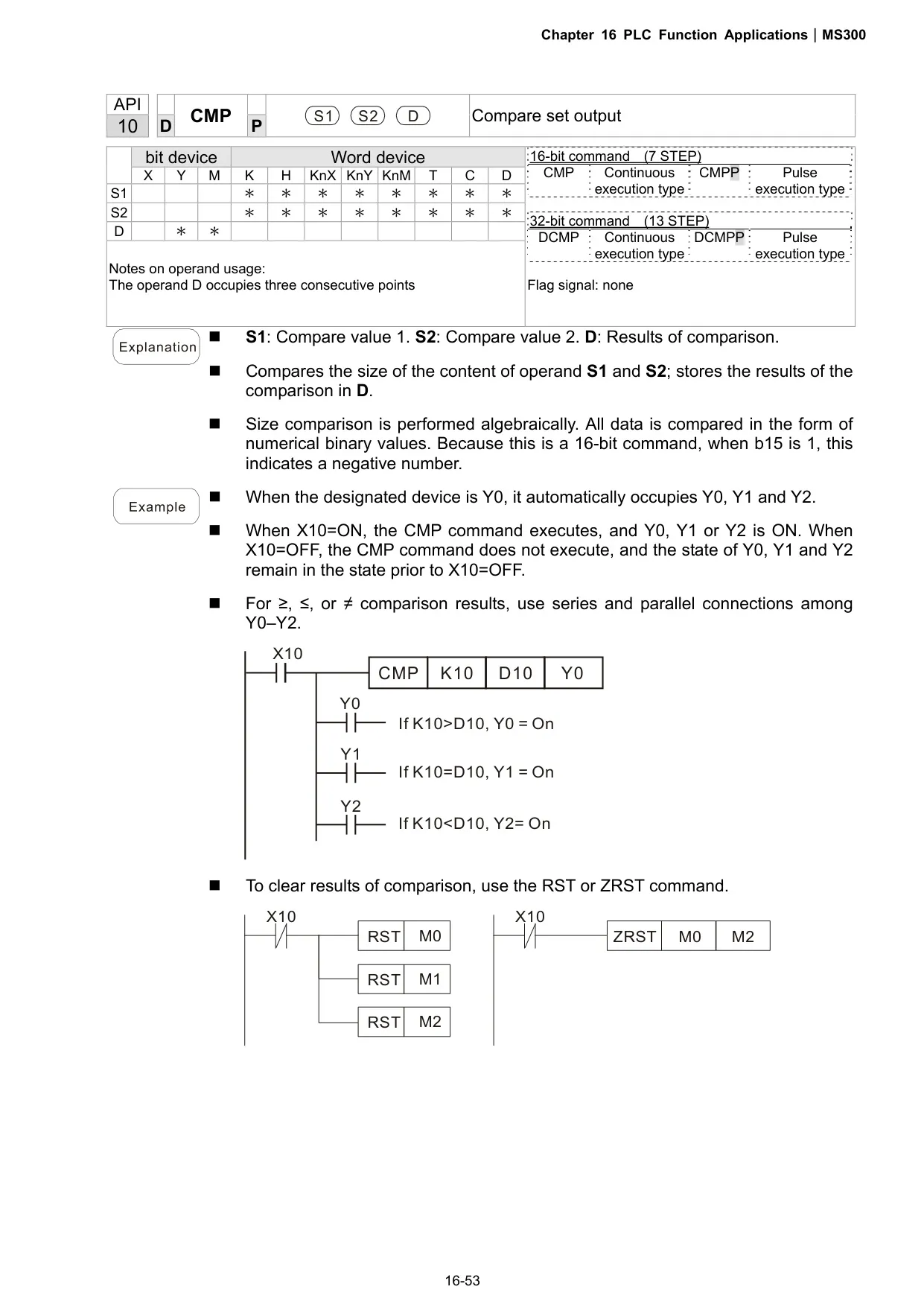

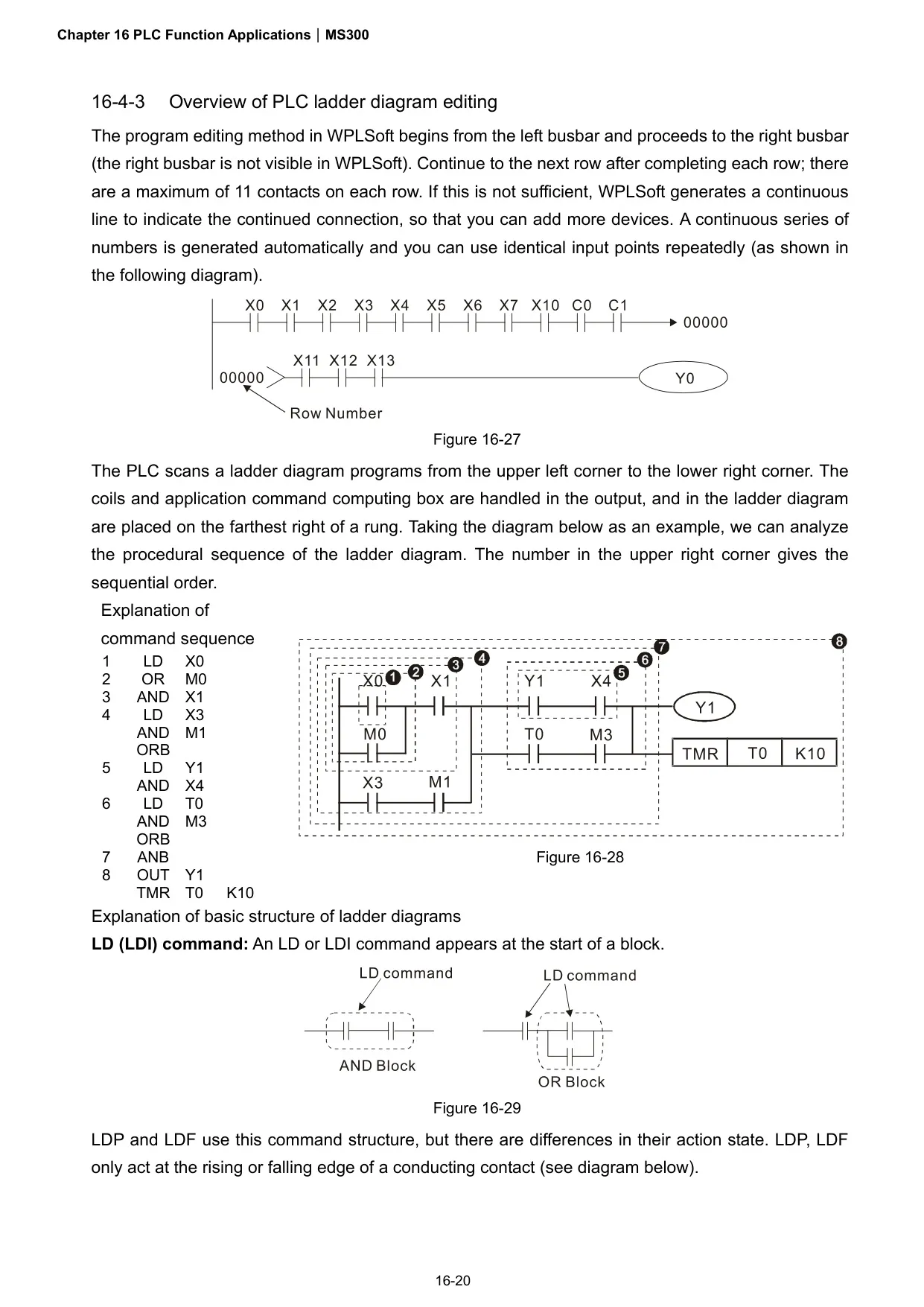

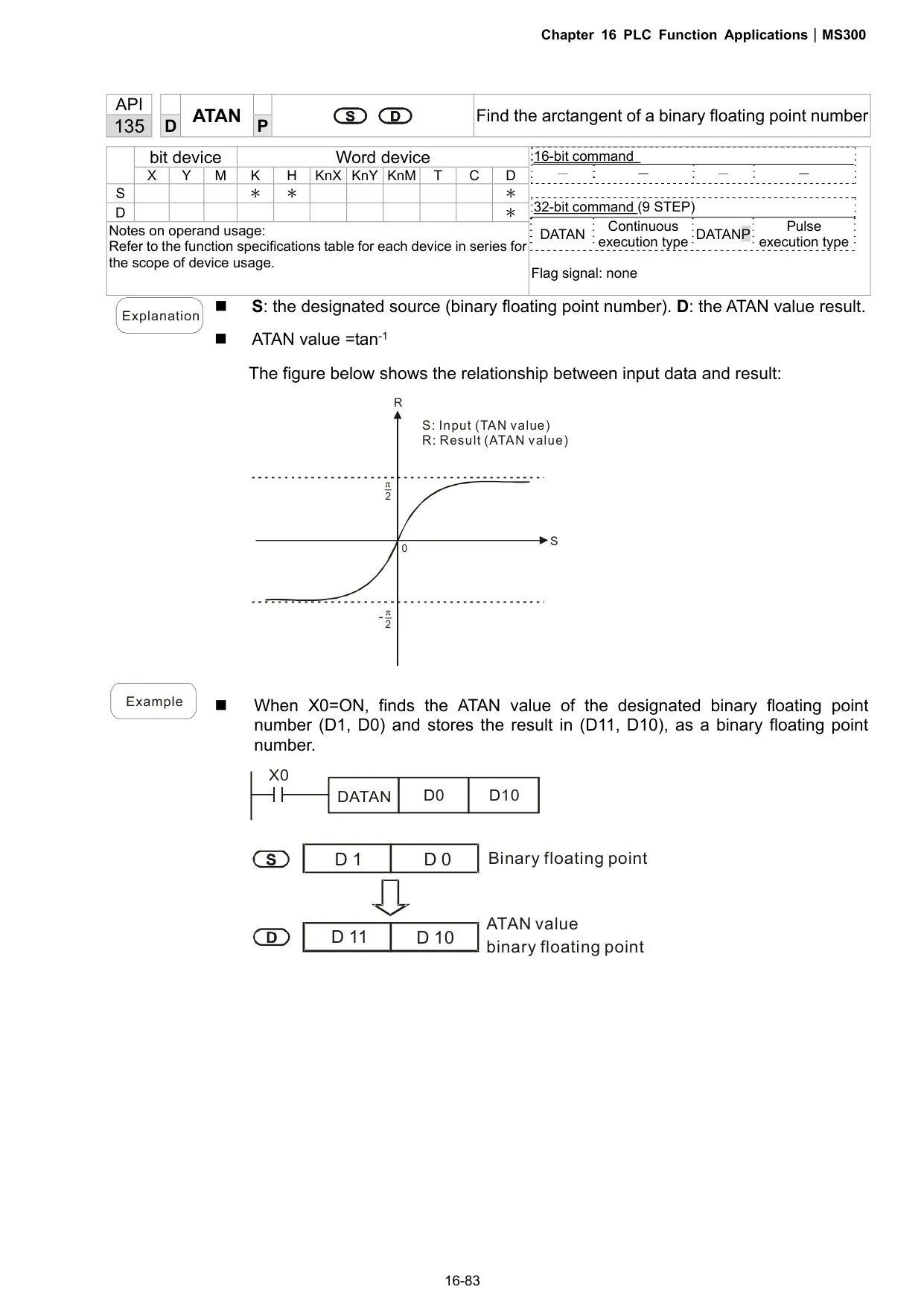

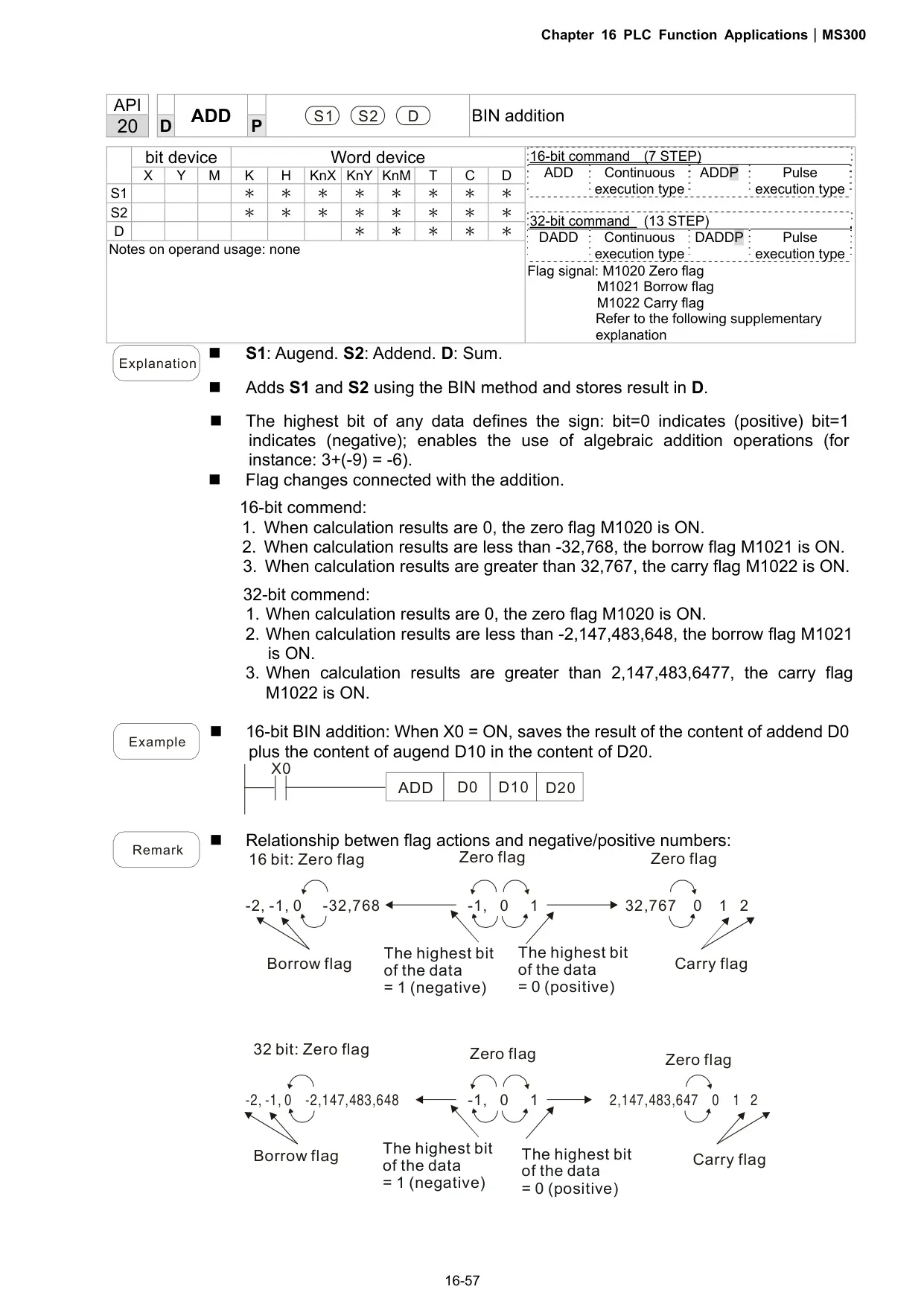

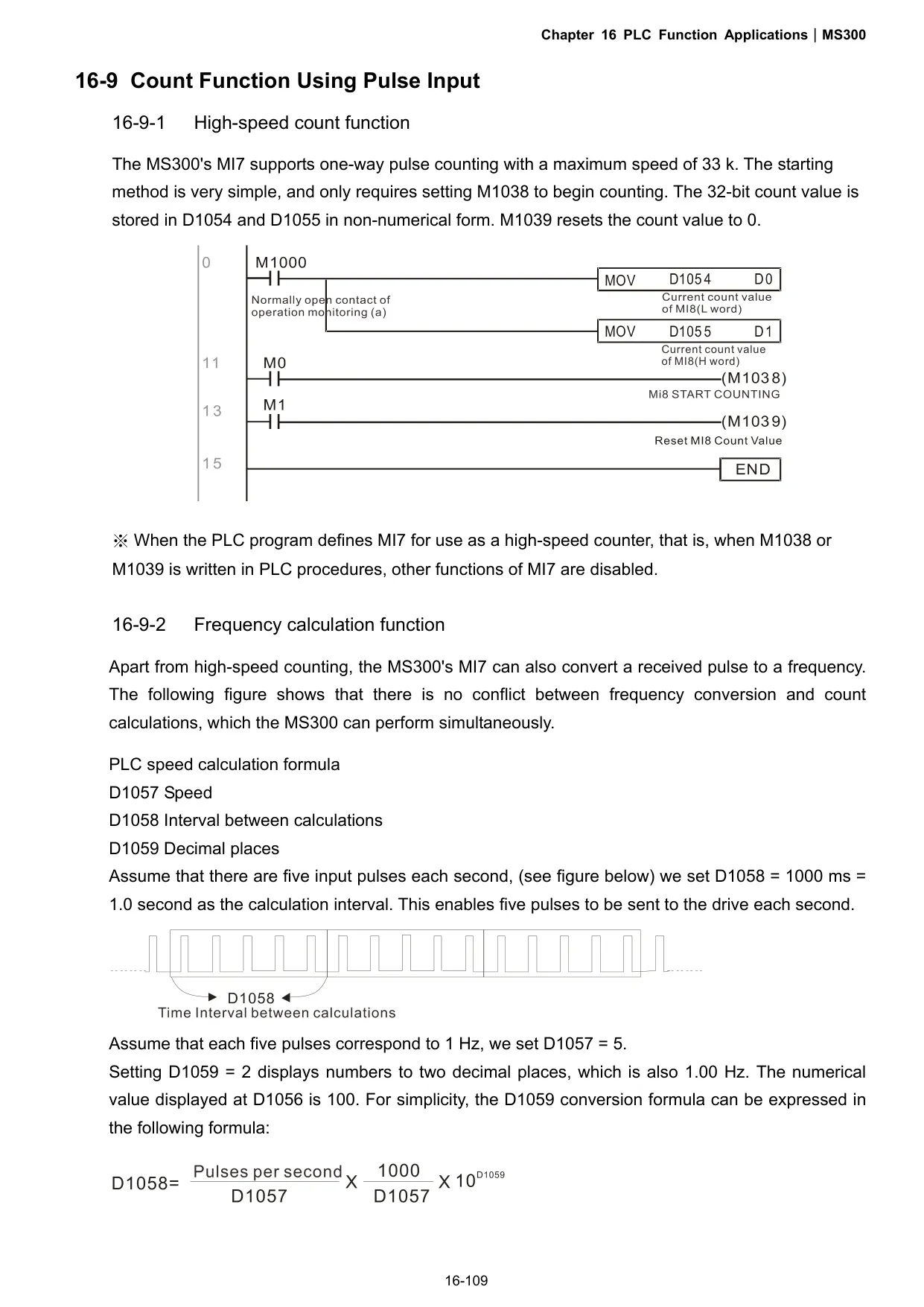

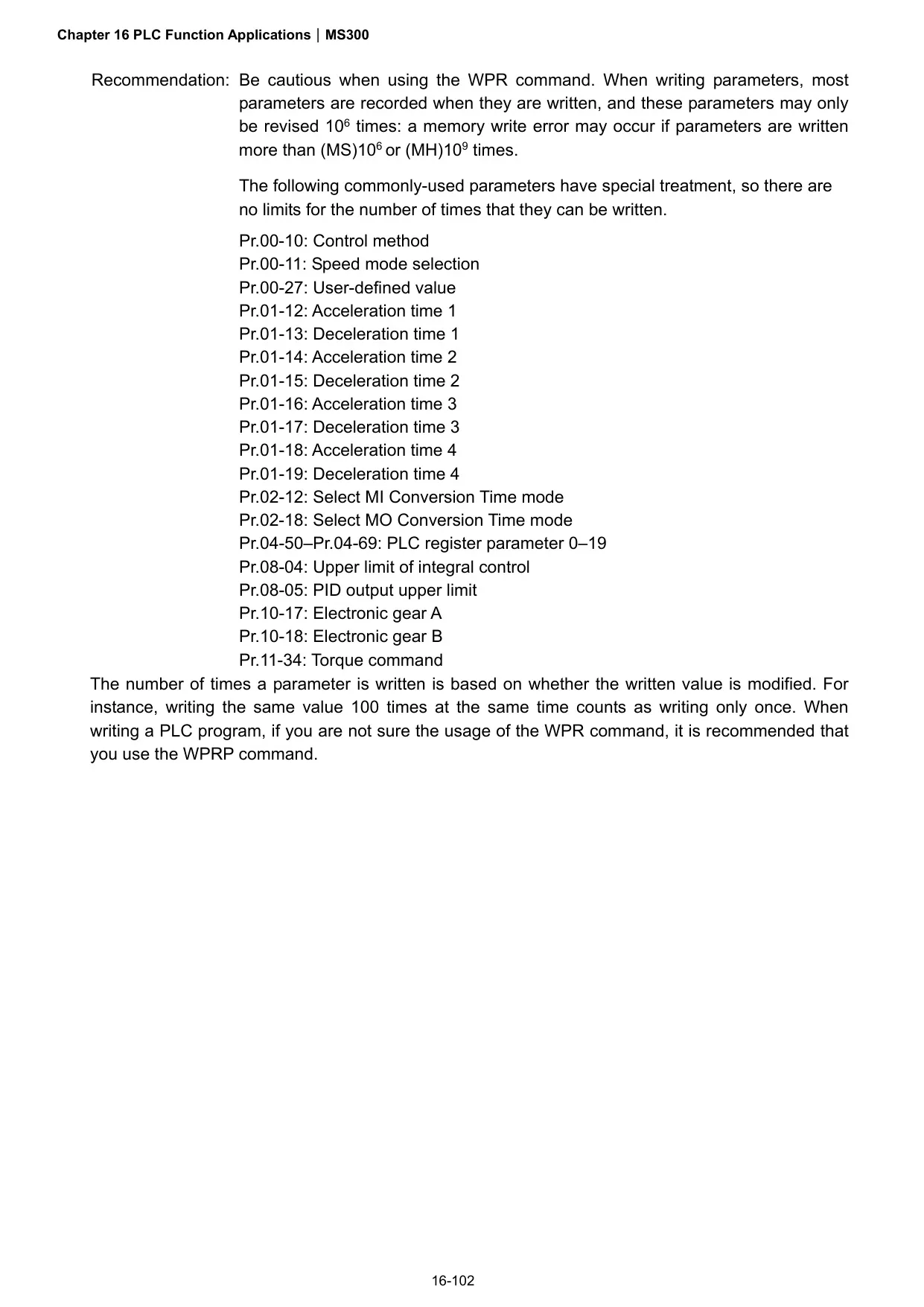

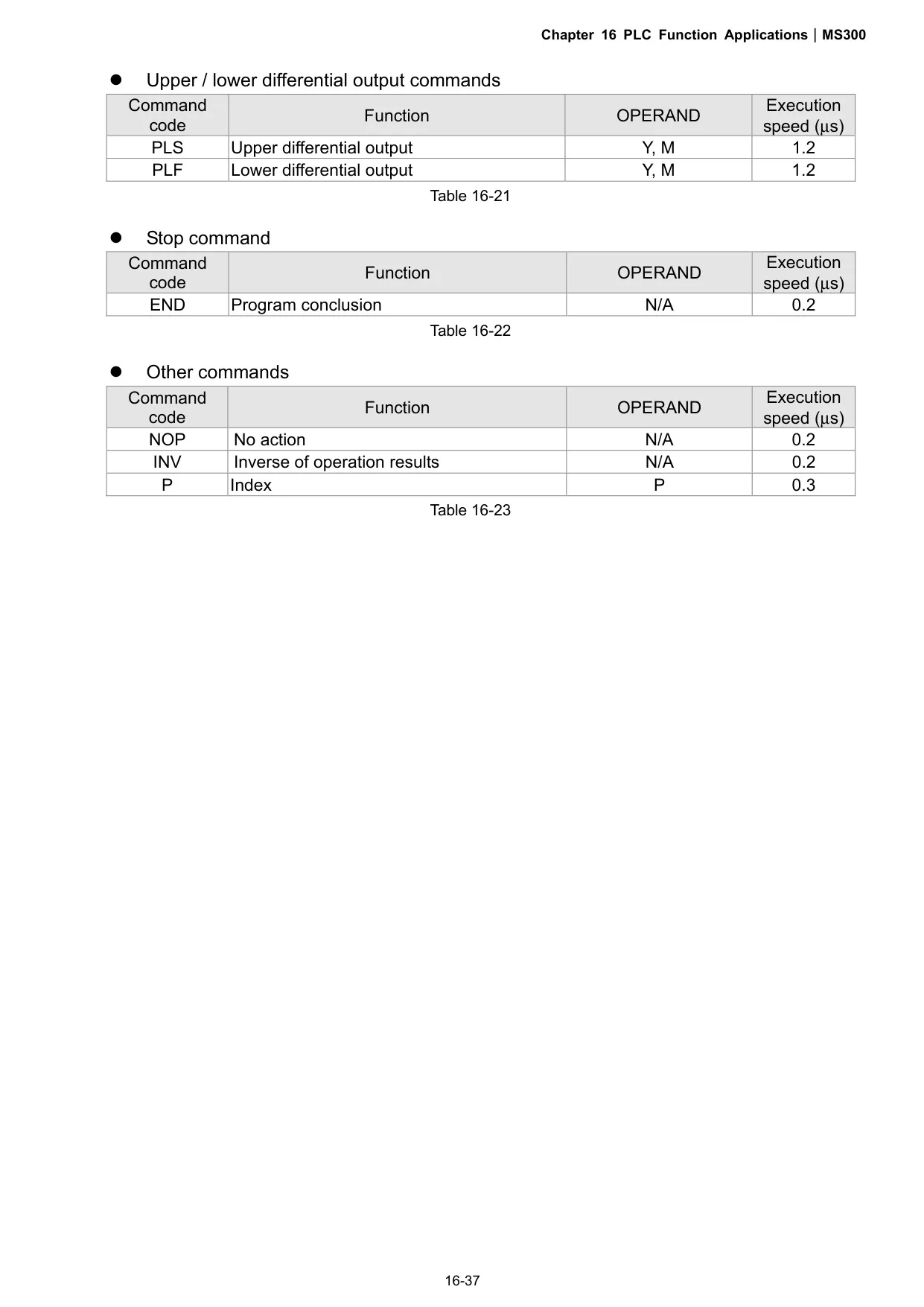

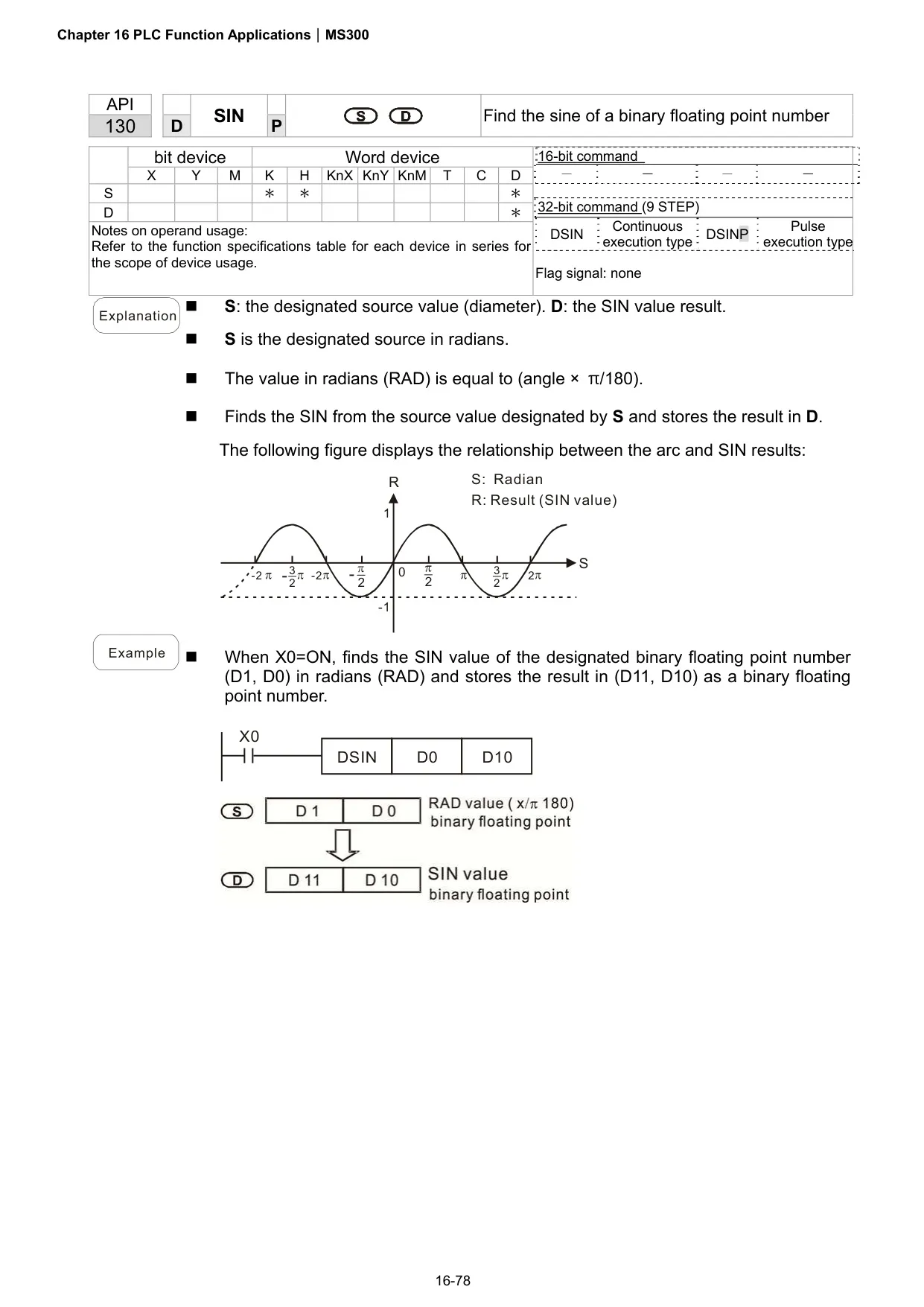

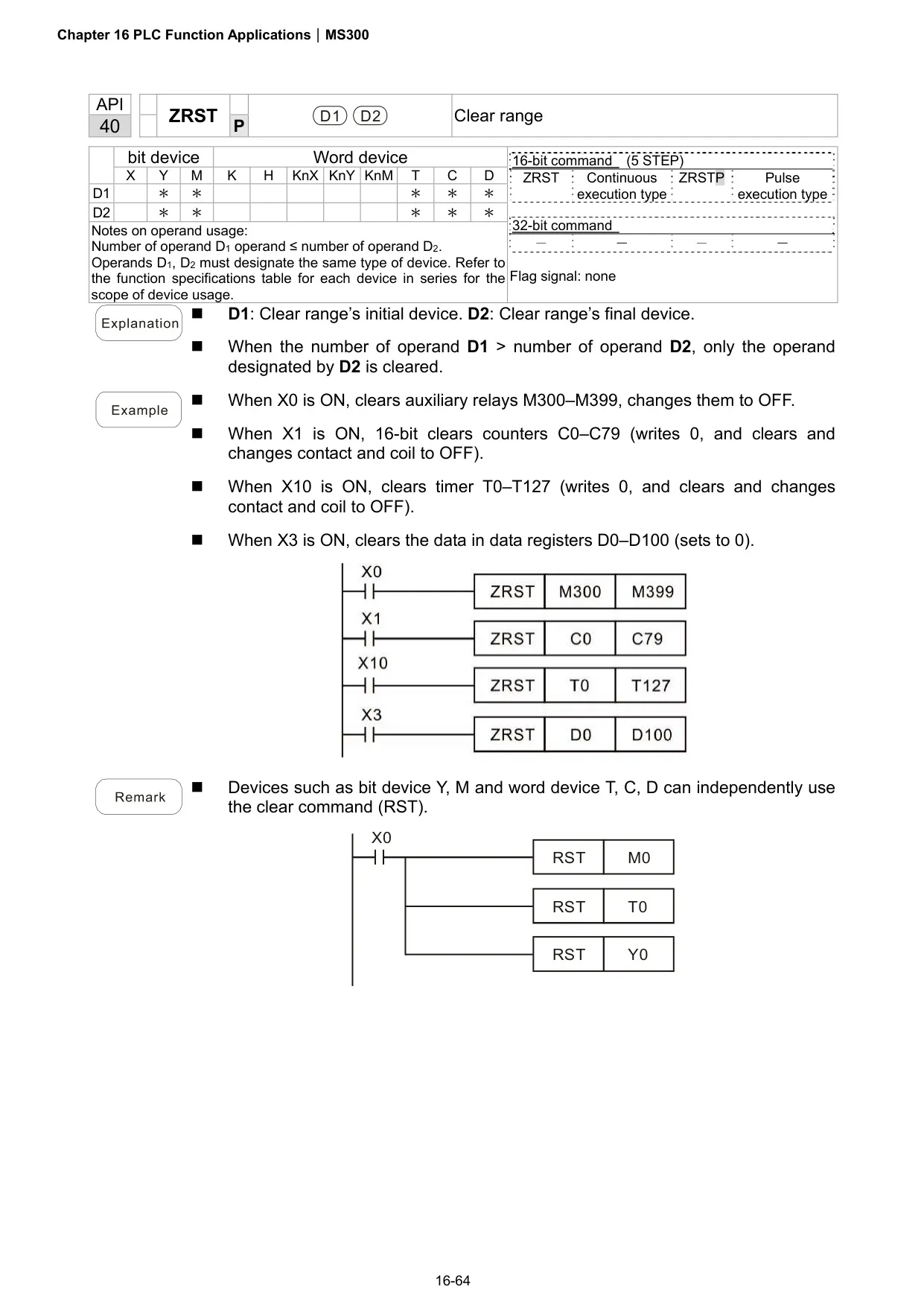

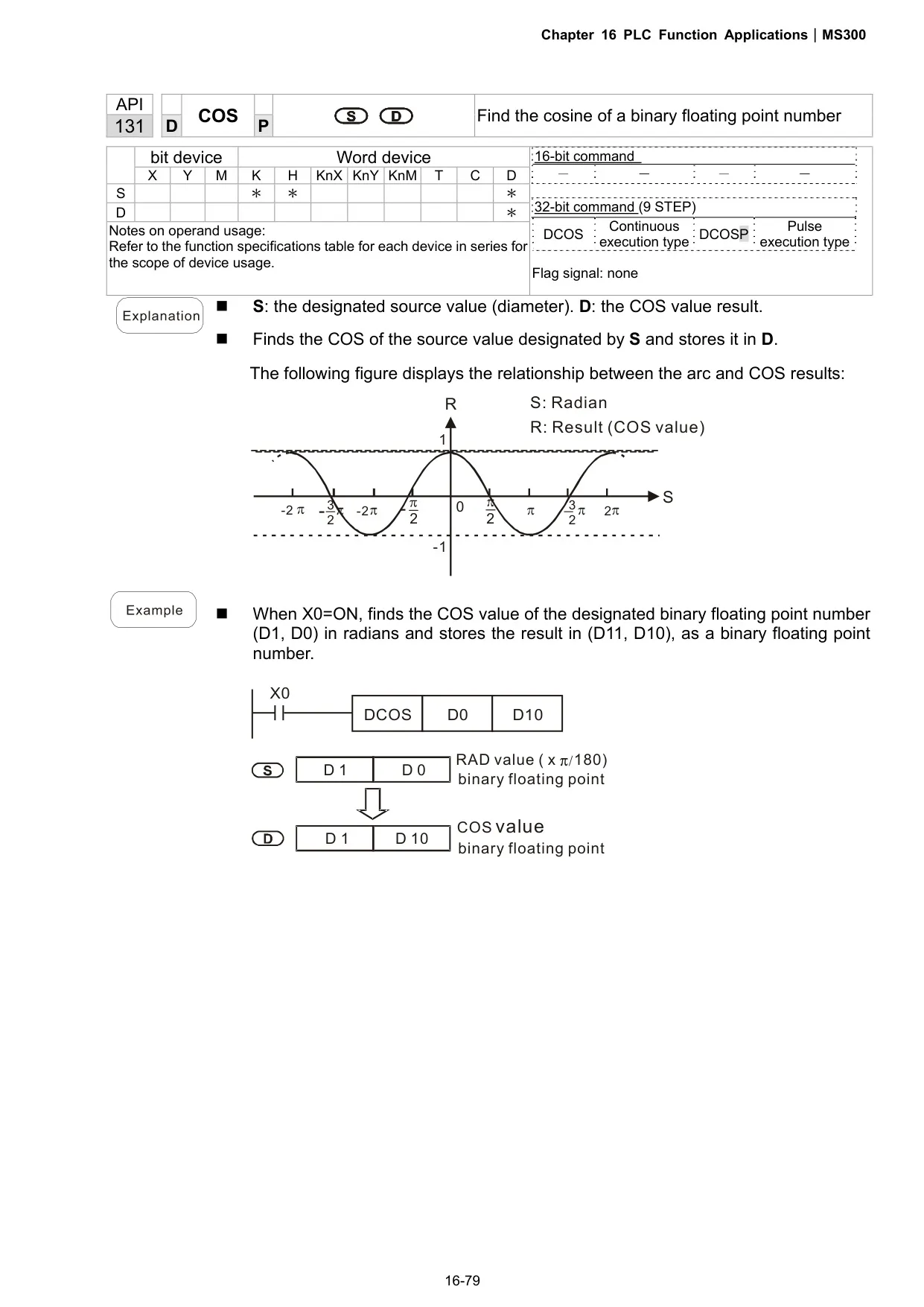

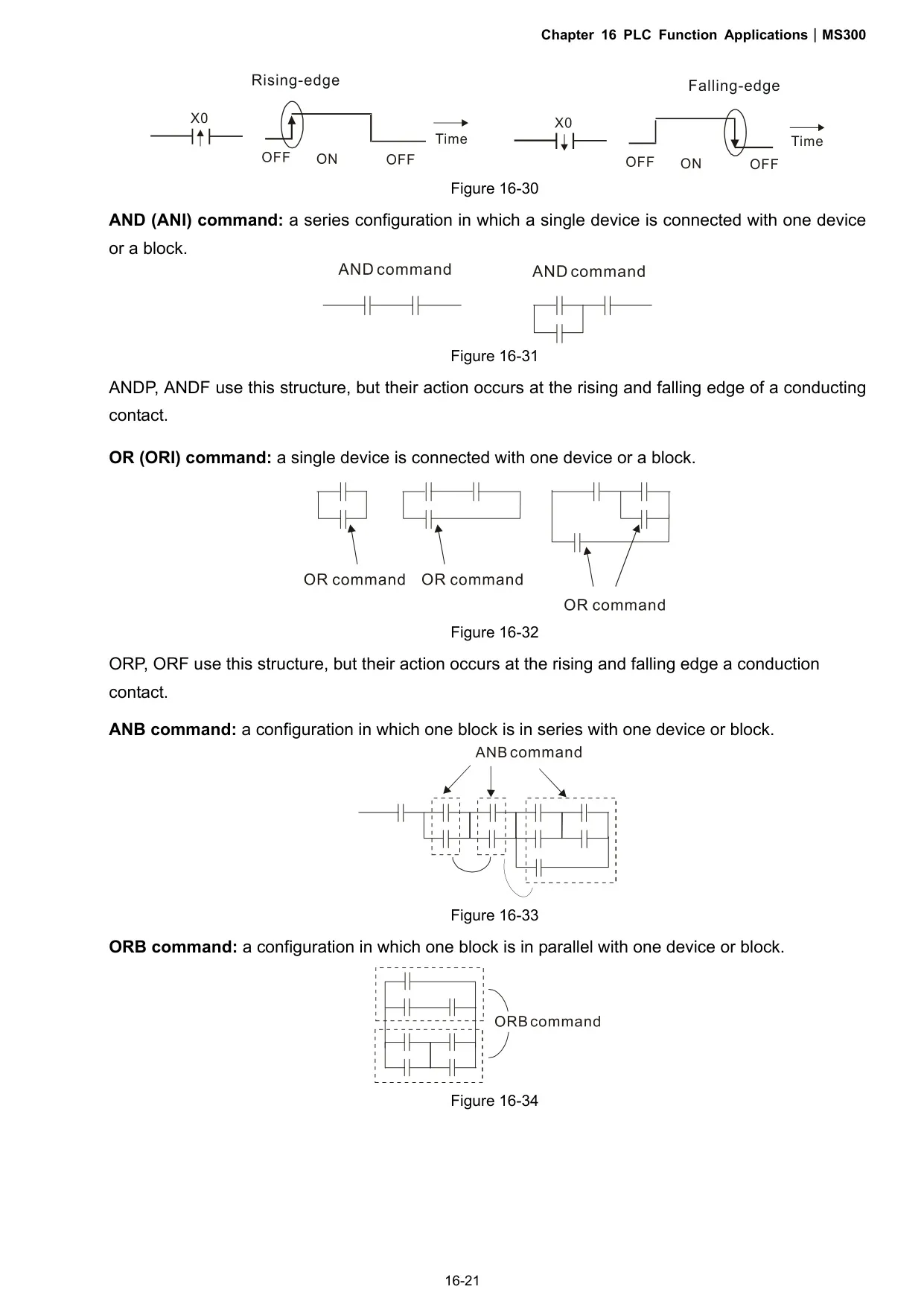

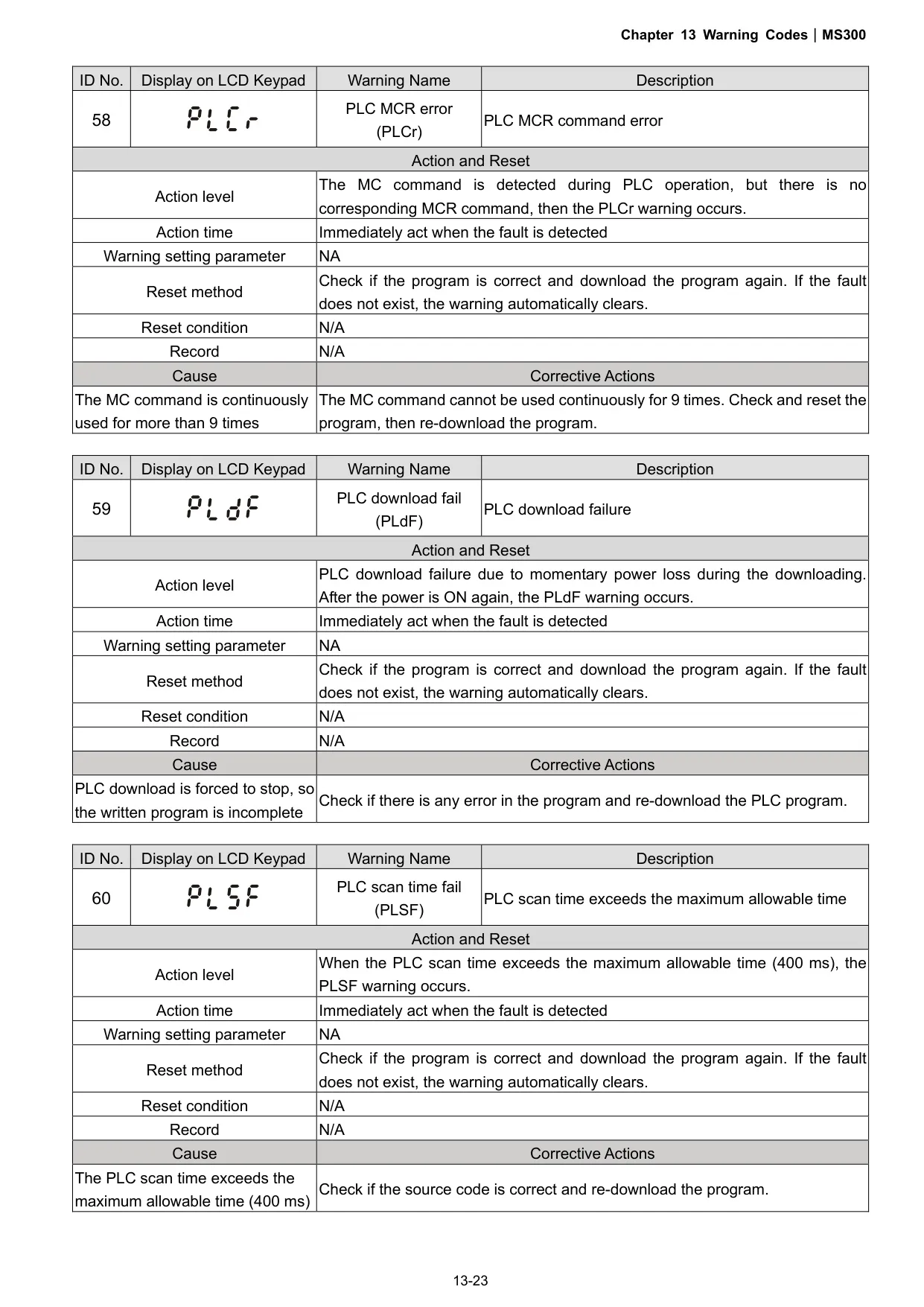

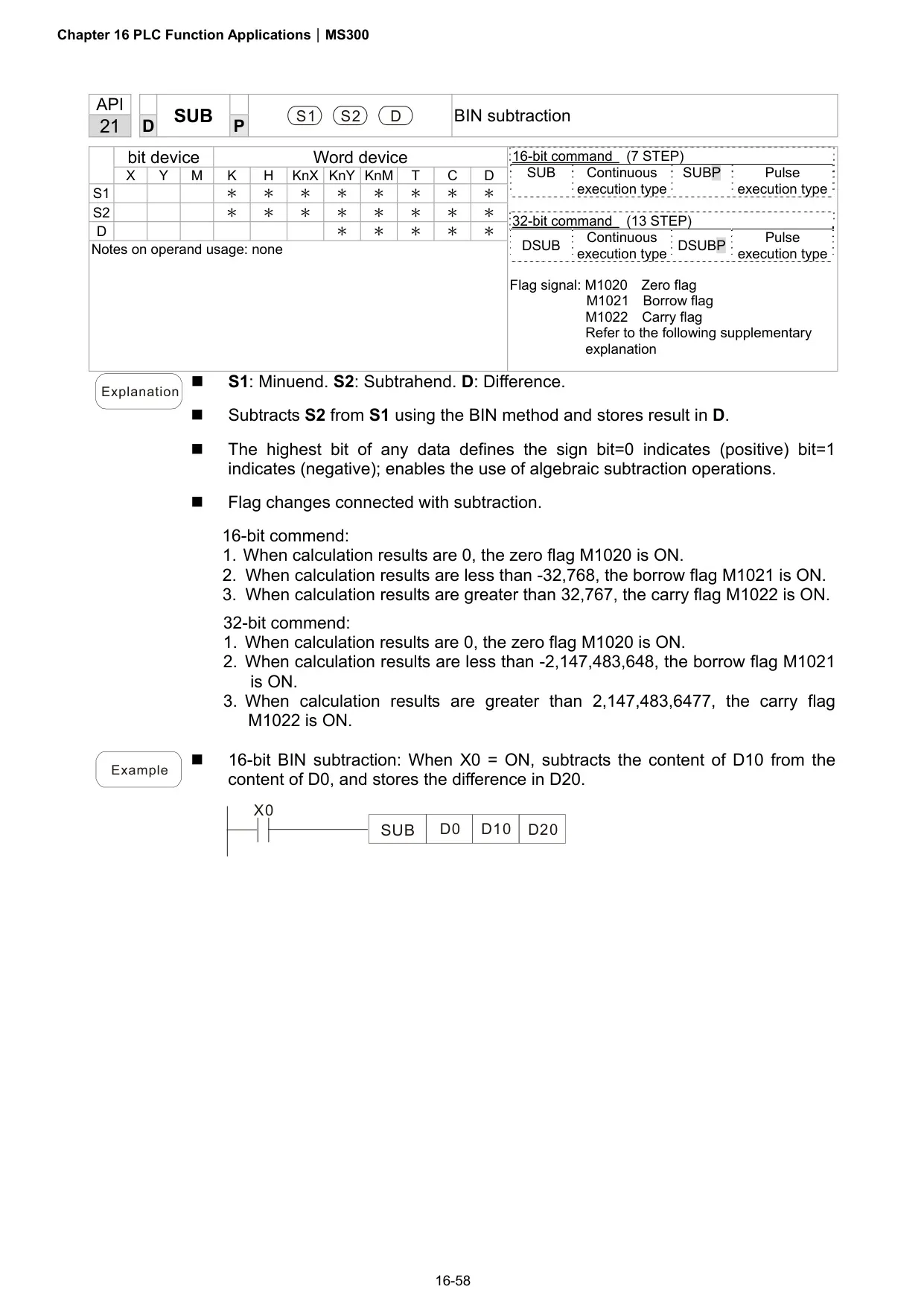

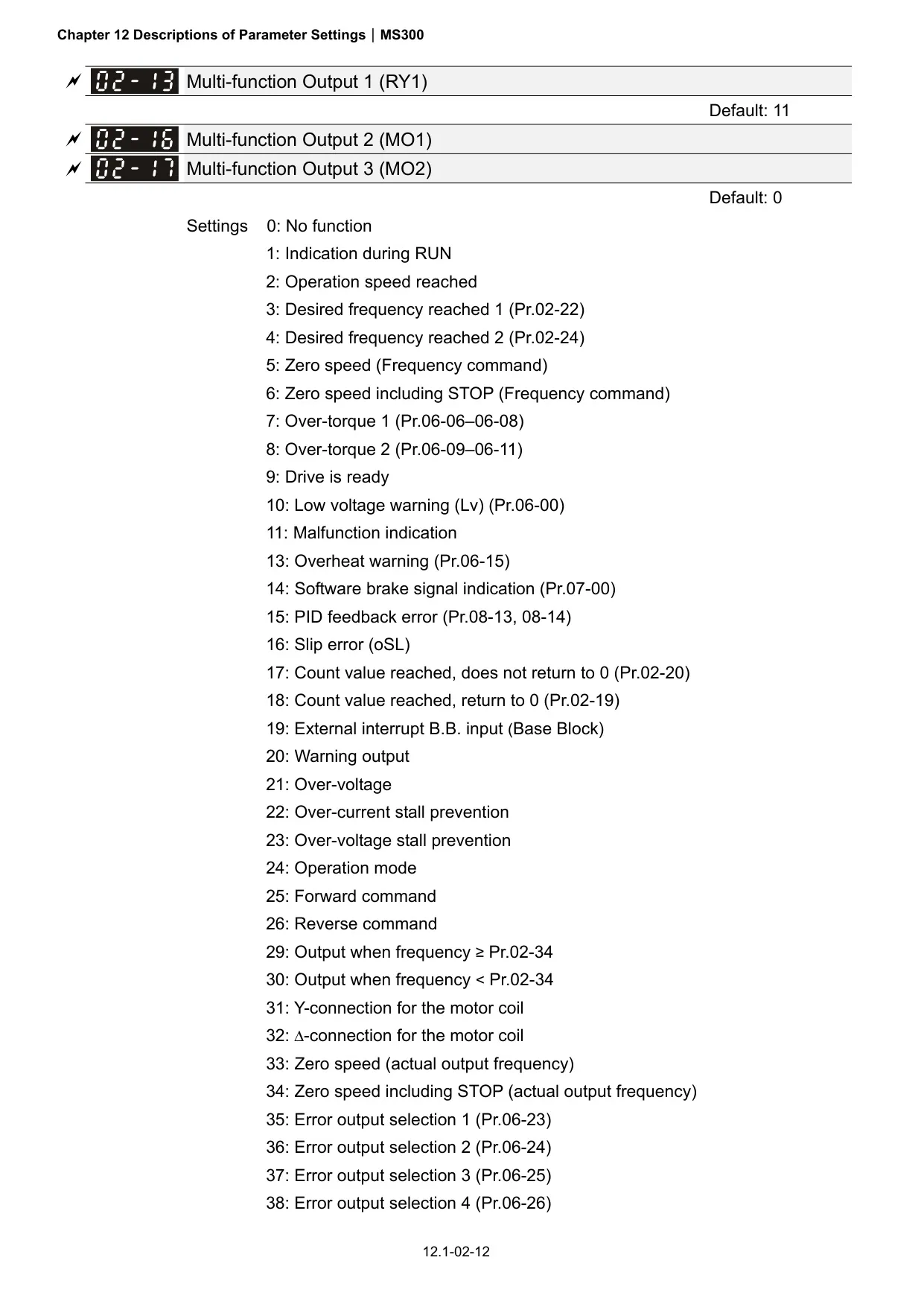

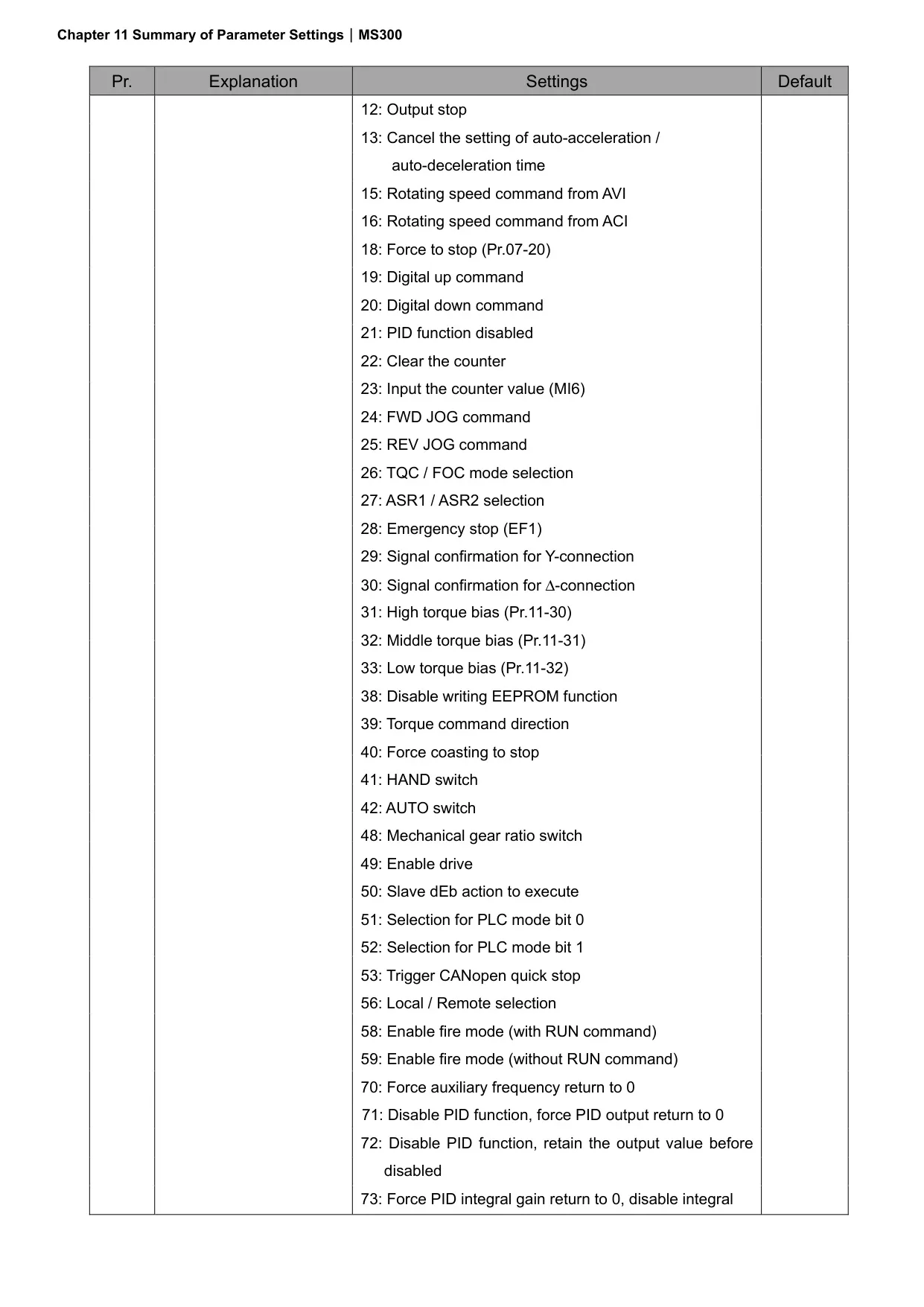

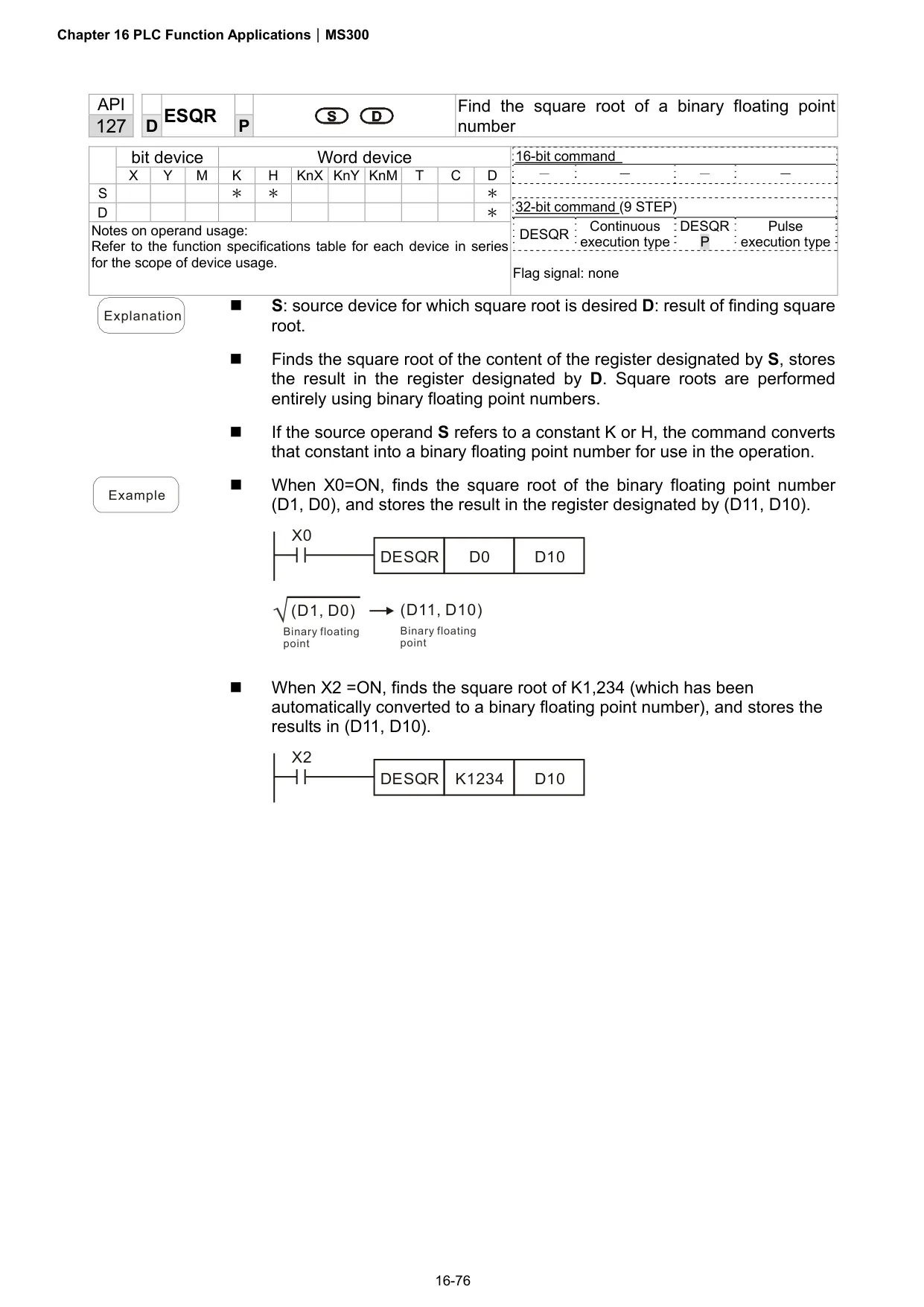

A key distinguishing feature is its integrated PLC functionality, providing users with the ability to program up to 2000 steps of ladder logic. This embedded PLC, compatible with Delta's WPLSoft/ISPSoft software, allows for complex sequence control directly within the VFD, eliminating the need for a separate external PLC in many applications. It manages internal digital inputs (MI1-MI7), outputs, and special registers, facilitating custom control routines, fault handling, and tailored operational logic.

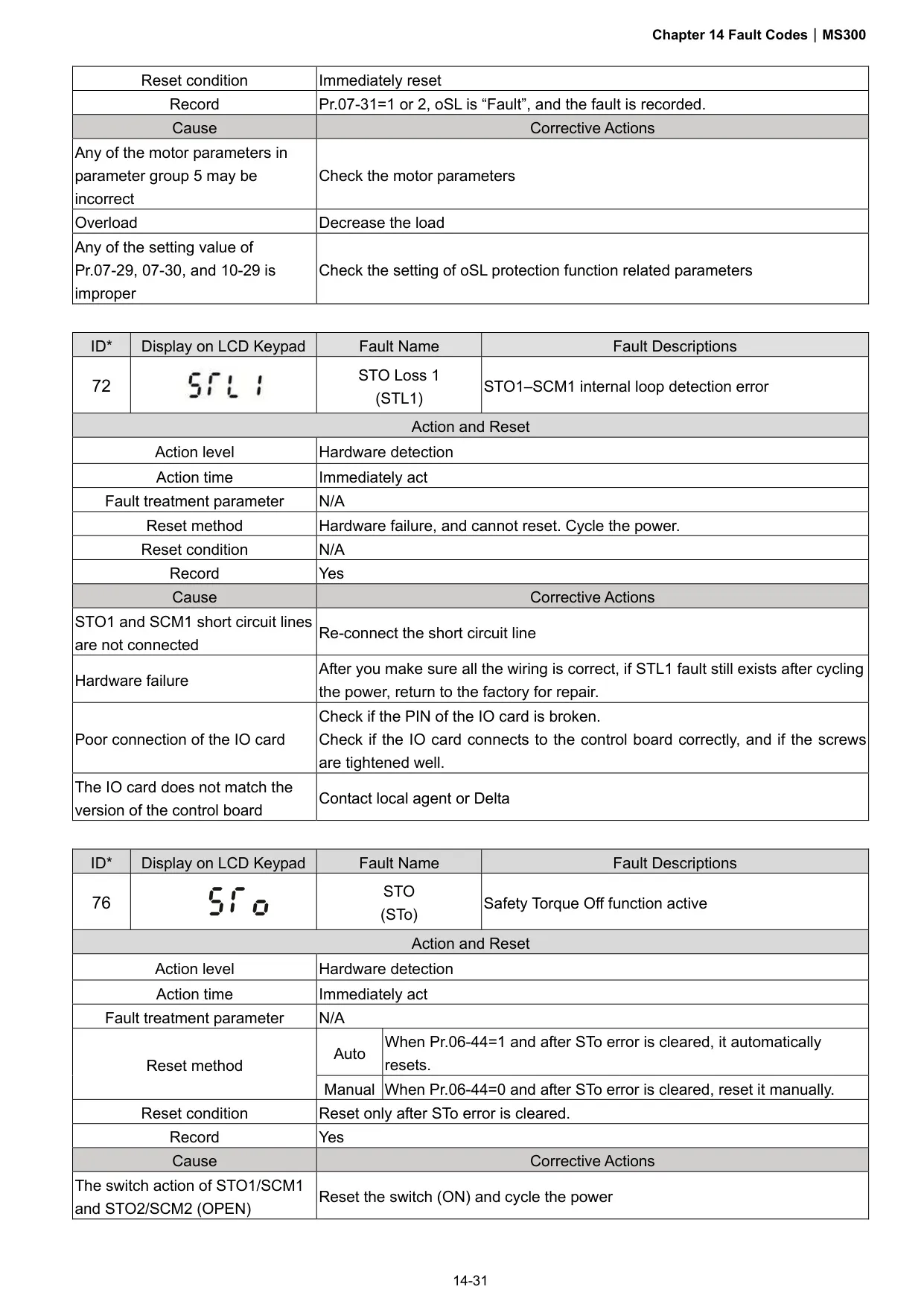

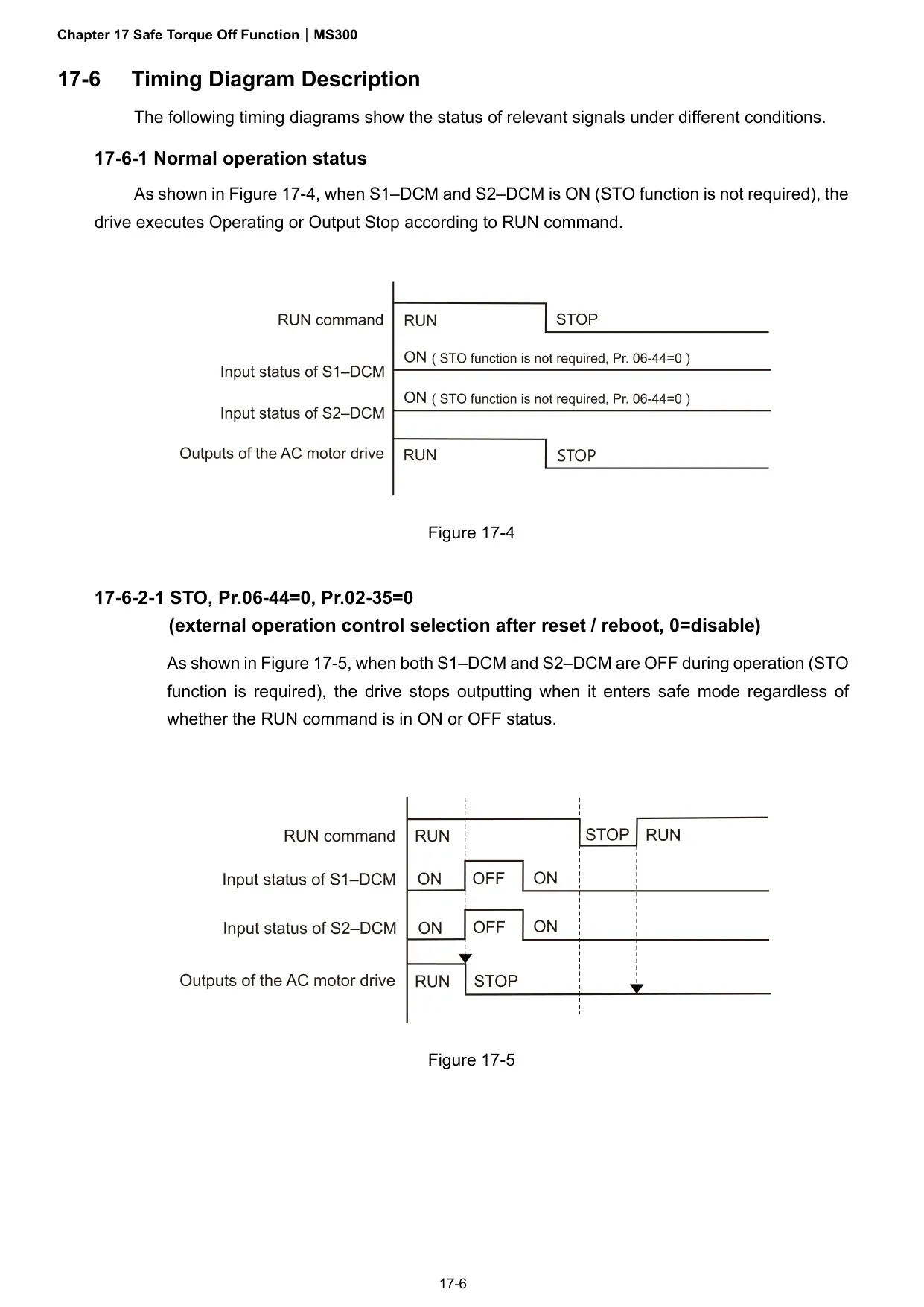

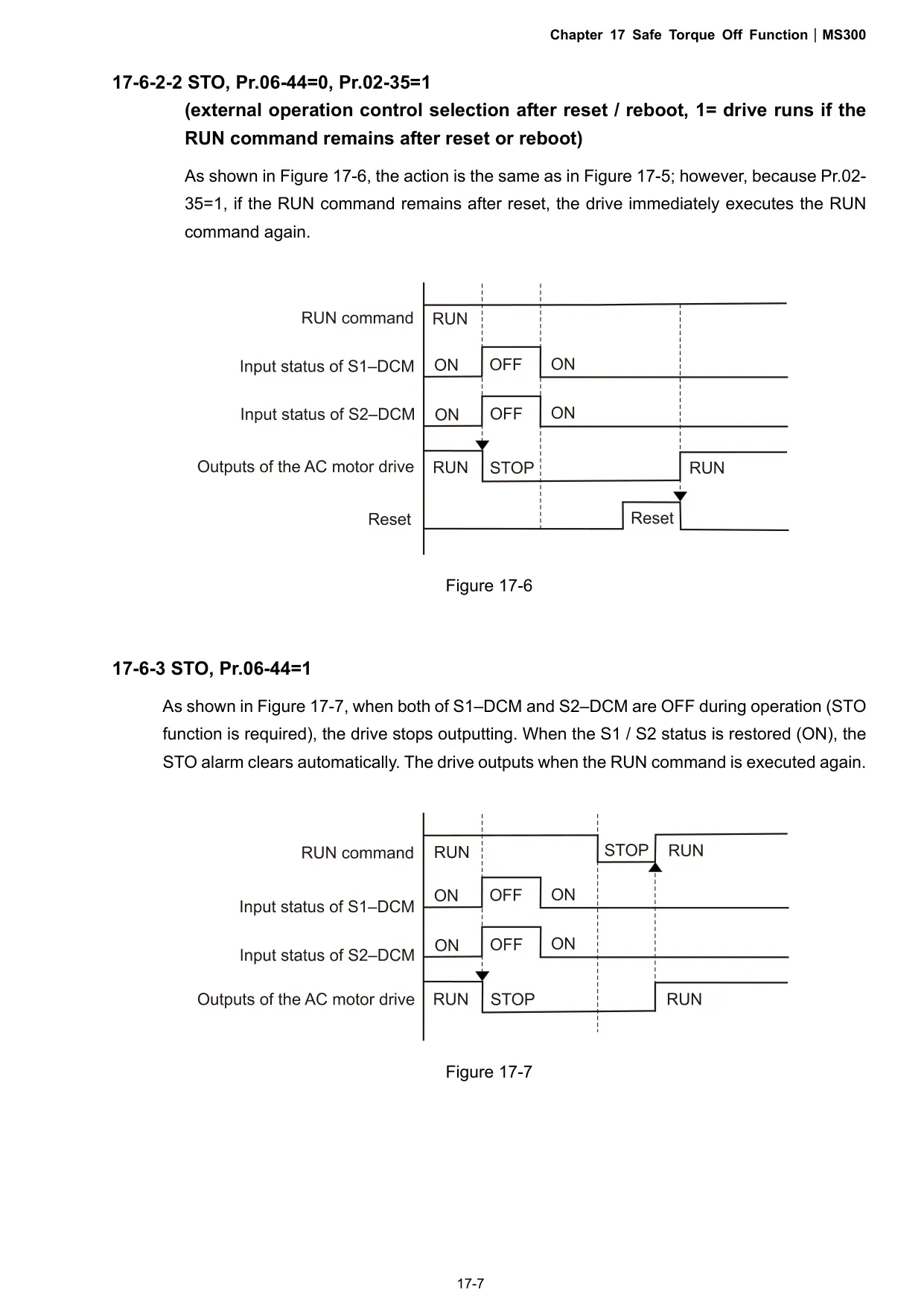

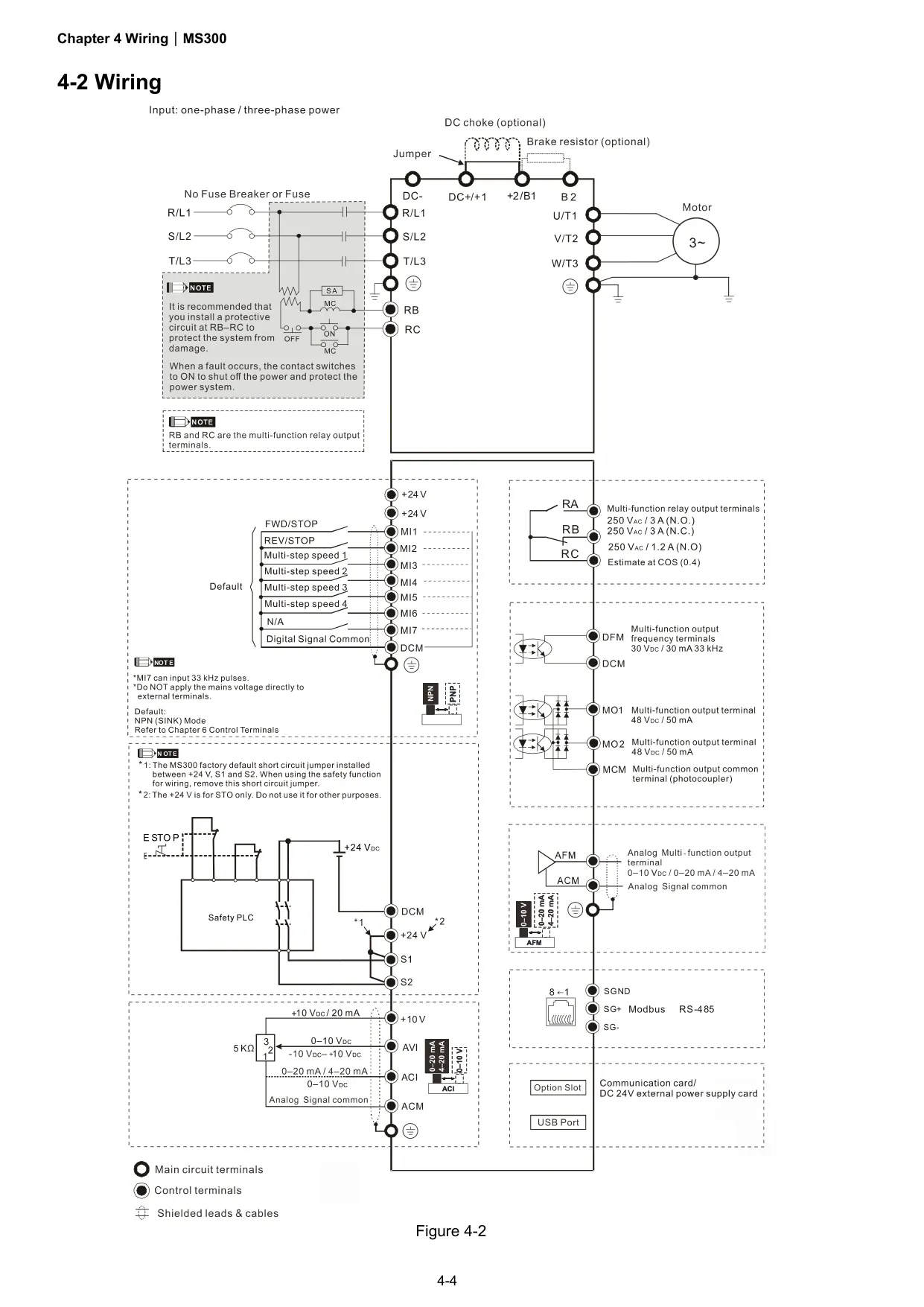

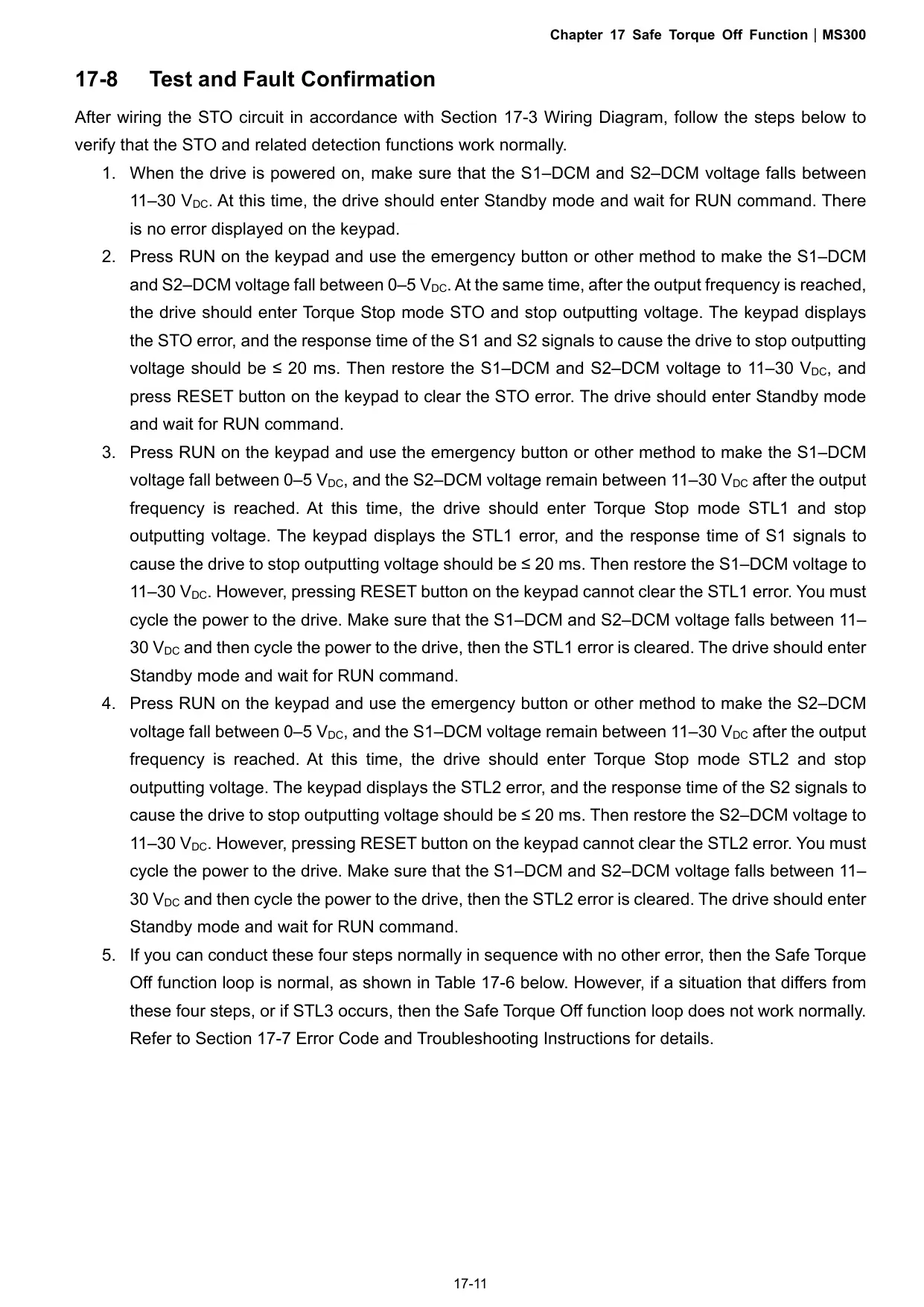

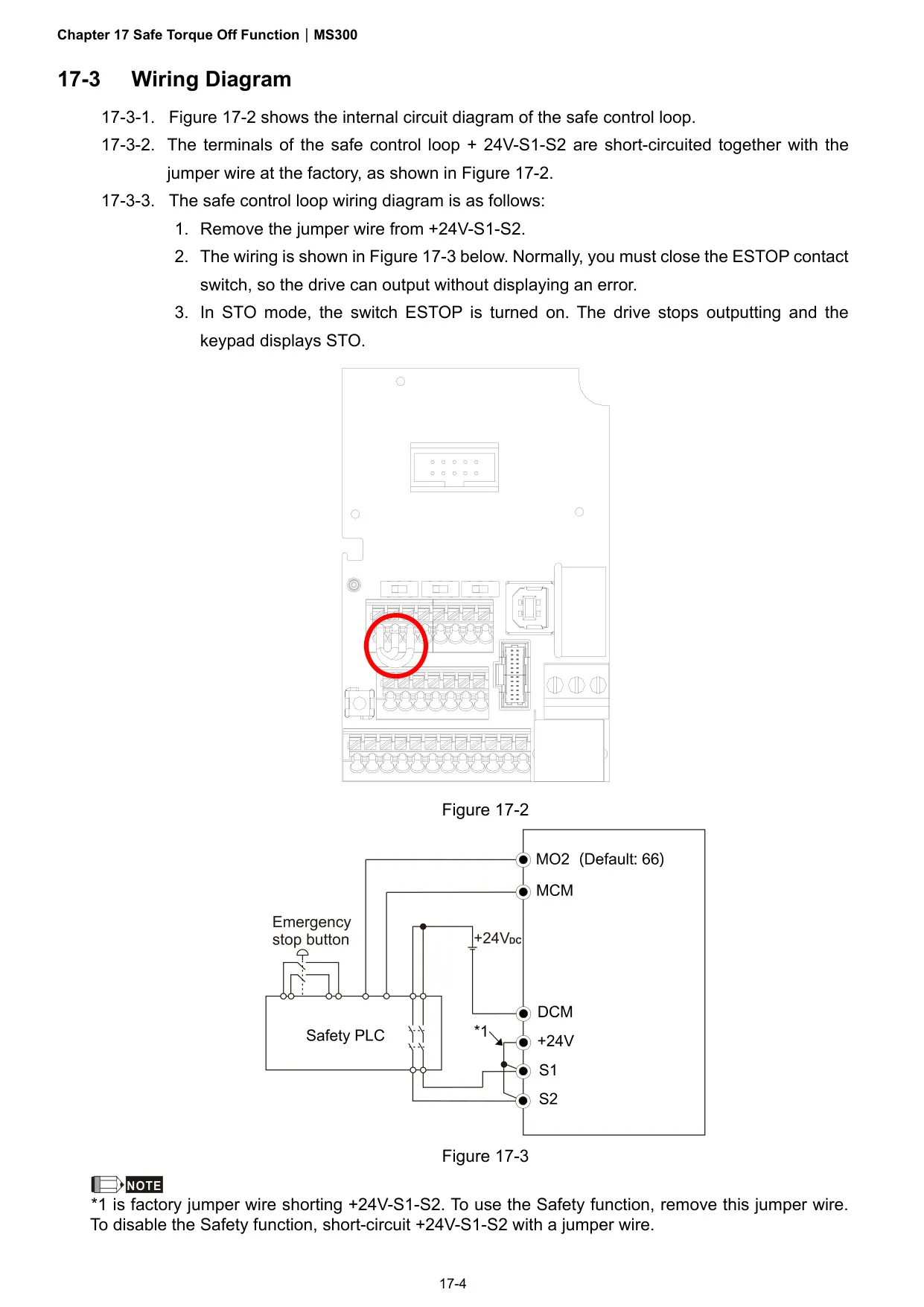

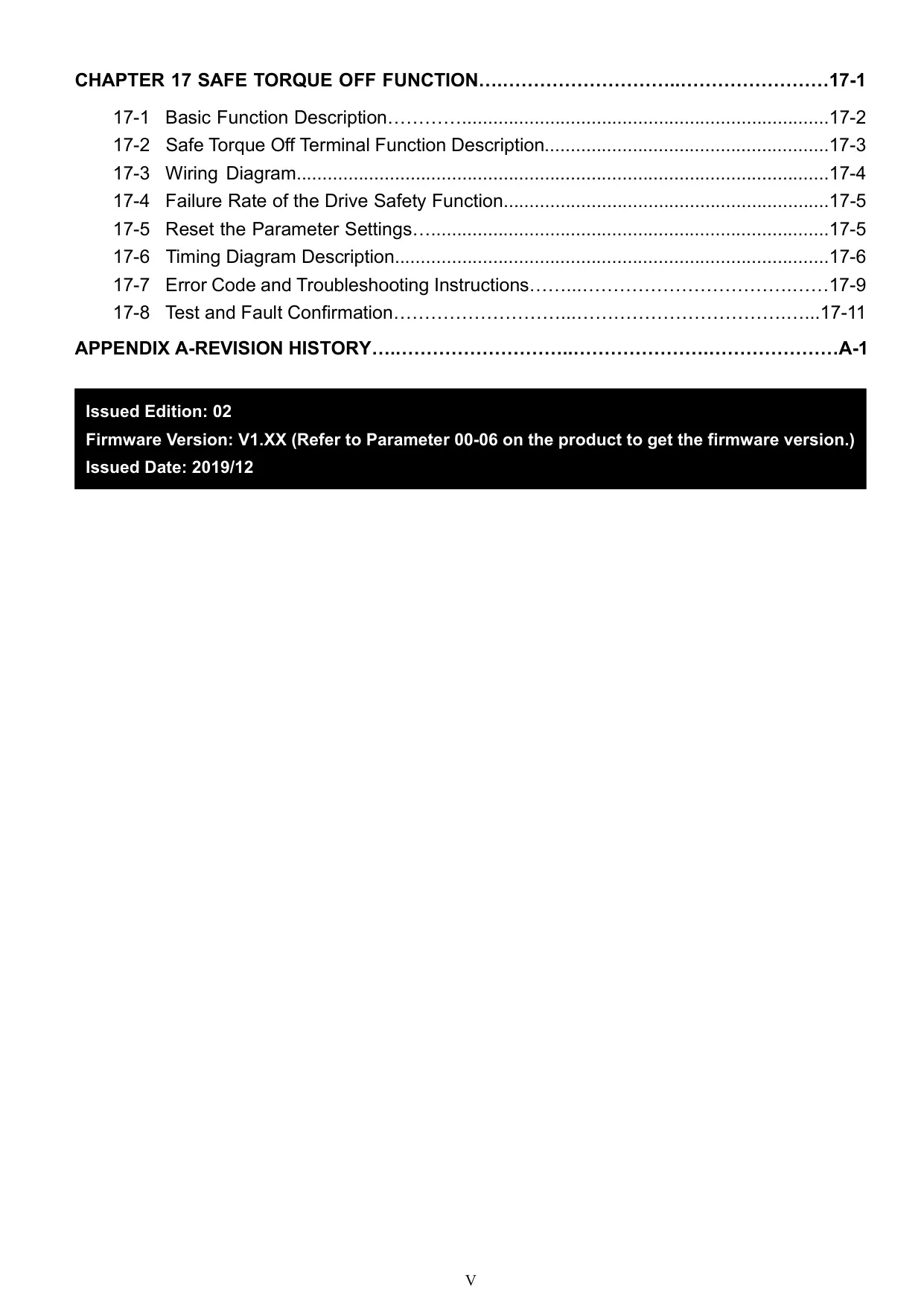

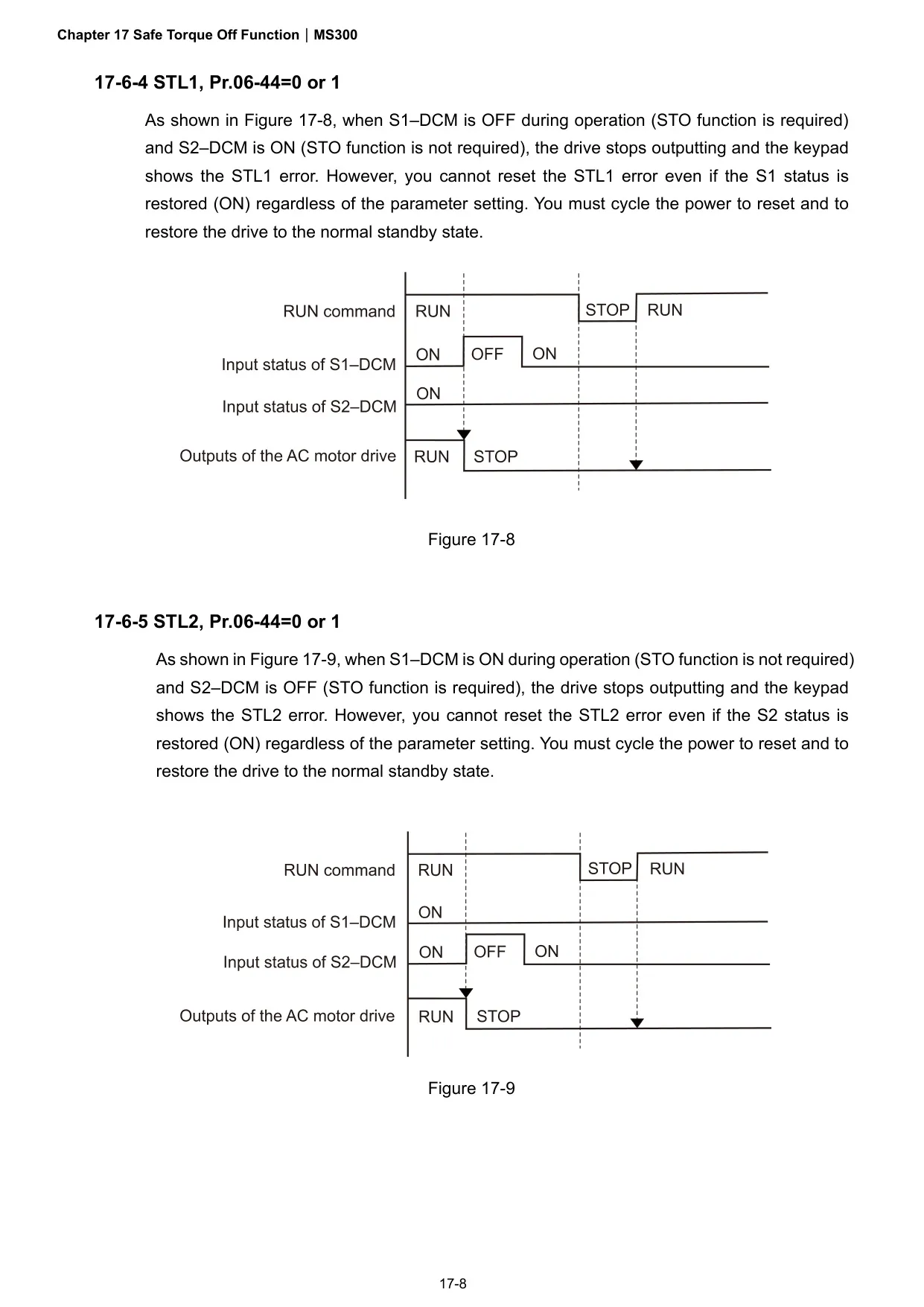

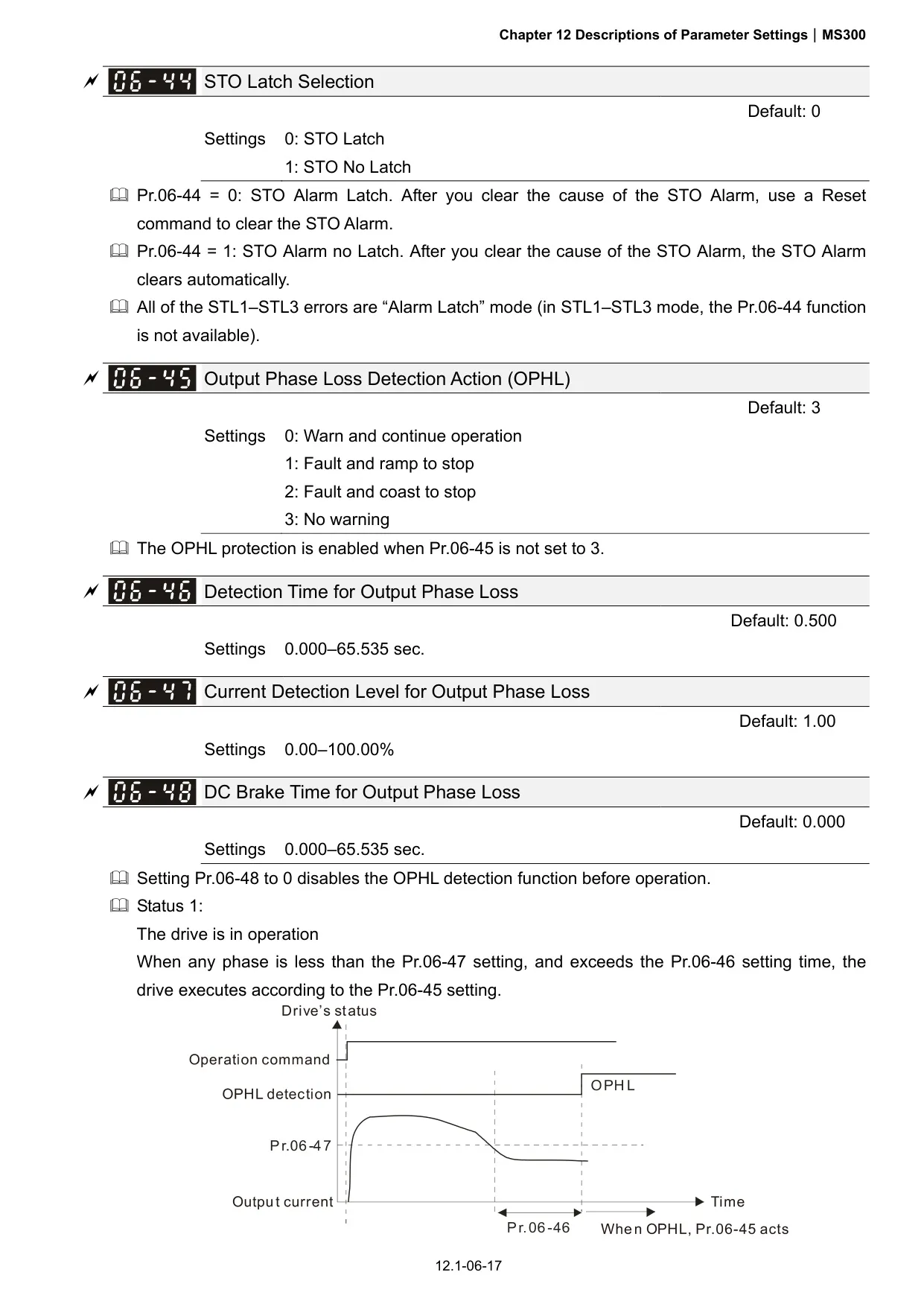

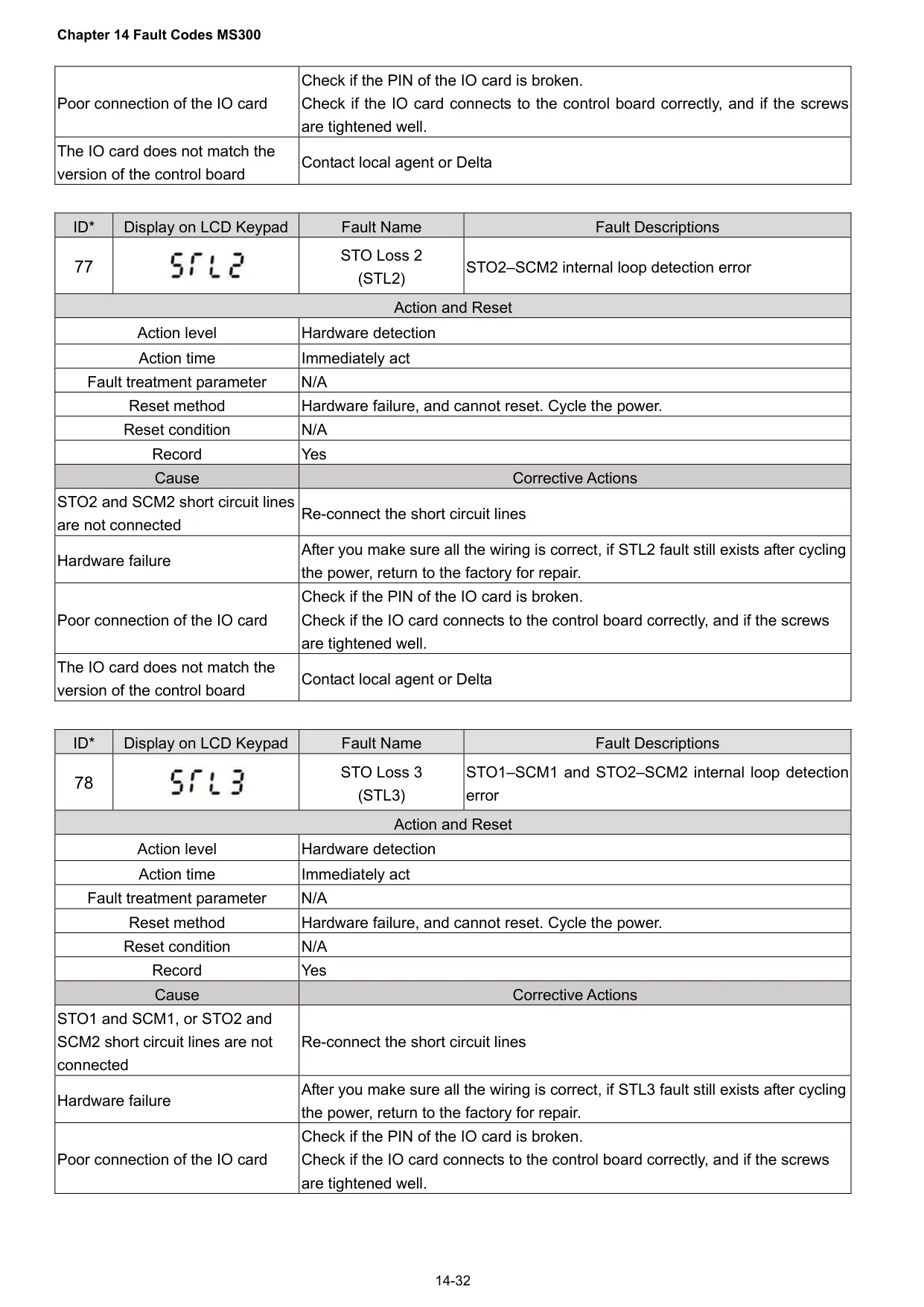

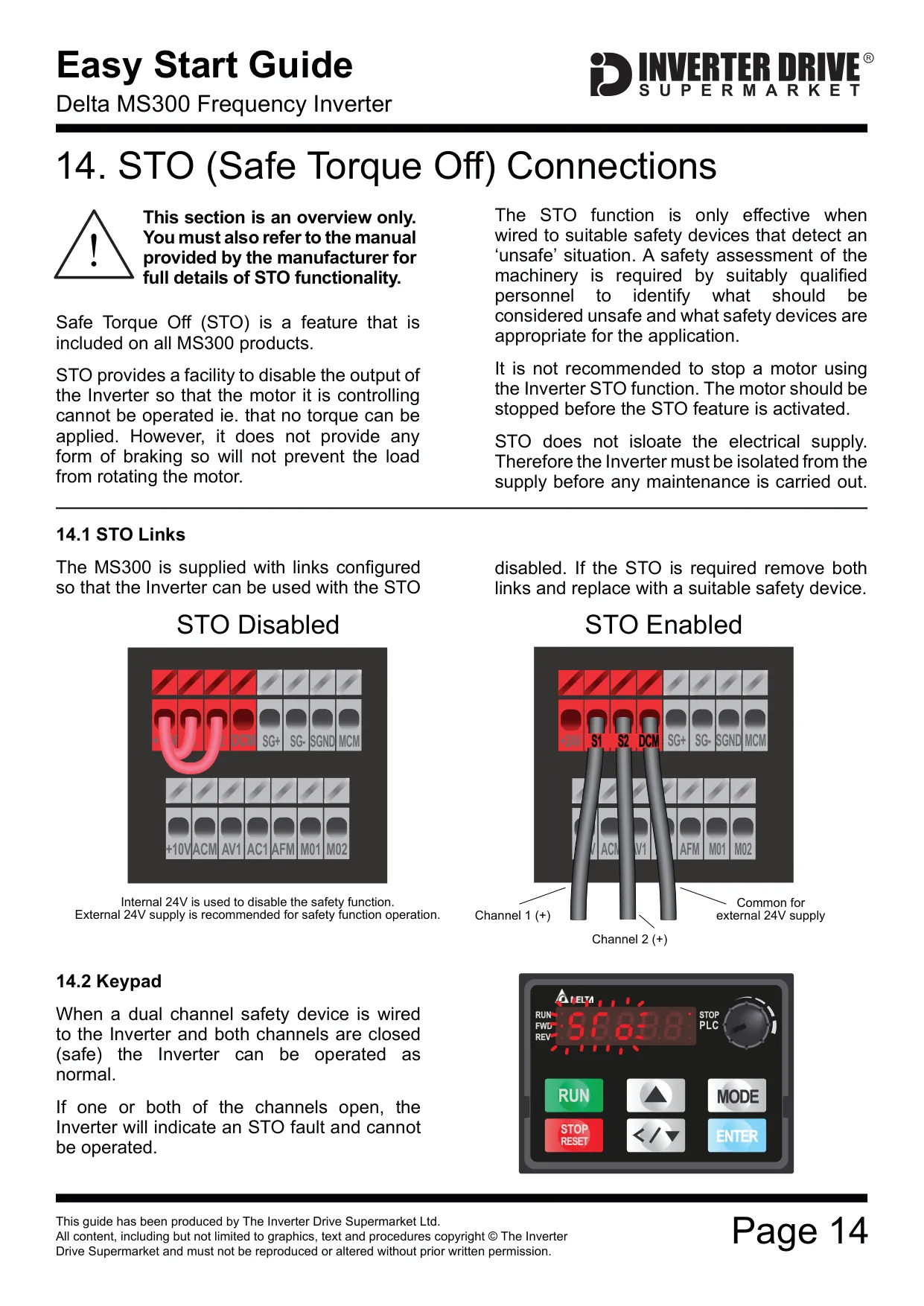

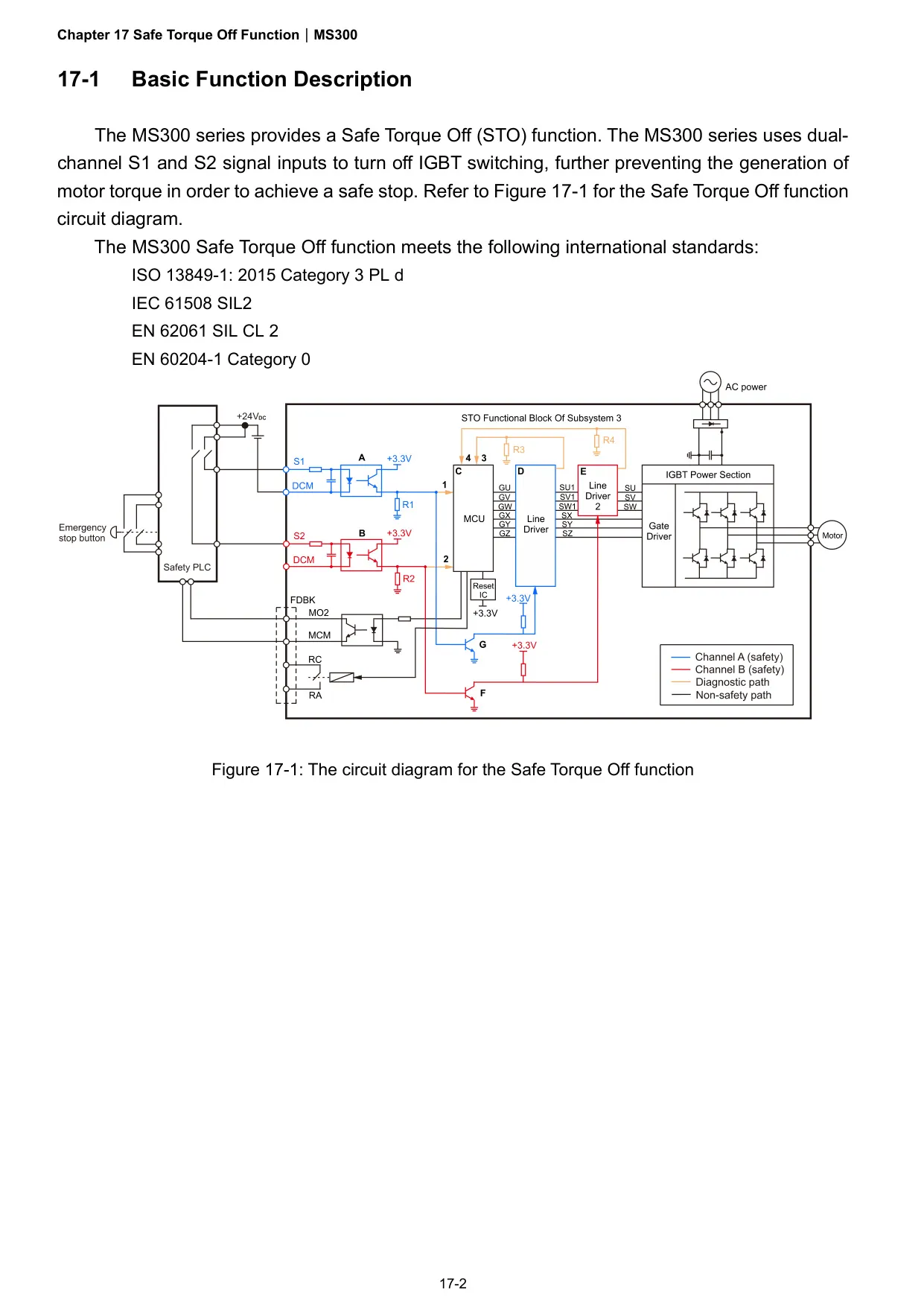

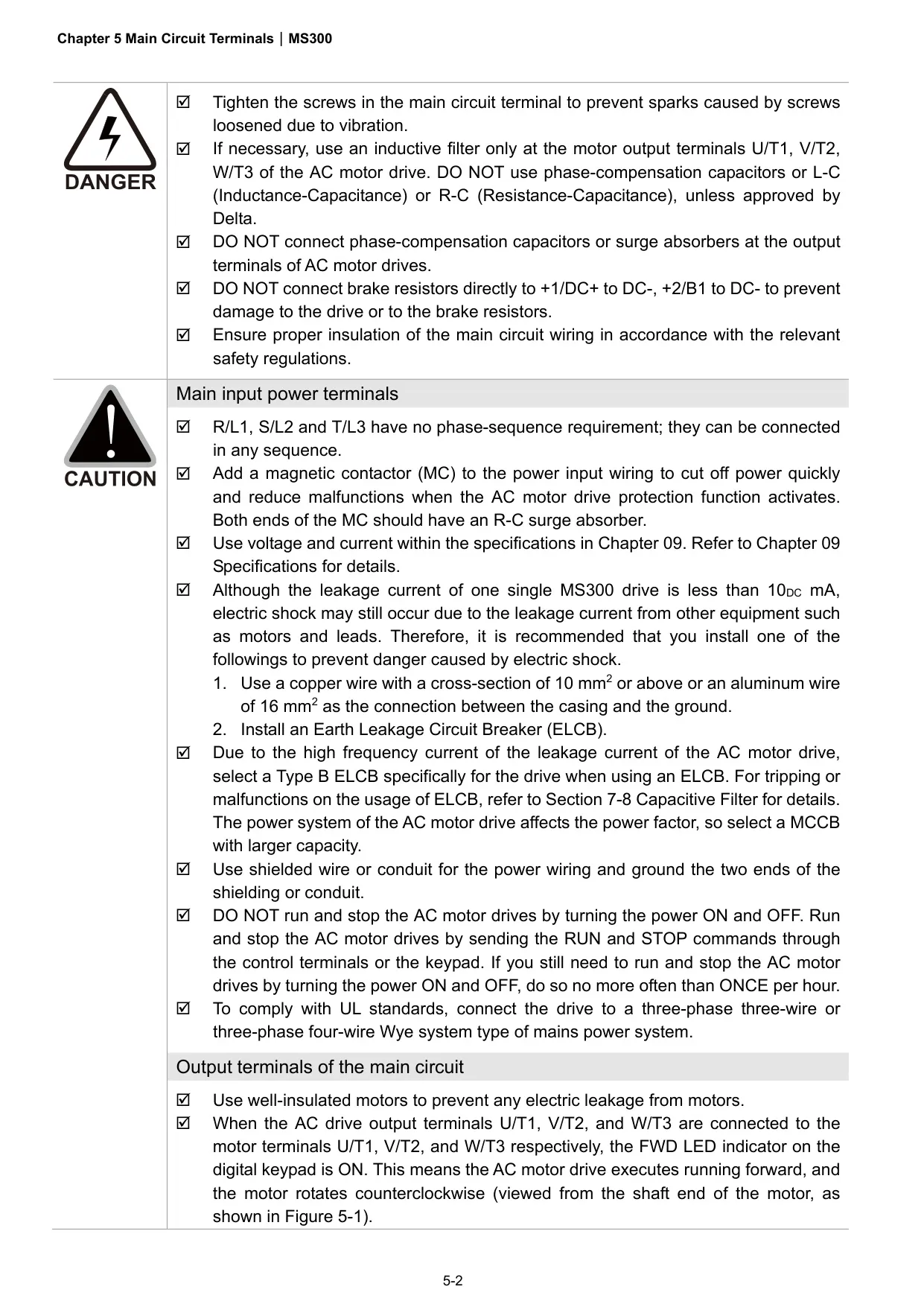

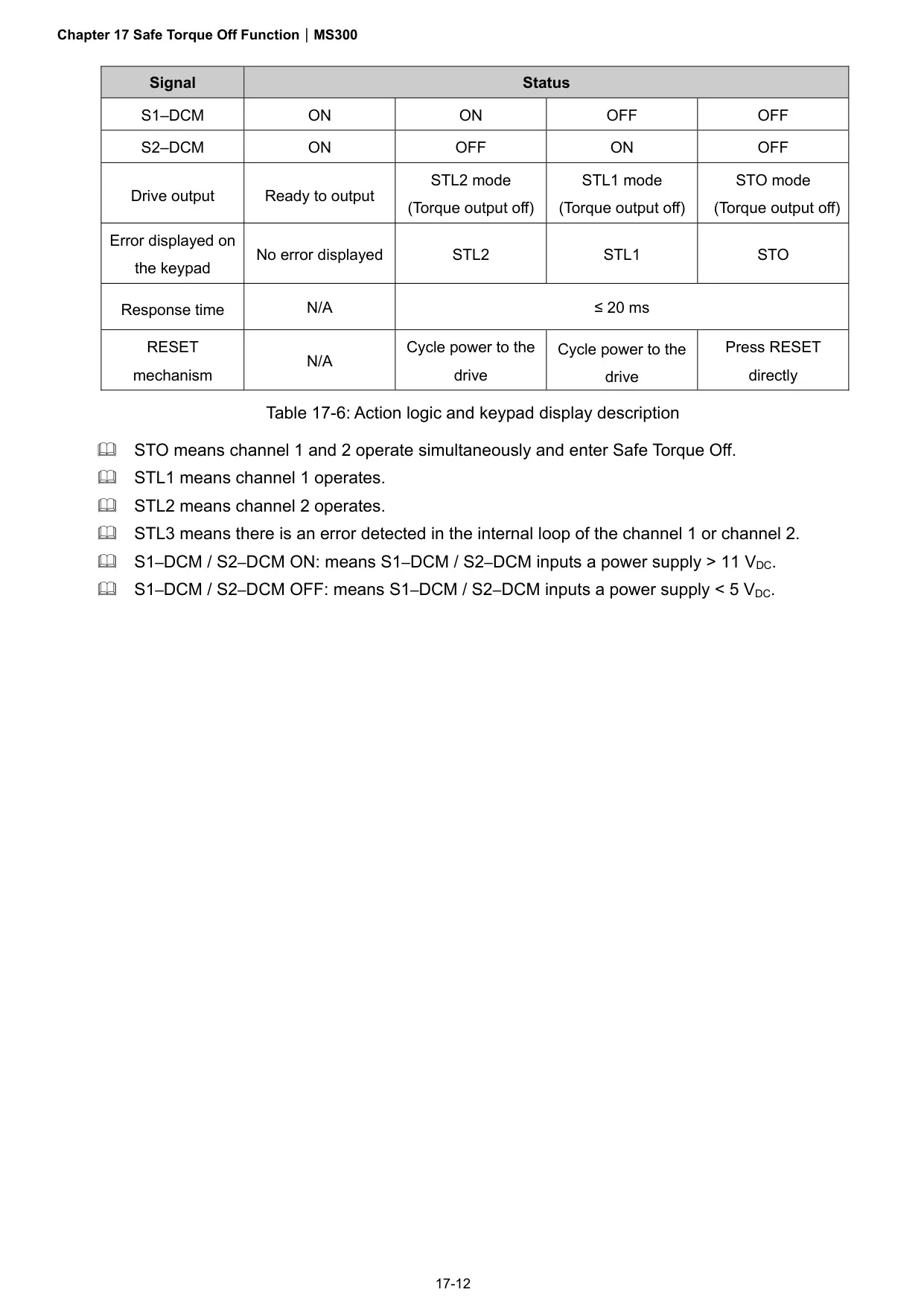

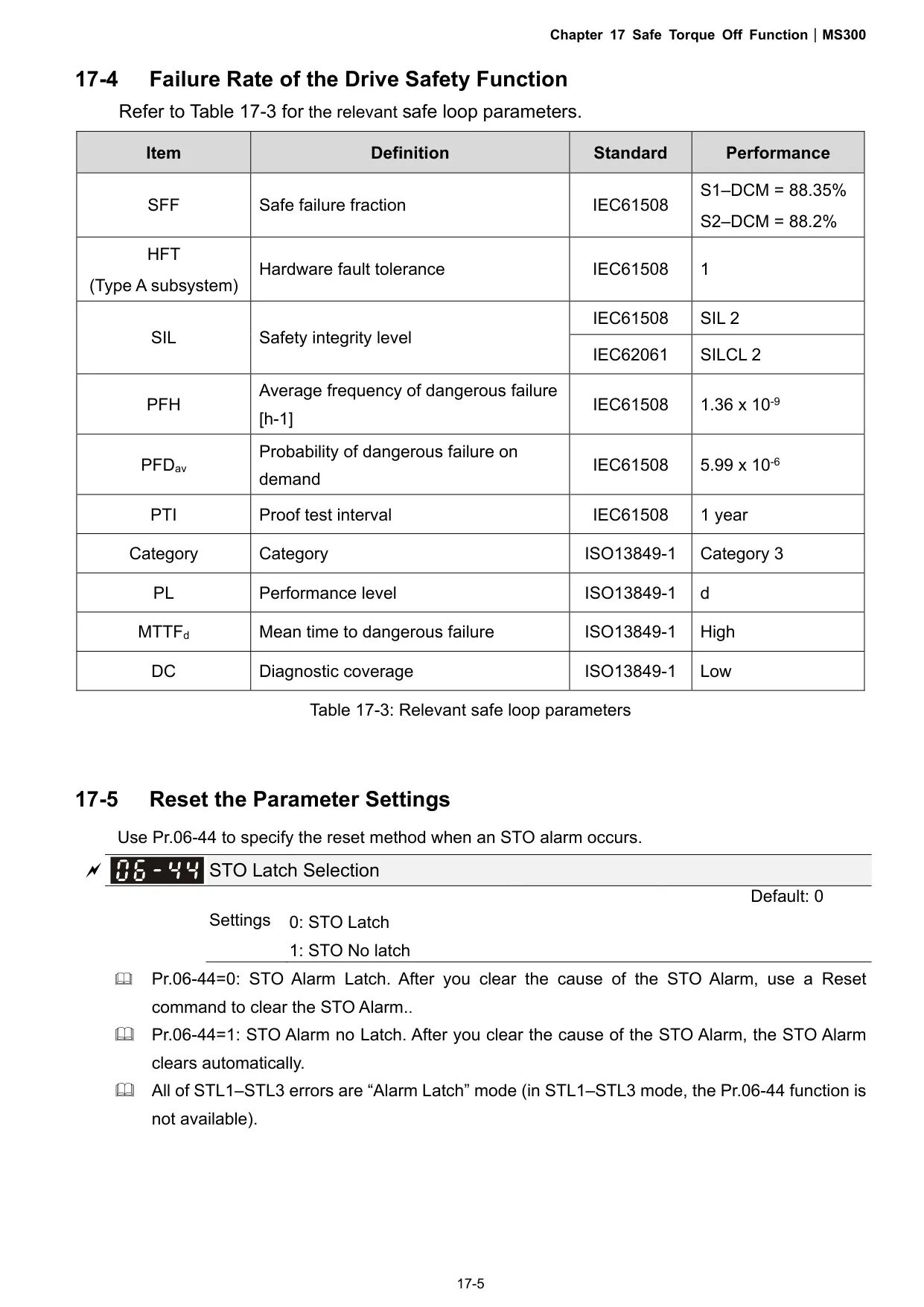

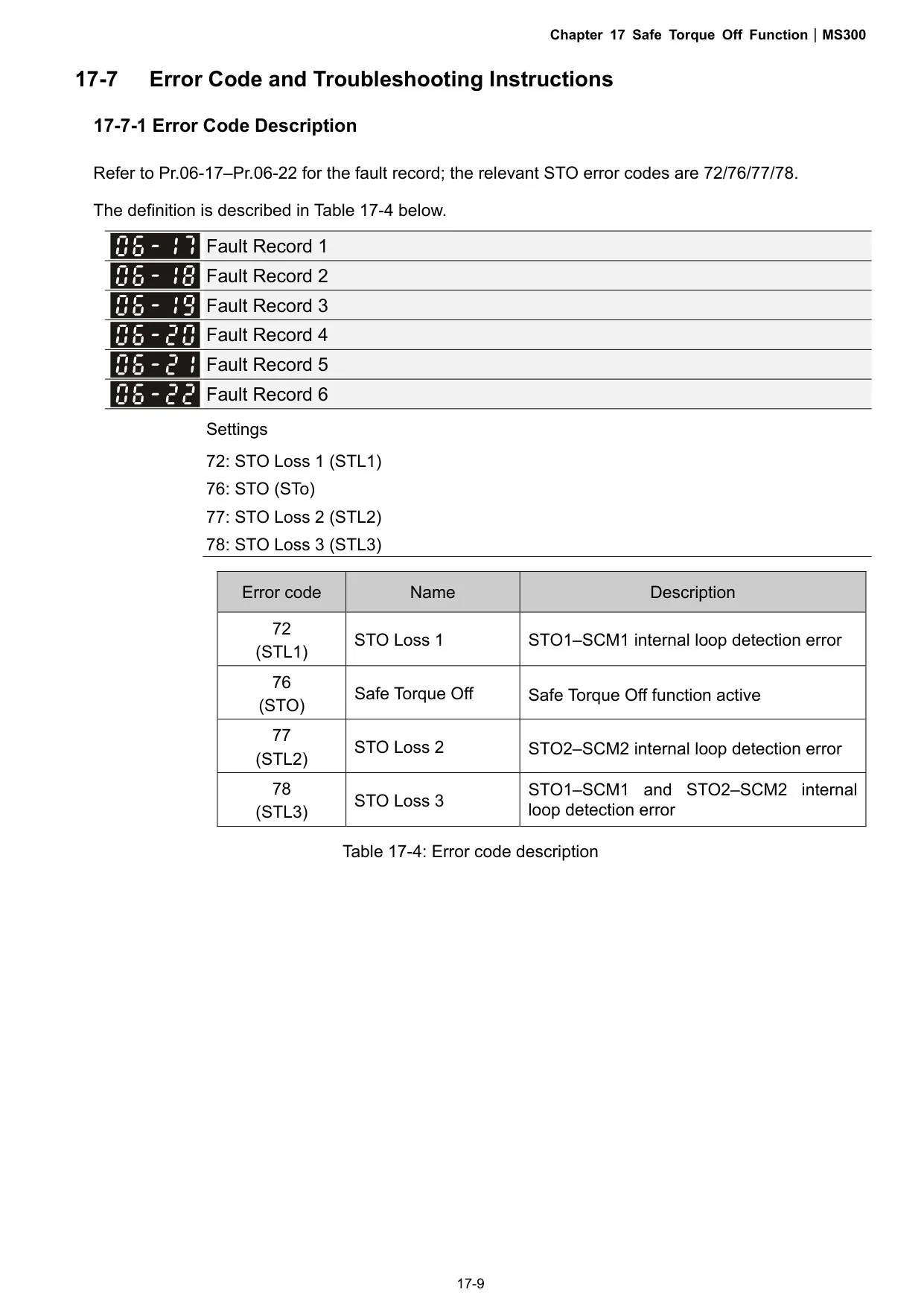

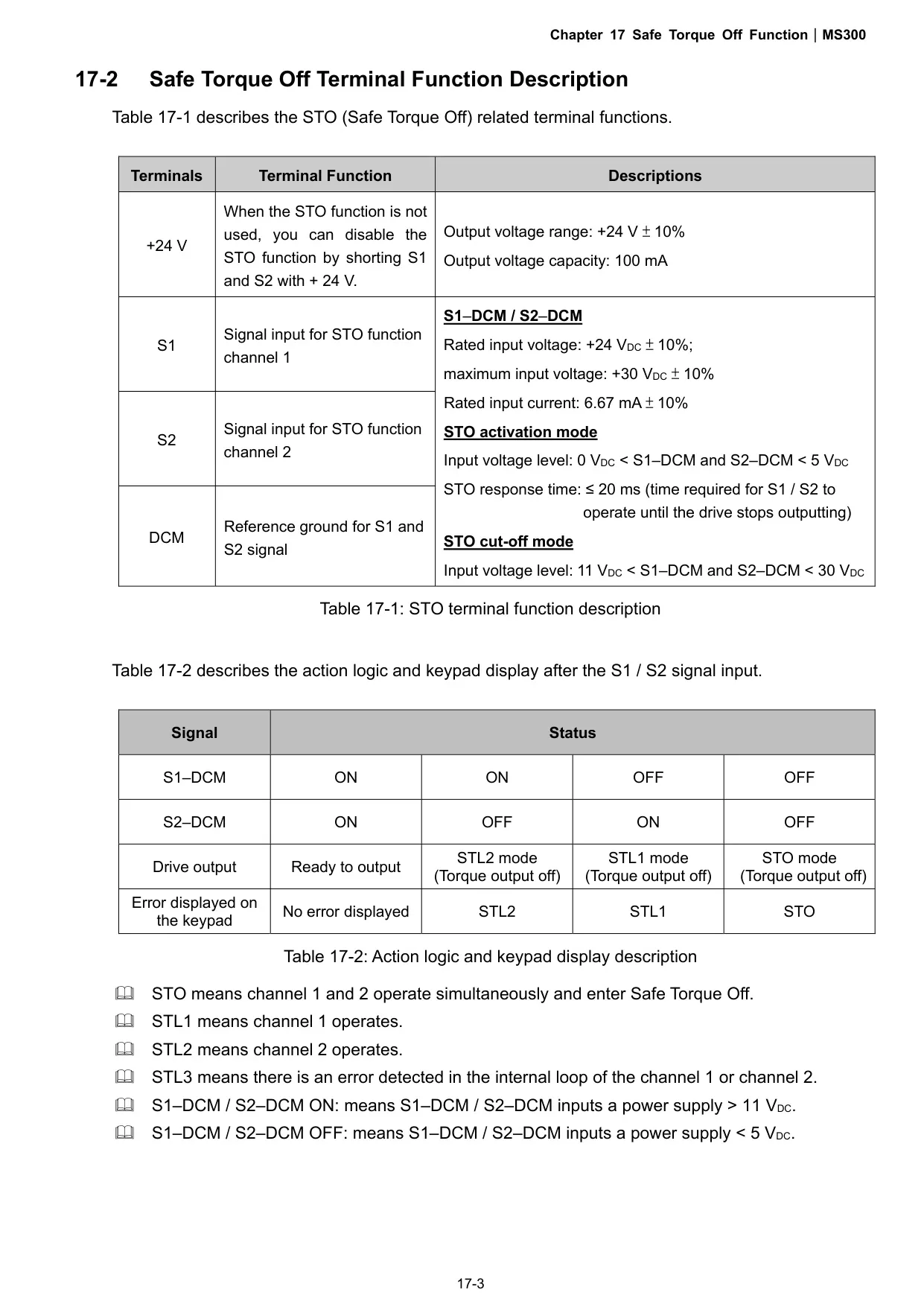

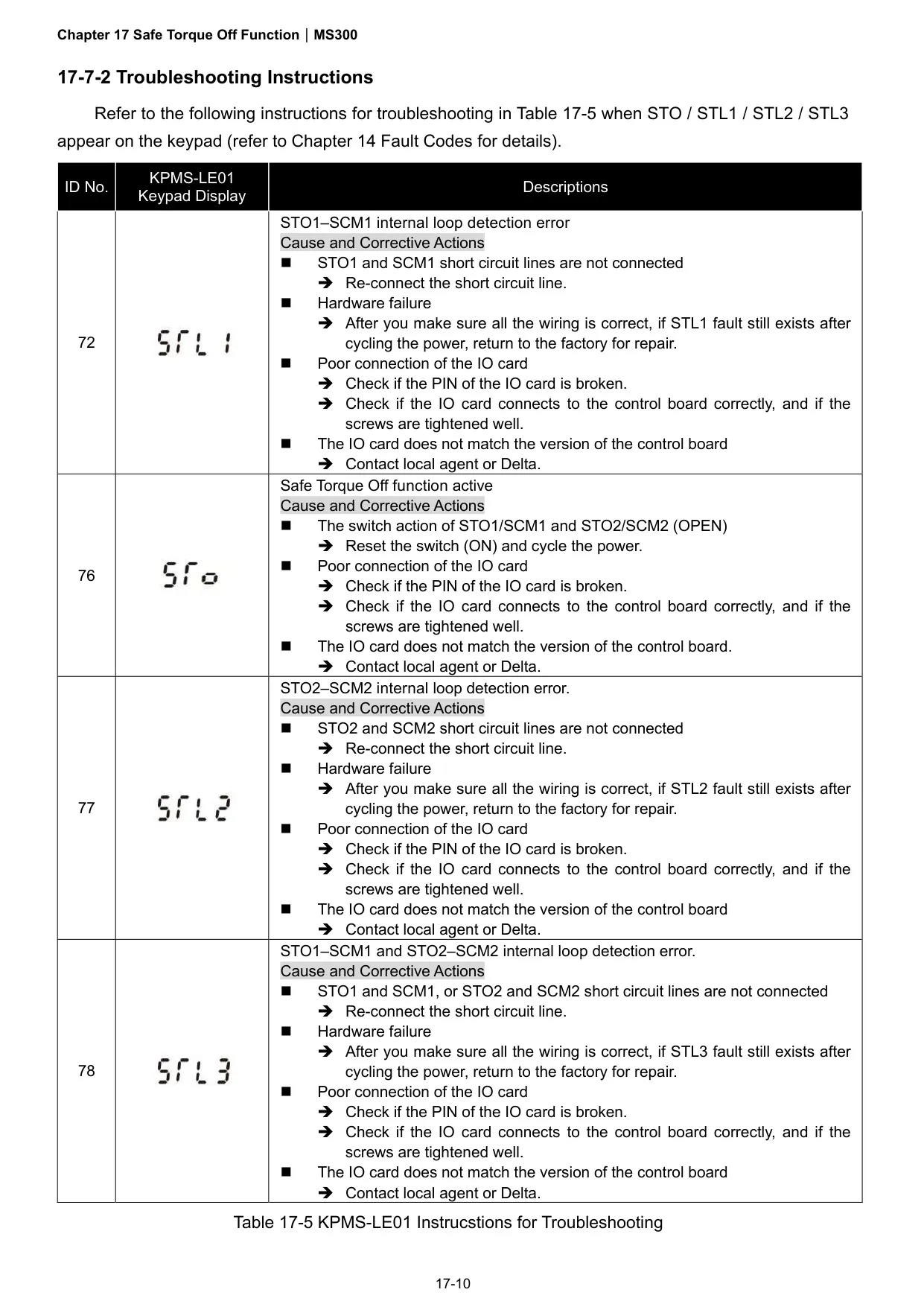

For enhanced safety, the MS300 incorporates a Safe Torque Off (STO) function. This critical safety feature is compliant with stringent international standards like ISO 13849-1 Category 3 PL d and IEC 61508 SIL2, ensuring machine and operator safety by reliably preventing unintended motor startup or continued rotation. It utilizes dual-channel S1/S2 inputs, providing a high level of fault tolerance, and boasts a rapid response time of less than 20 ms to remove power to the motor.

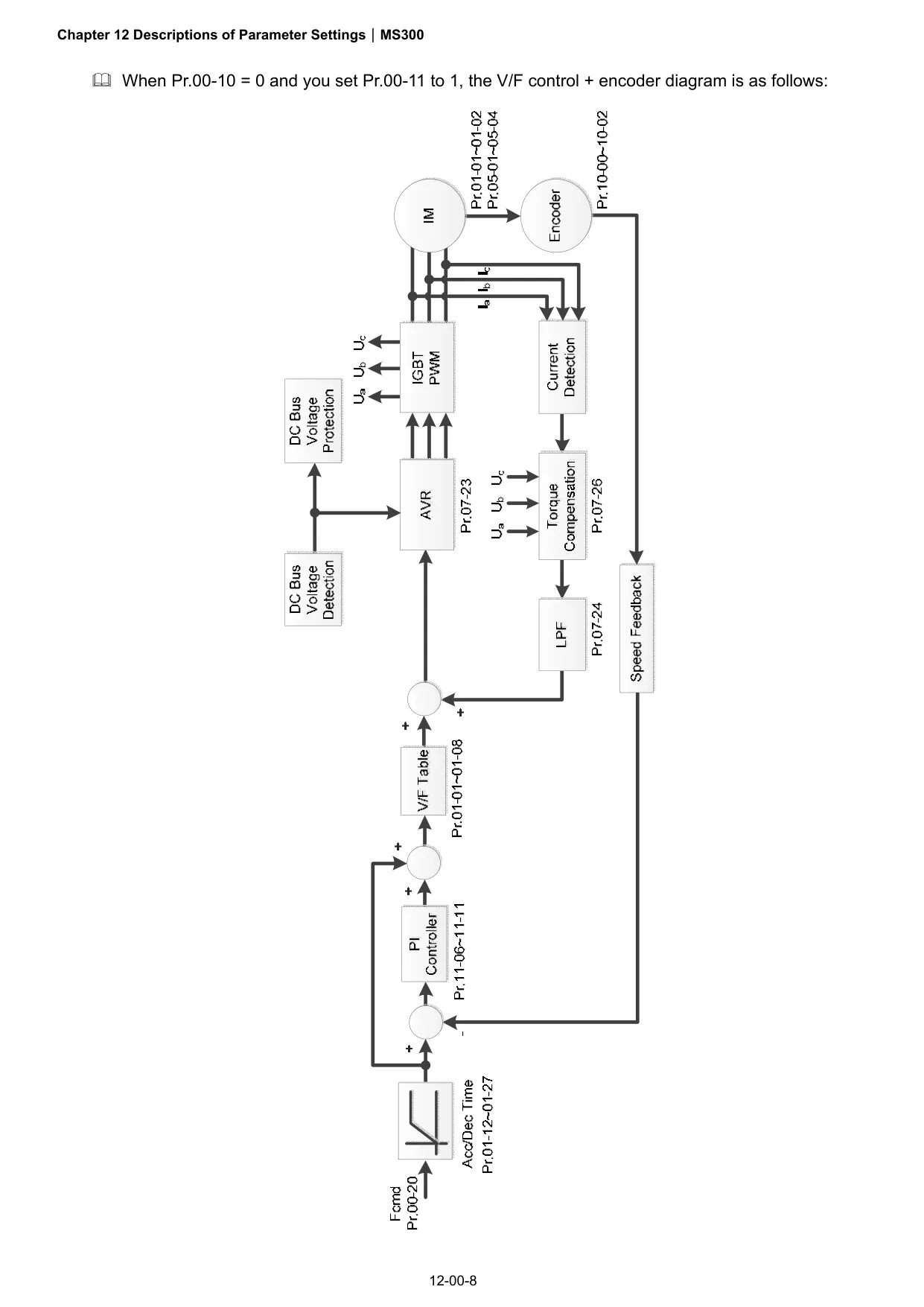

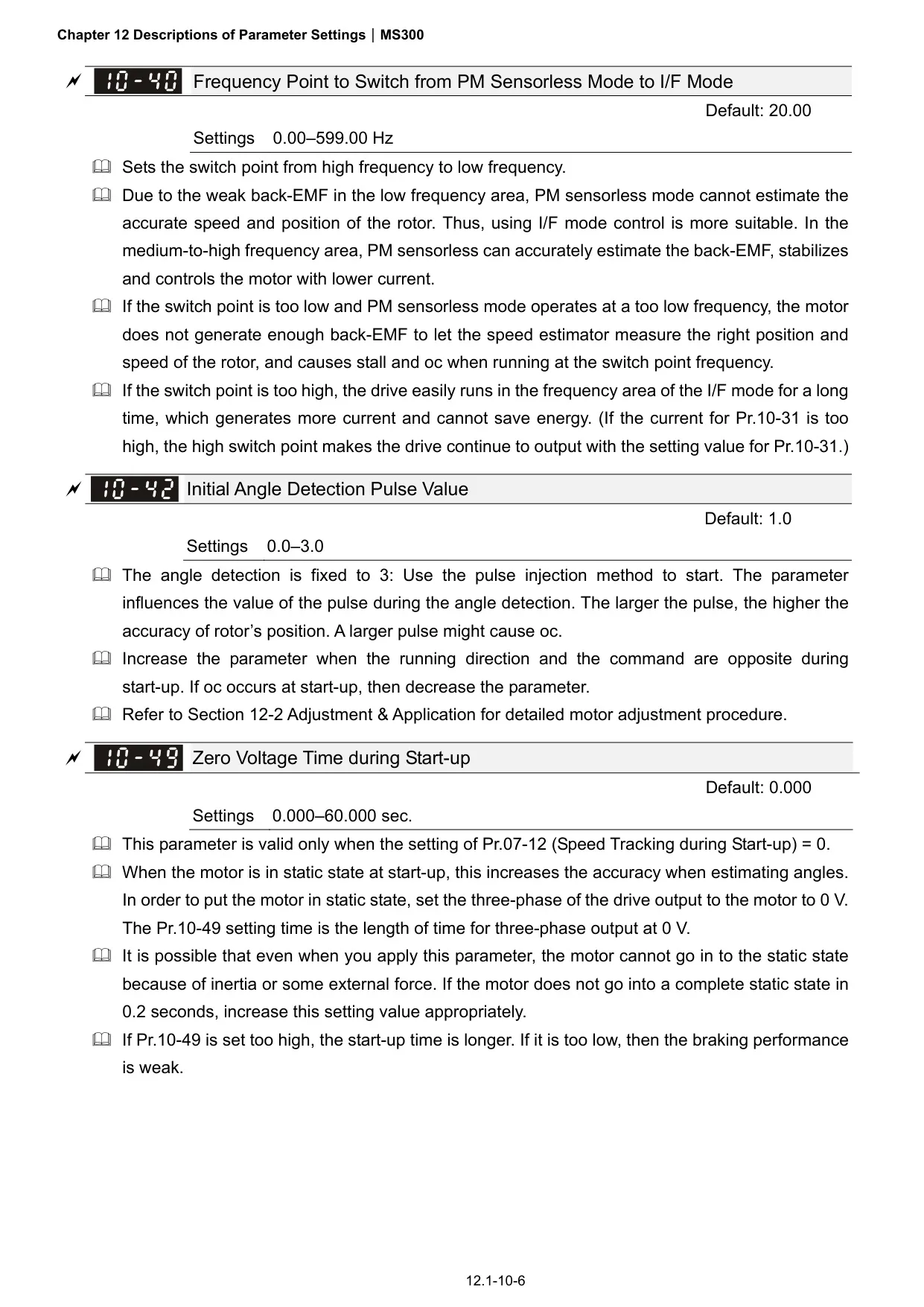

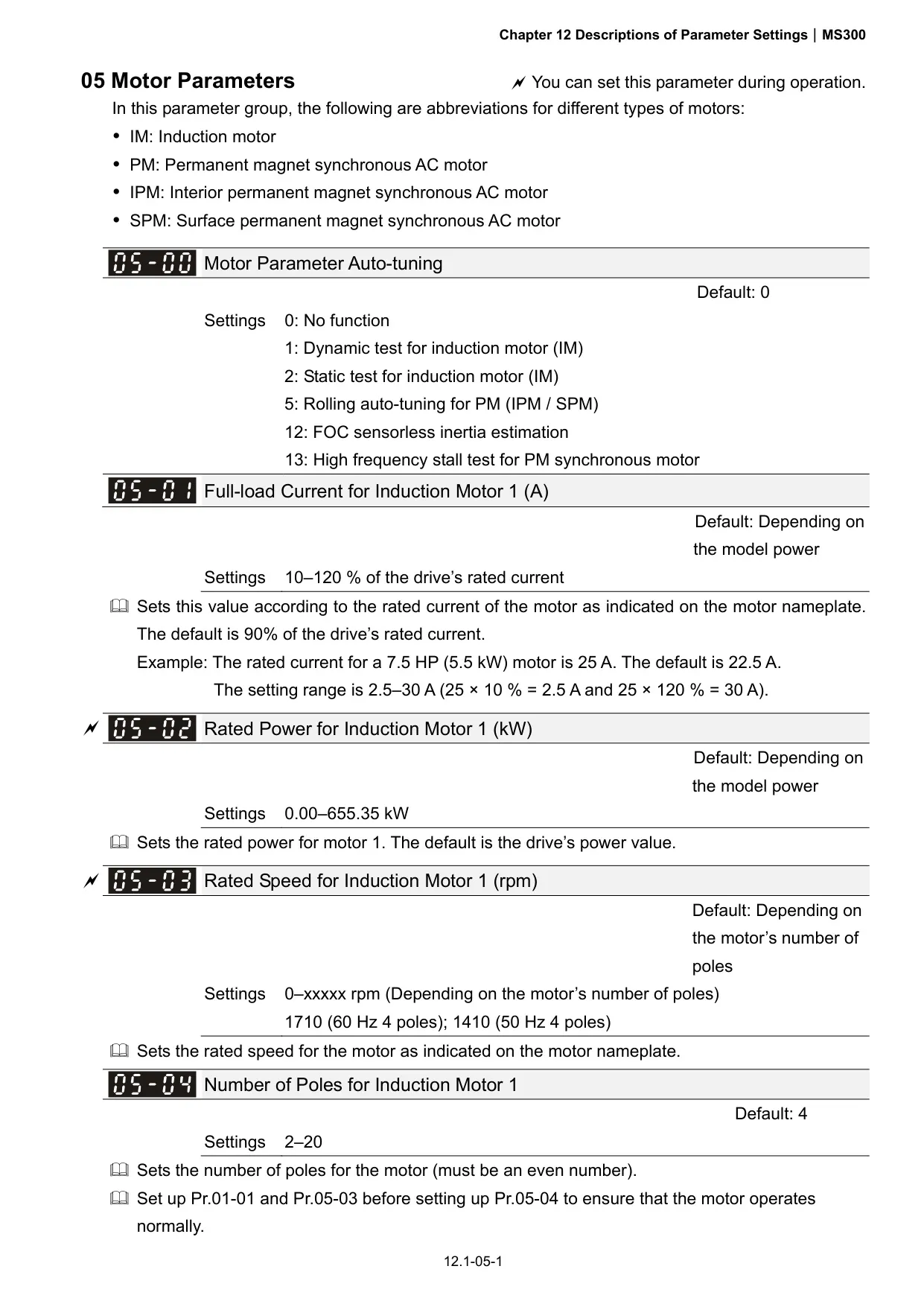

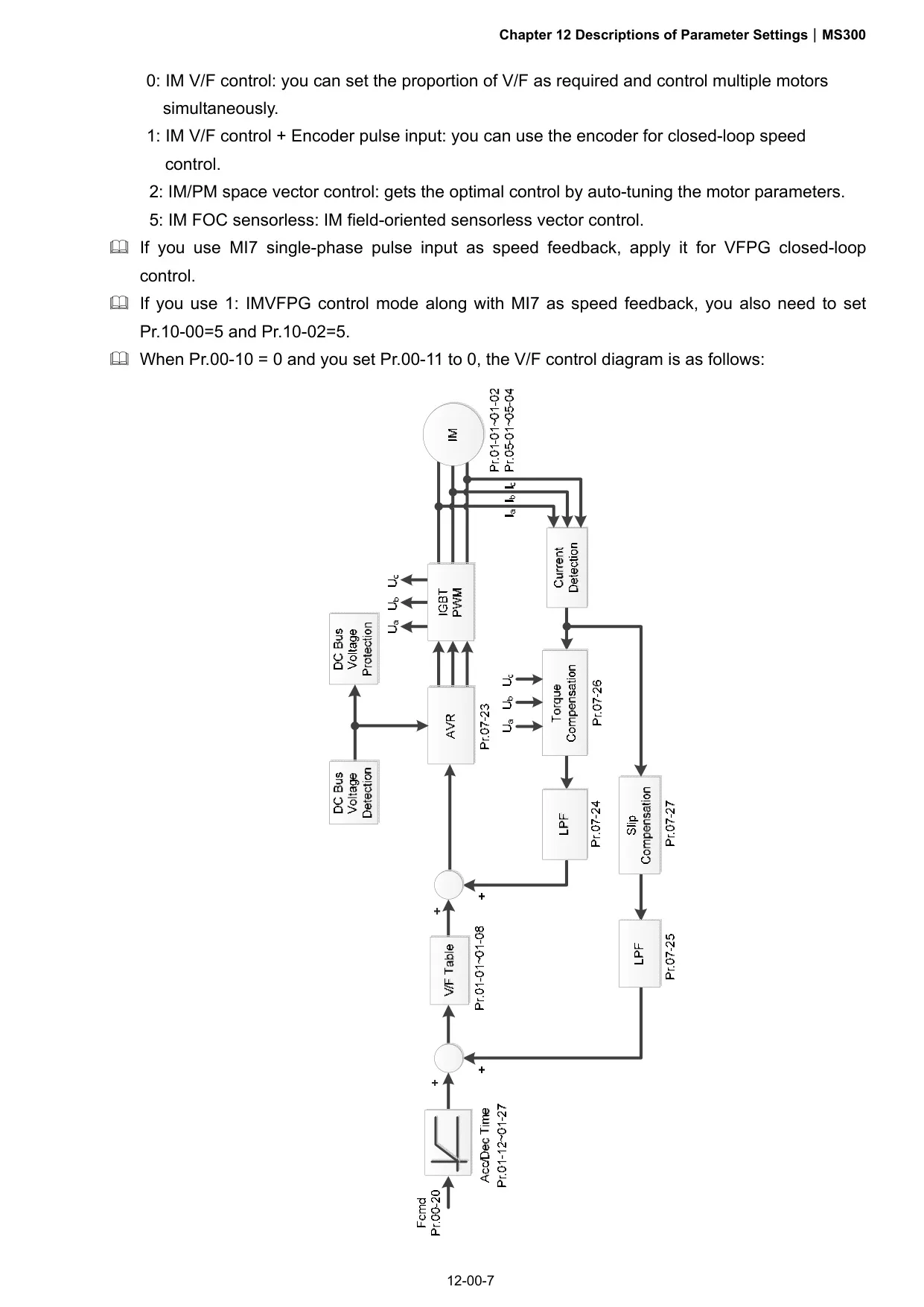

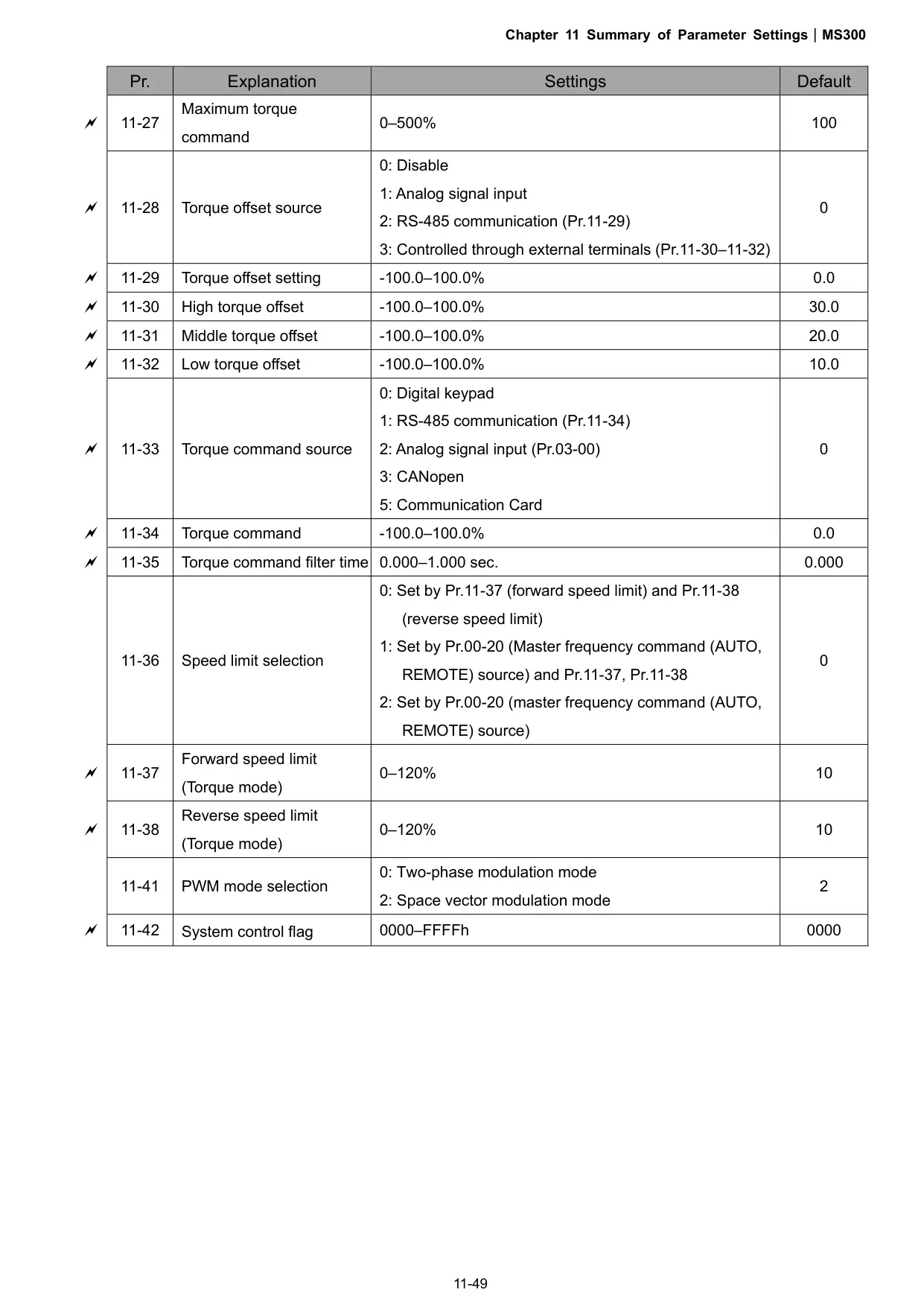

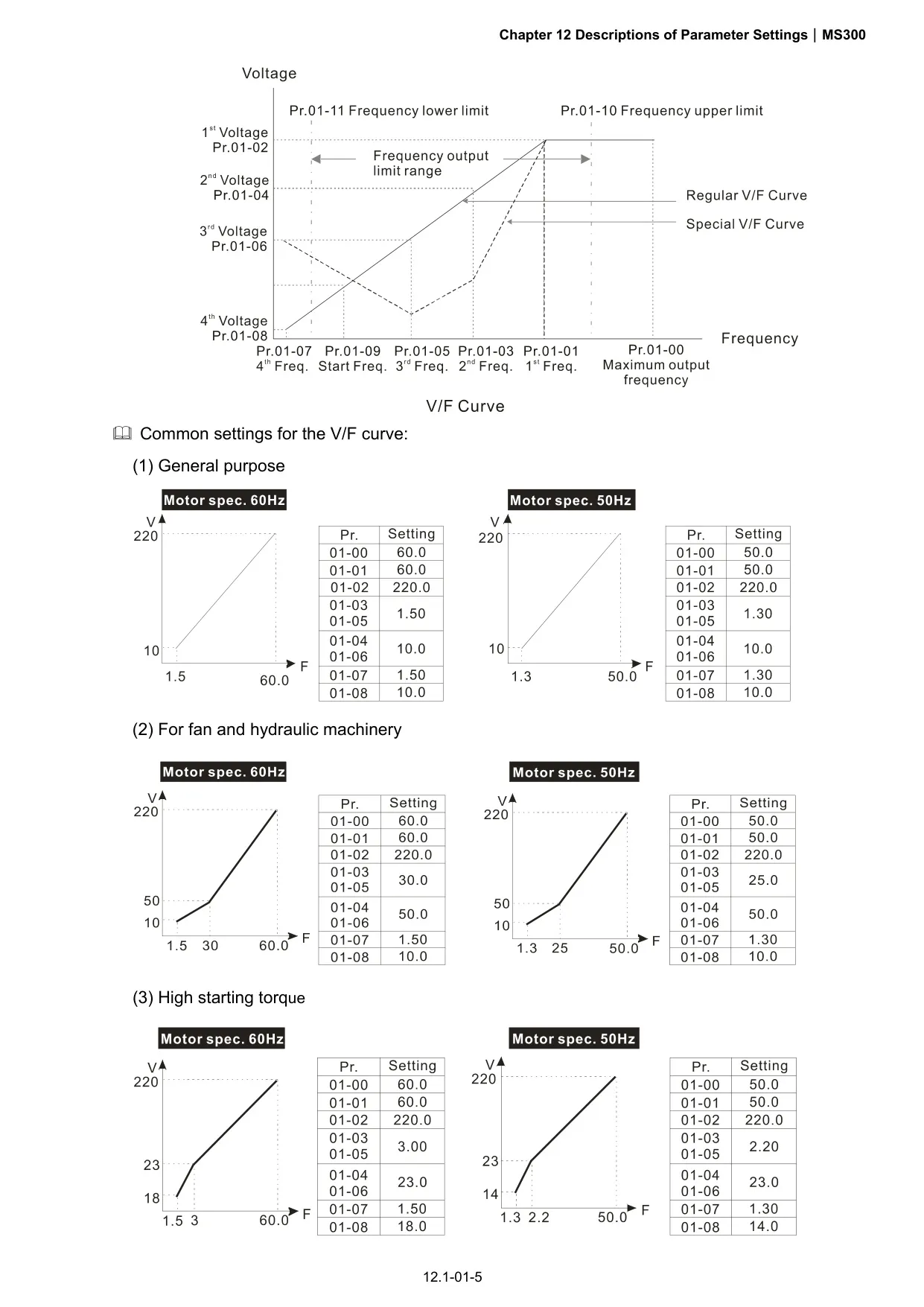

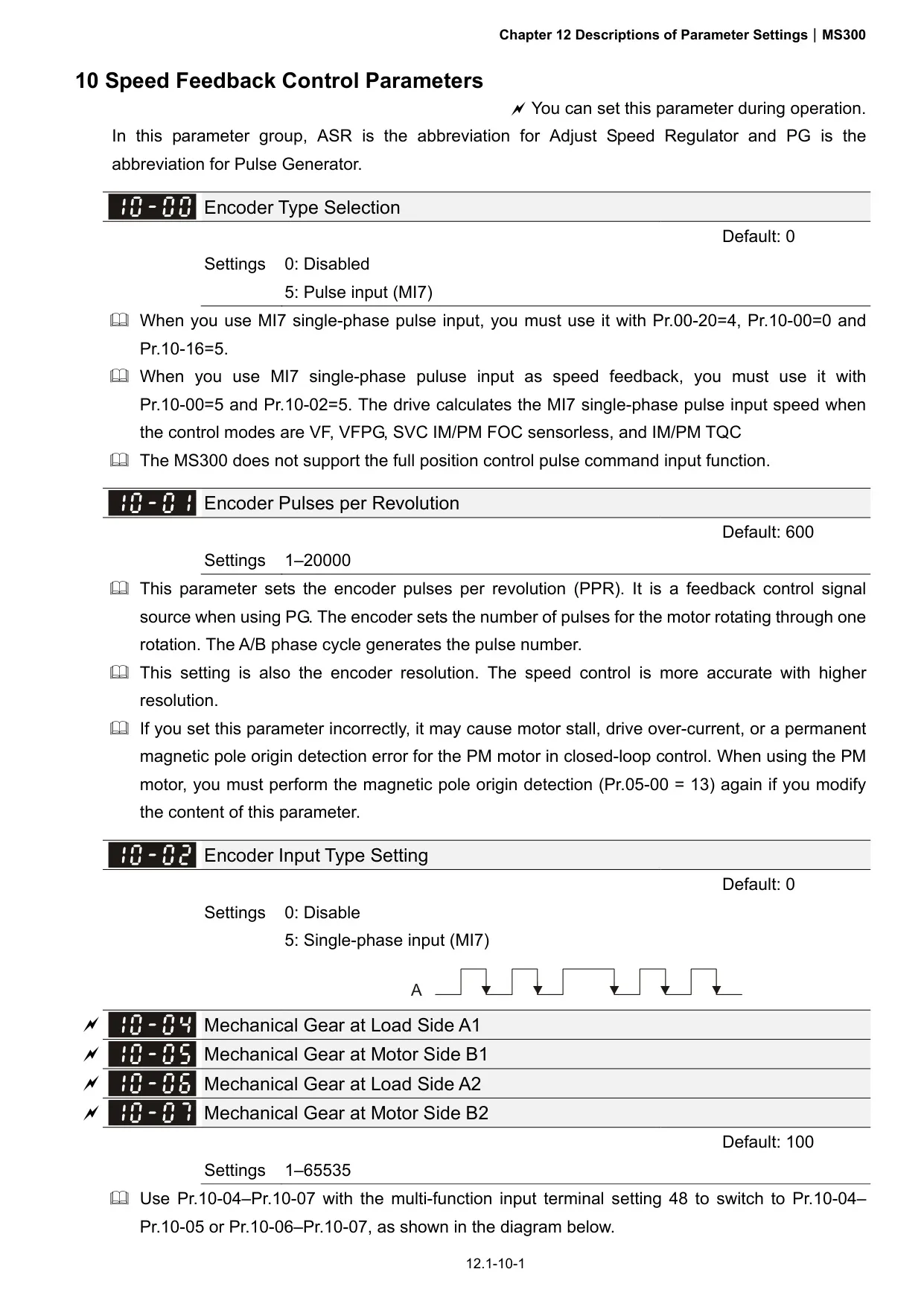

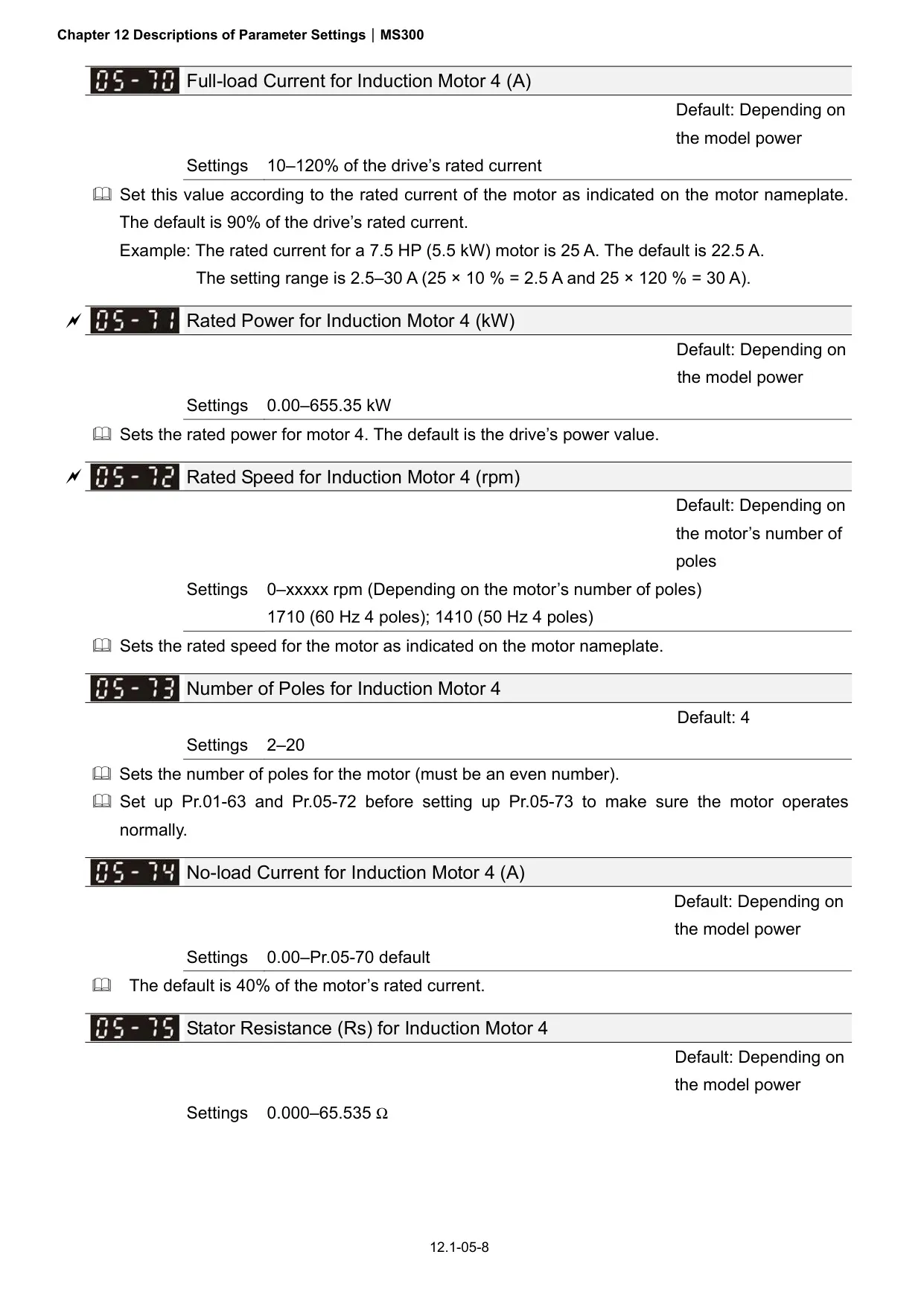

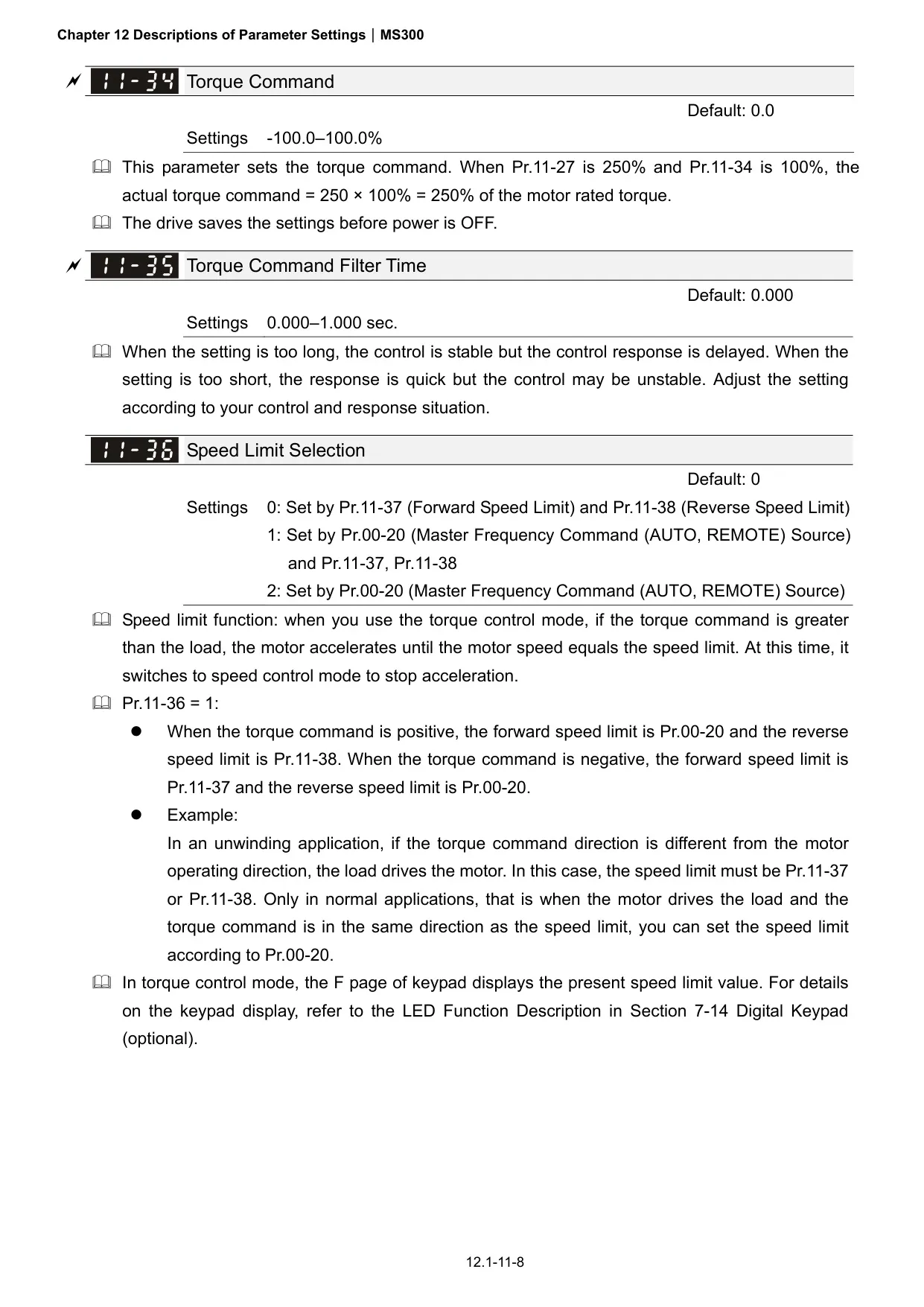

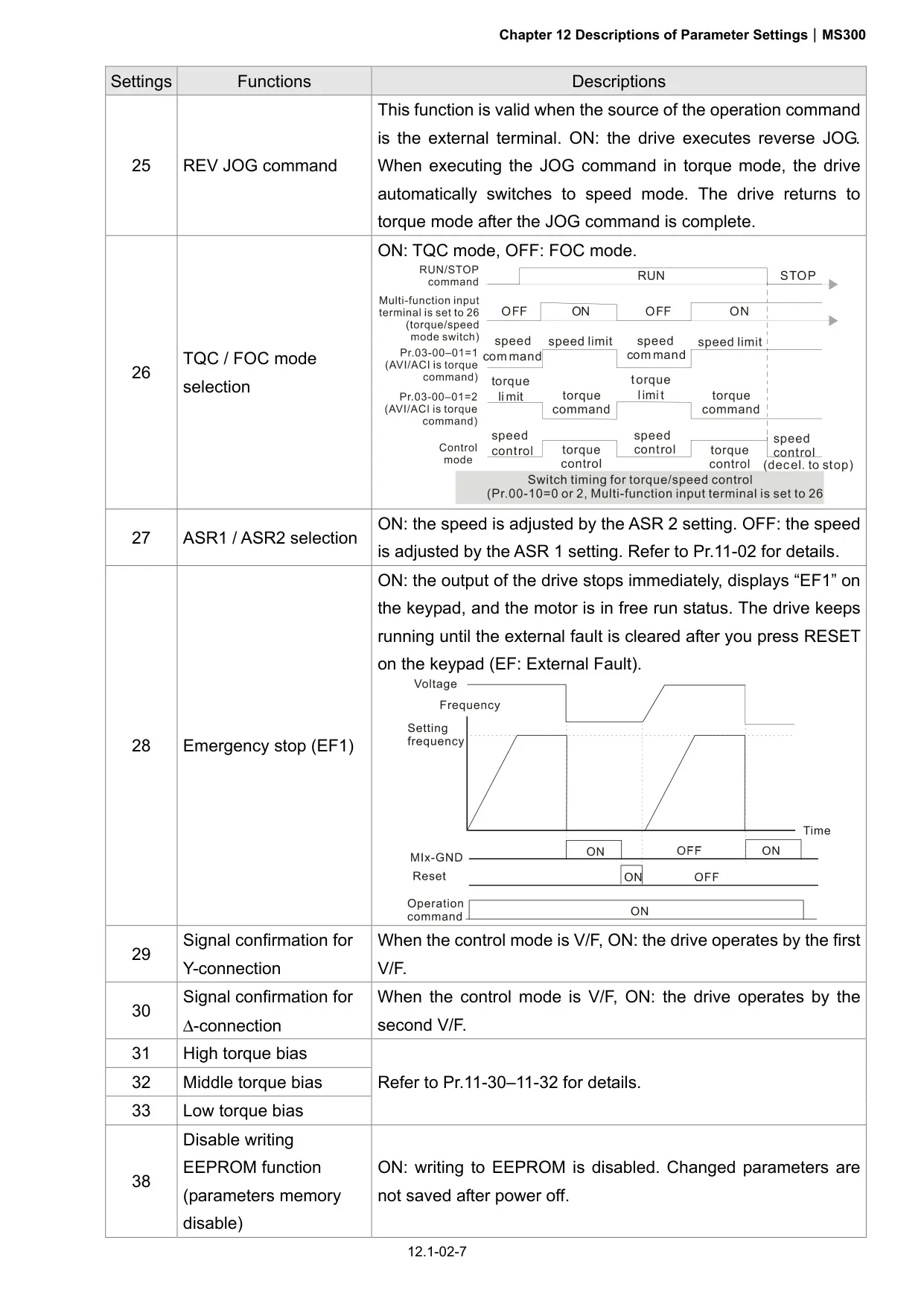

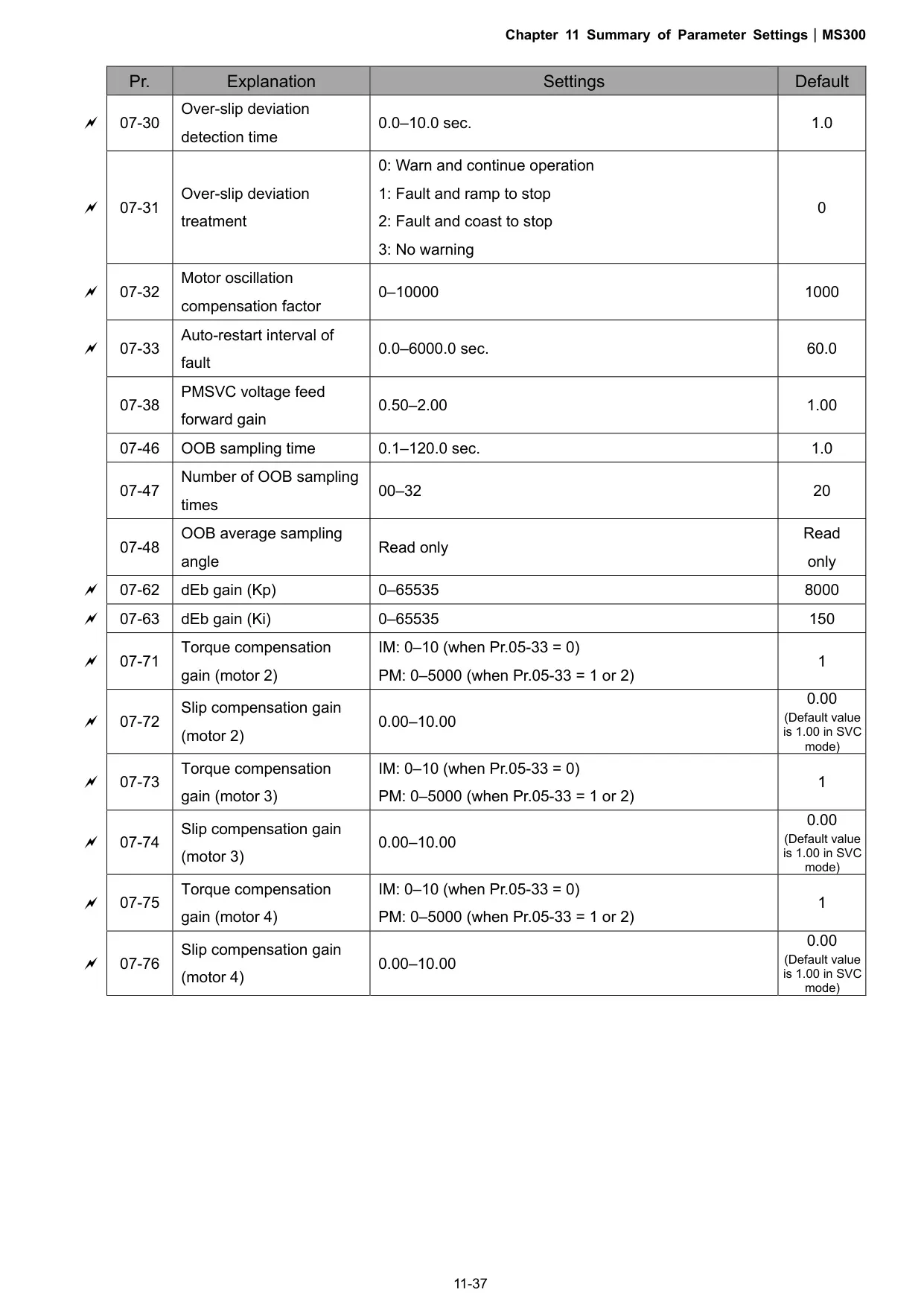

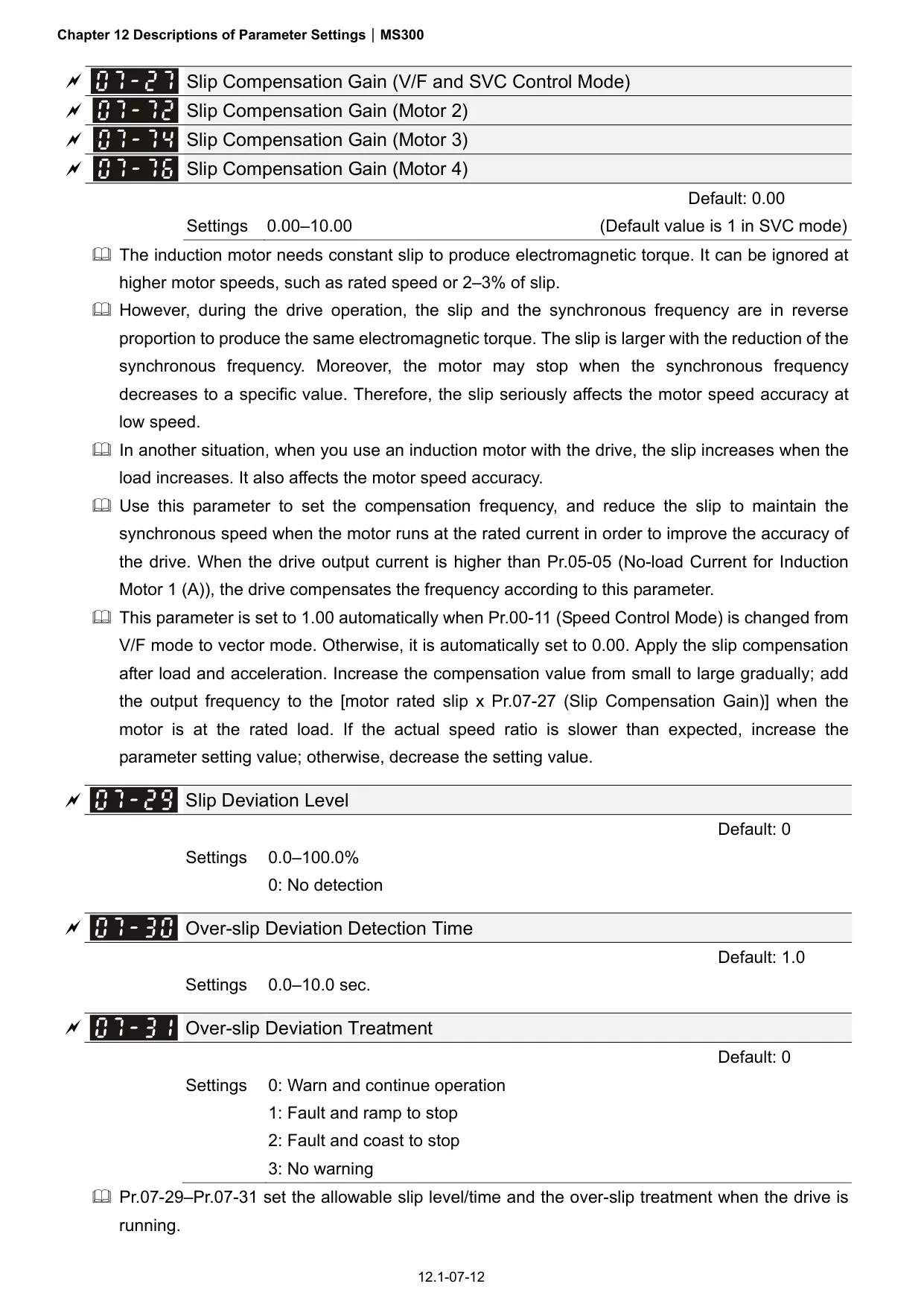

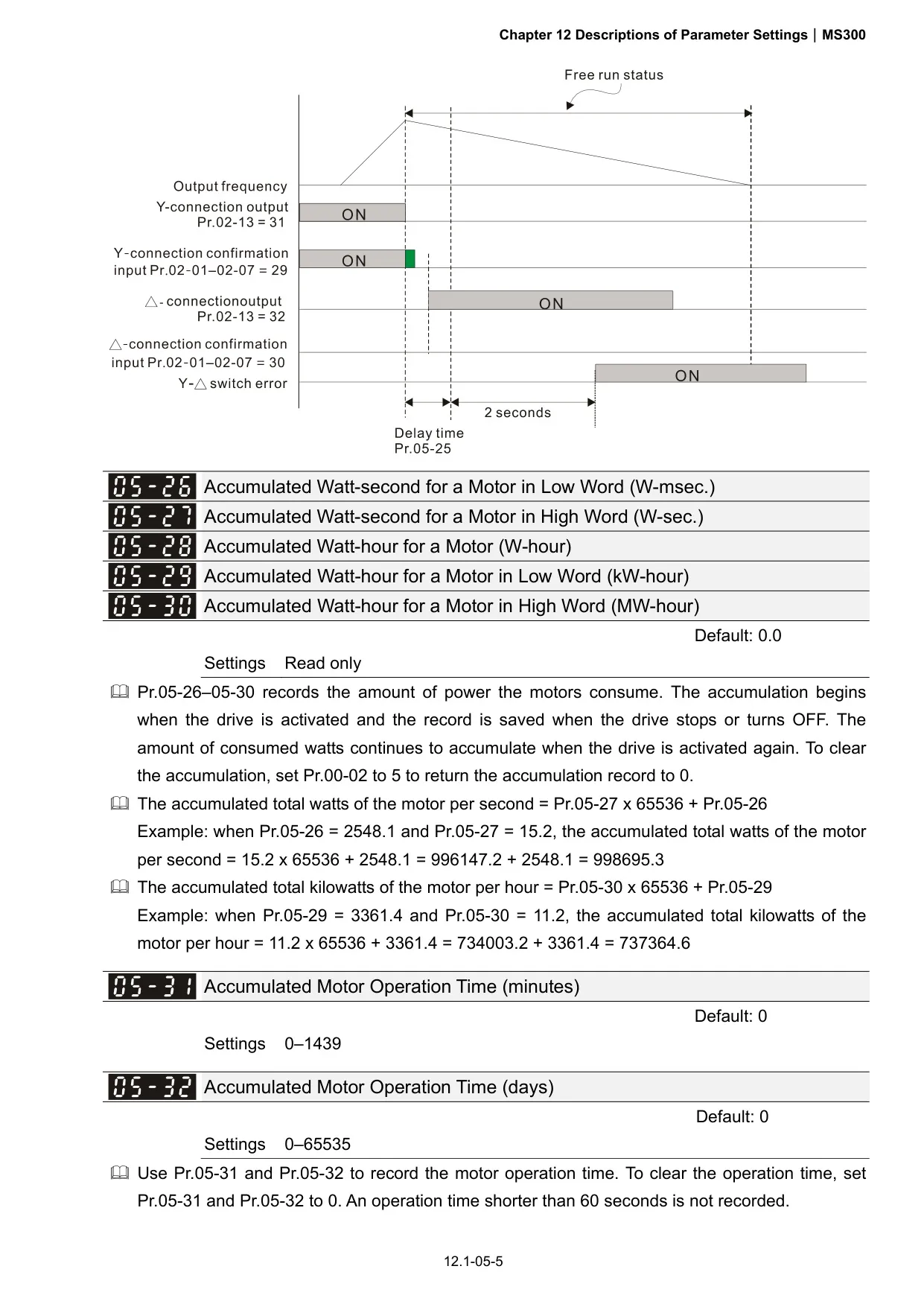

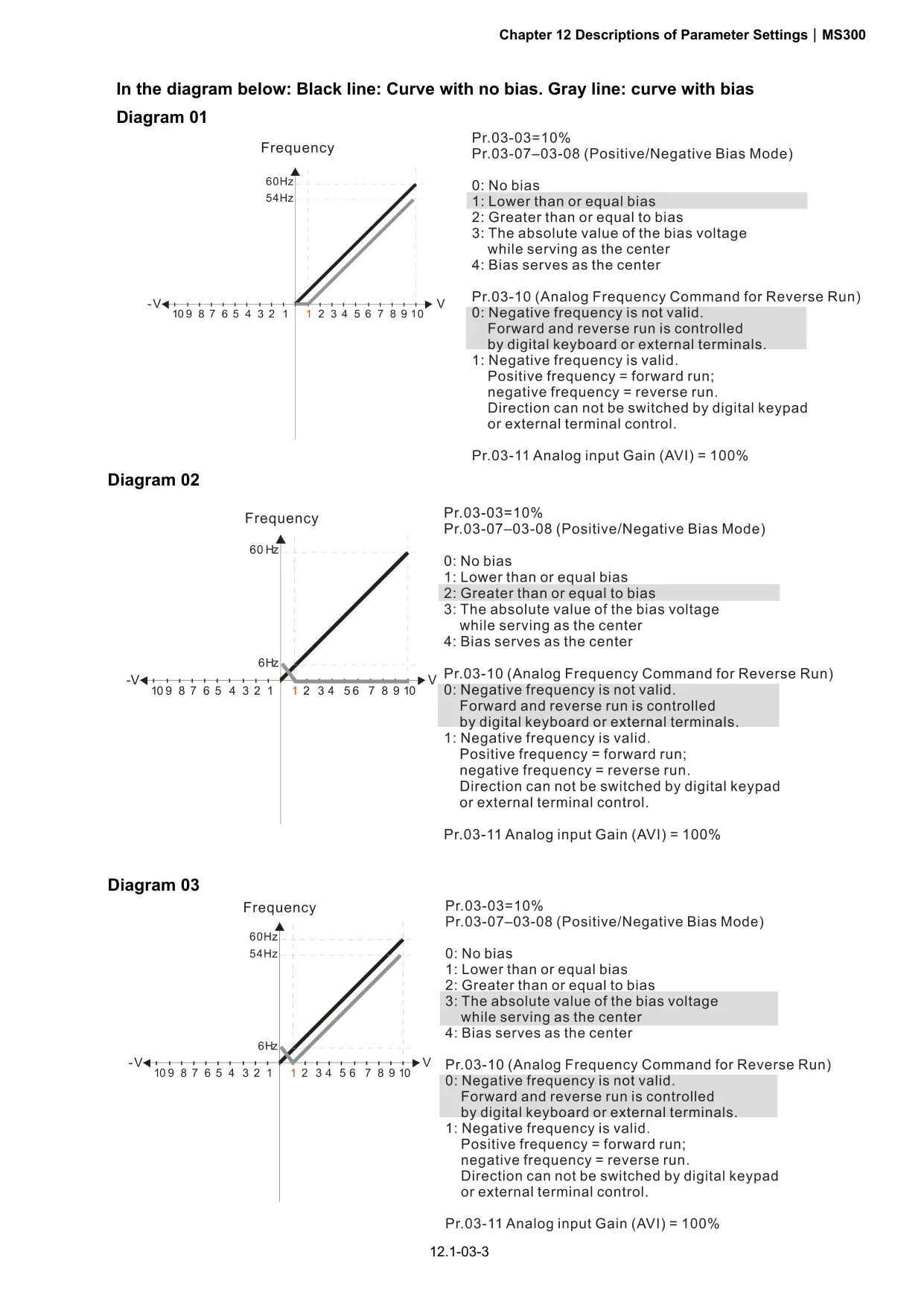

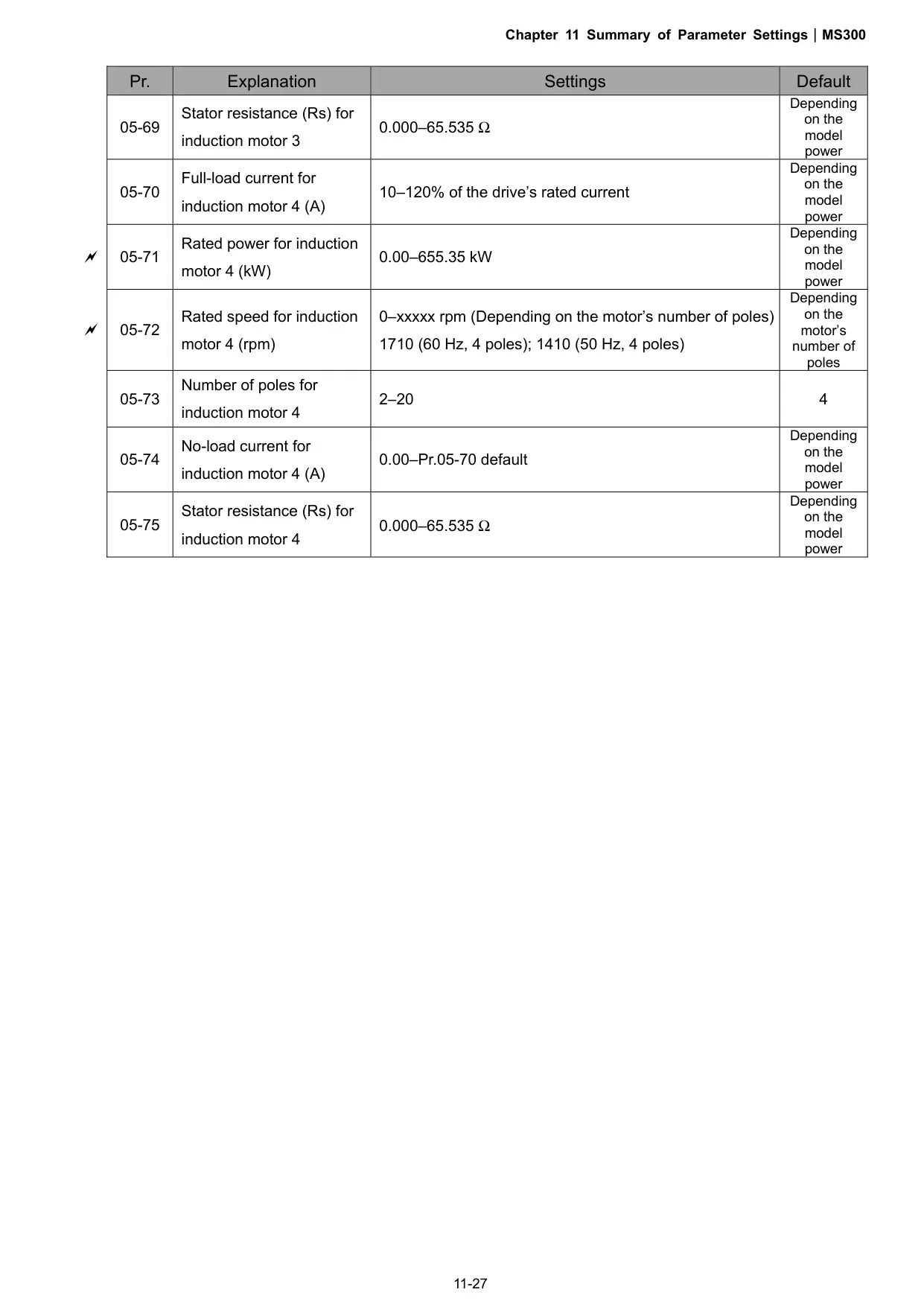

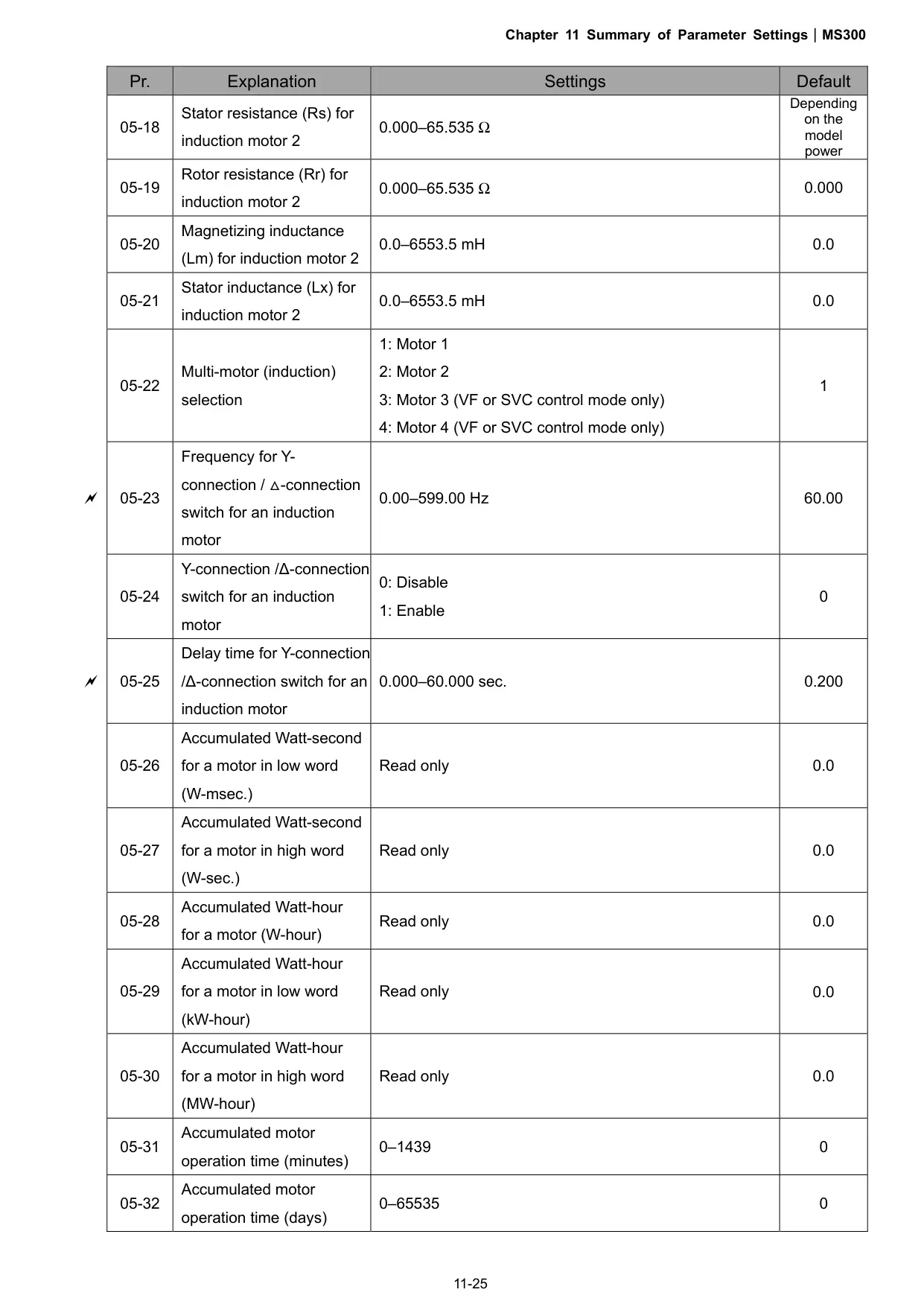

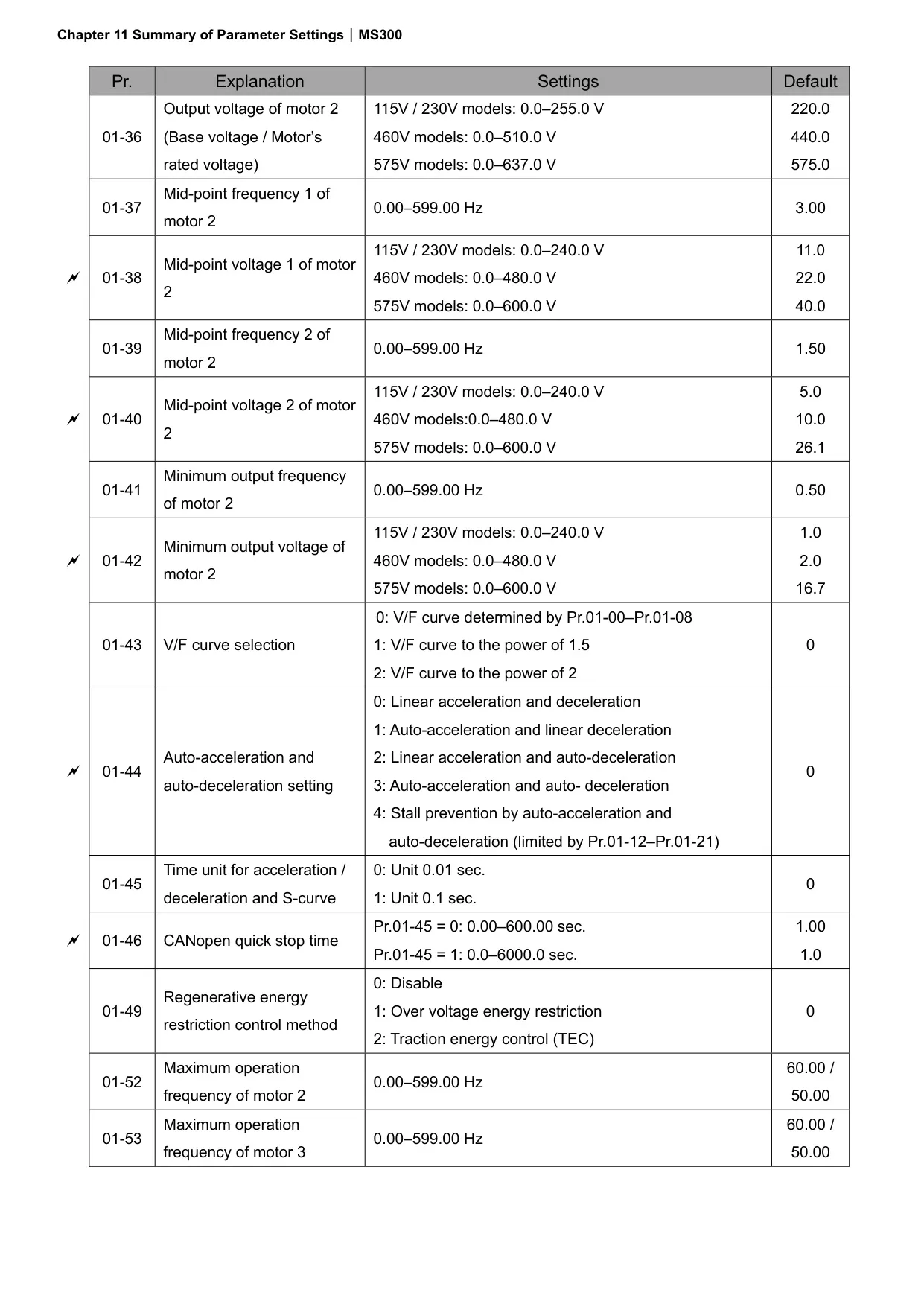

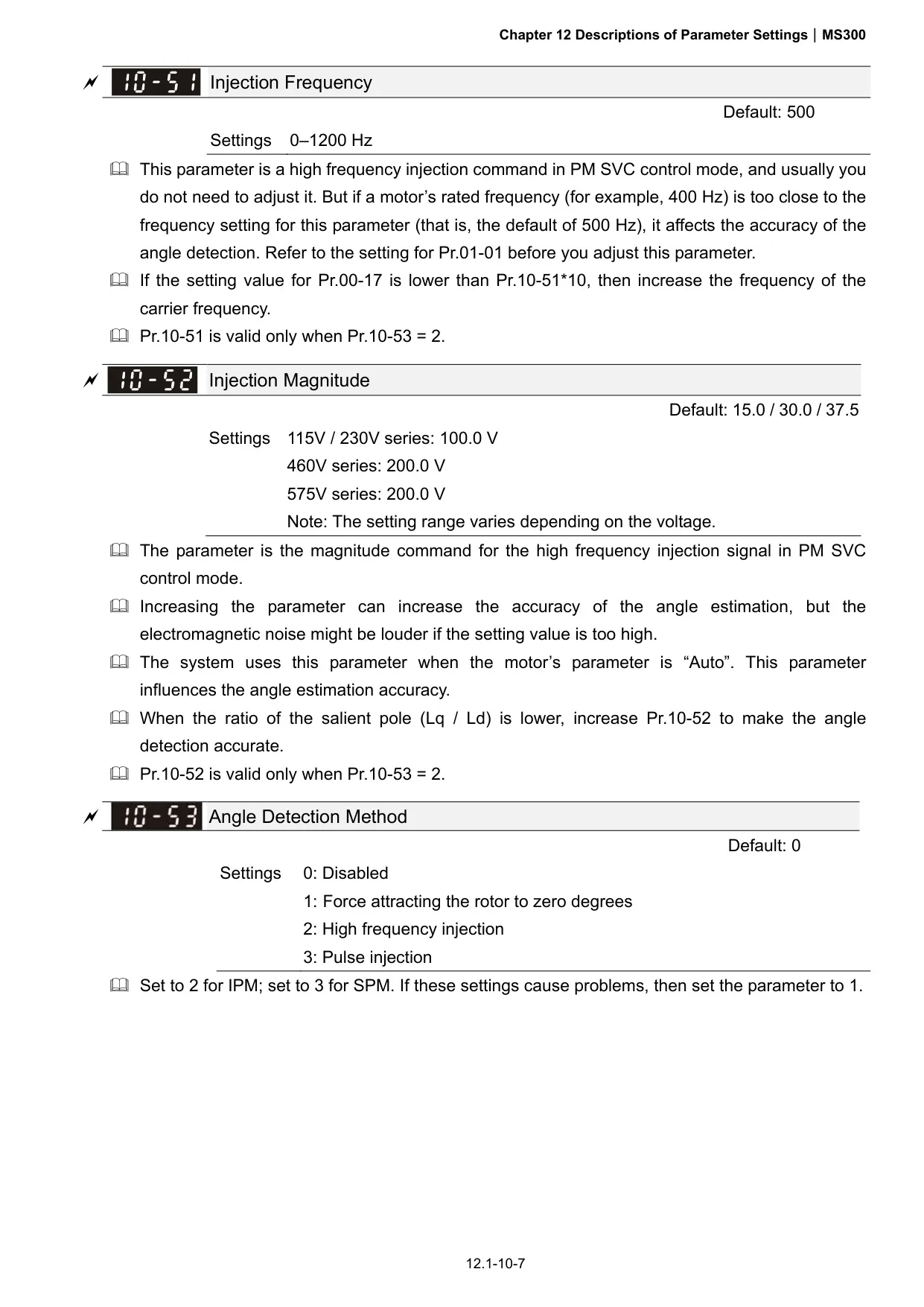

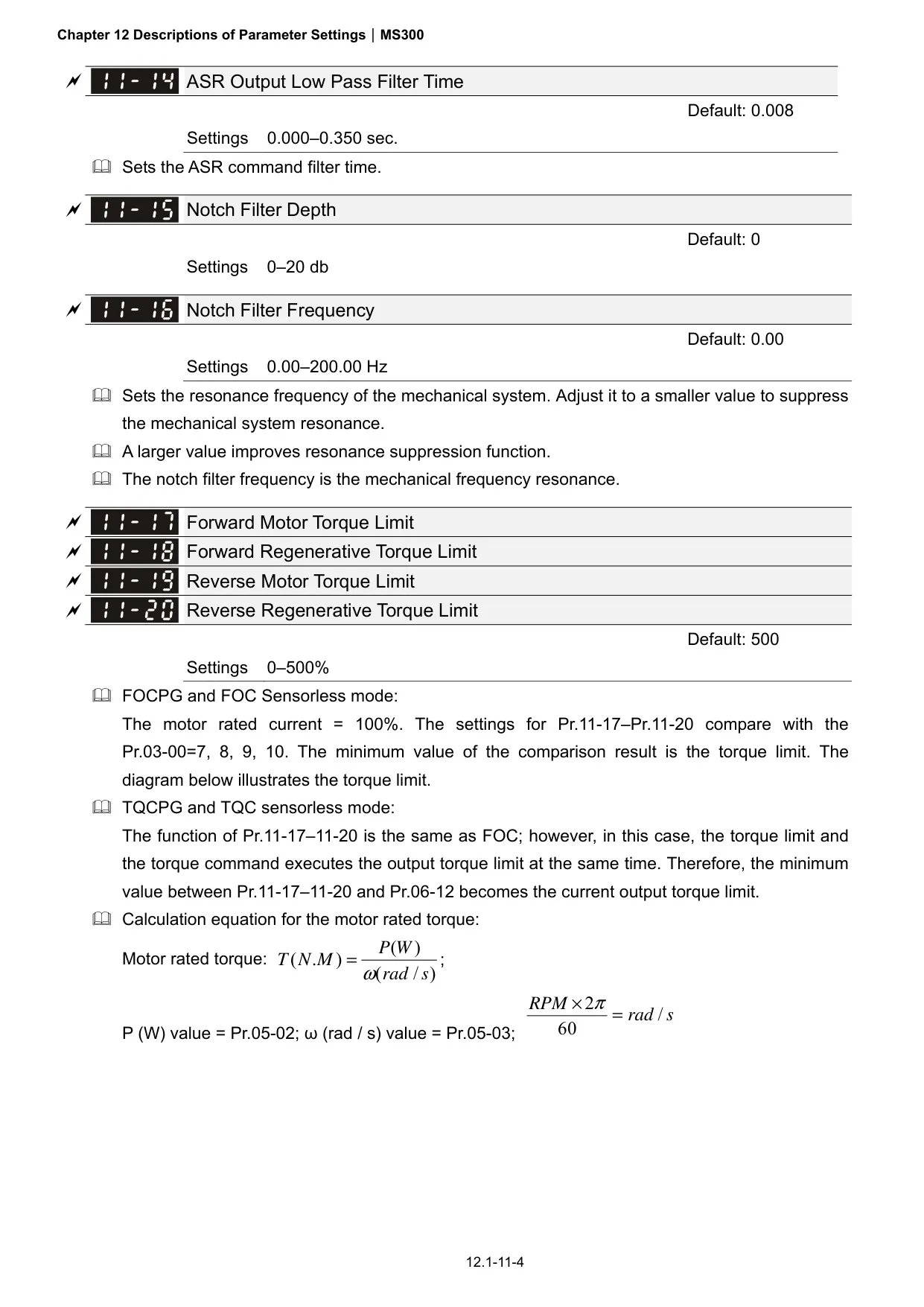

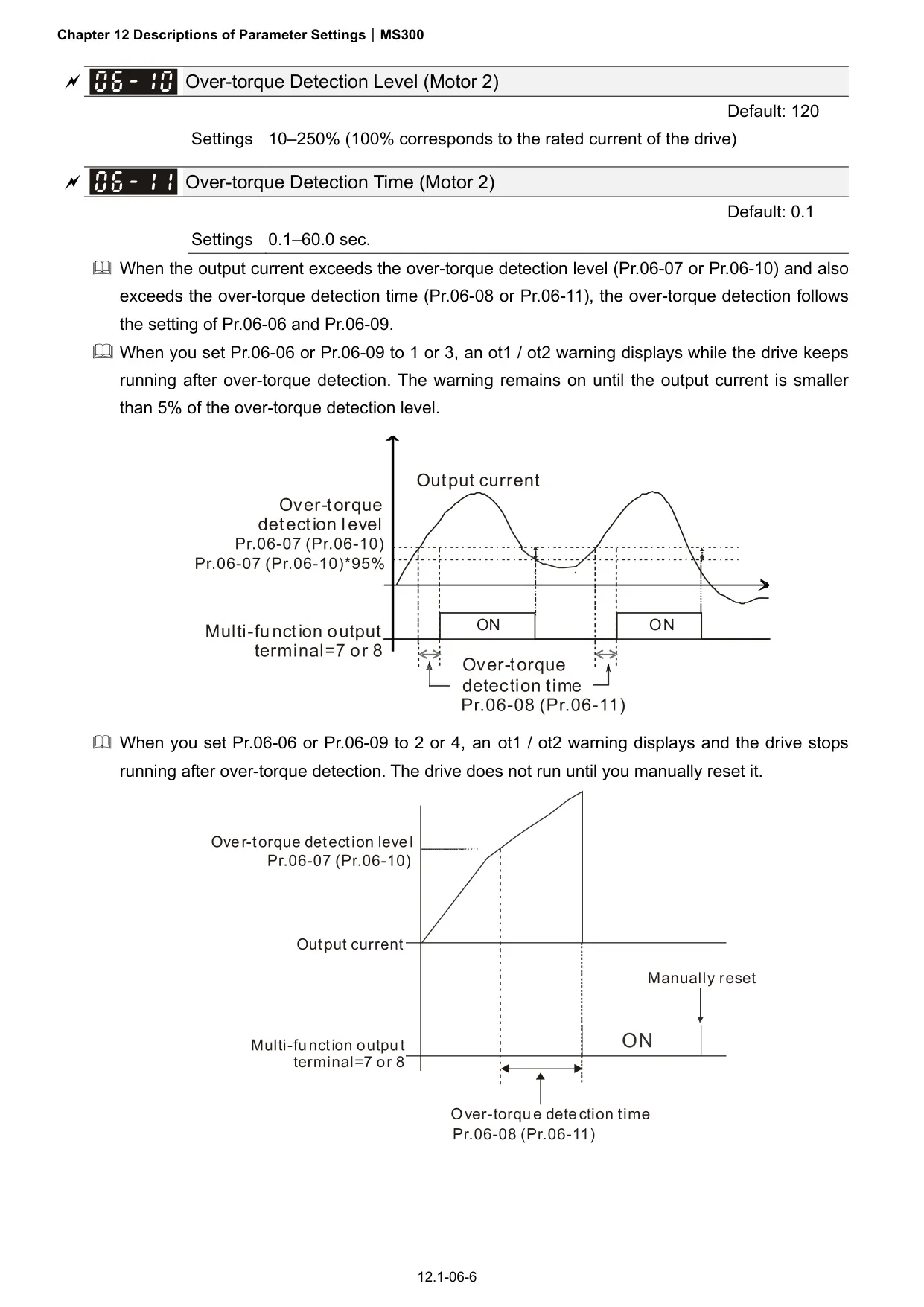

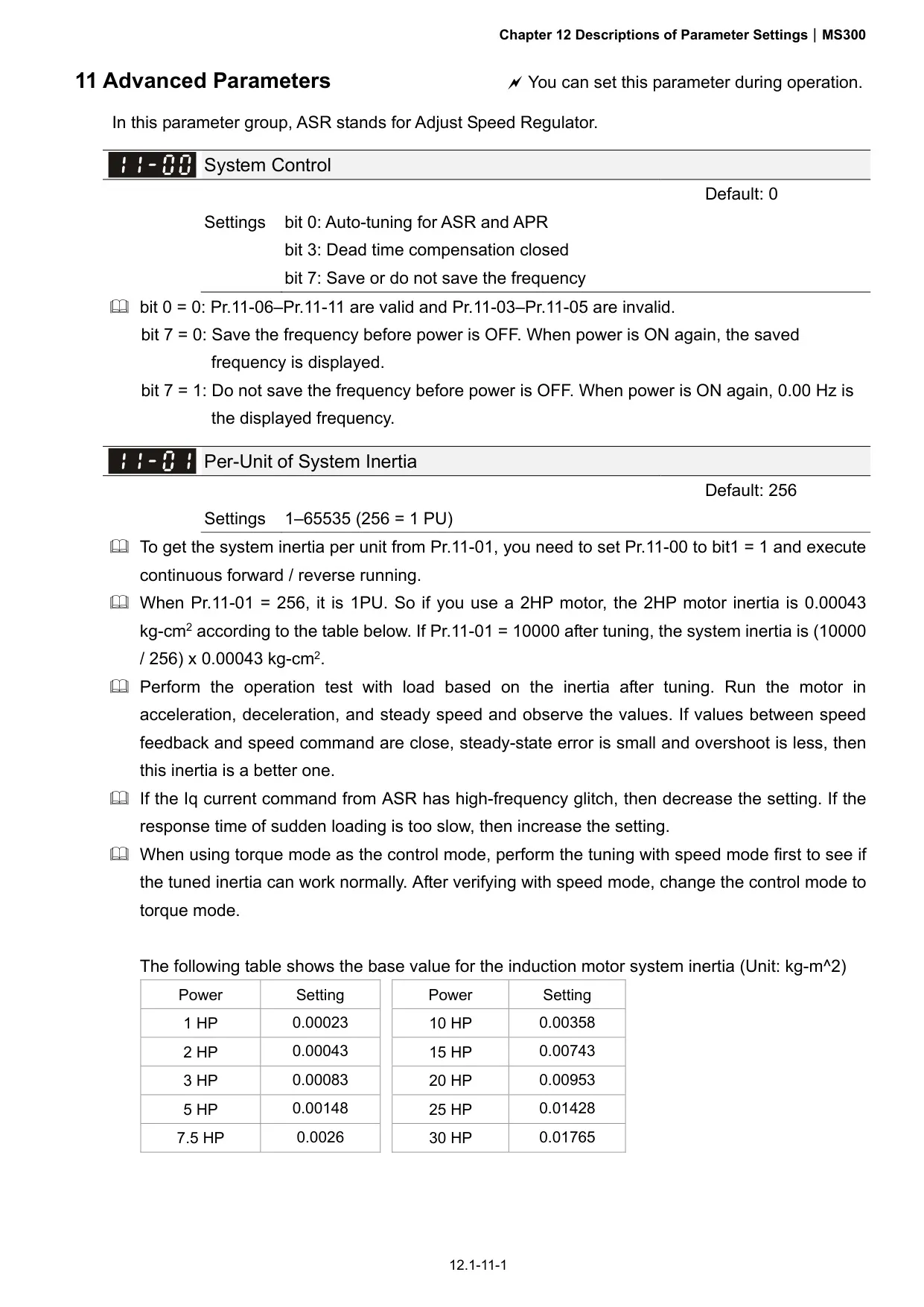

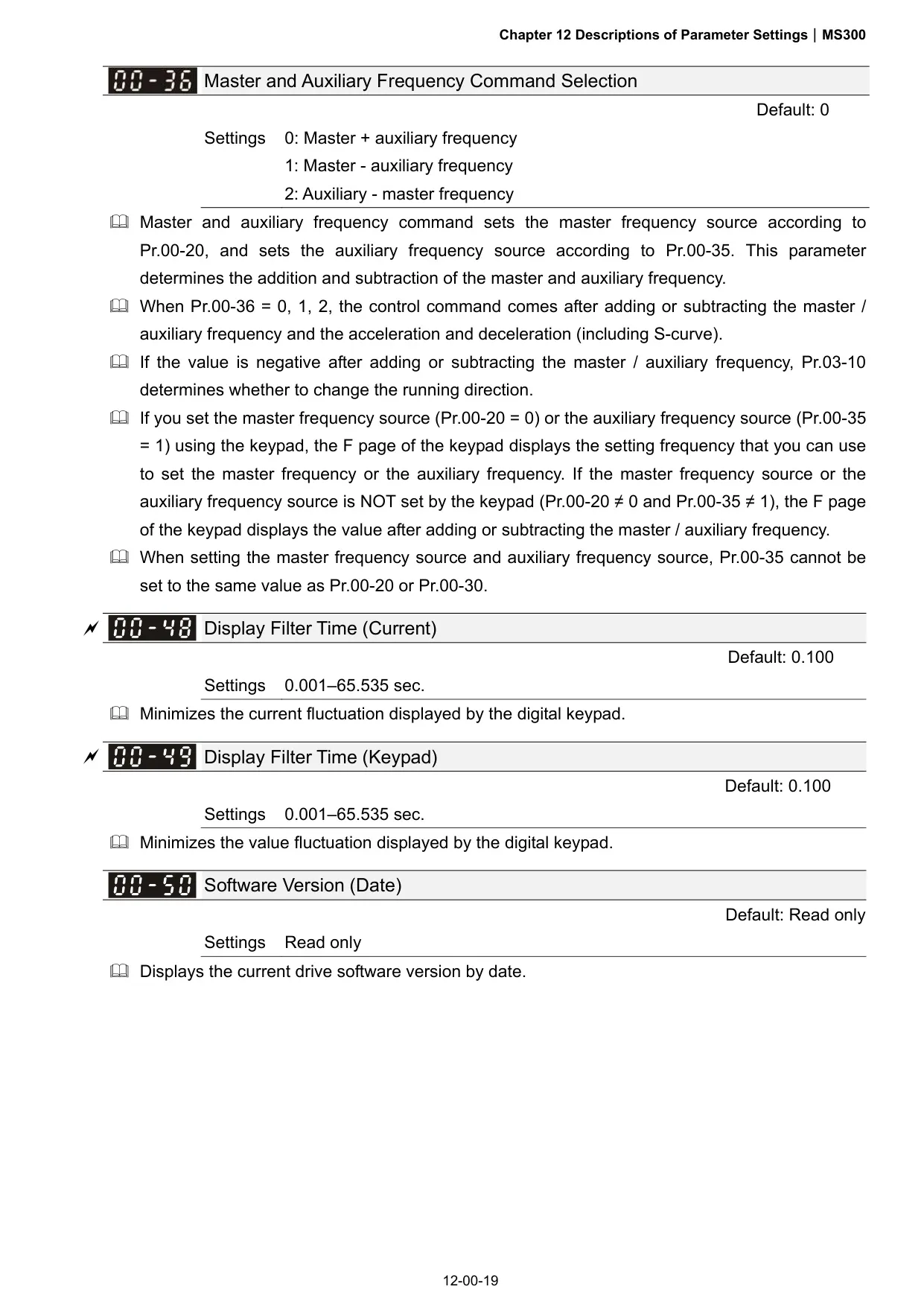

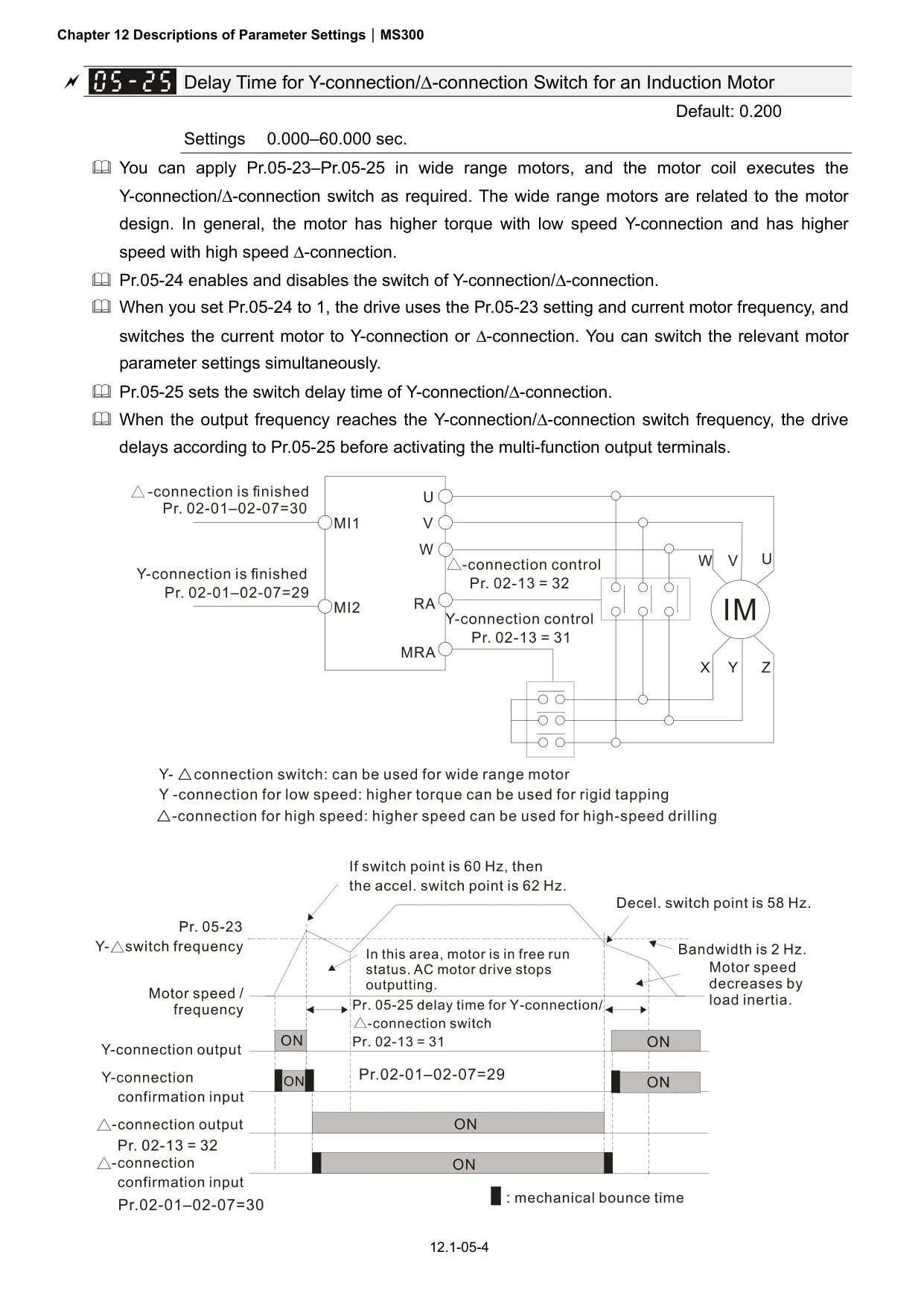

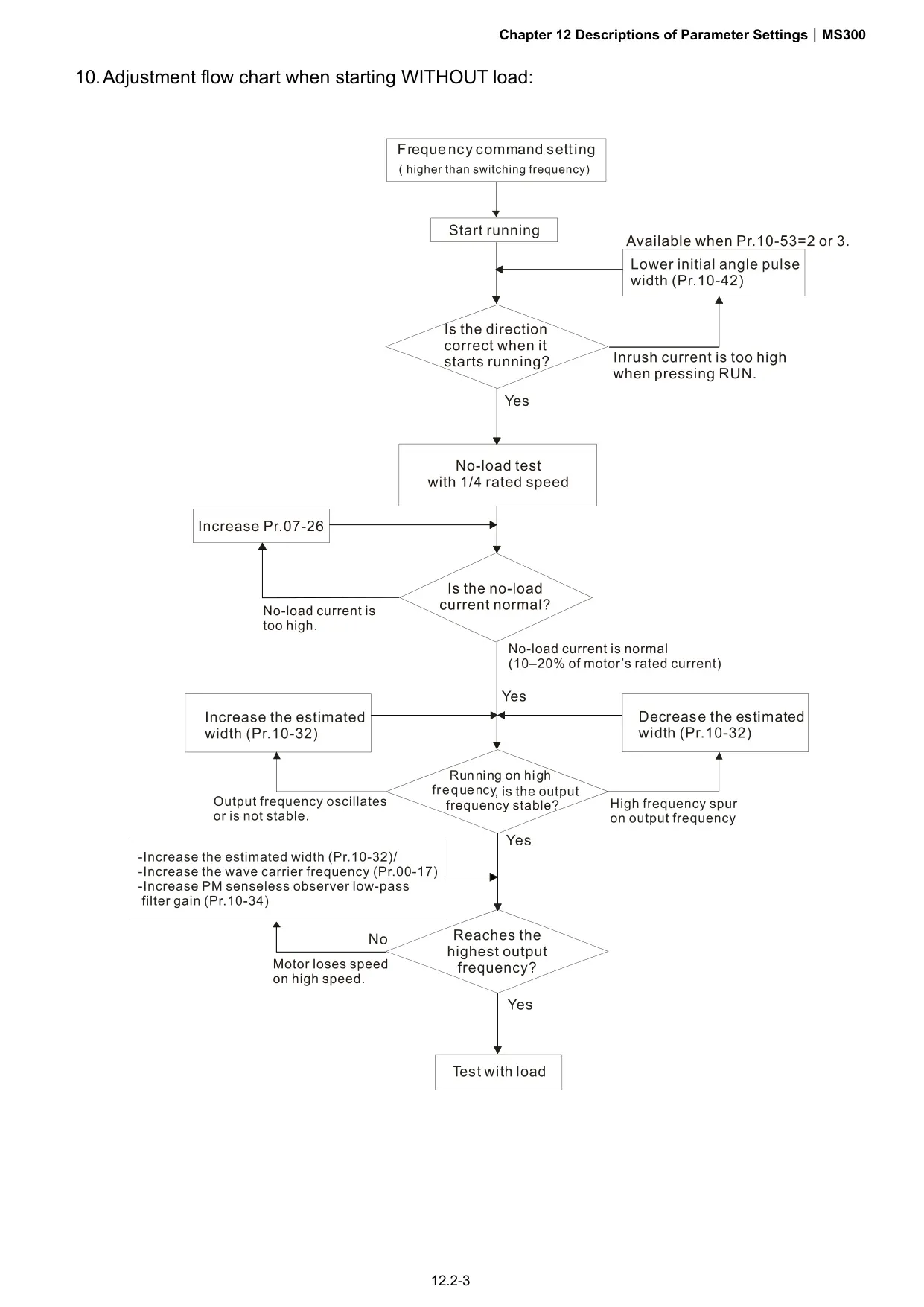

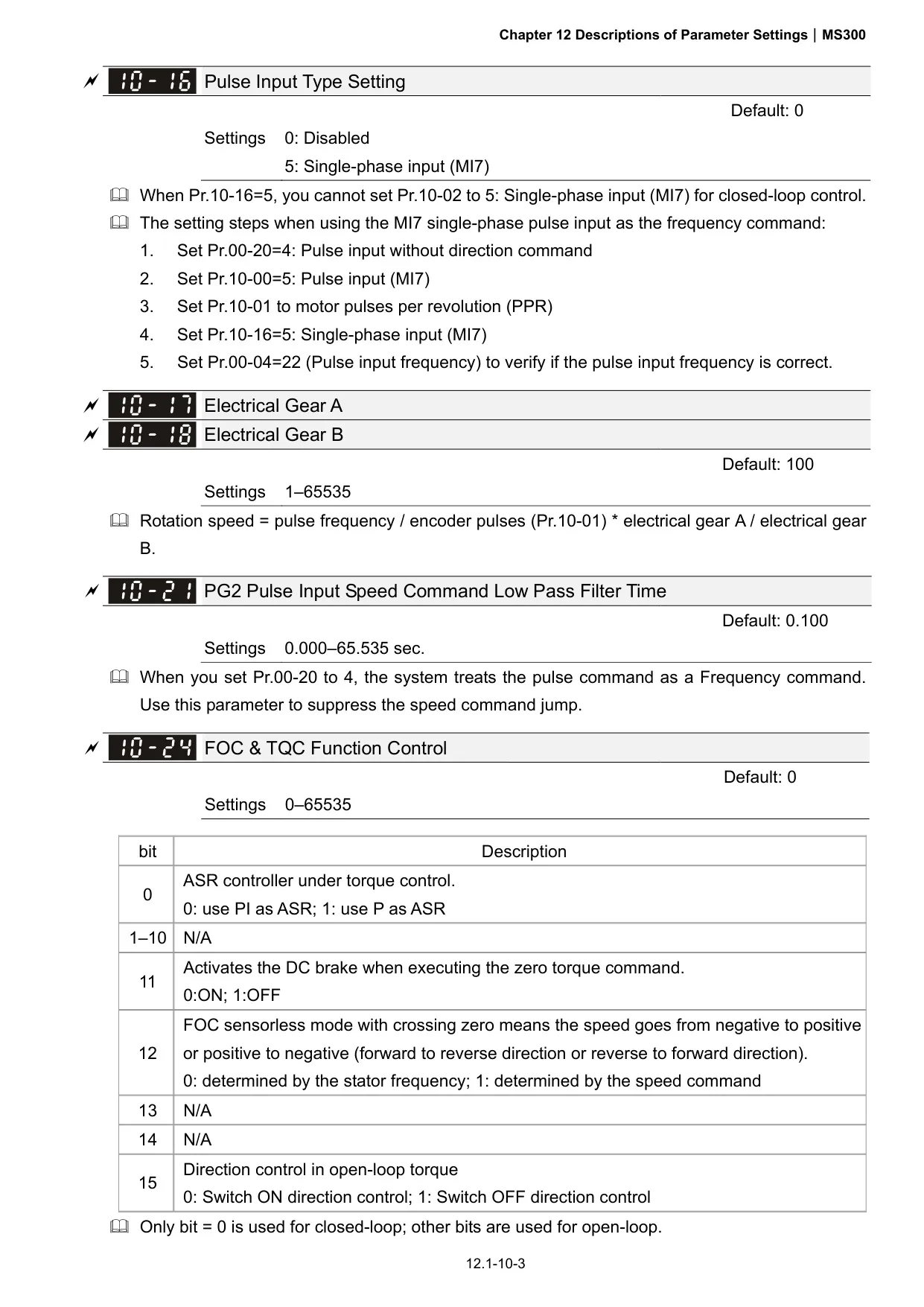

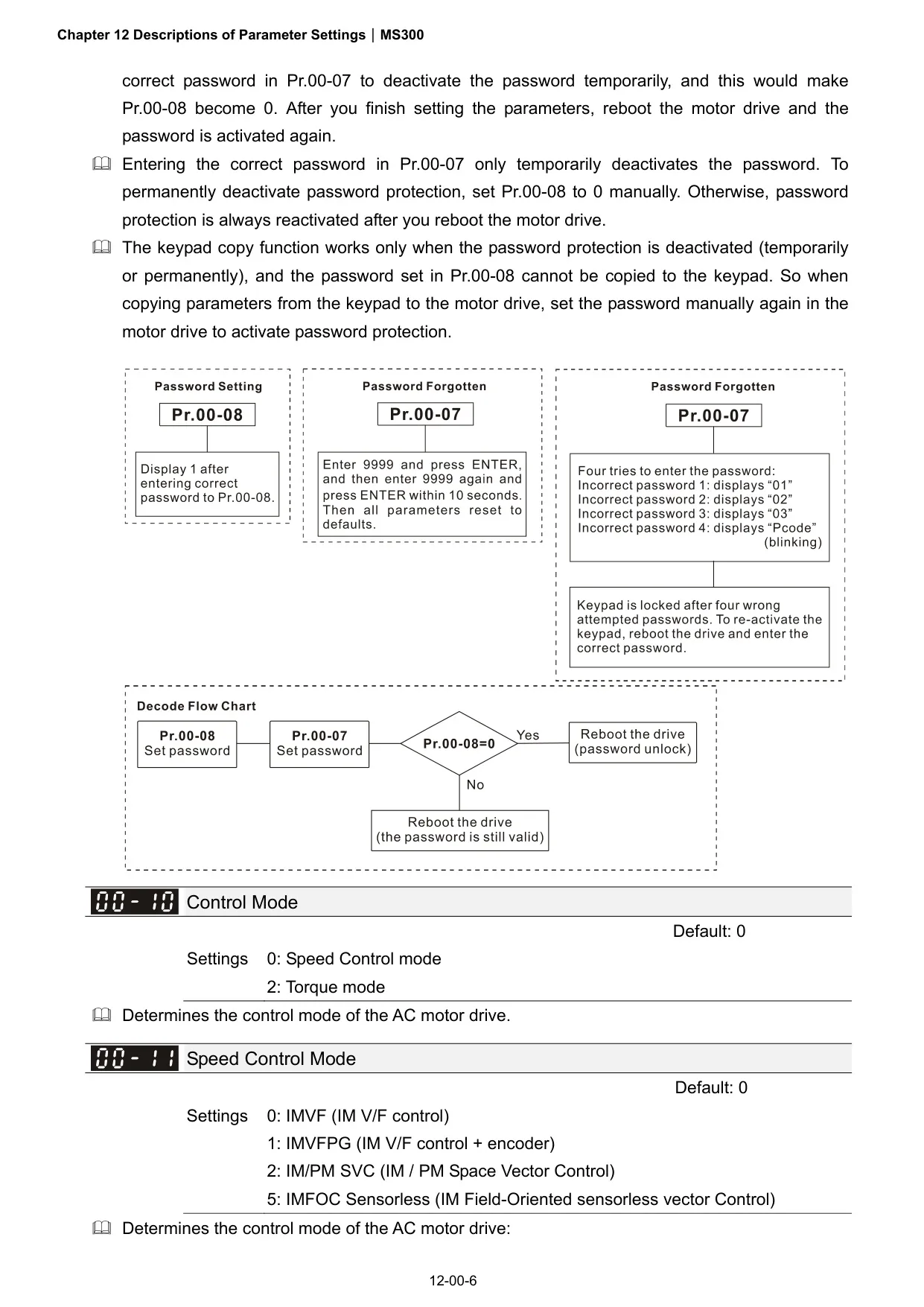

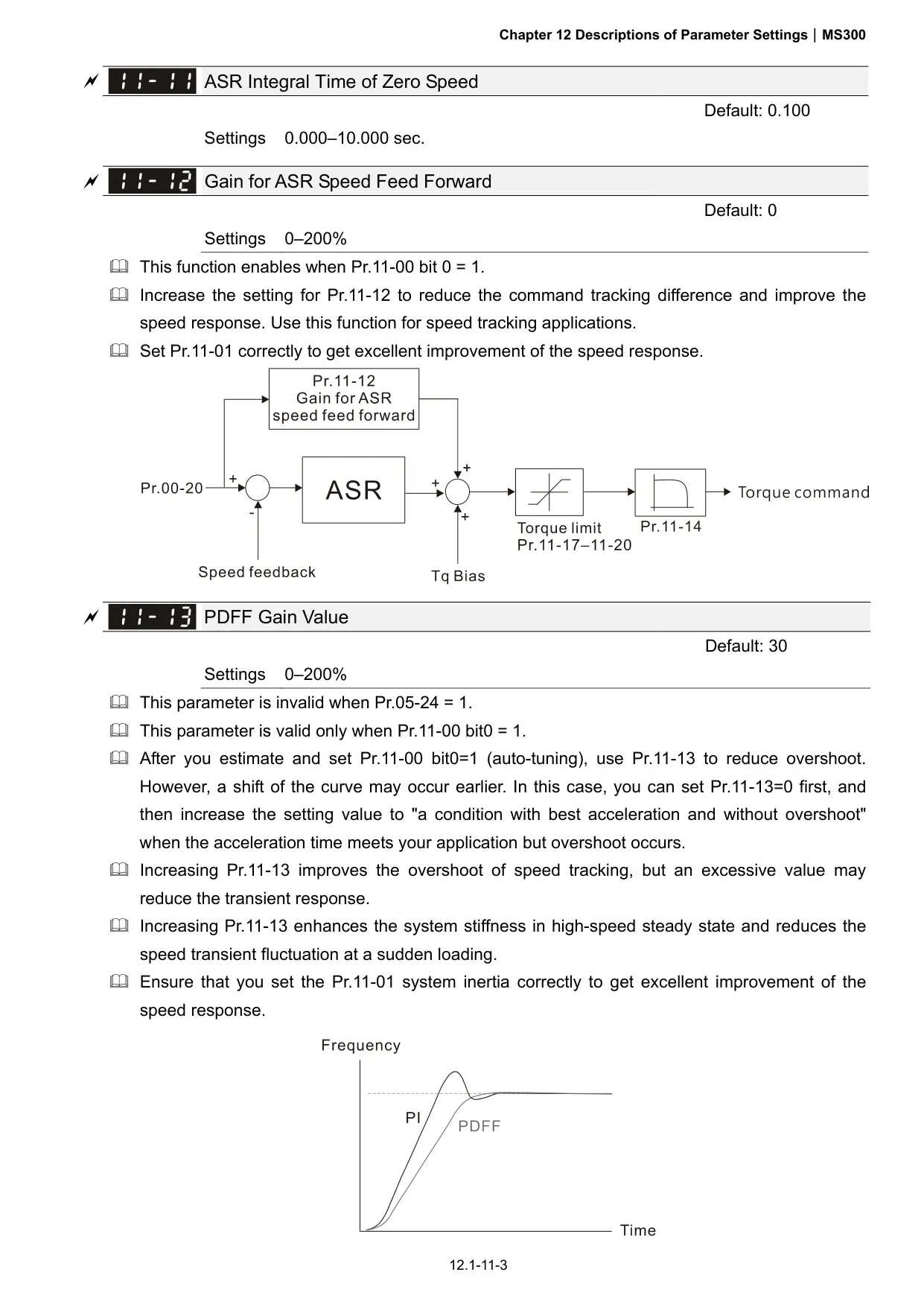

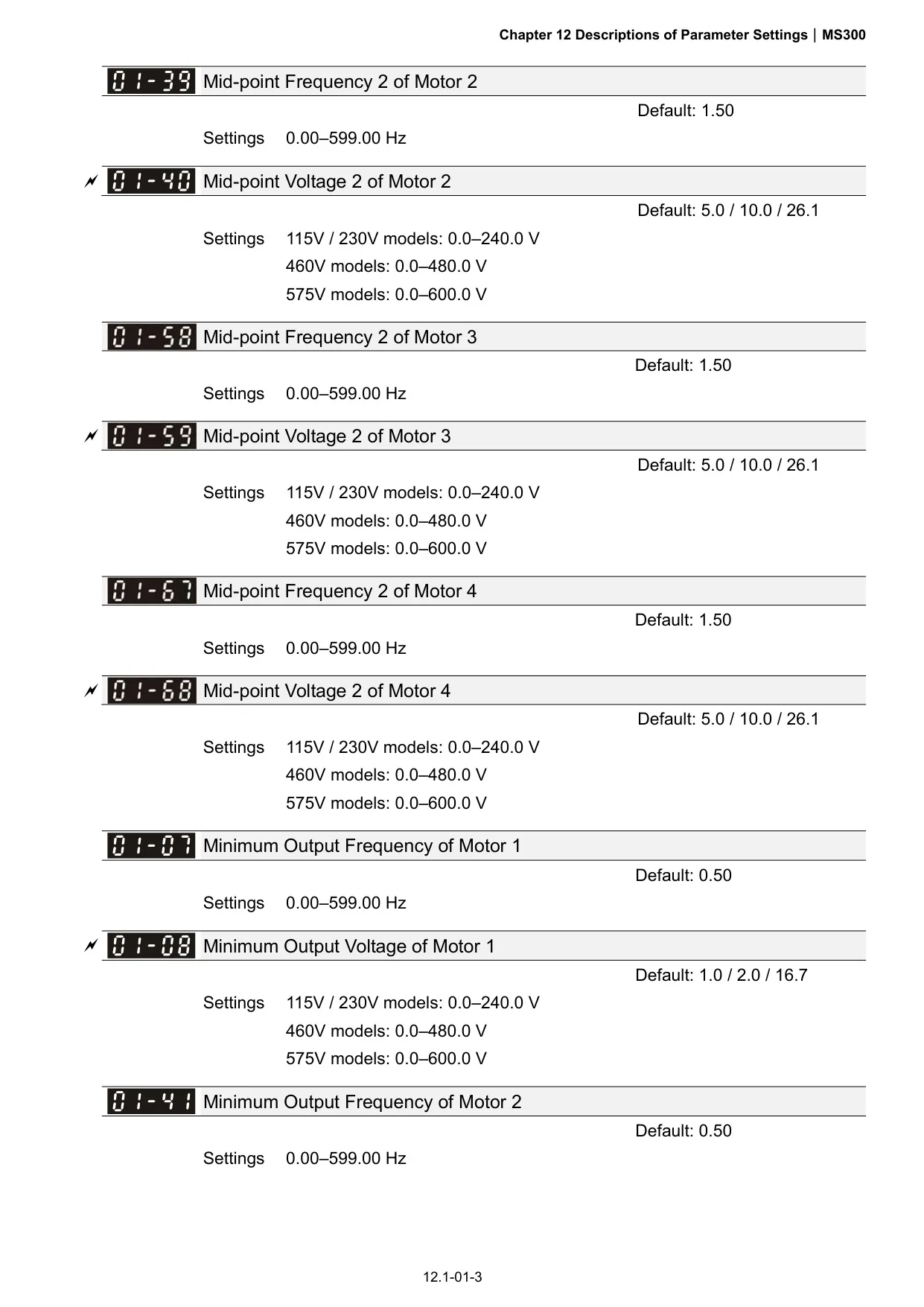

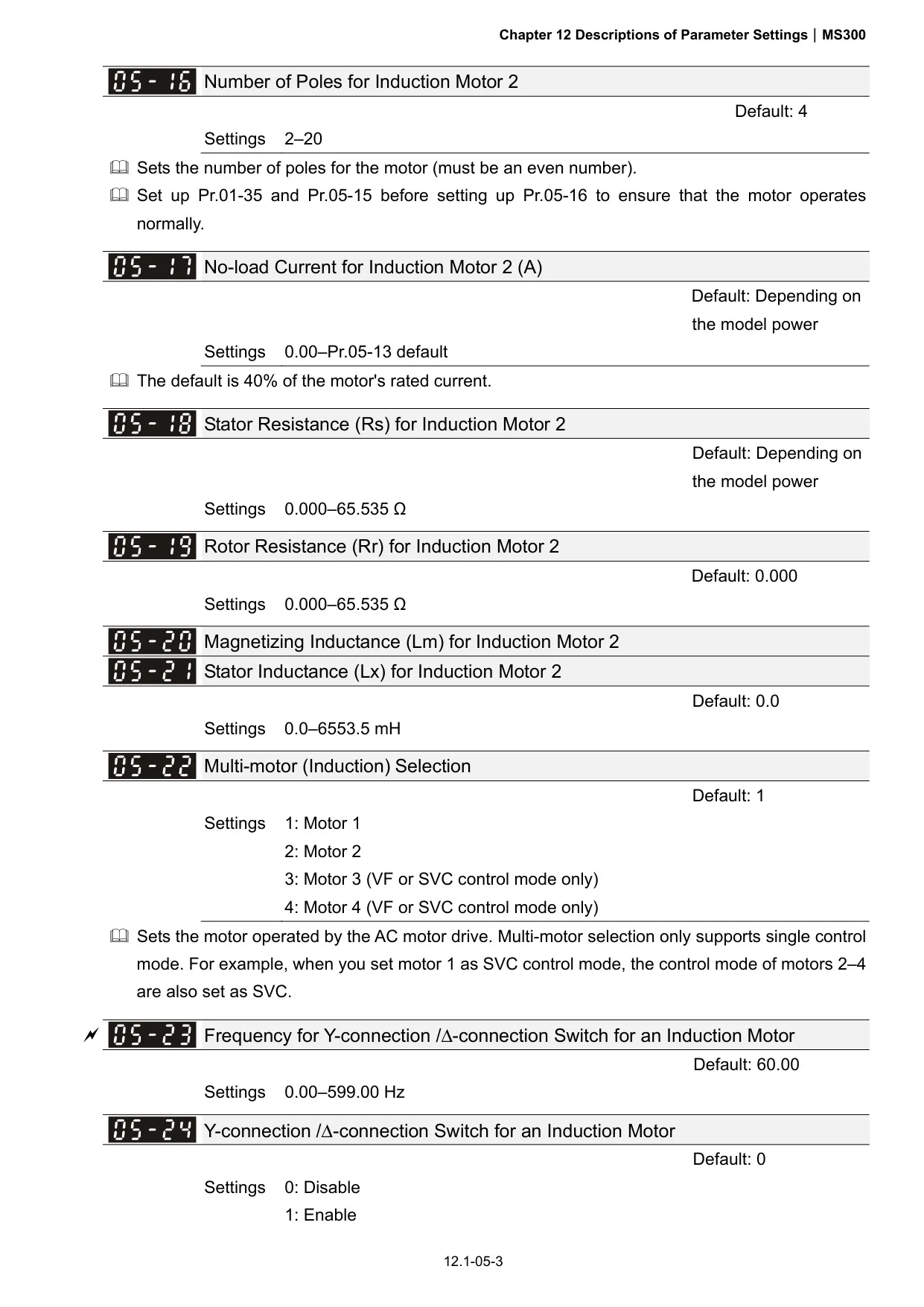

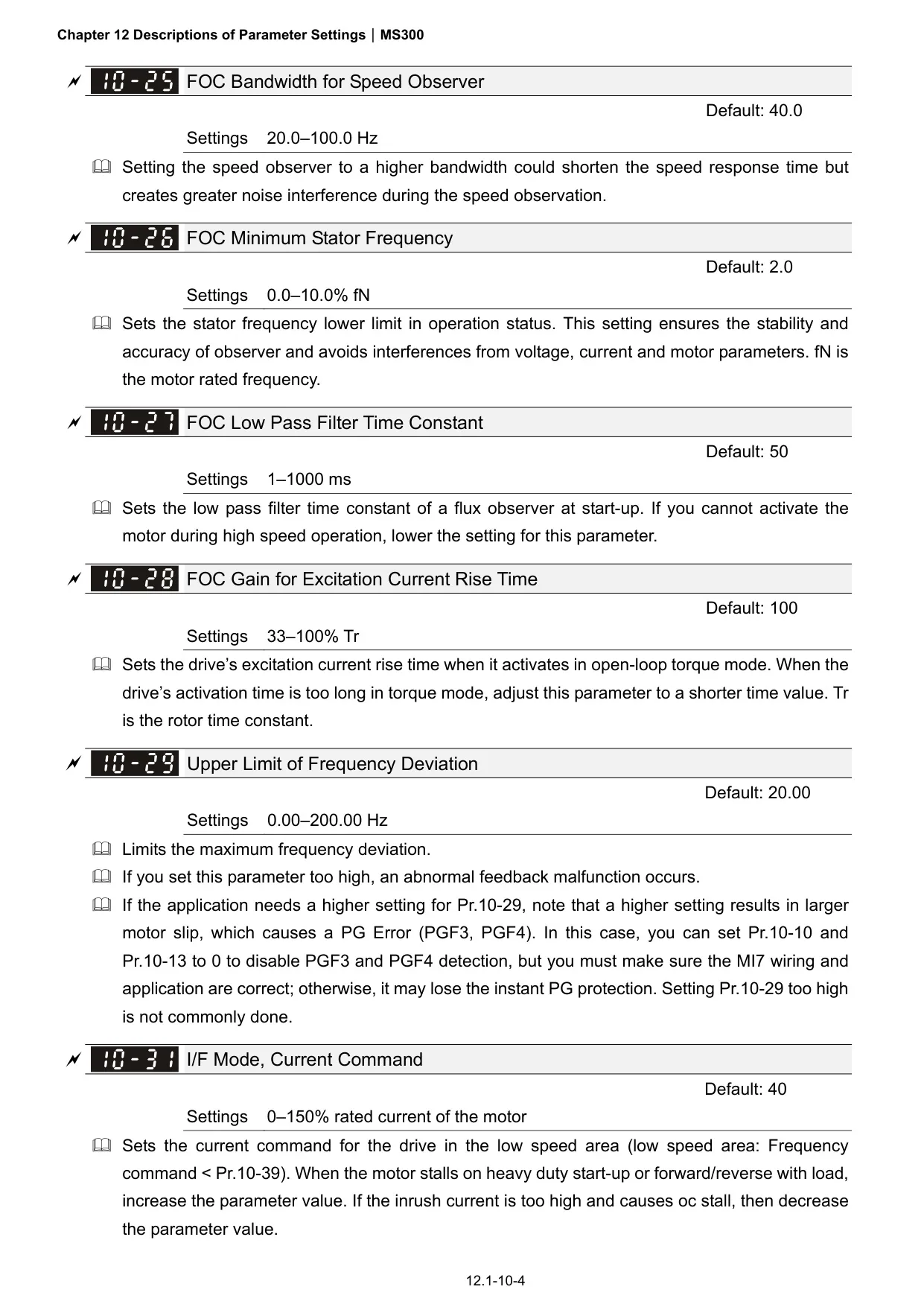

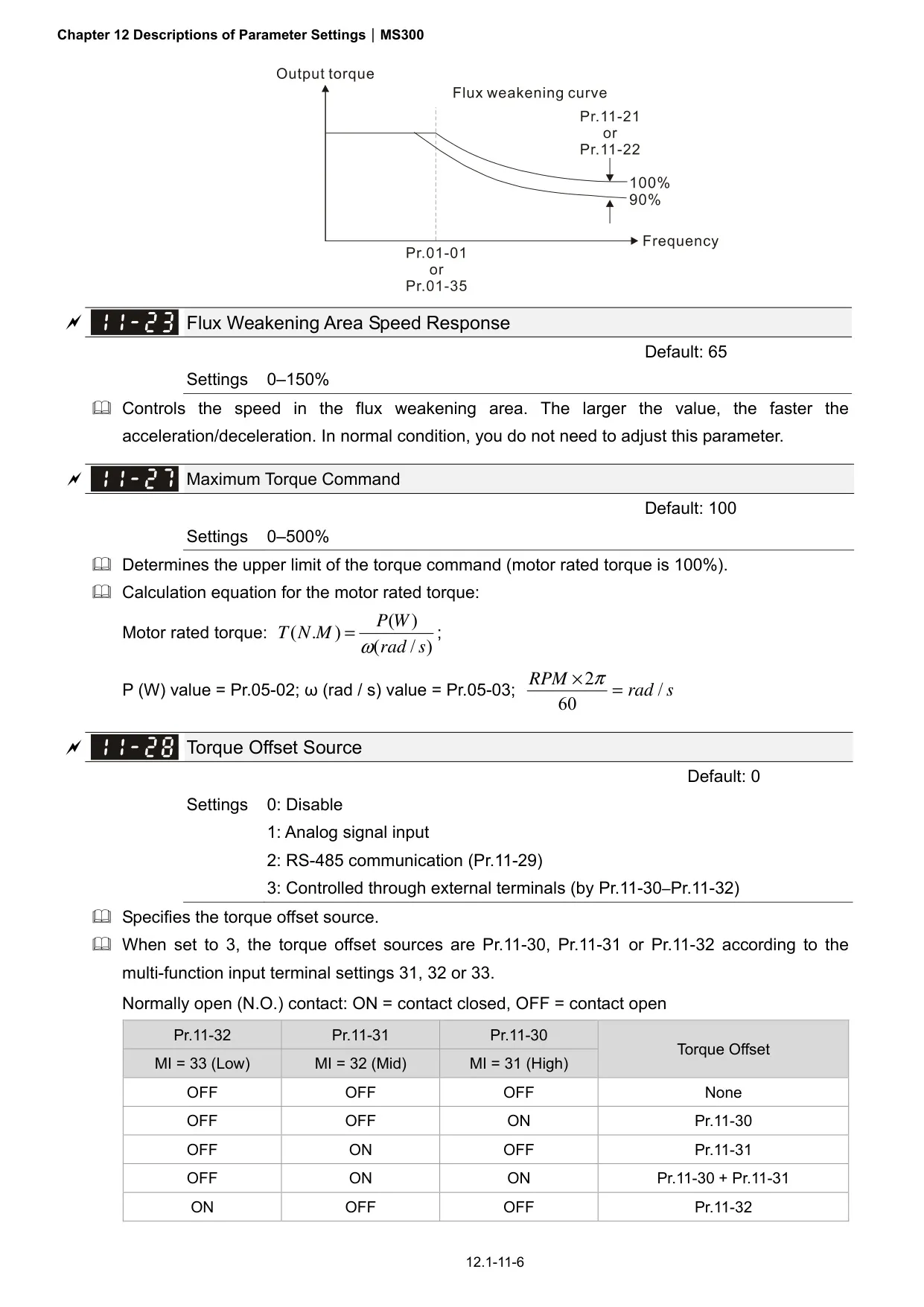

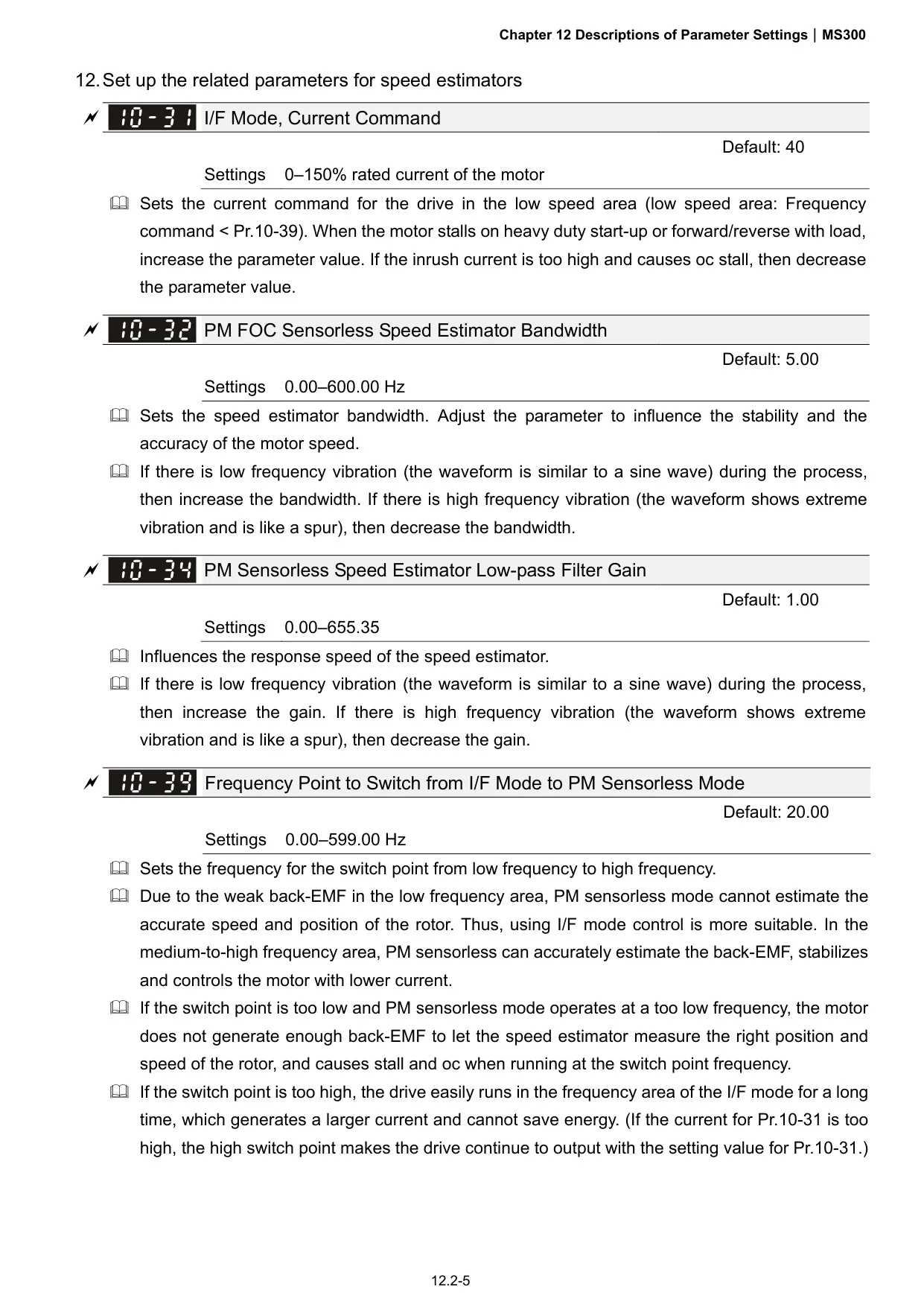

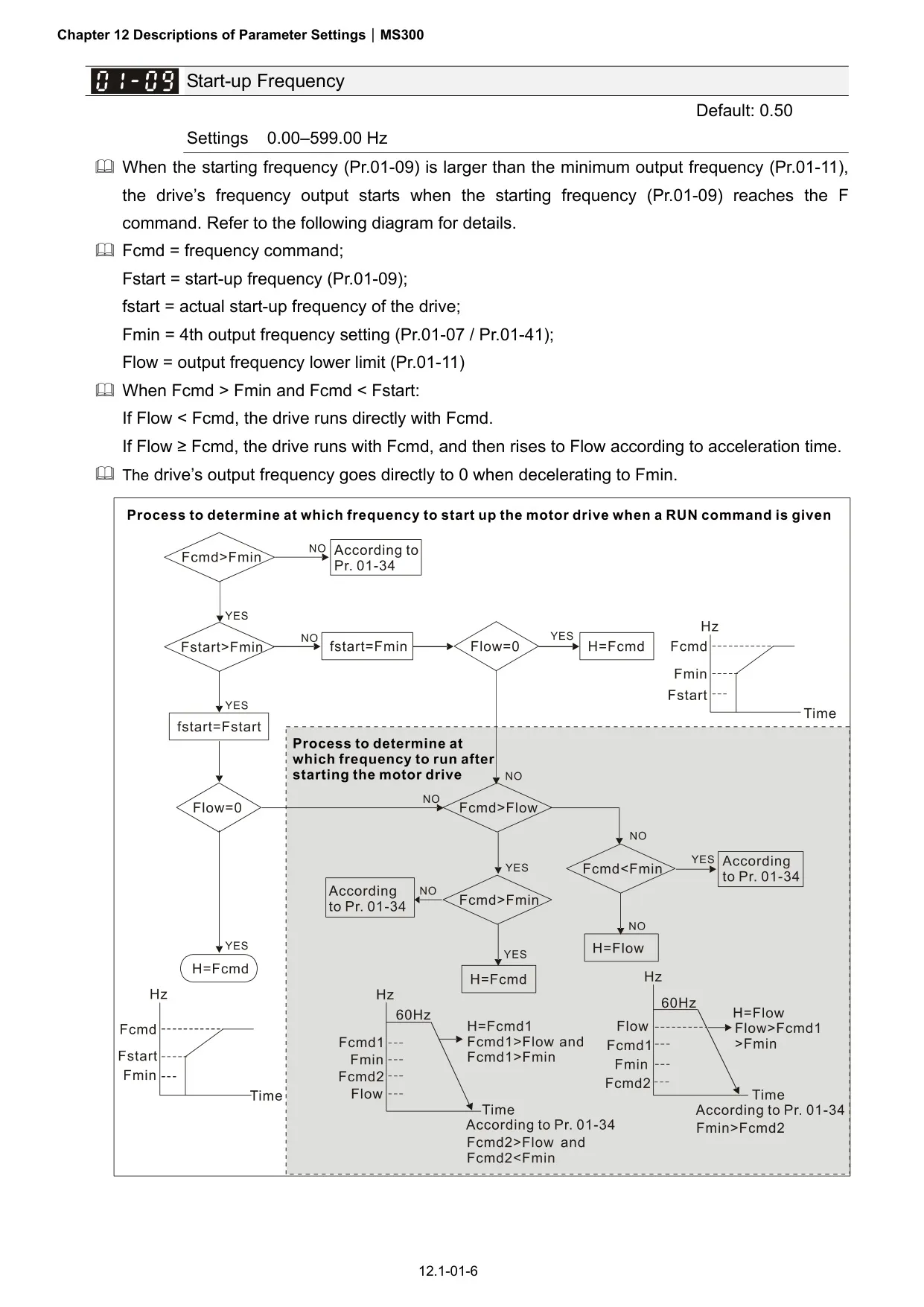

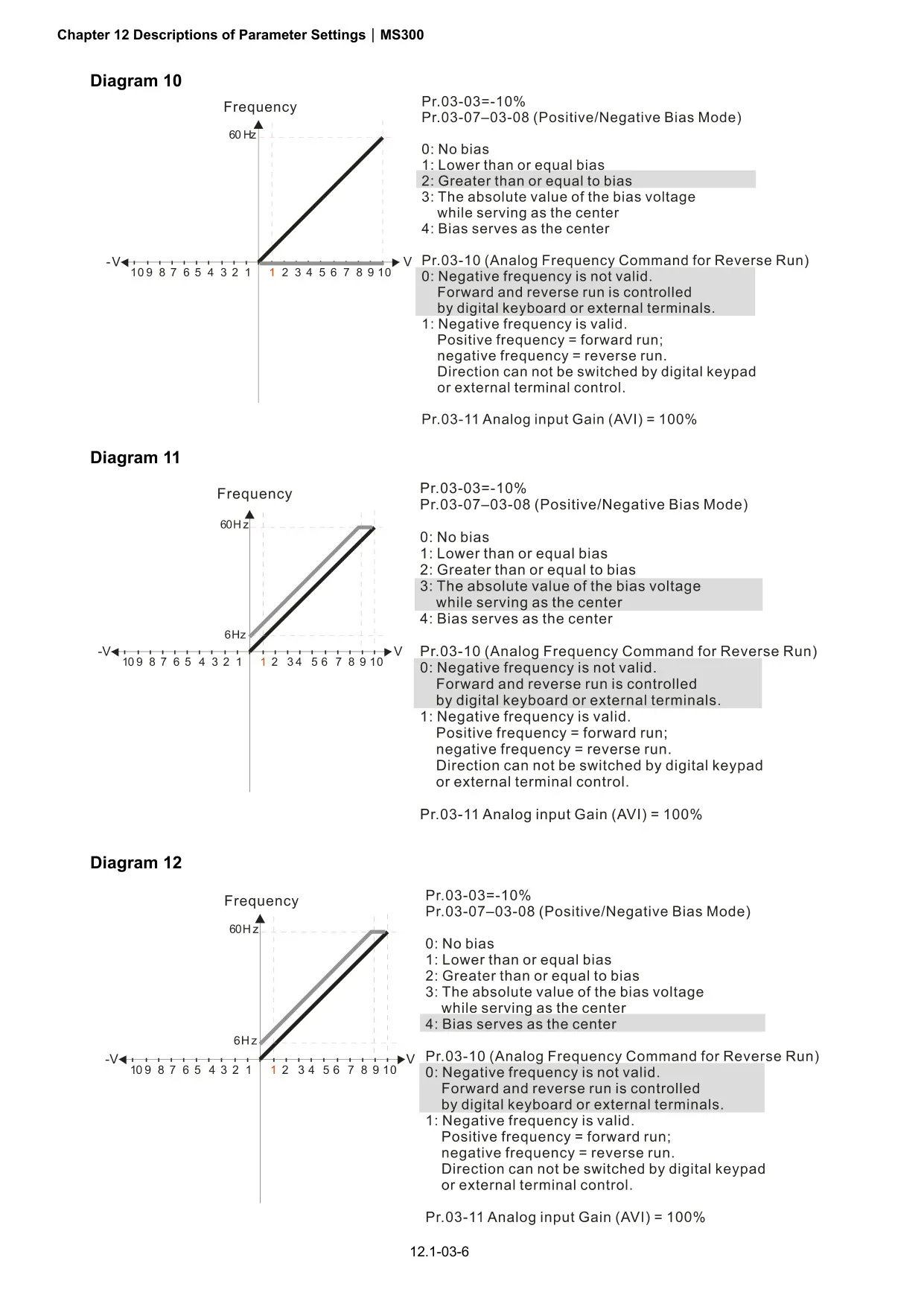

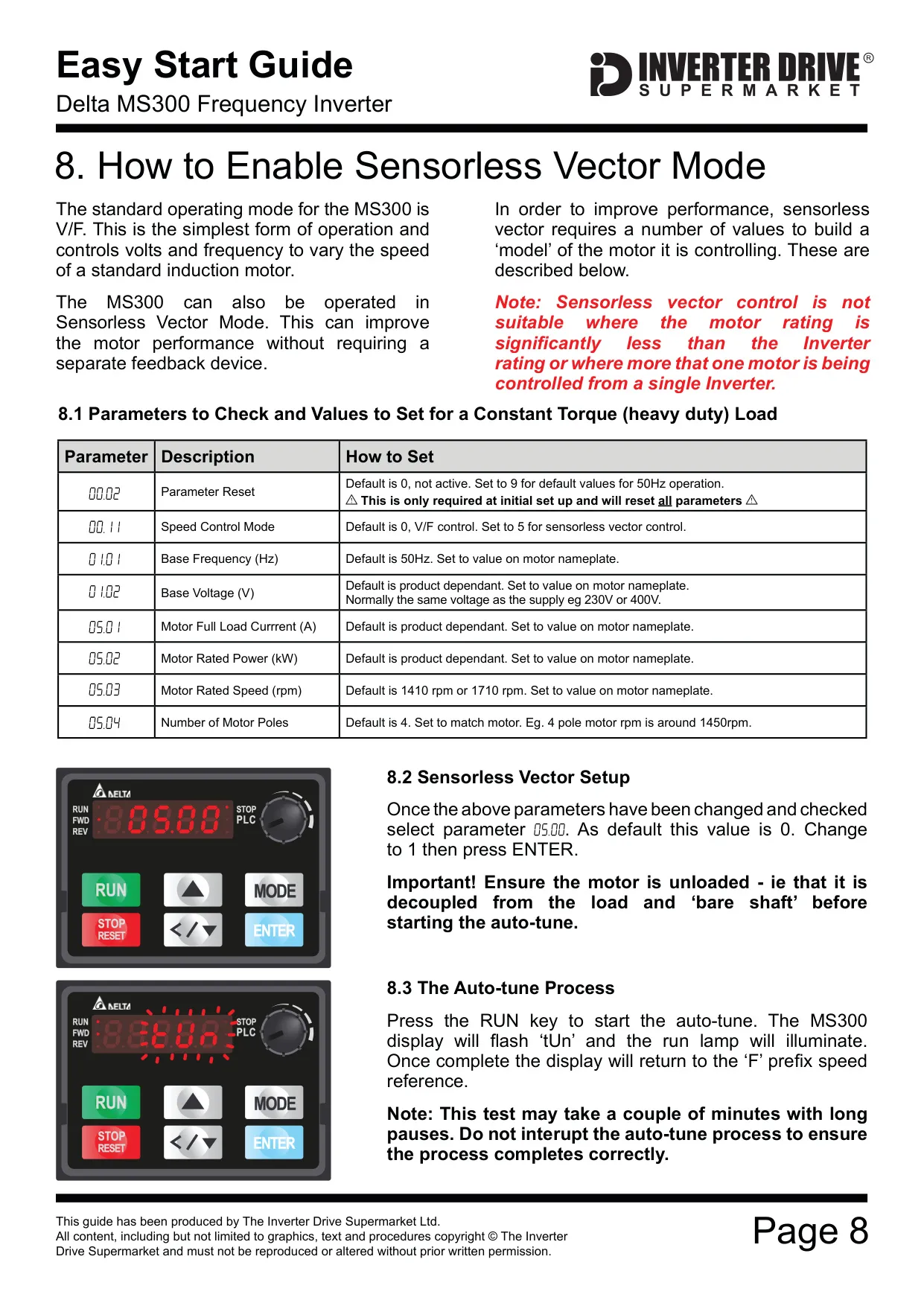

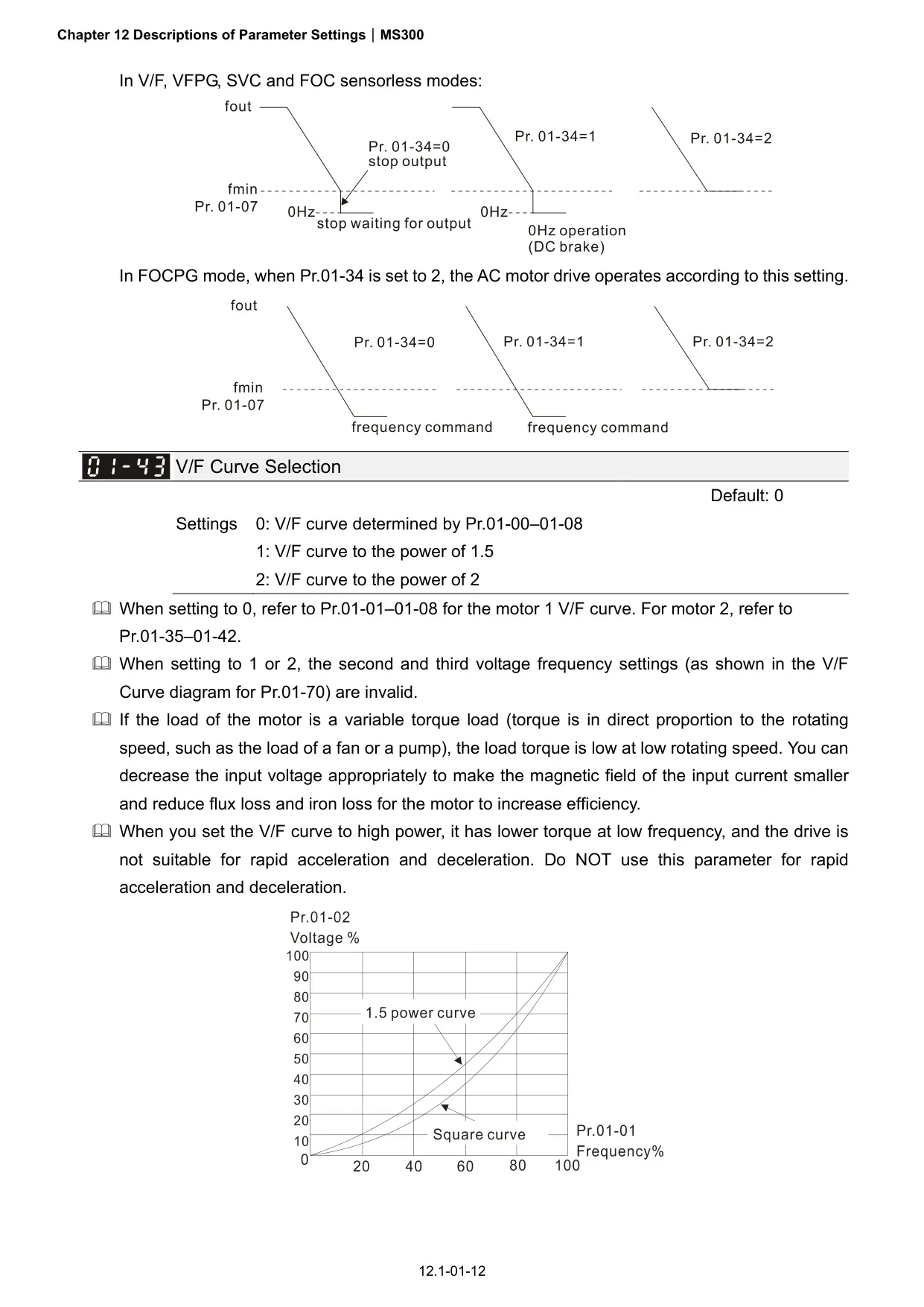

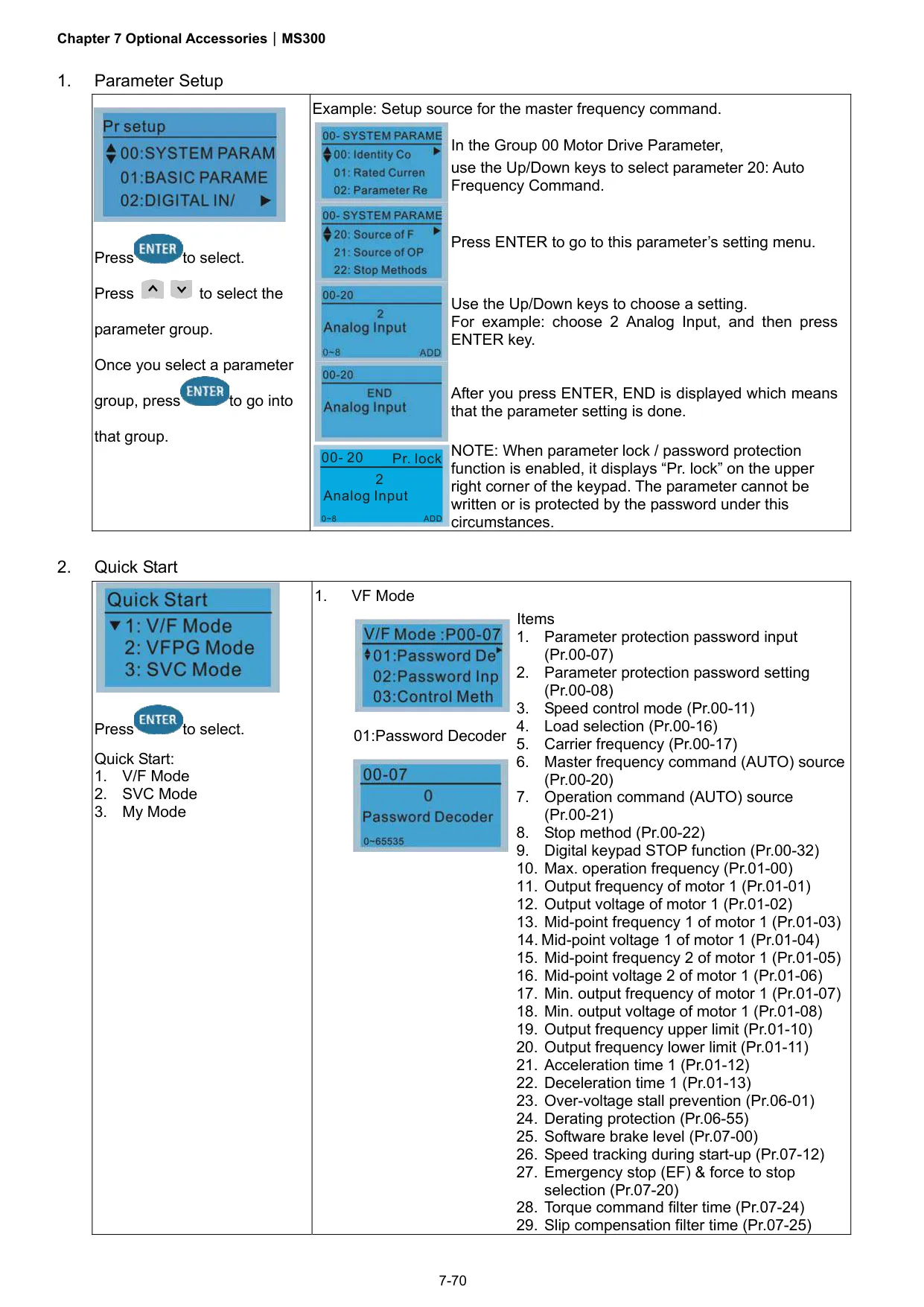

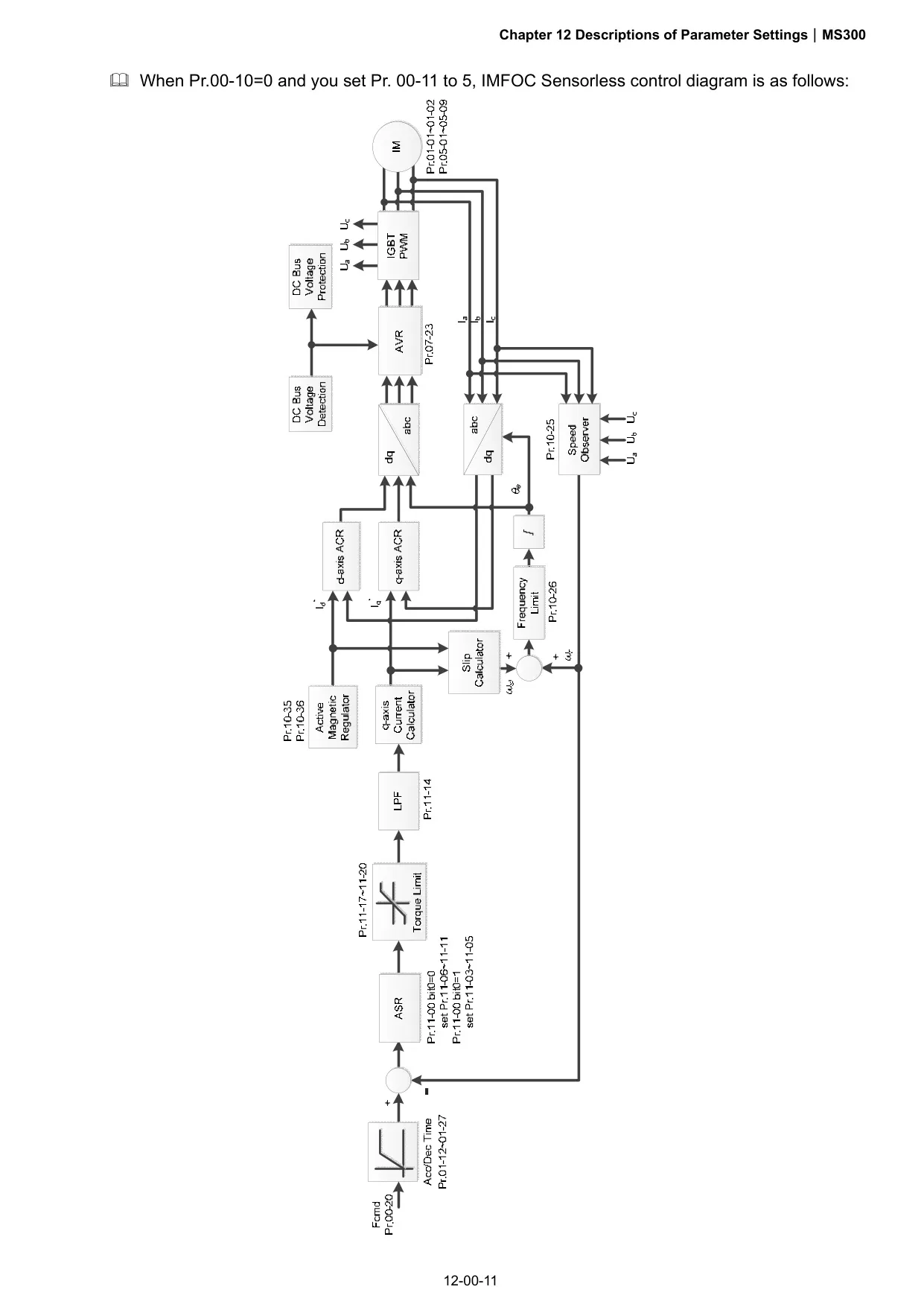

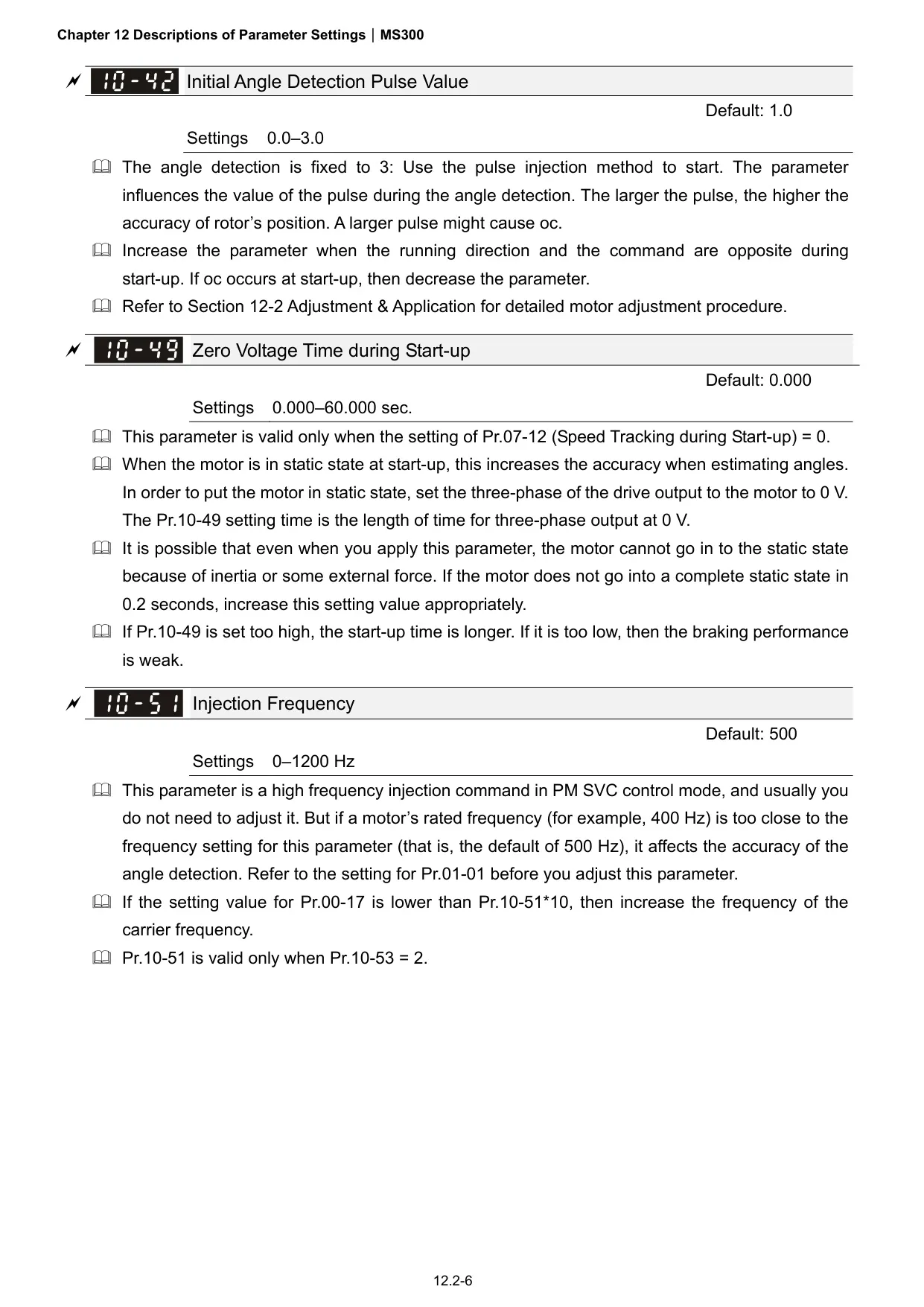

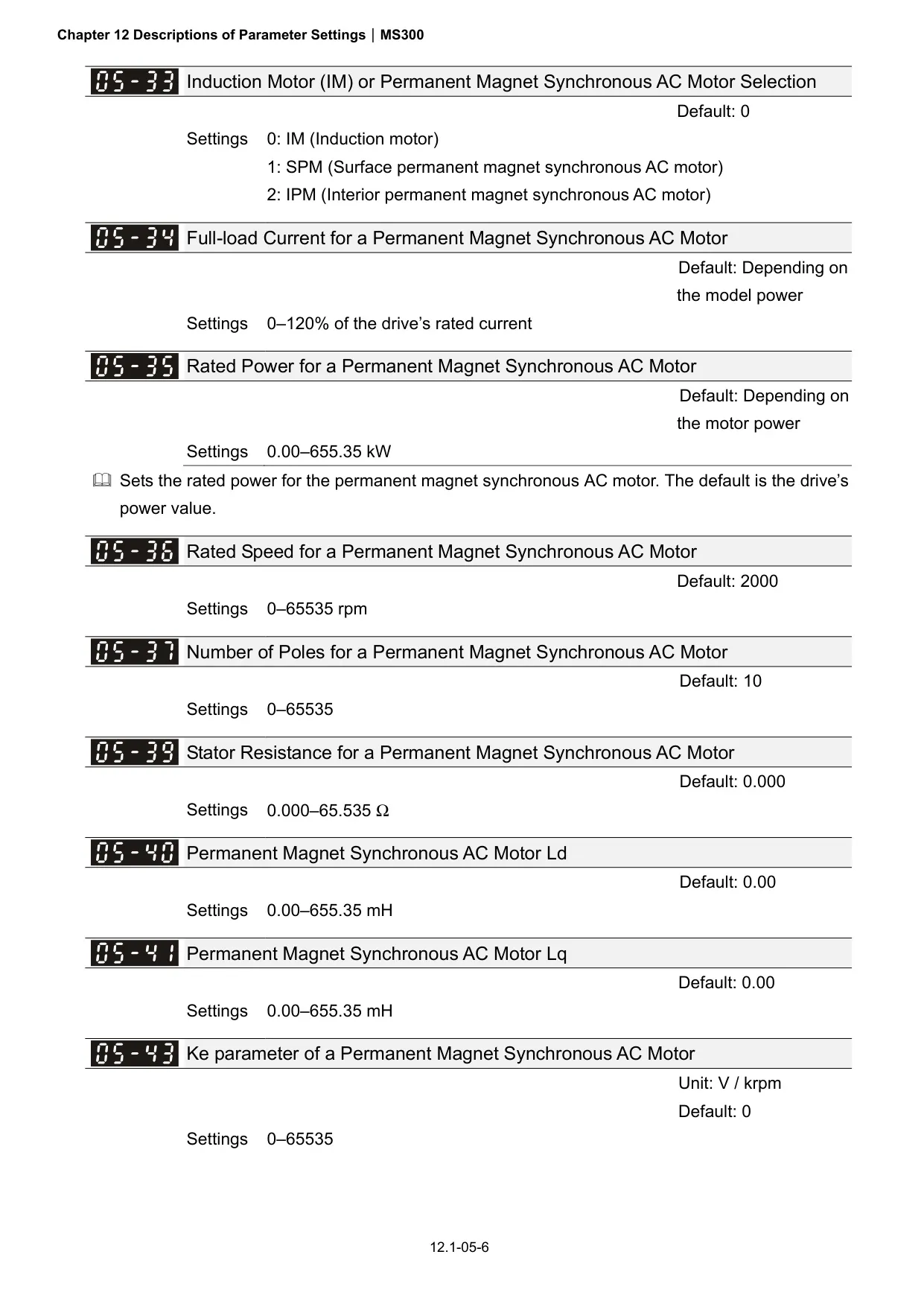

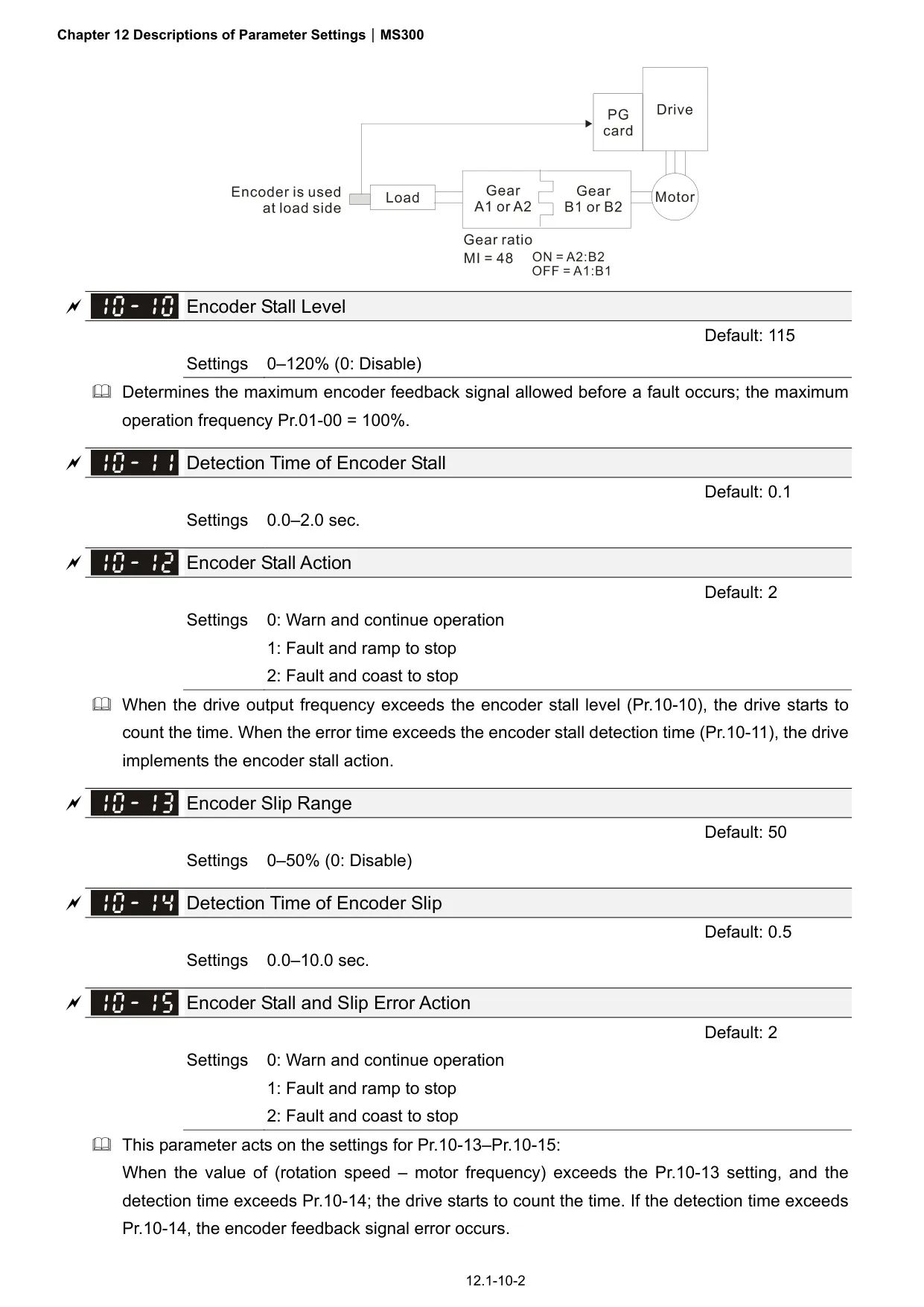

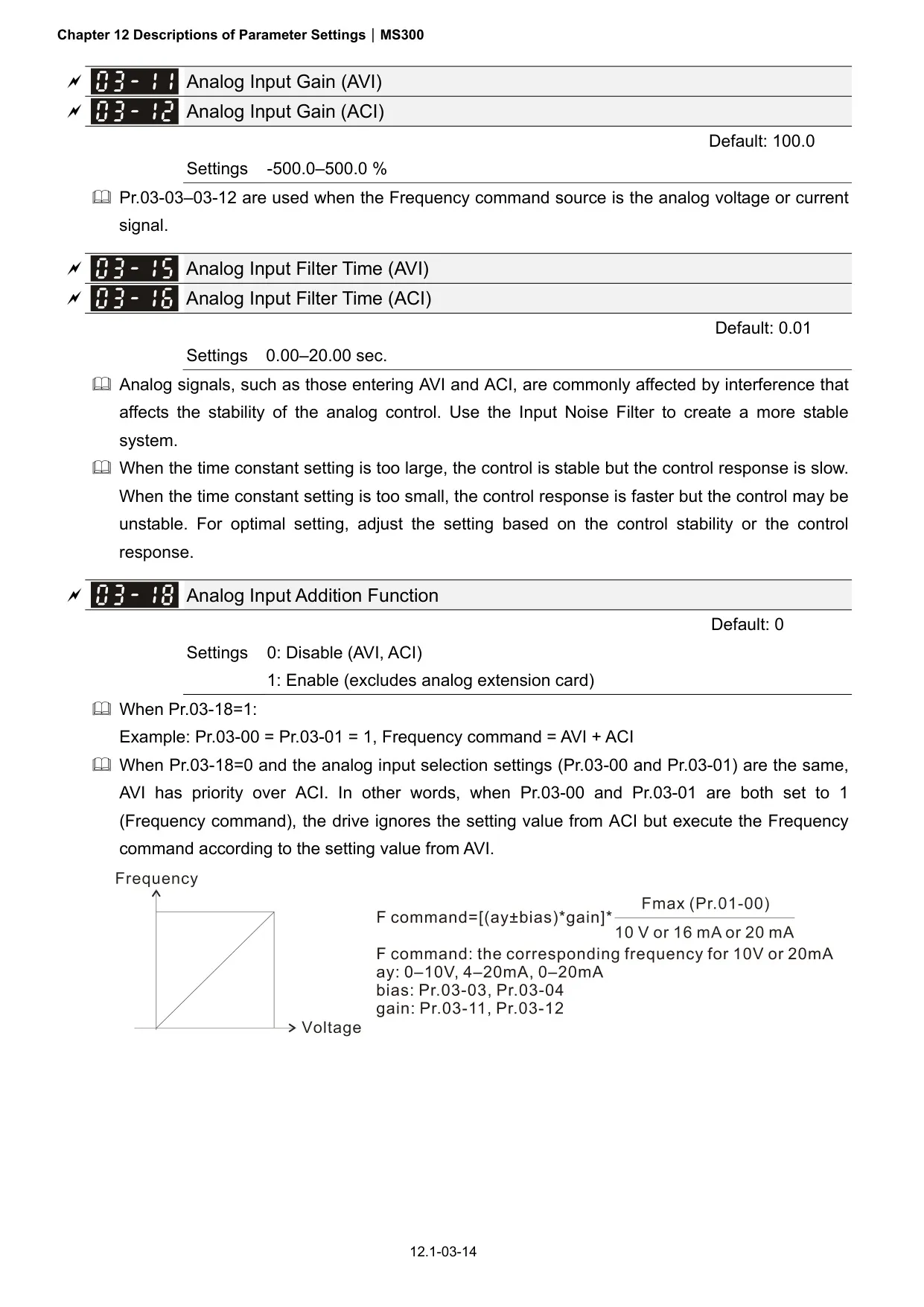

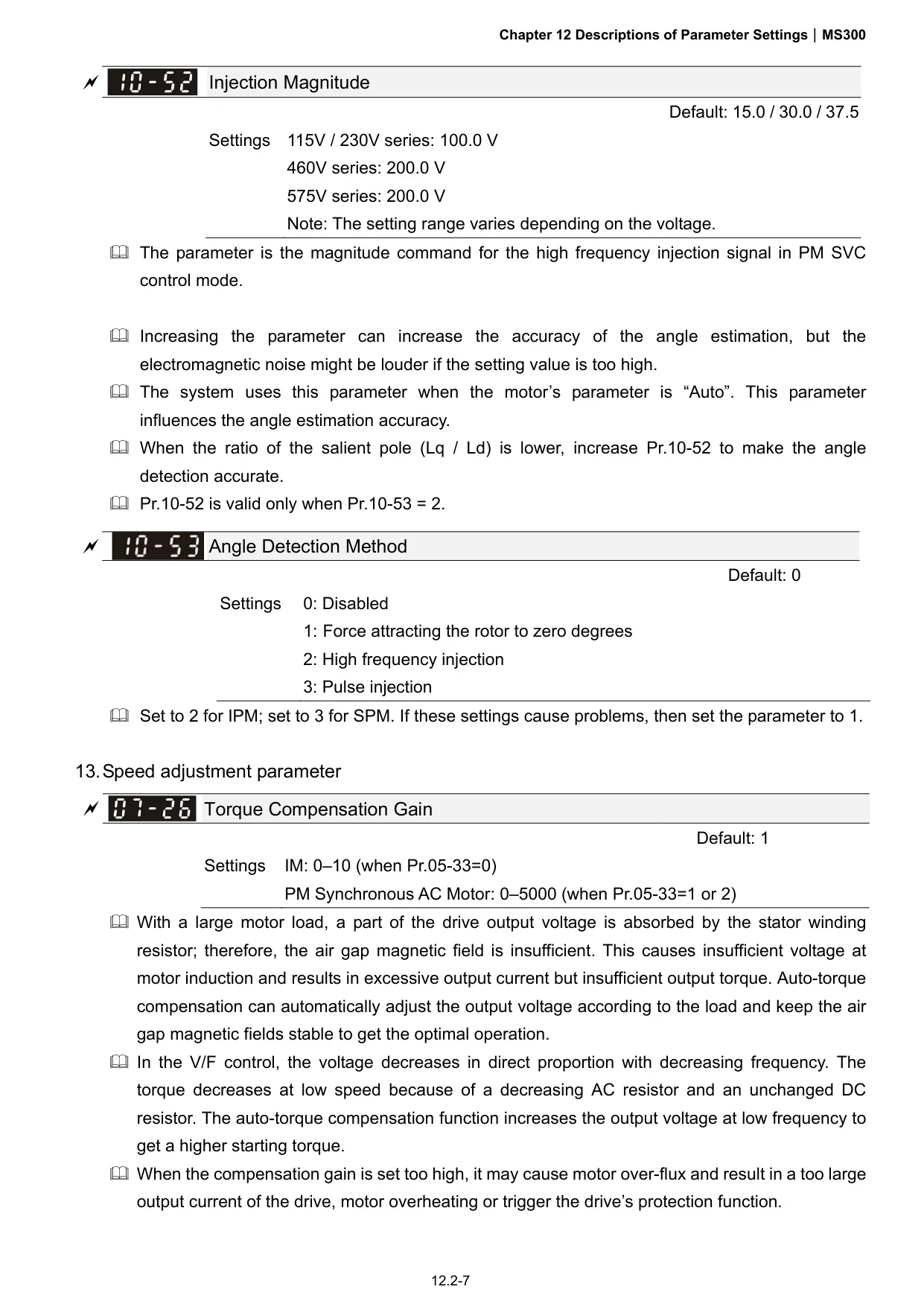

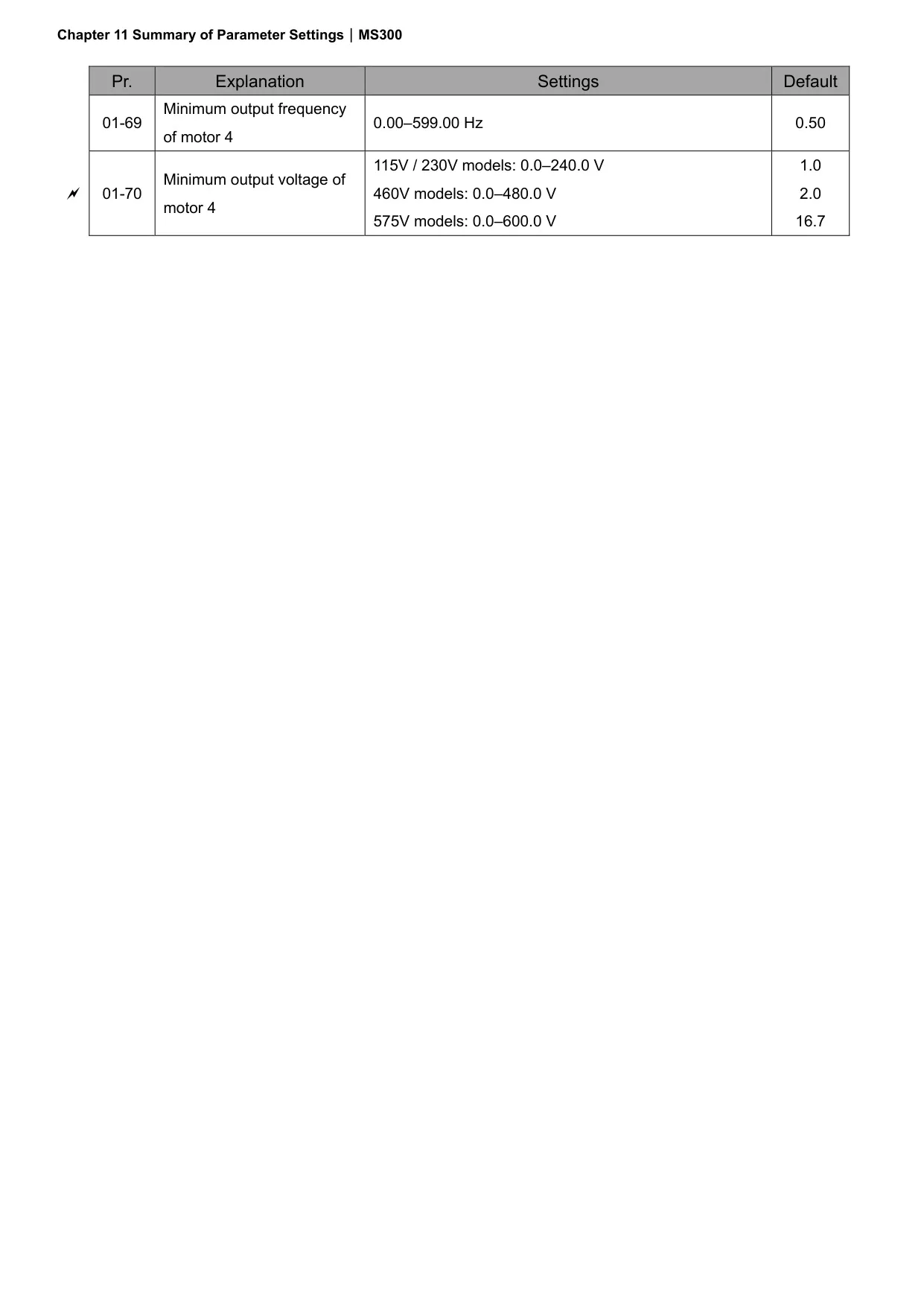

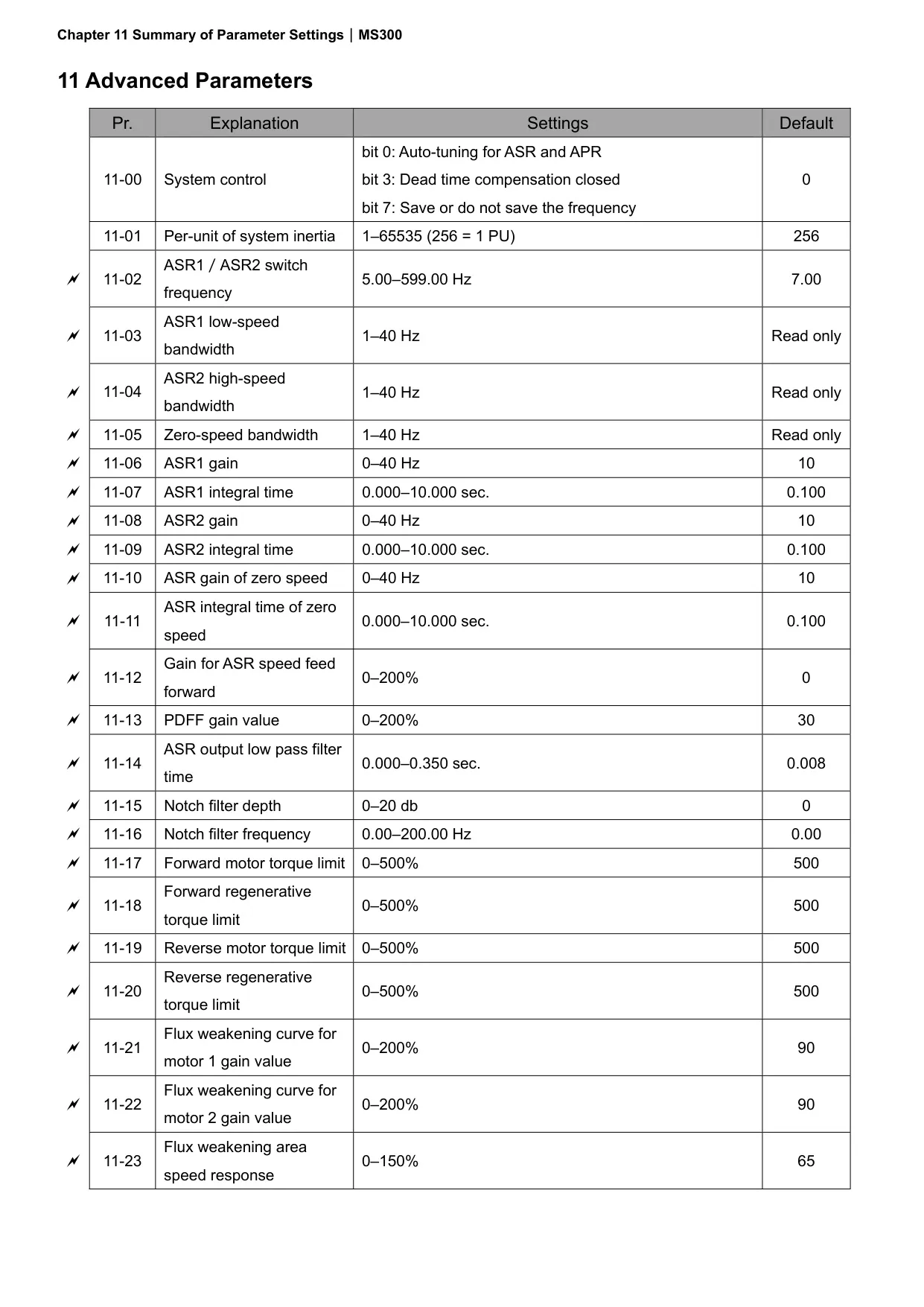

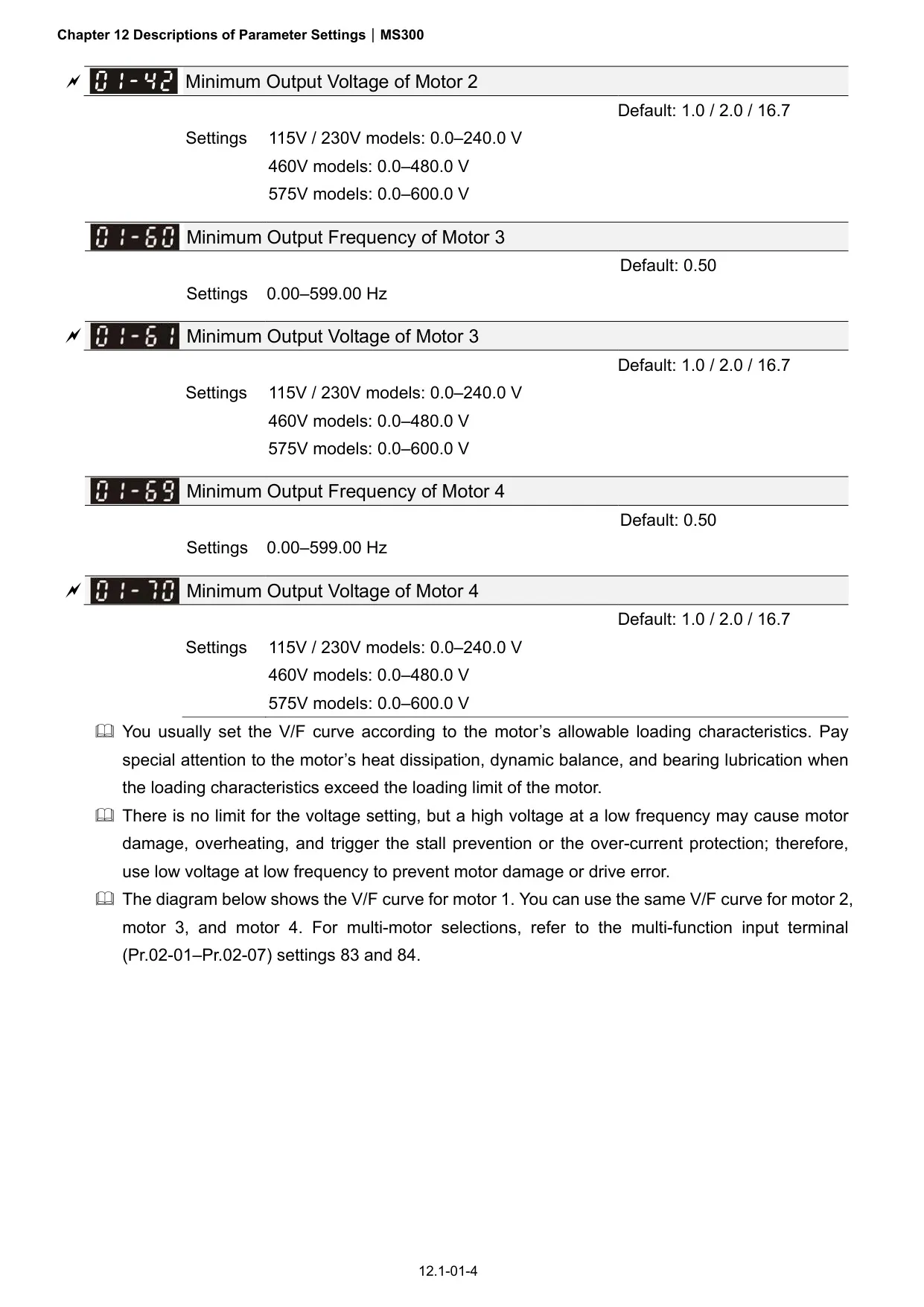

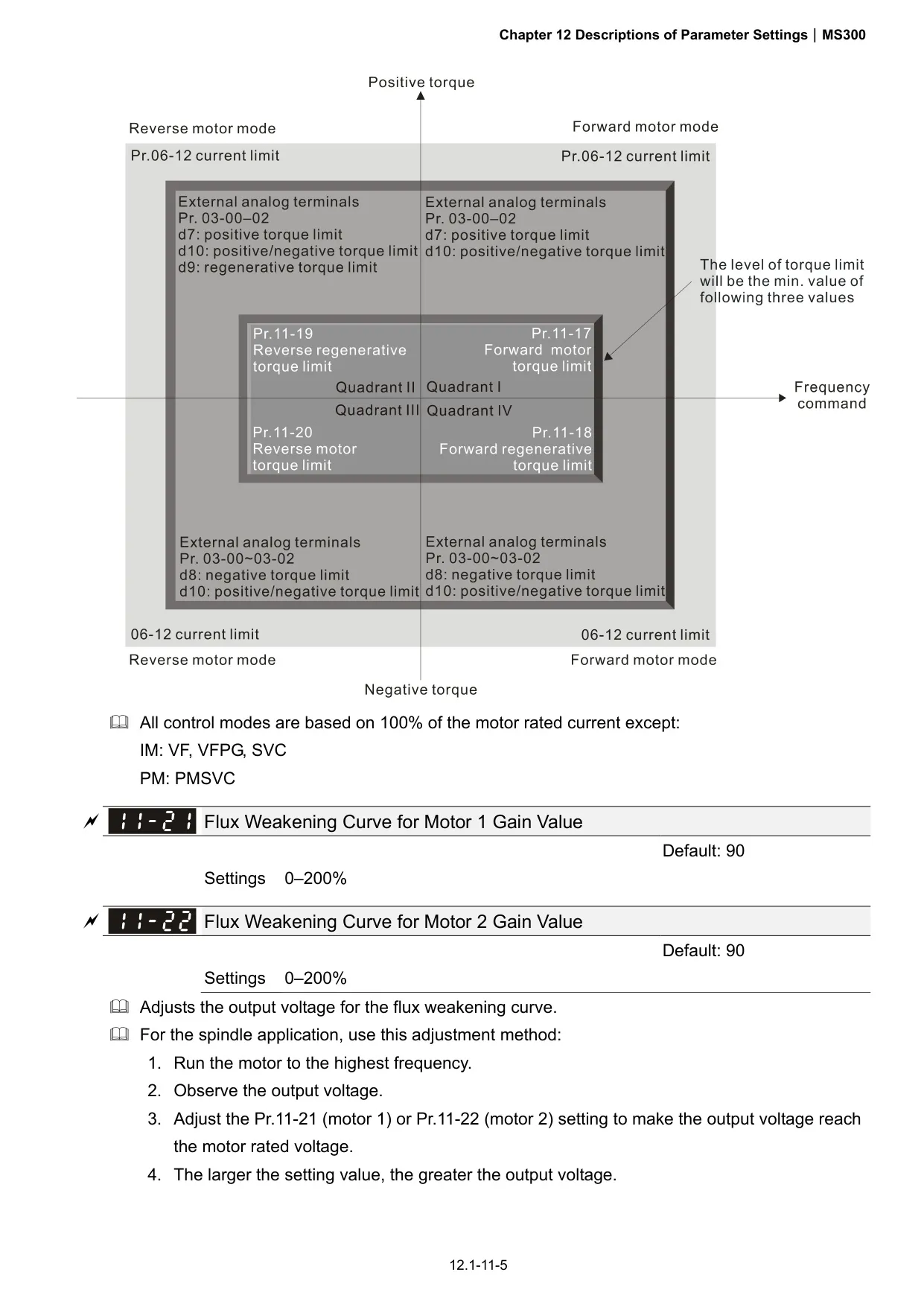

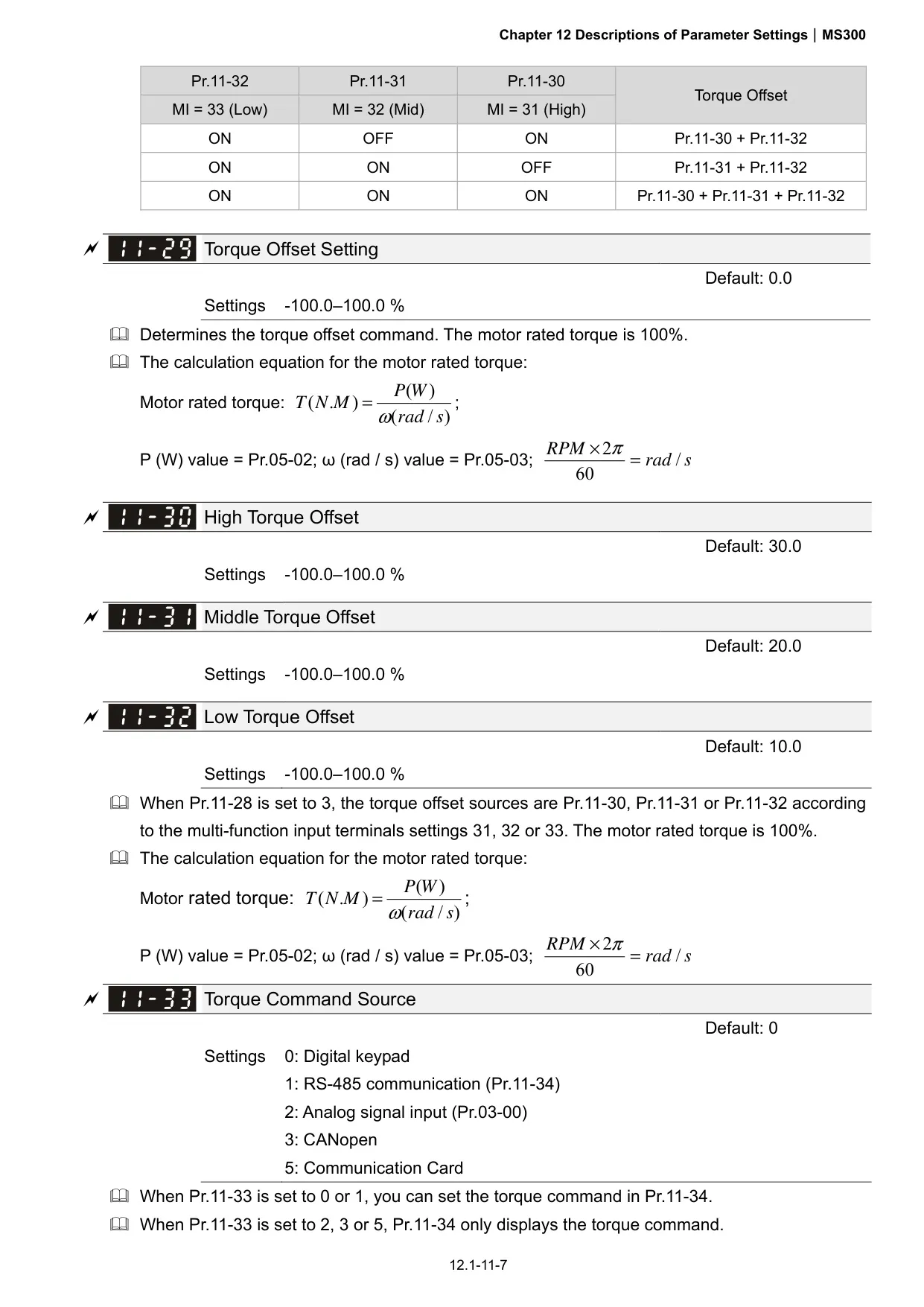

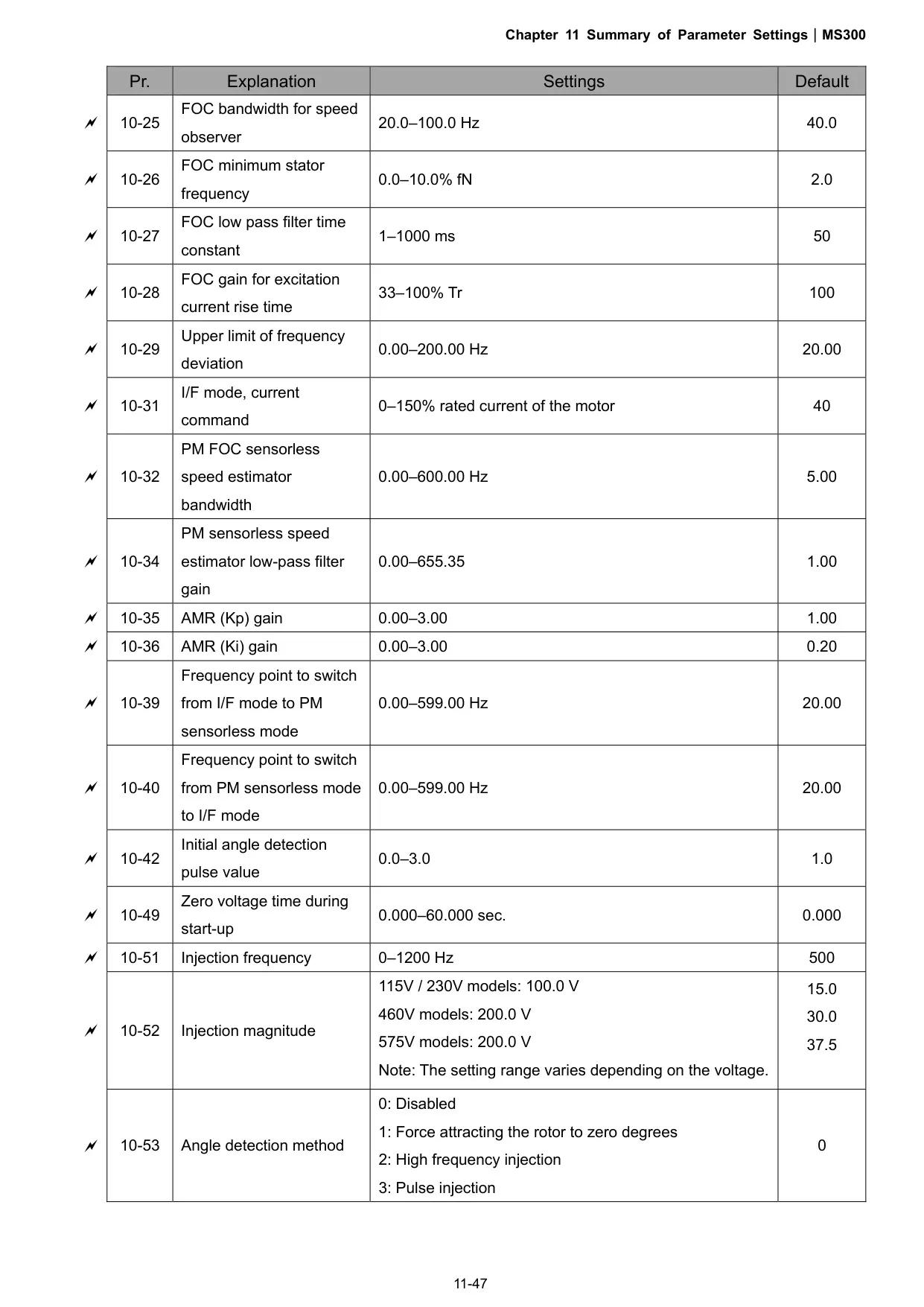

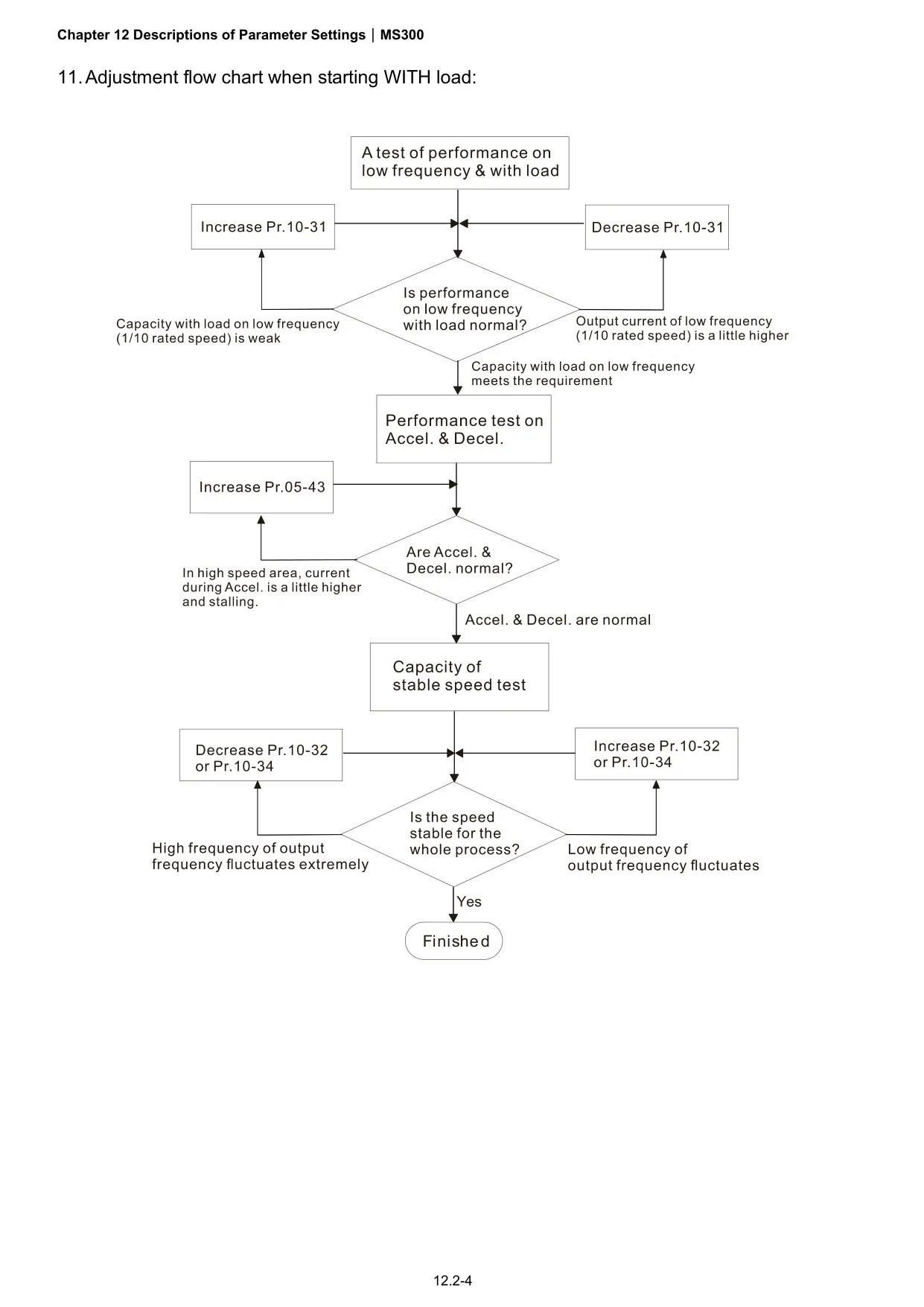

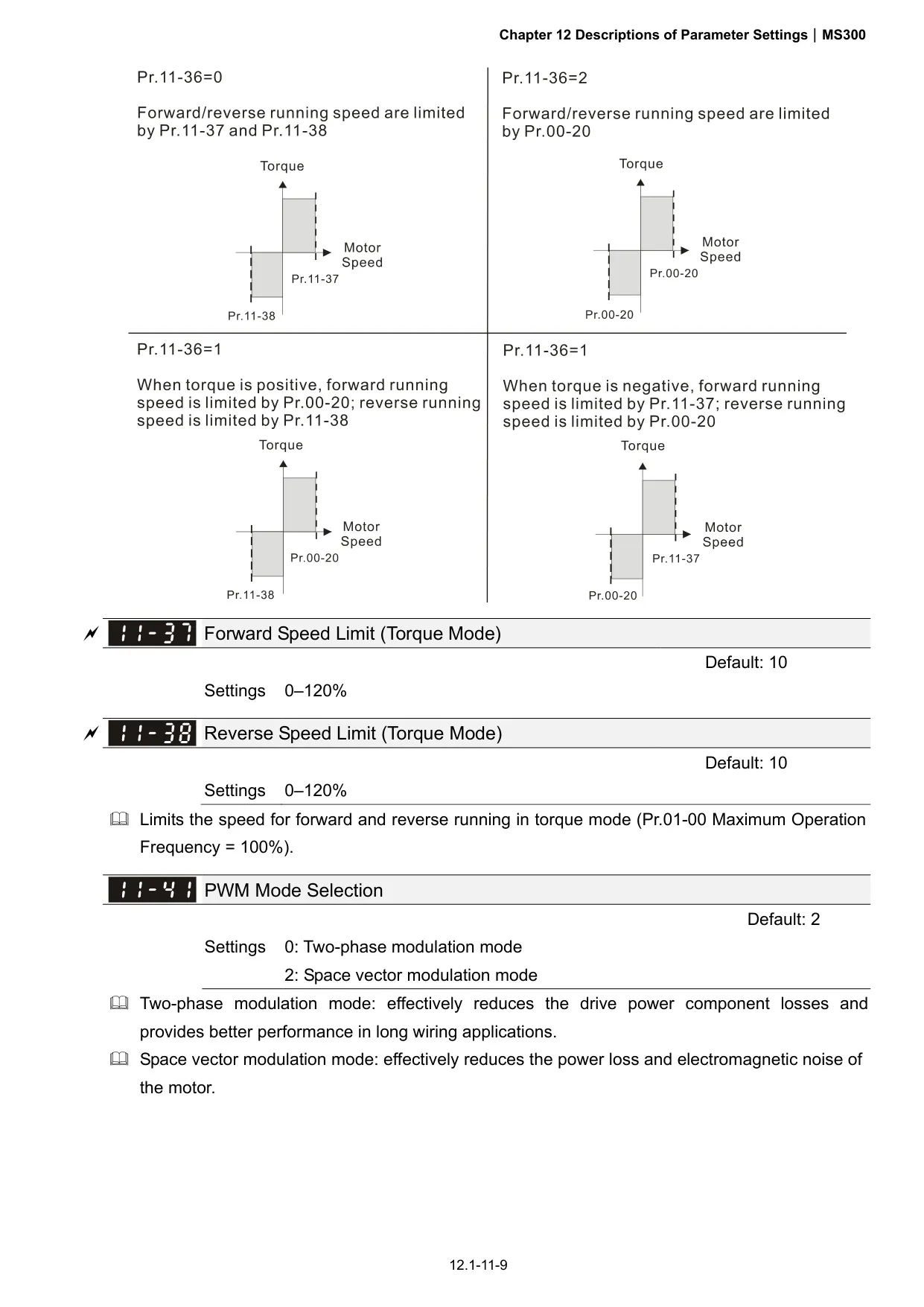

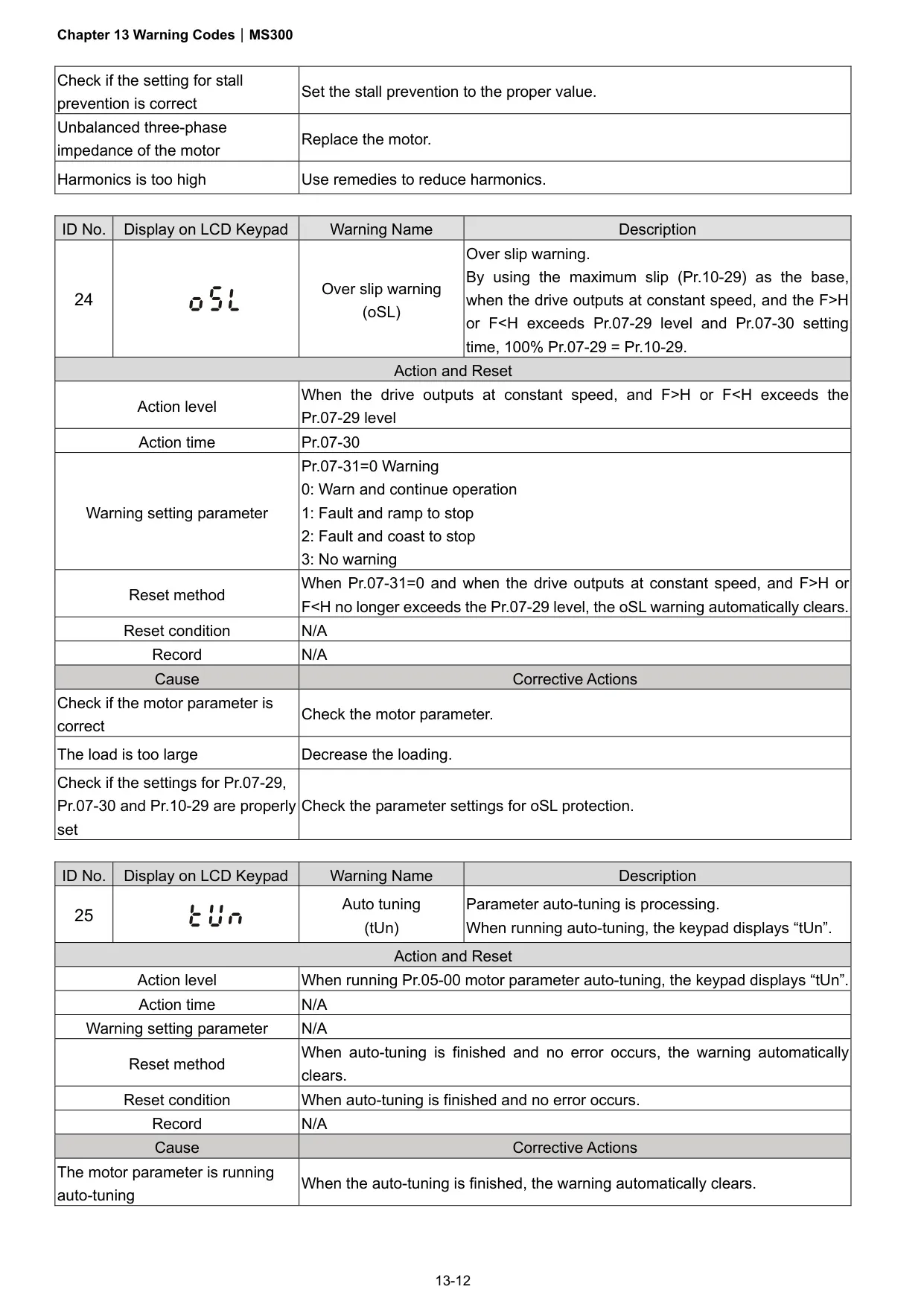

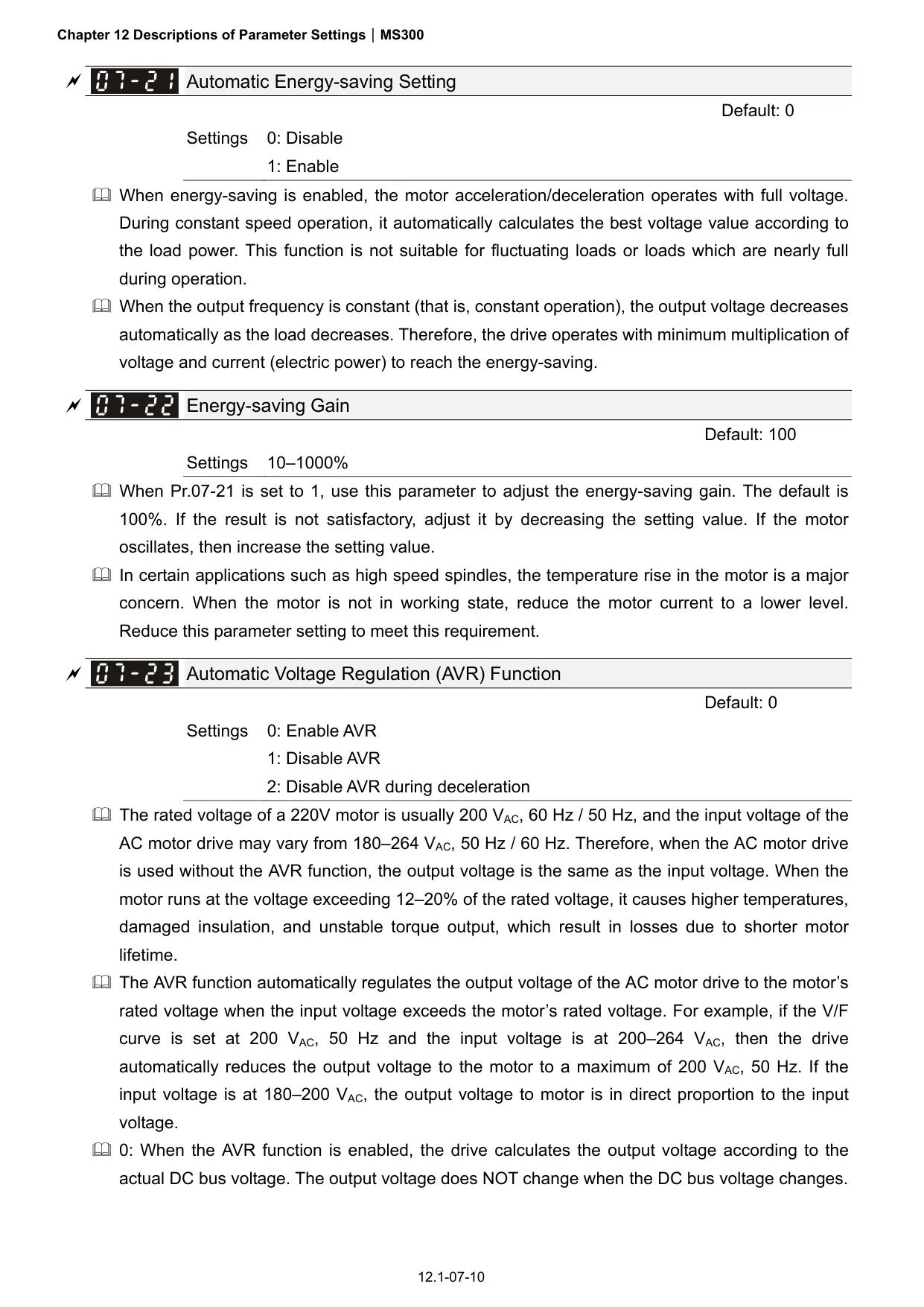

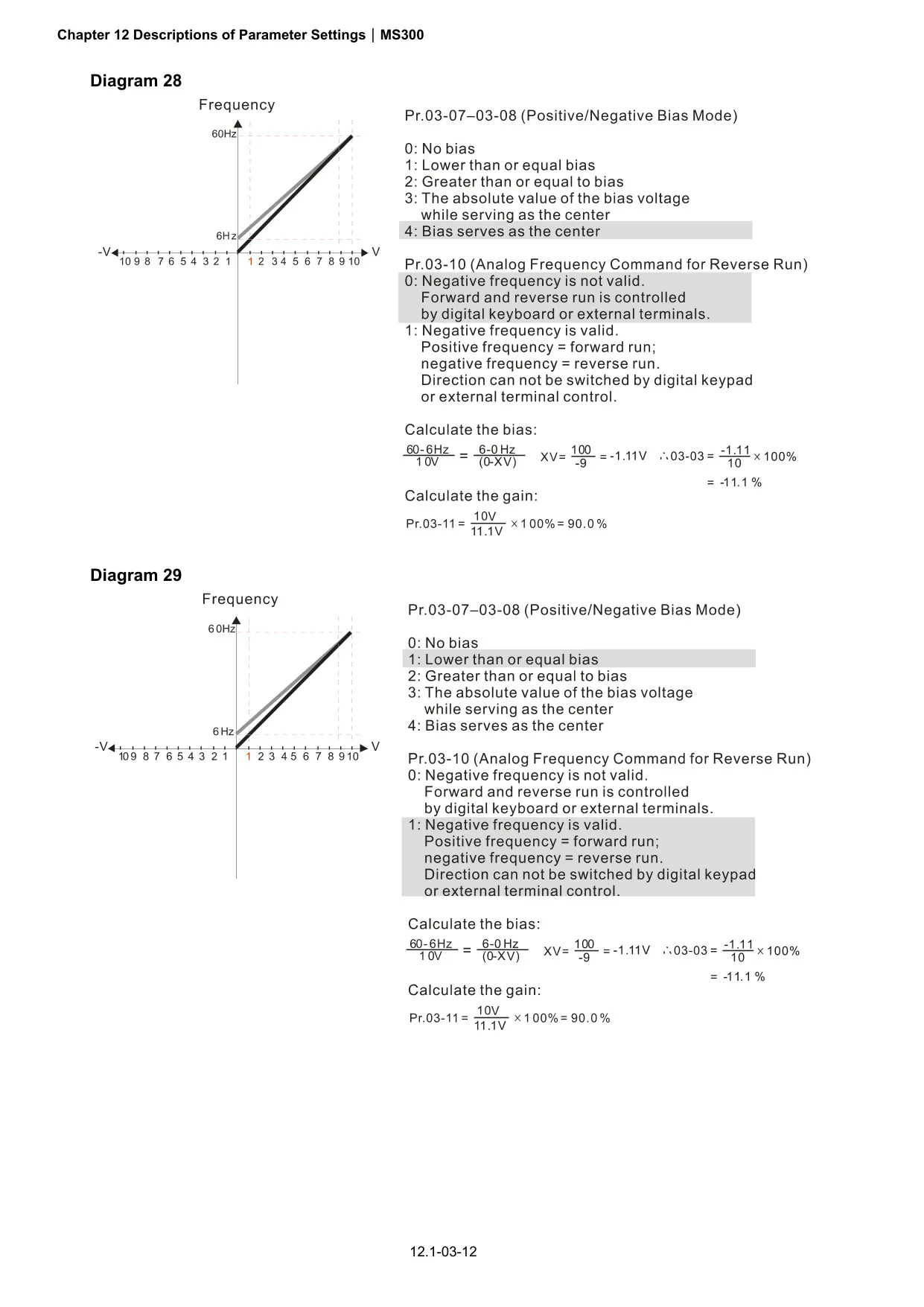

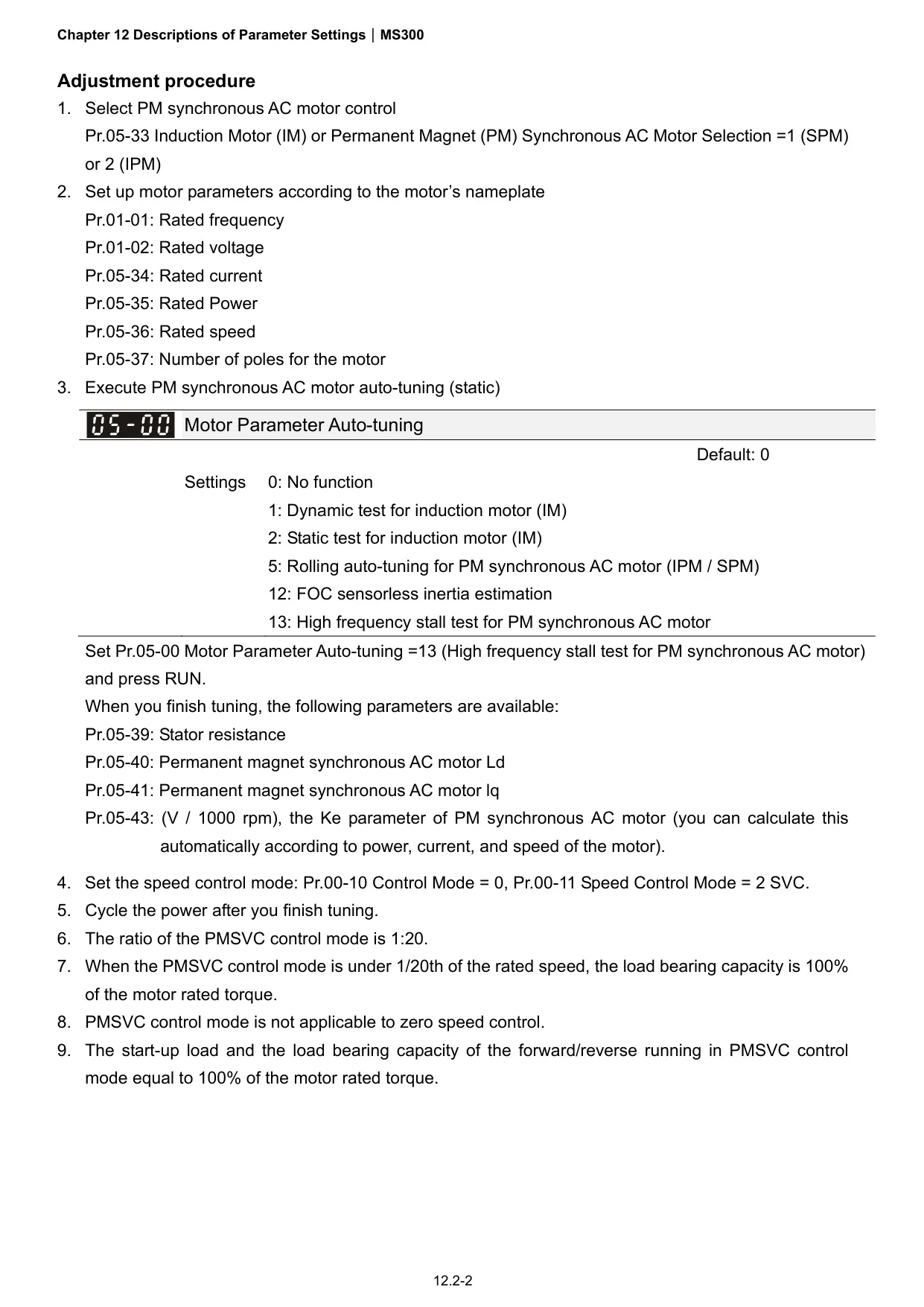

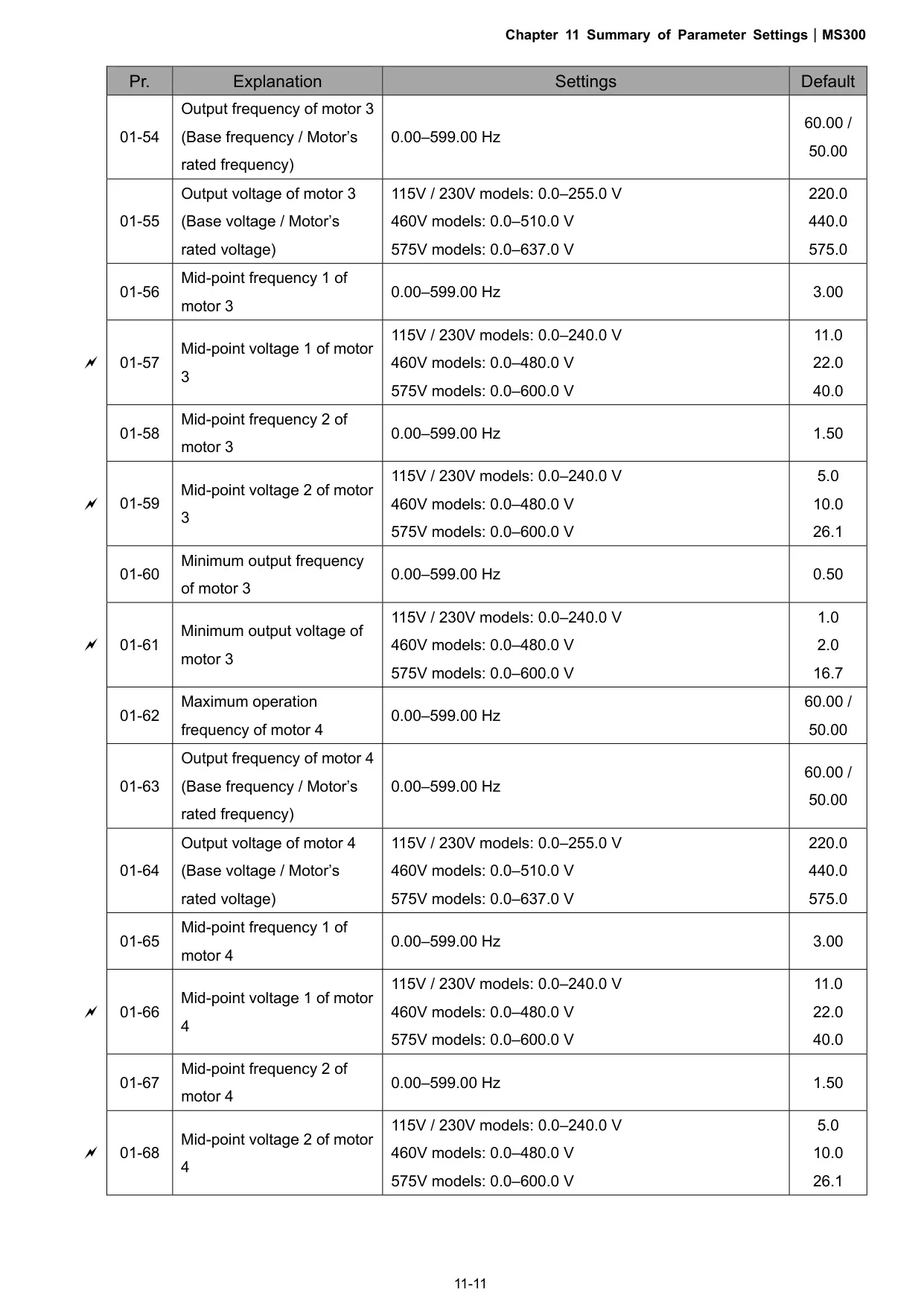

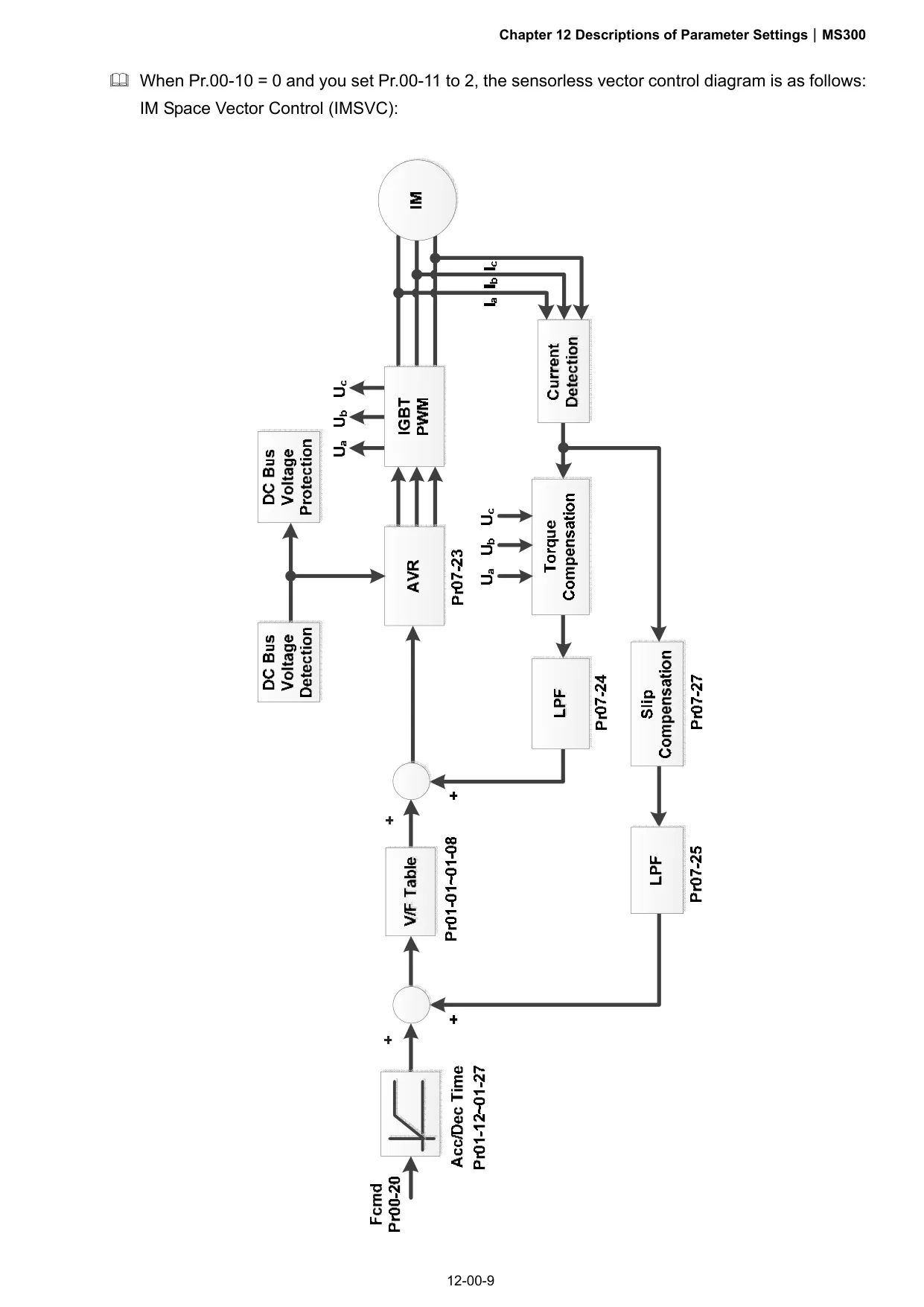

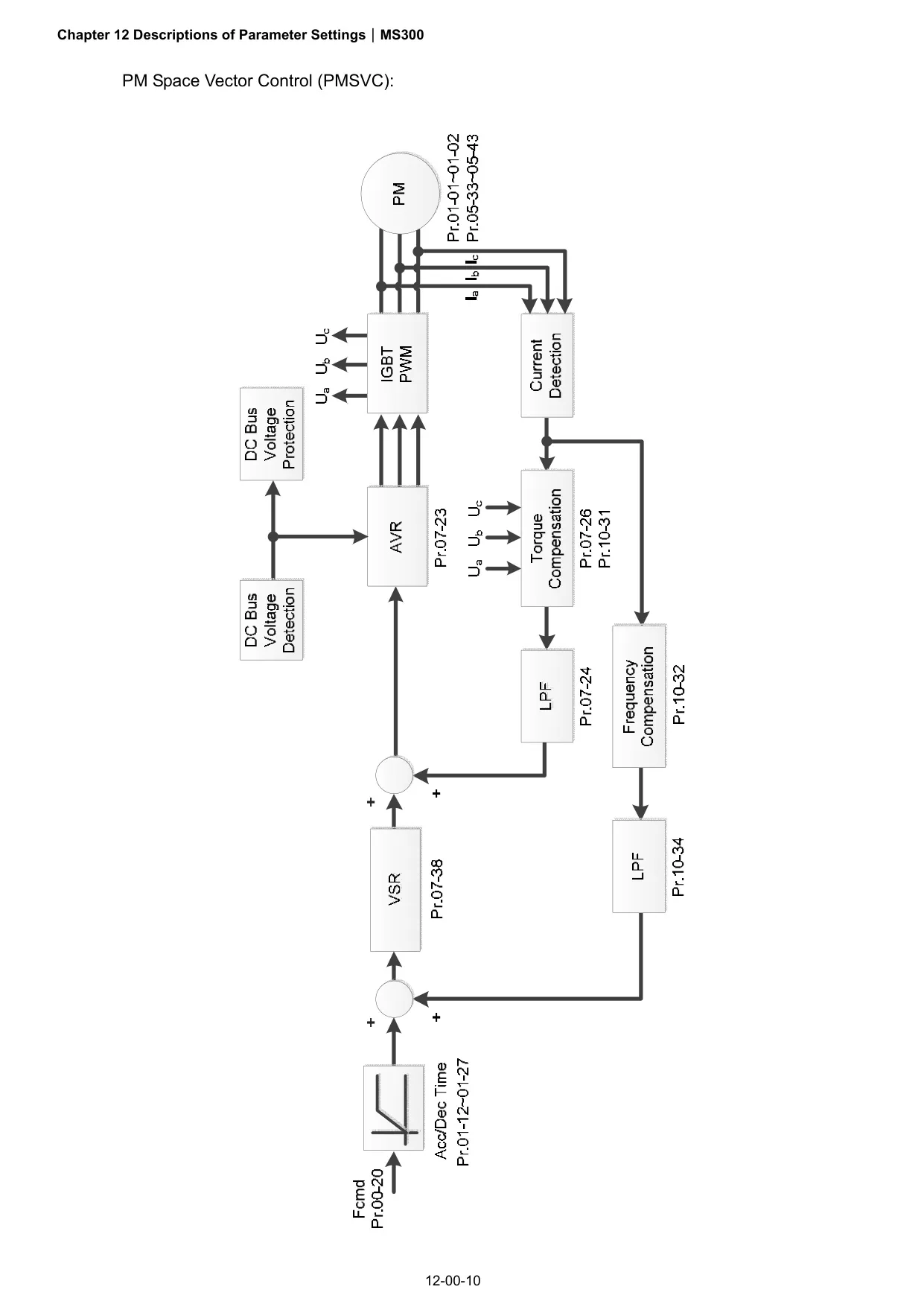

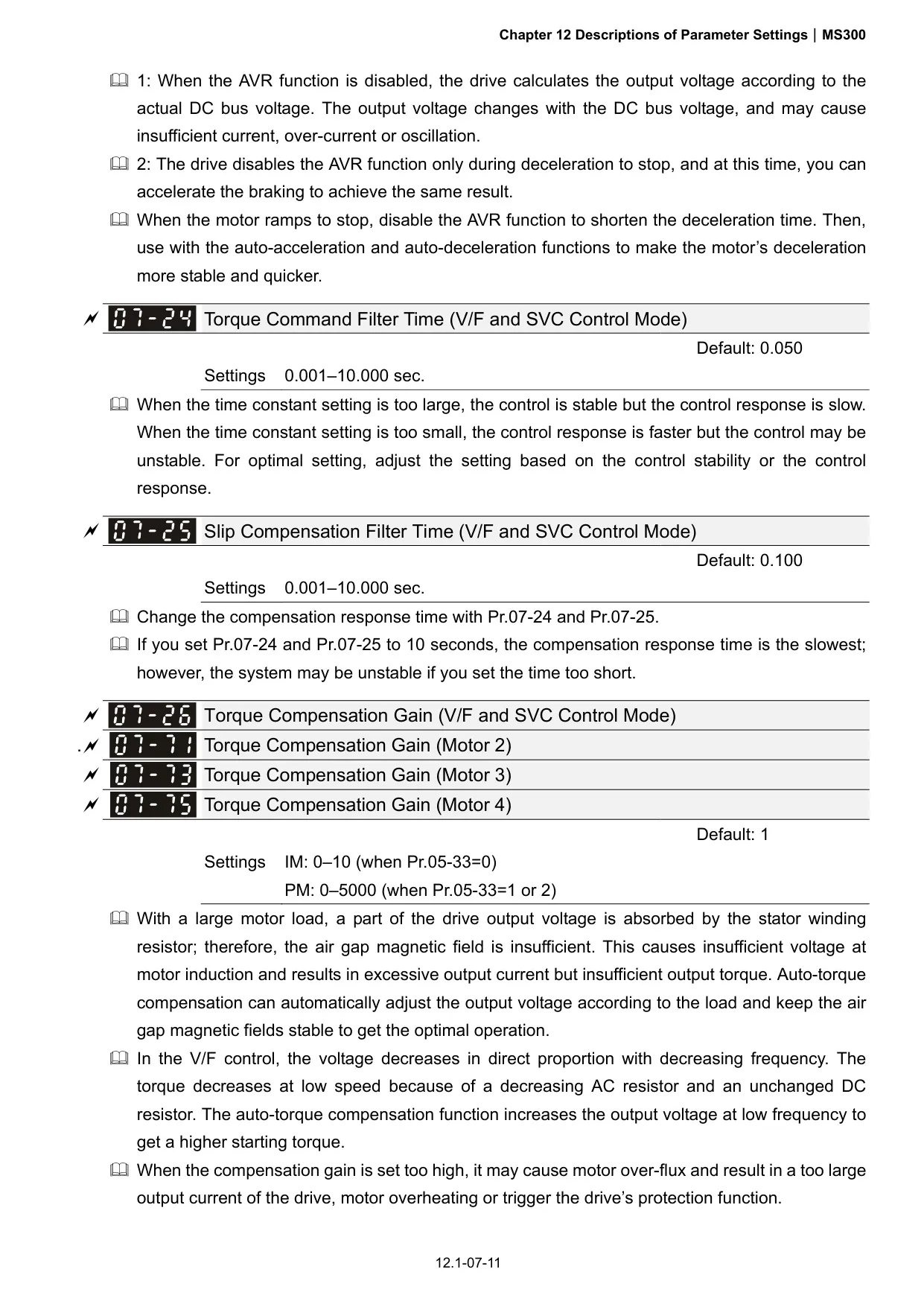

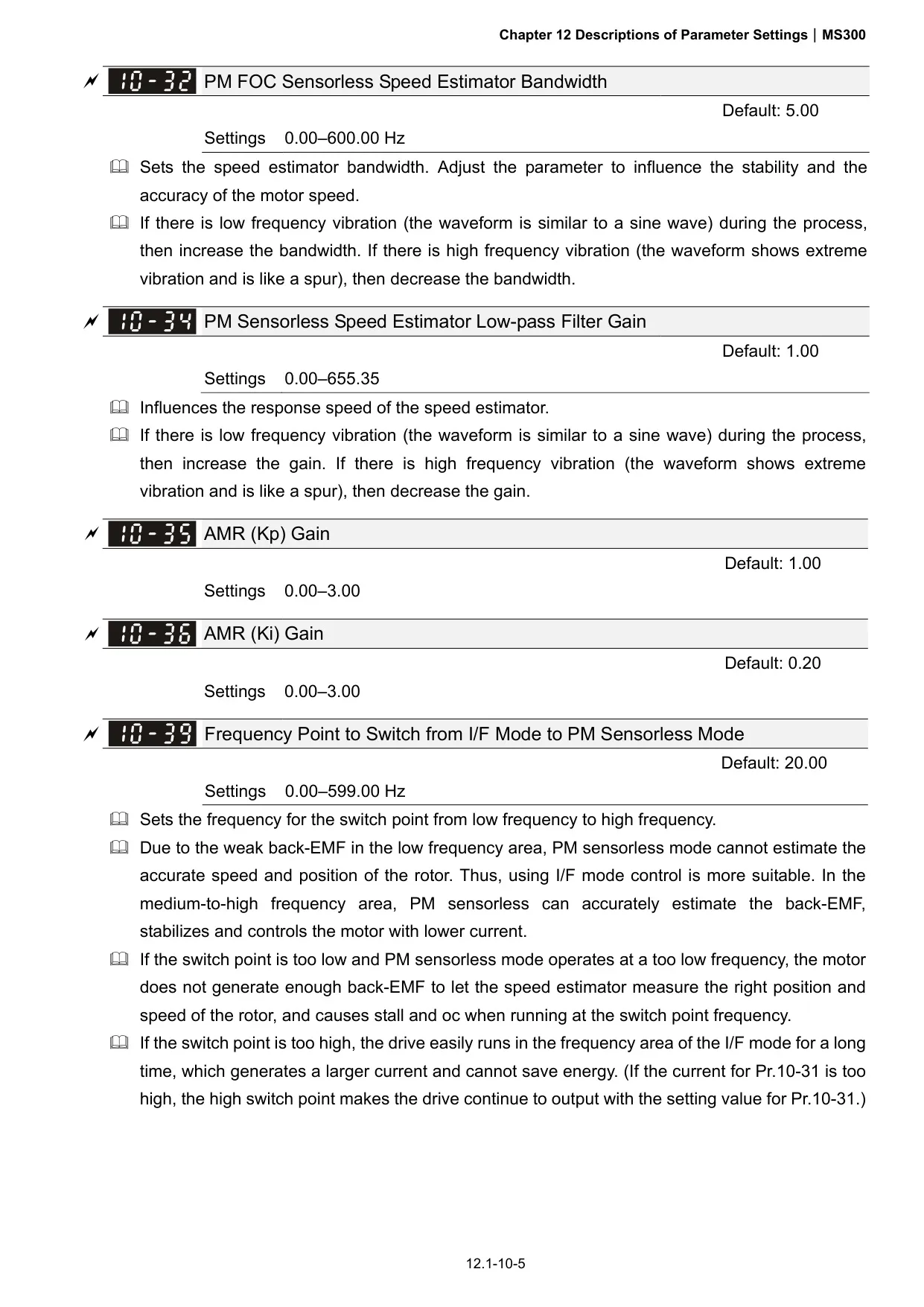

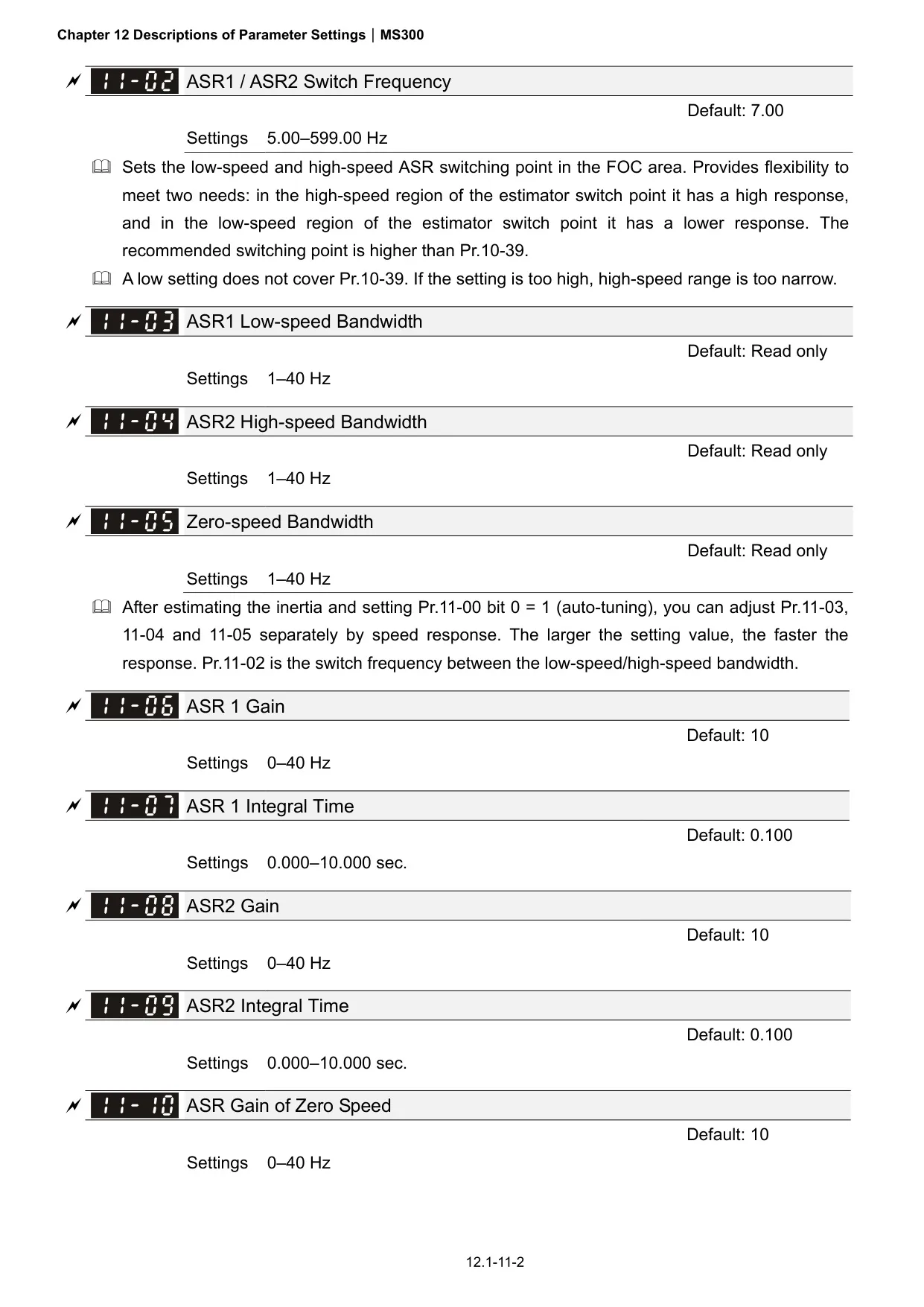

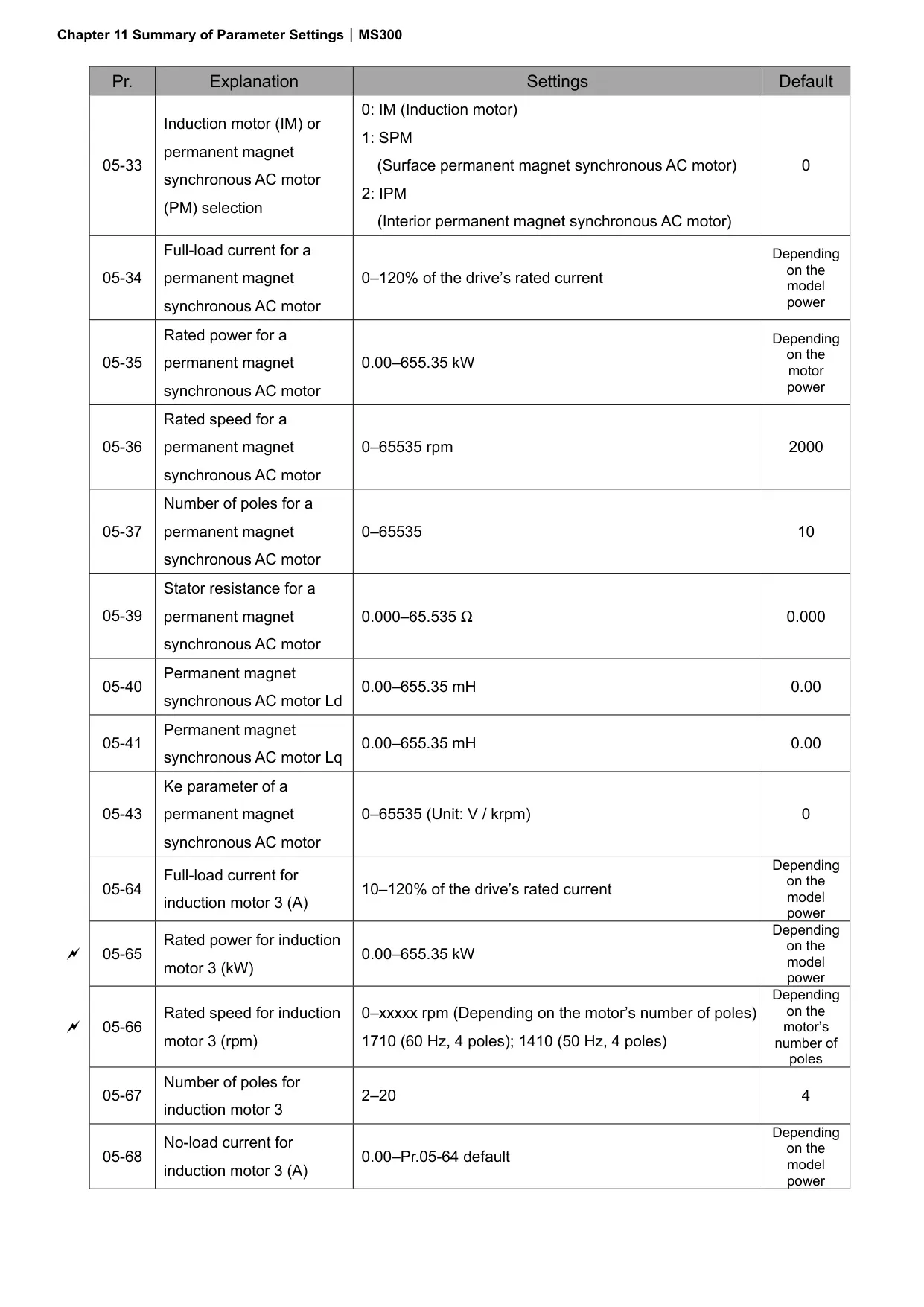

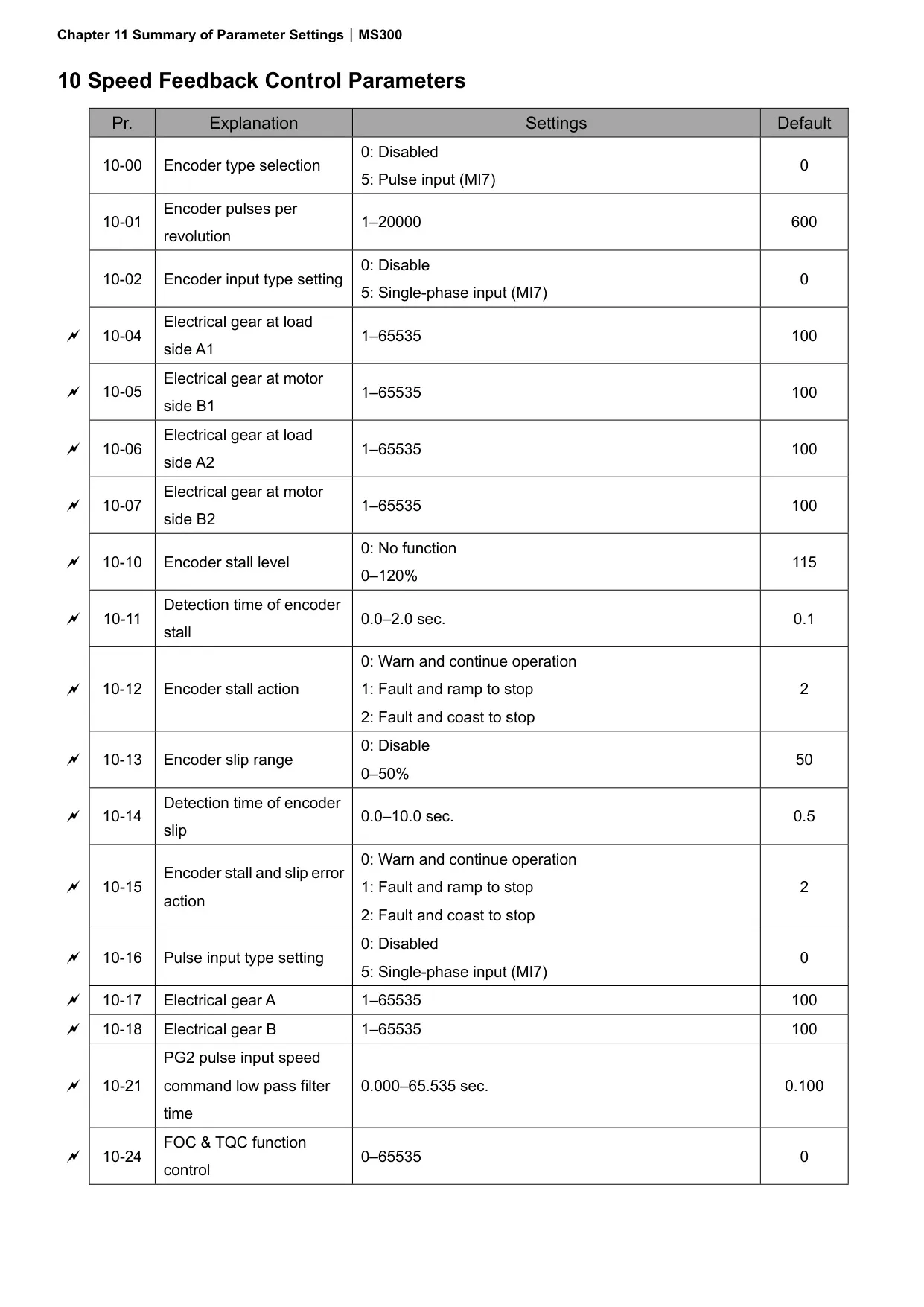

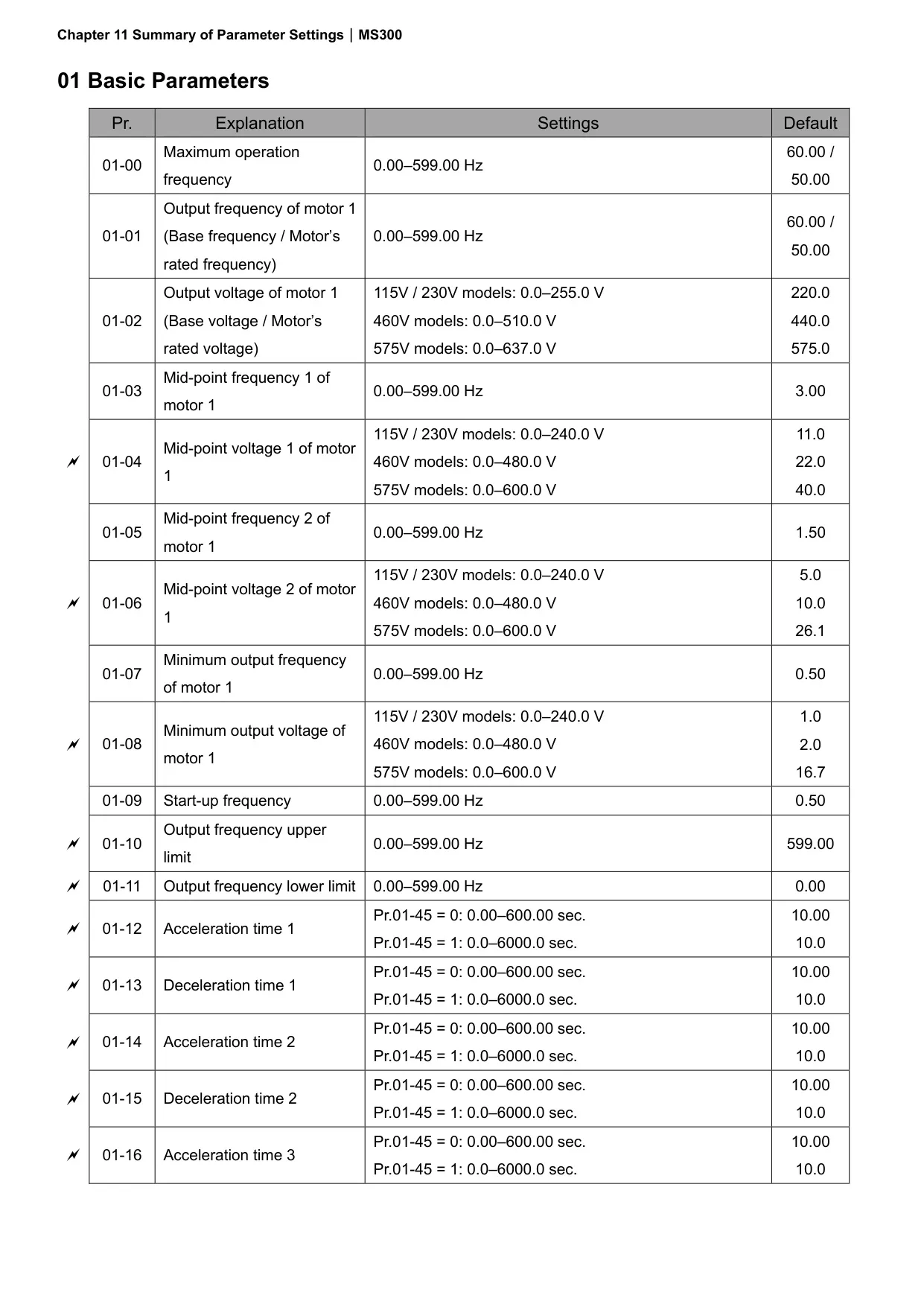

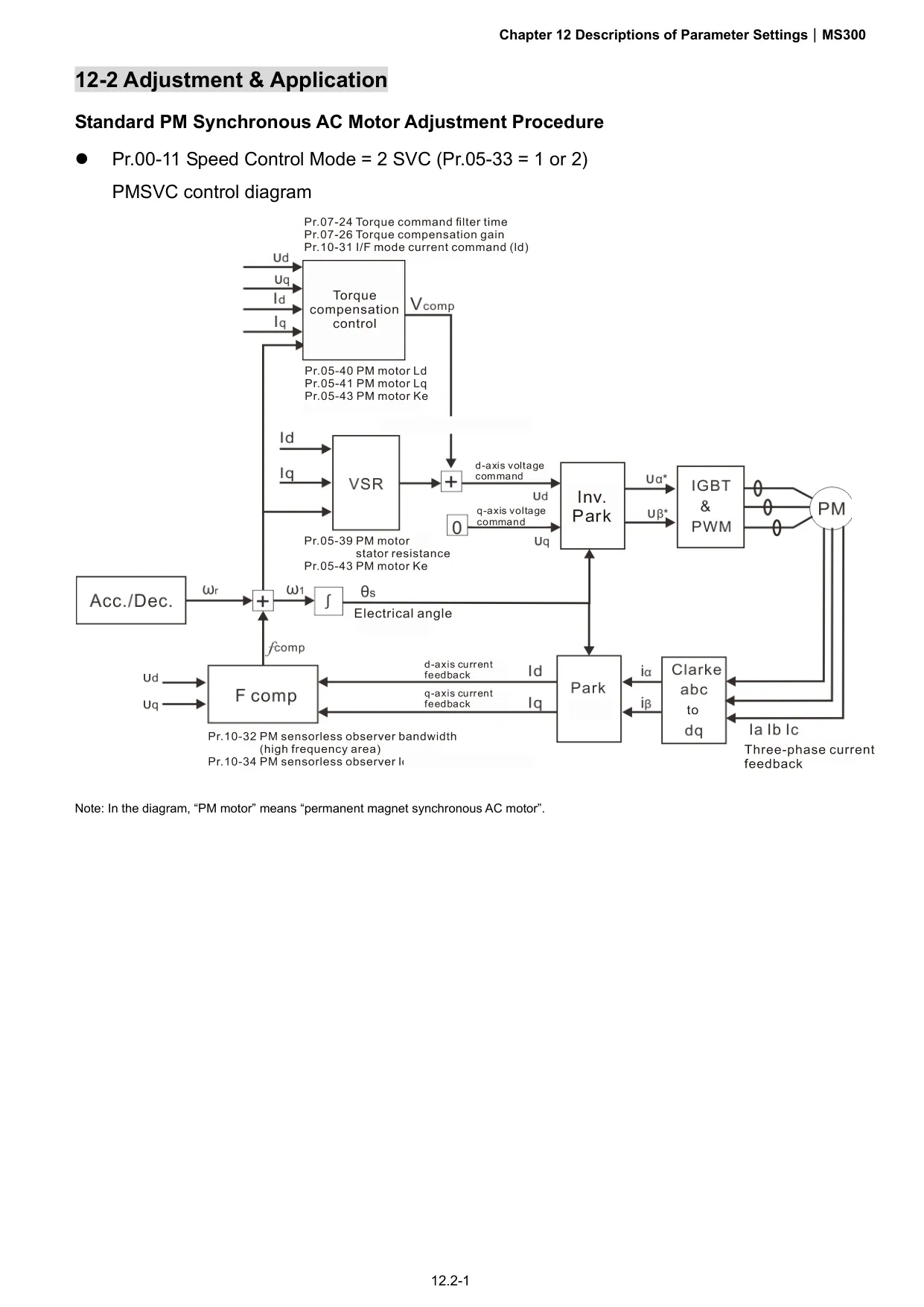

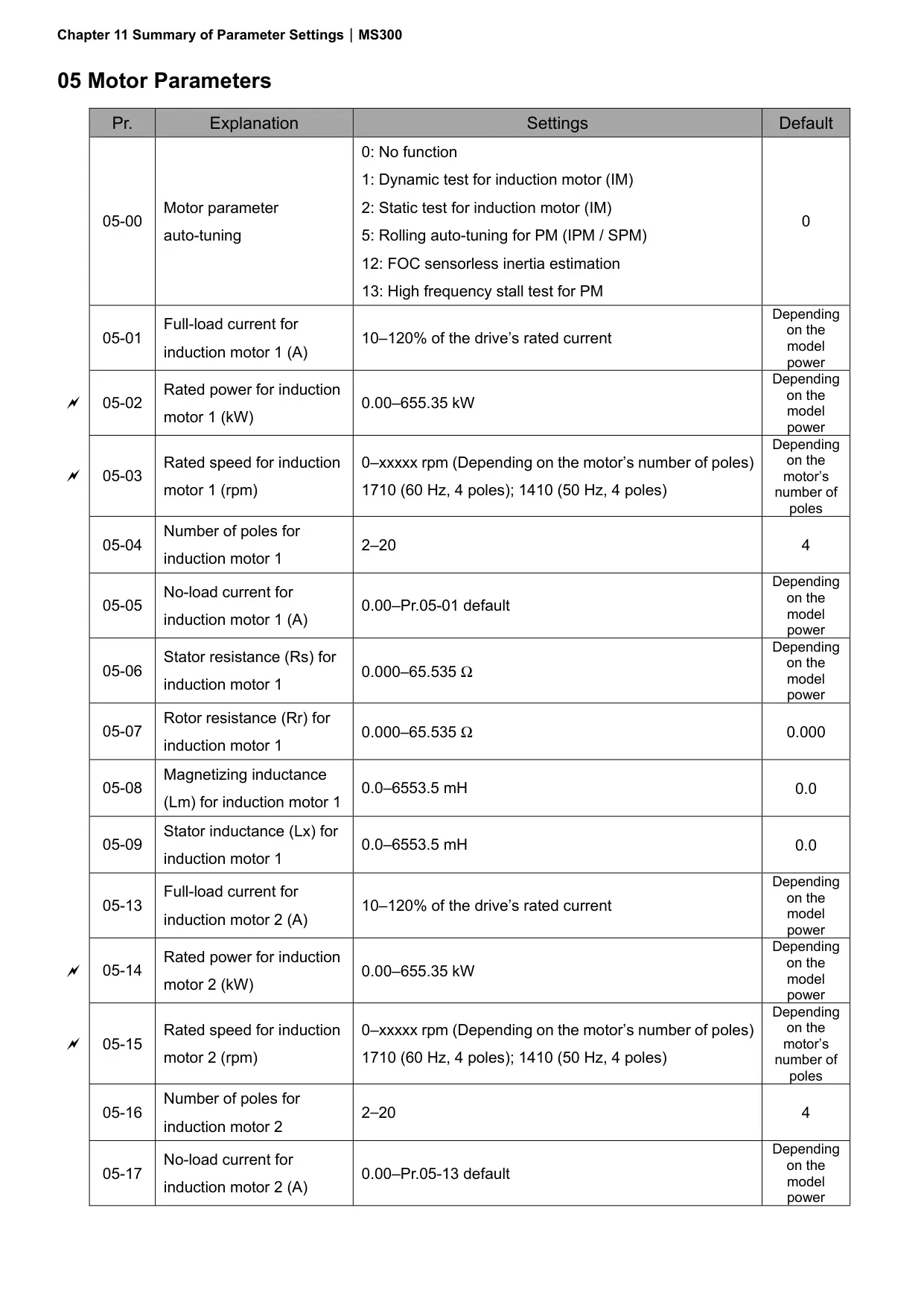

The VFD's motor control algorithms are highly sophisticated, supporting not only standard V/F control but also advanced Sensorless Vector Control (SVC) and Field-Oriented Control (FOC) for both Induction Motors (IM) and Permanent Magnet Synchronous Motors (PM). This allows for precise speed and torque control, even at low speeds, optimizing energy efficiency and dynamic response. Features like auto-tuning ensure optimal motor performance by automatically identifying motor parameters.

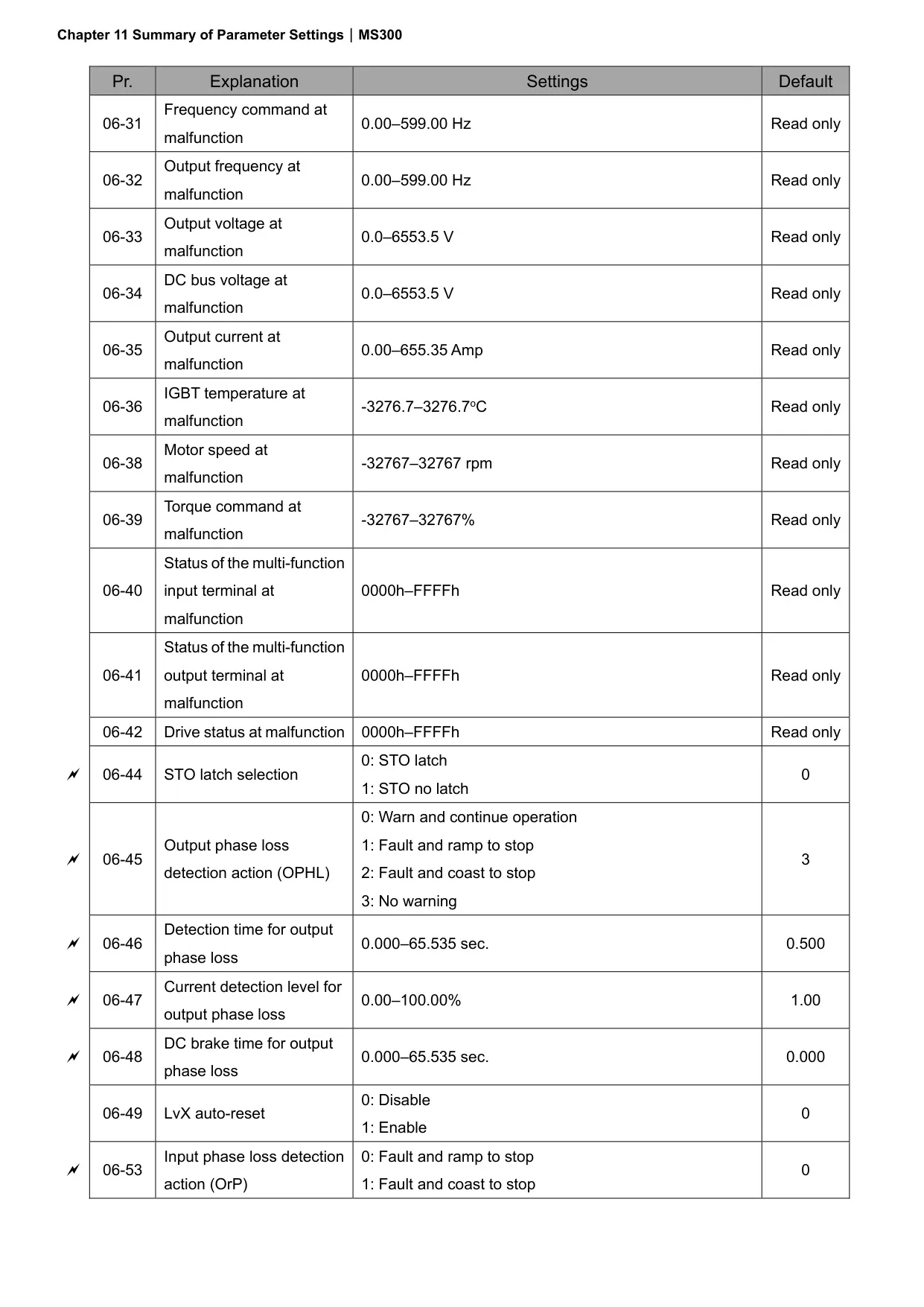

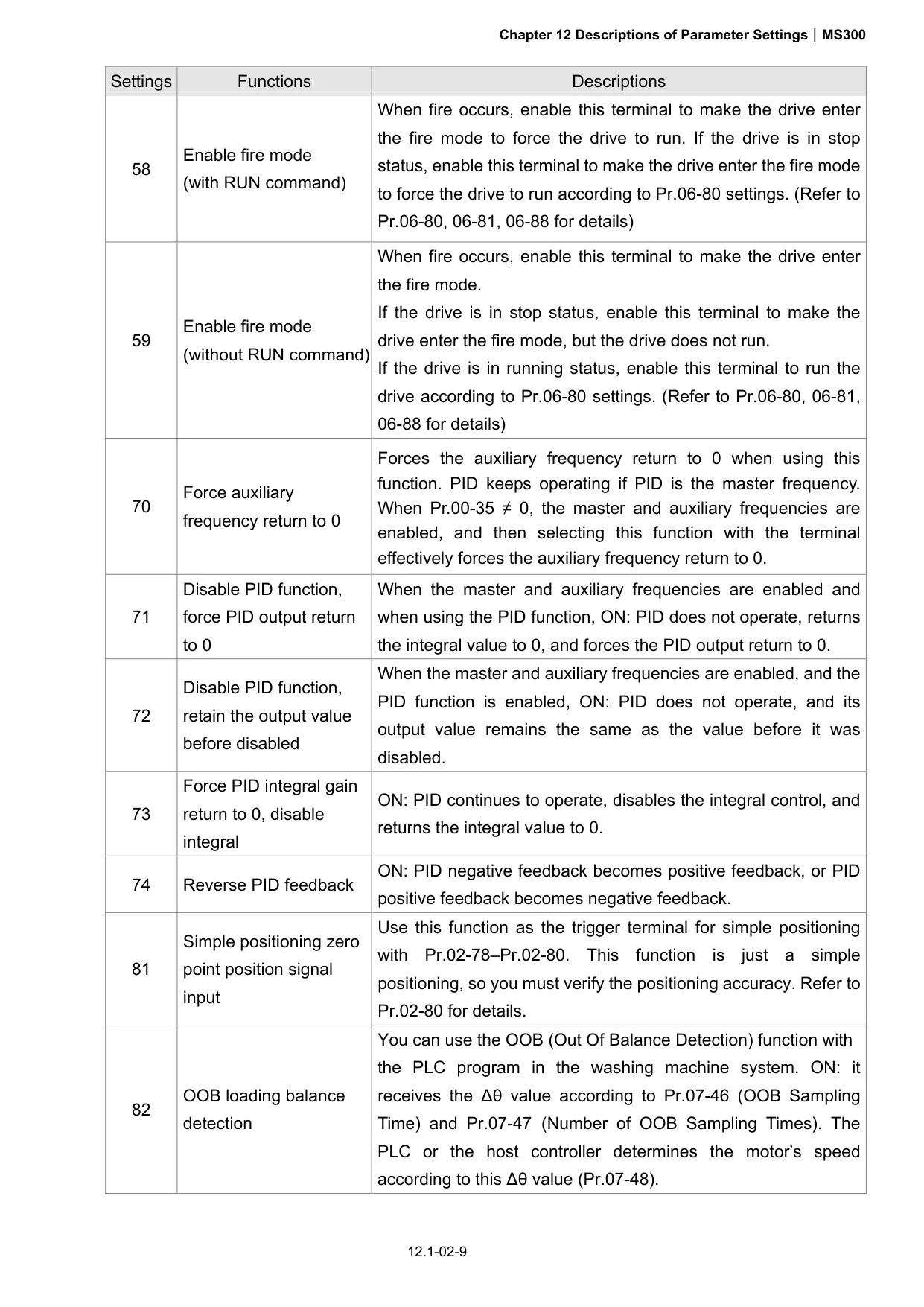

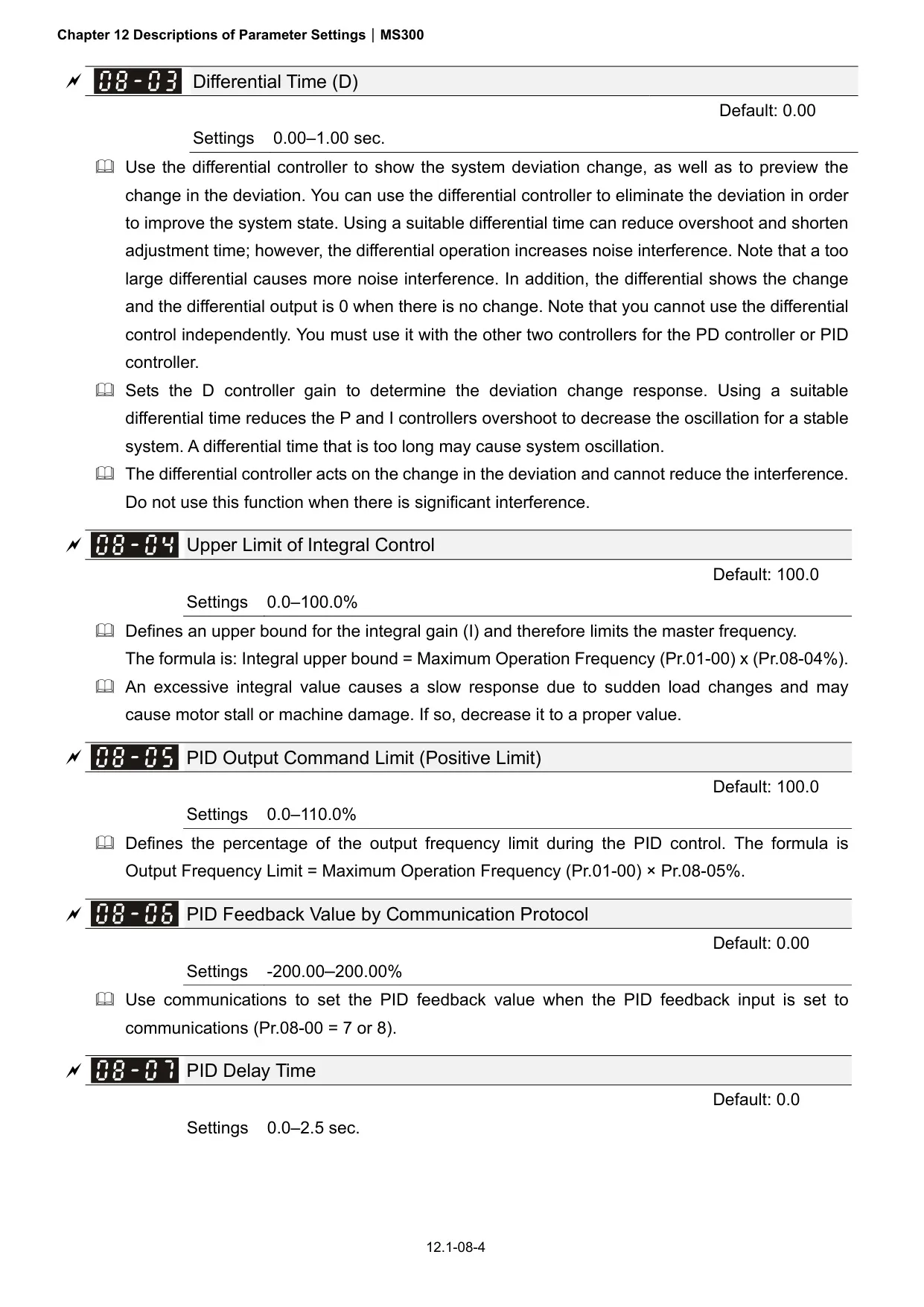

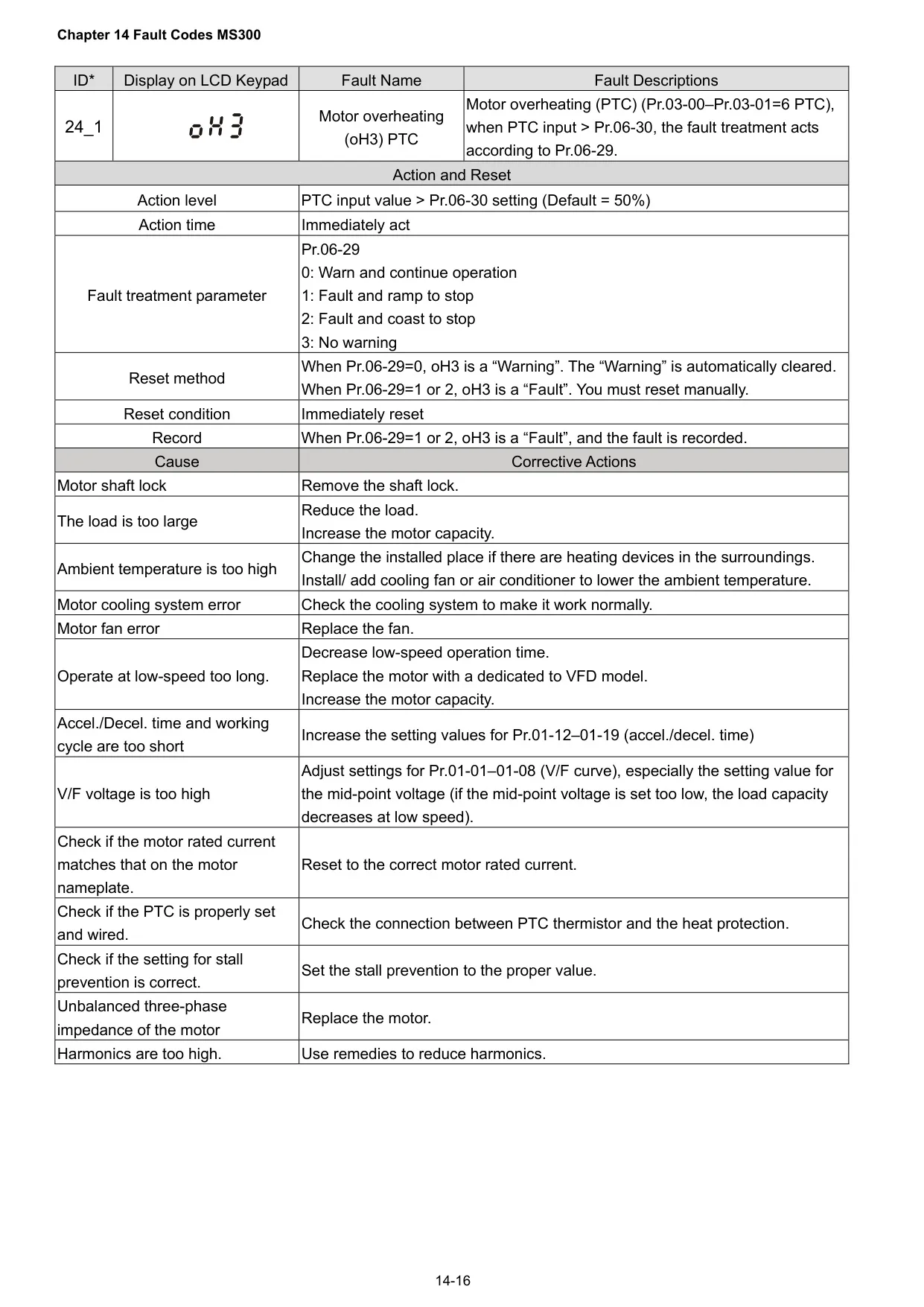

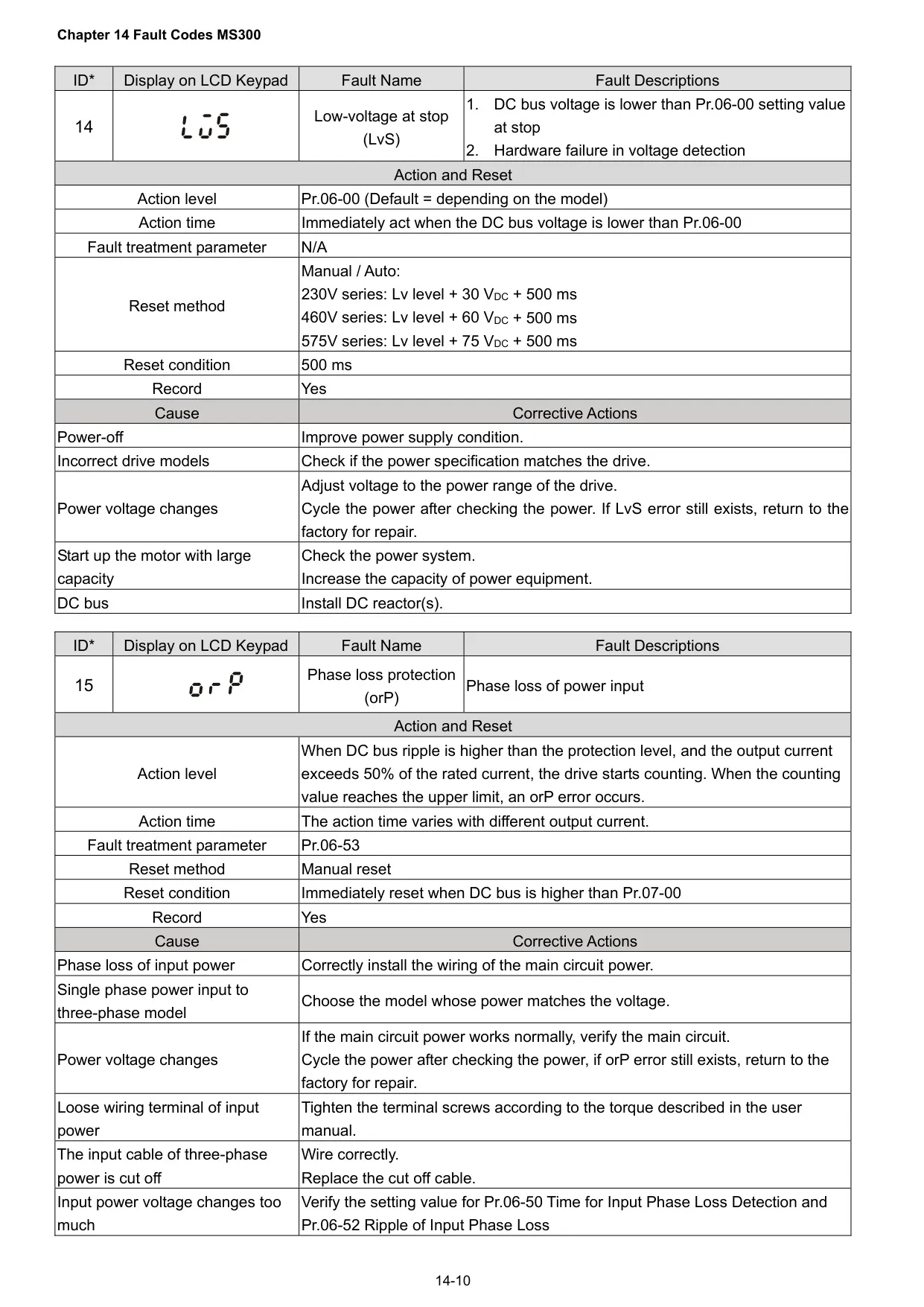

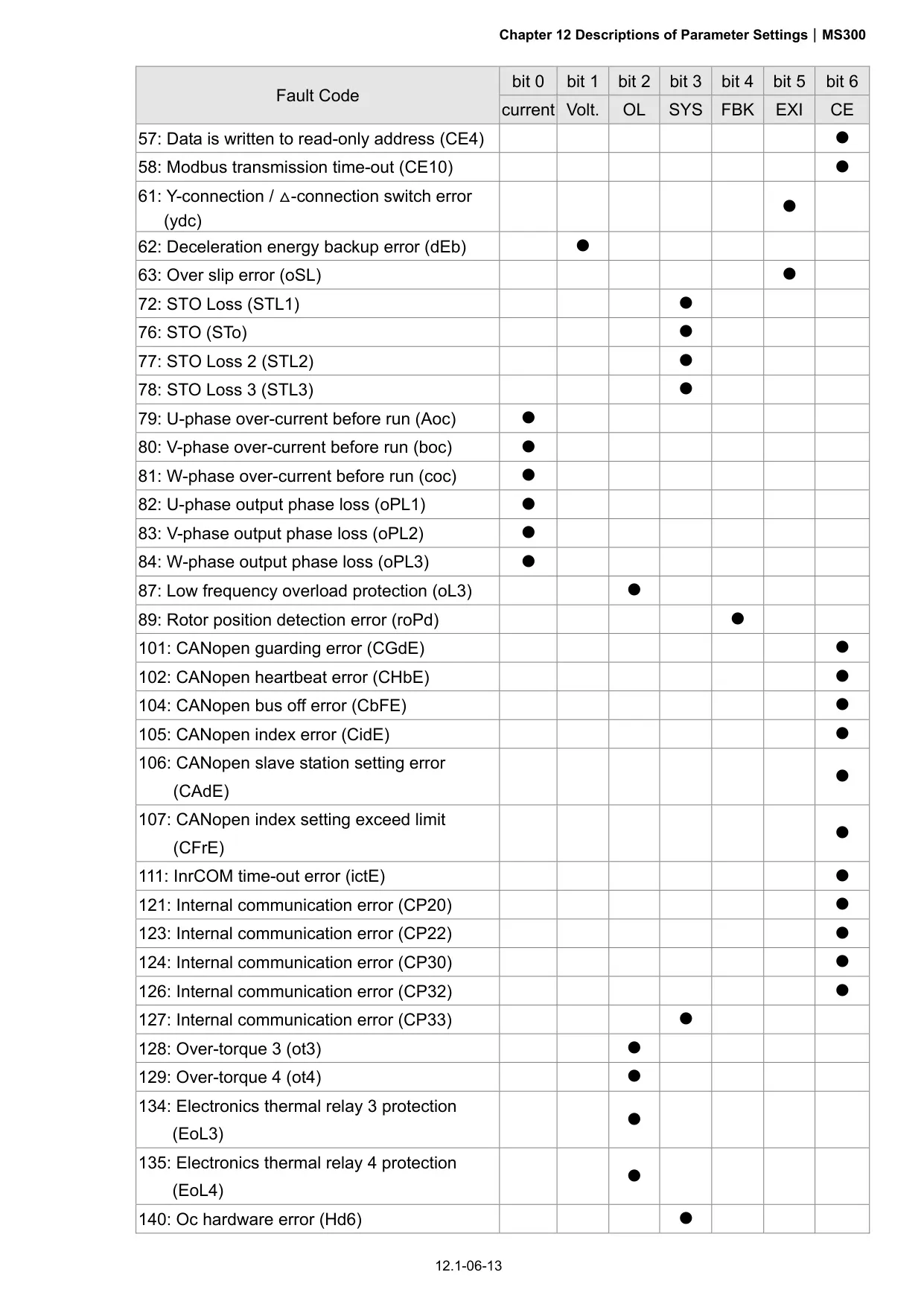

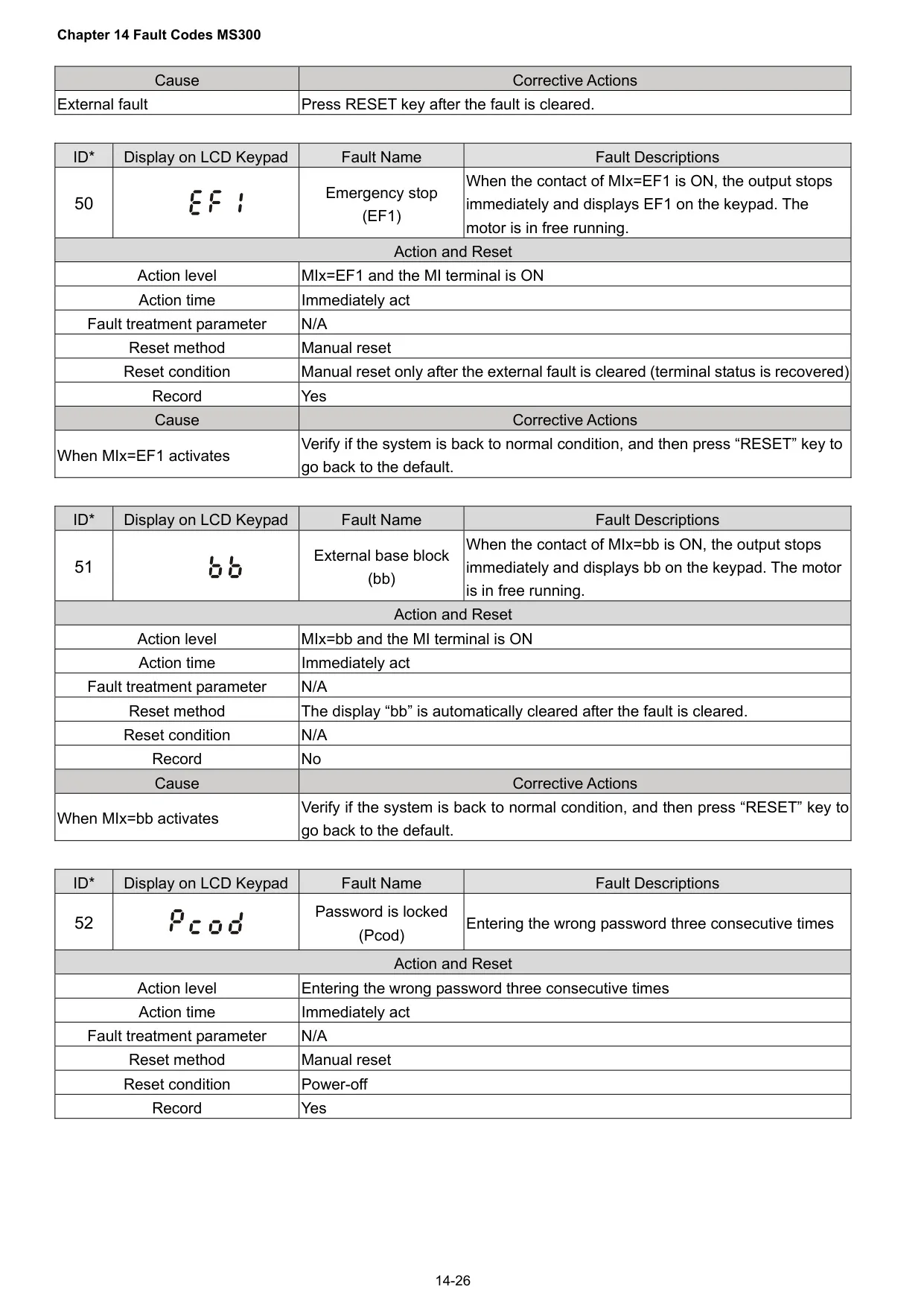

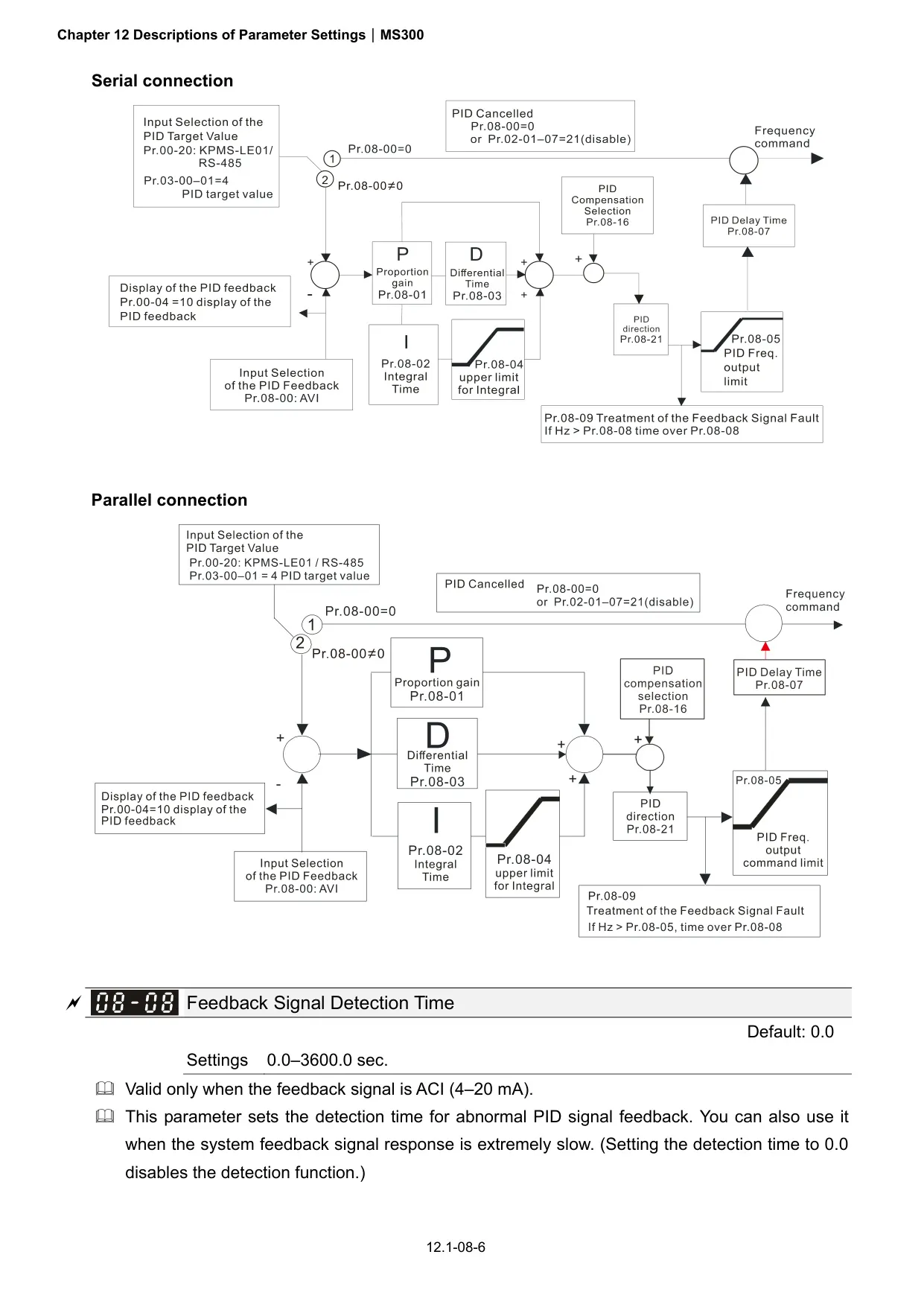

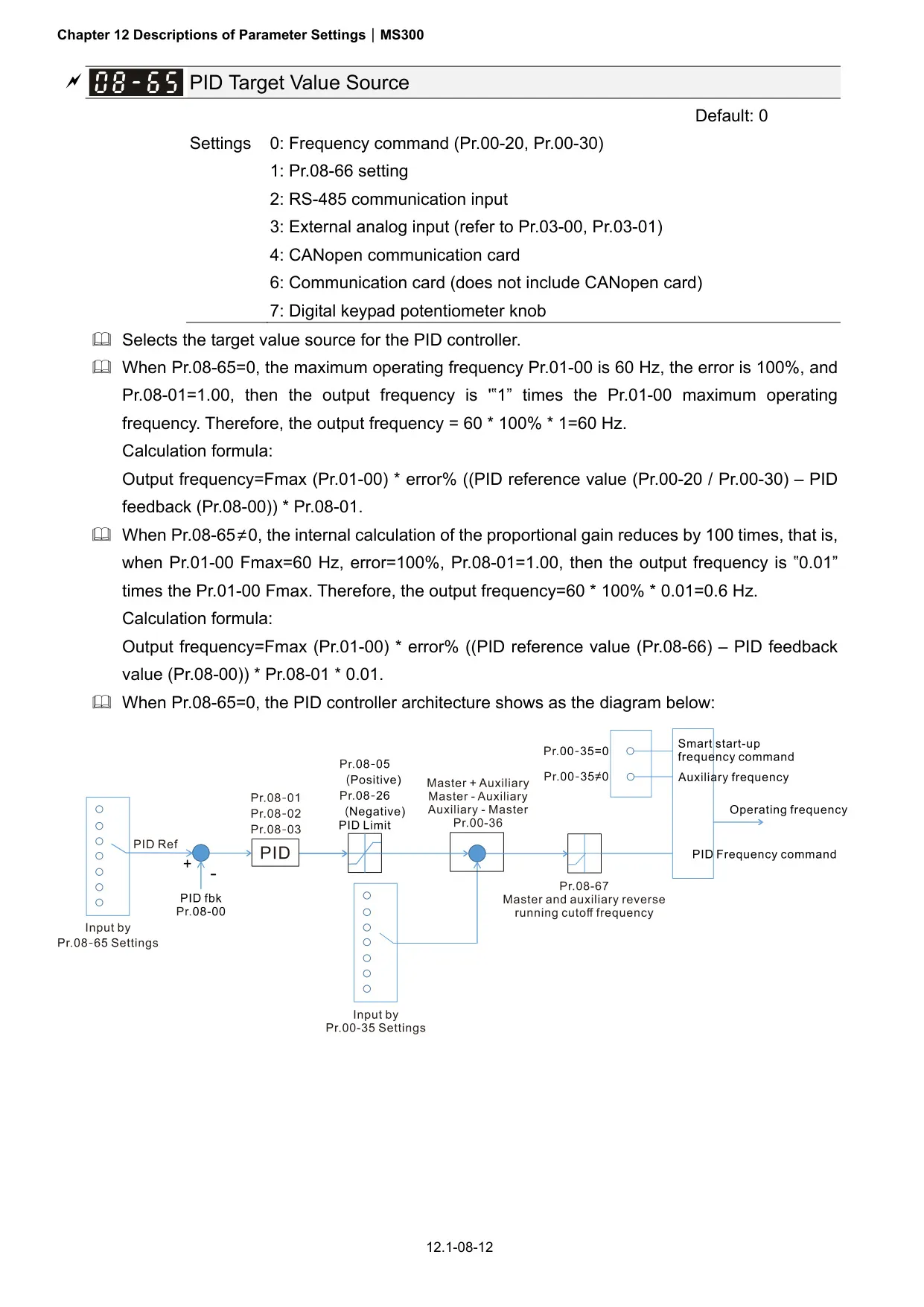

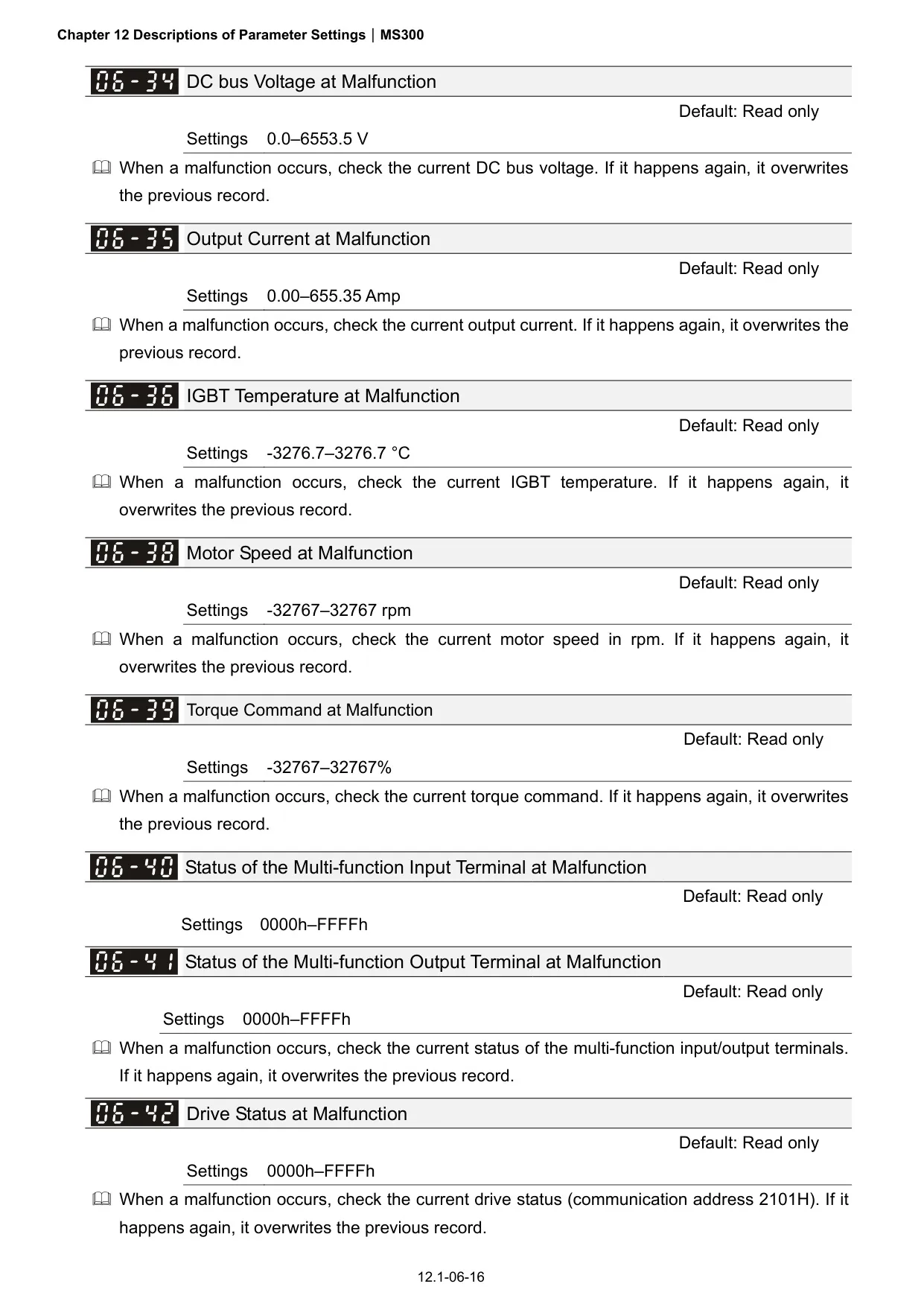

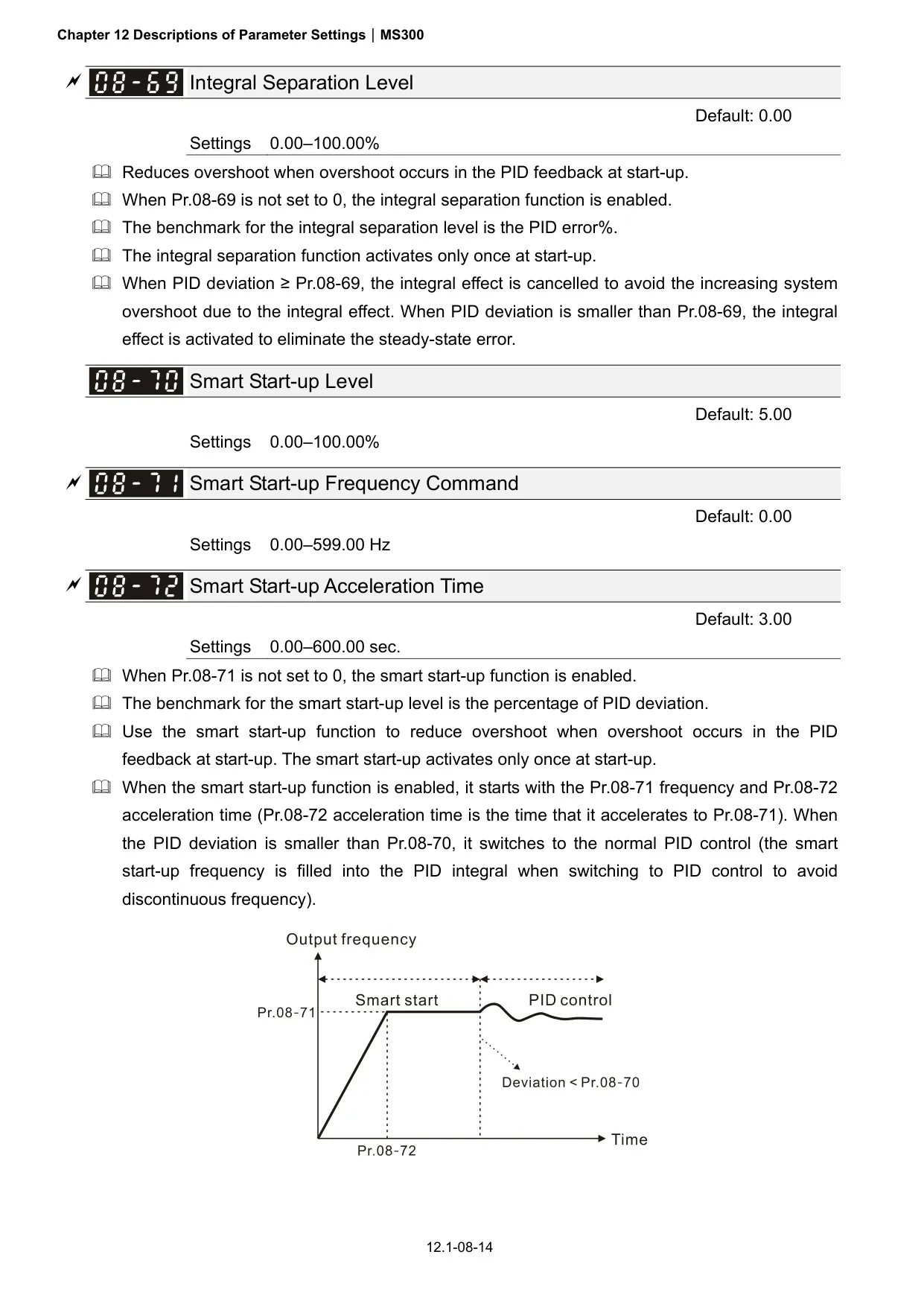

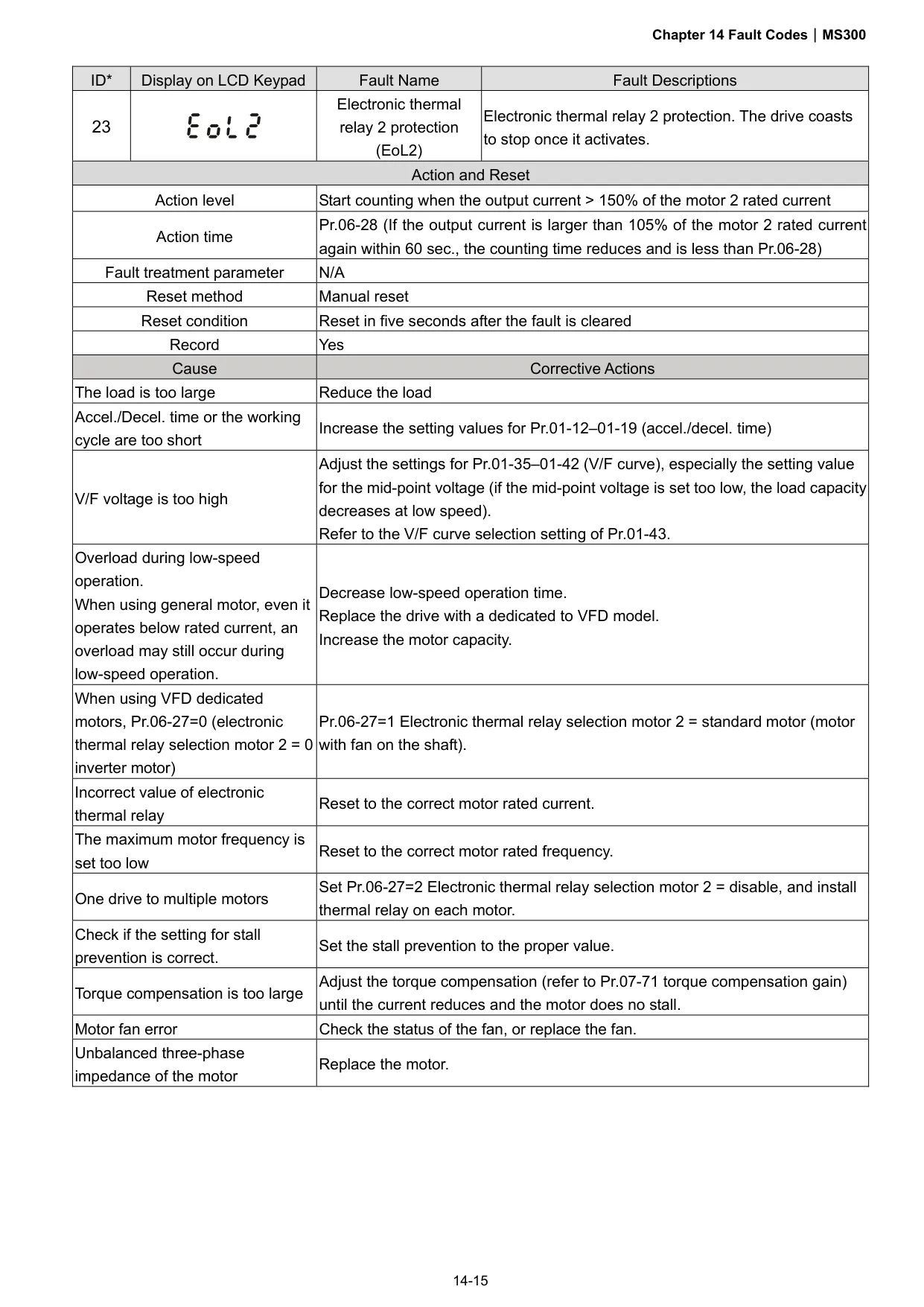

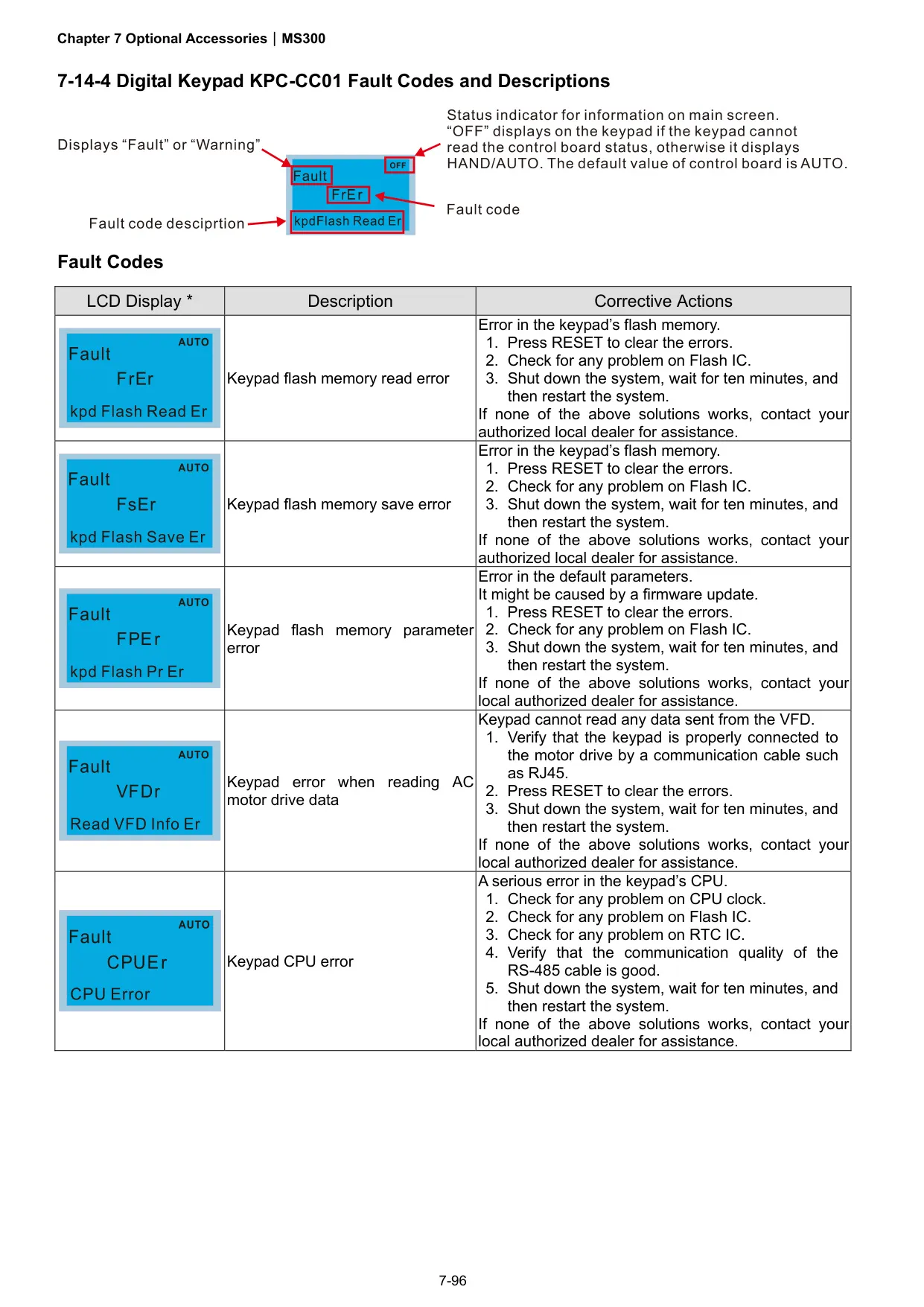

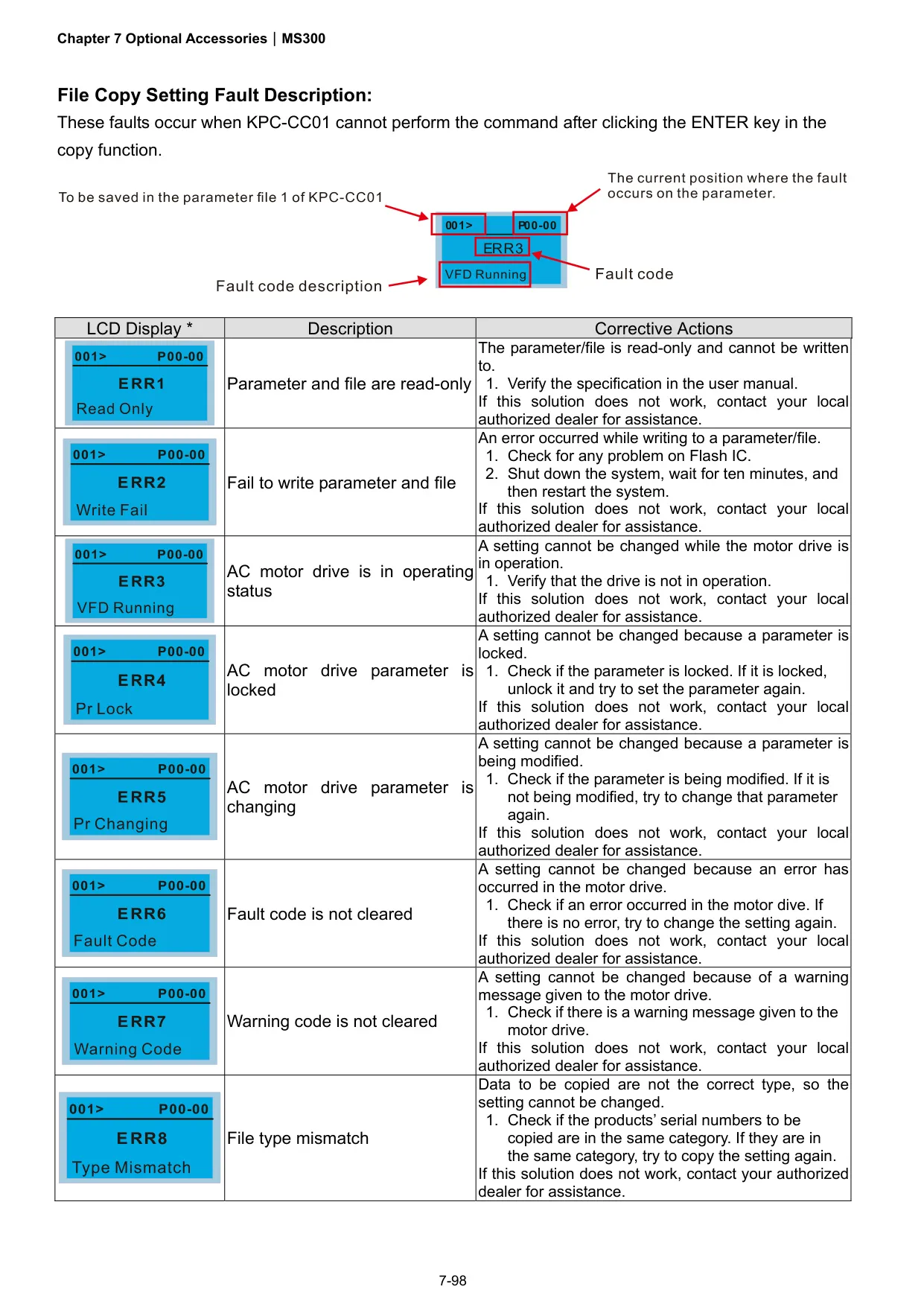

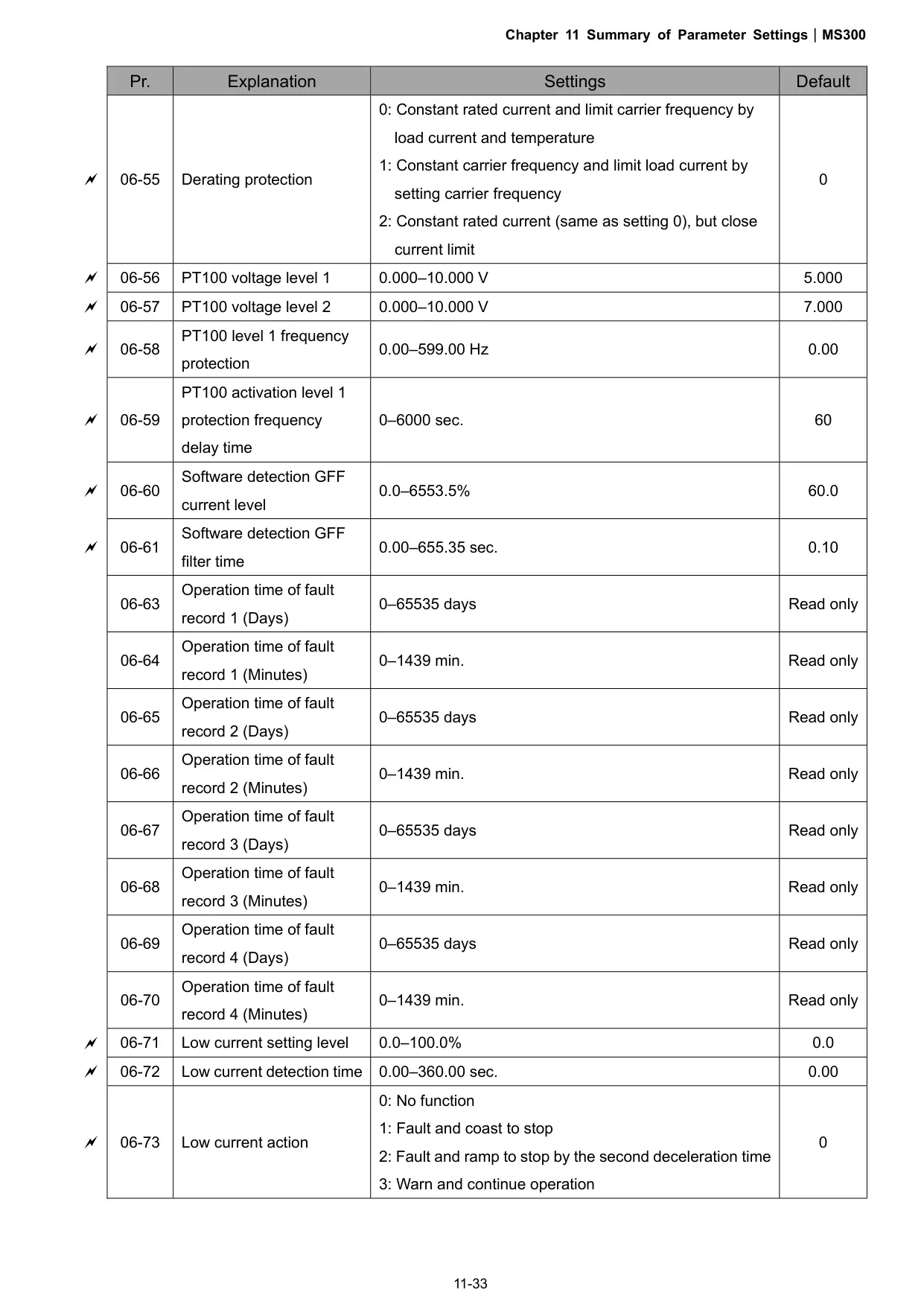

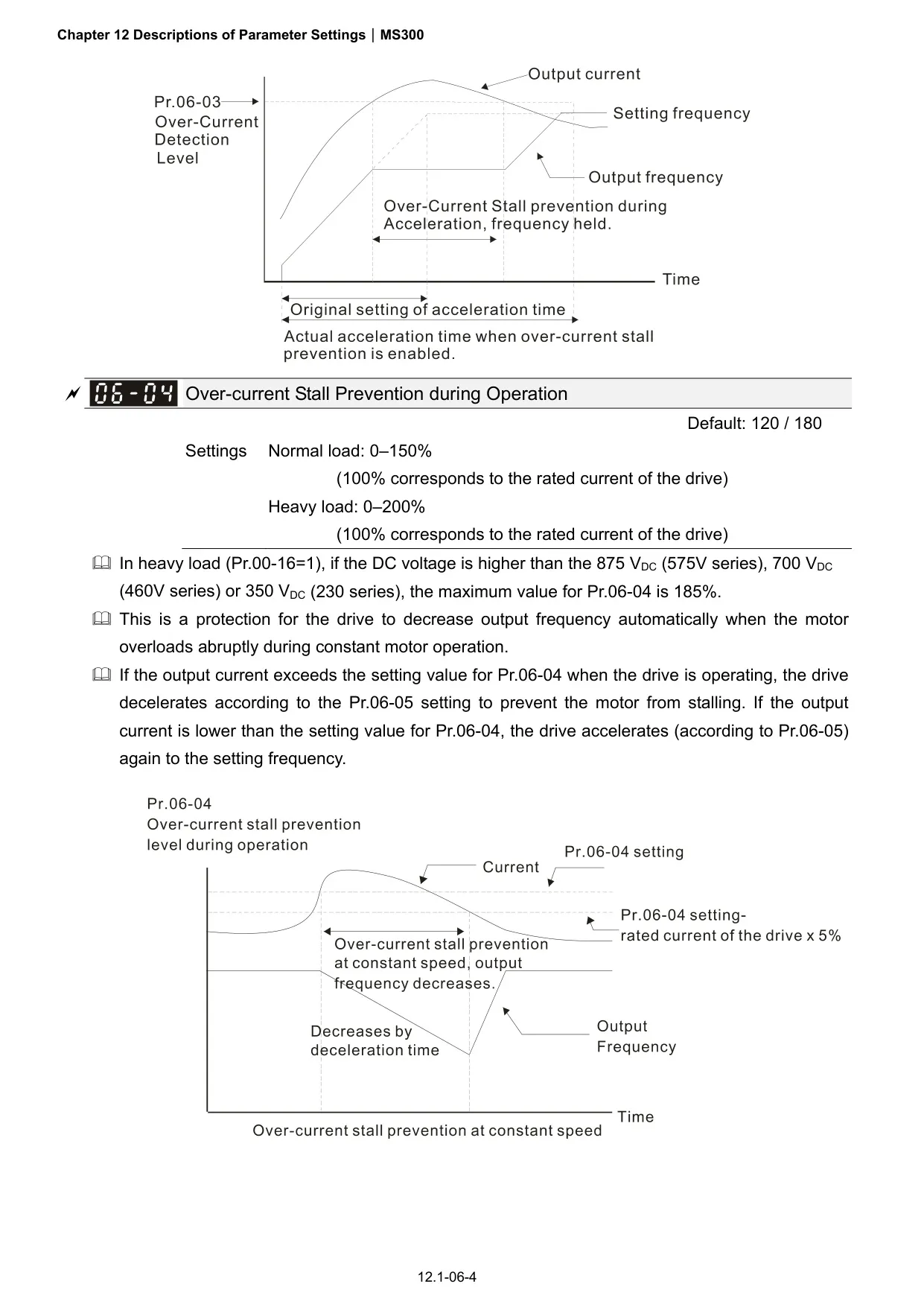

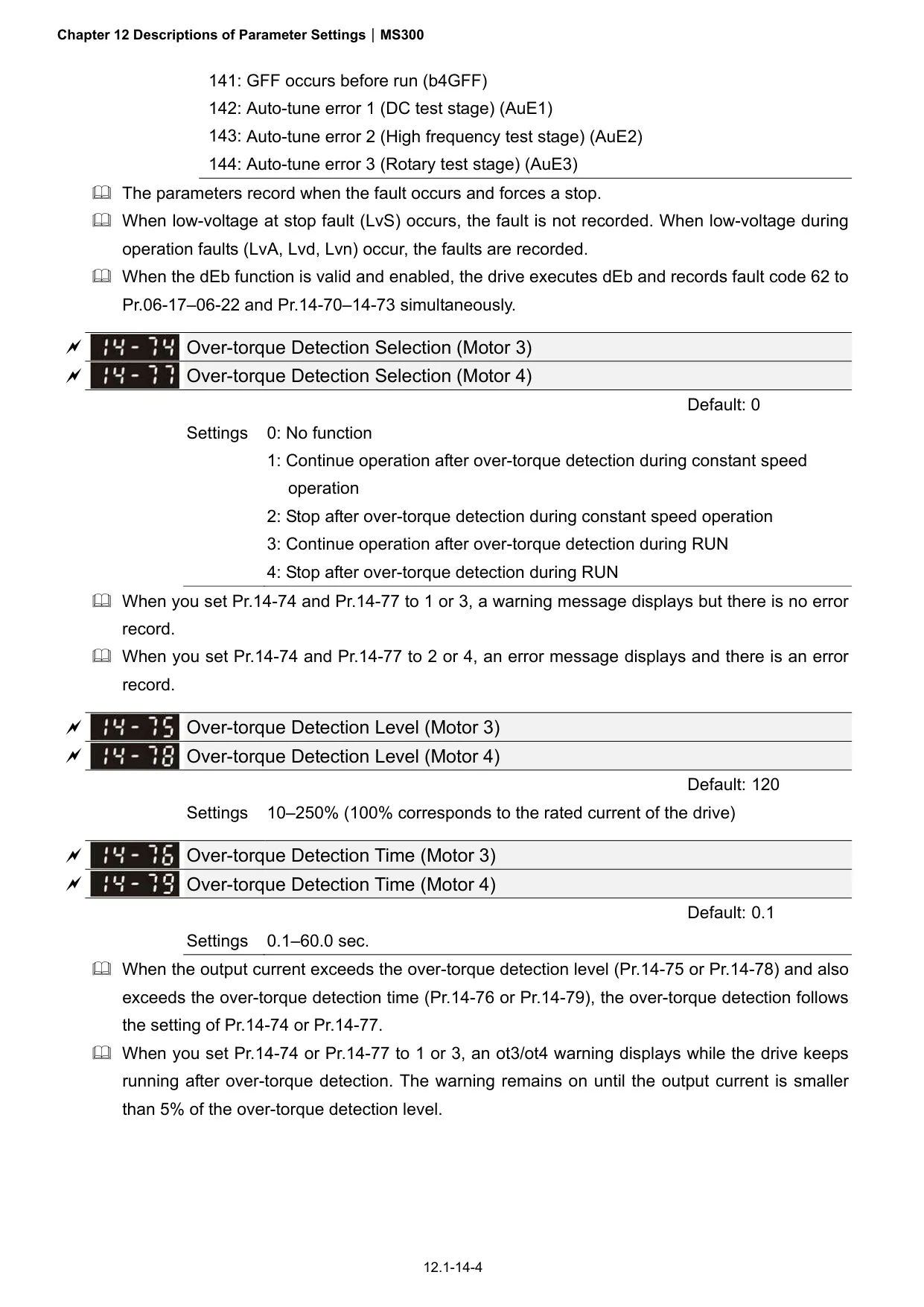

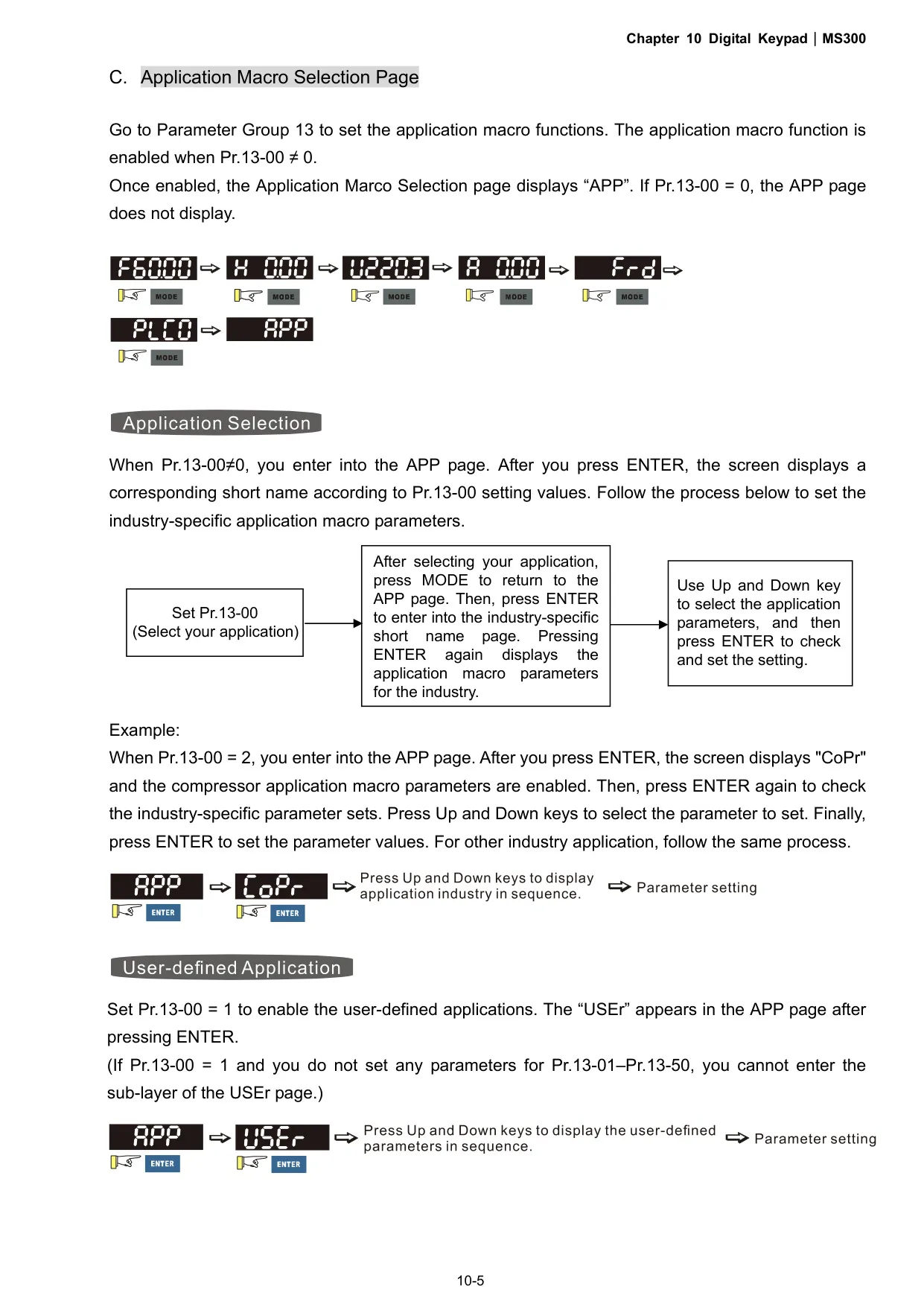

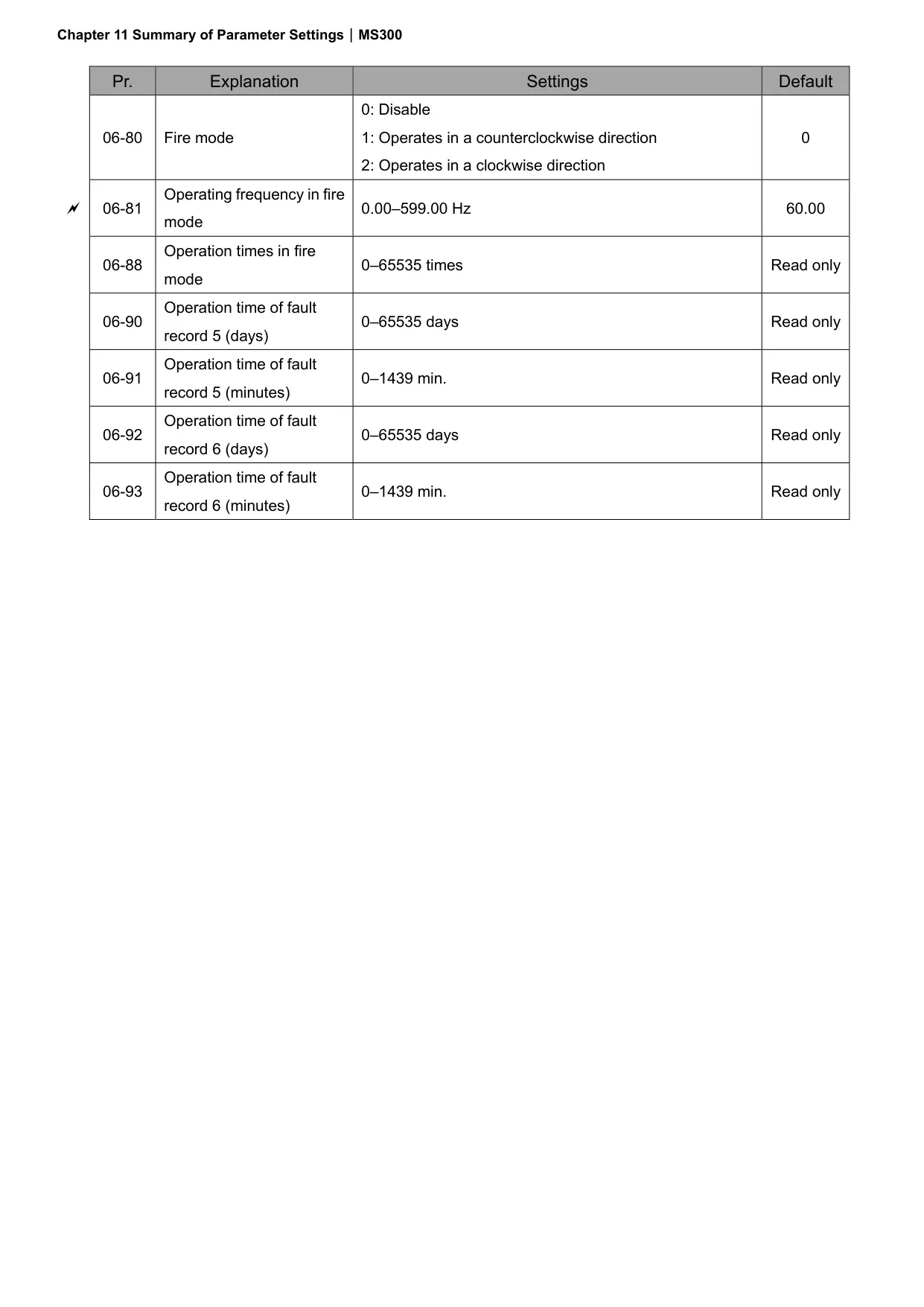

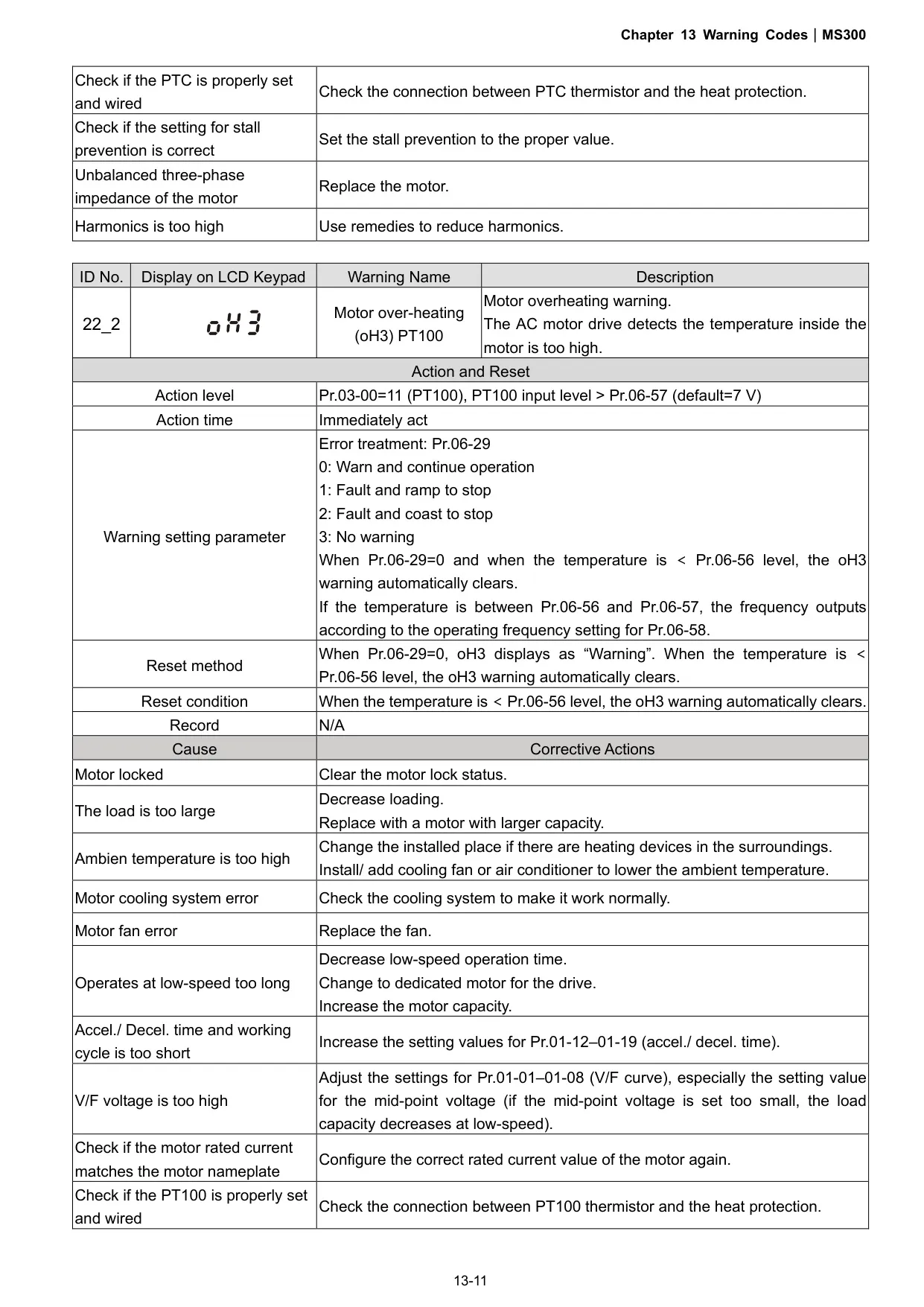

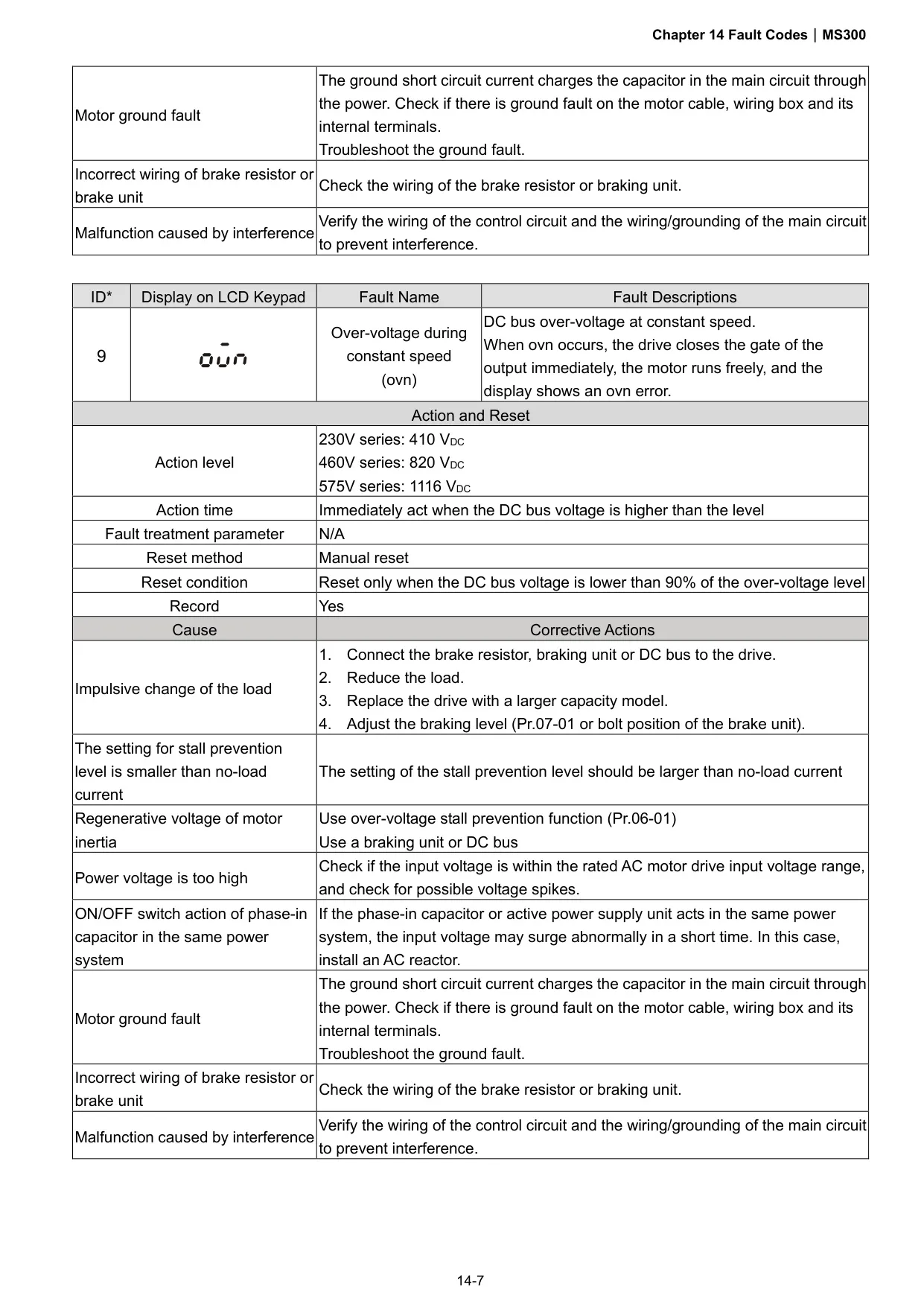

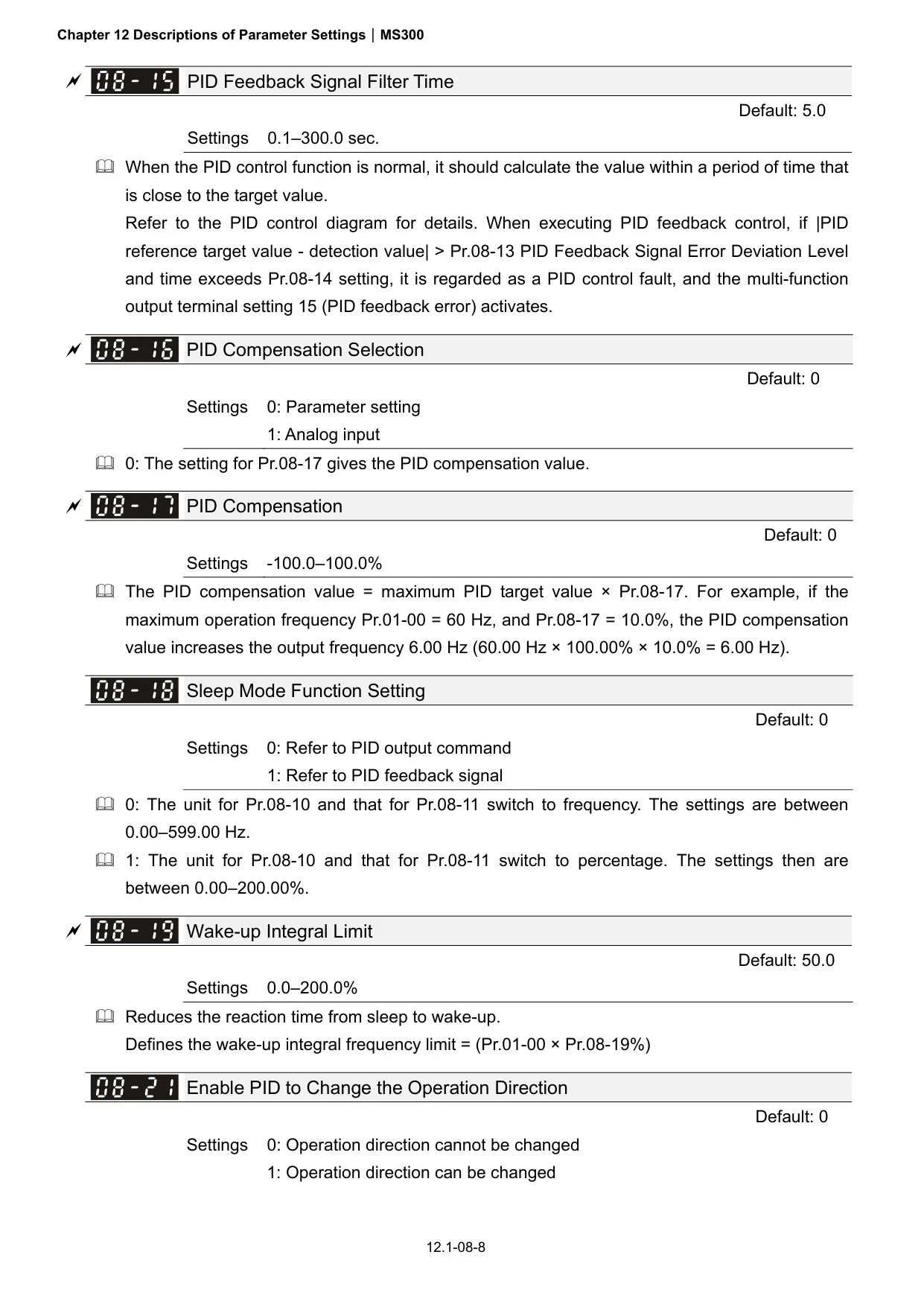

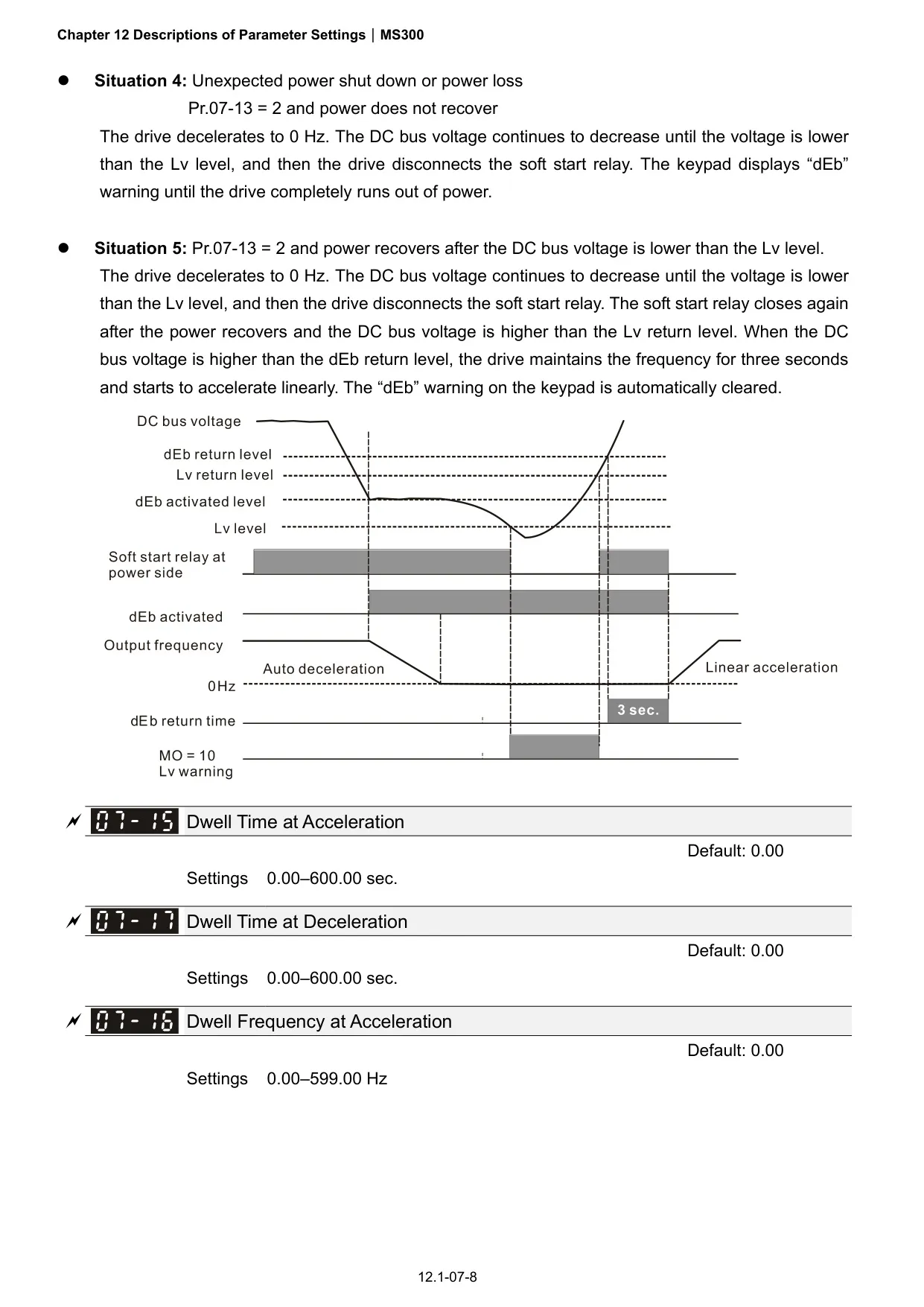

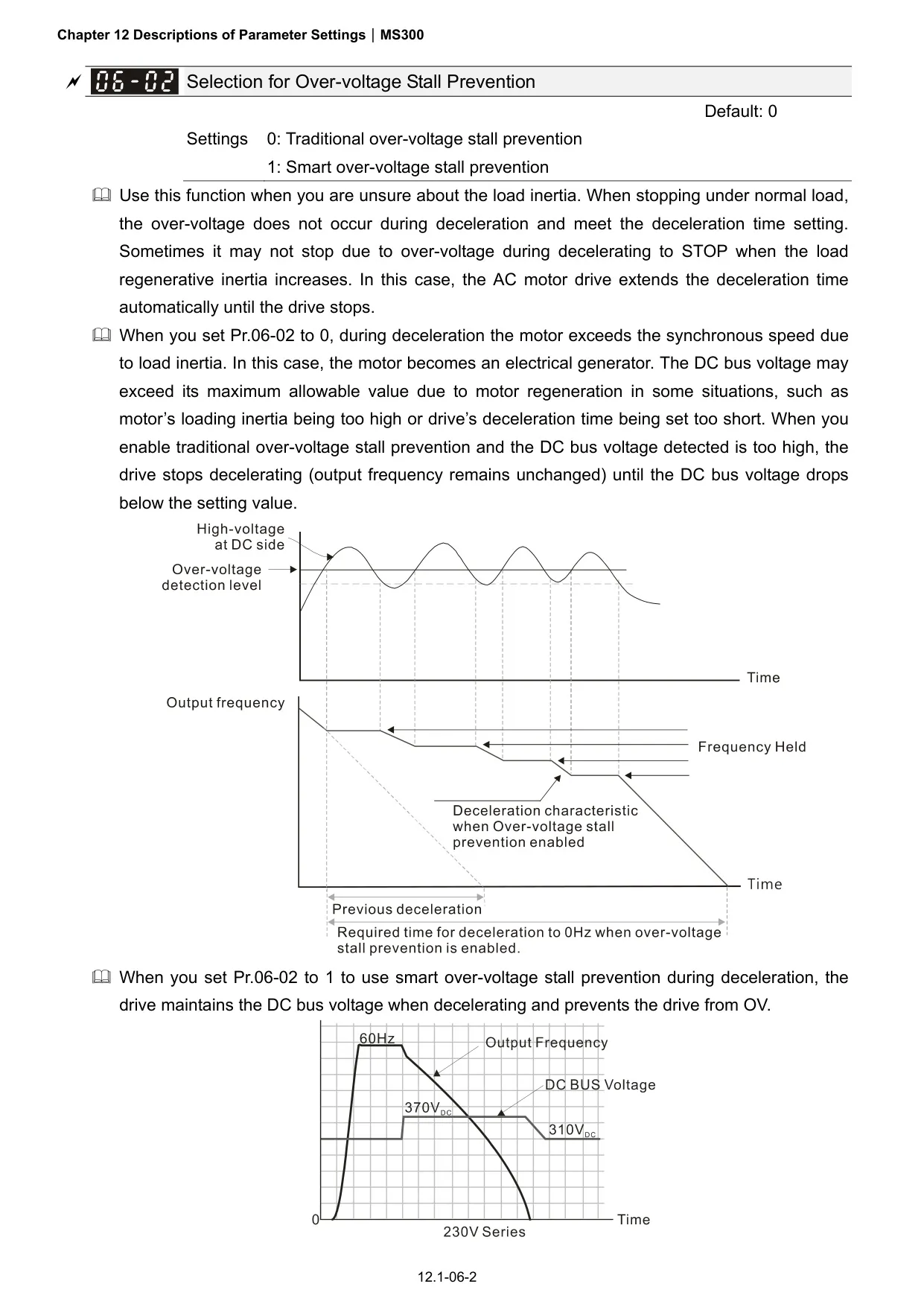

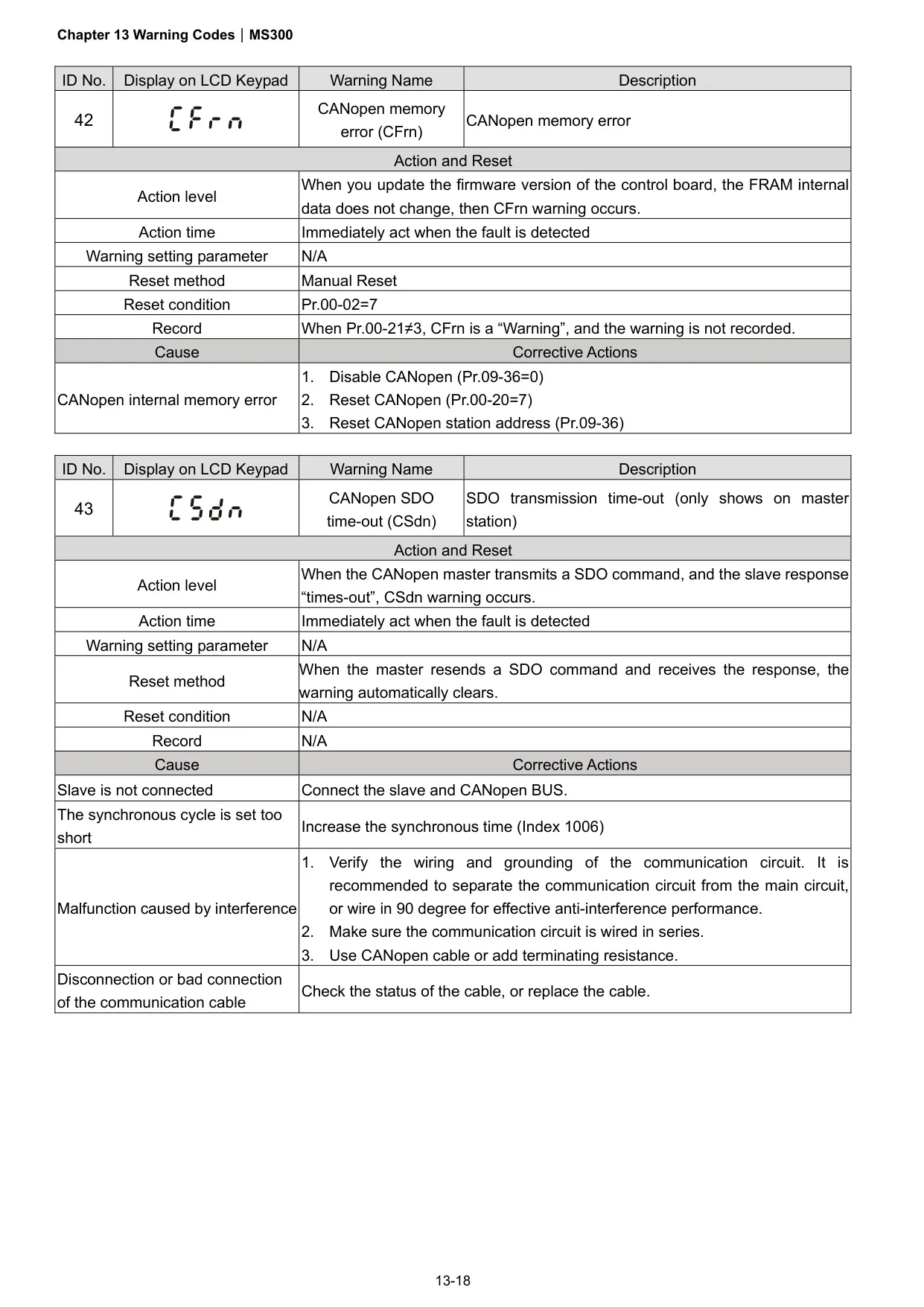

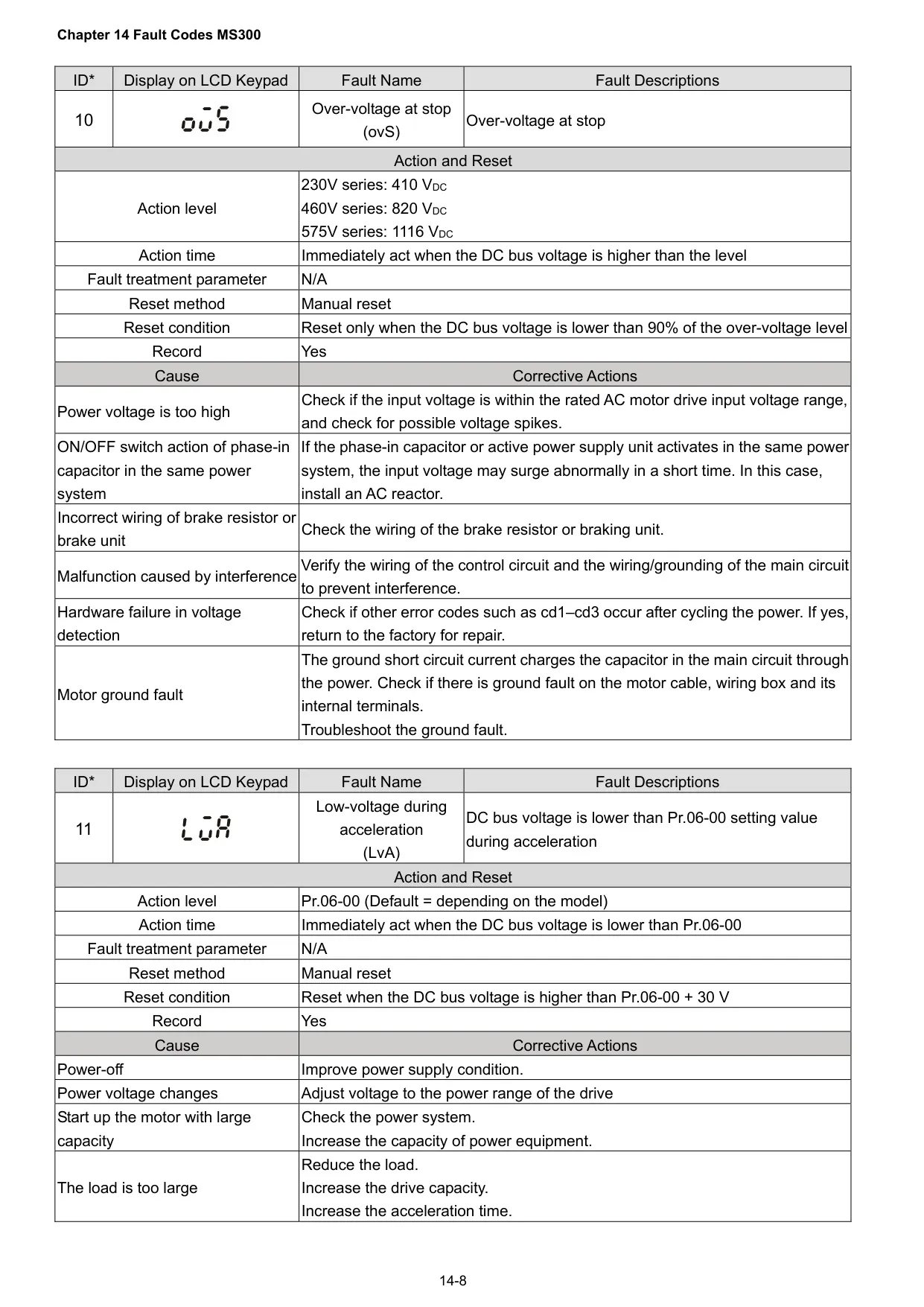

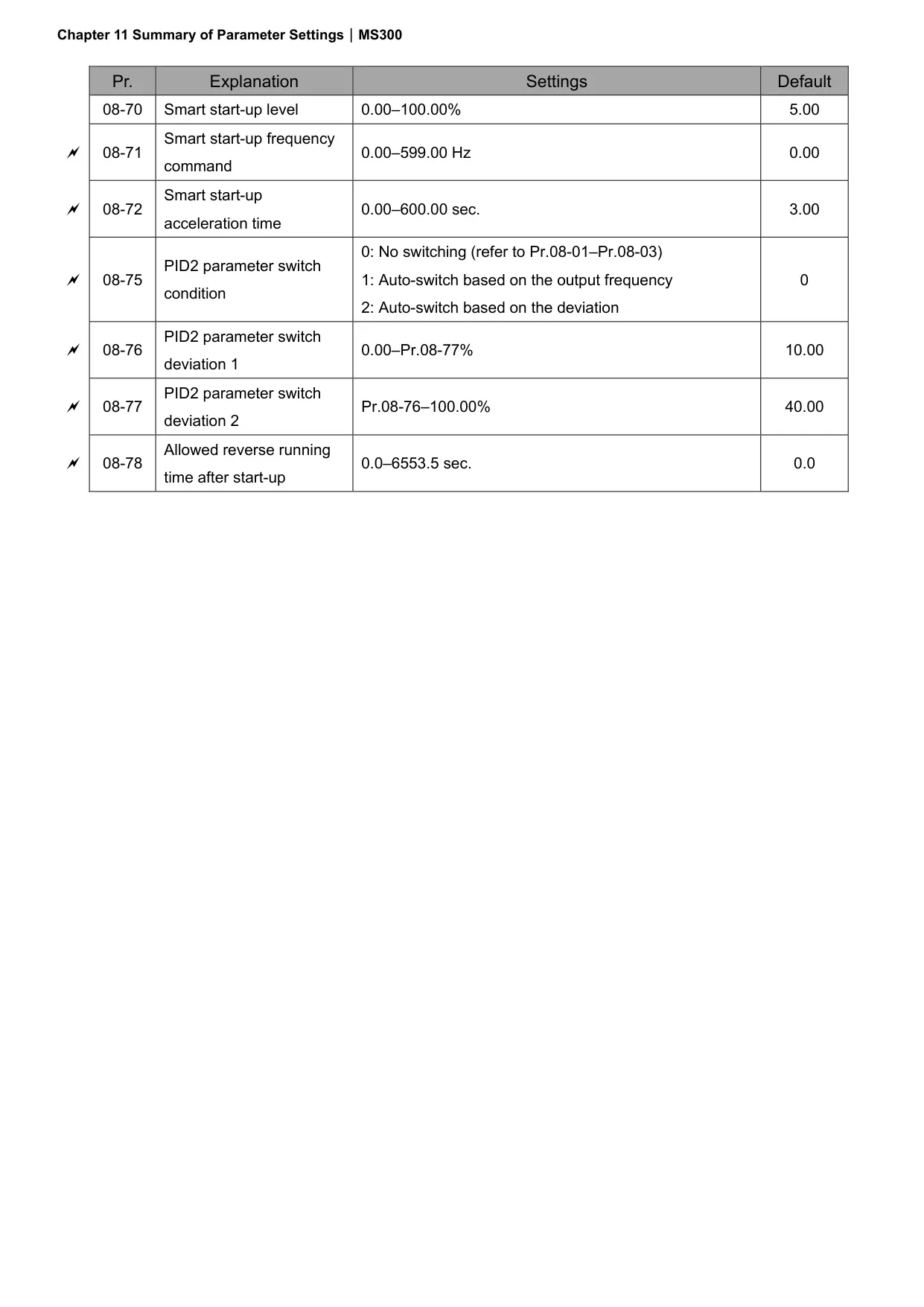

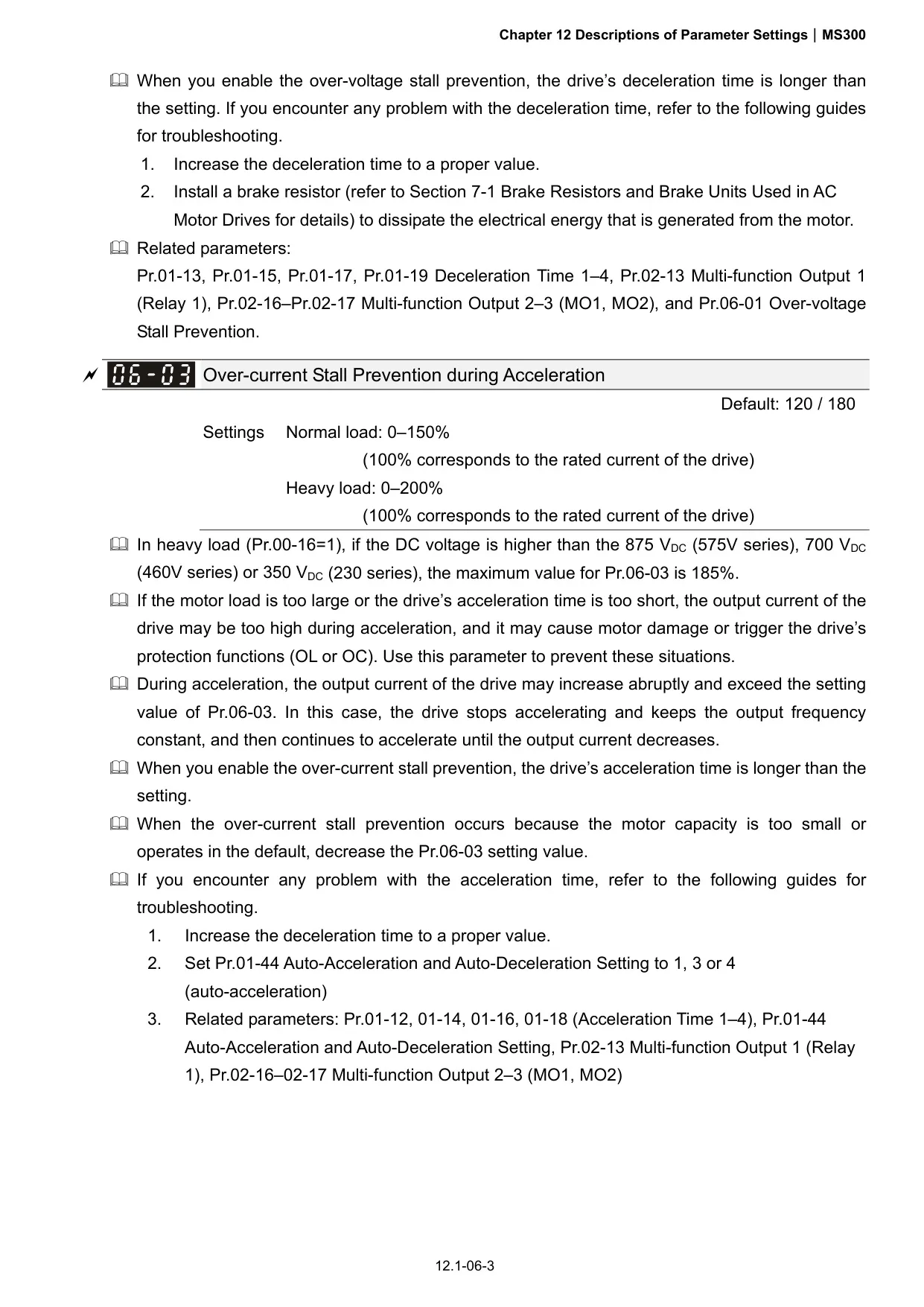

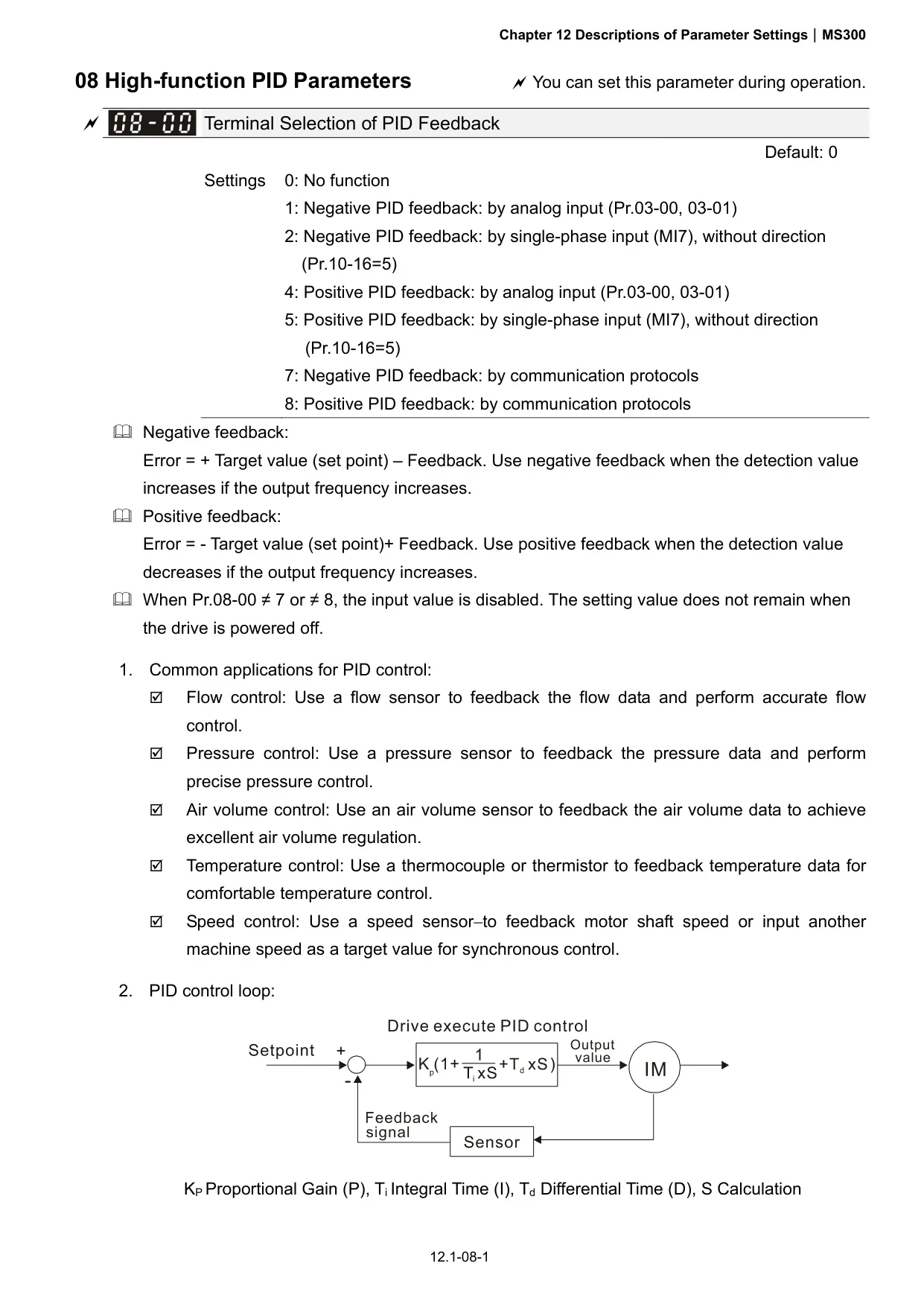

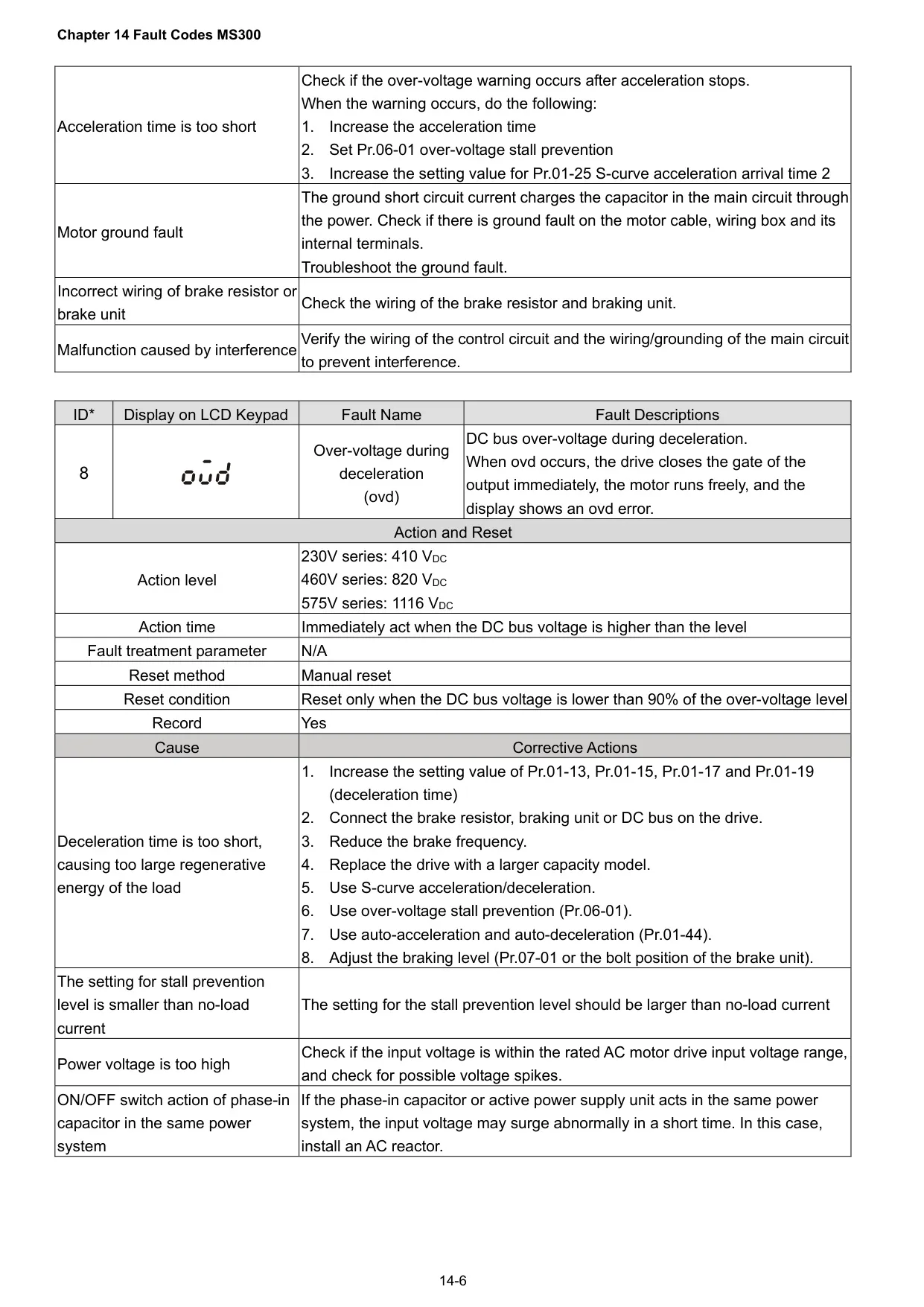

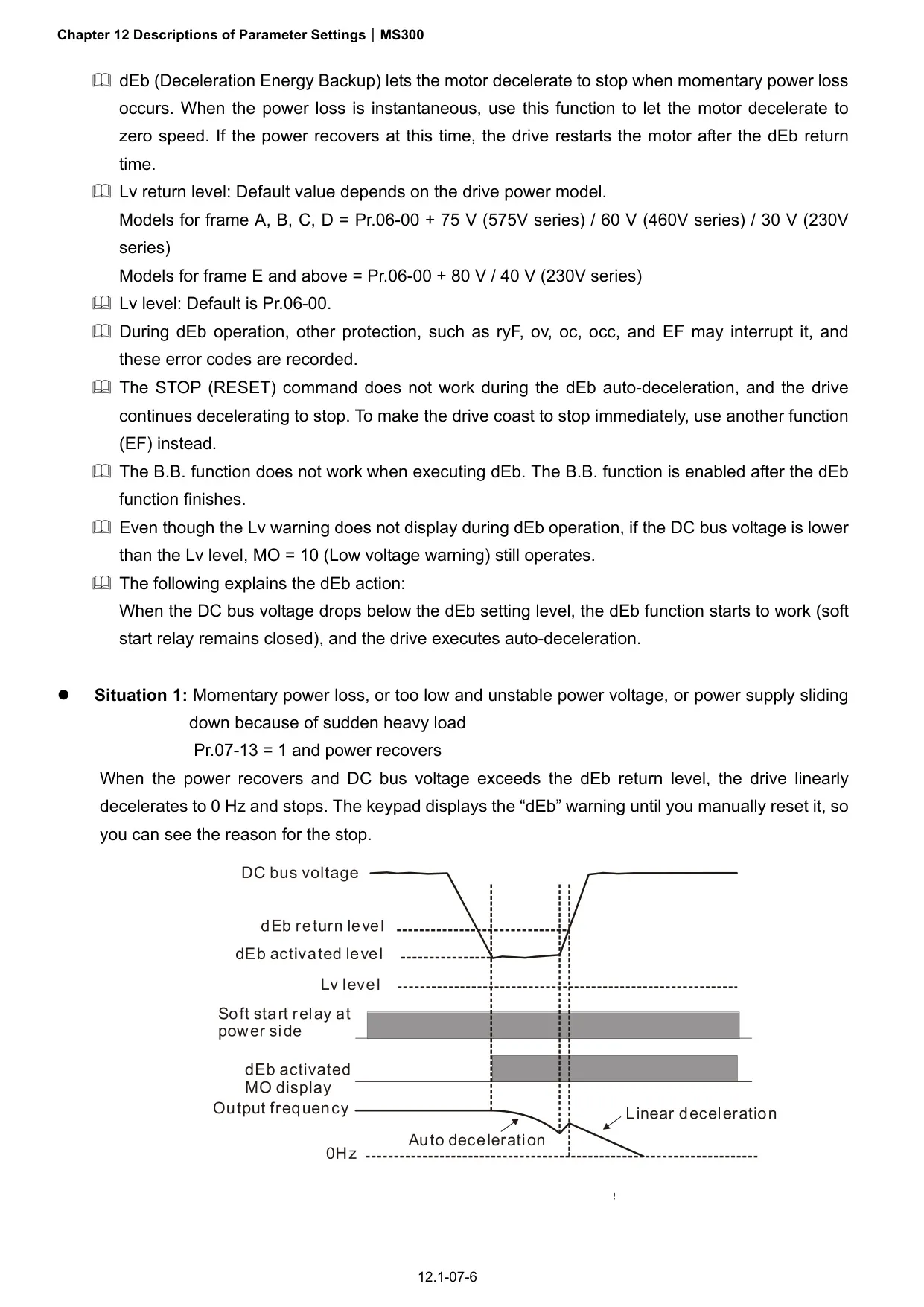

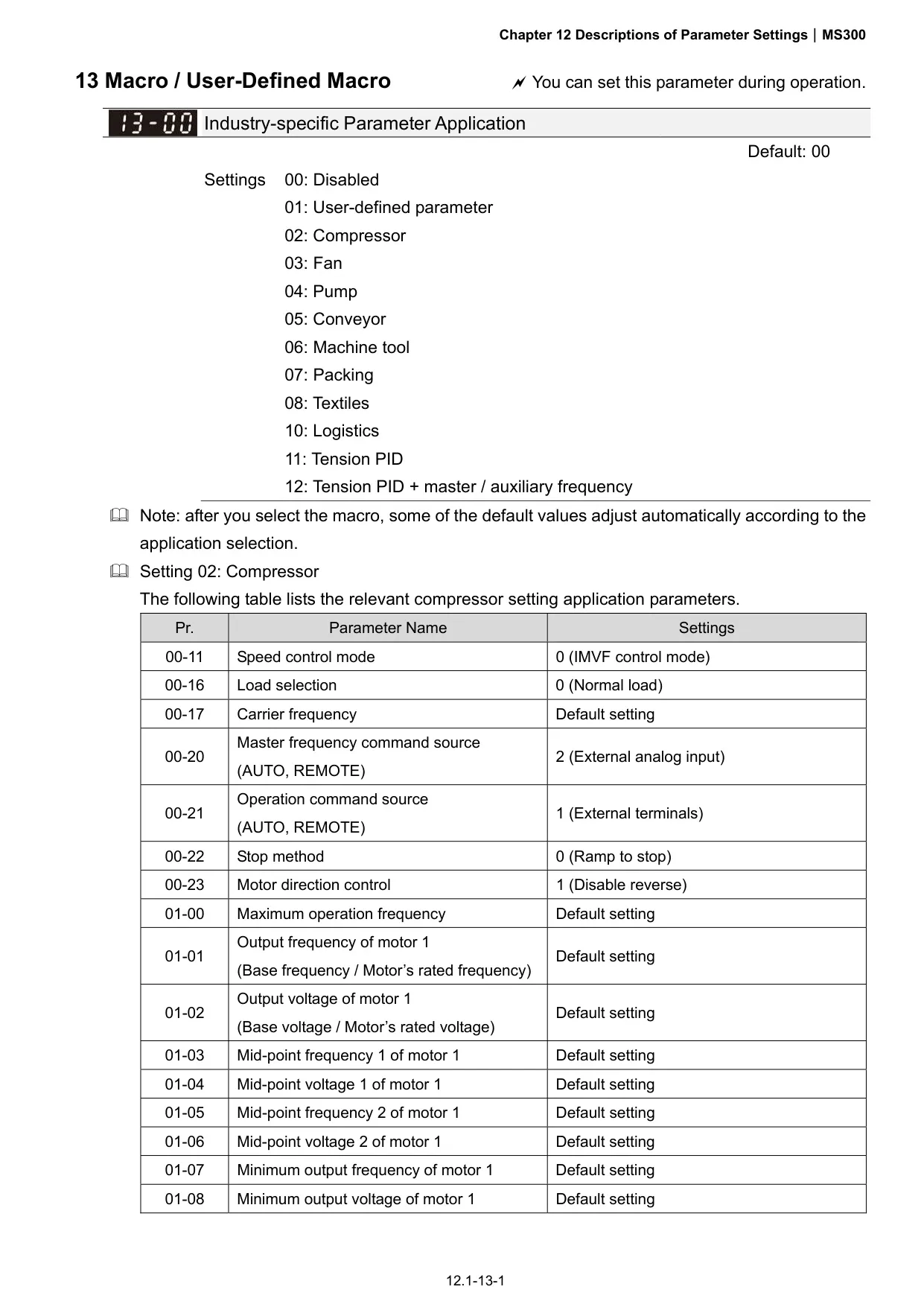

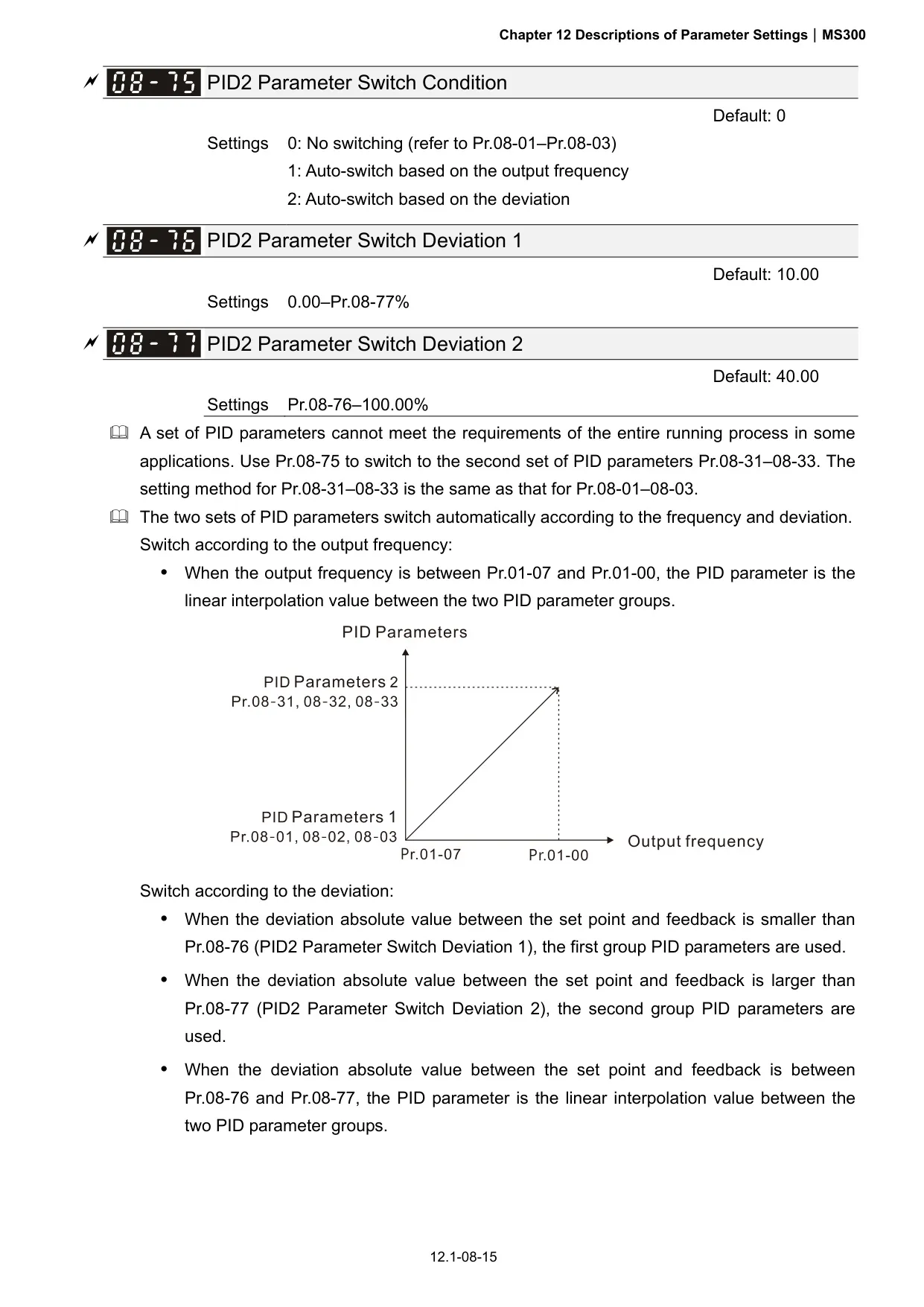

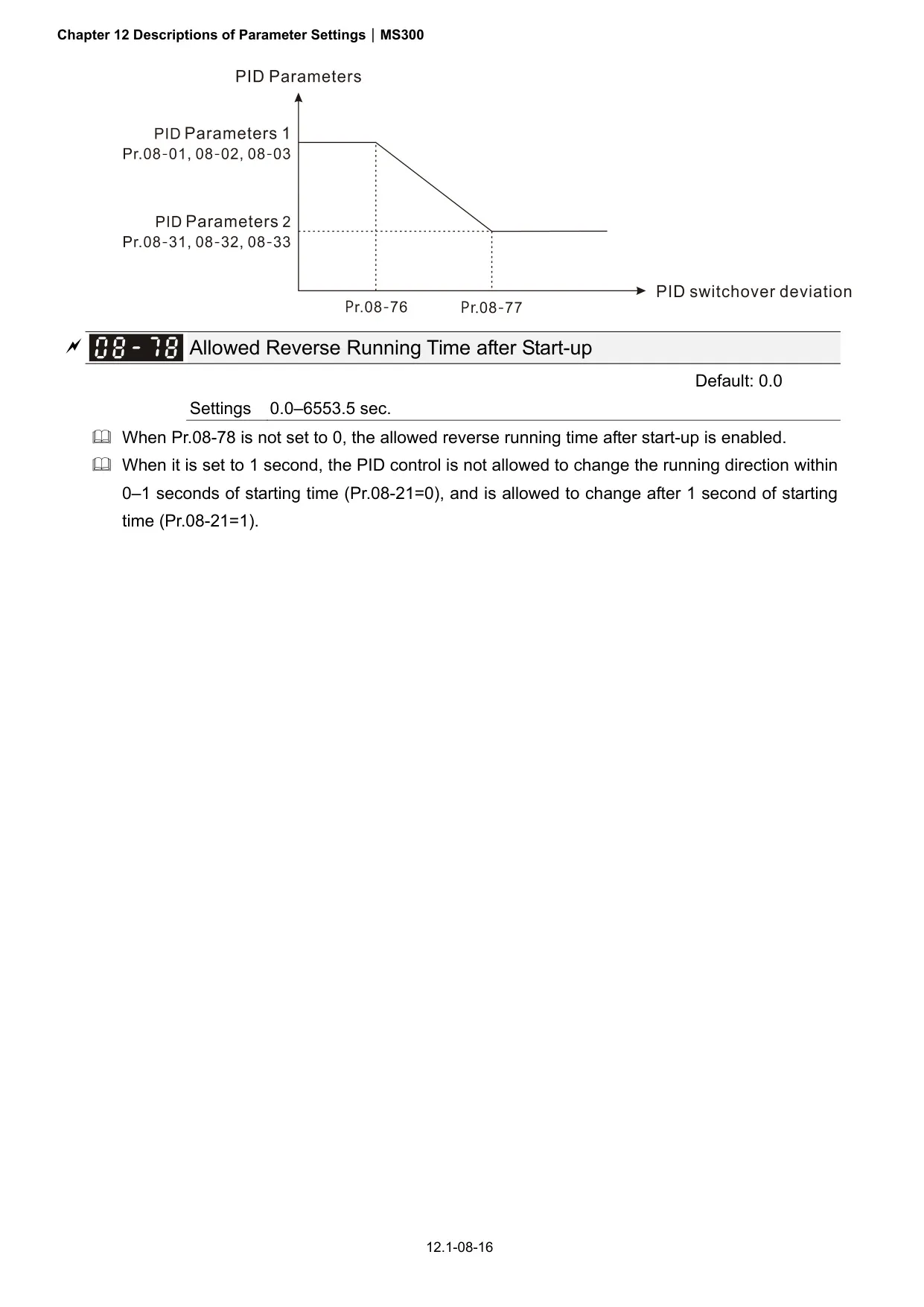

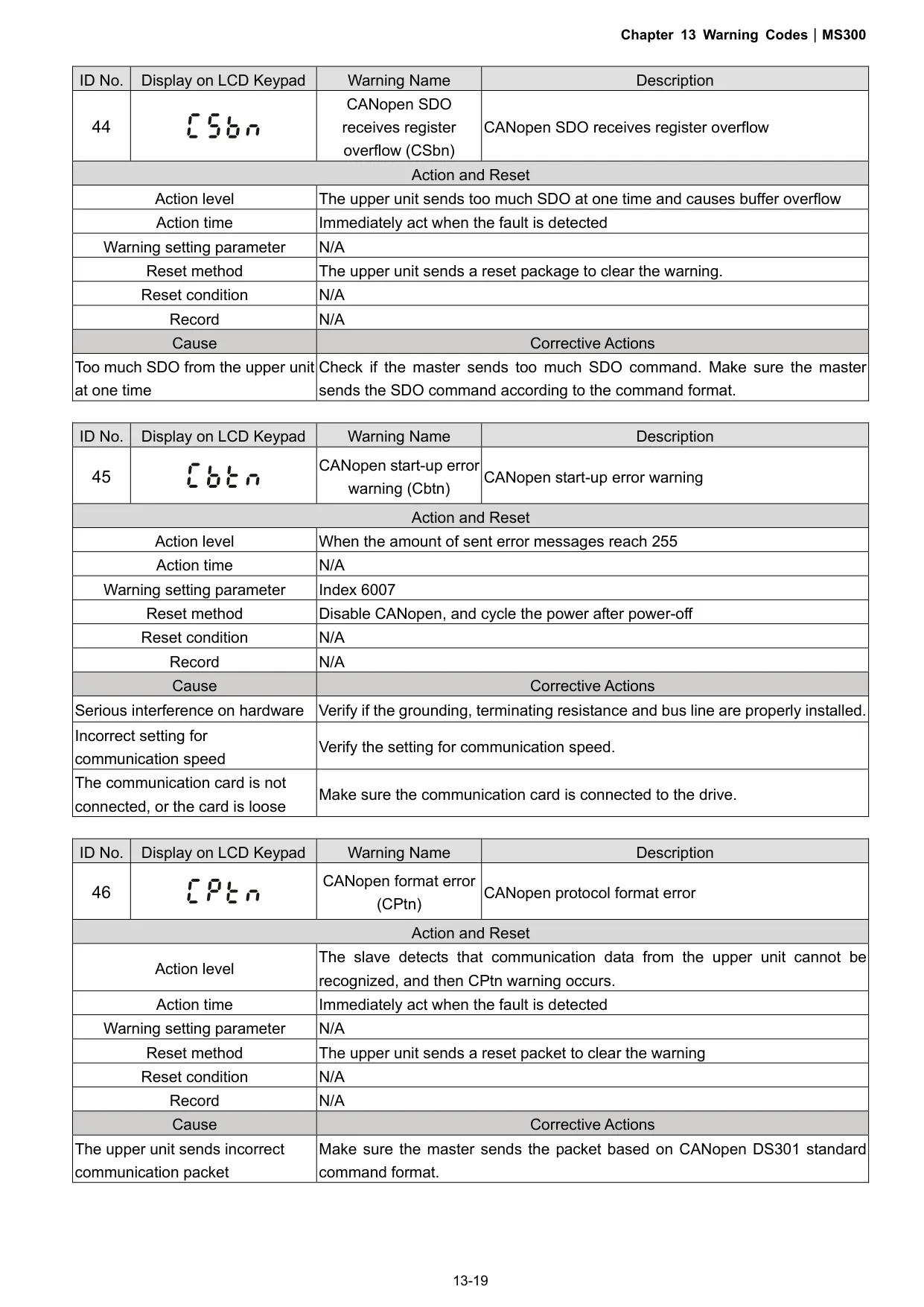

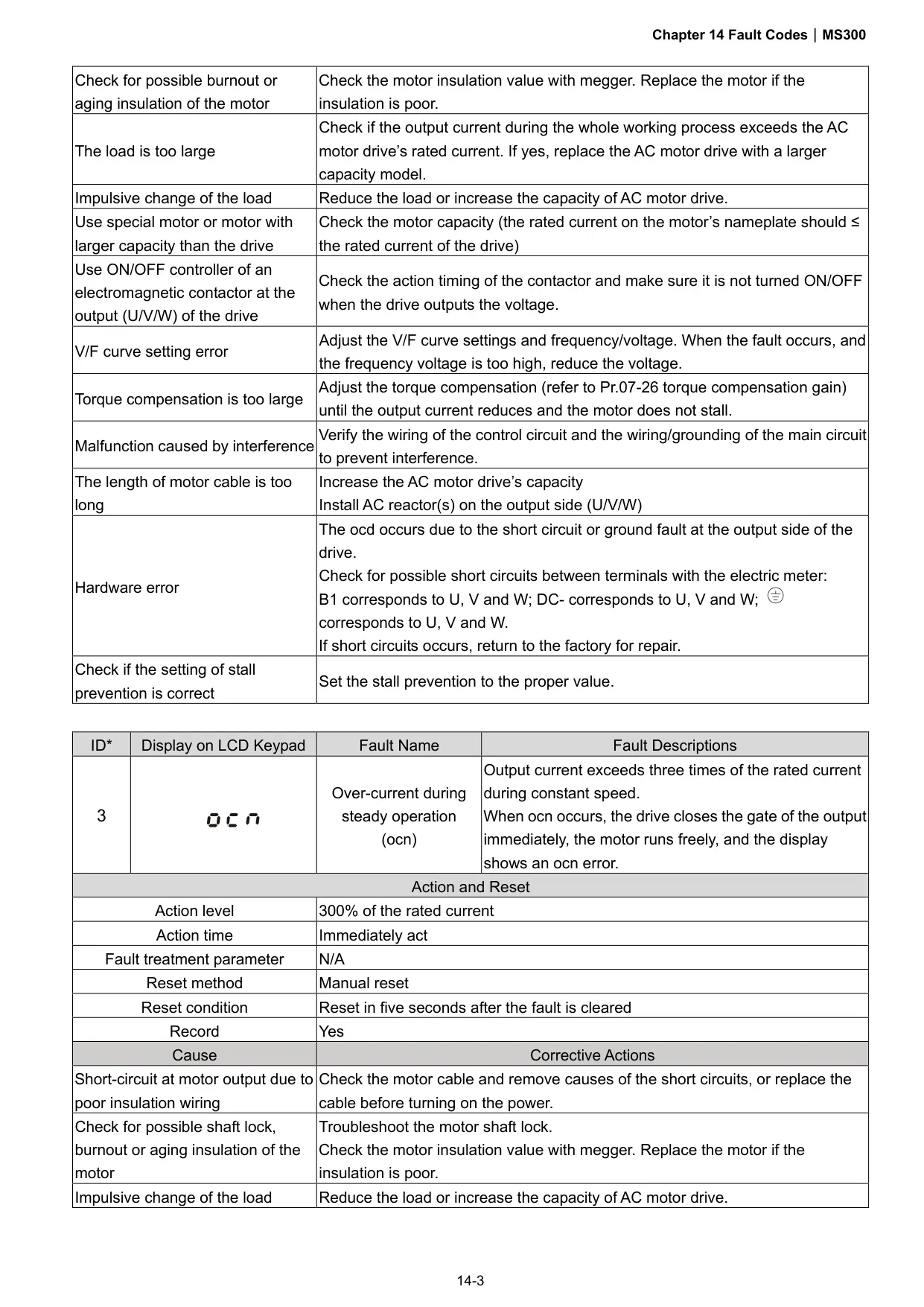

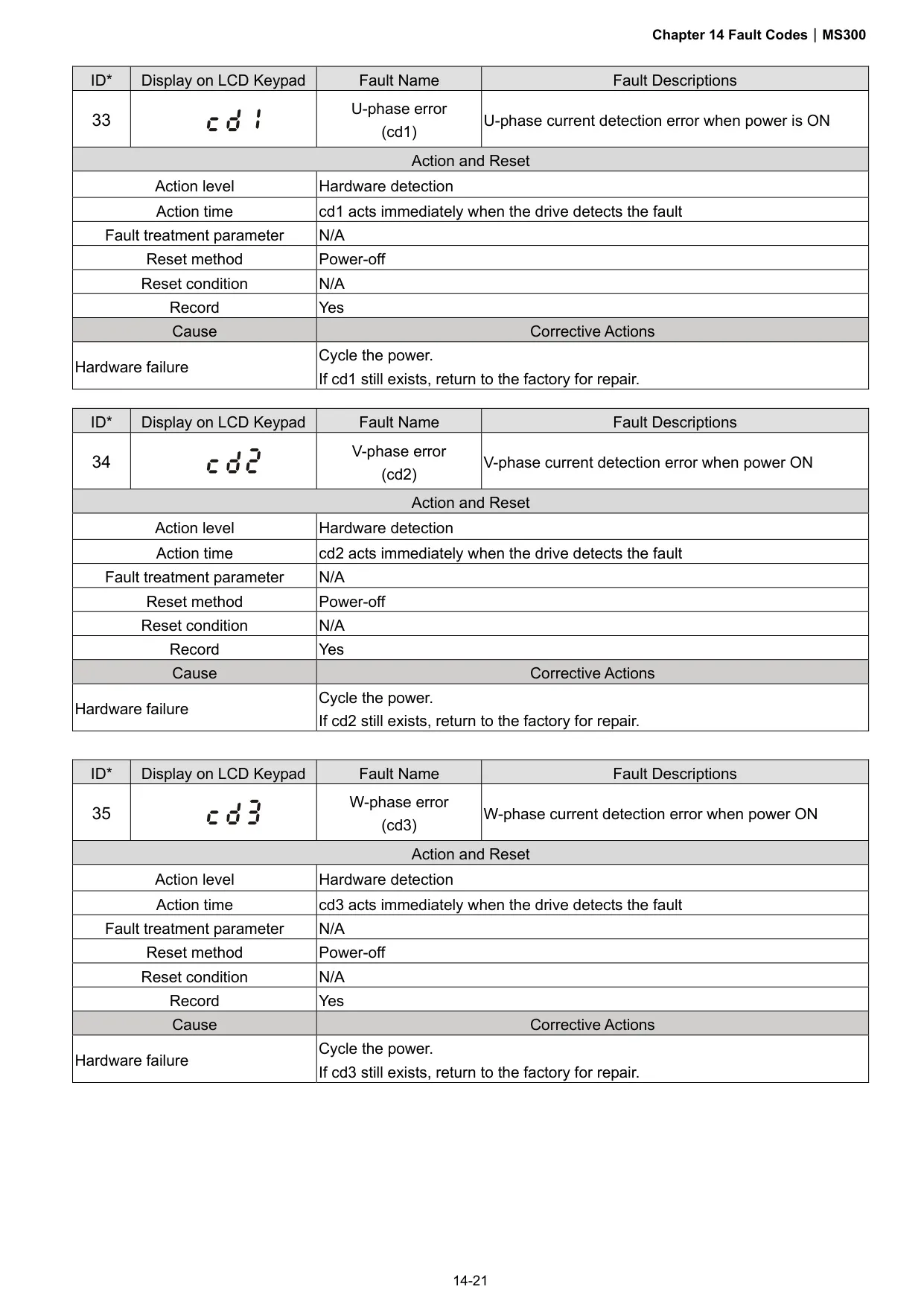

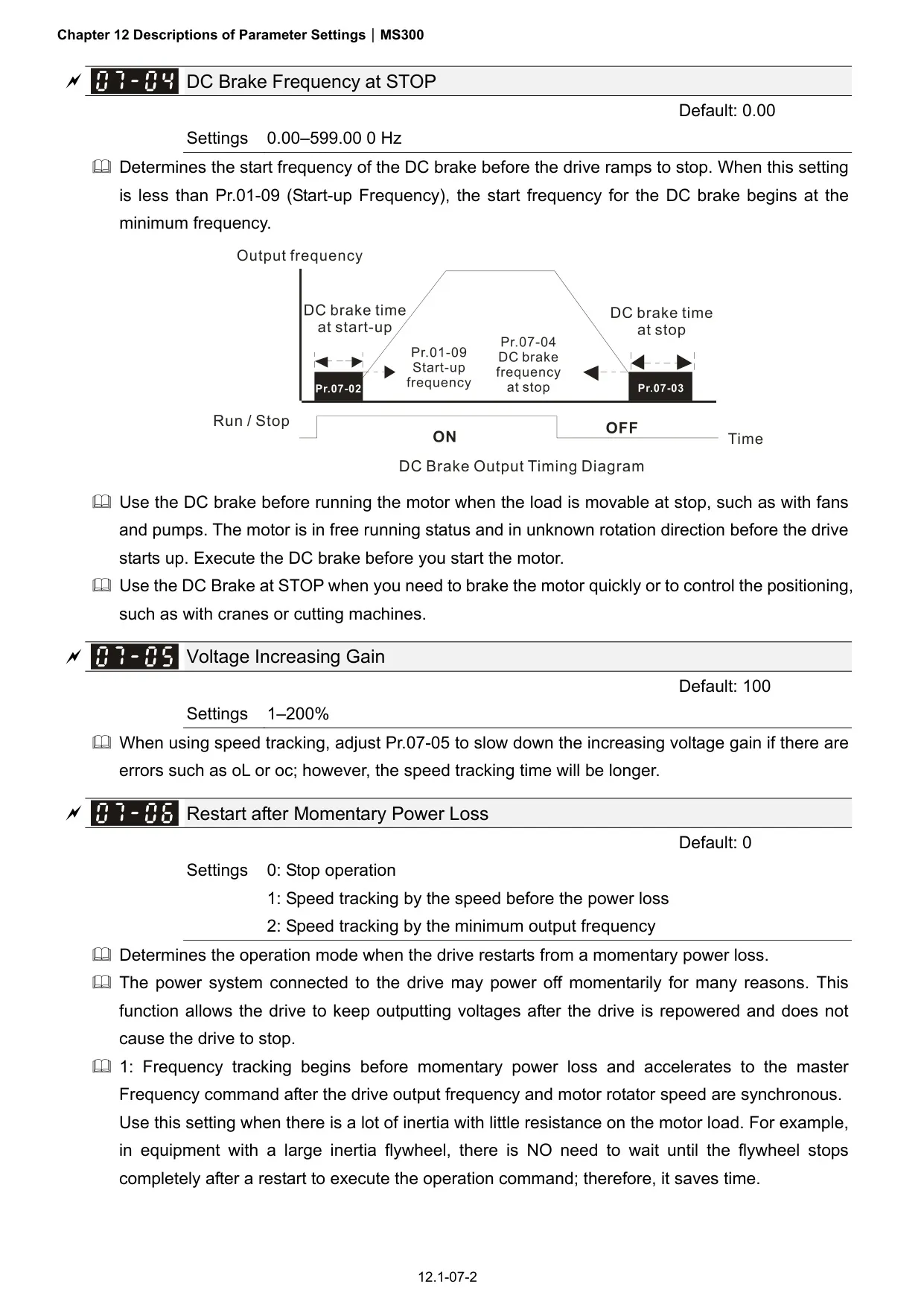

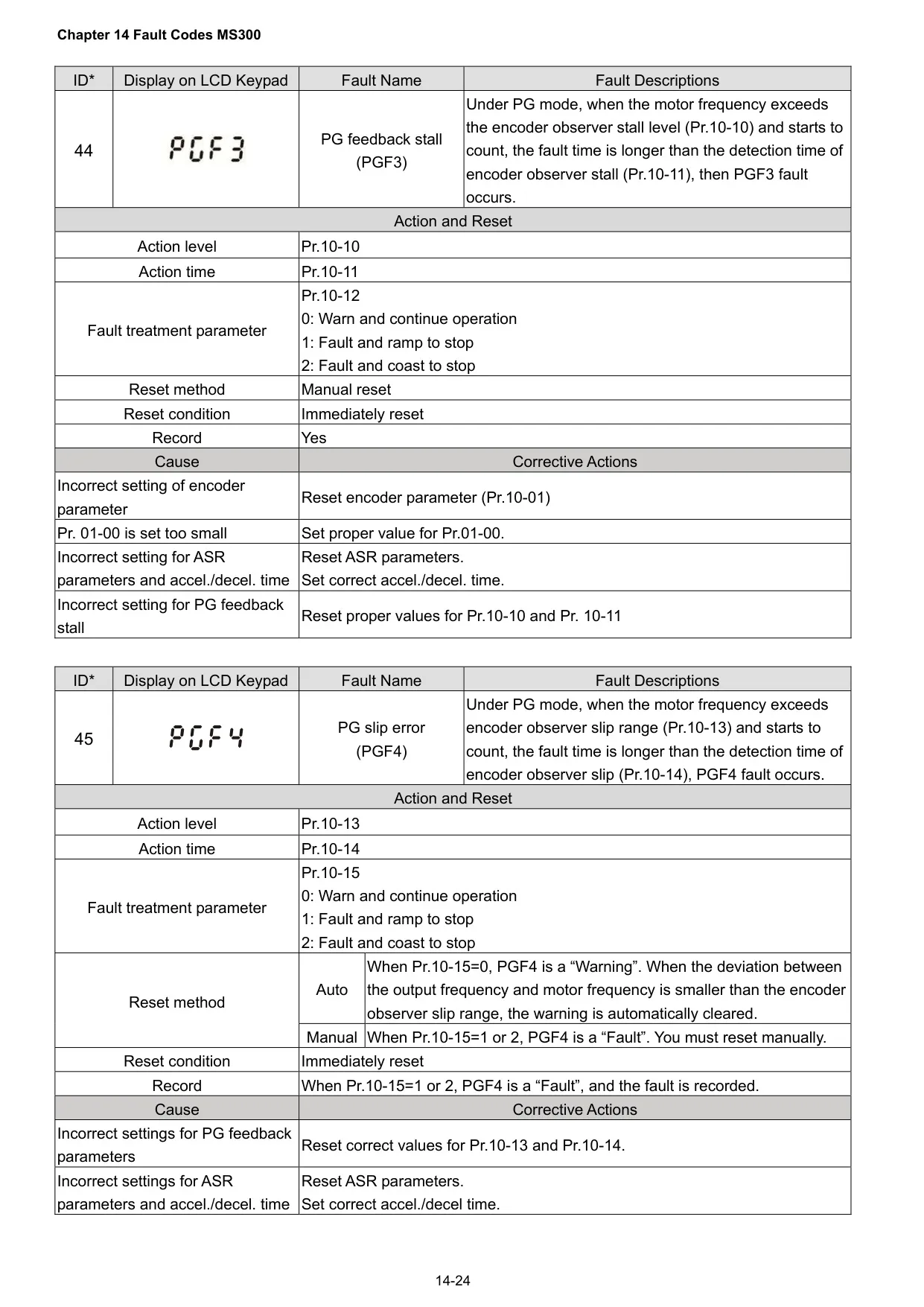

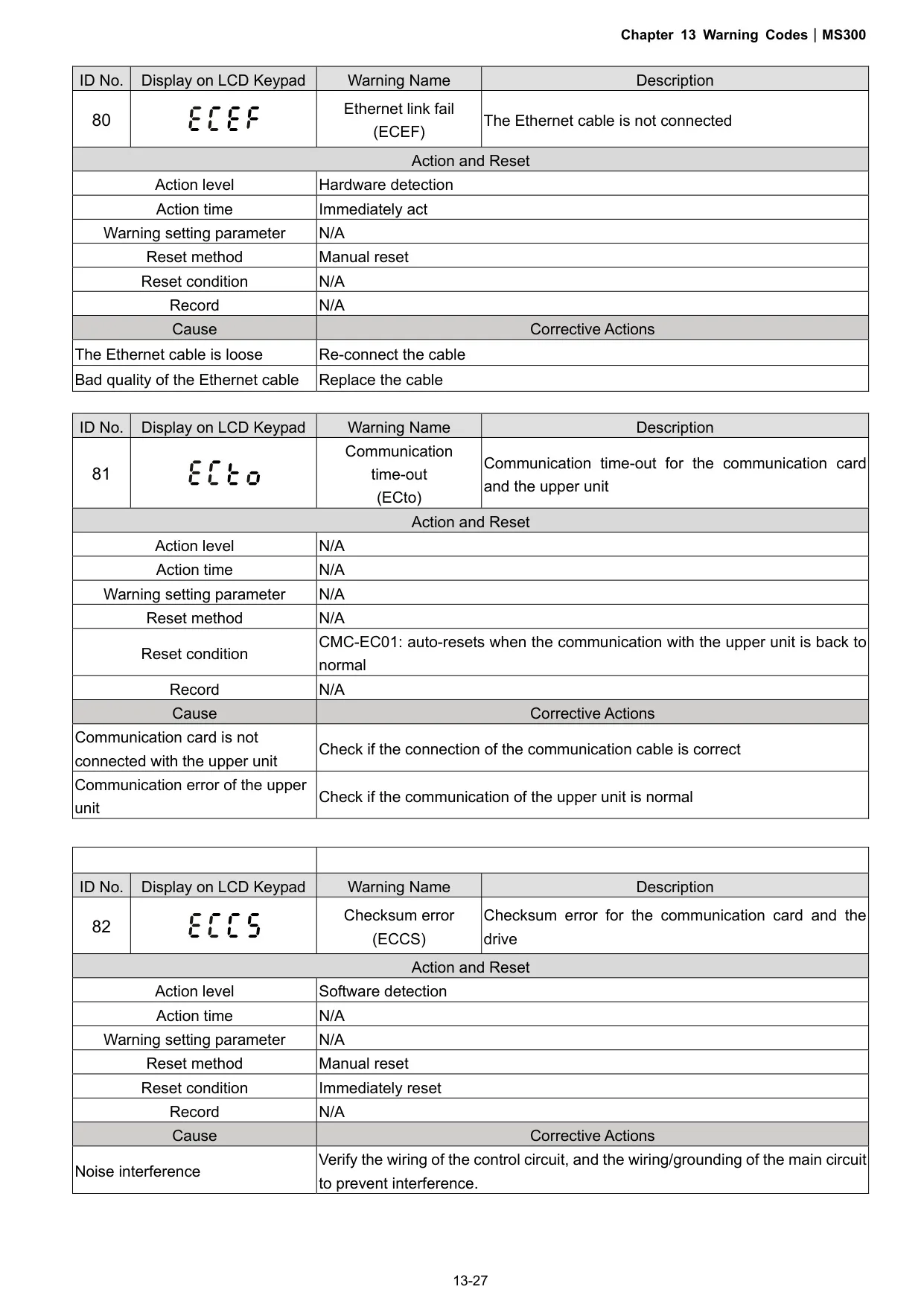

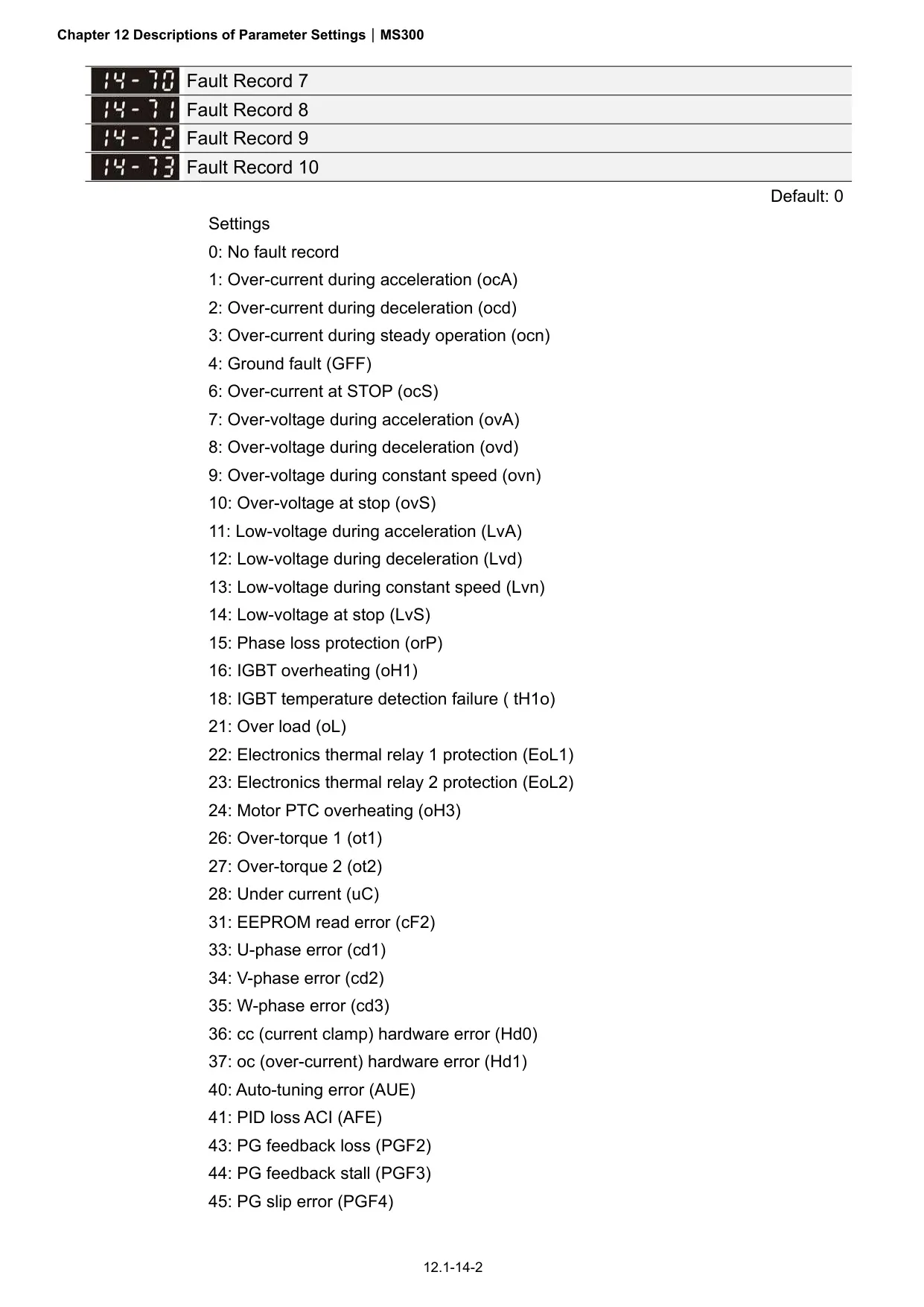

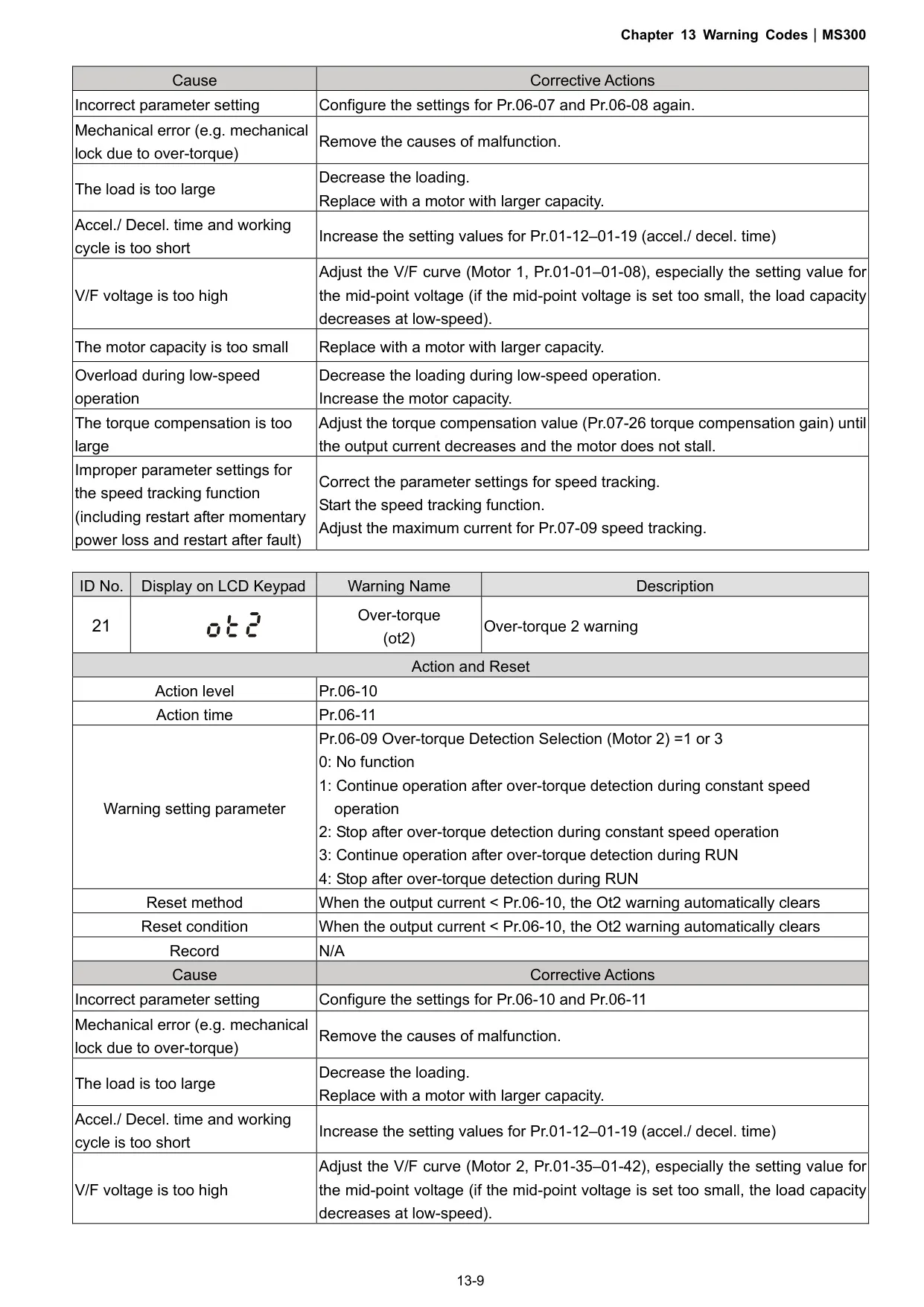

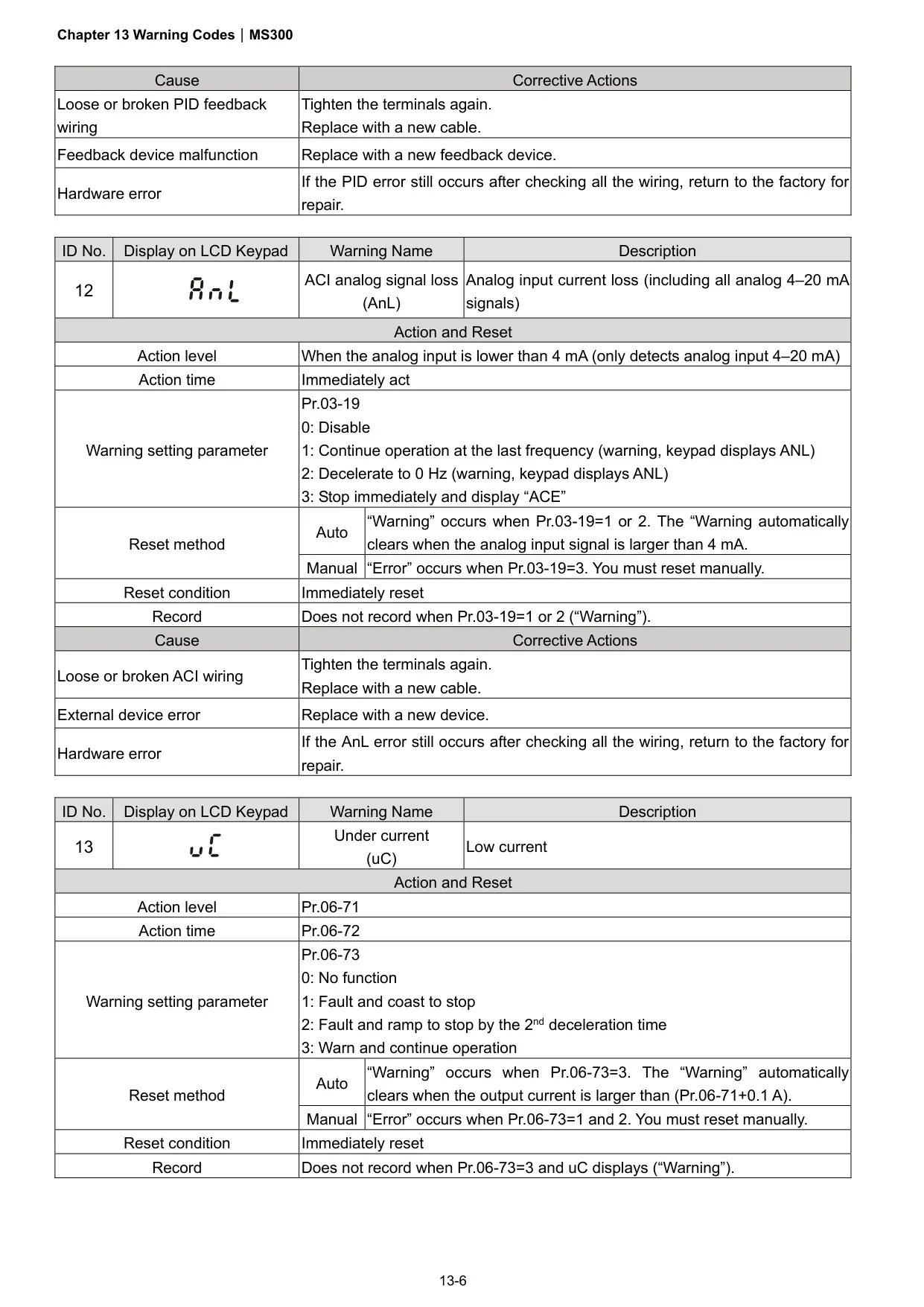

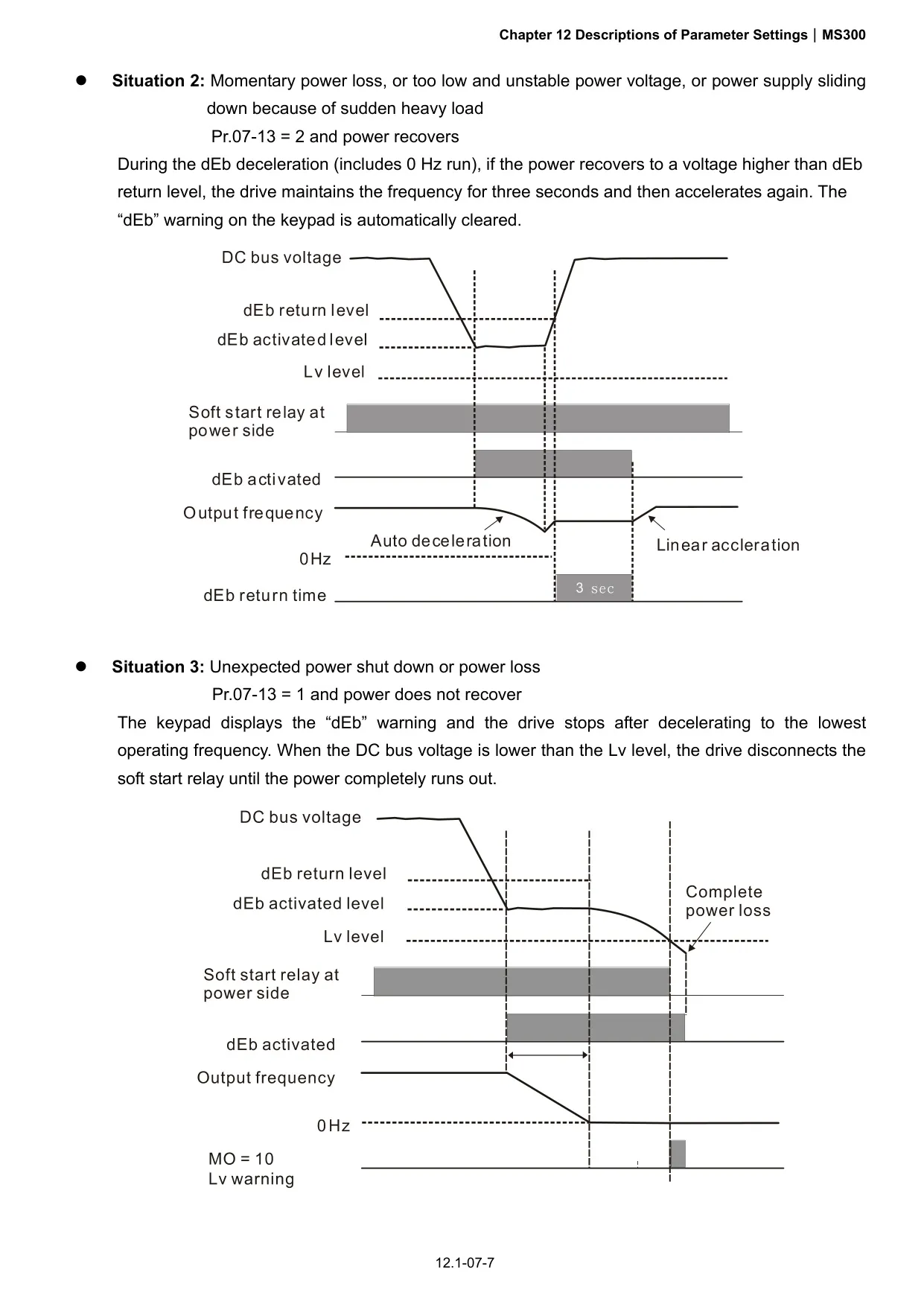

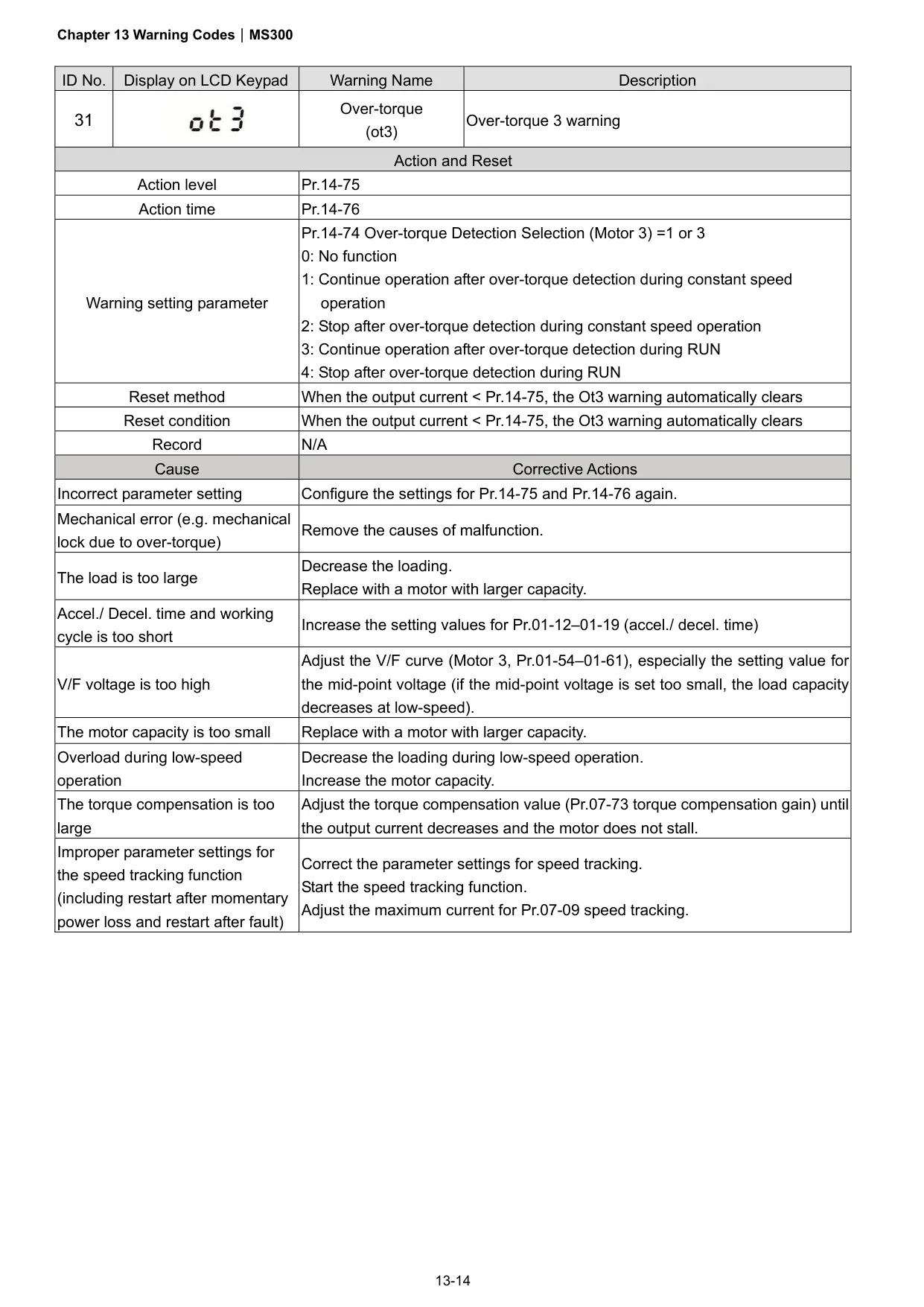

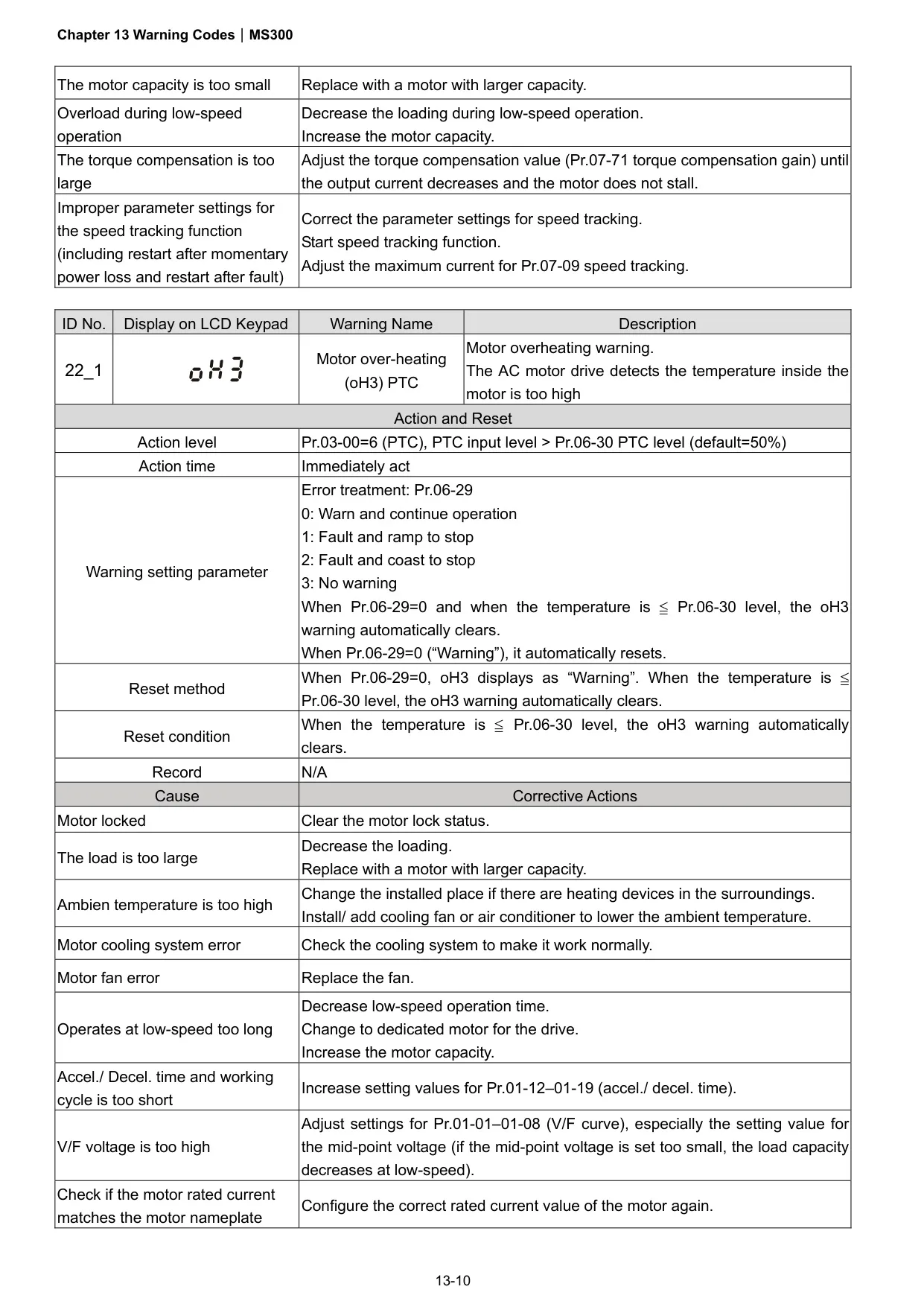

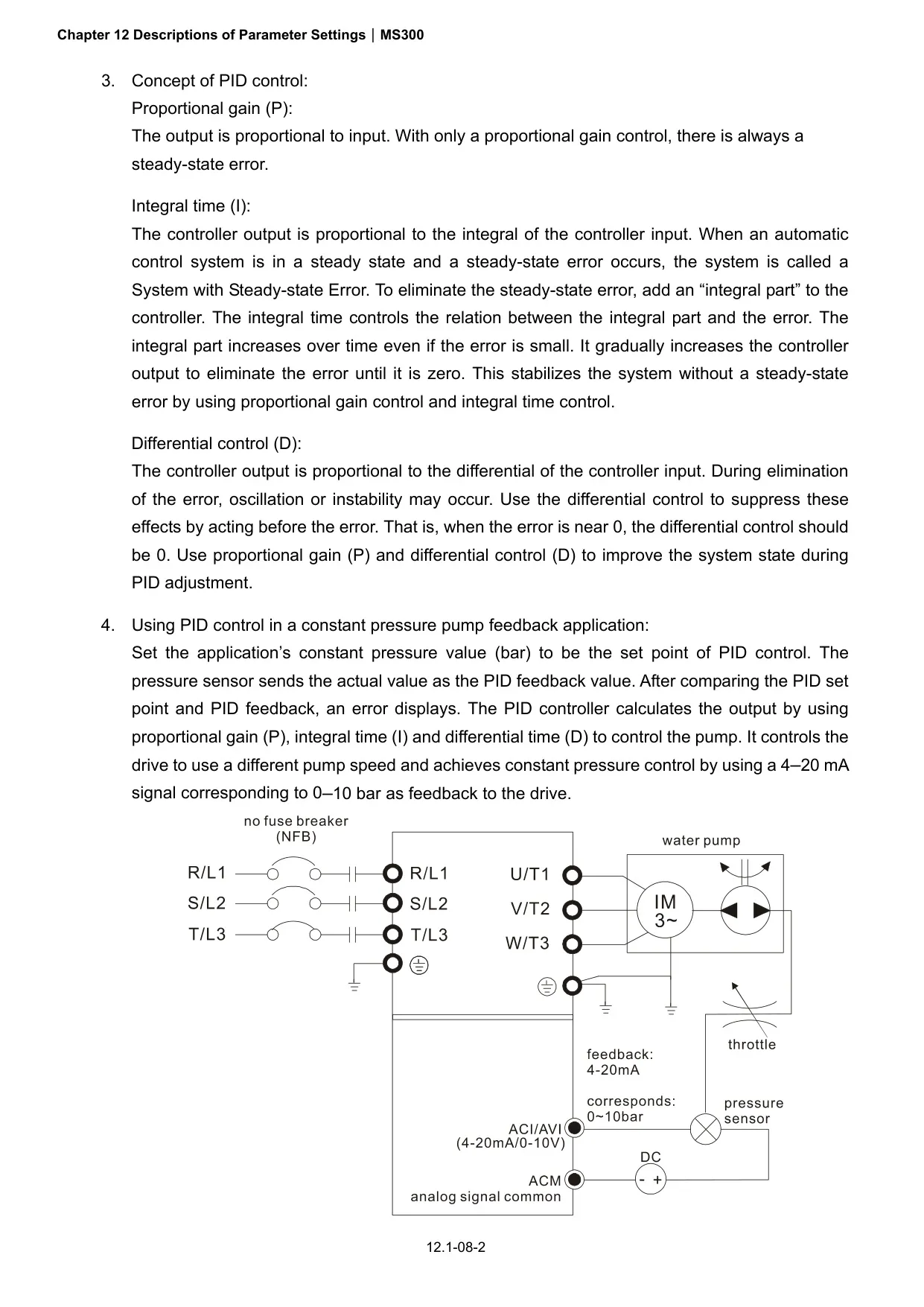

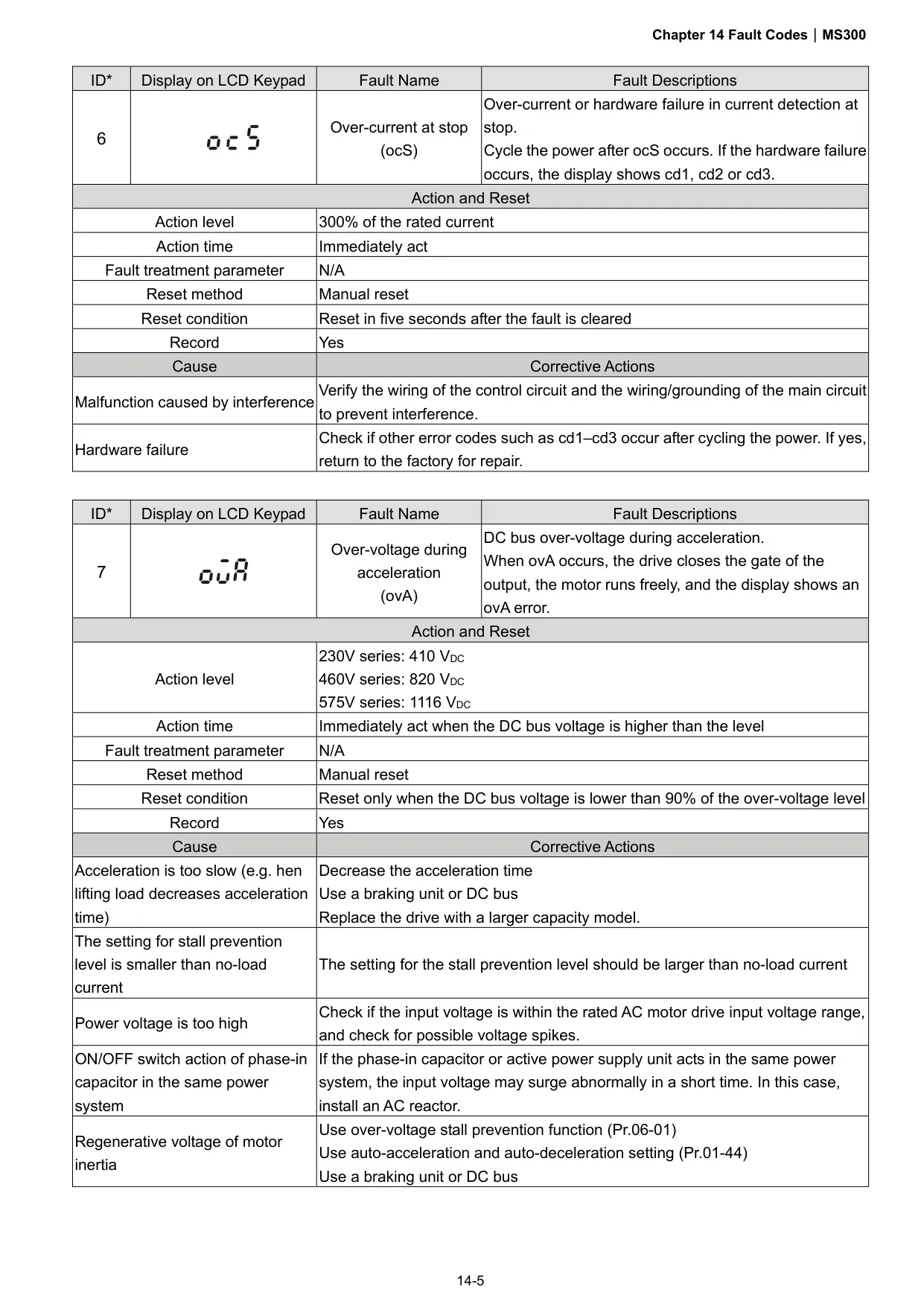

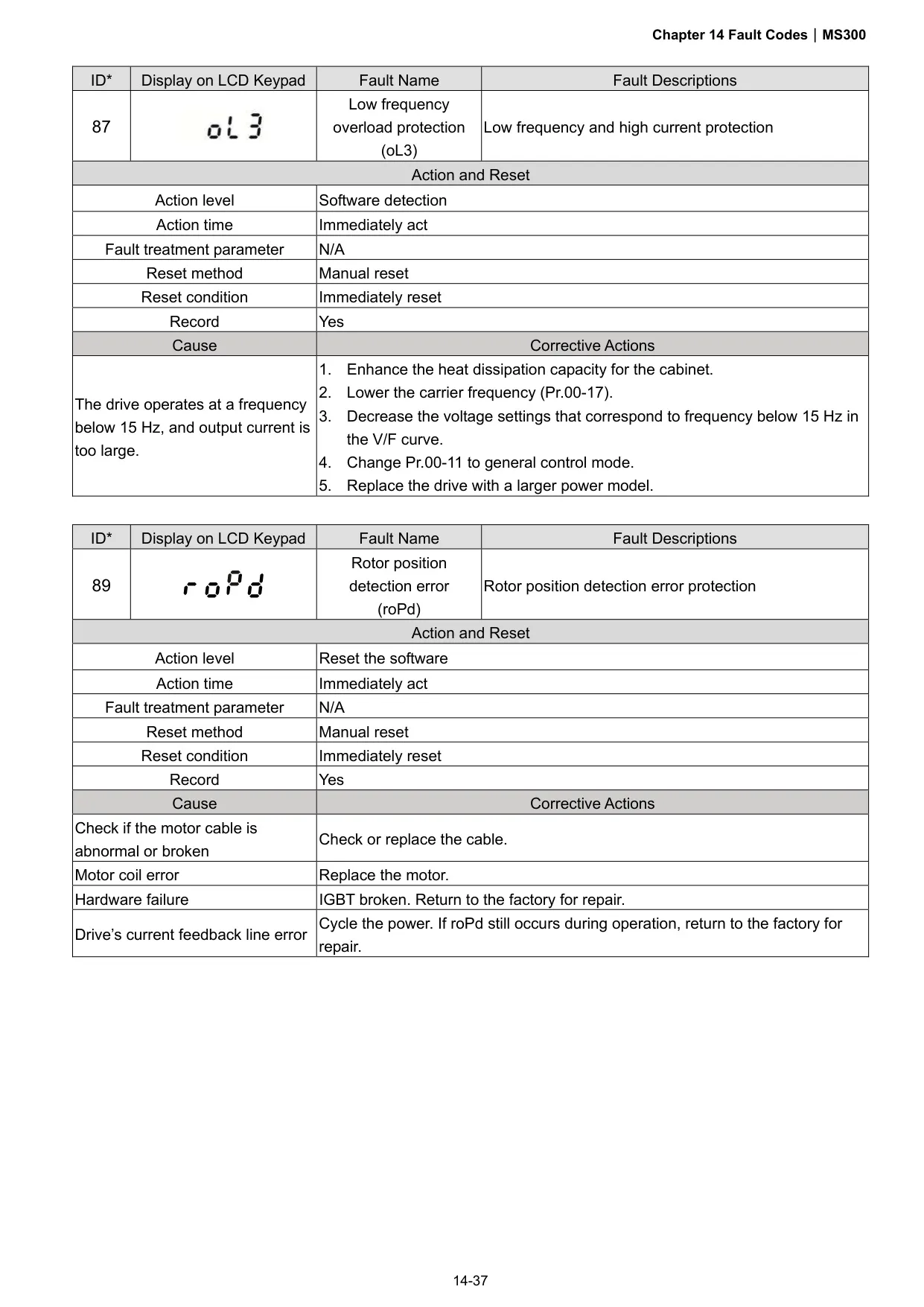

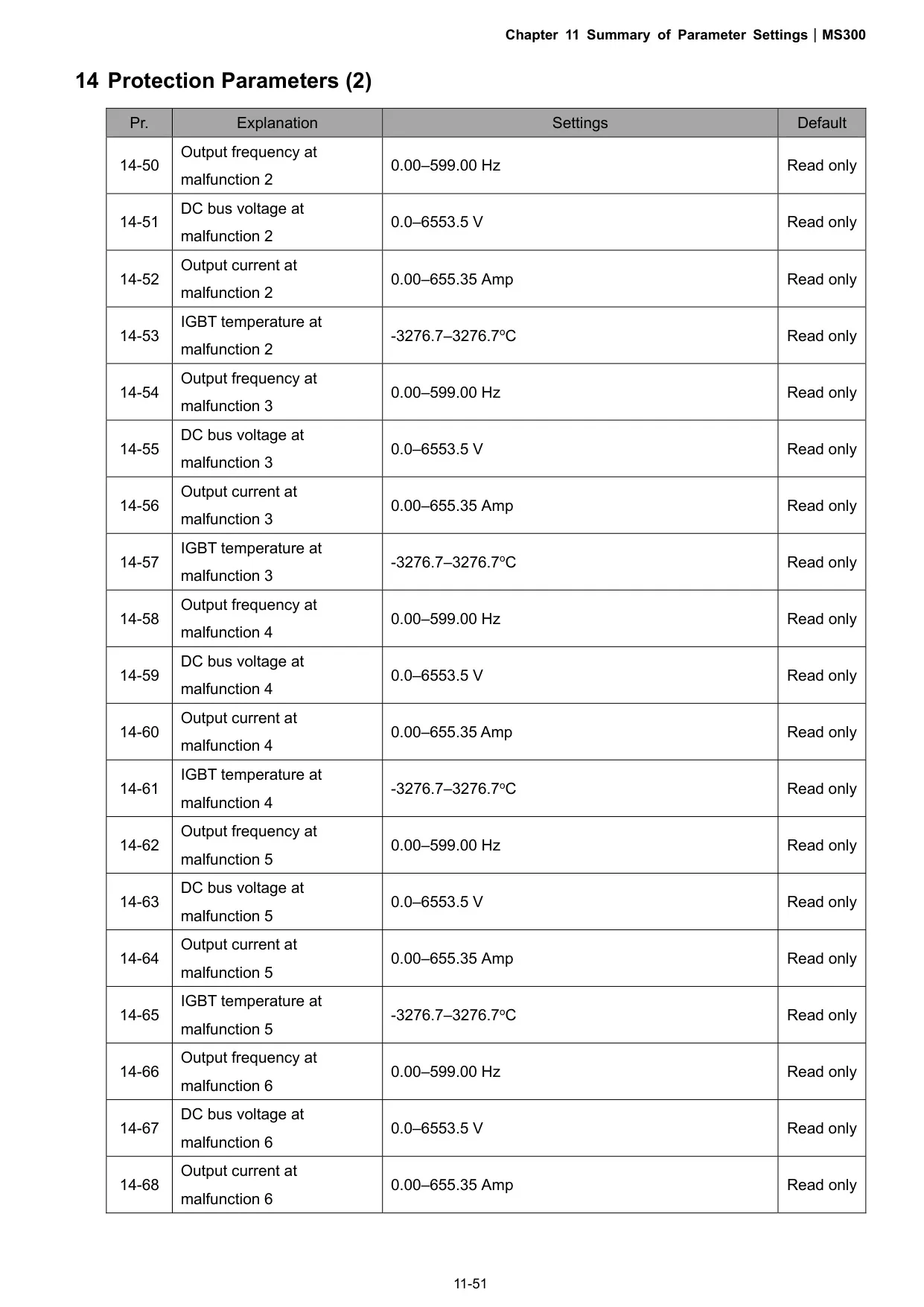

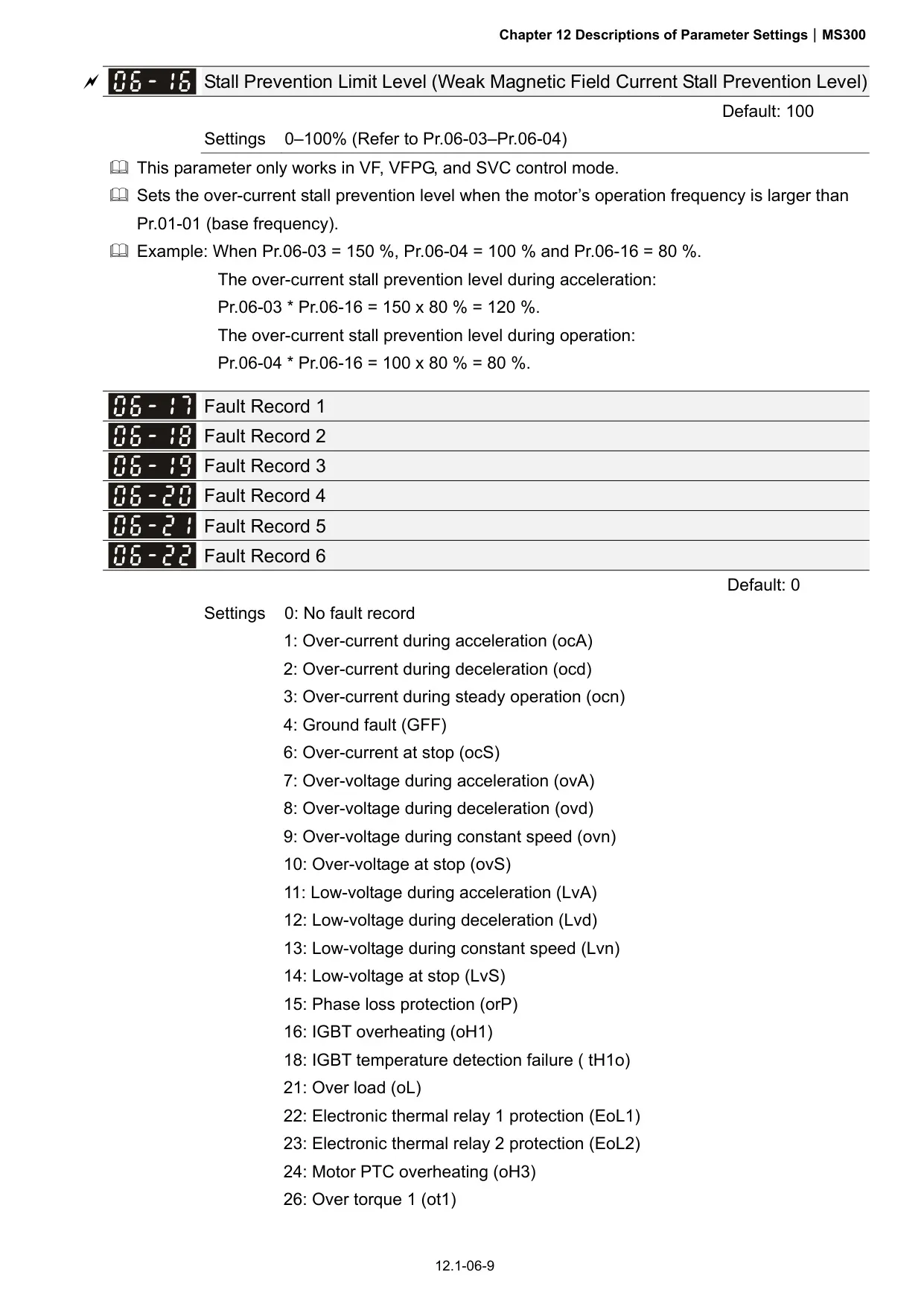

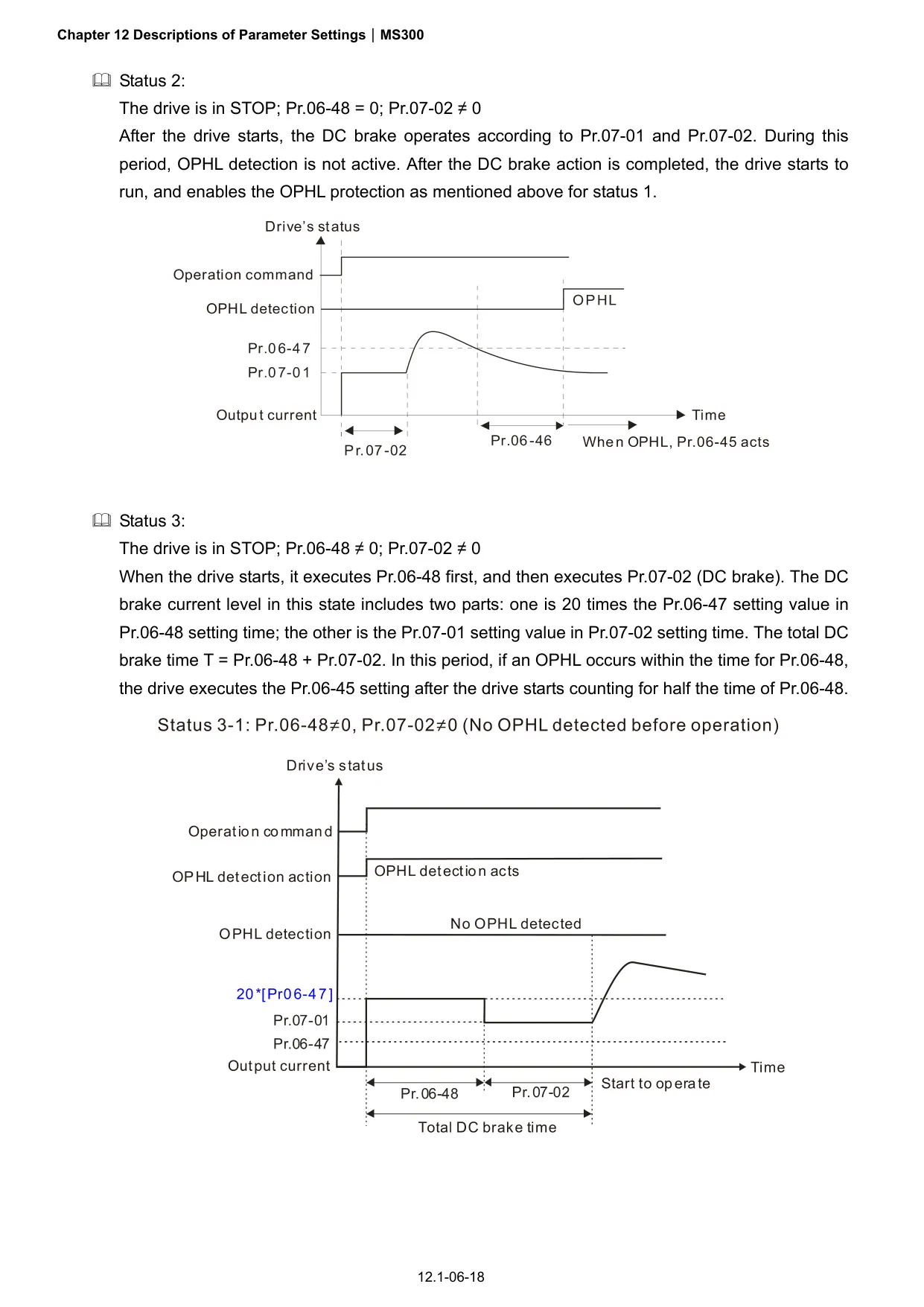

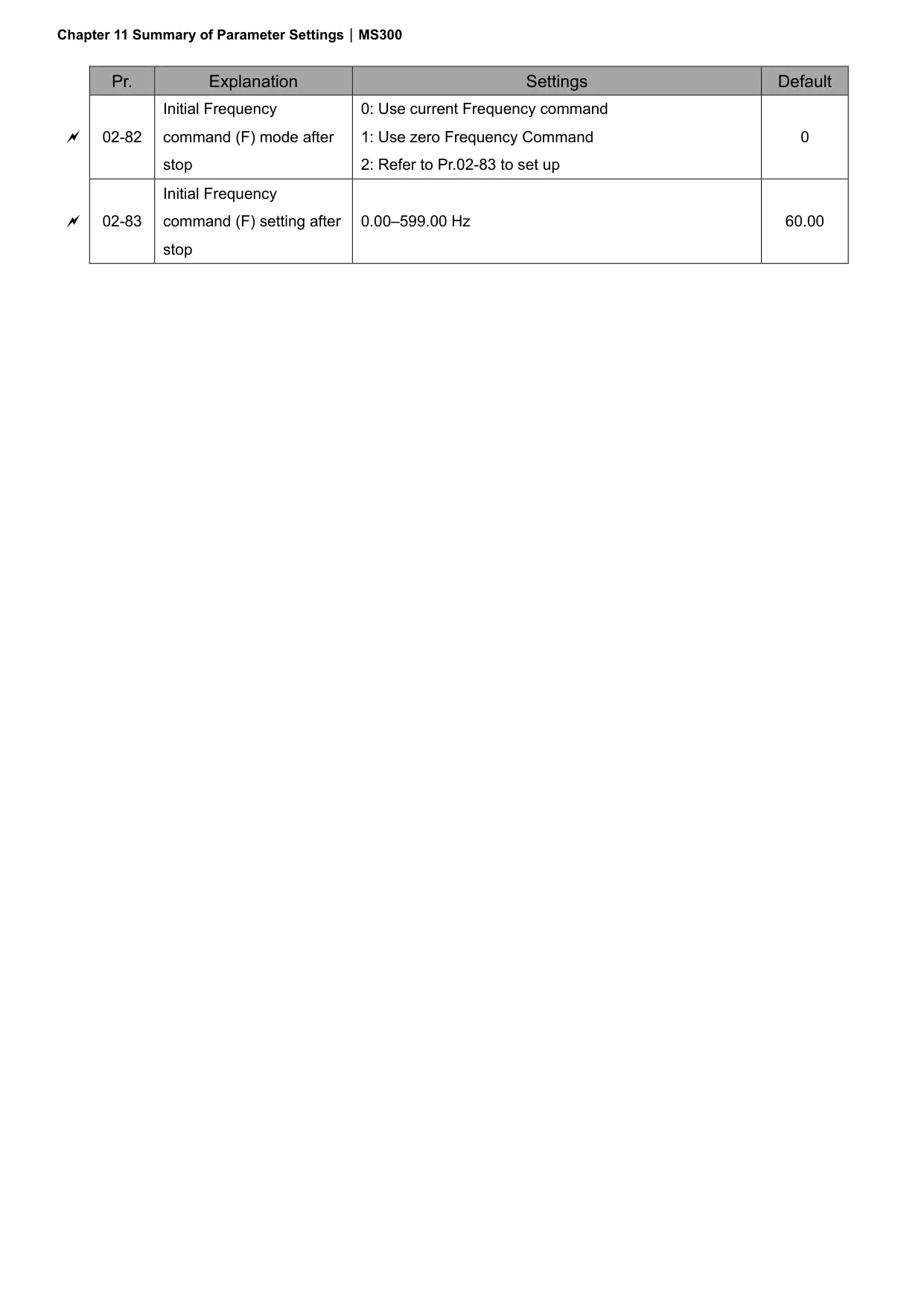

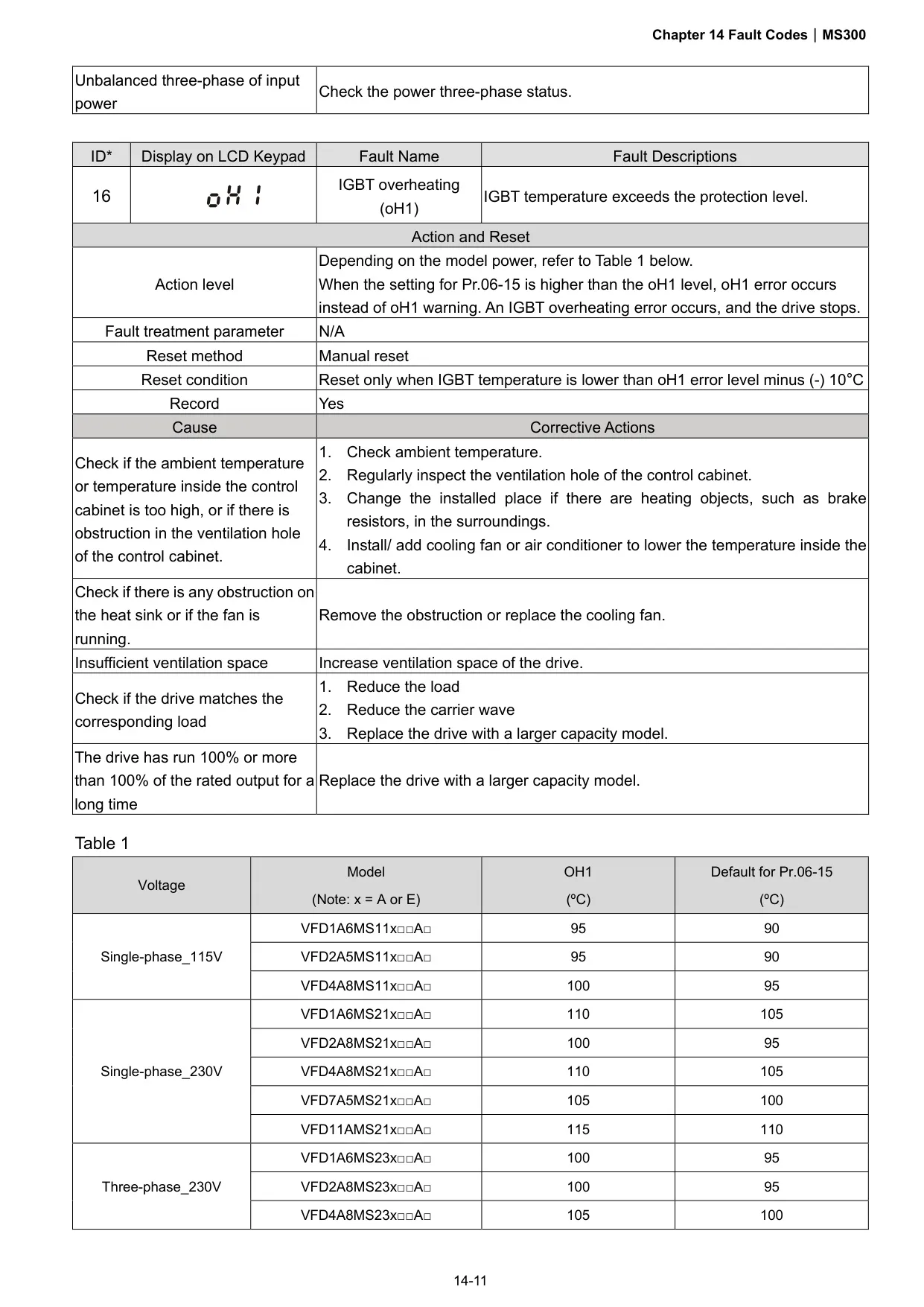

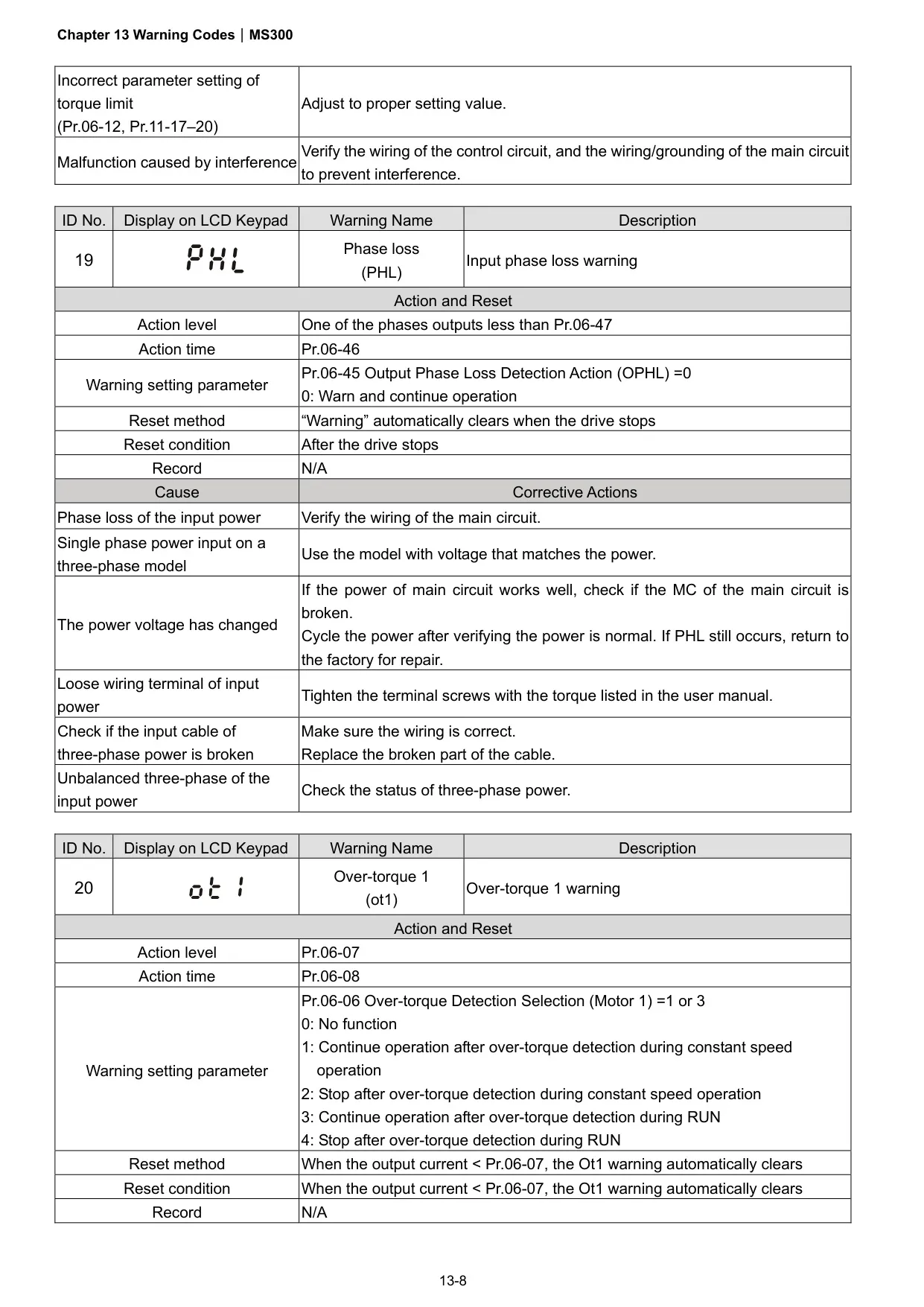

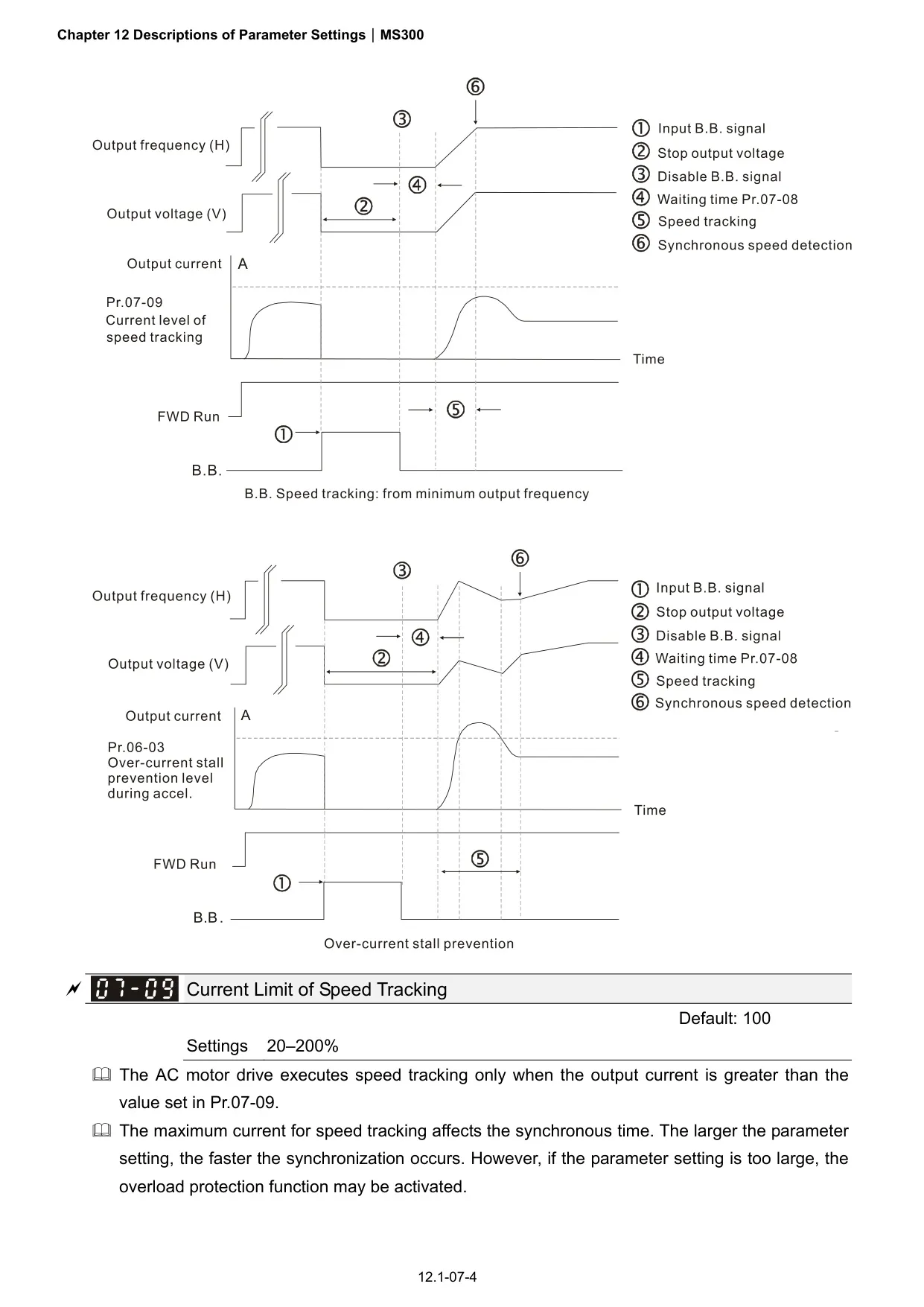

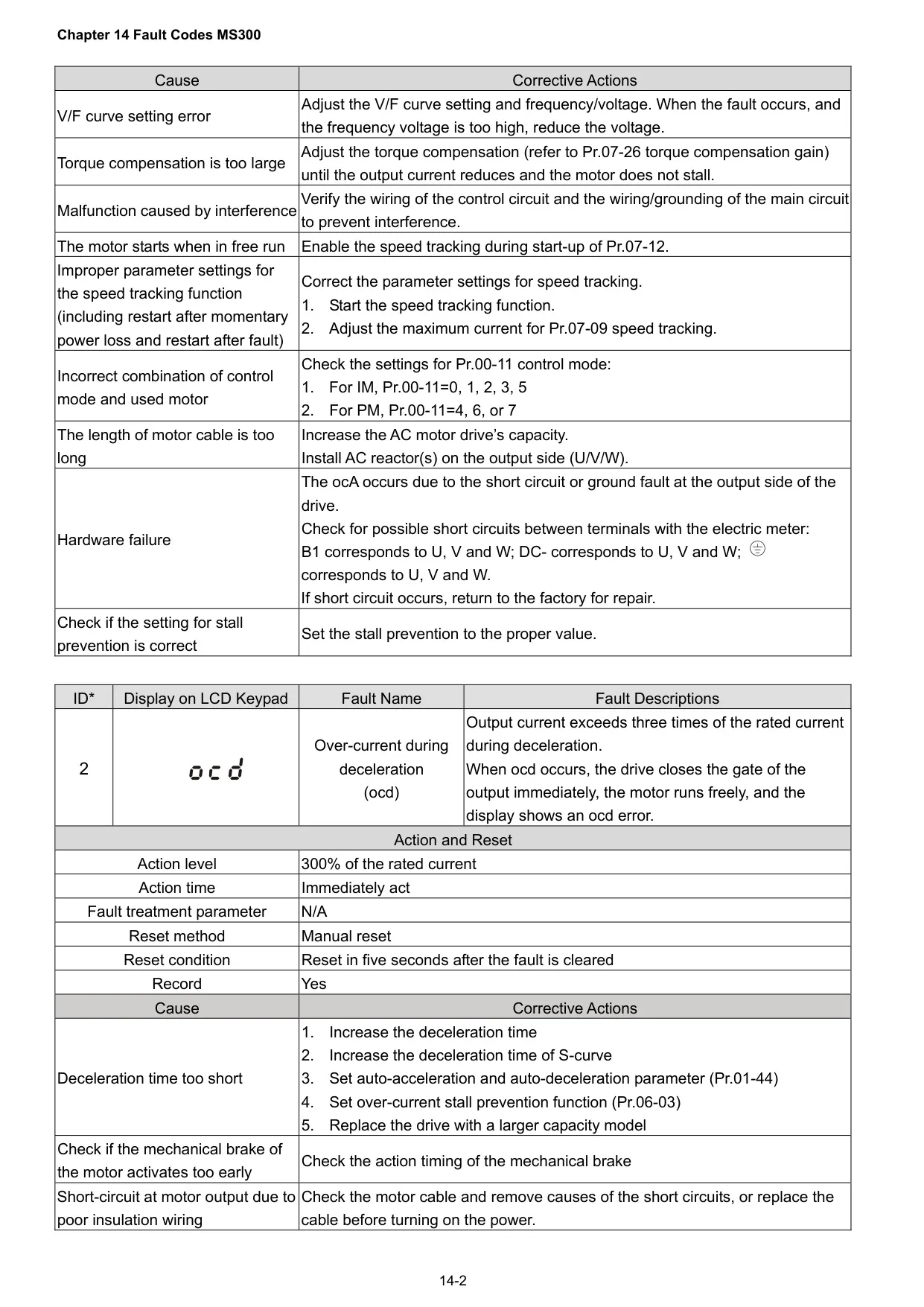

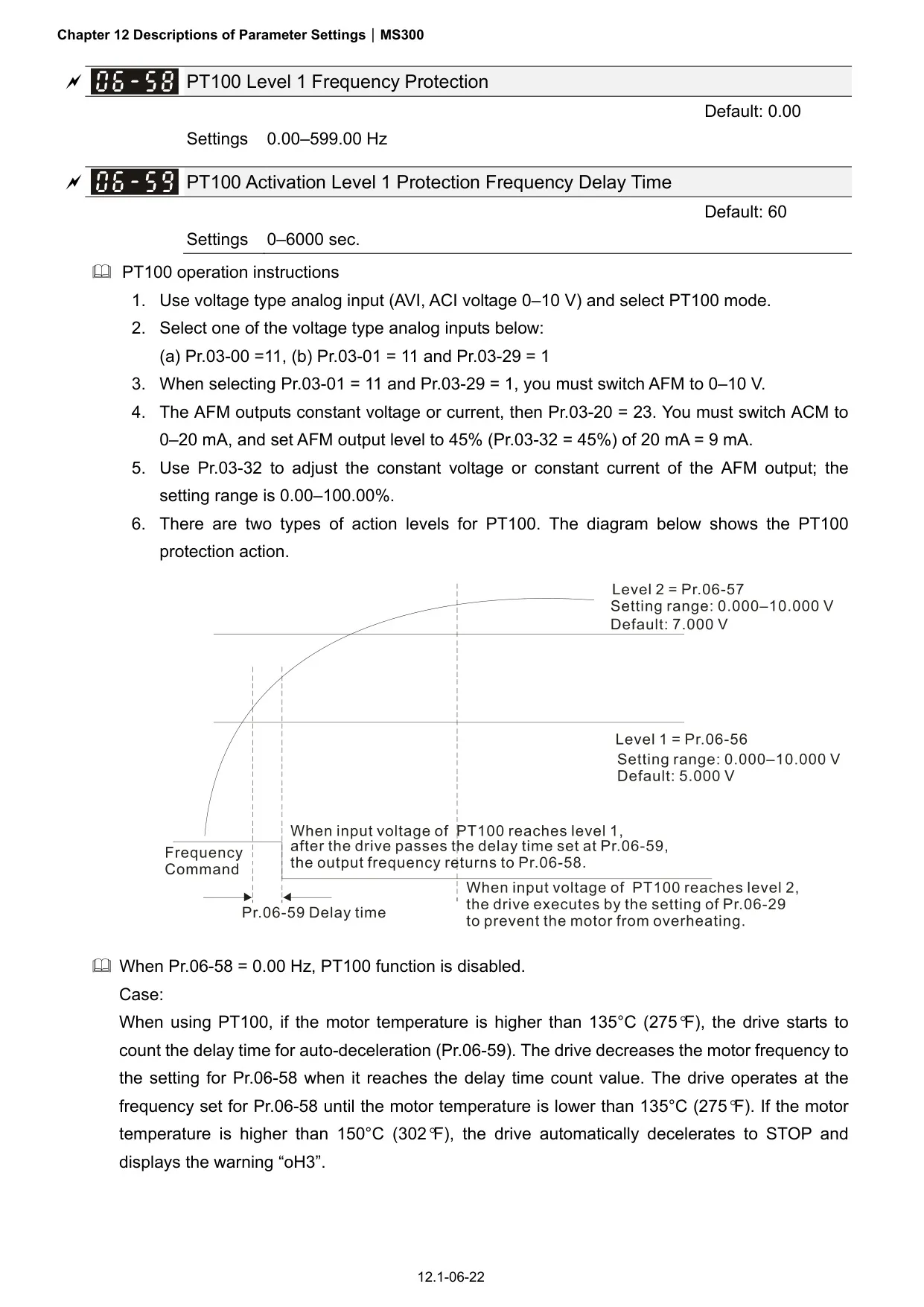

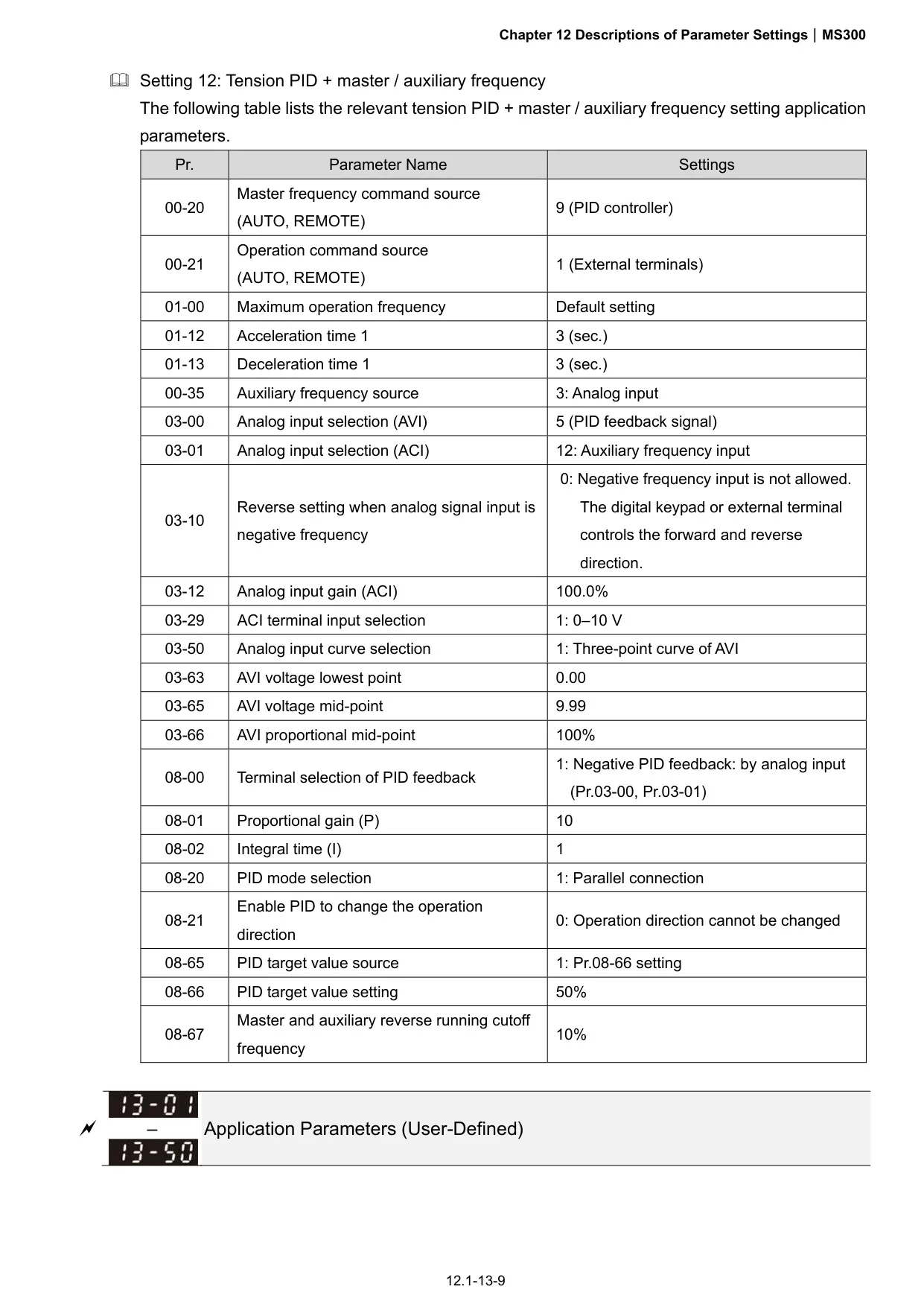

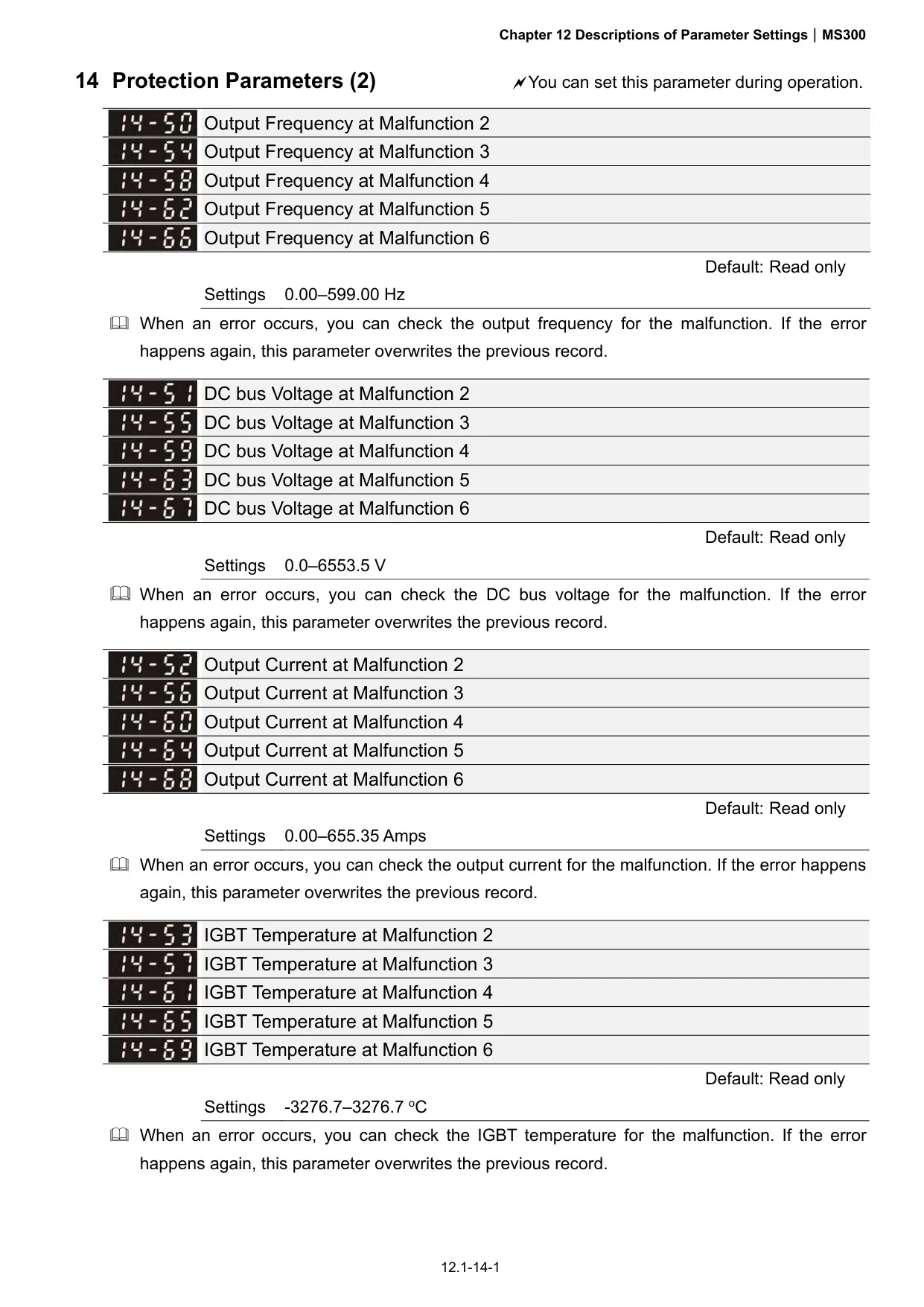

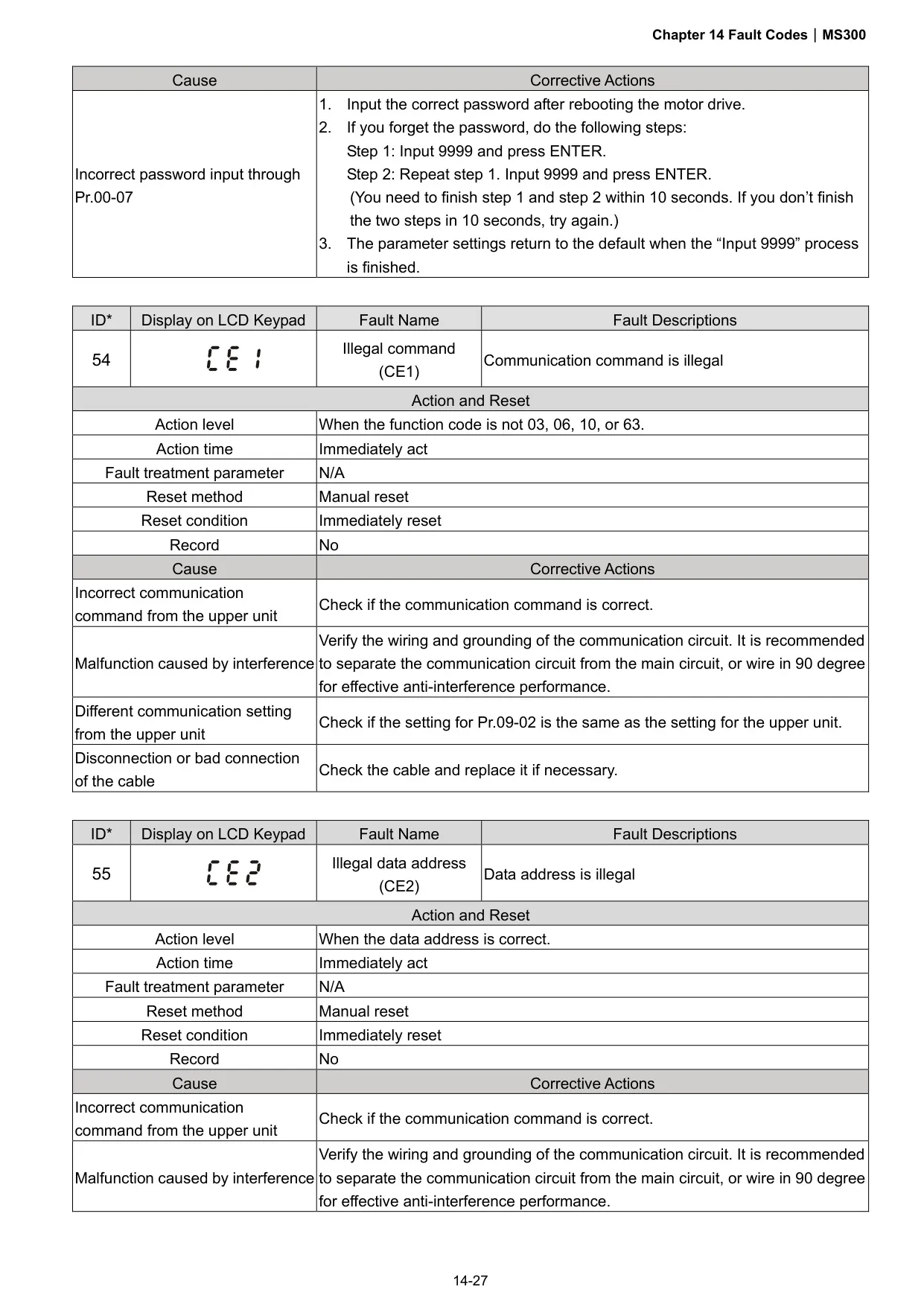

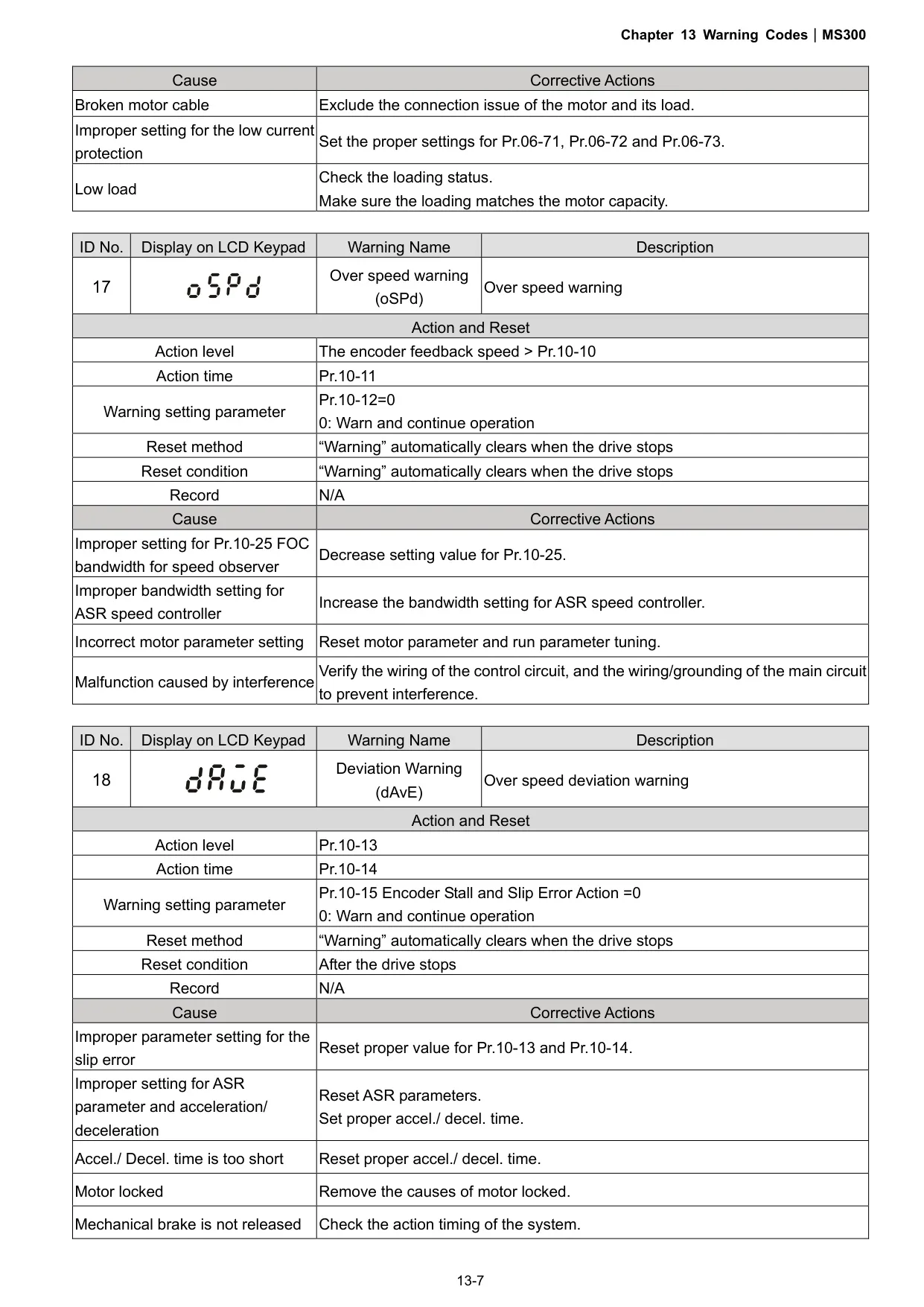

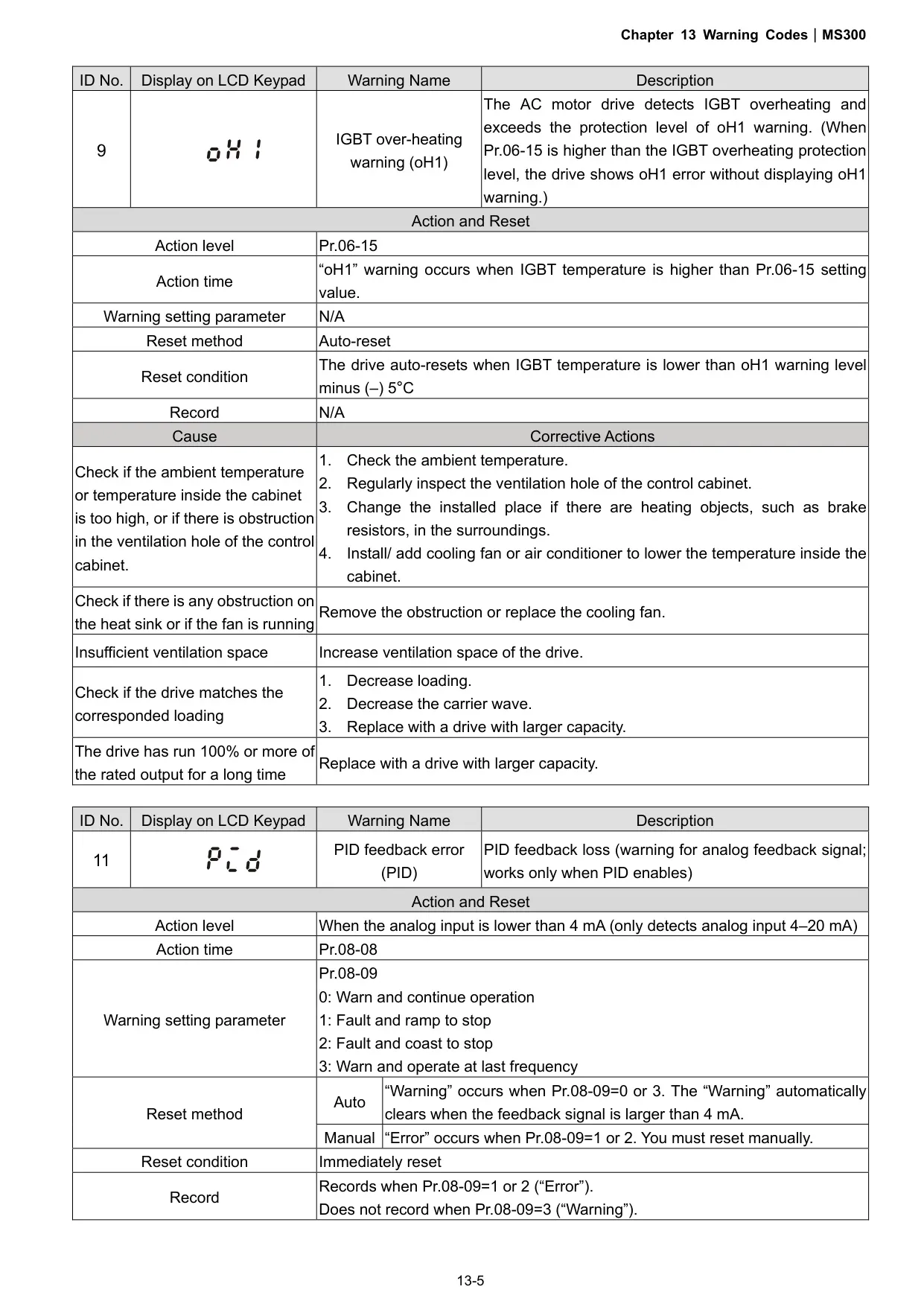

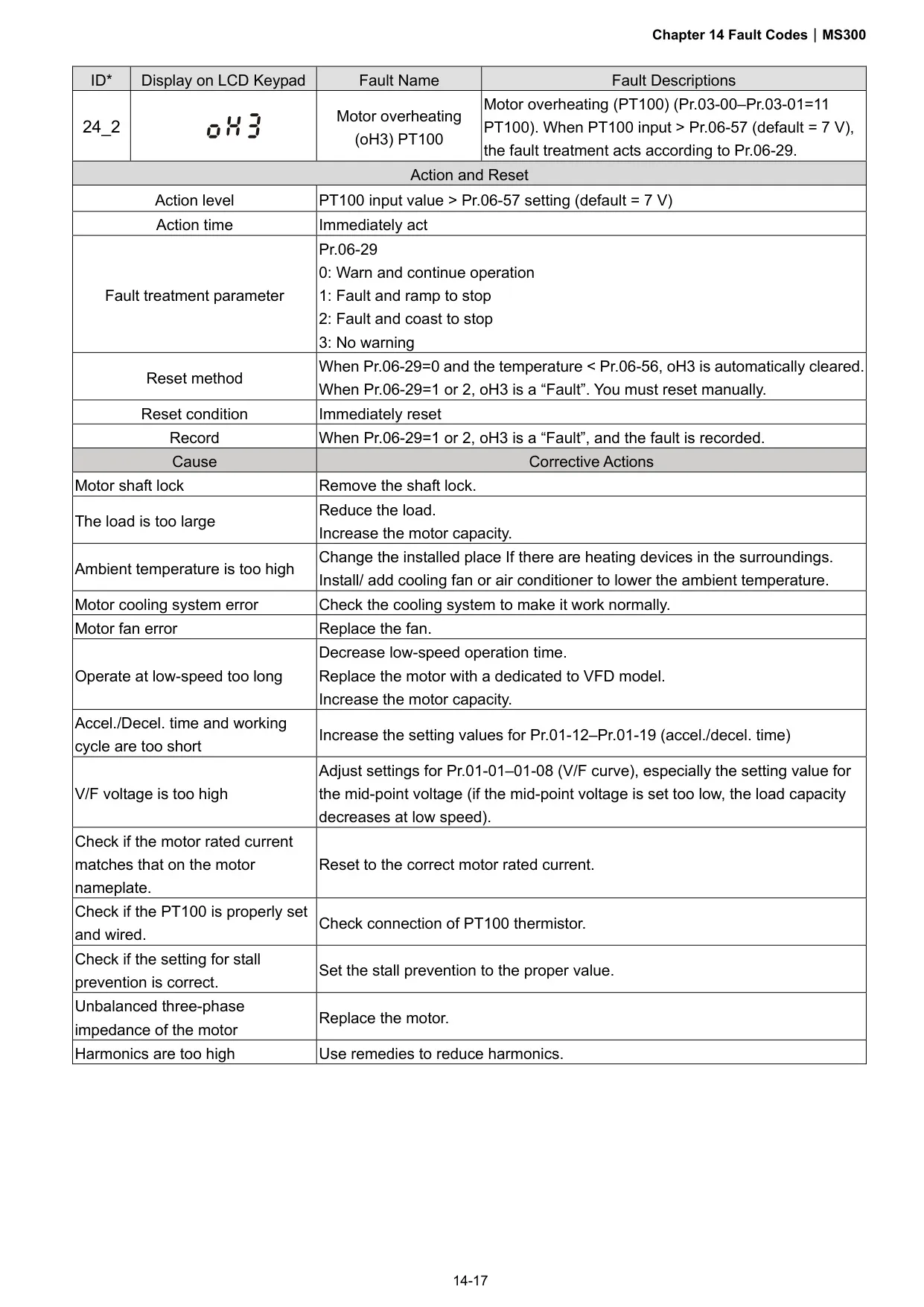

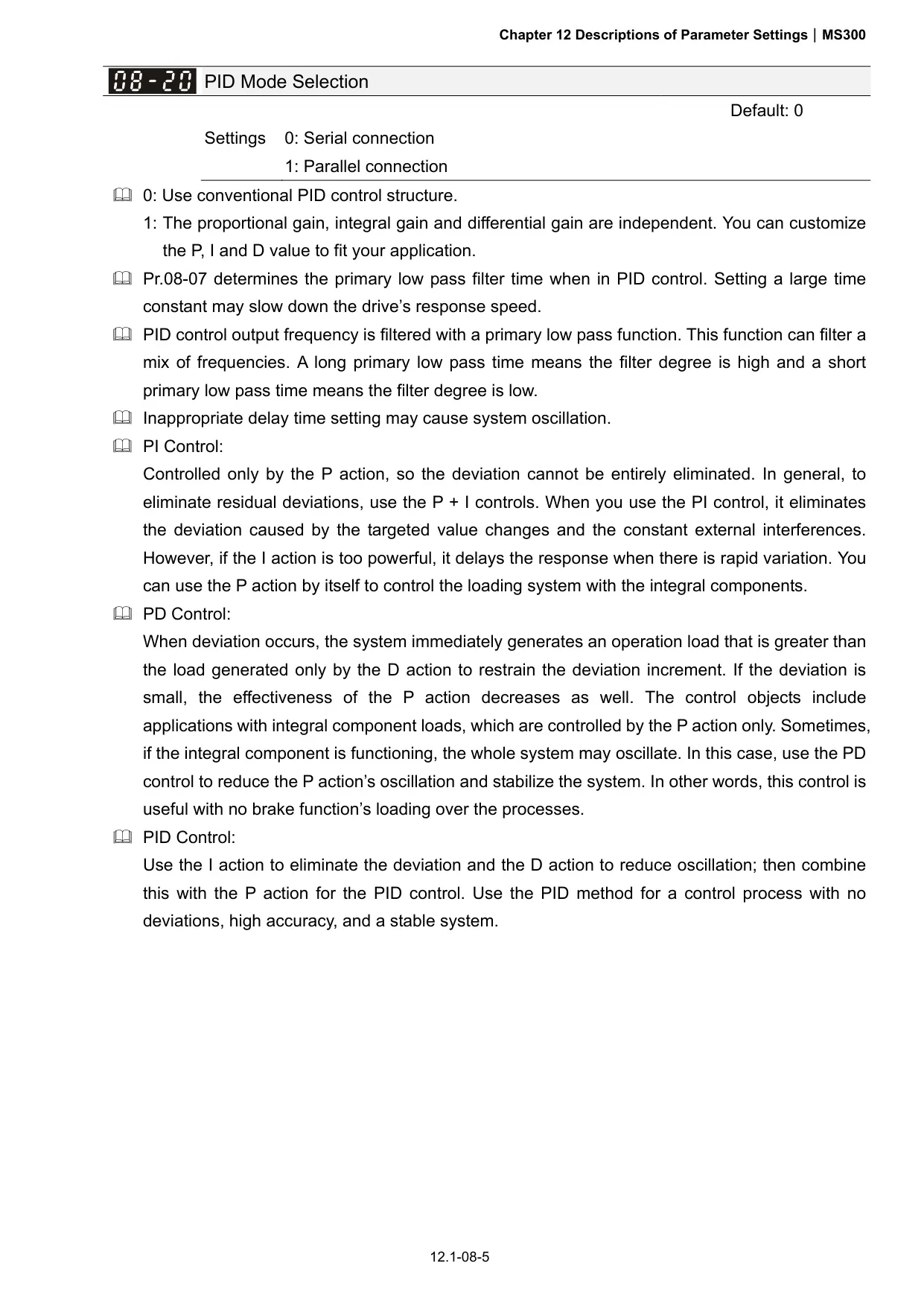

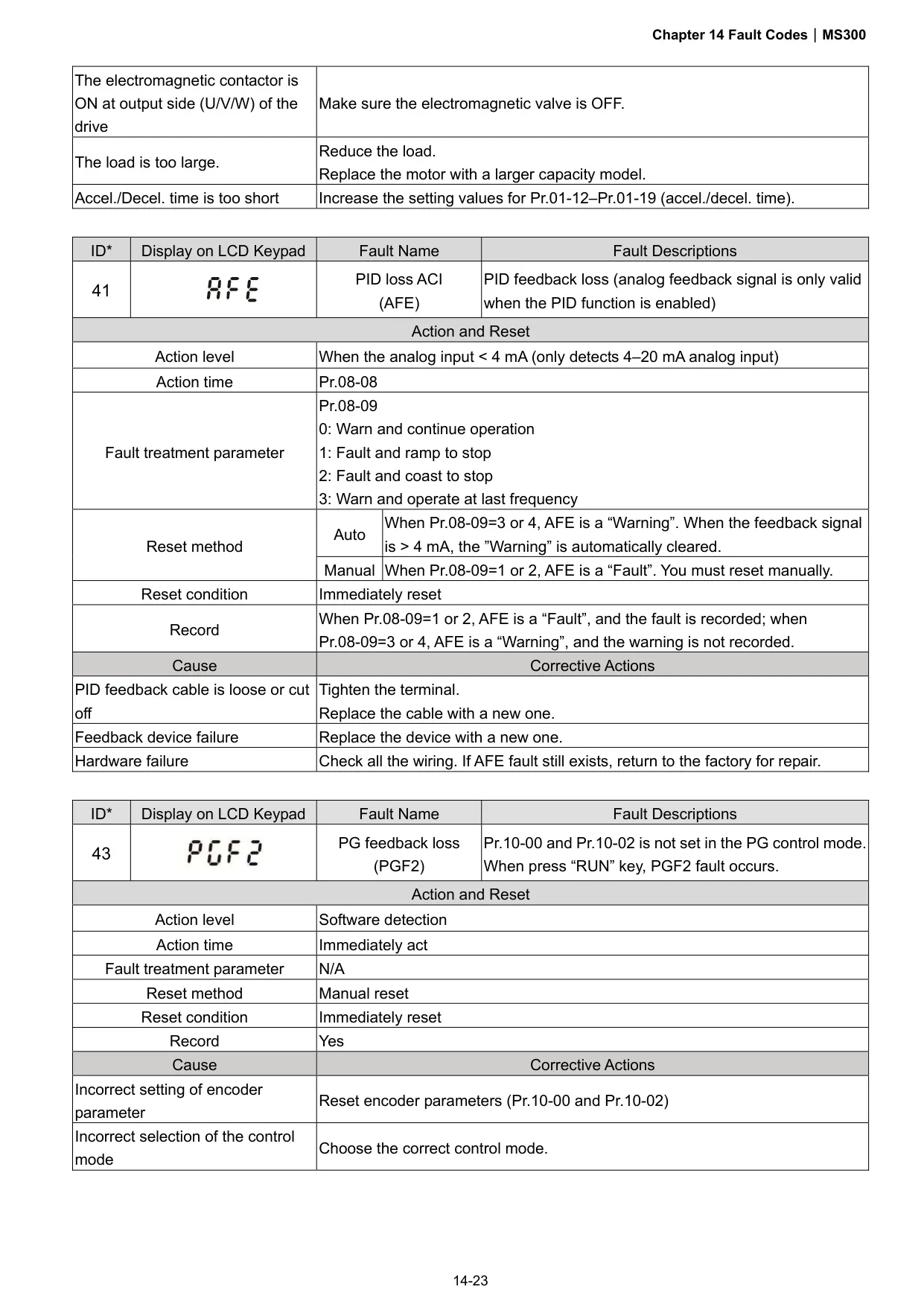

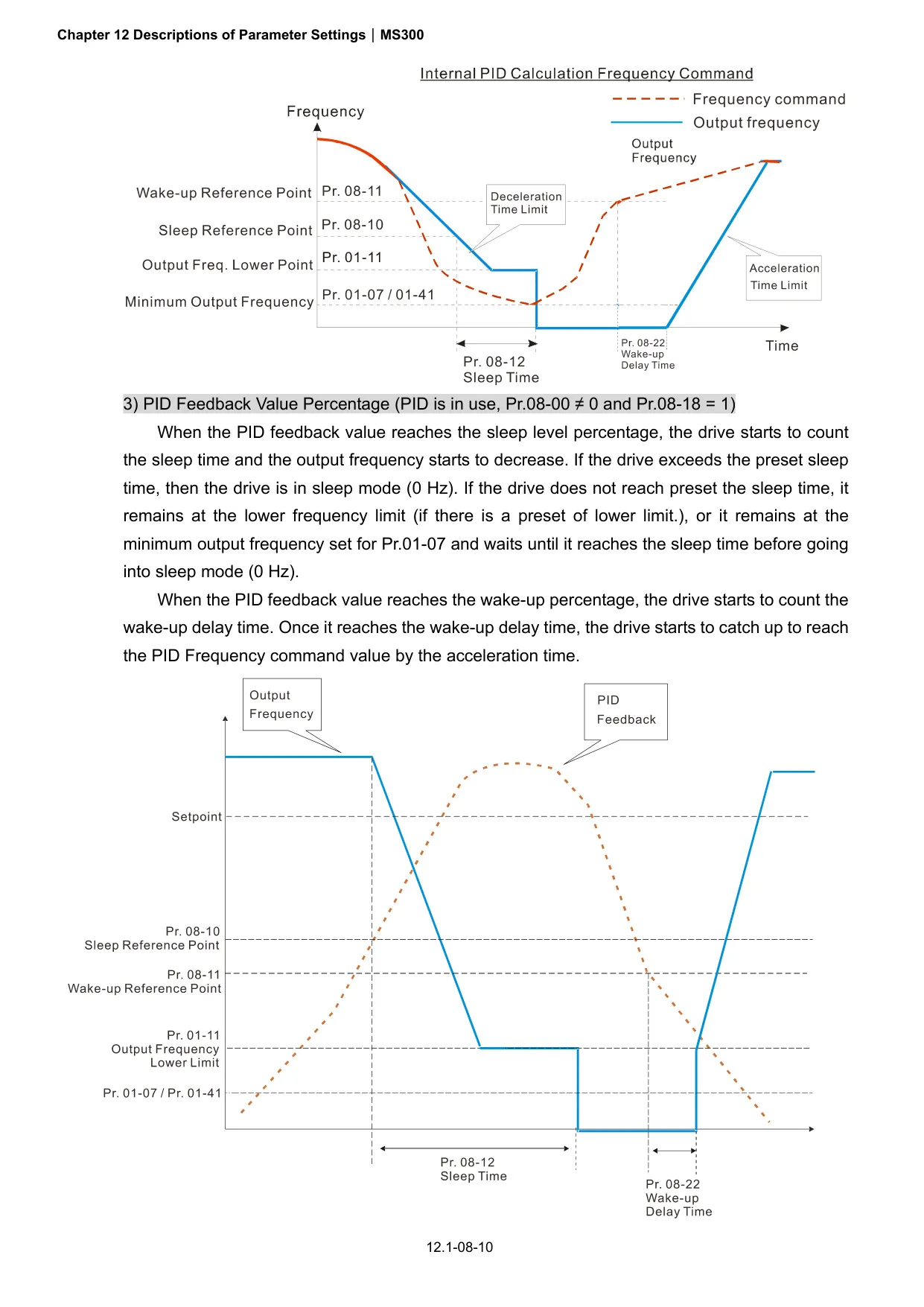

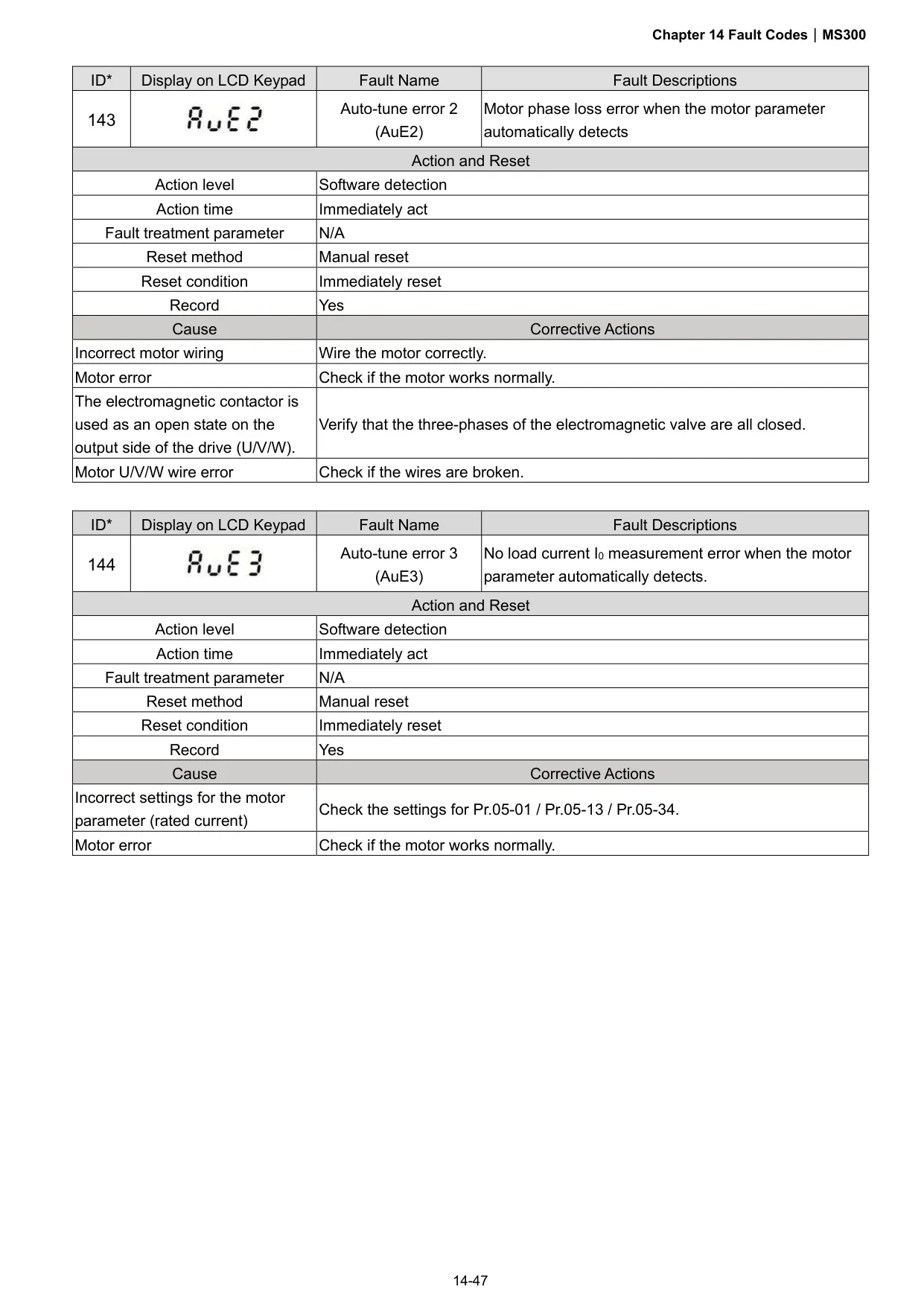

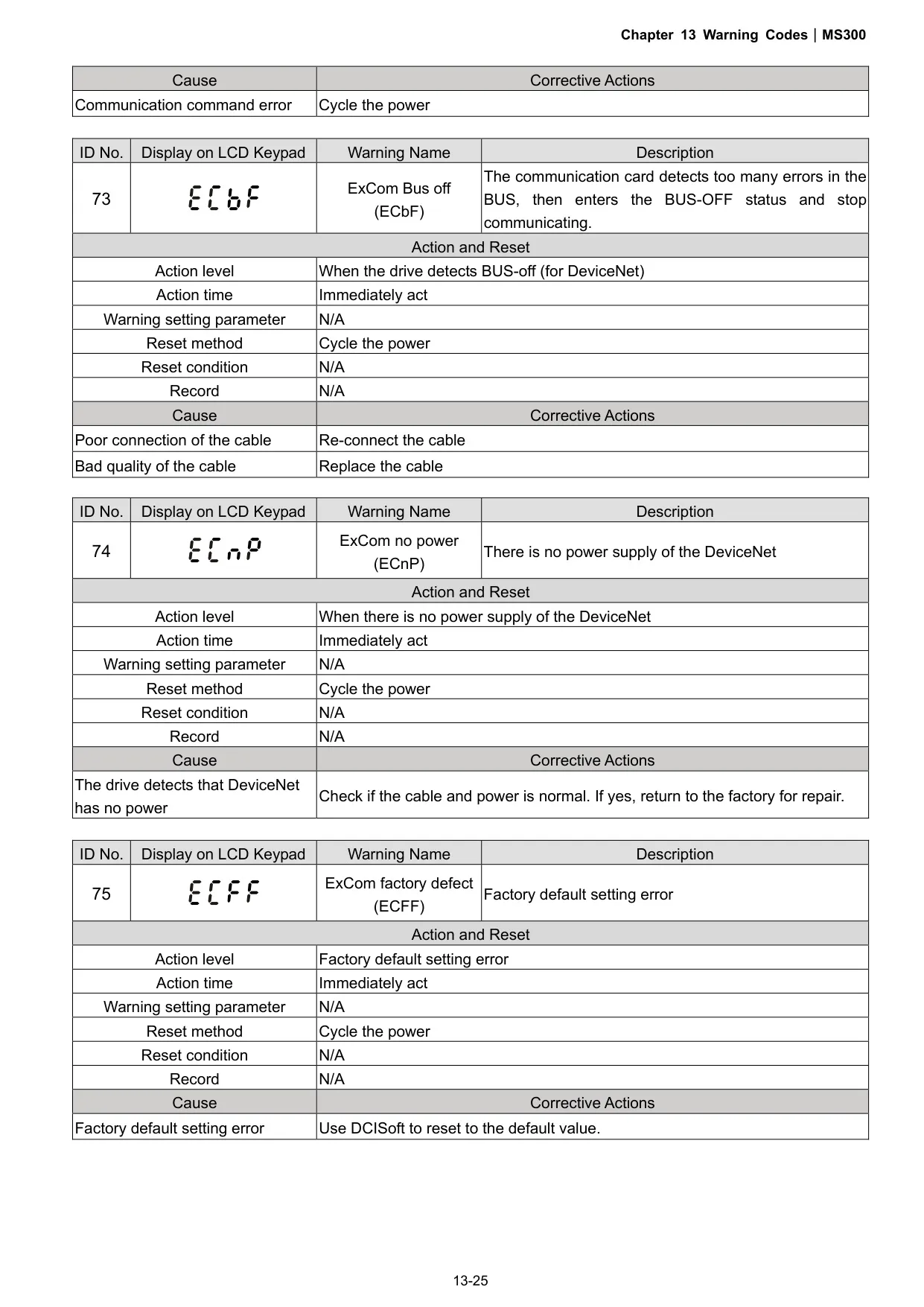

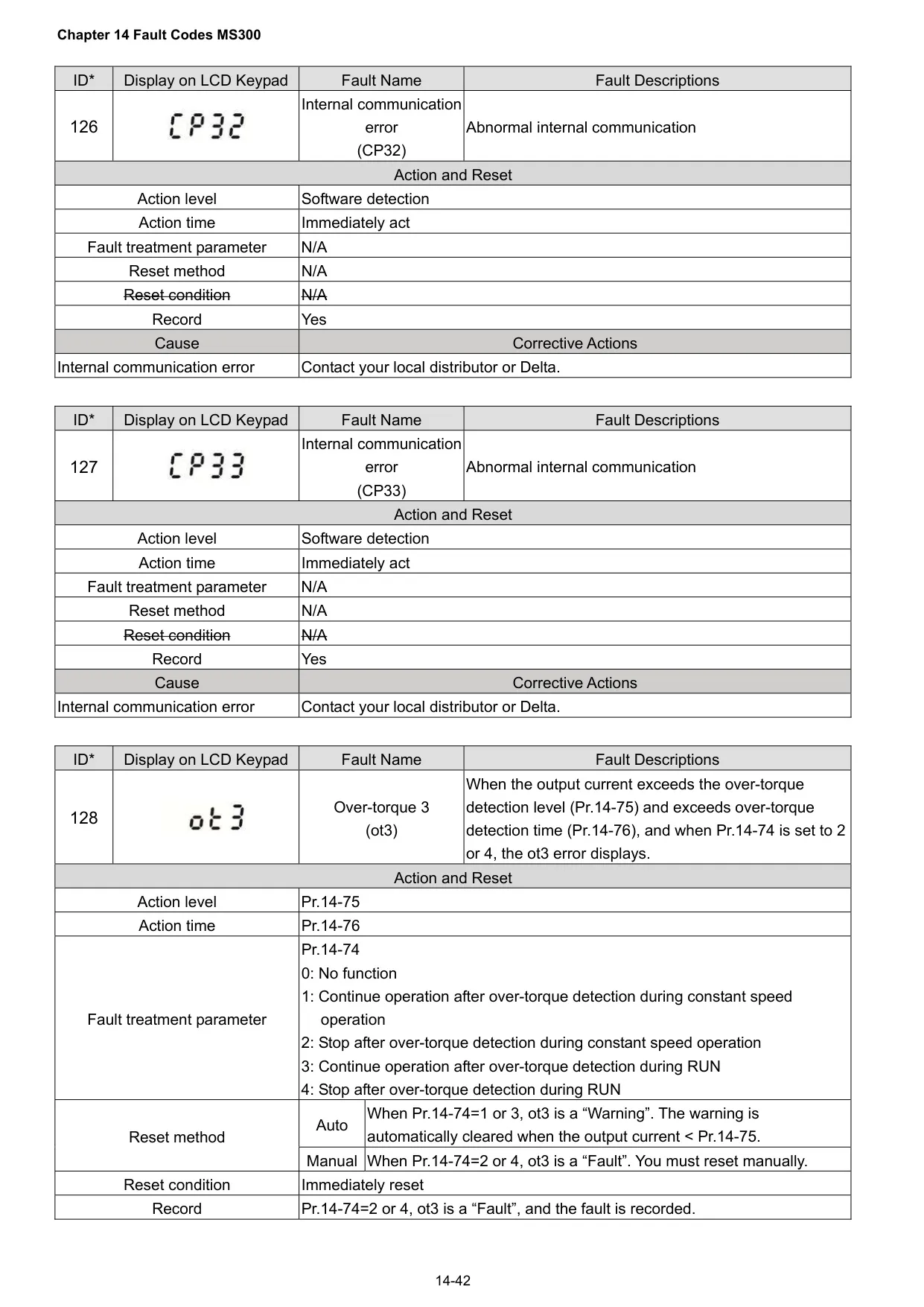

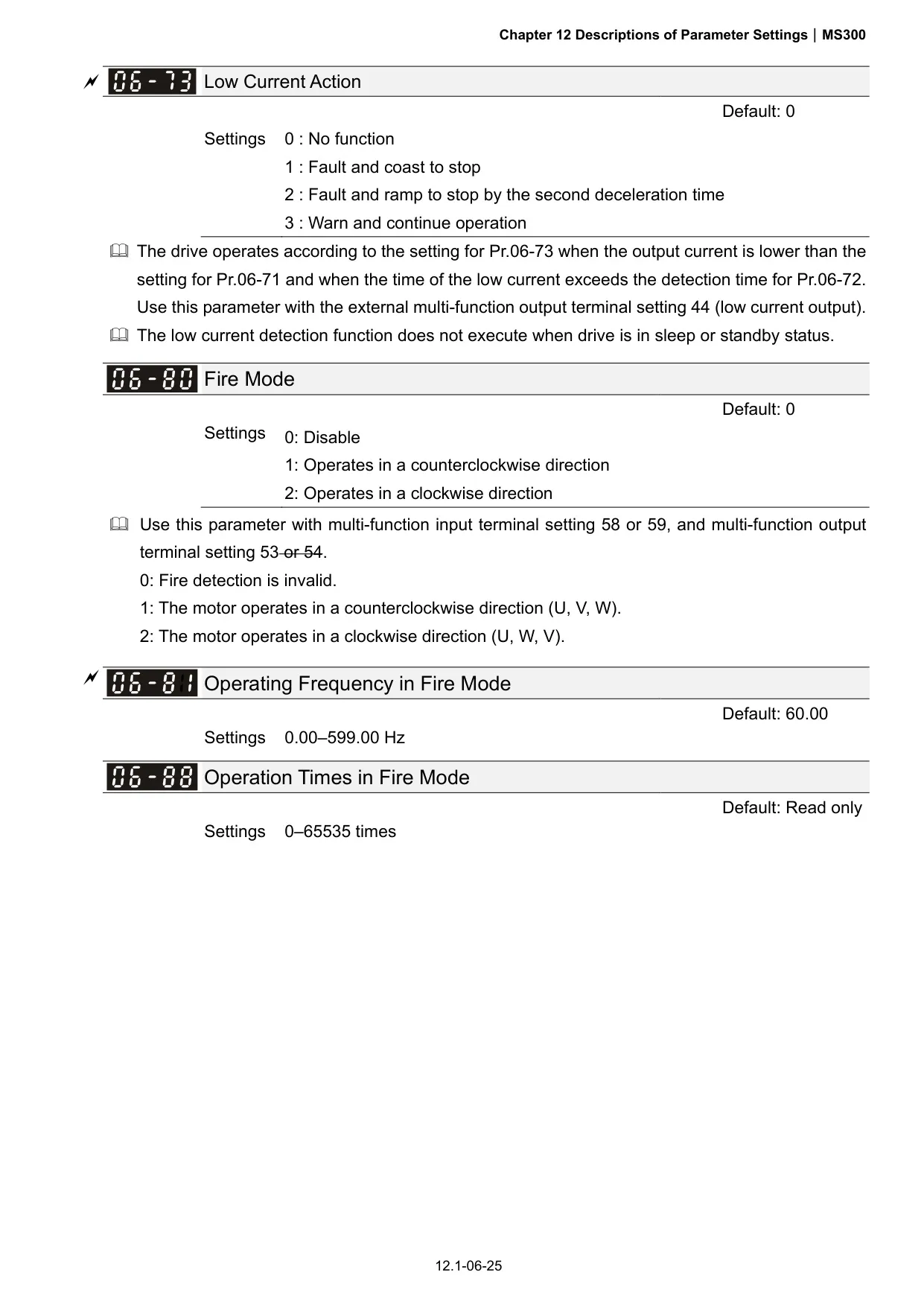

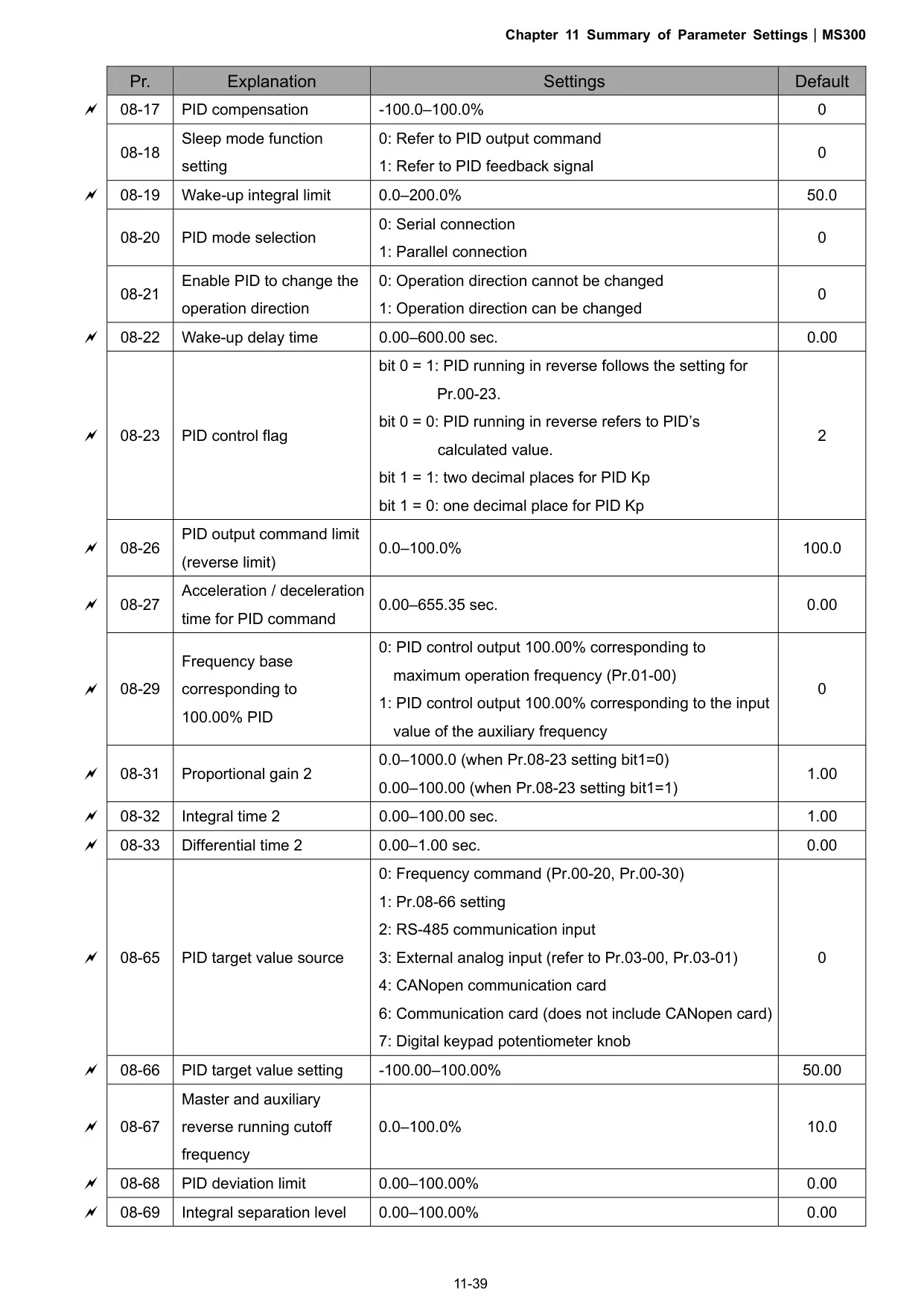

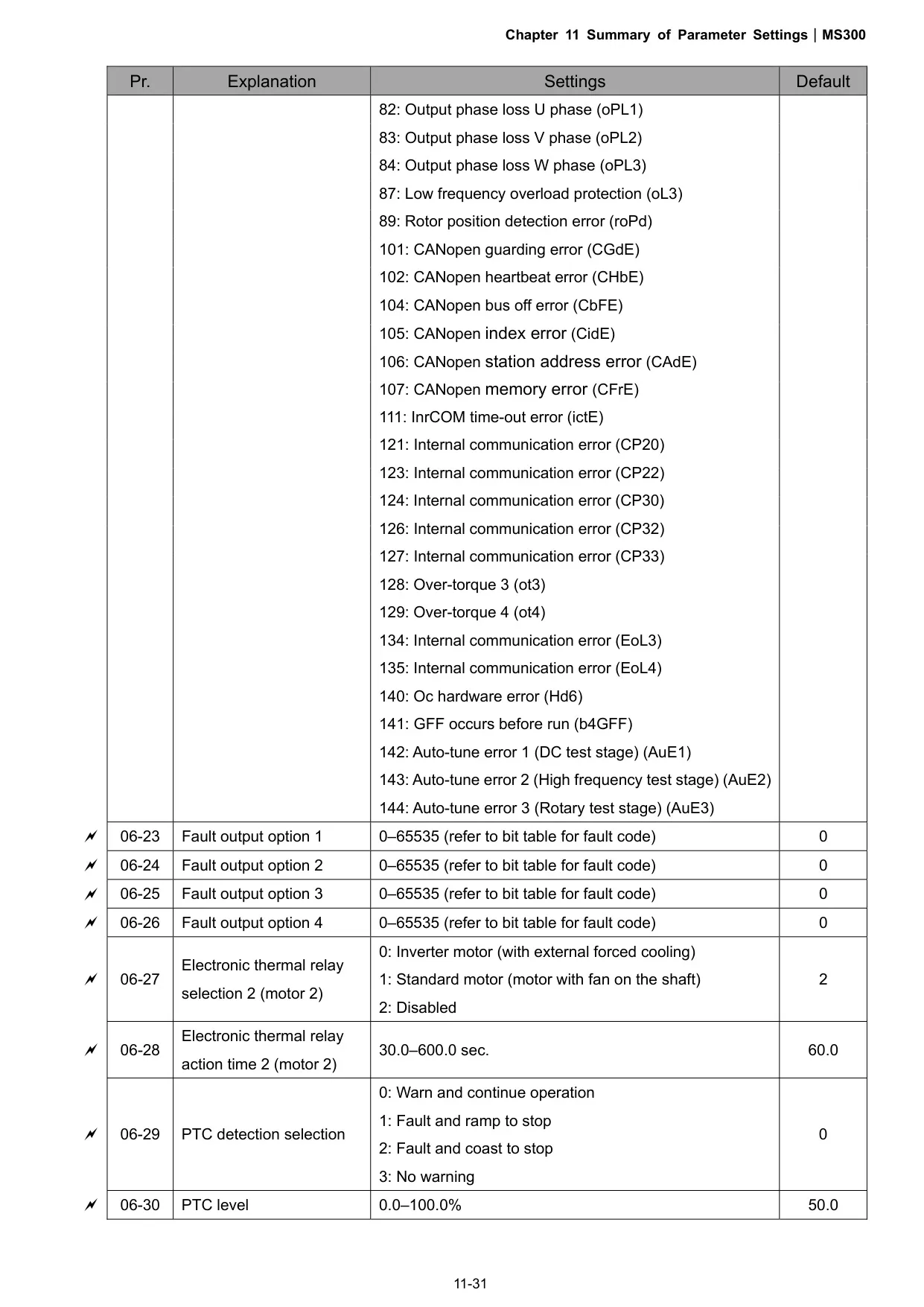

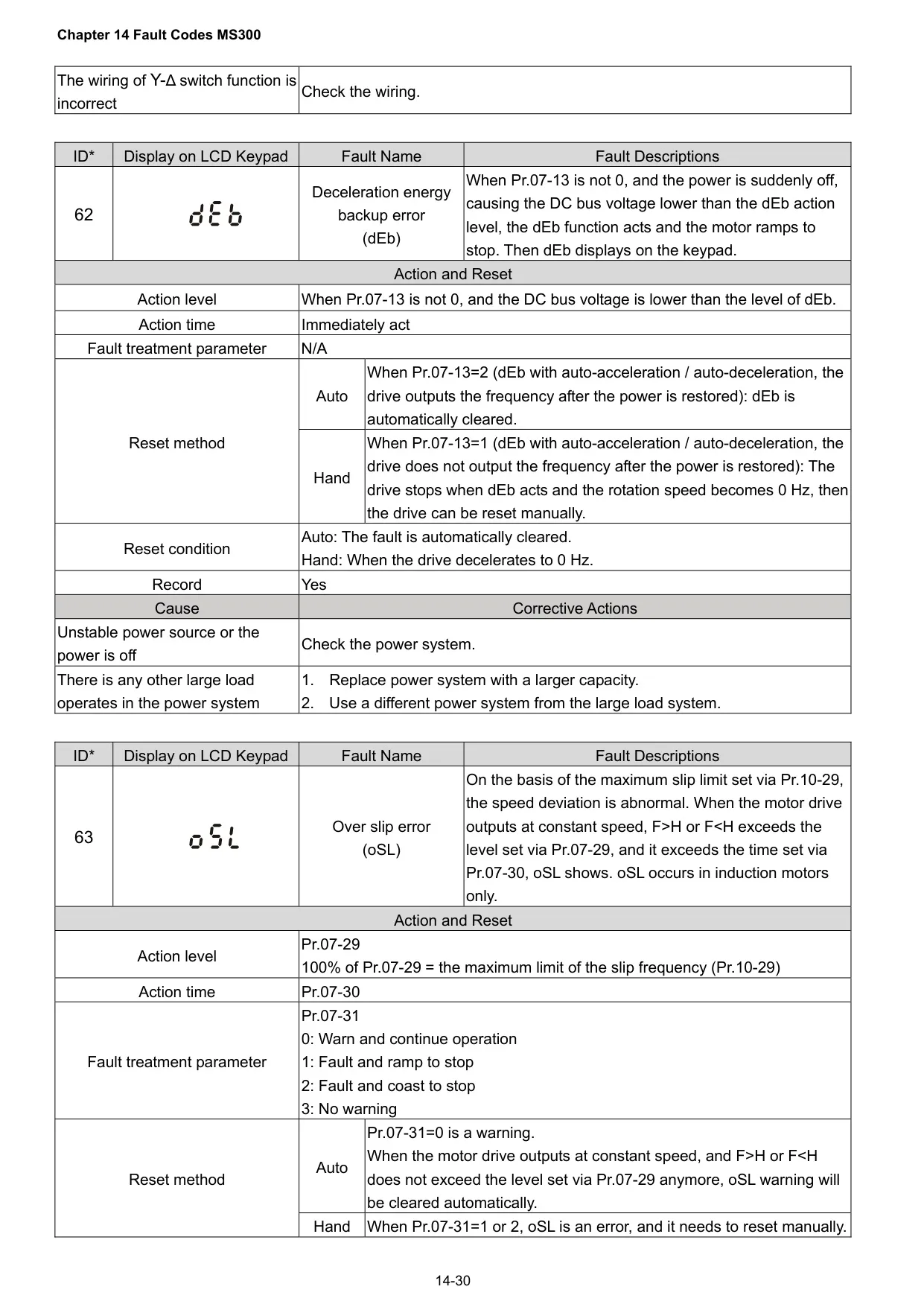

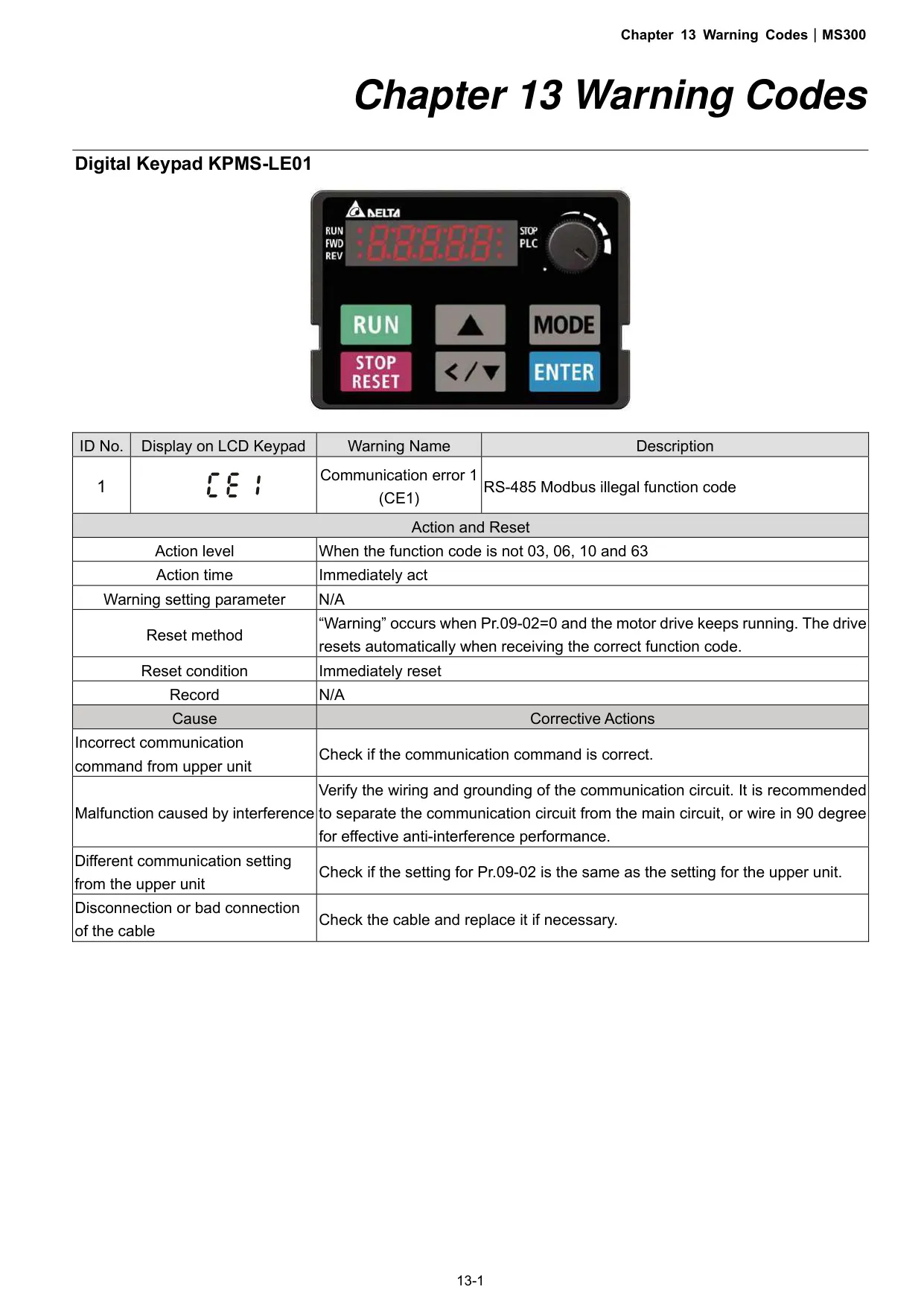

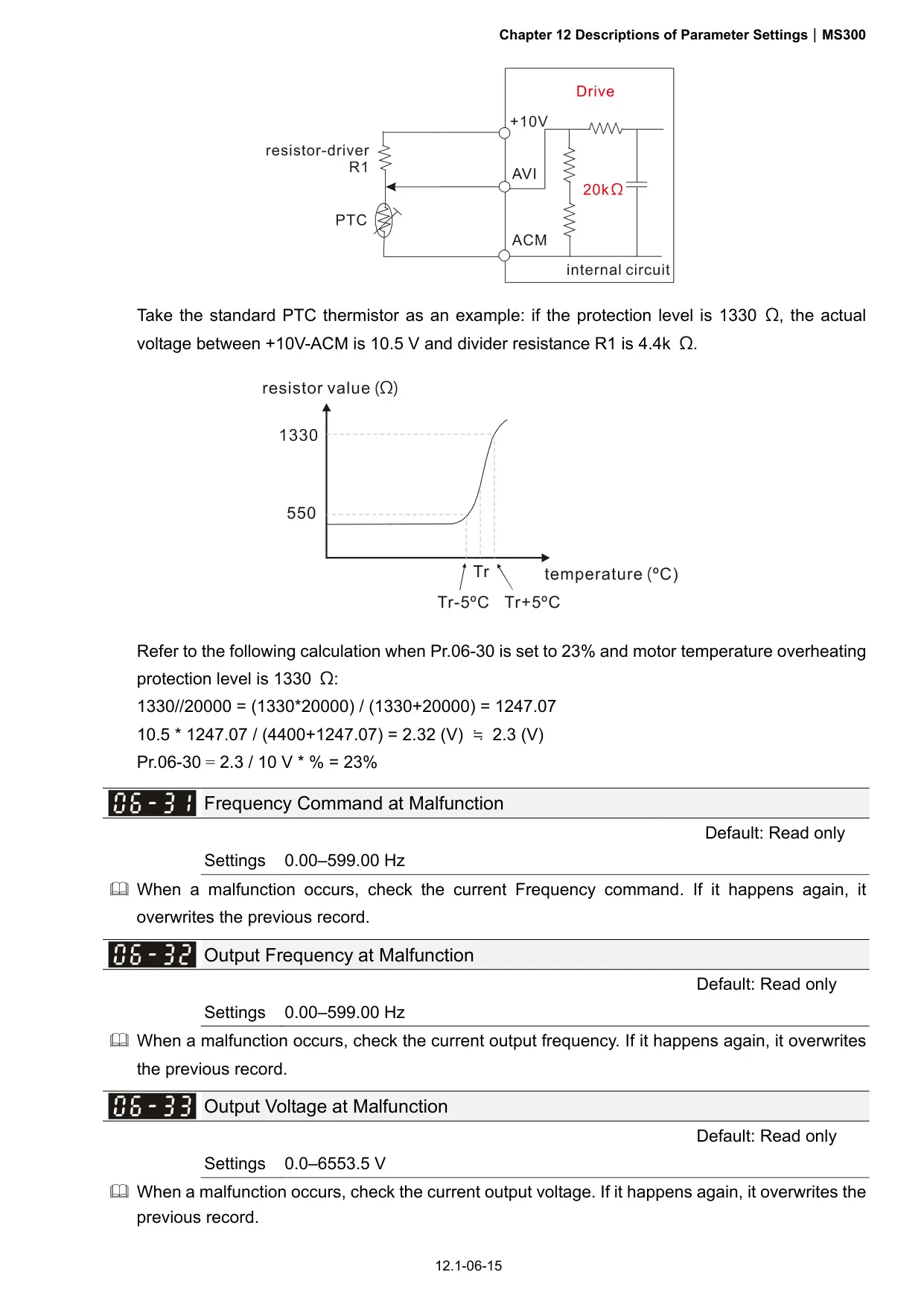

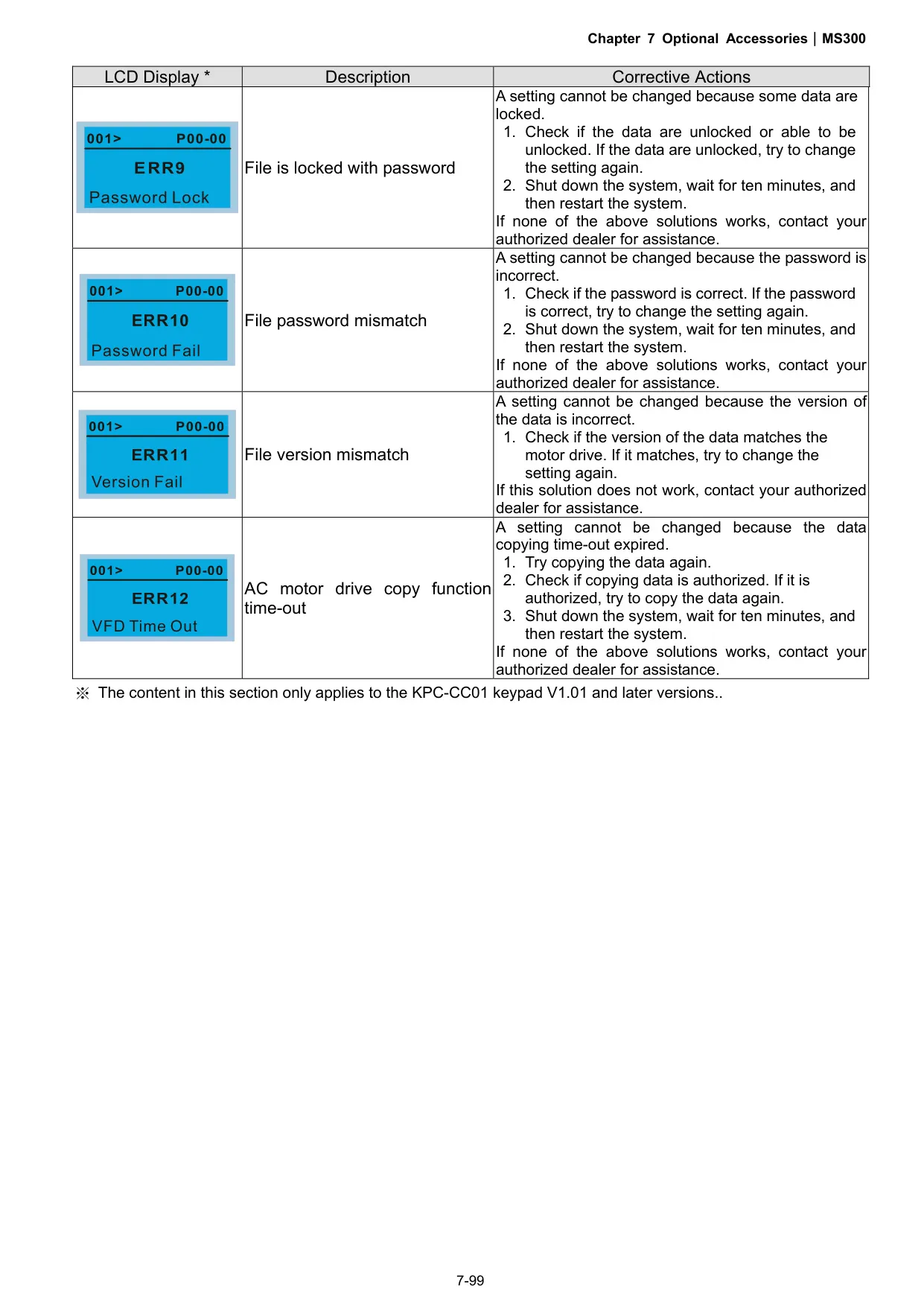

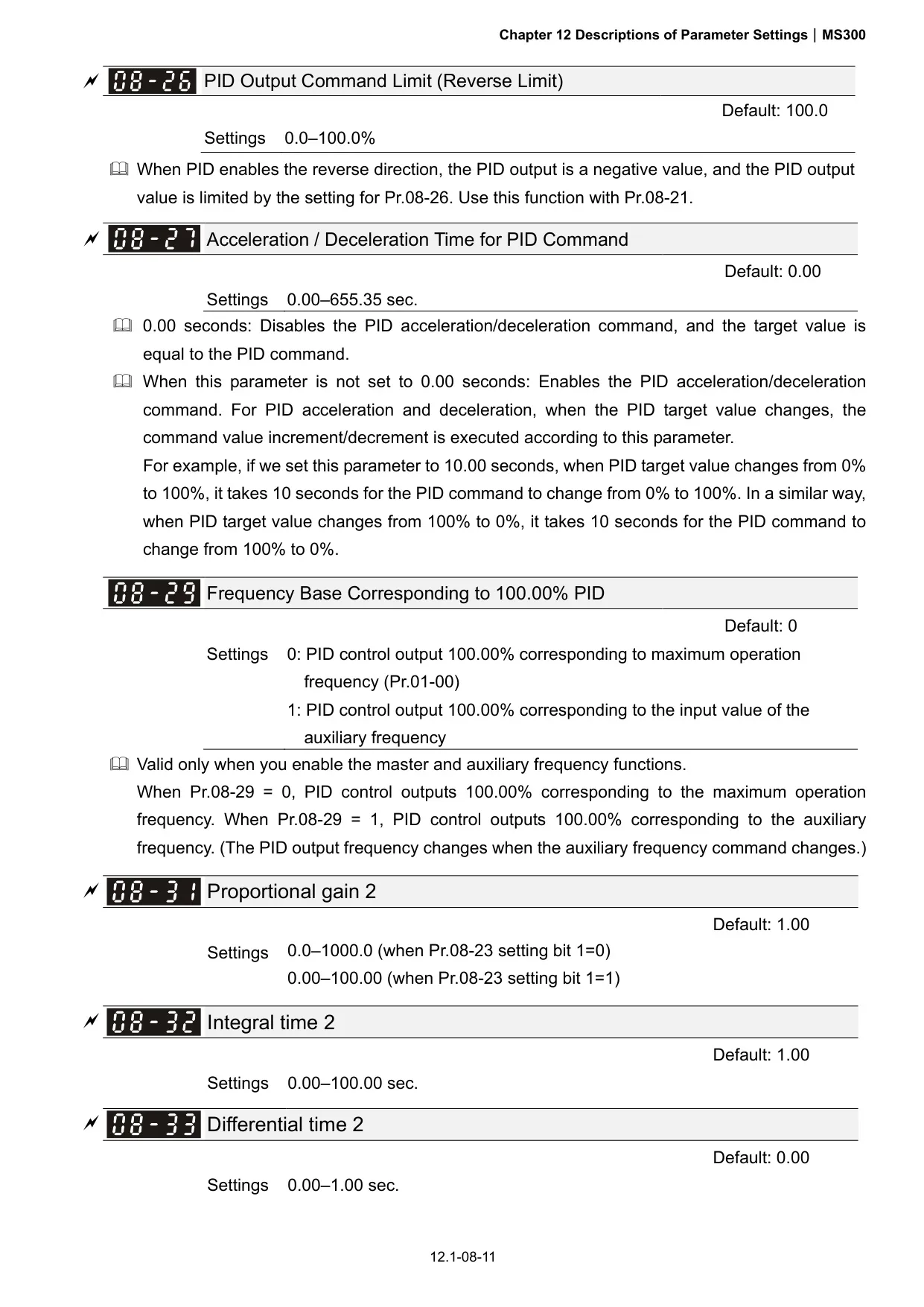

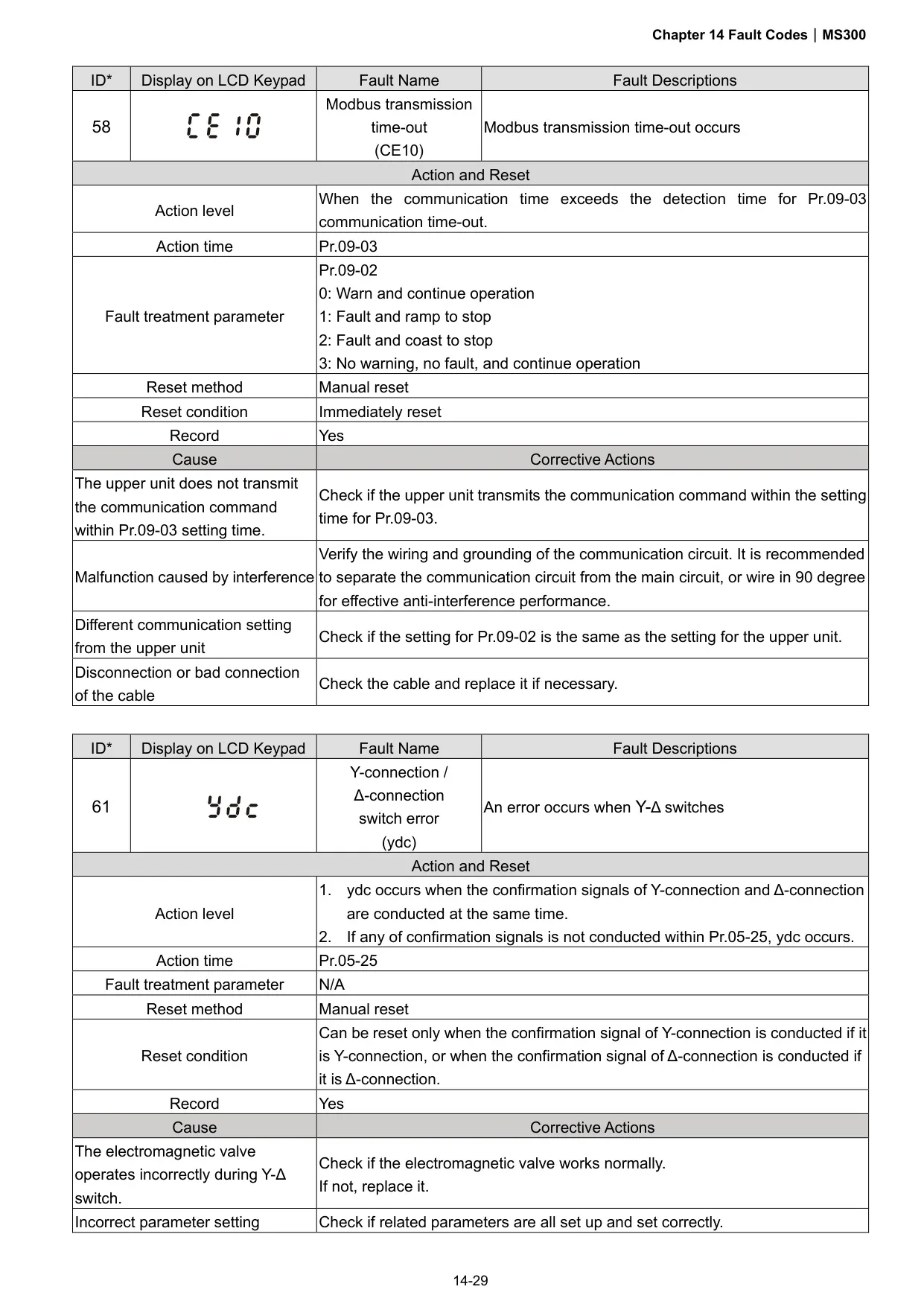

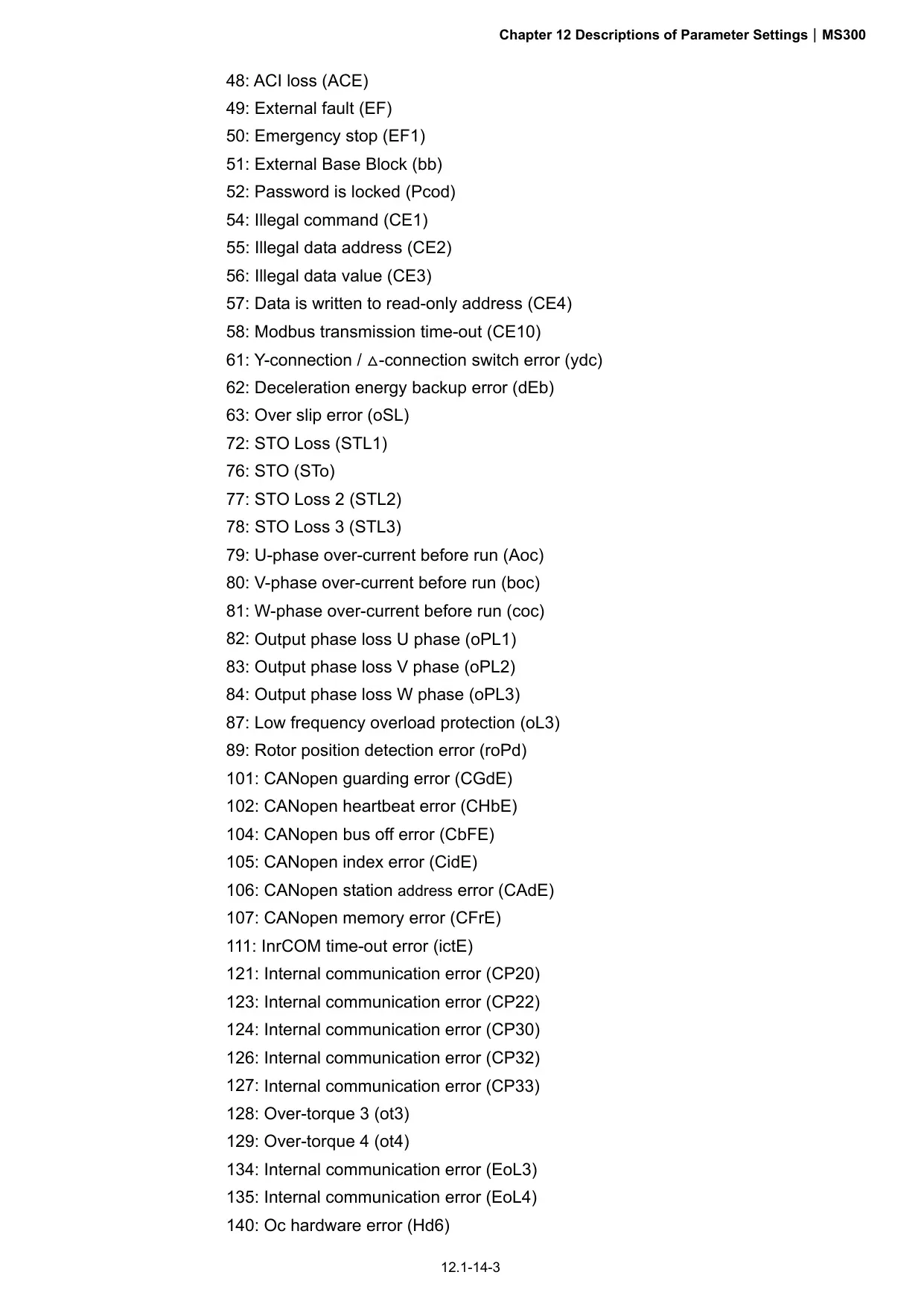

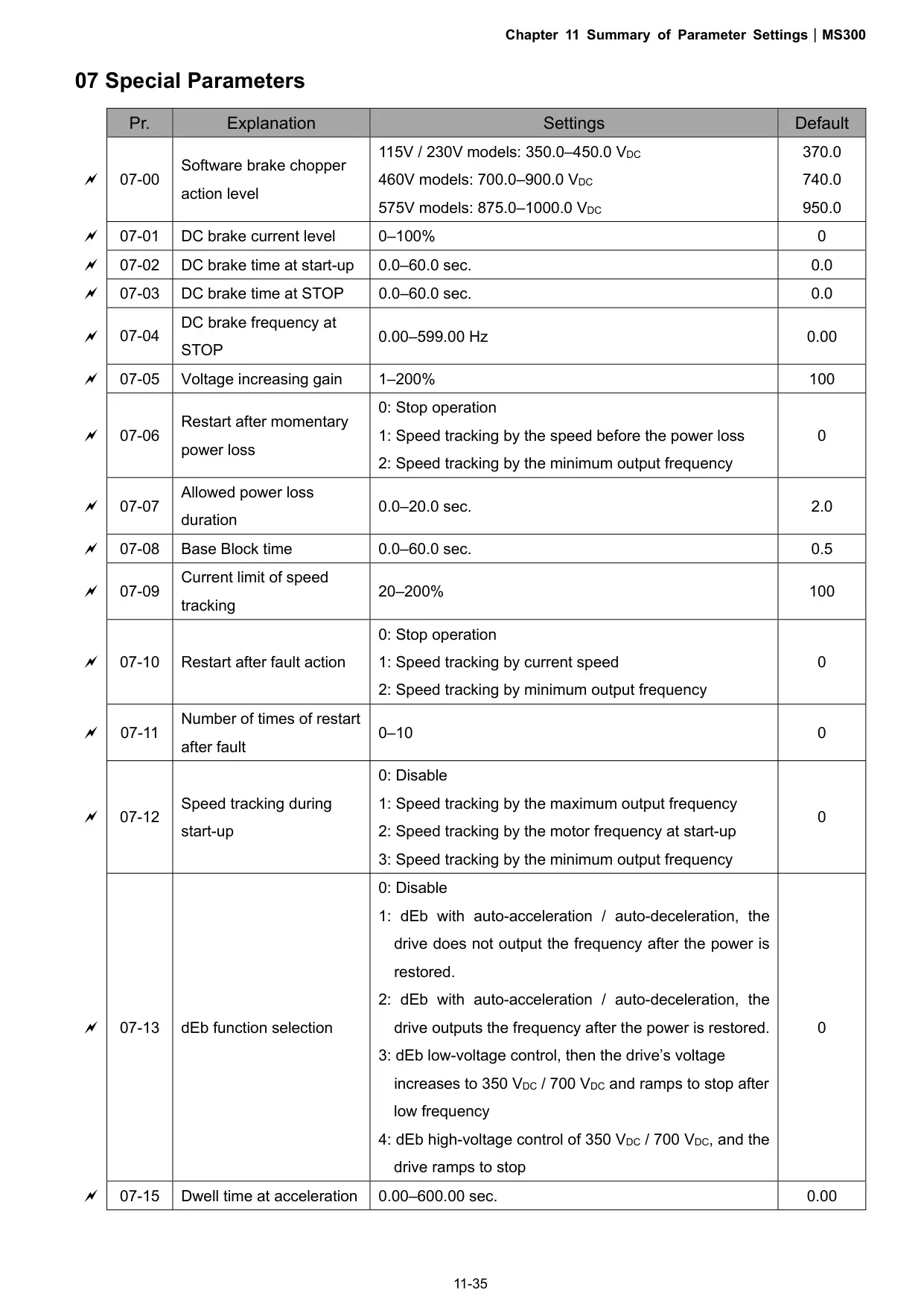

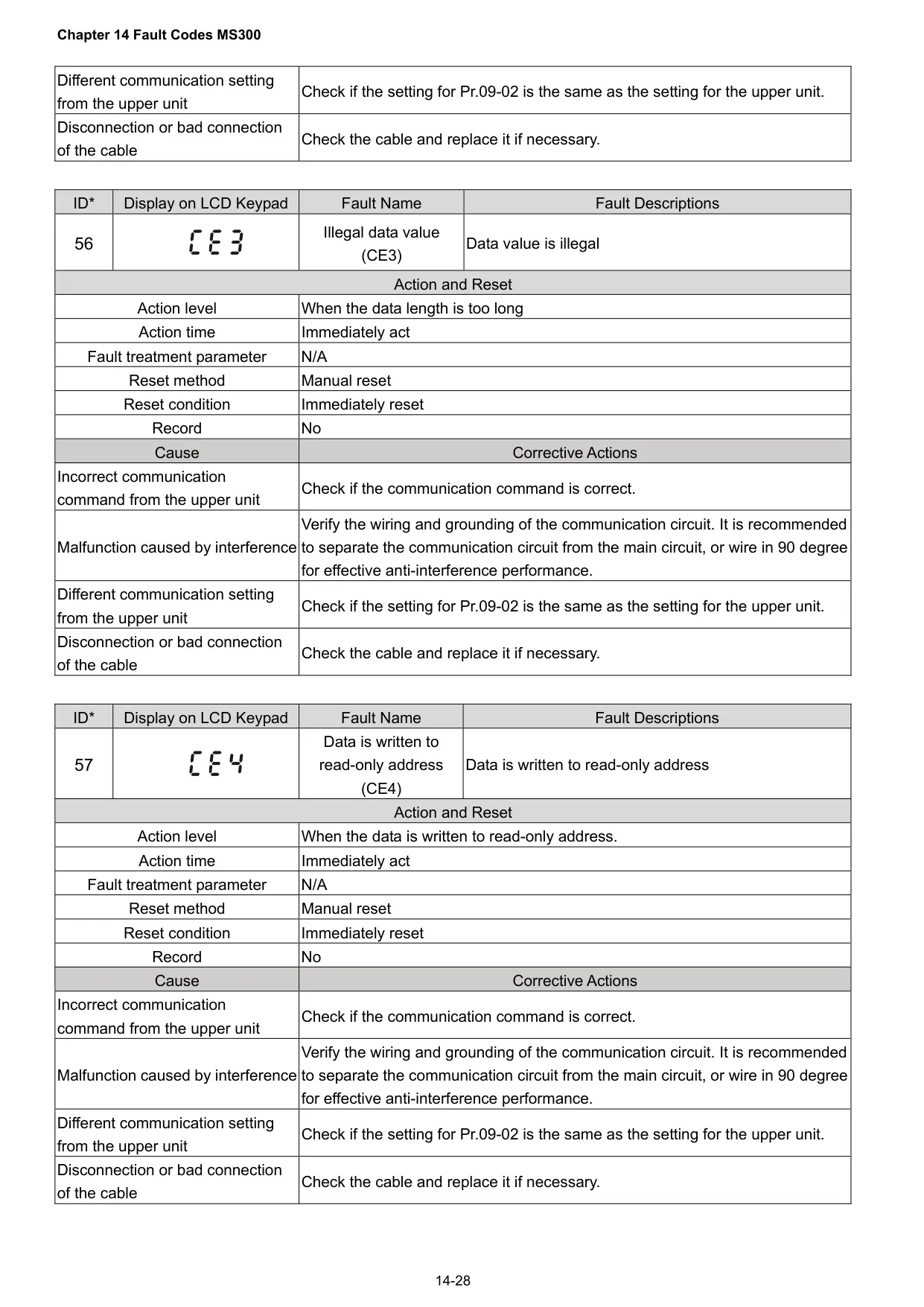

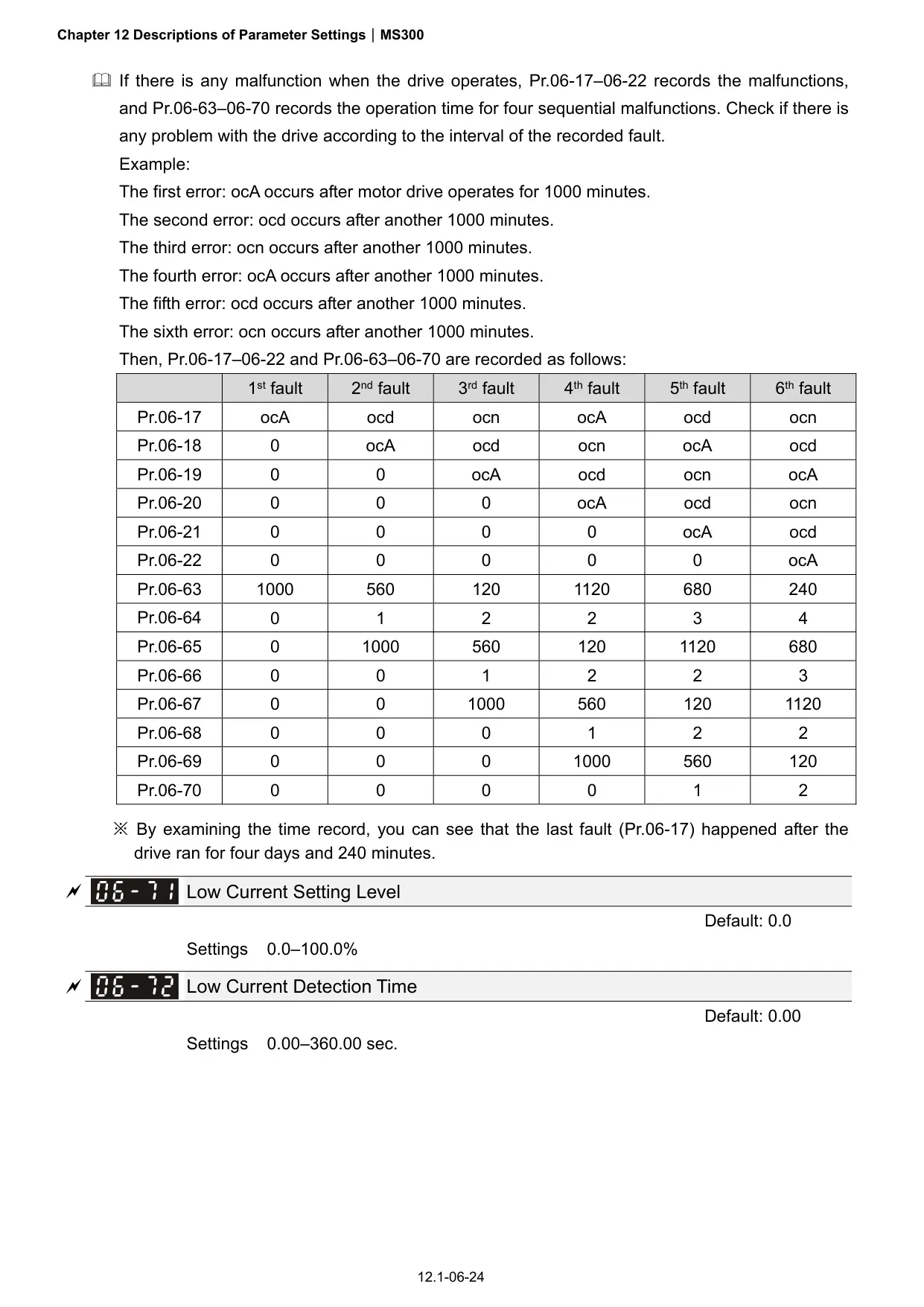

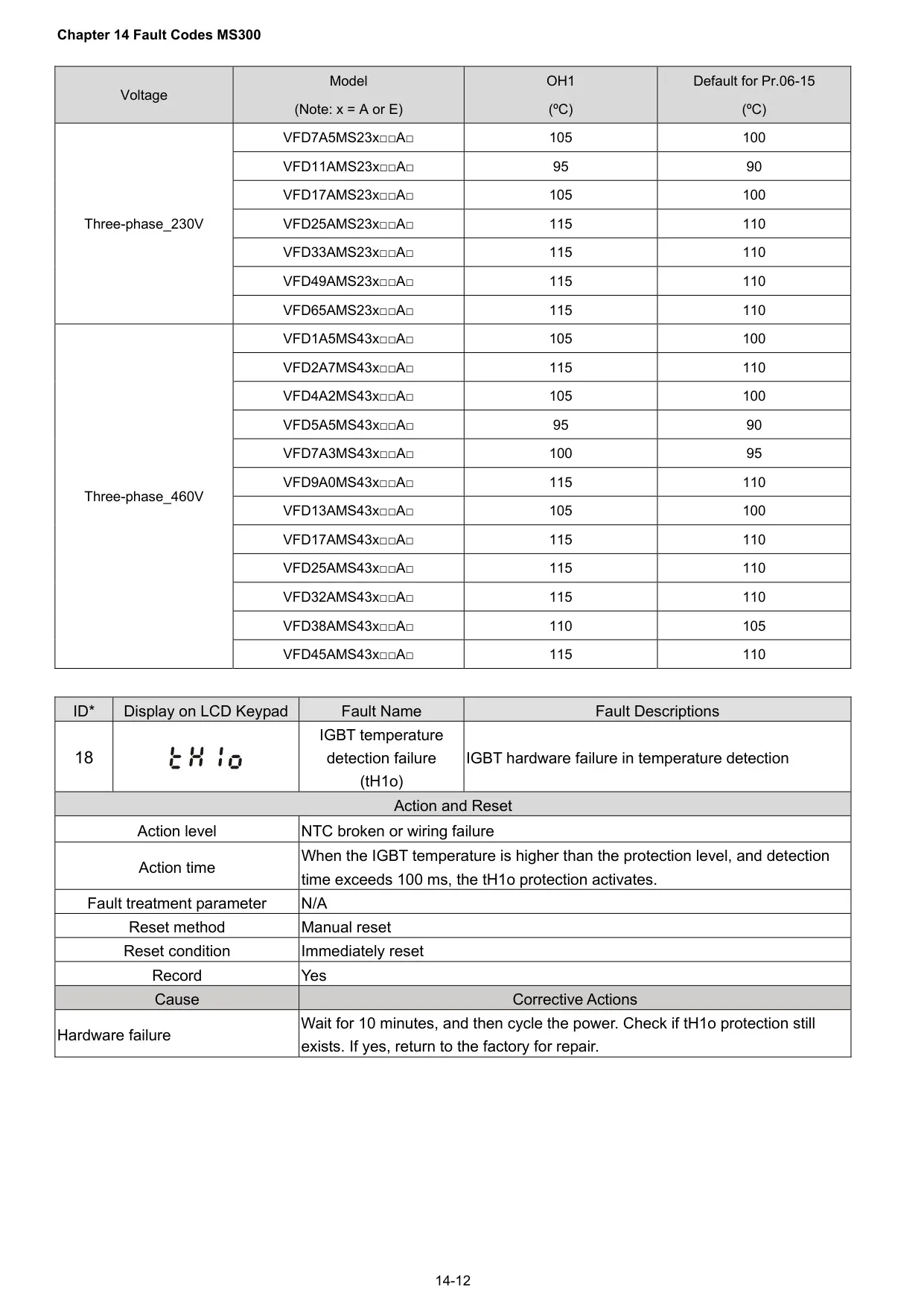

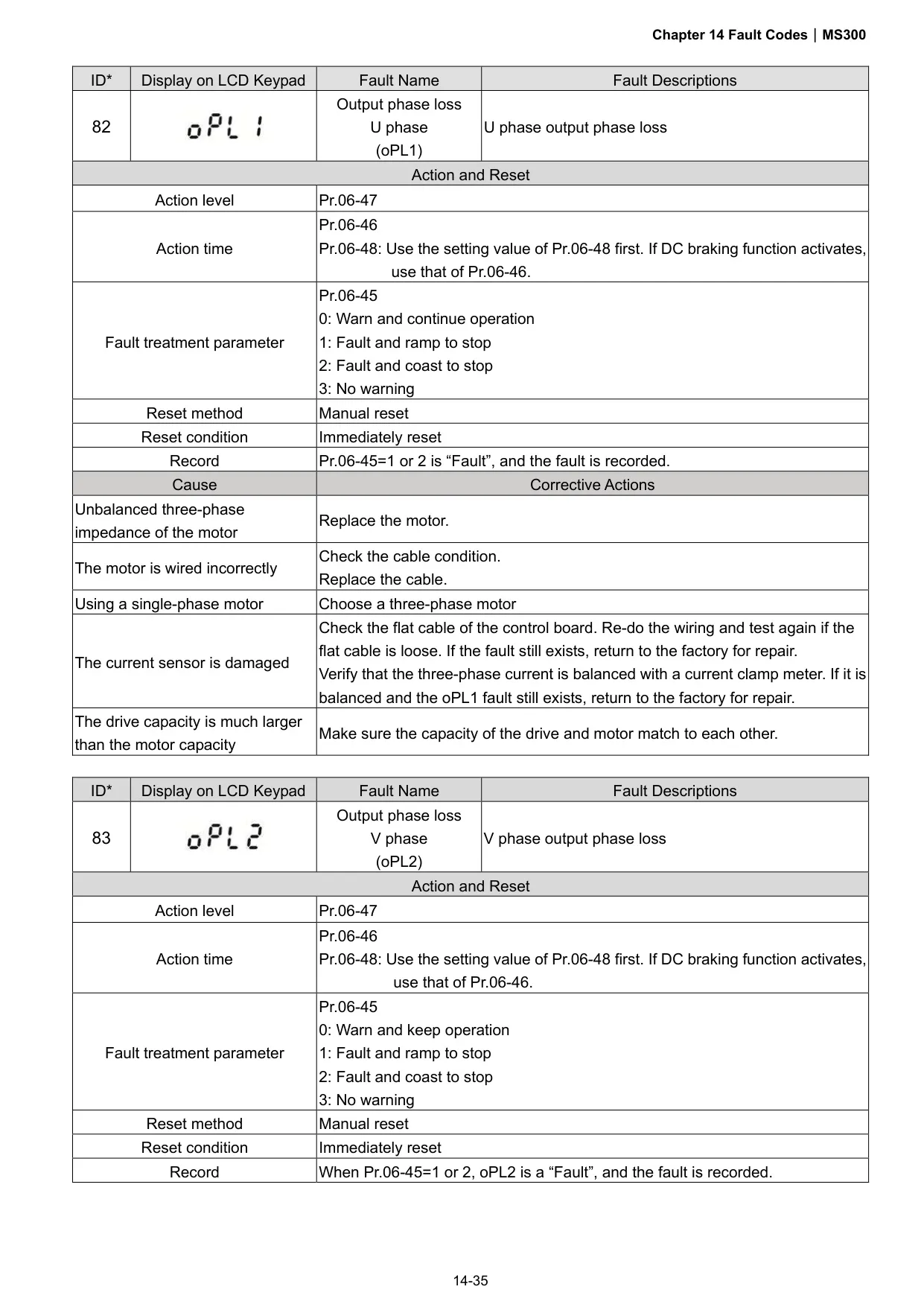

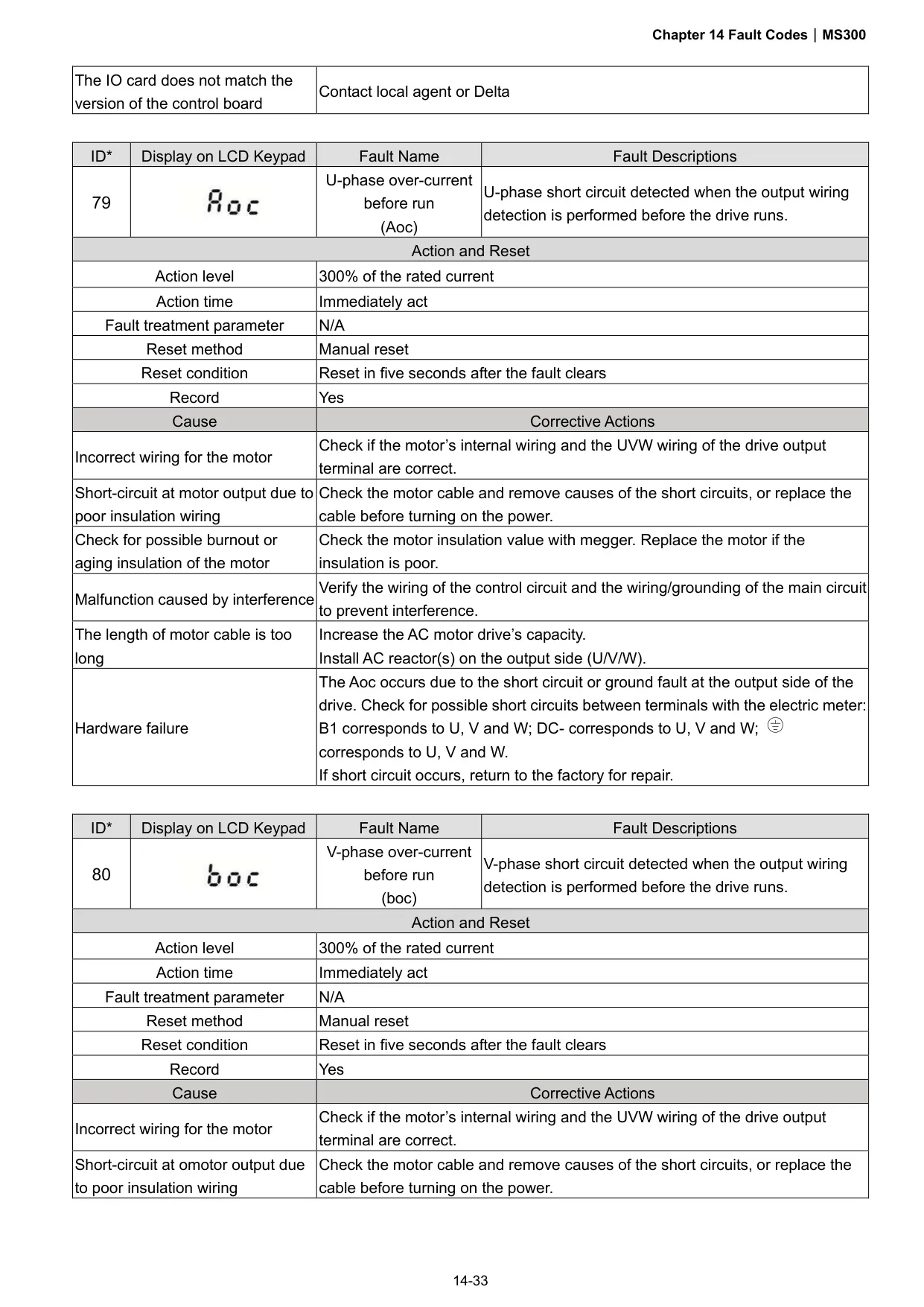

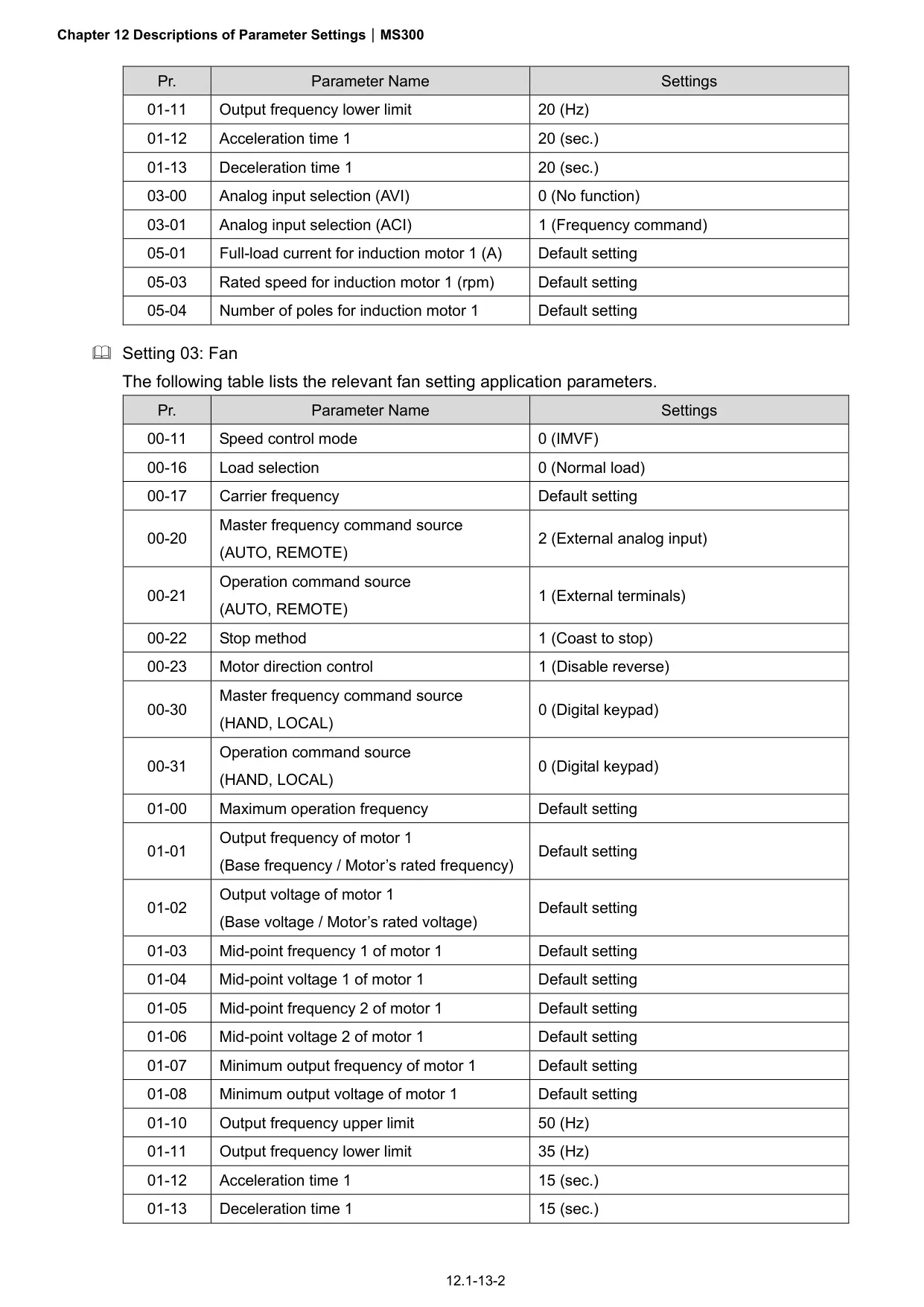

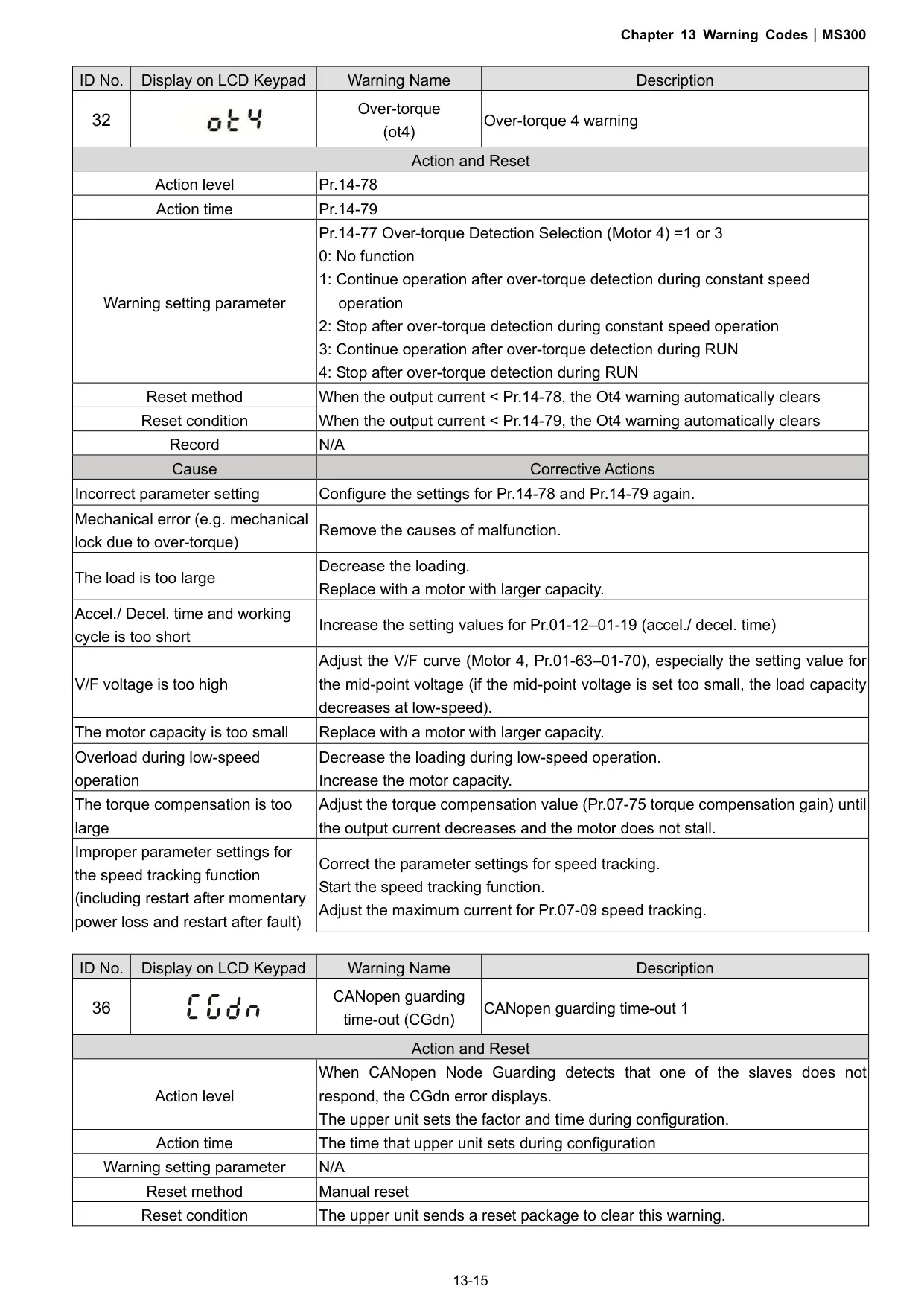

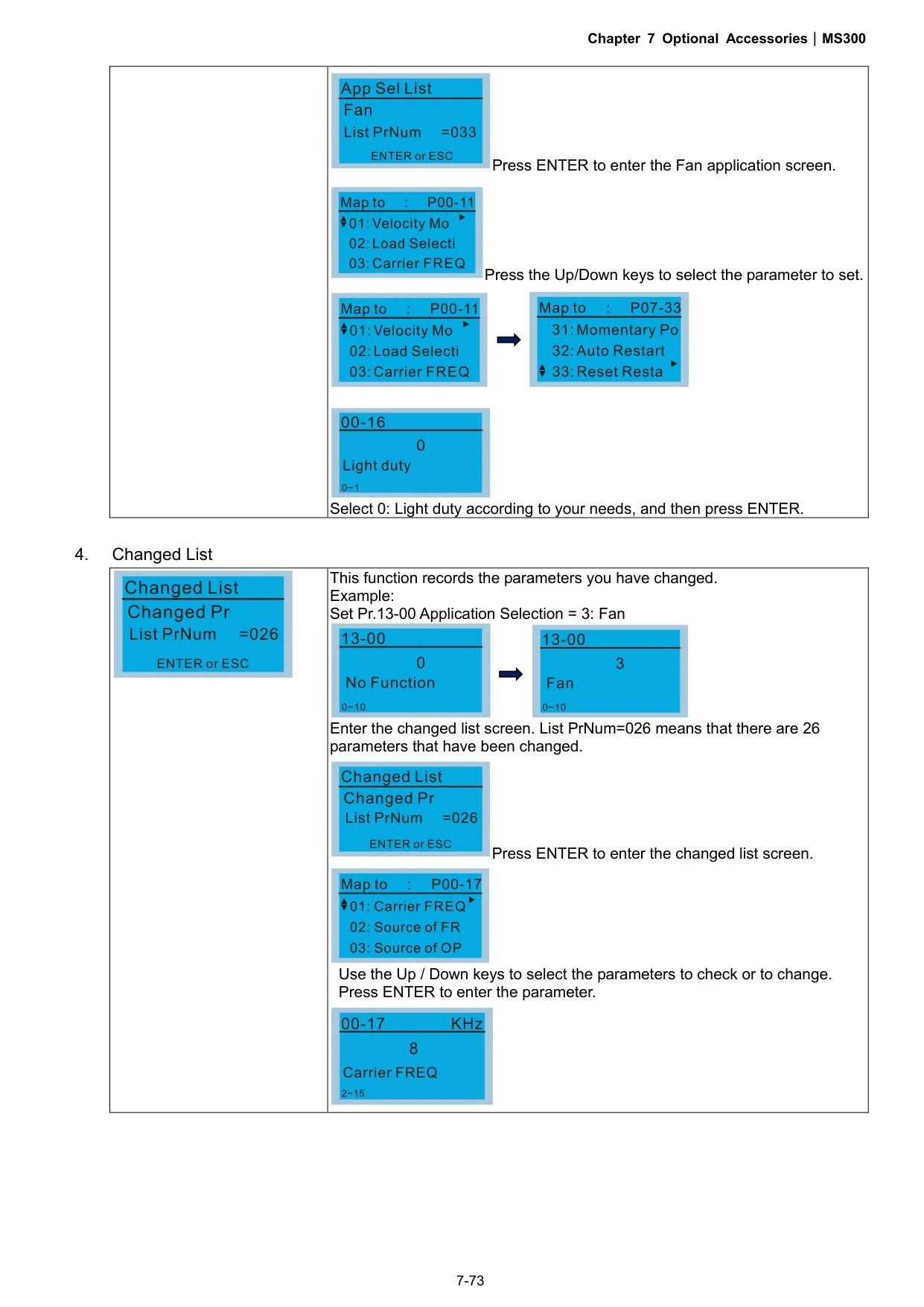

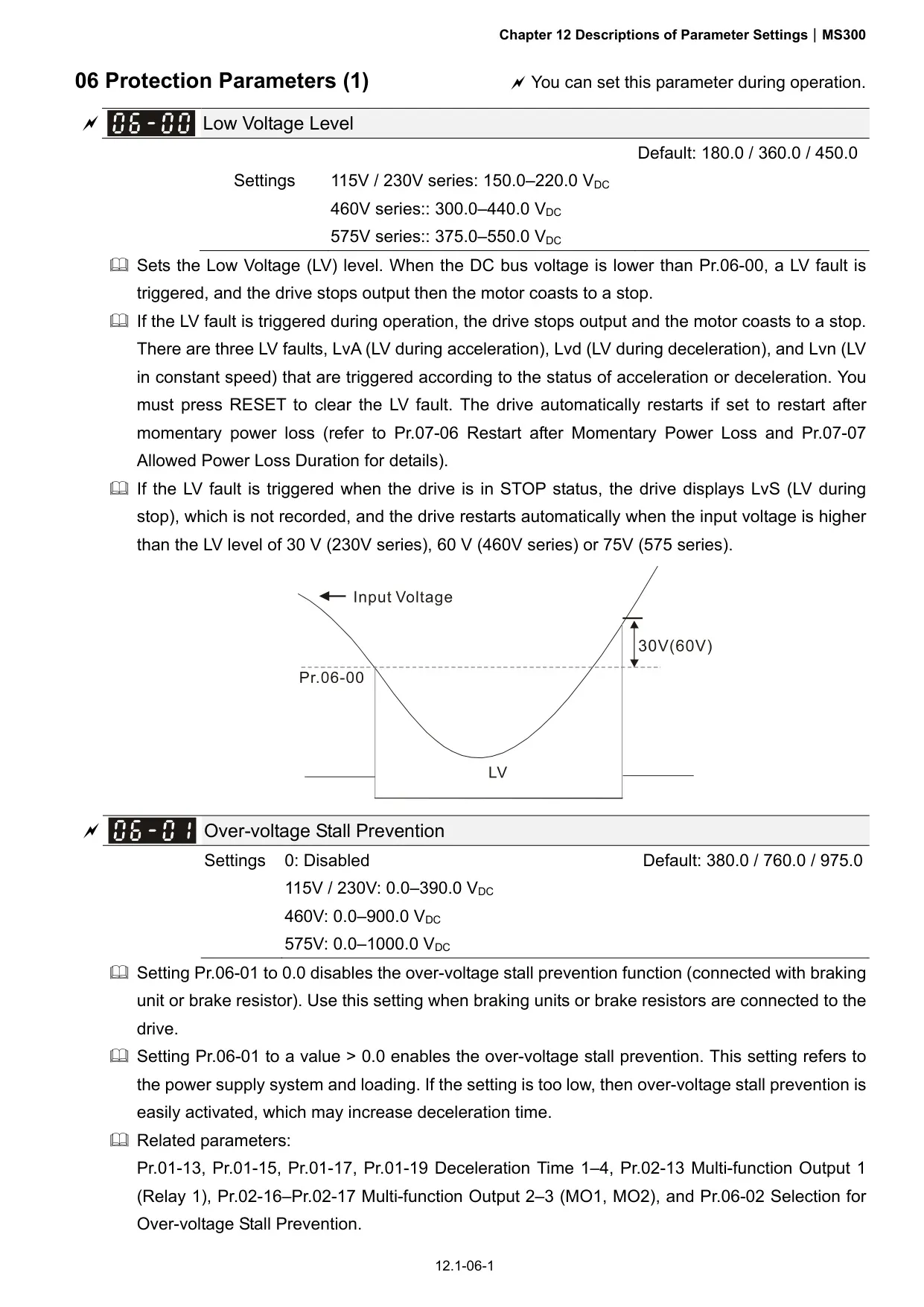

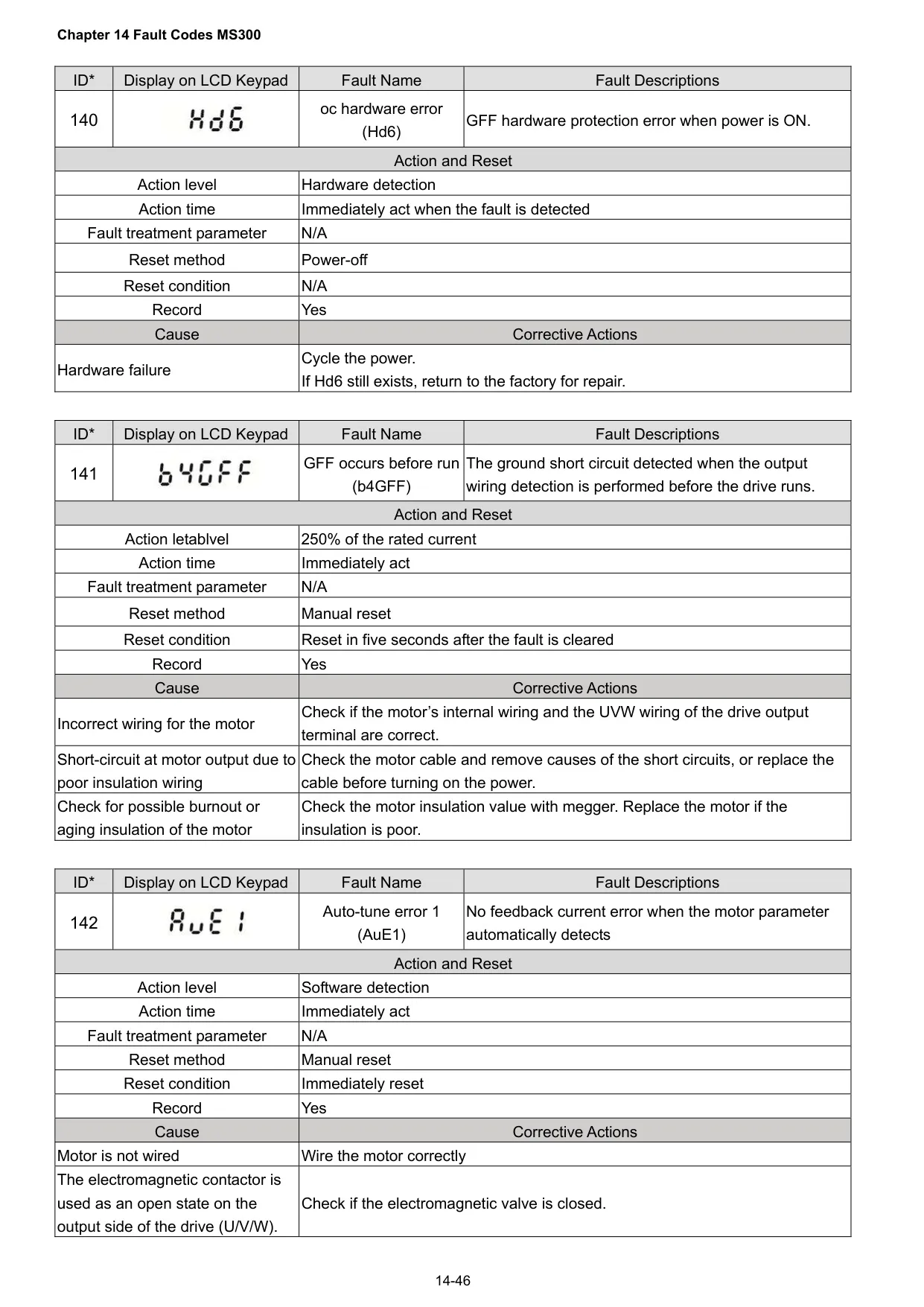

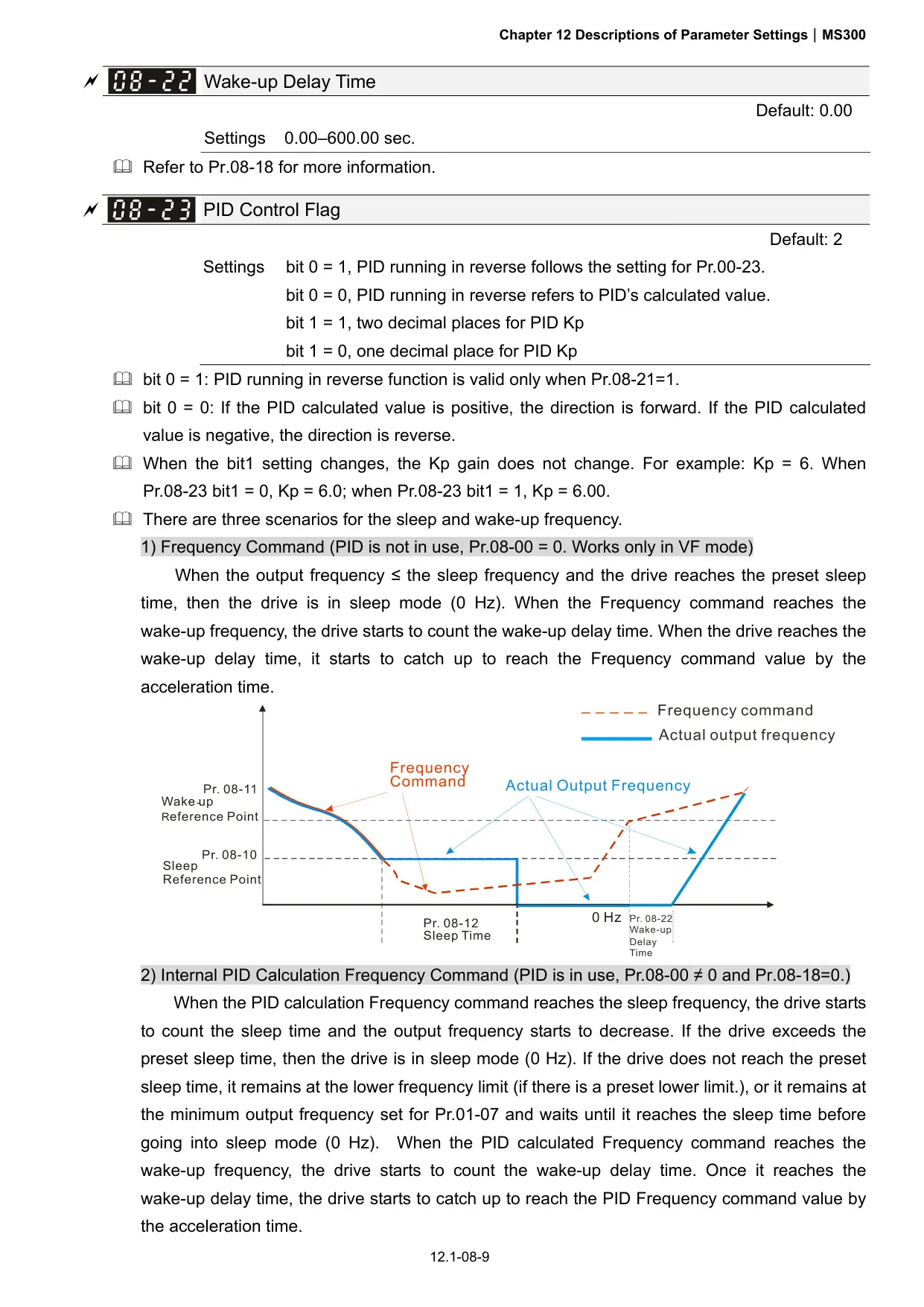

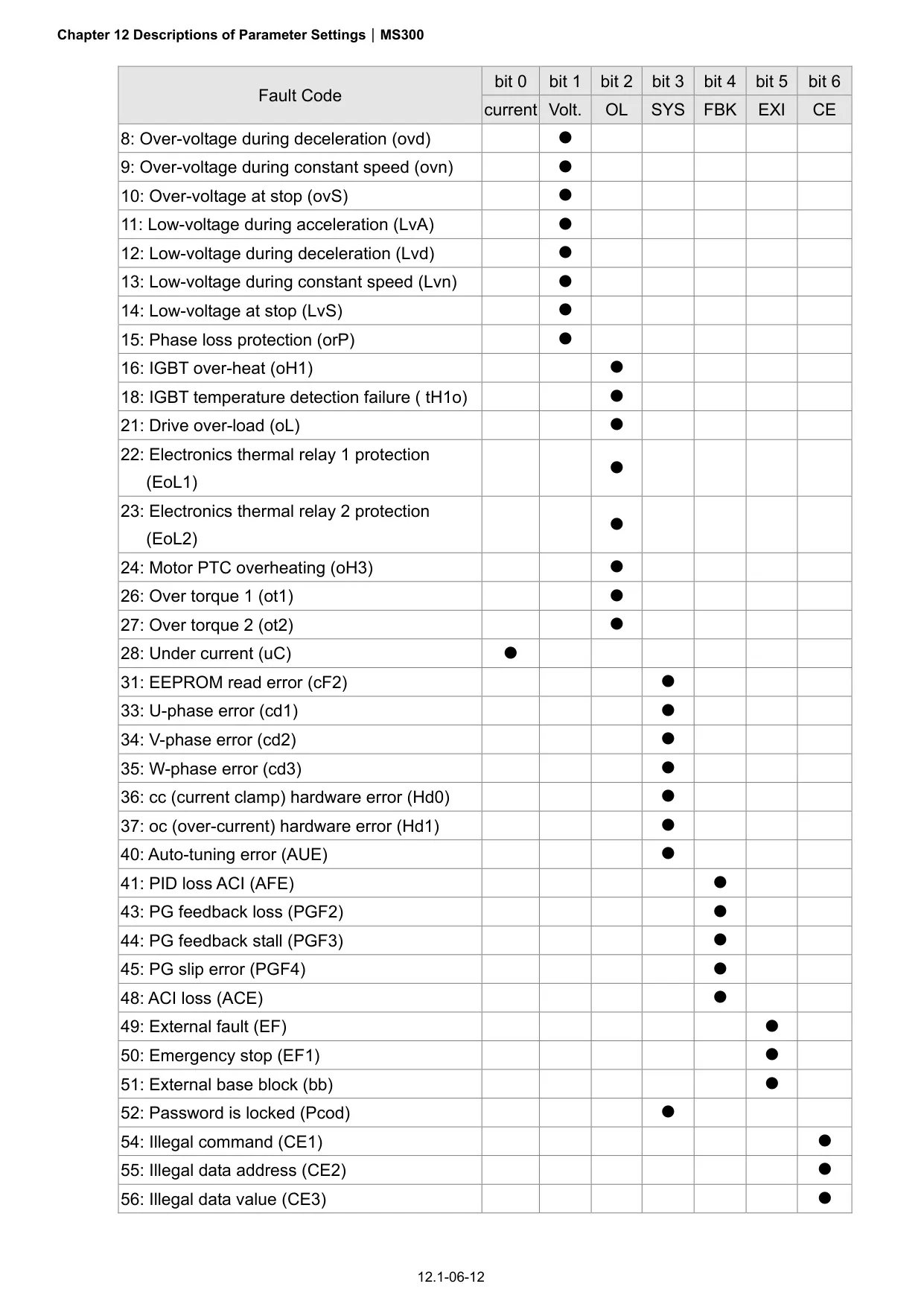

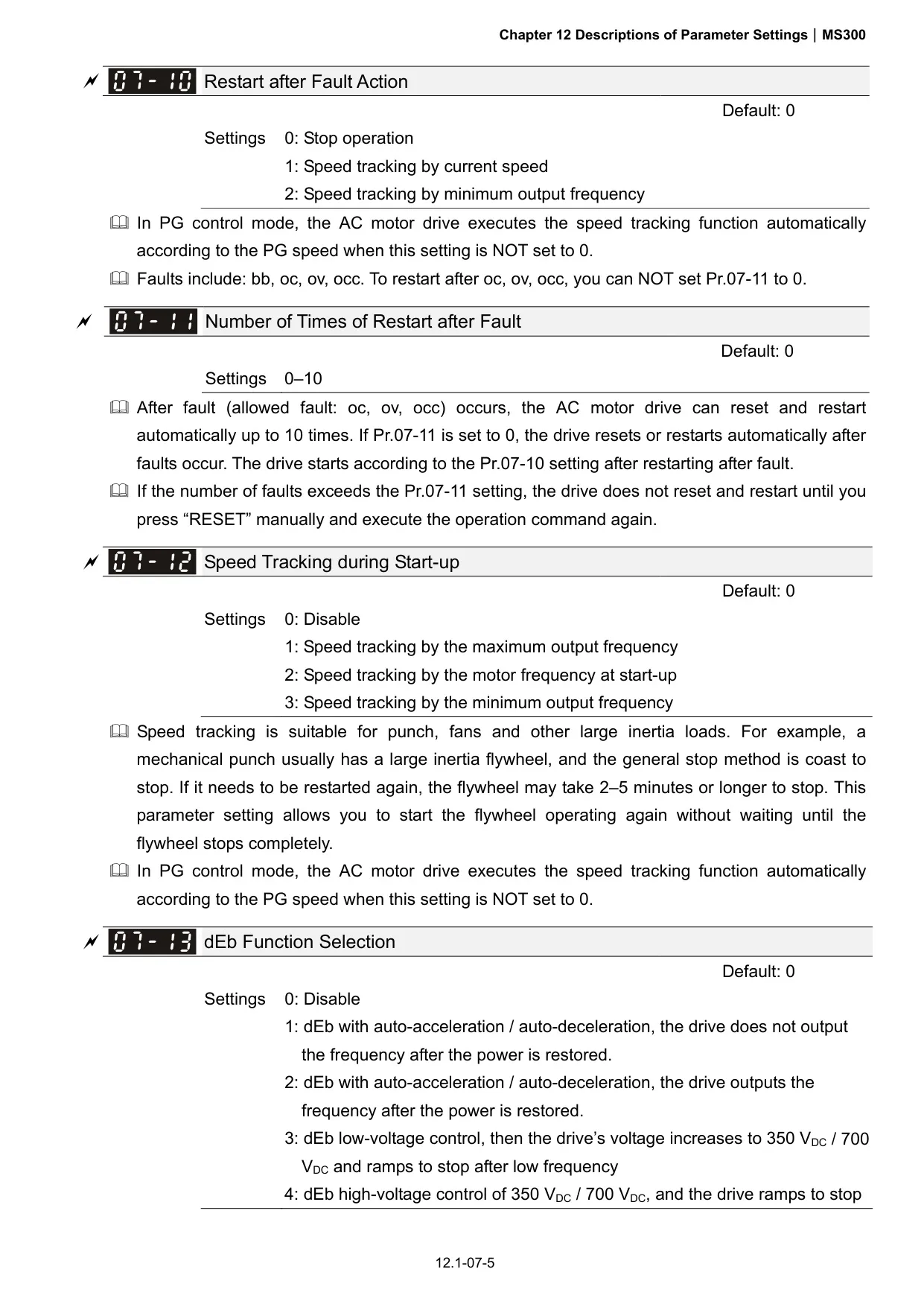

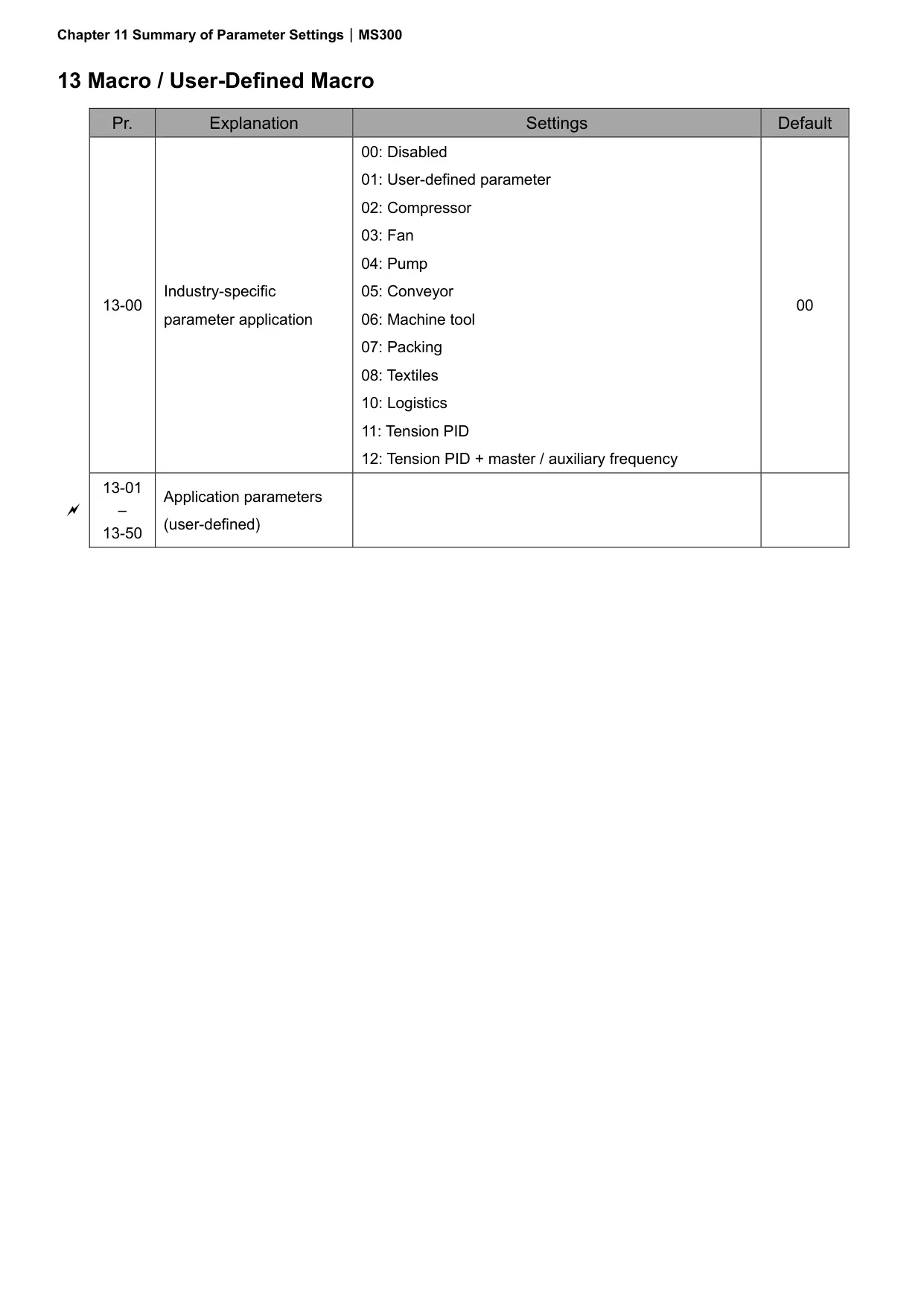

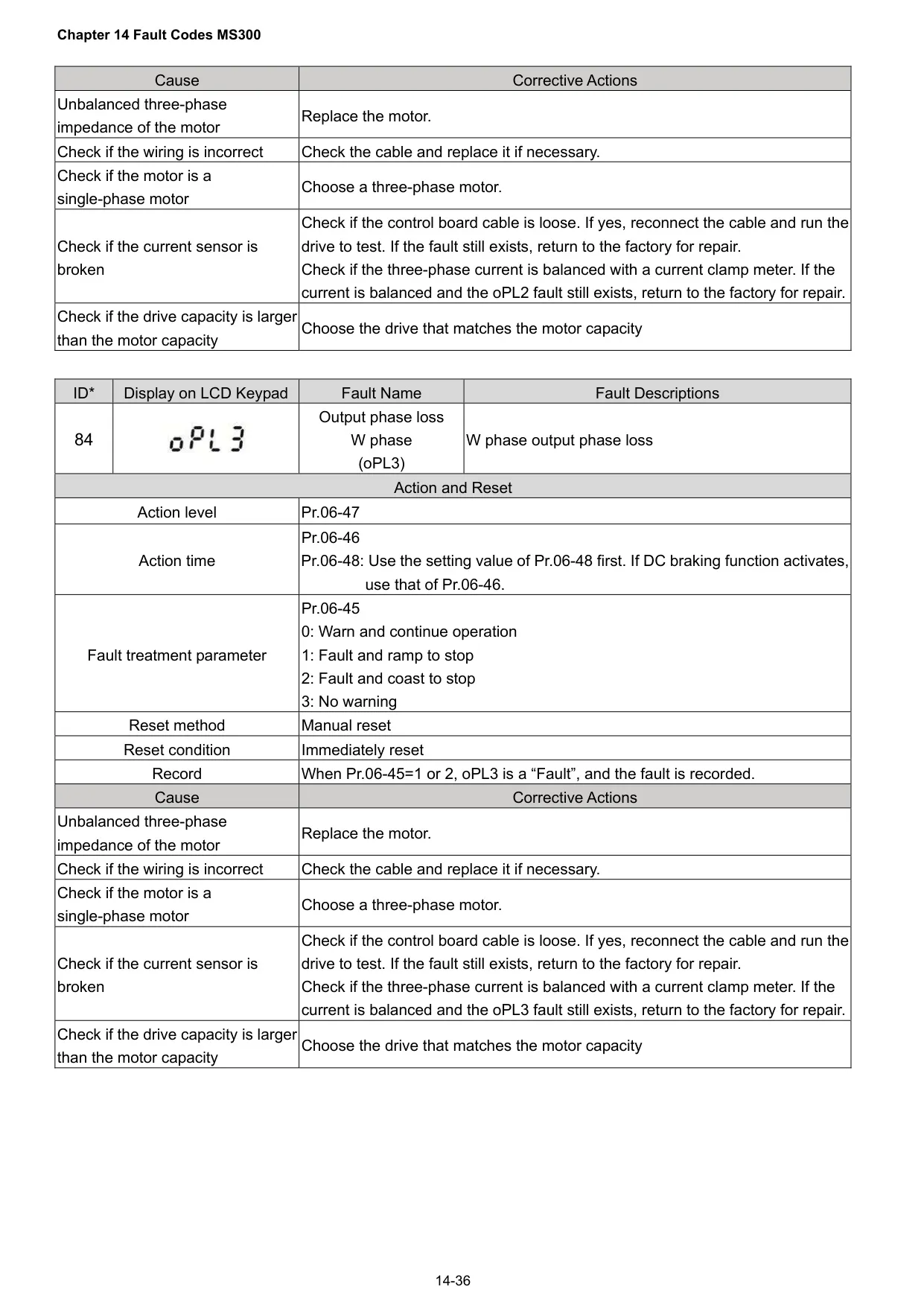

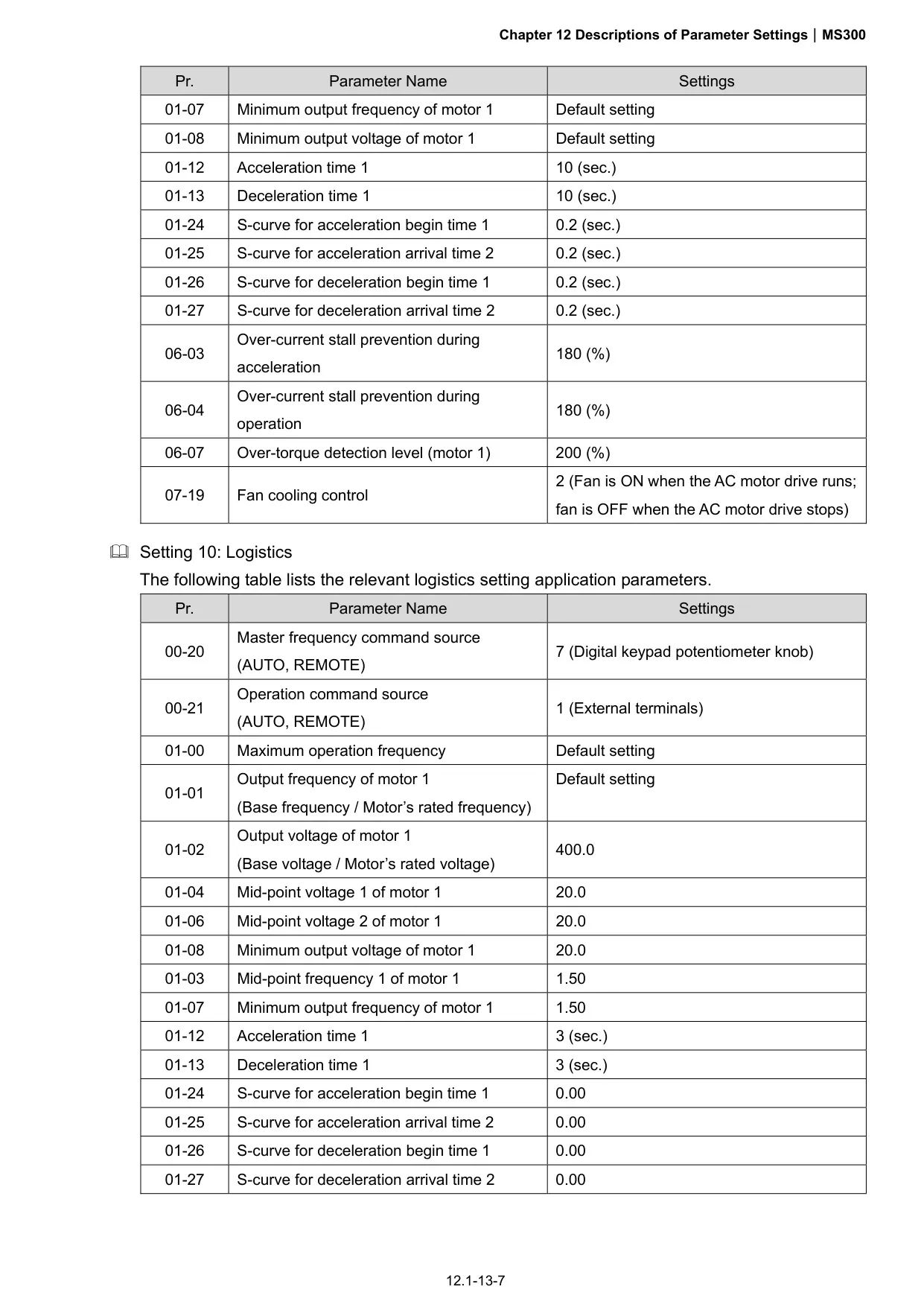

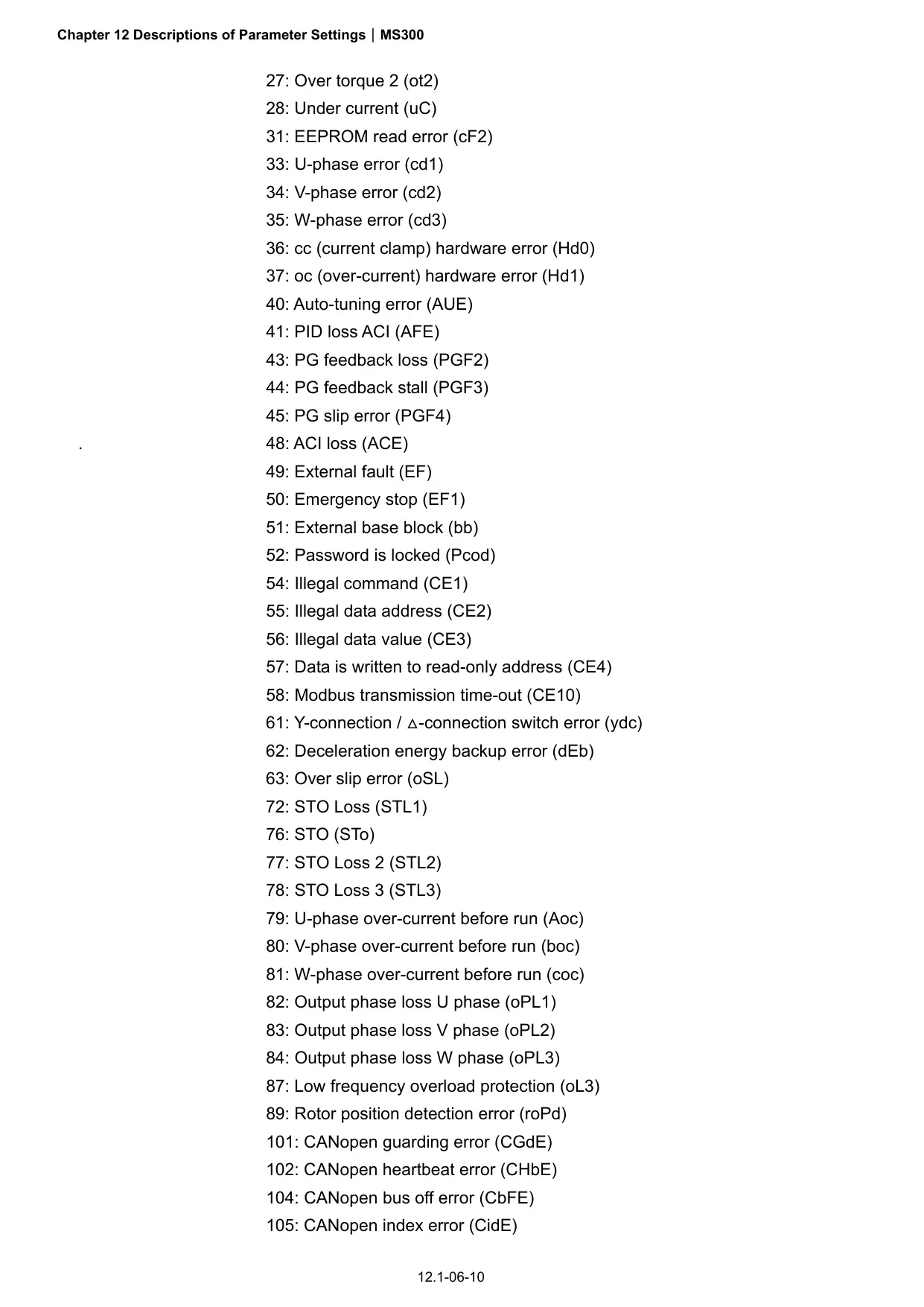

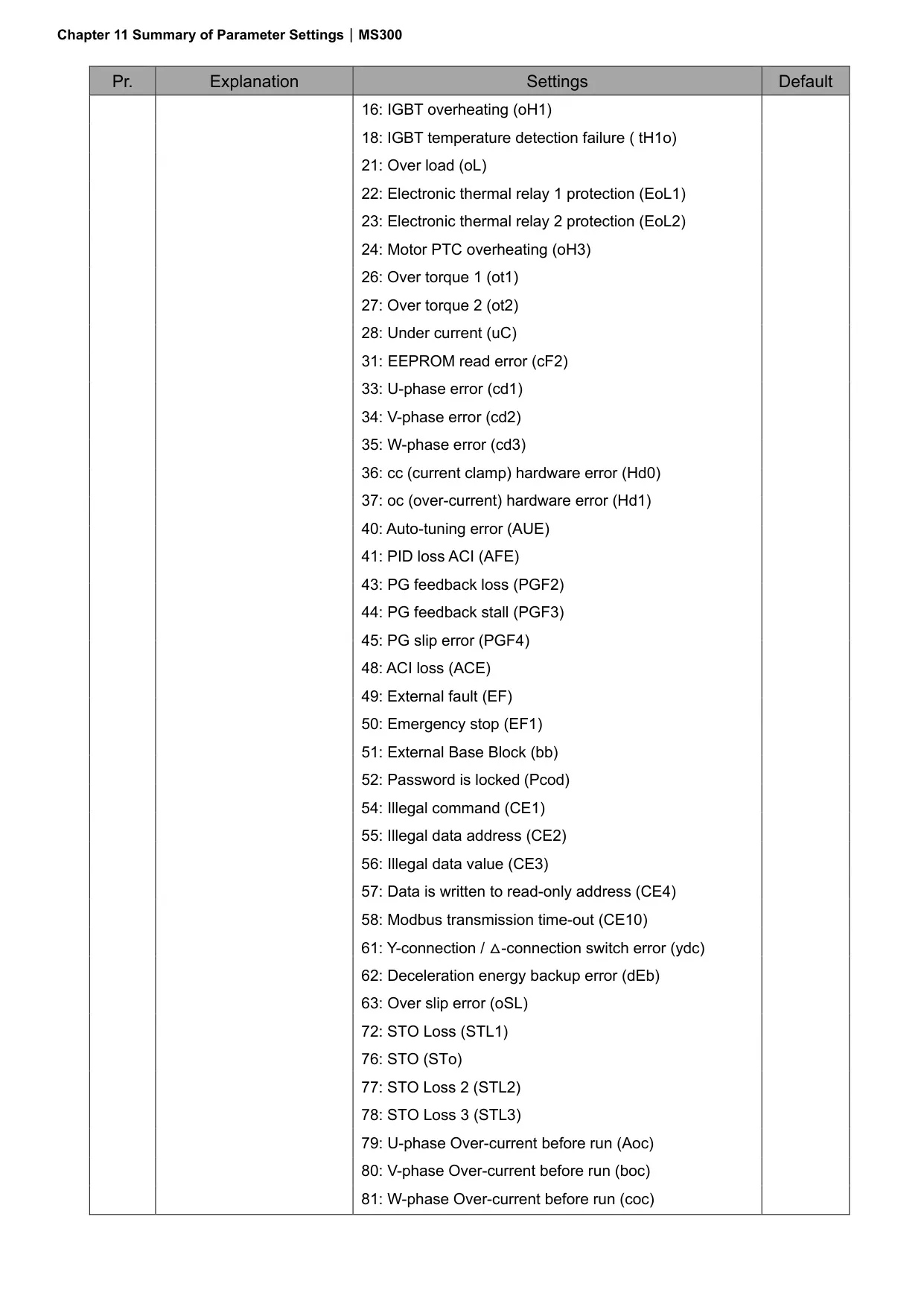

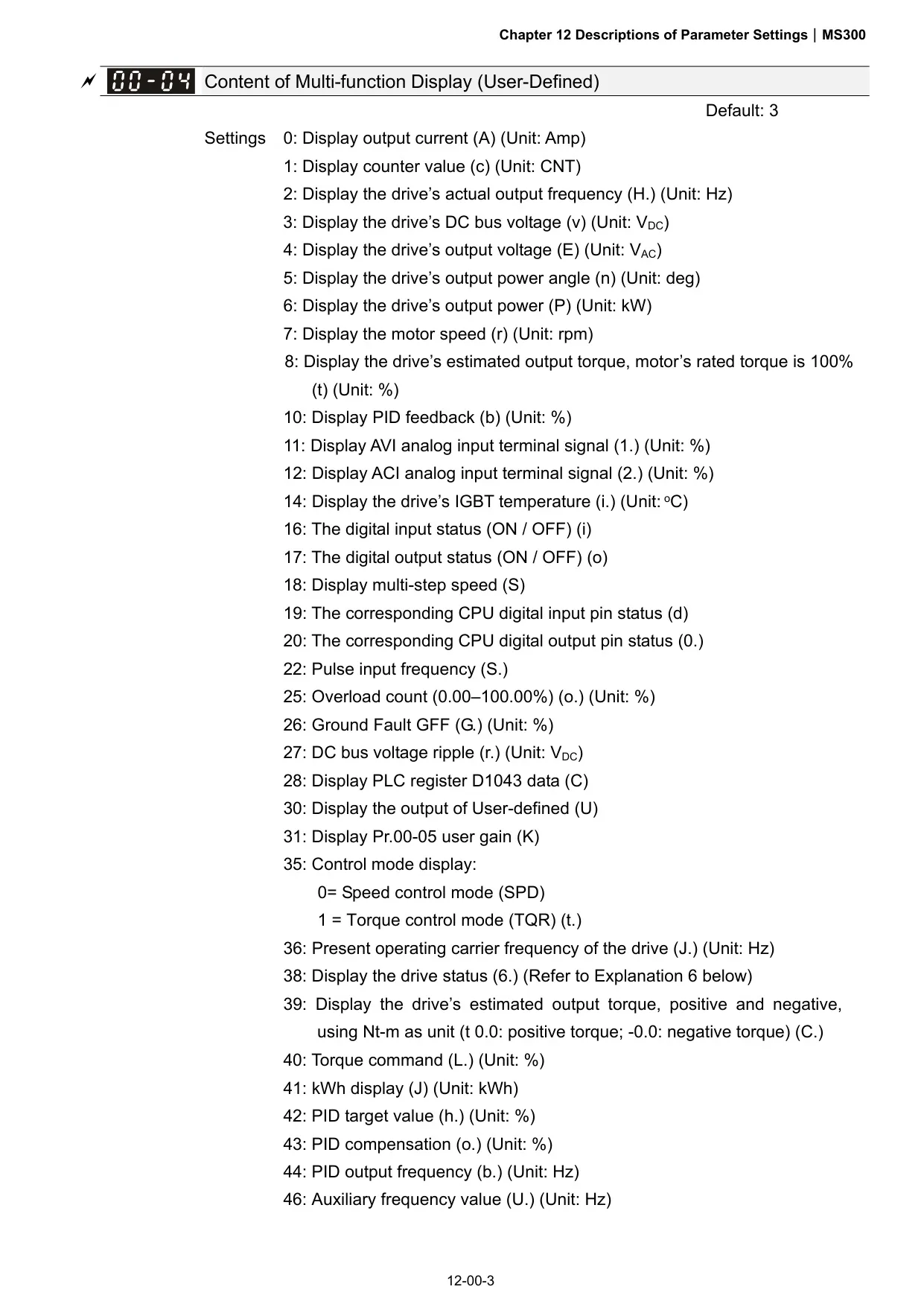

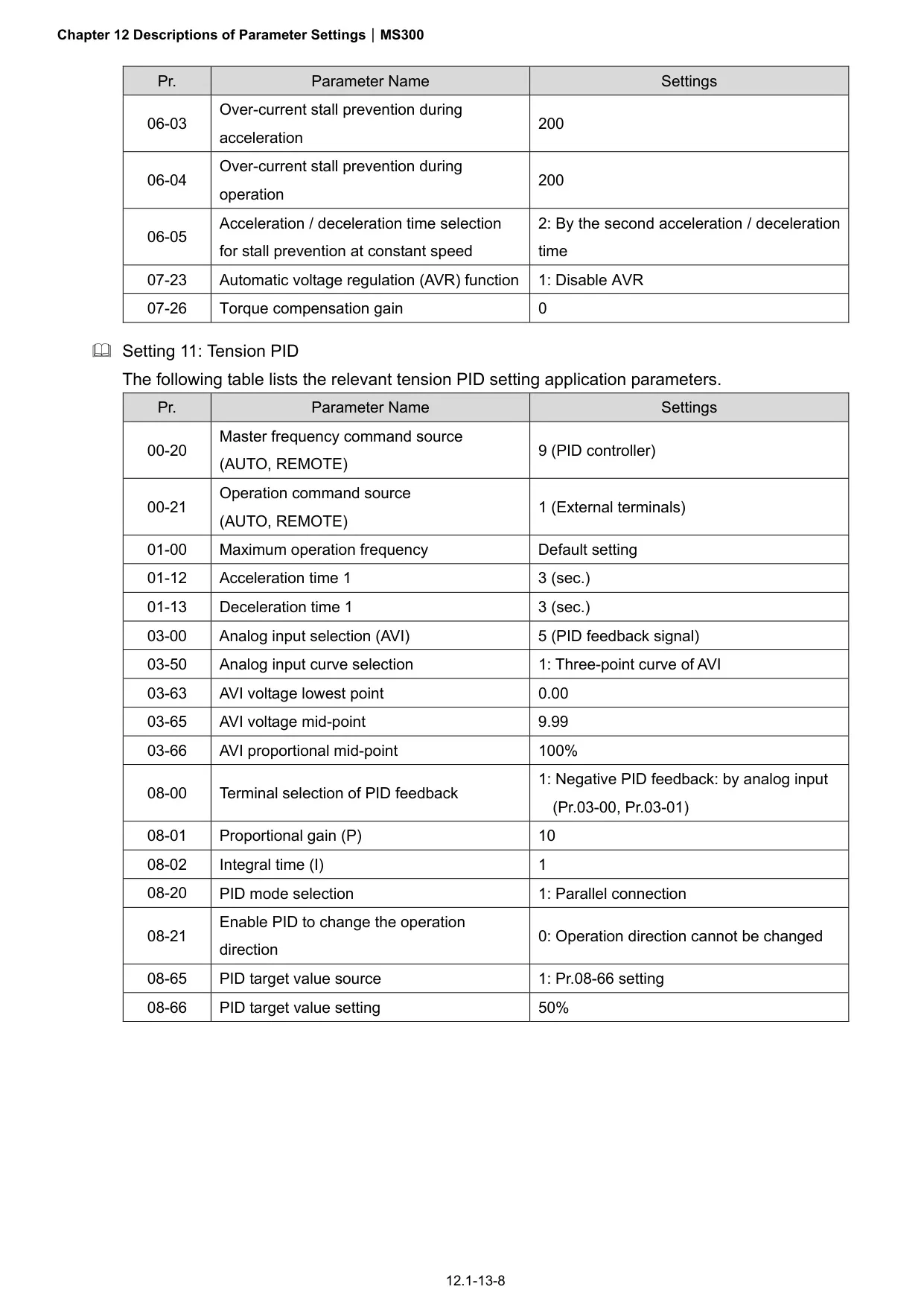

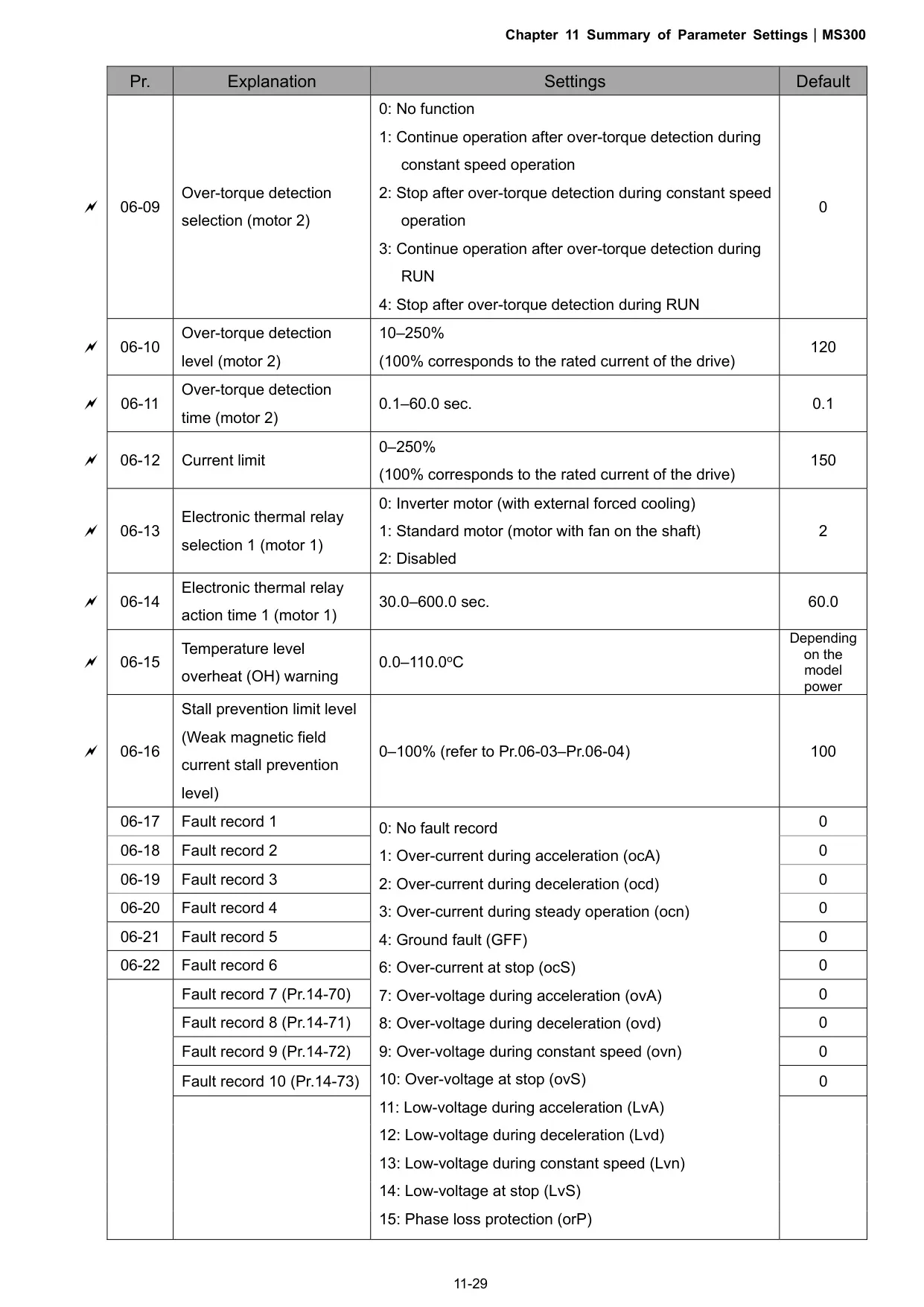

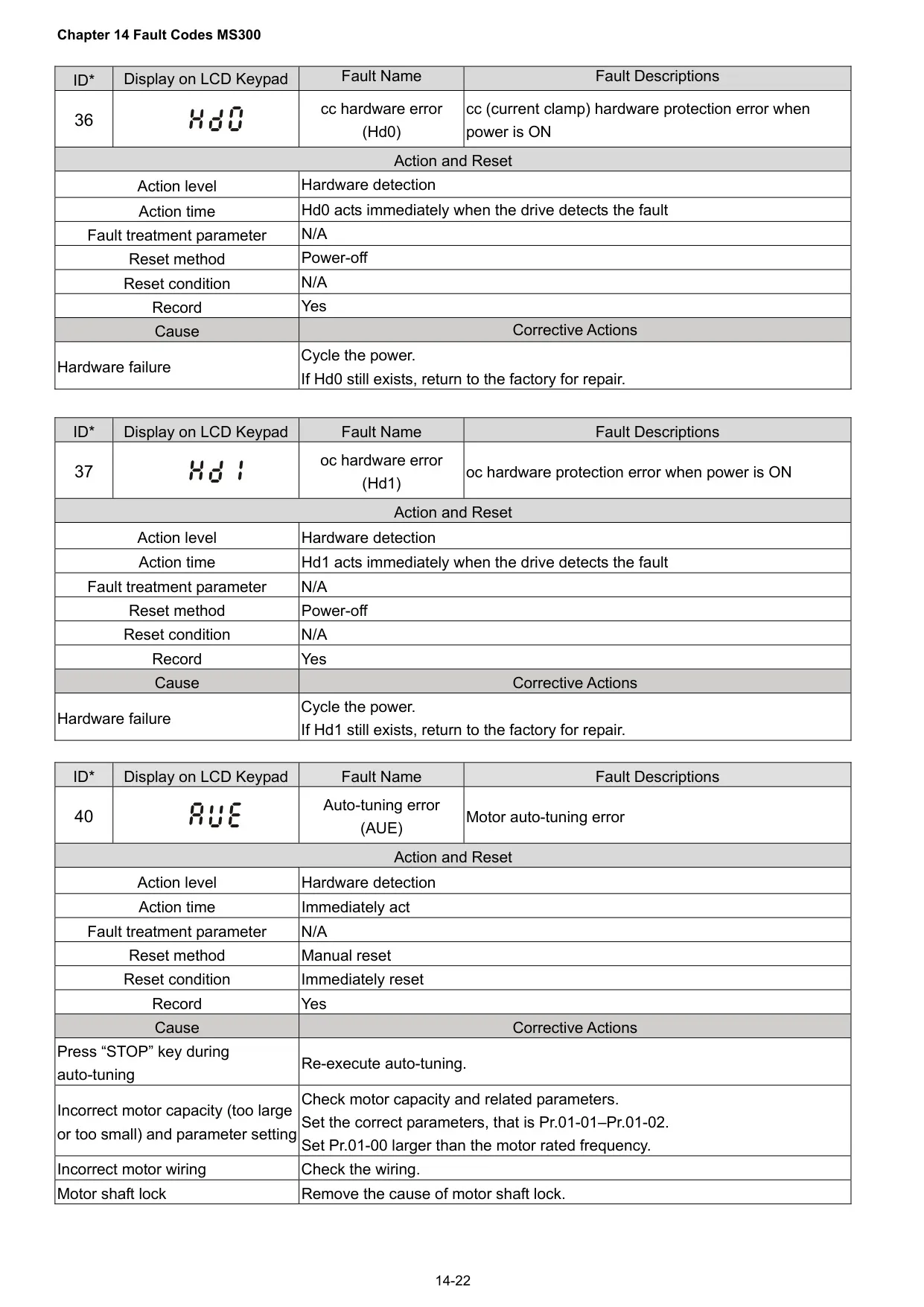

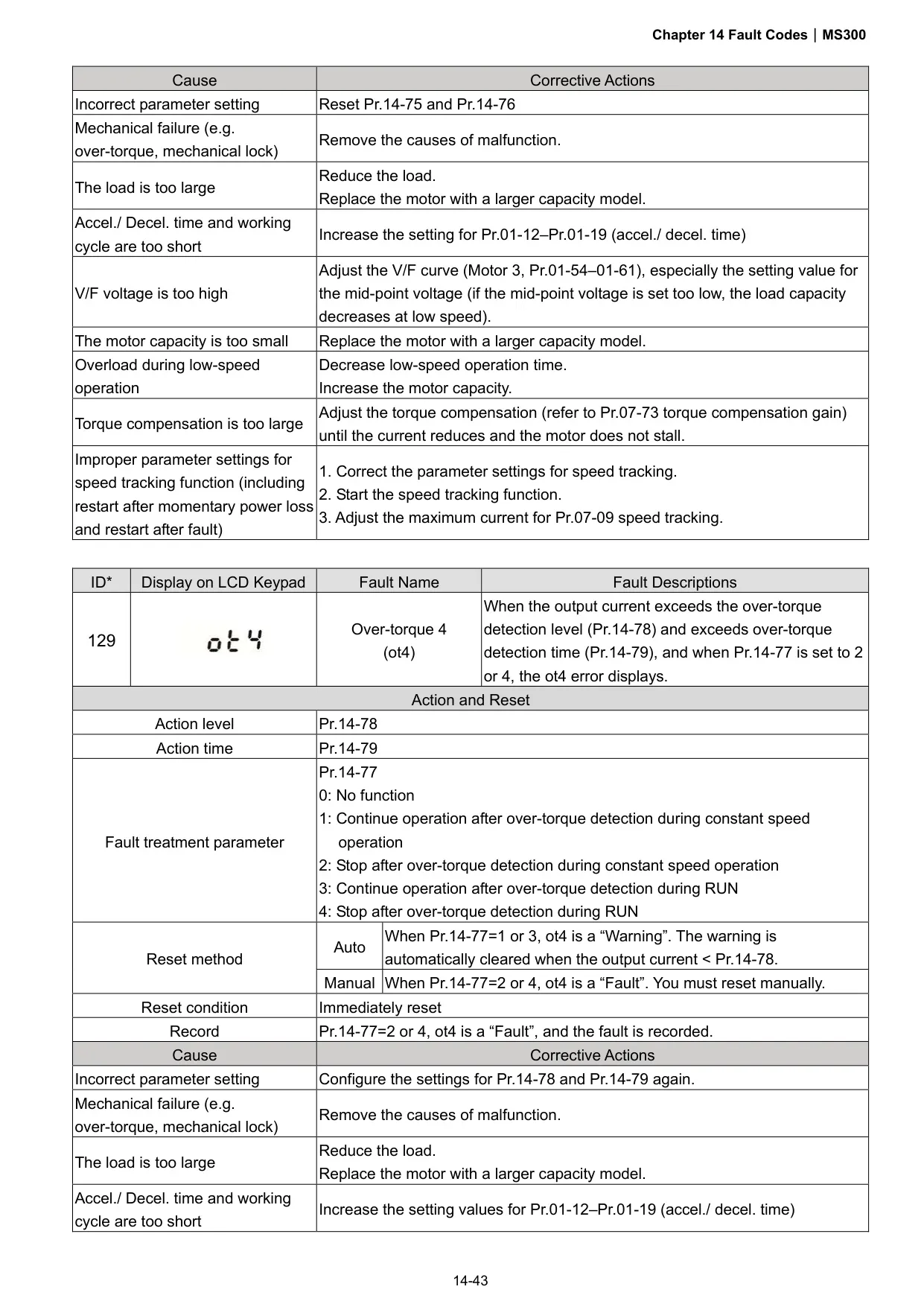

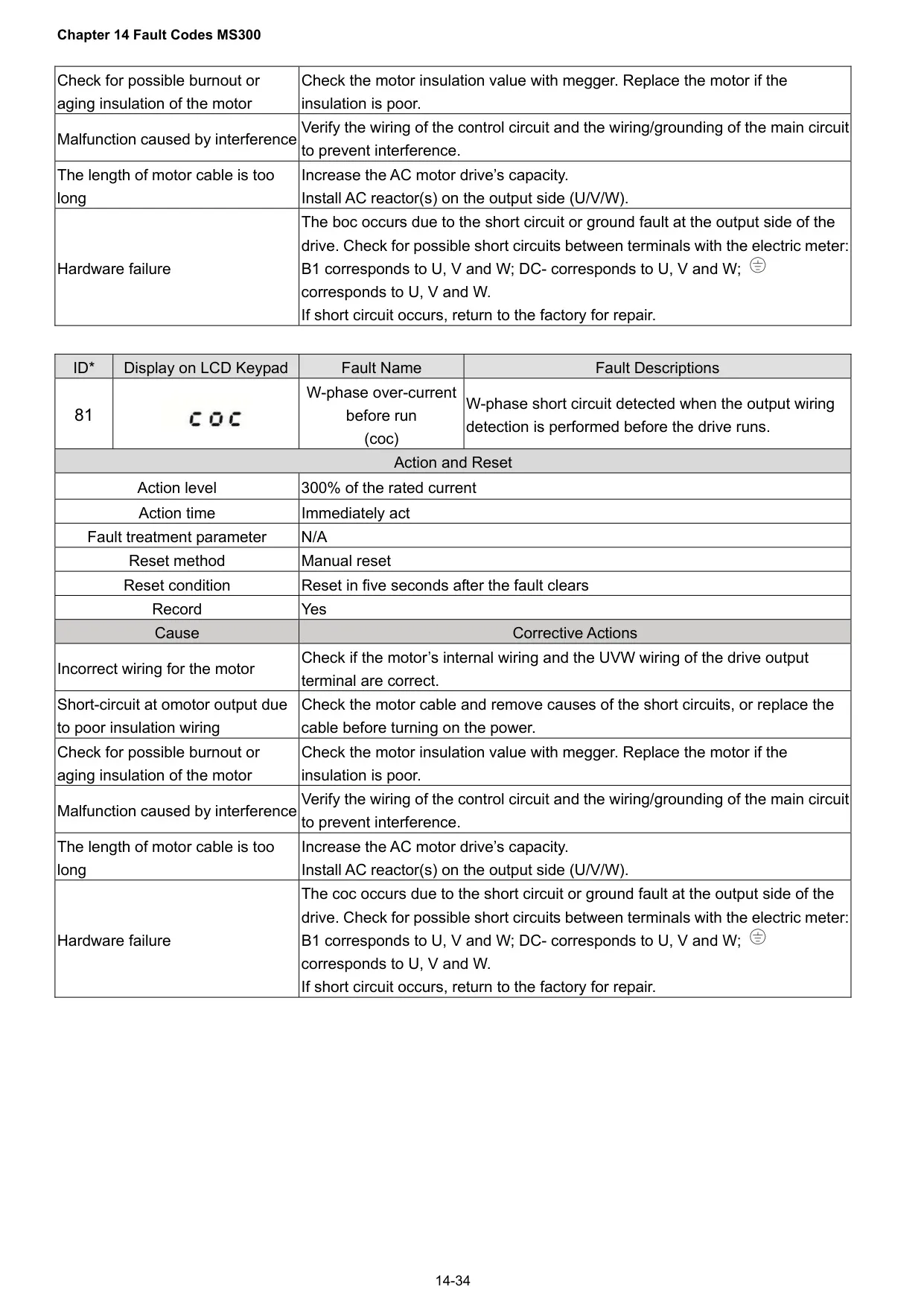

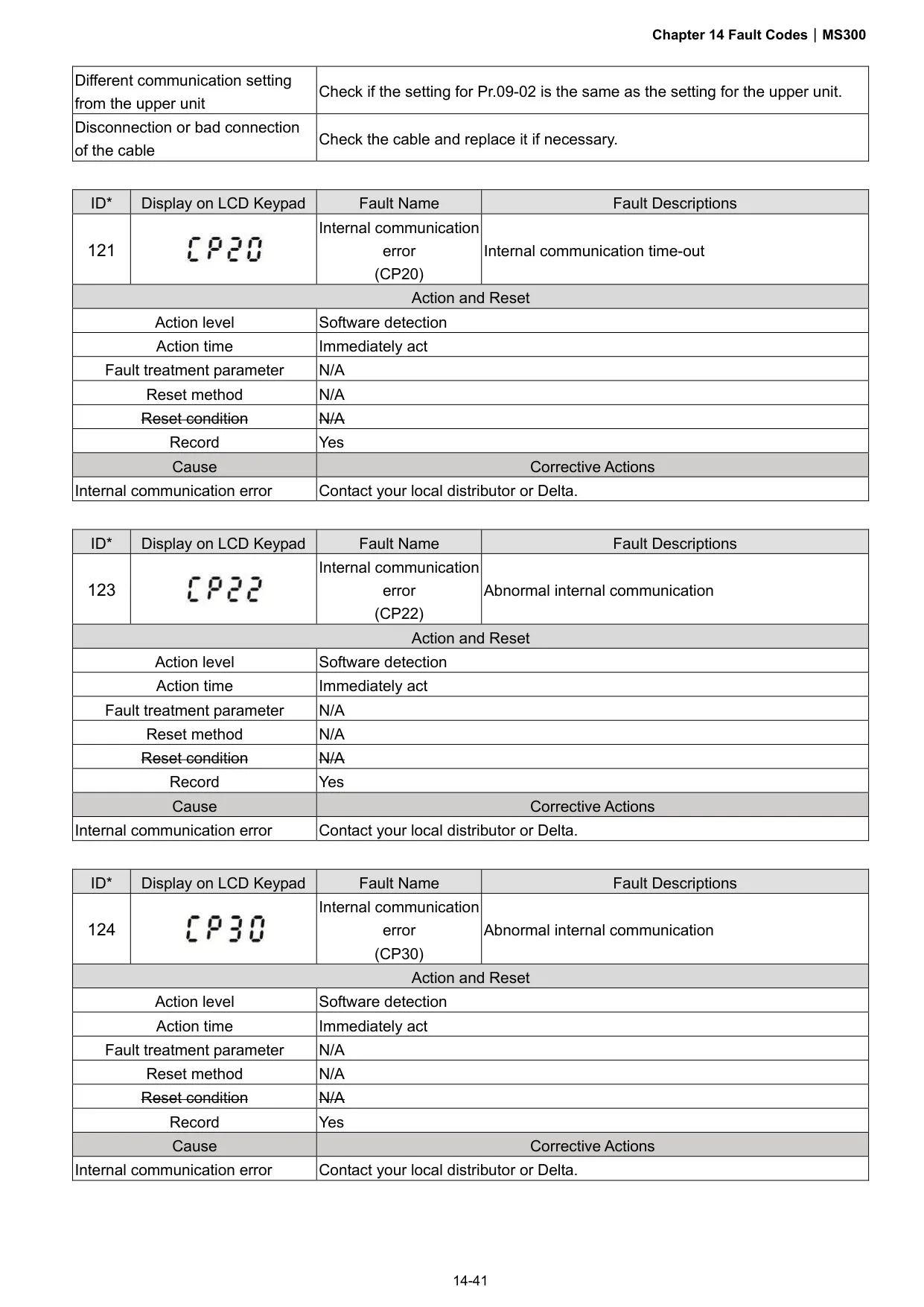

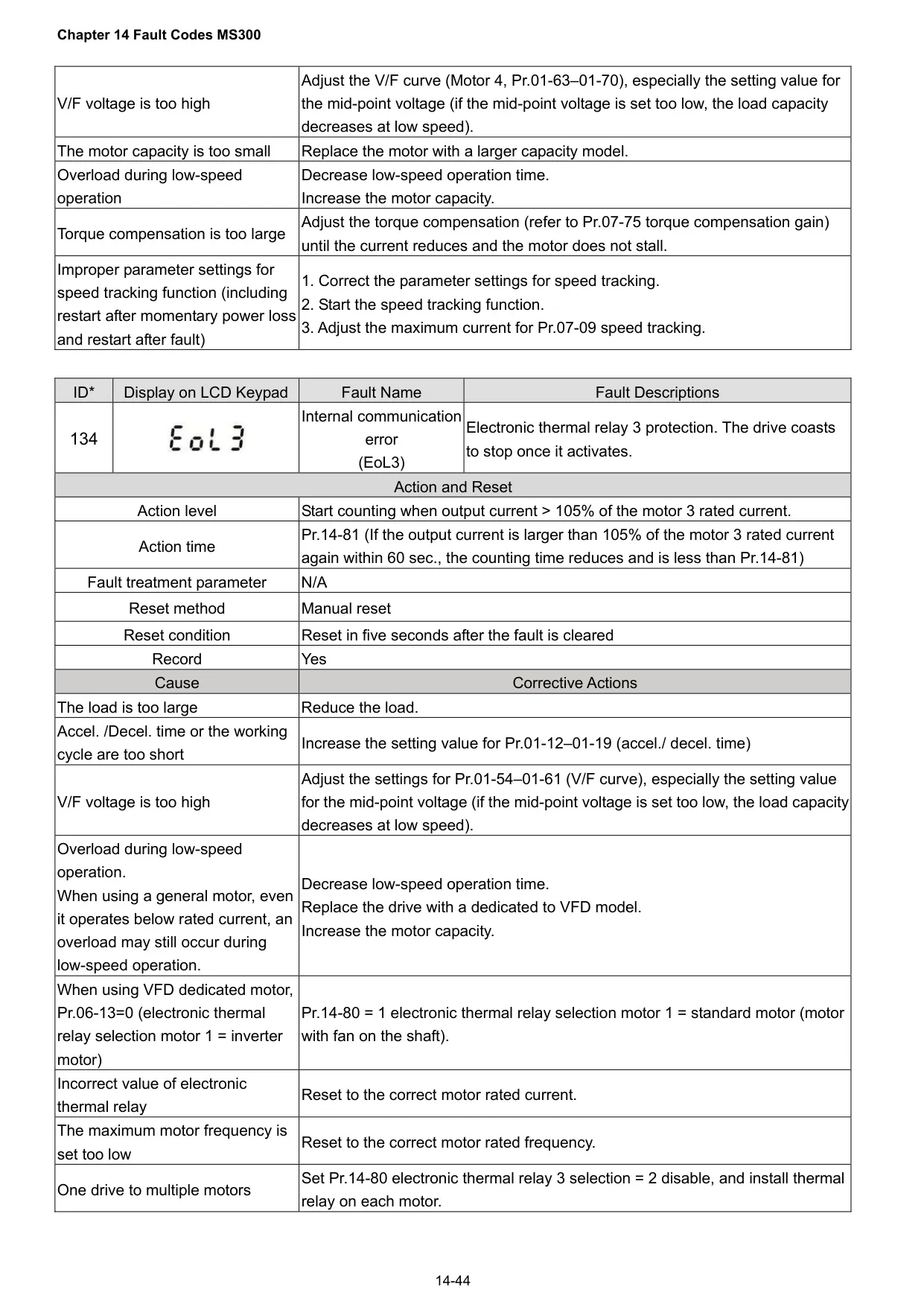

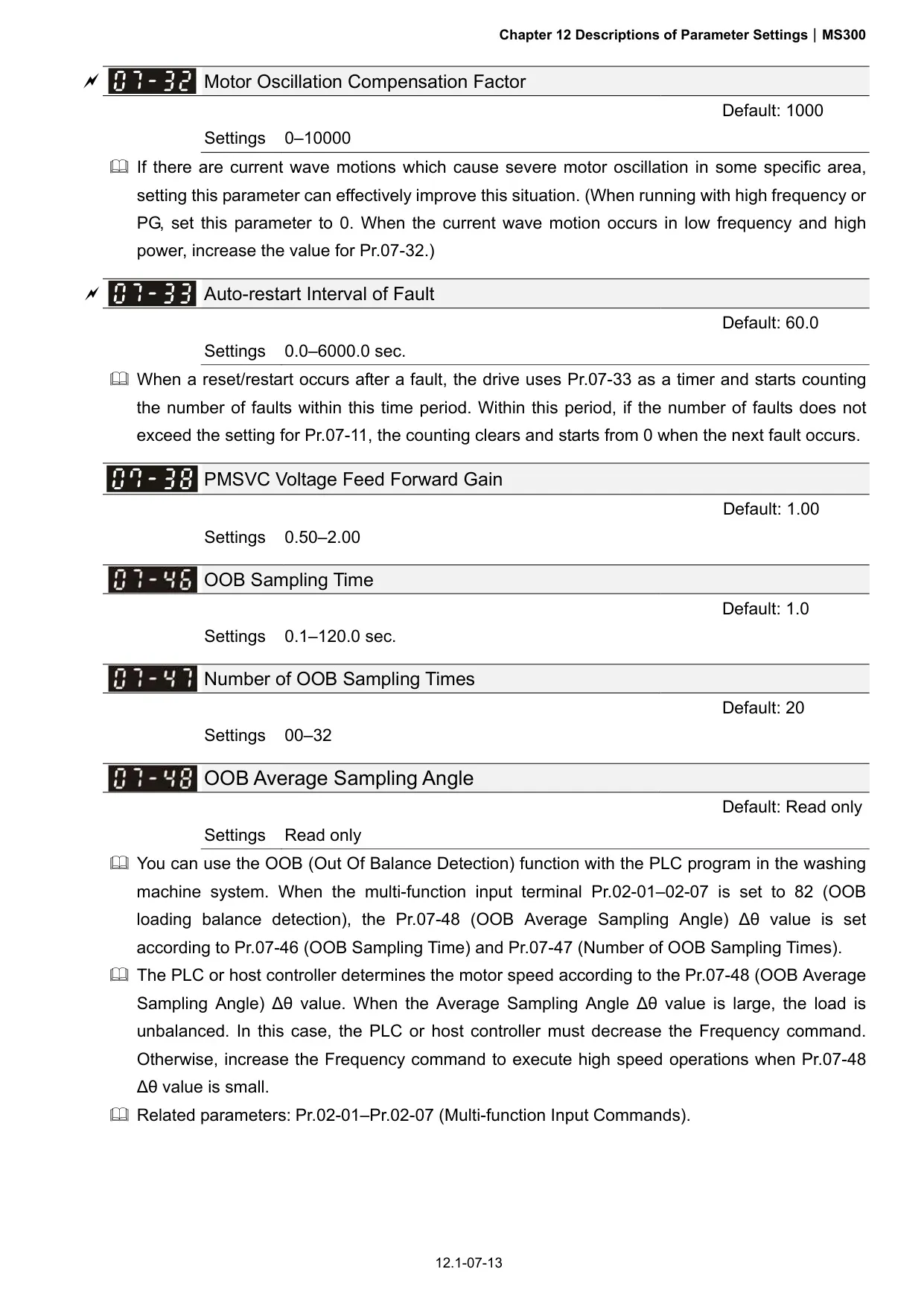

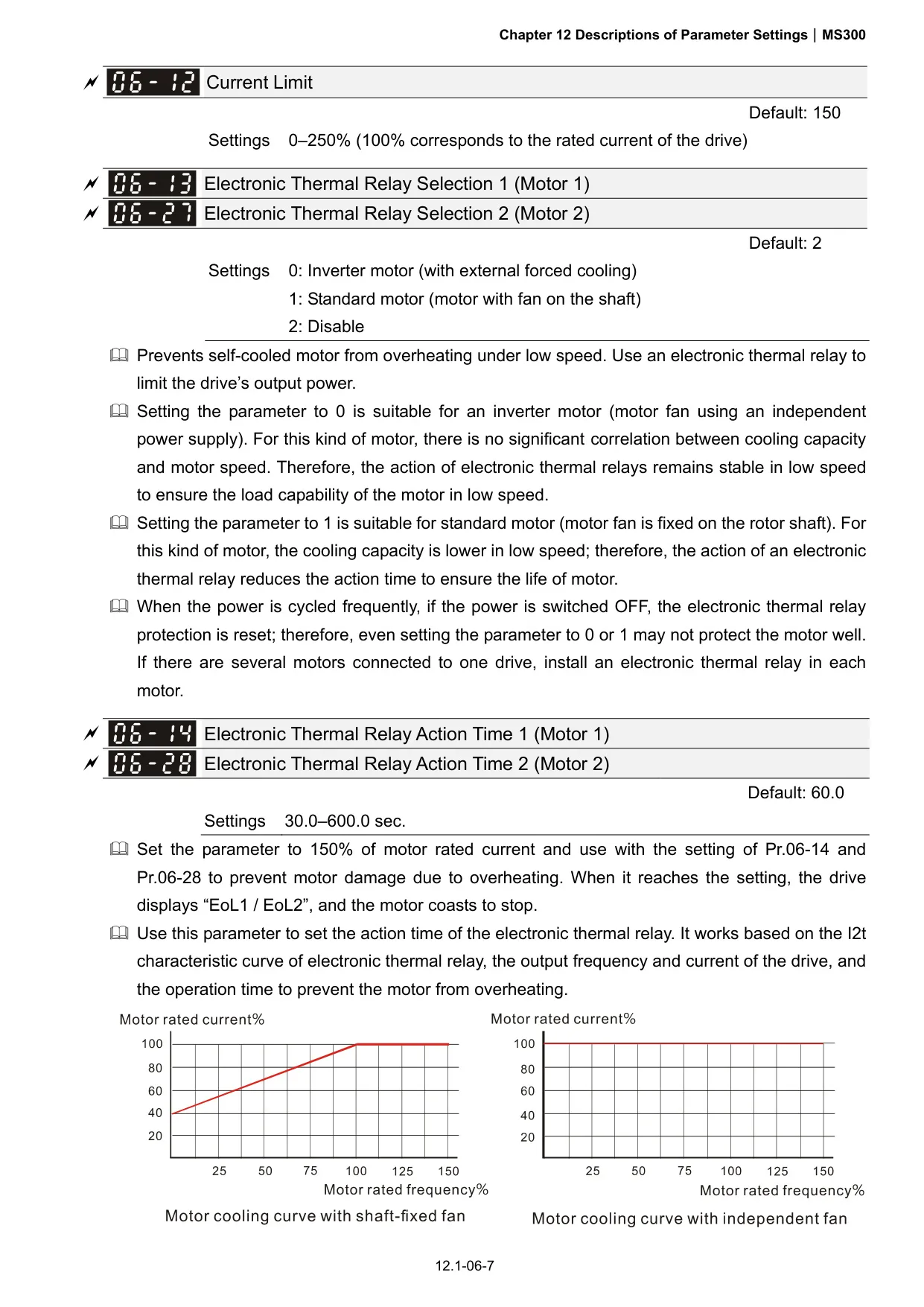

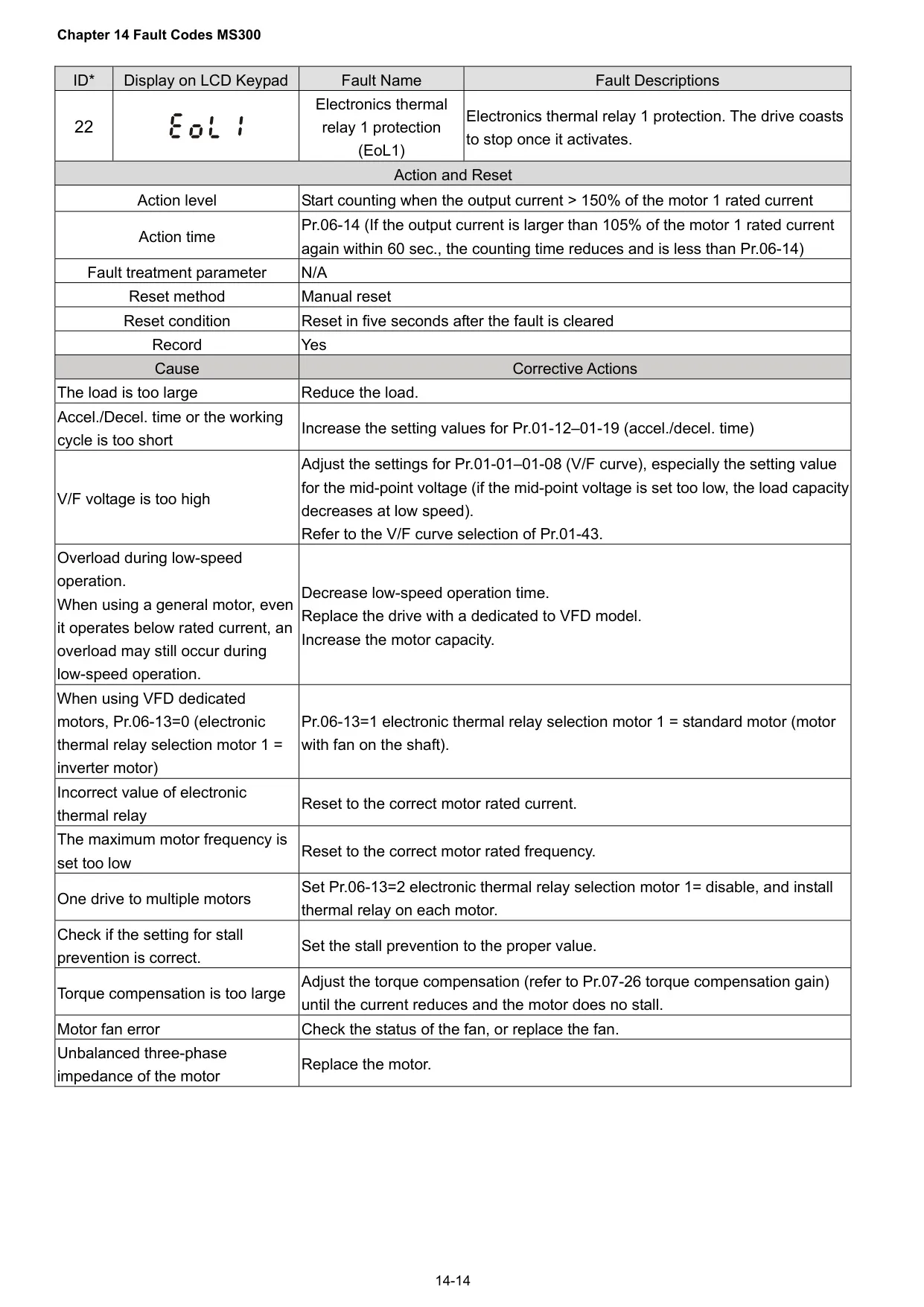

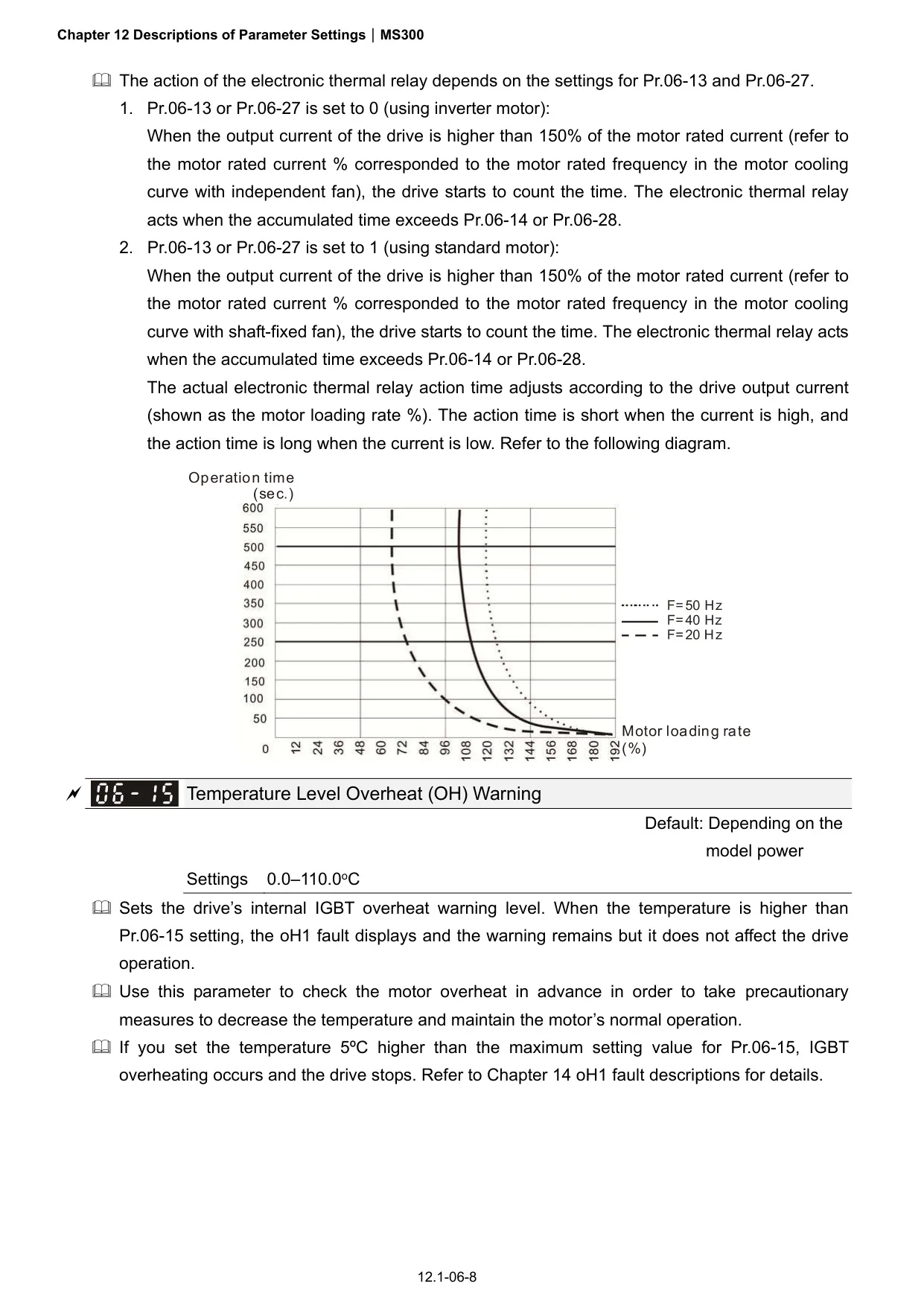

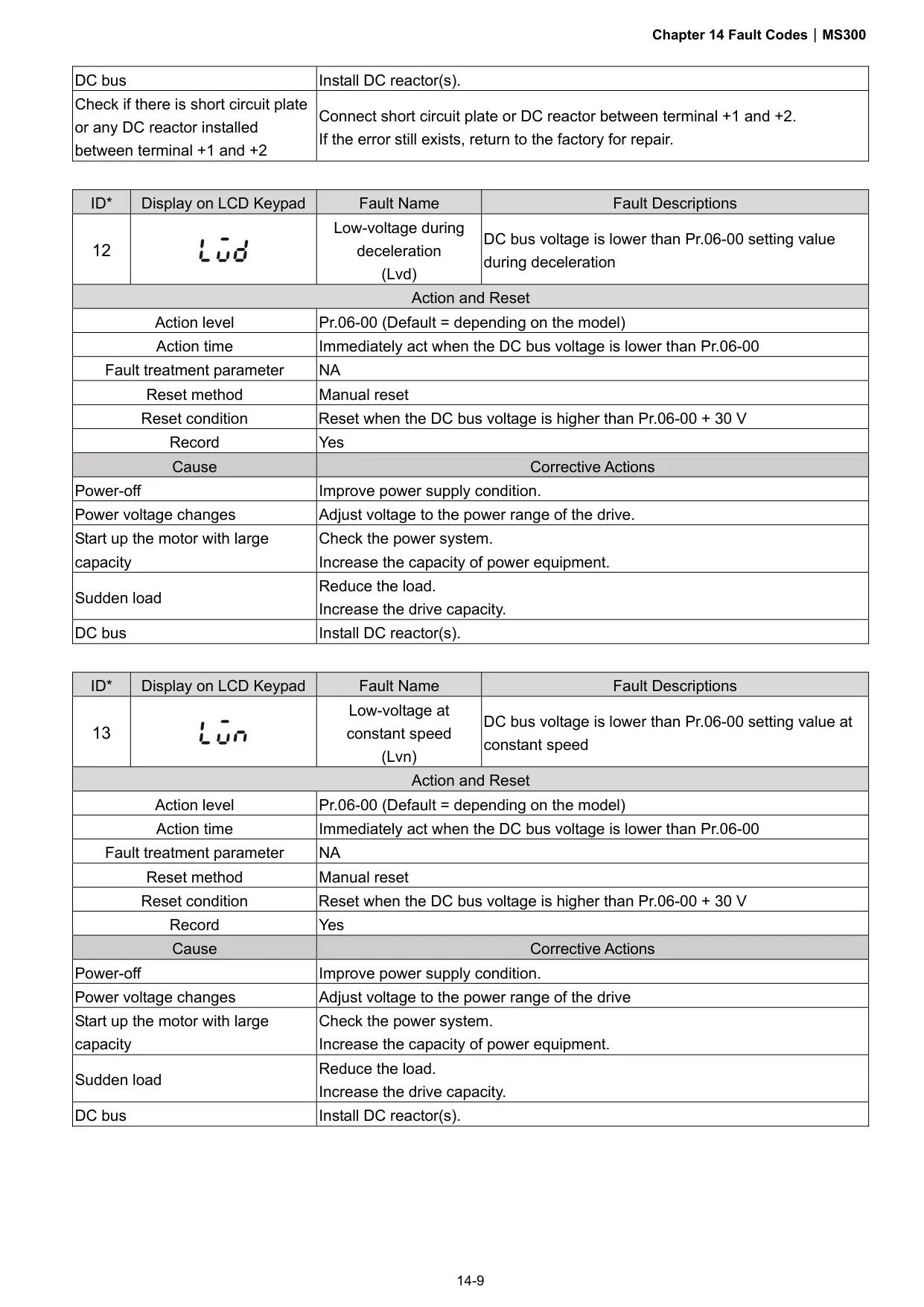

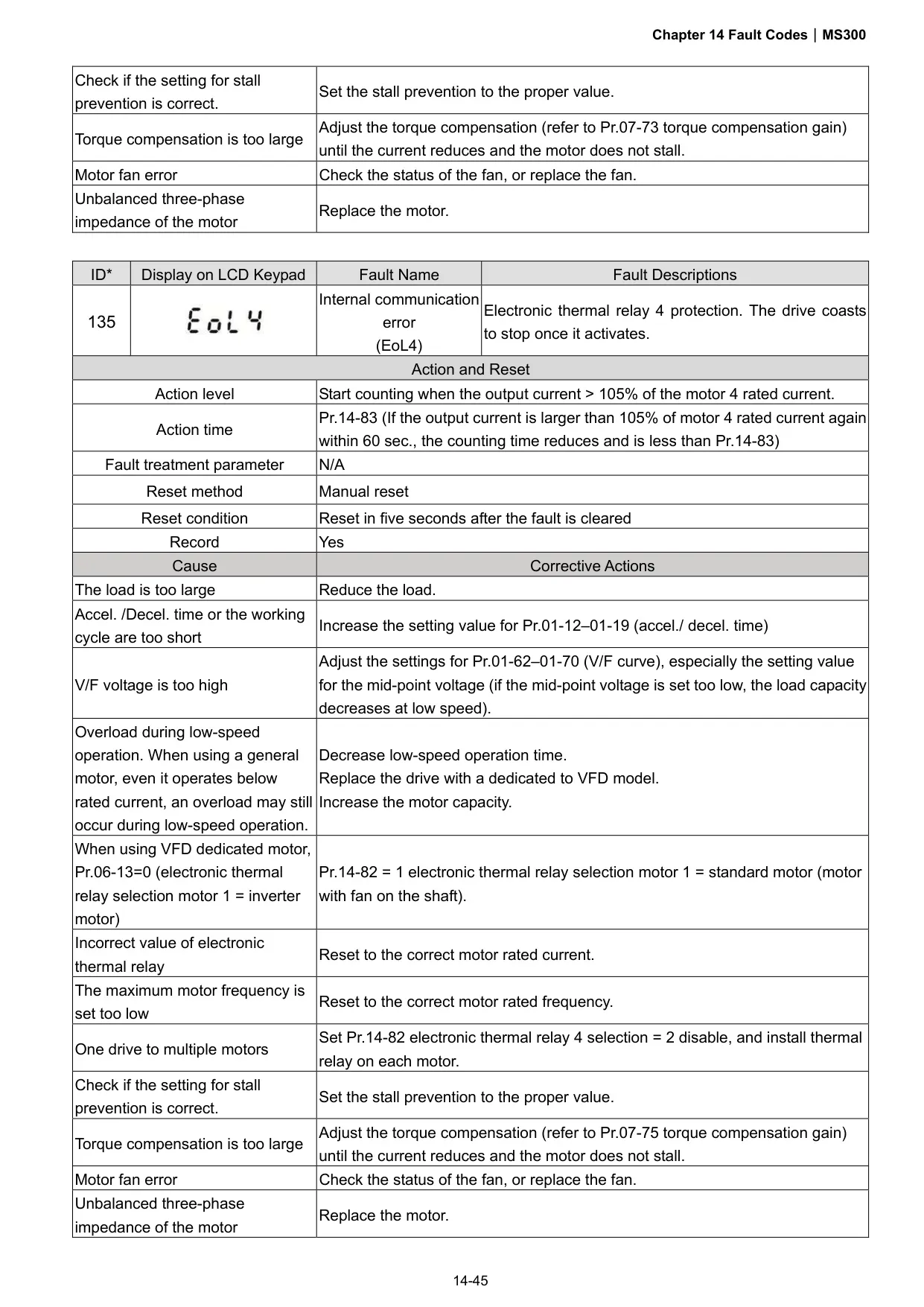

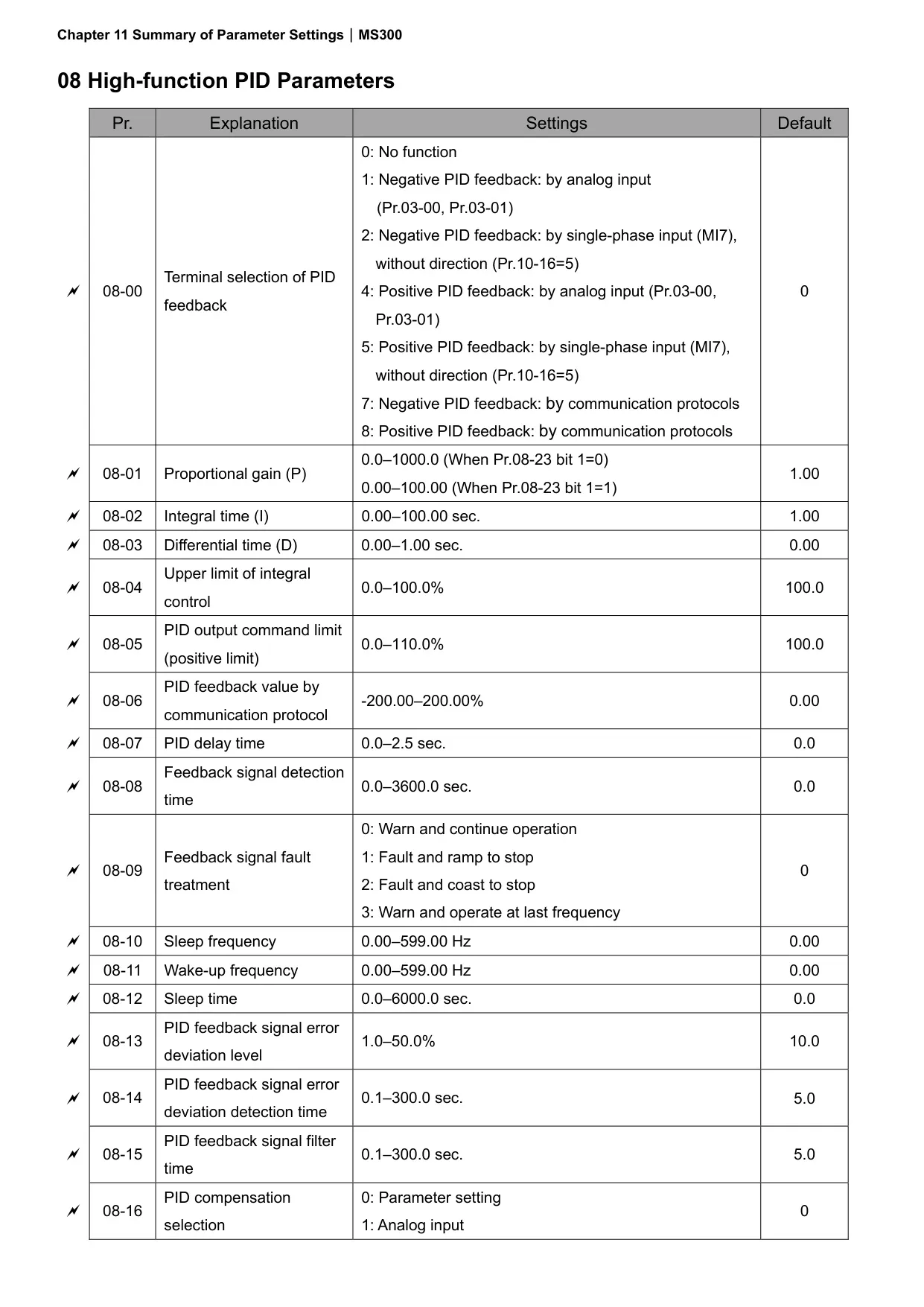

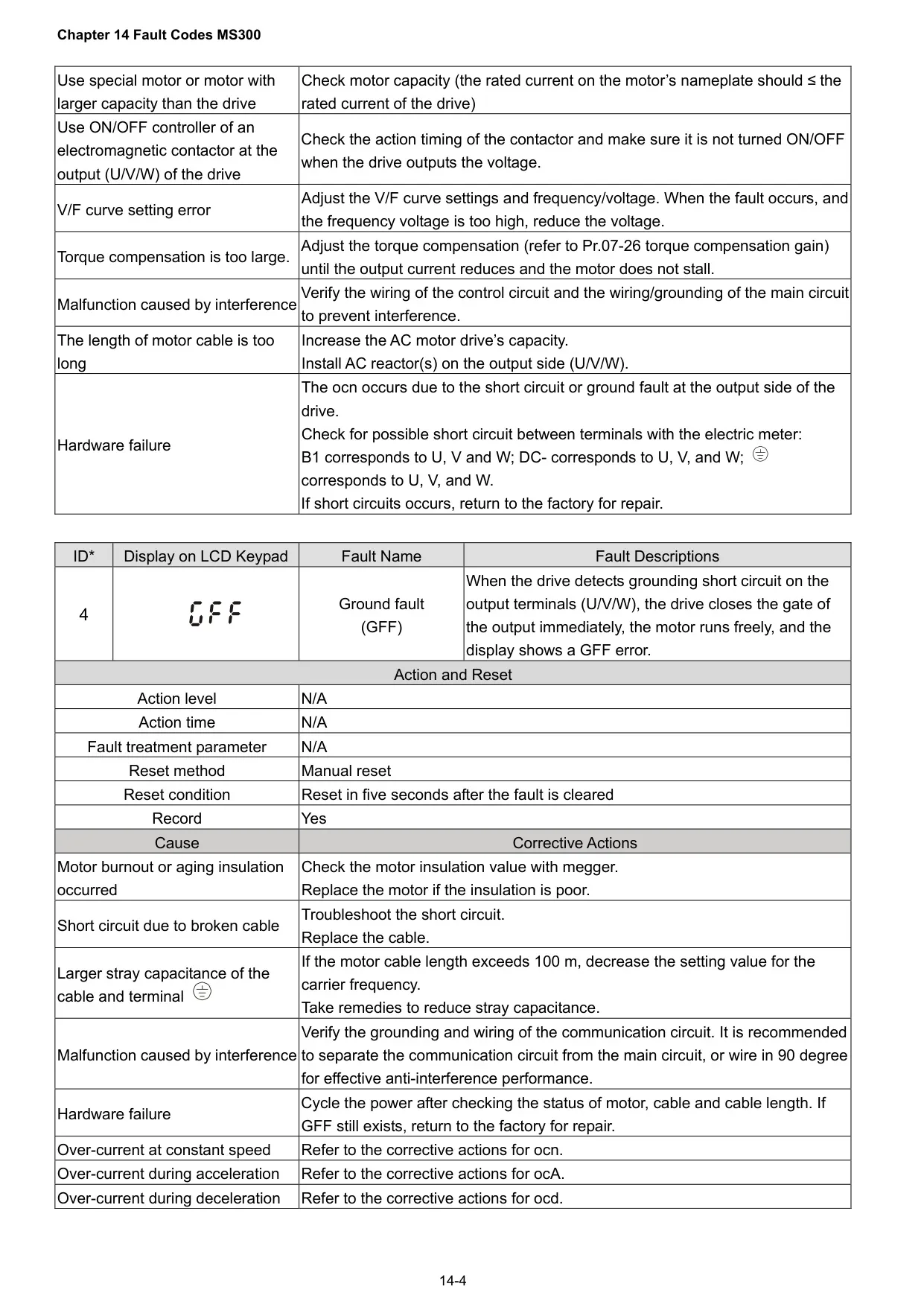

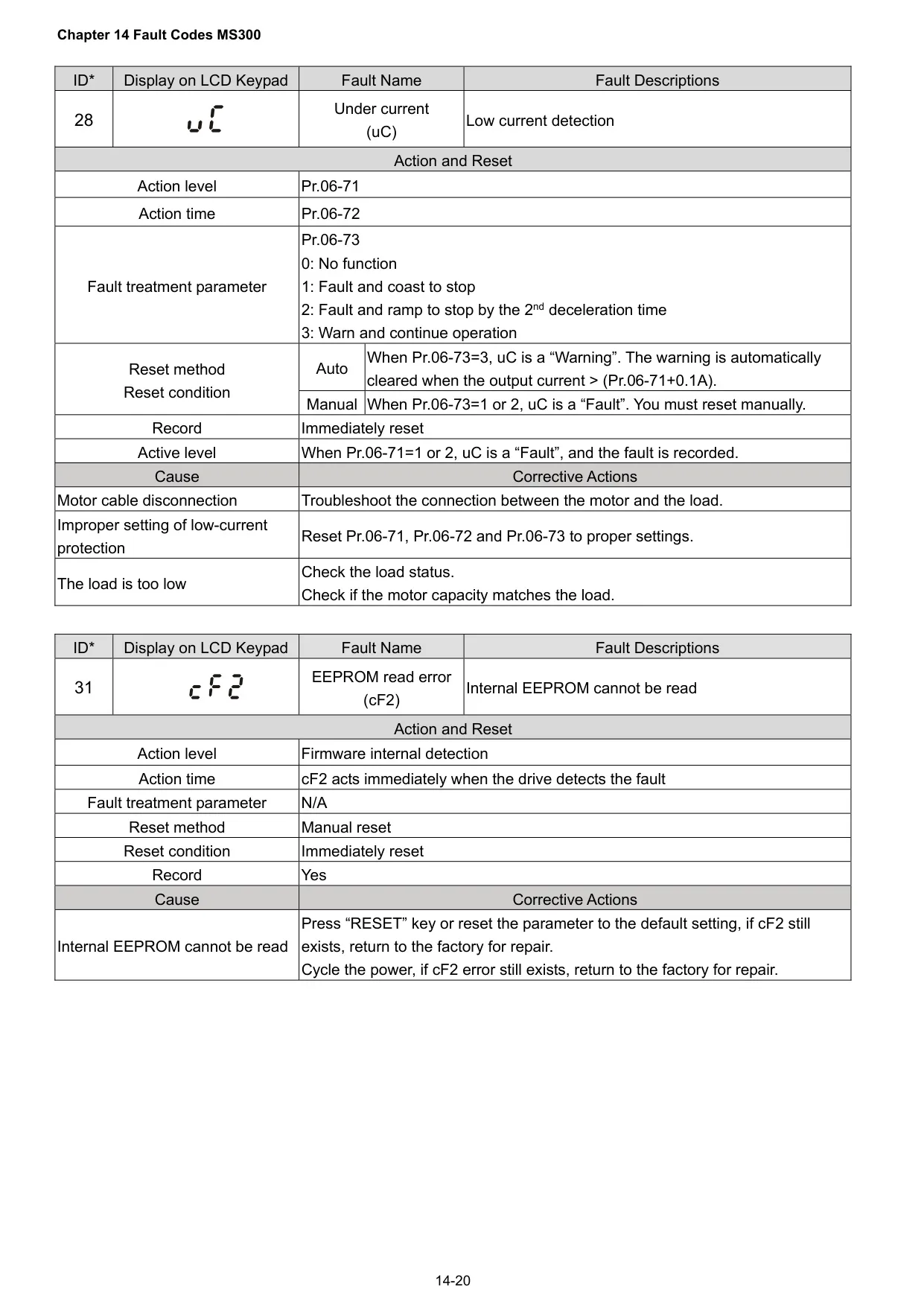

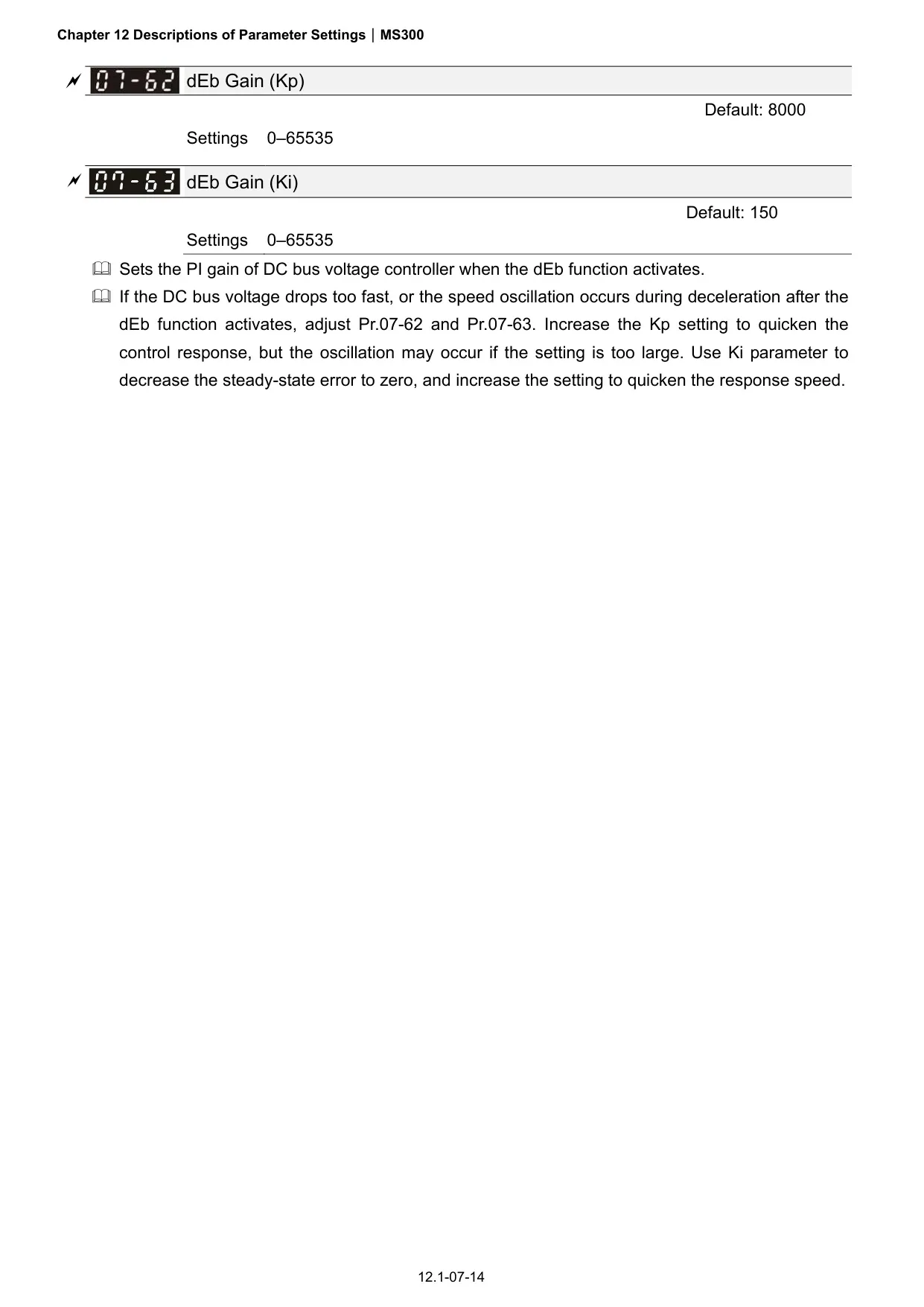

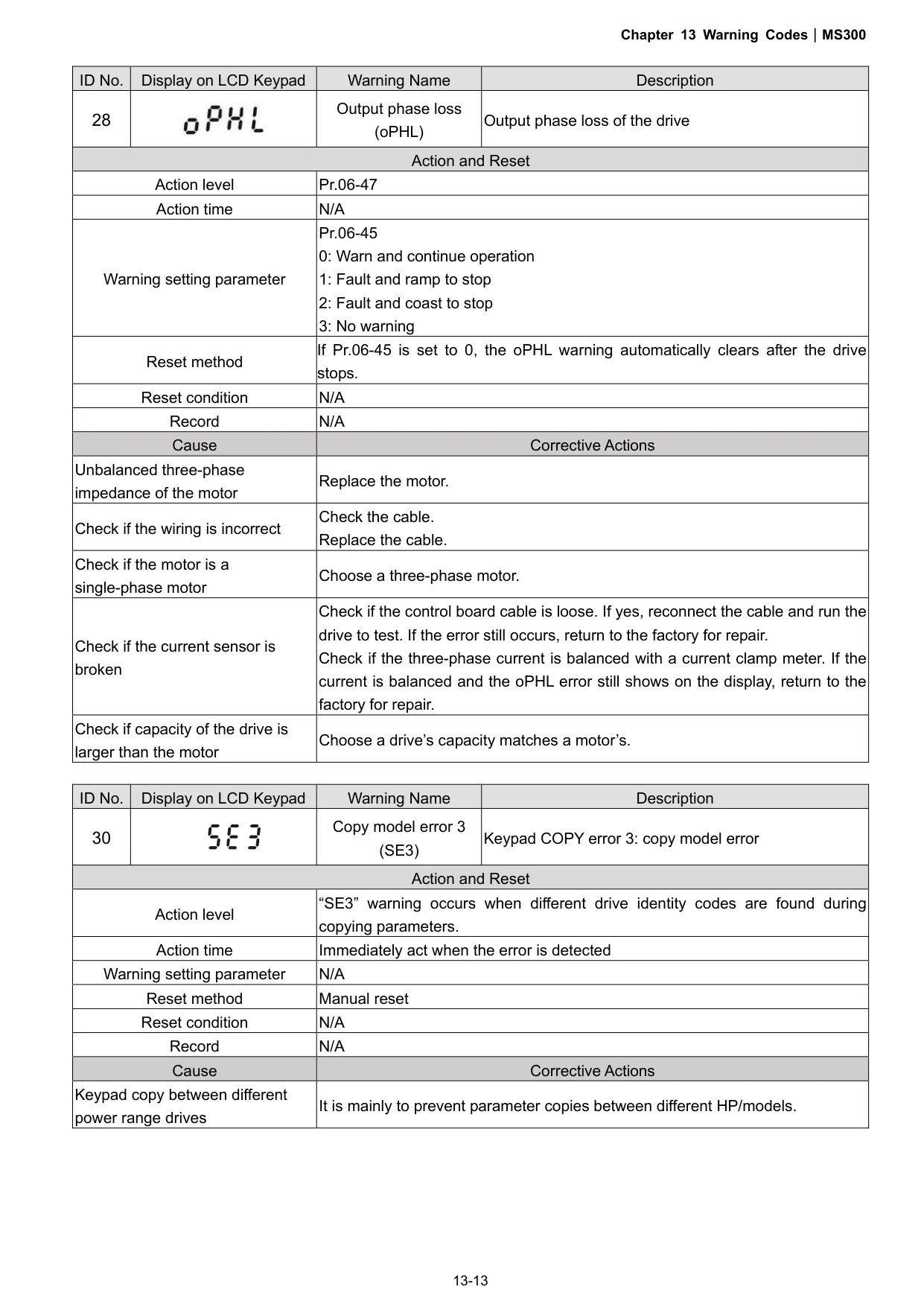

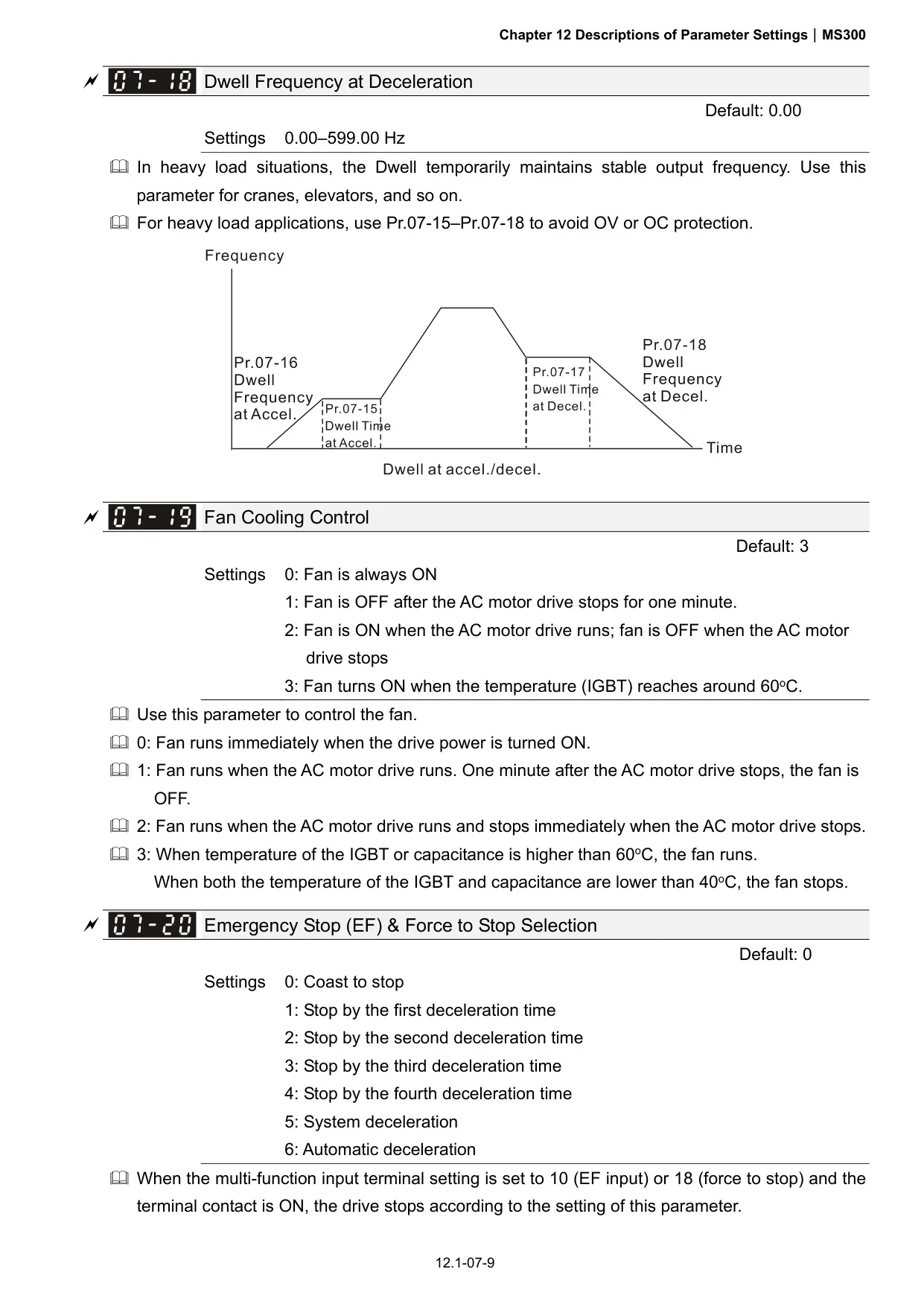

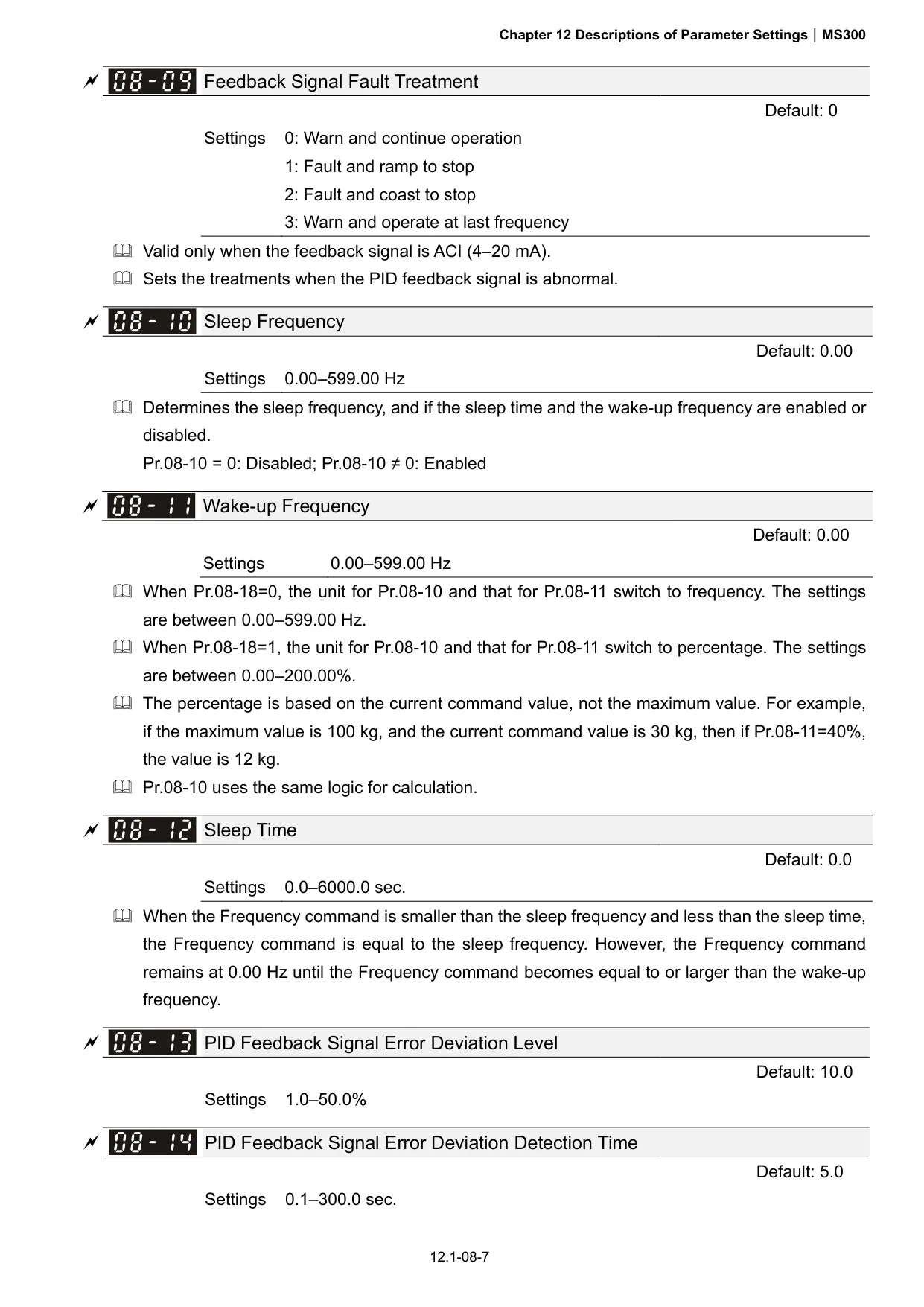

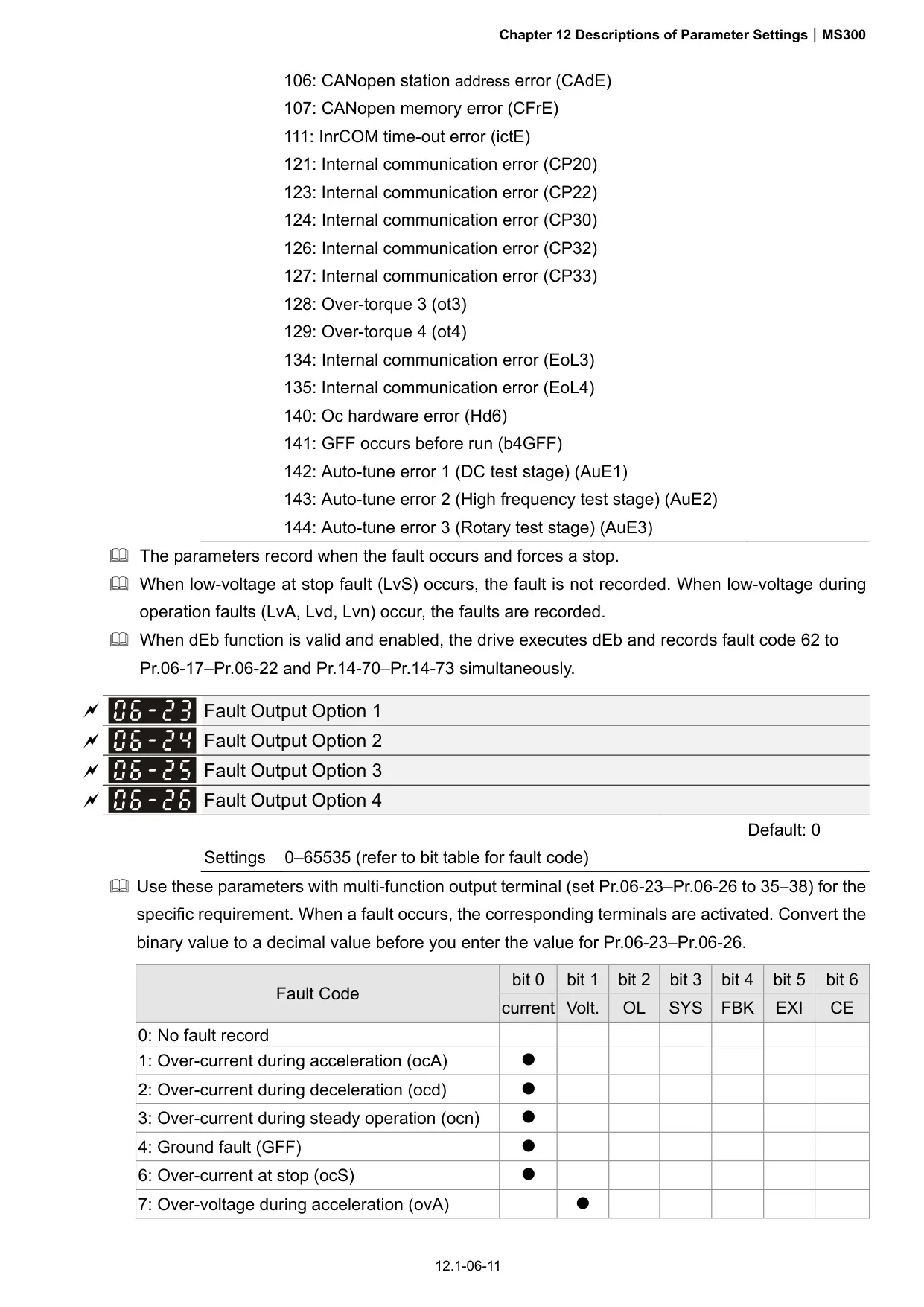

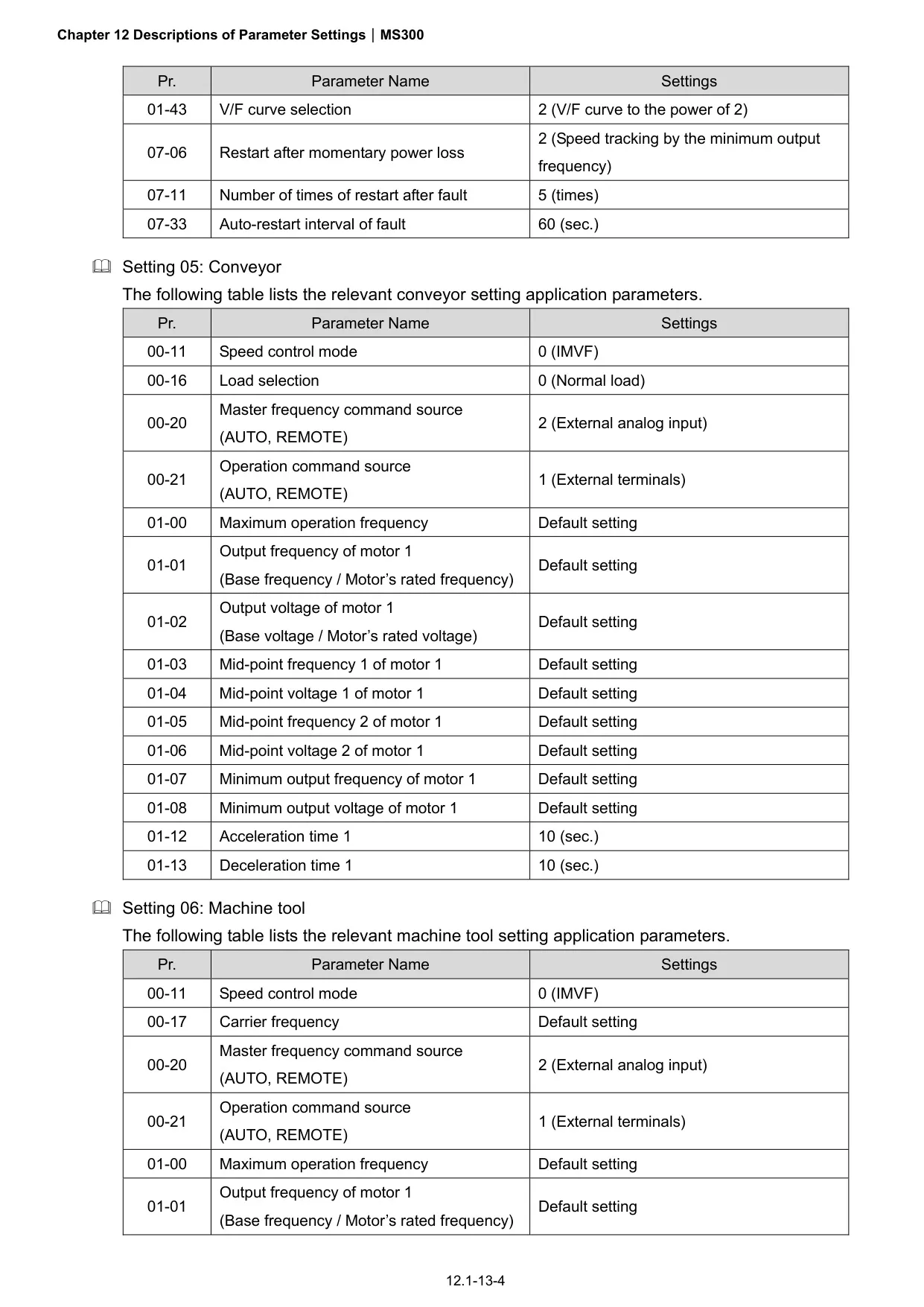

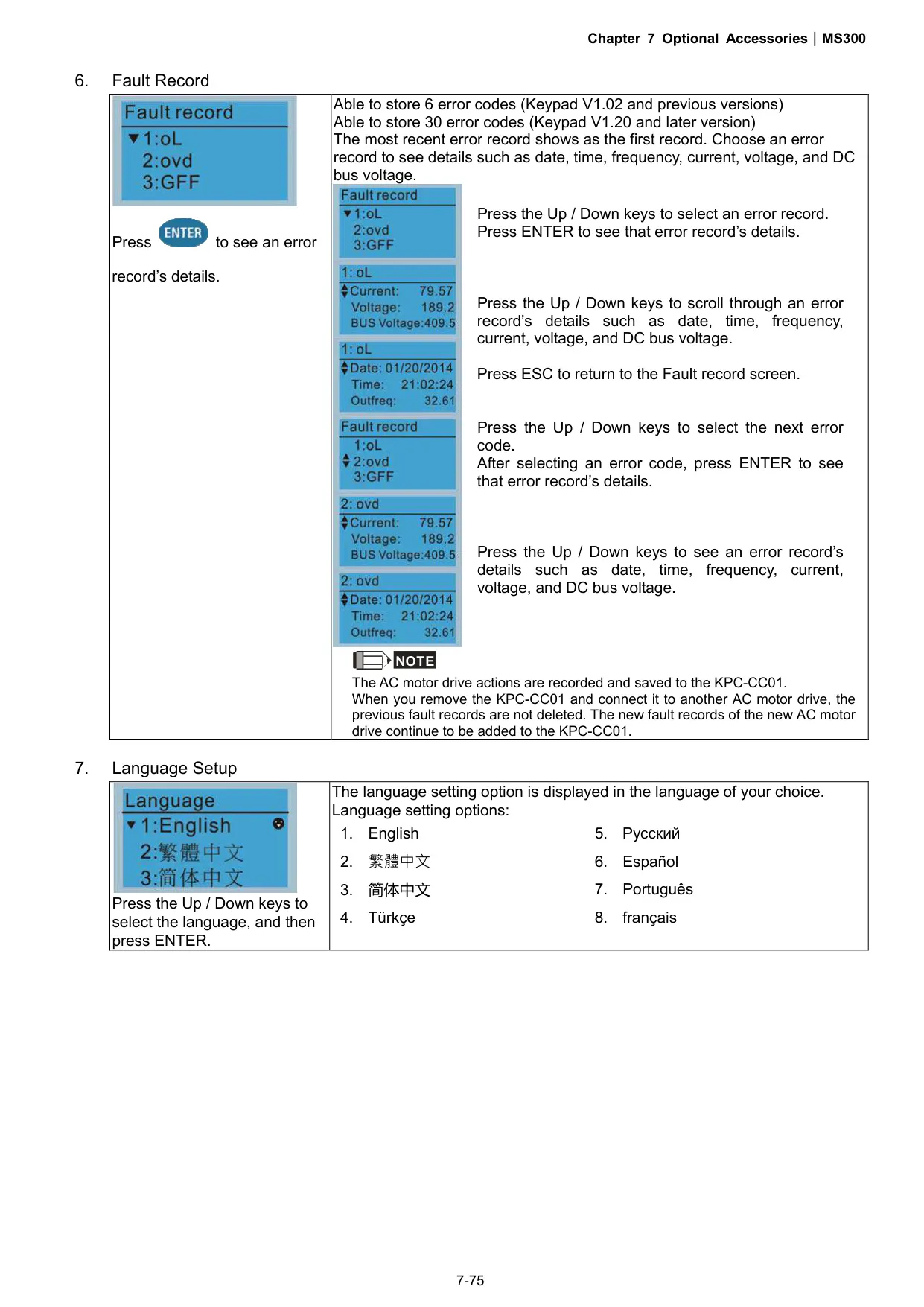

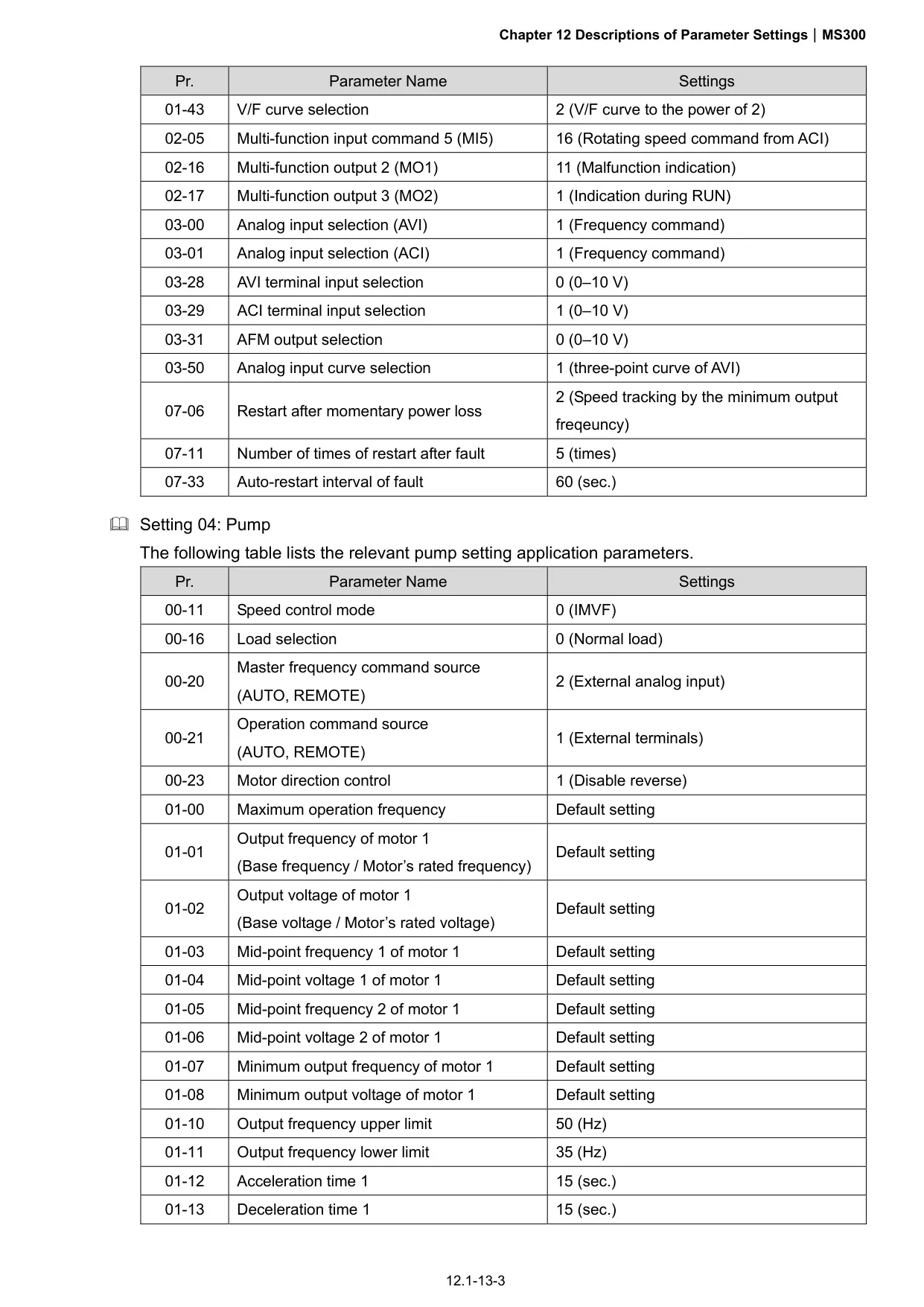

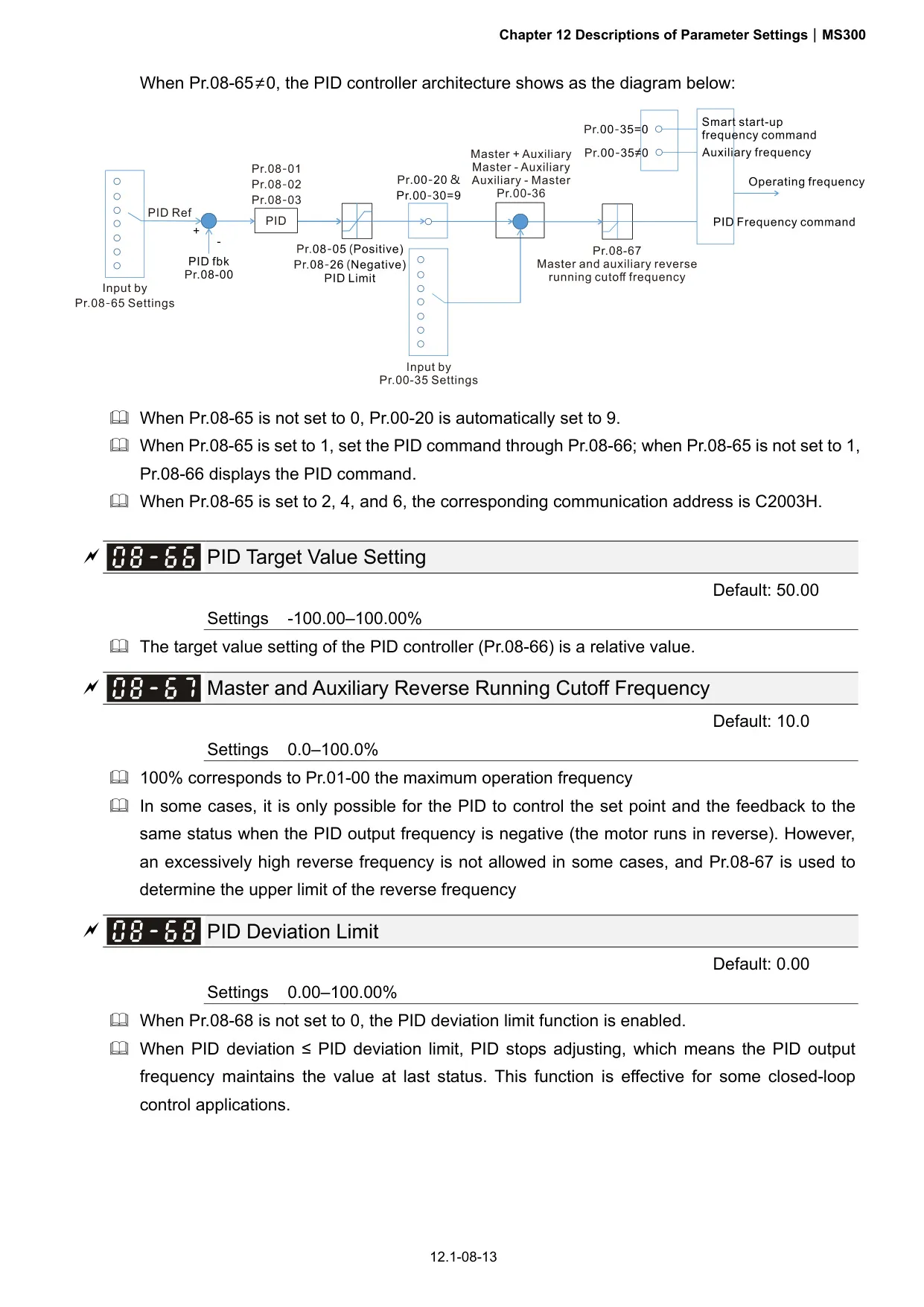

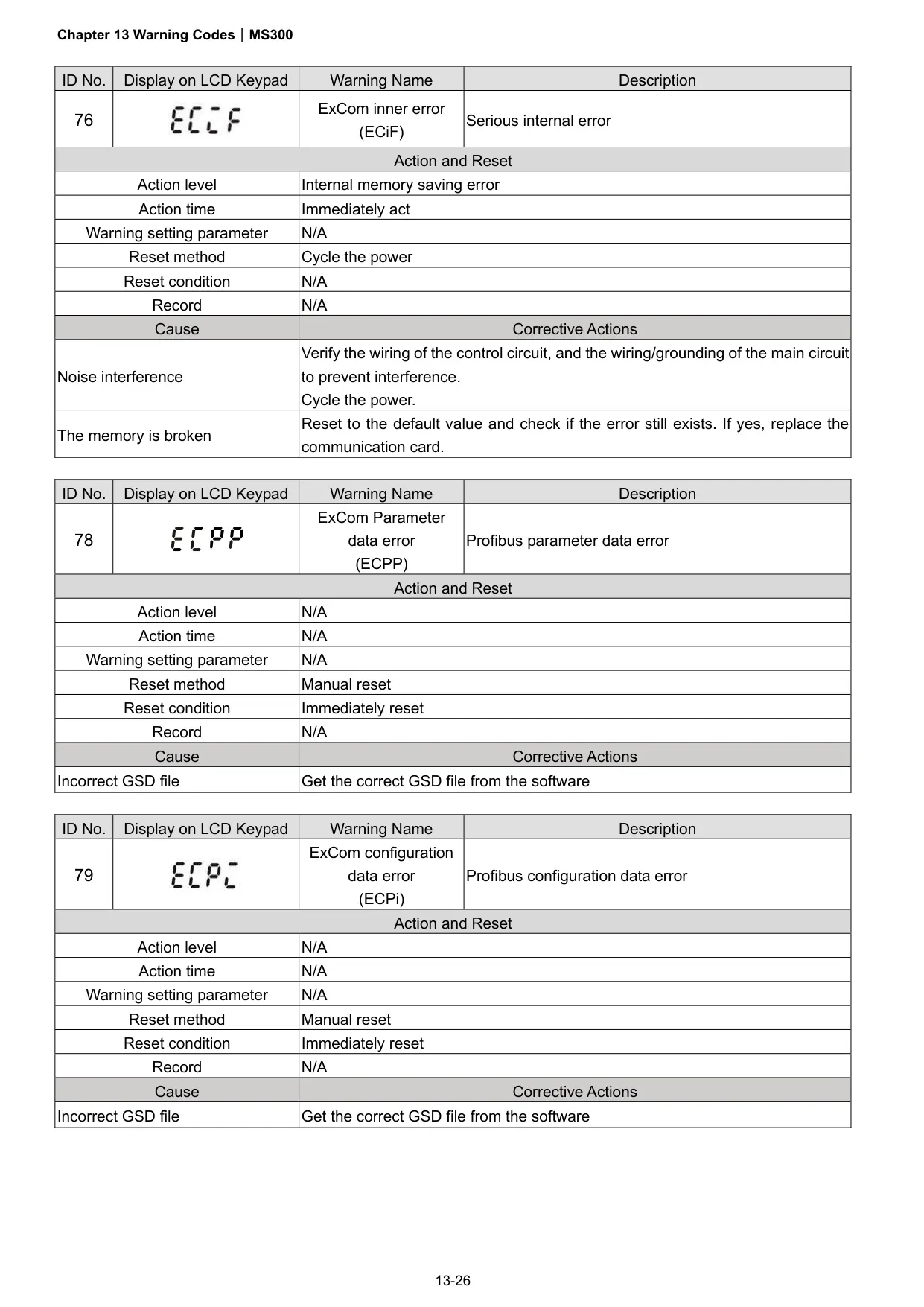

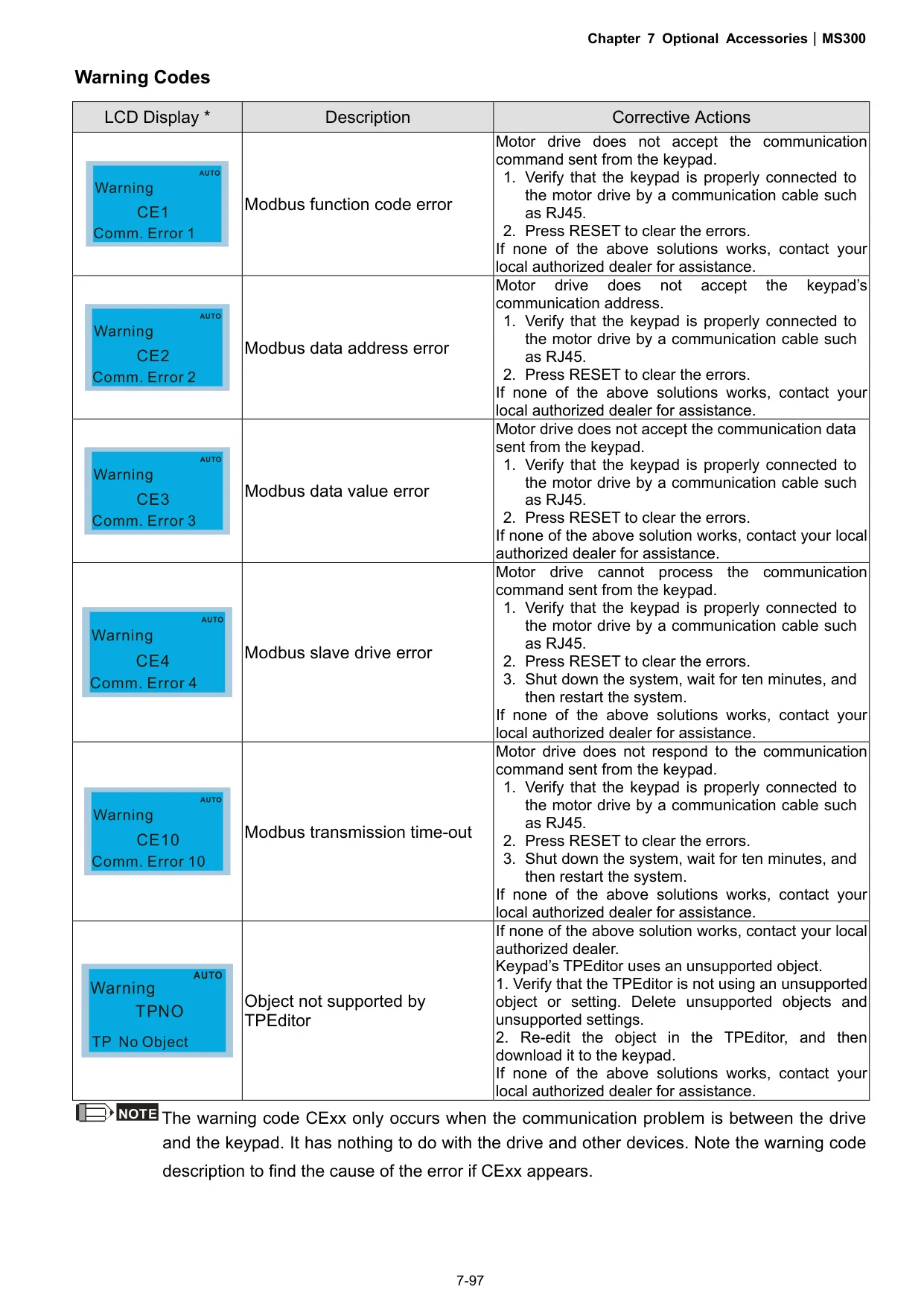

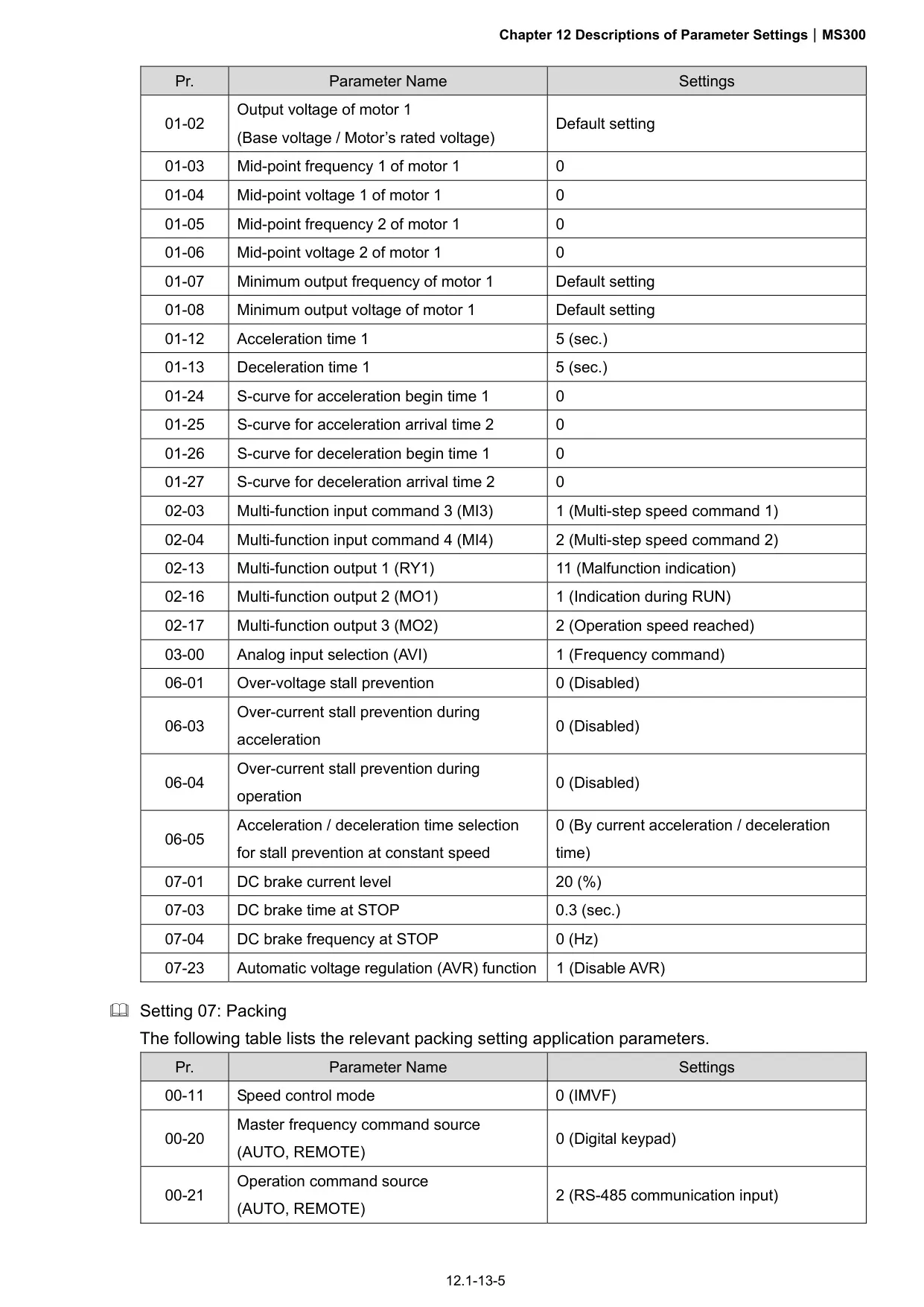

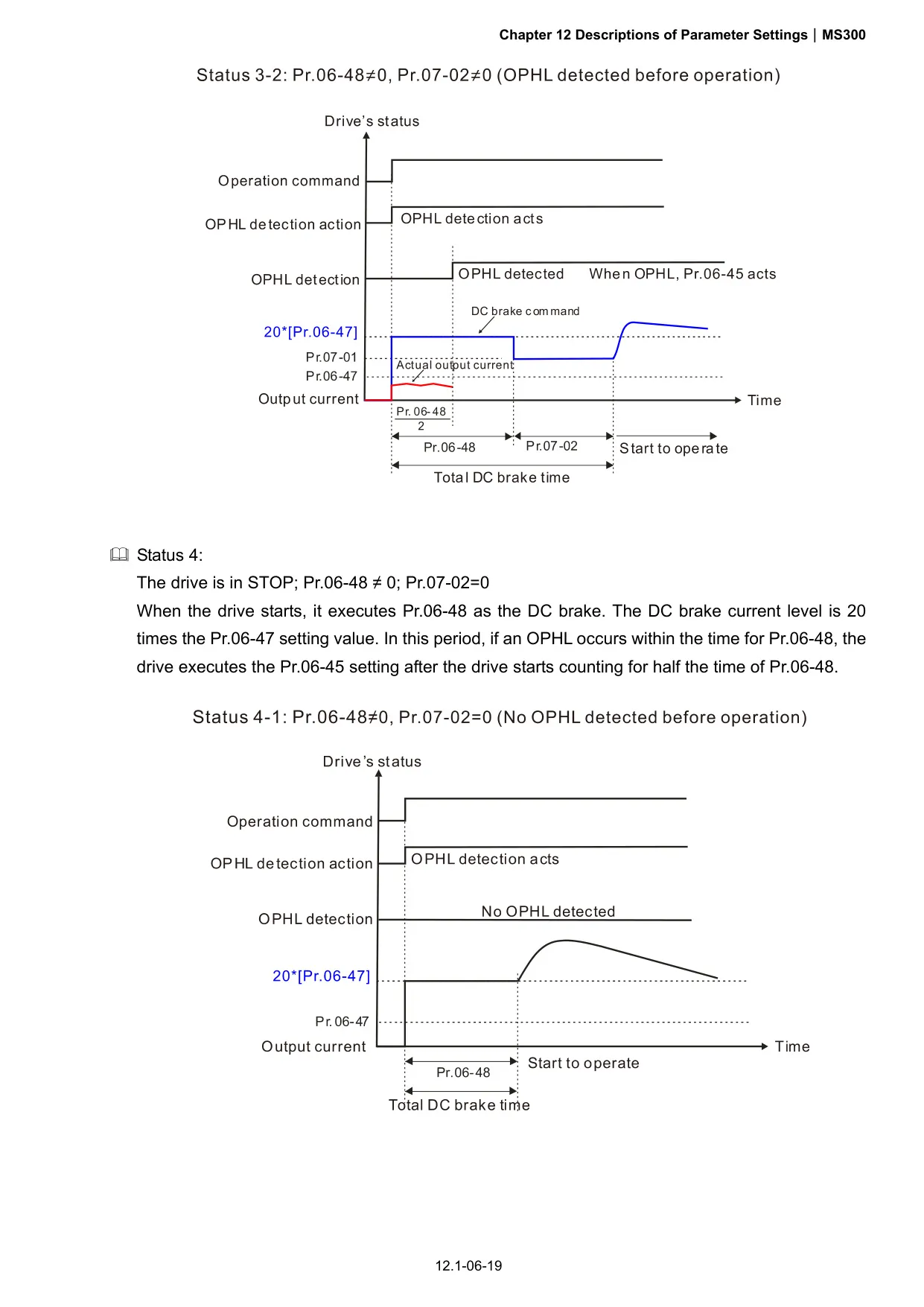

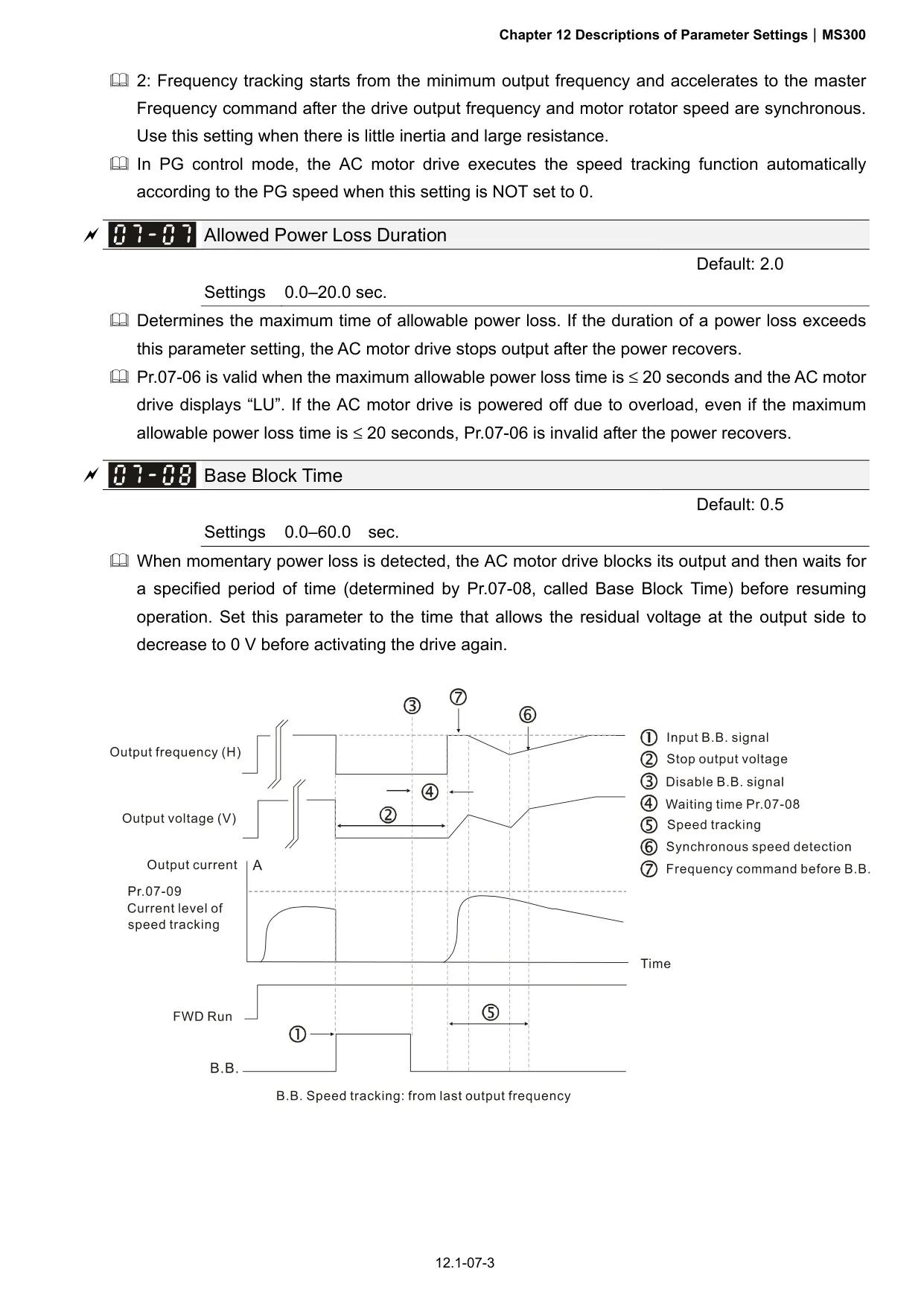

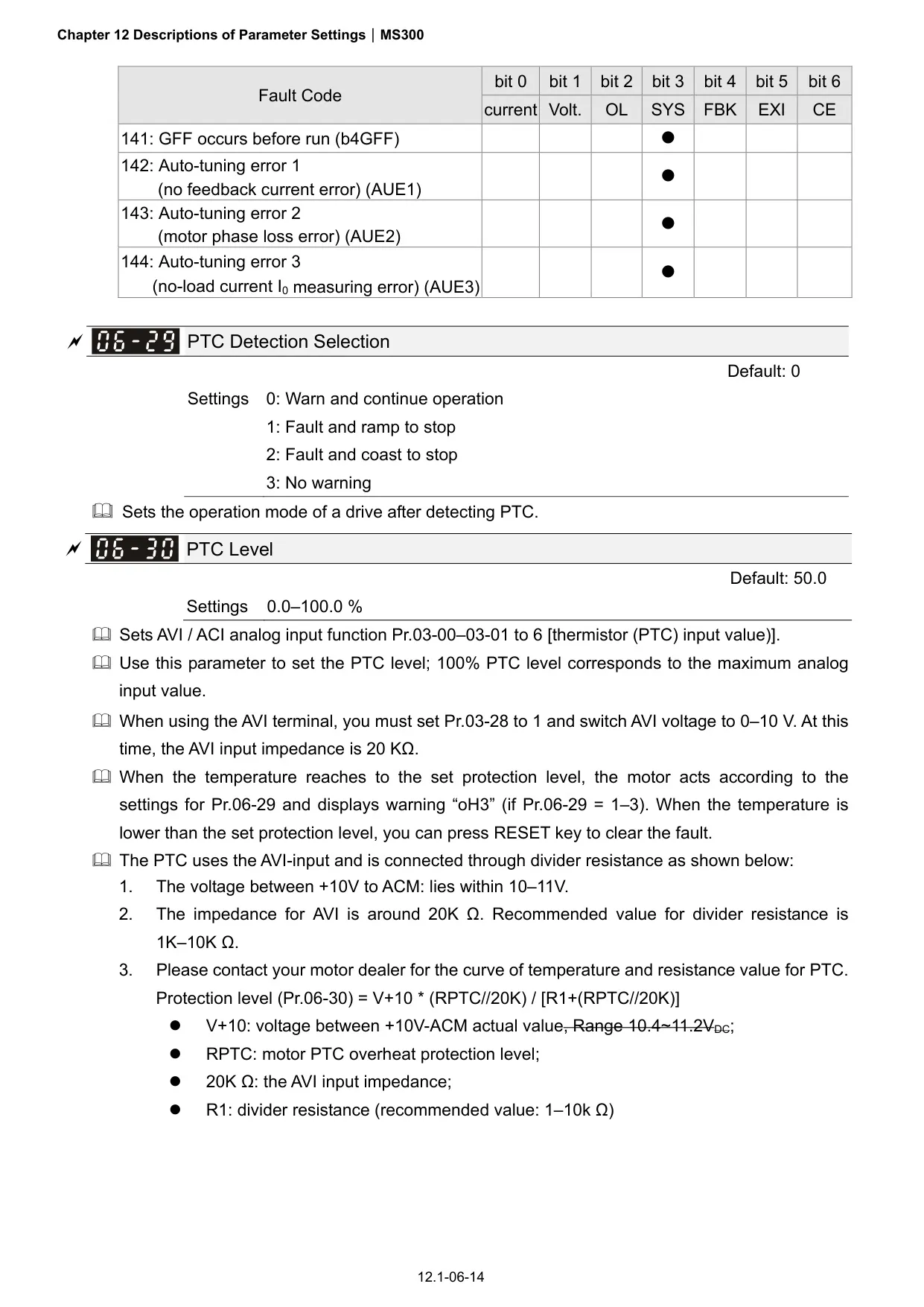

Beyond its core functionalities, the MS300 offers a suite of advanced operational features. These include PID control with sleep/wake-up functions, quick start capability, deceleration energy backup (DEB), and auto-restart after momentary power loss. Such features enhance operational resilience and efficiency, adapting the VFD's behavior to specific application demands like pumps, fans, or conveyors. The comprehensive diagnostic system, including up to six fault records, provides invaluable data for troubleshooting and preventive maintenance.
